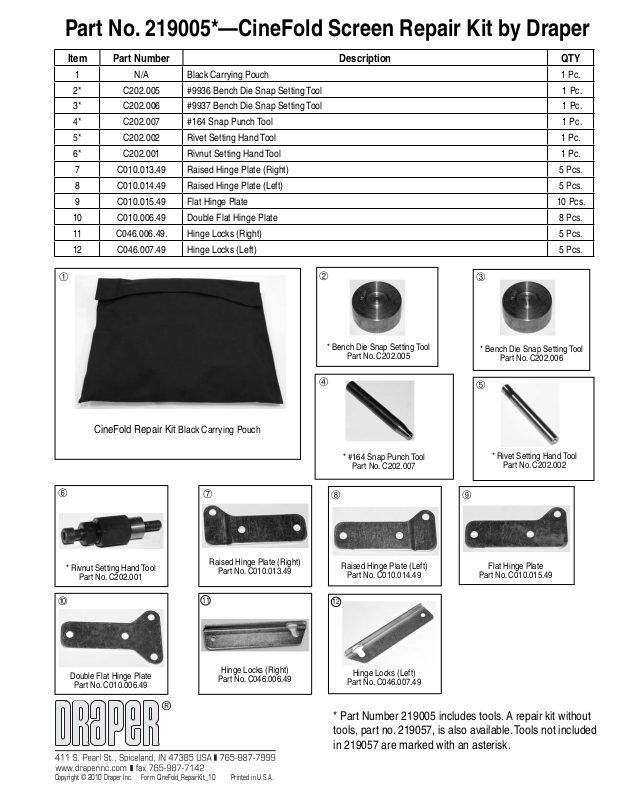

Part No. 219005*—CineFold Screen Repair Kit by Draper
Item Part Number Description QTY
1 N/A Black Carrying Pouch 1 Pc.
2* C202.005 #9936 Bench Die Snap Setting Tool 1 Pc.
3* C202.006 #9937 Bench Die Snap Setting Tool 1 Pc.
4* C202.007 #164 Snap Punch Tool 1 Pc.
5* C202.002 Rivet Setting Hand Tool 1 Pc.
6* C202.001 Rivnut Setting Hand Tool 1 Pc.
7 C010.013.49 Raised Hinge Plate (Right) 5 Pcs.
8 C010.014.49 Raised Hinge Plate (Left) 5 Pcs.
9 C010.015.49 Flat Hinge Plate 10 Pcs.
10 C010.006.49 Double Flat Hinge Plate 8 Pcs.
11 C046.006.49. Hinge Locks (Right) 5 Pcs.
12 C046.007.49 Hinge Locks (Left) 5 Pcs.
➀
CineFold Repair Kit Black Carrying Pouch
➅
* Rivnut Setting Hand Tool
Part No. C202.001
➆
Raised Hinge Plate (Right)
Part No. C010.013.49
➁
* Bench Die Snap Setting Tool
Part No. C202.005
➃
* #164 Snap Punch Tool
Part No. C202.007
➇
Raised Hinge Plate (Left)
Part No. C010.014.49
➂
* Bench Die Snap Setting Tool
Part No. C202.006
➄
* Rivet Setting Hand Tool
Part No. C202.002
➈
Flat Hinge Plate
Part No. C010.015.49
➉
Double Flat Hinge Plate
Part No. C010.006.49
11
Hinge Locks (Right)
Part No. C046.006.49
®
Copyright © 2010 Draper Inc. Form CineFold_RepairKit_10 Printed in U.S.A.
12
Hinge Locks (Left)
Part No. C046.007.49
* Part Number 219005 includes tools. A repair kit without
tools, part no. 219057, is also available. Tools not included
in 219057 are marked with an asterisk.
CineFold Repair Kit by Draper, Inc. page 2 of 3
9
Item Part Number Description QTY
I3 C011.004.049 Hinge Pin Spacers 10 Pcs.
14 C079.046 Black Endcaps 10 Pcs.
15 C012.130 Rubber Feet 5 Pcs.
16 C012.024 3/16" x 1¼" Std. Rivets 20 Pcs.
17 C012.025 3/16" x 13/8" Std. Rivets 20 Pcs.
18 C012.034 3/16" x 1¼" Shoulder Rivets 20 Pcs.
19 C012.035 3/16" x 13/8" Shoulder Rivets 20 Pcs.
20 C013.011 Spring Washers 30 Pcs.
21 C013.014 #8 Rivet Washers 30 Pcs.
22 C145.001 5/16" Steel Rivnuts 10 Pcs.
23 C145.002 5/16" Aluminum Rivcups 10 Pcs.
24 C021.001 Frame Snaps 20
13 14
Hinge Pin Spacer
Part No. C011.004.049
17 18
3/16" x 1-3/8" Std. Rivets
Part No. C012.025
21 22
Black Endcaps
Part No. C079.046
3/16" x 1¼" Shoulder Rivets
Part No. C012.034
15
Rubber Feet
Part No. C012.130
19
3/16" x 1-3/8" Shoulder Rivets
Part No. C012.035
23
16
3/16" x 1¼" Std. Rivets
Part No. C012.024
20
Spring Washers
Part No. C013.011
24
#8 Rivet Washers
Part No. C013.014
5/16" Steel Rivnuts
Part No. C145.001
www.draperinc.com
5/16" Aluminum Rivcups
Part No. C145.002
(765) 987-799
Frame Snaps
Part No. C021.001
CineFold Repair Kit by Draper, Inc. page 3 of 3
9
Item Part Number Description QTY
25* N/A #30 Drill Bit 1
26* N/A #2 Phillips Apex Screwdriver Bit 1
27 C021.008 Male Gypsy Studs 20
28 C151.006 Black Button Snaps 20
28 C036.001 Socket Snaps 40 Pcs.
29 C152.001 K.E. Knobs 5 Pcs.
30 C019.009 ¼"-20 x 1¾" Carriage Bolts 5 Pcs.
31 C013.033 ¼" Flat Washers 10
25 26
* #30 Drill Bit
29 30
K.E. Knobs
Part No. C152.001
* #2 Phillips Apex
Screwdriver Bit
¼"-20 x 1¾" Carriage Bolts
Part No. C019.009
27
Male Gypsy Studs
Part No. C021.008
31
¼" Flat Washers
Part No. C013.033
28
Black Button Snaps
Part No. C151.006
www.draperinc.com
(765) 987-799
