Chapter 1: General Safety Rules

#

Read this Safety & Operating Instructions manual before you use the DR DUAL-ACTION 3 PT HITCH LOG SPLITTER. Become
familiar with the operation and service recommendations to ensure the best performance from your machine. If you have any
questions or need assistance, please contact us at www.DRpower.com or call toll-free 1-800-DR-OWNER (376-9637) and one of
our Technical Support Representatives will be happy to help you.

Labels

Your DR DUAL-ACTION 3 PT HITCH LOG SPLITTER carries prominent labels as reminders for its proper and safe use. Shown
below are copies of all the Safety and Information labels that appear on the equipment. Take a moment to study them and make a
note of their location on your Log Splitter as you set up and before you operate the unit. Replace damaged or missing safety and
information labels immediately.

29394

# 29395

CONTACT US AT www.DRpower.com 3

Protecting Yourself and Those Around You

This is a high-powered machine, with moving parts operating with high energy. You must operate the machine safely. Unsafe
operation can create a number of hazards for you, as well as anyone else in the nearby area. Always take the following precautions
when using this machine:

 Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people, their property, and

themselves.

 Always wear protective goggles or safety glasses with side shields while using the Log Splitter to protect your eyes from

possible thrown debris.

 Avoid wearing loose clothing or jewelry, which can catch on moving parts.
 We recommend wearing gloves while using the Log Splitter. Be sure your gloves fit properly and do not have loose cuffs or

drawstrings.

 Wear shoes with non-slip treads when using your Log Splitter. If you have safety shoes, we recommend wearing them. Do

not use the machine while barefoot or wearing open sandals.

 Wear long pants while operating the Log Splitter.
 Use ear protectors or ear plugs rated for at least 20 dBA to protect your hearing.
 Keep bystanders at least 50 feet away from your work area at all times. Stop the Tractor engine when another person or pet

approaches.

Safety for Children and Pets

Tragic accidents can occur if the operator is not alert to the presence of children and pets. Children are often attracted to the
machine and the splitting activity.
precautions:

Never

assume that children will remain where you last saw them. Always follow these

 Keep children and pets at least 50 feet from the working area and ensure they are under the watchful care of a responsible

adult.

 Be alert and turn the Tractor off if children or pets enter the work area.
 Never allow children to operate the Log Splitter.

Hydraulic Safety

High fluid pressures are developed in hydraulic machines. Pressurized hydraulic fluid escaping through a pin hole opening can
puncture skin and cause severe blood poisoning. Therefore, the following Instructions should be heeded at all times.

 Do not operate the unit with frayed, kinked, cracked or damaged hoses, fittings, or tubing. Stop the Tractor engine, wait 5

minutes and relieve hydraulic system pressure before changing or adjusting fittings, hoses, tubing, or other system
components.

 Do not change any Log Splitter relief valve settings. They are set at the factory for best Splitter performance and safety.
 Do not check for leaks with your hand. Leaks can be located by passing cardboard or wood over the suspected area: Look for

discoloration. If injured by escaping fluid, see a doctor at once. Serious infection or reaction can develop if proper medical
treatment is not administered immediately.

 Always wear safety glasses to protect your eyes from hydraulic fluid.

4 DR

®

DUAL-ACTION 3 PT HITCH LOG SPLITTER

General Safety

Operating this Log Splitter safely is necessary to prevent or minimize the risk of death or serious injury. Unsafe operation can
create a number of hazards for you. Always take the following precautions when operating this Log Splitter:

 Your Log Splitter is a powerful tool, not a plaything. Exercise extreme caution at all times. The machine is designed to split

logs. Do not use it for any other purpose.

 Know how to stop the Log Splitter quickly; see “stopping the Splitter” in chapter 3.
 Never operate your unit on a slippery, wet, muddy, or icy surface. Exercise caution to avoid slipping or falling.
 See manufacturer’s instructions for proper operation and installation of accessories. Only use accessories approved by DR

Power Equipment.

 Never use the machine without ensuring that all guards and shields are in place.
 Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts on the Log Splitter. This includes

all shields and guards. Modifications to your machine could cause personal injuries and property damage and will void your
warranty.

 Allow only one person to operate the Log Splitter at any time.
 If the machine should start making an unusual noise or vibration, shut down the Tractor engine, wait 5 minutes for machine

to cool down, then inspect for damage. Vibration is generally a warning of trouble. Check for damaged parts and clean,
repair and/or replace as necessary.

 Never tamper with safety devices. Check their proper operation regularly.
 Before performing any maintenance or inspection procedure on the Log Splitter shut down the Tractor engine, wait 5 minutes

for machine to cool down.

 Never allow people who are unfamiliar with these instructions to use the Log Splitter. Allow only responsible individuals who

are familiar with these rules of safe operation to use your machine.

 Never overload or attempt to split logs beyond the manufacturer’s recommendation. Personal injury or damage to the

machine could result.

 While using the Log Splitter, don't hurry or take things for granted. When in doubt about the equipment or your

surroundings, stop the machine and take the time to look things over.

 Never operate the machine when under the influence of alcohol, drugs, or medication.
 Use the machine only in daylight.
 Stay alert for hidden hazards or traffic.
 Keep all nuts and bolts tight and keep the equipment in good operating condition.

A Note to All Users

No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must
apply common sense and operate this DR
www.DRpower.com or call 1-800-DR-OWNER (376-9637) for assistance.

®

Dual-action 3 PT Hitch log splitter in a safe manner. Contact us at

CONTACT US AT www.DRpower.com 5

A

Chapter 2: Setting Up The DR DUAL-ACTION 3 PT HITCH LOG SPLITTER

It may be helpful to familiarize yourself with the controls and features of your DR Dual-Action 3 PT Hitch Log Splitter as shown in
Figure 1 before beginning these procedures. If you have any questions at all, please feel free to contact us at www.DRpower.com.

DR DUAL-ACTION 3 PT HITCH LOG SPLITTER Controls and Features

Operator Lever

Inlet Hose

Splitting Wedge

Front Log Stop

Return Hose

Rear Log Stop

Choke
Lever

Wood Tray

Tractor 3Point Hitch

ttachment Points

Figure 1

Fuel
Shut-off

6 DR

®

DUAL-ACTION 3 PT HITCH LOG SPLITTER

Specifications

3 6

11 7

Engine
Tractor Requirements
Bed height
Wedge
Log Trays
Force/Tonnage

Log Length
Log Diameter*
Cycle Time
Weight
Dimensions
Cylinder Size
Control Valve

Tractor dependant
Category 1 with hydraulic couplings, 2500 PSI recommended
Tractor dependant, 3 PT hitch range

6.61" (168mm) H, .75" (19mm) W, high carbon steel.

27.45in (697mm) L x 11.45in (290mm) W
Up to 13 Tons (Tractor dependant)
20 inches
24 inches
Approx. 6 seconds (Tractor dependant)
232 lbs (105kg)
50"L X 31.5"W X 28"H
3" (76mm) Bore, 18.51" (470mm) Stroke
Integrated Pressure Relief

*The diameter of the log is indicative - a small log can be difficult to split when it contains knots or a particularly tough fiber. On
the other hand, it may not be difficult to split logs with regular fibers even if its diameter exceeds the maximum indicated above.

Assembling the DR DUAL-ACTION 3 PT HITCH LOG SPLITTER

Tools and Supplies Needed:

 Two 3/4" Wrenches
 Two 9/16" Wrenches
 Two 1/2" Wrenches
 17mm Wrench

1. Open the Parts Box and lay them out on a clean flat area (Figure 2).

Note: For assembly location, the part numbers in the following list can be referenced to the Parts List and illustrations in Chapter 6.

 Jack Stands
 Wire Cutters
 Safety Glasses

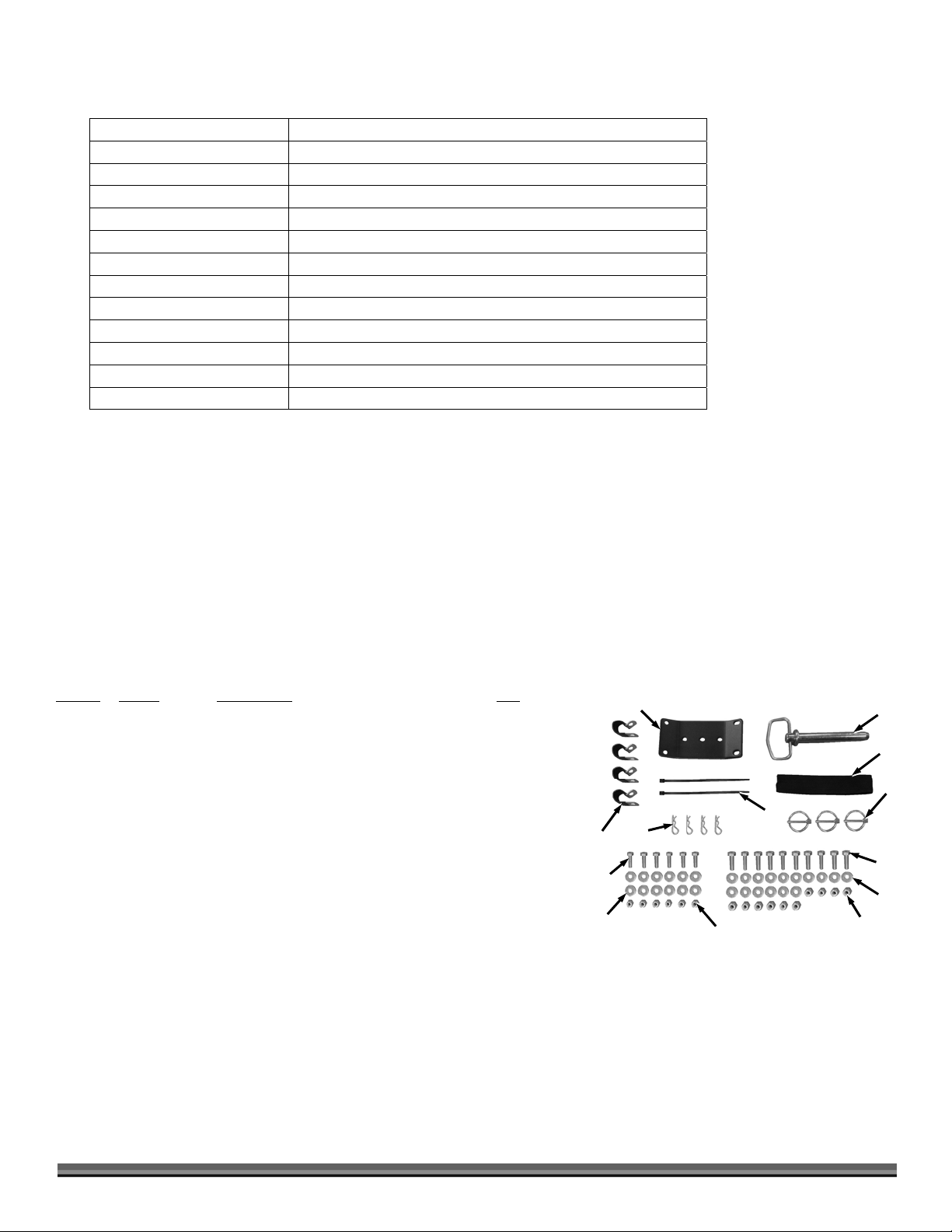

Parts Supplied in Parts Box (Figure 2):

Item #

Part # Description Qty

1 ............. 29361 .............. Brace, Cross .................................................... 1

2 ............. 24537 .............. Hitch Pin 3/4" X 6" ......................................... 1

3 ............. 27610 .............. Abrasion Resistant Sheathing, 15.5in ............ 1

4 ............. 24538 .............. Linch Pin, 3/16" X 1-9/16" ............................. 3

5 ............. 15043 .............. Bolt, HHCS, 3/8-16 X 1-1/4", GR5 ................. 10

6 ............. 11241 .............. Washer, Flat, 5/16 USS, ZP ........................... 28

7 ............. 11075 .............. Nut, Nylon Lock, 3/8-16, ZP .......................... 10

8 ............. 11076 .............. Nut, Nylon Lock, 5/16-18, ZP ........................ 6

9 ............. 11158 .............. Bolt, HCS, 5/16-18 X 1", ZP ........................... 6

10 ........... 29379 .............. Tube Clamp, 3/4", Vinyl Coated .................... 4

11 ........... 15192 .............. Pin, Hitch Clip 5/16" - 3/8" ............................ 4

12 ........... 11214 .............. Cable Tie, 7-1/2 Long ..................................... 2

Compare the contents of the Parts Box with the “Parts Supplied” list above. If
you have any questions please contact us at www.DRpower.com or call 1-800­DR-OWNER (376-9637) for assistance.

10

9

6

Figure 2

1

12

8

2

4

5

CONTACT US AT www.DRpower.com 7

Figure 3

A

Tighten
(both sides)

Remove
(both sides)

Assembly

We recommend two people when handling assemblies during the following
procedures. The assemblies involved are heavy and could cause injury when
lifting or if dropped.

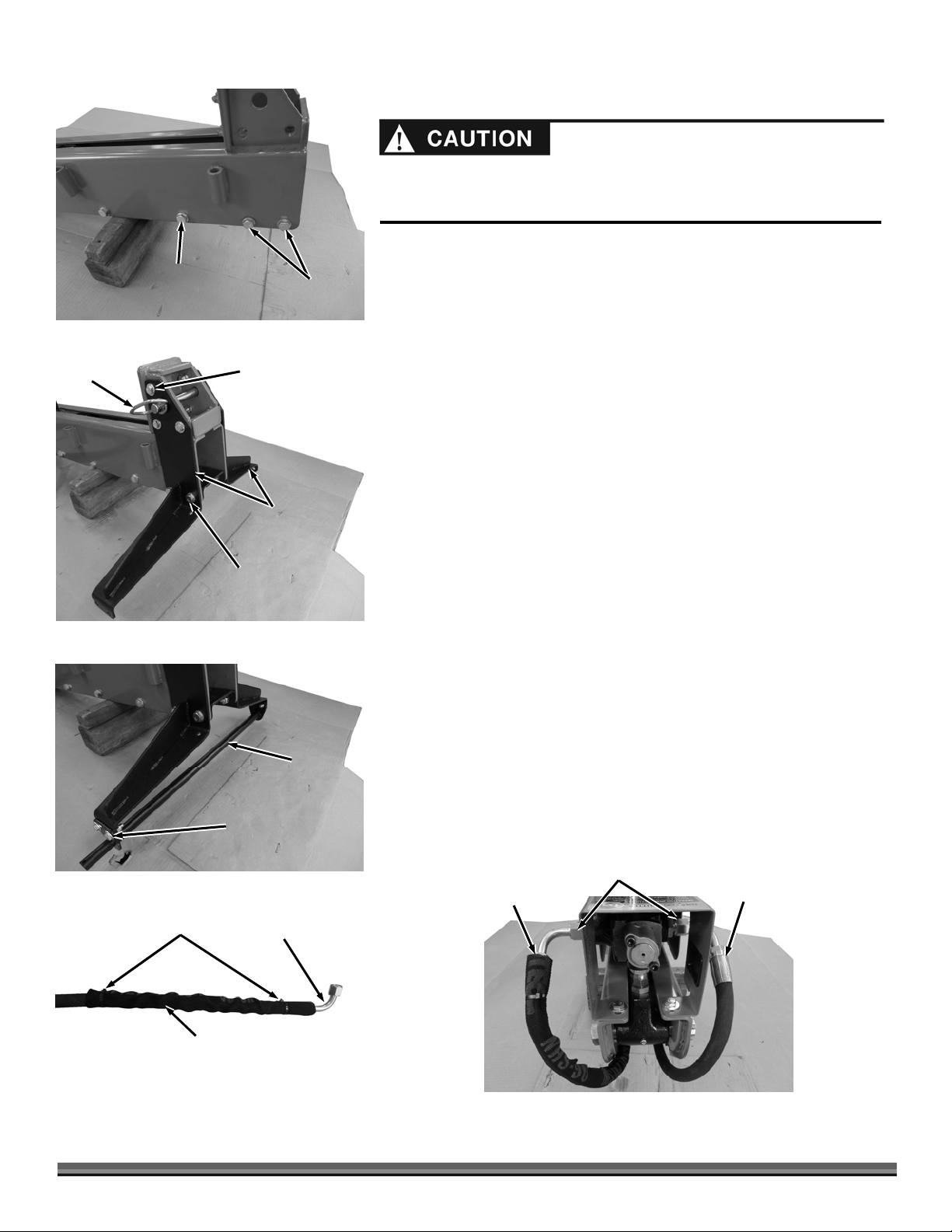

1. Block the rear end of the Beam Assembly up to gain access to the hardware

and remove the first two sets on each side (Figure 3). Tighten the third set on
each side using a 3/4" Wrench.

2. Position the two Mounting Brackets and insert the large Hitch Pin to locate

them (Figure 4).

Hitch Pin

Figure 4

Figure 5

3/8" Bolts, Washers
and Locknuts
(6 places)

Mounting
Brackets

1/2" Bolts, Washers
and Locknuts
(4 places)

xle

3/8" Bolts, Washers
and Locknuts
(6 places)

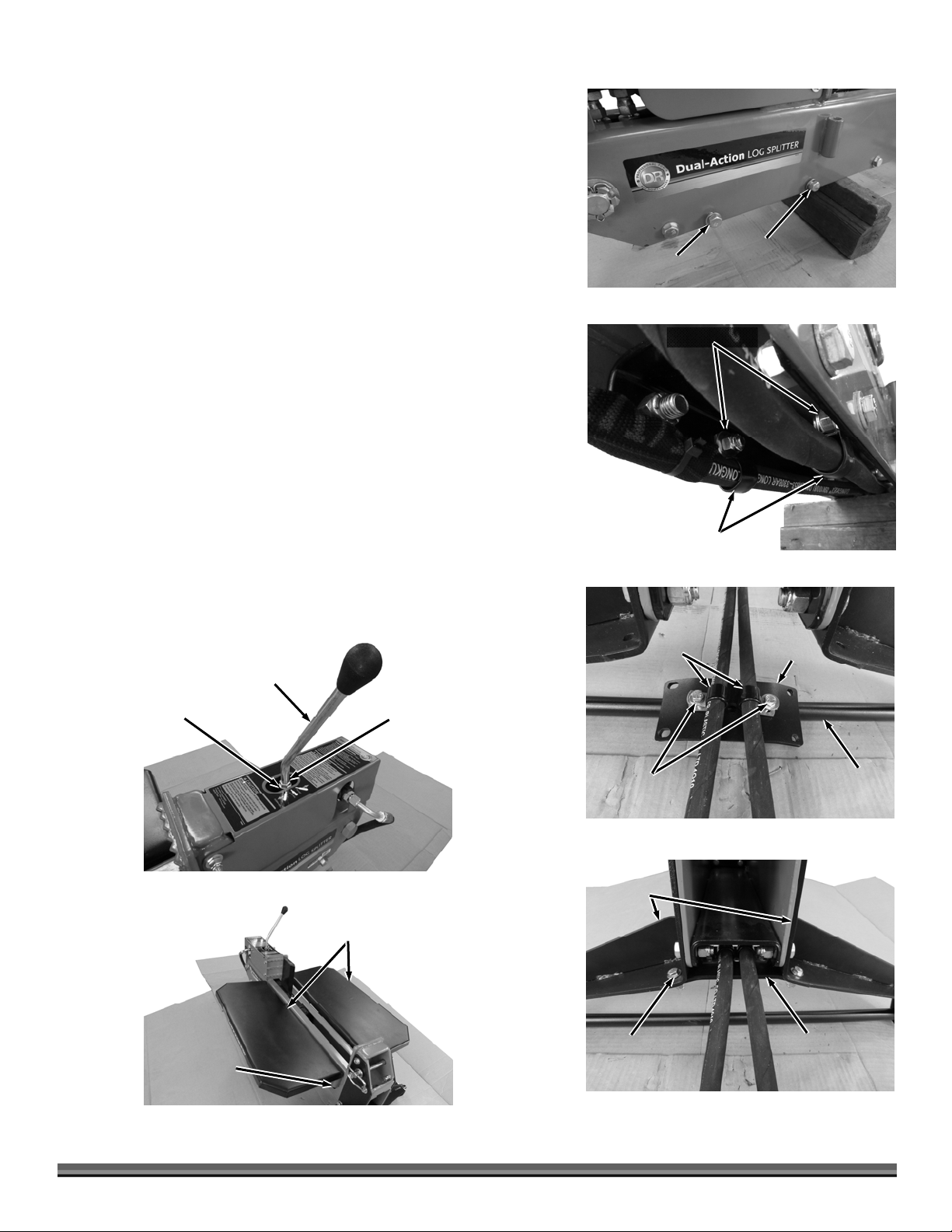

3. Install the six sets of 3/8" Bolts, Washers (one on bolt side and one on nut

side) and Locknuts by hand.

4. Install the four sets of 1/2" Bolts, Washers (bolt side and nut side) and

Locknuts by hand that you removed in step 1.

Note: As the hardware is tightened in the next step, make sure the Hitch Pin moves
freely in its holes and does not bind.

5. Tighten the 3/8" hardware using two 9/16" Wrenches.

6. Tighten the four 1/2" Hardware with two 3/4" Wrenches.

Note: Install the hardware in the next step with the Bolt threads and Locknuts on
the inside so they will not interfere with arms of your Tractors 3 point hitch.

7. Position the Axle with its mounting ears on the outside of the two Mounting

Brackets and install the Axle with 3/8" Bolts, Washers (one on bolt side only)
and Locknuts using two 9/16" Wrenches (Figure 5).

8. Slide the Sheathing over the long Elbow end of one of the Hoses and secure

it with the two Cable Ties (Figure 6).

Note: Remove protective Caps as needed for the following Hydraulic Hose
connections

9. Install both Hoses onto the Valve angled rearward at a 45 degree angle so it

can be routed under the center of the Beam Assembly (Figure 7). Tighten with a
17mm Wrench.

Hose with
Sheathing

Valve Fittings

Hose without
Sheathing

Cable Ties

Sheathing

Figure 6

8 DR

®

DUAL-ACTION 3 PT HITCH LOG SPLITTER

Long Elbow

Figure 7

10. Block the front end of the Beam Assembly up to gain access to the hardware

A

J

and remove and discard the second set of hardware on each side (Figure 8).
Tighten the third set on each side using a 3/4" Wrench.

11. Place a Hose Clamp over each Hose and attach the Clamp to the Beam with

3/8" Bolts, Washers (one on bolt side and one on nut side) and Locknuts
using two 9/16" Wrenches (Figure 9).

12. Route the Hoses down the underside of the Beam to the rear.

13. Place a Hose Clamp around each Hose near the Axle and loosely attach the

Clamps to the Cross Brace with 5/16" Bolts (clamp side) and Washer and
Locknut (bottom side) (Figure 10).

14. Position the Cross Brace onto the Mounting Brackets and secure with four

5/16" Bolts, Washers(one on bolt side and one on nut side), and Locknuts
using two 1/2" Wrenches (Figure 11).

15. Pull the Hoses to take up any sagging under the Beam and tighten the

Clamp hardware using two 1/2" Wrenches.

16. Remove the Nut and Flat Washer from the Control Lever threads and

reinstall the Nut all the way onto the threads (Figure 12).

17. Place the Washer onto the threads and screw the Control Lever into the top

of the Control Valve as far as it will go. Turn it back to the desired position
depending of your preference to split on the right or left side of the splitter.
Tighten the Jam Nut against the Valve to secure the Lever using a 17mm
Wrench.

18. Install the Trays onto the sides of the Beam assembly and secure with the

Hitch Clips (Figure 13).

Control
Lever

Figure 8

Figure 9

Remove
(both sides)

3/8" Hardware

Hose Clamps

Hose
Clamps

Tighten
(both sides)

Cross
Brace

Flat Washer

Figure 12

Mounting
Tubes

Figure 13

Trays

am Nut

5/16"
Hardware

Figure 10

Mounting
Brackets

5/16" Hardware
(4 Places)

Figure 11

CONTACT US AT www.DRpower.com 9

Cross
Brace

xle

s

Tractor
Hydraulic
Connectors

Attaching the Log Splitter to the Tractor

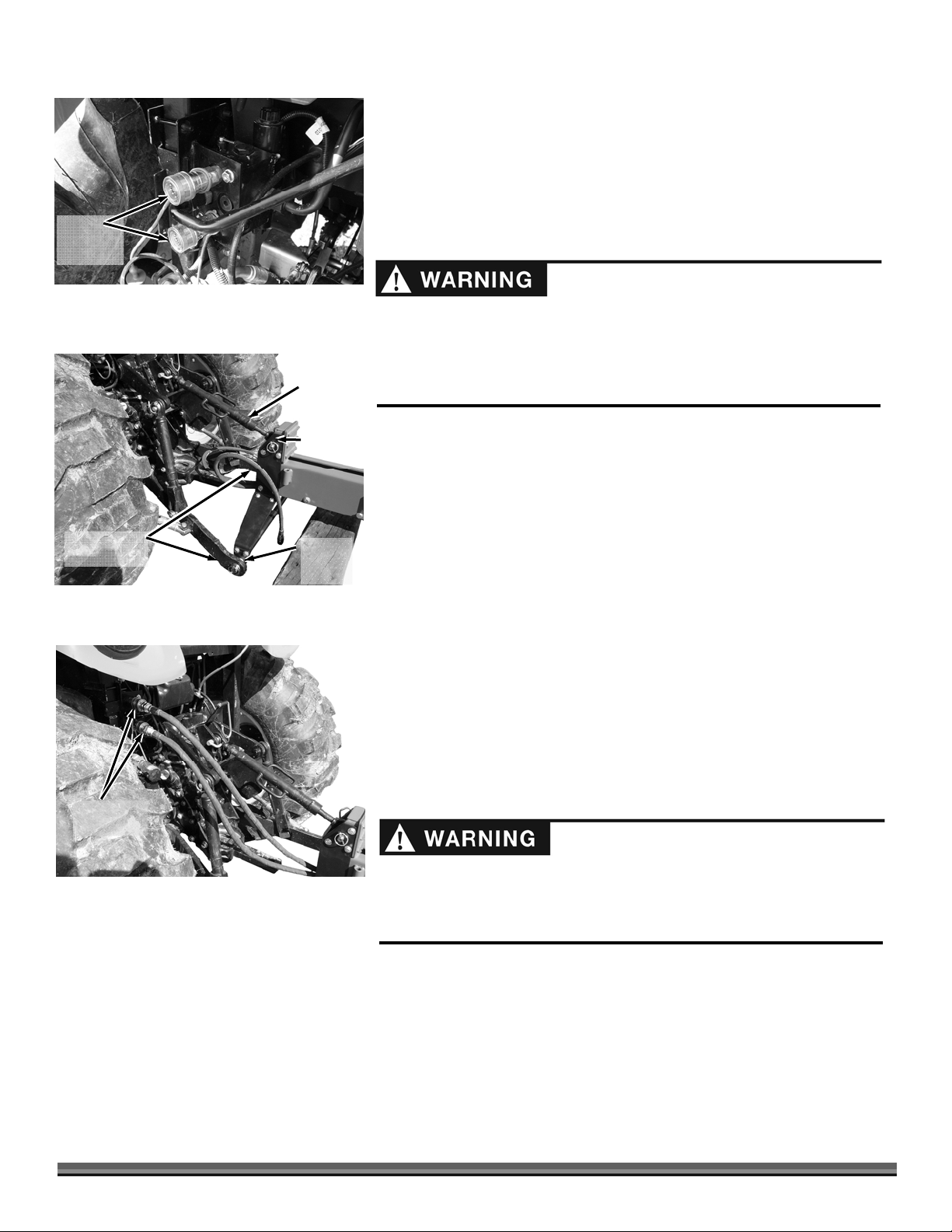

There are many different types and sizes of Tractor Hydraulic Connectors
(Figure 14). For this reason the Splitter Hoses do not have Connectors on the
ends. This allows you to purchase the correct type/size for your application.
You may need to bring your Connectors to the supplier to ensure you get the
correct mating Connectors for your Tractor. The Splitter Hose threads are 1/2"
NPT Male where the Connector you will purchase attaches to the Hose.

Figure 14

Lower (lifting)
Draft Arms

Figure 15

Hose
Connections

Upper (pivot)
Draft Arm

Upper
Mounting
Bracket

Splitter
Hookup
Pin

 Before performing the following procedure, be sure your Tractor engine is

off, brake is set, and the key removed for safety.

 Refer to your tractor manual or Tractor supplier before removing

connectors or performing any procedures involving Tractor specific
alterations to prevent damage to equipment or personal injury.

NOTE: Blocking the Splitter up off the ground to the level that the three point hitch
can adjust to will aid attachment. It is also a good idea to store the Splitter in this
manner in between use.

1. Position the Tractor to the Log Splitter and position the Lower Draft Arms to

the Splitter Hookup Pins (Figure 15).

2. Slide the Lower Draft Arms onto the Splitter Hookup Pins and secure with

Tractor Hitch Pins.

3. Position the Upper Draft Arm inside the Mounting Bracket and align with the

Mounting Bracket Holes.

4. Insert the Tractor Hitch Pin to secure the Upper Draft Arm to the Splitter.

5. Attach the left side Splitter Hose Connector to the pressure Port coming

from the Tractor pump (Figure 16). Attach the right side Splitter Hose
Connector to the return Port going to the Tractor Hydraulic Tank.

Note: If the Hoses are attached to the wrong Connectors the direction that the
Operator Lever is pushed will be opposite the direction of the Wedge. Simply swap
the Hoses to ensure the Wedge travels in the same direction that the Operator Lever
is pushed.

Do not lift the Splitter to the full height of the 3 Point Hitch range. The top

Figure 16

link of some tractors may hit the splitter frame and become damaged. Check
your range carefully so you know how high the splitter can be safely lifted for
transport.

10 DR

®

DUAL-ACTION 3 PT HITCH LOG SPLITTER

Chapter 3: Operating The DR DUAL-ACTION 3 PT HITCH LOG SPLITTER

It may be helpful to better familiarize yourself with the features of your Log
Splitter by reviewing Figure 1 in Chapter 2 before beginning the steps outlined
in this chapter.

Note: Make sure the Hydraulic Hoses and 3 PT Hitch are attached securely as

described in Chapter 2. All logs should be no longer than 20".

Operator
Zone

Operator
Zone

 Read and understand all instructions, safety precautions, and/or

warnings listed in “Chapter 1 General Safety Rules” before operating this
DR Dual-action 3 PT Hitch Log Splitter. If any doubt or question arises
about the correct or safe method of performing anything found in this
manual, please contact our Customer Service Representatives at our toll
free number: 1-800-DR-OWNER (376-9637).

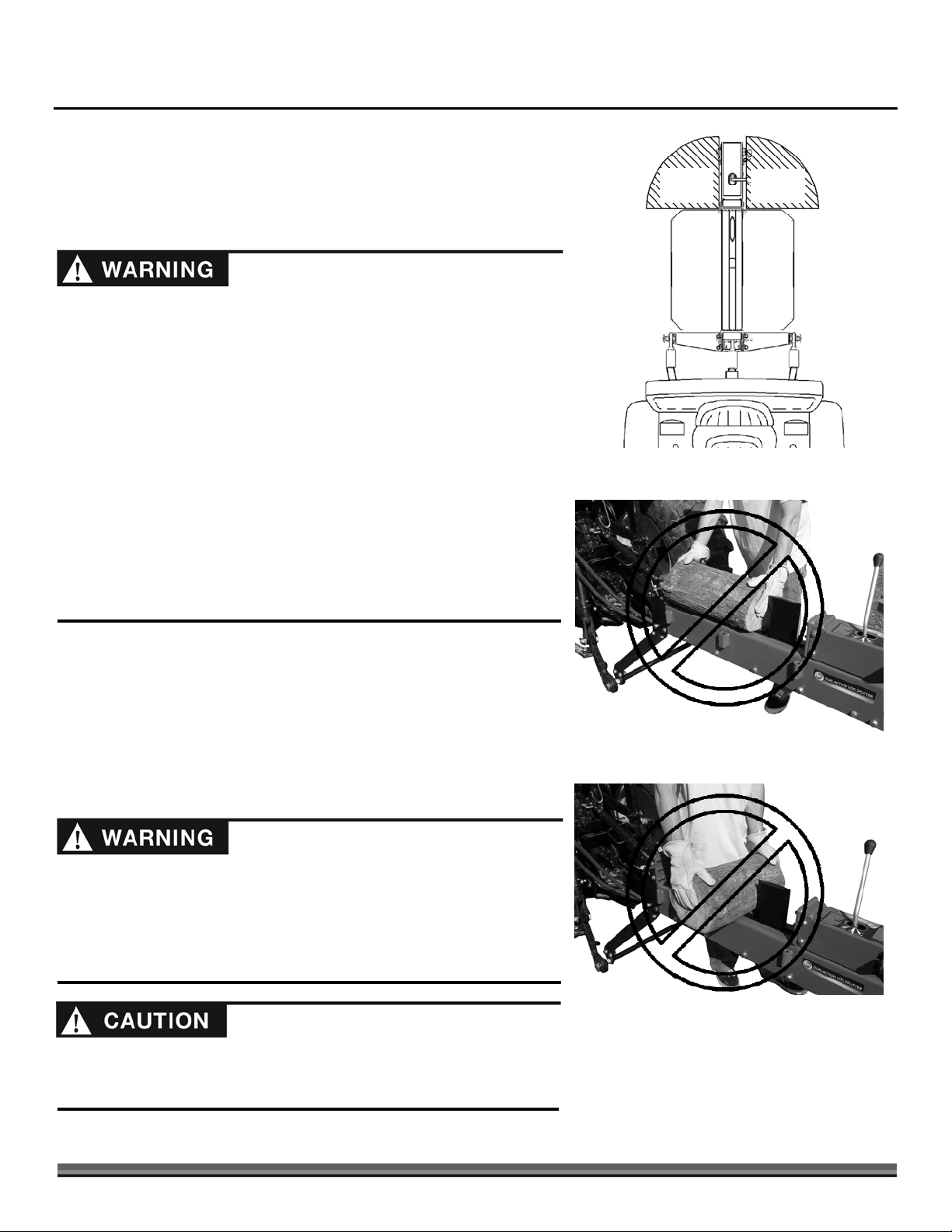

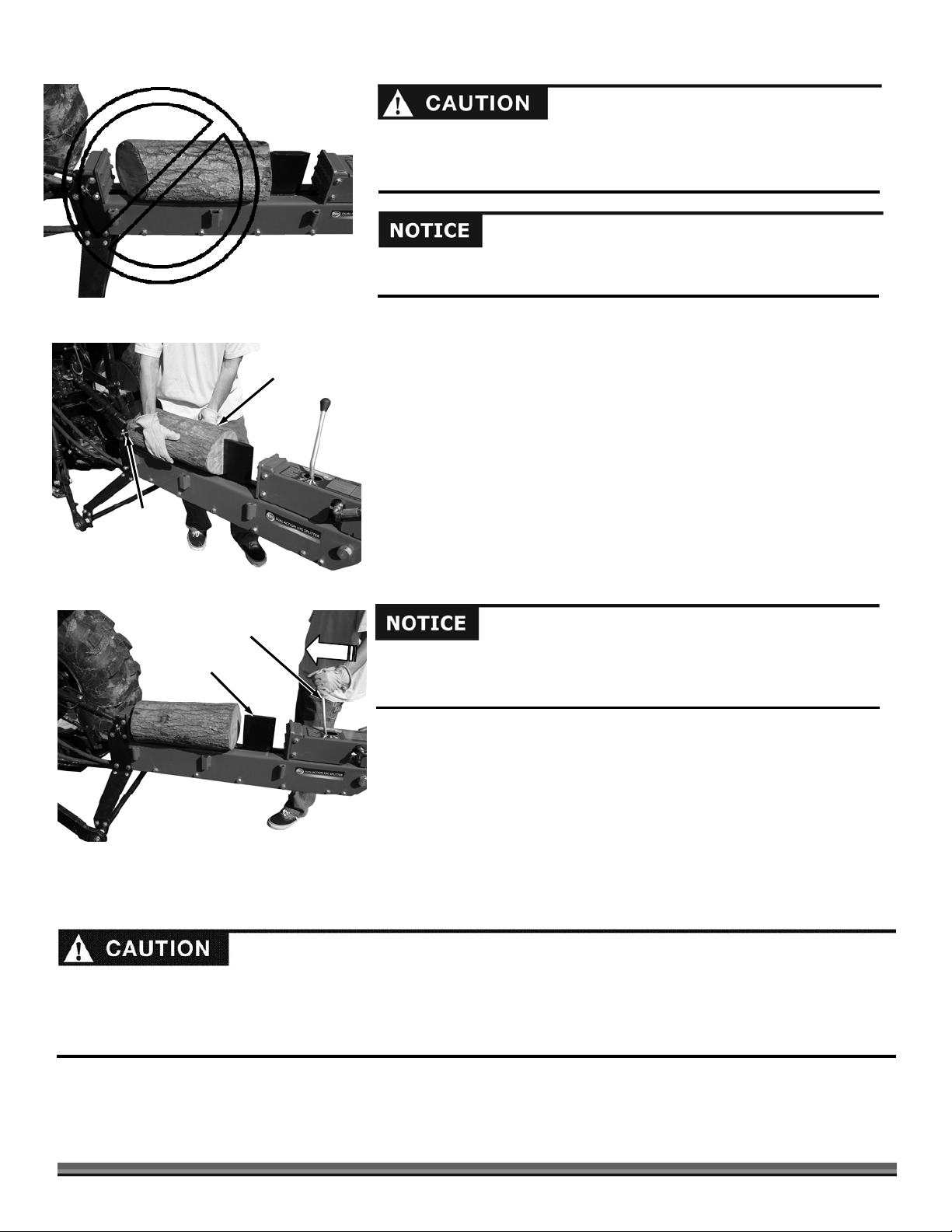

 When operating the Log Splitter, make sure you are standing in the safe

operating area (OPERATOR ZONE) as shown in figure 17. You must stay
in the safe operating area at all times when the splitting wedge is in
motion (whether extending or retracting). Never place any part of your
body into a position that causes an unsafe operating condition.

 Before loading and operating the Log Splitter, always wear protective

gear, INCLUDING safety goggles, hearing protection, tight-fitting gloves
without draw strings or loose cuffs, and steel-toed shoes.

 Use the following photos for the correct and incorrect methods of

splitting logs. Never split a log using an incorrect or unsafe method.

1. Start the Tractor and adjust your Splitter to the desired height with the

Tractor 3 PT Hitch.

2. Make sure the Tractor is in neutral and the Emergency Brake is set.

3. Set throttle and power the hydraulics to the Splitter as necessary for your

Tractor.

4. Using the Control Lever, make the Wedge travel all the way to the end of

the stroke at least twice to be sure to bleed any residual air from the hoses.

TOP VIEW

Figure 17

Figure 18

 Do not place your hands on the ends of the log when loading the Log

Splitter. This is a very UNSAFE method and could result in injury to your
hands (Figure 18).

 Do not reach or step across the rail while the Log Splitter is running. This

is a very UNSAFE method which could cause personal injury or even
death.

Figure 19

Never attempt to split wood across the grain. The Log Splitter was not
designed for cross-grain splitting. Doing so could damage the Log Splitter
and may cause personal injury (Figure 19).

CONTACT US AT www.DRpower.com 11

A

Make sure both ends of the log you are splitting are cut as square as possible.
This will prevent the log from sliding out of position while under pressure
(Figure 20)

Never run the Log Splitter unless the Hydraulic Fluid Tank is at the proper
level.

Figure 20

Figure 21

Wood

gainst

Stop Base

Valve Control
Handle

Wedge

Hands on
Sides of Wood

5. Place the log on the Log Splitter. Grasp the log on the sides near the middle

of the block (Figure 21). Center the log, side-to-side, on the rail of the Log
Splitter, making sure that one end is against the Stop Base.

6. Using only your hand, push the Valve Control Handle forward (towards the

log) (Figure 22). If the log moves before it is contacted by the Wedge, release the
Valve Control Handle and then reposition the log.

7. Hold the Valve Control Handle, moving the Wedge towards the Log until the

log is split or the cylinder rod stops at its maximum travel position. Stop the Log
Splitter (forward movement), at any point in the splitting process, if you feel an
unsafe splitting condition is occurring. As the log is being split, DO NOT reach
forward and attempt to catch the split wood — let it fall to the ground/Tray.

8. Once the Wedge reaches its full forward travel, let go of the Valve Control

Handle and the Wedge will stay at that position.

If the log does not split immediately, do not continue the forward thrust of the
Ram for more than five (5) seconds. This can damage the Splitter. Try
repositioning the log on the Splitter or set the log aside.

9. Load another log on the other side of the Wedge and pull the Valve Control

Handle, moving the Wedge towards you and the Log until the log is split or the
cylinder rod stops at its maximum travel position.

Splitting Large Logs

Figure 22

Depending on the type of wood being split, a log may not always split into two pieces and fall onto the Trays. If a log sticks to the
Wedge, move the Wedge away from the Base, stop the Engine, and carefully remove the log from the Wedge. If the Log is stuck
onto the Wedge and you can’t remove it by hand, a piece of wood cut into a Wedge shape can be used between the Log and Base
to lift the Log from the machine as you actuate the Lever.

12 DR

®

DUAL-ACTION 3 PT HITCH LOG SPLITTER

When splitting a large log, or one in which the wood is extremely tough or stringy
(such as elm), the first pass through the Splitter may not split the log into two
sections. If this happens, turn the log and split off small sections. Repeat this process
as necessary to split the entire log.

Chapter 4: Maintaining The DR DUAL-ACTION 3 PT HITCH LOG SPLITTER

Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual and the
Tractor manufacturer's owner's manual for maintenance procedures.

Before performing any maintenance procedure or inspection, stop the Tractor, set the Brake and remove the Key, wait five (5)
minutes to allow all parts to cool.

Regular Maintenance Checklist

PROCEDURE BEFORE EACH USE EVERY 25 HOURS EVERY 100 HOURS

Check General Equipment Condition
Check Wedge for Sharpness

▲
▲

General Maintenance Check (before operating)

The Hydraulic System (hoses and cylinder) should be carefully inspected before each use. Also, inspect the mechanical parts at
the same time. Make sure all clamps, nuts, bolts, fittings, etc., are properly installed and tightened.

Do not check for leaks with your hand. Leaks can be located by passing a piece of cardboard or wood around the suspected leak
and looking for discoloration. High-pressure fluid escaping from a very small hole can be almost invisible. Escaping fluid under
pressure can have sufficient force to penetrate skin, causing serious injury or even death. If fluid is injected into your skin, it must
be treated immediately by a doctor familiar with this type of injury.

Always replace frayed, kinked, or cracked hoses and/or other damaged hydraulic components with DR Power Equipments
authorized parts and components specified in the “Parts” section (Chapter 6) of this manual. Replacement parts from secondary
suppliers (not original DR Power Equipments replacement parts) can lead to product damage and/or personal injury, and will void
the warranty.

Should it become necessary to loosen or remove any hydraulic fitting or line, be sure to relieve all hydraulic pressure by shutting
off the Tractor and moving the valve control handle back and forth several times until no cylinder movement is visible.

CONTACT US AT www.DRpower.com 13

Chapter 5: Troubleshooting

Most problems are easy to fix. Consult the Troubleshooting Table below for common problems and their solutions. If you
continue to experience problems, contact us at www.DRpower.com or call toll-free 1-800-DR-OWNER (376-9637) for support.

Before performing any maintenance procedure or inspection, stop the Tractor, set the Brake and remove the Key, wait five (5)
minutes to allow all parts to cool.

Troubleshooting Table

SYMPTOM POSSIBLE CAUSE

When the Valve Control
Handle is pushed, the
Wedge does not move.

The Splitter lacks power

The splitting Wedge
moves slowly, but will
split wood.

The splitting Wedge
moves in the opposite
direction than Operator
Lever is pushed.

 Check the Tractor to make sure the hydraulic fluid level is correct. If the fluid is level is not

correct, fill with hydraulic fluid as described in your Tractor manual.

 Check the Tractor Hoses to make sure the hydraulic fluid is flowing. Hoses should be

vibrating when fluid is flowing.

 If the fluid level is OK then contact us at www.DRpower.com for assistance.
 Tractor throttle is set too low; Adjust Tractor throttle.
 Tractor pressure low; Check the pressure output of the Tractor.
 If your Splitter still lacks power, contact us at www.DRpower.com for assistance.

 Check the hydraulic fluid level in the Tractors Hydraulic Tank and fill as necessary.
 Check the high-pressure hose, fittings, and valve openings for dirt and debris that may have

obstructed the openings.

 Hoses from Splitter to Tractor are connected to the wrong ports; Swap Hose connections.

14 DR

®

DUAL-ACTION 3 PT HITCH LOG SPLITTER

CONTACT US AT www.DRpower.com 15

Chapter 6: Parts Lists and Schematic Diagrams

Parts List - BEAM ASSEMBLY

NOTE: Part numbers listed are available through DR Power Equipment.

Ref# Part# Description

1 16003 Pin, Hitch Clip, 1/2" To 9/16", .12" Wire
2 11241 Washer, Flat, 5/16", USS
3 29047 Valve, Hyd, 3200 Psi
4 29043 Cylinder Assembly, Hydraulic
5 11158 Bolt, HCS, 5/16-18 X 1"
6 11243 Washer, Lock, Split, 5/16"
7 11072 Nut, Nylon Lock, 1/2-13
8 29502 Washer, 26mm X 44mm X 3.5mm
9 29375 Bolt, HHCS, 1-14 X 6", Gr5, ZP
10 23499 Washer, SAE Flat, 1/2", ZP
11 25311 Pin, Cotter, 3/16 X 2.5"
12 25346 Hyd Adapter, Jcm06-Obm08
13 29371 Hyd Adapter, Obm08-Jcsf06
14 22909 Bolt, HHCS, 1/2-13 X 1.5", Gr5, ZP
15 25310 Nut, Slotted, 1-14, ZP

Ref# Part# Description

16 29046 Brace, Lower Cylinder
17 29370 Guard, Seal
18 29519 Label, DR Branding
19 29395 Label, Warning, Do Not Sit or Stand
20 29389 Tray, Log, With Labels
21 29388 Cover, Valve, With Label
22 29394 Label, Controls
23 29373 Bolt, HCS, 3/8-16 X 5.5", Gr5, ZP
24 15131 Plug, Hour Meter Hole, 2" X 1-1/4"
25 11075 Nut, Nylon Lock, 3/8-16
26 11238 Washer, Flat, 1/4", USS
27 12321 Bolt, HCS, 5/16-18 X .75"
28 11076 Nut, Nylon Lock, 5/16-18
29 29513 Handle Assembly, Control Valve
30 29503 O-ring, 22mm X 2.4mm

Items Not shown in illustration

15043 Bolt, HHCS, 3/8-16 X 1-1/4", Gr5
29379 Tube Clamp, 3/4", Vinyl Coated

16 DR

®

DUAL-ACTION 3 PT HITCH LOG SPLITTER

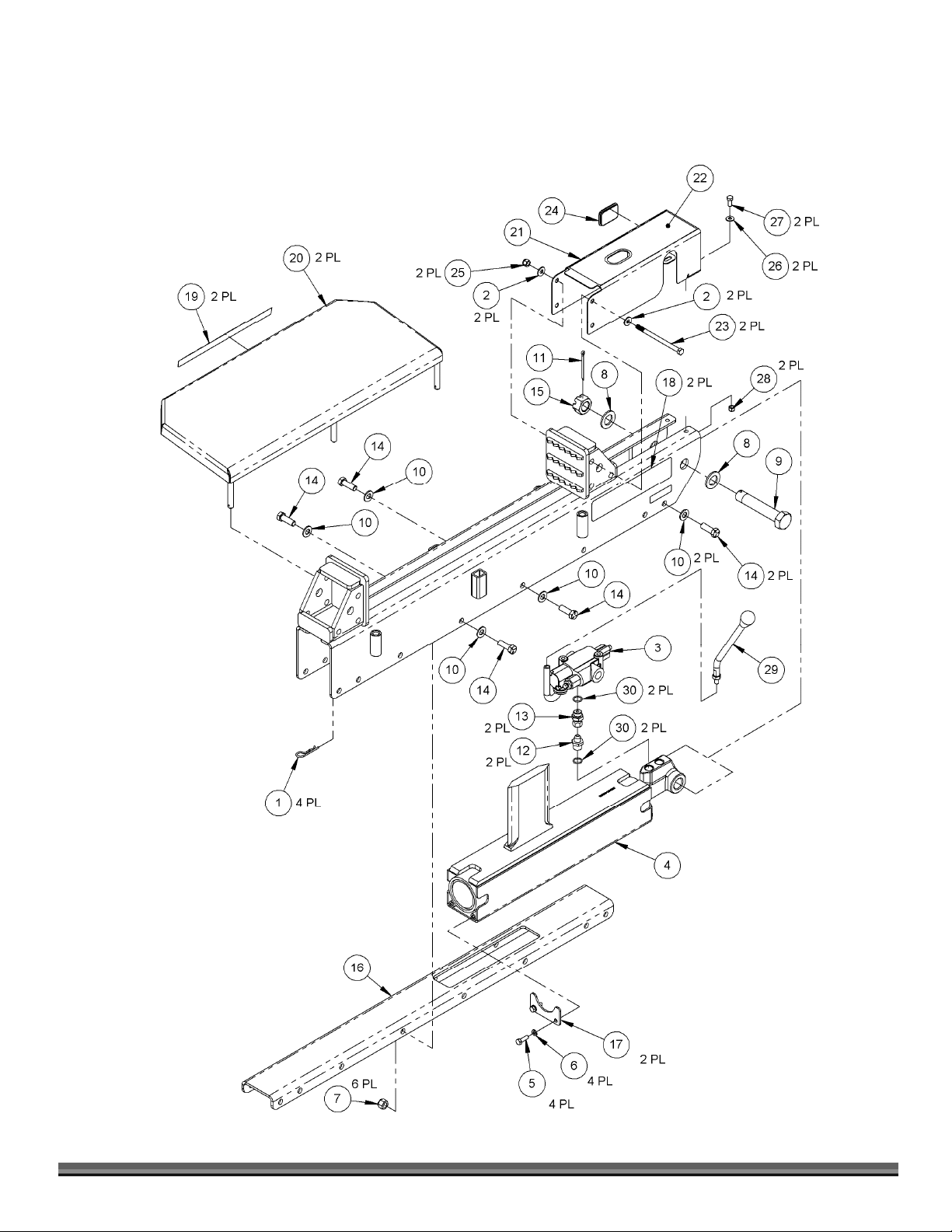

Schematic – BEAM ASSEMBLY

CONTACT US AT www.DRpower.com 17

Parts List – 3 PT HITCH

NOTE: Part numbers listed are available through DR Power Equipment.

Ref# Part# Description

1 11241 Washer, Flat, 5/16", USS
2 11075 Nut, Nylon Lock, 3/8-16
3 22909 Bolt, HHCS, 1/2-13 X 1.5", Gr5, ZP
4 23499 Washer, SAE Flat, 1/2", ZP
5 11072 Nut, Nylon Lock, 1/2-13
6 15043 Bolt, HHCS, 3/8-16 X 1-1/4", Gr5
7 29379 Tube Clamp, 3/4", Vinyl Coated
8 29363 Hose, Hyd, 100"
9 29361 Brace, Cross, 3 PT
10 24537 Pin, Hitch, 3/4" X 6"

Ref# Part# Description

11 24538 Pin, Lynch, 3/16" X 1-9/16"
12 29359 Bracket, Mounting, Left, 3 PT
13 29360 Bracket, Mounting, Right, 3 PT
14 29362 Axle, 3 PT
15 12336 Bolt, HHC, 5/16-18 X 1-1/4"
16 11076 Nut, Nylon Lock, 5/16-18

Items Not shown in illustration

27610 Sheathing, Abrasion Resistant, 15.5"
11214 Tie, Cable, 7 1/2"L

18 DR

®

DUAL-ACTION 3 PT HITCH LOG SPLITTER

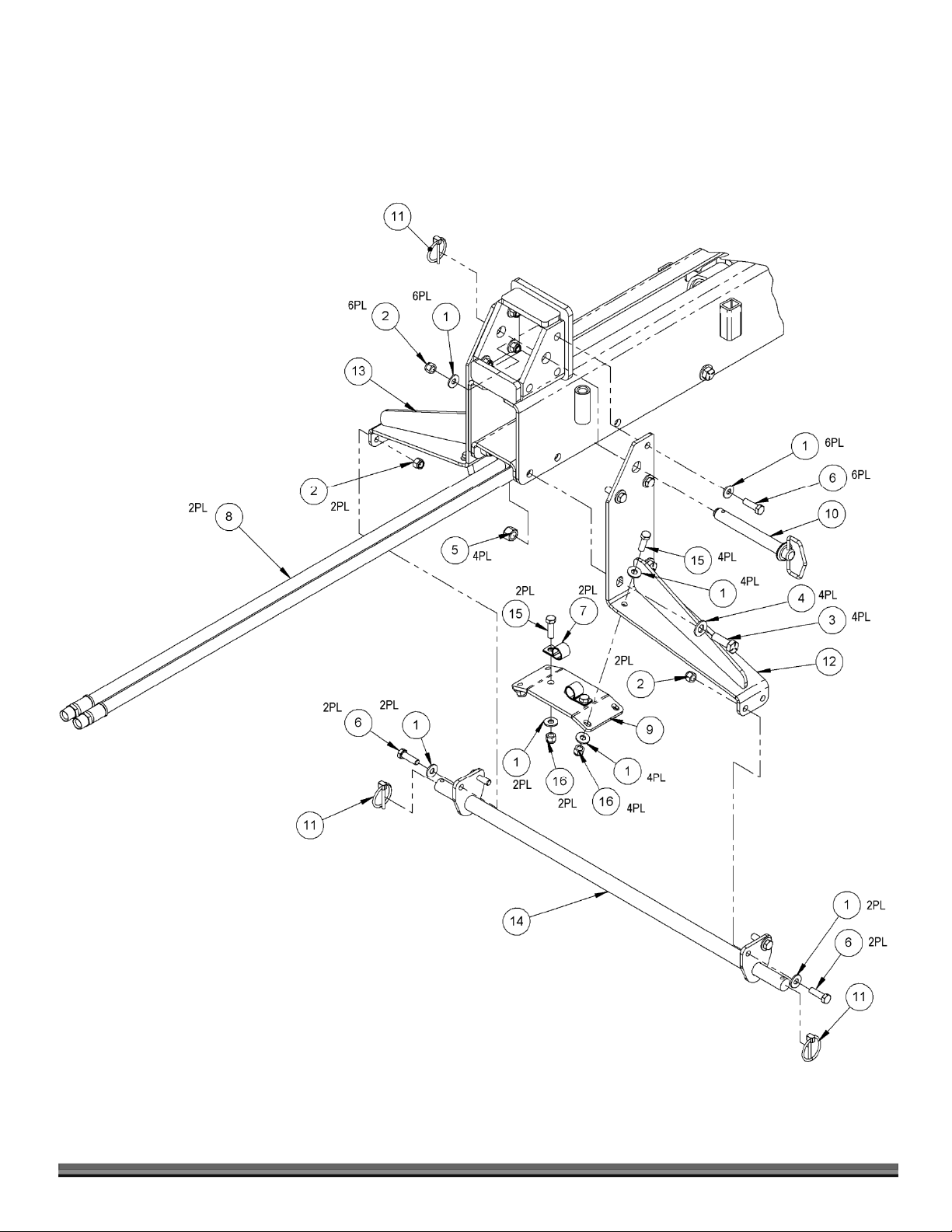

Schematic – 3 PT HITCH

CONTACT US AT www.DRpower.com 19

Daily Checklist for the DR 3 PT HITCH LOG SPLITTER

To help maintain your DR 3 PT HITCH LOG SPLITTER for optimum performance, we recommend you follow this checklist
each time you use your Log Splitter.

Before performing any maintenance procedure or inspection, stop the tractor and remove the key, wait five (5) minutes to allow all
parts to cool.

[ ] Check the general condition of the Log Splitter, e.g.; nuts, bolts, welds, etc.
[ ] Check hydraulic fluid level in your Tractor and fill as needed.
[ ] Check hydraulic Hoses for cracks or wear.
[ ] Check the Frame for wear and damage.
[ ] Check the Wedge for tightness, nicks and wear.

End of Season and Storage

Before performing any maintenance procedure or inspection, stop the tractor and remove the key, wait five (5) minutes to allow all
parts to cool.

 Check the Wedge for nicks and wear. Sharpen if needed.
 Clean the exterior of the unit to remove all dirt, grease, and any other foreign material. To prevent rust, touch up painted surfaces

that have been scratched or chipped.

 Be sure all nuts, bolts, and screws are securely fastened.
 If possible, store the Log Splitter in a dry, protected place. If it is necessary to store the Log Splitter outside, cover it with a

protective material.

75 MEIGS ROAD, P.O. BOX 25, VERGENNES, VERMONT 05491

©2013 Country Home Products, Inc. All rights reserved 276161A
