DR 5.00 HP Power Wagon User Manual

DR® POWERWAGON™ 5.0
Please read instructions before operating the DR POWERWAGON 5.0
And congratulations on your purchase of a new DR POWERWAGON 5.0!
We have done our utmost to ensure that your DR POWERWAGON 5.0 will be one of the most trouble-free and satisfying pieces of equipment you have ever owned. Please let us know of any questions or problems you may have. We want to answer or correct them as quickly as possible. (When you do call or write, please have your serial number and/or order number handy—it will speed things up!) We also hope to hear from you on how much you like your new helper.
And, please tell your friends about your new DR POWERWAGON 5.0! Having DR Owners spread the word about our products and our way of doing business is the best advertising we can have, and the best way to help us provide even better service in the years to come.
Thanks once again!
for all of us at
®
Country Home Products, Inc.
SALES MANAGER
COPYRIGHT
©2005 Country Home Products, Inc. All rights reserved.
DOCUMENTATION
Written by: Ed Melen of EVM Technical Writing
Country Home Products, Inc. Meigs Road P.O. Box 25 Vergennes, VT 05491
Toll-free phone: 1-800-DR-OWNER (376-9637) Fax: 1-802-877-1213 Web site: www.dr-owner.com E-mail: info@chp.com
ii DR POWERWAGON 5.0 Safety & Operating Instructions
Table of Contents
Chapter 1: Introducing the DR POWERWAGON 5.0.............................................1
Conventions used in this manual.................................................................................................... 1
Chapter 2: Safety Considerations..........................................................................2
Preparing to Use the DR POWERWAGON 5.0.............................................................................. 2
Safety Information Labels............................................................................................................... 2
Protecting Yourself......................................................................................................................... 4
Operating the Machine Safely........................................................................................................ 4
Safety with Gasoline-Powered Machines....................................................................................... 5
A Note to All Users......................................................................................................................... 6
Additional Information and Potential Changes................................................................................ 6
Chapter 3: Setting Up Your DR POWERWAGON 5.0............................................7
DR POWERWAGON 5.0 Controls and Features ........................................................................... 7
Unpacking the DR POWERWAGON 5.0........................................................................................ 8
Check the Tire Pressure................................................................................................................. 8
Adding Oil and Gasoline................................................................................................................. 9
Connect the Battery Wires.............................................................................................................10
Chapter 4: Operating Your DR POWERWAGON 5.0...........................................11
Before Starting the Engine ............................................................................................................11
Electric Starting.............................................................................................................................11
Manual Recoil Starting ..................................................................................................................12
Operating.......................................................................................................................................12
Stopping........................................................................................................................................13
Operating Tips...............................................................................................................................13
Loading..........................................................................................................................................13
Slopes & Uneven Terrain ..............................................................................................................14

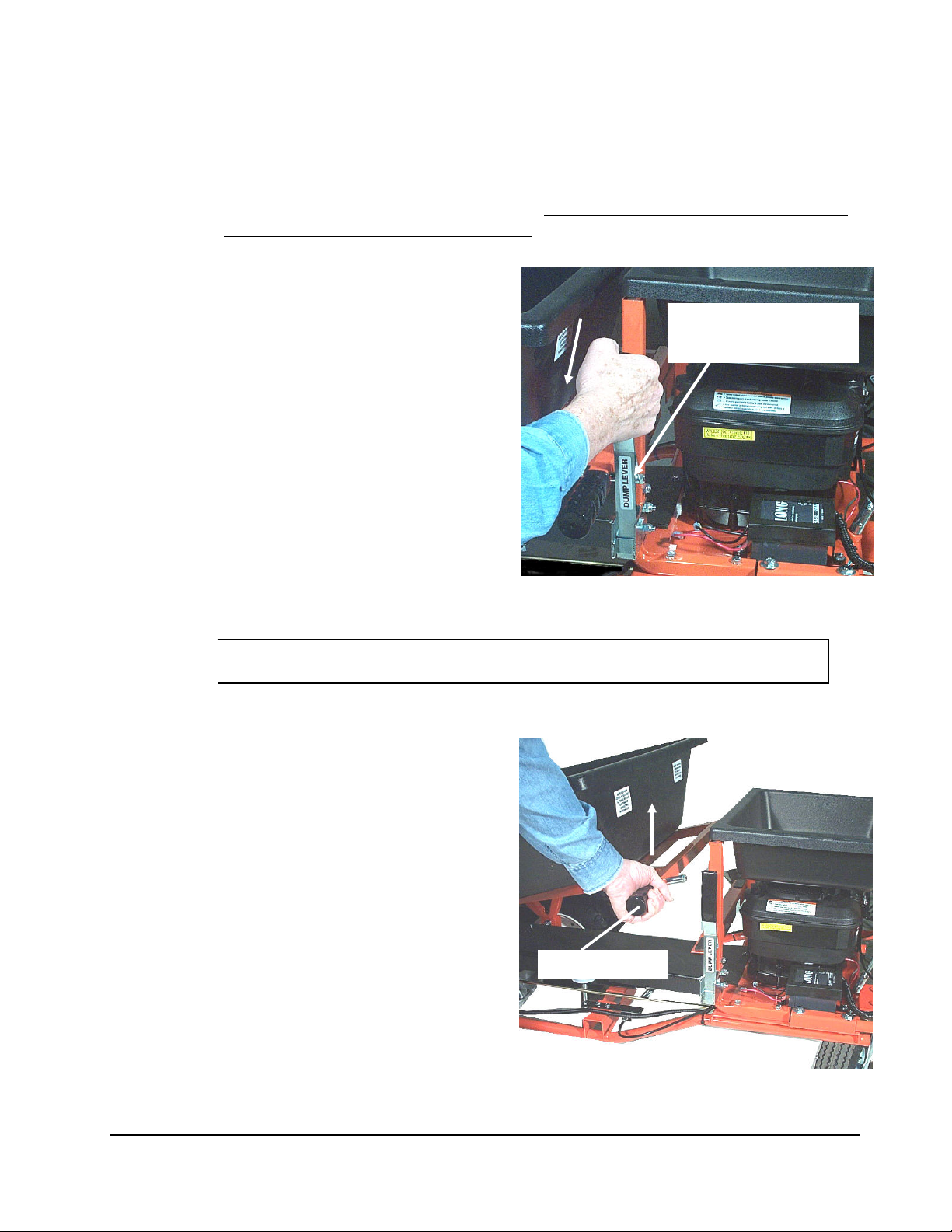

Dumping........................................................................................................................................15
Chapter 5: Maintaining the DR POWERWAGON 5.0 ..........................................16
Regular Maintenance Checklist.....................................................................................................16
Battery Care..................................................................................................................................17
Charging the Battery .....................................................................................................................17
Lubrication.....................................................................................................................................18
Changing the Engine Oil................................................................................................................19

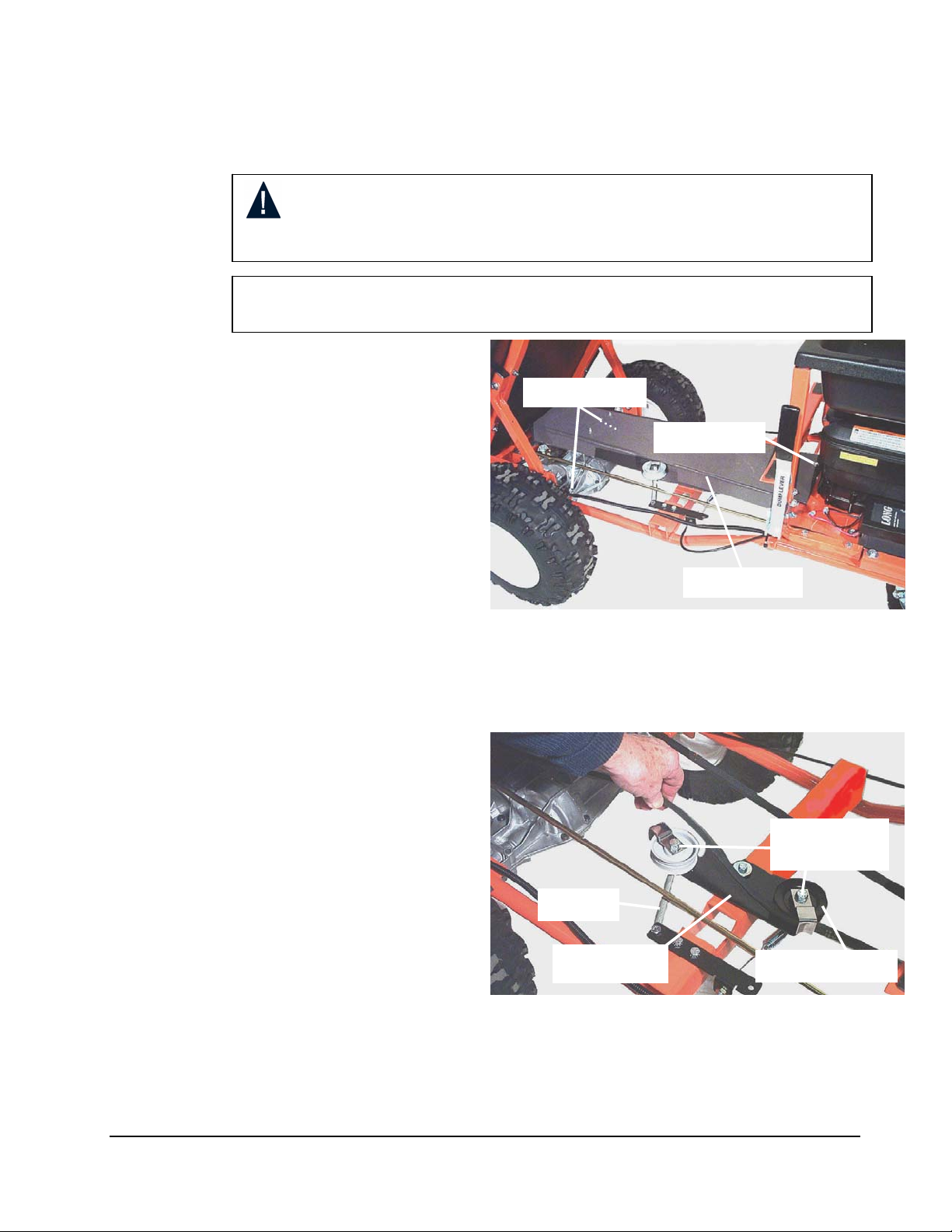

Removing and Replacing the Belt .................................................................................................20

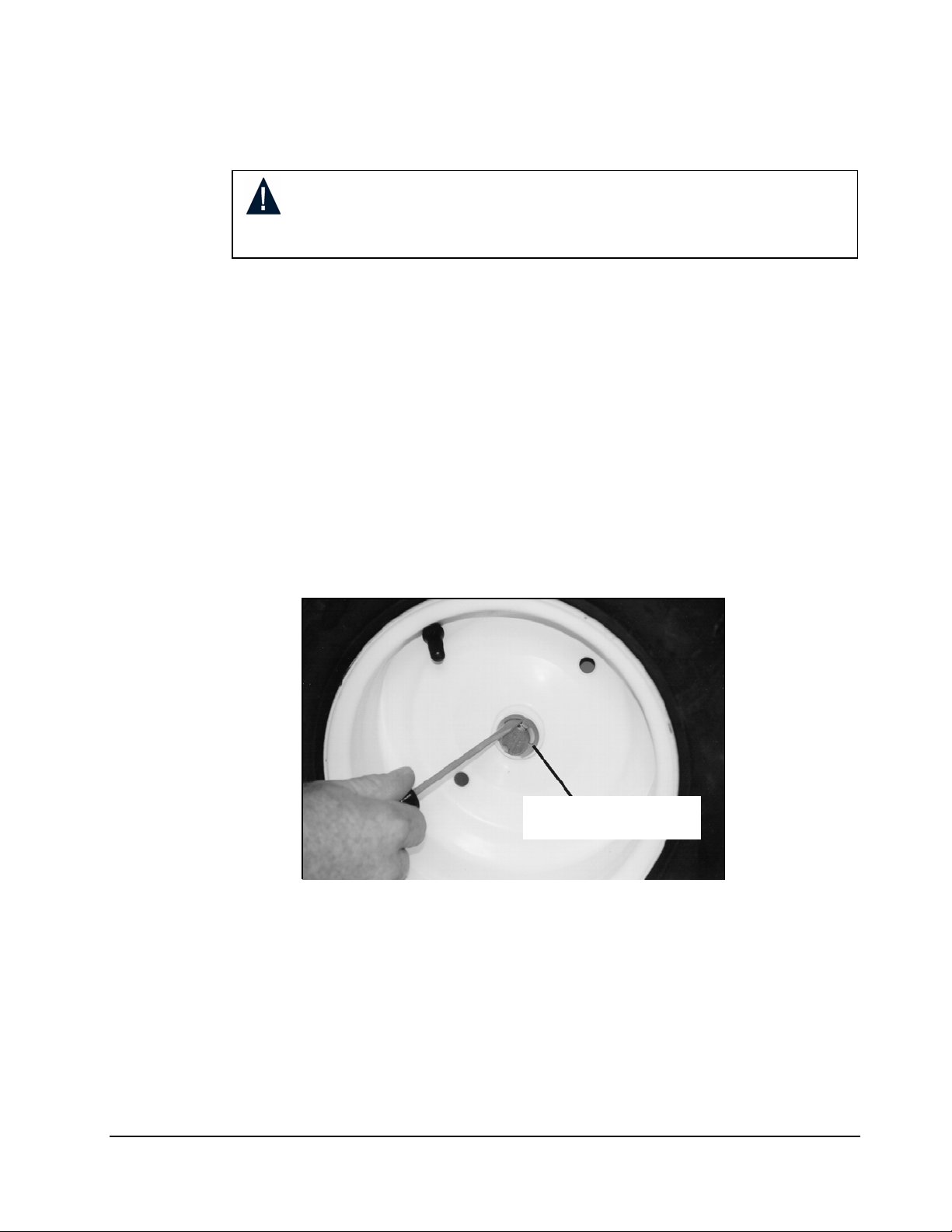

Removing and Replacing the Front Wheels..................................................................................22
Adjusting the Parking Brake..........................................................................................................23
Parking Brake Cable Adjustment...................................................................................................24
Changing the Parking brake Pads.................................................................................................24

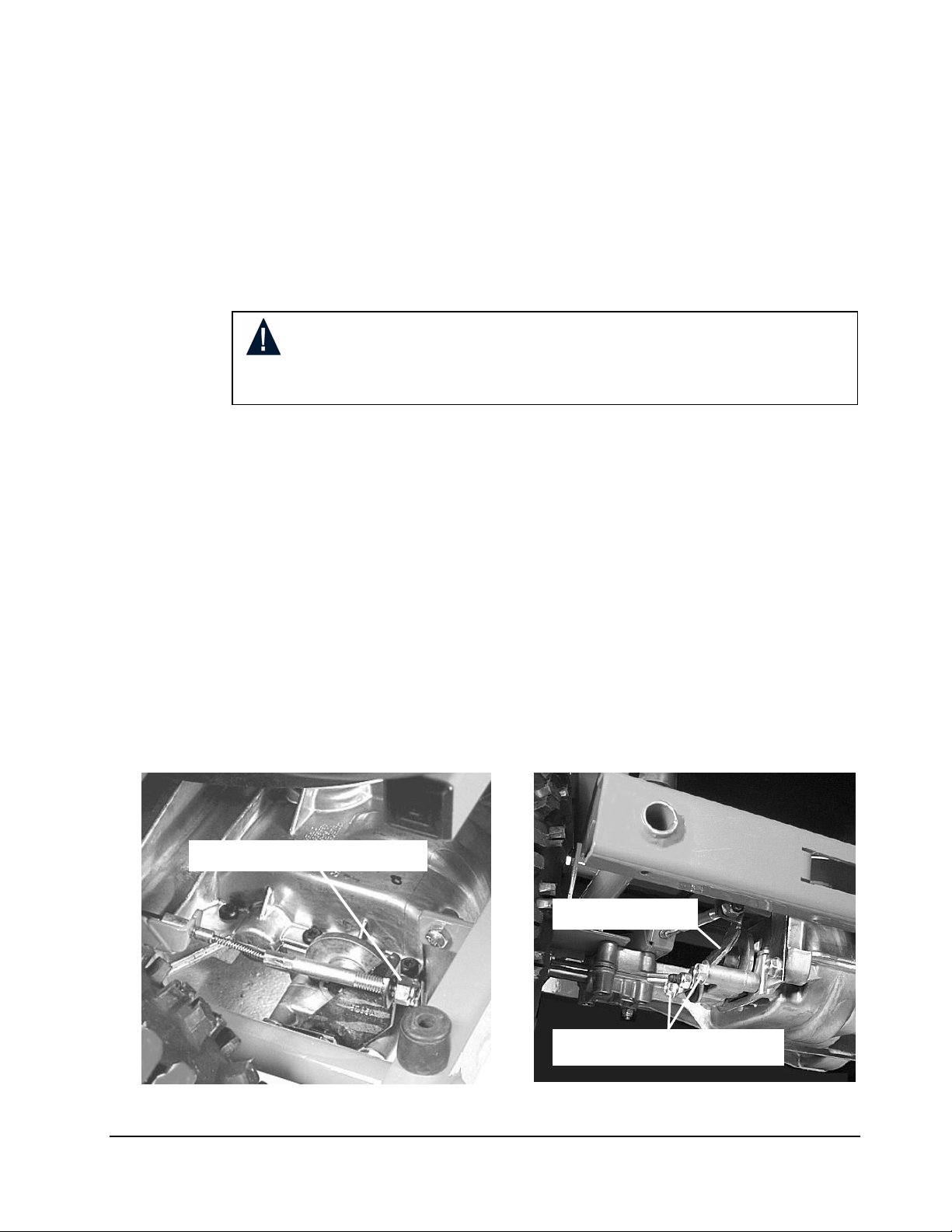

Replacing the Throttle Cable.........................................................................................................26
Adjusting the Shift Lever................................................................................................................28
Adjusting the Wheel Clutch ...........................................................................................................29
End of Season & Storage..............................................................................................................30
Chapter 6: Troubleshooting and Warranty .........................................................31
Troubleshooting Table...................................................................................................................31
DR POWERWAGON 5.0 Safety & Operating Instructions iii
Chapter 1: Introducing the DR POWERWAGON 5.0
This manual will help you set up and safely operate your new DR POWERWAGON 5.0. Careful adherence to the safety and operating instructions in this manual will ensure many years of productive use.
Please let us know if you have any questions or problems by contacting us via e-mail or our toll-free phone number. Our contact information is listed inside the front cover of this manual. When you call or write, please have your serial number or order number available so we can help you quickly.
Conv entions used in this manual
WARNING! The exclamation point within a triangle alerts you to
essential operating, safety, and maintenance (servicing) instructions.
Important! This information is important in the proper use of your
machine. Failure to follow this instruction could result in injury to you or damage to your DR POWERWAGON 5.0.
Tip: This is a helpful hint to guide you in getting the most out of your DR
POWERWAGON 5.0.
Tools Needed: This indicates you will need a special tool to perform a maintenance
function on your DR POWERWAGON 5.0.
Note: This information may be helpful to you.
If you are ever unsure about an action you are about to take, contact Country Home Products’ toll-free support at 1-800-DR-OWNER (376-9637).
1 DR POWERWAGON 5.0 Safety & Operating Instructions
Chapter 2: Safety Considerations
g
Taking the time to read and observe all safety instructions will ensure many years of productive use from your DR POWERWAGON 5.0 and help you avoid injury. Please take a few moments to read the following guidelines for safely operating your new machine.
Preparing to Use the DR POWERWAGON 5.0
Read these
Safety & Operating Instructions
and the engine owner’s manual before you use the DR POWERWAGON 5.0. Become familiar with the controls, engine and service recommendations to ensure the best performance from your DR POWERWAGON 5.0.
Check out the area you will be operating in BEFORE using your DR
POWERWAGON 5.0. Know what kind of terrain you will be moving over, and avoid areas with poor footing.
Safety Information Labels
Take some time to become familiar with the following standard safety cautions applicable to your DR POWERWAGON 5.0. Replace damaged or missing safety labels immediately.
#137581
Make sure you add oil before starting the engine; the unit is shipped without oil. Fill the oil reservoir slowly to make sure you don’t overfill it.
WARNING: Add Oil
Before S t artin
#127811
Engine
#153421
DR POWERWAGON 5.0 Safety & Operating Instructions 2
#153441
#153431
#180531
3 DR POWERWAGON 5.0 Safety & Operating Instructions
Protecting Y ourself
Wear shoes with non-slip treads when using your DR POWERWAGON 5.0. If you
have safety shoes, we recommend wearing them. Do not use the machine while barefoot or wearing open sandals.
Avoid wearing loose clothing or jewelry, which might be caught on the machine’s
moving parts.
Operating the Machine Safe ly
WARNING! The items listed in this section will help you keep your DR
POWERWAGON 5.0 running smoothly and, most importantly, prevent injury to yourself or others. Please review them carefully before starting your machine.
Built-in safety features, such as the Operator Presence System, are effective only when
maintained and kept in place.
Do not, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard
parts on the DR POWERWAGON 5.0. Modifications to your machine could cause personal injuries and will void your warranty.
Use only approved DR parts. Do not use the DR in a manner not in accordance with these instructions. Be particularly careful of small children and pets. Never allow children to operate the
DR POWERWAGON 5.0. Never carry children, adults or pets in the DR POWERWAGON 5.0. Use caution when another person approaches.
Keep your hands away from the belt and pulleys while the engine is running. ALWAYS shut off the engine and remove the spark plug wire before adjusting the
machine.
Do not use the DR to drag or tow items. The exhaust area on the engine becomes very hot with use. Allow the engine to cool
before doing maintenance or making adjustments.
Keep combustible substances away from the engine when it is hot. When operating over uneven terrain and slopes, use EXTREME CAUTION to ensure
solid and firm footing.
Use 1
st
gear with loads over 300 lbs. and on slopes.

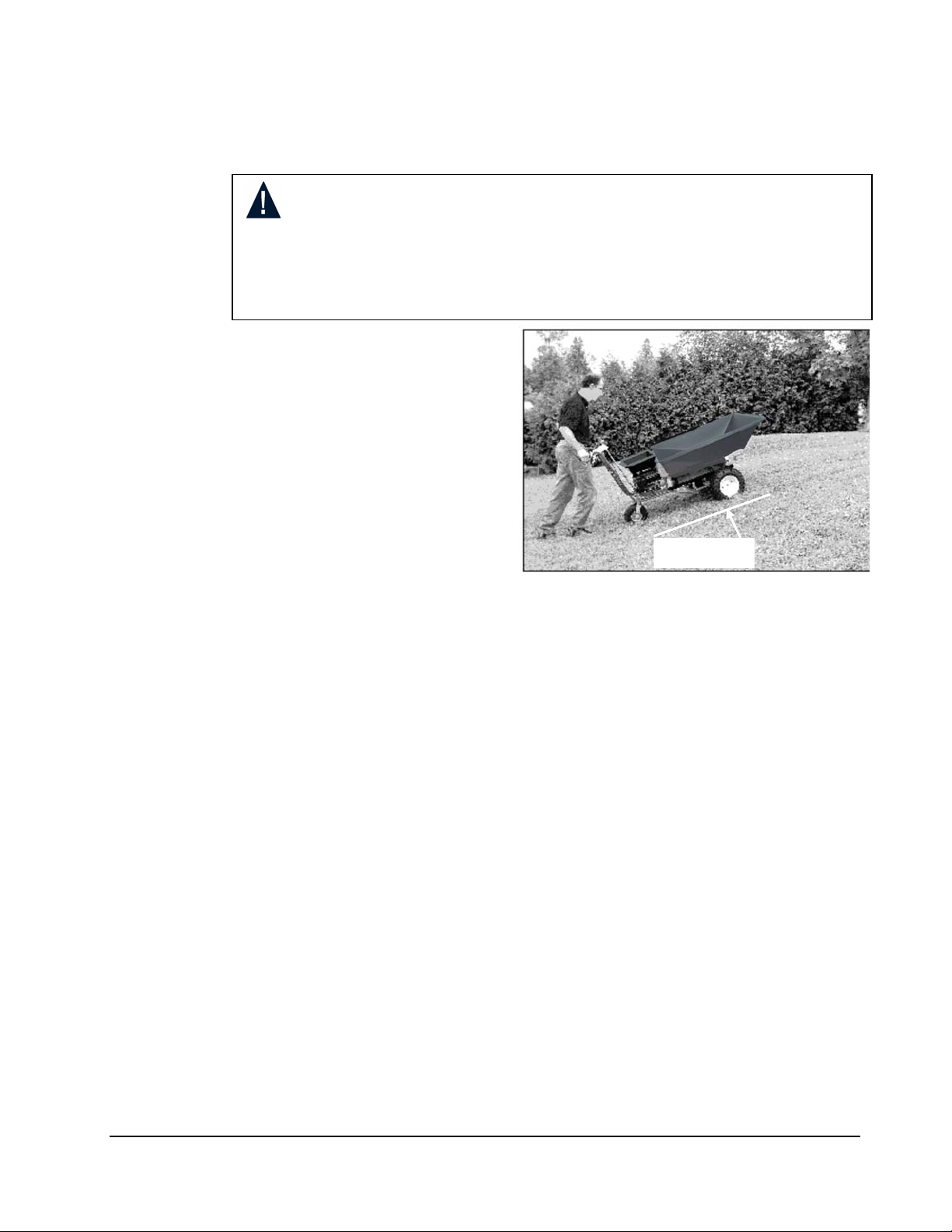

Never use your machine on slopes greater than 20°. Use the DR POWERWAGON 5.0 only in daylight or good artificial light. Use extra caution when operating in wet or slippery conditions. Always operate the DR POWERWAGON 5.0 from behind the handlebars, never
from the side.
DR POWERWAGON 5.0 Safety & Operating Instructions 4
While using the DR POWERWAGON 5.0, don't hurry or take things for granted.
T
When in doubt about the equipment or your surroundings, stop the machine and take the time to look things over. Make sure that you have 100% control of the machine at all times.
Use caution when moving downhill and braking. Apply the parking brake slowly to
avoid tipping forward.
Do not overload the DR POWERWAGON 5.0. Be careful of top-heavy loads. The
higher the load, the more chance the machine may tip over. Also, loads may shift during operation; so to be safe, secure your loads and even them out when possible. The maximum load is 500 lbs. on level terrain.
When shifting to reverse, be careful to avoid tipping as the swivel wheel changes
direction.
Do not rev the engine. Excessive speed or tampering with the governor can be
dangerous. Operate the machine in the lowest gear that is satisfactory to do the job.
Give complete and undivided attention to the job at hand. Before you use your new
machine, be sure you know how to engage the parking brake and stop the DR POWERWAGON 5.0 at a moment's notice.
Never allow people who have not read these instructions to use the DR
POWERWAGON 5.0.
Do not operate the machine when under the influence of alcohol or medication. Watch for traffic when operating near roadways.
Safety with Gasoline-P ow ered Machines
WARNING!
POWERWAGON 5.0 running smoothly and, most importantly, prevent injury to yourself or others. Please review them carefully before starting your machine.
Do not run the engine in an enclosed area or without proper ventilation. Store all fuel in containers specifically designed for this purpose. Fill the gasoline tank outdoors with the engine off. Don't handle gasoline if you or
anyone nearby is smoking, or if you're near anything that could cause it to ignite or explode.
If you spill gasoline, do not attempt to start the engine. Move the machine away from
the area of the spill and avoid creating any source of ignition until the gas vapors have dissipated. Wipe up any spilled fuel to prevent a fire hazard and properly dispose of the waste.
Allow the engine to cool completely before storing in any enclosure. Never store the
machine near an open flame or spark with gas in the tank.
Do not change the engine governor settings or modify the engine speed.
he items listed in this section will help you keep your DR
5 DR POWERWAGON 5.0 Safety & Operating Instructions
A Note to All Users
Under California law, and the laws of some other states, you are not permitted to operate an internal combustion engine using hydrocarbon fuels without an engine spark arrester. Any DR POWERWAGON 5.0 shipped to California and Washington State are provided with spark arresters. Failure of the owner / operator to maintain this equipment in compliance with state regulations is a misdemeanor under California law and may be in violation of other state and/or federal regulations. Contact your local fire marshal or forest service for specific information in your area.
Additional Informa tion and P otential Changes
Country Home Products, Inc. reserves the right to discontinue, change, and improve its products at any time without notice or obligation to the purchaser. The descriptions and specifications contained in this manual were in effect at printing. Equipment described within this manual may be optional. Some illustrations may not be applicable to your machine.
DR POWERWAGON 5.0 Safety & Operating Instructions 6
Chapter 3: Setting Up Y our DR POWERWAGON 5.0
This chapter outlines a few simple steps you will need to follow to set up your new machine before you use it. It may be helpful to familiarize yourself with the controls and features on your DR POWERWAGON 5.0 by reviewing the picture on this page before beginning the steps outlined in this chapter.
DR POWERWAGON 5.0 Controls and F ea tures
Molded Body
Removable Tool Tray
Dump Lever
Parking Brake Lever
Throttle Shift
Lever
Key Switch
Operator Presence Lever
Wheel Clutch Lever
Manual Recoil
(not shown)
Fuel & Oil Reservoirs
All-Terrain Tires
7 DR POWERWAGON 5.0 Safety & Operating Instructions
Battery
Figure 1
Unpacking the DR POWERWA GON 5.0
w
Tools & Supplies Needed:
Screwdriver Hammer Knife Gloves Eye protection Metal shears
WARNING! Al
banding may have a lot of tension on it and may snap, striking you when cut. Always stand to one side when cutting the band.
1. Stand to one side and cut the banding.
2. Remove the top of the carton. Cut the cardboard top to bottom on one of the
narrow sides of the box and peel it off the pallet. Be careful of the staples.
3. Pry off the fasteners and cut any ties holding the machine to the pallet.
4. Roll the DR POWERWAGON 5.0 off the pallet. Do not discard your pallet and
packaging material until you are fully satisfied with your machine.
ays wear eye protection when cutting the banding. The
WARNING! Be sure to fill your engine with oil and gas before use in
accordance with the
Safety & Operating Instructions.
Check the Tire Pressure
The recommended tire pressures are listed below.
All-Terrain Tires 10-14 lbs. Turf Tread Tires 14-28 lbs. (optional accessory, sold separately) Swivel Tire 30-50 lbs.
Note: The heavier the load, the higher the tire pressure should be. Do not go above the
maximum recommended load or pressure.
DR POWERWAGON 5.0 Safety & Operating Instructions 8

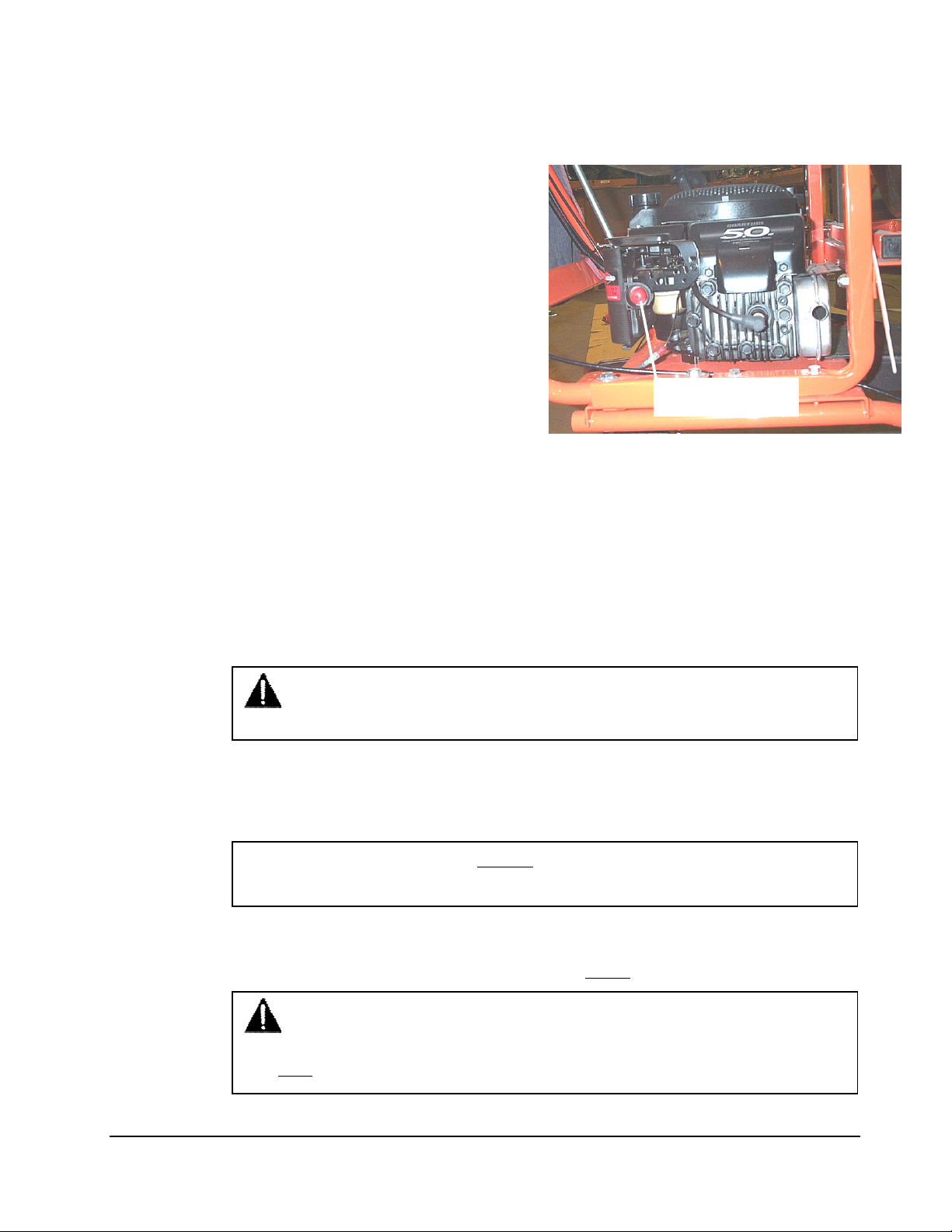

Adding Oil and Gasoline
2
Tip: To avoid confusion, we recommend leaving the caps on the fuel and oil fills until you
are ready to pour either gasoline or oil into the correct fill.
WARNING! You must add oil before starting the engine. This
machine is shipped without oil. Traces of oil may be in the reservoir from factory testing, but YOU MUST ADD OIL BEFORE STARTING THE ENGINE. Fill the reservoir slowly, checking the dipstick frequently to avoid overfilling.
Important! To get an accurate reading when checking the oil level:
The machine should be on a level surface.
The dipstick should be screwed down on Briggs & Stratton engines.
Engine Oil Capacity
Briggs & Stratton Quantum 5.0 16-22 oz. (0.45-0.63L)
Use only SAE 30 high detergent oil. Other types of oil could cause problems operating your machine. Please refer to your engine manufacturer’s owner’s manual for detailed oil information.
Note: You must remove the tool tray to access the oil and fuel reservoirs.
1. Place the machine on a level surface and
Fuel Fill
initially add 16 oz. (½ quart) of SAE 30 high detergent oil recommended by the engine manufacturer and wait one minute for the oil to settle. (Figure 2)
2. Check the dipstick and continue adding a
few ounces of oil at a time, rechecking the dipstick until the oil reaches the fill mark. Be
Oil Fill
careful not to overfill. (Figure 2)
3. Fill the gas tank to within ¼ inch of the top
with fresh, unleaded gas. See your engine manufacturer’s owner’s manual for more information.
Figure
9 DR POWERWAGON 5.0 Safety & Operating Instructions
Connect the Battery Wires
Connect the red wires to each other (Figure 3). The black wires are connected at the factory.
Connect the red wires
Figure 3
DR POWERWAGON 5.0 Safety & Operating Instructions 10
6
Chapter 4: Operating Y our DR POWERWAGON 5.0
This chapter covers the procedures for starting and stopping your new DR POWERWAGON 5.0 and discusses basic operation features.
Operator Presence Lever
Before Starting the Engine
1. Check the oil level every time you use the
machine. (See Figure 2 on page 9)
2. Check the gas level. (Figure 2)
3. Check the tires for proper inflation.
4. Make sure the dump latch is secured.
5. Set the parking brake by squeezing the brake
lever (Figure 5) on the right handle bar and lift up on the parking brake lock (Figure 5), locking the lever in place. To release the parking brake, just squeeze the parking brake lever again.
Note: The DR POWERWAGON 5.0 is
equipped with an Operator Presence Control for added safety.
The Operator Presence Lever must be depressed whenever the Shift Lever is in gear, or the engine will stop.
run the engine without depressing the Operator Presence Lever (Figure 4) only if the Shift Lever is in the "N" (Neutral) position. (Figure 6)
You may
Figure 4
Parking Brake Lever
Wheel Clutch Lever
Parking Brake Lock
Figure 5
Electric Starting
1. Move the shift lever to the "N" (Neutral)
position. (Figure 6)
2. Move the throttle to the RUN position.
3. If the engine is cold, press the Primer Bulb
three times. (Figure 7) In cold weather, you may need to press additional times, being sure that the bulb inflates between pumps.
4. Turn the key to the START position.
(Figure 6) As soon as the engine starts, release the key, and it will return to the RUN position.
5. Move the throttle to the desired speed.
See your engine owner's manual for information on cold weather starting.
11 DR POWERWAGON 5.0 Safety & Operating Instructions
Figure
Throttle
Shift Lever
Key
7
Manual Recoil Starting
1. Move the shift lever to the "N"
(Neutral) position. (Figure 6)
2. Move the throttle lever to the RUN
position.
3. If the engine is cold, press the Primer
Bulb three times. (Figure 7) In cold weather, you may need to press additional times, being sure that the bulb inflates between pumps.
4. Turn the key to the RUN position.
(Figure 6)
5. Pull the recoil pull handle slowly, until
you feel resistance; then pull the handle with a rapid, full arm stroke to
Figure
overcome compression and start the engine. Repeat if necessary.
6. After the engine starts, move the throttle lever (Figure 6) to the desired speed.
See your engine owner's manual for information on cold weather starting.
Primer Bulb
Operating
The DR POWERWAGON 5.0 has a four-speed forward transmission and single-speed reverse. Use the lower gears for slower speeds, heavy loads, or more power and the higher gears for transport over smooth terrain. Use 1st gear with loads over 300 lbs. and
on slopes. Never use your machine on slopes greater than 20°.
1. With the Operator Presence Lever depressed (Figure 5), move the shift lever to the
2. Squeeze the clutch lever on the left handlebar slowly.
WARNING! Always release the clutch lever on the left handle bar when
shifting to avoid damaging the gears.
Important! When engaging reverse USE EXTRA CAUTION. Check your
path and footing before engaging the clutch.
desired gear.
WARNING! Squeezing the clutch lever rapidly will make the DR
POWERWAGON 5.0 "jump" into motion. Squeeze the clutch lever slowly and ease the machine into gear.
DR POWERWAGON 5.0 Safety & Operating Instructions 12
Stopping
WARNING! Be careful when transporting heavy loads with your DR
POWERWAGON 5.0. If the parking brake is applied suddenly, the load may shift and the wagon may start to tip forward. Brake slowly and try to avoid overloading the wagon.
1. Release the clutch lever (Figure 4) and move the throttle to the Idle/Stop position.
(Figure 6)
2. Set the parking brake by squeezing the parking brake lever on the right handlebar
and lifting the parking brake lock. (Figure 5)
3. Shift to "N" (Neutral). (Figure 6)
4. Turn the key to the OFF position and remove it for safety.
Important! In an emergency situation, releasing the Operator Presence
Lever will stop the machine. After the machine stops, follow steps 2 through 4 above.
Operating Tips
Avoid abrupt start-ups. Always squeeze the clutch lever slowly to avoid bucking, or
tipping the DR POWERWAGON 5.0.
When using reverse, check to see that there are no obstacles behind you. Practice
backing up in an open area with no load in the DR POWERWAGON 5.0.
Loading
When loading your DR POWERWAGON 5.0 keep in mind the bulk and weight of Keep the load balanced and secured. Always distribute the load evenly so your DR Don't pile material too high. Divide your load and make several lighter trips. Do not
Be careful going downhill and applying the parking brake. Squeeze the parking brake
WARNING! The recommended maximum load limit for the DR
POWERWAGON 5.0 is 500 lbs. on level going and 400 lbs. on slopes. Do operate on slopes greater than 20°. Placing more weight in the bed may be
dangerous to the operator, and can permanently damage the unit.
what you will be hauling, and the terrain you will be crossing.
POWERWAGON 5.0 will be as stable as possible.
pile heavy loads, such as rocks or gravel, to a height that will make the DR POWERWAGON 5.0 top-heavy and susceptible to tipping over.
lever very slowly to avoid dumping the load.
13 DR POWERWAGON 5.0 Safety & Operating Instructions
8
Slopes & Unev en Terrain
W
We do not recommend using the
Use caution: The DR
WARNING!
hen operating over uneven terrain and slopes, use EXTREME CAUTION to ensure solid and firm footing. Move slowly if the ground is rough, especially with a full load. Use 1stgear with loads over 300 lbs. and on slopes. Limit maximum loads of 400 lbs. on slopes. Do not operate on slopes greater than 20°.
DR POWERWAGON 5.0 on slopes greater than 20 degrees. (Figure 8) This is for safety and proper engine operation. Doing so could deprive the engine of oil and cause it to overheat resulting in component damage.
POWERWAGON 5.0 may become unstable when moving
20° MAX
over ruts, bumps and other depressions.
Figure
On a slope, a heavy load will tend to shift. When using your DR POWERWAGON
5.0, keep in mind that loads tend to shift to the downhill side of the dump bed. Secure your load in the bed to limit the shifting of the load on slopes. The higher and heavier the load, the greater the possibility of tipping over. Travel up and down slopes (Figure 8) and avoid going across slopes.
Again, be especially careful with full loads. A good rule of thumb: the steeper the hill,
the lighter and lower your load should be.
When going downhill, keep a firm grip on the handlebars and push down slightly. Do
not apply the parking brake abruptly when going downhill.
DR POWERWAGON 5.0 Safety & Operating Instructions 14
Dumping
0
Note: For safety reasons, the DR POWERWAGON 5.0 bed is designed NOT to dump
automatically once the dump lever is released. You must pull the dump lever back then lift the back of the bed to cause it to tip forward.
1. Pull the handle on the dump lever
straight out (Figure 9), then pull up on the bed handle to dump the load (Figure 10).
2. After unloading, push the bed
back down into place by hand.
Figure 9
Pull lever to release dump bed
Important! Be sure the dump lever latches securely.
Note: The bed of the DR
POWERWAGON 5.0 is balanced so you can dump the load with minimal effort. If you are carrying a very heavy load, you may not be able to lift the bed to dump it when you release the latch lever. In this case, you will need to manually remove part of the load from the back of the bed, until the load is light enough to allow the bed to tip forward when you lift the bed handle.
Bed Handle
Figure 1
15 DR POWERWAGON 5.0 Safety & Operating Instructions
Procedure
Chapter 5: Maintaining the DR POWERWAGON 5.0
Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual and the engine manufacturer's owner's manual for maintenance procedures. Service intervals listed in the checklist below supercede those listed in the engine manufacturer's owner's manual.
WARNING! Before performing any maintenance procedure, stop the
engine, set the parking brake and disconnect the spark plug wire.
Regular Maintenance Checklist
Note: Service intervals shown are considered maximum under normal operating
conditions. Increase the frequencies under extremely dirty or dusty conditions.
Before Each
Use
Every 25
Hours
Every 100
Hours
Check Operator Presence Lever
Check Engine Oil Level
Check General Equipment Condition
Lubricate Grease Fittings
Check Tire Pressure
Clean Air Filter & Precleaner
Change Engine Oil 1st time 5 hours
Check Parking Brake Adjustment
Check Belt Tension & Condition
Check Cable Connections
Clean Engine Exterior & Cooling Fins
Replace Spark Plug
Replace Air Filter & Precleaner
DR POWERWAGON 5.0 Safety & Operating Instructions 16
Battery Care
Proper care can extend the life of a battery. Follow these recommendations to ensure your battery’s best performance and long life:
Do not allow the battery charge to get too low. If the machine is not used, the battery
should be charged every 4 – 6 weeks. Engine must be operated for at least 45 minutes to maintain proper battery charge.
Store an unused battery in a dry area that does not freeze. Do not charge an already charged battery. In theory, our battery cannot be
overcharged with a trickle charger; however, when a battery is fully charged and the charger is still on, it generates heat that could be harmful to the battery. A fully charged battery will read 12V-13.2V with a voltmeter.
Do not continue to crank your engine when the battery charge is low.
Symptoms of a battery needing a charge:
The machine won’t start with the key, but will start with the recoil starter. A whirring noise coming from the starter. A grinding noise and a whirring noise coming from the starter. No noise at all.
Charging the Battery
Engine must be operated for at least 45 minutes to maintain proper battery charge. If the battery loses its charge, you'll need to use a trickle charger (like the DR Battery Charger) to recharge it. The charger should have an output of 12 volts at no more than 2 amps.
At 1 amp the battery may need to be charged for as long as 48 hours. At 2 amps, the battery may need to be charged for as long as 24 hours.
Note: Using the recoil starter and then running the engine will not recharge a dead or
significantly discharged battery.
1. On the wiring harness, disconnect the red and black wires from the battery.
2. Attach the red (+) battery charger wire to the red (+) battery tab, and the black (-)
battery charger wire to the black (-) battery tab.
3. Plug the battery charger into an outlet.
Important! When you are finished charging the battery, disconnect the
battery charger wires from the battery first from the outlet. If the battery charger wires are left connected to the battery, the battery will discharge itself back into the charger.
Note: We have modified the battery wire clips and extension tabs to accommodate
different wiring connections. If you need to adapt your charger to your equipment, please call one of our Technical Support Representatives for more information.
, then disconnect the charger
17 DR POWERWAGON 5.0 Safety & Operating Instructions

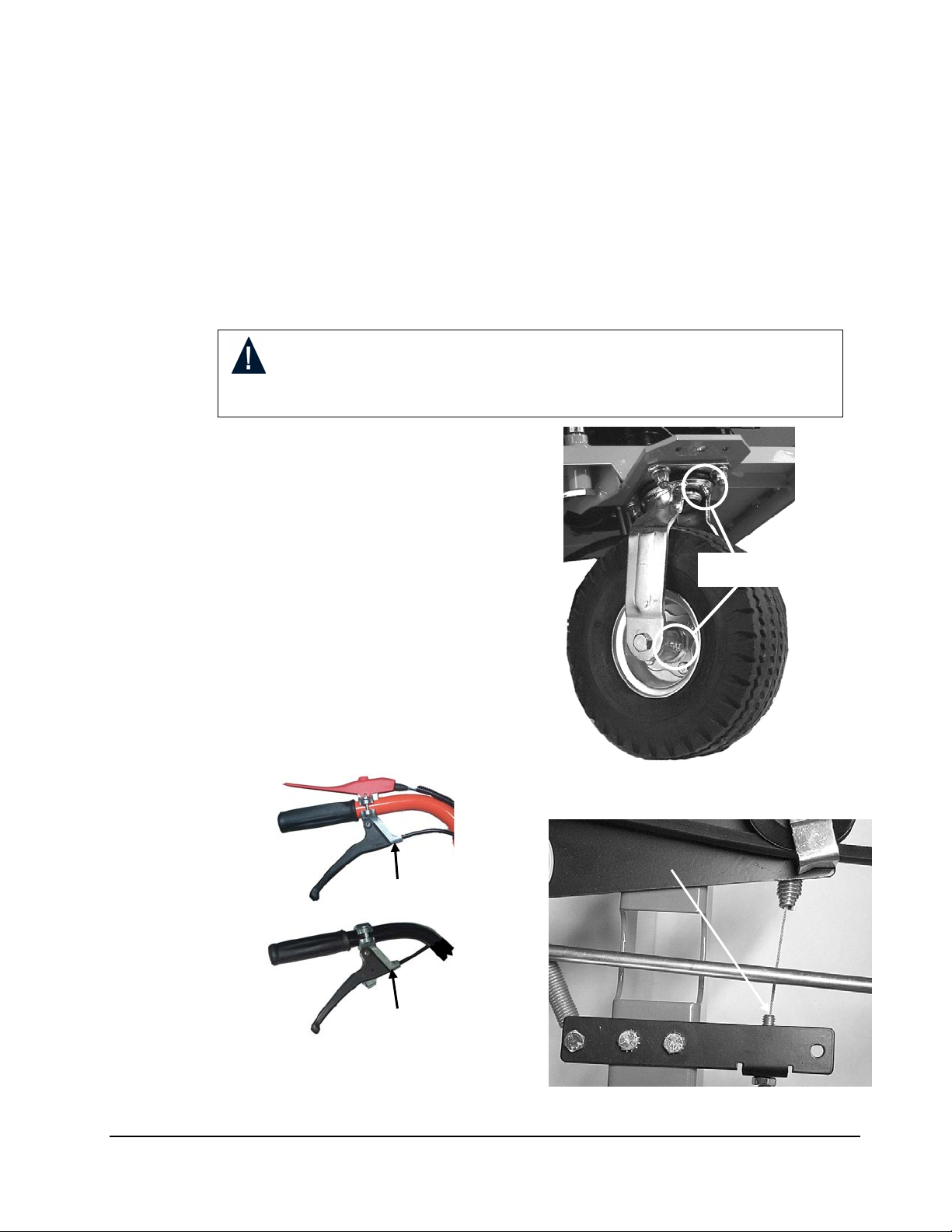

Lubrication
Your DR POWERWAGON 5.0 was lubricated at the Factory. The transmission is lubricated for life with 16 ounces of 90-weight gear oil and sealed at the factory. The operator needs only to provide engine lubrication, wheel and cable lubrication.
Supplies Needed:
FLUID FILM#2 Lithium Grease
WARNING! Before performing any maintenance procedure, stop the
engine, set the parking brake and disconnect the spark plug wire.
1. There are two grease fittings on the
swivel wheel: one at the top front of the wheel bracket, and one toward the center of the wheel (Figure 11). Grease these two fittings with #2 lithium grease to keep the wheel spinning freely at least every 25 hours of operation per the Maintenance Checklist on page 16.
®
or comparable lubricant
Grease Fittings
2. Lubricate the parking brake lever cable
at the operator's end. Clutch lever cable should be lubricated at both ends (Figures 12 & 13), and the key switch, with
FLUID FILM
®
or similar lubricant.
Operate the levers to work lubricant into the cables.
Lubricate
Lubricate
Figure 12
Figure 11
Lubricate Clutch Cable
Figure 13
DR POWERWAGON 5.0 Safety & Operating Instructions 18
Changing the Engine Oil
WARNING! Before performing any maintenance procedure, stop the
engine, set the parking brake and disconnect the spark plug wire.
Tools & Supplies Recommended:
3/8" Ratchet and extension SAE 30 High Detergent (HD) Oil (for winter use, use SAE 5W – 30W) Suitable container for the old oil Rag or cloth Liquid Vac Oil Drainer, item # 16145 (optional accessory, sold separately)
1. Remove the oil drain plug from the bottom of the engine (Figure 14) and drain the oil.
2. Replace the plug and refill the oil to the level indicated on the dipstick. Do not overfill.
Refer to the Adding Oil and Gasoline section on page 9.
Alternate Method
1. Remove the Oil Fill Cap and vacuum the oil from the engine through the oil fill tube
using the recommended oil drainer.
Note: If the oil is not to be reused, be sure to use environmentally safe disposal
procedures in the disposing of the used oil.
Oil Drain Plug
Belt Guide
Figure 14
19 DR POWERWAGON 5.0 Safety & Operating Instructions
6
Remo ving and R eplacing the Belt
g
y
Tools Needed:
7/16" socket and extension 9/16" socket
1. Position the machine on a
2. Tip the bed forward. (Figures 9
3. Remove the belt guard by
4. Loosen the belt guide bolts
5. Pull on the idler arm and
6. Remove the belt from the
7. Remove the belt from the
8. Install the new belt on the
WARNING! Before performing any maintenance procedure, stop the
engine, set the parking brake and disconnect the spark plug wire.
Important! Use only DR belts on your machine. They have been thoroughly
tested and proven for many hours of use.
Front Bolts
Rear Bolt
level surface and set the parking brake.
& 10)
removing the two bolts at the
Belt Guard
front and the single bolt at the rear using a 7/16" socket.
(Figure 15)
Figure 15
using a 9/16" socket.
spring to lessen the tension on the belt and slide the belt from the idler arm and clutch pulley. (Figure 16)
Belt Guide
transmission pulley at the
Bolts
front of the machine. (Figure
17).
Sprin
drive pulley under the engine. (Figure 14)
Idler Arm
Clutch Pulle
drive pulley first, then the transmission pulley and then
Figure 1
the idler and clutch pulleys. Make sure the new belt is INSIDE the belt guide. (Figure 14)
DR POWERWAGON 5.0 Safety & Operating Instructions 20

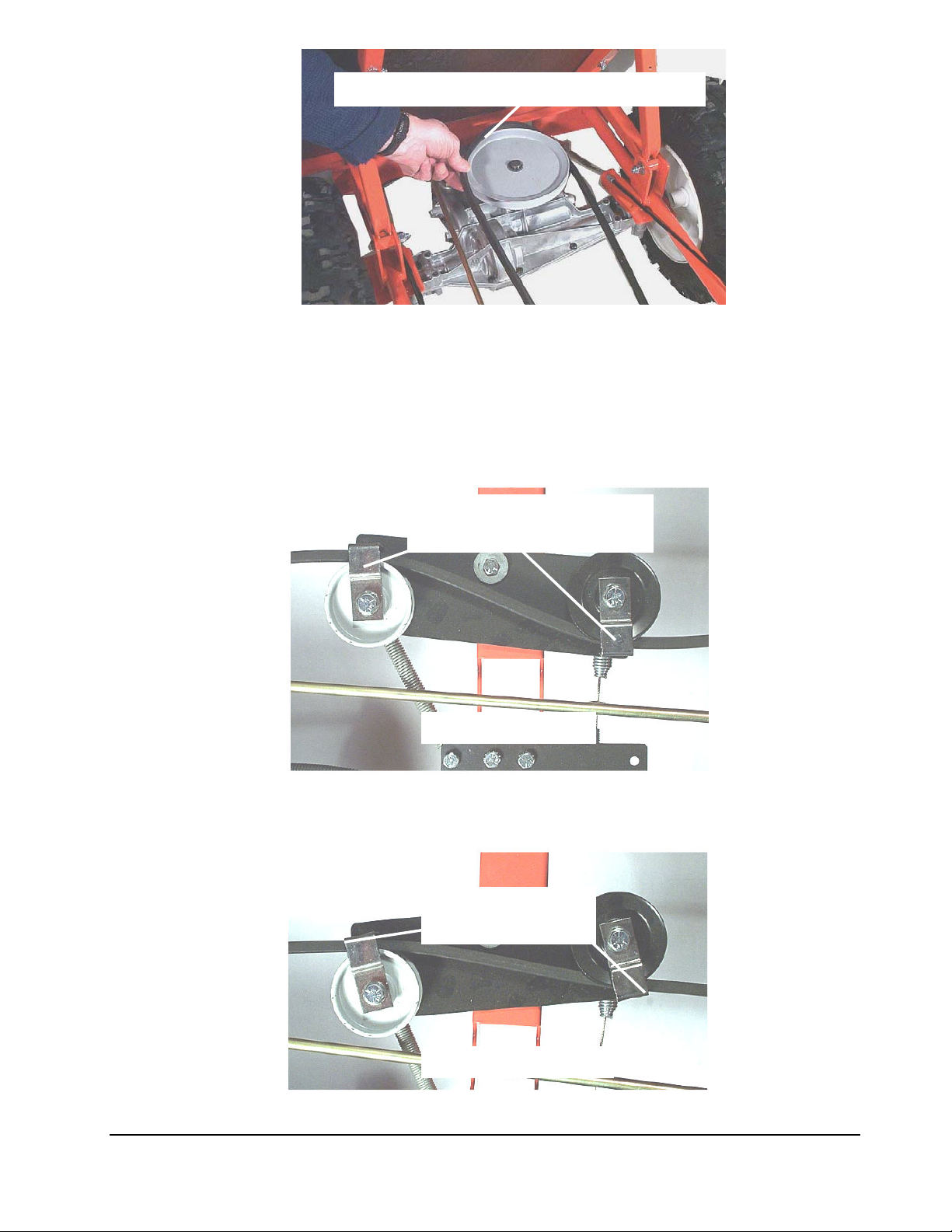

Remove Belt from Transmission Pulley
Figure 17
9. Squeeze the clutch lever to engage the clutch. The belt guides should be perpendicular
to and not touching the belt. (Figure 18) With the clutch engaged, adjust the guides as necessary and tighten the guide bolts (Figure 16) with the 9/16" socket.
Note: When the clutch lever is released (disengaged), the belt guides will just touch the belt
(Figure 19) to prevent the DR POWERWAGON 5.0 from “creeping”.
Guides perpendicular to
and not touching the belt
Clutch Engaged
Figure 18
Guides just touching the belt
Clutch Disengaged
Figure 19
21 DR POWERWAGON 5.0 Safety & Operating Instructions
Remo ving and R eplacing the F ront Wheels
Tools Needed:
Screwdriver Eye protection Pliers
1. Block the machine up off the ground.
2. Rotate the tire so the key slot is upward, then pop off the wheel lock ring with the
3. To replace the wheel, leave the key in place (if possible) and slide the wheel back
Note: When replacing the wheel lock ring, make sure the center of the wheel lock ring
is opposite the key.
WARNING! Before performing any maintenance procedure, stop the
engine, set the parking brake and disconnect the spark plug wire.
screwdriver (Figure 20) and save it. Remove the washer and slide the wheel off.
on. If the key comes out when you take the wheel off, put the wheel back on and rotate it until the key slots line up. Slide the key back in place and reinstall the washer and wheel lock ring.
Wheel Lock Ring
Figure 20
DR POWERWAGON 5.0 Safety & Operating Instructions 22
Adjusting the Parking Brake
Note: If your DR POWERWAGON 5.0 rolls on slopes when the parking brake is set, or
if you can't get the parking brake to set, it needs to be adjusted. (Figure 21)
Tool Needed: 1/2" wrench or socket
1. With the machine on a level
2. Put the transmission in "N"
3. Test the parking brake: try to roll
4. If it does move, turn the
5. If you can't get the parking brake
Note: Turn the nut only 1/4 turn at a time, and then test the parking brake to see if the
adjustment worked. If needed, adjust the nut another 1/4 turn and test again.
WARNING! Before performing any maintenance procedure, stop the
engine, set the parking brake and disconnect the spark plug wire.
surface, set the parking brake.
(Neutral).
the machine. It should not move in either direction with the parking brake set.
adjustment nut on the transaxle (Figure 21) 1/4 turn clockwise with the 1/2" wrench to tighten the parking brake. Test the parking brake as described in Steps 1-3. Repeat the adjustment
Brake Adjustment Nut
if necessary.
to release, turn the adjustment nut
Figure 21
on the transaxle (Figure 21) 1/4 turn counterclockwise with the 1/2" wrench to loosen the parking brake. Test the parking brake, as described in Steps 1-3. Repeat the adjustment if necessary.
23 DR POWERWAGON 5.0 Safety & Operating Instructions
Parking Brake Cable Adjustment
Note: The parking brake cable is factory set (Figure 22). If you think the parking brake
cable needs to be adjusted, you may actually need to replace the parking brake pads. See below.
Changing the Parking brake Pads
Note: If your DR POWERWAGON 5.0 rolls on slopes when the parking brake is set,
and you have tried adjusting the parking brake, the parking brake pads may need to be replaced.
Tools & Supplies Needed:
1/2" wrench or socketMat or container for loose parts
WARNING! Before performing any maintenance procedure, stop the
engine and disconnect the spark plug wire.
Note: You may want to remove the wheel to provide easier access to the parking brake
area. (See page 21)
1. Find a level area to work. The parking brake should NOT be engaged. Chock the
wheels so the machine cannot move.

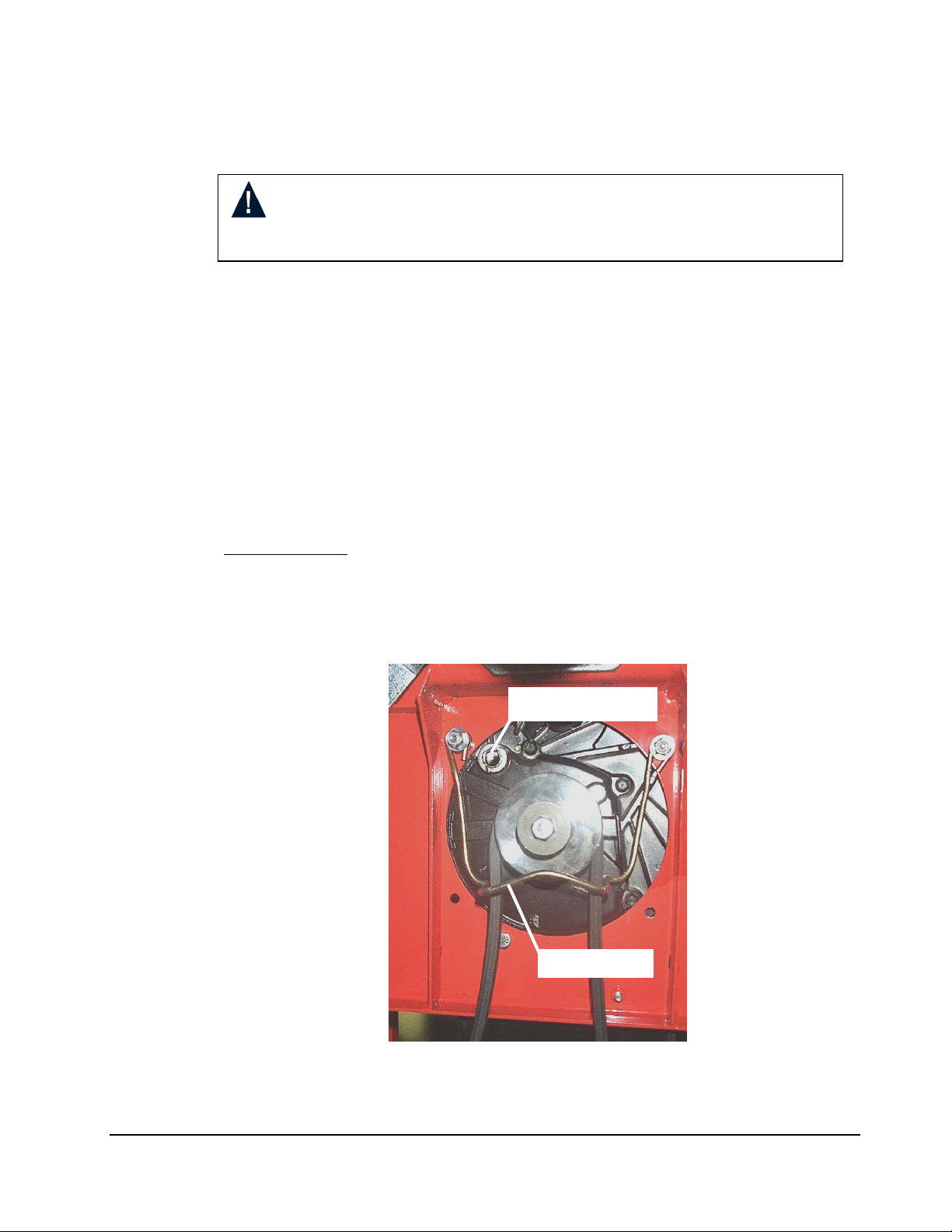

2. Locate the parking brake caliper at the right front of the machine (Figure 23).
Remove the two caliper bolts holding the parking brake caliper with a 1/2" wrench, then carefully remove the caliper.
Brake Cable Adjustment
Brake Caliper
Remove 2 Caliper Bolts
Figure 22 Figure 23
DR POWERWAGON 5.0 Safety & Operating Instructions 24
Note: The caliper contains four small parts: the brake pad, the backing plate, and two
A
small actuator pins (Figures 24 & 25). As you let the caliper hang from its attaching hardware, keep track of these parts as they could fall out. Clean away any debris from
these parts and the inside of the caliper.
3. Pull the brake disc off
the keyed shaft (Figure
24) being careful not to
Brake Disc
lose the shaft key.
4. Remove the old brake
pad from behind the disc and replace it with a new brake pad, then reinstall the brake disc.
5. Replace the caliper
housing and its parts: two actuator pins, the backing plate, and the second brake pad.
Caliper
Brake Pads
(Figure 25). Make sure the brake arm assembly
Figure 24
is in the upright position. Be sure that the parking brake lever is pointing up. (Figure
ctuator Pins
23) Reinstall the two caliper bolts and be careful not to over tighten them.
6. Test the parking brake:
Parking Brake Lever
With the machine on a level surface, set the parking brake and put the machine in "N"
Backing Plate
Brake Pad
(Neutral). If the parking brake does not engage or hold, tighten the parking brake adjustment nut 1/4 turn with a 1/2"
Figure 25
wrench. See “Adjusting the Parking Brake” on page 23.
Note: Check the parking brake periodically and adjust accordingly.
25 DR POWERWAGON 5.0 Safety & Operating Instructions
6
Replacing the Throttle Cable
8
Note: The Throttle Cable is set at the factory and generally no service is required. The
Tools Needed:
1/4" socket Screwdriver
1. Loosen the screw on the
2. Remove the "Z"-bend end of the cable from the throttle plate. (Figure 26)
3. Remove the two screws holding the throttle assembly to the control panel with the
4. Tilt and slide the throttle assembly down through the slot in the control panel.
WARNING! Before performing any maintenance procedure, stop the
engine, set the parking brake and disconnect the spark plug wire.
cable is supplied as a complete assembly with the handle already attached. (Figure 27) However, when replacing the throttle cable it is important to follow these steps:
Throttle Cable
Throttle Plate
throttle cable clamp with the screwdriver so the throttle cable can slide below it. It is not necessary to remove the
Throttle Cable Clamp
clamp. (Figure 26)
Figure 2
1/4" socket or screwdriver. (Figure 28)
(Figure 28)
"Z" bend
Throttle Assy
Throttle
Slot
Screws
Figure 27
DR POWERWAGON 5.0 Safety & Operating Instructions 26
Figure 2
5. Tilt and place the handle of the new throttle assembly up through the slot in the
control panel and fasten with two screws. Position the throttle handle to IDLE/STOP.
6. Route the throttle cable the same as the old cable, being careful not to bend or kink
the cable.
7. Place the ″Z″ bend end of the throttle cable into the small hole in the throttle plate
on the engine. The throttle plate is a black tab that protrudes from the engine below the plastic air filter. It has two holes, and the cable goes into the smaller hole. Place the throttle cable sheath under the cable clamp. (Figure 26)
8. Make sure that the throttle plate is all the way back to the stop position. It will
normally retract to this position.
9. Tighten the throttle cable clamp screw making sure that the throttle handle is still in
the IDLE/STOP position. The throttle cable should have very little or no tension between the cable clamp and the throttle plate.
Important! If the cable is clamped with too much tension between these
points the engine will not return to idle properly.
10. Start the engine and check the operation of the machine. The DR
POWERWAGON 5.0 should idle smoothly, but should not move while in idle, and should not jump after being put into gear.
27 DR POWERWAGON 5.0 Safety & Operating Instructions
Adjusting the Shift Lev er
0
If you are unable to shift into reverse or 4th gear, the shift lever and tie rod need to be adjusted.
Tools Needed:
1/2" box wrench or socket 1/2" box or open-end wrench9/16" box or open-end wrench
1. Move the shift lever into the reverse
2. Loosen and remove the tie rod nut
3. Fully extend the transaxle arm toward
4. Loosen the lock nut on the shift tie
5. Adjust the tie rod length until the shift
6. When the adjustment is complete, re-
7. Place the tie rod back on the transaxle
This should now enable you to use the full range of gears.
WARNING! Before performing any maintenance procedure, stop the
engine, set the parking brake and disconnect the spark plug wire.
position. (Figure 29)
and bolt from the transaxle arm with the 1/2" wrenches (Figure 30). Remove
Figure 29
the tie rod from the transaxle arm.
the front of the machine; this will put the transmission into reverse gear. (Figure 31)
Tie Rod Nut & Bolt
rod end with the 9/16" open-end wrench (Figure 31) and turn the tie rod end, clockwise to shorten the tie rod, and counterclockwise to lengthen it.
Transaxle Arm
indicator points to reverse when the tie rod end is reinstalled onto the transaxle arm.
Figure 3
tighten the lock nut against the ball end.
Shift Tie Rod
arm, insert the bolt, and re-tighten the nut.
Transaxle
Shift Lever
Shift Tie Rod End
Figure 31
DR POWERWAGON 5.0 Safety & Operating Instructions 28

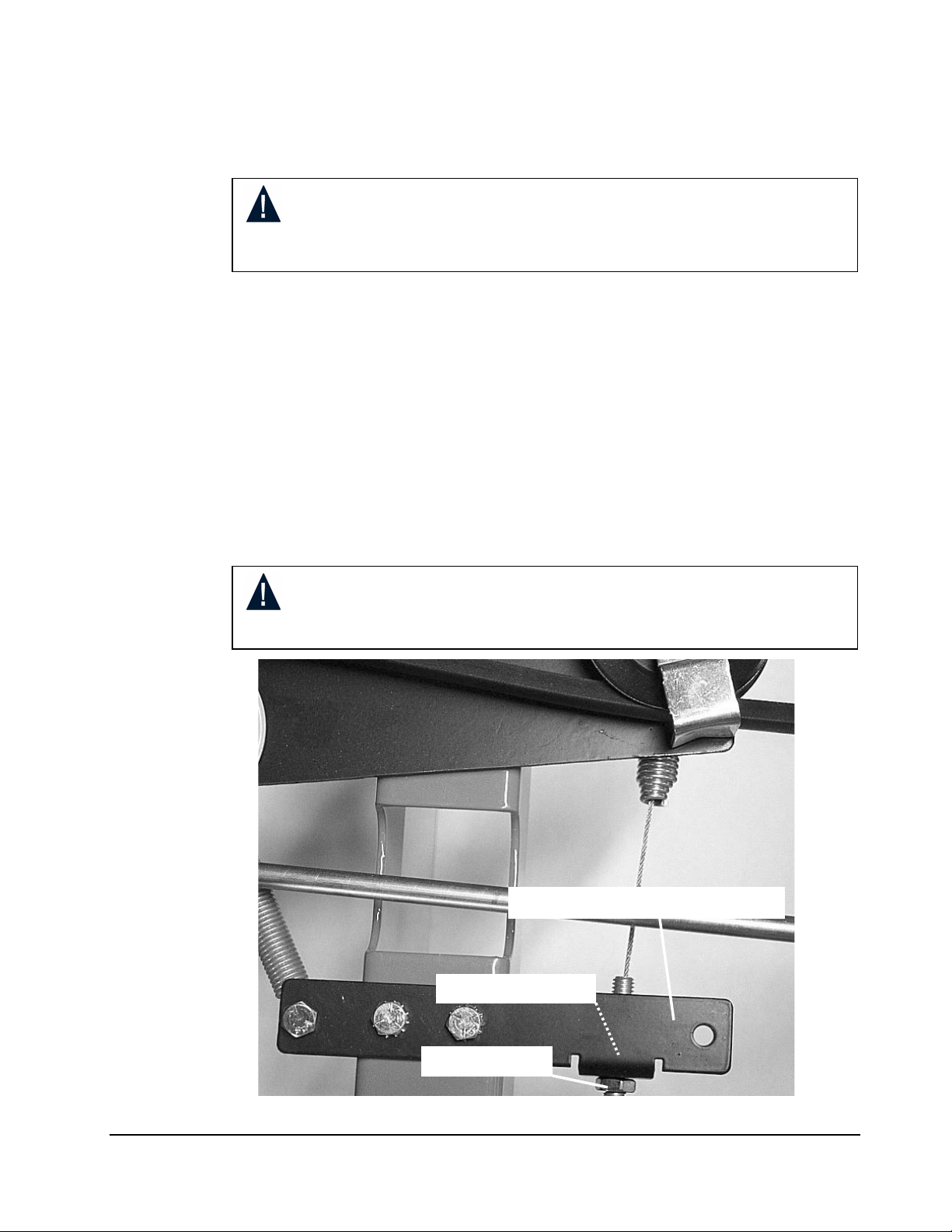

Adjusting the Wheel Clutch
Note: When properly adjusted, tension on the wheel clutch lever should increase when
Tools Needed:
(2) 1/2" wrenches
1. Raise the dump bed to expose the wheel clutch adjustment bracket. (Figure 32)
2. If the wheel clutch lever contacts the handlebar without engaging the wheel, tighten the
3. If the wheels engage before the lever is activated or the lever does not contact the
WARNING! Before performing any maintenance procedure, stop the
engine, set the parking brake and disconnect the spark plug wire.
the lever is about parallel to (almost touching) the handlebar grip.
clutch by loosening the nut on the underside (threaded) of the bracket by 1/8" to 1/4", and tightening the nut on the outside against the bracket. Check the tension on the clutch lever and repeat the adjustment as needed.
handlebar when activated, reverse the adjustment in step 2.
WARNING! If clutch is over tightened, machine may lurch forward
when shifting into gear. Use caution when shifting into gear.
Clutch Adjustment Bracket
Nut, underside
Nut, outside
Figure 32
29 DR POWERWAGON 5.0 Safety & Operating Instructions
End of Season & Storage
WARNING! Before performing any maintenance procedure, stop the
engine, set the parking brake and disconnect the spark plug wire.
Note: Please refer to the engine manufacturer's owner's manual for engine-specific
procedures.
Change the oil, this will help to eliminate sludge and acids in the engine. If your DR POWERWAGON 5.0 will be idle for more than 30 days, we
recommend using a gas stabilizer. This will prevent sediment from gumming up the carburetor. If there is dirt or moisture in the gas or tank, remove it by draining the tank. Completely fill the tank with fresh, unleaded gas and add the appropriate amount of stabilizer or gasoline additive. Run the engine for a short time to allow the additive to circulate.
Remove the spark plug and pour about 1 ounce of motor oil into the cylinder hole.
Replace the plug and pull the recoil starter rope until you feel strong resistance. This will coat the piston and seat the valves to prevent moisture buildup.
Clean/replace the air filters. Clean dirt and debris from the cylinder head cooling fins, carburetor linkage, blower
housing, rotating screen and muffler area of the engine.
Check to make sure the operator controls are moving freely. Lubricate the throttle
lever, parking brake lever, and key switch with FLUID FILM
®
or similar lubricant
if necessary. See page 18.
The battery should be removed and kept in a cool, dry place when the DR
POWERWAGON 5.0 is in storage. We suggest charging the battery once a month while the DR is stored and again before you are ready to start the new season. This will help the battery maintain its charge all season. See page 17.
DR POWERWAGON 5.0 Safety & Operating Instructions 30
Chapter 6: Troubleshooting and Warranty
Most problems are easy to fix. Consult the troubleshooting table for common problems and their solutions. If you continue to experience difficulties, call a Technical Support Representative at Country Home Products.
T roubleshooting T able
SYMPTOM POSSIBLE CAUSE
Recoil will not pull out or is difficult to pull.
WARNING! Before performing any maintenance procedure, stop the
engine, set the parking brake and disconnect the spark plug wire.
Check the engine oil level, the engine may be seized. There may be an oil compression lock in the cylinder.
Take out the spark plug, hold a rag over the spark plug hole and pull the recoil cord several times to blow out any oil in the cylinder. Wipe off the spark plug and reinsert it.
The recoil may be broken or jammed. Try to turn the
engine pulley by hand, with the spark plug wire off. If it turns, the recoil is broken or jammed. Call 1(800) DR-OWNER (376-9637) for assistance.
The engine won’t start manually.
(Please refer to the engine manufacturer’s owner’s manual for engine­specific procedures.)
Is the key in the RUN position? Are you using fresh, clean gas? If the gas is old,
change it. Use a fuel stabilizer if you keep gas longer than one month.
Check the throttle adjustment and cable travel. Is the spark plug clean? If the spark plug is dirty or
cracked, change it. If it’s oily, leave it out, hold a rag over the plug hole and pull the recoil cord several times to blow out any oil in the cylinder, then wipe off the plug and reinsert it.
Is the air filter clean? If not, clean or replace it. Check the Operator Presence switch connection
beneath the panel at the key switch.
Check the Operator Presence switch connection at the
engine.
If your engine still won’t start, call 1(800) DR-OWNER
(376-9637) for assistance.
31 DR POWERWAGON 5.0 Safety & Operating Instructions
Symptom Possible Cause The engine
won’t start using electric-start.
(Please refer to the engine manufacturer’s owner’s manual for engine­specific procedures.)
The engine lacks power or is not running smoothly.
(Please refer to the engine manufacturer’s owner’s manual for engine­specific procedures.)
Have you checked all the items under the section
called Electric Starting on page 11? If not, do so now.
Have you checked the items under “The engine won’t
start manually” listed above? If not, do so now.
Check the wire connections—especially the ground
connection, the large green wire coming from the battery, where it connects to the engine.
Check the ground connection where it’s bolted to the
frame. Using a wrench or socket, spin the bolts and tighten them to ensure a good connection to the frame.
Is your battery charged? Check it yourself or at a gas
station. If it’s low, charge it with a 12-volt, 1 to 2 amp trickle charger. If you don’t use your machine for at least 45 minutes at a time, the battery may need to be periodically charged. See the Battery Care section on page 17.
If your battery is charged and your DR still won’t start,
call 1(800) DR-OWNER (376-9637) for assistance.
Check the throttle travel and adjustment. Is the air filter clean? If it’s dirty, change it following the
procedure in the engine manufacturer’s owner’s manual.
Is the spark plug clean? If it’s fouled or cracked,
change it. If it’s oily, leave it out, hold a rag over the plug hole and pull your recoil cord several times to blow out any oil in the cylinder, then wipe off the plug and reinsert it.
Are you using fresh, clean unleaded gas? If it’s old,
change it. Use a fuel stabilizer if you keep gas longer than one month.
Does your engine have the right amount of clean oil?
If it’s dirty, change it following the procedure in the engine manufacturer’s owner’s manual.
Check the oil level and adjust as needed. If your engine still lacks power, call 1(800) DR-
OWNER (376-9637) for assistance.
DR POWERWAGON 5.0 Safety & Operating Instructions 32
Symptom
Possible Cause
Engine smokes.
The belt frays or rolls over the pulley.
Machine is hard to get into reverse.
Wheels pulling left or right.
Check the oil level and adjust as needed. You may be operating the machine on too great an
incline. (See SLOPES section on page 14)
Check the air filter and clean or replace if needed. You may be using the wrong oil—too light for the
temperature. Refer to your Engine Manufacturer’s Owner’s Manual for detailed information.
Clean the cooling fins if they’re dirty. If the engine still smokes, call 1(800) DR-OWNER
(376-9637) for assistance.
A pulley groove may be nicked. Check the belt for
wear and hard spots. File off any nicks on the pulley.
Check the belt guide alignment. See page 21. The belt may be stretched. Replace it.
Shift lever may need adjusting. See page 28.
Check the tire(s) pressure. See page 8.
Machine lacks traction
Wheels won’t turn.
Is the load even in the bed? The more weight over the
wheels the better the traction.
Try a lower gear. If you're working on rough terrain with Turf Tires, you
may want to consider the All-Terrain Tires. Call 1-800­DR-OWNER (376-9637) for information.
Is the machine in gear? Is the parking brake on? Is the belt loose or off a pulley? See page 21. Check that belt is on correct side of idler pulley. See
page 21.
33 DR POWERWAGON 5.0 Safety & Operating Instructions
Notes:
DR POWERWAGON 5.0 Safety & Operating Instructions 34
Notes:
35 DR POWERWAGON 5.0 Safety & Operating Instructions
1-Year Limited Warranty
Terms and Conditions
The DR POWERWAGON 5.0 is warranted for one (1) year against defects in materials or workmanship when put to ordinary and normal consumer use; ninety (90) days for any other use. The engine is warranted separately by the engine manufacturer.
For the purposes of all the above warranties, “ordinary and normal consumer use” refers to non-commercial residential use and does not include misuse, accidents or damage due to inadequate maintenance.
Country Home Products, Inc. certifies that the DR POWERWAGON 5.0 is fit for ordinary purposes for which a product of this type is used. Country Home Products, Inc. however, limits the implied warranties of merchantability and fitness in duration to a period of one (1) year in consumer use, ninety (90) days for any other use. The warranty will be void if non-DR approved accessories are used or your DR POWERWAGON 5.0 is modified in any way.
The 1-Year Limited Warranty on the DR POWERWAGON 5.0 starts on the date the machine ships from our factory. The 1­Year Limited Warranty is applicable only to the original owner.
The warranty holder is responsible for the performance of the required maintenance as defined by the manufacturer's owner's manuals. The warranty holder is responsible for replacement of normally wearing parts such as the belts, bearings, batteries, parking brakes and cables. Attachments and accessories to the machine are not covered by this warranty.
During the warranty period, the warranty holder is responsible for the machine transportation charges, if required. During the warranty period, warranty parts will be shipped by standard method at no charge to the warranty holder. Expedited shipping of warranty parts is the responsibility of the warranty holder.
SOME STATES DO NOT ALLOW LIMITATIONS ON THE LENGTH OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Country Home Products, Inc. shall not be liable under any circumstances for any incidental or consequential damages or expenses of any kind, including, but not limited to, cost of equipment rentals, loss of profit, or cost of hiring services to perform tasks normally performed by the DR POWERWAGON 5.0.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Customer Service Hotline
Country Home Products, Inc.’s objective is to have 100% satisfied customers. For that reason, we operate a 6-day-a-week Technical Service Department for our Owners. You can access a Representative by dialing our TOLL-FREE Hotline at 1-800­DR-OWNER (376-9637). The sole job of our well-trained and friendly folks is to ensure that you get any help you need in a timely fashion. They are there to answer all your questions including: (1) inquiries on any of the above warranties, (2) inquiries about replacement parts, or (3) your questions regarding service, maintenance and operation.
Our Customer Service Representatives will also be happy to answer any of your questions regarding the separate warranty on the engine. However, to obtain service, repair or replacement of the engine within the time period covered by the manufacturer’s limited warranty, follow the instructions and warranty information specifically pertaining to those items provided by the separate manufacturer.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
COUNTRY HOME PRODUCTS, Inc.
MEIGS ROAD, P.O. BOX 25, VERGENNES, VERMONT 05491
1-800-DR-OWNER (376-9637) • www.dr-owner.com ©2003 CHP, Inc. 164181
Daily Checklist for the DR POWERWAGON 5.0
To help maintain your DR for optimum performance, we recommend you follow this checklist each time you use your machine.
[ ] OIL: With the machine on a level surface, remove the oil fill cap and check the oil
level. Fill the reservoir according to the dipstick with SAE30 High Detergent (HD) motor oil.
[ ] GAS: Fill the gas tank with fresh, unleaded gasoline.
[ ] ENGINE: It is very important to keep the engine clean. Remove grass and other
debris from the engine cooling fins and debris guard. A dirty engine retains heat and can cause damage to internal engine components.
[ ] BELT: Check the belt for wear, proper alignment and tension.
[ ]
AIR FILTER: A clean air filter will mean a much easier starting and cooler running
engine. Please refer to your engine manufacturer's owner's manual for instructions on cleaning the air filter.
[ ] TIRES: Check the tires for wear and proper inflation.
COUNTRY HOME PRODUCTS, Inc.
MEIGS ROAD, P.O. BOX 25, VERGENNES, VERMONT 05491
1-800-DR-OWNER (376-9637) • www.dr-owner.com ©2004 CHP, Inc. 180431
Loading...
