SECURITY
OMNILOCK
®
DEVICES
ACCESS CONTROL SYSTEMS

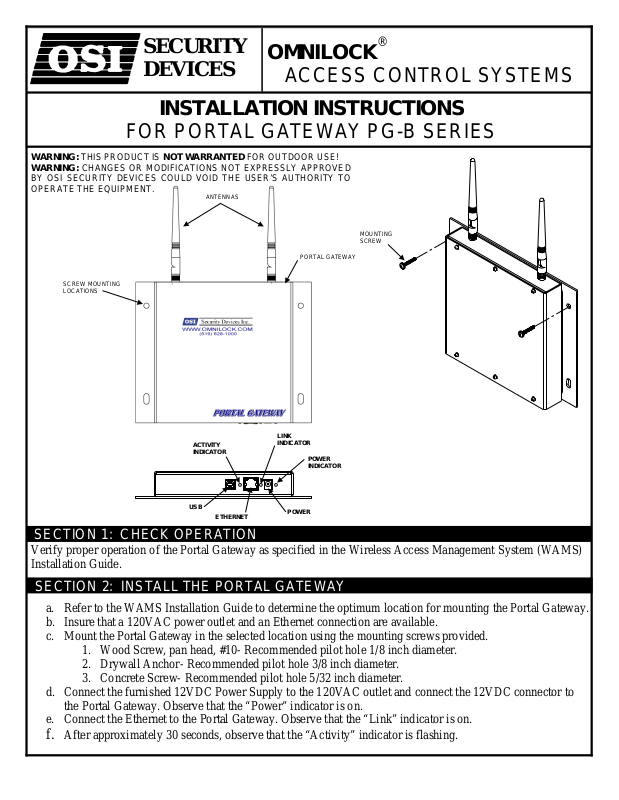

INSTALLATION INSTRUCTIONS
FOR PORTAL GATEWAY PG-B SERIES
WARNING: THIS PRODUCT IS NOT WARRANTED FOR OUTDOOR USE!
WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED
BY OSI SECURITY DEVICES COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
SCREW MOUNTING
LOCATIONS
SECTION 1: CHECK OPERATION
Verify proper operation of the Portal Gateway as specified in the Wireless Access Management System (WAMS)
Installation Guide.
SECTION 2: INSTALL THE PORTAL GATEWAY
a. Refer to the WAMS Installation Guide to determine the optimum location for mounting the Portal Gateway.
b. Insure that a 120VAC power outlet and an Ethernet connection are available.
c. Mount the Portal Gateway in the selected location using the mounting screws provided.
1. Wood Screw, pan head, #10- Recommended pilot hole 1/8 inch diameter.
2. Drywall Anchor- Recommended pilot hole 3/8 inch diameter.
3. Concrete Screw- Recommended pilot hole 5/32 inch diameter.
d. Connect the furnished 12VDC Power Supply to the 120VAC outlet and connect the 12VDC connector to
the Portal Gateway. Observe that the “Power” indicator is on.
e. Connect the Ethernet to the Portal Gateway. Observe that the “Link” indicator is on.
f. After approximately 30 seconds, observe that the “Activity” indicator is flashing.
ANTENNAS
ACTIVITY
INDICATOR
USB
ETHERNET
PORTAL GATEWAY
LINK
INDICATOR
POWER
POWER
INDICATOR
MOUNTING
SCREW
Copyright ©2003 OSI Security Devices Inc. All Rights Reserved.
OMNILOCK is a Registered Trademark of OSI Security Devices Inc. 12833 Rev.A
