Page 1
EN
Quick Guide
Kaba desktop reader 91 08 MRD
3
LEGIC RF standard (prime)
Other ISO 14443A (read only UID)
Windows 7 + Windows 7 x64
Windows Server 2008 Release 2, x64
•
Interface: USB V2.0 low speed
•
Power supply: 5 V from USB
•
Current consumption: max. 200 mA
•
Dimensions: 107 x 45 x 90 mm
•
Weight: 105 g
•
Ambient temperature: 0 – 40O C
•
Protection class according to
IEC 60529: IP40
•
Kaba desktop reader 91 08 with USB
connecting cable, length 1.5 m
•
CD-ROM with driver software
•
This quick guide
•
32-Bit systems: dpinst32.exe
•
64-Bit systems: dpinst64.exe

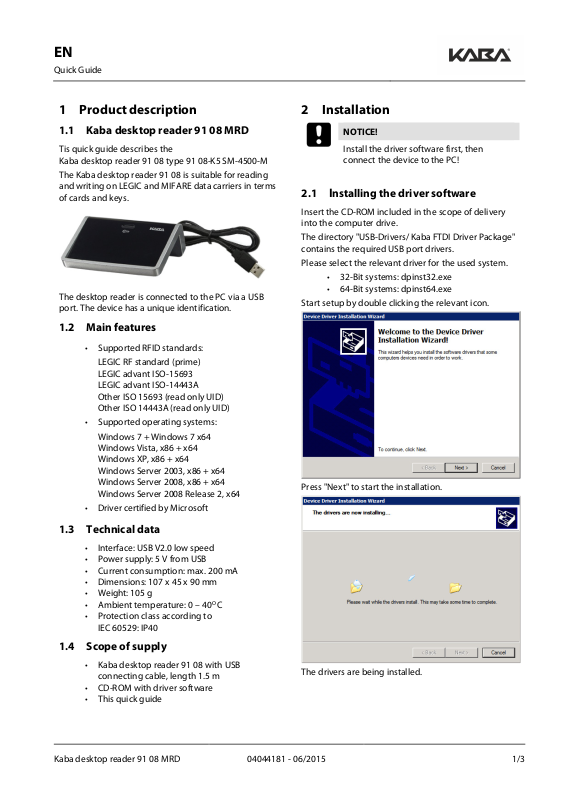

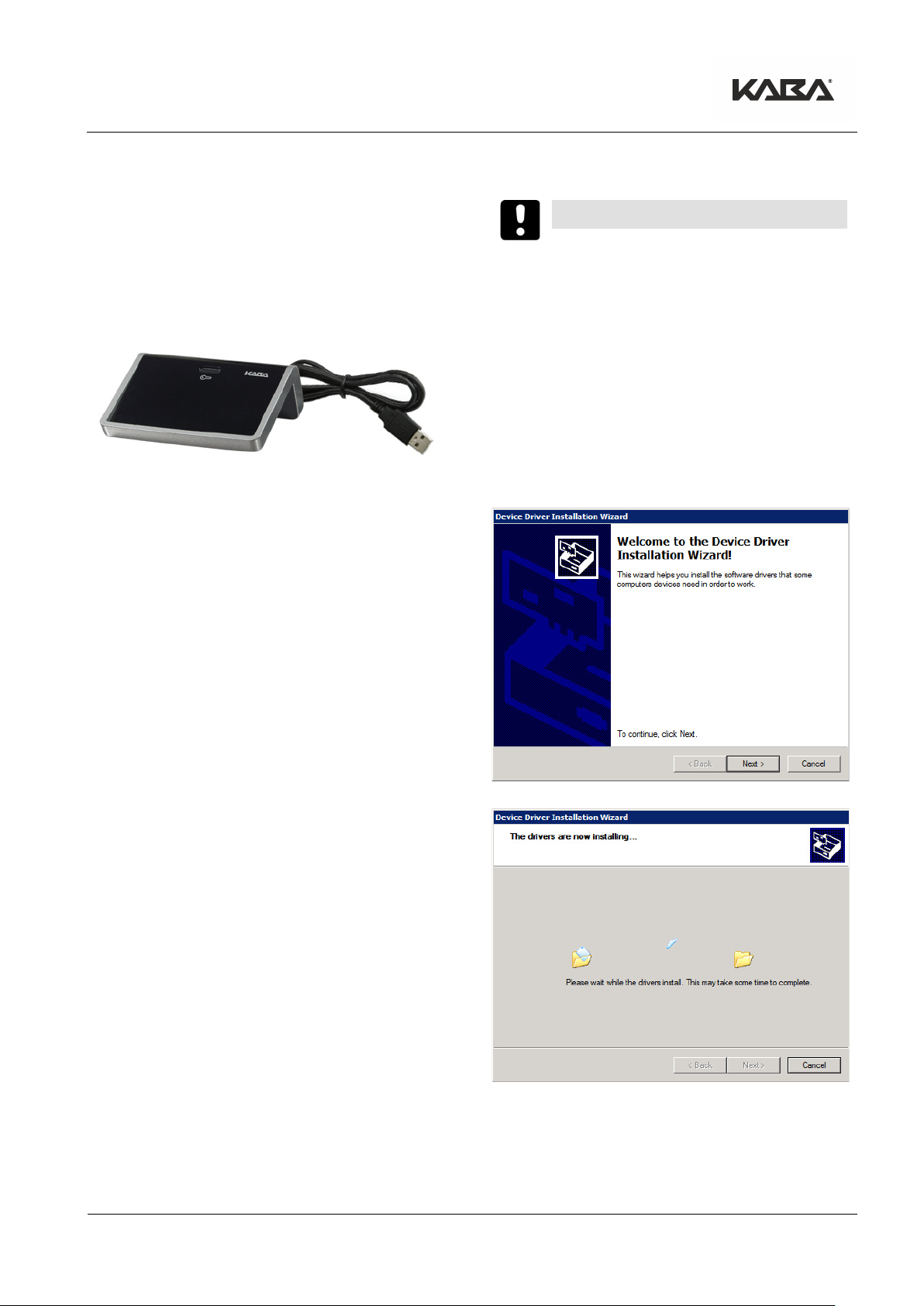

1 Product description
2 Installation
1.1 Kaba desktop reader 91 08 MRD
Tis quick guide describes the
Kaba desktop reader 91 08 type 91 08-K5 SM-4500-M
The Kaba desktop reader 91 08 is suitable for reading
and writing on LEGIC and MIFARE data carriers in terms
of cards and keys.
2.1 Installing the driver software
NOTICE!
Install the driver software first, then
connect the device to the PC!
Insert the CD-ROM included in the scope of delivery
into the computer drive.
The directory "USB-Drivers/ Kaba FTDI Driver Package"
contains the required USB port drivers.
Please select the relevant driver for the used system.
The desktop reader is connected to the PC via a USB
port. The device has a unique identification.
Start setup by double clicking the relevant icon.
1.2 Main features
• Supported RFID standards:
LEGIC advant ISO-15693
LEGIC advant ISO-14443A
Other ISO 15693 (read only UID)
• Supported operating systems:
Windows Vista, x86 + x64
Windows XP, x86 + x64
Windows Server 2003, x86 + x64
Windows Server 2008, x86 + x64
• Driver certified by Microsoft
1.3 Technical data
1.4 Scope of supply
Press "Next" to start the installation.
The drivers are being installed.
04044181 - 06/2015 1/
Page 2
EN
Quick Guide
2
Kaba desktop reader 91 08 MRD
This device complies with the following
standards:
EN 60950
A12:2011
EN 301 489
EN 300 330-1 V1.7.1/EN 300 330-2 V1.5.1
according to the
R&TTE directive 1999/5/EC
RoHS
This device complies with the
2002/95/EC directive

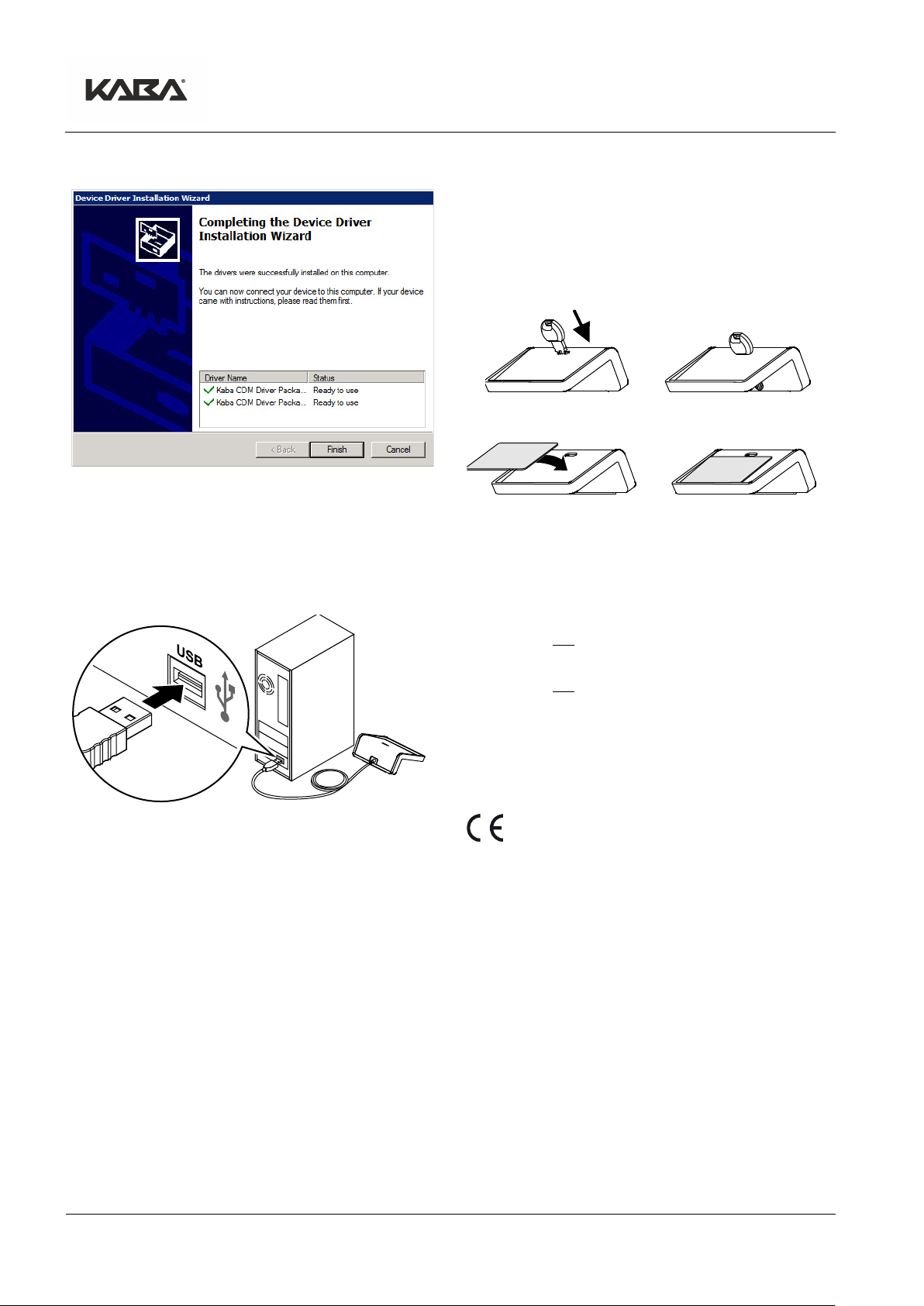

The successful installation is confirmed as follows:
Press "Finish" to finish the installation process.
2.2 Connecting the desktop reader
3 Operation
The design of the device guarantees that the media are
fixed mechanically during a longer period without the
need for user intervention.
The media are simply inserted (key) or placed (card,
etc.).
Read / write RFID keys
Read / write RFID cards
Connect the Kaba desktop reader 91 08 to a free USB
port of the computer. USB extension cables or Hubs
may not be used.
Windows recognizes and installs the device
automatically. This process can take some minutes. The
Kaba desktop reader 91 08 is now ready for use.
4 Cleaning the device
A soft cloth and a soft cleaning agent are suitable for
cleaning de device.
• Do not use alcohol, such as ethyl alcohol or
isopropyl
• Do not use aggressive solvents or cleaning
agent with added powder
• Avoid scratching and abrasive movements
5 Conformity
-1:2006 + A11:2009 + A1:2010 +
-1 V1.9.1/EN 301 489-3 V1.4.1
.
/3 04044181 - 06/2015
Page 3
EN
Quick Guide
Kaba desktop reader 91 08 MRD
3
This device must accept any interference received, including interference that may
DECLARATION OF CONFORMITY
according to FCC Part 15
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
• This device may not cause harmful interference
•
cause undesired operation.
Please Note:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Please Note:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Compliance Information Statement (Declaration of Conformity Procedure):
Responsible Party: Kaba Benzing America, Inc. dba Kaba Workforce Solutions
Address: 3015 N Commerce Parkway, Miramar, FL 33025 USA
Telephone: +1 954 416 1720
Type of Equipment: Desktop Reader
Model Name: 91 08-K5 SM-4500-M
Manufacturer:
Kaba GmbH
Workforce Management
Albertistraße 3
D-78056 Villingen-Schwenningen
Sales:
04044181 - 06/2015 3/
