Dorel DA1008-1 Assembly Manual

DA1008-1 (MOCHA)

(TAKEN FROM CARTON)

_____________________________________

Date of purchase:

_______ / _______ / _______

THIS INSTRUCTION BOOKLET

CONTAINS IMPORTANT SAFETY

INFORMATION. PLEASE READ AND

KEEP FOR FUTURE REFERENCE.

Lot number:

6-Drawer Dresser

UPC CODE:

0-65857-17164-8

NOTE:

DOREL ASIA

Model No:

DO NOT RETURN PRODUCT TO THE STORE.

If a part is missing or damaged, contact our customer service

department. We will replace the part FREE of charge.

Tel #: [phone]

E-Mail: [e-mail]

Fax #: [phone]

NEED HELP!

CALL US FOR ASSISTANCE

1-800-295-1980

NOTES

* Do not defeat or remove the drawer interlock system.

* Use of tipover restraints may only reduce, but not eliminate, the risk of tipover.

* Never open more than one drawer at a time.

* Ensure all parts and components are present before beginning assembly.

* Assemble on a soft, smooth surface to prevent damage to the product finish.

* Use the wall safety strap provided to secure the unit to the wall.

* A Phillips head screw driver is not included.

* DO NOT use power tools.

* CAUTION: Adult assembly required.

* Assembly will require two people.

Serious or fatal crushing injuries can occur from furniture tipover. To help prevent
tipover:

* Install tipover restraint provided.

* Place heaviest items in the lower drawers.

* To avoid unnecessary damage, when levelers have been extended, DO NOT drag across
surface when moving. Be sure to lift and carry the item to its location.

* Estimated assembly time: 60 minutes.

* Unless specifically designed to accommodate, do not set TVs or other heavy objects on
top of this product.

* Never allow children to climb or hang on drawers, doors or shelves.

Dorel warrants its product to be free from defects in material and workmanship and agrees
to remedy any such defect. This warranty covers 1 year from the date of original purchase.
This warranty is valid only upon presentation of proof of purchase. This is solely limited to
the repair or replacement of defective furniture components and no assembly labor is
included. This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in any way.
This warranty gives you specific legal rights and you may also have other rights which vary
from State to State.

Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used
occasionally to clean surface. Dry immediately. Do not use any abrasives that may damage
finish. Excessive exposure to sunlight and extreme changes in temperature and moisture
can damage wood furniture.

WARNING: Should this product become damaged, and/or

components are broken or missing, DO NOT USE.

CUSTOMER SERVICE

WARNING

CARE AND CLEANING

Montreal, Quebec

12345 Albert-Hudon Boulevard, Suite 100

CALL 1-800-295-1980

If you have any questions about this product, contact our customer service representative
first!

Check bolts/screws periodically and tighten them if necessary.

LIMITED WARRANTY

MAINTENANCE

E-MAIL: [e-mail]

Canada H1G 3L1

You can also order parts by writing to the address listed below. Please include the product
model number, color and a detailed description of the part.

Customer Service Department No. 413

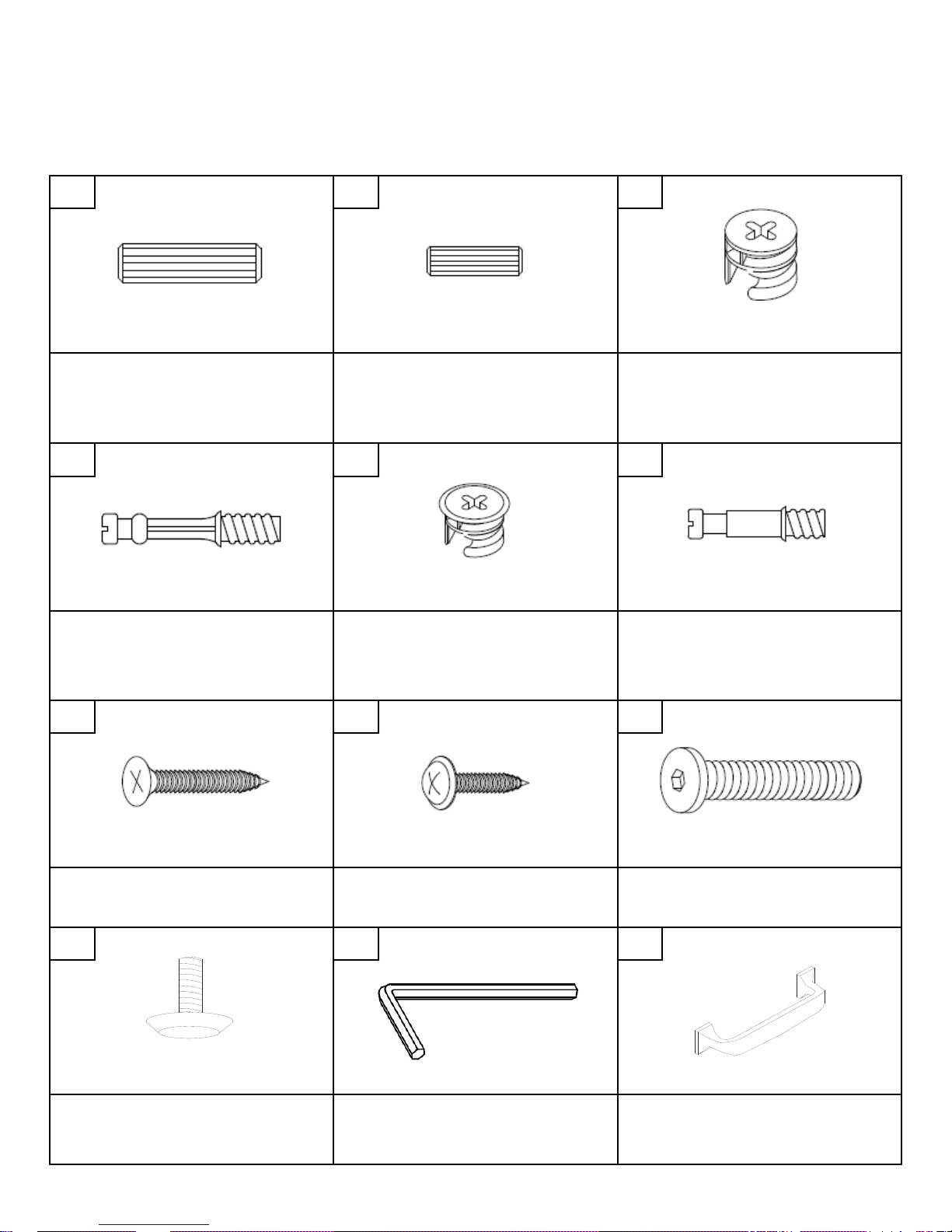

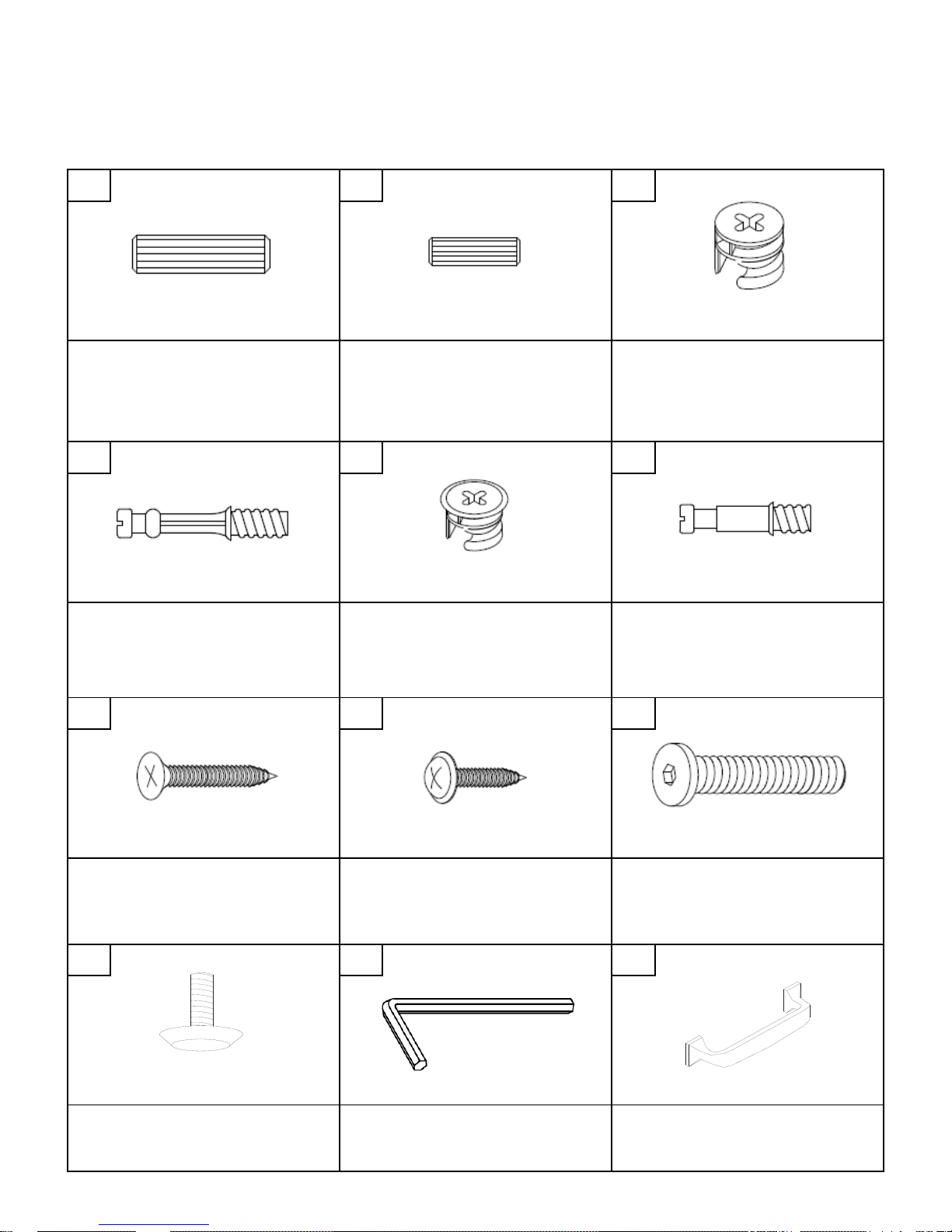

HARDWARE LIST

1 2 3

4 5 6

7 8 9

10 11 12

HANDLE

6 PCS

Ø15* 11 mm

LARGE CAM LOCK

18 PCS

Ø7 * 28 mm

SMALL CAM BOLT

24 PCS

6-Drawer Dresser

DA1008-1

Ø1/4" * 35 mm

LARGE BOLT

1 PC

Ø3 * 15 mm

Ø1/4"

Ø8 * 30 mm

Ø6 * 20 mm

Ø7 * 36 mm

Ø13 * 10 mm

LARGE CAM BOLT

18 PCS

SMALL WOOD DOWEL

24 PCS

LARGE WOOD DOWEL

22 PCS

FLAT HEAD SCREW

28 PCS

ROUND HEAD SCREW

16 PCS

SMALL CAM LOCK

24 PCS

Ø4 * 25 mm

ADJUSTABLE LEVELER

3 PCS

ALLEN KEY

1 PC

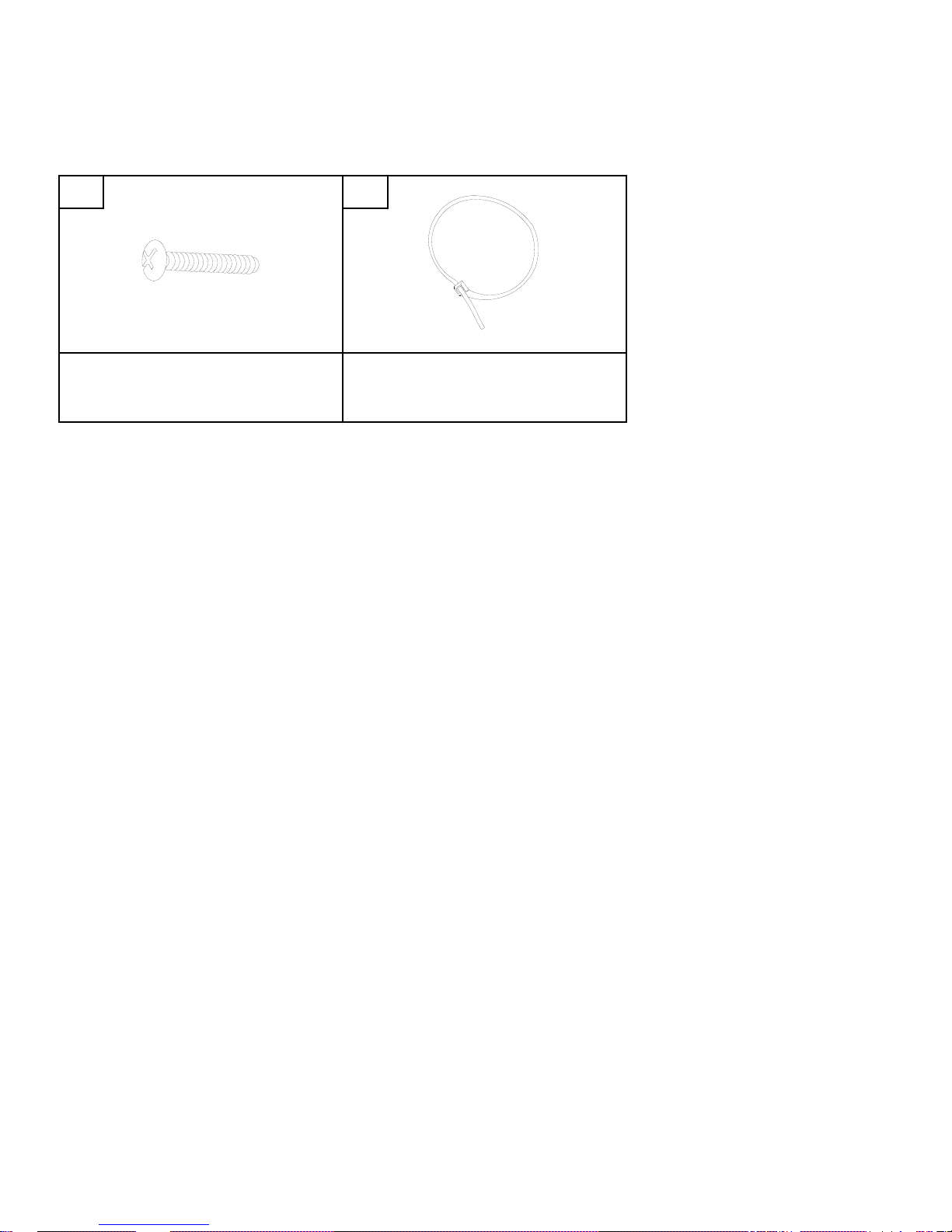

HARDWARE LIST

13 14

SMALL BOLT

12 PCS

SAFETY STRAP

1 KIT

6-Drawer Dresser

DA1008-1

Ø5/32" * 19mm

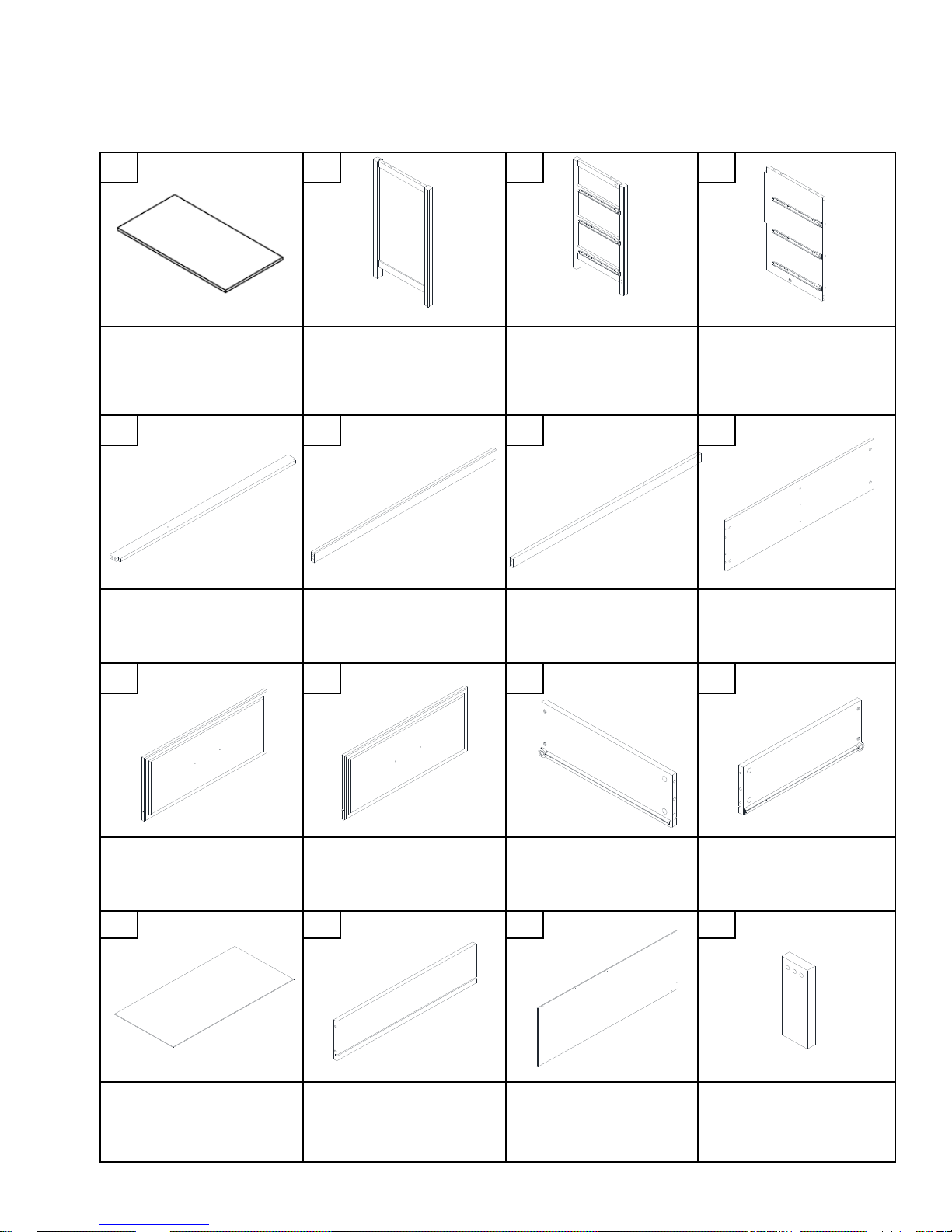

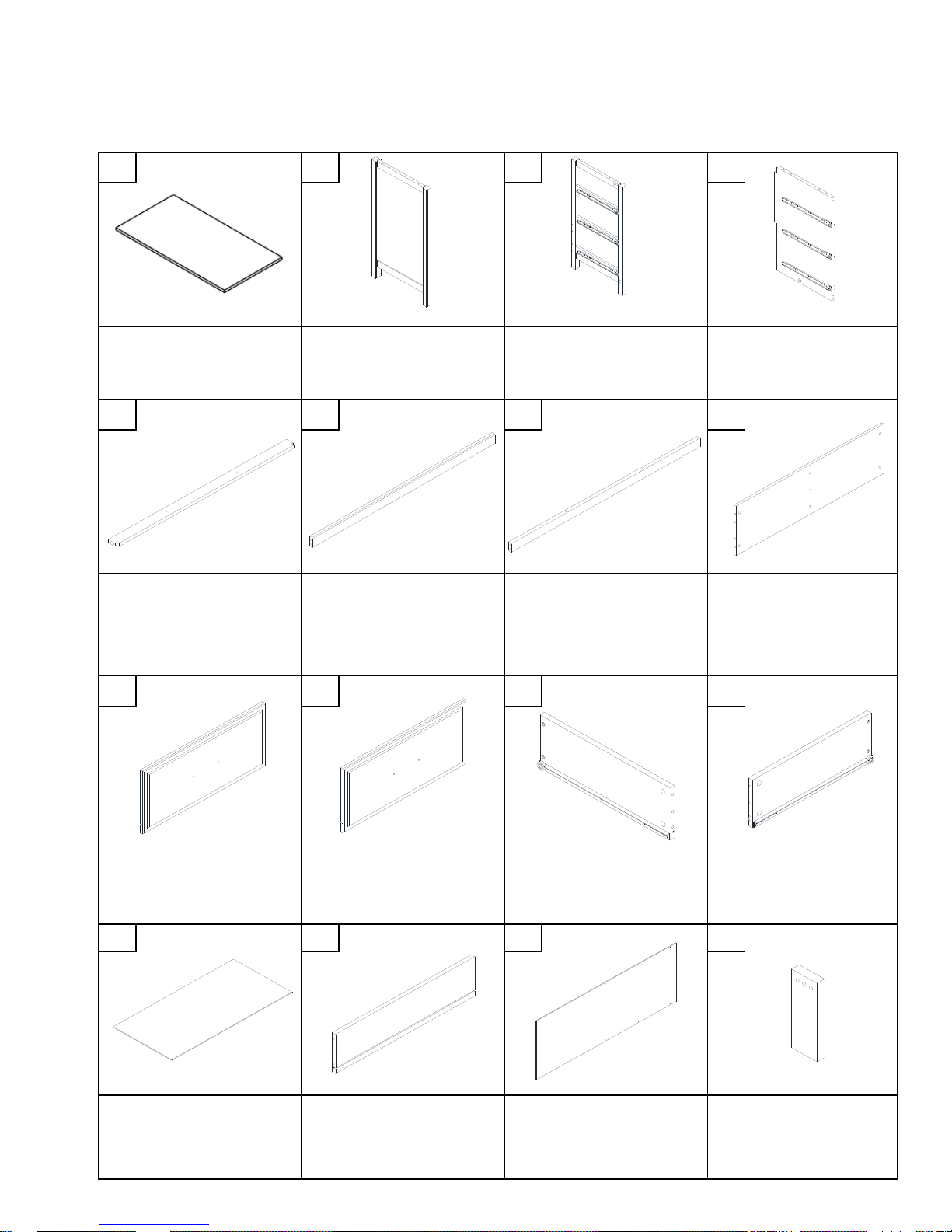

PARTS LIST

A B C D

E F G H

I J K L

M N O P

LEFT DRAWER SIDE

6 PCS

LEFT DRAWER

FRONT

3 PCS

RIGHT DRAWER

FRONT

3 PCS

FRONT BOTTOM

RAIL

1 PC

BACK TOP RAIL

1 PC

SUPPORT PANEL

1 PC

6-Drawer Dresser

DA1008-1

MIDDLE PANEL

1 PC

LEFT SIDE FRAME

1 PC

BACK BOTTOM

PANEL

1 PC

RIGHT DRAWER

SIDE

6 PCS

RIGHT SIDE FRAME

1 PC

TOP PANEL

1 PC

DRAWER BOTTOM

6 PCS

DRAWER BACK

6 PCS

BACK PANEL

1 PC

FRONT TOP RAIL

1 PC

STEP 1

6-Drawer Dresser

DA1008-1

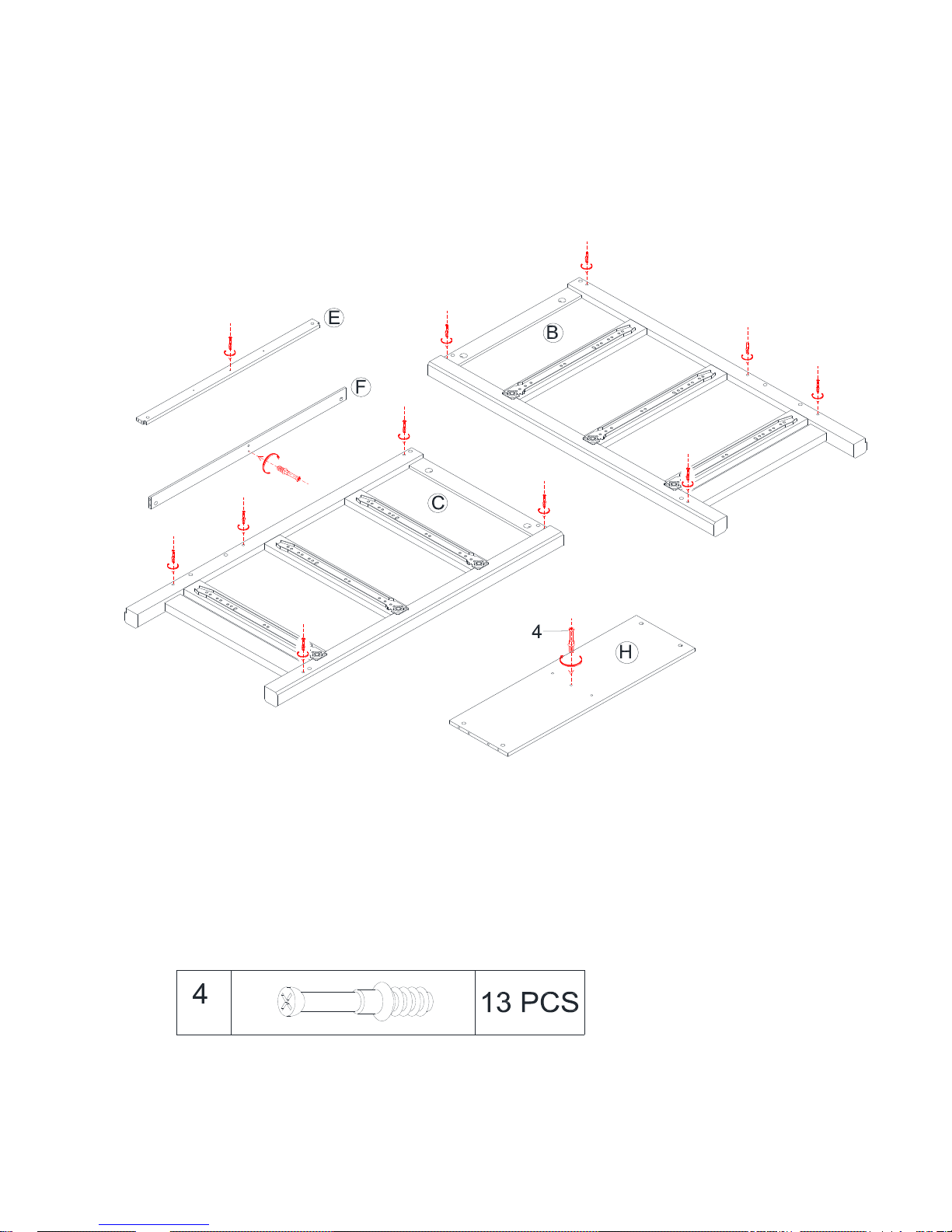

Insert large cam bolts (4) into the front rails (E & F), back bottom panel (H), left side frame
(B) and right side frame (C) as shown below.

STEP 2

6-Drawer Dresser

DA1008-1

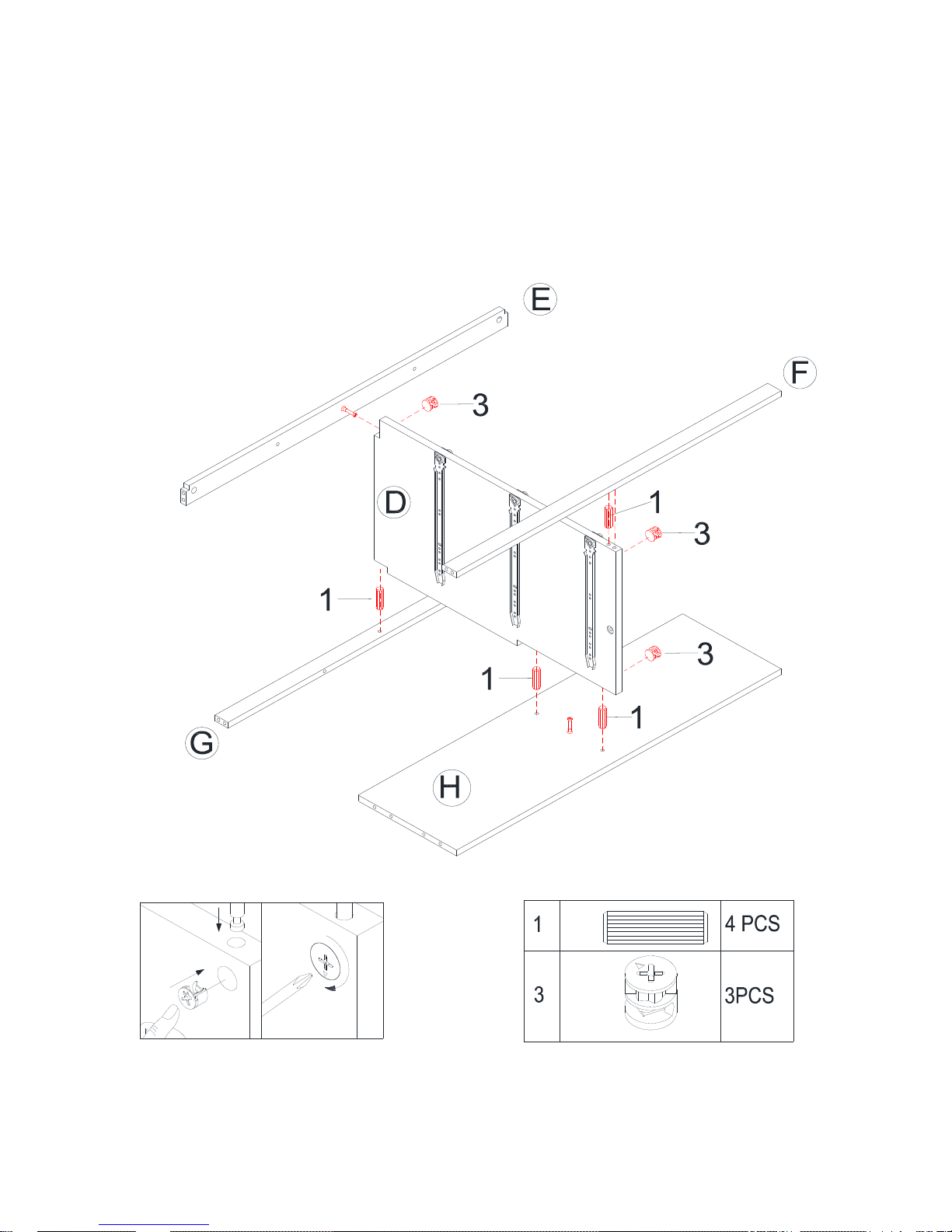

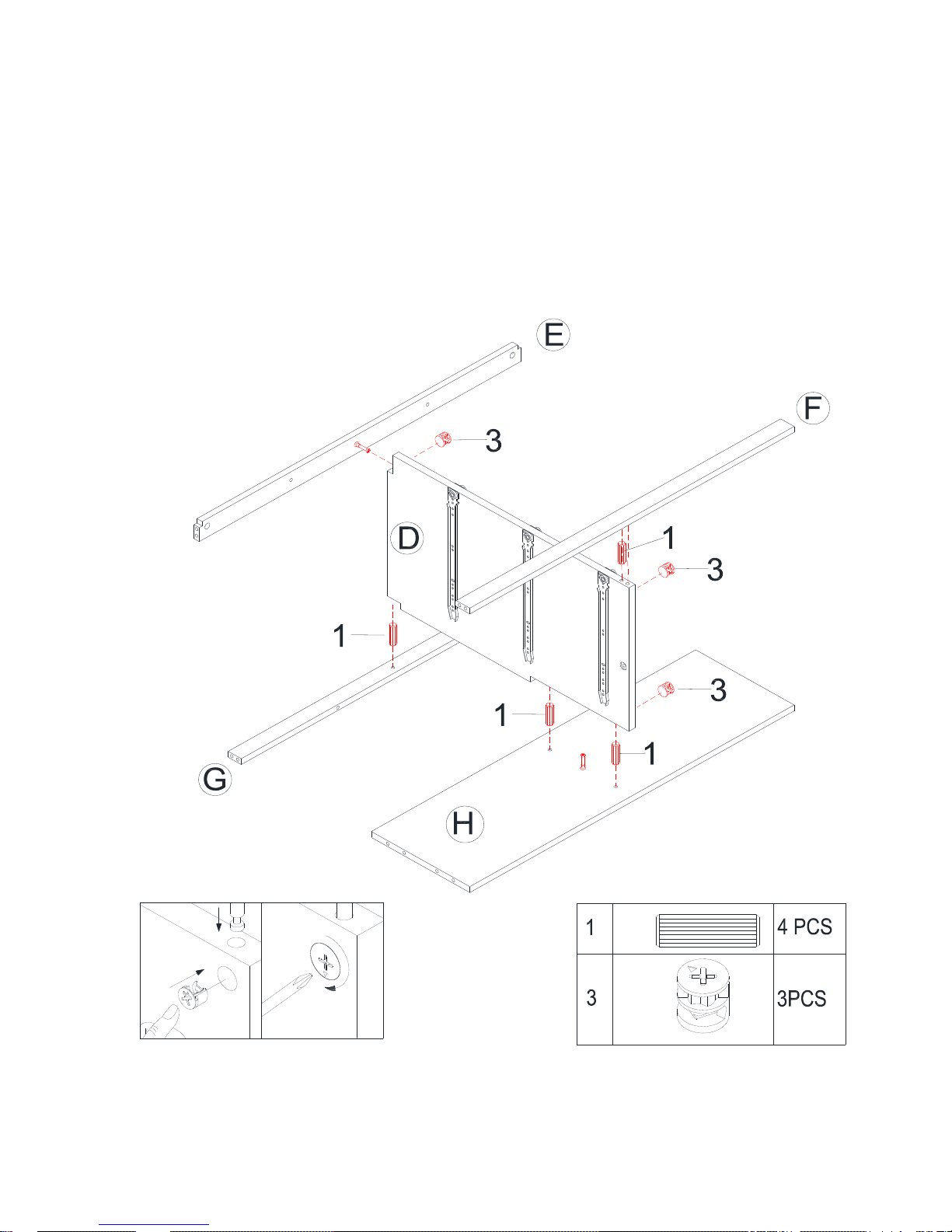

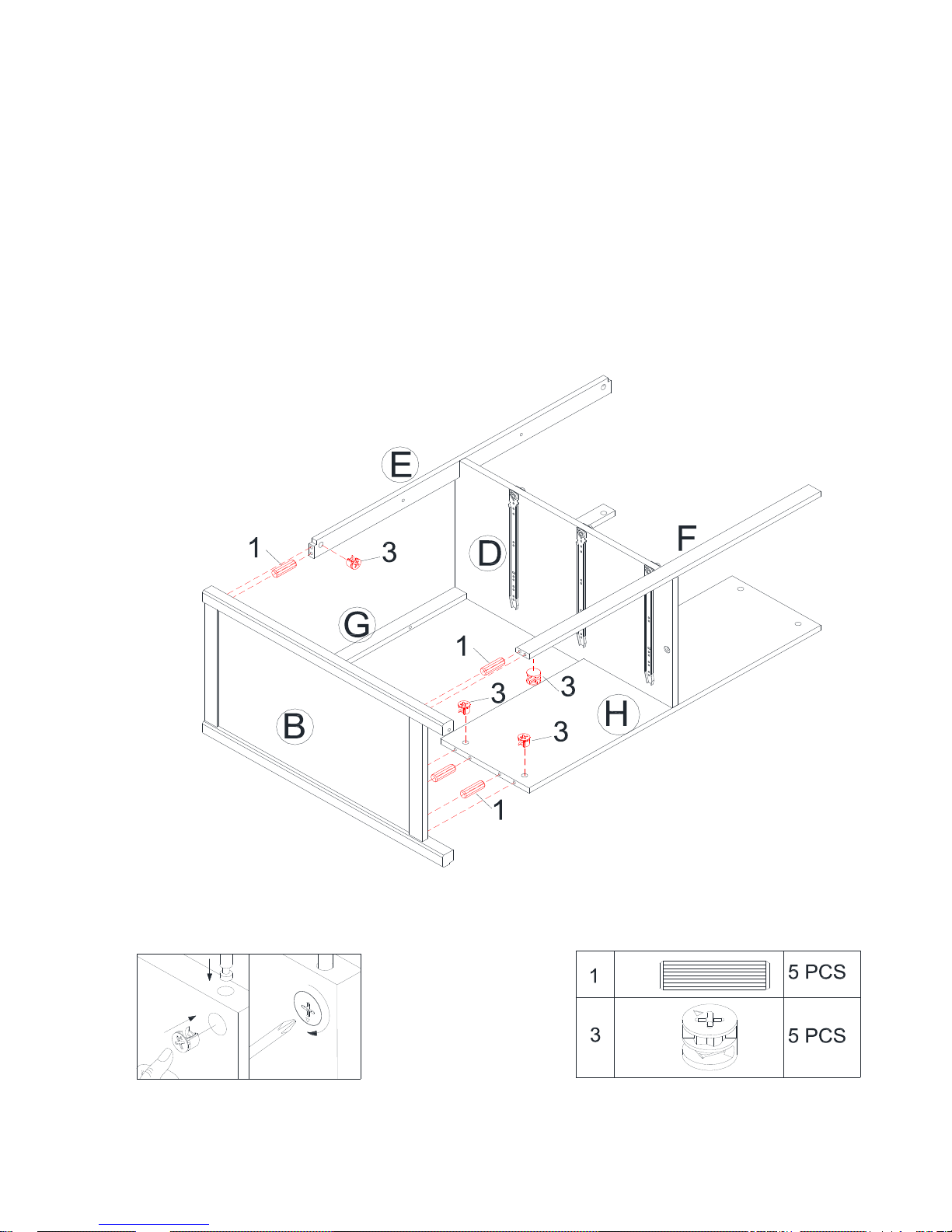

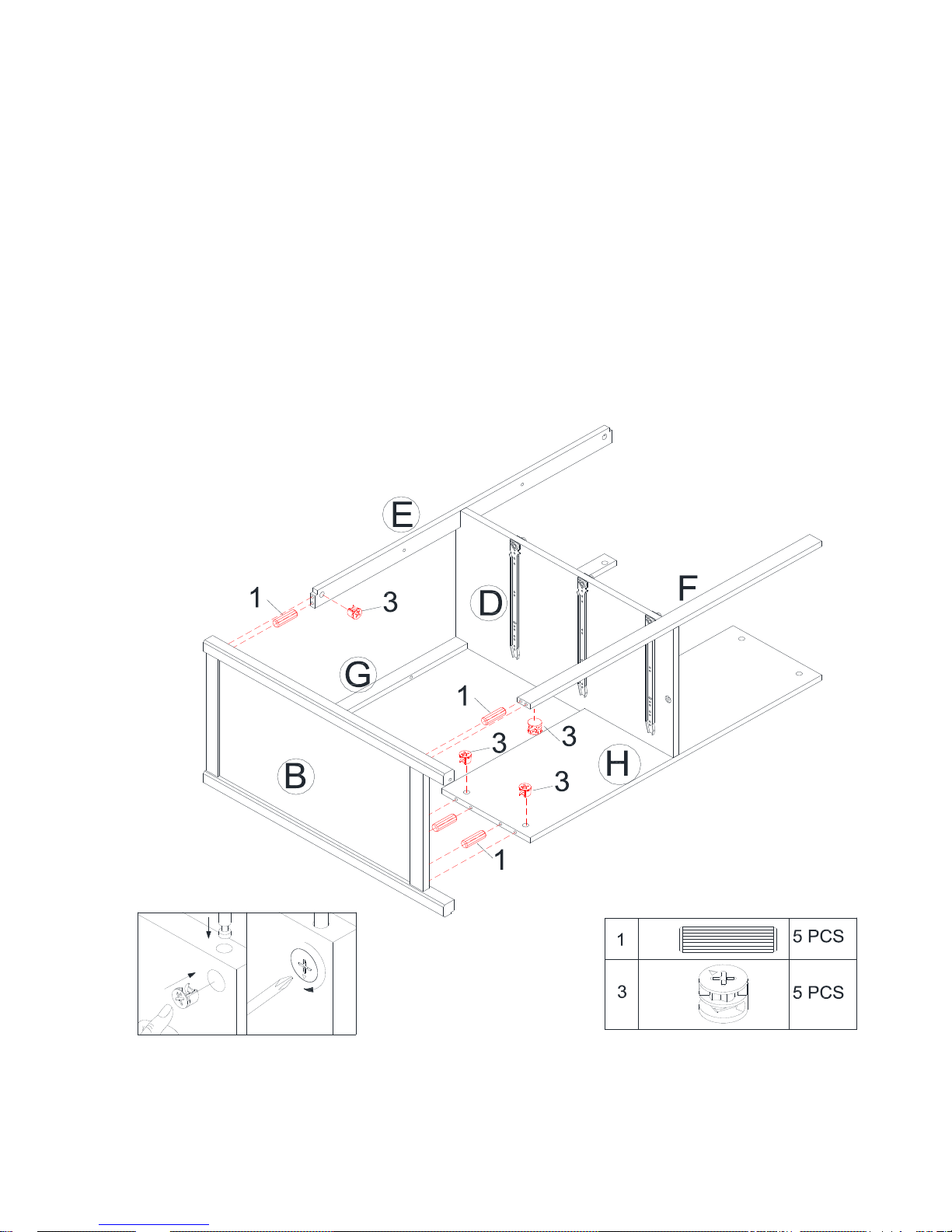

Insert large cam locks (3) and large wood dowels (1) into the middle panel (D) as shown.
Secure rails (E, F and G) and back bottom panel (H) to the middle panel (D) by rotating
the large cam locks (3) on middle panel (D) 1/2 turn clockwise using a Phillips head
screwdriver (not included).

STEP 3

6-Drawer Dresser

DA1008-1

Insert large wood dowels (1) into the left side frame (B).
Insert large cam locks (3) into the rails (E, F and G) and back bottom panel (H).
Attach left side frame (B) to the assembled unit as shown.
Secure the left side frame (B) to the assembled unit by rotating cam locks (3) on rails (E, F
and G) and back bottom panel (H) 1/2-turn clockwise using a Phillips head screwdriver
(not included).

STEP 4

6-Drawer Dresser

DA1008-1

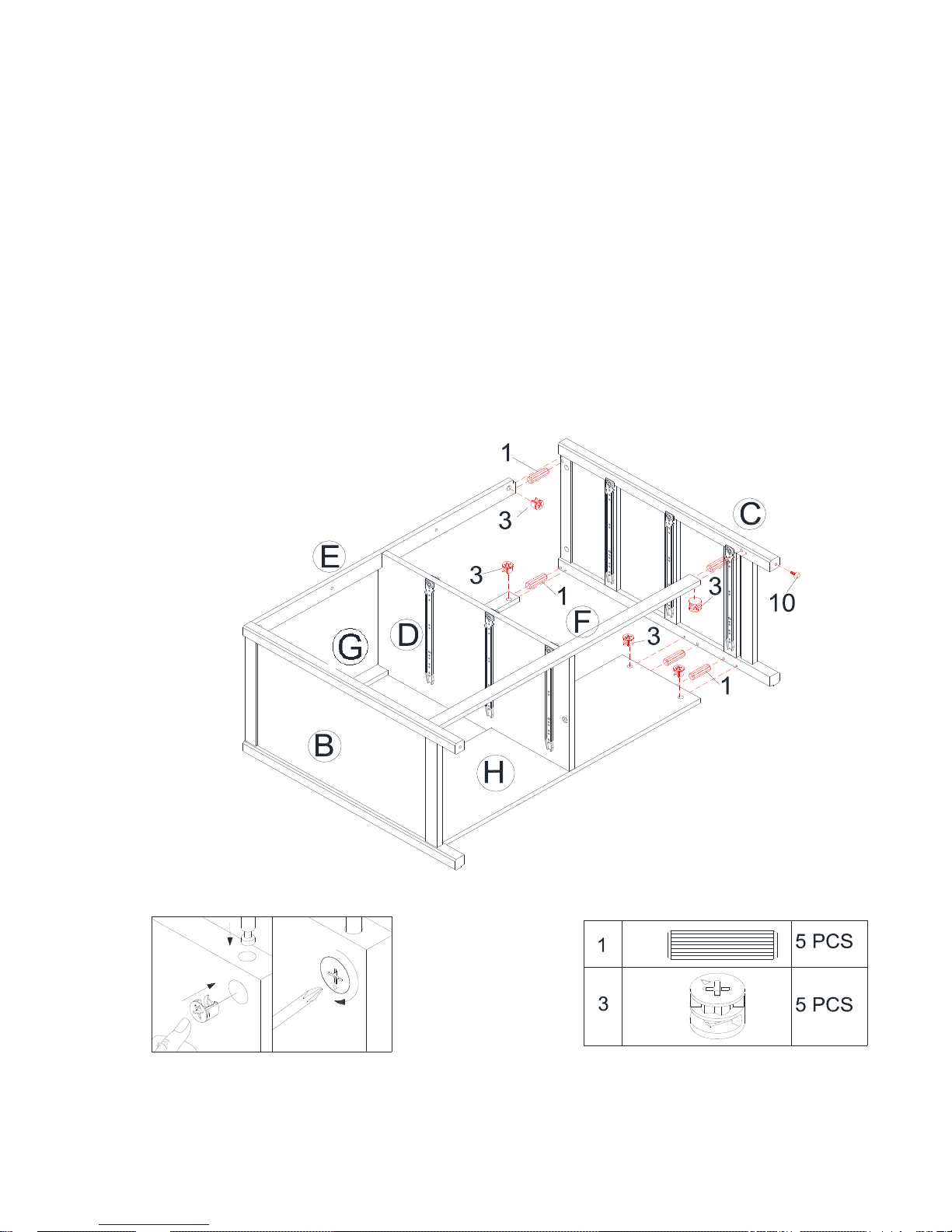

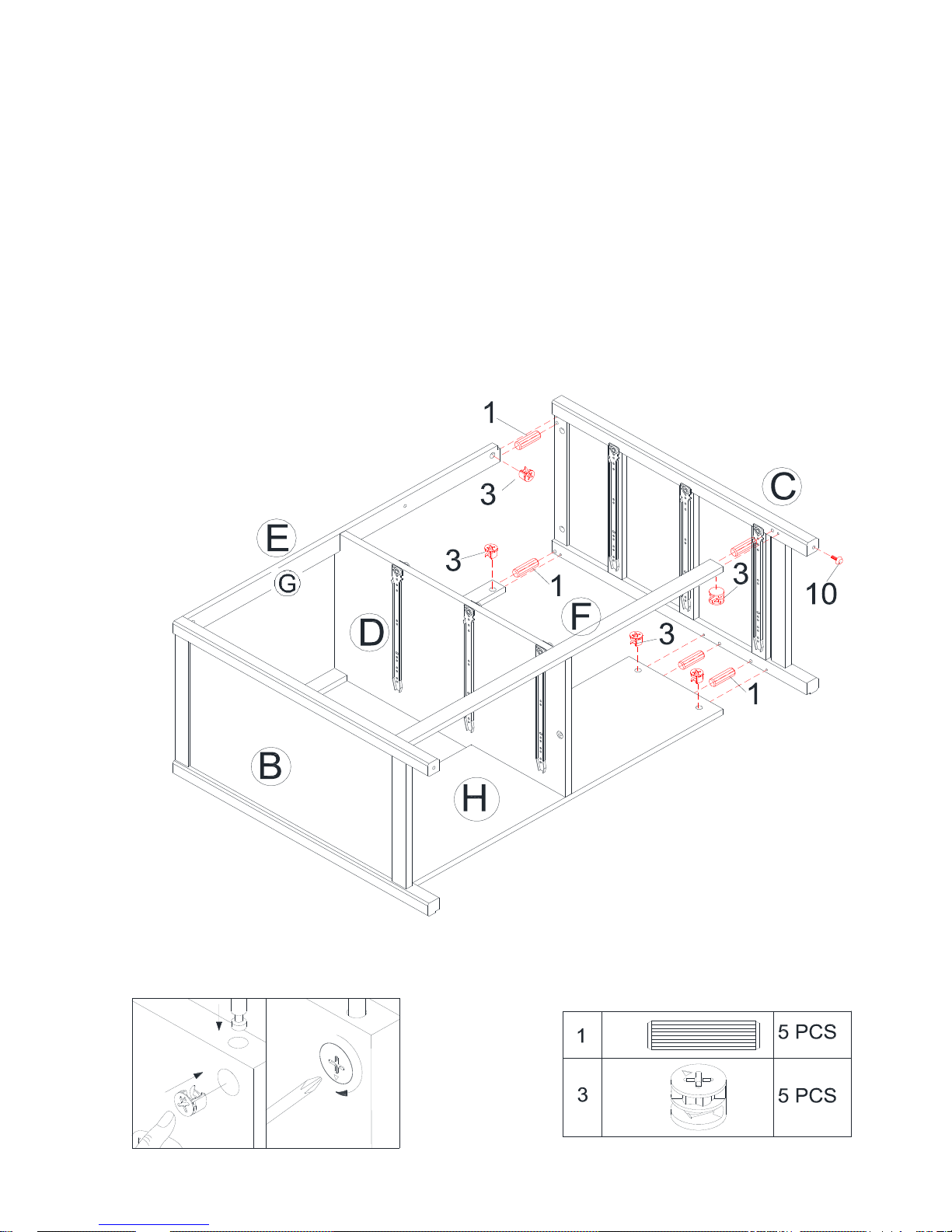

Insert large wood dowels (1) into the right side frame (C).
Insert large cam locks (3) into the rails (E, F and G) and back bottom panel (H).
Attach right side frame (C) to the assembled unit as shown.
Secure the right side frame (C) to the assembled unit by rotating cam locks (3) on rails (E,
F and G) and back bottom panel (H) 1/2-turn clockwise using a Phillips head screwdriver
(not included).

STEP 5

6-Drawer Dresser

DA1008-1

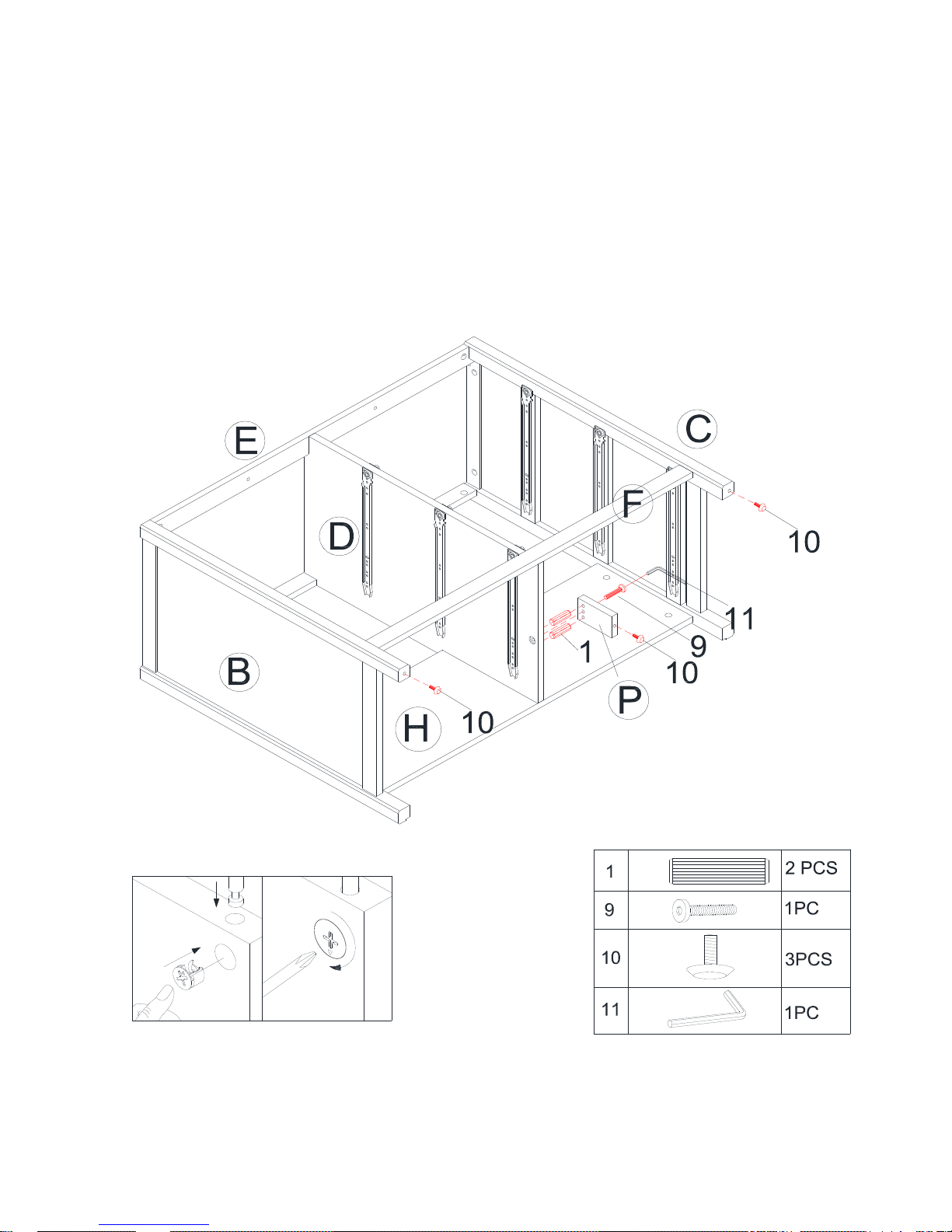

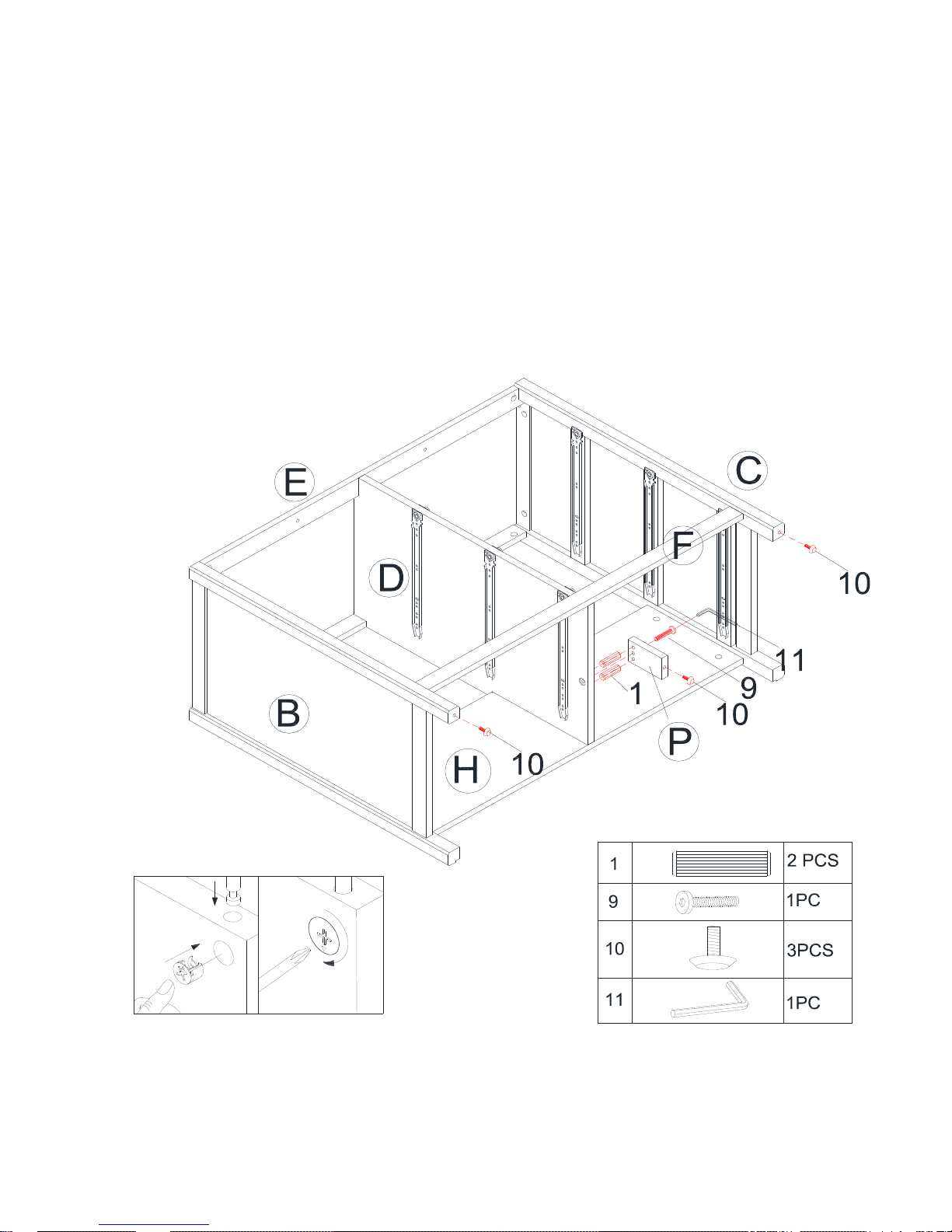

Insert large wood dowels (1) into the support panel (P). Attach support panel (P) to the
assembled unit as shown.
Secure the support panel (P) to the middle panel (D) with large bolt (9) as shown. Use
Allen key (11) to tighten the bolt.
Install the adjustable levelers (10) into the support panel (P) and side frames (B & C) as
shown.

STEP 6

6-Drawer Dresser

DA1008-1

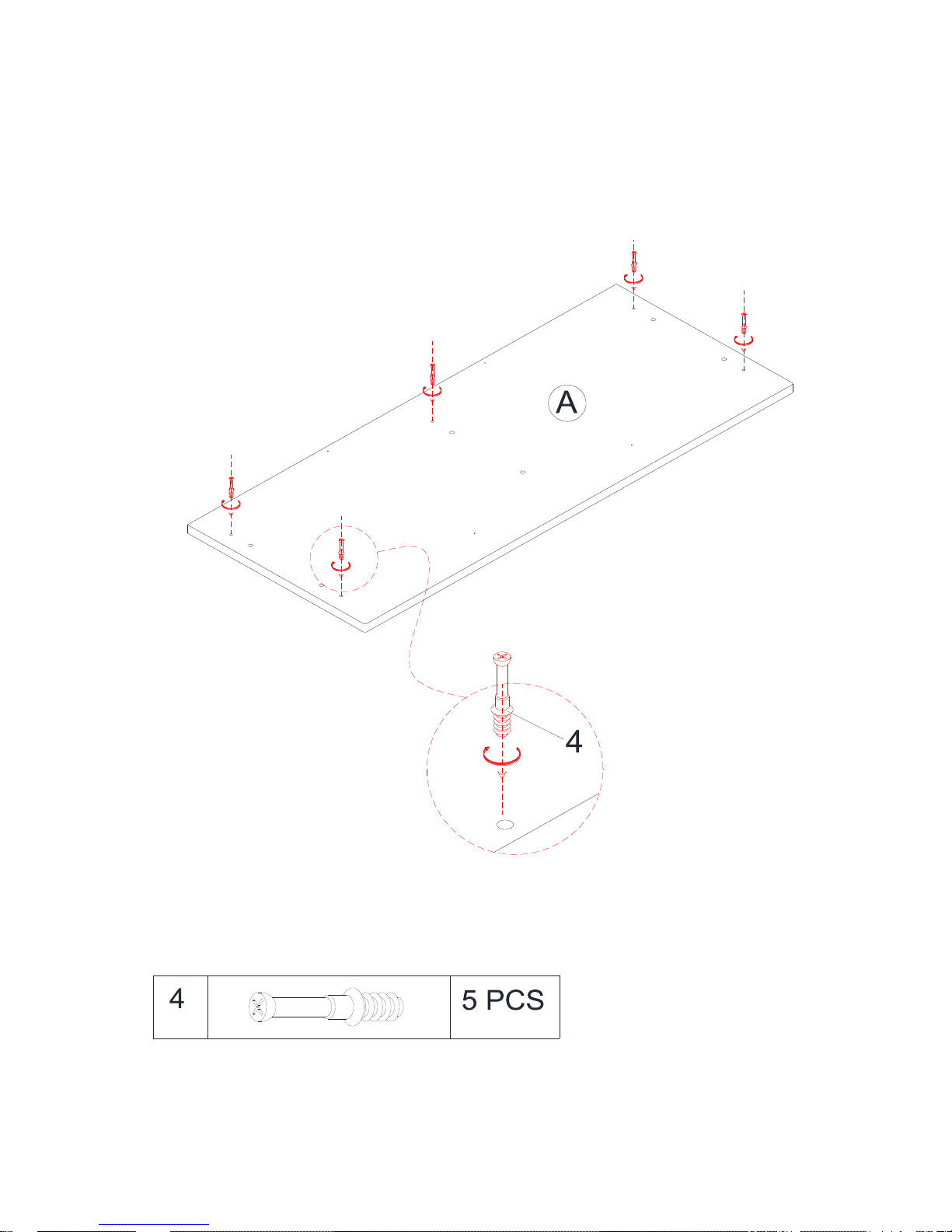

Insert large cam bolts (4) into the top panel (A).

STEP 7

6-Drawer Dresser

DA1008-1

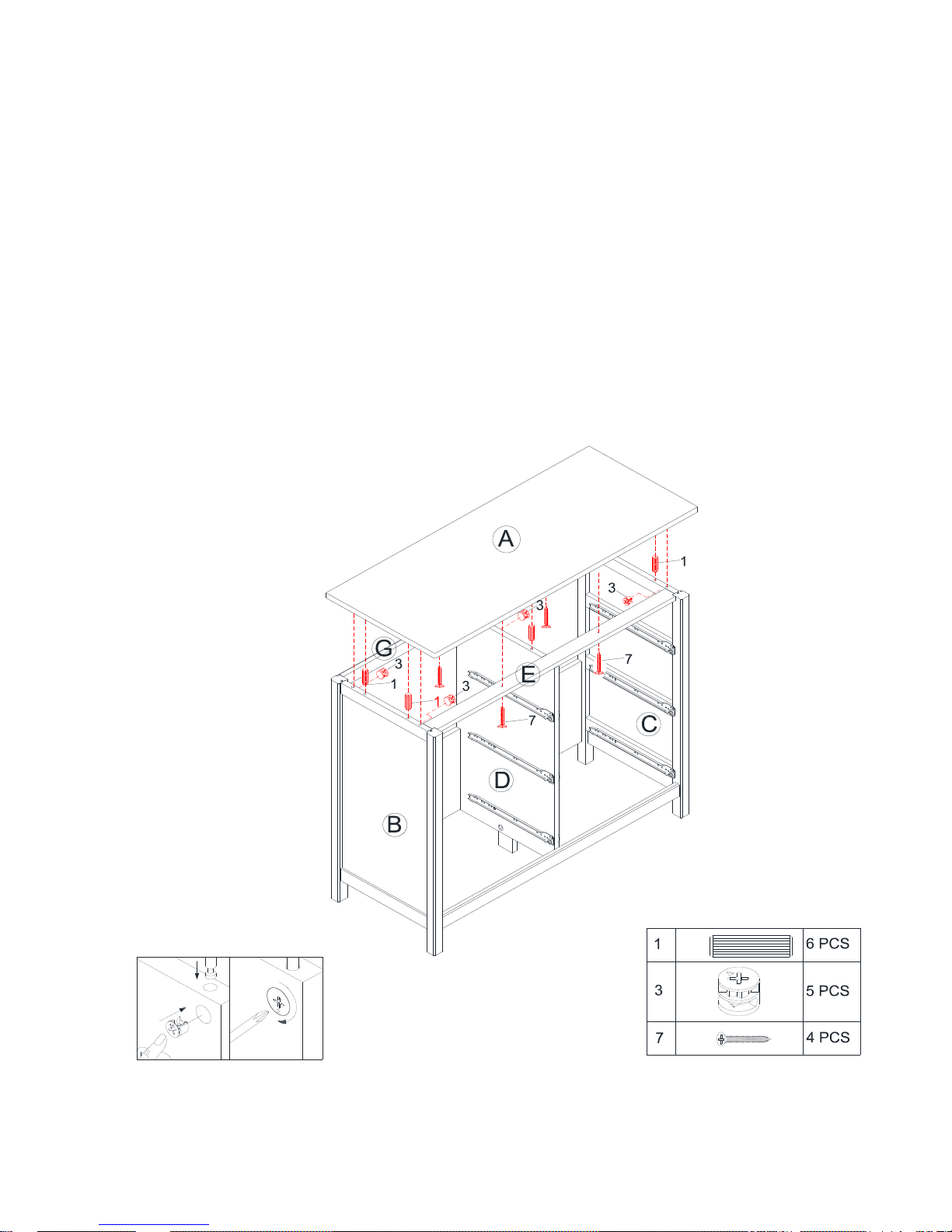

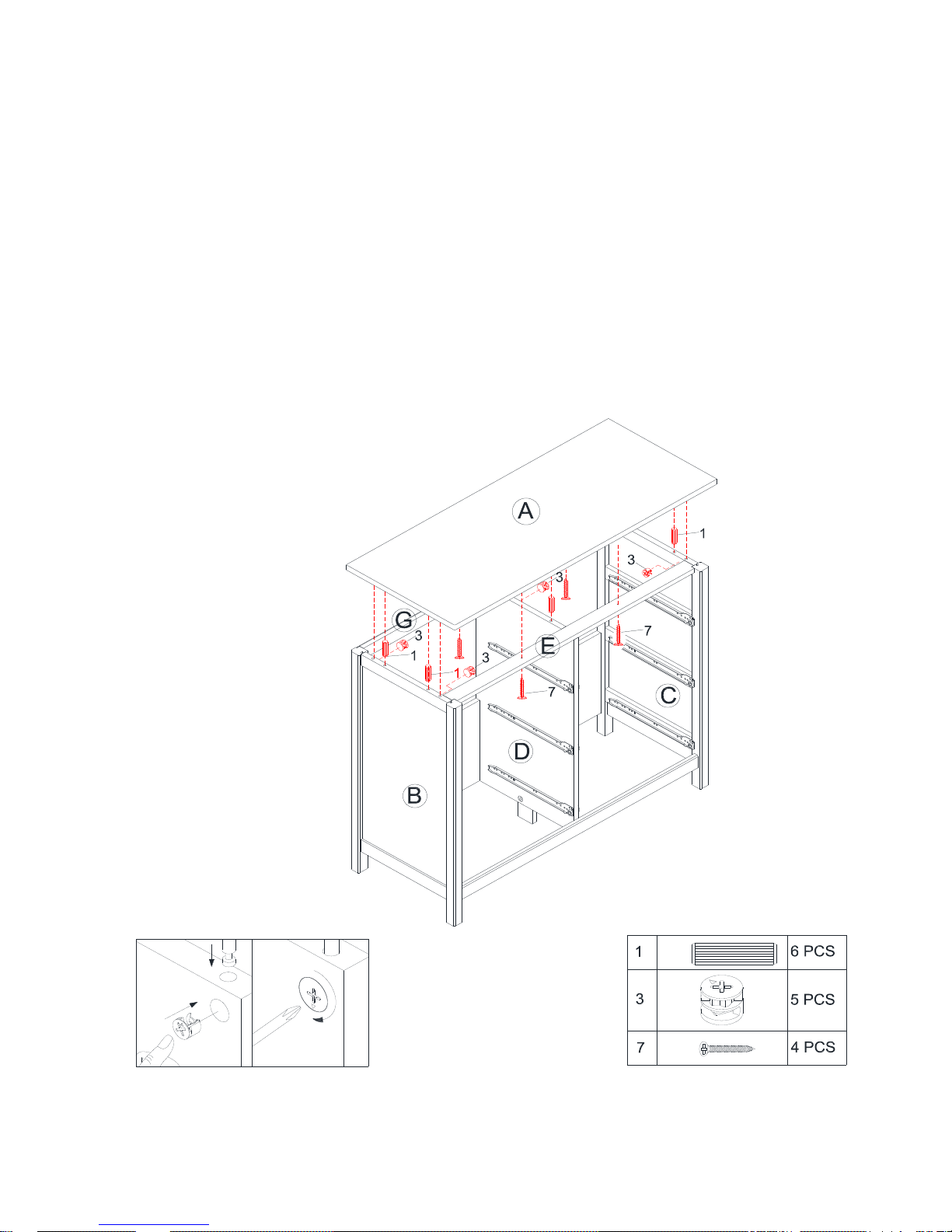

Insert large wood dowels (1) into the left side frame (B), middle panel (D) and right side
frame (C) as shown.
Insert large cam locks (3) into the side frames (B & C) and middle panel (D).
Place the top panel (A) on the assembled unit.
Rotate large cam locks (3) on the side panels (B & C) and middle panel (D) 1/2-turn
clockwise to secure the top panel (A).
Further secure top panel (A) with flat head screws (7) through rails (E and G) and middle
panel (D). Use a Phillips head screwdriver (not included) to tighten the screws.

STEP 8

6-Drawer Dresser

DA1008-1

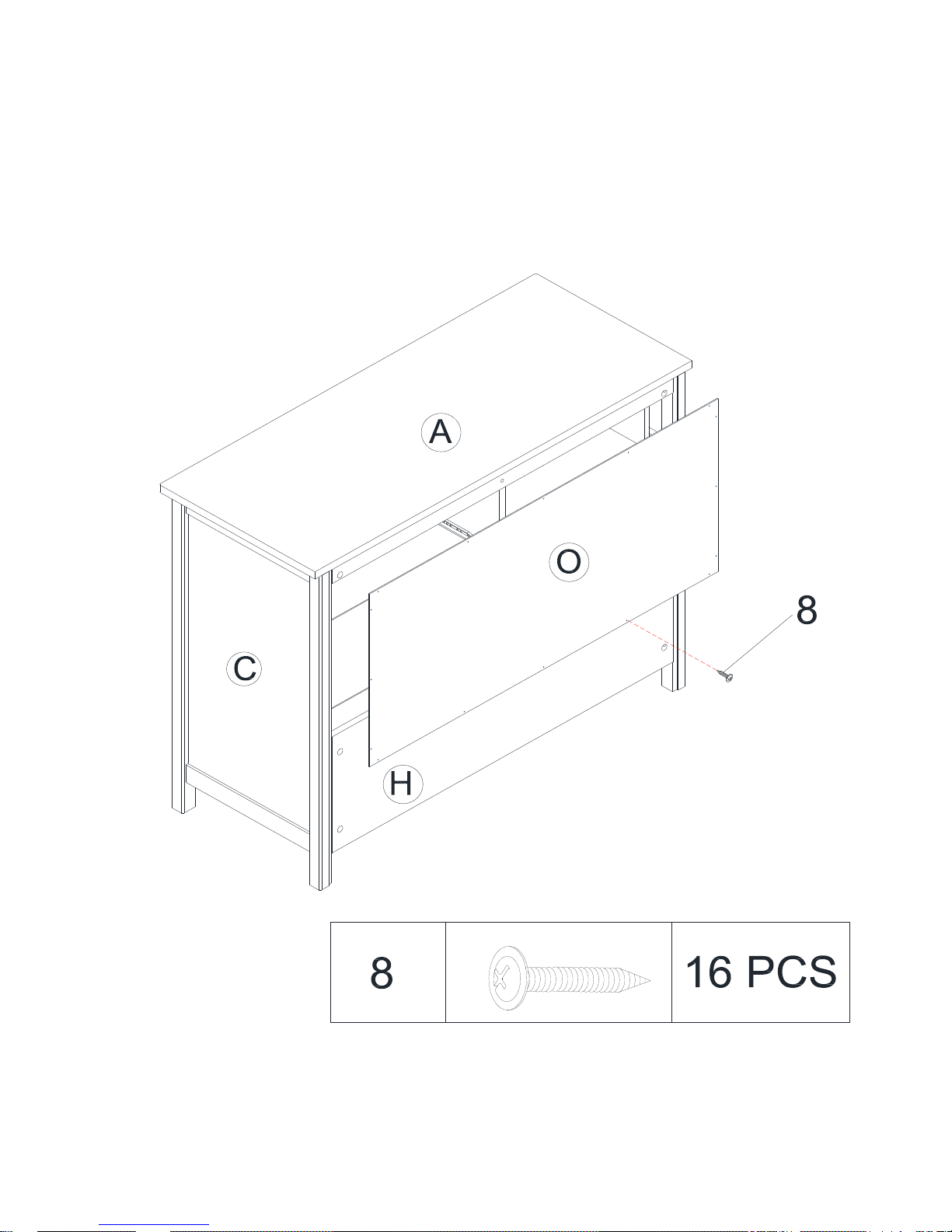

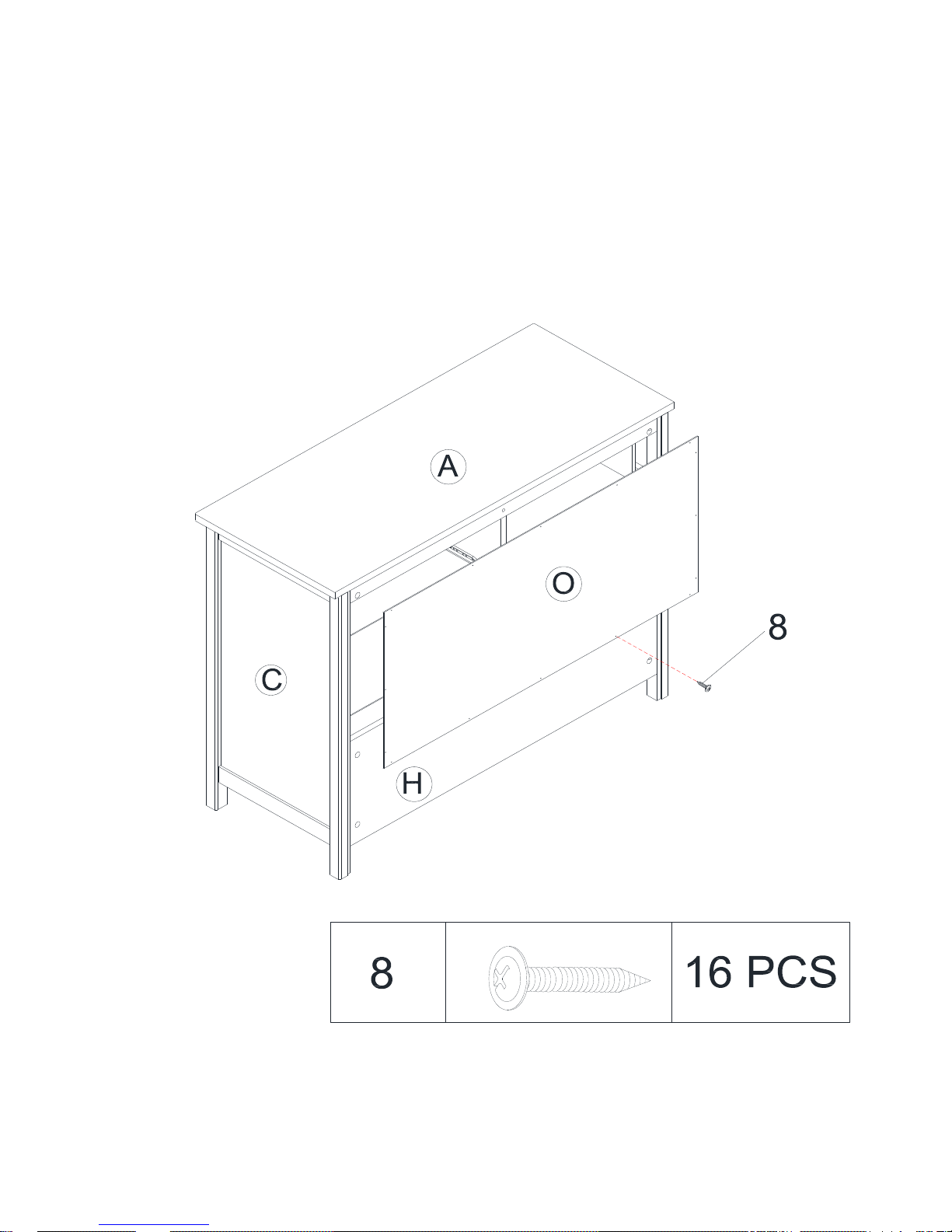

Attach back panel (O) to the assembled frame with round head screws (8).
Use a Phillips head screwdriver (not included) to tighten the screws.

STEP 9

6-Drawer Dresser

DA1008-1

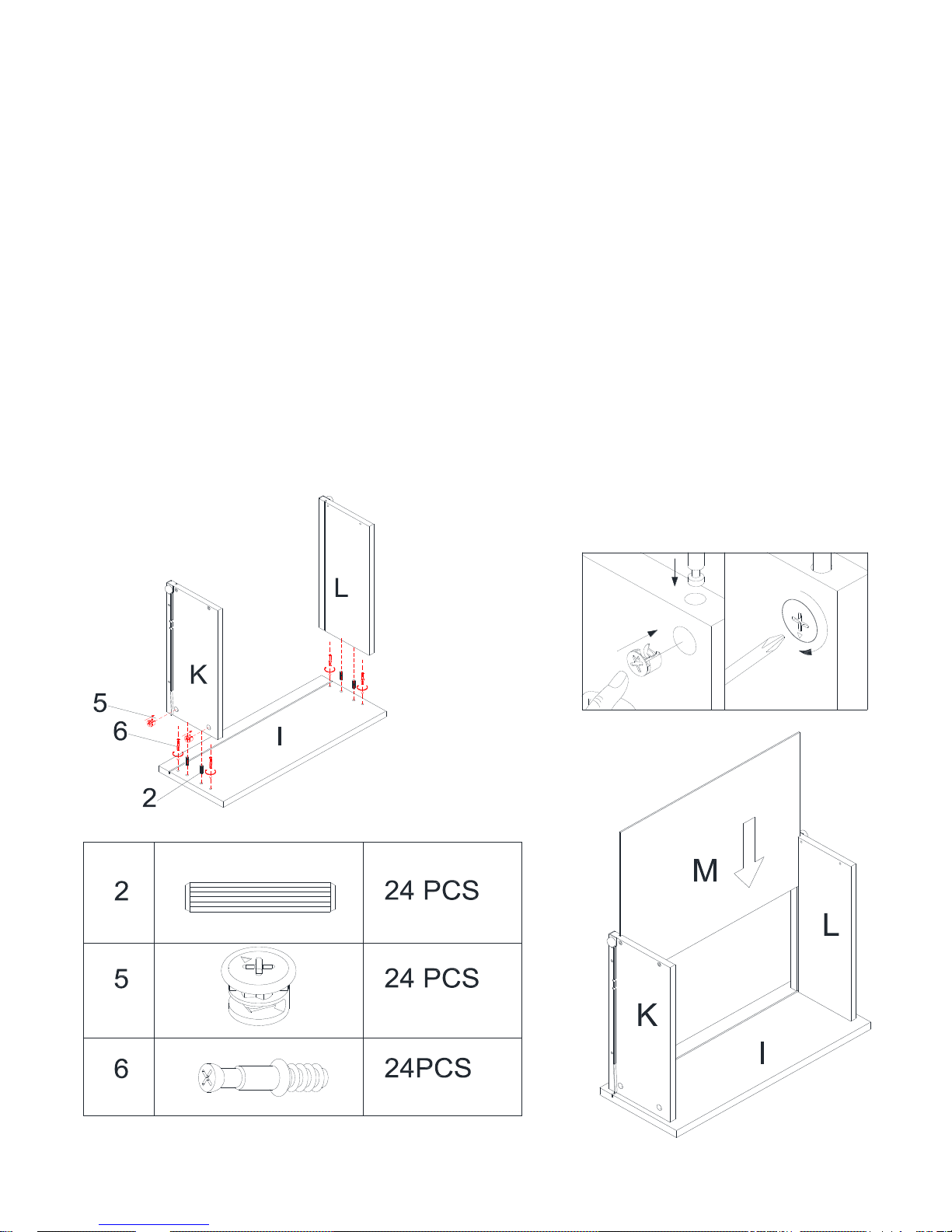

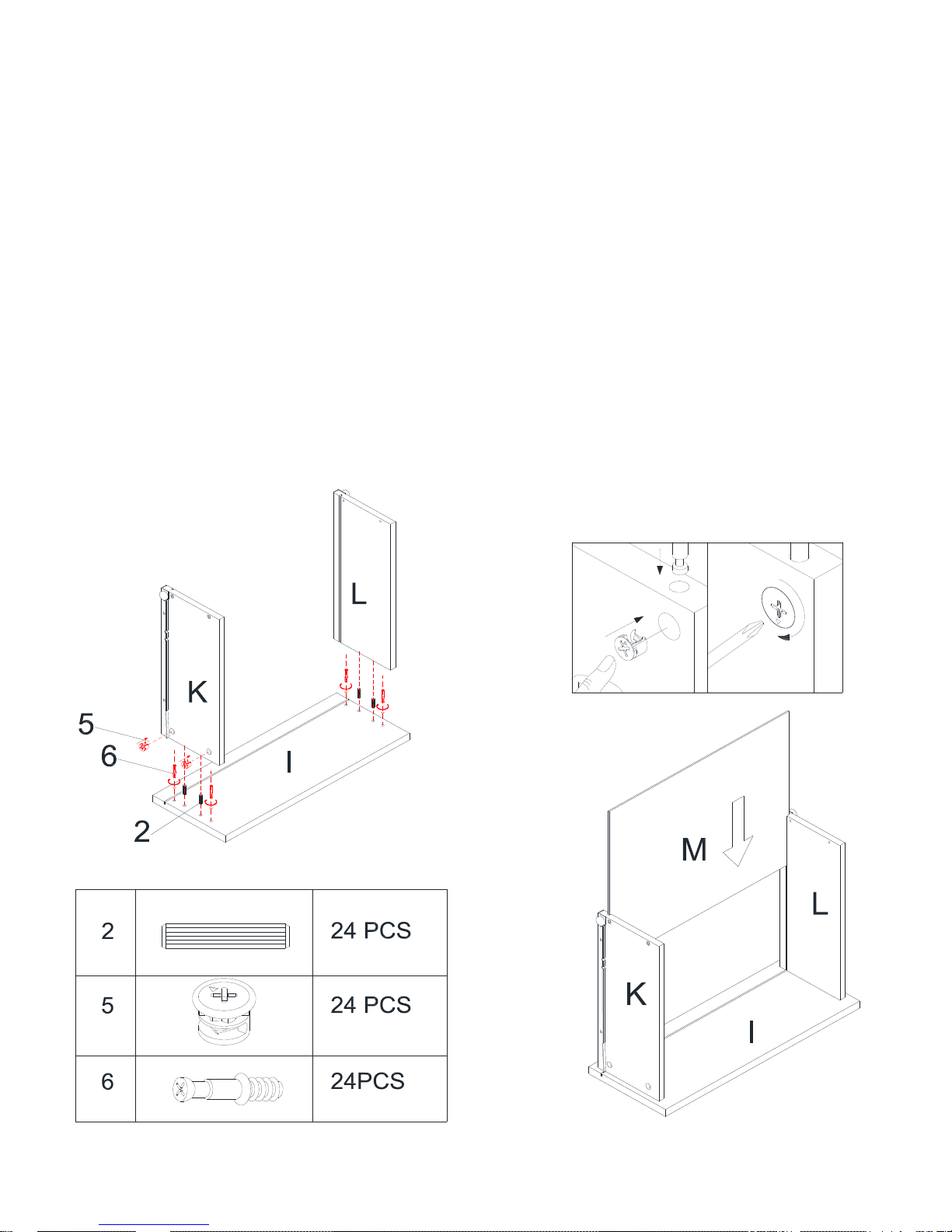

Insert small cam bolts (6) and small wood dowels (2) into the front drawer panel (I).
Insert small cam locks (5) into the left drawer side (K) and right drawer side (L).
Attach drawer sides (K & L) to the front drawer panel (I). Secure the drawer sides by
rotating small cam locks (5) 1/2-turn clockwise using a Phillips head screwdriver (not
included).
Slide the drawer bottom (M) into the grooves of drawer sides (K & L) and front drawer
panel (I).

STEP 10

6-Drawer Dresser

DA1008-1

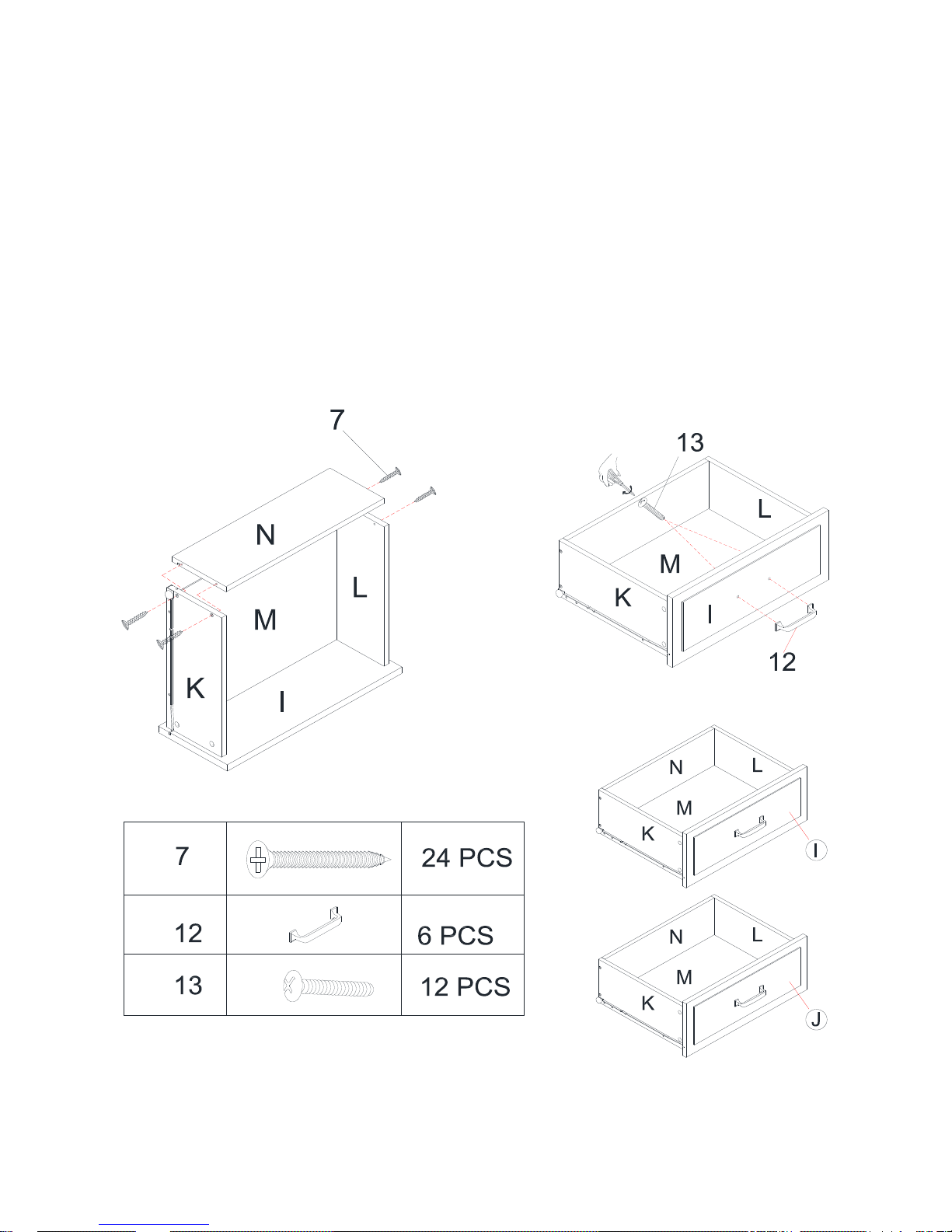

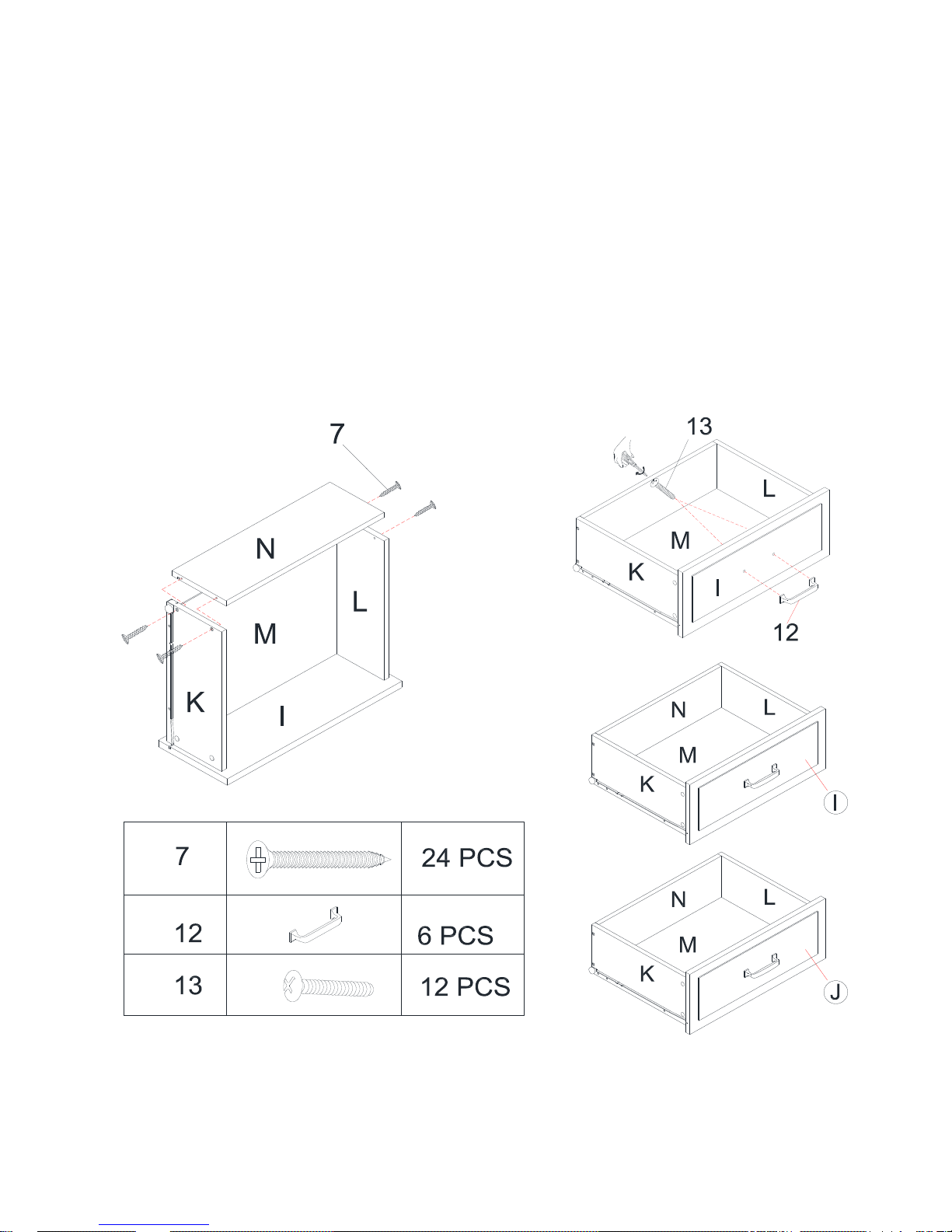

Attach drawer back (N) to the drawer sides (K & L) with flat head screws (7).
Use a Phillips head screwdriver (not included) to tighten the screws.
Attach handle (12) to the front drawer panel (I) with small bolts (13).
Use a Phillips head screwdriver (not included) to tighten the bolts.
Repeat steps 9 and 10 to assemble the remaining drawers using the front drawer panels
(J).

STEP 11

6-Drawer Dresser

DA1008-1

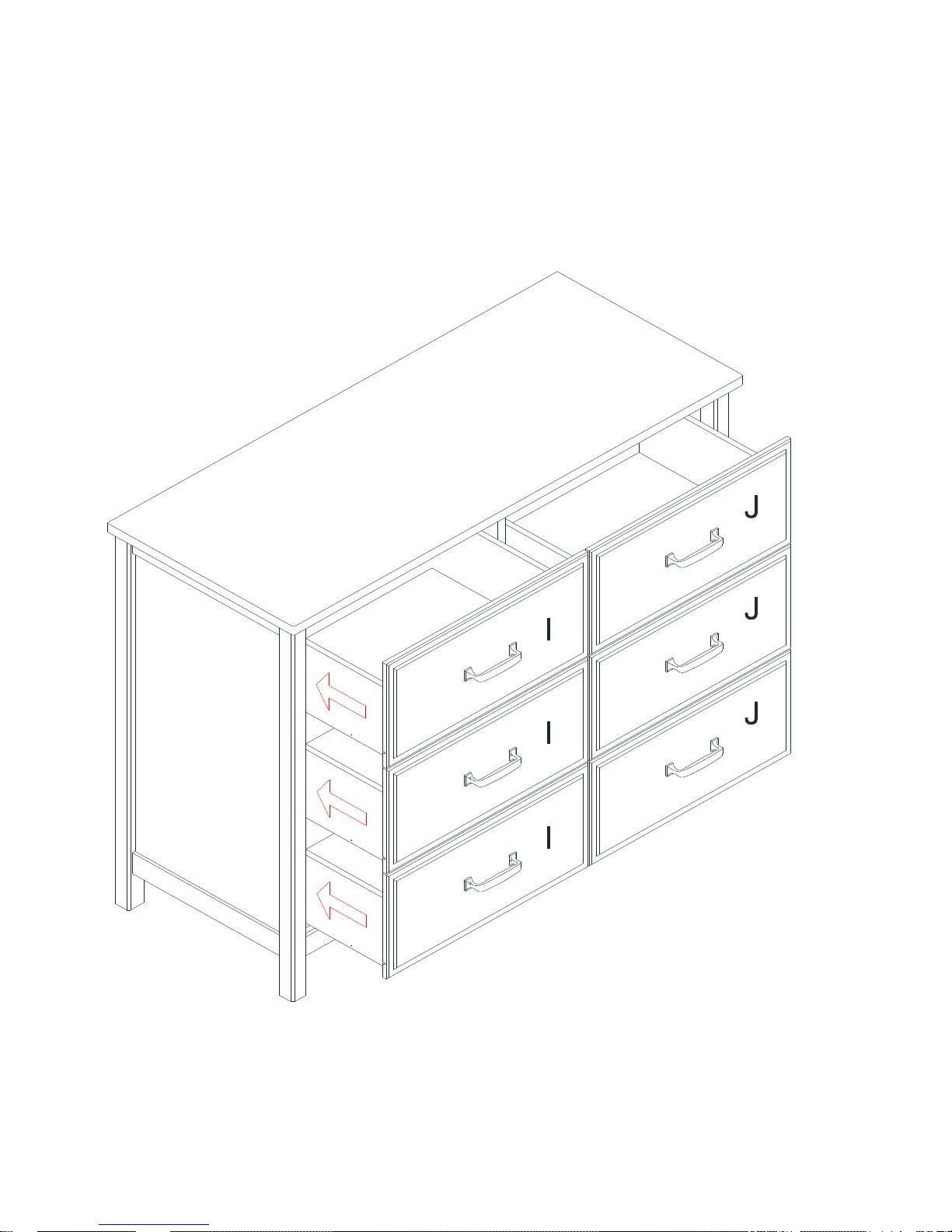

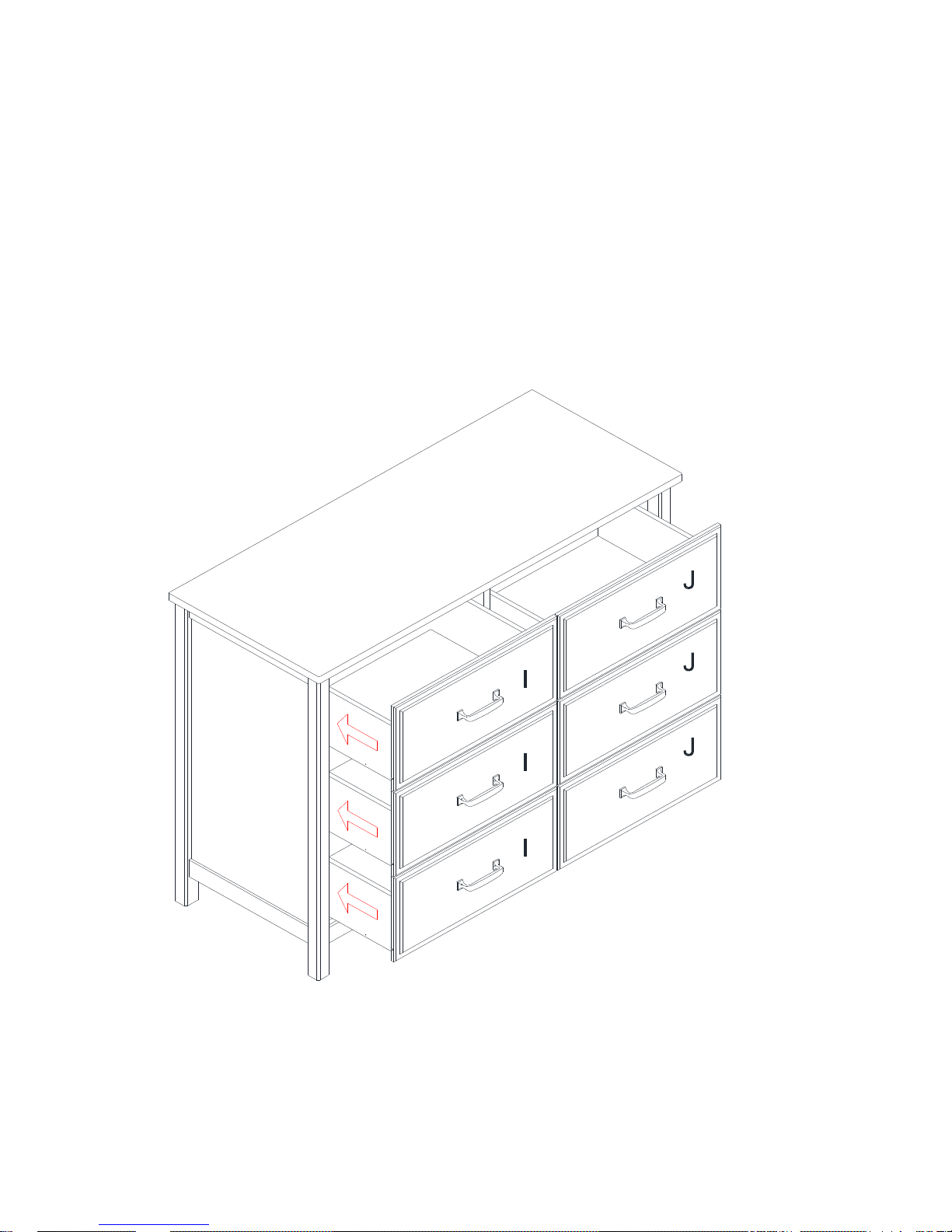

Insert all drawers into the assembled unit.

That's it! You've finished assembling your 6-drawer dresser!

DA1008-1

6-Drawer Dresser

CAUTION: This unit is intended for use only with the

products and/or maximum weights indicated. Use with other

products and/or products heavier than the maximum weights

indicated may result in instability or cause possible injury.

DO NOT RETURN PRODUCT TO THE STORE.

If a part is missing or damaged, contact our customer service

department. We will replace the part FREE of charge.

Tel #: [phone]

E-Mail: [e-mail]

Fax #: [phone]

NEED HELP!

CALL US FOR ASSISTANCE

1-800-295-1980

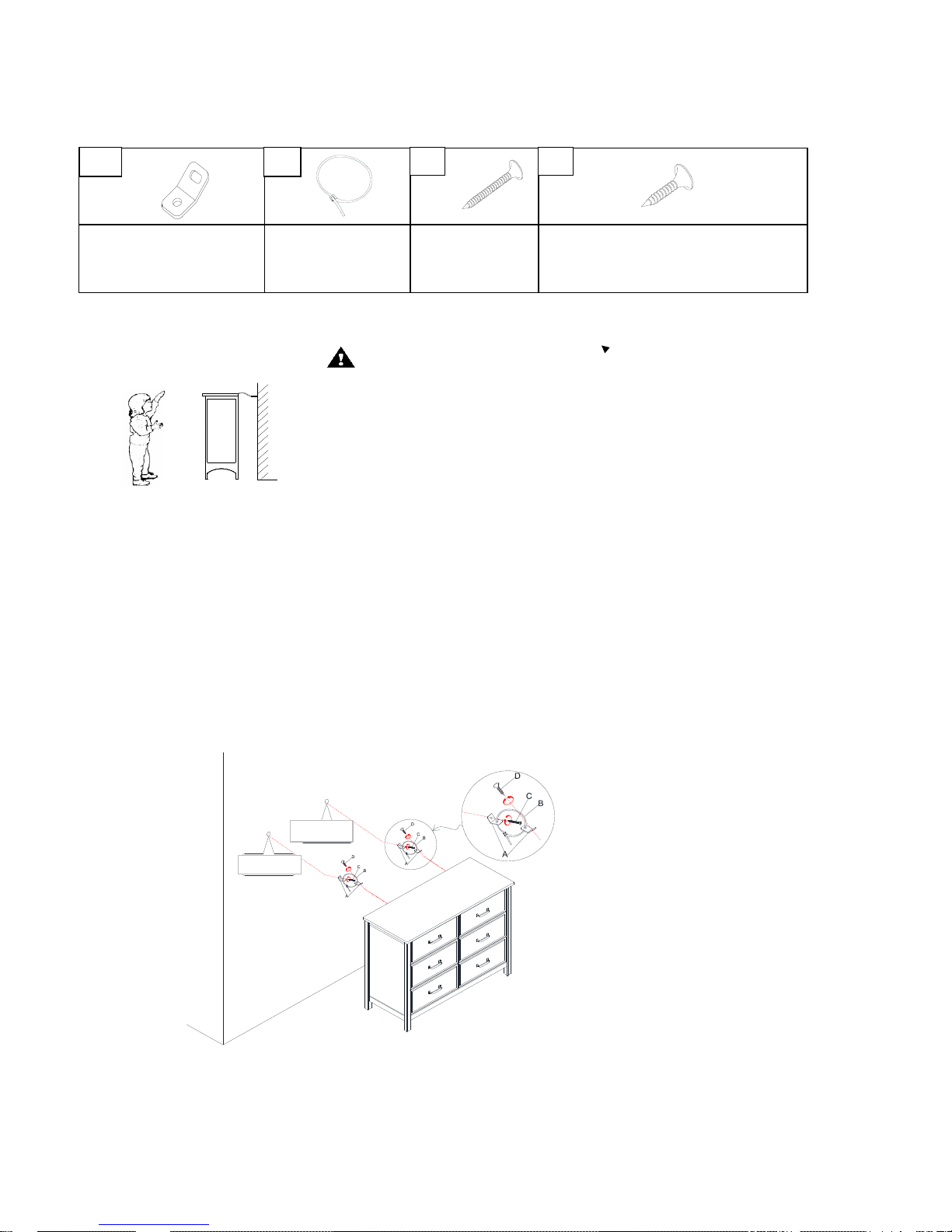

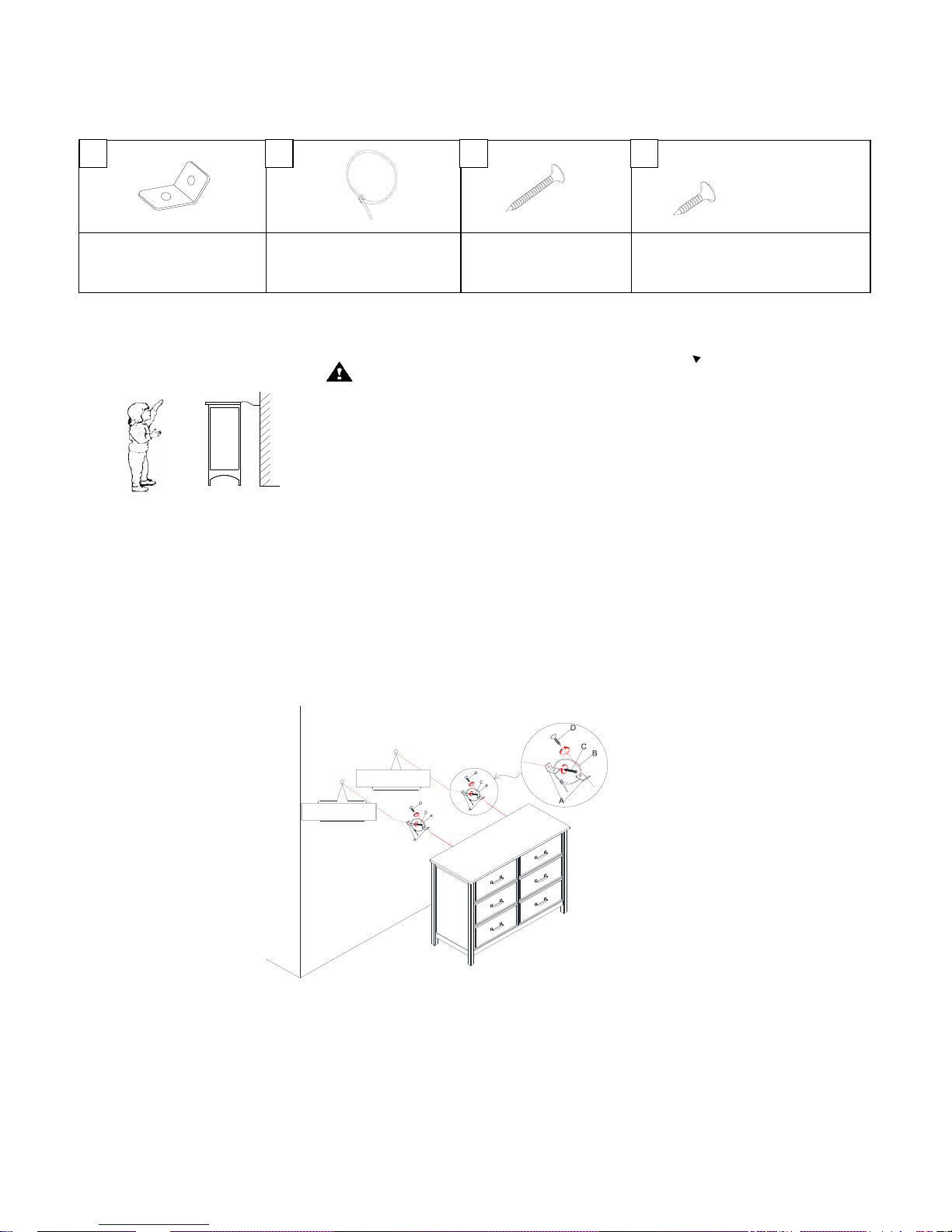

Furniture Wall Safety Strap

A B C D

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE
USING THIS PRODUCT AND KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, PLEASE
CALL OUR CUSTOMER SERVICE NUMBER: 1-800-295-1980.

Step 1:

Step 2:

ATTACH A MOUNTING BRACKET (A) SECURELY TO THE BACK EDGE OF THE FURNITURE USING
THE SHORT SCREW (D), THROUGH THE SMALLER HOLE.

PLACE THE FURNITURE INTO POSITION SO BOTH MOUNTING BRACKETS ARE VERTICALLY IN
LINE. LACE THE END OF THE SAFETY WALL STRAP (B) THROUGH THE LARGER HOLE IN EACH
MOUNTING BRACKET (A). BRING BOTH ENDS TOGETHER AND SLIDE THE FLAT END THROUGH
THE LOCKING END AND DRAW IT THROUGH UNTIL ALL SLACK IS REMOVED.

Step 3:

Step 4:

LOCATE THE OTHER MOUNTING BRACKET (A) ON THE WALL OVER A WALL STUD AND 2 INCHES
BELOW THE MOUNTING BRACKET SECURED TO THE BACK OF YOUR UNIT. ATTACH TO THE
WALL STUD USING THE LONG SCREW (C) PROVIDED, THROUGH THE SMALLER HOLE.

TO MOVE THE FURNITURE AFTER THE SAFETY WALL STRAP HAS BEEN INSTALLED, SIMPLY

REMOVE THE SCREW FROM THE WALL TO LOOSEN THE SAFETY WALL STRAP.
CONFIRM THAT THE STRAP IS SECURELY LACED AND LOCKED.

MOUNTING BRACKET

4 PCS

WARNING: WHEN UPRIGHT, IT IS POSSIBLE THAT THE
FURNITURE MAY TIP OVER. PLEASE INSTALL THE SAFETY WALL
STRAP BEHIND THE FURNITURE TO ENSURE SAFETY.

SHORT

SCREW

2 PCS

LONG SCREW

2 PCS

SAFETY WALL STRAP

2 PCS

TOOLS NECESSARY: RUBBER MALLET AND PHILLIPS SCREW DRIVER ARE NOT INCLUDED.
NOTE: 3/8" DRILL BIT AND ELECTRIC DRILL ARE NOT PROVIDED.
