Page 1

April 2015 Vehicular Gate Operators

Date

Page

Comment

4-1-15

All

April, 2015 reference guide update.

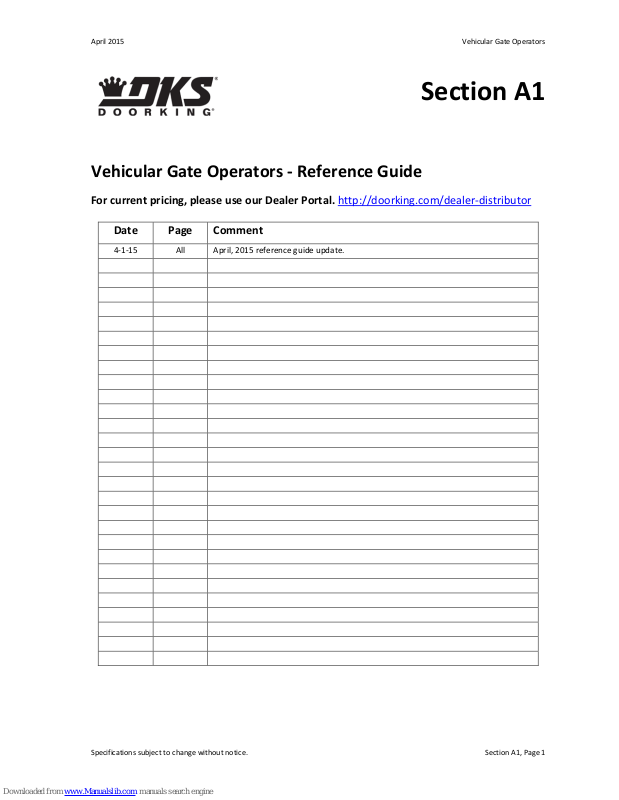

Section A1

Vehicular Gate Operators - Reference Guide

For current pricing, please use our Dealer Portal. http://doorking.com/dealer-distributor

Specifications subject to change without notice. Section A1, Page 1

Page 2

Vehicular Gate Operators April, 2015

Solar Tax Credit

Homeowners who purchase a solar powered gate operator manufactured by DoorKing, Inc. after December 31, 2008, may qualify for a 30% Federal Tax Credit off the installed cost of the system. This tax credit is available for the installed

cost of the solar powered gate operator on the homeowner’s Federal tax return.

The solar powered Gate Operator is considered a "Qualified Solar Electric Property" authorized by the Internal Revenue Code Section 25D under the definition provided in paragraph d.2 and as such qualifies for the Residential Energy Efficient Tax Credit. You will need to complete Federal Form 5695 and attach it to your personal tax return in order to claim this credit. If you have any questions regarding this Federal Tax Credit, Form 5695 or its instructions, please consult your tax adviser. You should also check with your state tax agency to see if your state offers any additional solar energy tax incentives.

What is Covered:

The solar system tax credit applies to the total installed cost of the solar gate operator system. This includes the related solar panel, gate operator, solar control box, access control device, remote controls, obstruction detection device(s), etc.

DoorKing Model 6002 Swing Gate Actuator (P/N 6002-080)* DoorKing Model 6003 Swing Gate Actuator (P/N 6003-080)* DoorKing Model 6004 Swing Gate Operator (P/N 6004-080)* DoorKing Model 6400 Swing Gate Operator (P/N 6400-080)* * To qualify, must be installed with 4302‐113, 4302‐114 or 4302‐115 Solar Control Box

DoorKing Basic Solar Control Box (P/N 4302-113) DoorKing Single Gate Solar Control Box (P/N 4302-114) DoorKing Dual Gate Solar Control Box (P/N 4302-115)

DoorKing Solar Panel (P/N 2000-076 or 2600-077)

Batteries; two (2) 18 Amp Hour (P/N 1801-004) or two (2) 35 Amp Hour (P/N 1801-005)

What is Not Covered:

The cost of the gate itself, or work required to place the physical gate into proper working order (leveling, replacing hinges, etc.).

Qualifications:

• The installation of a DoorKing Solar Powered Gate System

• Effective for tax years beginning after December 31, 2008

• Homeowners will need to use The Federal Tax Credit form 5695, Residential Energy Efficient Property Credit

• Homeowners will need to provide a copy of the "Manufacturer's Certification for Credit"

• The dwelling must be located in the United States and used as a residence by the taxpayer

• This offer is only available in the United States

Section A1, Page 2 Specifications subject to change without notice.

Page 3

April 2015 Vehicular Gate Operators

Page Rev 4/1/15

Table of Contents

Swing Gate Operators

Model 6002 / 6003 ................................................................................................................................................. 4

Model 6004 / 6400 ................................................................................................................................................. 5

Model 6050 / 6100 ................................................................................................................................................. 6

Model 6300 ............................................................................................................................................................ 7

Model 6500 ............................................................................................................................................................ 8

Model 6524 ............................................................................................................................................................ 9

Model 6550 .......................................................................................................................................................... 10

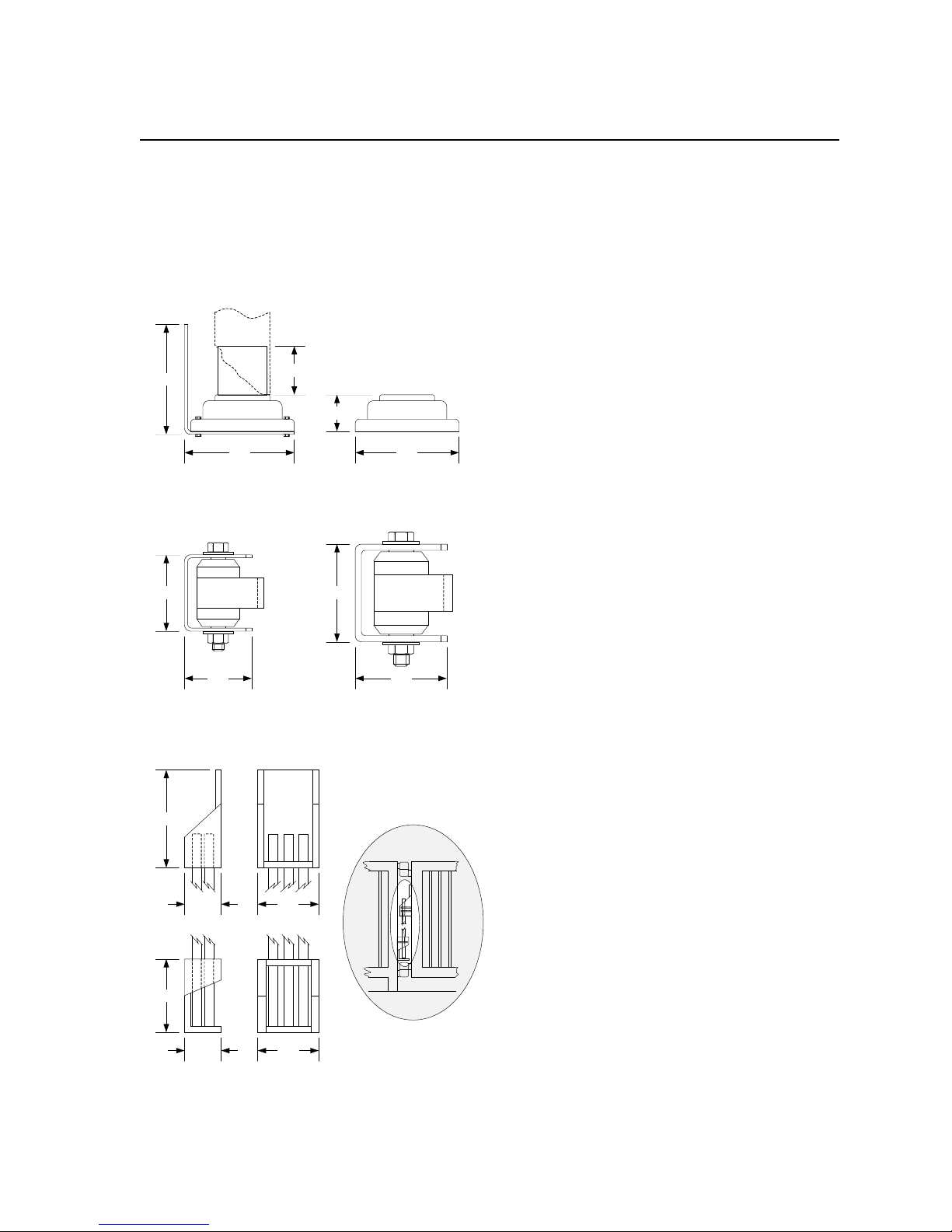

Swing Gate Accessories ........................................................................................................................................ 11

Swing Gate Operator Parts & Accessories ............................................................................................................ 12

Slide Gate Operators

Model 9050 / 9100 ............................................................................................................................................... 14

Model 9150 .......................................................................................................................................................... 15

Model 9000 .......................................................................................................................................................... 16

Model 9024 .......................................................................................................................................................... 17

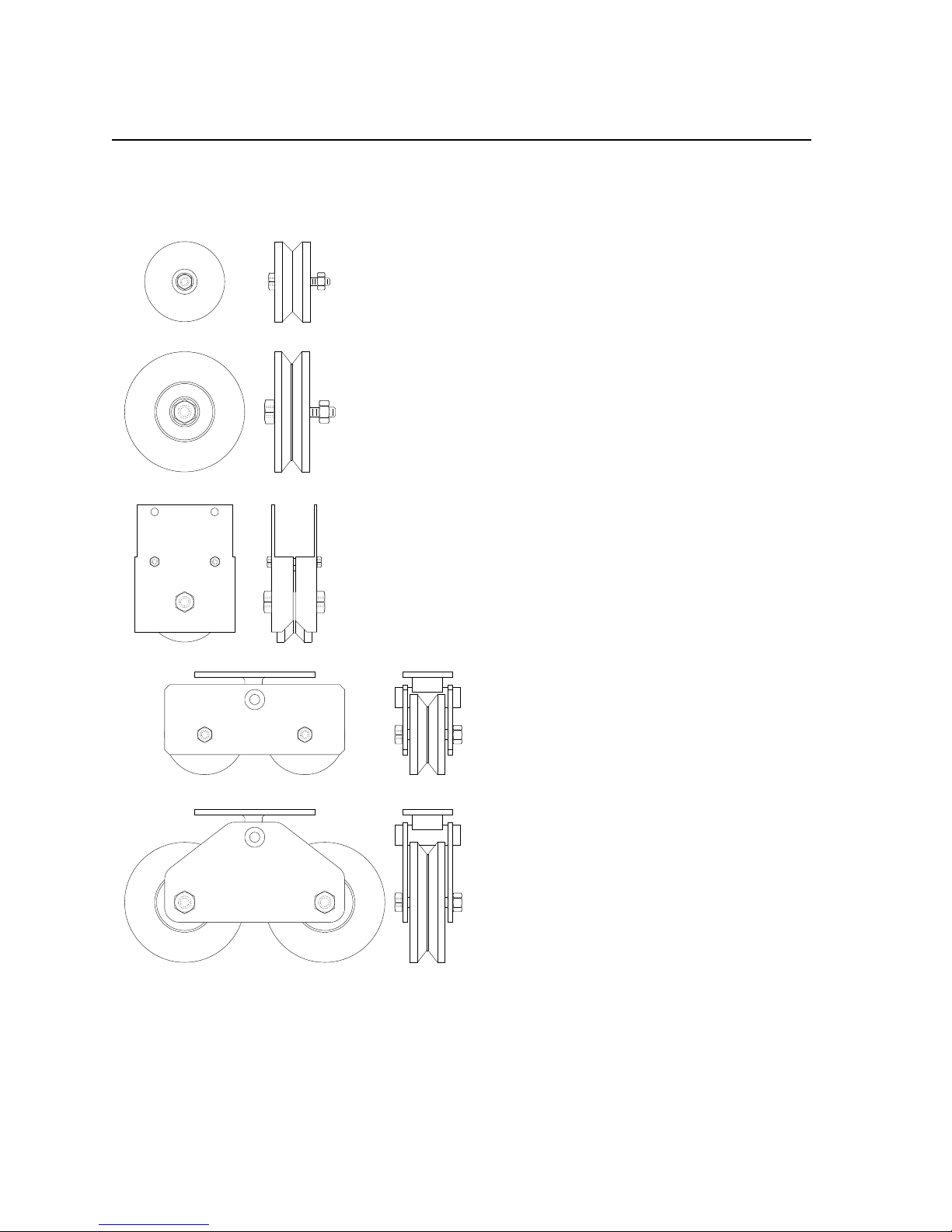

Slide Gate V-Wheels ............................................................................................................................................. 18

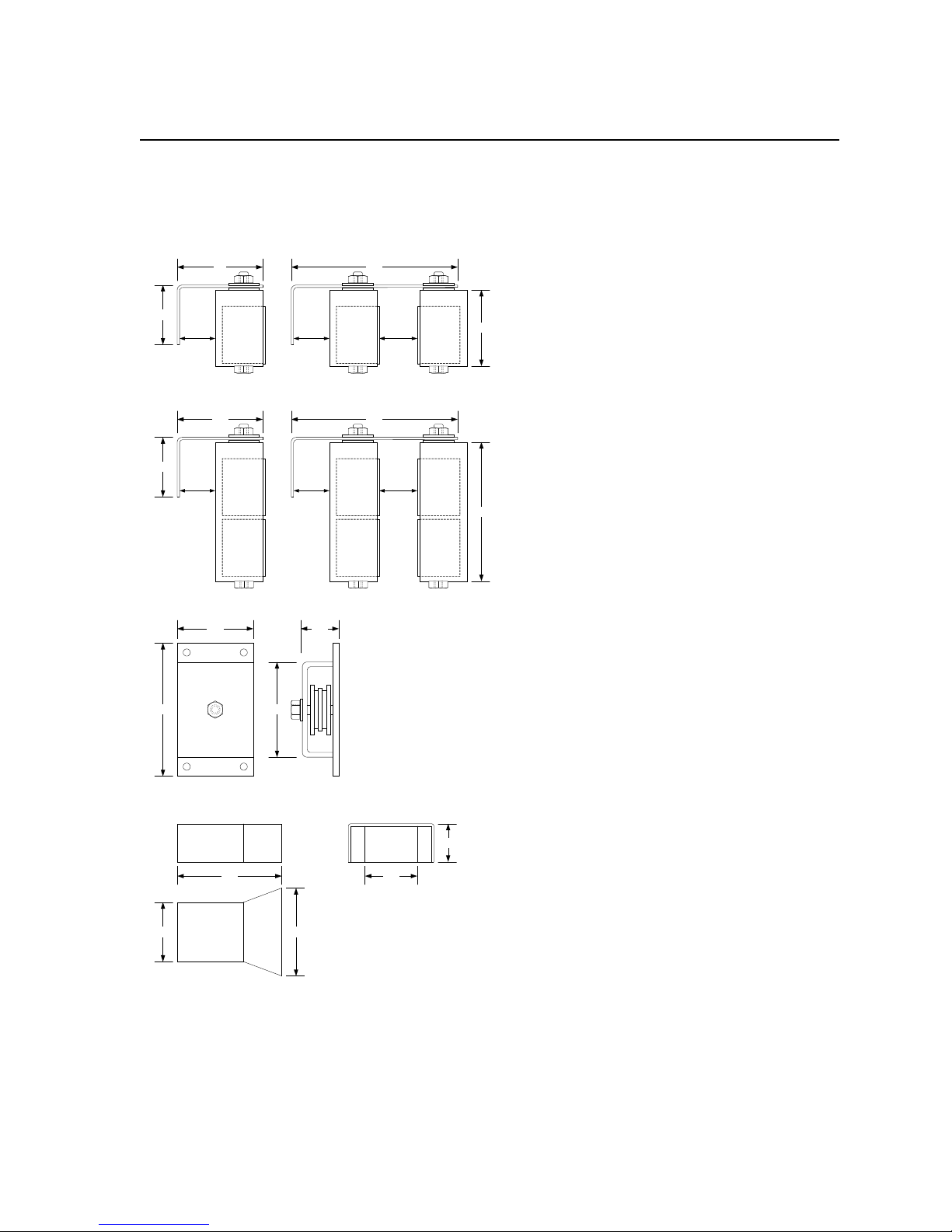

Slide Gate Guide Rollers & Accessories ................................................................................................................ 19

Slide Gate Operator Parts & Accessories .............................................................................................................. 20

Entrapment & Vehicular Reversing Devices

Entrapment Protection Devices Type B1 and B2 .................................................................................................. 22

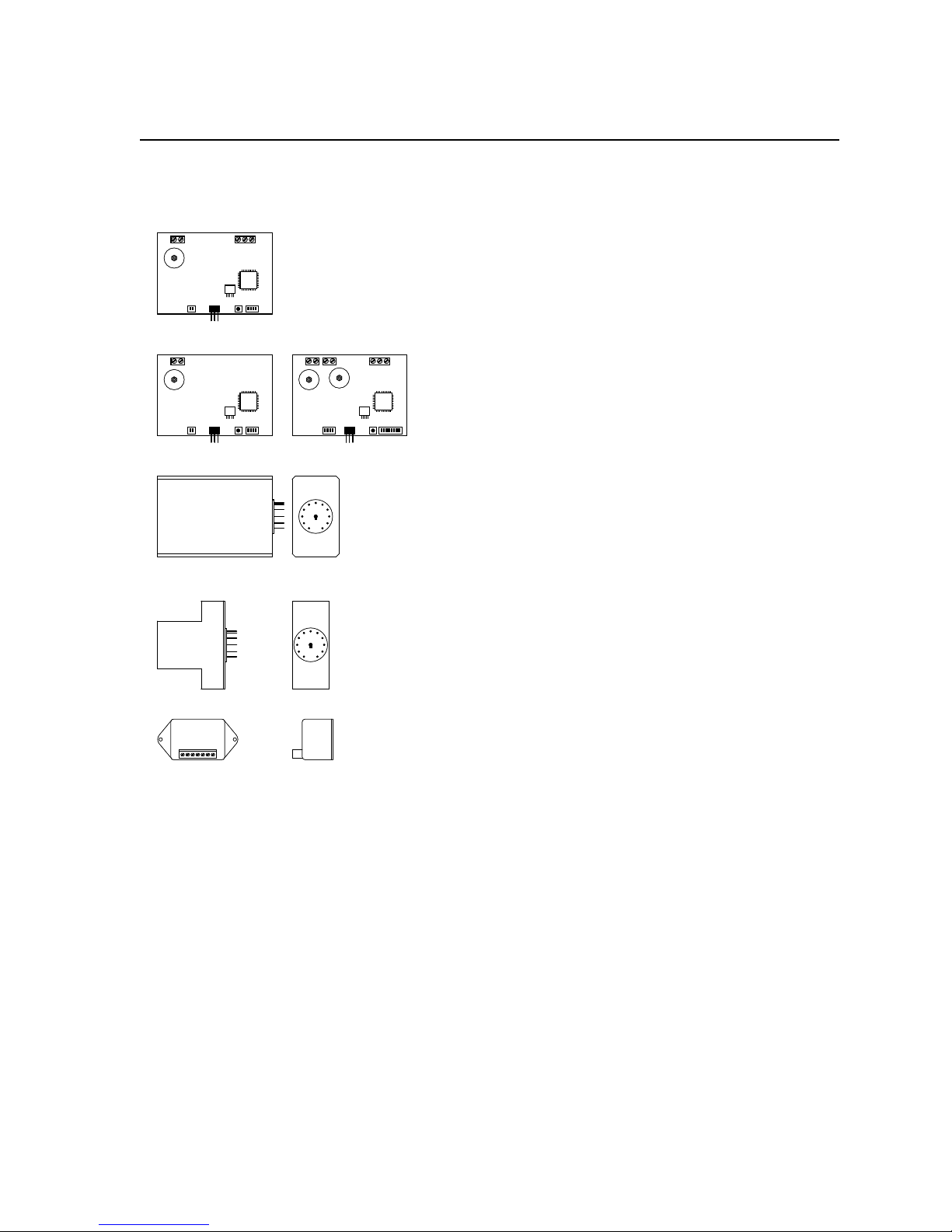

Loop Detectors and Loops .................................................................................................................................... 23

Gate Operator Accessories

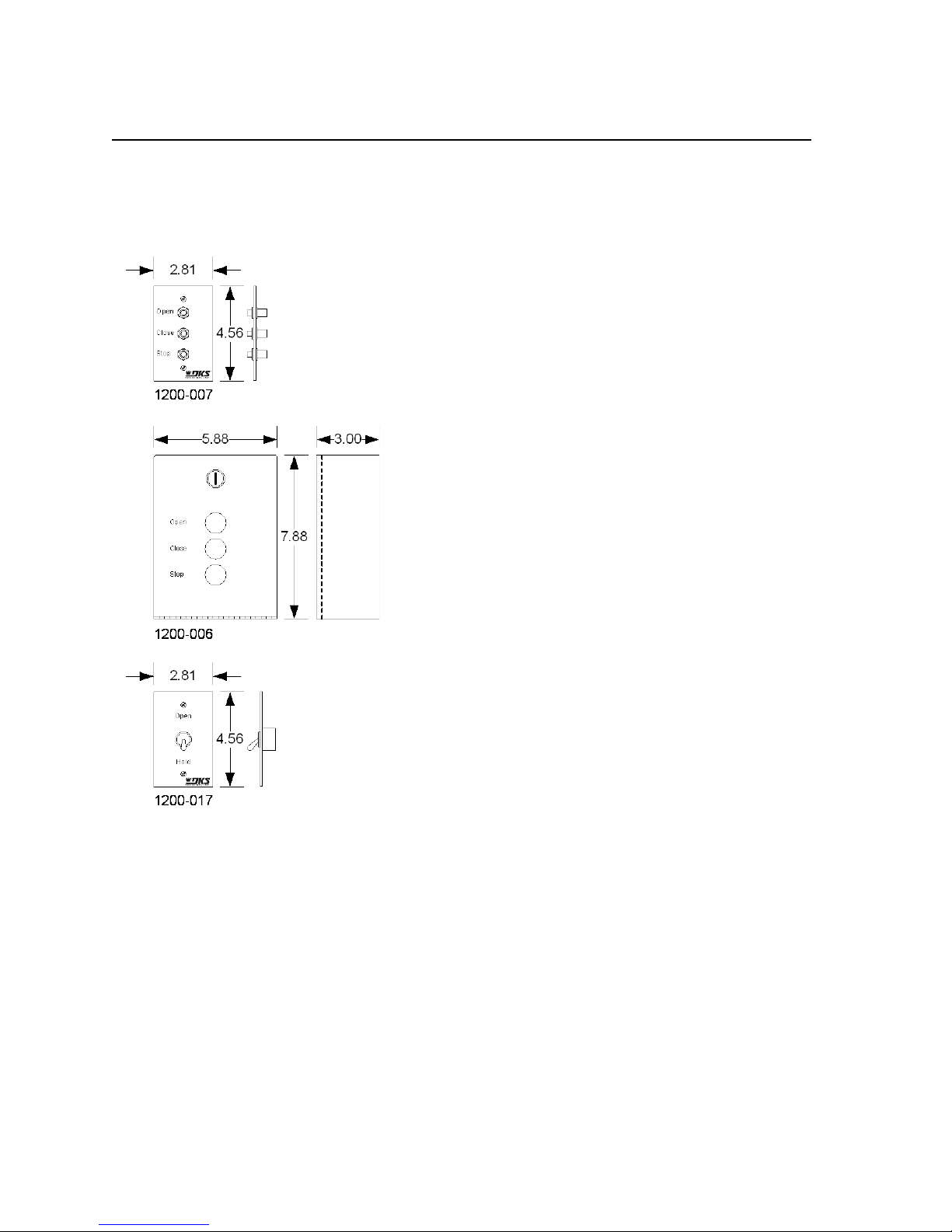

Gate Operator Control Stations ............................................................................................................................ 24

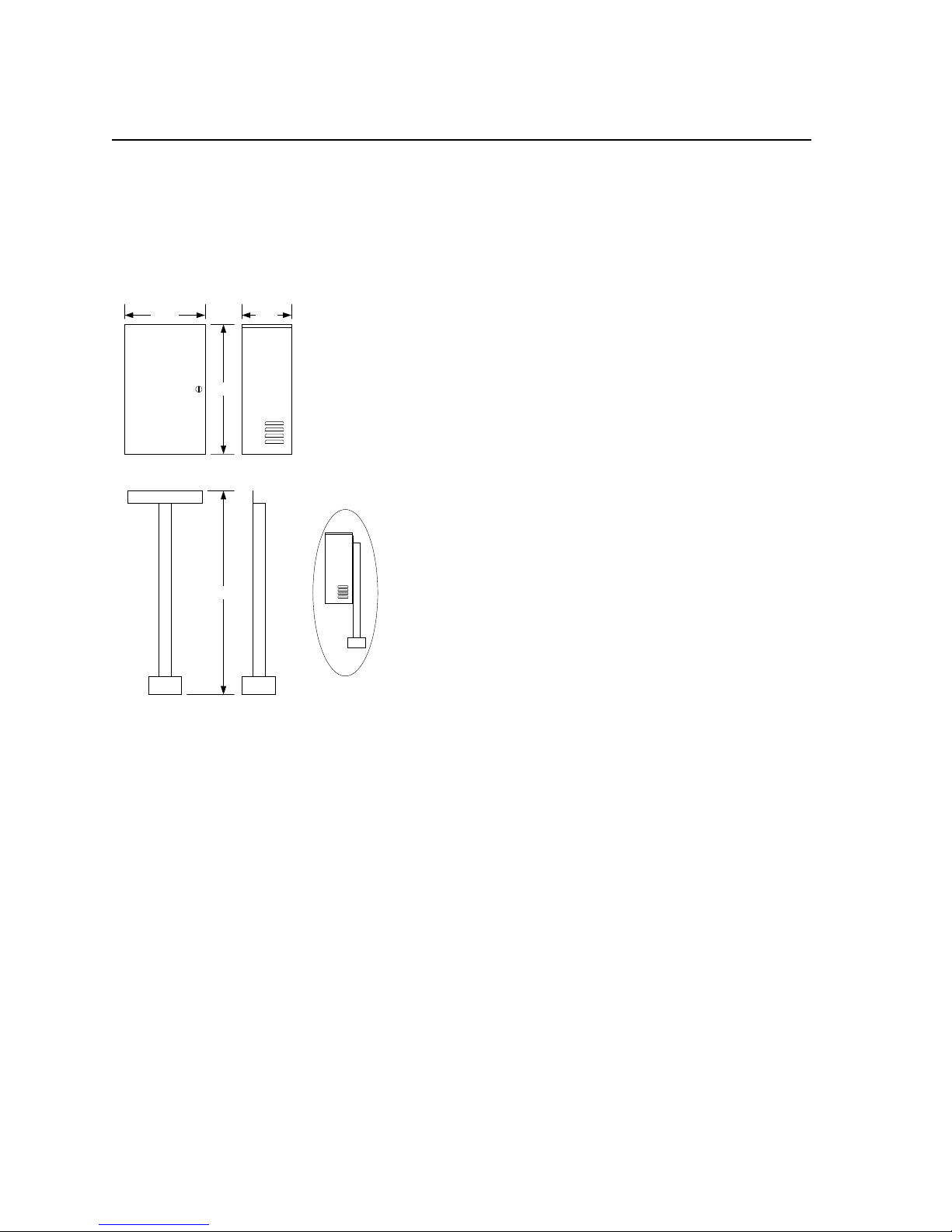

Postal and Fire Department Lock Boxes ............................................................................................................... 25

Time Clocks, Surge Suppressers, Traffic Signal ..................................................................................................... 26

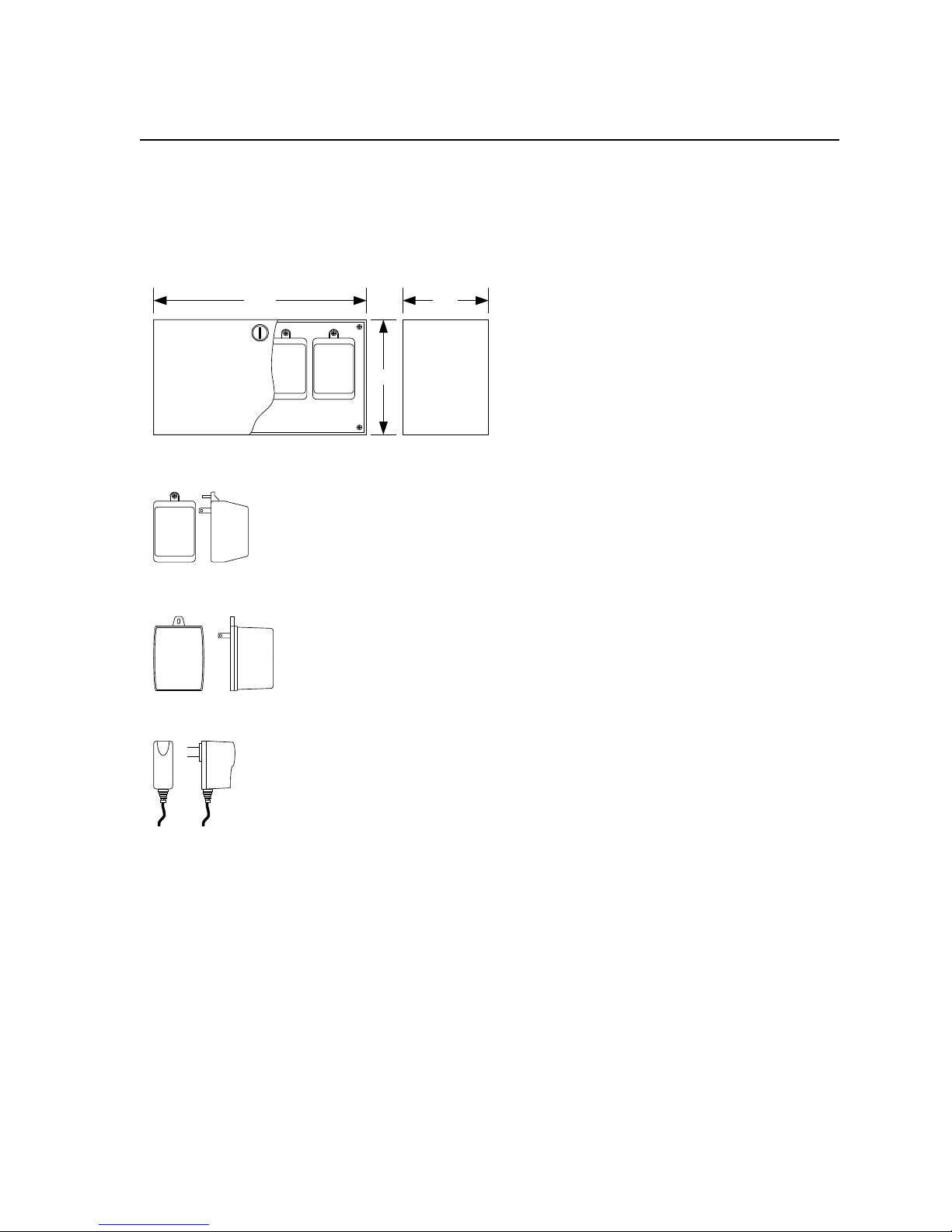

Accessory Transformers ....................................................................................................................................... 27

Back-up Power Inverters

Model 1000 .......................................................................................................................................................... 28

Specifications subject to change without notice. Section A1, Page 3

Page 4

Vehicular Gate Operators April, 2015

Page Rev 4/1/15

Maximum Cycles on Backup Power**

3.5 Ah

18 Ah

35 Ah

6002

500

100

600

1200

6003

300

100

600

1200

Models 6002 / 6003

24 Volt DC Swing Gate Actuators

Swing gate actuators are designed to operate vehicular swing gates in residential applications where side room is minimal. These actuators install directly on the swing gate and operate on 24 Volt DC power. Control boxes are designed for both single and dual (bi-parting) gate operation and are powered by 120 VAC or 24 VDC with Solar power input.

Step 1: Choose an Actuator

6002-080 (24 VDC)

6003-080 (24 VDC)

Step 2: Choose a Control Box

4302-111 Standard Control Box (120 VAC)

4302-112 Deluxe Control Box (120 VAC)

• 120 VAC control boxes include two (2) 3.5 Ah batteries

• Deluxe control box includes three 120 VAC

convenience outlets

4302-113 Solar Control Box (No Batteries)

4302-114 Solar Control Box (w/two 18 Ah batteries)

4302-115 Solar Control Box (w/two 35 Ah batteries)

2000-077 24 Volt, 10 Watt Solar Panel

• Use with 18 Ah batteries

2000-076 24 Volt, 20 Watt Solar Panel

• Use with 35 Ah batteries

Accessories

Entrapment prevention devices (required) ..................... Pg 20

Loops and loop detectors ............................................... Pg 21

8040-080 Ultra Low Power RF Receiver

2000-110 Solar Panel Mount Bracket

2600-755 30-ft. Bi-parting gate connection cable

2600-756 40-ft. Bi-parting gate connection cable

2600-757 50-ft. Bi-parting gate connection cable

Swing gate accessories ..............................................Pg 10-11

Gate operator accessories .........................................Pg 22-24

Model

** Cycles shown are for single operators when solar panel(s) are not providing a charge to the batteries. Actual number of cycles will vary

depending on usage, accessories connected, gate weight, operating condition of gate, te mperature, location, weather (cloud coverage) and charge state of the batteries.

Section A1, Page 4 Specifications subject to change without notice.

Max Gate

Weight (lbs.)

Max Gate

Width (ft.)

Max Cycles

(day)

Page 5

April 2015 Vehicular Gate Operators

Page Rev 4/1/15

Maximum Cycles on Backup Power**

3.5 Ah

18 Ah

35 Ah

6004

500 8 100

100

600

1200

6400

300 8 100

100

600

1200

Models 6004 / 6400

24 Volt DC Swing Gate Operators

The DKS Model 6004 mounts directly on the gate column while the DKS 6400 installs in-ground making it virtually invisible. These units operate on 24 Volt DC power. Control boxes are designed for both single and dual (bi-parting) gate operation and are powered by 120 VAC or 24 VDC with Solar power input.

Step 1: Choose an Operator

6004-080 (24 VDC)

6400-080 (24 VDC)

Step 2: Choose a Control Box

4302-111 Standard Control Box (120 VAC)

4302-112 Deluxe Control Box (120 VAC)

• 120 VAC control boxes include two (2) 3.5 Ah batteries

• Deluxe control box includes three 120 VAC

convenience outlets

4302-113 Solar Control Box (No batteries)

4302-114 Solar Control Box (w/two 18 Ah batteries)

4302-115 Solar Control Box (w/two 35 Ah batteries)

2000-077 24 Volt, 10 Watt Solar Panel

• Use with 18 Ah batteries

2000-076 24 Volt, 20 Watt Solar Panel

• Use with 35 Ah batteries

Accessories

Entrapment prevention devices (required) .....................Pg 20

Loops and loop detectors................................................Pg 21

8040-080 Ultra Low Power RF Receiver

2000-110 Solar Panel Mount Bracket

2600-755 30-ft. Bi-parting gate connection cable

2600-756 40-ft. Bi-parting gate connection cable

2600-757 50-ft. Bi-parting gate connection cable

Swing gate accessories .............................................. Pg 10-11

Gate operator accessories ........................................ Pg 22-24

Model

** Cycles shown are for single operators when solar pa nel(s) are not providing a charge to the batteries. Actual number of cycles will vary

depending on usage, accessories connected, gate weight, operating condition of gate, temperature, location, weather (cloud coverage) and charge state of the batteries.

Specifications subject to change without notice. Section A1, Page 5

Max Gate

Weight (lbs.)

Max Gate

Width (ft.)

Max Cycles

(day)

Page 6

Vehicular Gate Operators April, 2015

Model 6050 / 6100 Maximum Capacities

Model

Max Gate

Weight (Lbs)

Max Gate

Width (Ft)

Max Cycles

(Per Day)

6050

400

100

6100

500

Cont

6100 w/C.O.

400

Cont

Page Rev 4/1/15

Models 6050 / 6100

Automatic Limit Swing Gate Operators

These operators can be installed on mounting posts or directly onto a concrete mounting-pad. When ordering, choose both an operator AND an operator mounting kit. Secondary operators are used in bi-parting (dual) gate applications and are commanded from and powered from the primary operator. Secondary operators cannot be used as a stand-alone device.

Step 1: Choose an Operator or Operator Set

6050-080 1/2 HP, 115V (4.3A) Primary

6050-081 1/2 HP, 115V (4.3A) Secondary

• Secondary includes 30-ft interconnection cable

6100-080 1/2 HP, 115V (5.4A) Primary

6100-081 1/2 HP, 115V (5.4A) Secondary

6100-082 1/2 HP, 115V (5.4A) Primary w/C.O.

6100-083 1/2 HP, 115V (5.4A) Secondary w/C.O.

• Secondary includes 40-ft interconnection cable

• C.O. = Convenience Open (gate opens upon AC power

loss)

Step 2: Choose an Arm / Mounting Kit(s)

2600-671 Pad Mount, Arms and Hardware Kit

2600-674 Post Mount, Arms and Hardware Kit

Accessories

Entrapment prevention devices (required) ..................... Pg 20

Loops and loop detectors ............................................... Pg 21

Backup power inverters .................................................. Pg 26

1601-154 Heater Kit

• Use if temperature routinely falls below 10°F (-12°C)

6500-490 Uphill Arm Pivot Assembly

• Use with 1203-084 Torsion Rod Assembly (Pg 10)

Swing gate accessories ..............................................Pg 10-11

Gate operator accessories .........................................Pg 22-24

Section A1, Page 6 Specifications subject to change without notice.

Page 7

April 2015 Vehicular Gate Operators

Model 6300 Maximum Capacities

Model

Max Gate

Weight (Lbs)

Max Gate

Width (Ft)

Max Cycles

(Per Day)

1/2 HP

700

Cont

1/2 HP w/C.O.

600

Cont

1 HP

800

Cont

1 HP w/C.O.

700

Cont

Page Rev 4/1/15

Model 6300

Automatic Limit Swing Gate Operators

Designed to operate large vehicular swing gates in residential, commercial and industrial applications. These operators can be installed on mounting posts or directly onto a concrete mounting-pad – select mounting kit when ordering. Secondary operators are used in bi-parting (dual) gate applications and cannot be used as a stand-alone device.

Step 1: Choose an Operator or Operator Set

6300-080 1/2 HP, 115V (5.4A) Primary

6300-081 1/2 HP, Secondary

6300-082 1/2 HP, 115V (5.4A) Primary w/C.O.

6300-083 1/2 HP, Secondary w/C.O.

• Secondary includes 50-ft interconnection cable

• C.O. = Convenience Open (gate opens upon AC power

loss)

6300-084 1 HP, 115V (9.7A) Primary

6300-085 1 HP, Secondary

6300-086 1 HP, 115V (9.7A) Primary w/C.O

6300-087 1 HP, Secondary w/C.O.

• Secondary includes 50-ft interconnection cable

• C.O. = Convenience Open (gate opens upon AC power

loss)

Step 2: Choose a Mounting Kit(s)

2600-264 Pad Mount, Arms and Hardware Kit

2600-263 Post Mount, Arms and Hardware Kit

High Voltage Kit

2600-266 High Voltage Kit

• Allows the operator to be powered from 208, 230, 460

or 575 source voltage. In dual gate applications, only one (1) kit is required (secondary operator DOES NOT require a high voltage kit).

Accessories

Entrapment prevention devices (required) .....................Pg 20

Loops and loop detectors................................................Pg 21

Backup power inverters ..................................................Pg 26

1601-154 Heater Kit 115 VAC

1601-197 Heater Kit 208/230 VAC

1601-198 Heater Kit 460 VAC

6500-490 Uphill Arm Pivot Assembly

• Use with 1203-084 Torsion Rod Assembly (Pg 10)

Swing gate accessories .............................................. Pg 10-11

Gate operator accessories ........................................ Pg 22-24

Specifications subject to change without notice. Section A1, Page 7

Page 8

Vehicular Gate Operators April, 2015

Model 6500 Maximum Capacities

Model

Max Gate

Weight (Lbs)

Max Gate

Width (Ft)

Max Cycles

(Per Day)

1/2 HP

700

Cont

1/2 HP w/C.O.

600

Cont

1 HP

800

Cont

1 HP w/C.O.

700

Cont

Page Rev 4/1/15

Model 6500

Adjustable Limit Swing Gate Operators

Designed to operate large vehicular swing gates in residential, commercial and industrial applications. Secondary operators are used in bi-parting (dual) gate applications cannot be used as a stand-alone device.

Operators

6500-080 1/2 HP, 115V (5.4A) Primary

6500-081 1/2 HP, Secondary

6500-082 1/2 HP, 115V (5.4A) Primary w/C.O.

6500-083 1/2 HP, Secondary w/C.O.

• Secondary includes 50-ft interconnection cable

• C.O. = Convenience Open (gate opens upon AC power

loss)

6500-084 1 HP, 115V (9.7A) Primary

6500-085 1 HP, Secondary

6500-086 1 HP, 115V (9.7A) Primary w/C.O

6500-087 1 HP, Secondary w/C.O.

• Secondary includes 50-ft interconnection cable

• C.O. = Convenience Open (gate opens upon AC power

loss)

High Voltage Kit

2600-266 High Voltage Kit

• Allows the operator to be powered from 208, 230, 460

or 575 source voltage. In dual gate applications, only one (1) kit is required (secondary operator DOES NOT require a high voltage kit).

Accessories

Entrapment prevention devices (required) ..................... Pg 20

Loops and loop detectors ............................................... Pg 21

Backup power inverters .................................................. Pg 26

6500-480 Heater Kit 115 VAC

1601-197 Heater Kit 208/230 VAC

1601-198 Heater Kit 460 VAC

6500-490 Uphill Arm Pivot Assembly

• Use with 1203-084 Torsion Rod Assembly (Pg 10)

Swing gate accessories ..............................................Pg 10-11

Gate operator accessories .........................................Pg 22-24

Section A1, Page 8 Specifications subject to change without notice.

Page 9

April 2015 Vehicular Gate Operators

Page Rev 4/1/15

Maximum Cycles on Backup

Power**

7.5 Ah

18 Ah

800

Continuous

150

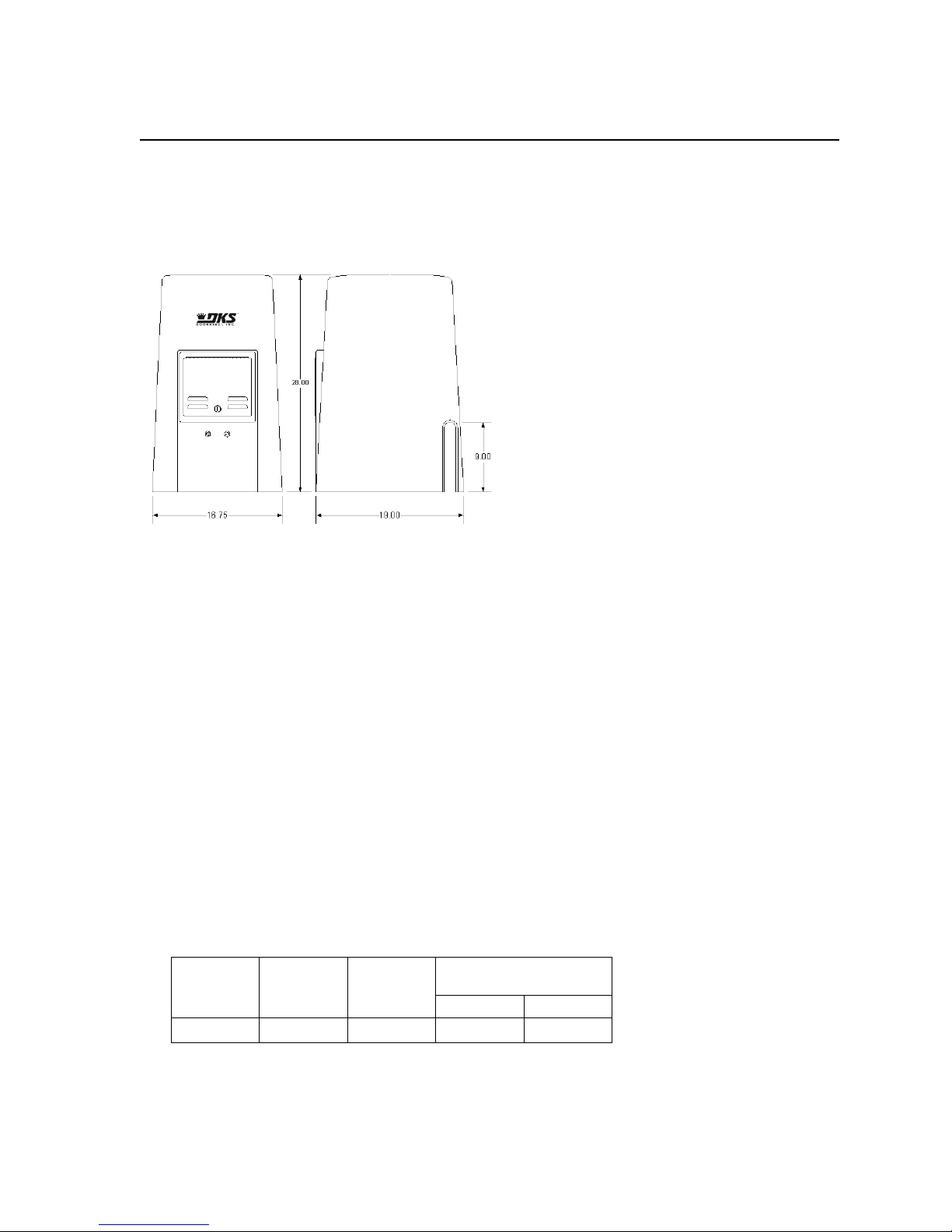

Model 6524

Adjustable Limit DC Swing Gate Operator

The model 6024’s main power source is 115 or 230 Volt (switch selectable) single-phase AC power. The operational voltage of the operator is 24 Volt DC and includes built-in battery backup (7.5 AH battery x 2) that provides continued gate operation if the main source power is lost. This operator is designed to operate vehicular swing gates in residential and light commercial applications.

Operator

6524-080 1/2 HP, 24V DC (1.8A / 0.9A)

• 115 or 230 VAC Input power

6524-081 1/2 HP, 24V DC (8.5A)

• 24 VDC Solar Input power only (supply your own

batteries and solar system or use DKS solar kit)

Options

1801-004 12-Volt, 18 Amp Hour Battery

• Two (2) required.

Accessories

Entrapment prevention devices (required) .....................Pg 20

Loops and loop detectors................................................Pg 21

Backup power inverters ..................................................Pg 26

6550-480 Heater Kit 115 VAC

1601-197 Heater Kit 208/230 VAC

• Heaters are active only when AC source power is

present

6500-490 Uphill Arm Pivot Assembly

• Use with 1203-084 Torsion Rod Assembly (Pg 10)

Swing gate accessories .............................................. Pg 10-11

Gate operator accessories ........................................ Pg 22-24

Max Gate

Weight (lbs.)

** Actual number of cycles will vary de pending on usage, accessories connected, gate weight,

operating condition of gate, temperature and charge state of the batteries.

Specifications subject to change without notice. Section A1, Page 9

Max Gate

Width (ft.)

Max Cycles

AC Power

Page 10

Vehicular Gate Operators April, 2015

Model 6550 Maximum Capacities

Model

Max Gate

Weight (Lbs)

Max Gate

Width (Ft)

Max Cycles

(Per Day)

1 HP

2000

Cont

Page Rev 4/1/15

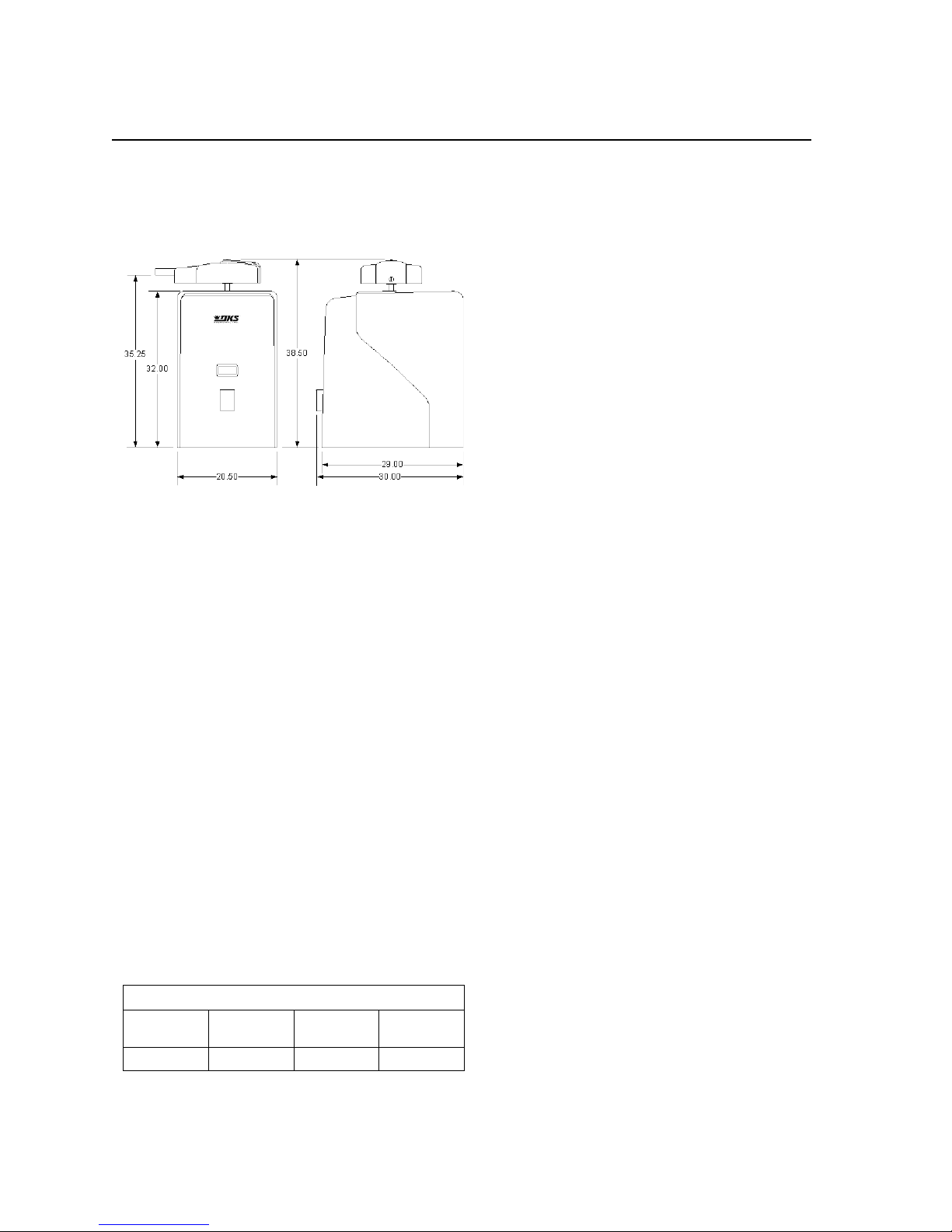

Model 6550

Adjustable Limit Swing Gate Operators

Designed to operate very large vehicular swing gates in commercial and industrial applications. Secondary operators are used in bi-parting (dual) gate applications cannot be used as a stand-alone device.

Operators

6550-080 1 HP, 115V (9.7A) Primary

6550-084 1 HP, Secondary

• Secondary includes 50-ft interconnection cable

High Voltage Kit

2600-266 High Voltage Kit

• Allows the operator to be powered from 208, 230, 460

or 575 source voltage. In dual gate applications, only one (1) kit is required (secondary operator DOES NOT require a high voltage kit).

Accessories

Entrapment prevention devices (required) ..................... Pg 20

Loops and loop detectors ............................................... Pg 21

Backup power inverters .................................................. Pg 26

6550-480 Heater Kit 115 VAC

1601-197 Heater Kit 208/230 VAC

1601-198 Heater Kit 460 VAC

6500-490 Uphill Arm Pivot Assembly

• Use with 1203-084 Torsion Rod Assembly (Pg 10)

Swing gate accessories ..............................................Pg 10-11

Gate operator accessories .........................................Pg 22-24

Section A1, Page 10 Specifications subject to change without notice.

Page 11

April 2015 Vehicular Gate Operators

1200-009 1200-010

1200-0391200-019

1203-084

.50

4.50

2.00

1.50

Gate frame shown for clarification only

125

4.00

2.75

3.75

4.00

2.875

1.50

2.50

1.50

2.50

Page Rev 4/1/15

Swing Gate Accessories

The DKS Swing Gate Hinges are designed for heavy wrought iron gates. When using the flange style hinge, two are used at the extreme top and bottom of the gate. When using the standard style hinge, the hinge can be welded to a gate mounting post at almost any position and to the gate itself. For un-level swing gates, the torsion rod assembly provides a method to counter-balance the gate to prevent gate runaway and relieves pressure on the gate operator. By adding additional torsion rods (6 maximum), heavier gates can be accommodated.

Hinges, Torsion Rod Counter-Balance

Flange Bearing Hinge

1200-009 3000 Lb Weight Capacity

1200-010 Replacement Bearing

• Zert grease fitting

• Includes mounting bracket and hardware

• Two required per gate (top, bottom)

• Designed for use with 2” gate frame

Sealed Bearing Hinge

1200-019 2000 Lb Weight Capacity

1200-039 3000 Lb Weight Capacity

• Includes mounting bracket and hardware

• Two required per gate (top, bottom)

• Designed for use with round or square gate frames

Torsion Rod Assembly

1203-084

2600-299 Additional Torsion Rods

• Counter-balances uphill swing gates

• Includes top bracket, bottom bracket and one (1)

torsion rod

• Up to five (5) additional torsion rods can be added

Specifications subject to change without notice. Section A1, Page 11

Page 12

Vehicular Gate Operators April, 2015

Circuit Boards

Replacement Parts & Components

Used on 4302 -010 circuit board

Base Plate, Mounting Pipes, Pivot Arm

Batteries

Page Rev 4/1/15

Swing Gate Operator Parts & Accessories

Miscellaneous Parts & Accessories

4302-010

Used in models 6002, 6003, 6004 and 6400

4405-010

Used in model 6500, 6550

4502-009

Replacement PCB for models 601, 602, 605, 610, 615, 620, 625, 630

4502-010

Used in models 6050, 6100 and 6300

2340-010

Used in models 6100 and 6300 with convenience open option

3004-010 Magnetic Counter Probe

Used in 601, 602, 605, 610, 615, 630, 6050, 6100, 6300 operators

6100-210 80-Tooth Worm Gear Kit

Includes clutch pads and 80-tooth delrin main drive gear for 605, 610, 615, 6050 and 6100 operators

2801-002 Clutch Disc

2600-644 100-Tooth Worm Gear

100-tooth delrin main drive gear for 620, 625, 630 and 6300 operators

6100-040 Cross-Shaft Housing Assembly

Includes cast housing, cross-shaft, worm drive gear and related hardware. Does not include output shaft, clutch plates or clutch disc. Used in 6050 and 6100 operators

6300-042 Cross-Shaft Housing Assembly

Includes cast housing, cross-shaft, worm drive gear and related hardware. Does not include output shaft, clutch plates or clutch disc. Used in 6300 operators

2600-675 Main Shaft

Replacement main shaft for 605, 610, 6050 and 6100 operators

2600-174 Main Shaft

Replacement main shaft for 630 and 6300 operators

4601-058 Fuse 5A

2600-664 Concrete Base Plate

Use to mount the 6050 or 6100 post mount operators onto an existing concrete pad

2600-260 Mounting Pipe

Use with 6050 and 6100 post mount operators. 2-1/2 O.D. x 3-ft pipe, threaded on one end

6500-490 Uphill Arm Pivot Assembly Use with 6050, 6100, 6300 and 6500 operators when the gate opens on an uphill or downhill slope. Should be used with 1203-084 Torsion Rod Assembly.

Bi-Parting Connection Cable

2600-754 Primary / Secondary Cable

500-ft roll

2600-755 Primary / Secondary Cable

30-ft roll

2600-756 Primary / Secondary Cable

40-ft roll

2600-757 Primary / Secondary Cable

50-ft roll

Miscellaneous

2600-770 Moly D Grease

14 oz. tube Molybdenum Disulfide (Moly D) multi-purpose grease for swing gate worm gears

2600-220 Touch-up Paint, White

2600-221 Touch-up Paint, Light Gray

2600-222 Touch-up Paint, Tan

2600-223 Touch-up Paint, Charcoal Gray

1801-009 Battery

12 Volt, 3.5 Amp Hour

1801-004 Battery

12 Volt, 18 Amp Hour

1801-005 Battery

12 Volt, 35 Amp Hour

Section A1, Page 12 Specifications subject to change without notice.

Page 13

April 2015 Vehicular Gate Operators

Page Rev 4/1/15

Blank Page

Specifications subject to change without notice. Section A1, Page 13

Page 14

Vehicular Gate Operators April, 2015

Model 9050 / 9100 Maximum Capacities

Model

Max Gate

Weight (Lbs)

Max Gate

Length (Ft)

Max Cycles

(Per Day)

9050

500

100

9100

1000

Cont

Page Rev 4/1/15

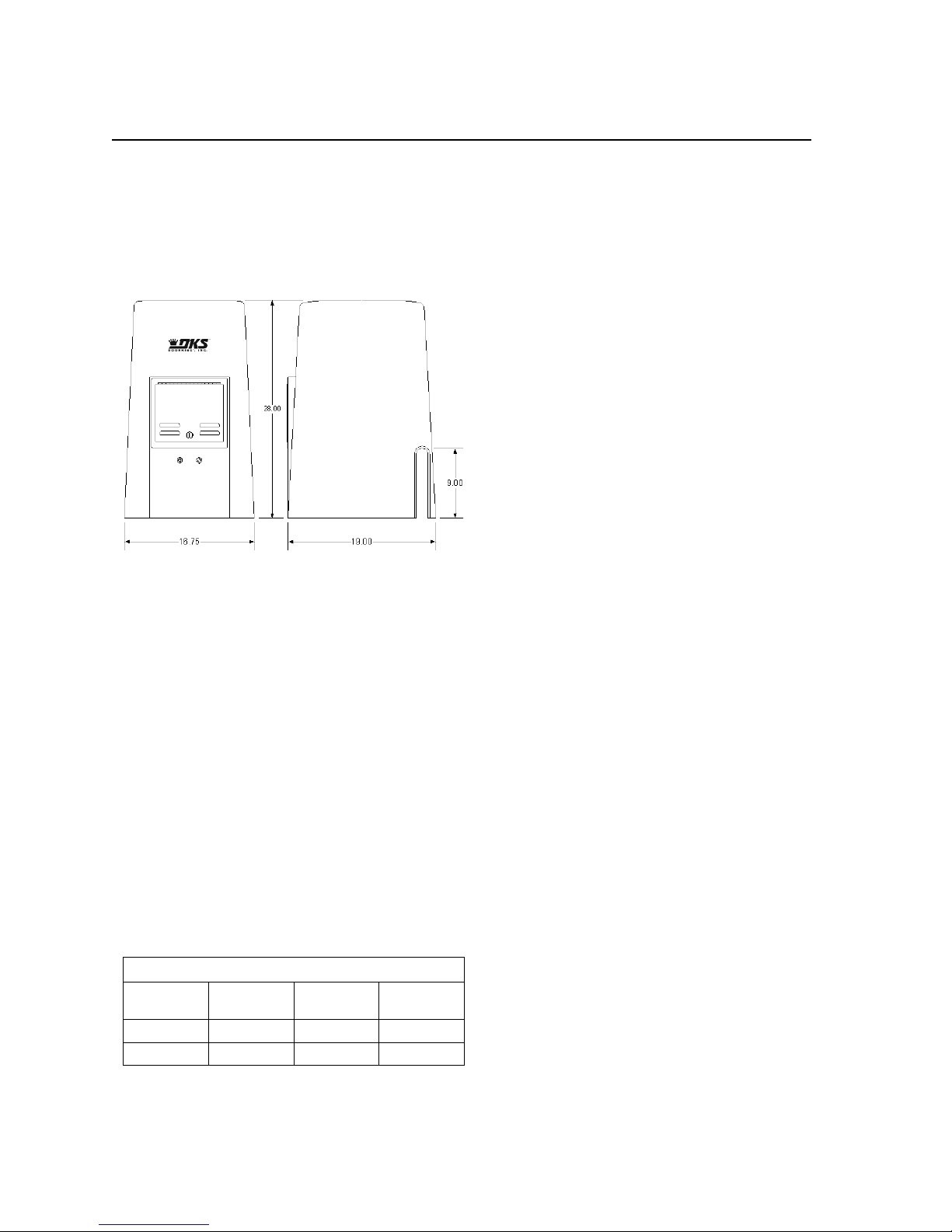

Models 9050 / 9100

Automatic Limit Slide Gate Operators

The model 9050 is designed for limited-duty residential applications only. The model 9100 is designed for continuous-duty residential and commercial applications and has a full feature circuit board. 20-feet of #40 chain is included with these operators.

Operators

9050-080 1/2 HP, 115V (4.3A)

9100-080 1/2HP, 115V (5.4A)

Options

2600-862 Fail-secure lock kit

Accessories

Entrapment prevention devices (required) ..................... Pg 20

Loops and loop detectors ............................................... Pg 21

Backup power inverters .................................................. Pg 26

1601-154 Heater Kit 115 VAC

• Use if temperature routinely falls below 10°F (-12°C)

2600-418 Base plate (use for post mounting)

2600-755 30-ft. Bi-parting gate connection cable

2600-756 40-ft. Bi-parting gate connection cable

2600-757 50-ft. Bi-parting gate connection cable

Additional chain .............................................................. Pg 18

Slide gate accessories ................................................Pg 16-18

Gate operator accessories .........................................Pg 22-24

Section A1, Page 14 Specifications subject to change without notice.

Page 15

April 2015 Vehicular Gate Operators

Model 9150 Maximum Capacities

Max Gate

Weight (lbs.)

Max Gate

Length (ft.)

Cycles

(day)

1/2 HP

1000

Cont.

1/2 HP w/C.O.

800

Cont.

1 HP

1500

Cont.

1 HP w/C.O.

1300

Cont.

Page Rev 4/1/15

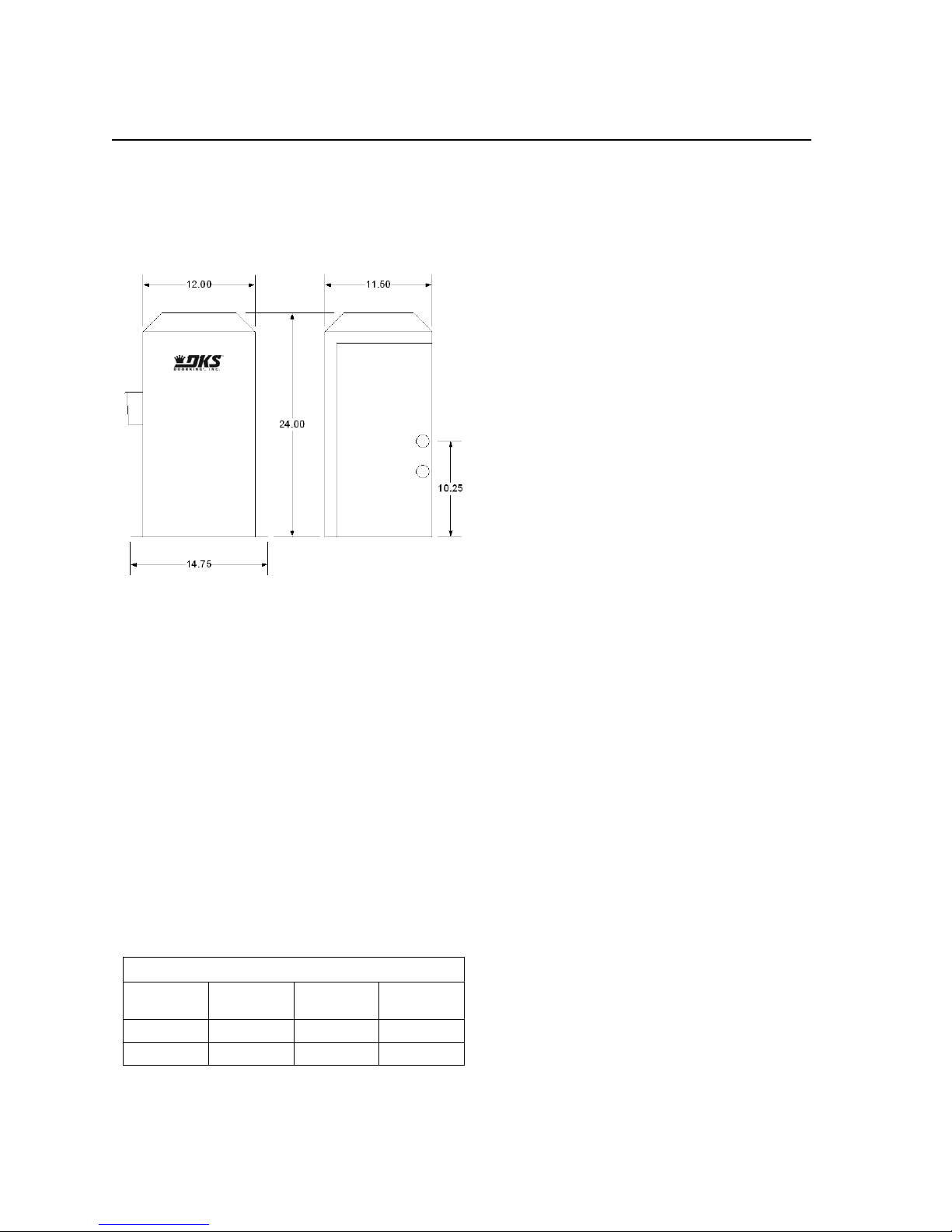

Model 9150

Automatic Limit Slide Gate Operators

The model 9150 slide gate operator is designed to operate vehicular sliding gates in residential commercial and industrial applications. The operator has a full feature circuit board and includes 20-feet of #40 chain.

Operators

9150-084 1/2 HP, 115V (5.4A)

9150-086 1/2 HP, 115V (5.4A) w/C.O.

9150-080 1 HP, 115V (9.7A)

9150-082 1 HP, 115V (9.7A) w/C.O

• C.O. = Convenience Open which opens gate upon AC

power loss

High Voltage Kit

2600-266 High Voltage Kit

• Allows the operator to be powered from 208, 230, 460

or 575 source voltage.

Options

2600-865 Fail-secure lock kit

Accessories

Entrapment prevention devices (required) .....................Pg 20

Loops and loop detectors................................................Pg 21

Backup power inverters ..................................................Pg 26

1601-154 Heater Kit 115 VAC

1601-197 Heater Kit 208/230 VAC

1601-198 Heater Kit 460 VAC

2600-495 Base plate (use for post mounting)

Additional chain ..............................................................Pg 18

Bi-parting gate connection cable ....................................Pg 18

Slide gate accessories ............................................... Pg 16-18

Gate operator accessories ........................................ Pg 22-24

Motor

Specifications subject to change without notice. Section A1, Page 15

Page 16

Vehicular Gate Operators April, 2015

Model 9000 Maximum Capacities

Max Gate

Weight (lbs.)

Max Gate

Length (ft.)

Cycles

(day)

1/2 HP

1000

Cont.

1 HP

1500

Cont.

Page Rev 4/1/15

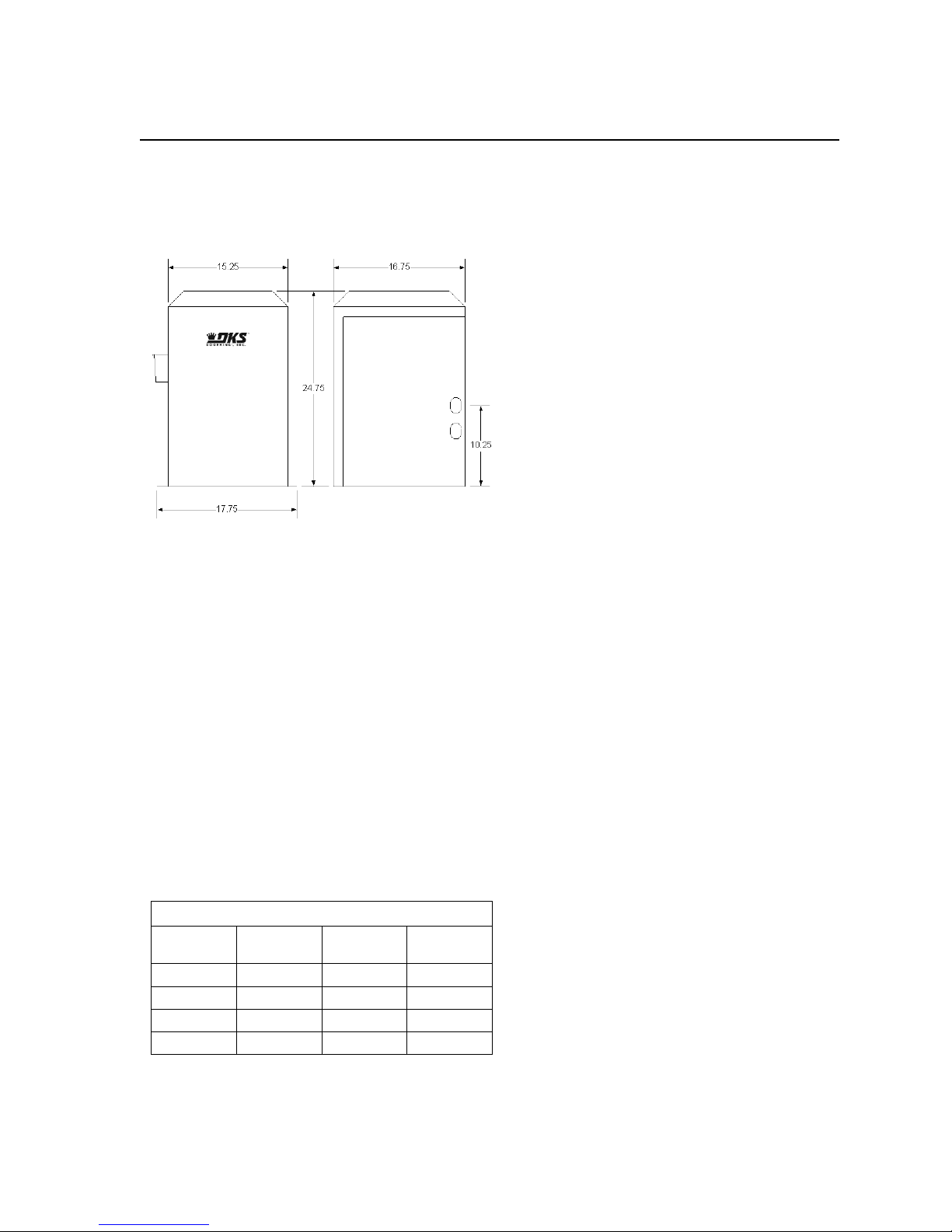

Model 9000

Adjustable Limit Slide Gate Operators

The model 9000 slide gate operator is designed to operate vehicular sliding gates in residential commercial and industrial applications. The operator has a full feature circuit board and includes 20-feet of #40 chain. Secondary operators are used in bi-parting (dual) gate applications and are commanded from and powered from the primary operator. Secondary operators cannot be used as a stand-alone device.

Operators

9000-080 1/2 HP, 115V (5.4A) Primary

9000-081 1/2 HP, 115V (5.4A) Secondary

High Voltage Kit (1/2 HP operator only)

2600-266 High Voltage Kit

• Allows the operator to be powered from 208, 230, 460

or 575 source voltage.

9000-085 1 HP, 115V (9.7A) Primary

9000-086 1 HP, 115V (9.7A) Secondary

(5.0A)

(4.9A)

Motor

9000-087 1 HP, 208V 1

9000-088 1 HP, 230V 1

• Secondary operator is not available for 208 / 230 Volt

units

Accessories

Entrapment prevention devices (required) ..................... Pg 20

Loops and loop detectors ............................................... Pg 21

Backup power inverters .................................................. Pg 26

1601-154 Heater Kit

1601-197 Heater Kit 208/230 VAC

1601-198 Heater Kit 460 VAC

9000-015 Post Mount Kit

• Includes baseplate, mounting posts and hardware.

2600-755 30-ft. Bi-parting gate connection cable

2600-756 40-ft. Bi-parting gate connection cable

2600-757 50-ft. Bi-parting gate connection cable

Additional chain .............................................................. Pg 18

Slide gate accessories ................................................Pg 16-18

Gate operator accessories .........................................Pg 22-24

Section A1, Page 16 Specifications subject to change without notice.

Page 17

April 2015 Vehicular Gate Operators

Page Rev 4/1/15

Maximum Cycles on Backup

Power**

7.5 Ah

18 Ah

1000

Continuous

150

Model 9024

Adjustable Limit DC Slide Gate Operator

The model 9024’s main power source is 115 or 230 Volt (switch selectable) single-phase AC power. The operational voltage of the operator is 24 Volt DC and includes built-in battery backup (7.5 AH battery x 2) that provides continued gate operation if the main source power is lost. This operator is designed to operate vehicular slide gates in residential and light commercial applications.

Operators

9024-080 1/2 HP, 24V DC (1.8A / 0.9A)

• 115 0r 230 VAC Input power.

9024-081 1/2 HP, 24V DC (8.5A)

• 24 VDC Solar Input power only (supply your own

batteries and solar system or use DKS solar kit)

Options

1801-004 12-Volt, 18 Amp Hour Battery

• Two (2) required.

Accessories

Entrapment prevention devices (required) .....................Pg 20

Loops and loop detectors................................................Pg 21

Backup power inverters ..................................................Pg 26

1601-154 Heater Kit

1601-197 Heater Kit 208/230 VAC

• Heaters are active only when AC source power is

present

9000-015 Post Mount Kit

• Includes baseplate, mounting posts and hardware.

Additional chain ..............................................................Pg 18

Slide gate accessories ............................................... Pg 16-18

Gate operator accessories ........................................ Pg 22-24

Max Gate

Weight (lbs.)

** Actual number of cycles will vary de pending on usage, accessories connected, gate weight,

operating condition of gate, temperature and c harge state of the batteries.

Specifications subject to change without notice. Section A1, Page 17

Max Gate

Width (ft.)

Max Cycles

AC Power

Page 18

Vehicular Gate Operators April, 2015

Page Rev 4/1/15

Slide Gate Accessories

V-Wheels

DKS V-wheels are used in slide gate applications that utilize an inverted “V” type track. V-Wheel assemblies are designed for 2 inch gate frames and tandem assemblies can be used on any size frame.

Replacement V-Wheels

1201-004

• 4-inch UHMW Sleeve Bearing 500 Lb Max Wt

1201-006

• 4-inch UHMW Sealed Bearing 750 Lb Max Wt

1201-016

• 4-inch Steel Sealed Bearing 1500 Lb Max Wt

1201-000

• 6-inch Steel Sealed Bearing 2500 Lb Max Wt

V-Wheel Assemblies

1201-102

• 4-inch UHMW Sleeve Bearing 500 Lb Max Wt

1201-105

• 4-inch UHMW Sealed Bearing 750 Lb Max Wt

1201-117

• 4-inch Steel Sealed Bearing 1500 Lb Max Wt

4 Inch Tandem V-Wheel Assemblies

1201-012

• 4-inch UHMW Sealed Bearing 1500 Lb Max Wt

1201-010

• 4-inch Steel Sealed Bearing 3000 Lb Max Wt

6 Inch Tandem V-Wheel Assembly

1201-210

• 6-inch Steel Sealed Bearing 5000 Lb Max Wt

Section A1, Page 18 Specifications subject to change without notice.

Page 19

Page Rev 4/1/15

1204-120 1204-122

1204-121 1204-123

2600-818

1204-004

4.5

3.25

8.25

8.254.50

3.25

Adjustable

1.25 – 2.125

Adjustable

1.25 – 2.125

Adjustable

1.25 – 2.125

Adjustable

1.25 – 2.125

Adjustable

.875 – 2.625

Adjustable

.875 – 2.625

4.00

7.00

4.50

2.00

3.125

2.755.50

7.00 5.00

4.00 2.00

April 2015 Vehicular Gate Operators

Slide Gate Accessories

Guide Rollers, Chain Idler, End Catch

Guide rollers are guarded to meet current industry safety standards. The DKS chain idler assembly is used when slide gate operators are rear-mounted. The end retainer provides a guide for slide gates to slip into, and has a cap that prevents the gate from being lifted off the track when it is in the full closed position.

3 Inch Guide Rollers

1204-120 Single

1204-122 Dual

1204-005 3-Inch replacement roller

• Use two for 6-inch roller

6 Inch Guide Rollers

1204-121 Single

1204-123 Dual

Chain Idler Assembly

2600-818

• Use with rear-mount slide gate operators. Works with

#40 and #41 chain

Specifications subject to change without notice. Section A1, Page 19

End Catch

1204-004

• Designed for gates with 2-inch frame

Page 20

Vehicular Gate Operators April, 2015

Circuit Boards

Replacement Parts & Components

Chain

Page Rev 4/1/15

Slide Gate Operator Parts & Accessories

Miscellaneous Parts & Accessories

4402-009

Used in model 9300 1 HP only

4402-010

Used in models 1150, 9200, 9300 (1/2 HP only)

4403-010

Used in model 9310

4405-010

Used in model 9000

4602-009

Replacement PCB for models 910, 915, 920

4602-010

Used in models 9100, 9150

4702-009

Replacement PCB for models 905, 907

4702-010

Used in models 9050, 9070

2340-010

Used in model 9150 with convenience open option

2600-903 Drive Shaft Assembly

Used in models 905, 907, 910, 9050, 9070, 9100

2600-904 Drive Shaft Assembly

Used in models 915 and 9150

2600-860 Solenoid Lock Assembly

Used in models 9050, 9070, 9100 and 9150

2600-861 Solenoid Lock Assembly

Used in model 9310 operator

1801-009 Battery

12 Volt, 3-Amp Hour battery

2600-443 Nickel Plated #41 Chain – 10 Ft

2600-444 Nickel Plated #40 Chain – 10 Ft

2600-475 Stainless Steel #41 Chain – 20 Ft

2600-441 #41 Chain – 20 Ft

2600-442 #40 Chain – 20 Ft

2600-271 Chain Stop for #40 and #41 Chain

2600-961 Chain Link Fence Gate Bracket

Base Plates

2600-418 Steel Base Plate

Use with 9050 and 9100 operators

2600-495 Steel Base Plate

Use with 9150 operator

2600-970 Base Plate Stop Bracket

Use with 2600-418 and 2600-495

9310-201 Steel Base Plate

Use with 9310 1/2 HP operators

9310-202 Steel Base Plate

Use with 9310 1 HP operators

Bi-Parting Connection Cable

2600-754 Primary / Secondary Cable

500-ft roll

2600-755 Primary / Secondary Cable

30-ft roll

2600-756 Primary / Secondary Cable

40-ft roll

2600-757 Primary / Secondary Cable

50-ft roll

Miscellaneous

2600-220 Touch-up Paint, White

2600-221 Touch-up Paint, Light Gray

2600-222 Touch-up Paint, Tan

2600-223 Touch-up Paint, Charcoal Gray

Section A1, Page 20 Specifications subject to change without notice.

Page 21

April 2015 Vehicular Gate Operators

Page Rev 4/1/15

Blank Page

Specifications subject to change without notice. Section A1, Page 21

Page 22

Vehicular Gate Operators April, 2015

8080-010

8080-011

8080-030 / 8080-031

8080-016 8080-015 8080-020

8080-021

8080-022

Page Rev 4/1/15

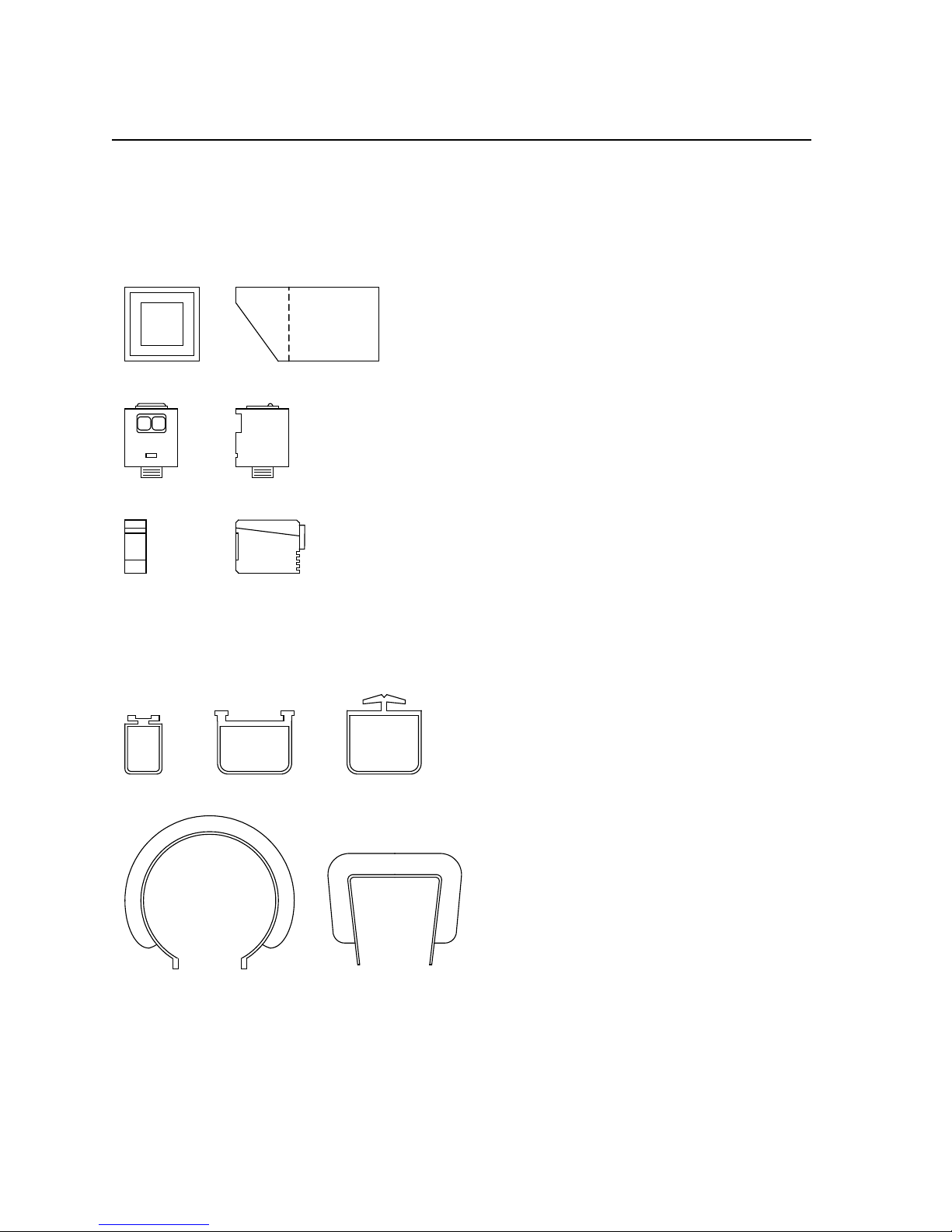

Entrapment Prevention Devices

Entrapment prevention devices are required in almost all general access automated gate applications. Photo-cells are used as type B1 (non-contact sensors) devices. Electric edges are used as type B2 (contact sensors) devices.

Type B1 and Type B2

Type B1 Non-Contact Sensors

8080-010 Infrared Thru-Beam (Do not use with 9200 and 9500 series operators)

• 24 Volt AC / DC

• 65-foot maximum sensing distance

• Separate sender and receiver

• Includes hood and heated enclosure

8080-011 Photo Reflective

• 24 Volt AC / 12 - 24 Volt DC

• 30-foot maximum sensing distance

8080-030 Polarized Photo Reflective

• 24 Volt AC / 24 Volt DC

• 35-foot maximum sensing distance

8080-031 Infrared Thru-Beam

• 24 Volt AC / 24 Volt DC

• 65-foot maximum sensing distance

• Separate sender and receiver

Type B2 Contact Sensors

8080-016 6-Foot Edge (ME111)

• Includes mounting channel - ideal for barrier arms

8080-015 5-Foot Edge (ME123)

• Includes mounting channel

8080-020 5-Foot Edge (MGO20)

• Sensitive on all 3 sides – includes mounting channel

8080-021 5-Foot Edge (MGR20)

• Designed to fit on 2-inch round gate post

8080-022 5-Foot Edge (MGS20)

• Designed to fit on 2-inch square gate post

Contact Sensor Accessories

8060-061 Wireless RF Kit

• Receiver (12-24 Volt AC/DC) and transmitter housed in

NEMA 4 enclosure with low battery alarm

8080-017 Coiled Cord 16-Feet

8060-076 Plastic Receiver Box

Section A1, Page 22 Specifications subject to change without notice.

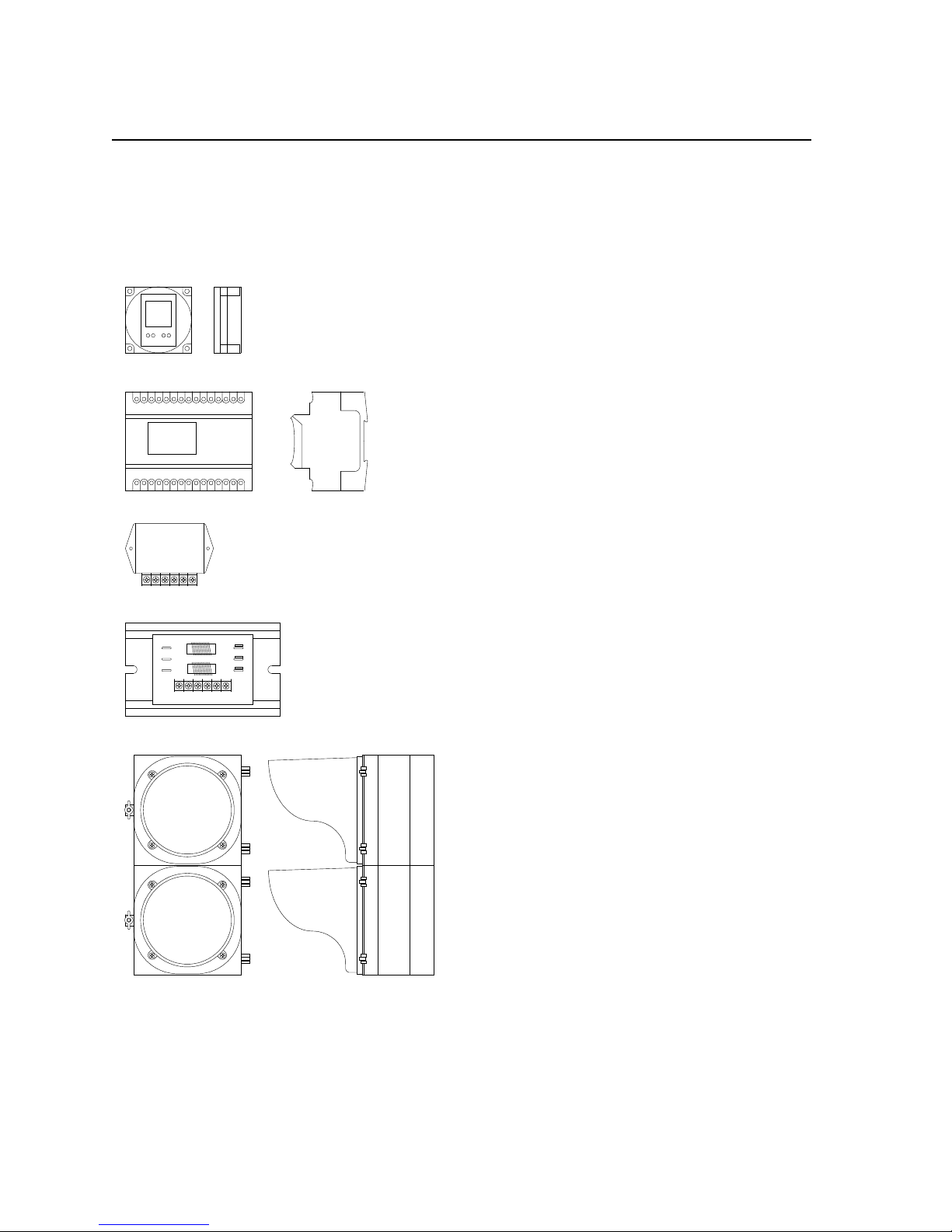

Page 23

9402-050

9402-044

9402-045 / 9402-047

9409-0109410-010

9411-010

Page Rev 4/1/15

April 2015 Vehicular Gate Operators

Vehicle Protection

Loop Detectors and Loops

Loop detectors and loops are strongly recommended on all automated vehicular gate applications to help prevent gates from closing on vehicles in the path of the gate.

Plug-in Loop Detectors – DKS operators only

9411-010 DKS Single Channel + Aux Relay

• Use this detector when interfacing barrier gate

operators with a photo-beam for enhanced pedestrian protection, or in any application where a dry relay contact is needed in addition to the loop call function.

9410-010 DKS Single Channel

9409-010 DKS Two Channel

Loop Detectors

9402-045 Reno A&E 12/24 Volt DC or 24 Volt AC

9402-047 Reno A&E 120 Volt AC

• Reno A&E detectors have 2 relay outputs

• Reno A&E detectors require 9402-061 wire harness

9402-044 Carlo Gavazzi 24 Volt AC or DC

• Carlo Gavazzi detector - 2 relay outputs

• Requires 9402-061 wire harness

9402-050 Diablo 10-30 Volt AC or DC

• Ultra Low Power for solar applications

9402-061 Wire Harness

Loop Wire – 18 AWG – XLPE Insulation

9402-076 500-Ft Roll – Black

9402-077 1000-Ft Roll – Black

9402-078 500-Ft Roll – Blue

9402-079 1000-Ft Roll – Blue

9402-080 500-Ft Roll – Red

9402-081 1000-Ft Roll – Red

Prefabricated Loops, 24-Ft Circumference, 50-Ft Lead-In

9401-060 Blue Loop Wire / PLIOVIC Tubing

9401-061 Yellow Loop Wire / PLIOVIC Tubing

9401-062 Red Loop Wire / PLIOVIC Tubing

Loop Miscellaneous

2600-771 Asphalt Sealant (Black) – 10 oz. Tube

2600-772 Concrete Sealant (Gray) – 10 oz. Tube

9401-045 Loop Test Meg-Ohm Meter

Specifications subject to change without notice. Section A1, Page 23

Page 24

Vehicular Gate Operators April, 2015

Page Rev 4/1/15

Control Stations

Manual Control

Gate operator control stations provide complete manual control for DKS vehicular gate operators. The unique logic inputs found on DKS gate operators require only 3 wires for connection to a 3-button control station.

1200-007

• 3-button interior open-close-stop

• Mounts into single-gang electric box

• Use for most DKS gate operators (cannot be used with

model 9000)

1200-006

• 3-button interior/exterior open-close-stop

• Surface or post mounted

• Use for most DKS gate operators (cannot be used with

model 9000)

1200-017

• Open-hold-normal gate control

• Mounts into single-gang electric box

Section A1, Page 24 Specifications subject to change without notice.

Page 25

Page Rev 4/1/15

1402-080

5.00

.50

.38

1401

-080

5.38

POSTAL

LOCK BOX

FIRE

DEPT

4.50

3.63

1400-080

FIRE

DEPT

April 2015 Vehicular Gate Operators

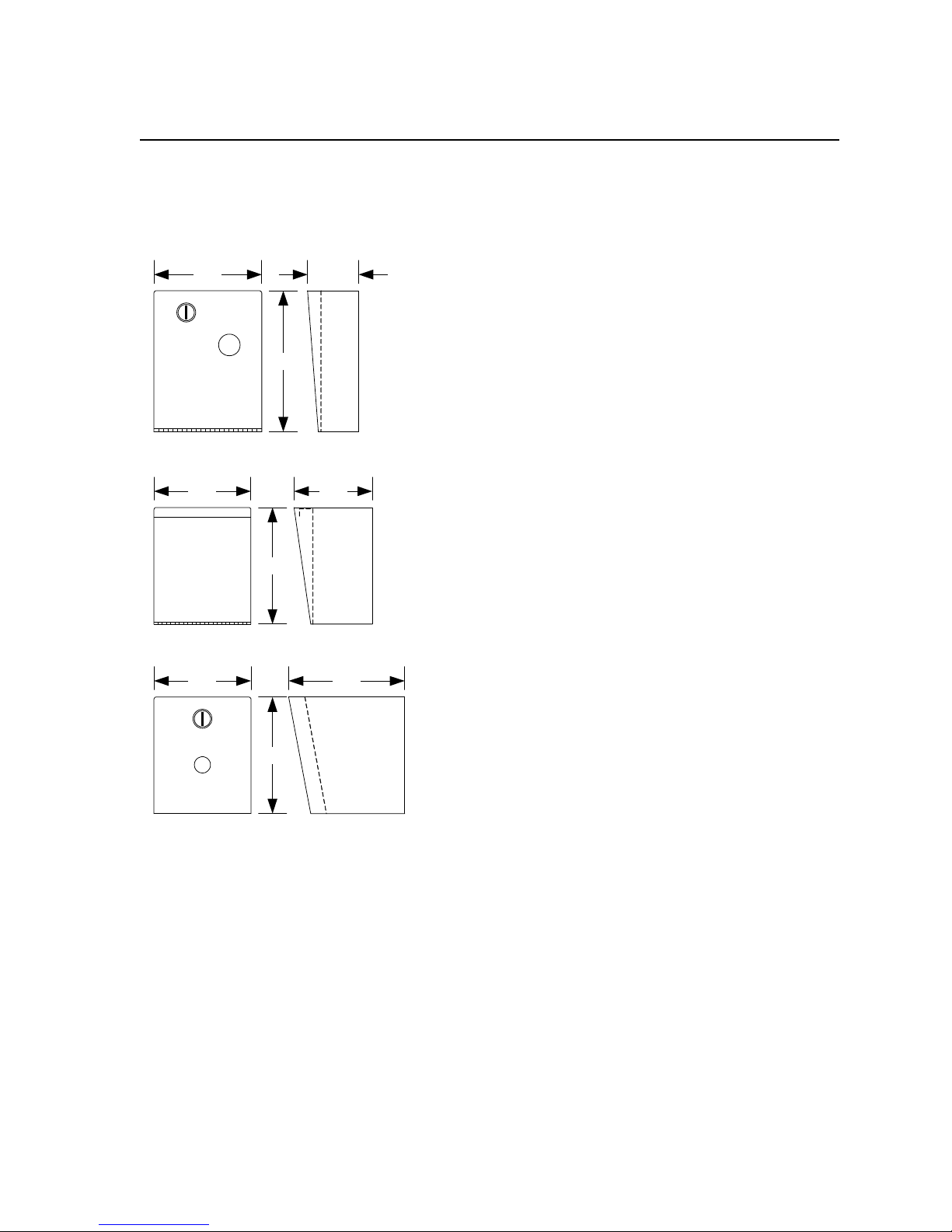

Lock Boxes

Postal and Fire Department

Postal and Fire Department lock boxes provide a method for these authorities to gain access through a vehicular access gate.

1402-080

• Accepts standard postal key lock

• Postal lock can be installed to either open the 1402

box, or activate a door or gate

• Surface or post mount

• Painted postal blue

1400-080

• Accepts Fire Department pad lock

• Cover opens and activates a switch when the pad lock

is removed

• Gate or door will hold open until the cover is closed

and the pad lock replaced

• Surface or post mount

• Painted bright red

1401-080

• Accepts Knox 3501 key switch

• Surface or post mount

• Faceplate painted bright red, box is painted black

Specifications subject to change without notice. Section A1, Page 25

Page 26

Page Rev 4/1/15

2600-791

2600-795

1878-010

1603-208

1879-080

Vehicular Gate Operators April, 2015

Accessories

Time Clock & Surge Suppressers

Electronic time clocks are ideal for use in applications where an access control system does not control “hold open” time periods. Vehicular gate operators and barrier gate operator systems are typical. Surge suppressers are designed to provide additional protection to equipment in areas prone to voltage spikes and surges. Surge suppressers come with a plastic mounting bracket. Red / Green traffic signal is ideal for all vehicular gate applications – providing a visual signal when the gate is safe to drive through.

Time Clocks

2600-791

• 7 Day Time Clock

• 20 programs

• 24 Volt AC input power

• Form “C” dry contact relay

2600-795

• 365 Day Time Clock

• 7-Day and 24 hour programming features

• Holiday programming

• Automatic leap-year adjustment through 2095

• Daylight savings time

• 24 Volt AC input power

Surge Suppressers

1879-080

• High Voltage (110-120 VAC)

1878-010

• Low Voltage (24-20 VAC)

Traffic Signal

1603-208

• Red / Green traffic signal

• 8-inch lens

Section A1, Page 26 Specifications subject to change without notice.

Page 27

Page Rev 4/1/15

11.13

4.50

6.00

20 VA Transformers

1215-061 12-Volt AC Output 1804-059 24-Volt AC Output 1804-060 16-Volt AC Output

40 VA Transformer

1508-060 16-Volt AC Output

DC Transf ormers

1812-020 12-Volt 1000 mA 1812-139 24-Volt 500 mA

1200-080

April 2015 Vehicular Gate Operators

Accessory Transformers

12, 16, 24 Volt AC & DC Transformers

A variety of accessory transformers are available to power the different products that we sell. AC transformers are typically used with access control devices and controllers, while DC transformers are used with magnetic locks and proximity card readers. Check the individual product to determine which transformer is required. NOTE: Many of our products INCLUDE a transformer.

Transformer Box

1200-080

• Holds up to four (4) 20-VA transformers

• Suitable for indoor and outdoor use

• Does not include transformers

20-VA Transformers

1215-061 12-Volt, AC

1804-059 24-Volt, AC

1804-060 16-Volt, AC

40-VA Transformer

1508-060 16-Volt, AC

DC Transformers

1812-020 12-Volt, 1000 ma

1812-139 24-Volt, 500 ma

Specifications subject to change without notice. Section A1, Page 27

Page 28

Vehicular Gate Operators April, 2015

21.00

Model 1000

13.00 8.00

1000-045

33.00

Page Rev 4/1/15

Model 1000

Back-up Power / Inverter

The model 1000 Power Inverter is designed to provide backup AC power for the entire vehicular access control system when primary (AC) power fails. Unlike some backup systems which simply provide DC power for the gate operator itself, these inverters provide 120 Volt AC power to all components (gate operator, access control system, loop detectors, reversing devices, emergency vehicle access devices, etc.) of the access control system. The model 1000 is designed to provide power for two (2) gate operators and related access control system accessories.

Model 1000 Inverter

1000-080 1000 Watt, Modified Sine Wave

• Includes one (1) battery and will power one (1) 1/2 HP

operator

• Use only with DoorKing gate operators

1000-082 1000 Watt, Pure Sine Wave

• Includes two (2) batteries and will power two (2) 1/2

HP operators or one (1) 1 HP operator

• Suitable for use with all DoorKing and non-DoorKing

brand gate operators

1000-045 Post Mount for 1000 Inverter

1000-048 Battery & Cable Assembly

• Order this to add a second battery to the 1000 Watt

inverter

1801-005 Battery

• 12 Volt, 35 AH SLA (Sealed Lead Acid) battery

1000-044 Battery Cable Set

Section A1, Page 28 Specifications subject to change without notice.
