Page 1
The EMC Direcve
2014/30/EU
The Low Voltage
Direcve
2014/35/EU
DX Wall Fan Kits 50/60Hz
Supply / Extract Units
Installaon and Maintenance
269mm
134 mm*
269mm
137mm*
272mm
DX6WL (6 inch)
Front view
DX9WL (9 inch) DX12WL (12 inch)
Side view
Cable entry
Aperture required
260 x 260mm sq.
*To centre of
'duct'
337 mm
171 mm*
342mm
175mm*
342mm
Cable entry
*To centre of
'duct'
413mm
206mm*
420mm
214 mm*
420mm
Cable entry
*To centre
of 'duct'
Aperture required
330 x 330mm sq.
Aperture required
410 x 410mm sq.
V E N T I L A T I O N
269mm
272mm
DX6WL (6 inch)
Front view
DX9WL (9 inch) DX12WL (12 inch)
Side view
342mm
342mm
420mm
420mm

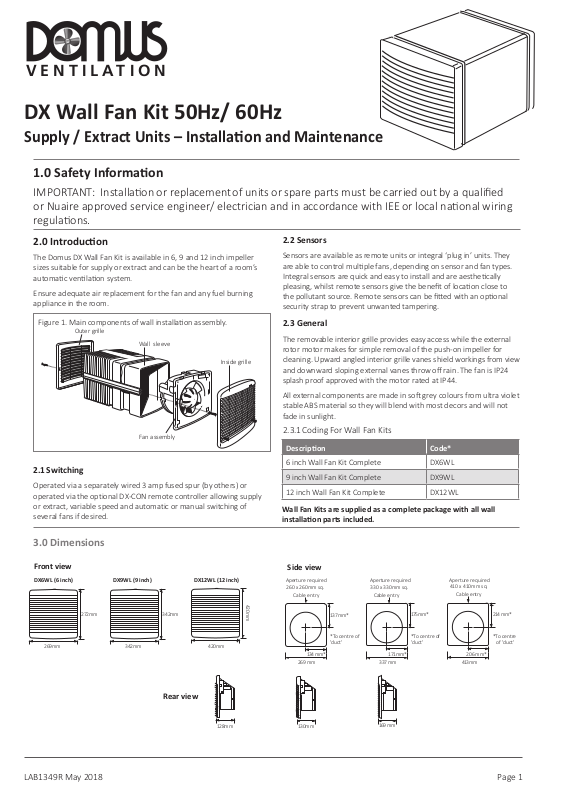

DX Wall Fan Kit 50Hz/ 60Hz
Supply / Extract Units – Installaon and Maintenance
1.0 Safety Informaon
IMPORTANT: Installaon or replacement of units or spare parts must be carried out by a qualified
or Nuaire approved service engineer/ electrician and in accordance with IEE or local naonal wiring
regulaons.
2.0 Introducon
The Domus DX Wall Fan Kit is available in 6, 9 and 12 inch impeller
sizes suitable for supply or extract and can be the heart of a room’s
automac venlaon system.
Ensure adequate air replacement for the fan and any fuel burning
appliance in the room.
Figure 1. Main components of wall installaon assembly.
Outer grille
Wall sleeve
Inside grille
Fan assembly
2.1 Switching
Operated via a separately wired 3 amp fused spur (by others) or
operated via the optional DX-CON remote controller allowing supply
or extract, variable speed and automatic or manual switching of
several fans if desired.
2.2 Sensors
Sensors are available as remote units or integral ‘plug in’ units. They
are able to control mulple fans, depending on sensor and fan types.
Integral sensors are quick and easy to install and are aesthecally
pleasing, whilst remote sensors give the benefit of locaon close to
the pollutant source. Remote sensors can be fied with an oponal
security strap to prevent unwanted tampering.
2.3 General
The removable interior grille provides easy access while the external
rotor motor makes for simple removal of the push-on impeller for
cleaning. Upward angled interior grille vanes shield workings from view
and downward sloping external vanes throw off rain. The fan is IP24
splash proof approved with the motor rated at IP44.
All external components are made in so grey colours from ultra violet
stable ABS material so they will blend with most decors and will not
fade in sunlight.
2.3.1 Coding For Wall Fan Kits
Descripon Code*
6 inch Wall Fan Kit Complete DX6WL
9 inch Wall Fan Kit Complete DX9WL
12 inch Wall Fan Kit Complete DX12WL
Wall Fan Kits are supplied as a complete package with all wall
installaon parts included.
3.0 Dimensions
Front view
DX6WL (6 inch)
269mm
LAB1349R May 2018
Front view
DX9WL (9 inch) DX12WL (12 inch)
272mm
342mm
342mm
Rear view
DX6WA (6 inch)
420mm
128mm
DX9WA (9 inch) DX12WA (12 inch)
Aperture required
260 x 260mm sq.
420mm
Cable entry
134 mm*
269 mm
130mm
137 mm*
*To centre of
'duct'
Aperture required
330 x 330mm sq.
Cable entry
171 mm*
337 mm
169 mm
175mm*
*To centre of
'duct'
Aperture required
410 x 410mm sq.
Cable entry
206 mm*
413mm
214 mm*
*To centre
of 'duct'
Page 1
Page 2
Polystyrene
former fits
temporarily
into sleeve end
Make hole for
supply cable
Locate the temporary plug to support the other end.
Polystyrene
former supporng
sleeve end
A
A
2
4
6
8
Supply wire
inside sleeve
Make good around the wall sleeve.
Remove fan plate.
Cut the spacer to match the walls total thickness
using a fine/med cut woodsaw.
Make good
the inside and
outside walls
flush with the
sleeve
Temporary
crossbrace
Installation and Maintenance
DX Wall Fan Kits 50Hz/60Hz
4.0 Installaon
4.1 Installaon Of Wall Fan Kits
1
Remove front grille.
Release 2 screws. Li grille upwards.
3
DX6WA 260mm sq.
DX9WA 330mm sq.
DX12WA 410mm
sq.
V E N T I L A T I O N
2
Remove fan plate.
4
A
Prepare the wall aperture to dimensions shown.
5
Fit the temporary cross brace across wall sleeve’s outer
end to support the sides during installaon (drg No 8).
7
IMPORTANT !
Install the sleeve
at a slight angle
(lower to outside)
When fing the sleeve, introduce a slight downward slope
to the outside, to encourage any water to drain to outside.
LAB1349R May 2018
A
Cut the spacer to match the walls total thickness
using a fine/med cut woodsaw.
6
Locate the temporary plug to support the other end.
Make hole for
supply cable
Polystyrene
former fits
temporarily
into sleeve end
8
INSIDEOUTSIDE
Temporary
crossbrace
Make good around the wall sleeve.
Supply wire
inside sleeve
Make good
the inside and
outside walls
flush with the
sleeve
Polystyrene
former supporng
sleeve end
Page 2
Page 3
Installation and Maintenance
10
12
Release the electrical cover from the fan plate.
Assemble the fan plate to the inside sleeve.
IMPORTANT
(Shuer Operaon DX fans)
There will be a short delay on start-up and shutdown of
approximately 40 seconds, this is normal.
Fit the inside grille to the fanplate, locang grille
over the top lip before engaging screws.
9
10
11
13
12
Bring the cable through the fan plate.
Remove temporary cross brace when cement has dried.
Fit the outer grille (note grille blades sloping down to shed
water).
Release the electrical cover from the fan plate.
Assemble the fan plate to the inside sleeve.
IMPORTANT
(Shuer Operaon DX fans)
There will be a short delay on start-up and shutdown of
approximately 40 seconds, this is normal.
4.2 Fing Ancillaries (Also see page 8)
4.2.1 Thin Wall Installaon
This thin wall applicaon is best
covered using a Window Kit.
Drawing shows a Wall Fixing
Plate fixed to the aperture by
screws. The Window Kit clamps
together either side of the Wall
Fixing Plate.
4.2.2 Weather Terminal
This wall applicaon shows a
Weather Terminal replacing the
Outside Grille and is held in
posion using the grille fixing
points. However, longer (75mm)
screws are provided. This
Terminal is used for exposed site
condions.
Spacer
Wall
Fixing
Plate
Interior
Grille
Outside
Grille
DX Wall Fan Kits 50Hz/60Hz
9
Remove temporary cross brace when cement has dried.
Fit the outer grille (note grille blades sloping down to shed
water).
11
10
Release the electrical cover from the fan plate.
12
V E N T I L A T I O N
Bring the cable through the fan plate.
13
Fit the inside grille to the fanplate, locang grille
over the top lip before engaging screws.
Assemble the fan plate to the inside sleeve.
IMPORTANT
There will be a short delay on start-up and shutdown of
approximately 40 seconds, this is normal.
(Shuer Operaon DX fans)
Min thickness 25mm MDF
LAB1349R (version 1) April 2018 Page 3
Page 4
Installation and Maintenance
DX Fan unit with
2
4
Remove the terminal cover.
Refit terminal cover before replacing the electrical panel.
5.1.3 Basic Fan Operated By Remote Sensor
Fan operated by on / off switch
Fan operated by integral sensor
Double pole
isolator
Fuse
max. 3 amp
L5
L4
L3
L2
L1
N
or
L
N
DX Fan unit with
Fan operated by integral sensor
SL
(Switched Live)
Connect link wire between L2 & L4 for extract OR
connect link wire between L2 & L3 for supply.
IMPORTANT
Isolaon - Before commencing work, make sure that the unit is
electrically isolated from the mains supply.
DX Wall Fan Kits 50Hz/60Hz
5.0 Electrical Installaon
Electrical work should be undertaken by a qualified electrician in
accordance with the wiring regulaons.
1
Release the electrical panel from the fan plate.
3
2
Remove the terminal cover.
4
V E N T I L A T I O N
Clamp the cable and complete the connecons.
5.1 Wiring
5.1.1 Fan Operated By On / Off Switch
Double pole
isolator
L
N
Connect link wire between L2 & L4 for extract OR
connect link wire between L2 & L3 for supply.
Fuse
max. 3 amp
5.1.2 Fan Operated By Integral Sensor
SL
(Switched Live)
Double pole
isolator
L
N
Connect link wire between L2 & L4 for extract OR
connect link wire between L2 & L3 for supply.
Connect switched live signal to L5 for integral mer module.
Fuse
max. 3 amp
or
DX Fan unit with
integral sensor
or
L5
L4
L3
L2
L1
N
DX Fan unit
L5
L4
L3
L2
L1
N
Refit terminal cover before replacing the electrical panel.
5.1.3 Basic Fan Operated By Remote Sensor
Fan operated by integral sensor
SL
Connect link wire between L2 & L4 for extract OR
connect link wire between L2 & L3 for supply.
(Switched Live)
L
N
Double pole
isolator
Fuse
max. 3 amp
IMPORTANT
Isolaon - Before commencing work, make sure that the unit is
electrically isolated from the mains supply.
L5
or
L4
L3
L2
L1
N
LAB1349R May 2018
Page 4
Page 5
Installation and Maintenance
y.
Supply / Extract fan operated via remote
DX-MFC control
Remote sensor
Supply / Extract fan operated via remote
DX-MFC control & Remote Sensor(s)
IMPORTANT
(Shuer Operaon DX fans)
There will be a short delay on startup and shutdown of
approximately 40 seconds. This is normal.
Model
Input Power
(W)
Weight
(kg)
Max. Economy
DX6WA supply & extract 38 20 4.7
DX6GL supply & extract 50 37 6.5
DX6GL supply & extract 100 70 9.4
5.2 Unit Consumpon & Weight
5.3 Electrical Specificaon
230V ~ 50Hz / 220V ~ 60Hz Class I. Motor thermally protected by
overload device. Cable: 1mm max. or min. Fuse: 3 amp (if fan is supplied
from a 5A lighng circuit, no local fuse is required).
Note: If 2 x 12 inch fans or 3 x 6 or 9 inch fans are used in the same
operang mode in the same room they should all be controlled from
the same MFC speed control. This avoids the possibility of one fan (if
speed controlled at a lower flow rate) being stalled by the other fan(s).
Adequate make-up air provision sufficient to provide venlaon in
accordance with building regulaons is required in all rooms. This
should be checked during commissioning with all fans in the same room
running together in all possible configuraons.
The automac shuers, motor bearings should be frequently inspected
and maintained to ensure they open fully/operate sasfactorily. Use
of an RCD and fused spur with 1A, BussmannTDC180, BS1362, fuse
(Farnell order no: 1123029) for 1 fan or 2A, Bussmann TDC180, BS1362
fuse (Farnell order no: 1123032) for 2 or 3 fans is recommended.
Always confirm airflow direcon before commissioning.
Note figures are for extract only at 50hz.
DX Wall Fan Kits 50Hz/60Hz
5.1.4 Supply / Extract Fan Operated via remote DX-CON Control
Double
Fuse
pole
max.
isolator
L
N
mains
supply
3 amp
Remote switch may be set: On/Off, Supply/ Extract, Economy/Std
(variable speed), Auto/Manual.
5.1.5 Supply / Extract Fan Operated via remote DX-CON Control
Double
Fuse
pole
max.
isolator
L
N
mains
supply
Remote sw
3 amp
itch may be set: On/Off, Supply/ Extract, Economy/Std.
(variable speed), Auto/Manual.
One or more Remote Sensors may be wired in parallel to one DX-CON
Control.
Humidity Se
nsor: DX-RH
5.1.6 Supply / Extract Fan Operated via remote DX-CON Control
Supply / Extract fan operated via remote
DX-
CON control and Integral Sensor
Double
Fuse
pole
max.
isolator
3 amp
mains
supply
L
N
Remote switch may be set: On/Off, Supply/ Extract, Economy/ Std.
(variable speed), Auto/Manual.
Maximum
one Integral Sensor per fan, 6/9/12 denotes unit size ident
Humidity Sensor: DX-H6/9/12
Passive Infra Red Sensor: DX-PIR6/9/12
Run on Tim
er: DX-T6/9/12.
A single sensor will switch all fans if more than one fan is being
perated by DX-CON controller.
o a single
NOTE: Mul-fan opons:
Up to 5 fans (size 6"/9") can
Up to 2 fan
Do not mix different fan sizes on the same controller.
s (size 12") can be controlled by one DX-CON.
L4
L3
L2
L1
NL1N
DX-CON controller
L2 L1 N
L4
L3
L2
L1
NL1N
DX-CON controller
Required if using
integral Timer
L4
L3
L2
L1
NL1N
DX-CON controller
be controlled by one DX-CON
L5
L4
L3
L2
L1
N
DX Fan unit
L5
L4
L3
L2
L1
N
DX Fan unit
L5
L4
L3
L2
L1
N
DX Fan unit with
integral sensor
V E N T I L A T I O N
IMPORTANT
There will be a short delay on startup and shutdown of
5.2 Unit Consumpon & Weight
DX6WL supply & extract
DX9WL supply & extract
DX12WL supply & extract
Note figures are for extract only at 50hz.
5.3 Electrical Specificaon
230V ~ 50Hz / 220V ~ 60Hz Class I. Motor thermally protected by
overload device. Cable: 1mm max. or min. Fuse: 3 amp (if fan is supplied
from a 5A lighng circuit, no local fuse is required).
Note: If 2 x 12 inch fans or 5 x 6 or 9 inch fans are used in the same
operang mode in the same room they should all be controlled from
the same DX-CON speed control. This avoids the possibility of one fan (if
speed controlled at a lower flow rate) being stalled by the other
fan(s).Adequate make-up air provision sufficient to provide ventilation in
accordance with building regulaons is required in all rooms. This
should be checked during commissioning with all fans in the same room
running together in all possible configuraons.
The automac shuers, motor bearings should be frequently inspected
and maintained to ensure they open fully/operate sasfactorily. Use
of an RCD and fused spur with 1A, Bussmann TDC180, BS1362, fuse
(Farnell order no: 1123029) for 1 fan or 2A, Bussmann TDC180, BS1362
fuse (Farnell order no: 1123032) for 2 or 3 fans is recommended.
Always confirm airflow direcon before commissioning.
(Shuer Operaon DX fans)
approximately 40 seconds. This is normal.
Input Power
Model
(W)
Max. Economy
38 20 4.7
50 37 6.5
100 70 9.4
Weight
(kg)
LAB1349R May 2018
Page 5
Page 6
Installation and Maintenance
Screw the sensor module into posion.
1
3
5
7
Push the repacement cover into the grille front.
Li out the sensor module wiring connector.
Unscrew the module plate from motor plate assy.
DX Wall Fan Kits 50Hz/60Hz
5.4 Fing Integral Sensors (Oponal)
Note: Before following the pictorial sequence shown, first remove the
fans front cover grille (2 screws). Release the four main corner screws
and li out the motor/fan plate assembly. Remove the electrical cover
plate opposite the sensor plate. Follow the pictorial sequence on this
page.
2
1
Unscrew the module plate from motor plate assy.
3
V E N T I L A T I O N
Remove the module plate.
4
Plug the connector into the required sensor module.
6
Li out the sensor module wiring connector.
5
Screw the sensor module into posion.
7
Push out the sensor area cover from the grille.
LAB1349R May 2018
Push the repacement cover into the grille front.
Page 6
Page 7
Installation and Maintenance
Feed approx. 200mm of supply cable into the box
1
3
5
7
Fit the control into the backplate box and secure.
Test the installaon.
Lift up panel and remove two screws to dismantle unit.
Spot through backplate box and drill and plug the ceiling.
200mm
1.5m
ed, (see
DX Wall Fan Kits 50Hz/60Hz
5.5 Fing Remote Controller DX-CON or
Remote sensors (oponal)
The DX-CON Mul Fan Control provides supply or extract, variable
speed and automac or manual switching of several fans if desir
note below). The control is best mounted approx 1.5m above the floor. Remote
Sensors are available for Humidity only. Remote Sensors should be positioned
at least 1.5m above the floor and away from direct heat sources e.g. radiators
Note:
Up to 5 fans (size 6 / 9 inch) can be controlled by one DX-CON.
Up to 2 fans (size 12 inch) can be controlled by one DX-CON.
Do not mix different fan sizes on the same controller.
2
V E N T I L A T I O N
1
Lift up panel and remove two screws to dismantle unit.
3
1.5m
Push out backplate box cable entry using a screwdriver.
4
Fix backplate box to the prepared ceiling.
6
Spot through backplate box and drill and plug the ceiling.
5
200mm
Feed approx. 200mm of supply cable into the box
7
Connect the end of the cable into the control block.
LAB1349R May 2018
Fit the control into the backplate box and secure.
Test the installaon.
Page 7
Page 8
Installation and Maintenance
DX Wall Fan Kits 50Hz/60Hz
6.0 Ancillaries
Weather Terminal
Used for exposed site wall installaons,
comprising one weather terminal,
manufactured from HIPS.
Order Code DX-WT6
Dimensions: 360 x 360 x 170mm
Order Code DX-WT9
Dimensions: 425 x 425 x 180mm
Order Code DX-WT12
Dimensions: 506 x 506 x 185mm
Unit replaces the outside grille and is
supplied with installaon details.
Picture Frame Adaptor
Used for exposed site wall installaons,
comprising one weather terminal,
manufactured from HIPS.
Order Code DX-PF6
Dimensions: 330 x 315 x 20mm
Order Code DX-PF9
Dimensions: 405 x 425 x 20mm
Order Code DX-PF12
Dimensions:495 x 510 x 25mm
V E N T I L A T I O N
Outside
Grille
Spacer
Wall
Fixing
Plate
Thin Wall Applicaons
For thin wall applicaons we actually
recommend the use of a Window Fan
Kit used in conjuncon with a Wall Fixing
Plate.
This thin wall applicaon shows a Wall
Fixing Plate fixed to the aperture
(4 screws).
The Window Fan Spacer and Outside Grille
clamp together either side of the Wall
Fixing Plate to support the Fan and Interior
Grille.
Interior
Grille
7.0 Maintenance
Periodically, at least once a year or more frequently in case of heavy
use, remove the dirt and encrustaon from the grille(s) fan impeller
and motor casing. Ensure the impeller is not cracked or deformed and is
able to rotate freely and without oscillaon.
Do not use any solvents to clean this product.
8.0 Replacement Of Parts
As a manufacturer Domus is aware that me is important. In the event
of a breakdown of this equipment, it should be adequately packaged
and returned to Domus.
Please telephone Domus before posting your unit. A returns number
will be issued to identify your package.
9.0 Warranty
The 2 year warranty starts from the day of delivery and includes parts
and labour for the first year. The remaining period covers replacement
parts only.
This warranty is void if the equipment is modified without
authorisaon, is incorrectly applied, misused, disassembled, or not
installed, commissioned and maintained in accordance with the details
contained in this manual and general good pracce.
Installaon or replacement of units or spare parts must be carried out
by a qualified or Domus approved service engineer/ electrician and in
accordance with IEE or local naonal wiring regulaons.
The product warranty applies to the UK mainland and in accordance
with Clause 14 of our Condions of Sale.
10.0 Aer Sales Enquiries
For technical assistance or further product informaon, including spare
parts and replacement components, please contact the Aer Sales
Department.
Technical or commercial consideraons may, from me to me, make it necessary to alter the design, performance and dimensions of equipment
and the right is reserved to make such changes without prior noce.
V E N T I L A T I O N
Domus Ventilation
Block C
Caerphilly Business Park
V an Road
Caerphilly
CF83 3ED
T el: +44 (0)3443 715523
Fax: +44 (0)3443 715524
Email: [email protected]
www.domusventilation.co.uk
LAB1349R May 2018
The EMC Directive
2014/30/EU
The Low Voltage
Directive
2014/35/EU
Page 8
Loading...
