Dometic TYPE C40 RM 7605 L, TYPE C40 RM 7655 L, TYPE C40 RM 7651 L, TYPE C40 RM 7601 L User Manual

Type C40 / 110
T.B. 03/2004 MB
MANUAL
ABSORPTION - REFRIGERATOR for CARAVAN and MOTORHOME
EN
English
OPERATING INSTRUCTIONS INSTALLATION INSTRUCTIONS
RM 7601 L RM 7605 L RM 7651 L RM 7655 L
Model number .............................................
Product number .............................................
Serial number .............................................
Please state for future reference :
2
Dansk
Deutsch
ЕллзнйкЬ
English
Español
Français
Italiano
Nederlands
Norsk
Português
Suomi
Svensk
via INTERNET www.dometic.com
Kundeservice
Kundendienst
ЕохрзсЭфзуз Релбфюн
Customer Service
Servicio de Atención al Cliente
Service après-vente
Servizio Clienti
Klantenservice
Kundeservice
Serviço de Atendimento a Clientes
Asiakaspalvelu
Kundservice
Instructions for storing food in a refrigerator:
No refrigerator of any kind can improve the quality of the food; refrigerators can only maintain the food's quality for a short duration as from the time of storing it. Please observe the following particular conditions for storing food in a refrigerator that is built into a vehicle:
- A change in the climatic conditions such as temperature fluctuations
- High temperatures inside the vehicle when it is closed and parked in direct sunlight (temperatures are possible up to 50°C)
- Use of the refrigerator whilst travelling with the power supply of 12V--DC
- A refrigerator built in behind a window and exposed to direct sunlight
- Storing the goods too soon, i.e. shortly after switching the device on for use
Under these particular conditions the refrigerator cannot guarantee having the temperature needed for food that perishes quickly. Foods that perish quickly include: all the products with a stipulated use-by date and a minimum storage temperature of +4°C or less, especially for meat, poultry, fish, sausage, pre-packed foods.
Instructions
- Pack raw and cooked foods separately (e.g. in containers, aluminium foil, etc.)
- Only remove the outside packaging of single packs if all the necessary data, such as the use-by date, for example, can also be read on the single packs.
- Do not leave cooled goods outside the refrigerator for too long.
- Place the foods with the next use-by date at the front, accordingly.
- Pack away any left-over food again and eat at the first opportunity.
- Wash your hands before and after touching any food.
- Clean the inside of the refrigerator at regular intervals.
Information :
Please observe the instructions and information regarding the use-by date on the outside packaging of the food.
Please observe the following sections in these instructions: "5.1 Cleaning" and "5.3 Storing food".
Safety instructions
These operating instructions should be kept in a safe place. If this device is passed on, please include these operating instructions with it.
©
Dometic GmbH - 2004 - Subject to change without notice - Printed in Germany
3
1.0 INTRODUCTION 4
2.0 FOR YOUR SAFETY 4
2.1 Warning and safety notices 4
2.2 Coolant 4
3.0 WARRANTY AND CUSTOMER 5 SERVICE
3.1 Damages in transit 5
4.0 DESCRIPTION OF MODEL 5
5.0 REFRIGERATOR GUIDE 5
5.1 Cleaning 5
5.2 Using the refrigerator 6
5.3 Storing food 10
5.4 Making ice cubes 11
5.5 Defrosting 11
5.6 Positioning the storage racks 11
5.7 Door locking 12
5.8 Switching off the refrigerator 12
5.9 Winter operation 12

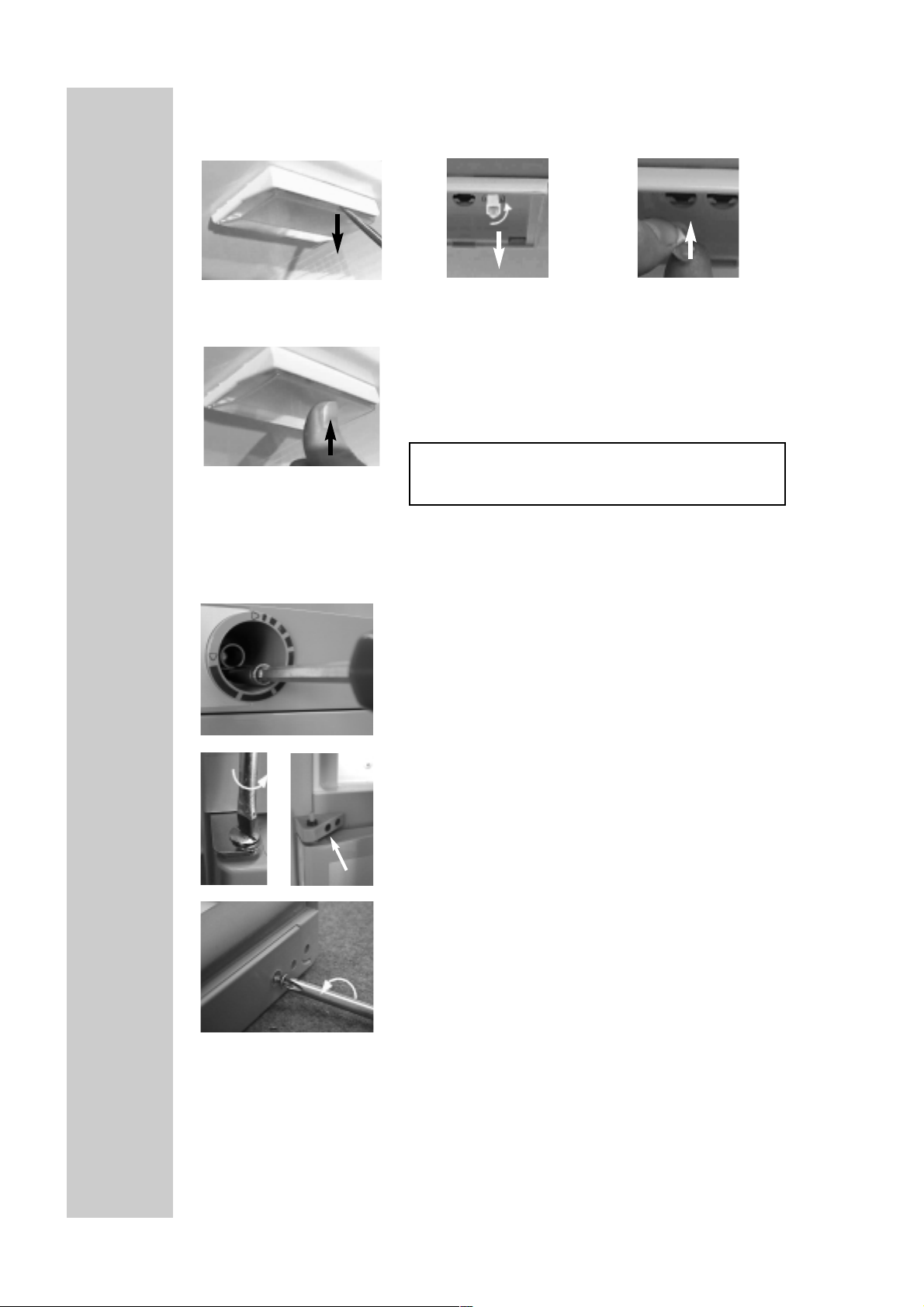

5.10 Interior light 13
5.11 Changing the decor panel 13

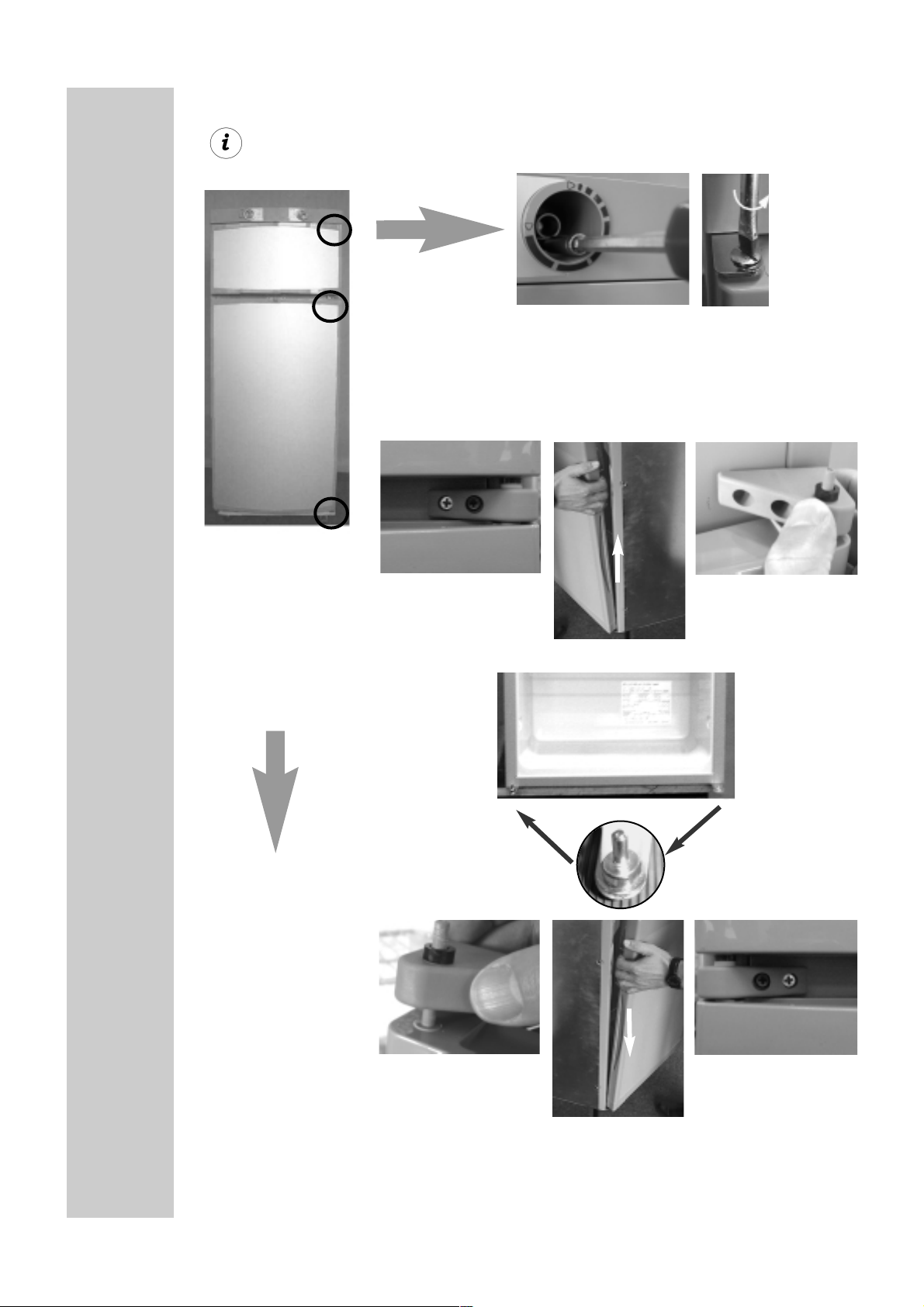

5.12 Changing the doorhang 14
5.13 Troubleshooting 15
5.14 Maintenance 16
5.15 Product liability 16
5.16 Environmental hints 16
5.17 Disposal 16
5.18 Energy-saving tips 16
5.19 Technical data 17
5.20 Declaration of conformity 17
6.0 INSTALLATION GUIDE 18
6.1 Installation 18
6.2 Draught-free installation 19
6.3 Ventilation and air extraction 20
6.4 Installation of the ventilation system 21
6.5 Installation recess 22
6.6 Securing the refrigerator 22
6.7 Connections gas/electrical installation 23
6.8 Gas installation 23
6.9 Electrical installation 25
TTAABBLLEE OOFF CCOONNTTEENNTTSS
Warning
Attention
Information
Environmental Advice
4
INTRODUCTION
You have made an excellent choice in selecting the Dometic Absorption Refrigerator. We are sure that you will be fully satisfied with your new appliance in all respects. The appliance, which works silently, meets high quality standards and guarantees the efficient utilisation of resources and energy throughout its entire life cycle, during manufacture, in use and when being disposed of.
Before you start to use the appliance, please read the installation and operating instructions carefully. The refrigerator is designed for installation in leisure vehicles such as caravans or motorcaravans. The appliance has been certified for this application in accordance with EU Gas Directive 90/396/EEC.
FOR YOUR SAFETY
Warning and safety notices
Never use a naked flame to check the appliance for leaks.
Protect children!
When disposing of the refrigerator, remove all refrigerator doors and leave the storage rack in the refrigerator. This will prevent accidental locking in or suffocation.
If you smell gas:
- close the locking tap of the gas supply and the valve on the cylinder.
- open the windows and leave the room.
- do not switch on anything electrical.
- extinguish naked flames.
Never open the cooling unit; it is under high pressure.Work on the gas, flue system and electrical components must only be
carried out by qualified service personnel.
It is imperative that the operating pressure should correspond to the data given on
the model plate of the appliance.
Compare the operating pressure data given on the model plate with the data on the
pressure monitor of the liquid gas cylinder.
Gas operation of the appliance is not permitted while travelling on ferries.
Covers ensure electrical safety and must only be removed using a tool.The appliance must not be exposed to rain.The refrigerator is not suitable for the proper storage of medications.
Coolant
Ammonia is used as a coolant. This is a natural compound also used in household cleaning agents (1 litre of Salmiak cleaner contains up to 200g of ammonia - about twice as much as is used in the refrigerator). Sodium chromate is used for corrosion protection (1.8% of the solvent). In the event of leakage (easily identifiable from the unpleasant odour):
Switch off the appliance.Air the room thoroughly.Inform the authorised Customer Service department.
11..00
22..00
2.1
2.2
Warning Attention
5
WARRANTY AND CUSTOMER SERVICE
Warranty arrangements are in accordance with EC Directive 44/1999/CE and the normal conditions applicable for the country concerned. For warranty or other servicing, please contact our Dometic Service department. Any damage due to impro­per use is not covered by the warranty. The warranty does not cover any modifica­tions to the appliance or the use of non-original Dometic parts; the warranty does not apply if the installation and operating instructions are not adhered to and no liability shall be entertained. Parts can be ordered throughout Europe from our Dometic Service department. Your Service Centre contact numbers numbers are found in the European Service Network booklet
When contacting Dometic Service, please state the model, product number and serial number together with the MLC Code, if applicable. You will find this information on the data plate inside the refrigerator.
Damage in transit
After removing the packaging, check whether the refrigerator has been damaged during transportation. Any damage sustained in transit must be reported to the transportation company concerned no later than seven days after delivery of the goods.
DESCRIPTION OF MODEL
REFRIGERATOR GUIDE
Cleaning
Before switching the refrigerator on to use it, we recommend that you clean it inside and out, and repeat this at regular intervals.
Use a soft cloth and lukewarm water with a mild detergent.Then rinse the appliance with clean water and dry thoroughly.Remove dust from the refrigerator unit at yearly intervals using a brush or soft cloth.
AATTTTEENNTTIIOONN
To avoid deterioration of materials:
Do not use soap or hard, abrasive or soda-based cleaning agents.Do not allow the door seal to come into contact with oil or grease.
33..00
44..00
55..00
5.1
3.1
RM 7601 L
e.g.
Refrigerator Mobile / Mobile Absorption Refrigerator
Last digit 1 = manual energy selection Last digit 5 = automatic and manual energy selection
L with interior light
6

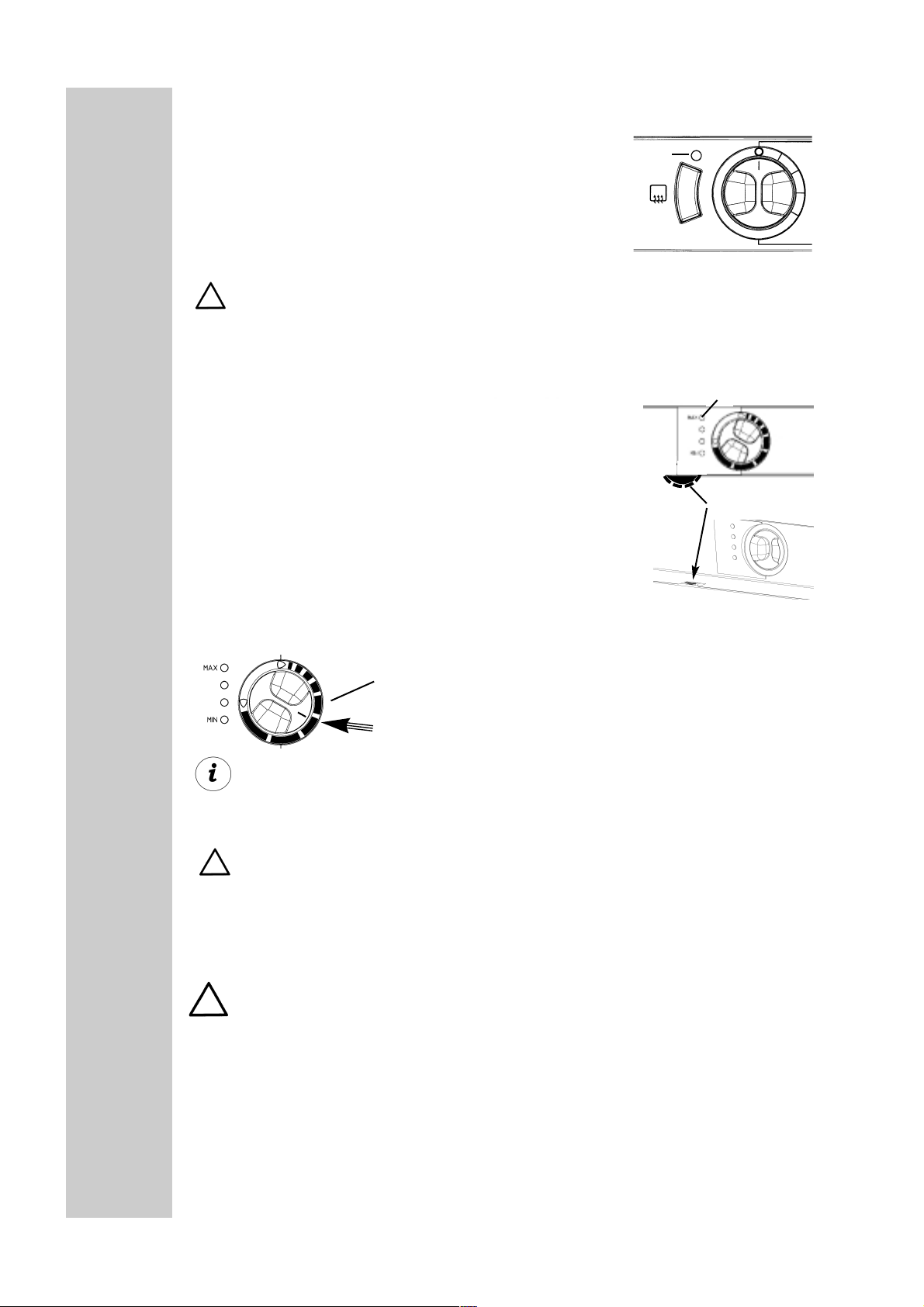

Using the refrigerator
The cooling unit is silent in operation. When the appliance is first put into operation, there may be a mild odour
which will disappear after a few hours. Ensure the living area is well ventilated.
The refrigerator will take several hours to reach its operating temperature
in the cooling compartment The freezer compartment should be cold about one hour after switching on the refrigerator.
Controls
Note:
The refrigerator is equipped to operate on mains power, DC or liquid gas (propane/ butane). The desired power option is selected by means of energy selector switch (A). Energy selector switch (A) has four settings: AC mains power, DC (12V),
Gas (liquid gas), OFF. Appliances with automatic energy selection have the additional setting AUTO .
5.2
5.2.1
A. Manual energy selection MES ( RM 76x1 L)
B. Automatic and manual energy selection AES (RM 76x5 L)
A = energy selection switch E = switch for frame heating with display LED B = gas/electric thermostat AC/DC C = operating displays (3 LEDs)
AC mains power
12V DC
Gas
A = energy selection switch B = gas/electric thermostat AC/DC C = operating displays (4 LEDs) D = temperature setting display
E = switch for frame heating with display LED F = dimmer for LED-displays
(only accessable when door opens)
OFF
Automatic energy selection
A
B
C
E
B
D
A
F
E
C
7
Electrical operation
1. 12V - operation (DC)
The refrigerator should only be used while the motor is running, otherwise the on-board-battery would be discharged within a few hours!
2. Mains power
This option should only be selected where the supply voltage of the connection for power supply corresponds to the value specified on the data plate. Any difference in values may result in damage the appliance.
5.2.2
2. Use rotary switch (B) to regulate the temperature in the main refrige­rator compartment.
A
1. Set energy selector switch (A) to 12V . Operating display C, 12V lights green. Appliance is in function.
2. Use rotary switch (B) to regulate the temperature in the main refrige­rator compartment.
A
1. Set energy selector switch (A) to 230V . Operating display C, 230V lights green.
Appliance is in function.
C
C
If the operating display fails to light up ( it lights up red at AES models ) the device is not in operation. (For troubleshooting see 5.13)
A. Manual Energy Selection
If the operating display fails to light up ( it lights up red at AES models ) the device is not in operation. (For troubleshooting see 5.13)
B
B
8
Gas operation
The refrigerator should only be operated using liquid gas
(propane, butane). Do not use town gas or natural gas.
If the refrigerator is operated during travel using gas, the precautions
stipulated by the legislation in the respective country must be taken (in conformity with the European standard EN 732). Operating the refrigerator with gas is not permitted during travel in France and Australia.
As a basic rule, operation using gas is prohibited in petrol stations.
1. Open the valve of the gas cylinder
2. Open the shut-off valve to the gas supply.
The ignition process is activated automatically, accompanied by a ticking sound approx. 30 sec. Upon successful ignition, the display LED (C) Gas lights yellow. The refrigerator is in function. Use rotary switch (B) to regulate the temperature in the main refrigerator compartment.
AUTO-operation
RM7XX5 L - models are equipped with an AUTO-MATIC function.
Explanations:
Upon switching on, the electronics automatically select one of the three
possible energy types: 230V - 12V - liquid gas. The control electronics automatically ensure that the refrigerator is supplied with the optimum source of energy in each respective case.
Priority 1.) Solar (12V DC)
2.) 230V AC
3.) 12V DC
4.) Liquid gas
The selected energy is displayed by the corresponding LED (i.e. 230V)
.
A
1. Set energy selector switch (A) to gas
2. Set rotary switch (B) to MAX postion.
C
5.2.3
5.2.4
B. Automatic Energy Selection (RM 76x5 L)
1. Set energy selection switch (A) to position AUTO .
The LED "AUTO" illuminates
.
Manual operation is possible at any time.
230 V - operation
If sufficient supply voltage is available (more than 200V), this power source is selected as the first option ( no solar-system installed).
12 V - operation
12V operation should only be selected while the vehicle motor is running or there is sufficient voltage available from the solar system. This can be detected from the D+ connection of the alternator to the electronics, or from the respective sig­nal on the solar charge regulator.
Gas operation
Gas operation is selected in the following circumstances:
No supply voltage available.The vehicle engine is not running.Supply voltage less than 200V
REFUELLING STOP
In order to prevent unintended switching to gas operation during refuelling, the electronic system starts gas operation of the refrigerator, after the motor has been turned off for 15 mins. During this time the appliance is in stand-by operation mode and only the "AUTO" LED lights up.
The use of naked flames is prohibited in petrol station environments. If the refuelling stop lasts longer than 15 mins., the refrigerator should be switched off at the main switch (A), or switched over to another energy type.
Gas faults (RM 76x1 and RM 76x5)
If gas faults occur the operating LED C flashes
yellow.
Remedies: Set the energy selector switch (A) to position OFF.
1. Is there any gas in the gas bottle?
2. Is the gas bottle valve open?
3. Is the on-board shut-off valve open?
4. Set the main switch (A) to on The ignition starts again.
If after about 30 seconds the operating display (C) starts flashing red
again, the gas fault has not been cleared (e.g. air in the gas pipe).
5. Briefly switch the refrigerator off and then on again using main switch (A).
To remove air from the gas pipes, repeat this procedure 3-4 times.
If these actions do not help, please call an authorised Dometic Service Centre.
9
5.2.5
C
A
