RM2354 Refrigerator Parts List
When ordering parts, always state:
MODEL NO. - PRODUCT NO. - QUANTITY PART NUMBER - DESCRIPTION
For Electric Details also state:
VOLTAGE - WATTAGE
RM2354
REFRIGERATOR
USA
SERVICE OFFICE
Dometic Corporation
509 South Poplar Street
Lagrange, IN 46761
574-294-2511
CANADA
Dometic Distribution
866 Langs Drive
Cambridge, Ontario
CANADA N3H 2N7
519-653-4390
For Service Center
Assistance Call:
800-544-4881
PARTS LIST
Product Number Model Voltage Refrig. Frame Door Style Door/Door Trim Market Brand
Color Color
921145030 RM2354 12-120 BLACK LEFT BLACK USA - CAN DOMETIC
921145031 RM2354 12-120 BLACK RIGHT BLACK USA - CAN DOMETIC
PARTS LIST
Form No. 3309555.005 12/04
©2004 Dometic Corporation
LaGrange, IN 46761
MODEL
RM2354
Series
1
ALPHABETICAL INDEX
Page# Index#
Cabinet, Exterior Components............ 4-5 2-999
Cabinet, Interior Components............. 6-7 3-70
Cabinet, Rear View............................. 10-11 33-142
Control & Burner Components............ 8-9 1-253
Door Assm. ........................................ 3 1-227
Wiring Diagram .................................. 12 —
SPECIFICATIONS
Model RM2354
Product Number* 921145030
921145031
Energy Source** 12DC, 120VAC, Gas
AC Heating Element
Amperage 1.5
Ohm Resis. +/— 10% 80
Wattage 175
DC Heating Element
Amperage 12.5
Ohm Resis. +/— 10% 0.96
Wattage 150
BTU's Gas Burner 1000
Jet Size #39
Flue Baffle
Size 3-15/16" x 25/32"
Position Above Burner 1-15/32"
Ice Trays 0
Crispers 0
Bottle Holders 2
RM2354 Refrigerator Parts List
* Product number located on refrigerator data plate.
** 12 volt DC power is required to operate the refrigerator
controls on all models.
2
DOOR ASSEMBLY
RM2354 Refrigerator Parts List
RM2354 921145030 = A
RM2354 921145031 = B
INDEX P ART NUMBER MODEL DESCRIPTION
1 3850272075 A B Door, Refrigerator-Black
4 2931171066 A B Bushing, Hinge-Black
5 3850261029 A B Plug-Black
6 2932588011 A B Stopper
7 3858002102 A B Screw, RXS B4x9.5 Zinc
10 2930715053 A B Bottle Holder 179mm
11 2930715061 A B Bottle Holder 202mm
14 3850259023 A B Trim, Bottom-Black
18 2002261242 A B Door Shelf
20 3850260021 A B Lock Plate-Black
21 2932722008 A B Decal
3850581004 A B Decal, French
227 3858002037 A B Screw, RXS B8, 4.2x13
Only Those Parts Identified With An Index Number Are Available For Service Replacement.
3
CABINET, EXTERIOR COMPONENTS
RM2354 Refrigerator Parts List
Only Those Parts Identified With An Index Number Are Available For Service Replacement.
4
CABINET, EXTERIOR COMPONENTS
RM2354 921145030 = A
RM2354 921145031 = B
INDEX PART NUMBER MODEL DESCRIPTION
2 2932415017 A B Hinge Pin, Upper
3 3858039088 A B Screw M5x10, Zinc
4 3858056025 A B Screw, MFX B6x9.5 Zinc
10 3850263025 A B Cover Tray-Black
11 3850319025 A B Lock Latch-Black
15 3850336029 A B Plug-Black
18 2932884071 A B Panel, Display Board-Black
19 3858002144 A B Screw, RXS B6x9.5 Zinc
20 3850759022 A B Front Decoration, Black
30 2932436005 A B Decal
33 3858039096 A B Screw, MRX M5x14
34 3858002219 A B Screw, RXS B10 4.8x9.5 Zinc
35 2932486018 A B Runner RH
36 2932486026 A B Runner LH
37 2932325042 A B Base Front-Black
40 3850270012 A - Hinge RH
41 3850271010 - B HingeLH
42 3850322011 A B Hinge Pin Lower
43 3858009032 A B Nut, M6x3.2 Zinc
44 3850340013 A - Hinge Lower RH
45 3850341011 - B Hinge Lower LH
46 3850362025 A B Plug-Black
62 2933056018 A B Holder
63 2933056026 A B Holder
216 3858005022 A B Screw, RXK B6x16
999 3850304027 A B Door Reversing Kit RH & LH-Black
RM2354 Refrigerator Parts List
Only Those Parts Identified With An Index Number Are Available For Service Replacement.
5

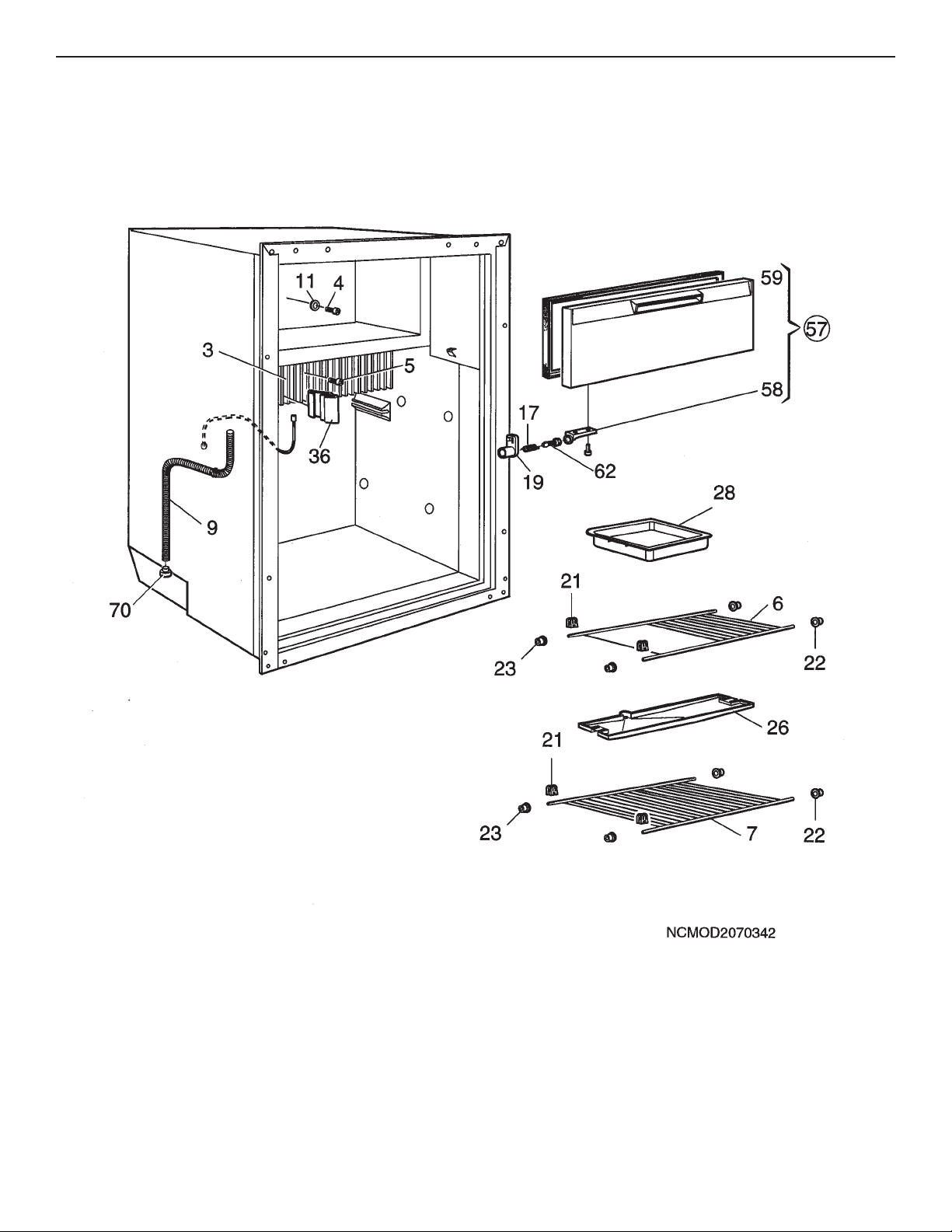

CABINET, INTERIOR COMPONENTS
RM2354 Refrigerator Parts List
Only Those Parts Identified With An Index Number Are Available For Service Replacement.
6
CABINET, INTERIOR COMPONENTS
RM2354 921145030 = A
RM2354 921145031 = B
INDEX P ART NUMBER MODEL DESCRIPTION
3 3850291018 A B Cooling Fin
4 3858036019 A B Screw, KFXS B10x38
5 3858002292 A B Screw, RXS B10 4.8x12.5
6 3850301015 A B Shelf
7 2932022045 A B Shelf
9 2932749118 A B Drain Hose BRB 6.4x12.5
11 3858010121 A B Washer, BRB 6.4x12.5 Stainless
17 2932754019 A B Spring LH
2932754027 A B Spring RH
19 2002236004 A B Spring Casting LH
2002236012 A B Spring Casting RH
21 2932102011 A B Shelf Support
22 2932101013 A B Plug
23 2932103019 A B Plug
26 3850274014 A B Drip Protection
28 2932636018 A B Box
36 2932456011 A B Bracket, Thermister
57 2002239339 A B Door, Freezer
58 2002244008 A B Hinge, Freezer Door-White
59 2933145027 A B Gasket, Freezer Door-White
62 2002238000 A B Bolt
70 29321 15013 A B Discharge Pipe Plug
RM2354 Refrigerator Parts List
Only Those Parts Identified With An Index Number Are Available For Service Replacement.
7
CONTROL & BURNER COMPONENTS
RM2354 Refrigerator Parts List
Only Those Parts Identified With An Index Number Are Available For Service Replacement.
8
CONTROL & BURNER COMPONENTS
RM2354 921145030 = A
RM2354 921145031 = B
INDEX P ART NUMBER MODEL DESCRIPTION
1 0140207044 A B Nut
10 2932603018 A B Burner Housing
17 3858039039 A B Screw, MRX M4x8 Zinc
18 3858039047 A B Screw, MRX Mx10 Zinc
19 3858002144 A B Screw, RXS B6x9.5 Zinc
20 2932615012 A B Solenoid, Vale
21 3858002151 A B Screw, RXS B6x13 Zinc
22 3858005014 A B Screw, RXK B6x9.5 Zinc
25 3858010071 A B Washer, 12.5x18.5x1
32 2930697079 A B Burner W/Lead
33 2932781012 A B Electrode W/Lead
43 2932052018 A B Thermocouple
44 2801043015 A B Nut
45 3850415013 A B Power Module, Universal
48 2007419159 A B Jet #39
53 2932661016 A B Cover
54 2007598010 A B Flue Cap
55 2932662014 A B Bracket
57 2954542037 A B Lead, PCB
58 2931863035 A B Lead, Thermister
59 2954540056 A B Lead, Solenoid Valve
67 0173771023 A B Heater 175W, 120VAC
68 0173735069 A B Heater, 150W, 12VDC
70 2007457001 A B Washer, 0.5mm
82 2930385006 A B Relay
84 3858022019 A B Terminal Block
85 3858002185 A B Screw, RXS B6x19 Zinc
87 2954553018 A B Wire, w/Fuse
90 2932342013 A B Cable Clamp
91 3858002177 A B Screw, RXS B6x19 Zinc
95 2931132027 A B Reignitor
113 2932733005 A B Decal
114 2002699110 A B Power Cord
115 2007172022 A B Flue Baffle
150 3850754015 A B Bracket
250 3858004033 A B Screw, MRX M4x16 Zinc
251 3858011012 A B Washer, Lock 4.3x8
252 3858009016 A B Nut, Hex M4x3.2 Zinc
253 3858028024 A B Lock Nut, M4 Zinc
RM2354 Refrigerator Parts List
Only Those Parts Identified With An Index Number Are Available For Service Replacement.
9
CABINET, REAR VIEW
RM2354 Refrigerator Parts List
Only Those Parts Identified With An Index Number Are Available For Service Replacement.
10
CABINET, REAR VIEW
RM2354 921145030 = A
RM2354 921145031 = B
INDEX P ART NUMBER MODEL DESCRIPTION
33 3858039096 A B Screw, MRX M5X14 Zinc
100 2934341096 A B Cooling Unit Type341
101 0173228008 A B Cap
102 2800821007 A B Cover
110 3850601026 A B Protection
140 3850582002 A B Decal
141 3850583000 A B Decal
142 3850584008 A B Decal
RM2354 Refrigerator Parts List
Only Those Parts Identified With An Index Number Are Available For Service Replacement.
11
WIRING DIAGRAM
RM2354 Refrigerator Parts List
12
