Spare parts list
Absorption refrigerators
PNC ELC Brand Model Market
921173022 00 Dometic RK400 CA - US
Dometic
3140
Dometic Motala Publication-No.
599529882
2007/05/23
MO
© Dometic
Large freestanding refrigerators
ALPHABETICAL INDEX
Page Pos. No
Kerosene components 1-2 3-21
Cabinet, exterior components 3-4 1-999
Cabinet, interior components 5-6 1-116
Cabinet, rear view 7-8 100-999
Door Asm. 9-10 1-31
SPECIFICATIONS
PRODUCT NO.* 921173022
Energy Source Kerosene
Width 23-3/8”
Height 70-1/2”
Depth 27-3/16”
Weight 189 lbs.
Recommended Fuel No. 1 Kerosene
Kerosene Tank Capacity 2.3 gallons
Ice Trays 1
Crispers 2
Bottle Holders 2
Note:
Interior light requires four (4) D-size (1.5V) batteries
* Product number located on refrigerator data plate.
529882T
10
21
9
8
5
11
14
12
13
16
15
17
3
18
20
6
19
NCMOI2084561
Page 1© Dometic
Matrix PNC ELC ProdDate Model
A 921173022 00 20070611 RK400
Pos Part No. Matrix Description
3 2910082029 A Guide pin
5 2930377003 A Flue,baffle
6 157418005 A Brush
8 2932892017 A Glass lamp
9 157051004 A Sealing ring
10 2890060003 A Kerosene burner
11 157054008 A Flame spreader
12 2890061001 A Wick mover
13 2890062009 A Wick
14 2890065002 A Wick cleaner
15 2932900018 A Kerosene tank
16 172497000 A Knob,cpl.
17 2932887017 A Rail
18 2932889013 A Control bar
19 2932885011 A Bracket,plate
20 2932886019 A Retainer
21 2955083007 A Filling funnel
Exploded view no.: NCMOI2084561
N00002094365
Page 2© Dometic
6
50
1
4
7
5
50
64
63
37
23
24
26
9
35
107
108
36
39
110
109
105
NCMOB2094366
33
Page 3© Dometic

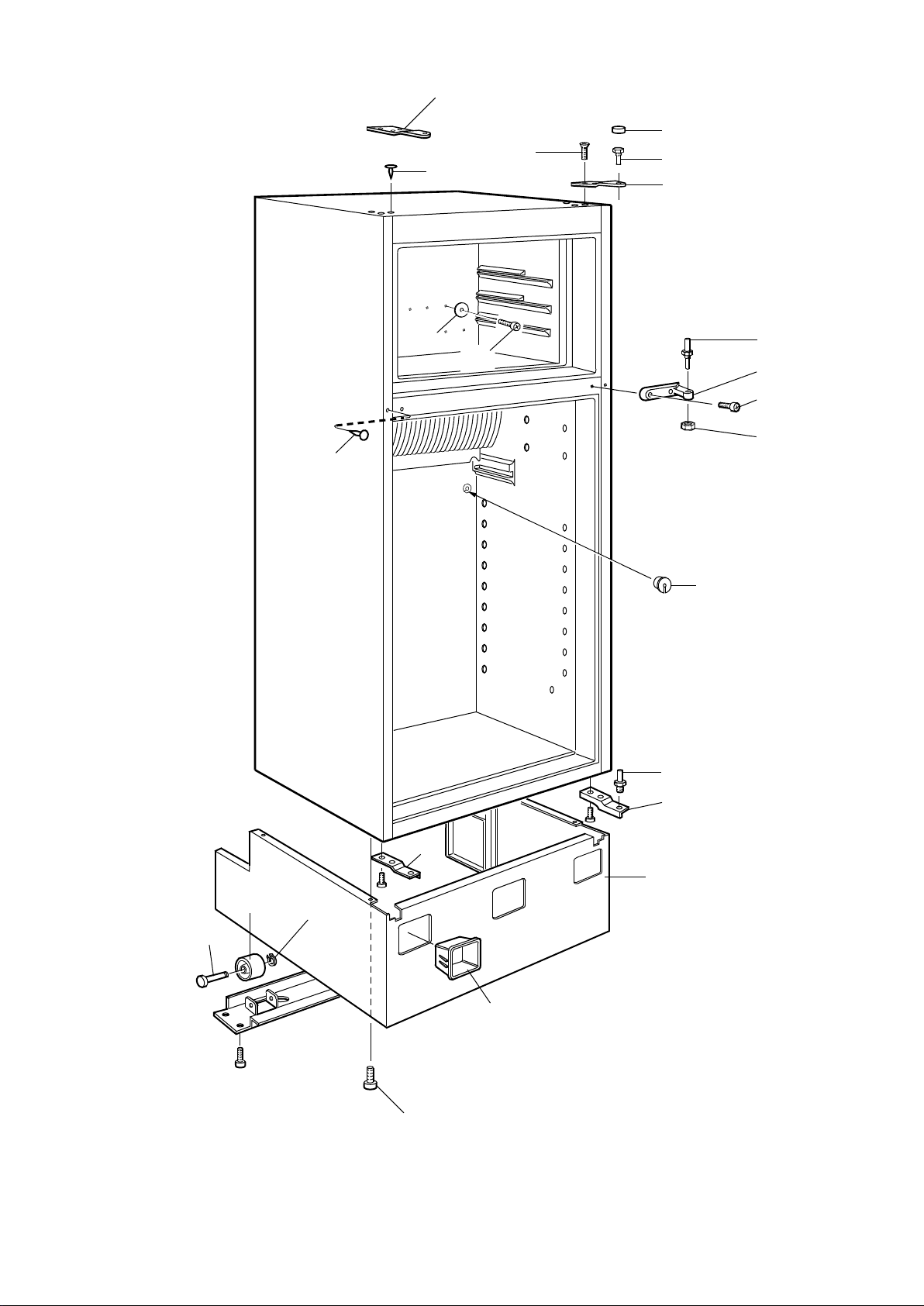

Exploded view no.: NCMOB2094366
Matrix PNC ELC ProdDate Model
A 921173022 00 20070611 RK400
Pos Part No. Matrix Description
1 2932736065 A Cover
4 3858056025 A Screw,zinc-plated,MFX M5X10
5 2932787050 A Hinge,upper,right,white
6 2932787068 A Hinge,upper,left,white
7 2932790013 A Hinge pin,upper
9 2002301006 A Cover
23 2932788058 A Hinge,middle
24 3858004082 A Screw,MRX M5x20
26 3858030012 A Nut,hinge
33 3858039096 A Screw,zinc-plated,MRX M5X14
35 2932792019 A Hinge pin,lower
36 2932789023 A Hinge,lower,right
37 2932791011 A Hinge pin,middle
39 2932789015 A Hinge,lower,left
50 2932373018 A Cap,white
63 3858036019 A Screw,zinc-plated,KFXS B10X38
64 3858010147 A Washer,aluminium,5.2x22x1.5
105 2932890011 A Sleeve,white
107 2932894013 A Shaft
108 2932897016 A Wheel
109 3858034014 A Retaining ring
110 2932926062 A Base,white,complete
999 2932372127 A Door reversing kit,right-left
not shown
N00002094366
Page 4© Dometic
12
20
1
19
23
21
22
3
4
47
41
23
21
32
9
116
27
5
28
22
40
43
18
23
7
23
21
21
17
15
22
22
16
25
25
NCMOD2094196
Page 5© Dometic
Exploded view no.: NCMOD2094196
Matrix PNC ELC ProdDate Model
A 921173022 00 20070611 RK400
Pos Part No. Matrix Description
1 2932728013 A Coverplate
3 3851121024 A Cooling flange
4 3858036019 A Screw,zinc-plated,KFXS B10X38
5 2932624014 A Evaporation tray
7 2932115013 A Discharge pipe,plug
9 2932749050 A Draining hose
12 2930400003 A Ice tray
15 2931117176 A Shelf,plastic
16 3850324025 A Grating shelf
17 3850324017 A Grating shelf
18 3850325014 A Grating shelf
19 3850324033 A Grating shelf
20 2932627025 A Grating shelf
21 2932102011 A Shelf support
22 2932101013 A Plug
23 2932103019 A Plug
25 2932621010 A Vegetable box
27 2932523018 A Lampholder
28 2932636018 A Box
32 2932108018 A Contact pin
40 2932106012 A Lamp cover
41 2932665017 A Switch
43 2007290022 A Lamp,6V
47 2933091015 A Protection bar
116 2932635010 A Drain
N00002094368
Page 6© Dometic
119
104
118
116
NCMOE2084566
Page 7© Dometic
102
101
100

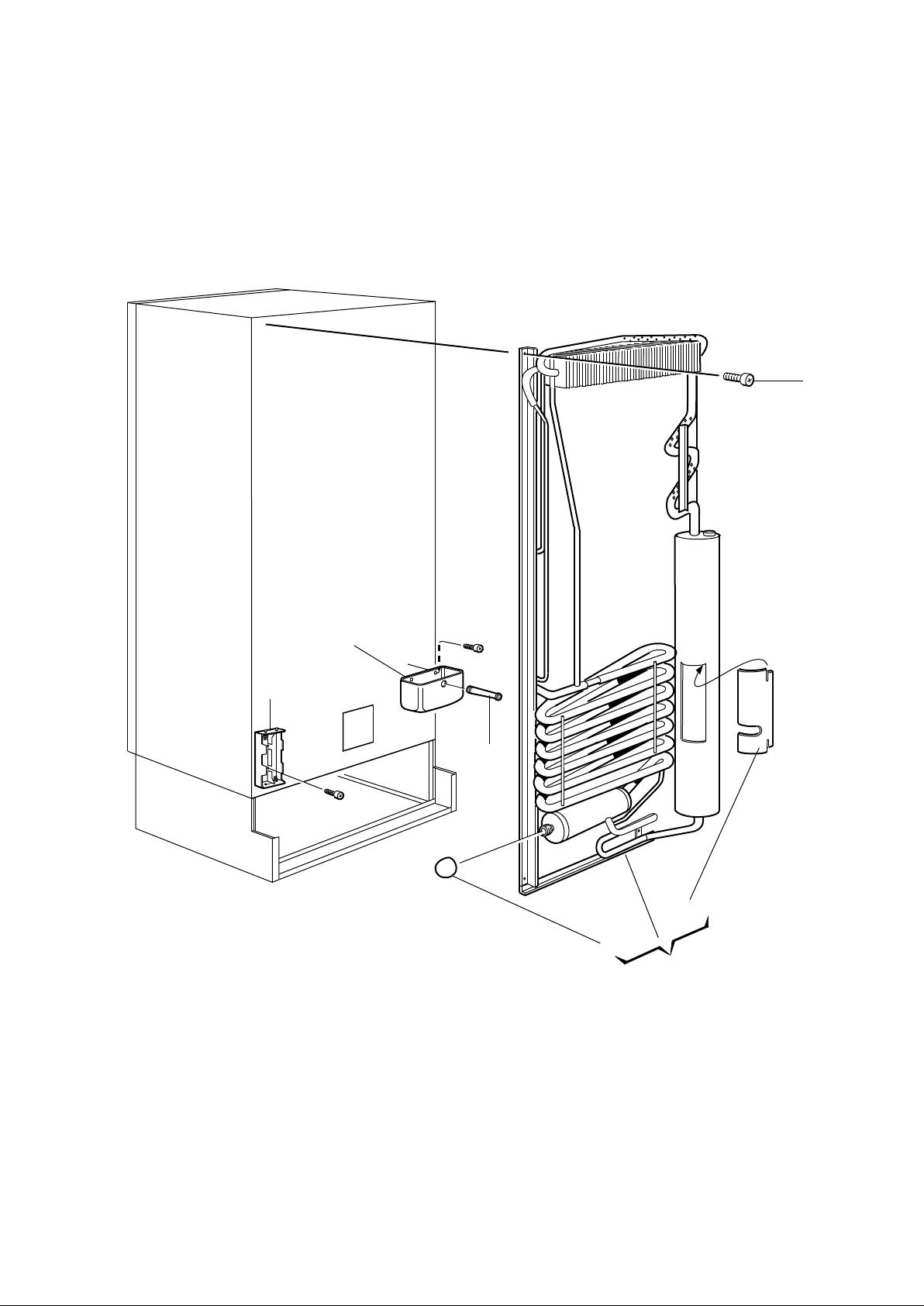

Exploded view no.: NCMOE2084566
Matrix PNC ELC ProdDate Model
A 921173022 00 20070611 RK400
Pos Part No. Matrix Description
100 2934808094 A Cooling unit,808
101 173228008 A Cap
102 2933557007 A Cover sheet
104 3858068012 A Screw,DK 4.8X16
116 2931829010 A Outlet tube
118 2931828012 A Drop tray
119 2932849017 A Battery box
999 8227070029 A User manual
not shown
N00002094369
Page 8© Dometic
4
10
1
11
11
9
5
4
19
2
30 31
11
15
17
12
NCMOA2091960
Page 9© Dometic
Exploded view no.: NCMOA2091960
Matrix PNC ELC ProdDate Model
A 921173022 00 20070611 RK400
Pos Part No. Matrix Description
1 3851287023 A Freezer door,white
2 3851283014 A Refrigerator door,white
4 2059342036 A Hinge bushing,grey
5 2932578020 A Juice container
9 2932577014 A Door shelf
10 3850585021 A Bung,grey
11 2932576016 A Door shelf
12 2932575018 A Bottle shelf
15 2932585033 A Rack
17 2932658012 A Bottle holder,white
19 2932288034 A Shield,door,white,DOMETIC
30 2932973064 A Handle kit,grey
Optional
31 2932973072 A Handle kit,white
Optional
N00002094370
Page 10© Dometic
