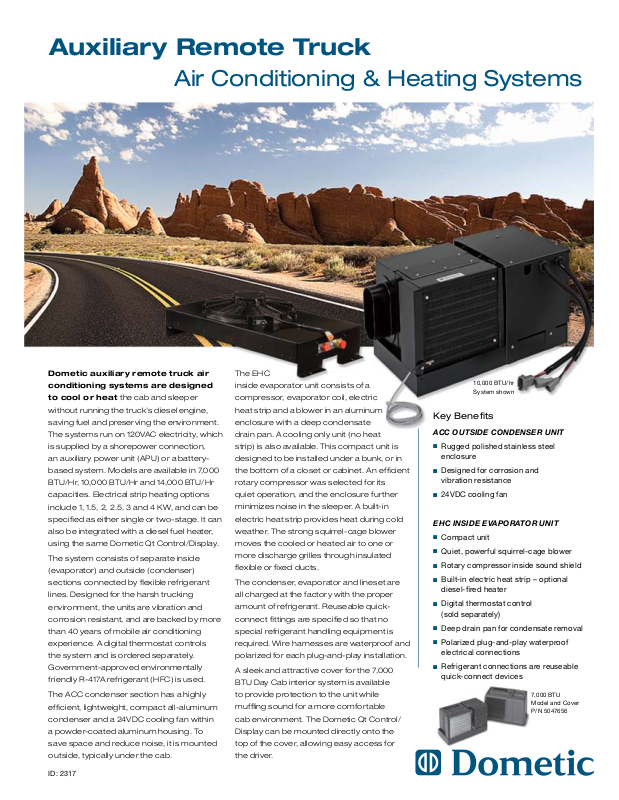

Dometic EHCEQ10, ECEQ7, ECEXQ14, EHCEQ14, ECEQ10 User Manual

...

Auxiliary Remote Truck

Air Conditioning & Heating Systems

Dometic auxiliary remote truck air

conditioning systems are designed

to cool or heat the cab and sleeper

without running the truck’s diesel engine,

saving fuel and preser ving the environment.

The systems run on 120VAC electric ity, which

is supplied by a shorepower connection,

an auxiliary power unit (APU) or a battery-

based system. Models are available in 7,000

BTU/Hr, 10,000 BTU/Hr and 14,000 BTU/Hr

capacities. Electrical strip heating options

include 1, 1.5, 2, 2.5, 3 and 4 KW, and can be

speciﬁed as either single or two-stage. It can

also be integrated with a diesel fuel heater,

using the sa me Dometic Qt Control/Display.

The system consists of separate inside

(evaporator) and outside (condenser)

sections connected by ﬂexible refrigerant

lines. Designed for the ha rsh trucking

environment, the units are vibration and

corrosion resistant, and are backed by more

than 40 years of mobile air conditioning

experience. A digital thermostat controls

the system and is ordered separately.

Government-approved environmentally

friendly R-417A refrigerant (HFC) is used.

The ACC condenser section has a highly

efﬁcient, lightweight, compact all-aluminum

condenser and a 24VDC cooling fan within

a powder-coated aluminum housing. To

save space and reduce noise, it is mounted

outside, typically under the cab.

ID: 2317

The EHC

inside evaporator unit consists of a

compressor, evaporator coil, electric

heat strip and a blower in an aluminum

enclosure with a deep condensate

drain pan. A cooling only unit (no heat

strip) is also available. This compact unit is

designed to be installed under a bunk, or in

the bottom of a closet or cabinet. An efﬁcient

rotar y compressor was selected for its

quiet operation, and the enclosure further

minimizes noise in the sleeper. A built-in

electric heat strip provides heat during cold

weather. The strong squirrel-cage blower

moves the cooled or heated air to one or

more discharge grilles through insulated

ﬂexible or ﬁxed ducts.

The condenser, evaporator and lineset are

all charged at the factory with the proper

amount of refrigerant. Reusea ble quick-

connect ﬁttings are speciﬁed so that no

special refrigerant handling equipment is

required. Wire harnesses are waterproof and

polarized for each plug-and-play installation.

A sleek and attractive cover for the 7,000

BTU Day Cab interior system is available

to provide protection to the unit while

muf ﬂing sound for a more comfor table

cab environment. The Dometic Qt Control/

Display can be mounted directly onto the

top of the cover, allowing easy access for

the driver.

10,000 BTU/hr System s hown

Key Beneﬁts

ACC OUTS IDE CONDENSE R UNIT

■

Rugged polished stainless steel

enclosure

■

Designed for corrosion and

vibration resistance

■

24VDC cooling fan

EHC INSIDE EVAP ORATOR UNIT

■

Compact unit

■

Quiet, powerful squirrel-cage blower

■

Rotary compressor inside sound shield

■

Built-in electric heat strip – optional

diesel-ﬁred heater

■

Digital thermostat control

(sold separately)

■

Deep drain pan for condensate removal

■

Polarized plug-and-play waterproof

electrical connections

■

Refrigerant connections are reuseable

quick-connect devices

7,000 BTU Model a nd Cover P/N 504765 6

Air Out

Refrigerant Connectors

Return Air

Filter

L Condensate Drain 3/8” NPT

Refrigerant Connectors

Air In

Mounting Holes (Typ. 4) 1/4” (6mm) Dia.

Speciﬁcation Details

Refrigerant Connectors

Air In

Mounting Holes (Typ. 4) 1/4” (6mm) Dia.

INTERNAL UNIT - EVAPORATOR/HEATER/COMPRESSOR

Model ECEQ7* EHCEQ7* ECEQ10 EHCEQ10 EHCEQ10 EHCEQ10 ECEXQ14 EHCEQ14 EHCEQ14 EHCEQ14 EHCEQ14

Cooling Capacity (BTU/Hr)

Heating Capacity***

Control smart

Height (in) 11.75 11.75 11.63 11.6 3 11.63 11.6 3 11.6 9 11.69 11. 69 11.6 9 11.6 9

Width (in) 10.25 10.25 11.12 11.12 11.12 11.12 13 13 13 13 13

Length (in) 19.25 19.25 20.19 20 .19 20.19 20.19 22 22 22 22 22 Weight (lbs) 53 53 60 60 62 62 64 65 65 65 65 Cool amps** 7. 3 7.3 11.8 11.8 11.8 11.8 14.5 14.5 14.5 14.5 14.5 Heat amps** n/a 8.2 n/a 1.0 13 17 n/a 13 21 11.4 + 10.4 23.2 + 12.1 Refrigerant R-417A n/a R-417A R-417A R-417A R- 417A R-417A R-417A R-417A R-417A R-417A

EXTERNAL UNIT - CONDENSER

Model ACCD7 ACCE10 ACCE14

Cooling Capacity (BTU/Hr)

Height (in) 6 .125 6.12 5 6.625

Width (in) 11.3125 12.5 12.5

Length (in) 21.875 24.5 24.5 Weight (lbs) 10 12 13 Cool amps** n/a n/a n/a Heat amps** n/a n/a n/a Refrigerant R-417A R-417A R-417A

NOTES: The syst em is rated to provide full capacity at 95˚F (35˚C) outside temperature. Actual performan ce will be affected by fac tors such as a mbien t temperature and humidit y, insul ation, direct sunlight and reﬂec ted heat. *Electrical box is separate for all models except for this model w here the elec trical box is integral. **Power consumption at 120VAC. ***Other heat cap acities are optional. Espar Ready unit is set up to operate the Espar D2 Airtonic Heater. The heater dr aws approximatel y 2.8 amps @ 12VDC. 1 k W of electric heat equals 3,414 BTU/ hr.

7,000 7,000 10,000 10,000 10,000 10,000 14,000 14,000 14,000 14,000 14,000

cooling

only

1 kW cooling

only

7500 BTU

Espar

1.5 kW 2 kW cooling only

1.5 kW 2.5 kW 2.5 kW 2-stage

4 kW

2-stage

Ready

smart

digital

7,000 10,000 14,000

smart digital

Elect rical box ca n be remotel y mounted up to 2.5 ft . away from insid e unit. Box dimen sions are 10.3 Approx imate weigh t is 16 lbs.

smart digital

”

H x 9”W x 5”D.

smart digital

Recommended Duct & Min. Grill Sizes

BTU/Hr 7,000 10,000 14,000

Return Air (sq in/cm)

Discharge Air (sq in/cm)

Recommended Duct Size (in/mm)

DOMETIC ENVIRONMENTAL CORPORATION P.O. Box 15299 I Richmond, VA 23227 USA I 804-746-1313 I Fax 804-746-7248 www.dometictruck.com I sales@dometictruck.com

UNITED S TATES & CAN ADA SERVIC E ONLY:

Weekdays 8 :00 am to 5:00 pm (E astern Time) 8 04-746-1313 All othe r times 88 8-44 0-4494

ID: 2317 Rev. 20080 319

80/520 100/650 144/936

50/325 60/390 80/520

5/127 5/127 7/178

DOME TIC • US Patent 7,140,192 • US Pat ent 7,171,822 US Pate nt 58990 81 • Othe r Paten ts Pending
