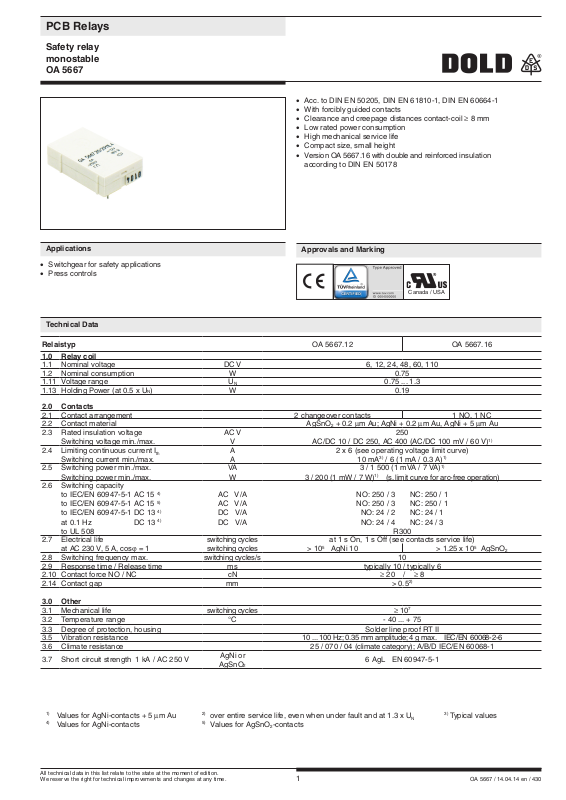

PCB Relays
Safety relay
monostable
OA 5667
• Acc. to DIN EN 50205, DIN EN 61810-1, DIN EN 60664-1
• With forcibly guided contacts
• Clearance and creepage distances contact-coil ≥ 8 mm
• Low rated power consumption
• High mechanical service life
• Compact size, small height
• Version OA 5667.16 with double and reinforced insulation
according to DIN EN 50178
Applications
Approvals and Marking
• Switchgear for safety applications
• Press controls
Canada / USA
Technical Data
Relaistyp
OA 5667.12 OA 5667.16
1.0 Relay coil
1.1 Nominal voltage DC V 6, 12, 24, 48, 60, 110
1.2 Nominal consumption W 0.75
1.11 Voltage range U
1.13 Holding Power (at 0.5 x U
) W 0.19
N
N
0.75 ... 1.3
2.0 Contacts
2.1 Contact arrangement 2 changeover contacts 1 NO, 1 NC
2.2 Contact material AgSnO
2.3 Rated insulation voltage
Switching voltage min./max.
2.4 Limiting continuous current I
Switching current min./max.
2.5 Switching power min./max.
Switching power min./max.
2.6 Switching capacity
to IEC/EN 60947-5-1 AC 15
to IEC/EN 60947-5-1 AC 15
to IEC/EN 60947-5-1 DC 13
at 0.1 Hz DC 13
th
4)
5)
4)
4)
AC V
V
A
A
VA
W
AC V/A
AC V/A
DC V/A
DC V/A
3 / 200 (1 mW / 7 W)
to UL 508
2.7 Electrical life
at AC 230 V, 5 A, cosj = 1
switching cycles
switching cycles
+ 0.2 µm Au; AgNi + 0.2 µm Au, AgNi + 5 µm Au
2
250
AC/DC 10 / DC 250, AC 400 (AC/DC 100 mV / 60 V)
2 x 6 (see operating voltage limit curve)
10 mA3) / 6 (1 mA / 0.3 A)
3 / 1 500 (1 mVA / 7 VA)
1)
(s. limit curve for arc-free operation)
1)
1)
NO: 250 / 3 NC: 250 / 1
NO: 250 / 3 NC: 250 / 1
NO: 24 / 2 NC: 24 / 1
NO: 24 / 4 NC: 24 / 3
R300
at 1 s On, 1 s Off (see contacts service life)
5
AgNi 10 > 1.25 x 105 AgSnO
> 10
2.8 Switching frequency max. switching cycles/s 10
2.9 Response time / Release time ms typically 10 / typically 6
2.10 Contact force NO / NC cN ≥ 20 / ≥ 8
2.14 Contact gap mm > 0.5
2)
1)
2
3.0 Other
3.1 Mechanical life switching cycles ≥ 10
7
3.2 Temperature range °C - 40 ... + 75
3.3 Degree of protection, housing Solder line proof RT II
3.5 Vibration resistance 10 ... 100 Hz; 0.35 mm amplitude; 4 g max. IEC/EN 60068-2-6
3.6 Climate resistance 25 / 070 / 04 (climate category); A/B/D IEC/EN 60068-1
3.7 Short circuit strength 1 kA / AC 250 V
1)
Values for AgNi-contacts + 5 µm Au
4)
Values for AgNi-contacts
All technical data in this list relate to the state at the moment of edition.
We reserve the right for technical improvements and changes at any time.
AgNi or
AgSnO
2
2)
over entire service life, even when under fault and at 1.3 x U
5)
Values for AgSnO2-contacts
6 AgL EN 60947-5-1
1
3)
N
Typical values
OA 5667 / 14.04.14 en / 430
Technical Data
3.8 Insulation acc. to IEC 60664-1, EN 50178 OA 5667.12 OA 5667.16
Rated insulation voltage AC V 250 250
Contamination level 3 3
Overvoltage category III III
Test voltage
Contact-coil (1 min) AC kV eff. ≥ 4 ≥ 4
Contact-contact (1min) AC kV eff. ≥ 2.5 ≥ 4
Open contact acc.to DIN EN 61810-1 AC kV eff. 1.5 1.5
Transient voltage
Contact-coil (1.2 - 50 µs) kV ≥ 6 ≥ 6
Clearance and creepage distances
Contact-coil mm ≥ 8 ≥ 8
Contact-contact mm ≥ 4.5 ≥ 8
3.9 Weight g approx. 17
4.0 Packing
4.1 on cardboard piece 24
4.2 in case package piece 240
5.0 Solder method
5.1 Solder method /-temperature /-duration °C / s Wafe soldering / 260 / 5
Design Versions
U
DC
V
N
Voltage
range
(DC V)
Resistance
at 20°C
AgSnO2-contacts + 0,2 µm Au AgNi10-contacts + 0,2 µm Au AgNi10-contacts + 5 µm Au
OA 5667.12
2 C/O
OA 5667.16
1 NO / 1 NC
OA 5667.12
2 C/O
OA 5667.16
1 NO / 1 NC
OA 5667.12
2 C/O
OA 5667.16
1 NO / 1 NC
6 4.5 ... 7.8 48 2801 2831 2811 2841 2821 2851
12 9.0 ... 15.6 183 2802 2832 2812 2842 2822 2852
24 18.0 ... 31.2 750 2803 2833 2813 2843 2823 2853
48 36.0 ... 62.4 3 200 2804 2834 2814 2844 2824 2854
60 45.0 ... 78.0 4 700 2805 2835 2815 2845 2825 2855
110 82.5 ... 143.5 15 300 2806 2836 2816 2846 2826 2856
Ordering Example
OA 5667 ._ _ /_ _ _ _ _ _ / 61*
Pin configuration
L = solder line proof RT II
Design version
Contacts
.16 1 NC / 1 NO
.12 2 changeover contacts
Relay type
* /61 cURus approval
2
