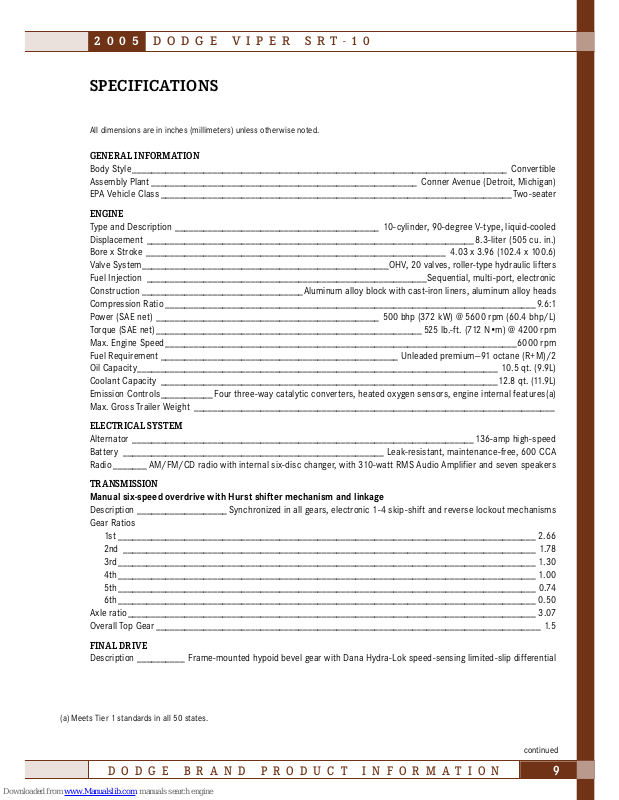

SPECIFICATIONS

All dimensions are in inches (millimeters) unless otherwise noted.

GENERAL INFORMATION

Body Style _______________________________________________________________________________ Convertible
Assembly Plant ________________________________________________________ Conner Avenue (Detroit, Michigan)
EPA Vehicle Class __________________________________________________________________________Two-seater

ENGINE

Type and Description ___________________________________________ 10-cylinder, 90-degree V-type, liquid-cooled
Displacement _____________________________________________________________________8.3-liter (505 cu. in.)
Bore x Stroke _______________________________________________________________ 4.03 x 3.96 (102.4 x 100.6)
Valve System ____________________________________________________OHV, 20 valves, roller-type hydraulic lifters
Fuel Injection ___________________________________________________________Sequential, multi-port, electronic
Construction __________________________________Aluminum alloy block with cast-iron liners, aluminum alloy heads
Compression Ratio ______________________________________________________________________________9.6:1
Power (SAE net) _______________________________________________ 500 bhp (372 kW) @ 5600 rpm (60.4 bhp/L)
Torque (SAE net) ________________________________________________________ 525 lb.-ft. (712 N•m) @ 4200 rpm
Max. Engine Speed __________________________________________________________________________6000 rpm
Fuel Requirement __________________________________________________ Unleaded premium—91 octane (R+M)/2
Oil Capacity ____________________________________________________________________________ 10.5 qt. (9.9L)
Coolant Capacity _______________________________________________________________________12.8 qt. (11.9L)
Emission Controls ___________ Four three-way catalytic converters, heated oxygen sensors, engine internal features(a)
Max. Gross Trailer Weight ____________________________________________________________________________

ELECTRICAL SYSTEM

Alternator ________________________________________________________________________ 136-amp high-speed
Battery _______________________________________________________ Leak-resistant, maintenance-free, 600 CCA
Radio _______ AM/FM/CD radio with internal six-disc changer, with 310-watt RMS Audio Amplifier and seven speakers

TRANSMISSION

Manual six-speed overdrive with Hurst shifter mechanism and linkage

Description ___________________ Synchronized in all gears, electronic 1-4 skip-shift and reverse lockout mechanisms
Gear Ratios
1st ________________________________________________________________________________________ 2.66
2nd _______________________________________________________________________________________ 1.78
3rd ________________________________________________________________________________________ 1.30
4th ________________________________________________________________________________________ 1.00
5th ________________________________________________________________________________________ 0.74
6th ________________________________________________________________________________________ 0.50
Axle ratio ______________________________________________________________________________________ 3.07
Overall Top Gear _________________________________________________________________________________ 1.5

FINAL DRIVE

Description __________ Frame-mounted hypoid bevel gear with Dana Hydra-Lok speed-sensing limited-slip differential

(a) Meets Tier 1 standards in all 50 states.

continued

D O D G E B R A N D P R O D U C T I N F O R M A T I O N

2 0 0 5 D O D G E V I P E R S R T - 1 0

1 0

DIMENSIONS AND CAPACITIES(a)

Wheelbase _______________________________________________________________________________ 98.8 (2510)
Track, Front _______________________________________________________________________________61.6 (1565)
Track, Rear ______________________________________________________________________________ 60.9 (1547)
Overall Length ___________________________________________________________________________ 175.6 (4459)
Overall Width (at sills) ______________________________________________________________________75.2 (1911)
Overall Height _____________________________________________________________________________47.6 (1210)
Ground Clearance __________________________________________________________________________5.125 (130)
Curb Weight (estimated) _____________________________________________________________ 3,410 lbs. (1546 kg)
Weight Distribution F/R ____________________________________________________________________ 49.4/50.6%
Frontal Area ____________________________________________________________________19.3 sq. ft. (1.79 sq. m)
Drag Coefficient ___________________________________________________________ 0.43 (top down), 0.40 (top up)
Fuel Tank Capacity ______________________________________________________________________ 18.5 gal. (70L)

ACCOMMODATIONS

Seating Capacity ___________________________________________________________________________________ 2
Head Room _______________________________________________________________________________ 36.5 (926)
Leg Room _______________________________________________________________________________ 42.4 (1077)
Shoulder Room ____________________________________________________________________________54.1 (1375)
Seat Travel _________________________________________________________________________________ 7.6 (192)
Recliner Range __________________________________________________________________________________ 45°
SAE Interior Volume ______________________________________________________________________________ NA

BODY

Layout _________________________________________________________ Longitudinal front engine, rear-wheel drive
Construction _____________________________________ Backbone tubular space frame with separate cowl structure.

SMC and RIM body panels, aluminum sills, RIM front and rear fascias with composite impact beams

SUSPENSION

Front _____________________________________________ Cast-aluminum unequal-length upper and lower “A” arms,

coil springs, low-pressure gas-charged shock absorbers, stabilizer bar

Rear ________________________________ Cast-aluminum unequal-length upper and lower “A” arms, toe-control links,

coil springs, low-pressure gas-charged shock absorbers, stabilizer bar

STEERING

Type ____________________________________________________________________ Power-assisted rack and pinion
Overall Ratio __________________________________________________________________________________ 16.7:1
Turning Diameter curb-to-curb) _________________________________________________________ 40.5 ft. (12.34 m)
Steering Turns (lock-to-lock) _______________________________________________________________________ 2.4

TIRES(b)

Size and Type ____________________________________________________________________ P275/35 ZR18—front,
P345/30 ZR19—rear
Manufacturer and Model _________________________________ Michelin ZP with low-pressure sensors in valve stems
Revs per Mile _______________________________________________________ Front—805.42 rpm; Rear—756.97 rpm

(a) All dimensions measured with two passengers.
(b) See also Tires under Feature Availability.
