Dodge Ram PowerWagon 2500 2008 User Manual

SECTION PAGE

1

INTRODUCTION

2

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4

UNDERSTANDING YOUR INSTRUMENT PANEL

5

STARTING AND OPERATING

6

WHAT TO DO IN EMERGENCIES

7

MAINTAINING YOUR VEHICLE

8

MAINTENANCE SCHEDULES

9

IF YOU NEED CONSUMER ASSISTANCE

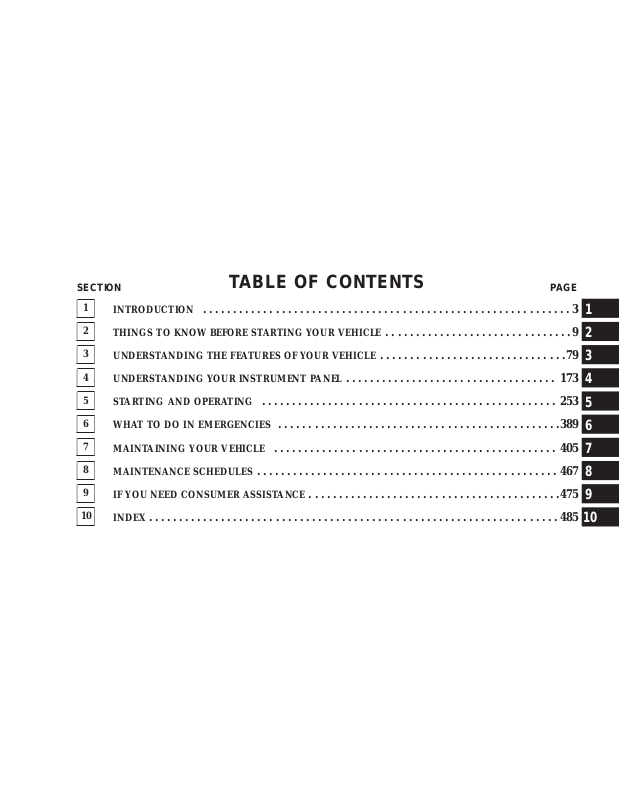

TABLE OF CONTENTS

.............................................................3

...............................9

...............................79

................................... 173

.................................................253

...............................................389

...............................................405

..................................................467

..........................................475

1
2
3
4
5
6
7
8
9

10

INDEX

....................................................................485

10

CONTENTS

INTRODUCTION

1

m Introduction ...........................4

m How To Use This Manual ..................4

m Warnings And Cautions ................... 6

m Van Conversions/Campers .................6

m Vehicle Identification Number ...............7

m Vehicle Modifications/Alterations ............7

4 INTRODUCTION

INTRODUCTION

This manual has been prepared with the assistance of
service and engineering specialists to acquaint you with
the operation and maintenance of your new vehicle. It is
supplemented by a Warranty Information Booklet and
various customer oriented documents. You are urged to
read these publications carefully. Following the instruc­tions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.

NOTE: After you read the manual, it should be stored
in the vehicle for convenient reference and remain with
the vehicle when sold, so that the new owner will be
aware of all safety warnings.

When it comes to service, remember that your dealer
knows your vehicle best, has the factory-trained techni­cians and genuine Mopart parts, and is interested in
your satisfaction.

HOW TO USE THIS MANUAL

Consult the table of contents to determine which section
contains the information you desire.

The detailed index, at the rear of this manual, contains a
complete listing of all subjects.

Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this owner’s manual:

INTRODUCTION 5

1

6 INTRODUCTION

WARNINGS AND CAUTIONS

This manual contains WARNINGS against operating
procedures which could result in an accident or bodily
injury. It also contains CAUTIONS against procedures
which could result in damage to your vehicle. If you do
not read this entire manual you may miss important
information. Observe all Warnings and Cautions.

VAN CONVERSIONS/CAMPERS

The Manufacturer’s Warranty does not apply to body
modifications or special equipment installed by van
conversion/camper manufacturers/ body builders. See
the Warranty information book, Section 2.1.C. Such
equipment includes video monitors, VCRs, heaters,
stoves, refrigerators, etc. For warranty coverage and
service on these items, contact the applicable manufac­turer.

Operating instructions for the special equipment in­stalled by the conversion/camper manufacturer should
also be supplied with your vehicle. If these instructions
are missing, please contact your selling dealer for assis­tance in obtaining replacement documents from the
applicable manufacturer.

For information on the Body Builders Guide go to:
www.dodgebodybuilder.com. This website contains di­mensional and technical specifications for your vehicle. It
is intended for Second Stage Manufacturer’s technical
support. For service issues, contact your dealer.

INTRODUCTION 7

VEHICLE IDENTIFICATION NUMBER

The vehicle identification number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears on the Auto­mobile Information Disclosure Label affixed to a window
on your vehicle, the vehicle registration and title.

Vehicle Identification Number

NOTE: It is illegal to remove the VIN.

VEHICLE MODIFICATIONS/ALTERATIONS

WARNING!

Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to an accident resulting in serious injury or
death.

1

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

CONTENTS

m Power Wagon: Things To Know Before Starting

Your Vehicle ...........................12

▫ Features .............................12

▫ Instrument Panel And Controls ............12

▫ Operation ............................12

▫ Emergencies ..........................12

m A Word About Your Keys ..................12

▫ Ignition Key Removal ...................13

▫ Locking Doors With The Key ..............15

2

m Sentry Key ............................15

▫ Replacement Keys ......................16

▫ Customer Key Programming ..............17

▫ General Information ....................18

m Steering Wheel Lock — If Equipped ..........19

▫ If You Wish To Manually Lock The Steering

Wheel ..............................19

▫ To Release The Steering Wheel Lock .........19

▫ Automatic Transmission Ignition Interlock

System ..............................19

10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

m Security Alarm System — If Equipped .........19

▫ Rearming Of The System .................20

▫ To Set The Alarm ......................20

▫ To Disarm The System ...................20

m Illuminated Entry System — If Equipped .......21

m Remote Keyless Entry — If Equipped .........21

▫ To Unlock The Doors ...................22

▫ To Lock The Doors .....................22

▫ Using The Panic Alarm ..................23

▫ General Information ....................24

▫ Transmitter Battery Service ...............24

m Remote Starting System — If Equipped ........25

m Door Locks ............................27

▫ Manual Door Locks .....................27

▫ Power Door Locks — If Equipped ..........28

▫ Child Protection Door Lock ...............31

m Windows .............................32

▫ Power Windows—If Equipped .............32

▫ Wind Buffeting ........................34

m Occupant Restraints ......................34

▫ Lap/Shoulder Belts .....................35

▫ Adjustable Upper Shoulder Belt Anchorage ....43

▫ Automatic Locking Retractors (ALR) Mode –

If Equipped ..........................43

▫ Center Lap Belts .......................44

▫ Seat Belt Pretensioners — If Equipped .......45

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

▫ Enhanced Seat Belt Reminder System

(BeltAlert) ...........................45

▫ Seat Belts And Pregnant Women ............46

▫ Seat Belt Extender ......................47

▫ Driver And Right Front Passenger Supplemental

Restraint System (SRS)—Airbags ...........47

▫ Event Data Recorder (EDR) ...............59

▫ Child Restraint ........................61

m Engine Break-In Recommendations ...........74

m Safety Tips ............................75

▫ Transporting Passengers .................75

▫ Lock Your Vehicle ......................76

▫ Exhaust Gas ..........................76

▫ Safety Checks You Should Make Inside The

Vehicle ..............................77

▫ Safety Checks You Should Make Outside The

Vehicle ..............................78

2

12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

POWER WAGON: THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Your Power Wagon is a specialty vehicle, equipped with
several features not available on other production trucks.
It is very important that you read the following sections
of the owner’s manual before operation.

Features

(See page 84 for more information.)

Instrument Panel and Controls

(See page 177 for more information.)

Operation

(See page 276 for more information.)

Emergencies

(See page 390 for more information.)

A WORD ABOUT YOUR KEYS

The dealer that sold you your new vehicle has the key
code numbers for your vehicle locks. These numbers can
be used to order duplicate keys from your dealer. Ask
your dealer for these numbers and keep them in a safe
place.

Ignition Key

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

Ignition Key Removal

Automatic Transmission

Place the shift lever in PARK. Turn the ignition switch to
the LOCK position, and remove the key.

Ignition Switch Positions

NOTE: If you try to remove the key before you place the

lever in PARK, the key may become trapped temporarily
in the ignition cylinder. If this occurs, rotate the key to the
right slightly, then remove the key as described. If a
malfunction occurs, the system will trap the key in the
ignition cylinder to warn you that this safety feature is
inoperable. The engine can be started and stopped but
the key cannot be removed until you obtain service.

NOTE: The power window switches, radio, power
sunroof (if equipped), and power outlets will remain
active for 10 minutes after the ignition switch is turned
off. Opening either front door will cancel this feature.

2

14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be seri­ously or fatally injured. Don’t leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.

CAUTION!

An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.

Manual Transmission—If Equipped

When the steering wheel is in the LOCK position, the
steering and ignition systems are locked to provide
antitheft protection for your vehicle. It may be difficult to
turn the key from the LOCK position when starting your
vehicle. Move the steering wheel left and right while
turning the key until it turns easily. To remove the key,
depress and hold the release button located between the
ignition switch and the instrument panel. Turn the igni­tion key to LOCK and remove the key.

Ignition Key Release Button

Locking Doors With The Key

You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. See Section 7 of this manual for door lock
lubrication.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

SENTRY KEY

The Sentry Key Immobilizer System prevents unautho­rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.

The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorized
vehicle operation. Therefore, only keys that are pro­grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two (2)
seconds if someone uses an invalid key to start the
engine.

NOTE: A key, which has not been programmed, is also
considered an invalid key even if it is cut to fit the
ignition switch lock cylinder for that vehicle.

During normal operation, after turning on the ignition
switch, the Vehicle Security Alarm Indicator Light will

2

16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

turn on for three (3) seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is
a problem with the electronics. In addition, if the light
begins to flash after the bulb check, it indicates that
someone used an invalid key to start the engine. Either of
these conditions will result in the engine being shut off
after two (2) seconds.

If the Vehicle Security Alarm Indicator Light turns on
during normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there is a fault in
the electronics. Should this occur, have the vehicle ser­viced as soon as possible.

NOTE:

•

The Sentry Key Immobilizer System is not compatible
with some after-market remote starting systems. Use
of these systems may result in vehicle starting prob­lems and loss of security protection.

•

Exxon/Mobil Speed Pass,™ additional Sentry Keys, or
any other transponder-equipped components on the
same key chain will not cause a key-related (transpon­der) fault unless the additional part is physically held
against the ignition key being used when starting the
vehicle. Cell phones, pagers, or other RF electronics
will not cause interference with this system.

All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.

Replacement Keys

NOTE: Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Key is programmed to a vehicle, it cannot
be programmed to any other vehicle.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

CAUTION!

Always remove Sentry Keys from the vehicle and
lock all doors when leaving the vehicle unattended.

At the time of purchase, the original owner is provided
with a four-digit PIN number. Keep the PIN in a secure
location. This number is required for dealer replacement
of keys. Duplication of keys may be performed at an
authorized dealer or by using the Customer Key Pro­gramming procedure. This procedure consists of pro­gramming a blank key to the vehicle electronics. A blank
key is one, which has never been programmed.

NOTE: When having the Sentry Key Immobilizer
System serviced, bring all vehicle keys with you to the
dealer.

Customer Key Programming

If you have two valid sentry keys, you can program new
sentry keys to the system by performing the following
procedure:

1. Cut the additional Sentry Key Transponder blank(s) to
match the ignition switch lock cylinder key code.

2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the “ON” position for at least 3
seconds, but no longer than 15-seconds. Then, turn the
ignition switch to the “LOCK” position and remove the
first key.

3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the “ON” position within 15
seconds. After ten seconds, a chime will sound. In
addition, the Vehicle Security Alarm Indicator Light will
begin to flash. Turn the ignition switch to the “LOCK”
position and remove the second key.

2

18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

4. Insert a blank Sentry Key into the ignition switch. Turn
the ignition switch to the “ON” position within 60
seconds. After 10 seconds, a single chime will sound. In
addition, the Vehicle Security Alarm Indicator Light will
stop flashing. To indicate that programming is complete,
the indicator light will turn on again for 3 seconds and
then turn off.

The new Sentry Key is programmed. The Keyless Entry

Transmitter will also be programmed during this pro­cedure.

Repeat this procedure to program up to 8 keys. If you do
not have a programmed sentry key, contact your dealer
for details.

NOTE: If a programmed key is lost, see your dealer to
have all remaining keys erased from the systems
memory. This will prevent the lost key from starting your
vehicle. The remaining keys must then be repro­grammed. All vehicle keys must be taken to the dealer at
the time of service to be reprogrammed.

General Information

The Sentry Key system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:

•

This device may not cause harmful interference.

•

This device must accept any interference that may be
received, including interference that may cause undes­ired operation.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

STEERING WHEEL LOCK — IF EQUIPPED

Your vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with­out the ignition key. If the steering wheel is moved no
more than 1/2 turn in either direction and the key is not
in the ignition switch, the steering wheel will lock.

If You Wish To Manually Lock The Steering
Wheel:

With the engine running, turn the steering wheel upside
down, turn off the engine and remove the key. Turn the
steering wheel slightly in either direction until the lock
engages.

To Release The Steering Wheel Lock:

Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.

NOTE: If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to

disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.

Automatic Transmission Ignition Interlock System

This system prevents the key from being removed unless
the shift lever is in PARK. It also prevents shifting out of
PARK unless the key is in the ON positions, and the
brake pedal is depressed.

SECURITY ALARM SYSTEM — IF EQUIPPED

This system monitors the vehicle doors and ignition for
unauthorized operation. When the alarm is activated, the
system provides both audible and visual signals. For the
first 3 minutes the horn will sound and the headlights
and security telltale will flash repeatedly. For an addi­tional 15 minutes only the headlights and security telltale
will flash. The engine will run only if a valid Sentry Key
is used to start the vehicle. Use of the Sentry Key will
disable the alarm.

2

20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Rearming of the System:

The security system will rearm itself after the 15 addi­tional minutes of headlights and security telltale flashing,
if the system has not been disabled. If the condition
which initiated the alarm is still present, the system will
ignore that condition and monitor the remaining doors
and ignition.

To Set the Alarm:

The alarm will set when you use the power door locks, or
use the Keyless Entry transmitter to lock the doors. After
all the doors are locked and closed the SECURITY light in
the instrument cluster will flash rapidly to signal that the
system is arming. The security light in the instrument
panel cluster will flash rapidly for about 16 seconds to
indicate that the alarm is being set. After the alarm is set,
the security light will flash at a slower rate to indicate
that the system is armed.

NOTE: If the SECURITY light stays on continuously
during vehicle operation, have the system checked by
your dealer.

To Disarm the System:

Use the Keyless Entry transmitter to unlock the door. If
something has triggered the system in your absence, the
horn will sound three times when you unlock the doors
and the security lamp will flash for 30 seconds. Check the
vehicle for tampering.

The Security system will also disarm, if the vehicle is
started with a programmed Sentry Key. If an unpro­grammed Sentry Key is used to start a vehicle, the engine
will run for 2 seconds and then the security alarm will be
initiated. To exit alarming mode, press the transmitter
Unlock button, or start the vehicle with a programmed
Sentry Key.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

The Security Alarm System is designed to protect your
vehicle; however, you can create conditions where the
system will arm unexpectedly. If you remain in the
vehicle and lock the doors with the transmitter, the alarm
will sound when you pull the door handle to exit. The
door will be locked but the Security Alarm will not arm.

ILLUMINATED ENTRY SYSTEM — IF EQUIPPED

The courtesy lights will turn on when you use the keyless
entry transmitter or open the doors. This feature is only
available if you have Remote Keyless Entry.

The lights will fade to off after about 30 seconds or they
will immediately fade to off once the ignition switch is
turned on.

NOTE:

•

The front courtesy overhead console, door courtesy
lights do not turn off if the dimmer control is in the
interior lights ON position (extreme top position).

•

The illuminated entry system will not operate if the
dimmer control is in the “defeat” position (extreme
downward position).

REMOTE KEYLESS ENTRY — IF EQUIPPED

Three Button Transmitter

2

22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

This system allows you to lock or unlock the doors from
distances up to about 23 feet (7 meters) using a hand held
radio transmitter. The transmitter need not be pointed at
the vehicle to activate the system.

To unlock the doors:

Press and release the UNLOCK button on the key fob
once to unlock only the driver’s door or twice to unlock
all the doors. When the UNLOCK button is pressed, the
illuminated entry will initiate, the parking lights will
flash on twice and if installed, the cargo lamp will turn on
for 30 seconds.

The system can be programmed to unlock all the doors or
drivers door only upon the first UNLOCK button press
by using the following procedure:

1. Perform this operation while standing outside the
vehicle.

2. Press and hold the LOCK button on your key fob.

3. Continue to hold the LOCK button at least 4 seconds,
but no longer than 10 seconds, then press and hold the
UNLOCK button while still holding the LOCK button.

4. Release both buttons at the same time.

5. This will allow you to unlock all doors on the first
press of the UNLOCK button.

6. To reactivate this feature, repeat the above steps.

To lock the doors:

Press and release the LOCK button on the transmitter to
lock all doors. If the ignition is OFF, when the doors are
locked, the parking lights will flash on once and the horn
will chirp once.

The horn chirp feature will be shipped from the assembly
plants activated. If desired this feature can be disabled by
using the following procedure:

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

1. Perform this operation while standing outside the
vehicle.

2. Press and hold the LOCK button on a programmed
(i.e. functional) key fob.

3. Continue to hold the LOCK button, wait at least 4
seconds, but no longer than 10 seconds, then press and
hold the PANIC button. Release both buttons at the same
time.

4. To reactivate this feature, repeat the above steps.
Vehicles will be shipped from the assembly plants with

the park lamp flash feature activated. If desired, this
feature can be disabled by using the following procedure:

1. Perform this operation while standing outside the
vehicle.

2. Press and hold the UNLOCK button on a programmed
(i.e. functional) key fob.

3. Continue to hold the UNLOCK button, wait at least 4
seconds, but no longer than 10 seconds, then press and
hold the LOCK button. Release both buttons at the same
time.

4. To reactivate this feature, repeat the above steps.

Using the Panic Alarm

To activate the Panic mode while the ignition is OFF press
and release the PANIC button on the transmitter once.
When the Panic mode is activated, the interior lights will
illuminate, the headlamps and parking lights will flash,
and the horn will sound.

To cancel the Panic mode press and release the PANIC
button on the transmitter a second time, after 5 seconds.
Panic mode will automatically cancel after 3 minutes or if
the vehicle is started and exceeds 15 mph. During the
Panic Mode, the door locks and remote keyless entry
systems will function normally. Panic mode will not
disarm the security system on vehicles so equipped.

2

24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

General Information

This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference that may be
received including interference that may cause undesired
operation.

NOTE: Changes or modifications not expressly ap­proved by the party responsible for compliance could
void the user’s authority to operate the equipment.

If your Keyless Entry Transmitter fails to operate from a
normal distance, check for these two conditions.

1. Weak batteries in transmitter. The expected life of the
batteries is from one to two years.

2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.

Transmitter Battery Service

Transmitter Battery Replacement

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

NOTE:

See www.dtsc.ca.gov/hazardouswaste/perchlorate
The recommended replacement battery is CR2032.
NOTE: Do not touch the battery terminals that are on

the back housing or the printed circuit board.

1. With transmitter buttons facing down, use a flat blade
or dime to pry the two halves of the transmitter apart.
Make sure not to damage the rubber gasket during
removal.

2. Remove and replace the battery. When replacing the
battery, match the + sign on battery to the + sign on the
inside of the battery clip, located on back cover. Avoid
touching the new battery with your fingers. Skin oils may
cause battery deterioration. If you touch a battery, clean it
with rubbing alcohol. Avoid touching the new battery

Perchlorate Material – special handling may apply,

with your fingers. Skin oils may cause battery deteriora­tion. If you touch a battery, clean it with rubbing alcohol.

3. To reassemble the transmitter case, snap the two
halves of the case together. Make sure there is an even
“gap” between the two halves. If equipped, install and
tighten the screw until snug. Test transmitter operation.

REMOTE STARTING SYSTEM — IF EQUIPPED

Your vehicle may be equipped with a remote starting
system, which will allow the vehicle to be started from
distances up to approximately 300 feet away from the
vehicle using the remote keyless entry key fob which is
part of your ignition key.

In order to remote start your vehicle, the hood, and all the
doors must be closed.

2

26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To remote start your vehicle, press the REMOTE START
button on the key fob twice within three seconds. To
indicate that the vehicle is about to start, the parking
lights will flash and the horn will sound briefly.

Remote Start Transmitter

Once the vehicle has started, the engine will run for 15
minutes. To cancel remote start, press the REMOTE
START button once.

The parking lamps will remain illuminated to indicate
that the vehicle has remote started and the engine is
running. The lamps will turn off when the ignition is
turned to RUN or the remote start is cancelled.

To enter the vehicle while the engine is running during a
remote start, you must first unlock the vehicle using the
UNLOCK button on the key fob. After the vehicle is
unlocked, you have 15 minutes to enter the vehicle, insert
the key in the Ignition and move it to the RUN position,
otherwise the engine will cancel remote start and auto­matically turn off.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

Remote start will also cancel if any of the following occur:

•

If the engine stalls or RPM exceeds 2500

•

Any engine warning lamps come on

•

The hood is opened

•

The hazard switch is pressed

•

The transmission is moved out of park

•

The brake pedal is pressed.

The vehicle can be started remotely up to a maximum of
two times. The vehicle is also allowed a maximum of one
failed start, where the remote start sequence was initiated
but the engine stopped cranking without starting. After
either of these conditions, or if the Vehicle Theft Alarm is
alarming, or if the PANIC button was pressed, the vehicle
must be reset by inserting a valid key into the ignition
and moving it to the RUN position, then back to LOCK.

DOOR LOCKS
Manual Door Locks

Front and Rear doors may be locked, by moving the lock
plunger up or down.

All doors may be opened with the inside door handle
without lifting the lock plunger. Doors locked before
closing will remain locked when closed.

The ignition key will unlock all the locks on your vehicle.

2

28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

•

For personal security and safety in the event of an
accident, lock the vehicle doors when you drive as
well as when you park and leave the vehicle.

•

Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power win­dows, other controls, or move the vehicle.

Power Door Locks — If Equipped

A power door lock switch is on each front door trim
panel. Use this switch to lock or unlock the doors.

Power Door Lock Switch Location

If you press the power door lock switch while the key is
in the ignition, and any front door is open, the power
locks will not operate. This prevents you from acciden­tally locking your keys in the vehicle. Removing the key
or closing the door will allow the locks to operate. A

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29

chime will sound if the key is in the ignition switch and
a door is open, as a reminder to remove the key.

Automatic Door Locks – If Equipped

If this feature is enabled, your door locks will lock
automatically when the vehicle’s speed exceeds 15 mph.

Automatic Door Lock Programming

This feature is enabled when your vehicle is shipped
from the assembly plant and can be disabled by using the
following procedure:

1. Enter your vehicle and close all doors.

2. Fasten your seat belt (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure).

3. Place the key into the ignition.

4. Within 15 seconds cycle the key from the LOCK
position to the ON/RUN position a minimum of four
times; ending in the LOCK position (do not start the

engine).

5. Within 30 seconds, press the driver’s door lock switch
in the LOCK direction.

6. Asingle chime will be heard to indicate the feature has
been disabled.

7. To reactivate this feature, repeat the above steps.

8. If a chime is not heard, program mode was canceled
before the feature could be disabled. If necessary, repeat
the above procedure.

2

30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Auto Unlock On Exit — If Equipped

This feature unlocks all of the doors of the vehicle when
any door is opened. This will occur only after the vehicle
has been shifted into the Park position after the vehicle
has been driven (shifted out of Park and all doors closed).

Auto Unlock On Exit Programming — If Equipped

Customer Programming sequence to enable or disable
the Auto Unlock Feature:

1. Enter your vehicle and close all doors.

2. Fasten your seat belt (fastening the seat belt will cancel
any chimes that may be confusing during this program­ming procedure).

3. Insert the key into the ignition.

4. Within 15 seconds, cycle the key from the LOCK
position to the ON/RUN position a minimum of four
times ending in the LOCK position (do not start the
engine).

5. Within 30 seconds, press the driver’s door lock switch
in the UNLOCK direction.

6. A single chime will sound to indicate the feature has
been changed.

7. Repeat the above steps to alternate the availability of
this feature.

8. If a chime is not heard, program mode was canceled
before the feature could be changed. If necessary repeat
the above procedure.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

Child Protection Door Lock

To provide a safer environment for children riding in the
rear seat, the rear doors of your vehicle have the child­protection door lock system.

Child Protection Door Lock Location

To use the system, open each rear door, slide the lever UP
to engage the locks and DOWN to disengage the child­protection locks. When the system on a door is engaged,
that door can only be opened by using the outside door
handle even if the inside door lock is in the unlocked
position.

Child Lock Control

2

32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the child protection locks are
engaged.

NOTE: After setting the child protection door lock

system, always test the door from the inside to make
certain it is in the desired position.

NOTE: For emergency exit with the system engaged,
move the door lock switch to the UNLOCK position, roll
down the window and open the door with the outside
door handle.

WINDOWS
Power Windows—If Equipped

Power Window Switches

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33

The control on the left front door panel has up-down
switches that give you fingertip control of all power
windows. There is a single opening and closing switch on
the front passenger door for passenger window control
and on the rear doors of Quad Cab and Mega Cab
models. The windows will operate when the ignition
switch is turned to the ON or ACC (Accessory) position
and for ten minutes after the ignition is turned off or the
driver’s door is opened.

NOTE: The Power Accessory Delay feature will allow
the power windows to operate for ten minutes after the
ignition is turned off.

WARNING!

Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be seri­ously or fatally injured. Don’t leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.

Auto Down (Driver’s Side Only)

The driver’s window switch has an Auto Down feature.
Press the window switch past the detent, release, and the
window will go down automatically.

2

34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Window Lockout Switch (4 Door Models Only)

The window lockout switch on the driver’s door allows
you to disable the window control on the other doors. To
disable the window controls on the other doors, press the
window lock button. To enable the window controls,
press the window control button again.

Window Lockout Switch

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down or partially open positions. This is a
normal occurrence and can be minimized. If the buffeting
occurs with the rear windows open, open the front and
rear windows together to minimize the buffeting.

OCCUPANT RESTRAINTS

Some of the most important safety features in your
vehicle are the restraint systems. These include the front
and rear seat belts for the driver and all passengers, front
airbags for both the driver and front passenger and, if so
equipped, window bags for the driver and passengers
seated next to a window. If you will be carrying children
too small for adult-size belts, your seat belts also can be
used to hold infant and child restraint systems.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35

Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly to keep you and your passengers as safe as
possible.

WARNING!

In a collision, you and your passengers can suffer
much greater injuries if you are not properly buckled
up. You can strike the interior of your vehicle or other
passengers, or you can be thrown out of the vehicle.
Always be sure you and others in your vehicle are
buckled up properly.

Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and cause a collision that includes you. This can happen
far away from home or on your own street.

Research has shown that seat belts save lives, and that
they can reduce the seriousness of injuries in a collision.
Some of the worst injuries happen when people are
thrown from the vehicle. Seat belts reduce the possibility
of ejection and the risk of injury caused by striking the
inside of the vehicle. Everyone in a motor vehicle should
be belted at all times.

Lap/Shoulder Belts

All seating positions except the Quad Cab front center
seating position have combination lap/shoulder belts.
The belt webbing retractor is designed to lock during
very sudden stops or collisions. This feature allows the
shoulder part of the belt to move freely with you under
normal conditions. But in a collision, the belt will lock
and reduce the risk of your striking the inside of the
vehicle or being thrown out.

2

36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.

Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.

Be sure everyone in your vehicle is in a seat and
using a seat belt properly.

WARNING!

•

Wearing a seat belt incorrectly is dangerous. Seat
belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of a collision the best.
Wearing your belt in the wrong place could make
your injuries in a collision much worse. You might
suffer internal injuries, or you could even slide out
of part of the belt. Follow these instructions to
wear your seat belt safely and to keep your pas­sengers safe, too.

•

Two people should never be belted into a single
seat belt. People belted together can crash into one
another in an accident, hurting one another badly.
Never use a lap/shoulder belt or a lap belt for more
than one person, no matter what their size.

Lap/Shoulder Belt Operating Instructions

1. Enter the vehicle and close the door. Sit back and
adjust the seat.

2. The seat belt latch plate is above the back of the front
seat, next to your arm in the rear seat. Grasp the latch
plate and pull out the belt. Slide the latch plate up the
webbing as far as necessary to allow the belt to go around
your lap.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37

2

1 — Latch Plate

38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. When the belt is long enough to fit, insert the latch
plate into the buckle until you hear a “click.”

Latch Plate To Buckle

WARNING!

• A belt buckled into the wrong buckle will not protect
you properly. The lap portion could ride too high on your
body, possibly causing internal injuries. Always buckle
your belt into the buckle nearest you.

• A belt that is too loose will not protect you as well. In a
sudden stop you could move too far forward, increasing
the possibility of injury. Wear your seat belt snugly.

• A belt that is worn under your arm is very dangerous.
Your body could strike the inside surfaces of the vehicle
in a collision, increasing head and neck injury. And a belt
worn under the arm can cause internal injuries. Ribs
aren’t as strong as shoulder bones. Wearthe belt over your
shoulder so that your strongest bones will take the force
in a collision.

• Ashoulder belt placed behind will not protect you from
injury during a collision. You are more likely to hit your
head in a collision if you do not wear your shoulder belt.
The lap and shoulder belt are meant to be used together.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39

4. Position the lap belt across your thighs, below your
abdomen. To remove slack in the lap belt portion, pull up
on the shoulder belt. Toloosen the lap belt if it is too tight,
tilt the latch plate and pull on the lap belt. A snug belt
reduces the risk of sliding under the belt in a collision.

Removing Slack From Belt

WARNING!

• A lap belt worn too high can increase the risk of
internal injury in a collision. The belt forces won’t be
at the strong hip and pelvic bones, but across your
abdomen. Always wear the lap belt as low as pos­sible and keep it snug.

• A twisted belt can’t do its job as well. In a collision
it could even cut into you. Be sure the belt is straight.
If you can’t straighten a belt in your vehicle, take it to
your dealer and have it fixed.

5. Position the shoulder belt on your chest so that it is
comfortable and not resting on your neck. The retractor
will withdraw any slack in the belt.

2

40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

6. To release the belt, push the red button on the buckle.
The belt will automatically retract to its stowed position.
If necessary, slide the latch plate down the webbing to
allow the belt to retract fully.

WARNING!

A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (bent retractor, torn webbing,
etc.) or if the airbag deployed.

Standard Cab Front Center Three Point Belt

1. The front center seat belt on the Standard Cab may be
disconnected to open up utilization of the storage areas
behind the front seats. The black latch plate can be
detached from the black keyed seat belt buckle located on
the inboard side of the passenger seat. Insert the vehicle
ignition key into the center white slot on the black buckle.
The black buckle latch plate can be removed when the
key is pressed into the buckle. Allow the retractor to take
up the surplus webbing, and the buckles will hang
vertically from the cab back exit bezel, thus freeing up all
the area behind the front seats.

Detaching Buckle with Key

2. To reattach the seat belt to the front center seat, pull
the black buckle latch plate forward from the cab back
panel and insert it into the black keyed buckle until there
is an audible click. Refer to the previous section for the
proper seat belt usage.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41

WARNING!

•

If the black latch and black buckle are not prop­erly connected when the seat belt is used by an
occupant, the seat belt will not be able to provide
proper restraint and will increase the risk of injury
in a collision.

•

When reattaching the black latch and black
buckle, ensure the seat belt webbing is not
twisted. If the webbing is twisted, follow the
preceding procedure to detach the black latch and
black buckle, untwist the webbing, and reattach
the black latch and black buckle.

2

42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Inserting Latch Plate In Use Position

WARNING!

If the black latch and buckle are not connected when
the seat belt is used by an occupant, the seat belt will
not restrain you properly.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43

Adjustable Upper Shoulder Belt Anchorage

In the front row outboard seats, the shoulder belt can be
adjusted upward or downward to help position the belt
away from your neck. Press the button located on the
upper belt guide, and then move it up or down to the
position that serves you best.

Shoulder Belt Adjustment

As a guide, if you are shorter than average, you will
prefer a lower position, and if you are taller than average,
you’ll prefer a higher position. When you release the
anchorage, try to move it up or down to make sure that
it is locked in position.

Automatic Locking Retractors (ALR) Mode – If
Equipped

In this mode, the shoulder belt is automatically pre­locked. The belt will still retract to remove any slack in
the shoulder belt. The automatic locking mode is avail­able on all passenger seating positions with a combina­tion lap/shoulder belt.

When To Use The Automatic Locking Mode

Anytime a child safety seat is installed in a passenger
seating position. Children 12 years old and under should
be properly restrained in the rear seat whenever possible.

2

44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

How To Use The Automatic Locking Mode

1. Buckle the combination lap/shoulder belt.

2. Grasp the shoulder portion and pull downward until
the entire belt is extracted.

3. Allow the belt to retract. As the belt retracts, you will
hear a clicking sound. This indicates the safety belt is
now in the automatic locking mode.

How To Disengage The Automatic Locking Mode

Disconnect the combination lap/shoulder belt and allow
it to retract completely to disengage the automatic lock­ing mode and activate the vehicle sensitive (emergency)
locking mode.

Center Lap Belts

The center seating position for the Quad Cab front seat
has a lap belt only. To fasten the lap belt, slide the latch
plate into the buckle until you hear a 9click.9 To lengthen
the lap belt, tilt the latch plate and pull. To remove slack,
pull the loose end of the webbing. Wear the lap belt snug
against the hips. Sit back and erect in the seat, then adjust
the belt as tightly as is comfortable.

WARNING!

•

A lap belt worn too loose or too high is dangerous.

•

A belt worn too loose can allow you to slip down
and under the belt in a collision.

•

A belt that is too loose or too high will apply crash
forces to the abdomen, not to the stronger hip
bones. In either case, the risk of internal injuries is
greater. Wear a lap belt low and snug.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45

Seat Belt Pretensioners — If Equipped

The seat belts for both front seating positions are
equipped with pretensioning devices that are designed to
remove slack from the seat belt system in the event of a
collision. These devices improve the performance of the
seat belt by assuring that the belt is tight about the
occupant early in a collision. Pretensioners work for all
size occupants, including those in child restraints.

NOTE: These devices are not a substitute for proper seat
belt placement by the occupant. The seat belt still must be
worn snugly and positioned properly.

The pretensioners are triggered by the airbag control
module. Like the airbags, the pretensioners are single use
items. After a collision that is severe enough to deploy
the airbags and pretensioners, both must be replaced.

Enhanced Seat Belt Reminder System (BeltAlert)

If the driver’s seat belt has not been buckled within 60
seconds of starting the vehicle and if the vehicle speed is
greater than 5 mph (8 km/h), the Enhanced Warning
System (BeltAlert) will alert the driver to buckle their seat
belt. The driver should also instruct all other occupants to
buckle their seat belts. If the driver unbuckles the seat
belt while the vehicle is in motion an immediate chime
will be heard and, the Enhanced Warning System
(BeltAlert) will continue to chime and flash the Seat Belt
Warning Light for 96 seconds or until the driver’s seat
belt is buckled. The Enhanced Warning System
(BeltAlert) will be reactivated if the ignition is cycled,
driver’s seat belt is unbuckled for more than 10 seconds
and the vehicle speed is greater than 5 mph (8 km/h).

The Enhanced Warning System (BeltAlert) can be en­abled or disabled by your authorized dealer or by
following these steps:

2

46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE: The following steps must occur within the first
60 seconds of the ignition switch being turned to the ON
or START position. DaimlerChrysler does not recom­mend deactivating the Enhanced Warning System
(BeltAlert).

1. With all doors closed and the ignition switch in any
position except On or Start, buckle the driver’s seat belt.

2. Turn the ignition switch to the ON position and wait
for the Seat Belt Warning Light to turn off.

3. Within 60 seconds of turning the ignition switch to the
ON position, unbuckle and then re-buckle the driver’s
seat belt at least three times within 10 seconds, ending
with the seat belt buckled.

4. Turn the ignition switch to the LOCK position. A
single chime will sound to signify that you have success­fully completed the programming.

The Enhanced Warning System (BeltAlert) can be reacti­vated by repeating this procedure.

NOTE: Although the Enhanced Warning System
(BeltAlert) has been deactivated, the Seat Belt Warning
Light will continue to illuminate while the driver’s seat
belt remains unbuckled.

Seat Belts and Pregnant Women

We recommend that pregnant women use seat belts
throughout their pregnancies. Keeping the mother safe is
the best way to keep the baby safe.

Pregnant women should wear the lap part of the belt
across the thighs and as snug against the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is a collision.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47

Seat Belt Extender

If a seat belt is too short, even when fully extended, your
dealer can provide you with a seat belt extender. This
extender should be used only if the existing belt is not
long enough. When it is not required, remove the ex­tender and store it.

WARNING!

Using a seat belt extender when not needed can
increase the risk of injury in a collision. Only use the
seat belt extender when the lap belt is not long
enough when it is worn low and snug, and in the
recommended seating positions. Remove and store
the extender when not needed.

Driver And Right Front Passenger Supplemental
Restraint System (SRS)—Airbags

2

This vehicle has airbags for both the driver and right
front passenger as a supplement to the seat belt restraint
systems. The driver’s front airbag is mounted in the
steering wheel. The passenger front airbag is mounted in

48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

the instrument panel, above the glove compartment. The
words SRS/AIRBAG are embossed on the airbag covers.

NOTE: The front airbags are certified to the Federal
regulations that allow less forceful deployment.

The front airbags have a multistage inflator design. This
may allow the airbag to have different rates of inflation
that are based on collision severity and occupant size.

This vehicle may also be equipped with window bags to
protect the driver, front, and rear passengers sitting next
to a window. If the vehicle is equipped with window
bags, they are located above the side windows. Their
covers are also labeled SRS AIRBAG.

NOTE: Airbag covers may not be obvious in the interior
trim; but they will open to allow airbag deployment.

WARNING!

• Do not put anything on or around the front airbag
covers or attempt to manually open them. You may
damage the airbags and you could be injured be­cause the airbags are no longer functional. These
protective covers for the airbag cushions are de­signed to open only when the airbags are inflating.

• If your vehicle is equipped with window bags, do
not stack luggage or other cargo up high enough to
block the location of the window bag. The area
where the window bag is located should remain free
from any obstructions.

• If your vehicle is equipped with window bags, do
not have any accessory items installed which will
alter the roof, including adding a sunroof to your
vehicle. Do not add roof racks that require perma­nent attachments (bolts or screws) for installation on
the vehicle roof. Do not drill into the roof of the
vehicle for any reason.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49

NOTE: Do not use a clothing bar mounted to the coat
hooks in this vehicle. A clothing bar will impede the
proper performance of the window bags.

Along with the seat belts, front airbags work with the
instrument panel knee bolsters to provide improved
protection for the driver and front passenger. Window
bags also work with seat belts to improve occupant
protection.

The seat belts are designed to protect you in many types
of collisions. The front airbags deploy in moderate to
severe frontal collisions.

If your vehicle is so equipped, the window bag on the
crash side of the vehicle is triggered in moderate to
severe side collisions. But even in collisions where the
airbags work, you need the seat belts to keep you in the
right position for the airbags to protect you properly.

Here are some simple steps you can follow to minimize
the risk of harm from a deploying airbag.

1. Children 12 years and under should always ride
buckled up in a rear seat in an appropriate child restraint.

Infants in rear-facing child restraints should NEVER ride
in the front seat of a vehicle with a passenger front airbag,
unless the airbag is turned off (2500/3500 Standard Cab
Vehicles Only). An airbag deployment can cause severe
injury or death to infants in that position. See the
Passenger Airbag On/Off Switch section.

You should read the instructions provided with your
child restraint to make sure that you are using it properly.

2. If your vehicle does not have a rear seat, see the
Passenger Airbag On/Off Switch section.

2

50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. Children that are not big enough to properly wear the
vehicle seat belt (see section on Child Restraints) should
be secured in the rear seat in child restraints or belt­positioning booster seats. Older children who do not use
child restraints or belt-positioning booster seats should
ride properly buckled up in the rear seat. Never allow
children to slide the shoulder belt behind them or under
their arm.

4. All occupants should use their lap and shoulder belts
properly.

5. The driver and front passenger seats should be moved
back as far as practical to allow the airbag room to inflate.

6. If your vehicle has window bags, do not lean against
the door or window, airbags will inflate forcefully into
the space between you and the door.

7. If the airbag system in this vehicle needs to be
modified to accommodate a disabled person, contact the
Customer Center. Phone numbers are provided in the 9If
You Need Customer Assistance9 section later in this
owner’s manual.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51

WARNING!

•

Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions the airbags won’t deploy at all.
Always wear your seat belts even though you have
airbags.

•

Being too close to the steering wheel or instrument
panel during airbag deployment could cause seri­ous injury. Airbags need room to inflate. Sit back,
comfortably extending your arms to reach the
steering wheel or instrument panel.

•

If the vehicle has window bags, they also need
room to inflate. Do not lean against the door or
window. Sit upright in the center of the seat.

Air Bag System Components

The airbag system consists of the following:

•

Occupant Restraint Controller

•

Side Remote Acceleration Sensors (If Equipped)

•

Airbag Warning Light

•

Driver Airbag

•

Passenger Airbag

•

Window Bags above Side Windows (If Equipped)

•

Steering Wheel and Column

•

Instrument Panel

•

Interconnecting Wiring

•

Knee Impact Bolsters

•

Front Acceleration Sensors (1500 Vehicles Only)

2

52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•

Driver and Front Passenger Seat Belt Pretensioners (If
Equipped)

•

Driver Seat Track Position Sensor (If Equipped)

•

Passenger Side Frontal Airbag ON/OFF Switch (2500/
3500 Standard Cab Vehicles Only)

•

Passenger Airbag Disable (PAD) Indicator Light
(2500/3500 Standard Cab Vehicles Only)

How the Airbag System Works

The Occupant Restraint Controller (ORC) determines

•

if a frontal collision is severe enough to require the
airbags to inflate. The front airbag inflators are de­signed to provide different rates of airbag inflation
from direction provided by the ORC. The ORC will not
detect roll over or rear collisions.

The ORC also monitors the readiness of the electronic
parts of the system whenever the ignition switch is in
the START or RUN positions. These include all of the
items listed above except the steering wheel and
column, and knee bolsters. If the key is in the OFF
position, in the ACC position, or not in the ignition,
the airbags are not on and will not inflate.

Also, the ORC turns on the AIRBAG warn­ing light in the instrument panel for 6 to 8
seconds for a self-check when the ignition is

first turned on. After the self-check, the
AIRBAG warning light will turn off. If the ORC detects
a malfunction in any part of the system, it turns on the
AIRBAG warning light either momentarily or continu­ously. A single chime will sound if the light comes on
again after initial start up.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53

WARNING!

Ignoring the AIRBAG warning light in your instru­ment panel could mean you won’t have the airbags to
protect you in a collision. If the light does not come
on, stays on after you start the vehicle, or if it comes
on as you drive, have the airbag system checked right
away.

•

The Passenger Airbag Disable (PAD) Indicator Light
(If Equipped) (an amber light located in the center of

the instrument panel) tells the driver and front pas­senger when the front passenger airbag is turned off.
The PAD Indicator lamp illuminates the words 9PASS
AIR BAG OFF9 to show that the passenger airbag will
not inflate during a collision requiring airbags. The
PAD light will illuminate when the passenger frontal
airbag has been turned off by using the manual on/off

switch (2500/3500 Standard Cab Vehicles Only). See
Passenger Airbag On/Off Switch – (2500/3500 Stan­dard Cab Vehicles Only) in this section for additional
information.

•

The Driver and Passenger Airbag/Inflator Units are
located in the center of the steering wheel and the right
side of the instrument panel. When the ORC detects a

2

54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

collision requiring the airbags, it signals the inflator
units. A large quantity of nontoxic gas is generated to
inflate the front airbags. Different airbag inflation rates
may be possible based on collision severity and occu­pant size. The steering wheel hub trim cover and the
upper right side of the instrument panel separate and
fold out of the way as the bags inflate to their full size.
The bags fully inflate in about 50 - 70 milliseconds.
This is about half of the time it takes to blink your eyes.
The bags then quickly deflate while helping to restrain
the driver and front passenger. The driver’s front
airbag gas is vented through vent holes in the sides of
the airbag. The passenger’s front airbag gas is vented
through vent holes in the sides of the airbag. In this
way the airbags do not interfere with your control of
the vehicle.

•

The Side Impact SRS Window Bags are designed to
activate only in certain side collisions. When the ORC
(with side impact option) detects a collision requiring

the window bags to inflate, it signals the inflators on
the crash side of the vehicle. A quantity of nontoxic gas
is generated to inflate the window bag. The inflating
window bag pushes the outside edge of the headliner
out of the way and covers the window. The airbag
inflates in about 30 milliseconds (about one quarter of
the time it takes to blink your eyes) with enough force
to injure you if you are not belted and seated properly,
or if items are positioned in the area where the
window bag inflates. This especially applies to chil­dren. The window bag is only about 3-1/2 inches (9
cm) thick when it is inflated.

NOTE: At no time should any supplemental restraint
system (SRS) component or SRS related component or
fastener be modified or replaced with any part except
those which are approved by DaimlerChrysler/Mopar.

•

The Knee Impact Bolsters help protect the knees of
the driver and the front passenger, and position every­one for the best interaction with the front airbag.

Passenger Airbag On/Off Switch – (2500/3500
Standard Cab Vehicles Only)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55

The passenger front airbag is to be turned off only if the
passenger:

•

is an infant (less than 1 year old) who must ride in the
front seat because there is no rear seat, because the rear
seat is too small for a rear-facing infant restraint or
because the infant has a medical condition which
makes it necessary for the driver to be able to see the
infant,

•

is a child, age 1 to 12 who must ride in the front seat
because there is no rear seat, because there is no rear
seat position available, or because the child has a
medical condition which makes it necessary for the
driver to be able to see the child,

•

has a medical condition which makes passenger airbag
inflation (deployment) a greater risk for the passenger
than the risk of hitting the dashboard (instrument
panel) or windshield in a crash.

2

56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Whenever an airbag is turned off, even a lap/
shoulder belted passenger may hit their head, neck,
or chest on the dashboard (instrument panel) or
windshield in a crash. This may result in serious
injury or death.

To Shut Off the Passenger Airbag (2500/3500 Standard
Cab Vehicles Only)

Place the ignition key in the Passenger Airbag On/Off
Switch, push the key in and turn clockwise, and remove
the key from the switch. This will shut off the passenger
side airbag. The “Off” light near the switch will illumi­nate when the ignition switch is turned to the ON
position.

To Turn On the Passenger Airbag (2500/3500 Standard
Cab Vehicles Only)

Place the ignition key in the Passenger Airbag On/Off
Switch, push the key in and turn counterclockwise, and
remove the key from the switch. This will turn on the
passenger airbag. The “Off” light near the switch will be
off when the ignition switch is turned to the ON position.

If A Deployment Occurs

The airbag system is designed to deploy the airbags
when the impact sensors detect a moderate-to-severe
frontal collision, to help restrain the driver and front
passenger, and then immediately deflate.

NOTE: A frontal collision that is not severe enough to
need airbag protection will not activate the system. This
does not mean something is wrong with the airbag
system.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57

If you do have a collision which deploys the airbags, any
or all of the following may occur:

•

The nylon airbag material may sometimes cause abra­sions and/or skin reddening to the driver and front
passenger as the airbags deploy and unfold. The
abrasions are similar to friction rope burns or those
you might get sliding along a carpet or gymnasium
floor. They are not caused by contact with chemicals.
They are not permanent and normally heal quickly.
However, if you haven’t healed significantly within a
few days, or if you have any blistering, see your doctor
immediately. As the airbags deflate you may see some
smoke-like particles. The particles are a normal by­product of the process that generates the nontoxic gas
used for airbag inflation. These airborne particles may
irritate the skin, eyes, nose, or throat. If you have skin
or eye irritation, rinse the area with cool water. For
nose or throat irritation, move to fresh air. If the

irritation continues, see your doctor. If these particles
settle on your clothing, follow the garment manufac­turer’s instructions for cleaning.

•

It is not advisable to drive your vehicle after the
airbags have deployed. If you are involved in another
collision, the airbags will not be in place to protect you.

WARNING!

Deployed airbags and seat belt pretensioners (if
equipped) cannot protect you in another collision.
Have the airbags, seat belt pretensioners, and the
front passenger seat belt retractor assembly, replaced
by an authorized dealer as soon as possible.

2

58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Maintaining Your Airbag System

WARNING!

•

Modifications to any part of the airbag system
could cause it to fail when you need it. You could
be injured if the airbag system is not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or the
upper right side of the instrument panel. Do not
modify the front bumper, vehicle body structure,
or add aftermarket side steps or running boards.

•

You need proper knee impact protection in a
collision. Do not mount or locate any aftermarket
equipment on or behind the knee bolsters.

•

It is dangerous to try to repair any part of the
airbag system yourself. Be sure to tell anyone who
works on your vehicle that it has an airbag system.

NOTE:

Perchlorate Material – special handling may apply,

See www.dtsc.ca.gov/hazardouswaste/perchlorate

Enhanced Accident Response System

If the airbags deploy after an impact and the electrical
system remains functional, vehicles equipped with
power door locks will unlock automatically. In addition,
approximately 5 seconds after the vehicle has stopped
moving, the interior lights will light until the ignition
switch is turned off.

Airbag Light

You will want to have the airbags ready to
inflate for your protection in an impact. While
the airbag system is designed to be mainte­nance free, if any of the following occurs, have
an authorized dealer service the system
promptly:

•

The airbag light does not come on or flickers during
the 6 to 8 seconds when the ignition switch is first
turned on.

•

The light remains on or flickers after the 6 to 8 second
interval.

•

The light flickers or comes on and remains on while
driving.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59

Event Data Recorder (EDR)

In the event of an accident, your vehicle is designed to
record up to 5-seconds of specific vehicle data parameters
(see the following list) in an event data recorder prior to
the moment of airbag deployment and up to a quarter
second of high-speed deceleration data during and/or
after airbag deployment. EDR data are ONLY recorded if
an airbag deploys and are otherwise unavailable.

2

NOTE: If the speedometer, tachometer or any engine
related gauges are not working, the airbag control mod­ule may also be disabled. The airbags may not be ready
to inflate for your protection. Promptly check fuse block
for blown fuses. Refer to the label located on the inside of
the fuse block cover for the proper airbag fuses. See your
dealer if the fuse is good.

NOTE:

1. Under certain circumstances, EDR data may not be
recorded (e.g., loss of battery power).

In conjunction with other data gathered during a com­plete accident investigation, the electronic data may be
used by DaimlerChrysler Corporation and others to learn
more about the possible causes of crashes and associated
injuries in order to assess and improve vehicle perfor­mance. In addition to crash investigations initiated by
DaimlerChrysler Corporation, such investigations may

60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

be requested by customers, insurance carriers, govern­ment officials, and professional crash researchers, such as
those associated with universities, and with hospital and
insurance organizations.

In the event that an investigation is undertaken by
DaimlerChrysler Corporation (regardless of initiative),
the company or its designated representative will first
obtain permission of the appropriate custodial entity for
the vehicle (usually the vehicle owner or lessee) before
accessing the electronic data stored, unless ordered to
download data by a court with legal jurisdiction (i.e.,
pursuant to a warrant). A copy of the data will be
provided to the custodial entity upon request. General
data that does not identify particular vehicles or crashes
may be released for incorporation in aggregate crash
databases, such as those maintained by the US govern­ment and various states. Data of a potentially sensitive
nature, such as would identify a particular driver, ve­hicle, or crash, will be treated confidentially. Confidential

data will not be disclosed by DaimlerChrysler
Corporation to any third party except when:

1. Used for research purposes, such as to match data
with a particular crash record in an aggregate database,
provided confidentiality of personal data is thereafter
preserved

2. Used in defense of litigation involving a
DaimlerChrysler Corporation product

3. Requested by police under a legal warrant

4. Otherwise required by law
Data Parameters that May Be Recorded:

•

Diagnostic trouble code(s) and warning lamp status
for electronically-controlled safety systems, including
the airbag system

•

Airbag disable lamp status (if equipped)

•

9Time9 of airbag deployment (in terms of ignition
cycles and vehicle mileage)

•

Airbag deployment level (if applicable)

•

Impact acceleration and angle

•

Seatbelt status

•

Brake status (service and parking brakes)

•

Accelerator status (including vehicle speed)

•

Engine control status (including engine speed)

•

Transmission gear selection

•

Cruise control status

•

Traction/stability control status

•

Tire pressure monitoring system status (if equipped)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61

Child Restraint

Everyone in your vehicle needs to be buckled up all the
time — babies and children, too. Every state in the United
States and all Canadian provinces require that small
children ride in proper restraint systems. This is the law,
and you can be prosecuted for ignoring it.

Children 12 years and under should ride properly buck­led up in a rear seat, if available. According to crash
statistics, children are safer when properly restrained in
the rear seats rather than in the front.

2

62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

In a collision, an unrestrained child, even a tiny baby,
can become a missile inside the vehicle. The force
required to hold even an infant on your lap can
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be badly injured. Any child riding in your
vehicle should be in a proper restraint for the child’s
size.

Infants and Small Children

There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Use the restraint that is
correct for your child:

•

Safety experts recommend that children ride
rearward-facing in the vehicle until they are at least
one year old and weigh at least 20 lbs (9 kg). Two types
of child restraints can be used rearward-facing: infant
carriers and 9convertible9 child seats. Both types of
child restraints are held in the vehicle by the lap/
shoulder belt.

•

The infant carrier is only used rearward-facing in the
vehicle. It is recommended for children who weigh up
to about 20 lbs (9 kg). 9Convertible9 child seats can be
used either rearward-facing or forward-facing in the
vehicle. Convertible child seats often have a higher
weight limit in the rearward-facing direction than
infant carriers do, so they can be used rearward-facing
by children who weigh more than 20 lbs (9 kg) but are
less than one year old.

•

Rearward-facing child seats must NEVER be used in
the front seat of a vehicle with a front passenger airbag

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63

unless the airbag is turned off. An airbag deployment
could cause severe injury or death to infants in this
position.

•

Children who weigh more than 20 lbs (9 kg) and who
are older than one year can ride forward-facing in the
vehicle. Forward-facing child seats and convertible
child seats used in the forward-facing direction are for
children who weigh 20 to 40 lbs (9 to 18 kg) and who
are older than one year. These child seats are also held
in the vehicle by the lap/shoulder belt.

•

The belt-positioning booster seat is for children weigh­ing more than 40 lbs (18 kg), but who are still too small
to fit the vehicle’s seat belts properly. If the child
cannot sit with knees bent over the vehicle’s seat
cushion while the child’s back is against the seat back,
they should use a belt-positioning-booster seat. The
child and booster seat are held in the vehicle by the
lap/shoulder belt. (Some booster seats are equipped

with a front shield and are held in the vehicle by the
lap portion.) For further information refer to
www.seatcheck.org.

WARNING!

•

Improper installation can lead to failure of an
infant or child restraint. It could come loose in a
collision. The child could be badly injured or
killed. Follow the manufacturer’s directions ex­actly when installing an infant or child restraint.

•

A rearward facing child restraint should only be
used in a rear seat, or in the front seat if the
passenger’s front airbag is Off. If the airbag is left
On, a rearward facing child restraint in the front
seat may be struck by a deploying passenger
airbag which may cause severe or fatal injury to
the infant.

2

64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Here are some tips for getting the most out of your child
restraint:

•

Before buying any restraint system, make sure that it
has a label certifying that it meets all applicable Safety
Standards. We also recommend that you make sure
that you can install the child restraint in the vehicle
where you will use it before you buy it.

•

The restraint must be appropriate for your child’s
weight and height. Check the label on the restraint for
weight and height limits.

•

Carefully follow the instructions that come with the
restraint. If you install the restraint improperly, it may
not work when you need it.

•

The passenger seat belts are equipped with Automatic
Locking Retractors (ALR), which are designed to keep
the lap portion tight around the child restraint so that
it is not necessary to use a locking clip.

Pull the belt from the retractor until there is enough to
allow you to pass through the child restraint and slide
the latch plate into the buckle. Then pull on the belt
until it is all removed from the retractor. Allow the belt
to return to the retractor, pulling on the excess web­bing to tighten the lap portion about the child re­straint. Refer to the 9Automatic Locking Retractors
(ALR) Mode9 earlier in this section.

•

In the rear seat, you may have trouble tightening the
lap/shoulder belt on the child restraint because the
buckle or latch plate is too close to the belt path
opening on the restraint. Disconnect the latch plate
from the buckle and twist the short buckle-end belt
several times to shorten it. Insert the latch plate into
the buckle with the release button facing out.

•

If the belt still can’t be tightened, or if pulling and
pushing on the restraint loosens the belt, disconnect
the latch plate from the buckle, turn the latch plate

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65

around, and insert the latch plate into the buckle
again. If you still can’t make the child restraint secure,
try a different seating position.

•

Buckle the child into the seat according to the child
restraint manufacturer’s directions.

•

When your child restraint is not in use, secure it in the
vehicle with the seat belt or remove it from the vehicle.
Do not leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants or seat backs
and cause serious personal injury.

WARNING!

Improper installation can lead to failure of an infant
or child restraint. It could come loose in a collision.
The child could be badly injured or killed. Follow
the manufacturer’s directions exactly when installing
an infant or child restraint.

Lower Anchors and Tether for CHildren (LATCH)

Each vehicle is equipped with the child restraint anchor­age system called LATCH, which stands for Lower
Anchors and Tether for CHildren. LATCH child restraint
anchorage systems are installed in the 2500/3500 Stan­dard Cab passenger seat position and the Quad Cab rear
seat outboard positions. LATCH equipped seating posi­tions feature both lower anchor bars, located at the back
of the seat cushion, and tether strap anchorages, located
behind the seatback (refer to Child Restraint Tether
Anchor later in this section).

Identification dots are located above the standard cab
front seat lower anchorages as a guide for locating lower
anchors.

2

66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE: For children riding in the front seat of a Stan­dard Cab model refer to the “Passenger Airbag On/Off
Switch” located in this section.

Standard Cab Passenger Seat

Quad Cab Rear Outboard Seats

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67

some time. In fact, many child restraint manufacturers
will provide add-on tether strap kits for some of their
older products.

Because the lower anchorages are to be introduced to
passenger carrying vehicles over a period of years, child
restraint systems having attachments for those anchor­ages will continue to have features for installation in
vehicles using the lap or lap/shoulder belt. They will also
have tether straps, and you are urged to take advantage
of all of the available attachments provided with your
child restraint in any vehicle.

2

Mega Cab Rear Seats

Child restraint systems having attachments designed to
connect to the lower anchorages are now available. Child
restraints having tether straps and hooks for connection
to the seatback tether anchorage have been available for

NOTE: When using the LATCH attaching system to
install a child restraint, please ensure that all seat belts
not being used for occupant restraints are stowed and out
of reach of children. It is recommended that before
installing the child restraint, buckle the seat belt so the
seat belt is tucked behind the child restraint and out of
reach. If the buckled seat belt interferes with the child

68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

restraint installation, instead of tucking the seat belt
behind the child restraint, route the seat belt through the
child restraint belt path and then buckle it. This should
stow the seat belt out of the reach of an inquisitive child.
Remind all children in the vehicle that the seat belts are
not toys and should not be played with, and never leave
your child unattended in the vehicle.

NOTE: If your child restraint seat is not LATCH com­patible, install the restraint using the vehicle seat belt.

Installing the Child Restraint System

WARNING!

Do not install child restraint systems equipped with
LATCH attachments in the center position of a Quad
Cab model rear seat. The LATCH anchorages in this
seat are designed for the two outboard seating posi­tions only. A child may be placed in the rear center
seating position of a Quad Cab model using the seat
belt and child tether anchorage. Failure to follow this
may result in serious or fatal injury.

We urge that you carefully follow the directions of the
manufacturer when installing your child restraint. Many,
but not all, restraint systems will be equipped with
separate straps on each side, with each having a hook or
connector and a means for adjusting the tension in the
strap. Forward-facing toddler restraints and some

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69

rearward-facing infant restraints will also be equipped
with a tether strap, a hook and means for adjusting the
tension in the strap.

In general, you will first loosen the adjusters on the lower
straps and tether straps so that you can more easily attach
the hook or connector to the lower anchorages and tether
anchorages. Then tighten all three straps as you push the
child restraint rearward and downward into the seat.

Not all child restraint systems will be installed as we
have described here. Again, carefully follow the instruc­tions that come with the child restraint system.

WARNING!

Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.

Child Restraint Tether Anchor

Child restraints having tether straps and hooks for con­nection to tether anchors have been available for some
time. In fact, many child restraint manufacturers will
provide add-on tether strap kits for their older products.
Regular Cab models of Ram Pickups have two tether
anchorages, one each behind the front center and right
seats. Quad Cab models have three anchorages, one
behind each of the rear seats.

2

70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

An incorrectly anchored tether strap could lead to
seat failure and injury to the child. In a collision, the
seat could come loose and allow the child to crash
into the inside of the vehicle or other passengers, or
even be thrown from the vehicle. Use only the anchor
positions directly behind the child seat to secure a
child restraint top tether strap. Follow the instruc­tions below. See your dealer for help if necessary.

Tether Anchorage Points at the Right and Center
Front Seat (Regular Cab - All Seats)

1. Place the child restraint on the seat and adjust the
tether strap so that it will reach over the seat back under
the head restraint to the tether anchor directly behind the
seat.

2. Lift the cover (if so equipped), and attach the hook to
the square opening in the sheet metal.

3. Install the child restraint and remove the slack in the
tether strap according to the manufacturer’s instructions.

Regular Cab With Any Bench Seat

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71

Multiple Child Restraint Installation Sequence ­(Quad Cab Rear Seats)

1. Obtain tether straps by raising the head restraints and
reaching between the rear glass and rear seat. The tether
strap may be retained with an elastic band. Accessibility
to the tether strap is greatly improved by raising the seat
cushion to the “up” position. Remove the elastic before
use.

2. Place a child restraint on each outboard rear seat and
adjust the tether strap so that it will reach under the head
restraint to the tether anchor directly behind the seat and
then to the anchor directly behind the center rear seat.

3. Pass each tether strap hook under the head restraint
and through the loop of webbing behind the child seat.

4. Route each tether strap to the anchor behind the center
seat, and attach the hooks to the metal ring.

5. Place a child restraint on the center rear seat and
adjust the tether strap so that it will reach under the head
restraint to the tether anchor directly behind the seat and
to the anchor directly behind the right seat.

6. Install each child restraint and remove the slack in the
tether strap according to the child restraint manufactur­er’s instructions.

2

72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Multiple Child Restraints

Tether Anchorage Points at All Three Seating
Positions (Mega Cab)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73

1. Place the child restraint on the seat and adjust the
tether strap so that it will reach over the seat back under
the head restraint to the tether anchor directly behind the
seat.

2. Lift the cover, and attach the hook to the square
opening in the sheet metal.

3. Install the child restraint and remove the slack in the
tether strap according to the manufacturer’s instructions.

2

Mega Cab Tether Anchor

Children Too Large for Booster Seats

Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
over the front of the seat when their back is against the
seat back should use the lap/shoulder belt in a rear seat.

74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•

Make sure that the child is upright in the seat.

•

The lap portion should be low on the hips and as snug
as possible.

•

Check belt fit periodically. A child’s squirming or
slouching can move the belt out of position.

If the shoulder belt contacts the face or neck, move the
child closer to the center of the vehicle. Never allow a
child to put the shoulder belt under an arm or behind
their back.

Transporting Pets

Airbags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision. Pets should be restrained in the rear seat in
pet harnesses or pet carriers that are secured by seat belts.

ENGINE BREAK-IN RECOMMENDATIONS

A long break-in period is not required for the engine in
your new vehicle. Drive moderately during the first 300
miles (500 km). After the initial 60 miles (100 km), speeds
up to 50 or 55 mph (80 or 90 km/h) are desirable. While
cruising, brief full-throttle acceleration, within the limits
of local traffic laws, contributes to a good break-in.

Avoid wide open throttle acceleration in low gear.
The engine oil installed in the engine at the factory is a

high quality, energy conserving type lubricant. Oil
changes should be consistent with the anticipated cli­matic conditions under which vehicle operation will
occur. The recommended viscosity and quality grades are
discussed in Section 7 under Maintenance Procedures,
Engine Oil.

NON-DETERGENT OR STRAIGHT MINERAL OILS
MUST NEVER BE USED.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75

A new engine may consume some oil during its first few
thousand miles of operation. This is a normal part of the
break-in and is not an indication of difficulty.

CAUTION!

•

During the first 500 miles (805 km) your new
vehicle is driven, do not tow a trailer. Doing so
may damage your axles, driveline and vehicle.

•

Limit your speed to 50 mph (80 km/h) during the
first 500 miles (805 km) of towing.

SAFETY TIPS
Transporting Passengers

This vehicle is designed to carry passengers in the cab
only. For safety reasons, NEVER TRANSPORT PASSEN­GERS IN THE CARGO AREA.

WARNING!

It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.

Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.

Be sure everyone in your vehicle is in a seat and
using a seat belt properly.

2

76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Lock Your Vehicle

Always remove the keys from the ignition and lock all
doors when leaving the vehicle unattended, even in your
own driveway or garage. Try to park your vehicle in a
well-lighted area and never invite theft by leaving ar­ticles of value exposed.

Exhaust Gas

WARNING!

Exhaust gases contain carbon monoxide, a potentially
toxic gas that by itself is colorless and odorless. To
avoid inhaling these gases, the following precautions
should be observed:

•

Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in
or out of the area.

•

If it is necessary to sit in a parked vehicle with the
engine running for more than a short period, adjust
your climate control system to force outside air into
the vehicle. Set the blower at high speed and the
controls in any position except OFF or MAX A/C.

•

The best protection against carbon monoxide entry
into the vehicle body is a properly maintained engine
exhaust system.

Be aware of changes in the sound of the exhaust system;
exhaust fumes detected inside the vehicle; or damage to
the underside or rear of the vehicle. Have a competent
mechanic inspect the complete exhaust system and adja­cent body areas for broken, damaged, deteriorated or
mispositioned parts. Open seams or loose connections
could permit exhaust fumes to seep into the passenger
compartment. In addition, inspect the exhaust system
each time the vehicle is raised for lubrication or oil
change. Replace or adjust as required.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77

Safety Checks You Should Make Inside The Vehicle

Heater Defroster Ducts

Inspect the heater defroster ducts for proper operation.
Check for proper air flow through all defroster ducts. If
there are any question regarding the operation of your
heater defroster ducts, have the system checked by an
authorized dealer

Seat Belts

Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.

Seat belt assemblies must be replaced after an accident if
they have been damaged (bent retractor, torn webbing,
etc.) or if the front airbags have deployed. If there is any
question regarding belt or retractor condition, replace the
belt.

Airbag Light

The light should come on and remain on for 6 to 8
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, see your
authorized dealer. If the light stays on, flickers or comes
on while driving, have the system checked by an autho­rized dealer. If there is a problem with the airbag light the
seatbelt light will flash.

2

78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Safety Checks You Should Make Outside The Vehicle

Tires

Examine tires for tread wear or uneven wear patterns.
Check for stones, nails, glass or other objects lodged in
the tread.

Inspect for tread cuts or sidewall cracks. Check wheel
nuts for tightness and tires for proper pressure.

Lights

Check the operation of all exterior lights. Check turn
signal and high beam indicator lights on the instrument
panel.

Door Latches

Check for positive closing, latching and locking.

Fluid Leaks

Check area under vehicle after overnight parking for fuel,
water, oil, or other fluid leaks. Also, if fuel fumes are
detected the cause should be located and corrected.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CONTENTS

m Power Wagon Features ....................84

▫ Skid Plates And Underbody Protection .......86

3

▫ Locking Front And Rear Differentials ........84

▫ 4.56:1 Gears ..........................84

▫ Electronically Disconnecting Stabilizer/Sway

Bar ................................85

▫ Increased Ride Height ...................85

▫ 12,000 Lb. Winch .......................85

▫ High-Pressure Monotube Shocks/New Front

And Rear Springs ......................86

▫ Off-Road Tires ........................86

▫ Wheel Flares ..........................86

▫ Wheels ..............................87

▫ Standard Package Features ................87

▫ Mopar Options ........................88

m Mirrors ...............................88

▫ Inside Mirror .........................88

▫ Automatic Dimming Mirror – If Equipped ....89

▫ Outside Mirrors .......................90

80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫ Exterior Mirrors Folding Feature ...........90

▫ Electronic Power Mirrors – If Equipped ......91

▫ Electric Rear Window Defroster And Heated

Sideview Mirrors – If Equipped ............92

▫ Trailer Towing Mirrors – If Equipped ........92

m Hands–Free Communication (UConnectt)—

If Equipped ............................93

▫ Operation ............................95

▫ Phone Call Features ...................102

▫ UConnectt System Features ..............105

▫ Advanced Phone Connectivity ............110

▫ Things You Should Know About Your

UConnectt System ....................111

▫ General Information ...................120

m Seats ................................120

▫ 40-20-40 Front Seat ....................121

▫ Reclining Seats .......................122

▫ Adjustable Head Restraints ..............122

▫ Manual Rotary Lumbar Support Adjustment —

If Equipped .........................123

▫ Power Seats — If Equipped ..............124

▫ Heated Seats — If Equipped .............125

m To Open And Close The Hood .............127

m Lights ...............................128

▫ Interior Lights .......................129

▫ Battery Saver ........................130

▫ Headlamp Delay ......................130

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81

▫ Headlights, Parking Lights, Panel Lights .....130

▫ Daytime Running Lights (Canada Only And

Fleet Vehicles) ........................131

▫ Lights-On Reminder ...................132

▫ Fog Lights — If Equipped ...............132

▫ Cargo Light — If Equipped ..............132

▫ Multifunction Control Lever ..............133

m Windshield Wipers And Washers ............135

▫ Windshield Wipers ....................135

▫ Windshield Washers ...................136

m Tilt Steering Column ....................137

m Electronic Speed Control — If Equipped ......138

▫ To Activate ..........................138

▫ To Set At A Desired Speed ...............138

▫ To Deactivate ........................139

▫ To Resume Speed .....................139

▫ To Vary The Speed Setting ...............139

▫ To Accelerate For Passing ...............141

m Overhead Console — If Equipped ...........142

▫ Courtesy/Reading Lights ................142

m Overhead Console With Compass/Temperature

Mini-Trip Computer — If Equipped ..........143

▫ US/M Button ........................143

▫ Reset Button .........................144

▫ Global Reset .........................144

▫ Step Button .........................144

3

82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫ Average Fuel Economy (AVG ECO) ........145

▫ Distance To Empty (DTE) ...............145

▫ Trip Odometer (ODO) ..................146

▫ Elapsed Time (ET) .....................146

▫ C/T Button .........................147

▫ Automatic Compass Calibration ...........147

▫ Manual Compass Calibration .............148

▫ Recalibrating The Compass ..............148

▫ Outside Temperature ...................149

m Garage Door Opener — If Equipped .........150

▫ Programming HomeLinkt ...............151

▫ Gate Operator/Canadian Programming .....154

▫ Using HomeLinkt .....................155

▫ Reprogramming a Single HomeLinkt Button . . 155

▫ Security ............................155

▫ Troubleshooting Tips ...................155

▫ General Information ...................156

m Power Sunroof — If Equipped .............156

▫ Open Sunroof - Express Mode ............157

▫ Comfort Stop ........................157

▫ Closing Sunroof - Express ...............158

▫ Pinch Protect Feature ...................158

▫ Pinch Protect Override .................158

▫ Venting Sunroof - Express ...............158

▫ Sunshade Operation ...................158

▫ Wind Buffeting .......................159

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83

▫ Sunroof Maintenance ...................159

▫ Sunroof Fully Closed ...................159

m Electrical Power Outlets ..................159

m Cigar Lighter And Ash Receiver ............161

m Cupholders ...........................162

▫ Front Instrument Panel Cupholders ........162

▫ Rear Cupholder — Quad Cab —

If Equipped .........................162

m Storage ..............................163

▫ Center Storage Compartment — If Equipped . .163

▫ Storage And Seats — If Equipped ..........164

m Rear Window Features ...................165

▫ Electric Rear Window Defroster And Heated

Side View Mirrors — If Equipped ..........165

▫ Power Sliding Rear Window — If Equipped . . 165

▫ Sliding Rear Window — If Equipped .......166

m Fold Flat Load Floor — If Equipped .........166

m Pickup Box ...........................169

m Slide-In Campers .......................171

m Easy-Off Tailgate .......................171

3

84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

POWER WAGON FEATURES
Locking Front and Rear Differentials

Most 4WD trucks are equipped with open differentials
front and rear. This design is used because it allows each
wheel to turn independently helping to eliminate bind­ing when cornering. A disadvantage of using an open
differential is when one or more wheels lose traction; all
of the power is directed to those wheels resulting in a loss
of momentum. The Power Wagon is equipped with
electronically locking front and rear differentials. These
differentials, when engaged, mechanically lock together
the axle shafts forcing the wheels to spin at an equal rate.
This allows the vehicle to maintain its momentum and
thus prevents it from becoming stuck. The locking front
and rear differentials should only be engaged during
low-speed, extreme off-road situations where one wheel
is likely to not be in contact with the ground. It is not

recommended to drive the vehicle with the differentials
locked on pavement due to the reduced ability to turn
and speed limitations.

4.56:1 Gears

This is the highest axle ratio available in a full-size
pickup. The high gearing helps to compensate for the
increased rolling mass and increase diameter of the
off-road tires. As well, there are many advantages to a
higher axle ratio in off-road applications. When driving
downhill the high gearing enables the driver to use the
engine to slow the vehicle down in a more controlled
manner. When driving up a steep grade, the ratio helps
by keeping the truck in its power band helping to
maintain upward momentum.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

Electronically Disconnecting Stabilizer/Sway Bar

Stabilizer bars are used to help distribute load force from
one side of the vehicle to the other. This helps to reduce
body roll and create a smoother ride during on-road
driving. However,this becomes a disadvantage when the
vehicle is driven off-road when a higher level of suspen­sion articulation is needed. By disconnecting the stabi­lizer bars, each wheel can now reach its maximum range
of movement. This enables the vehicle to maintain a
greater tire contact patch, and thus more traction, when
traversing severe off-road terrain.

Increased Ride Height

Due to the use of taller springs, the Power Wagon has an
increased ride height of approximately 1.9 inches in the
front and 1.5 inch in the rear. It allows the truck to
traverse larger obstructions and provides a better seating
position from which to view the trail. A major advantage
to increasing ride height is the positive effect it has on

approach/departure and break over angles. More ride
height allows for more aggressive angles, further improv­ing off-road capability.

12,000 lb. Winch

The Power Wagon is the 9only pickup truck9 to offer an
electric vehicle recovery winch from the factory. The
winch provides the vehicle with an additional level of
capability and versatility. This winch uses the electrical
power from the vehicle charging system to power a
motor that winds wire rope onto the winch drum via
planetary gear reduction. By nature, a winch is capable of
generating very high forces and should be used with
care. Do not operate the winch without reading and
understanding the complete winch section of owner’s
manual, including all warnings and cautions.

3

86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

High-Pressure Monotube Shocks/New Front and Rear Springs

The new variable-rate shocks and revised springs help to
create a suitable on-road ride without compromising
off-road competency. The shocks are designed to provide
improved stability, durability, and suspension articula­tion.

Off-Road Tires

These tires are specifically designed for extreme off-road
use, while also maintaining quite on-road operation. The
tires utilize long-life compounds for increased durability,
and a deep-groove tread for extra traction. The LT285/
70R17D used provides a large contact patch for better
traction, two full-width steel belts for improved strength,
as well as a reinforced sidewall to help protect against
bruising and shredding.

Skid Plates And Underbody Protection

Steel skid plates protect the major driveline components
of the truck including the fuel tank, transfer case and
steering damper. In addition the Power Wagon is
equipped with boxed cross members and fore/aft rails.
This additional protection allows the vehicle to be uti­lized in severe off-road situations that would be consid­ered impassable by a normal truck.

Wheel Flares

Not just for looks, the wheel flares on the Power Wagon
were designed to help cover its new larger off-road tires.
The larger flares also help to reduce the amount of debris
that can be flung up by the more aggressive tread pattern
on the tires.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

Wheels

Stylish forged aluminum 179 wheels give the Power
Wagon a powerful stance. Forging a wheel from alumi­num produces a stronger, lighter weight wheel than
machining or casting the wheel out of the same material.

Standard package features:

•

Fuel Tank Skid Plate - protects the fuel tank from
impingement damage.

•

Transfer Case Skid Plate and Tubing - protects the
transfer case and exhaust catalyst from impingement
damage.

•

Heavy Duty Cross Members - protects the under
carriage and supports the under body protection skid
plates.

•

Fore/Aft rails - which connect the cross member for
additional support and prevent the truck from getting
hung up on large rocks between the cross members.

•

Steering Dampener Skid Plate - protects the steering
dampener from impingement damage.

•

Electronically Locking Front And Rear Axle Differen­tials with 4:56 Gears - improves mobility and articula­tion by locking the differentials.

•

Electronically Disconnecting Stabilizer Bar - improves
mobility and articulation by disconnecting the Stabi­lizer Bar.

•

160 Amp Alternator - supplies increased electrical
power for the winch and other off-road accessories.

•

Heavy Duty Battery - supplies increased electrical
power for the winch and other off-road accessories.

•

Heavy Duty Cooling Fan - provides enhanced engine
and transmission cooling under vigorous off-road
conditions.

3

88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•

Off-Road Tuned Suspension And Shocks - improves
mobility, ground clearance and ride comfort.

•

Heavy Duty Thermally Protected and Sealed Electric
Winch with Roller Fairlead - Useful for work and
vehicle recovery.

•

17 Inch Forged Aluminum Wheels With 33 Inch Tires

- improves traction and differential ground clearance.

Mopar Options:

Rock Rails - protects the door sills from impingement

•

damage and provides a vehicle jacking point.

•

Winch accessory kit - Contents include:

•

Snatch Block/Pulley

•

Clevis

•

Tree strap

•

Tow Strap

•

Gloves

•

“Power Wagon embossed” storage bag

•

Bed Liner - protects the bed from impingement dam­age

NOTE: These Mopar options have been specially de­signed and tested for the Power Wagon to meet the
vigorous off-road conditions.

MIRRORS
Inside Mirror

The mirror should be adjusted to center on the view
through the rear window.

Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward rear of vehicle). The mirror should be adjusted
while set in the day position (toward windshield).

Adjusting Rear View Mirror

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

Automatic Dimming Mirror – If Equipped

This mirror automatically adjusts for annoying headlight
glare from vehicles behind you. You can turn the feature
on or off by pressing the button at the base of the mirror.
A light in the button will indicate when the dimming
feature is activated.

Automatic Dimming Mirror

3

90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!

To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.

Outside Mirrors

To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.

WARNING!

Vehicles and other objects seen in a right side convex
mirror will look smaller and farther away than they
really are. Relying too much on your right side
convex mirror could cause you to collide with an­other vehicle or other object. Use your inside mirror
when judging the size or distance of a vehicle seen in
the right side convex mirror. Some vehicles will not
have a convex right side mirror.

Exterior Mirrors Folding Feature

All6x9inch exterior mirrors are hinged and may be
moved either forward or rearward to resist damage. The
hinges have three detent positions; full forward, full
rearward, and normal.

Electronic Power Mirrors – If Equipped

Power Mirror Movement

The controls for the power mirrors are located on the
driver’s door trim panel.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

3

Power Mirror Switches

Set the top switch to the left or right for the left or right
mirror, and set it to the center off position to prevent
accidentally moving a mirror when you are finished
adjusting the mirror. To adjust a mirror, select left or right
with the top switch, and press one of the four arrows for
the direction you want the mirror to move.

92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Electric Rear Window Defroster and Heated
Sideview Mirrors – If Equipped

The Electric Rear Window Defroster and Heated

side view mirrors are activated by pressing the
heated grid button, located on the Climate Control panel,
with the ignition On. Turning Off the rear window
defroster or the ignition will deactivate the Electric Rear
Window Defroster and Heated side view mirrors feature.
These features turn off automatically after 15 minutes
have elapsed for the first activation per ignition cycle.
Each subsequent activation of these features per ignition
cycle will shutoff automatically after 10 minutes have
elapsed. To reactivate, simply press the button again.

Trailer Towing Mirrors – If Equipped

These mirrors are designed with an adjustable mirror
head to provide a greater vision range when towing

extra-wide loads. To change position inboard or out­board, the mirror head should be rotated (flipped Out or
In). A small blindspot mirror is integrated onto the main
mirror surface.

NOTE: Fold the7x10inch trailer towing mirrors
rearward prior to entering an automated car wash.

Blindspot Mirror

Trailer Towing Position

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

HANDS–FREE COMMUNICATION (UConnectT)—
IF EQUIPPED

NOTE: The sales code RER radio contains an inte­grated Hands-Free Communication (UConnectt) sys­tem. Refer to your “Navigation User’s Manual” for
UConnectt system operating instructions for this radio.

UConnectt is a voice-activated, hands-free, in- vehicle
communications system. UConnectt allows you to dial a
phone number with your cellular phone using simple
voice commands (e.g., 9Call” { “Mike” {”Work9 or 9Dial”
{ “248-555-12129). Your cellular phone’s audio is trans­mitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnectt system.

NOTE: The UConnectt system use requires a cellular
phone equipped with the Bluetooth 9Hands-Free Profile,9
version 0.96 or higher. See UConnectt website for sup­ported phones.

3

94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE: For UConnectt customer support, visit the
following web sites:

•

www.chrysler.com/uconnect

•

www.dodge.com/uconnect

•

www.jeep.com/uconnect

•

or call 1–877–855–8400

UConnectt allows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle, and enables you to mute the system’s micro­phone for private conversation.

The UConnectt phone book enables you to store up to 32
names and four numbers per name. Each language has a
separate 32-name phone book accessible only in that
language. This system is driven through your
Bluetooth™ Hands-Free profile cellular phone.
UConnectt features Bluetooth™ technology - the global

standard that enables different electronic devices to con­nect to each other without wires or a docking station, so
UConnectt works no matter where you stow your cellu­lar phone (be it your purse, pocket, or briefcase), as long
as your phone is turned on and has been paired to the
vehicle’s UConnectt system. The UConnectt system
allows up to seven cellular phones to be linked to system.
Only one linked (or paired) cellular phone can be used
with the system at a time. The system is available in
English, Spanish, or French languages (as equipped).

Phone Button

The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the

radio or the mirror has the two control buttons
(Phone Button and Voice Recognition Button) that will
enable you to access the system.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

Voice Recognition Button

Actual button location may vary with radio.
The individual buttons are described in the
“Operation” section.

The UConnectt system can be used with any Hands-Free
Profile certified Bluetooth™ cellular phone. See
UConnectt website for supported phones. If your cellu­lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnectt
features. Refer to your cellular service provider or the
phone manufacturer for details.

The UConnectt system is fully integrated with the vehi­cle’s audio system. The volume of the UConnectt system
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.

The radio display will be used for visual prompts from
the UConnectt system such as 9CELL9 or caller ID on
certain radios.

Operation

Voice commands can be used to operate the UConnectt
system and to navigate through the UConnectt menu
structure. Voice commands are required after most
UConnectt system prompts. You will be prompted for a
specific command and then guided through the available
options.

•

Prior to giving a voice command, one must wait for
the beep, which follows the 9Ready9 promptor another
prompt.

•

For certain operations, compound commands can be
used. For example, instead of saying 9Setup9 and then
9Phone Pairing,9 the following compound command
can be said: 9Setup Phone Pairing.9

3

96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•

For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command, when you are asked for it. For
example, you can use the combined form voice com­mand 9Phonebook New Entry,9 or you can break the
combined form command into two voice commands:
9Phonebook9 and 9New Entry.9 Please remember, the
UConnectt system works best when you talk in a
normal conversational tone, as if speaking to some one
sitting eight feet away from you.

Voice Command Tree

Refer to “Voice Tree” at the end of this section.

Help Command

If you need assistance at any prompt, or if you want to
know your options at any prompt, say 9Help9 following
the beep. The UConnectt system will play all the options
at any prompt if you ask for help.

To activate the UConnectt system from idle, simply press
the “Phone” button and follow audible prompts for
directions. All UConnectt system sessions begin with a
press of the “Phone” button on the radio control head.

Cancel Command

At any prompt, after the beep, you can say 9Cancel9 and
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.

Pair (Link) UConnectt System to a Cellular Phone

To begin using your UConnectt system, you must pair
your compatible Bluetooth™ enabled cellular phone.

To complete the pairing process, you will need to refer­ence your cellular phone owner’s manual. The
UConnectt website may also provide detailed instruc­tions for pairing.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

The following are general phone to UConnectt System
pairing instructions:

•

Press the “Phone” button to begin.

•

After the 9Ready9 prompt and the following beep, say
9Setup Phone Pairing.9

•

When prompted, after the beep, say 9Pair a Phone9 and
follow the audible prompts.

•

You will be asked to say a four-digit pin number,
which you will later need to enter into your cellular.
You can enter any four-digit pin number. You will not
need to remember this pin number after the initial
pairing process.

•

For identification purposes, you will be prompted to
give the UConnectt system a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.

•

You will then be asked to give your cellular phone a
priority level between 1 and 7, 1 being the highest
priority. You can pair up to seven cellular phones to
your UConnectt system. However, at any given time,
only one cellular phone can be in use, connected to
your UConnectt System. The priority allows the
UConnectt system to know which cellular phone to
use if multiple cellular phones are in the vehicle at the
same time. For example, if priority 3 and priority 5
phones are present in the vehicle, the UConnectt
system will use the priority 3 cellular phone when you
make a call. You can select to use a lower priority
cellular phone at any time (refer to 9Advanced Phone
Connectivity9).

Dial by Saying a Number

Press the “Phone” button to begin.

•

•

After the 9Ready9 prompt and the following beep, say
9Dial.9

3

98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•

System will prompt you to say the number you want
call.

•

For example, you can say 9234-567-8901.9 The phone
number that you enter must be of valid length and
combination. Based on the country in which the ve­hicle was purchased, the UConnectt limits the user
from dialing invalid combination of numbers. For
example, in USA, 234-567-890 is nine digits long,
which is not a valid USA phone number - the closest
valid phone number has ten digits.

•

The UConnectt system will confirm the phone num­ber and then dial. The number will appear in the
display of certain radios.

Call by Saying a Name

Press the “Phone” button to begin.

•

•

After the 9Ready9 prompt and the following beep, say
“Call.9

•

System will prompt you to say the name of the person
you want call.

•

After the 9Ready9 prompt and the following beep, say
the name of the person you want to call. For example,
you can say 9John Doe,9 where John Doe is a previ­ously stored name entry in the UConnectt phone
book. Refer to 9Add Names to Your UConnectt Phone­book,9 to learn how to store a name in the phone book.

•

The UConnectt system will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.

Add Names to Your UConnectt Phonebook
NOTE: Adding names to phone book is recommended

when vehicle is not in motion.

•

Press the “Phone” button to begin.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

•

After the 9Ready9 prompt and the following beep, say
9Phonebook New Entry.9

•

When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, say 9Robert Smith9 or
9Robert9 instead of 9Bob.9

•

When prompted, enter the number designation (e.g.,
9Home,99Work,99Mobile,9 or 9Pager9). This will allow
you to store multiple numbers for each phone book
entry, if desired.

•

When prompted, recite the phone number for the
phone book entry that you are adding.

After you are finished adding an entry into the phone
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.

The UConnectt system will allow you to enter up to 32
names in the phone book with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phone book accessible
only in that language.

Phonebook Download

UConnectt allows the user to download entries from
their phone via Bluetooth. To use this feature, press the
“Phone” button and say “Phonebook Download.” Sys­tem prompts “Ready to accept vcard entry via
Bluetooth…” The system is now ready to accept phone­book entries from your phone using the Bluetooth Object
Exchange Profile (OBEX). Please see your phone owners’
manual for specific instructions on how to send these
entries from your phone.

NOTE:

•

Phone handset must support Bluetooth OBEX trans­fers of phonebook entries to use this feature.

3

100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•

Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth,
and you may see a message on the phone display that
the Bluetooth link is busy. In this case, the user must
first disconnect or drop the Bluetooth connection to
the UConnectt and then send the address book entry
via Bluetooth. Please see your phone owners’ manual
for specific instructions on how to drop the Bluetooth
connection.

•

If the phonebook entry is longer than 24 characters it
will be use only the first 24 characters.

•

You will then be asked for the name of the phone book
entry that you wish to edit.

•

Next, choose the number designation (home, work,
mobile, or pager) that you wish to edit.

•

When prompted, recite the new phone number for the
phone book entry that you are editing.

After you are finished editing an entry in the phone book,
you will be given the opportunities to edit another entry
in the phonebook, call the number you just edited, or
return to the main menu.

Edit Entries in the UConnectt Phonebook
NOTE: Editing names in the phone book is recom-

mended when vehicle is not in motion.

•

Press the “Phone” button to begin.

•

After the 9Ready9 prompt and the following beep, say
9Phonebook Edit.9

9Phonebook Edit9 can be used to add another phone

number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
mobile and a home number, but you can add John Doe’s
work number later using the 9Phonebook Edit9 feature.
