Dodge Durango 2008 Owner's Manual
SECTION PAGE
1
INTRODUCTION
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
4
INSTRUMENT PANEL AND CONTROLS
5
STARTING AND OPERATING
6
WHAT TO DO IN EMERGENCIES
7
MAINTAINING YOUR VEHICLE
8
MAINTENANCE SCHEDULES
9
IF YOU NEED CONSUMER ASSISTANCE

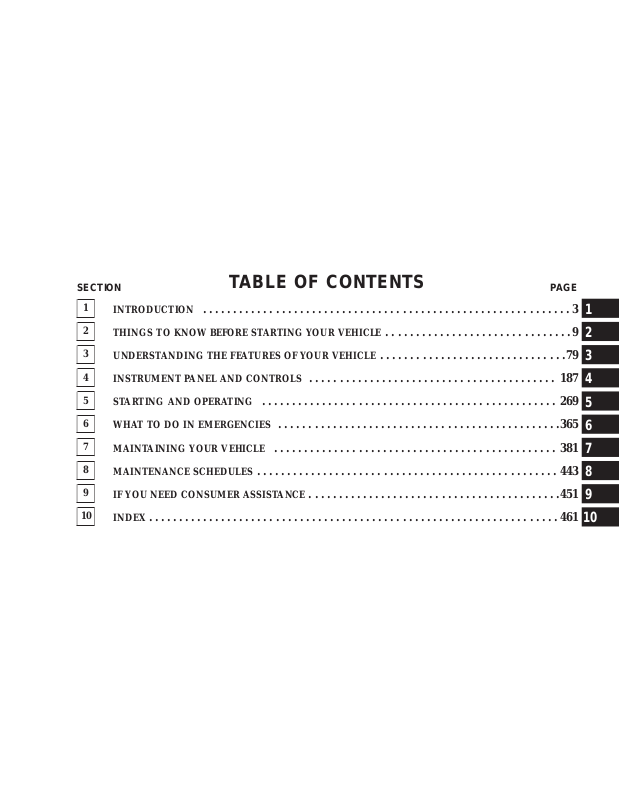

TABLE OF CONTENTS
.............................................................3
...............................9
...............................79
......................................... 187
.................................................269
...............................................365
...............................................381
..................................................443
..........................................451
1
2
3
4
5
6
7
8
9
10
INDEX
....................................................................461
10
CONTENTS
INTRODUCTION
1
m Introduction ...........................4
m Rollover Warning ........................4
m How To Use This Manual ..................5
m Warnings And Cautions ................... 7
m Vehicle Identification Number ...............7
m Vehicle Modifications/Alterations ............8
4 INTRODUCTION
INTRODUCTION
This manual has been prepared with the assistance of
service and engineering specialists to acquaint you with
the operation and maintenance of your new vehicle. It is
supplemented by a Warranty Information Booklet and
various customer oriented documents. You are urged to
read these publications carefully. Following the instructions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.
NOTE: After you read the manual, it should be stored
in the vehicle for convenient reference and remain with
the vehicle when sold, so that the new owner will be
aware of all safety warnings.
When it comes to service, remember that your dealer
knows your vehicle best, has the factory-trained technicians and genuine Mopart parts, and is interested in
your satisfaction.
ROLLOVER WARNING
Utility vehicles have a significantly higher rollover rate
than other types of vehicles. This vehicle has a higher
ground clearance, and a higher center of gravity than
many passenger cars. It is capable of performing better in
a wide variety of off-road applications. Driven in an
unsafe manner, all vehicles can be caused to go out of
control. Because of the higher center of gravity, if this
vehicle is out of control it may rollover when some other
vehicles may not.
Do not attempt sharp turns or abrupt maneuvers or other
unsafe driving actions that can cause loss of vehicle
control. Failure to operate this vehicle safely may result
in an accident, rollover of the vehicle, and severe or fatal
injury. Drive carefully.
Rollover Warning Label
INTRODUCTION 5
Failure to use driver and passenger seat belts provided
is a major cause of severe or fatal injury. In fact, the U.S.
government notes that the universal use of existing seat
belts could cut the highway death toll by 10,000 or more
each year, and could reduce disabling injuries by 2
million annually. In a rollover crash, an unbelted person
is significantly more likely to die than a person wearing
a seat belt. Always buckle up.
HOW TO USE THIS MANUAL
Consult the table of contents to determine which section
contains the information you desire.
The detailed index, at the rear of this manual, contains a
complete listing of all subjects.
Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this owner’s manual:
1
6 INTRODUCTION
WARNINGS AND CAUTIONS
This manual contains WARNINGS against operating
procedures, which could result in an accident or bodily
injury. It also contains CAUTIONS against procedures,
which could result in damage to your vehicle. If you do
not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The vehicle identification number (VIN) is found on the
left front corner of the instrument panel, visible through
the windshield. This number also appears on the Automobile Information Disclosure Label affixed to a window
on your vehicle, the vehcile registration and title.
INTRODUCTION 7
1
VIN Location
NOTE: It is illegal to remove the VIN.
8 INTRODUCTION
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to an accident resulting in serious injury or
death.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
m A Word About Your Keys ..................12
▫ Ignition Key Removal ...................12
▫ Locking Doors With The Key ..............13
m Sentry Key ............................13
▫ Replacement Keys ......................15
▫ Customer Key Programming ..............15
▫ General Information ....................16
m Ignition And Steering Lock .................17
▫ Ignition Accessory Delay Feature ...........18
2
m Security Alarm System — If Equipped .........18
▫ To Set The Alarm ......................19
▫ To Disarm The System ...................19
m Illuminated Entry ........................20
▫ Vehicles Equipped With Power Door Locks ....20
m Remote Keyless Entry .....................20
▫ To Unlock The Doors And Liftgate ..........21
▫ To Lock The Doors And Liftgate ............22
▫ Using The Panic Alarm ..................24
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
▫ General Information ....................24
▫ Programming Additional Transmitters ........25
▫ Battery Replacement ....................26
m Remote Starting System — If Equipped ........27
m Door Locks ............................28
▫ Manual Door Locks .....................28
▫ Power Door Locks .....................29
▫ Child Protection Door Lock ...............32
m Windows .............................33
▫ Power Windows .......................33
▫ Auto Down ..........................34
▫ Auto Up Feature With Anti-Pinch Protection
(Driver’s And Front Passenger Door Only) ....34
▫ Window Lockout Switch .................35
m Liftgate ...............................35
▫ Power Liftgate — If Equipped .............36
m Occupant Restraints ......................39
▫ Lap/Shoulder Belts .....................40
▫ Adjustable Upper Shoulder Belt Anchorage ....45
▫ Second Row Center Seat Belt ..............46
▫ Automatic Locking Retractors (ALR) Mode – If
Equipped ............................46
▫ Rear 60/40 Seat Third Row Center Three Point
Belt — If Equipped .....................47
▫ Seat Belt Pretensioners ...................50
▫ Enhanced Driver Seat Belt Reminder System
(BeltAlert) ...........................50
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
▫ Seat Belts And Pregnant Women ............52
▫ Seat Belt Extender ......................52
▫ Driver And Right Front Passenger Supplemental
Restraint System (SRS)—Airbags ...........53
▫ Event Data Recorder (EDR) ...............62
▫ Child Restraint ........................64
m Engine Break-In Recommendations ...........74
m Safety Tips ............................75
▫ Exhaust System .......................75
▫ Safety Checks You Should Make Inside The
Vehicle ..............................76
▫ Safety Checks You Should Make Outside The
Vehicle ..............................77
2
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
A WORD ABOUT YOUR KEYS
The dealer that sold you your new vehicle has the key
code numbers for your vehicle locks. These numbers can
be used to order duplicate keys from your dealer. Ask
your dealer for these numbers and keep them in a safe
place.
Ignition Key
Ignition Key Removal
Automatic Transmission
Place the shift lever in PARK. Turn the ignition switch to
the LOCK position, and remove the key.
Ignition Switch Positions
NOTE: If you try to remove the key before you place the
lever in PARK, the key may become trapped temporarily
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
in the ignition cylinder. If this occurs, rotate the key to the
right slightly, then remove the key as described. If a
malfunction occurs, the system will trap the key in the
ignition cylinder to warn you that this safety feature is
inoperable. The engine can be started and stopped but
the key cannot be removed until you obtain service.
WARNING!
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be seriously or fatally injured. Don’t leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Locking Doors With The Key
You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. See Section 7 of this manual for door lock
lubrication.
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
2
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorized
vehicle operation. Therefore, only keys that are programmed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two (2)
seconds if someone uses an invalid key to start the engine.
NOTE: A key, which has not been programmed, is also
considered an invalid key even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Alarm Indicator Light will
turn on for three (3) seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is
a problem with the electronics. In addition, if the light
begins to flash after the bulb check, it indicates that
someone used an invalid key to start the engine. Either of
these conditions will result in the engine being shut off
after two (2) seconds.
If the Vehicle Security Alarm Indicator Light turns on
during normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there is a fault in
the electronics. Should this occur, have the vehicle serviced as soon as possible.
NOTE:
•
The Sentry Key Immobilizer System is not compatible
with some after-market remote starting systems. Use
of these systems may result in vehicle starting problems and loss of security protection.
•
Exxon/Mobil Speed Pass,™ additional Sentry Keys, or
any other transponder-equipped components on the
same key chain will not cause a key-related (transponder) fault unless the additional part is physically held
against the ignition key being used when starting the
vehicle. Cell phones, pagers, or other RF electronics
will not cause interference with this system.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Key is programmed to a vehicle, it cannot
be programmed to any other vehicle.
CAUTION!
Always remove Sentry Keys from the vehicle and
lock all doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit PIN number. Keep the PIN in a secure
location. This number is required for dealer replacement
of keys. Duplication of keys may be performed at an
authorized dealer or by using the Customer Key Programming procedure. This procedure consists of programming a blank key to the vehicle electronics. A blank
key is one, which has never been programmed.
NOTE: When having the Sentry Key Immobilizer
System serviced, bring all vehicle keys with you to the
dealer.
Customer Key Programming
If you have two valid sentry keys, you can program new
sentry keys to the system by performing the following
procedure:
1. Cut the additional Sentry Key Transponder blank(s) to
match the ignition switch lock cylinder key code.
Insert the first valid key into the ignition switch. Turnthe
2.
ignition switch to the “ON” position for at least 3 seconds,
but no longer than 15-seconds. Then, turn the ignition
switch to the “LOCK” position and remove the first key.
2
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the “ON” position within 15
seconds. After ten seconds, a chime will sound. In
addition, the Vehicle Security Alarm Indicator Light will
begin to flash. Turn the ignition switch to the “LOCK”
position and remove the second key.
4. Insert a blank Sentry Key into the ignition switch. Turn
the ignition switch to the “ON” position within 60
seconds. After 10 seconds, a single chime will sound. In
addition, the Vehicle Security Alarm Indicator Light will
stop flashing. To indicate that programming is complete,
the indicator light will turn on again for 3 seconds and
then turn off.
The new Sentry Key is programmed. The Keyless Entry
Transmitter will also be programmed during this procedure.
Repeat this procedure to program up to 8 keys. If you do
not have a programmed sentry key, contact your dealer
for details.
NOTE: If a programmed key is lost, see your dealer to
have all remaining keys erased from the systems
memory. This will prevent the lost key from starting your
vehicle. The remaining keys must then be reprogrammed. All vehicle keys must be taken to the dealer at
the time of service to be reprogrammed.
General Information
The Sentry Key system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•
This device may not cause harmful interference.
•
This device must accept any interference that may be
received, including interference that may cause undesired operation.
IGNITION AND STEERING LOCK
In the LOCK position, the steering and ignition systems
are locked to provide anti-theft protection for your vehicle. It may be difficult to turn the key from the LOCK
position when starting your vehicle, if the steering wheel
is locked. Move the steering wheel left and right while
turning the key until it turns easily. The key can be
inserted or withdrawn only in the LOCK position. Push
in on the key in the ignition lock cylinder to rotate to the
LOCK position.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2
Ignition Switch Positions
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
The key cannot be turned to LOCK until the selector
is in the PARK position. Do not attempt to pull the
shift lever out of PARK after the key is in the LOCK
position.
NOTE: The steering wheel will lock when the key is
removed, and the steering wheel is turned around 115
degrees clockwise or 65 degrees counterclockwise from
the center position.
Ignition Accessory Delay Feature
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC),the power window switches,
radio, hands–free system (if equipped), and power outlets will remain active for 10 minutes after the ignition
switch is turned off. Opening either front door will cancel
this feature.
For vehicles equipped with the Electronic Vehicle Information Center (EVIC), the power window switches,
radio, hands–free system (if equipped), and power outlets will remain active for up to 10 minutes after the
ignition switch is turned off. Opening either front door
will cancel this feature. The time for this feature is
programmable. For details, refer to “KEY OFF POWER
DELAY > OFF” under “Personal Settings (Customer
Programmable Features),” under “Electronic Vehicle Information Center (EVIC)” in Section 3 of this manual.
SECURITY ALARM SYSTEM — IF EQUIPPED
This system monitors the vehicle doors, liftgate, and
ignition for unauthorized operation. When the alarm is
activated, the system provides both audible and visual
signals. The horn will sound repeatedly for 3 minutes
and the headlights and security light in the instrument
cluster will flash for an additional 15 minutes. The engine
will not run until the system is disarmed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
To Set the Alarm:
The alarm will set when you use the power door locks or
use the Keyless Entry transmitter to lock the doors. After
all the doors are locked and closed the security light in
the instrument cluster will flash rapidly to signal that the
system is arming. The security light in the instrument
panel cluster will flash rapidly for about 15 seconds to
indicate that the alarm is being set. After the alarm is set,
the security light will flash at a slower rate to indicate
that the system is armed.
NOTE: If the security light stays on continuously during
vehicle operation, have the system checked by your
dealer.
To Disarm the System:
Use the Keyless Entry transmitter to unlock the doors. If
something has triggered the system in your absence, the
horn will sound three times when you unlock the doors.
Check the vehicle for tampering.
The security system will also disarm, if the vehicle is
started with a programmed Sentry Key. If an unprogrammed Sentry Key is used to start a vehicle, the engine
will start and run for 2 seconds and then shut down.
After six unsuccessul attempts at starting the engine, the
system will shut down until the correct key is used. To
exit alarming mode, press the RKE Unlock button or start
the vehicle with a programmed Sentry Key.
The security alarm system is designed to protect your
vehicle; however, you can create conditions where the
system will arm unexpectedly. If you remain in the
vehicle and lock the doors with the transmitter, the alarm
will sound when you pull the door handle to exit.
NOTE: You may accidentally activate the security system (horn sounds and lights flash) by entering the vehicle
without using the key fob to unlock the door(s). The
security system can be disarmed with the key fob’s
2
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
UNLOCK button or by inserting a programmed Sentry
Key into the ignition and turning the key to the ON
position.
ILLUMINATED ENTRY
Vehicles Equipped With Power Door Locks
All interior lights will illuminate in the vehicle when the
doors are unlocked using the key fob.
The interior lights will remain on for 30 seconds after the
last door is closed, or until all doors are closed and either
the ignition is turned to the ON position or a key fob
LOCK button is pressed.
There is also a battery saver feature that will turn the
interior lights off after 8 minutes if the ignition is OFF
and a door is left open or the dimmer control is in the
interior lights ON position.
REMOTE KEYLESS ENTRY
Five Button Transmitter
NOTE: For the remote starting feature (if equipped),
refer to the “Remote Starting System” section.
NOTE: For the power liftgate feature (if equipped), refer
to the “Power Liftgate” section.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
NOTE: Your vehicle’s keyfob may have three, four or
five buttons (shown), depending on the optional features
purchased with your vehicle.
This system allows you to lock or unlock the doors and
liftgate or activate the panic alarm from distances a
minimum of 66 feet (20 meters) using a hand held radio
transmitter. The transmitter need not be pointed at the
vehicle to activate the system.
NOTE: The line of transmission must not be blocked
with metal objects.
To unlock the doors and liftgate:
Press and release the UNLOCK button on the key fob
once to unlock only the driver’s door or twice to unlock
all the doors and liftgate. When the UNLOCK button is
pressed, the illuminated entry will initiate, and the
parking lights will flash on twice.
The system can be programmed to unlock all the doors
upon the first UNLOCK button press by using the
following procedure:
•
For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Remote Key
Unlock,” under “Personal Settings (Customer Programmable Features),” under “Electronic Vehicle Information Center (EVIC)” in Section 3 of this manual
for details.
•
For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the LOCK button on a programmed
key fob.
2. Continue to hold the LOCK button at least 4 seconds,
but not longer than 10 seconds, then press and hold the
UNLOCK button.
2
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK button on the keyfob.
NOTE: Pressing the LOCK button on the keyfob while
you are inside the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
To lock the doors and liftgate:
Press and release the LOCK button on the key fob to lock
all doors and liftgate. If the ignition is OFF, when the
doors are locked, the parking lights will flash on once
and the horn will chirp once.
Horn Chirp Programming
The horn chirp feature will be shipped from the assembly
plants activated. If desired this feature can be disabled by
using the following procedure:
•
For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Remote Key
Unlock,” under “Personal Settings (Customer Programmable Features),” under “Electronic Vehicle Information Center (EVIC)” in Section 3 of this manual
for details.
•
For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the LOCK button on the key fob.
2. After holding the LOCK button for four seconds, also
press the PANIC button within 6 seconds.
3. Release both buttons at the same time.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
4. To reactivate this feature, repeat the above steps.
5. Test the horn chirp feature while outside of the vehicle, by pressing the LOCK button on the key fob with
the ignition in the OFF position and the key removed.
NOTE: Pressing the LOCK button on the keyfob, while
you are inside the vehicle, will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
6. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
Flash Lamps with Lock Programming
•
For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Remote Key
Unlock,” under “Personal Settings (Customer Programmable Features),” under “Electronic Vehicle Information Center (EVIC)” in Section 3 of this manual
for details.
•
For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the UNLOCK button on the key fob.
2. After holding the UNLOCK button for four seconds,
also press the LOCK button within 6 seconds.
3. Release both buttons at the same time.
4. Test the flash lamps with LOCK feature while outside
of the vehicle, by pressing the LOCK button on the key
fob with the ignition in the OFF position, and the key
removed.
NOTE: Pressing the LOCK button on the key fob, while
you are in the vehicle, will activate the Security Alarm.
Opening a door with the Security Alarm activated will
cause the alarm to sound. Press the UNLOCK button to
deactivate the Security Alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
2
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Using the Panic Alarm
To activate the Panic mode while the ignition is OFF press
and release the PANIC button on the transmitter once.
When the Panic mode is activated, the interior lights will
illuminate, the headlamps and parking lights will flash,
and the horn will sound.
To cancel the Panic mode press and release the PANIC
button on the transmitter a second time. Panic mode will
automatically cancel after 3 minutes or if the vehicle is
started or exceeds 15 mph (24 km/h). During the Panic
Mode, the door locks and remote keyless entry systems
will function normally. Panic mode will not disarm the
security system on vehicles so equipped.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your Remote Lock Control fails to operate from a
normal distance, check for these two conditions.
1. Weak batteries in transmitter. The expected life of
batteries is five years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
Programming Additional Transmitters
Vehicles will be shipped from the assembly plants with
two key fob transmitters programmed only for that
vehicle. A total of eight fobs can be programmed for your
vehicle. Additional fobs can be programmed to your
vehicle through the use of a currently programmed fob.
NOTE: When entering program mode using that fob, all
other programmed fobs will be erased and you will have
to reprogram them for your vehicle.
Use the Following procedure to program additional key
fobs if the vehicle is not equipped with Sentry Key:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt (Fastening the seatbelt will cancel
any chiming that may confuse you during this programming procedure).
3. Place the key into the ignition.
4. Turn the ignition to the ON position ( Do not start the
engine ).
5. Press and hold the UNLOCK button on the key fob.
6. After holding the UNLOCK button for four seconds,
also press the PANIC button within 6 seconds.
7. When a single chime is heard release both buttons. The
chime is an indication that you have successfully entered
program mode. All fobs that are to be programmed must
be done so within 60 seconds of when the chime was
heard.
8. Using the fob to be programmed, press and release
both the LOCK and UNLOCK buttons, simultaneously.
9. A single chime will be heard.
10. Within four seconds of hearing the chime, press and
release the UNLOCK button on the fob.
11. A single chime will be heard.
2
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
12. Repeat steps 8 through 10 to program up to six
additional fobs.
13. Turn the ignition to the OFF position.
14. Your vehicle will remain in program mode up to 60
seconds from when the original chime was heard. After
60 seconds, all programmed fobs function normally.
NOTE: If you do not have a programmed transmitter,
contact your dealer for details.
Battery Replacement
The recommended replacement battery is CR2032.
NOTE:
Perchlorate Material – special handling may
apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate
1.
If the key fob is equipped with a screw, remove the
screw. With the transmitter buttons facing down, use a flat
blade to pry the two halves of the transmitter apart. Make
sure not to damage the elastomer seal during removal.
Transmitter Battery Replacement
2. Remove and replace the battery. When replacing the
battery, match the + sign on battery to the + sign on the
inside of the battery clip, located on back cover. Avoid
touching the new battery with your fingers. Skin oils may
cause battery deterioration. If you touch a battery, clean it
with rubbing alcohol. Avoid touching the new battery
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
with your fingers. Skin oils may cause battery deterioration. If you touch a battery, clean it with rubbing alcohol.
3. To reassemble the transmitter case, snap the two
halves of the case together. Make sure there is an even
“gap” between the two halves. If equipped, install and
tighten the screw until snug. Test transmitter operation.
REMOTE STARTING SYSTEM — IF EQUIPPED
Your vehicle may be equipped with a remote starting
system, which will allow the vehicle to be started from
distances up to approximately 300 feet away from the
vehicle using the remote keyless entry key fob which is
part of your ignition key.
In order to remote start your vehicle, the hood, liftgate,
and all the doors must be closed.
To remote start your vehicle, press the REMOTE START
button on the key fob twice within three seconds. To
indicate that the vehicle is about to start, the parking
lights will flash and the horn will sound briefly.
2
Remote Start Transmitter
Once the vehicle has started, the engine will run for 15
minutes. To cancel remote start, press the REMOTE
START button once.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
To enter the vehicle while the engine is running during a
remote start, you must first unlock the vehicle using the
UNLOCK button on the key fob. After the vehicle is
unlocked, you have 60 seconds to enter the vehicle, insert
the key in the Ignition and move it to the RUN position,
otherwise the engine will cancel remote start and automatically turn off.
Remote start will also cancel if any of the following occur:
•
If the engine stalls or RPM exceeds 2500
•
Any engine warning lamps come on
•
The hood is opened
•
The hazard switch is pressed
•
The transmission is moved out of park
•
Pressing the brake pedal.
The vehicle can be started remotely up to a maximum of
two times. The vehicle is also allowed a maximum of one
failed start, where the remote start sequence was initiated
but the engine stopped cranking without starting. After
either of these conditions, or if the Vehicle Theft Alarm is
alarming, or if the PANIC button was pressed, the vehicle
must be reset by inserting a valid key into the ignition
and moving it to the RUN position, then back to LOCK.
DOOR LOCKS
Manual Door Locks
All the doors can be “manually” locked from the inside
by pushing down the door lock plunger, located at the
rear of the door.Both front doors may be opened from the
inside with the door lock plunger in the down or locked
position.
WARNING!
•
For personal security and safety in the event of an
accident, lock the vehicle doors when you drive as
well as when you park and leave the vehicle.
•
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power windows, other controls, or move the vehicle.
Power Door Locks
A power door lock switch is on each front door trim
panel. Use this switch to lock or unlock the doors.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2
Power Door Lock Switch
If you press the power door lock switch while the key is
in the ignition, and any front door is open, the power
locks will not operate. This prevents you from accidentally locking your keys in the vehicle. Removing the key
or closing the door will allow the locks to operate. A
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
chime will sound if the key is in the ignition switch and
a door is open, as a reminder to remove the key.
Automatic Door Locks
If this feature is enabled, your door locks will lock
automatically when the vehicle’s speed exceeds 15 mph
(24 km/h).
Automatic Door Lock Programming
This feature is enabled when your vehicle is shipped
from the assembly plant and can be disabled by using the
following procedure:
•
For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Personal Settings
(Customer Programmable Features)” under “Elec-
tronic Vehicle Information Center (EVIC)” in Section 3
of this manual for details.
•
For vehicles not equipped with the EVIC, performing
the following procedure:
1. Enter your vehicle and Close all doors.
2. Fasten your seat belt (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure).
3. Place the key into the ignition.
4. Within 10 seconds, cycle the key from the LOCK
position to the ON position a minimum of four times;
ending in the LOCK position. (do not start the engine).
5. Within 30 seconds, press the driver’s door lock switch
in the LOCK direction.
6. Asingle chime will be heard to indicate the feature has
been disabled.
7. To re-activate this feature, repeat the above steps.
8. If a chime is not heard, program mode was canceled
before the feature could be disabled. If necessary, repeat
the above procedure.
Loading...
