Page 1

2015

DURANGO

USER

GUIDE

Page 2

IMPORTANT

This User Guide is intended to familiarize you with the important features of your vehicle. The DVD enclosed contains your Owner’s Manual, Navigation/ Uconnect Manuals, Warranty Booklets, Tire Warranty and Roadside Assistance (new vehicles purchased in the U.S.) or Roadside Assistance (new vehicles purchased in Canada) in electronic format. We hope you find it useful. Replacement DVD kits may be purchased by visiting www.techauthority.com.

If you are the rst registered retail owner of your vehicle, you may obtain a complimentary printed copy of the Owner’s Manual, Navigation/Uconnect Manuals or Warranty Booklet by calling

1-800-423-6343 (U.S.) or 1-800-387-1143 (Canada) or by

contacting your dealer.

The driver’s primar y responsibility is the safe operation of the vehicle. Driving while distracted can result in loss of vehicle control, resulting in a collision and personal injury. FCA US LLC strongly recommends that the driver use extreme caution when using any device or feature that may take their attention off the road. Use of any electrical devices, such as cellular telephones, computers, portable radios, vehicle navigation or other devices, by the driver while the vehicle is moving is

dangerous and could lead to a serious collision. Texting while driving is also dangerous and should never be done while the vehicle is moving. If you find yourself unable to devote your full attention to vehicle operation, pull off the road to a safe location and stop your vehicle. Some states or provinces prohibit the use of cellular telephones or texting while driving. It is always the driver’s responsibility to comply with all local laws.

Page 3

INTRODUCTION/WELCOME

WELCOME FROM FCA US LLC .......3

CONTROLS AT A GLANCE

DRIVER COCKPIT ...............6

INSTRUMENT CLUSTER ...........8

GETTING STARTED

KEYFOB ...................10

REMOTESTART................10

KEYLESS ENTER-N-GO™ .........11

VEHICLE SECURITY ALARM ........15

SEA T BELT SYSTEMS ............15

SUPPLEMENTAL RESTRAINT SYSTEM

(SRS) — AIR BAGS .............16

CHILD RESTRAINTS ............19

HEAD RESTRAINTS .............25

FRONT SEA TS .................27

REAR SEA TS .................31

HEA TED/VENTILATED SEATS ........34

HEA TED STEERING WHEEL ........36

TIL T/TELESCOPING STEERING

COLUMN ...................37

OPERATING YOUR VEHICLE

ENGINE BREAK-IN

RECOMMENDA TIONS ............39

TURN SIGNAL/WIPER/WASHER/HIGH

BEAM LEVER .................39

HEADLIGHT SWITCH ............41

ELECTRONIC SPEED CONTROL ...... 42

ADAPTIVE CRUISE CONTROL (ACC) ....44

FORWARD COLLISION WARNING (FCW)

WITH MITIGA TION ..............48

AUTOMA TIC DIMMING MIRRORS .....50

ELECTRONIC SHIFTER ........... 50

AUTOSTICK ..................51

FUEL ECONOMY (ECO) MODE ....... 53

AUTOMA TIC CLIMATE CONTROLS .....54

PARKSENSE PARKVIEW

BLIND SPOT MONITORING .........59

POWER SUNROOF .............. 60

WIND BUFFETING ..............61

ELECTRONICS

YOUR VEHICLE'S SOUND SYSTEM ....62

IDENTIFYING YOUR RADIO .........64

Uconnect Uconnect Uconnect

REAR PARK ASSIST ....59

REAR BACK-UP CAMERA . . 59

ACCESS .............65

5.0 ................82

8.4A ...............94

Uconnect Uconnect STEERING WHEEL AUDIO CONTROLS DRIVER INFORMA TION DISPLAY (DID)

PROGRAMMABLE FEA TURES .......148

UNIVERSAL GARAGE DOOR OPENER (HomeLink

POWER INVERTER .............153

POWER OUTLET ..............154

8.4AN .............121

PHONE .............135

) .................150

...146 ...146

OFF-ROAD CAPABILITIES

ALL-WHEEL DRIVE OPERA TION .....156

UTILITY

ROOF LUGGAGE RACK ..........158

TRAILER TOWING WEIGHTS (MAXIMUM

TRAILER WEIGHT RA TINGS) .......158

RECREA TIONAL TOWING (BEHIND

MOTORHOME, ETC.) ............160

WHAT TO DO IN EMERGENCIES

ROADSIDE ASSISTANCE ..........165

INSTRUMENT CLUSTER WARNING

LIGHTS ....................165

INSTRUMENT CLUSTER INDICA TOR

LIGHTS ...................170

IF YOUR ENGINE OVERHEATS ......172

JACKING AND TIRE CHANGING .....173

BA TTERY LOCATION ............185

JUMP-STAR TING ..............185

MANUAL PARK RELEASE .........187

TOWING A DISABLED VEHICLE .....189

FREEING A STUCK VEHICLE .......190

EVENT DA TA RECORDER (EDR) .....191

CAP-LESS FUEL FILL FUNNEL ......192

MAINTAINING YOUR VEHICLE

OPENING THE HOOD ...........193

ENGINE COMPAR TMENT .........194

FLUID CAPACITIES .............198

FLUIDS, LUBRICANTS, AND GENUINE

PARTS .................... 199

MAINTENANCE PROCEDURES ......200

MAINTENANCE SCHEDULE .......200

MAINTENANCE RECORD .........204

FUSES ....................205

TIRE PRESSURES ............. 208

ADDING FUEL ................209

SPARE TIRES — IF EQUIPPED ......211

WHEEL AND WHEEL TRIM CARE ....213

REPLACEMENT BULBS ..........213

Page 4

TABLE OF CONTENTS

CUSTOMER ASSISTANCE

FCA US LLC CUSTOMER CENTER ....215

FCA CANADA INC. CUSTOMER

CENTER ...................215

ASSISTANCE FOR THE HEARING

IMPAIRED ..................215

PUBLICA TIONS ORDERING ........216

REPORTING SAFETY DEFECTS IN THE

UNITED STATES ............... 217

MOPAR® ACCESSORIES

AUTHENTIC ACCESSORIES BY

MOPAR

...................218

FREQUENTLY ASKED QUESTIONS

FREQUENTL Y ASKED QUESTIONS ....219

INDEX

.....................221

Page 5

INTRODUCTION/WELCOME

WELCOME FROM FCA US LLC

Congratulations on selecting your new FCA US LLC vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all essentials that are traditional to our vehicles.

Your new FCA US LLC vehicle has characteristics to enhance the driver's control under some driving conditions. These are to assist the driver and are never a substitute for attentive driving. They can never take the driver's place. Always drive carefully.

Your new vehicle has many features for the comfort and convenience of you and your passengers. Some of these should not be used when driving because they take your eyes from the road or your attention from driving. Never text while driving or take your eyes more than momentarily off the road.

This guide illustrates and describes the operation of features and equipment that are either standard or optional on this vehicle. This guide may also include a description of features and equipment that are no longer available or were not ordered on this vehicle. Please disregard any features and equipment described in this guide that are not available on this vehicle. FCA US LLC reserves the right to make changes in design and specifications and/or make additions to or improvements to its products without imposing any obligation upon itself to install them on products previously manufactured.

This User Guide has been prepared to help you quickly become acquainted with the important features of your vehicle. It contains most things you will need to operate and maintain the vehicle, including emergency information.

The DVD includes a computer application containing detailed owner's information which can be viewed on a personal computer or MAC computer. The multimedia DVD also includes videos which can be played on any standard DVD player (including the Uconnect DVD operational information is located on the back of the DVD sleeve.

For complete owner information, refer to your Owner's Manual on the DVD in the owner’s kit provided at the time of new vehicle purchase. For your convenience, the information

contained on the DVD may also be printed and saved for future reference.

FCA US LLC is committed to protecting our environment and natural resources. By converting from paper to electronic delivery for the majority of the user information for your vehicle, together we greatly reduce the demand for tree-based products and lessen the stress on our environment.

T ouchscreen Radios if equipped with DVD player capabilities). Additional

Page 6

INTRODUCTION/WELCOME

VEHICLES SOLD IN CANADA

With respect to any vehicles sold in Canada, the name FCA US LLC shall be deemed to be deleted and the name FCA Canada Inc. used in substitution (excluding legal lines).

WARNING!

• Pedals that cannot move freely can cause loss of vehicle control and increase the risk of serious personal injury.

• Always make sure that objects cannot fall into the driver foot well while the vehicle is moving. Objects can become trapped under the brake pedal and accelerator pedal causing a loss of vehicle control.

• Failure to properly follow floor mat installation or mounting can cause interference with the brake pedal and accelerator pedal operation causing loss of control of the vehicle.

• Never leave children alone in a vehicle, or with access to an unlocked vehicle. Allowing children to be in a vehicle unattended is dangerous for a number of reasons. A child or others could be seriously or fatally injured. Children should be warned not to touch the parking brake, brake pedal or the shift lever/transmission gear selector.

• Do not leave the key fob in or near the vehicle, or in a location accessible to children, and do not leave the ignition of a vehicle equipped with Keyless Enter-N-Go™ in the ACC or ON/RUN mode. A child could operate power windows, other controls, or move the vehicle.

• Never use the “PARK” position as a substitute for the parking brake. Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage.

• Refer to your Owner's Manual on the DVD for further details.

Page 7

INTRODUCTION/WELCOME

Rollover Warning

WARNING!

• Pedals that cannot move freely can cause loss of vehicle control and increase the risk of serious personal injury.

• Failure to properly follow floor mat installation or mounting can cause interference with the brake pedal and accelerator pedal operation causing loss of control of the vehicle.

• Refer to your Owner's Manual on the DVD for further details.

• Never use the ‘PARK’ position as a substitute for the parking brake. Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage.

USE OF AFTERMARKET PRODUCTS (ELECTRONICS)

The use of aftermarket devices including cell phones, MP3 players, GPS systems, or chargers may affect the performance of on-board wireless features including Keyless Enter-N-Go and Remote Start range. If you are experiencing difficulties with any of your wireless features, try disconnecting your aftermarket devices to see if the situation improves. If your symptoms persist, please see an authorized dealer .

When it comes to service, remember that your authorized dealer knows your vehicle best, has factory-trained technicians and genuine MOPAR satisfaction.

parts, and cares about your

Page 8

CONTROLS AT A GLANCE

DRIVER COCKPIT

1. Power Mirror Controls

2. Headlight Switch pg. 41

3. Shifter Paddle (AutoStick) pg. 51

4. Instrument Cluster pg. 6

5. Driver Information Display (DID)

6. Engine Start/Stop Button (Behind Steering Wheel) pg. 13

7. Audio System (T ouchscreen Radio Shown) pg. 64

8. Passenger Power Window Controls

9. Glove Compartment

10. Tune/Scroll Knob/Browse/Enter Button.

Page 9

CONTROLS AT A GLANCE

11. Switch Panel

• ParkSense

• ECO On pg. 53

• Electronic Stability Control (ESC) OFF pg. 171

• Forward Collision Warning (FCW) pg. 48

12. Media Hub

13. Transmission Gear Selector pg. 50

14. Front Power Outlet pg. 154

15. Speed Control pg. 42

16. Driver Information Display Controls pg. 146

17. Parking Brake Release

18. Instrument Panel Dimmer pg. 41

19. Power Windows

20. Power Door Locks

pg. 59

Page 10

CONTROLS AT A GLANCE

INSTRUMENT CLUSTER

1. Tachometer

2. Speedometer

(See page 165 for Instrument Cluster Warning Lights.)

Page 11

CONTROLS AT A GLANCE

3. Temperature Gauge

4. Fuel Gauge

(See page 170 for Instrument Cluster Indicator Lights.)

Page 12

GETTING STARTED

KEY FOB

Locking And Unlocking The Doors And Liftgate

Lock The Doors And Liftgate

Push and release the LOCK button on the RKE transmitter to lock all doors and liftgate. The turn signal lights will flash, and the horn will chirp to acknowledge the signal.

Unlock The Doors And Liftgate

Push and release the UNLOCK button on the RKE transmitter once to unlock the driver’s door or twice within five seconds to unlock all doors and liftgate. The turn signal lights will flash to acknowledge the unlock signal. The illuminated entry system will also turn on.

All doors can be programmed to unlock on the first push of the UNLOCK button. Refer to “Uconnect tion.

Customer Programmable Features” in the this guide for further informa-

1 — Liftgate 4 — Remote Start 2 — Unlock 5 — Panic 3 — Lock

Key Fob

POWER LIFTGATE

Push the LIFTGA TE button twice within five seconds to power open/close the Power Liftgate. If the button is pushed while the liftgate is being power closed, the liftgate will reverse to the full open position.

Also, the Power Liftgate may be closed by pushing the liftgate switch located on the left rear trim panel, near the liftgate opening. Pushing once will close the liftgate only. This button cannot be used to open the liftgate.

Panic Alarm

1. Push the PANIC button once to turn the Panic Alarm on.

2. W ait approximately three seconds and push the button a second time to turn the Panic Alarm off.

REMOTE START

• Push the REMOTE ST ART button

Pushing the REMOTE START button a third time shuts the engine off.

on the Key Fob twice within five seconds.

Page 13

GETTING STARTED

• To drive the vehicle, with a valid Keyless Enter-N-Go™ Key Fob within 5 ft (1.5m) of the driver's side of the vehicle, grab the front driver door handle to unlock the driver's door automatically and then push the Start/Stop switch, or push the UNLOCK button, insert the Key Fob in the ignition and turn to the ON/RUN position.

• With remote start, the engine will only run for 15 minutes (timeout) unless the ignition is placed in the ON/RUN position.

• The vehicle must be started with the Key Fob after two consecutive timeouts.

WARNING!

• Do not start or run an engine in a closed garage or confined area. Exhaust gas contains Carbon Monoxide (CO) which is odorless and colorless. Carbon Monoxide is poisonous and can cause you or others to be severely injured or killed when inhaled.

• Keep Key Fob transmitters away from children. Operation of the Remote Start System, windows, door locks or other controls could cause you and others to be severely injured or killed.

KEYLESS ENTER-N-GO™

The Keyless Enter-N-Go™ system is an enhancement to the vehicle's Key Fob. This feature allows you to lock and unlock the vehicle's door(s) and liftgate without having to push the Key Fob lock or unlock buttons as well as starting and stopping the vehicle with the push of a button.

To Unlock From The Driver Or Passenger Side

• With a valid Keyless Enter-N-Go™ Key Fob located outside the vehicle and within 5 ft (1.5m) of the driver or passenger side door handle, grab either front door handle to unlock the door automatically.

Grab The Door Handle To Unlock

Page 14

GETTING STARTED

To Lock The Vehicle

• Both front door handles have buttons located on the outside of the handle. With one of the vehicle's Keyless Enter-N-Go™ Key Fobs located outside the vehicle and within 5 ft (1.5m) of the driver's or passenger front door handle, push the door handle button to lock all four doors and liftgate.

• DO NOT grab the door handle when pushing the door handle lock button. This could unlock the door(s).

Push The Door Handle Button To Lock Do NOT Grab Handle When Locking

NOTE:

• “1st Press of Key Fob Unlocks” has two options available. “Driver Door” and “All Doors” will unlock when you grab hold of the front driver's door handle. T o select between “Driver Door” and “All Doors,” Refer to page 149 for “Uconnect Programmable Features ” in the this guide, or the Owner's Manual on the DVD.

• If a Key Fob is detected in the vehicle when locking the vehicle using the power door lock switch, the doors and liftgate will unlock, and the horn will chirp three times. On the third attempt, your Key Fob can be locked inside the vehicle.

• After pushing the Keyless Enter-N-Go™ LOCK button, you must wait two seconds before you can lock or unlock the vehicle using the door handle. This is done to allow you to check if the vehicle is locked by pulling the door handle, without the vehicle reacting and unlocking.

• If a Keyless Enter-N-Go™ door handle has not been used for 72 hours, the Keyless Enter-N-Go™ feature for that handle may time out. Pulling the deactivated front door handle will reactivate the door handle's Keyless Enter-N-Go™ feature.

Customer

Page 15

GETTING STARTED

Lock Or Unlock The Liftgate

• To Lock The Liftgate — With a Remote Keyless Entry (RKE) transmitter within 3 ft (1.0 m) of the liftgate, push the passive entry lock button located to the right of electronic liftgate handle.

• To Unlock/Enter The Liftgate — The liftgate passive entry unlock feature is built into the electronic liftgate handle. With a Remote Keyless Entry (RKE) transmitter within 3 ft (1.0 m) of the liftgate, push the electronic release switch to open the liftgate.

NOTE:

Refer to page 149 for “Uconnect tomer Programmable Features ” in the this guide or the Owner's Manual on the DVD for further information.

Engine Starting/Stopping

Cus-

Electronic Liftgate Handle

1 — Electronic Release Switch 2 — Lock Button Location

Starting

Perform the following starting procedure with a Remote Keyless Entry (RKE) transmitter inside the vehicle:

1. While pushing the brake pedal, push the

ENGINE START/STOP button once. If the engine fails to start, the starter will disengage automatically after 10 seconds.

2. To stop the cranking of the engine prior

to the engine starting, push the button again.

Engine START/STOP Button

Page 16

GETTING STARTED

Stopping

1. Bring the vehicle to a complete stop.

2. Shift the T ransmission to PARK (P).

3. Push the ENGINE START/STOP button once. The ignition switch will return to the OFF position.

NOTE: If the transmission is not in PARK and the vehicle is in motion, the ENGINE START/STOP button must be held for two seconds with the vehicle speed above 5 mph (8 km/h) before the engine will shut off.

Accessory Positions With Engine Off

NOTE:

The following functions are with the driver’s foot off of the Brake Pedal (transmission in PARK or NEUTRAL).

Beginning With The Ignition Switch In The OFF Position:

1. Push the ENGINE START/STOP button once to cycle the ignition to the ACC position.

2. Push the ENGINE ST AR T/STOP button a second time to cycle the ignition to the ON/RUN position.

3. Push the ENGINE START/STOP button a third time to return the ignition to the OFF position.

NOTE:

If the ignition is left in the ACC or ON/RUN (engine not running) position and the transmission is in P ARK, the system will automatically time out after 30 minutes of inactivity, and the ignition is returned to the OFF position.

Ignition Positions

Page 17

GETTING STARTED

VEHICLE SECURITY ALARM

The Vehicle Security Alarm monitors the vehicle doors for unauthorized entry and the Keyless Enter-N-Go™ START/STOP button for unauthorized operation. While the Vehicle Security Alarm is armed, interior switches for door locks and decklid release are disabled. If something triggers the alarm, the Vehicle Security Alarm will provide the following audible and visible signals: the horn will pulse, the park lamps and/or turn signals will flash, and the Vehicle Security Light in the instrument cluster will flash.

To Arm

Cycle the Keyless Enter-N-Go™ STAR T/STOP button until the button display indicates that the vehicle ignition is “OFF.” Push the power door lock switch while the door is open, push the Key Fob LOCK button, or with one of the Key Fobs located outside the vehicle and within 5 ft (1.5 m) of the driver's and passenger front door handles, push the Keyless Enter-N-Go™ LOCK button located on the door handle.

NOTE:

After pushing the Keyless Enter-N-Go™ LOCK button, you must wait two seconds before you can lock or unlock the vehicle via the door handle.

To Disarm

Push the Key Fob UNLOCK button or with one of the Key Fobs located outside the vehicle and within 5 ft (1.5 m) of the driver's and passenger front door handles. Grab the Keyless Enter-N-Go™ door handle and enter the vehicle, then push the Keyless Enter-N-Go™ STAR T/STOP button (requires at least one valid Key Fob in the vehicle).

SEAT BELT SYSTEMS

Lap/Shoulder Belts

• All seating positions in your vehicle are equipped with lap/shoulder belts.

• Be sure everyone in your vehicle is in a seat and using a seat belt properly.

• Position the lap belt so that it is snug and lies low across your hips, below your abdomen. To remove slack in the lap belt portion, pull up on the shoulder belt. To loosen the lap belt if it is too tight, tilt the latch plate and pull on the lap belt. A snug seat belt reduces the risk of sliding under the seat belt in a collision.

• Position the shoulder belt across the shoulder and chest with minimal, if any slack so that it is comfortable and not resting on your neck. The retractor will withdraw any slack in the shoulder belt.

Seat Belt Pretensioner

• The front seat belt system is equipped with pretensioning devices that are designed to remove slack from the seat belt in the event of a collision.

• A deployed pretensioner or a deployed air bag must be replaced immediately.

Page 18

GETTING STARTED

WARNING!

• In a collision, you and your passengers can suffer much greater injuries if you are not properly buckled up. You can strike the interior of your vehicle or other passengers, or you can be thrown out of the vehicle. Always be sure you and others in your vehicle are buckled up properly.

• A shoulder belt placed behind you will not protect you from injury during a collision. You are more likely to hit your head in a collision if you do not wear your shoulder belt. The lap and shoulder belt are meant to be used together.

• A seat belt that is too loose will not protect you properly. In a sudden stop, you could move too far forward, increasing the possibility of injury . Wear your seat belt snugly.

• A frayed or torn seat belt could rip apart in a collision and leave you with no protection. Inspect the seat belt system periodically, checking for cuts, frays, or loose parts. Damaged parts must be replaced immediately . Do not disassemble or modify the system. Seat belt assemblies must be replaced after a collision.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — AIR BAGS

Air Bag System Components

Your vehicle may be equipped with the following air bag system components:

• Occupant Restraint Controller (ORC)

• Air Bag Warning Light

• Steering Wheel and Column

• Instrument Panel

• Knee Impact Bolsters

• Advanced Front Air Bags

• Supplemental Side Air Bags

• Supplemental Knee Air Bags

• Front and Side Impact Sensors

• Seat Belt Pretentioners

• Seat Belt Buckle Switch

• Seat Track Position Sensors

Advanced Front Air Bags

• This vehicle has Advanced Front Air Bags for both the driver and front passenger as a supplement to the seat belt restraint systems. The Advanced Front Air Bags will not deploy in every type of collision.

• Advanced Front Air Bags are designed to provide additional protection by supplementing the seat belts. Advanced Front Air Bags are not expected to reduce the risk of injury in rear, side, or rollover collisions.

Page 19

GETTING STARTED

• The Advanced Front Air Bags will not deploy in all frontal collisions, including some that may produce substantial vehicle damage — for example, some pole collisions, truck underrides, and angle offset collisions.

• On the other hand, depending on the type and location of impact, Advanced Front Air Bags may deploy in crashes with little vehicle front-end damage but that produce a severe initial deceleration.

• Because air bag sensors measure vehicle deceleration over time, vehicle speed and damage by themselves are not good indicators of whether or not an air bag should have deployed.

• Seat belts are necessary for your protection in all collisions, and also are needed to help keep you in position, away from an inflating air bag.

• The air bags must be ready to inflate for your protection in a collision. The Occupant Restraint Controller (ORC) monitors the internal circuits and interconnecting wiring associated with air bag system electrical components.

• The ORC turns on the Air Bag Warning Light in the instrument panel for approximately four to eight seconds for a self-check when the ignition switch is first turned to the ON/RUN position. After the self-check, the Air Bag W arning Light will turn off. If the ORC detects a malfunction in any part of the system, it turns on the Air Bag Warning Light, either momentarily or continuously. A single chime will sound to alert you if the light comes on again after initial startup.

• The ORC monitors the readiness of the electronic parts of the air bag system whenever the ignition switch is in the STAR T or ON/RUN position. If the ignition switch is in the OFF position or in the ACC position, the air bag system is not on and the air bags will not inflate.

• If the Air Bag Warning Light in the instrument panel is not on during the four to eight seconds when the ignition switch is first turned to the ON/RUN position, stays on, or turns on while driving, have the vehicle serviced by an authorized service center immediately.

NOTE:

If the speedometer, tachometer, or any engine related gauges are not working, the Occupant Restraint Controller (ORC) may also be disabled. In this condition the air bags may not be ready to inflate for your protection. Have an authorized dealer service the air bag system immediately.

• After any collision, the vehicle should be taken to an authorized dealer immediately .

• Do not drive your vehicle after the air bags have deployed. If you are involved in another collision, the air bags will not be in place to protect you.

• If it is necessary to modify the air bag system for persons with disabilities, contact your authorized dealer.

• Refer to the Owner's Manual on the DVD regarding the Supplemental Restraint System (SRS) for further information.

Page 20

GETTING STARTED

Supplemental Knee Air Bags

This vehicle is equipped with a Supplemental Driver Knee Air Bag mounted in the instrument panel below the steering column. The Supplemental Driver Knee Air Bag provides enhanced protection during a frontal impact by working together with the seat belts, pretensioners, and Advanced Front Air Bags.

WARNING!

• Relying on the air bags alone could lead to more severe injuries in a collision. The air bags work with your seat belt to restrain you properly. In some collisions, the air bags won't deploy at all. Always wear your seat belts even though you have air bags.

• Being too close to the steering wheel or instrument panel during Advanced Front Air Bag deployment could cause serious injury , including death. Air bags need room to inflate. Sit back, comfortably extending your arms to reach the steering wheel or instrument panel.

• No objects should be placed over or near the air bag on the instrument panel or steering wheel because any such objects could cause harm if the vehicle is in a collision severe enough to cause the air bag to inflate.

Supplemental Side Air Bags

• This vehicle is equipped with Supplemental Seat-Mounted Side Air Bags (SABs) located in the outboard side of the front seats. The SABs are marked with a SRS AIRBAG or AIRBAG label sewn into the outboard side of the seats.

• This vehicle is equipped with Supplemental Side Air Bag Inflatable Curtains (SABICs) located above the side windows. The trim covering the SABICs is labeled SRS AIRBAG or AIRBAG. The SABICs may help reduce the risk of partial or complete ejection of vehicle occupants through side windows in certain side impact events.

• The SABICs and SABs (“Side Air Bags”) are designed to activate in certain side impacts and certain rollover events. The Occupant Restraint Controller (“ORC”) determines whether the deployment of the Side Air Bags in a particular side impact or rollover event is appropriate, based on the severity and type of collision. Vehicle damage by itself is not a good indicator of whether or not Side Air Bags should have deployed.

Page 21

GETTING STARTED

WARNING!

• Side Air Bags need room to inflate. Do not lean against the door or window . Sit upright in the center of the seat.

• Being too close to the Side Air Bags during deployment could cause you to be severely injured or killed.

• Relying on the Side Air Bags alone could lead to more severe injuries in a collision. The Side Air Bags work with your seat belt to restrain you properly. In some collisions, Side Air Bags won’t deploy at all. Always wear your seat belt even though you have Side Air Bags.

• This vehicle is equipped with left and right Supplemental Side Air Bag Inflatable Curtains (SABICs). Do not stack luggage or other cargo up high enough to block the deployment of the SABICs. The trim covering above the side windows where the SABIC and its deployment path are located should remain free from any obstructions.

• This vehicle is equipped with SABICs. In order for the SABICs to work as intended, do not install any accessory items in your vehicle which could alter the roof. Do not add an aftermarket sunroof to your vehicle. Do not add roof racks that require permanent attachments (bolts or screws) for installation on the vehicle roof. Do not drill into the roof of the vehicle for any reason.

• Do not use accessory seat covers or place objects between you and the Side Air Bags; the performance could be adversely affected and/or objects could be pushed into you, causing serious injury.

CHILD RESTRAINTS

Children 12 years or younger should ride properly buckled up in a rear seat, if available. According to crash statistics, children are safer when properly restrained in the rear seats rather than in the front.

Every state in the United States and all Canadian provinces require that small children ride in proper restraint systems. This is the law, and you can be prosecuted for ignoring it.

NOTE:

• For additional information, refer to www.Seatcheck.org or call 1-866-SEA TCHECK (1-866-732-8243 ).

• Canadian residents should refer to T ransport Canada’s website for additional information: http://www.tc.gc.ca/eng/motorvehiclesafety/safedrivers-childsafety-index-53.htm

LATCH – Lower Anchors And Tethers For CHildren

• Your vehicle is equipped with the child restraint anchorage system called LATCH, which stands for Lower Anchors and Tethers for CHildren.

• The second row seating positions have lower anchors and top tether anchors. The second row center (60/40 bench seat only) and third row seating positions have a top tether anchor only.

Page 22

GETTING STARTED

LATCH System Weight Limit

You may use the LATCH anchorage system until the combined weight of the child and the child restraint is 65 lbs (29.5 kg). Use the seat belt and tether anchor instead of the LA TCH system once the combined weight is more than 65 lbs (29.5 kg).

Locating LATCH Anchorages

The lower anchorages are round bars that are found at the rear of the seat cushion where it meets the seatback. They are just visible when you lean into the rear seat to install the child restraint. You will easily feel them if you run your finger along the gap between the seatback and seat cushion.

Lower Anchors

Page 23

GETTING STARTED

Locating Tether Anchorages

In addition, there are tether strap anchorages behind each rear seating position located on the back of the seat. To access the top tether strap anchorages behind the 60/40 Center Row Bench seat or the third row seat, pull the carpeted floor panel away from the seat back, this will expose the top tether strap anchorages. DO NOT USE the cargo tie down loops located on the load floor as tether anchorages.

Tether Anchors Second Row

Tether Anchors Third Row

Page 24

GETTING STARTED

Center Seat LATCH

Do not install a child restraint in the center position using the LATCH system. Use the seat belt and tether anchor to install a child seat in the center seating position.

Vehicles With Center Arm Rest Tether

For rearward facing infant seats secured in the center seat position with the vehicle seat belts, the rear center seat position has an armrest tether that secures the arm rest in the upward position.

1. To access the center seat arm rest tether, first lower the arm rest. The tether is located behind the armrest and hooked onto the plastic seat backing.

2. Pull down on the tether to unhook it from the plastic seat backing.

3. Raise the armrest and attach the tether hook to the strap located on the front of the arm rest.

Center Seat Position Arm Rest Tether

Center Seat Arm Rest Raised Displaying The

Tether

Installing The Child Restraint Using The LATCH Lower Anchors

NOTE: Never “share” a LATCH anchorage with two or more child restraints.

1. Loosen the adjusters on the lower straps and on the tether strap of the child seat so that you can more easily attach the hooks or connectors to the vehicle anchorages.

2. Attach the lower hooks or connectors of the child restraint to the lower anchorages in the selected seating position.

3. If the child restraint has a tether strap, connect it to the top tether anchorage. See below for directions to attach a tether anchor.

T ighten all of the straps as you push the child restraint rearward and downward into the seat.

4. Remove slack in the straps according to the child restraint manufacturer’s instructions.

5. Test that the child restraint is installed tightly by pulling back and forth on the child seat at the belt path. It should not move more than 1 inch (25.4 mm) in any direction.

Page 25

GETTING STARTED

Installing The Child Restraint Using The Vehicle Seat Belts

The seat belts in the passenger seating positions are equipped with a Switchable Automatic Locking Retractor (ALR) that is designed to keep the lap portion of the seat belt tight around the child restraint. Any seat belt system will loosen with time, so check the belt occasionally, and pull it tight if necessary .

Tether Anchorage Weight Limit

Always use the tether anchor when using the seat belt to install a forward facing child restraint, up to the recommended weight limit of the child restraint.

To Install A Child Seat Using An ALR:

1. Pull enough of the seat belt webbing from the retractor to pass it through the belt path of the child restraint. Do not twist the belt webbing in the belt path.

2. Slide the latch plate into the buckle until you hear a “click.”

3. Pull on the webbing to make the lap portion tight against the child seat.

4. To lock the seat belt, pull down on the shoulder part of the belt until you have pulled all the seat belt webbing out of the retractor. Then, allow the webbing to retract back into the retractor. As the webbing retracts, you will hear a clicking sound. This means the seat belt is now in the Automatic Locking mode.

5. Try to pull the webbing out of the retractor. If it is locked, you should not be able to pull out any webbing. If the retractor is not locked, repeat the last step.

6. Finally, pull up on any extra webbing to tighten the lap portion around the child restraint while you push the child restraint rearward and downward into the vehicle seat.

7. If the child restraint has a top tether strap and the seating position has a top tether anchorage, connect the tether strap to the anchorage and tighten the tether strap. See below for directions to attach a tether anchor.

8. Test that the child restraint is installed tightly by pulling back and forth on the child seat at the belt path. It should not move more than 1 inch (25.4 mm) in any direction.

Installing The Top Tether Strap (With Either Lower Anchors Or Vehicle Seat Belt):

When installing a forward-facing child restraint, always secure the top tether strap, up to the tether anchor weight limit, whether the child restraint is installed with the lower anchors or the vehicle seat belt.

Page 26

GETTING STARTED

Tether Strap Installation

1. To access the top tether strap anchorages behind the rear seat, pull the carpeted floor panel away from the seat back, this will expose the top tether strap anchorages.

2. Route the tether strap to provide the most direct path for the strap between the anchor and the child seat.

3. If your vehicle is equipped with adjustable rear head restraints, raise the head restraint, and where possible, route the tether strap under the head restraint and between the two posts. If not possible, lower the head restraint and pass the tether strap around the outboard side of the head restraint.

4. For the center seating position, route the tether strap over the seatback and headrest.

5. Attach the tether strap hook of the child restraint to the top tether anchorage and remove slack in the tether strap according to the child restraint manufacturer’s instructions. DO NOT USE the cargo tie down loops located on the load floor as tether anchorages.

Top Tether Strap Mounting (60/40 Seat)

Top Tether Strap Mounting (Captain's Chair)

Page 27

GETTING STARTED

WARNING!

• In a collision, an unrestrained child, even a tiny baby, can become a projectile inside the vehicle. The force required to hold even an infant on your lap could become so great that you could not hold the child, no matter how strong you are. The child and others could be severely injured or killed. Any child riding in your vehicle should be in a proper restraint for the child's size.

• Never place a rear-facing child restraint in front of an air bag. A deploying Passenger Advanced Front Air Bag can cause death or serious injury to a child 12 years or younger, including a child in a rear-facing child restraint.

• Only use a rear-facing child restraint in a vehicle with a rear seat.

• Improper installation of a child restraint to the LATCH anchorages can lead to failure of an infant or child restraint. The child could be severely injured or killed. Follow the manufacturer’ s directions exactly when installing an infant or child restraint.

• An incorrectly anchored tether strap could lead to increased head motion and possible injury to the child. Use only the anchor positions directly behind the child seat to secure a child restraint top tether strap.

• If your vehicle is equipped with a split rear seat, make sure the tether strap does not slip into the opening between the seatbacks as you remove slack in the strap.

HEAD RESTRAINTS

Head restraints are designed to reduce the risk of injury by restricting head movement in the event of a rear-impact. Head restraints should be adjusted so that the top of the head restraint is located above the top of your ear.

WARNING!

The head restraints for all occupants must be properly adjusted prior to operating the vehicle or occupying a seat. Head restraints should never be adjusted while the vehicle is in motion. Driving a vehicle with the head restraints improperly adjusted or removed could cause serious injury or death in the event of a collision.

Active Head Restraints — Front Seats

Active Head Restraints are passive, deployable components, and vehicles with this equipment cannot be readily identified by any markings, only through visual inspection of the head restraint. The Active Head Restraints (AHR) will be split in two halves, with the front half being soft foam and trim, the back half being decorative plastic.

When AHRs deploy during a rear impact, the front half of the head restraint extends forward to minimize the gap between the back of the occupant’s head and the AHR. This system is designed to help prevent or reduce the extent of injuries to the driver and front passenger in certain types of rear impacts. Refer to “Occupant Restraints” in “Things To Know Before Starting” in your Owner’s Manual on the DVD for further information.

Page 28

GETTING STARTED

T o raise the head restraint, pull upward on the head restraint. To lower the head restraint, push the adjustment button, located at the base of the head restraint, and push downward on the head restraint.

For comfort the Active Head Restraints can be tilted forward and rearward. To tilt the head restraint closer to the back of your head, pull forward on the bottom of the head restraint. Push rearward on the bottom of the head restraint to move the head restraint away from your head.

NOTE:

•

The head restraints should only be removed by qualified technicians, for service purposes

only. If either of the head restraints require removal, see your authorized dealer .

• In the event of deployment of an Active Head Restraint, refer to “Occupant Restraints” in “Things T o Know Before Starting” in your Owner’s Manual on the DVD for further information.

WARNING!

• Do not place items over the top of the Active Head Restraint, such as coats, seat covers or portable DVD players. These items may interfere with the operation of the Active Head Restraint in the event of a collision and could result in serious injury or death.

• Active Head Restraints may be deployed if they are struck by an object such as a hand, foot or loose cargo. To avoid accidental deployment of the Active Head Restraint ensure that all cargo is secured, as loose cargo could contact the Active Head Restraint during sudden stops. Failure to follow this warning could cause personal injury if the Active Head Restraint is deployed.

Head Restraints — Rear Seats

The head restraints on the outboard seats are not adjustable. They automatically fold forward when the rear seat is folded to a load floor position but do not return to their normal position when the rear seat is raised. After returning either seat to its upright position, raise the head restraint until it locks in place. The outboard head restraints are not removable.

The center head restraint has limited adjustment. Lift upward on the head restraint to raise it, or push downward on the head restraint to lower it.

WARNING!

Sitting in a seat with the head restraint in its lowered position could result in serious injury or death in a collision. Always make sure the outboard head restraints are in their upright positions when the seat is to be occupied.

NOTE:

For proper routing of a Child Seat Tether, refer to “Occupant Restraints” in “Things To Know Before Starting” in your Owner’s Manual on the DVD for further information.

Page 29

GETTING STARTED

Power Folding Third Row Head Restraints

For improved visibility when in reverse, the third row head restraints can be folded using the Uconnect

Press the “Controls” button located on the bottom of the Uconnect

Press the Headrest Fold button

NOTE:

• The head restraints can only be folded downward using the Headrest button. The head restraints must be raised manually when occupying the third row .

• Do not fold if there are passengers seated in the third row seats.

FRONT SEATS

Power Seats

The power recline switch, located on the outboard side of the seat, controls seatback adjustment.

The power seat switch controls forward/back, up/down and tilt adjustment.

System.

display.

to power fold the third row head restraints.

Power Seat Switches

1 — Recline Switch 2 — Power Seat Switch

Page 30

GETTING STARTED

Power Lumbar

• Push the switch forward to increase the lumbar support. Push the switch rearward to decrease the lumbar support.

• Pushing upward or downward on the switch will raise and lower the position of the support.

Power Lumbar Switch

Memory Seat

The memory seat feature allows you to set two different driver seating positions (excluding lumbar position), outside mirrors, radio station preset settings and tilt/telescoping steering column position (if equipped). The memory seat buttons are located on the driver's door panel.

To set a memory position:

1. Cycle the vehicles ignition to the ON

position.

2. Adjust all memory profile settings.

3. Push and release the S (SET) button.

4. Push and release the 1 or 2 button

within five seconds.

NOTE:

Before programming your RKE transmitters you must select the “Personal Settings Linked To Key Fob” feature through the Uconnect Settings ” in “Understanding Your Instrument Panel” in the Owner's Manual on the DVD for further details.

system. Refer to “Uconnect

Memory Seat Buttons

Page 31

GETTING STARTED

To program a Key Fob to the memory position:

1. Cycle the vehicles ignition to the OFF position.

2. Select the desired memory profile 1 or 2.

3. Once the profile has been recalled, push and release the SET (S) button on the memory switch.

4. Within five seconds, push and release button (1) or (2) accordingly. “Memory Profile Set” (1 or 2) will display in the instrument cluster .

5. Push and release the LOCK button on the RKE transmitter within 10 seconds.

NOTE:

T o recall the saved positions, push 1 or 2 on the memory switch or push UNLOCK on the programmed RKE transmitter.

Easy Entry/Exit Feature

The memory seat has an Easy Entry/Exit feature. This feature provides automatic driver seat positioning to enhance driver mobility when entering and exiting the vehicle.

NOTE:

The Easy Entry/Exit feature is not enabled when the vehicle is delivered from the factory . T o enable (or later disable) this feature you must select “Easy Exit Seats” in “Engine Off Options” through the programmable features in the Uconnect

• Refer to “Uconnect

Guide.

• For further details refer to “Uconnect

Panel” in the Owner's Manual on the DVD.

Customer Programmable Features” in “Electronics” of this User

Settings” in “Understanding Your Instrument

system.

Page 32

GETTING STARTED

Manual Seat Adjustment

Forward/Rearward

• Lift up on the adjusting bar located at the front of the seat near the floor and release it when the seat is at the desired position. Then, using body pressure, move forward and backward on the seat to be sure that the seat adjusters have latched.

Recliner

• Lift the rear lever located on the outboard side of the seat, lean back and release when seat is in desired position.

Adjusting Bar Location

Recliner Lever Location

Page 33

GETTING STARTED

Fold-Flat Front Passenger Seat

The front passenger seat can be folded flat to allow for extended cargo space.

• Pull up on the recliner lever and fold the seatback forward and down to a flat position.

CAUTION!

Do not place any article under a power seat or impede its ability to move as it may cause damage to the seat controls. Seat travel may become limited if movement is stopped by an obstruction in the seat's path.

WARNING!

• Adjusting a seat while the vehicle is moving is dangerous. The sudden movement of the seat could cause you to lose control. The seat belt might not be properly adjusted, and you could be severely injured or killed. Only adjust a seat while the vehicle is parked.

• Do not ride with the seatback reclined so that the seat belt is no longer resting against your chest. In a collision, you could slide under the seat belt and be severely injured or killed. Use the recliner only when the vehicle is parked.

REAR SEATS

60/40 Split Rear Seat

The left or right side of the second row seatback can be folded flat to carry cargo. The left and right side of the second row seat can also be tumbled forward to allow access to the third row seat.

Seat Release Lever

Page 34

GETTING STARTED

Fold And Tumble

• Pull upward on the release lever to release the seat.

NOTE:

Also, pulling upward on this handle allows the outboard seating positions to be reclined.

• Tumble the seat forward using the red pull strap located behind the seatback.

NOTE:

If sitting in the third row seat, pull rearward on the tumble pull strap located at the rear of the seat and tumble the seat forward.

Tumble Pull Strap

Rear Captain Chairs

Fold And Tumble

The left or right side of the second row seatback can be folded flat to carry cargo. When the lower storage compartment is accessed using the rear push button it allows the armrest to flip forward for “fold flat mode.”

Fold flat mode allows the console armrest to be lowered below fold flat seat plane and protect the armrest vinyl from damage when using the vehicle to haul cargo.

The left and right side of the second row seat can also be tumbled forward to allow access to the third row seat. Pull upward on the release lever to release the seat. Pulling upward on this handle allows the outboard seating positions to be reclined.

Rear Captain Chairs

Page 35

GETTING STARTED

• Tumble the seat forward using the red pull strap located behind the seatback.

NOTE:

If sitting in the third row seat, pull rearward on the tumble pull strap located at the rear of the seat and tumble the seat forward.

If your vehicle is equipped with a mini console there is a stepping pad to allow passengers to easily access the third row seats.

50/50 Third Row Folding Seat

Either or both third row seats can be folded forward to increase the rear cargo storage area.

After opening the liftgate, either seat can be folded flat by pulling up the release handle on the back of the seat.

A seat that is folded flat can be returned to the upright position by using the pull strap located on the back of the seat next to the release handle.

NOTE:

The second row seats must be in their full upright position, or tumbled when folding the third row seats.

• To raise the seat, pull the seat toward you using the strap located on the back of the seat.

Stepping Pad Location

WARNING!

Do not drive the vehicle with the second row seats in the tumbled position. The second row seats are only intended to be tumbled for entry and exit to the third row seat. Failure to follow these instructions could result in personal injury.

Page 36

GETTING STARTED

HEATED/VENTILATED SEATS

Heated Seats

On some models, the front and rear seats may be equipped with heaters in both the seat cushions and seatbacks.

The front driver and passenger heated seats are operated using the Uconnect

WARNING!

• Persons who are unable to feel pain to the skin because of advanced age, chronic illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other physical condition must exercise care when using the seat heater. It may cause burns even at low temperatures, especially if used for long periods of time.

• Do not place anything on the seat or seatback that insulates against heat, such as a blanket or cushion. This may cause the seat heater to overheat. Sitting in a seat that has been overheated could cause serious burns due to the increased surface temperature of the seat.

Front Heated Seats

The front heated seats control buttons are located within the climate or controls screen of the touchscreen.

You can choose from HI, LO or OFF heat settings. The indicator lights in each switch indicate the level of heat in use. Two indicator lights will illuminate for HI, one for LO and none for OFF.

• Press the heated seat button

If the HI-level setting is selected, the system will automatically switch to LO-level after approximately 60 minutes of continuous operation. At that time, the display will change from HI to LO, indicating the change. The LO-level setting will turn OFF automatically after approximately 45 minutes.

NOTE:

• Once a heat setting is selected, heat will be felt within two to five minutes.

• The engine must be running for the heated seats to operate.

Vehicles Equipped With Remote Start

On models that are equipped with remote start, the heated seats can be programed to come on during a remote start.

This feature can be programmed through the Uconnect Settings” in “Understanding Your Instrument Panel” in the Owner's Manual on the DVD.

once to turn the HI setting ON.

a second time to turn the LO setting ON.

a third time to turn the heating elements OFF.

system. Refer to “Uconnect

System.

Page 37

GETTING STARTED

Rear Heated Seats

On some models, the two outboard seats are equipped with heated seats. The heated seat switches for these seats are located on the rear of the center console. There are two heated seat switches

You can choose from HI, LO or OFF heat settings. The indicator lights in each switch indicate the level of heat in use. Two indicator lights will illuminate for HI, one for LO and none for OFF.

• Push the heated seat button

NOTE:

• Once a heat setting is selected, heat will be felt within two to five minutes.

• The engine must be running for the heated seats to operate.

When the HI-level setting is selected, the heater will provide a boosted heat level during the first four minutes of operation. Then, the heat output will drop to the normal HI-level. If the HI-level setting is selected, the system will automatically switch to LO-level after approximately 60 minutes of continuous operation. At that time, the number of illuminated LEDs changes from two to one, indicating the change. The LO-level setting will turn OFF automatically after approximately 45 minutes.

Front Ventilated Seats

Located in the seat cushion and seat back are fans that draw the air from the passenger compartment and move air through fine perforations in the seat cover to help keep the driver and front passenger cooler in higher ambient temperatures. The fans operate at two speeds, HI and LO.

The front ventilated seats control buttons are located within the Uconnect can gain access to the control buttons through the climate screen or the controls screen.

• Press the ventilated seat button

NOTE: The engine must be running for the ventilated seats to operate.Vehicles Equipped With Remote Start

On models that are equipped with remote start, the ventilated seats can be programed to come on during a remote start.

This feature can be programmed through the Uconnect Settings” in “Understanding Your Instrument Panel” in the Owner's Manual on the DVD.

that allow the rear passengers to operate the seats independently.

once to select HI-level heating.

a second time to select LO-level heating.

a third time to turn the heating elements OFF.

system. You

once to choose HI.

a second time to choose LO.

a third time to turn the ventilated seat OFF.

system. Refer to “Uconnect

Page 38

GETTING STARTED

HEATED STEERING WHEEL

The steering wheel contains a heating element that heats the steering wheel to one temperature setting.

The heated steering wheel control button is located within the Uconnect gain access to the control buttons through the climate screen or the controls screen.

• Press the heated steering wheel button

Press the heated steering wheel button a second time to turn the heating element OFF.

•

Once the heated steering wheel has been turned on, it will operate for up to 80 minutes before automatically shutting off. The heated steering wheel can shut off early or may not turn on when the steering wheel is already warm.

NOTE:

On models that are equipped with Remote Start, this feature can be programmed to come on during a Remote Start through the Uconnect in “Understanding Your Instrument Panel” in the Owner's Manual on the DVD.

once to turn the heating element ON.

system. Refer to “Uconnect®Settings”

WARNING!

• Persons who are unable to feel pain to the skin because of advanced age, chronic illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion, or other physical conditions must exercise care when using the steering wheel heater. It may cause burns even at low temperatures, especially if used for long periods.

• Do not place anything on the steering wheel that insulates against heat, such as a blanket or steering wheel covers of any type and material. This may cause the steering wheel heater to overheat.

system. You can

Page 39

GETTING STARTED

TILT/TELESCOPING STEERING COLUMN

Manual Tilt/Telescoping Steering Column

The tilt/telescoping control handle is located below the steering wheel at the end of the steering column.

• Push the handle down to unlock the steering column.

• To tilt the steering column, move the steering wheel upward or downward as desired.

• To lengthen or shorten the steering column, pull the steering wheel outward or push it inward as desired.

• Pull up on the handle to lock the column firmly in place.

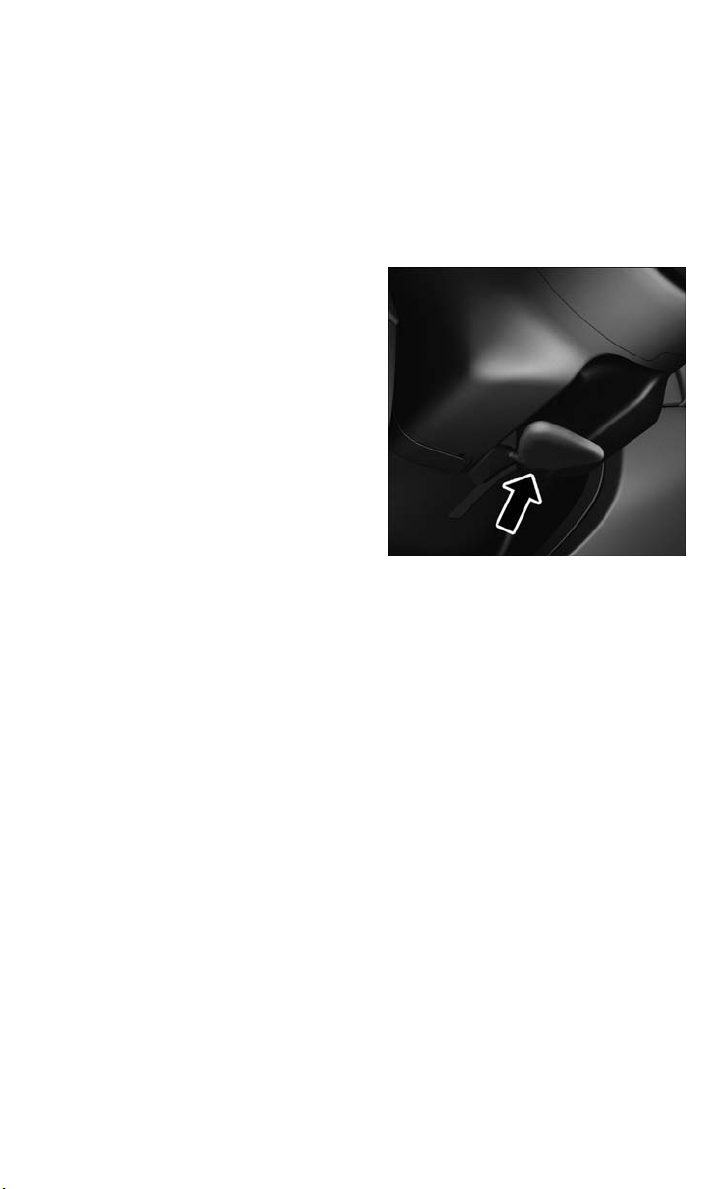

Manual Tilt/Telescoping Steering Column

Handle

Page 40

GETTING STARTED

Power Tilt/Telescoping Steering Column

The power tilt/telescoping steering control is located below the turn signal/wiper/ washer/high beam lever on the steering column.

• To tilt the steering column, move the power tilt/telescoping control up or down as desired.

• To lengthen or shorten the steering column, pull the control toward you or push the control away from you as desired.

Power Tilt/Telescoping Steering Control

Location

WARNING!

• Do not adjust the steering wheel while driving. The tilt/telescoping adjustment must be locked while driving. Adjusting the steering wheel while driving or driving without the tilt/telescoping adjustment locked could cause the driver to lose control of the vehicle. Failure to follow this warning may result in you and others being severely injured or killed.

• Moving the steering column while the vehicle is moving is dangerous. Without a stable steering column, you could lose control of the vehicle and have a collision. Adjust the column only while the vehicle is stopped.

Page 41

OPERATING YOUR VEHICLE

ENGINE BREAK-IN RECOMMENDATIONS

A long break-in period is not required for the engine and drivetrain (transmission and axle) in your vehicle.

Drive moderately during the first 300 miles (500 km). After the initial 60 miles (100 km), speeds up to 50 or 55 mph (80 or 90 km/h) are desirable.

While cruising, brief full-throttle acceleration within the limits of local traffic laws contributes to a good break-in. Wide-open throttle acceleration in low gear can be detrimental and should be avoided.

The engine oil installed in the engine at the factory is a high-quality energy conserving type lubricant. Oil changes should be consistent with anticipated climate conditions under which vehicle operations will occur. Refer to “Maintaining Y our Vehicle”, for the recommended viscosity and quality grades.

NOTE:

A new engine may consume some oil during its first few thousand miles (kilometers) of operation. This should be considered a normal part of the break-in and not interpreted as an indication of an engine problem or malfunction.

CAUTION!

Never use Non-Detergent Oil or Straight Mineral Oil in the engine or damage may result.

TURN SIGNAL/WIPER/WASHER/HIGH BEAM LEVER

Multifunction Lever

Turn Signal/Lane Change Assist

T ap the lever up or down once and the turn signal (right or left) will flash three times and automatically turn off.

Page 42

OPERATING YOUR VEHICLE

Front Wipers

Intermittent, Low And High Operation

Rotate the end of the lever to one of the first four detent positions for intermittent settings, the fifth detent for low wiper operation and the sixth detent for high wiper operation.

Washer Operation

Push inward on the end of the lever and hold for as long as spray is desired.

Mist

Rotate the end of the lever downward when a single wipe is desired.

NOTE:

The mist feature does not activate the washer pump; therefore, no washer fluid will be sprayed on the windshield. The wash function must be activated in order to spray the windshield with washer fluid.

Rain Sensing Wipers

This feature senses moisture on the vehicle's windshield and automatically activates the wipers for the driver when the switch is in the intermittent position. Rotate the end of the lever to one of four settings to activate this feature and adjust sensitivity.

The Rain Sensing feature can be turned on and off using the Uconnect the “Programmable Features” in the “Electronics” section in this guide.

Refer to the Owner's Manual on the DVD for further details.

System. Refer to

Rear Wiper

Rear Wiper Operation

Rotate the center portion of the lever forward to the first detent for intermittent operation and to the second detent for rear wiper operation.

Rear Washer Operation

Rotate the center portion of the lever past the second detent to activate the rear washer.

High Beam Operation

Push the lever forward to activate the high beams. Pull the lever toward you for flash to pass.

NOTE:

For safe driving, turn off high beams when oncoming traffic is present to prevent headlight glare and as a courtesy to other motorists.

Page 43

OPERATING YOUR VEHICLE

HEADLIGHT SWITCH

Automatic Headlights/Parking Lights/Headlights

• Rotate the headlight switch, located on the instrument panel to the left of the steering wheel, to the first detent for parking lights detent for headlights

• With the parking lights or low beam headlights on, push the headlight switch once for fog lights.

• Rotate the headlight switch to “AUTO” for AUTO headlights.

• When set to AUTO, the system automatically turns the headlights on or off based on ambient light levels.

Automatic High Beams

The Automatic High Beams system provides increased forward lighting at night by automating high beam control through the use of a digital camera mounted above the inside rearview mirror. This camera detects vehicle specific light and automatically switches from high beams to low beams until the approaching vehicle is out of view. This feature is programmable through the Uconnect in “Understanding Your Instrument Panel” in the Owner's Manual on the DVD for further details.

and to the second

Headlight Switch

1 — Auto 2 — Rotate Headlight Switch 3 — Push Fog Lights 4 — Rotate Dimmer

system. Refer to “Uconnect®Settings”

Instrument Panel Dimmer

• Rotate the dimmer control to the extreme bottom position to fully dim the instrument panel lights and prevent the interior lights from illuminating when a door is opened.

• Rotate the dimmer control up to increase the brightness of the instrument panel when the parking lights or headlights are on.

• Rotate the dimmer control up to the next detent position to fully brighten the odometer and radio when the parking lights or headlights are on.

• Rotate the dimmer control up to the last detent position to turn on the interior lighting.

If your vehicle is equipped with a touchscreen, the dimming is programmable through the Uconnect Panel” in the Owner's Manual on the DVD for further details.

system. Refer to “Uconnect®Settings ” in “Understanding Your Instrument

Page 44

OPERATING YOUR VEHICLE

ELECTRONIC SPEED CONTROL

The Electronic Speed Control switches are located on the right side of the steering wheel.

Cruise ON/OFF

• Push the ON/OFF button to activate the Electronic Speed Control.

CRUISE CONTROL READY will appear in the Driver Information Display (DID) to indicate the Electronic Speed Control is on.

• Push the ON/OFF button time to turn the system off.

CRUISE CONTROL OFF will appear in the Driver Information Display (DID) to indicate the Electronic Speed Control is off.

a second

SET

• With the Electronic Speed Control on, push and release the SET+ or SET- button to set a desired speed.

Once a speed has been set, a message CRUISE CONTROL SET TO MPH/KM will appear indicating what speed was set. An indicator message, CRUISE will also appear and stay on in the Driver Information Display (DID) when the speed is set.

Electronic Speed Control Switches

1 — Push Cancel 2 — Push Set+/Accel 3 — Push Resume 4 — Push On/Off 5 — Push Set-/Decel

Accel/Decel

To Increase Speed

• When the Electronic Speed Control is set, you can increase speed by pushing the SET + button.

The drivers preferred units can be selected through the instrument panel settings if equipped. Refer to “Understanding Y our Instrument Panel” in the Owner’s Manual on the DVD for more information. The speed increment shown is dependant on the speed of U.S. (mph) or Metric (km/h) units:

U.S. Speed (mph)

• Pushing the SET + button once will result in a 1 mph increase in set speed. Each subsequent tap of the button results in an increase of 1 mph.

• If the button is continually pushed, the set speed will continue to increase until the button is released, then the new set speed will be established.

Page 45

OPERATING YOUR VEHICLE

Metric Speed (km/h)

• Pushing the SET + button once will result in a 1 km/h increase in set speed. Each

subsequent tap of the button results in an increase of 1 km/h.

• If the button is continually pushed, the set speed will continue to increase until the button is released, then the new set speed will be established.

To Decrease Speed

• When the Electronic Speed Control is set, you can decrease speed by pushing the SET

- button.

The drivers preferred units can be selected through the instrument panel settings if equipped. Refer to “Understanding Y our Instrument Panel” in the Owner’s Manual on the DVD for more information. The speed decrement shown is dependant on the speed of U.S. (mph) or Metric (km/h) units:

U.S. Speed (mph)

• Pushing the SET - button once will result in a 1 mph decrease in set speed. Each subsequent tap of the button results in a decrease of 1 mph.

• If the button is continually pushed, the set speed will continue to decrease until the button is released, then the new set speed will be established.

Metric Speed (km/h)

• Pushing the SET - button once will result in a 1 km/h decrease in set speed. Each subsequent tap of the button results in a decrease of 1 km/h.

• If the button is continually pushed, the set speed will continue to decrease until the button is released, then the new set speed will be established.

Resume

• To resume a previously selected set speed in memory, push the RES button and release.

Cancel

• Push the CANCEL button, or apply the brakes to cancel the set speed and maintain the set speed memory.

• Push the ON/OFF button to turn the system off and erase the set speed memory.

WARNING!

Leaving the Electronic Speed Control system on when not in use is dangerous. You could accidentally set the system or cause it to go faster than you want. You could lose control and have an accident. Always leave the system OFF when you are not using it.

Page 46

OPERATING YOUR VEHICLE

ADAPTIVE CRUISE CONTROL (ACC)

If your vehicle is equipped with Adaptive Cruise Control the controls operate exactly the same as the electronic speed control with only a couple of differences. With this option you can set a specified distance you would like to maintain between you and the vehicle in front of you.

If the ACC sensor detects a vehicle ahead, ACC will apply limited braking or acceleration automatically to maintain a preset following distance, while matching the speed of the vehicle ahead.

If the sensor does not detect a vehicle ahead of you, ACC will maintain a fixed set speed.

ACC ON/OFF

• Push and release the Adaptive Cruise Control (ACC) ON/OFF button.

1 — Adaptive Cruise Control (ACC) On/ Off 2 — Distance Setting – Decrease 3 — Distance Setting – Increase

Adaptive Cruise Switches

ACC READY will appear in the Driver Information Display (DID) to indicate the ACC is on.

• Push and release the Adaptive Cruise Control (ACC) ON/OFF button a second time to turn the system off.

Adaptive Cruise Control (ACC) Off will appear in the Driver Information Display (DID) to indicate the ACC is off.

To Vary The Speed Setting

To Increase Speed

While ACC is set, you can increase the set speed by pushing the SET + button.

U.S. Speed (mph)

• Pushing the SET + button once will result in a 1 mph increase in set speed. Each subsequent tap of the button results in an increase of 1 mph.

•

If the button is continually pushed, the set speed will continue to increase in 5 mph

increments until the button is released. The increase in set speed is reflected in the DID.

Page 47

OPERATING YOUR VEHICLE

Metric Speed (km/h)

• Pushing the SET + button once will result in a 1 km/h increase in set speed. Each

subsequent tap of the button results in an increase of 1 km/h.

• If the button is continually pushed, the set speed will continue to increase in 10 km/h increments until the button is released. The increase in set speed is reflected in the DID.

To Decrease Speed

While ACC is set, the set speed can be decreased by pushing the SET - button.

U.S. Speed (mph)

• Pushing the SET - button once will result in a 1 mph decrease in set speed. Each subsequent tap of the button results in a decrease of 1 mph.

• If the button is continually pushed, the set speed will continue to decrease in 5 mph decrements until the button is released. The decrease in set speed is reflected in the DID.

Metric Speed (km/h)

• Pushing the SET - button once will result in a 1 km/h decrease in set speed. Each subsequent tap of the button results in a decrease of 1 km/h.

• If the button is continually pushed, the set speed will continue to decrease in 10 km/h decrements until the button is released. The decrease in set speed is reflected in the DID.

NOTE:

• When you override and push the SET + button or SET - buttons, the new Set Speed will be the current speed of the vehicle.

• When you use the SET - button to decelerate, if the engine’ s braking power does not slow the vehicle sufficiently to reach the set speed, the brake system will automatically slow the vehicle.

• The ACC system applies the brake down to a full stop when following a target vehicle. If an ACC host vehicle follows a target vehicle to a standstill, the host vehicle will release the vehicle brakes two seconds after coming to a full stop.

• The ACC system maintains set speed when driving up hill and down hill. However, a slight speed change on moderate hills is normal. In addition, downshifting may occur while climbing uphill or descending downhill. This is normal operation and necessary to maintain set speed. When driving up hill and down hill, the ACC system will cancel if the braking temperature exceeds normal range (overheated).

Page 48

OPERATING YOUR VEHICLE

Distance Setting (ACC Only)

The specified following distance for ACC can be set by varying the distance setting between four bars (longest), three bars (long), two bars (medium) and one bar (short). Using this distance setting and the vehicle speed, ACC calculates and sets the distance to the vehicle ahead. This distance setting displays in the DID.

• To increase the distance setting, push the Distance Setting—Increase button and release. Each time the button is pushed, the distance setting increases by one bar (longer).

• To decrease the distance setting, push the Distance Setting—Decrease button and release. Each time the button is pushed, the distance setting decreases by one bar (shorter).

ACC Operation At Stop

If the ACC system brings your vehicle to a standstill while following a target vehicle, if the target vehicle starts moving within two seconds of your vehicle coming to a standstill, your vehicle will resume motion without the need for any driver action.

If the target vehicle does not start moving within two seconds of your vehicle coming to a standstill, the driver will either have to push the RES (resume) button, or apply the accelerator pedal to reengage the ACC to the existing Set Speed.

While the ACC system is holding your vehicle at a standstill, if the driver seatbelt is unbuckled or the driver door is opened, the parking brake will be activated, and the ACC system will be cancelled.

Changing Modes (ACC Only)

If desired, the Adaptive Cruise Control mode can be turned off and the system can be operated as a normal (Fixed Speed) Speed Control mode. When in the normal (Fixed Speed) Speed Control mode the distance setting feature will be disabled and the system will maintain the speed you set.

• To change between the different cruise control modes, push the ADAPTIVE CRUISE CONTROL (ACC) ON/OFF button which turns the ACC and the normal (Fixed Speed) Speed Control OFF.

• Pushing the normal (Fixed Speed) SPEED CONTROL ON/OFF button will result in turning ON (changing to) the normal (Fixed Speed) Speed Control mode.

Refer to your Owner's Manual on the DVD for further information.

Page 49

OPERATING YOUR VEHICLE

WARNING!

Adaptive Cruise Control (ACC) is a convenience system. It is not a substitute for active driving involvement. It is always the driver’s responsibility to be attentive of road, traffic, and weather conditions, vehicle speed, distance to the vehicle ahead; and, most importantly, brake operation to ensure safe operation of the vehicle under all road conditions. Your complete attention is always required while driving to maintain safe control of your vehicle. Failure to follow these warnings can result in a collision and death or serious personal injury. The ACC system:

• Does not react to pedestrians, oncoming vehicles, and stationary objects (e.g., a stopped vehicle in a traffic jam or a disabled vehicle).

• Cannot take street, traffic, and weather conditions into account, and may be limited upon adverse sight distance conditions.

• Does not always fully recognize complex driving conditions, which can result in wrong or missing distance warnings.

• Will bring the vehicle to a complete stop while following a target vehicle and hold the vehicle for 2 seconds in the stop position. If the target vehicle does not start moving within two seconds the ACC system will display a message that the system will release the brakes and that the brakes must be applied manually. An audible chime will sound when the brakes are released.

You should switch off the ACC system:

• When driving in fog, heavy rain, heavy snow, sleet, heavy traffic, and complex driving situations (i.e., in highway construction zones).

• When entering a turn lane or highway off ramp; when driving on roads that are winding, icy, snow-covered, slippery, or have steep uphill or downhill slopes.

• When towing a trailer up or down steep slopes.

• When circumstances do not allow safe driving at a constant speed.

The Cruise Control system has two control modes:

• Adaptive Cruise Control mode for maintaining an appropriate distance between vehicles.

• Normal (fixed speed) electronic speed control mode for cruising at a constant preset speed. For additional information, refer to “Normal (Fixed Speed) Cruise Control Mode” in this section.

Normal (fixed speed) electronic speed control will not react to preceding vehicles. Always be aware of the mode selected. You can change the mode by using the Cruise Control buttons. The two control modes function differently. Always confirm which mode is selected.

Page 50

OPERATING YOUR VEHICLE

FORWARD COLLISION WARNING (FCW) WITH MITIGATION

The Forward Collision Warning (FCW) system with mitigation provides the driver with audible warnings, visual warnings within the DID, and may apply a brake jerk to warn the driver when it detects a potential frontal collision. The warnings and limited braking are intended to provide the driver with enough time to react, avoid or mitigate the potential collision.

• FCW monitors the information from the forward looking sensors as well as the Electronic Brake Controller (EBC), to calculate the probability of a forward collision. When the system determines that a forward collision is probable, the driver will be provided with audible and visual warnings and may provide a brake jerk warning.

• If the driver does not take action based upon these progressive warnings, then the system will provide a limited level of active braking to help slow the vehicle and mitigate the potential forward collision. If the driver reacts to the warnings by braking and the system determines that the driver intends to avoid the collision by braking but has not applied sufficient brake force, the system will compensate and provide additional brake force as required.

Turning FCW ON Or OFF

NOTE:

The default status of FCW is “On,” this allows the system to warn you of a possible collision with the vehicle in front of you when you are farther away and it applies limited braking. This gives you the most reaction time to avoid a possible collision.

The forward collision button is on the switch panel that is located in the center of the instrument panel.

• To turn the FCW system OFF, push the forward collision button once (LED turns on).

• To turn the FCW system back ON, push the forward collision button again (LED turns off).

Changing FCW Status

The FCW feature has two settings and can be changed within the Uconnect Screen:

• Far

• Near

NOTE:

The FCW and active braking settings can only be changed when the vehicle is in PARK.

System

Page 51

OPERATING YOUR VEHICLE

Far

The default status of FCW is the “Far” setting.

The far setting provides warnings for potential collisions more distant in front of the vehicle, allowing the driver to have the most reaction time to avoid a collision.

This setting is designed to provide early warnings per NHTSA (National Highway T raffic Safety Administration) recommendations.

More cautious drivers that do not mind frequent warnings may prefer this setting.

NOTE:

This setting gives you the most reaction time.

Near

Changing the FCW status to the “Near” setting, allows the system to warn you of a potential frontal collision when you are much closer.

This setting provides less reaction time than the “Far” setting, which allows for a more dynamic driving experience.

More dynamic or aggressive drivers that want to avoid frequent warnings may prefer this setting.

Off

Changing the FCW status to “Off” prevents the system from warning you of a possible collision with the vehicle in front of you.

Turning Active Braking ON Or OFF

The Active Braking feature has two settings and can be changed within the Uconnect System Screen:

•On

• Off

Changing the Active Braking status to “Off” prevents the system from providing limited autonomous braking, or additional brake support if the driver is not braking adequately in the event of a potential frontal collision.

NOTE:

If FCW is set to “Off,” “FCW OFF” will be displayed in the DID.

Refer to the Owner's Manual on the DVD for further details.

WARNING!

Forward Collision Warning (FCW) is not intended to avoid a collision on its own, nor can FCW detect every type of potential collision. The driver has the responsibility to avoid a collision by controlling the vehicle via braking and steering. Failure to follow this warning could lead to serious injury or death.

Page 52

OPERATING YOUR VEHICLE

AUTOMATIC DIMMING MIRRORS

The rearview and driver side exterior mirror automatically adjusts for headlight glare from vehicles behind you.

You can turn the feature on or off when the Automatic Dimming Mirror feature is selected through the programmable features in the Uconnect Settings” in “Understanding Your Instrument Panel” in the Owner's Manual on the DVD for further details.

ELECTRONIC SHIFTER

Your vehicle is equipped with a fuel efficient eight-speed transmission. The Electronic gear selector is located on the center console. The transmission gear (PRND) is displayed both above the shifter control and in the Driver Information Display (DID).

• To select a gear range, simply rotate the shifter control.

NOTE:

You must press the brake pedal to shift the transmission out of PARK or from NEUTRAL into DRIVE or REVERSE.

• To shift past multiple gear ranges at once (such as P ARK to DRIVE), simply rotate the switch to the appropriate detent.

• Select the DRIVE range for normal driving.

system. Refer to “Uconnect

Electronic Gear Selector

Page 53

OPERATING YOUR VEHICLE

WARNING!

• Never use the PARK position as a substitute for the parking brake. Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage.

• Your vehicle could move and injure you and others if it is not in PARK. Make sure the transmission is in P ARK before leaving the vehicle.

• It is dangerous to shift out of PARK or NEUTRAL if the engine speed is higher than idle speed. If your foot is not firmly pressing the brake pedal, the vehicle could accelerate quickly forward or in reverse. You could lose control of the vehicle and hit someone or something. Only shift into gear when the engine is idling normally and your foot is firmly pressing the brake pedal.

• Unintended movement of a vehicle could injure those in or near the vehicle. As with all vehicles, you should never exit a vehicle while the engine is running. Before exiting a vehicle, always apply the parking brake, shift the transmission into PARK, turn the engine OFF, and remove the Key Fob. When the ignition is in the OFF mode, the transmission is locked in PARK, securing the vehicle against unwanted movement.

• When leaving the vehicle, always make sure the ignition is in the OFF mode, remove the Key Fob from the vehicle, and lock the vehicle.

• Do not leave the Key Fob in or near the vehicle (or in a location accessible to children), and do not leave the ignition in the ACC or ON/RUN mode. A child could operate power windows, other controls, or move the vehicle.

AUTOSTICK

AutoStick is a driver -interactive transmission feature providing manual shift control, giving you more control of the vehicle. AutoStick allows you to maximize engine braking, eliminate undesirable upshifts and downshifts, and improve overall vehicle performance. This system can also provide you with more control during passing, city driving, cold slippery conditions, mountain driving, trailer towing, and many other situations.

AutoStick Shift Paddles

Page 54

OPERATING YOUR VEHICLE

Operation

When the transmission is in DRIVE, it will operate automatically, shifting between the eight available gears. To engage AutoStick, simply tap one of the steering wheel-mounted shift paddles (+/-). Tapping (-) to enter AutoStick mode will downshift the transmission to the next lower gear, while using (+) to enter AutoStick mode will retain the current gear. When AutoStick is active, the current transmission gear is displayed in the instrument cluster.

In AutoStick mode, the transmission will shift up or down when (+/-) is manually selected by the driver , unless an engine lugging or overspeed condition would result. It will remain in the selected gear until another upshift or downshift is chosen, except as described below.

• The transmission will automatically downshift as the vehicle slows (to prevent engine lugging) and will display the current gear.

• The transmission will automatically downshift to first gear when coming to a stop. After a stop, the driver should manually upshift (+) the transmission as the vehicle is accelerated.

• You can start out, from a stop, in first or second gear. Tapping (+) at a stop will allow starting in second gear. Starting out in second gear can be helpful in snowy or icy conditions.

• If a requested downshift would cause the engine to over-speed, that shift will not occur.

• The system will ignore attempts to upshift at too low of a vehicle speed.

• Holding the (-) paddle depressed will downshift the transmission to the lowest gear possible at the current speed.

• Transmission shifting will be more noticeable when AutoStick is engaged.

• The system may revert to automatic shift mode if a fault or overheat condition is detected.

T o disengage AutoStick mode, press and hold the (+) shift paddle until "D" is once again indicated in the instrument cluster. You can shift in or out of AutoStick mode at any time without taking your foot off the accelerator pedal.

WARNING!

Do not downshift for additional engine braking on a slippery surface. The drive wheels could lose their grip and the vehicle could skid, causing a collision or personal injury .

Page 55

OPERATING YOUR VEHICLE

FUEL ECONOMY (ECO) MODE

The Fuel Economy (ECO) mode can improve the vehicle's overall fuel economy during normal driving conditions. Each time the vehicle is started ECO mode is engaged and an amber light in the center stack of the instrument panel will be illuminated. To disable ECO mode, press the “ECO” switch in the center stack of the instrument panel and the amber light will go out indicating ECO mode is disabled.

When the Fuel Economy (ECO) Mode is engaged, the vehicle control systems will change the following:

• The transmission will upshift sooner and downshift later.

• The overall driving performance will be more conservative.

• Some ECO mode functions may be temporarily inhibited based on temperature and other factors.

ECO Switch

Page 56

OPERATING YOUR VEHICLE

AUTOMATIC CLIMATE CONTROLS

Uconnect® 5.0 Touchscreen Automatic Climate Controls

Uconnect® 5.0 Automatic Climate Controls

1 — Max A/C Button 2 — A/C Button 3 — Air Recirculation Button 4 — Front Defroster Button 5 — Rear Defroster Button 6 — Climate Control Button

7 — Mode Control Button 8 — Off Button 9 — Auto Button 10 — Sync Button 11 — Temperature Control Button 12 — Blower Control Button

Page 57

OPERATING YOUR VEHICLE

Uconnect® 8.4 Touchscreen Automatic Climate Controls

Uconnect® 8.4 Automatic Climate Controls

1 — MAX A/C Button 2 — A/C Button 3 — Air Recirculation Button 4 — AUTO Button 5 — FRONT Defroster Button 6 — REAR Defroster Button 7 — REAR Climate Button 8 — Passenger Temperature Up

9 — Passenger Temperature Down 10 — SYNC Button 11 — Blower Control Buttons 12 — Mode Control Buttons 13 — OFF Button 14 — Driver Temperature Down 15 — Driver Temperature Up

Page 58

OPERATING YOUR VEHICLE

Climate Control Knobs

Automatic Climate Controls

1 — Driver Temperature Up 2 — OFF Button 3 — Blower Control Knob 4 — Passenger Temperature Up 5 — REAR Defroster Button 6 — FRONT Defroster Button

7 — Passenger Temperature Down 8 — AUTO Button 9 — Driver Temperature Down 10 — Air Recirculation Button 11 — A/C Button

Automatic Operation

• Press the AUTO button.

• Select the desired temperature by pressing the T emperature Control buttons.

• The system will maintain the set temperature automatically .

Air Conditioning (A/C)

• If the air conditioning button is pressed while in AUTO mode, the system will exit AUTO mode and stay in A/C. The mode and blower will be set at the closest mode and blower position that the system was operating in AUTO.

Page 59

OPERATING YOUR VEHICLE

MAX A/C

• MAX A/C sets the control for maximum cooling performance.

• Press and release to toggle between MAX A/C and the prior settings. The button on the touchscreen illuminates when MAX A/C is ON.

• In MAX A/C, the blower level and mode position can be adjusted to desired user settings. Pressing other settings will cause the MAX A/C operation to switch to the prior settings and the MAX A/C indicator will turn off.

SYNC Temperature Button

• Press the “SYNC” button on the Uconnect®radio touchscreen to control the driver and passenger temperatures simultaneously . Press the “SYNC” button on the touchscreen a second time to control the temperatures individually.

Air Recirculation

• Use Recirculation for maximum A/C operation.

• For window defogging, turn the Recirculation button off.

• If the Recirculation button is pressed while in front defrost mode, the indicator will flash three times to indicate that recirculation state is not allowed in front defrost mode.

Heated Mirrors

The mirrors are heated to melt frost or ice. This feature is activated whenever you turn on the rear window defroster.

Page 60

OPERATING YOUR VEHICLE

Rear Temperature Controls

Rear Automatic Temperature Control

1 — Rear Blower Control AUTO Mode 2 — Rotate Blower Control

3 — Rotate Temperature Control 4 — Rotate Mode Control

The rear controls for the A TC System are located in the headliner, near the center of the vehicle.

The rear temperature controls can be turned on two ways:

• Press the “REAR” control button on the Uconnect and adjust to the desired rear temperature.

• Rotate the Rear Temperature Control or the Rear Blower Control knobs on the rear temperature controls.

Press the “REAR” button and then the “OFF” button on the Uconnect control screen to turn the rear controls off.

front temperature control screen

front temperature

Page 61

OPERATING YOUR VEHICLE

PARKSENSE® REAR PARK ASSIST

The four ParkSense®sensors, located in the rear fascia/bumper, monitor the area behind the vehicle that is within the sensors’ field of view .

The sensors can detect obstacles from approximately 12 in (30 cm) up to 79 in (200 cm) from the rear bumper while the vehicle is in REVERSE, a warning will display in the Driver Information Display (DID) and a chime will sound (when Sound and Display is selected from the Customer Programmable Features section of the Uconnect the vehicle moves closer to the object, the chime rate will change from single 1/2 second tone, to slow, to fast, to continuous.

Cleaning The ParkSense® Sensors

If “PARKSENSE UNAVAILABLE WIPE REAR SENSORS" or "PARKSENSE UNAVAILABLE WIPE FRONT SENSORS” appears in the “Driver Information Display (DID),” clean the ParkSense hard cloths. Do not scratch or poke the sensors. Otherwise, you could damage the sensors.

sensors with water, car wash soap and a soft cloth. Do not use rough or

PARKVIEW® REAR BACK-UP CAMERA

System screen). As

You can see an on-screen image of the rear of your vehicle whenever the shift lever/gear selector is put into REVERSE. The ParkView displayed on the radio display screen, located on the center stack of the instrument panel.

If the radio display screen appears foggy, clean the camera lens located on the liftgate.

Rear Back-Up Camera image will be

WARNING!

Drivers must be careful when backing up; even when using the ParkView®Rear Back-Up Camera. Always check carefully behind your vehicle, and be sure to check for pedestrians, animals, other vehicles, obstructions, or blind spots before backing up. You must continue to pay attention while backing up. Failure to do so can result in serious injury or death.

BLIND SPOT MONITORING

The Blind Spot Monitoring (BSM) system uses two radar-based sensors, located inside the rear bumper fascia, to detect Highway licensable vehicles (automobiles, trucks, motorcycles etc.) that enter the blind spot zones from the rear/front/side of the vehicle.

The BSM warning light, located in the outside mirrors, will illuminate if a vehicle moves into a blind spot zone.

The BSM system can also be configured to sound an audible (chime) alert and mute the radio to notify you of objects that have entered the detection zones.

Refer to “Blind Spot Monitoring” in “Understanding The Features Of Your Vehicle” in your Owner's Manual on the DVD for further details.

Page 62

OPERATING YOUR VEHICLE

POWER SUNROOF

The power sunroof switch is located on the overhead console.

Opening Sunroof

Express Open

Push the switch rearward and release it within one-half second. The sunroof will fully open and stop automatically.

Manual Open

Push and hold the switch rearward to open the sunroof. Any release of the switch will stop the movement, and the sunroof will remain in a partially open position until the switch is pushed again.

Venting Sunroof

Push and release the button and the sunroof will open to the vent position.

This is called “Express Vent” and will occur regardless of sunroof position. During Express Vent operation, any movement of the switch will stop the sunroof.

1 — Opening Sunroof 2 — Venting Sunroof 3 — Closing Sunroof

Power Sunroof Switch

Closing Sunroof

Express Closing

Push the switch forward and release it within one-half second. The sunroof will fully close automatically from any position.

Manual Closing

Push and hold the switch forward to close the sunroof. Any release of the switch will stop the movement, and the sunroof will remain in a partially closed position until the switch is pushed again.

Pinch Protection Feature

This feature will detect an obstruction in the opening of the sunroof during Express Close operation. If an obstruction in the path of the sunroof is detected, the sunroof will automatically retract. Remove the obstruction if this occurs. Next, push the switch forward and release to Express Close.

NOTE:

If three consecutive sunroof close attempts result in Pinch Protect reversals, the fourth close attempt will be a Manual Close movement with Pinch Protect disabled.

Page 63

OPERATING YOUR VEHICLE

WARNING!

• Do not let children play with the sunroof. Never leave children unattended in a vehicle, or with access to an unlocked vehicle. Do not leave the Key Fob in or near the vehicle, and do not leave the ignition of a vehicle equipped with Keyless Enter-N-Go™ in the ACC or ON/RUN mode. Occupants, particularly unattended children, can become entrapped by the power sunroof while operating the power sunroof switch. Such entrapment may result in serious injury or death.

• In a collision, there is a greater risk of being thrown from a vehicle with an open sunroof. You could also be severely injured or killed. Always fasten your seat belt properly and make sure all passengers are properly secured.

• Do not allow small children to operate the sunroof. Never allow your fingers, other body parts, or any object to project through the sunroof opening. Injury may result.

WIND BUFFETING

Wind buffeting can be described as a helicopter-type percussion sound. If buffeting occurs with the rear windows open, adjust the front and rear windows together.

If buffeting occurs with the sunroof open, adjust the sunroof opening, or adjust any window. This will minimize buffeting.

Page 64

ELECTRONICS

YOUR VEHICLE'S SOUND SYSTEM

1. Uconnect®Phone Button pg. 135

2. Uconnect

3. Phone Hang Up Button pg. 135

4. Steering Wheel Audio control (Left) pg. 146

5. Steering Wheel Audio control (Right) pg. 146

6. V olume/Mute Knob

7. Assist Button pg. 73

Voice Command Button pg. 107

Page 65

ELECTRONICS

8. Emergency 911 Button pg. 73

9. Uconnect

10. Uconnect

11. Uconnect

12. Tune/Scroll Knob/Browse/Enter Button

13. Media Hub: AUX Audio Jack, USB Port, and SD Card Slot pg. 101

14. CD Player Inside Center Console pg. 84

System pg. 82

Radio Screen Off Button

Radio Back Button

Page 66

ELECTRONICS

IDENTIFYING YOUR RADIO

Uconnect® 5.0

• 5” Touchscreen

• Three buttons on the faceplate on either side of the display

Uconnect® 8.4A

• 8.4” Touchscreen

• Climate button on the touchscreen in lower menu bar

Uconnect® 5.0

Uconnect® 8.4A

Page 67

ELECTRONICS

Uconnect® 8.4AN

• 8.4” Touchscreen

• Climate button on the touchscreen in lower menu bar

Uconnect® 8.4AN

1 — Navigation Standard On 8.4AN

Uconnect® ACCESS

Uconnect® Access — If Equipped (Available On Uconnect® 8.4A/8.4AN — U.S. Residents Only)

WARNING!

ALWAYS drive safely with your hands on the steering wheel. Y ou have full responsibility and assume all risks related to the use of the Uconnect this vehicle. Only use Uconnect an accident involving serious injury or death.

Uconnect vehicle with a built-in cellular connection. With Uconnect

• Place a call to a local 9-1-1 Operator for emergency assistance.

• Remotely lock/unlock your doors and start your vehicle from virtually anywhere, using the Uconnect Mopar Owner Connect, or by calling Uconnect United States and have network coverage).

• Turn your vehicle into a WiFi Hotspot and connect your devices to the internet.

• Receive text or email notifications if your vehicle's theft alarm goes off.

• Receive stolen vehicle assistance, using GPS technology to help authorities locate your vehicle if it is stolen.

Access enhances your ownership and driving experience by connecting your

Access App from your smartphone. You can also do so by logging into

when it is safe to do so. Failure to do so may result in

features and applications in

Access, you can:

Care. (Vehicle must be within the

Page 68

ELECTRONICS

• Listen to your text messages or send free-form text messages with your voice while keeping your hands on the wheel, using the Voice Texting feature. Requires a cell phone that supports Bluetooth Message Access Profile (MAP).

• Search for places to eat, shop, relax and play with Y elp menu. Then navigate to them (navigation standard on Uconnect

Uconnect

8.4A).

• Get operator assistance using the ASSIST button on your interior rearview mirror .

Before you drive, familiarize yourself with the easy-to-use Uconnect® Access.

1. The ASSIST and 9-1-1 buttons are located on your rearview mirror. The ASSIST button

is used for contacting Roadside Assistance, V ehicle Care and Uconnect 9-1-1 button connects you to emergency services.

NOTE: Vehicles sold in Canada and Mexico DO NOT have 9-1-1 Call system capabilities. 9-1-1 or other emergency line operators in Canada and Mexico may not answer or respond to 9-1-1 system calls.

2. The Uconnect

“Apps” button on the menu bar at the bottom right corner of the radio touchscreen. This is where you can begin your registration process, manage your Apps and purchase WiFi on demand.

3. The Uconnect

Voice Command and Uconnect®Phone buttons are located on the left side of your steering wheel. These buttons let you use your voice to give commands, make phone calls, send and receive text messages hands-free, enter navigation destinations, and control your radio and media devices.

Included Trial Period For New Vehicles

Your new vehicle may come with an included trial period for use of the Uconnect Services starting at the date of vehicle purchase (date based on vehicle sales notification from your dealer). To activate the trial, you must first register with Uconnect® Access. After the trial period, if you wish to continue your Uconnect choose to purchase a subscription.

Features And Packages

• After the trial period, you can subscribe to continue your service by visiting the

Uconnect

Store located within the Mopar Owner Connect website moparownerconnect.com. If you need assistance, U.S. residents can call Uconnect Care at 1-855-792-4241 .

• For the latest information on packages and pricing information: U.S. residents visit DriveUconnect.com.

, using your voice or on-screen

8.4AN, optional on

Care. The

Access

Access Services you can

Page 69

ELECTRONICS

Uconnect® Access Registration (Uconnect® 8.4A/8.4AN, U.S. 48 Contiguous States, Alaska And Hawaii)

T o unlock the full potential of Uconnect®Access in your vehicle, you first need to register with Uconnect

1. From the parked vehicle with the radio touchscreen powered on, select the “Apps” button located near the bottom right-hand corner of the radio touchscreen.

NOTE:

Should you require assistance anytime during the registration process, simply call Uconnect

2. Press “Start” on the reminder screen or select “Uconnect Registration” under the “All Apps” or “Favorites Apps” tab on the Apps list.

3. The Uconnect tions to start your registration.

4. Enter your email address into the radio touchscreen.

5. A message will display on the touchscreen indicating your email submission was accepted. In a few minutes, you will receive an email which will allow you to register your vehicle for Uconnect Uconnect

6. Check for an email from Uconnect tion link. If you don't see it, check your spam or junk mail folder. Open the email and click on the link to continue registering.

NOTE:

For security reasons, this link is valid for 72 hours from the time you’ve submitted your email address into the radio touchscreen. If the link has expired, simply re-enter your email address into the Uconnect another link. The secured registration link will take you through the Uconnect registration process step by step.

7. To unlock the full potential of Uconnect or validate an existing Mopar Owner Connect account previously (Owner Center). Uconnect destination to manage all of your vehicle needs, from managing your Uconnect Access account, to tracking service history and finding recommended accessories for your vehicle. If you already have a Mopar Owner Connect account, log in to the website with your existing username/email and password. For assistance with this web based registration process, call Uconnect

8. Once you are logged in to your Mopar Owner Connect account, you will create a personal Uconnect authenticate you when accessing your account via Uconnect remote services such as Remote Door Lock/Unlock, Remote Horn & Lights or Starting and Stopping the engine.

Access.

Care at 1-855-792-4241 .

Access Registration App will open and display step-by-step instruc-

Access registration within 72 hours.

along with Mopar Owner Connect have joined forces to create one

Security PIN. The Uconnect®Security PIN will be required to

Access. Y ou should open this email and begin your

Access that contains your personalized registra-

Registration App on the radio touchscreen to receive

Access in your vehicle, you will need to create

Care at 1-855-792-4241 .

Care or performing any

Access

Page 70

ELECTRONICS

9. If your vehicle qualifies for a trial package it will be presented. Simply agree to the Uconnect

At this point your vehicle is registered with Uconnect

T erms of Service (checkbox) and then select the “Start Service” button.

Access. Continue to set up Via Mobile. Apps will be downloaded the next time you start your vehicle. If the Apps have not appeared after 24 hours, please contact Uconnect

Care.

Download The Uconnect® Access App

The Uconnect®Access smartphone app allows you to remotely lock or unlock your doors, start your engine (if equipped) and activate your horn and lights from virtually anywhere. The smartphone app also features Via Mobile (if equipped) which uses your smartphone’ s data plan to access your personal Pandora

, iHeartRadio, Slacker Radio and Aha™ by

HARMAN accounts and control them using your vehicle touchscreen.

The Uconnect

Access app is only compatible with select iPhone®and Android smartphones. Visit UconnectPhone.com or call 1-877-855-8400 to confirm that your smartphone is compatible with Uconnect compatible, Android and iPhone

. Once you’ve confirmed your smartphone is

users should visit their respective app store and search

for “Uconnect Access” to download the app.

Set Up Your Via Mobile Profile — If Equipped

Setting up your Via Mobile profile means entering your login information for each App so that they can work in your vehicle. Complete your Via Mobile Profile online during registration of your Uconnect Mopar Owner Connect account (moparownerconnect.com), going to Edit Profile, then Via Mobile Profile.

If you already have an account with these Apps, scroll down and press the “Link” button to enter your information. If you do not have an account, you can create a new one.

Aha™ by HARMAN (www.aharadio.com)

• Enter your email address and password for Aha™, or create a new Aha™ account.

• You can link your Facebook, Twitter or Slacker accounts on the Aha™ website.

iHeartRadio (www.iHeartRadio.com)

• Enter your email address and password for iHeartRadio, or create a new iHeartRadio

account.

• Select “Activate” to continue,

• Select “Close” to complete activation.

Pandora® (www.pandora.com)

• Enter your Pandora

• Create a new Pandora

Access system. Access this page by logging into your

username/email address and password, then click “Save.”

account.

Page 71

ELECTRONICS

Slacker Radio (www.slacker.com)

• Enter your Slacker username/email address and password, then click “Save.”

• Create a new Slacker Radio account.

Invite family and friends to use the Via Mobile Apps in your vehicle by setting up their own Via Mobile profile.

Renewing Subscriptions And Purchasing WiFi Hotspot (Uconnect® 8.4A/8.4AN, U.S. 48 Contiguous States And Alaska)

Subscriptions, and WiFi Hotspot, can be purchased from the Uconnect®Store within your vehicle, and online at Mopar Owner Connect. If you need help push the ASSIST button on the rearview mirror, then select Uconnect

Purchasing Online

You can renew your subscription to a package or purchase WiFi from the Mopar Owner Connect website. You must first set up a Uconnect into moparownerconnect.com

1. Log In to the Mopar Owner Connect website (moparownerconnect.com) with your username/email and password.

2. Click on the “Shop” tab, then click on the Uconnect

3. From the Uconnect

Store, select the item you wish to purchase.

4. This will launch the selected item into purchase mode along with providing additional information.

5. The Uconnect

Store will display a “Purchase Overview” message confirming the

financial details of your purchase. Click the “Purchase” key to continue.

6. The Uconnect

Store will ask you to “Confirm Payment” using your default payment

method on file in your Payment Account. Click the “Complete” key to continue.

7. The Uconnect

Payment Account will then ask for your “Payment Account PIN,” which you established when setting up your Uconnect entering this four digit PIN, click the “Complete” key to make the purchase.

8. You will receive a confirmation message that your purchase has been submitted. Click the “OK” button to end the process.

Care (or dial 1-855-792-4241 ).

Access Payment Account online. Log

Store.

payment account. After

Page 72

ELECTRONICS

Purchasing WiFi Hotspot While In Your Vehicle

You must set up a Uconnect moparownerconnect.com, go to Edit Profile, then Uconnect and manage your Payment Account).

1. To purchase WiFi while in your vehicle, ensure the vehicle is running and in Park. Press the “Apps” button on the touchscreen, then select WiFi within the “Apps” menu. Follow the on-screen instructions. When asked for your payment PIN, use the 4-digit PIN you established when setting up your payment account on Mopar Owner Connect.

NOTE:

This may be different than the Uconnect such as Remote Vehicle Start. After purchasing WiFi, it may take up to 30 minutes (with the vehicle running) before the WiFi will be active in your vehicle.

2. Select WiFi again, then note the hotspot name. Select this network when connecting devices to the hotspot. Also click on View/Edit Passphrase, then note the security passphrase you will need to connect to the network on each device.

If your devices cannot see the WiFi Hotspot network after 30 minutes, please contact Uconnect

Care by pushing the ASSIST button on the rearview mirror, or by calling

1-855-792-4241 .

Using Uconnect® Access

Getting Started With Apps

Applications (Apps) and features in your Uconnect are customized for the driver and are certified by FCA US LLC. Two different types are:

1. Built-In Features — use the built-in 3G Cellular Network on your Uconnect

8.4AN radio.

2. Uconnect® Access Via Mobile (if equipped) — Via Mobile uses the Uconnect app and your smartphone's data plan to access your personal Pandora Aha™ by HARMAN and Slacker Radio accounts from the vehicle and control them using the vehicle touchscreen. Customer’s data plan charges will apply. Available on Uconnect

8.4A and 8.4AN Radios (if equipped).

Access Payment Account online (log in to

Security PIN you established for using features

Payment Account, to set up

Access system deliver services that

, iHeartRadio,

Access

8.4A/

Page 73

ELECTRONICS

Get started with your Uconnect®Access apps by pressing the Uconnect®“Apps” button on the menu bar at the bottom right corner of the radio touchscreen. Available apps and features are organized by the tabs on the left of the screen:

Favorite Apps — This is the default screen when you first press the “Apps” button on the touchscreen, and is a good place to put the apps you use most frequently. To make an App a “favorite”, press the star button next to the app name and confirm the prompt with “yes."

All Apps — Organizes your Uconnect

Running Apps — Press this tab to see which apps are currently running.

Access apps (when available).

Favorite Apps

1 — Category Tabs 2 — Apps Button

Page 74

ELECTRONICS

Maintaining Your Uconnect® Access Account

Reinstalling An App (Uconnect® 8.4A/8.4AN)

You can easily correct many Application related issues you may be experiencing by resetting the App back to the factory setting. From the vehicle’s radio touchscreen, complete the following steps:

1. Press the Uconnect

2. In My Apps, select “Settings,” then “Reinstall App.” Press “Continue.”

3. Your Apps have been successfully re-installed.

Canceling Your Subscription

Should you want to cancel your subscription, you can remove your account information using the same procedure contained in the Selling Your Vehicle section.

Selling Your Vehicle

When you sell your vehicle, we recommend that you remove your Uconnect Account information from the vehicle. You can do this using the radio touchscreen in the vehicle or on the Mopar Owner Connect website (moparownerconnect.com). Removing your account information cancels your subscription and makes your vehicle factory-ready for a new owner/subscriber.

1. From your vehicle’s radio touchscreen, select “Uconnect

2. Select “My Apps,” then “Settings.” Press “Remove Uconnect

3. Enter your Uconnect

For additional information on Uconnect

• U.S. residents - visit DriveUconnect.com or call 1-877-855-8400 .

• Canadian Residents - visit DriveUconnect.ca or call, 1-800-465-2001 (English) or

1-800-387-9983 (French).

“Apps” button and open the Uconnect®Store. Go to My Apps.

Access

Store” from the Apps Menu.

Account.”

Security PIN, and select “Continue.”

Page 75

ELECTRONICS

Built-In Features (Uconnect® 8.4A/8.4AN)

CAUTION!

• Ignoring the rearview mirror light could mean you may not have 9-1-1 Call service if needed. If the rearview mirror light is illuminated, have an authorized dealer service the 9-1-1 Call system immediately.

• The Occupant Restraint Controller (ORC) turns on the Air Bag Warning Light on the instrument panel if a malfunction is detected in any part of the air bag system. If the Air Bag Warning Light is illuminated, the air bag system may not be working properly and the 9-1-1 system may not be able to send a signal to a 9-1-1 operator. If the Air Bag Warning Light is illuminated, have an authorized dealer service your vehicle immediately.

• If anyone in the vehicle could be in danger (e.g., fire or smoke is visible, dangerous road conditions or location), do not wait for voice contact from a 9-1-1 operator. All occupants should exit the vehicle immediately and move to a safe location.

• Do not add any aftermarket electrical equipment to the vehicle’s electrical system. This may prevent your vehicle from sending a signal to initiate an emergency call. T o avoid interference that can cause the 9-1-1 Call system to fail, never add aftermarket equipment (e.g., two-way mobile radio, CB radio, data recorder , etc.) to your vehicle’s electrical system or modify the antennas on your vehicle. IF YOUR VEHICLE LOSES BATTER Y POWER FOR ANY REASON (INCLUDING DURING OR AFTER AN ACCIDENT), THE UCONNECT AMONG OTHERS, WILL NOT OPERATE.

FEA TURES, APPS AND SERVICES,

1. Assist Call — The rearview mirror contains an ASSIST push button which (once

registered) automatically connects the vehicle occupants to one of these predefined destinations for immediate support:

• Roadside Assistance Call —Ifyou

get a flat tire, or need a tow, you’ll be connected to someone who can help anytime. Additional fees may apply. Additional information in this section.

• Uconnect® Access Care — In vehicle

support for Uconnect tem, Apps and Features.

• Vehicle Care — Total support for your

FCA US LLC vehicle.

Access Sys-

ASSIST/9-1-1 Buttons

1 — ASSIST Button 2 — 9-1-1 Button

Page 76

ELECTRONICS

2. Emergency 9-1-1 Call (If Equipped) — The rearview mirror contains a 9-1-1 button

that, when pressed, may place a call from your vehicle to a local 9-1-1 operator to request help from local police, fire or ambulance personnel. If this button is accidentally pushed, you will have 10 seconds to stop the call. To cancel, push the 9-1-1 Call button again or press the “cancel” button shown on the touchscreen. After 10 seconds has passed, the 9-1-1 call will be placed and only the 9-1-1 operator can cancel it. The LED light on the rearview mirror will turn green once a connection to a 9-1-1 operator has been made. The green LED light will turn off once the 9-1-1 call is terminated. Have an authorized dealer service the vehicle if the rearview mirror light is continuously red. On equipped vehicles, this feature requires a functioning electrical system and wireless coverage to function properly. If a connection is made between a 9-1-1

operator and your vehicle, you understand and agree that 9-1-1 operators may, like any other 9-1-1 call, record conversations and sounds in and near your vehicle upon connection.

3. Roadside Assistance (If Equipped) — If your vehicle is equipped with this feature and

within wireless range, you may be able to connect to Roadside Assistance by pushing the “ASSIST” button on the rearview mirror. You will be presented with Assist Care options. Make a selection by pressing the prompts displayed on the radio. If Roadside Assistance is provided to your vehicle, you agree to be responsible for any additional roadside assistance service costs that you may incur. T o provide Uconnect you, we may record and monitor your conversations with Roadside Assistance, Uconnect Uconnect

Care or V ehicle Care, whether such conversations are initiated through the

Services in your vehicle, or via a landline or mobile telephone, and may share information obtained through such recording and monitoring in accordance with regulatory requirements. You acknowledge, agree and consent to any recording, monitoring or sharing of information obtained through any such call recordings.

4. Yelp® — Customers have the ability to search for nearby destinations or a point of

interest (POI) either by category or custom search by using keywords (for example, “Italian restaurant”). Searching can be done by either voice or by using the touchscreen keypad. Using the touchscreen, launch Yelp

by selecting the “Apps” icon, press the “All Apps” tab, and then press “Yelp.” Using voice recognition, push the Voice Command (VR) button on the steering wheel and say “Launch Yelp

5. Security Alarm Notification — The Security Alarm Notification feature notifies you via

email or text (SMS) message when the vehicle’s factory-installed security alarm system has been set-off. There are a number of reasons why your alarm may have been triggered, one of which could be that your vehicle was stolen. If so, please see the details of the Stolen V ehicle Assistance service below. When you register , Security Alarm Notification is automatically set to send you an email at the mail address you provide should the alarm go off. You may also opt to have a text message sent to your mobile device.

6. Stolen Vehicle Assistance — If your vehicle is stolen, contact local law enforcement

immediately to file a stolen vehicle report. Once this report has been filed, Uconnect care can help locate your vehicle. The Uconnect®Care agent will ask for the stolen vehicle report number issued by local law enforcement. Then, using GPS technology

Services to

.”

Page 77

ELECTRONICS

and the built-in wireless connection within your vehicle, the Uconnect®Care agent will be able to locate the stolen vehicle and work with law enforcement to help recover it. (Vehicle must be within the United States, have network coverage and must be registered with Uconnect applicable feature).

7. WiFi Hotspot — WiFi Hotspot is on-demand WiFi 3G connectivity that's built-in and

ready to go whenever you are. Once your vehicle is registered for Uconnect you can purchase a Wifi Hotspot subscription at the Uconnect made your purchase, turn on your signal and connect your passengers devices. It's never been easier to bring your home or office with you.

NOTE:

Your vehicle must have a working electrical system for any of the in vehicle Uconnect features to operate.

Uconnect® Access Remote Features

If you own a compatible iPhone®or Android®powered device, the Uconnect®Access App allows you to remotely lock or unlock your doors, start your engine or activate your horn and lights from virtually anywhere (Vehicle must be within the United States and have network coverage). You can download the App from Mopar Owner Connect or from the App Store (iPhone) or Google Play store. Visit UconnectPhone.com to determine if your device is compatible. For Uconnect compatible.

U.S. residents - visit UconnectPhone.com or call 1-877-855-8400

Remote Start — This feature provides the ability to start the engine on your vehicle, without the keys and from virtually any distance. You can send a request to your vehicle in one of two ways:

1. Using the Uconnect

2. From the Mopar Owner Connect website.

• After 15 minutes if you have not entered your vehicle with the key, the engine will shut off automatically.

• You can also send a command to turn-off an engine that has been remote started.

• This remote function requires your vehicle to be equipped with a factory-installed Remote Start system. T o utilize this feature after the Uconnect downloaded, login with your user name and password.

NOTE:

Your four digit Uconnect

• You can set-up notifications for your account to receive an email or text (SMS) message every time a command is sent. Login to Mopar Owner Connect (moparownerconnect.com) and click on Edit Profile to manage Uconnect Notifications.

Access with an active subscription that includes the

Store. After you've

Phone customer support and to determine if your device is

Access App from a compatible smartphone.

Access App is

Security PIN is required to confirm the request.

Access,

Page 78

ELECTRONICS

Remote Door Lock/Unlock — This feature provides the ability to lock or unlock the door on your vehicle, without the keys and from virtually any distance. Y ou can send a request to your vehicle in one of three ways:

1. Using the Uconnect

2. From the Mopar Owner Connect website.

3. By contacting the Uconnect

T o use this feature after the Uconnect name and password. You will need your four digit Uconnect request. Press the “closed lock” icon on your Uconnect and press the “open Lock” icon to unlock the driver’ s door .

You can set-up notifications for your account to receive an email or text (SMS) message every time a command is sent. Login to Mopar Owner Connect (moparownerconnect.com) and click on Edit Profile to manage Uconnect

Remote Horn And Lights — It’ s easy to locate a vehicle in a dark, crowded or noisy parking area by activating the horn and lights. It may also help if you need to draw attention to your vehicle for any reason. Y ou can send a request to your vehicle in one of three ways:

1. Using the Uconnect

2. From the Mopar Owner Connect website.

3. By contacting the Uconnect

T o use this feature after the Uconnect name and password. You will need your four digit Uconnect request. You can set-up notifications for your account to receive an email or text (SMS) message every time a command is sent. Login to Mopar Owner Connect (moparownerconnect.com) and click on Edit Profile to manage Uconnect

Voice Texting — Want to dictate a personal message? Register with Uconnect take advantage of a new, cloudbased Voice Texting service, an enhancement to Voice Text Reply.

Voice Texting allows you to compose a new text or reply to an incoming text message. Before you attempt to use the Voice Texting feature, check to ensure you have the following:

1. A paired, Bluetooth Bluetooth

UconnectPhone.com for system and device compatibility information.

2. An active Uconnect lower right hand corner of the touchscreen to begin the registration process.

3. Accept the “Allow MAP” profile request on your smart phone. (Please refer to device manufacturer instructions for details).

Access App from a compatible smartphone.

Care on the phone.

Access App is downloaded, login using your user

Notifications.

Access App from a compatible smartphone.

Care on the phone.

Access App is downloaded, login using your user

enabled phone with the Message Access Profile (MAP). Not all

Security PIN to confirm the

Access App to lock the doors,

Security PIN to confirm the

Notifications.

Access to

enabled phones support MAP, including all iPhones®(Apple iOS). Visit

Access trial or paid subscription. Press the “Apps” button on the

Page 79

ELECTRONICS

To Send A Text Message:

1. Push the Uconnect

2. W ait for the beep.

3. Say “Text.”

4. Uconnect

will prompt you “Say the phone number, or full name and phone type of the

contact you want to send a message to.”

5. W ait for the beep and say a contact that is in your phonebook, or a mobile phone number that you would like to send the message to.

6. Uconnect

will prompt you “Please say the message that you would like to send.” (If you do not hear this prompt, you may not have an active subscription with Uconnect Access).

7. W ait for the beep, and then dictate any message up to 140 characters. If you exceed 140 characters, you will hear the following prompt: “Message was too long; your message will be truncated.”

8. Uconnect

9. Uconnect

will then repeat the message back to you.

will prompt you: “T o add to your message, say “Continue”; To delete the current message and start over , say “Start Over”; to send the current message, say “Send”; to hear the message again, say “Repeat”.

10. If you are happy with your message and would like to send it, wait for the beep and say “Send”.

11. Uconnect

Sample Commands For Voice Text Reply And Voice Texting

Example Command Action

“T ext John Smith”

“T ext 123 456 7890”

“Show messages”

“Listen to/view (message number four, for

“Forward text/message to “John Smith”

“Forward text/message to “123 456 7890”

Phone Button on the steering wheel.

will then say “Sending your message.”

Send a message to specific contact in ad-

Send 123 456 7890 a message from your

See recent text messages listed by number

Hear messages or read it on Uconnect

example)”

“Reply” Send a voice text reply to a current message

Forward current text to specific contact in

Forward current text to specific phone

dress book

phonebook

on Uconnect

screen

address book

number

screen

Page 80

ELECTRONICS

Uconnect® Access Via Mobile — If Equipped (Available On Uconnect®

8.4A/8.4AN)

Via Mobile uses the Uconnect®Access app and your smartphone's data plan to access your personal Pandora from the vehicle and control them using the vehicle touchscreen. Customer’s data plan charges will apply.

T o get started using Via Mobile apps, first register your Uconnect you'll be guided through the setup of your Via Mobile (requires a compatible Android or

iPhone

smartphone). Please refer to “Uconnect®Access Registration” for more infor-

mation.

The Uconnect Visit UconnectPhone.com to confirm that your smartphone is compatible with Uconnect

. Once you’ve confirmed your smartphone is compatible, pair it to the vehicle touchscreen via Bluetooth also supported for the data connection.

Launch the Uconnect and password that was set up during registration, (this is your moparownerconnect.com login). Accept the Terms and Conditions.

• Ensure that Via Mobile data has been

turned on under “Settings” in the Uconnect

• A green indicator next to the words Via

Mobile will show when it is ready to provide data to the radio (a blue indicator when data is being sent). A red indicator means that it is not ready to provide data.

• On android phones, an orange/yellow in-

dicator signals the phone is connected to the appropriate servers however, Bluetooth

phone.

, iHeartRadio, Aha™ by HARMAN and Slacker Radio accounts

Access system where

Access app is compatible with select iPhone®and Android smartphones.

to use Via Mobile apps. If using an iPhone®, a USB cable is

Access App on your smartphone, and login with your username

Access App.

is turned off on their mobile

Via Mobile Data Enabled

Page 81

ELECTRONICS

Each time you want to use a Via Mobile app in your vehicle, the Uconnect®Access App must be running on your smartphone and the smartphone must be paired via Bluetooth

Data Being Sent

Page 82

ELECTRONICS

If equipped, the Via Mobile apps can be found by selecting the “Apps” button on the touchscreen in the lower right corner of the radio touchscreen. Via Mobile apps are listed under the “All Apps” tab. The words “Via Mobile” will appear after the app name indicating it is a Via Mobile app.

All Apps

1 — Catagory Tabs 2 — Apps Button

Via Mobile apps can also be launched through Voice Recognition by pressing the VR button on the steering wheel and stating “launch” and then the name of the app. For example, you can say “launch Aha Via Mobile.”

NOTE:

For detailed information on how to use Via Mobile apps visit the Mopar Owner Connect website (moparownerconnect.com) and login using the username and password you set up when registering for Uconnect

Access.

Page 83

ELECTRONICS

A message will be displayed to remind you that Via Mobile apps utilize the data plan on your connected smartphone to provide content. Many smartphones have a limit to how much data they can utilize before incurring additional charges. The amount of data being used varies by smartphone device, cellular service provider and specific app. Check your mobile phone service plan for more details.* Press “OK” to continue or the “X” to exit.

(*Additional smartphone data usage charges may apply.)

Via Mobile Apps — If Equipped

• Aha™ by HARMAN — Aha™ by HARMAN makes it easy to instantly access your

favorite Web content on the go. Choose from over 40,000+ stations spanning internet radio, personalized music, news, entertainment, hotels, weather, audiobooks, Facebook

• iHeartRadio — iHeartRadio provides instant access to more than 1,500 live radio

stations from across the country and allows listeners to create custom music stations inspired by their favorite artists or songs.

• Pandora® — Pandora

anywhere. Personalized stations launch instantly, with the input of a favorite artist, track, comedian, or genre.

• Slacker Radio — Enjoy millions of songs and hundreds of handcrafted stations.

NOTE:

For detailed information on how to use Via Mobile apps visit the Mopar Owner Connect website (moparownerconnect.com) and log in using the username and password you set up when registering for Uconnect

, Twitter®, and more.

gives people the music and comedy they love anytime,

Access.

Page 84

ELECTRONICS

Uconnect® 5.0

1 — Preset Buttons 2 — SEEK Up Button 3 — Compass Information Button 4 — Climate Functions Button 5 — + MORE Functions Button 6 — Browse/Enter Button 7 — Back Button 8 — Audio Button 9 — Info Button

10 — Direct Tune Button 11 — AM/FM/SXM Button 12 — Screen Off Button 13 — Volume Knob/Mute Button 14 — SEEK Down Button 15 — Uconnect 16 — Media Mode Button 17 — Radio Mode Button

Phone Button

Clock Setting

T o start the clock setting procedure:

1. Push the + MORE button on the faceplate. Next press the “Settings” button on the

touchscreen and then press the “Clock and Date” button on the touchscreen.

2. Press the “Set Time” button on the touchscreen.

3. Press the “Up” or “Down” arrows to adjust the hours or minutes, then select the “AM”

or “PM” button on the touchscreen. You can also select 12hr or 24hr format by pressing the desired button on the touchscreen.

Page 85

ELECTRONICS

4. Once the time is set press the “Done” button on the touchscreen to exit the time screen.

NOTE:

In the Clock Setting Menu you can also select Display Clock. Display Clock turns the clock display in the status bar on or off.

Equalizer, Balance And Fade

T o adjust the Audio settings:

1. Push the + MORE button on the faceplate, then press the “Settings” button on the touchscreen.

2. Scroll down and press the “Audio” button on the touchscreen to open the Audio menu.

The Audio Menu shows the following options for you to customize your audio settings.

Equalizer

• Press the “Equalizer” button on the touchscreen to adjust the Bass, Mid and Treble.

Use the “+” or “–” button on the touchscreen to adjust the equalizer to your desired settings. Press the “back arrow” button on the touchscreen when done.

Balance/Fade

• Press the “Balance/Fade” button on the touchscreen to adjust the sound from the

speakers. Use the “arrow” button on the touchscreen to adjust the sound level from the front and rear or right and left side speakers. Press the Center “C” button on the touchscreen to reset the balance and fade to the factory setting. Press the “back arrow” button on the touchscreen when done.

Speed Adjustable

• Press the “Speed Adjusted Volume” button on the touchscreen to select between OFF,

1, 2 or 3. This will decrease the radio volume relative to a decrease in vehicle speed. Press the “back arrow” button on the touchscreen when done.

Loudness

• Press the “Loudness” button on the touchscreen to select the Loudness feature. When

this feature is activated it improves sound quality at lower volumes. Press the “back arrow” button on the touchscreen when done.

Radio Operation

Seek Up /Seek Down

• Press the up or down button to seek through radio stations in AM, FM or SXM bands.

• Hold either button to bypass stations without stopping.

Store Radio Presets Manually

The Radio stores up to 12 presets in each of the Radio modes. Four presets are visible at the top of the radio screen. Pressing the “All” button on the touchscreen on the radio home screen will display all of the preset stations for that mode.

Page 86

ELECTRONICS

T o store a radio preset manually, follow the steps below:

1. Tune to the desired station.

2. Press and hold the desired numbered button on the touchscreen for more that two seconds or until you hear a confirmation beep.

SiriusXM Premier Over 160 channels

Get every channel available on your satellite radio, and enjoy all you want, all in one place. Hear commercial-free music plus sports, news, talk and entertainment. Get all the premium programming, including Howard Stern, every NFL game, Oprah Radio

MLB

and NHL®game, every NASCAR®race, Martha Stewart and more. And get 20+ extra channels, including SiriusXM Latino, offering 20 channels of commercial free music, news, talk, comedy, sports and more dedicated to Spanish language programming.

• To access SiriusXM™ Satellite Radio, push the “RADIO” button on the faceplate and

then the “SXM” button on the touchscreen

SiriusXM services require subscriptions, sold separately after the 12-month trial included with the new vehicle purchase. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call SiriusXM at 1-866-635-2349 for U.S. residents and 1-888-539-7474 for Canadian residents to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com for U.S. residents and www.siriusxm.ca for Canadian residents. All fees and programming subject to change. Our satellite service is available only to those at least 18 and older in the 48 contiguous USA and D.C. Our Sirius satellite service is also available in PR (with coverage limitations). Our Internet radio service is available throughout our satellite service area and in AK and HI. © 2014 Sirius XM Radio Inc. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

, every

Disc Operation

Your vehicle may have a remote CD player located in the lower center console storage bin.

• CD/Disc Mode is entered by either inserting a CD/Disc or by pressing the “+ MEDIA”

button on the touchscreen. Once in Media Mode, select “Disc.”

• Gently insert one CD into the CD player with the CD label facing as indicated on the

illustration located on the Disc player.

Seek Up/Down Buttons

• Press to seek through Disc tracks.

• Hold either button to bypass tracks without stopping.

Browse

• Press the “Browse” button on the touchscreen to scroll through and select a desired

track on the Disc. Press the “Exit” button on the touchscreen if you wish to cancel the browse function.

Page 87

ELECTRONICS

MEDIA HUB — iPod®/USB/MP3/SD Card

T o select a specific audio source, push the MEDIA button on the radio faceplate. T o allow music to play from your portable device through the vehicle’s speakers, push the “Source” button then select one of the following modes:

USB/iPod®

• USB/iPod the USB port or by pushing the MEDIA button on the radio faceplate.

Audio Jack (AUX)

• The AUX allows a portable device, such as an MP3 player or an iPod into the radio and utilize the vehicle’s audio system, using a 3.5 mm stereo audio cable, to amplify the source and play through the vehicle speakers.

• The functions of the portable device are controlled using the device buttons, not the buttons on the radio. The volume may be controlled using the radio or portable device.

Bluetooth®

• If using a Bluetooth vehicle's sound system.

SD Card

• SD Card Mode allows you to play music that has been saved to your SD Card through your vehicle’s sound system.

• You can enter SD Card Mode by either inserting a SD Card into the SD Card slot or by pushing the “SD Card” button on the left side of the display while in media mode.

For further information refer to your Radio Supplement.

Mode is entered by either inserting a USB Jump Drive or iPod®cable into

, to be plugged

- equipped device, you may also be able to stream music to your

Page 88

ELECTRONICS

Voice Text Reply (Not Compatible With iPhone®)

Once your Uconnect®system is paired with a compatible mobile device, the system can announce a new incoming text message, and read it to your over the vehicle audio system. You can reply to the message using Voice Recognition by selecting, or saying, one of the 18 pre-defined messages.

Here’s How:

1. Push the Uconnect Uconnect

send.”

2. W ait for the beep and say one of the pre-defined messages. (If you are not sure, you can say “help”). Uconnect

3. As soon as you hear the message you would like to send, you can interrupt the list of prompts by pushing the Uconnect will confirm the message by reading it back to you.

4. Push the Phone button and say “Send.”

Yes. Stuck in Traffic. See you later.

No. Start without me. I’ll be Late.

Okay. Where are you?

Call me. Are you there yet?

I’ll call you later. I need directions.

I’m on my way.

I’m lost. Thanks.

Phone button and wait for the beep, then say “reply.”

will give the following prompt: “Please say the message you would like to

will then read the pre-defined messages allowed.

phone button and saying the phrase. Uconnect

PRE-DEFINED VOICE TEXT REPLY RESPONSES

I will be <number> minutes

See you in <number> of

Can’t talk right now.

late.

minutes.

NOTE:

Voice texting reply and voice texting features require a compatible mobile device enabled with Bluetooth not currently support Bluetooth

Message Access Profile (MAP). iPhone®and some other smartphones do

MAP. Visit UconnectPhone.com for system and device

compatibility.

Want to dictate a personal message? Y ou must first register with Uconnect

Access (U.S. residents only) to take advantage of a new, cloud-based V oice Texting service, an enhancement to Voice Text Reply .

Page 89

ELECTRONICS

Uconnect® 5.0 VOICE RECOGNITION QUICK TIPS

Introducing Uconnect®

Start using Uconnect®Voice Recognition with these helpful quick tips. It provides the key Voice Commands and tips you need to know to control your Uconnect

Key Features:

• 5” touchscreen

• Three buttons on either side of the display

5.0 system.

Uconnect® 5.0

Page 90

ELECTRONICS

Get Started

1. Visit UconnectPhone.com to check mobile device and feature compatibility and to find

phone pairing instructions.

2. Reduce background noise. Wind and passenger conversations are examples of noise

that may impact recognition.

3. Speak clearly at a normal pace and volume while facing straight ahead. The micro-

phone is positioned on the rearview mirror and aimed at the driver.

4. Each time you give a Voice Command, you must first push either the VR or Phone

button, wait until after the beep, then say your Voice Command.

5. You can interrupt the help message or system prompts by pushing the VR or Phone

button and saying a Voice Command from current category.

All you need to control your Uconnect steering wheel.

system with your voice are the buttons on your

Uconnect® VR/Phone Buttons

1 — Push To Initiate Or To Answer A Phone Call, Send Or Receive A Text 2 — Push To Begin Radio Or Media Functions 3 — Push To End Call

Page 91

ELECTRONICS

Basic Voice Commands

The basic Voice Commands below can be given at any point while using your Uconnect system.

Push the VR button

• Cancel to stop a current voice session

• Help to hear a list of suggested Voice Commands

• Repeat to listen to the system prompts again

Notice the visual cues that inform you of your voice recognition system’ s status. Cues appear on the touchscreen.

. After the beep, say:

Uconnect® 5.0 Visual Cues

Page 92

ELECTRONICS

Radio

Use your voice to quickly get to the AM, FM or SiriusXM™ Satellite Radio®stations you would like to hear. (Subscription or included SiriusXM™ Satellite Radio trial required.)

Push the VR button

• Tune to ninety-five-point-five FM

• Tune to Satellite Channel Hits 1

TIP: At any time, if you are not sure of what to say or want to learn a Voice Command, push the VR button

. After the beep, say:

and say “Help.” The system will provide you with a list of commands.

Uconnect® 5.0 Radio

Page 93

ELECTRONICS

Media

Uconnect®offers connections via USB, SD, Bluetooth®and auxiliary ports (If Equipped). Voice operation is only available for connected USB and iPod player optional and not available on all vehicles.)

Push the VR button the prompts to switch your media source or choose an artist.

• Change source to Bluetooth

• Change source to iPod

• Change source to USB

• Play artist Beethoven; Play album Greatest Hits; Play song Moonlight Sonata; Play

genre Classical

TIP: Press the Browse button on the touchscreen to see all of the music on your iPod

USB device. Your Voice Command must match exactly how the artist, album, song and genre information is displayed.

. After the beep, say one of the following commands and follow

devices. (Remote CD

Uconnect® 5.0 Media

Page 94

ELECTRONICS

Phone

Making and answering hands-free phone calls is easy with Uconnect®. When the Phonebook button is illuminated on your touchscreen, your system is ready .

U.S. residents can visit UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instructions.

Push the Phone button

• Call John Smith

• Dial 123-456-7890 and follow the system prompts

• Redial (call previous outgoing phone number)

• Call back (call previous incoming phone number)

TIP: When providing a VoiceCommand, push the Phone button pronounce the name exactly as it appears in your phone book. When a contact has multiple phone numbers, you can say “Call John Smith work.”

. After the beep, say one of the following commands…

and say “Call,” then

Uconnect® 5.0 Phone

Page 95

ELECTRONICS

Voice Text Reply

Uconnect®will announce incoming text messages. Push the Phone button and say Listen. (Must have compatible mobile phone paired to Uconnect

1. Once an incoming text message is read to you, push the Phone button

beep, say: Reply.

2. Listen to the Uconnect

prompts. After the beep, repeat one of the pre-defined

messages and follow the system prompts.

TIP: Your mobile phone must have the full implementation of the Message Access Profile (MAP) to take advantage of this feature. For details about MAP , visit UconnectPhone.com

for U.S. residents. Apple iPhone

iOS6 or later supports reading incoming text messages

only.

PRE-DEFINED VOICE TEXT REPLY RESPONSES

Yes. Stuck in Traffic. See you later. No. Start without me. I’ll be Late.

Okay. Where are you?

Call me. Are you there yet?

I’ll call you later. I need directions.

I’m on my way.

I’m lost. Thanks.

Can’t talk right now.

Additional Information

© 2015 FCA US LLC. All rights reserved. Mopar, Mopar Owner Connect and Uconnect are registered trademarks of FCA US LLC. Android is a trademark of Google Inc. SiriusXM and all related marks and logos are trademarks of SiriusXM Radio Inc. Yelp, Yelp logo, Yelp burst and related marks are registered trademarks of Yelp.

Uconnect System Support:

• U.S. residents visit DriveUconnect.com or call: 1-877-855-8400 (24 hours a day 7 days a week)

• Canadian residents visit DriveUconnect.ca or call: 1-800-465-2001 (English) or 1-800-387-9983 (French)

Mon. – Fri., 8:00 am – 8:00 pm, ET

Sat., 9:00 am – 5:00 pm, ET

Sun., Closed

Uconnect Access Services Support. 1-855-792-4241 Please have your Uconnect Security PIN ready when you call.

system.)

. After the

I will be <number> minutes

See you in <number> of

late.

minutes.

Page 96

ELECTRONICS

Uconnect® 8.4A

Uconnect® 8.4A — If Equipped

At A Glance

Uconnect® 8.4A

1 — Status Bar 2 — Menu Bar 3 — Uconnect 4 — Uconnect

Displaying The Time

If the time is not currently displayed on the radio or player main page:

1. Press the “Controls” button on the touchscreen or the “Apps” button on the touchscreen, then the “Settings” button on the touchscreen.

2. In the Settings list, press the “Clock” button on the touchscreen.

Apps Button

Phone Button

5 — Climate Button 6 — Controls Button 7 — Media Button 8 — Radio Button

Page 97

ELECTRONICS

Setting The Time

Model 8.4AN synchronizes time automatically via GPS, so it should not require any time adjustment. If you do need to set the time manually, follow the instructions below for Model 8.4A.

1. Turn the unit on, then press the “Time Display” at the top of the screen. Press “Yes.”

NOTE:

If the time is not displayed at the top of the screen, press the “Controls” or the “Apps” button on the touchscreen, then the “Settings” button on the touchscreen. In the Settings screen, press the “Clock” button on the touchscreen.

2. Press “+” or “–” next to Set T ime Hours and Set Time Minutes to adjust the time.

3. If these features are not available, uncheck the Sync with GPS box.

4. Press “X” to save your settings and exit out of the Clock Setting screen.

Audio Settings

T o adjust the Audio settings:

1. Press the “Media” or “Radio” button on the touchscreen.

2. Press the “Audio” button on the touchscreen to activate the Audio settings screen to adjust Balance/Fade, Equalizer and Speed Adjusted Volume.

3. You can return to the Radio screen by pressing the “X” located at the top right.

Balance/Fade

T o adjust the Balance/Fade settings:

1. Press the “Media” or “Radio” button on the touchscreen.

2. Press the “Audio” button on the touchscreen to activate the Audio settings screen to adjust Balance/Fade, Equalizer and Speed Adjusted Volume.

3. Press the “Balance/Fade” button on the touchscreen to Balance audio between the front speakers or fade the audio between the rear and front speakers.

4. Pressing the “Front,” “Rear,” “Left” or “Right” button on the touchscreens or press and drag the Speaker Icon to adjust the Balance/Fade.

Page 98

ELECTRONICS

Equalizer

T o adjust the equalizer settings:

1. Press the “Media” or “Radio” button on the touchscreen.

2. Press the “Audio” button on the touchscreen to activate the Audio settings screen to adjust Balance/Fade, Equalizer and Speed Adjusted Volume.

3. Press the “Equalizer” button on the touchscreen to activate the Equalizer screen.

4. Press the “+” or “–” button on the touchscreens, or by pressing and dragging over the “level bar” for each of the equalizer bands. The level value, which spans between plus or minus 9, is displayed at the bottom of each of the Bands.

Speed Adjusted Volume

T o adjust the speed adjusted volume settings:

1. Press the “Media” or “Radio” button on the touchscreen.

2. Press the “Audio” button on the touchscreen to activate the Audio settings screen to adjust Balance/Fade, Equalizer and Speed Adjusted Volume.

3. Press the “Speed Adjusted V olume” button on the touchscreen to activate the Speed Adjusted Volume screen. The Speed Adjusted Volume is adjusted by pressing the “volume level” indicator. This alters the automatic adjustment of the audio volume with variation to vehicle speed.

Surround Sound

T o turn surround sound On/Off:

1. Press the “Media” or “Radio” button on the touchscreen.

2. Press the “Audio” button on the touchscreen to activate the Audio settings screen to adjust Balance/Fade, Equalizer and Speed Adjusted Volume.

3. Press the “Surround Sound” button on the touchscreen, select On or Off followed by pressing the “back arrow” button on the touchscreen. When this feature is activated, it provides simulated surround sound mode.

Page 99

RADIO

1 — Radio Station Presets 2 — Toggle Between Presets 3 — Audio Setting 4 — Seek Up

ELECTRONICS

Uconnect® 8.4A Radio

5 — Direct Tune T o A Radio Station 6 — Seek Down 7 — Browse And Manage Presets 8 — Choose Radio Band

T o access the Radio mode:

• Press the “Radio” button at the lower left of the touchscreen.

Selecting Radio Stations

• Press the desired radio band (AM, FM or SXM) button on the touchscreen.

Seek Up

• Press the “Seek arrow” up or down button on the touchscreen for less than two seconds to seek through radio stations.

• Press and hold either “Seek arrow” button on the touchscreen for more than two seconds to bypass stations without stopping. The radio will stop at the next listenable station once the “arrow” button on the touchscreen is released.

/Seek Down

Page 100

ELECTRONICS

Direct Tune

• Tune directly to a radio station by pressing the “Tune” button on the screen, and entering the desired station number .

Store Radio Presets Manually

Your radio can store 36 total preset stations, 12 presets per band (AM, FM and SXM). They are shown at the top of your radio screen. To see the 12 preset stations per band, press the “arrow” button on the touchscreen at the top right of the screen to toggle between the two sets of six presets.

T o store a radio preset manually, follow the steps below:

1. Tune to the desired station.

2. Press and hold the desired numbered button on the touchscreen for more than two

seconds or until you hear a confirmation beep.

SiriusXM Premier Over 160 Channels

MLB

and NHL®game, every NASCAR®race and more. And get 20+ Xtra channels, including SiriusXM Latino, a selection of channels dedicated to Spanish language programming.

• To access SiriusXM Satellite Radio, press the “SXM” button on the touchscreen on the

main Radio screen.

The following describes features that are available when in SiriusXM Satellite Radio mode.

Seek Up

• Press the “Seek arrow” button on the touchscreen for less than two seconds to seek

through channels in SXM mode.

• Press and hold either “Seek arrow” button on the touchscreen for more than two

seconds to bypass channels without stopping. The radio will stop at the next listenable channel once the arrow button on the touchscreen is released.

Direct Tune

• Tune directly to a SXM channel by pressing the “Tune” button on the touchscreen, and

entering the desired station number .

Jump

Jump automatically tells you when Traffic & Weather for a favorite city is available, and gives you the option to switch to that channel.

• Press “Jump” to activate the feature. After listening to Traffic and W eather, press

“Jump” again to return to the previous channel.

/Seek Down

, every

Dodge 2015 DURANGO User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TABLE OF CONTENTS

INTRODUCTION/WELCOME

WELCOME FROM FCA US LLC

VEHICLES SOLD IN CANADA

Rollover Warning

USE OF AFTERMARKET PRODUCTS (ELECTRONICS)

CONTROLS AT A GLANCE

DRIVER COCKPIT

INSTRUMENT CLUSTER

GETTING STARTED

KEY FOB

Locking And Unlocking The Doors And Liftgate

POWER LIFTGATE

Panic Alarm

REMOTE START

KEYLESS ENTER-N-GO™

To Unlock From The Driver Or Passenger Side

To Lock The Vehicle

Lock Or Unlock The Liftgate

Engine Starting/Stopping

Accessory Positions With Engine Off

VEHICLE SECURITY ALARM

To Arm

To Disarm

SEAT BELT SYSTEMS

Lap/Shoulder Belts

Seat Belt Pretensioner

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) — AIR BAGS

Air Bag System Components

Advanced Front Air Bags

Supplemental Knee Air Bags

Supplemental Side Air Bags

CHILD RESTRAINTS

LATCH – Lower Anchors And Tethers For CHildren

LATCH System Weight Limit

Locating LATCH Anchorages

Locating Tether Anchorages

Center Seat LATCH

Vehicles With Center Arm Rest Tether

Installing The Child Restraint Using The LATCH Lower Anchors

Installing The Child Restraint Using The Vehicle Seat Belts

Tether Anchorage Weight Limit

To Install A Child Seat Using An ALR:

Installing The Top Tether Strap (With Either Lower Anchors Or Vehicle Seat Belt):

Tether Strap Installation

HEAD RESTRAINTS

Active Head Restraints — Front Seats

Head Restraints — Rear Seats

Power Folding Third Row Head Restraints

FRONT SEATS

Power Seats

Power Lumbar

Memory Seat

Manual Seat Adjustment

Fold-Flat Front Passenger Seat

REAR SEATS

60/40 Split Rear Seat

Rear Captain Chairs

50/50 Third Row Folding Seat

HEATED/VENTILATED SEATS

Heated Seats

HEATED STEERING WHEEL

TILT/TELESCOPING STEERING COLUMN

Manual Tilt/Telescoping Steering Column

Power Tilt/Telescoping Steering Column

OPERATING YOUR VEHICLE

ENGINE BREAK-IN RECOMMENDATIONS

TURN SIGNAL/WIPER/WASHER/HIGH BEAM LEVER

Turn Signal/Lane Change Assist

Front Wipers

Rear Wiper

High Beam Operation

HEADLIGHT SWITCH

Automatic Headlights/Parking Lights/Headlights

Automatic High Beams

Instrument Panel Dimmer
