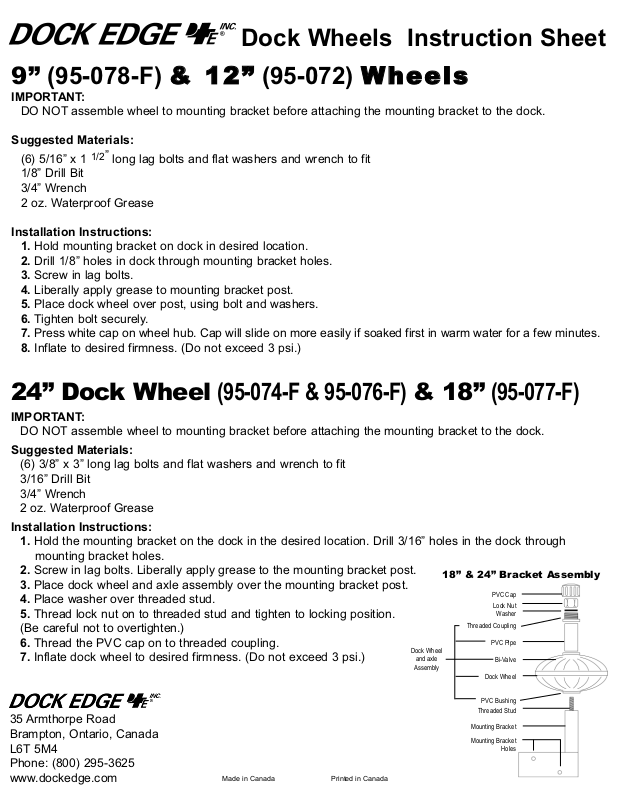

Dock Wheels Instruction Sheet
9” (95-078-F)
&& 1122””
(95-072)
WWhheeeellss
IMPORTANT:
DO NOT assemble wheel to mounting bracket before attaching the mounting bracket to the dock.
Suggested Materials:
”
1/2
(6) 5/16” x 1
long lag bolts and flat washers and wrench to fit
1/8” Drill Bit
3/4” Wrench
2 oz. Waterproof Grease
Installation Instructions:
1. Hold mounting bracket on dock in desired location.
2. Drill 1/8” holes in dock through mounting bracket holes.
3. Screw in lag bolts.
4. Liberally apply grease to mounting bracket post.
5. Place dock wheel over post, using bolt and washers.
6. Tighten bolt securely.
7. Press white cap on wheel hub. Cap will slide on more easily if soaked first in warm water for a few minutes.
8. Inflate to desired firmness. (Do not exceed 3 psi.)
24” Dock Wheel (95-074-F & 95-076-F) & 18” (95-077-F)
IMPORTANT:
DO NOT assemble wheel to mounting bracket before attaching the mounting bracket to the dock.
Suggested Materials:
(6) 3/8” x 3” long lag bolts and flat washers and wrench to fit
3/16” Drill Bit
3/4” Wrench
2 oz. Waterproof Grease
Installation Instructions:
1. Hold the mounting bracket on the dock in the desired location. Drill 3/16” holes in the dock through
mounting bracket holes.
2. Screw in lag bolts. Liberally apply grease to the mounting bracket post.
3. Place dock wheel and axle assembly over the mounting bracket post.
4. Place washer over threaded stud.
5. Thread lock nut on to threaded stud and tighten to locking position.
(Be careful not to overtighten.)
6. Thread the PVC cap on to threaded coupling.
Dock Wheel
7. Inflate dock wheel to desired firmness. (Do not exceed 3 psi.)

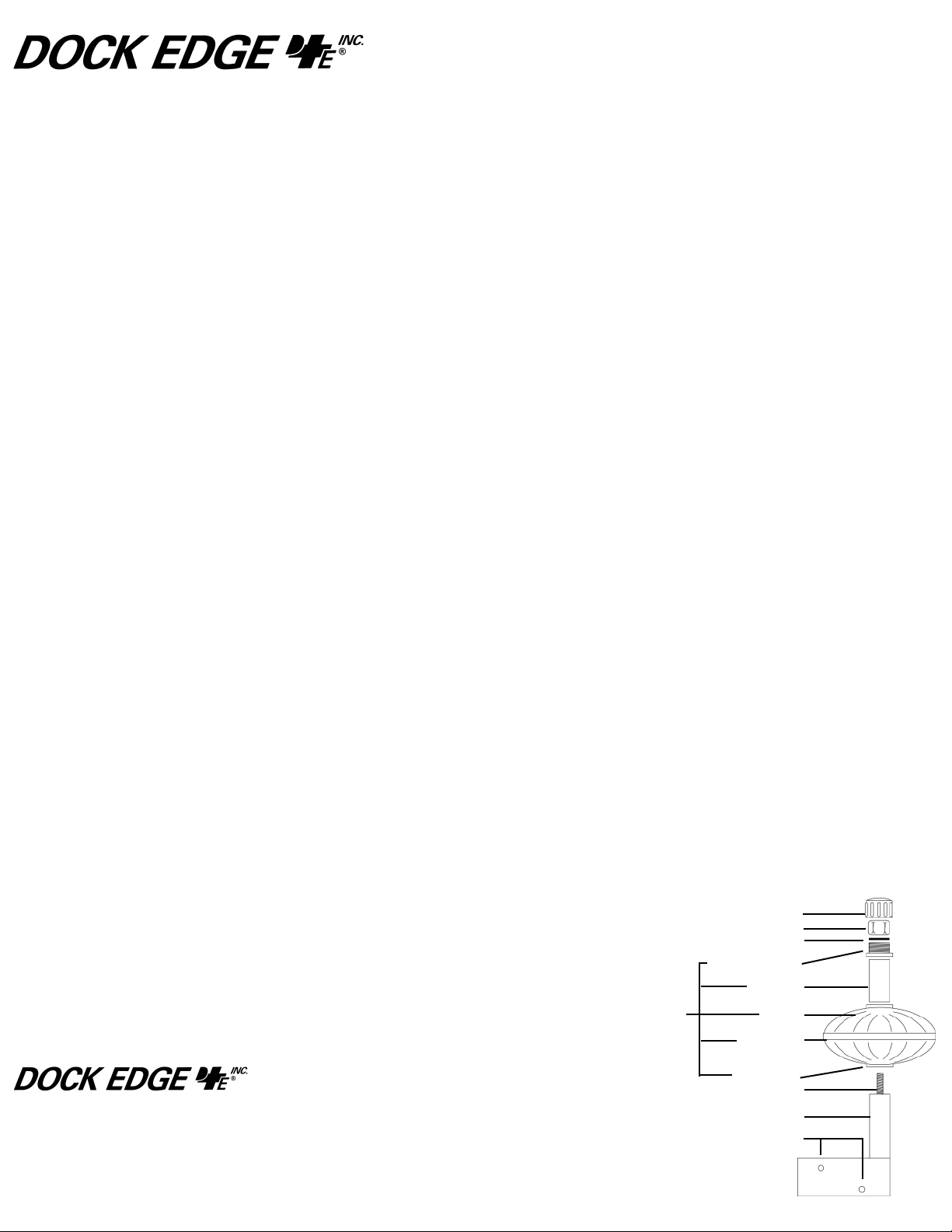

18” & 24” Bracket Assembly
PVC Cap
Lock Nut
Washer
Threaded Coupling
PVC Pipe
and axle
Assembly
Bi-Valve
Dock Wheel
35 Armthorpe Road
Brampton, Ontario, Canada
L6T 5M4
Phone: (800) 295-3625
www.dockedge.com
PVC Bushing
Threaded Stud
Mounting Bracket
Mounting Bracket
Holes
Made in Canada Printed in Canada
