DSL-2730E

User Manual

FCC - PART 68

This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom carton of this equipment is a label that contains, among other information, a product identifier in the format US:3P7DL01B2730ET1 and REN:0.11B for this equipment.

This equipment uses the following USOC jacks: RJ-11

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.

REN (RINGER EQUIVALENT NUMBERS) STATEMENT

Notice: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

If this equipment US:3P7DL01B2730ET1 causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment US:3P7DL01B2730ET1, for repair or warranty information, please contact D-LINK Corporation. If the equipment is

DSL-2730E User Manual

causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.

If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this US:3P7DL01B2730ET1 does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

This product meets the applicable Industry Canada technical specifications. / Le présent matériel est conforme aux specifications techniques applicables d’Industrie Canada.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

DSL-2730E User Manual

FCC Radiation Exposure Statement

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no-collocation statement.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution!

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contents

1 Introduction ........................................................................................................ 1

1.1 Packing List ........................................................................................... 1

1.2 Safety Precautions ................................................................................ 1

1.3 LEDs and Interfaces .............................................................................. 2

1.4 System Requirements ........................................................................... 4

1.5 Features ................................................................................................ 4

2 Hardware Installation ......................................................................................... 6

3 Web Configuration ............................................................................................. 7

3.1 Accessing the Device ............................................................................ 7

3.2 Setup ..................................................................................................... 9

3.2.1 Wizard ......................................................................................... 9

3.2.2 Local Network ........................................................................... 15

3.2.3 Internet Setup ........................................................................... 24

3.2.4 Wireless Setup.......................................................................... 31

3.2.5 Time and Date .......................................................................... 36

3.3 Advanced ............................................................................................. 37

3.3.1 Advanced Wireless ................................................................... 38

3.3.2 Access Control List ................................................................... 43

3.3.3 Port Triggering .......................................................................... 46

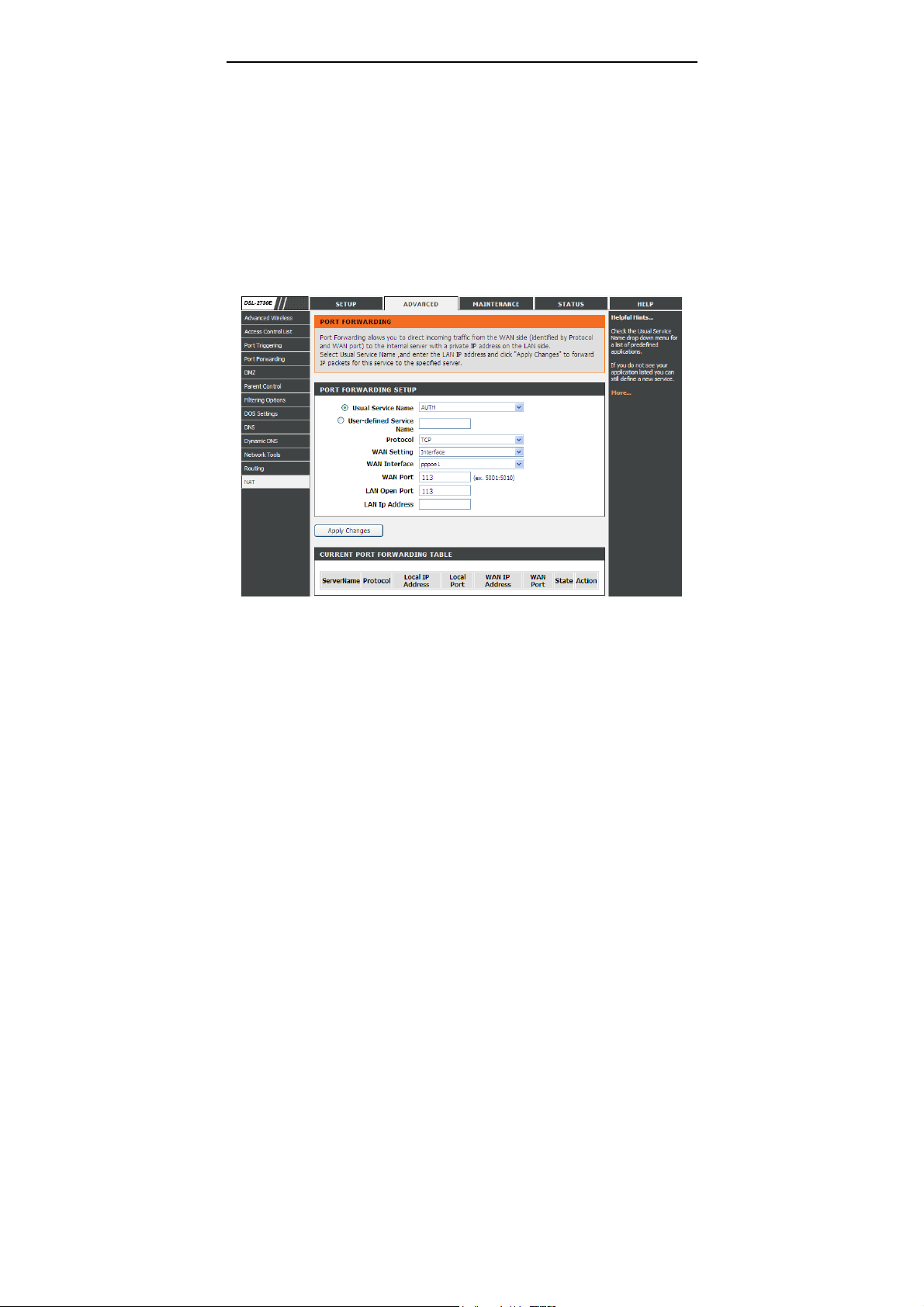

3.3.4 Port Forwarding ........................................................................ 48

3.3.5 DMZ .......................................................................................... 49

3.3.6 Parental Control ........................................................................ 49

3.3.7 Filtering Options........................................................................ 52

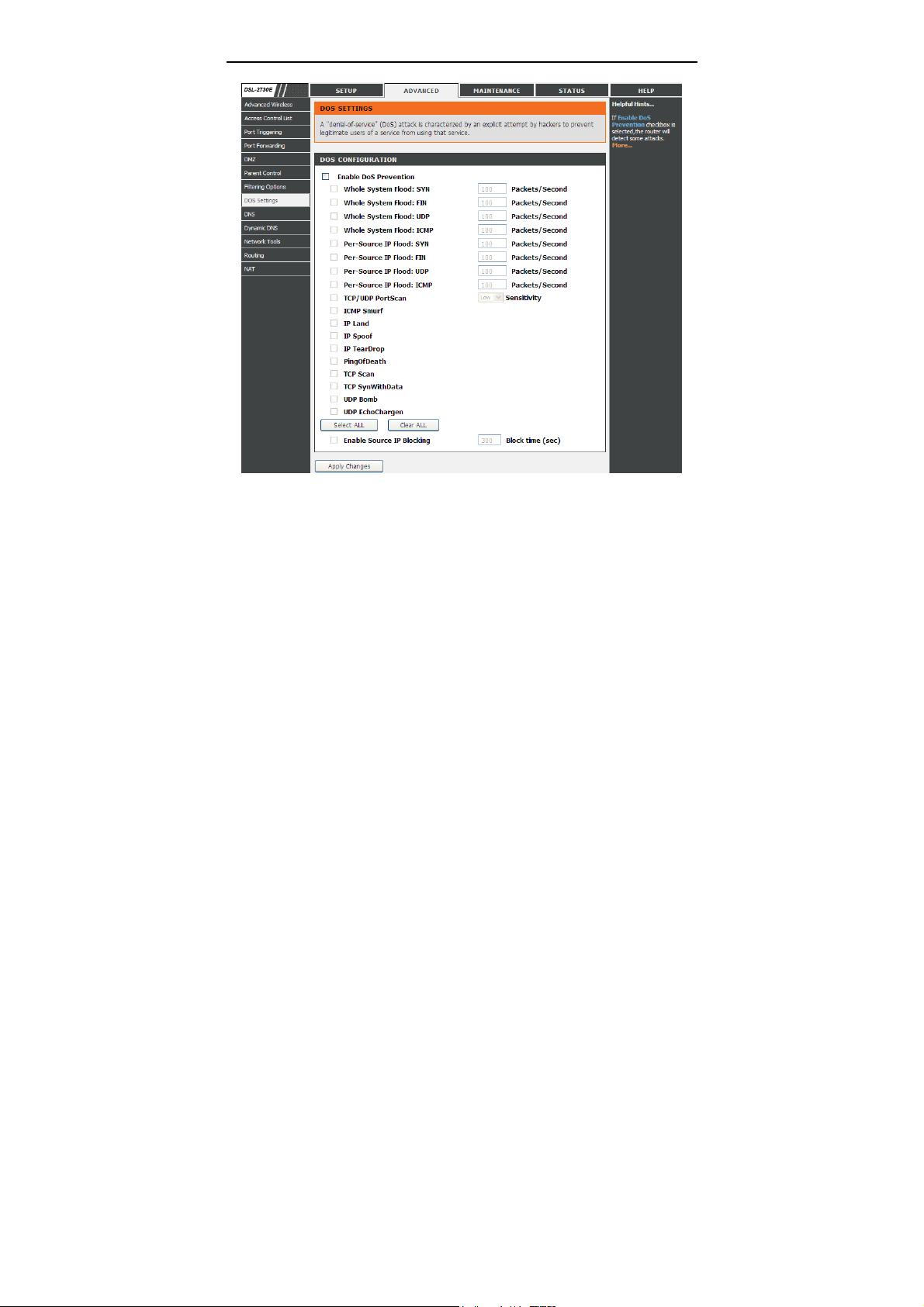

3.3.8 DoS Settings ............................................................................. 55

3.3.9 DNS .......................................................................................... 56

3.3.10 Dynamic DNS ...................................................................... 58

3.3.11 Network Tools ...................................................................... 60

3.3.12 Routing ................................................................................ 72

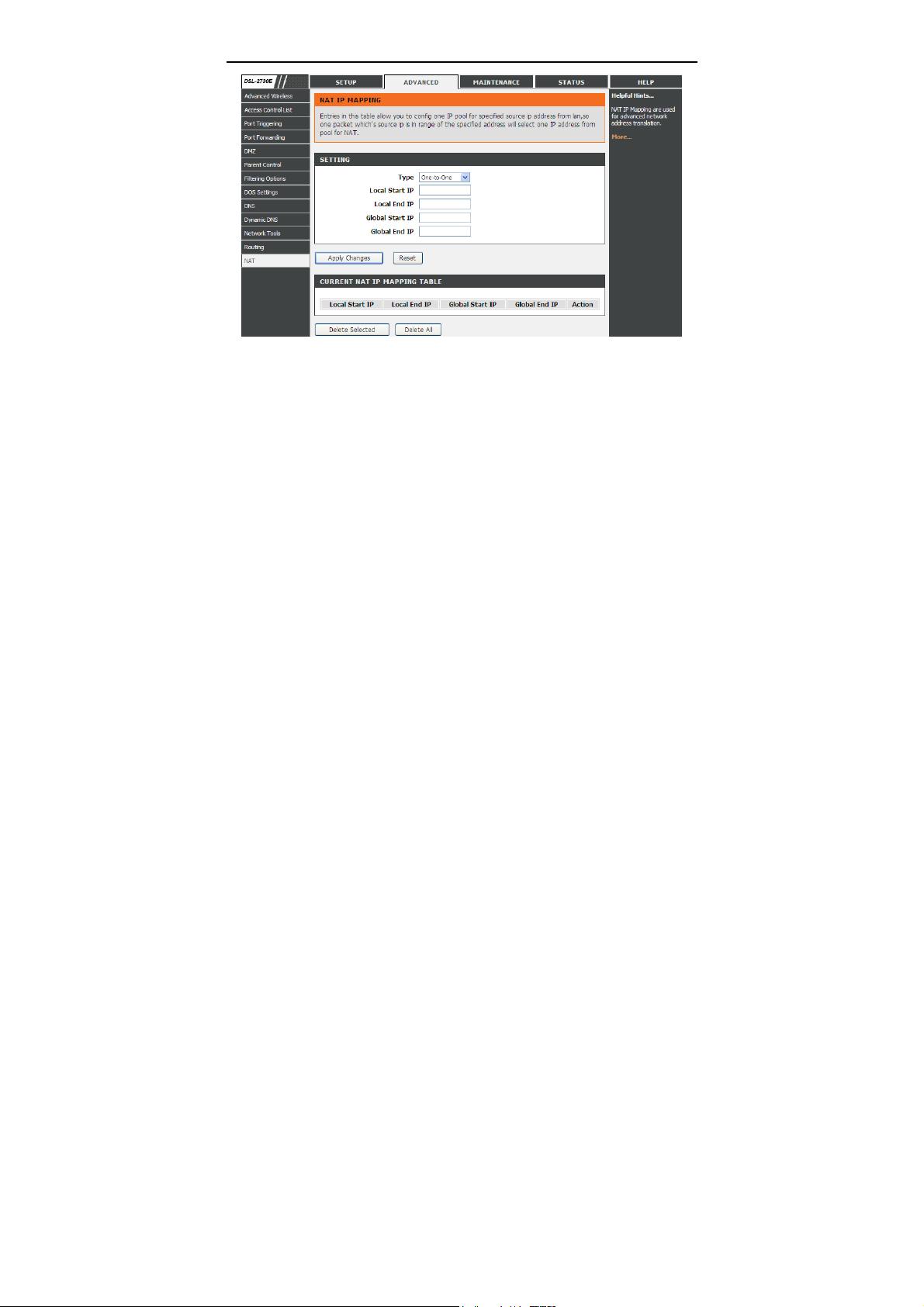

3.3.13 NAT ..................................................................................... 76

3.4 Maintenance ........................................................................................ 80

3.4.1 System ...................................................................................... 80

3.4.2 Firmware Update ...................................................................... 82

3.4.3 Passw ord .................................................................................. 82 

3.4.4 Diagnostics ............................................................................... 83

3.4.5 System Log ............................................................................... 86

3.4.6 Logout ....................................................................................... 88

3.5 Status ................................................................................................... 88

3.5.1 Device Info ................................................................................ 88

3.5.2 Wireless Clients ........................................................................ 90

3.5.3 DHCP Clients ............................................................................ 90

3.5.4 ADSL Driver .............................................................................. 91

3.5.5 Statistics .................................................................................... 91

3.5.6 Route Info ................................................................................. 92

3.6 Help ..................................................................................................... 93

DSL-2730E User Manual

1 Introduction

The DSL-2730E supports multiple line modes. With four 10/100 base-T Ethernet interfaces at the user end, the device provides high-speed ADSL broadband connection to the Internet or Intranet for high-end users like net bars and office users. It provides high performance access to the Internet with a downstream rate of 24 Mbps and an upstream rate of 1 Mbps. It supports IPV6. The device supports WLAN access, such as WLAN AP or WLAN device, to the Internet. It complies with specifications of IEEE 802.11, 802.11b/g/n, WEP, WPA, and WPA2 security. The WLAN of the device supports 1T1R.

1.1 Packing List

 1 x DSL-2730E  1 x external splitter  1 x power adapter  1 x telephone cables (RJ-11)  1 x Ethernet cable (RJ-45)  1 x QIG

1.2 Safety Precautions

Take the following instructions to prevent the device from risks and damage caused by fire or electric power:

 Use the type of power marked in the volume label.  Use the power adapter in the product package.  Pay attention to the power load of the outlet or prolonged lines. An

overburden power outlet or damaged lines or plugs may cause electric shock or fire accidents. Check the power cords regularly. If you find any damage, replace it at once.

 Proper space left for heat dissipation is necessary to avoid damage caused

by overheating to the device. The long and thin holes on the device are designed for heat dissipation to ensure that the device works normally. Do not cover these heat dissipation holes.

DSL-2730E User Manual

 Do not put this device close to a heat source or under a high temperature

occurs. Keep the device away from direct sunshine.

 Do not put this device close to an overdamp or watery place. Do not spill

fluid on this device.

 Do not connect this device to a PC or electronic product unless instructed by

our customer engineer or your broadband provider. Wrong connection may cause power or fire risk.

 Do not place this device on an unstable surface or support.

1.3 LEDs and Interfaces

Note:

The figures in this document are for reference only.

Front Panel

Figure 1 Front panel

The following table describes the LEDs of the device.

LED Color Status Description

Off The power is off.

Power

LAN 1/2/3/4

Green

Red

Green

On On The device is initiating.

Blinks The firmware is upgrading. Off No LAN link.

Blinks

The power is on and the initialization is normal.

Data is being transmitted through the LAN interface. The connection of LAN interface is normal.

DSL-2730E User Manual

LED Color Status Description

Data is transmitted through the WLAN interface. The connection of WLAN interface is normal.

WLAN

Green

Blinks

Off The WLAN connection is not established.

WPS

DSL

Internet

Rear Panel

Blinks

Blue

Off Off Initial self-test is failed.

Green

Red On

Blinks The device is detecting itself. On

Off

Blinks Internet data is being transmitted in the

On IP is connected.

Figure 2 Rear panel

WPS negotiation is enabled, waiting for the clients. WPS negotiation is not enabled on the device.

Initial self-test of the unit has passed and is ready. The device is under the Bridge mode, DSL connection is not present, or the power is off.

routing mode.

The device is attempted to become IP connected, but failed.

DSL-2730E User Manual

The following table describes the interface of the device.

Interface/Button Description

DSL

LAN4/3/2/1

WPS Press the button for 1 second to enable WPS function. WIRELESS

ON/OFF ON/OFF Power on or off the device.

12V DCIN

Reset (on the bottom case)

Antenna position RJ-11 interface that connects to the telephone set through

the telephone cable. Ethernet RJ-45 interfaces that connect to the Ethernet interfaces of computers or Ethernet devices.

Press the button silently to enable WLAN function.

Interface that connects to the power adapter. The power adapter output is: 12V DC, 500mA.

Reset to the factory defaults. To restore factory defaults, keep the device powered on and push a paper clip into the hole. Press down the button for 1 second and then release.

1.4 System Requirements

 A 10 baseT/100BaseT Ethernet card installed on your PC  A hub or switch (attached to several PCs through one of Ethernet interfaces

on the device)

 Operating system: Windows Vista, Windows 7, Windows 98SE, Windows

2000, Windows ME or Windows XP

 Internet Explorer V5.0 or higher, Netscape V4.0 or higher, or Firefox 1.5 or

higher

1.5 Features

 Various line modes  External PPPoE dial-up access  Internal PPPoE and PPPoA dial-up access  Leased line mode  1483B, 1483R, and MER access

DSL-2730E User Manual

 Multiple PVCs (eight at most) and these PVCs can be isolated from each

other

 A single PVC with multiple sessions  Multiple PVCs with multiple sessions  Binding of ports with PVCs  802.1Q and 802.1P protocol  DHCP server  NAT and NAPT  Static route  Firmware upgrade: Web, TFTP, FTP  Reset to the factory defaults  DNS relay  Virtual server  DMZ  Two-level passwords and user names  Web user interface  Telnet CLI  System status display  PPP session PAP and CHAP  IP filter  IP QoS  Remote access control  Line connection status test  Remote management (telnet and HTTP)  Backup and restoration of configuration file  Ethernet interface supports crossover detection, auto-correction and polarity

correction

 UPnP  IPV6

DSL-2730E User Manual

2 Hardware Installation

Step 1 Connect the DSL port of the device and the Modem port of the splitter

with a telephone cable. Connect the phone to the Phone port of the splitter through a telephone cable. Connect the incoming line to the Line port of the splitter.

The splitter has three ports:

 Line: Connect to a wall phone port (RJ-11 jack).  Modem: Connect to the DSL port of the device.  Phone: Connect to a telephone set.

Step 2 Connect a LAN port of the device to the network card of the PC through

an Ethernet cable (MDI/MDIX).

Note:

Use twisted-pair cables to connect the device to a Hub or switch.

Step 3 Plug one end of the power adapter to the wall outlet and the other end to

the Power port of the device. Figure 3 displays the application diagram for the connection of the device, PC, splitter and telephone sets, when no telephone set is placed before the splitter.

Figure 3 Connection diagram

DSL-2730E User Manual

3 Web Configuration

This chapter describes how to configure the device by using the Web-based configuration utility.

3.1 Accessing the Device

The following is the detailed description of accesing the device for the first time.

Step 1 Open the Internet Explorer (IE) browser and enter http://192.168.1.1 Step 2 The Login page shown in the following figure appears. Enter the user

name and password. The user name and password of the super user are

admin and admin.

If you log in as the super user successfully, the page shown in the following figure appears. This page displays a summary overview of the router, including the system information, DSL information, LAN Configuration, DNS information and WAN Configuration.

DSL-2730E User Manual

3.2 Setup

In the main interface, click Setup tab to enter the Setup menu as shown in the following figure. The submenus are Wizard, Local Network, Internet Setup,

Wireless Setup and Time and Date.

3.2.1 Wizard

Wizard enables fast and accurate configuration of Internet connection and other

important parameters. The following sections describe configuration parameters. When subscribing to a broadband service, you should be aware of the method, by which you are connected to the Internet. Your physical WAN device can be Ethernet, DSL, or both. Technical information about the properties of your Internet connection is provided by your Internet service provider (ISP). For example, your ISP should inform you that you are connected to the Internet using a static or dynamic IP address, and the protocol you use to communicate over the Internet, i.g. PPPoA or PPPoE. Choose Setup > Wizard. The page shown in the following figure appears.

Click Setup Wizard. The page shown in the following figure appears.

DSL-2730E User Manual

There are 5 steps to configure the device. Click Next to continue. Step 1 Change the device login password.

Step 2 Set the time and date.

Step 3 Configure the Internet connection.

DSL-2730E User Manual

If the internet service you subscribed is PPPoE or PPPoA, you can choose the Protocol to be PPPoE or PPPoA. Set the VPI and VCI. Enter the user name and

password provided by your ISP.

DSL-2730E User Manual

If the internet service you subscribed is Dynamic IP, you can choose Protocol to be Dynamic IP. The page shown in the following figure appears.

If the Protocol is Static IP, you can choose Protocol to be Static IP. The page shown in the following figure appears. Enter the IP Address, Subnet Mask, Default Gateway and Primary DNS Server provided by your ISP.

DSL-2730E User Manual

If the Protocol is Bridge, the page shown in the following figure appears.

DSL-2730E User Manual

Step 4 Configure the wireless network.

Step 5 Complete and apply the settings. Click Apply to save the settings.

DSL-2730E User Manual

Note:

In each step of the Wizard page, you can click Back to review or modify the previous settings. Click Cancel to exit the wizard page.

3.2.2 Local Network

You can configure the LAN IP address according to the actual application. The preset IP address is 192.168.1.1. You can use the default settings and DHCP service to manage the IP settings for the private network. The IP address of the device is the base address used for DHCP. To use the device for DHCP on your LAN, the IP address pool used for DHCP must be compatible with the IP address of the device. The IP address available in the DHCP IP address pool changes automatically if you change the IP address of the device. You can also enable the secondary LAN IP address. The two LAN IP addresses must be in different networks.

DSL-2730E User Manual

3.2.2.1 LAN Interface

Choose Setup > Local Network > LAN Interface. The LAN Setting page shown in the following figure appears. You may configure the LAN interface, for example, the IP address and subnet mask.

DSL-2730E User Manual

The following table describes the parameters in this page.

Field Description

IP Address

Subnet Mask Secondary IP LAN Port You may choose the LAN interface you want to configure. Link Speed/ Duplex Mode MAC Address Control

Add

Enter the IP address of LAN interface. It is recommended to use an address from a block reserved for private use. This address block is 192.168.1.1- 192.168.1.254. Enter the subnet mask of LAN interface. The range of subnet mask is from 255.255.0.0-255.255.255.254. Select it to enable the secondary LAN IP address. The two LAN IP addresses must be in different subnets.

You may select one mode from the drop-downlist:

100Mbps/FullDuplex, 100Mbps/Half Duplex, 10Mbps/FullDuplex, 10Mbps/Half Duplex and Auto Negotiation.

It is the access control based on MAC address. Select it, and the host whose MAC address is listed in the Current Allowed MAC Address Table can access the modem. Enter MAC address, and then click this button to add a new MAC address.

3.2.2.2 LAN IPv6 Interface

Choose Setup > Local Network > LAN IPv6 Interface. The LAN IPv6 Setting page shown in the following figure appears. You may set LAN RA server work mode and LAN DHCPv6 server work mode.

DSL-2730E User Manual

The following table describes the parameters of this page.

Field Description

Global Address

Enable Enable or disable the Router Advertisement feature. M Flag

O Flag

Prefix Mode

DHCPv6 Mode

Specify the LAN global ipv6 address. It can be assigned by ISP.

Enable or disable the “Managed address configuration” flag in RA packet. Enable or disable the “Other configuration” flag in RA packet. Specify the RA feature prefix mode: “Auto”: the RA prefix will use WAN dhcp-pd prefix; “Manual”: user will specify the prefix address, length, preferred time and valid time. Specify the dhcpv6 server mode: “None”: close dhcpv6 server; “Manual”: dhcpv6 server is opened and user

DSL-2730E User Manual

Field Description

specifies the dhcpv6 server address pool and other parameters. “Auto”: dhcpv6 server is opened and it use WAN

dhcp-pd prefix to generate address pool.

3.2.2.3 DHCP Server

Choose Setup > Local Network > DHCP Server. The DHCP Server Setting page shown in the following figure appears. You may configure the DHCP mode.

DSL-2730E User Manual

The following table describes the parameters of this page.

Field Description

If set to DHCP Server, the router can assign IP

DHCP Mode

IP Pool Range

Max Lease Time

Domain Name

DNS Servers

Click the button Show Client to display the page Active DHCP Client Table as shown below. It shows the IP addresses assigned to DHCP clients.

addresses, IP default gateway and DNS servers to the host in Windows95, Windows NT and other operation systems that support the DHCP client. It specifies the first and last IP addresses in the IP address pool. The router assigns IP address in the IP pool range to the host. The lease time determines the period that the host retains the assigned IP addresses before the IP addresses change. Enter the domain name if you know. If you leave this blank, the domain name obtained by DHCP from the ISP is used. You must enter host name (system name) on each individual PC. The domain name can be assigned from the router through the DHCP server. You can configure the DNS server ip addresses for DNS Relay.

DSL-2730E User Manual

The following table describes the parameters and buttons in this page:

Field

IP Address

MAC Address

Expiry

Refresh Click it to refresh this page.

Click the button Set VendorClass IP Range to display the page Device IP Range Set. In this page, you can configure the IP address range based on the device type.

Description

It displays the IP address assigned to the DHCP client from the router. It displays the MAC address of the DHCP client. Each Ethernet device has a unique MAC address. The MAC address is assigned at the factory and it consists of six pairs of hexadecimal character, for example, 00-A0-C5-00-02-12. It displays the lease time. The lease time determines the period that the host retains the assigned IP addresses before the IP addresses change.

In the DHCP Mode field, choose None. The page shown in the following figure appears.

DSL-2730E User Manual

In the DHCP Mode field, choose DHCP Relay. The page shown in the following figure appears.

The following table describes the parameters and buttons of this page:

Field Description

If set to DHCP Relay, the router acts a surrogate

DHCP Mode

Relay Server Enter the DHCP server address provided by your ISP. Apply Changes Click it to save the settings of this page.

DHCP Server and relays the DHCP requests and responses between the remote server and the client.

DSL-2730E User Manual

3.2.2.4 DHCP Reserved

Choose Setup > Local Network > DHCP Reserved. The DHCP Static IP Configuration page appears. This page lists the fixed IP/MAC address on your

LAN. The device distributes the number configured to hosts on your network as they request Internet access.

The following table describes the parameters of this page.

Field Description

IP Address Mac Address Enter the MAC address of a host on the LAN.

Add

Delete Selected Undo Click it to refresh this page.

DHCP Static IP Table

Enter the specified IP address in the IP pool range, which is assigned to the host.

After entering the IP address and MAC address, click this button to add them to the DHCP Static IP Table. Select a row in the DHCP Static IP Table, then click it, this row is deleted.

It shows the assigned IP address based on the MAC address.

DSL-2730E User Manual

3.2.3 Internet Setup

3.2.3.1 Channel Config

Choose Setup > Internet Setup > Channel Config. The Channel Configuration page appears. You may configure the parameters for the channel operation modes of your ADSL Router.

DSL-2730E User Manual

The following table describes the parameters of this page.

Field Description

Default Route Selection

VPI

VCI

Encapsulation You can choose LLC and VC-Mux. Channel Mode

Enable NAPT

Enable IGMP

802.1q VLAN ID The value ranges from 1 to 4095.

IP Protocol

PPP Settings

User Name

Password

Type

Idle Time (min)

You can select Auto or Specified.

The virtual path between two points in an ATM network, ranging from 0 to 255. The virtual channel between two points in an ATM network, ranging from 32 to 65535 (1 to 31 are reserved for known protocols)

You can choose 1483 Bridged, 1483 MER, PPPoE, PPPoA, 1483 Routed or IPoA. Select it to enable Network Address Port T ranslation (NAPT) function. If you do not select it and you want to access the Internet normally, you must add a route on the uplink equipment. Otherwise, the access to the Internet fails. Normally, it is enabled. You can enable or disable Internet Group Management Protocol (IGMP) function. You can select Disable or Enable. If enabled, you need to enter the VLAN ID.

When any channel mode except 1483 Bridged is selected, select an IP protocol from IPv4/IPv6, IPv4 and IPv6.

Enter the correct user name for PPP dial-up, which is provided by your ISP. Enter the correct password for PPP dial-up, which is provided by your ISP. You can choose Continuous, Connect on Demand or Manual. If the type is set to Connect on Demand, you need to enter the idle timeout time. Within the preset minutes, if the router does not detect the flow of the

DSL-2730E User Manual

Field Description

user continuously, the router automatically disconnects the PPPoE connection.

WAN IP Settings

You can choose Fixed IP or DHCP.  If select Fixed IP, you should enter the local IP

Type

Local IP Address Remote IP

Address Netmask Enter the subnet mask of the local IP address.

Default Route

Unnumbered IPv6 WAN Setting

Address Mode

Enable DHCPv6 Client

After a PPPoE ATM VC is added to the table, click page shown in the following figure appears. In this page, you can configure

parameters of this PPPoE PVC.

address, remote IP address and subnet mask.

 If select DHCP, the router is a DHCP client, the

WAN IP address is assigned by the remote

DHCP server. Enter the IP address of WAN interface provided by your ISP. Enter the IP address of gateway provided by your ISP.

Routing table entry is not clearly specified in the

routing, as to any network prefix forwarding address.

Select this checkbox to enable IP unnumbered function.

When the channel mode is not set to 1483 Bridged, configure this interface as supportting Slaac or Static to generate wan ipv6 addresses. You may enable or disable dhcpv6 client on this interface. After enabling it, user may specify the dhcpv6 client request an address or prefix.

in the PPPoE mode, the

DSL-2730E User Manual

The following table describes the parameters and buttons of this page:

Field Description

Protocol It displays the protocol type used for this WAN

connection.

ATM VCC The ATM virtual circuit connection assigned for

this PPP interface (VPI/VCI).

Login Name The user name provided by your ISP. Password The password provided by your ISP. Authentication Method You can choose AUTO, CHAP, or PAP. Connection Type You can choose Continuous, Connect on

Demand, or Manual.

Idle Time (s) If choose Connect on Demand, you need to

enter the idle timeout time. Within the preset

minutes, if the router does not detect the flow of

the user continuously, the router automatically

disconnects the PPPoE connection.

Bridge You can select Bridged Ethernet, Bridged

DSL-2730E User Manual

Field Description

PPPoE, or Disable Bridge.

AC-Name The accessed equipment type. Service-Name The service name.

802.1q You can select Disable or Enable. After enable it, you need to enter the VLAN ID. The value ranges from 1 to 4095.

Source Mac address The MAC address you want to clone. MAC Clone Click it to enable the MAC Clone function with

the MAC address that is configured.

Apply Changes Click it to save the settings of this page

temporarily.

Return Click it to return to the Channel Configuration

page.

Undo Click it to refresh this page.

3.2.3.2 ATM Settings

Choose Setup > Internet Setup > ATM Settings. The ATM Settings page appears. You may configure the parameters for the ATM of your ADSL Router. Here you may change the setting for VPI, VCI and QoS, etc.

DSL-2730E User Manual

The following table describes the parameters of this page.

Field Description

VPI The virtual path identifier of the ATM PVC. VCI The virtual channel identifier of the ATM PVC. QoS The QoS category of the PVC. You can choose

UBR, CBR, rt-VBR, or nrt-VBR.

PCR Peak cell rate (P CR) is the maximum rate at which

cells can be transmitted along a connection in the ATM network. Its value ranges from 1 to 65535.

CDVT Cell delay variation tolerance (CDVT) is the amount

of delay permitted between ATM cells (in microseconds). Its value ranges from 0 to

4294967295.

SCR Sustained cell rate (SCR) is the maximum rate that

traffic can pass over a PVC without the risk of cell loss. Its value ranges from 0 to 65535.

MBS Maximum burst size (MBS) is the maximum number

of cells that can be transmitted at the PCR. Its value ranges from 0 to 65535.

3.2.3.3 ADSL Settings

Choose Setup > Internet Setup > ADSL Settings. The ADSL Settings page appears. This page contains a modulation and capability section to be specified by your ISP. Consult with your ISP to select the correct settings for each. Click Apply Changes to finish.

DSL-2730E User Manual

3.2.3.4 PVC Auto Search

Choose Setup > Internet Setup > PVC Auto Search. The Auto PVC Configuration page appears. You may configure PVC auto detect function. Here

you can add/delete auto PVC search table.

DSL-2730E User Manual

3.2.4 Wireless Setup

This section describes the wireless LAN and basic configuration. A wireless LAN can be as simple as two computers with wireless LAN cards communicating in a pear-to-pear network or as complex as a number of computers with wireless LAN cards communicating through access points which bridge network traffic to wired LAN.

3.2.4.1 Wireless Basics

Choose Setup > Wireless Setup > Wireless Basics. The Wireless Basic Settings page appears. You may configure the parameters for wireless LAN clients,

which may connect to your access point. Here you may change wireless encryption settings as well as wireless network parameters.

DSL-2730E User Manual

The following table describes the parameters in this page.

Field

Band

Mode

SSID

Channel Number

Radio Power (Percent)

Show Active Clients

Channel Width Control

Sideband

Choose the working mode of the modem. You can choose from the drop-down list.

Choose the network model of the modem, which is varied according to the software. By default, the network model of the modem is AP. The service set identification (SSID) is a unique name to identify the modem in the wireless LAN. Wireless stations associating to the modem must have the same SSID. Enter a descriptive name that is used when the wireless client connecting to the modem. Choose a channel from the drop-down list box. A channel is the radio frequency used by 802.11b/g wireless devices. There are 13 channels (from 1 to 13) available depending on the geographical area. You may have a choice of channels (for your region) and you should use a different channel from an adjacent AP to reduce the interference. Interference and degrading performance occurs when radio signal from different APs overlap. You can choose the transmission power of the radio signal. The default one is 100%. It is recommended to choose the default value100%. Click it to view the information of the wireless clients connected to the modem. Select the appropriate band of 20MHZ or 40MHZ according to your subscribed broadband service. Choose the channel selection mode as Upper or

Lower.

Description

DSL-2730E User Manual

Click the button Show Active Clients to view the MAC address, transmission, reception packet counters and encrypted status for each associated wireless client.

Click Apply Changes to save the settings.

3.2.4.2 Wireless Security

Choose Setup > Wireless Setu p > Wireless Security. The Wireless Security Settings page appears. Turn on WEP or WPA using encryption keys could prevent

any unauthorized access to your wireless network.

DSL-2730E User Manual

The following table describes the parameters of this page:

Field Description

Configure the wireless encryption mode. You can choose None, WEP, WPA (TKIP ), WPA (AES), WPA2 (AES), WPA2 (TKIP) or WPA2 Mixed.  Wired equivalent privacy (WEP) encrypts data frames before transmitting over the wireless network.

Encryption

Set WEP Key

WPA Authentication Mode

Click Set WEP Key, and the page Wireless WEP Key Setup appears. You can choose a 64-bit or 128-bit encryption key, and select ASCII or Hex format for input values.

 Wi-Fi protected access (WPA) is a subset of the IEEE802.11i security specification draft.  WPA2 Mixed is the collection of WPA and WPA2 encryption modes. The wireless client establishes the connection between the modem through WPA or WPA2. Key differences between WPA and WEP are in user authentication and improved data encryption. It is available when you set the encryption mode to WEP. Click it, the Wireless WEP Key Setup page appears.  Select Personal (Pre-Shared Key), enter the pre-shared key in the Pre-Shared Key field.  Select Enterprise (R ADIUS), enter the port, IP address, and password of the Radius server. You need to enter the username and password provided by the Radius server when the wireless client connects the modem. If the encryption is set to WEP, the modem uses

802.1 X authentication, which is Radius authentication.

DSL-2730E User Manual

The following describes the parameters of this page:

Field Description

Key Length

Key Format

Default Tx Key

Encryption Key 1 to 4

Choose the WEP key length. You can Choose 64-bit or 128-bit.  If you choose 64-bit, you can choose ASCII (5

characters) or Hex (10 characters).

 If you choose 128-bit, you can choose ASCII

(13 characters) or Hex (26 characters).

Choose the index of WEP Key . You can choose Key 1, Key 2, Key 3 or Key 4. The Encryption keys are used to encrypt the data. Both the modem and wireless stations must use the same encryption key for data transmission.  If you choose 64-bit and ASCII (5 characters),

enter any 5 ASCII characters.

 If you choose 64-bit and Hex (10 characters),

enter any 10 hexadecimal characters.

 If you choose 128-bit and ASCII (13

DSL-2730E User Manual

Field Description

characters), enter any 13 ASCII characters.

 If you choose 128-bit and Hex (26 characters),

enter any 26 hexadecimal characters.

Click it to apply the settings temporarily. If you want

Apply Changes

Click Apply Changes to save the settings.

to save the settings of this page permanently, click

Save in the lower left corner.

3.2.5 Time and Date

Choose Setup > Time and Date. The System Time Configuration page appears. In the page, you can configure, update and maintain the correct time on the internal system clock. You can set the time zone that you are in and the Network Time Protocol (NTP) server. You can also configure daylight saving to automatically adjust the time when needed.

The following table describes the parameters in this page.

Field

System Time

Displays the time currently maintained by the router. If this is incorrect, use the following options to configure the time correctly.

Description

DSL-2730E User Manual

Field

Time Zone Select your local time zone from the dropdown list. Daylight Adjust the clock for daylight savings time.

To synchronize the time automatically with the Internet

Mode

Get GMT Time Synchronize to Greenwich Mean Time.

When the mode is set to Set NTP Server Manually, the following page will appear.

The following table describes the parameters in this page.

Field

State

Server

Interval

or your own computer, you may select Set Time

Manually, Copy Computer Time or Set NTP Server Manually.

Select Enable to synchronize the time automatically with Internet or your own computer. Select a Network Time Server for synchronization from the dropdown list. You may set two servers. Specify the interval for synchronization with the time server.

Description

3.3 Advanced

This section includes advanced features for network management, security and administrative tools to manage the device. You can view status and other information used to examine performance and for troubleshooting.

DSL-2730E User Manual

3.3.1 Advanced Wireless

This function is used to modify the standard 802.11g wireless radio settings. It is suggested not to change the defaults, as incorrect settings may reduce the performance of your wireless radio. The default settings provide the best wireless radio performance in most environments.

3.3.1.1 Advanced Settings

Choose Advanced > Advanced Wireless > Wireless Advanced. The page shown in the following figure appears. These settings are only for more technically advanced users who have sufficient knowledge about wireless LAN. Do not change these settings unless you know the effect of changes on the device.

The following table describes the parameters in this page.

Field

Used to fragment packets which help improve

Fragment Threshold

RTS Threshold Determines the packet size of a transmission through

performance in the presence of radio frequency (RF) interference.

Description

DSL-2730E User Manual

Field

(Request to Send Threshold)

Beacon Interval

DTIM Interval

Preamble Type

Broadcast SSID

Click Apply Changes to save the settings.

the use of the router to help control traffic flow.

A packet of information that is sent from a connected device to all other devices where it announces its availability and readiness. A beacon interval is a period of time (sent with the beacon) before sending the beacon again. The beacon interval may be adjusted in milliseconds (ms).

Sets the wake-up interval for clients in power-saving mode. This is the length of the CRC (Cyclic Redundancy Check) block for communication between the router and wireless clients. High network traffic areas should select Short preamble type. With Disabled selected, no wireless clients will be able

to see your wireless network when they scan to see what's available.

Description

3.3.1.2 Access Control

Choose Advanced > Advanced Wireless > Access Control . The page shown in the following figure appears. Incoming connection can be filtered on your wireless router based on their MAC addresses.

DSL-2730E User Manual

Set the Wireless Access Control Mode to Allow Listed to enable white list function. Only the devices whose MAC addresses are listed in the Current Access Control List can access the modem. Set the Wireless Access Control Mode to Deny Listed to enable black list function. The devices whose MAC addresses are listed in the Current Access Control List are denied to access the modem.

3.3.1.3 WPS

Choose Advanced > Advanced Wireless > WPS. The page shown in the following figure appears. With this feature, your wireless client automically syncronize its setting and connect to the Access Point.

DSL-2730E User Manual

There are two methods for the wireless client to establish connection with the modem through WPS. For one method, click Regenerate PIN to generate a new PIN, and then click Start PBC. In the wireless client tool, enter the PIN which is generated by the modem to start connection. The client will automatically establish the connection with the modem through the encryption mode, and you need not to enter the key. For the other method, the wireless client generates PIN. In the above figure, enter PIN of the wireless client in the Client PIN Number field, then click Start PIN to establish the connection.

Note:

The wireless client establishes the connection with the modem through WPS negotiation. The wireless client must support WPS.

DSL-2730E User Manual

3.3.1.4 MBSSID

Choose Advanced > Advanced Wireless > MBSSID. The page shown in the following figure appears. In this page, you can set virutal access points (VAP), its SSID and authentication type.

The device supports four virtual access points (VAPs). It is a unique name to identify the modem in the wireless LAN. Wireless stations associating to the modem must have the same name. Enter a descriptive name that is used when the wireless client is connecting to the modem.

DSL-2730E User Manual

3.3.2 Access Control List

Multiple connections are required by some applications, for example, internet games, video conferencing and Internet telephony. These applications have difficulties working through NAT (Network Address Translation). This section is used to open multiple ports or a range of ports in your router and redirect data through those ports to a single PC on your network.

3.3.2.1 Access Control List

Choose Advanced > Access Control List > Access Control List. The page shown in the following figure appears. In this page, you can permit the data packets from LAN or WAN to access the router. You can configure the IP address for Access Control List (ACL). If ACL is enabled, only the effective IP address in the ACL can access the router.

Note:

If you select Enable in ACL capability, ensure that your host IP address is in ACL list before it takes effect.

DSL-2730E User Manual

The following table describes the parameters and buttons of this page:

Field Description

Direction Select LAN ACL Switch Select it to enable or disable ACL function.

IP Address

Services Allowed

Add After setting the parameters, click it to add an entry

Select the router interface. You can select LAN or WAN. In this example, LAN is selected.

Enter the IP address of the specified interface. Only the IP address that is in the same network segment with the IP address of the specified interface can access the router. You can choose the following services from LAN: Web, Telnet, SSH, TFTP, SNMP and PING. You can also choose all the services.

DSL-2730E User Manual

Field Description

to the Current ACL Table.

Reset Click it to refresh this page.

When the direction of data packets is set to WAN, the page shown in the following figure appears.

The following table describes the parameters and buttons of this page:

Field Description

Direction Select WAN Setting You can choose Interface or IP Address. WAN Interface

Select the router interface. You can select LAN or WAN. In this example, WAN is selected.

Choose the interface that permits data packets from WAN to access the router.

DSL-2730E User Manual

Field Description

You can choose the following services from WAN:

Services Allowed

Add Reset Click it to refresh this page.

Web, Telnet, SSH, TFTP, SNMP and PING. You can also choose all the services. After setting the parameters, click it to add an entry to the Current ACL Table.

3.3.2.2 Access Control List IPv6

Choose Advanced > Access Control List > Access Control List IPv 6. The page shown in the following figure appears. For configuration method, refer to 3.3.2.1 Access Control List.

3.3.3 Port Triggering

Choose Advanced > Port Triggering. The page shown in the following figure appears. Port Triggering is a special form of Port Forwarding in which it requires an outgoing connection before allowing incoming connections on a single or multiple ports. Port Triggering is mostly used when your computer is behind a NAT router. It gives more flexibility than static port forwarding because you don't need to set it up for a specific computer.

DSL-2730E User Manual

Click the Usual Application Name drop-down menu to choose the application you want to set up for port triggering. When you have chosen an application the default Trigger settings will populate the table below. If the application you want to set up isn’t listed, click the User-defined Application Name radio button and type in a name for the trigger in the Custom application field. Configure the Start Match Port, End Match P ort, Trigger Protocol, Start Relate Port, End Relate Port, Open Protocol and Nat type. Click the Apply changes button to finish.

DSL-2730E User Manual

3.3.4 Port Forwarding

This function is used to open ports in your device and redirect data through those ports to a single PC on your network (WAN-to-LAN traffic). It allows remote users to access services on your LAN, such as FTP for file transfers or SMTP and POP3 for e-mail. The device accepts remote requests for these services at your global IP address. It uses the specified TCP or UDP protocol and port number, and redirects these requests to the server on your LAN with the LAN IP address you specify. Note that the specified private IP address must be within the available range of the subnet where the device is in. Choose Advanced > Port Forwarding. The page shown in the following figure appears.

Click the Usual Service Name drop-down menu to choose the service you want to set up for port forwarding. When you have chosen a service, the default settings will populate the table below. If the service you want to set up isn’t listed, select the User-defined Service Name radio button and type in a service name. Configu re the Protocol, W AN Setting, WAN Interface, WAN Port, LAN Open Port and LAN IP Address. Click the Apply changes button to finish.

DSL-2730E User Manual

3.3.5 DMZ

DMZ is the abbreviation of the Demilitarized Zone. Since some applications are

not compatible with NAT, the device supports the use of a DMZ IP address for a single host on the LAN. This IP address is not protected by NAT and it is visible to agents on the Internet with the correct type of software. Note that any client PC in the DMZ is exposed to various types of security risks. If you use the DMZ, take measures (such as client-based virus protection) to protect the remaining client PCs on your LAN from possible contamination through DMZ. Choose Advanced > DMZ. The page shown in the following figure appears.

In the DMZ Host IP Address, input the LAN IP address of the LAN computer that you want to have unrestricted Internet communication. If this computer obtains its address automatically using DHCP, then you may want to make a static reservation on the Setup-->Local Network-->DHCP Reserved page so that the IP address of the DMZ computer does not change. Click Apply to save the settings.

3.3.6 Parental Control

Y ou may create a list of websites that you would like the devices on your network to be denied access to. URL Block allows you to quickly create a list of all websites that you wish to stop users from accessing. MAC Filter allows you to control when clients or PCs connected to the device are allowed to access the Internet.

DSL-2730E User Manual

3.3.6.1 URL Block

Choose Advanced > Parental Control > URL Block. The URL Block page shown in the following figure appears. You may deny certain websites from being accessed during the "schedule" you specified. Here you can add/delete filtered URL.

Note:

To use this feature, the time of router must be correct.

Time and Date.

Please set in 3.2.5

In the field Schedule Mode, you may select an existing schedule schedule for when the rule will be enabled, or manually set a schedule. After setting, click Add Filter to add the URL into the URL Blocking Table. To add schedules, refer to

3.3.6.3 Schedules.

DSL-2730E User Manual

3.3.6.2 MAC Block

Choose Advanced > Parental Control > MAC Block. The URL Block page shown in the following figure appears. You may block a LAN device connected to the router in the specified time section.

In the field Rule Name, input a name that is meaningful to you, then enter a MAC address that you want to deny access to the Internet, and set the days and hours, and click Add Rule to add the MAC into the MAC Blocking Table.

3.3.6.3 Schedules

Choose Advanced > Parental Control > Schedules. The Schedules page shown in the following figure appears. You may add or delete scheduling rules to be applied for URL block.

DSL-2730E User Manual

In the field Rule Name, give the schedule a name that is meaningful to you, such as "Weekday rule". Set the Day(s) and time field, and click Add Rules to save the new rule in the following Rules Table.

3.3.7 Filtering Options

Filters can be configured to manage your incoming and outgoing traffic.

3.3.7.1 IP/Port Filter

When you use the Port Triggering or Port Forwarding features to open specific ports to traffic from the Internet, you could be increasing the exposure of your LAN to cyberattacks from the Internet. In these cases, you can limit that exposure by specifying the IP addresses of Internet hosts that you trust to access your LAN through the ports that you have opened. Choose Advanced > Filtering Options > IP/Port Filter. The IP/Port Filtering page shown in the following figure appears.

DSL-2730E User Manual

Direction Upstream (Dow nstream) means packets outgoing (incoming) from (to) router. The Source IP addresses are LAN-side (WAN-side) addresses and the Destination IP addresses are WAN-side (LAN-side) addresses. Select the rule action, specify at least one of the following criteria: protocol, source/destination IP address, subnet mask and source/destination port. Click the Apply Changes to save a finished rule in the Rules List. The Current

Filter Table shows detailed information about each created IP filter.

Note:

The settings only apply when the firewall is enabled.

3.3.7.2 IPv6/Port Filter

Choose Advanced > Filtering Options > IPv6/Port Filter. The IP/Port Filtering page shown in the following figure appears. You may restrict certain types of ipv6 data packets between LAN-side and WAN-side.

DSL-2730E User Manual

For detailed configuration, you may refer to 3.3.7.1IP/Port Filter.

3.3.7.3 MAC Filter

Choose Advanced > Filtering Options > MAC Filter. The MAC Filtering page shown in the following figure appears. You may create a list of MAC addresses that you would either like to allow or deny access to your network.

DSL-2730E User Manual

3.3.8 DoS Settings

Denial-of-Service Attack (DoS attack) is a type of attack on a network that is designed to bring the network to its knees by flooding it with useless traffic. Choose Advanced > DoS Settings. The DOS Settings page shown in the following figure appears. Select the Enable DoS Prevention checkbox, select the options below, and click Apply Changes to finish.

DSL-2730E User Manual

3.3.9 DNS

Domain Name System (DNS) is an Internet service that translates the URL/domain name into the corresponding IP address. Since URL/Domain Names are alphabetical, they are easier to remember. But the Internet is based on IP address. For example, the URL/Domain Name www.dlink.com is actually 192.168.0.123.

3.3.9.1 DNS

Choose Advanced > DNS > DNS. The DNS Configuration page shown in the following figure appears. You may configure the ip addresses of DNS servers for DNS Relay.

DSL-2730E User Manual

The following table describes the parameters and buttons of this page:

Field Description

Attain DNS Automatically

Set DNS Manually Apply Changes Click it to save the settings of this page. Reset Selected Click it to start configuring the parameters in this page.

3.3.9.2 IPv6 DNS

Choose Advanced > DNS > IPv6 DNS. The IPv6 DNS Configuration page shown in the following figure appears. You may configure the ipv6 addresses of DNS servers.

DSL-2730E User Manual

The following table describes the parameters and buttons of this page.

Field Description

Attain DNS Automatically

Set DNS Manually

Interface Apply Changes Click it to save the settings of this page.

Reset Selected Click it to start configuring the parameters in this page.

Select it, the router accepts the first received DNS assignment from one of the PPPoA, PPPoE or MER enabled PVC(s) during the connection establishment. Select it, enter the IP addresses and choose the WAN interface of the primary, the secondary and the tertiary DNS server. The router accepts received packet assignment from one of the PPPoA, PPPoE or MER enabled PVC(s).

3.3.10 Dynamic DNS

The device supports dynamic domain name service (DDNS). The dynamic DNS service allows a dynamic public IP address to be associated with a static host name in any of the many domains, and allows access to a specified host from various locations on the Internet. Click a hyperlinked URL in the form of hostname.dyndns.org and allow remote access to a host. Many ISPs assign public IP addresses using DHCP, so locating a specific host on the LAN using the standard DNS is difficult. For example, if you are running a public web server or VPN server on your LAN, DDNS ensures that the host can be located from the Internet even if the public IP address changes. DDNS requires that an account be

DSL-2730E User Manual

set up with one of the supported DDNS service providers (DyndDNS.org or dlinkddns.com). Choose Advanced > Dynamic DNS. The Dynamic DNS Configuration page shown in the following page appears.

The following table describes the parameters and buttons of this page.

Field Description

DDNS provider

Hostname Username Enter the username provided by your service provider.

Password Enter the password provided by your service provider.

Select a dynamic DNS service provider from the pull-down list. Enter the host name that you registered with your DDNS service provider.

Note:

In some cases DDNS service requires you to open the WAN http service. Refer to Access Control List-> Access Control List.

DSL-2730E User Manual

Click Add to save the settings to the Dynamic DDNS Table.

3.3.11 Network Tools

The router provides following tools: Port Mapping, IGMP Proxy, IP QoS, UPnP, SNMP, TR-069, Software Forbidden, ARP Binding and Client Limit.

3.3.11.1 Port Mapping

Port Mapping supports a single (LAN) port or multiple (LAN) ports to be formed as a group and mapped to a PVC (which is associated w/ a VLAN). As a result, each group of LAN ports will perform as an independent (logical) network (like a broadcast domain) among whom traffic broadcast would be prevented. This feature is useful while you would like to form multiple independent (logical) networks for multimedia applications at home. For instance, you can map PVC1 to port 1~3 to create a network (broadcast domain) for PCs for Internet, and map PVC2 to port 4 to create another network (broadcast domain) for IPTV service (devices). By using this feature (w/ multiple PVCs), data traffic and IPTV traffic would not affect each other. Choose Advanced > Network Tools > Port Mapping. The Port Mapping Configuration page shown in the following figure appears.

DSL-2730E User Manual

Follow the steps to manipulate a mapping group.

Step 1 Select a group from the table. Step 2 Select interfaces from the available WAN and LAN interface groups and

add it to the interface group list using the arrow buttons to manipulate the required mapping of the ports.

Step 3 Click Apply button to save the changes.

DSL-2730E User Manual

Note:

The selected interfaces will be removed from their existing groups and added to the new group.

3.3.11.2 IGMP Proxy

IGMP allows support for efficient multicasting -- transmission of identical content, such as multimedia, from a source to a number of recipients. IGMP proxy enables the system to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces. The system acts as a proxy for its hosts when you enable it. Choose Advanced > Network Tools > IGMP Proxy. The IGMP Proxy Configuration page shown in the following figure appears.

The following table describes the parameters and buttons of this page.

Field Description

Multicast allowed Enable multicast proxy, only for route mode.

Allows tuning for the expected packet loss on a link. It

Robust Count

Last Member Query Count

determines how many times a startup query should be xmitted. This parameter specifies the times the device sends the query message.

DSL-2730E User Manual

Field Description

Query Interval Query Response

Interval

Group Leave Delay

Click Apply Changes to save the settings.

The device sends query messages to check IGMP user periodically. The unit is second. The device waits for the IGMP user’s reply . The unit is 100 * millisecond. The duration for the modem to cease forwarding multicast packets after a corresponding IGMP "Leave Group" message has been successfully offered to the modem.

3.3.11.3 IP QoS

Quality of Service is a feature that allows you to allocate or guarantee the throughput or speed of Internet for certain computers. This is a very useful feature for sensitive applications such as VoIP whereby it will assist in preventing dropped calls. Large amounts of non-critical data can be scaled so that they do not affect sensitive real-time applications such as VoIP or Streaming. Choose Advanced > Network Tools > IP QoS. The IP QoS page shown in the following figure appears.

DSL-2730E User Manual

Step 1 Enable IP QoS and click Apply to enable IP QoS function. Step 2 Click add rule to add a new IP QoS rule. The page shown in the

following figure appears.

The following table describes the parameters and buttons of this page.

DSL-2730E User Manual

Field Description

QoS Policy You can choose stream based, 802.1p based, or

DSCP based.

Schedule Mode You can choose strict prior or WFQ (4:3:2:1). Source IP The IP address of the source data packet. Source Mask The subnet mask of the source IP address. Destination IP The IP address of the destination data packet. Destination Mask Source Port The port of the source data packet. Destination Port Protocol The protocol responding to the IP QoS rules. You can

Phy Port The LAN interface responding to the IP QoS rules. Set priority The priority of the IP QoS rules. P0 is the highest

802.1p You can choose from 0 to 7.

Delete Select a row in the QoS rule list and click it to delete

Delete all Select all the rows in the QoS rule list and click it to

Click add rule to add it to the QoS Rule List.

The subnet mask of the destination IP address.

The port of the destination data packet.

choose TCP, UDP, or ICMP.

priority and P3 is the lowest.

the row.

delete the rows.

3.3.11.4 UpnP

UPnP (Universal Plug and Play) is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This router has optional UPnP capability, and can work with other UPnP devices and software. The system acts as a daemon when you enable UPnP. Leave the UPnP option enabled as long as the LAN has other UPnP applications. Choose Advanced > Netw ork Tools > UPnP. The UPnP Configuration page shown in the following figure appears.

DSL-2730E User Manual

3.3.11.5 SNMP

SNMP (Simple Network Management Protocol) provides a means to monitor status and performance and set configuration parameters. It enables a management station to configure, monitor and receive trap messages from network devices. Choose Advanced > Network Tools > SNMP. The SNMP Protocol Configuration page shown in the following figure appears. You may change the settings for system description, trap ip address and community name.

DSL-2730E User Manual

The following table describes the parameters of this page:

Field

Enable SNMP

Trap IP Address Community Name

(Read-only) Community Name (Read-Write)

Select it to enable SNMP function. You need to enable SNMP, and then you can configure the parameters of this page. Enter the trap IP address. The trap information is sent to the corresponding host. The network administrators must use this password to read the information of this router. The network administrators must use this password to configure the information of the router.

Description

3.3.11.6 TR-069

TR-069 is a WAN management protocol. It is a bidirectional SOAP/HTTP based protocol providing the communication between the ADSL router and an Auto Configuration Server (ACS) to monitor status and performance and to set configuration parameters from WAN side. Choose Advanced > Network Tools > TR-069. The TR-069 Configuration page shown in the following figure appears. You may change change the setting for the ACS's parameters.

DSL-2730E User Manual

The following table describes the parameters of this page:

Field Description

ACS Configuration

URL The URL of the auto-configuration server to

connect to.

User Name The user name for logging in to the ACS.

DSL-2730E User Manual

Field Description

Password The password for logging in to the ACS. Periodic Inform Enable Select Enable to periodically connect to the

ACS to check configuration updates. Periodic Inform Interval Connection Request User Name The connection username provided by TR-069

Password The connection password provided by TR-069

Debug Show Message Select Enable to display ACS SOAP messages

CPE sends GetRPC Select Enable, the router contacts the ACS to

Skip MReboot Specify whether to send an MReboot event

Delay Specify whether to start the TR-069 program

Auto-Execution Specify whether to automatically start the

CT Inform Extension Specify support China Telecom extension inform

Certificate Management

CPE Certificate Password CPE Certificate Enter the CPE Certificate file. Click it to browse

CA Certificate Click it to browse and upload the CA certificate

Specify the amount of time between

connections to ACS.

service.

on the serial console.

obtain configuration updates.

code in the inform message.

after a short delay.

TR-069 after the router is powered on.

type or not.

The certificate password of the router.

and upload the certificate for the router.

for the router.

DSL-2730E User Manual

3.3.11.7 Software Forbidden

Choose Advanced > Network Tools > Software Forbidden. The Software Forbidden page shown in the following figure appears. You may config some

software to be forbidden to deny the ip packets of it. To forbid one specified PC (or some PCs) from using an application, select the application you want to prohibit, and input a single IP address or IP addresses in range. When Single IP is selected, IP 0.0.0.0 represent for any IP. In this situation,all PCs connected to this router will deny the selected software.

The following table describes the parameters and buttons of this page:

Field Description

Current Forbidden Software List Add Forbidden Software

A list of currently forbidden applications for accessing the network. Select an application to be forbidden from accessing the network.

3.3.11.8 ARP Binding

This function realizes the binding of IP addresses and MAC addresses to avoid ARP address cheats. Choose Advanced > Network Tools > ARP Binding. The ARP Binding Configuration page shown in the following figure appears.

DSL-2730E User Manual

The following table describes the parameters and buttons of this page:

Field Description

IP Address Mac Address An MAC address to be bound.

Add Click this icon to add an ARP binding. Delete Selected Delete a selected setting from the lsit. Undo Reconfigure the above setting. ARP Binding Table A list of all the current ARP binding settings.

An IP address to be bound.

3.3.11.9 Client Limit

Choose Advanced > Network Tools > Client Limit. The Client Limit Configuration page shown in the following figure appears. You may configure the

capability of forcing how many devices can access to the Internet.

DSL-2730E User Manual

3.3.12 Routing

Under this menu, static route, default gateway and RIP type routing configurations can be performed.

3.3.12.1 Static Route

Choose Advanced > Routing > Static Route. Th e Routing Configuration page shown in the following figure appears. This page is used to configure the routing information. You may add or delete IP routes.

The following table describes the parameters and buttons of this page:

DSL-2730E User Manual

Field Description

Enable Select it to use static IP routes. Destination Enter the IP address of the destination device. Subnet Mask Enter the subnet mask of the destination device. Next Hop Enter the IP address of the next hop in the IP route to the

destination device. Metric The metric cost for the destination. Interface The interface for the specified route. Add Route Click it to add the new static route to the Static Route

Table. Update Select a row in the Static Route Table and modify the

parameters. Then click it to save the settings temporarily. Delete Selected Show Routes

Static Route Table

Click Show Routes, the page shown in the following figure appears. The table shows a list of destination routes commonly accessed by your network.

Select a row in the Static Route Table and click it to

delete the row.

Click it, the IP Route Table appears. You can view a list

of destination routes commonly accessed by your

network.

A list of the previously configured static IP routes.

DSL-2730E User Manual

3.3.12.2 IPv6 Static Route

Choose Advanced > Routing > IPv6 Static Route. The IPv6 Routing Configuration page shown in the following figure appears. This page is used to

configure the routing information. You can add or delete IP routes.

The following table describes the parameters and buttons of this page.

Field Description

Destination Enter the IPv6 address of the destination device. Prefix Length Enter the prefix length of the IPv6 address. Next Hop Enter the IP address of the next hop in the IPv6 route to

the destination address. Interface The interface for the specified route. Add Route Click it to add the new static route to the IPv6 Static

Route Table. Delete Selected

Select a row in the IPv6 Static Route Table and click it to

delete the row.

3.3.12.3 RIP

Enable this function if you are using this device as a RIP-enabled router to communicate with others using Routing Information Protocol (RIP). This page is used to select the interfaces on your devices that use RIP, and the version of the protocol used.

DSL-2730E User Manual

Choose Advanced > Routing > IPv6 Static Route. The IPv6 Routing Configuration page shown in the following figure appears.

The following table describes the parameters and buttons of this page:

Field Description

RIP Apply Click it to save the settings of this page.

Interface Choose the router interface that uses RIP.

Receive Version

Send Version

Select Enable, the router communicates with other RIP-enabled devices.

Choose the interface version that receives RIP messages. You can choose RIP1, RIP2, or Both.  Choose RIP1 indicates the router receives RIP v1

messages.

 Choose RIP2 indicates the router receives RIP v2

messages.

 Choose Both indicates the router receives RIP v1

and RIP v2 messages. The working mode for sending RIP messages. You can choose RIP1 or RIP2.  Choose RIP1 indicates the router broadcasts RIP1

messages only.  Choose RIP2 indicates the router multicasts RIP2

messages only.

DSL-2730E User Manual

Field Description

Add Click it to add the RIP interface to the Rip Config List. Delete

Select a row in the Rip Config List and click it to delete the row.

3.3.13 NAT

Under this menu, NAT ALG (Application Layer Gateway), NAT Exclude IP, NAT Forwarding, FTP ALG Config and NAT IP Mapping can be performed.

3.3.13.1 NAT ALG

Choose Advanced > NAT > NAT ALG. The NAT ALG and Pass-Through page shown in the following figure appears. Choose the NAT ALG and Pass-Through options, and then click Apply Changes.

3.3.13.2 NAT Exclude IP

Choose Advanced > NAT > NAT Exclude IP. The NAT EXCLUDE IP page shown in the following figure appears. In the page, you can configure some source IP addresses which use the purge route mode when accessing the Internet through the specified interface.

DSL-2730E User Manual

3.3.13.3 NAT Forwarding

Choose Advanced > NAT > NAT Forwarding. The NAT Forwarding page shown in the following figure appears. Entries in this table allow you to automatically redirect common network services to a specific machine behind the NAT firewall. These settings are only necessary if you wish to host some sort of server like a web server or mail server on the private local network behind your Gateway's NAT firewall. Under 1483MER or 1483Routed mode, if NAPT (Network Address Port Translation) is enabled, the Local IP Address is configured as 192.168.1.3 and the Remote IP Address is configured as 202.32.0.2, the PC with the LAN IP192.168.1.3 will use

202.32.0.2 when it is connected to the Internet via the router without NAPT control.

DSL-2730E User Manual

The following table describes the parameters and buttons of this page:

Field Description

Local IP Address Remote IP

Address Enable Enable the current configured rule. Apply Changes Submit the configurations.

Reset Current NAT Port

Forwarding Table

Input a local IP address. Input a remote IP address

Cancel the modification and reconfigure the settings. Current configuration rule list.

3.3.13.4 FTP ALG Config

The common port for FTP connection is port 21, and a common ALG monitors the TCP port 21 to ensure NAT pass-through of FTP. By enabling this function, when the FTP server connection port is not a port 21, the FTP ALG module will be informed to monitor other TCP ports to ensure NAT pass-through of FTP. Choose Advanced > NAT > FTP ALG Config. The FTP ALG Configuration page shown in the following figure appears.

DSL-2730E User Manual

The following table describes the parameters and buttons of this page:

Field Description

FTP ALG port Set an FTP ALG port. Add Dest Ports Add a port configuration.

Delete Selected DestPort

Delete a selected port configuration from the list.

3.3.13.5 NAT IP Mapping

Choose Advanced > NAT > NAT IP Mapping. The NAT IP Mapping page shown in the following figure appears. Entries in the Current NAT IP Mapping Table allow you to configure one IP pool for a specified source IP address from LAN, so one packet whose source IP is in range of the specified address will select one IP address from the pool for NAT.

DSL-2730E User Manual

3.4 Maintenance

3.4.1 System

Choose Maintenance > System. The page shown in the following figure appears. In this page you can reboot your router or save your router configuration to a file on your computer in case you have to reset your router to factory default settings. You can restore your router settings from a previously saved configuration file. You may also reset your router to factory default settings. Resetting your router to factory default settings will delete your current configuration.

DSL-2730E User Manual

The following table describes the parameters and buttons of this page:

Field Description

Reset to default This option restores all configuration settings back

to the settings that were in effect at the time the router was shipped from the factory. All settings will be lost. If you want to save your router configuration

settings, use the Backup Settings option below. Save and reboot This will save all your settings and restart the router. Back settings Save your configurations in a file on your computer

so that it may be accessed again later if your

current settings are changed. Be sure to save the

configuration before performing a firmware update. Update settings Click Browse to select the configuration file of

device and click Update Settings to begin restoring

the device configuration.

Note:

Do not turn off your device or press the Reset button while an operation in this page is in progress.

DSL-2730E User Manual

3.4.2 Firmware Update

Choose Maintenance > Firmware Update. The page shown in the following figure appears. This page displays your device firmware version and information that will be helpfulfor D-Link technicians should you require any technical support.

The procedure for updating the firmware is as follows.

Step 1 Click Browse…to search the file. Step 2 Click Update Firmware to update the configuration file. Step 3 Wait for the router to reboot. This can take another minute or more.

Note:

Some firmware updates reset the configuration options to the factory defaults. Before performing an update, be sure to save the current configuration. Refer to

3.4.1 System.

3.4.3 Password

Choose Maintenance > Password. The page shown in the following figure appears. You may modify your router password needed to access this Web management interface. For security reasons, it is recommended that you change the default admin and user passwords of the router. The password you choose should be between 1 and 16 characters in length. If you forget your device

DSL-2730E User Manual

password, the only solution is to reset your router to factory default settings and you will lose all your device configuration settings.

The following table describes the parameters and buttons of this page:

Field Description

Root The root account is fixed, having full access to the

Web-based management interface. User The user account has the previlege to view

configuration settings and statistics and update the

router's firmware.

3.4.4 Diagnostics

Choose Maintenance > Diagnostics. The page shown in the following figure appears. Your router is capable of testing your DSL connection. If a test displays a fail status, click “Rerun Diagnostic Tests” at the bottom of this page to make sure the fail status is consistent.

3.4.4.1 Ping Diagnostic

Choose Maintenance > Diagnostics > Ping. The page shown in the following figure appears. This page allows you to ping a Host to test whether your router can be connected to the netwrok.

DSL-2730E User Manual

The following table describes the parameter and button of this page:

Field Description

Host Enter the valid IP address or domain name. Ping Click it to start to Ping.

3.4.4.2 Ping6

Choose Maintenance > Diagnostics > Ping6. The page shown in the following figure appears. The target Address can be a domain or IPv6 address.

The following table describes the parameter and button of this page:

Field Description

Target Address Enter an IP address for Ping6 diagnosis. Interface name Enter an interface through which the Ping6

diagnosis is performed.

3.4.4.3 Traceroute

Choose Maintenance > Diagnostics > Traceroute. The page shown in the following figure appears. You can track the route path through the information which is from your computer to the other side host on the Internet.

DSL-2730E User Manual

The following table describes the parameters and buttons of this page.

Field Description

Host Enter the destination host address for

diagnosis. NumberOfTries Number of repetitions. Timeout Put in the timeout value. Datasize Packet size. DSCP Differentiated Services Code Point, You should

set a value between 0-63. MaxHopCount Maximum number of routes. Interface Select the interface. Traceroute Click start traceroute.

3.4.4.4 ADSL

Choose Maintenance > Diagnostics > ADSL. The page shown in the following figure appears. It is used for ADSL tone diagnostics.

DSL-2730E User Manual

Click Start to start ADSL tone diagnostics.

3.4.4.5 Diag Test

Choose Maintenance > Diagnostics > Diag Test. The page shown in the following figure appears. In this page, you can test the DSL connection. You can also view the LAN status connection and ADSL connection.

3.4.5 System Log

Choose Maintenance > System Log. The page shown in the following figure appears. This section when enabled allows the system to begin logging events based on the selected log level.

DSL-2730E User Manual

The router can only keep a limited number of log entries due to router memory constraints. If you have an external SYSLOG server, you may choose to configure external logging and all log entries will be sent to your remote server.

The following table describes the parameters and buttons of this page.

Field Description

Error When the system is likely to result in a module

abnormity, the system generates an Error log. Notice When the system is under attack or logged in,

or port status changes, the system generates a

Notice log.

Remote Log Host Send system log to remote host, maybe a

domain or an IP. Save Log to File You can save current log table to a file.

DSL-2730E User Manual

3.4.6 Logout

Choose Maintenance > Logout. The page shown in the following figure appears. In this page, you can log out of the configuration page.

3.5 Status

You can view the system information and monitor performance

3.5.1 Device Info

Choose Status > De vice Info. The page shown in the following figure appears. This page displays a summary overview of your router, including system information, DSL information, LAN Configuration, DNS information, WAN Configuration and so on.

DSL-2730E User Manual

3.5.2 Wireless Clients

Choose Status > Wireless Clients. The page shown in the following figure appears. This table shows the MAC address, transmission, reception packet counters and encrypted status for each associated wireless client.

3.5.3 DHCP Clients

Choose Status > DHCP Clients. The page shown in the following page appears. This page displays all client devices that obtain IP addresses from the device. You can view the host name, IP address, MAC address and time expired(s).

DSL-2730E User Manual

3.5.4 ADSL Driver

Choose Status > ADSL Dr iver. The page shown in the following page appears. This page displays all ADSL statistics information, including link down or on, downstream and upstream, type, line coding and so on.

3.5.5 Statistics

Choose Status > Statistics. The page shown in the following page appears. This is a summary of the number of packets that have passed between the WAN and the LAN since the router was last initialized.

DSL-2730E User Manual

3.5.6 Route Info

Choose Status > Route Info. The page shown in the following page appears. This table shows a list of destination routes commonly accessed by your network.

DSL-2730E User Manual

3.6 Help

In the main interface, click Help tab to enter the Help menu as shown in the following figure. This section provides detailed configuration information for the device. Click a link to view corresponding information.

D Link SL2730ET1 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
