D Link IR865LA1 User Manual

Preface

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.

Manual Revisions

Revision Date Description
1.0 May 16, 2012 • Initial release for Revision A1

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc.
iD-Link DIR-865L User Manual
Table of Contents
Table of Contents
Preface ................................................................................. i
Manual Revisions Trademarks
Product Overview .............................................................. 1
Package Contents System Requirements Introduction Features Hardware Overview
Connections LEDs
Installation ......................................................................... 7
Before you Begin Wireless Installation Considerations Manual Setup Connect to an Existing Router
Conguration ...................................................................13
Quick Setup Wizard QRS Mobile App SharePort Mobile App Web-based Conguration Utility
Internet Connection Setup
Static (assigned by ISP) Dynamic (Cable)
...................................................................................... i
............................................................................................4
........................................................................................... 6
........................................................................... i
.........................................................................1
................................................................. 2
...................................................................................3
..................................................................... 5
...........................................................................5
...........................................................................7
......................................8
................................................................................. 9
...............................................11
....................................................................14
..........................................................................21
..............................................................22
..........................................26
.............................................27
................................................28
.............................................................30
PPPoE (DSL)
....................................................................................33
PPTP
....................................................................................35
L2TP
DS-Lite Wireless Settings Manual Wireless Settings
802.11n/g (2.4GHz)
802.11ac/n/a (5GHz) Wireless Bridge Mode Wireless Security
What is WPA? Wireless Security Setup Wizard Add Wireless Device with WPS Wizard WPA/WPA2-Personal (PSK)
Congure WPA/WPA2-Enterprise (RADIUS)..........50
Network Settings
Router Settings DHCP Server Settings
DHCP Reservation Parental Control Storage
Access Files from the Internet IPv6
IPv6 Internet Connection Setup Wizard
IPv6 Manual Setup.........................................................65
mydlink Settings
...................................................................................57
..........................................................................................59
......................................................................31
...............................................................................37
.................................................................38
.................................................39
.......................................................39
.....................................................40
.......................................................41
.................................................................44
...................................................................44
.................................45
...................47
.........................................49
................................................................52
...............................................................52
...................................................53
.........................................................55
..................................................................56
...................................58
................60
.................................................................74
iiD-Link DIR-865L User Manual
Table of Contents
Advanced ...............................................................................75
Virtual Server Port Forwarding Application Rules QoS Engine Network Filters Access Control Website Filters Inbound Filters Firewall Settings Routing
..............................................................................87
Advanced Wireless Wi-Fi Protected Setup (WPS) Advanced Network Settings DLNA Settings iTunes Server Guest Zone IPv6 Firewall IPv6 Routing
Tools
........................................................................................97
...................................................................75
.............................................................76
...........................................................77
.......................................................................78
................................................................79
.................................................................80
.................................................................83
................................................................84
.............................................................85
........................................................88
.....................................89
......................................91
.................................................................92
...................................................................93
.......................................................................94
.....................................................................95
....................................................................96
Admin.................................................................................97
....................................................................................98
Time
Schedules ...................................................................... 105
Status
...................................................................................106
Device Info
....................................................................106
Logs..................................................................................107
Statistics Internet Sessions
......................................................................... 108
......................................................... 109
Wireless...........................................................................110
Routing IPv6 IPV6 Routing
Support
........................................................................... 111
..................................................................................112
................................................................. 113
...............................................................................114
Connect a Wireless Client to your Router ....................115
WPS Button Windows® 7
WPA/WPA2 WPS
Windows Vista®
WPA/WPA2 WPS/WCN 2.0
Windows® XP
WPA/WPA2
................................................................................ 115
................................................................................ 116
......................................................................... 116
....................................................................................... 119
......................................................................... 123
......................................................................... 124
.................................................................... 126
............................................................................. 127
......................................................................... 128
SysLog
................................................................................99
Email Settings............................................................... 100
System Firmware Language Pack Dynamic DNS System Check
............................................................................101
........................................................................ 102
............................................................. 102
............................................................... 103
............................................................... 104
Troubleshooting ............................................................130
Wireless Basics ...............................................................134
What is Wireless?
................................................................................................ 137
Tips Wireless Modes
...................................................................... 135
......................................................................... 138
iiiD-Link DIR-865L User Manual
Table of Contents
Networking Basics .........................................................139
Check your IP address Statically Assign an IP address
............................................................ 139
............................................ 140
Technical Specications ................................................141
Contacting Technical Support ......................................143
GPL Code Statement......................................................144
Warranty .........................................................................156
Registration ...................................................................163
ivD-Link DIR-865L User Manual
Section 1 - Product Overview
DIR-865L Ampli Cloud Router 5700
Ethernet Cable
Power Adapter

Product Overview

Package Contents

If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-865L will cause damage and void the warranty for this product.
1D-Link DIR-865L User Manual
Section 1 - Product Overview
Network Requirements
Web-based Conguration
Utility Requirements

System Requirements

• An Ethernet-based broadband modem
• IEEE 802.11n/g (2.4GH) wireless clients
• IEEE 802.11ac/n/a (5GHz) wireless clients
• 10/100/1000 Ethernet
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 7 or higher
• Firefox 3.5 or higher
• Safari 4 or higher
• Chrome 8 or higher
mydlink Requirements
Windows
installed. Visit www.java.com to download the latest version.
• iPhone/iPad/iPod Touch (iOS 3.0 or higher)
• Android device (1.6 or higher)
• Computer with the following browser requirements:
iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. Android is a trademark of Google, Inc.
®
Users: Make sure you have the latest version of Java
• Internet Explorer 7 or higher
• Firefox 3 or higher
• Safari 5 or higher
• Chrome 5 or higher
2D-Link DIR-865L User Manual
Section 1 - Product Overview

Introduction

The D-Link® Cloud Router 5700 (DIR-865L) provides revolutionary Gigabit 802.11ac wireless speed - up to 1,350Mbps – for awless HD video streaming to multiple devices.
With ground-breaking mydlink Cloud Services, you can monitor your home network from anywhere on your iPhone, iPad and Android device. See websites that are being visited, block unwanted devices and receive automatic email alerts when unauthorized connections are attempted.
With SharePort Mobile, wirelessly access your media on your iPhone, iPad or Android device from any connected USB drive. Best of all, the apps for network management and le access are free.
The Cloud Router 5700 is Wireless N compatible with all of your wireless products up to 450Mbps speed and boasts a high­powered amplier to ensure wall-to-wall coverage.
3D-Link DIR-865L User Manual
Section 1 - Product Overview

Features

Revolutionary speed:
Up to 1350Mbps Free iPad®, iPhone® and Android™ applications to monitor website visits and intrusion attempts - from anywhere
Easy media sharing: Wirelessly access videos, music and photos on your iPad, iPhone or Android device from any connected USB drive with SharePort Mobile
Wireless N450 peformance 2.4GHz band: Compatible with all your devices
Total security: Complete set of security features including an SPI rewall and WPA2 to protect your network against intruders
Easy conguration:
Easy Setup Wizard and Wi-Fi Protected Setup™ (WPS) for easy conguration and addition of new devices
* Maximum wireless signal rate derived from IEEE Standard 802.11ac (draft), 802.11a, 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely aect wireless signal range.
4D-Link DIR-865L User Manual
Section 1 - Product Overview

Hardware Overview

Connections

1
2
3
4
5
6
1 USB Port Connect a USB ash drive to share content throughout your network.
2 LAN Ports (1-4) Connect 10/100/1000 Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
3 Internet Port Using an Ethernet cable, connect your broadband modem to this port.
4 Reset Button Press and hold for 6 seconds to reset the device back to the default factory settings.
5 Power Button Press the power button to power on and o.
6 Power Receptor Receptor for the supplied power adapter.
5D-Link DIR-865L User Manual
Section 1 - Product Overview
Hardware Overview

LEDs

1
2
3
1 Power LED
2 Internet LED
3 WPS Button/LED Press to start the WPS process. The LED will blink during this process.
A solid green light indicates a proper connection to the power supply. The light will blink green during the WPS process. The light will blink orange during boot up.
A solid light indicates connection on the Internet port. If the LED is orange, the connection is good but the router cannot connect to the Internet.
6D-Link DIR-865L User Manual
Section 2 - Installation

Installation

This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or in the attic or garage.

Before you Begin

• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to the Internet.
7D-Link DIR-865L User Manual
Section 2 - Installation

Wireless Installation Considerations

The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in use.
8D-Link DIR-865L User Manual
Section 2 - Installation

Manual Setup

1. Turn o and unplug your cable or DSL broadband modem. This is required.
Modem
2. Position your router close to your modem and a computer. Place the router in an open area of your intended
work area for better wireless coverage.
3. Unplug the Ethernet cable from your modem (or existing router if upgrading) that is connected to your computer.
Plug it into the LAN port labeled 1 on the back of your router. The router is now connected to your computer.
Computer
USB
4
3
LAN
2
1
INTERNET
RESET
POWER
3A
12V
DIR-865L
9D-Link DIR-865L User Manual
Section 2 - Installation
4. Plug one end of the included blue Ethernet cable that came with your router into the yellow port labeled
INTERNET on the back of the router. Plug the other end of this cable into the Ethernet port on your modem.
Modem
INTERNET
Computer
USB
4
3
LAN
2
1
INTERNET
RESET
POWER
DIR-865L
3A
12V
5. Reconnect the power adapter to your cable or DSL broadband modem and wait for two minutes.
6. Connect the supplied power adapter into the power port on the back of the router and then plug it into a power
outlet or surge protector. Press the power button and verify that the power LED is lit. Allow 1 minute for the router to boot up.
DIR-865L
Modem
INTERNET
Computer
USB
4
3
LAN
2
1
INTERNET
RESET
POWER
3A
12V
7. If you are connecting to a Broadband service that uses a dynamic connection (not PPPoE), you may be online
already. Try opening a web browser and enter a web site. If you connect, you are nished with your Internet setup. Please skip to page 13 to congure your router and use the manual setup procedure to congure your network and wireless settings. If you did not connect to the Internet, use the D-Link Setup Wizard (refer to page 14).
10D-Link DIR-865L User Manual
Section 2 - Installation

Connect to an Existing Router

Note: It is strongly recommended to replace your existing router with the DIR-865L instead of using both. If your modem is a combo router, you may want to contact your ISP or manufacturer’s user guide to put the router into Bridge mode, which will ‘turn o’ the router (NAT) functions.
If you are connecting the DIR-865L router to an existing router to use as a wireless access point and/or switch, you will have to do the following to the DIR-865L before connecting it to your network:
• Disable UPnP
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept a DHCP address from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable. Make sure your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking Basics section for more information. If you need to change the settings, write down your existing settings before making any changes. In most cases, your computer should be set to receive an IP address automatically in which case you will not have to do anything to your computer.
2. Open a web browser, enter http://192.168.0.1 and press Enter. When the login window appears, set the user name to Admin and leave the password box empty. Click
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.
Log In to continue.
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server checkbox. Click Save Settings to continue.
11D-Link DIR-865L User Manual
Section 2 - Installation
5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to save your settings. Use this new IP address to access the conguration utility of the router in the future. Close the browser and change your computer’s IP settings back to the original values as in Step 1.
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything into the Internet (WAN) port of the D-Link router.
8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To congure your wireless network, open a web browser and enter the IP address you assigned to the router. Refer to the Conguration and Wireless Security sections for more information on setting up your wireless network.
12D-Link DIR-865L User Manual
Section 2 - Installation
Conguration
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
QRS Mobile App - Use your iPhone, iPad, or iPod Touch to congure your router. Refer to page 21
D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to page 14.
Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to page 26.
13D-Link DIR-865L User Manual
Section 3 - Conguration

Quick Setup Wizard

If this is your rst time installing the router, open your web browser. You will automatically be directed to the Wizard Setup Screen.
If you have already congured your settings and you would like to access the conguration utility, please refer to page 26.
If this is your rst time logging into the router, this wizard will start automatically.
This wizard is designed to guide you through a step-by-step process to congure your new D-Link router and connect to the Internet.
Click Next to continue.
Please wait while your router detects your internet connection type. If the router detects your Internet connection, you may need to enter your ISP information such as username and password.
14D-Link DIR-865L User Manual
Section 3 - Conguration
If the router does not detect a valid Ethernet connection from the Internet port, this screen will appear. Connect your broadband modem to the Internet port and then click
Try Again.
If the router detects an Ethernet connection but does not detect the type of Internet connection you have, this screen will appear. Click
Guide me
through the Internet Connection Settings to display a list of connection
types to choose from.
Select your Internet connection type and click Next to continue.
15D-Link DIR-865L User Manual
Section 3 - Conguration
If the router detected or you selected PPPoE, enter your PPPoE username and password and click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.
If the router detected or you selected PPTP, enter your PPTP username, password, and other information supplied by your ISP. Click Next to continue.
If the router detected or you selected L2TP, enter your L2TP username, password, and other information supplied by your ISP. Click Next to continue.
16D-Link DIR-865L User Manual
Section 3 - Conguration
If the router detected or you selected Static, enter the IP and DNS settings supplied by your ISP. Click Next to continue.
For both the 2.4GHz and 5GHz segments, create a wireless network a name (SSID) using up to 32 characters.
Create a wireless security passphrase or key (between 8-63 characters). Your wireless clients will need to have this passphrase or key entered to be able to connect to your wireless network.
Click Next to continue.
In order to secure your router, please enter a new password. Check the Enable Graphical Authentication box to enable CAPTCHA authentication for added security. Click Next to continue.
17D-Link DIR-865L User Manual
Section 3 - Conguration
Select your time zone from the drop-down menu and click Next to continue.
The Setup Complete window will display your wireless settings. Click Save and Connect to continue.
If you want to create a bookmark to the router, click OK. Click Cancel if you do not want to create a bookmark.
If you clicked Yes, a window may appear (depending on what web browser you are using) to create a bookmark.
18D-Link DIR-865L User Manual
Section 3 - Conguration
To use the mydlink service (mydlink.com or the mydlink Lite app), you must have an account. Select if you do have a mydlink account or if you need to create one. Click Next to continue.
If you do not want to register at this time, click Cancel.
If you clicked Yes, enter your mydlink account name (email address) and password. Click Login to register your router.
If you clicked No, ll out the requested information and click Next to create your mydlink account.
Once your account information is entered, click Login.
19D-Link DIR-865L User Manual
Section 3 - Conguration
The mydlink App will allow you to receive notices, browse network users, and congure your router from an iPhone/iPad/iPod Touch (iOS 3.0 or higher), Android device (1.6 or higher).
To download the "mydlink lite" app, visit the Apple Store, Android Market or http://mydlink.com/Lite.
PC and Mac users can use the mydlink portal at http://mydlink.com.
20D-Link DIR-865L User Manual
Section 3 - Conguration

QRS Mobile App

D-Link oers an app for your iPad, iPod Touch, or iPhone (iOS 4.3 or higher) to install and congure your router.
Step 1
From your iPad, Touch, or iPhone, go to the iTunes Store and search for ‘D-Link’. Select QRS Mobile and then download it.
You may also scan this code to download.
Step 2
Once your app is installed, you may now congure your router. Connect to the router wirelessly by going to your wireless utility on your device. Scan for the wireless network name (SSID) as listed on the supplied info card. Select and then enter your security password (Wi-Fi Password).
Step 3
Once you connect to the router, launch the QRS mobile app and it will guide you through the installation of your router.
21D-Link DIR-865L User Manual
Section 3 - Conguration

SharePort Mobile App

The SharePort Mobile app will allow you to access les from a USB thumb drive that is plugged into your router. You must enable le sharing from the Setup > Storage page (refer to page 57) for this app to work properly.
1. Insert your USB ash drive into DIR-865L.
2. Scan the bar code to download the SharePort Mobile APP from the app store to your iPhone or iPad.
3. From your iOS mobile device, click Settings.
Settings
22D-Link DIR-865L User Manual
Section 3 - Conguration
4. Click Wi-Fi, select the wireless network (SSID) that you created in the setup and then enter your Wi-Fi password.
5. Once connected, click on the SharePort Mobile icon.
6. The following screen will appear.
23D-Link DIR-865L User Manual
Section 3 - Conguration
7. Click on Settings icon located on the right top corner of the screen. Click Edit to enter your User Name and Password. Once you nish, click Done to continue.
8. For the Movie section, click the movie icon to play your movie from your USB ash drive.
9. For the Music section, click the music icon to play your music from your USB ash drive.
24D-Link DIR-865L User Manual
Section 3 - Conguration
10. For the Photo section, click the Photo icon to view your photos from
your USB ash drive.
11. For the Files section, click on the Files icon to view your les from your
USB ash drive.
12. For the Folder section, click the folder icon to view your folders
from your USB ash drive.
25D-Link DIR-865L User Manual
Section 3 - Conguration
Web-based Conguration Utility
To access the configuration utility, open a web-browser such as Internet Explorer and enter the IP address of the router (http://192.168.0.1).
Windows and Mac users may also connect by typing http://dlinkrouter in the address bar.
Select Admin from the drop-down menu and then enter your password. Leave the password blank by default.
26D-Link DIR-865L User Manual
Section 3 - Conguration

Internet Connection Setup

Click Manual Internet Connection Setup to congure your connection manually and continue to the next page.
If you want to congure your router to connect to the Internet using the wizard, click You will be directed to the Quick Setup Wizard. Please refer to page 14.
The next few pages will explain each of the ISP connection types. You can select the type from the drop-down menu.
Internet Connection Setup Wizard.
My Internet Connection Is
You may also congure your router to be a wireless client/bridge. This is useful if you want to connect Ethernet devices to your wireless network if you currently had a wireless router. Please refer to page 41 for more information.
Note: For 802.11ac performance, you must connect to another
802.11ac wireless router. The DIR-865L will automatically adjust to
the connection type of your router.
Also, if bridge mode is enabled, all router functions (NAT, ltering, DHCP server, etc) will be disabled as well as mydlink and SharePort Mobile functions.
27D-Link DIR-865L User Manual
Section 3 - Conguration
Manual Internet Setup
Static (assigned by ISP)
Select Static IP Address if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask, gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the elds must be in the appropriate IP form, which are four octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.
My Internet Connection:
Enable Advanced DNS
Service:
Enable True Gigabit
Routing Connectivity:
IP Address:
Subnet Mask:
Select your ISP.
Advanced Domain Name System (DNS) services enhances your Internet performance by getting you the information and web pages you are looking for faster and more reliably. In addition, it improves your overall Internet experience by correcting many common typo mistakes automatically, taking you where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability, functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the through-put of the WAN-LAN connectivity of the router.
Enter the IP address assigned by your ISP.
Enter the Subnet Mask assigned by your ISP.
Static IP to manually enter the IP settings supplied by
Default Gateway:
DNS Servers:
MTU:
Enter the Gateway assigned by your ISP.
The DNS server information will be supplied by your ISP (Internet Service Provider.)
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1500 is the default MTU.
28D-Link DIR-865L User Manual
Section 3 - Conguration
MAC Address: The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Copy Your PC’s MAC Address button to
29D-Link DIR-865L User Manual
Section 3 - Conguration
Dynamic (Cable)
My Internet
Connection:
Enable Advanced
DNS Service:
Enable True Gigabit
Routing Connectivity:
Host Name:
Use Unicasting:
Select automatically from your ISP. Select this option if your ISP does not give you any IP numbers to use. This option is commonly used for cable modem services.
Advanced Domain Name System (DNS) services enhances your Internet performance by getting you the information and web pages you are looking for faster and more reliably. In addition, it improves your overall Internet experience by correcting many common typo mistakes automatically, taking you where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability, functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the through­put of the WAN-LAN connectivity of the router.
The Host Name is optional but may be required by some ISPs. Leave blank if you are not sure.
Check the box if you are having problems obtaining an IP address from your ISP.
Dynamic IP (DHCP) to obtain IP Address information
Primary/Secondary
DNS Server:
MTU:
MAC Address:
Enter the Primary and secondary DNS server IP addresses assigned by your ISP. These addresses are usually obtained automatically from your ISP. Leave at 0.0.0.0 if you did not specically receive these from your ISP.
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1500 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Copy Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
30D-Link DIR-865L User Manual
Section 3 - Conguration
Internet Setup
PPPoE (DSL)
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.
My Internet
Connection:
Enable
Advanced DNS
Service:
Enable True
Gigabit Routing
Connectivity:
Address Mode:
IP Address:
User Name:
Select
Advanced Domain Name System (DNS) services enhances your Internet performance by getting you the information and web pages you are looking for faster and more reliably. In addition, it improves your overall Internet experience by correcting many common typo mistakes automatically, taking you where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability, functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the through-put of the WAN-LAN connectivity of the router.
Select gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
PPPoE (Username/Password) from the drop-down menu.
Static IP if your ISP assigned you the IP address, subnet mask,
Password:
Service Name:
Reconnect
Mode:
Enter your PPPoE password and then retype the password in the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
31D-Link DIR-865L User Manual
Section 3 - Conguration
Maximum
Idle Time:
DNS
Addresses:
MTU:
MAC Address:
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1492 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Copy Your PC’s MAC Address button to
32D-Link DIR-865L User Manual
Section 3 - Conguration
Internet Setup
PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.
My Internet
Connection:
Enable
Advanced DNS
Service:
Enable True
Gigabit Routing
Connectivity:
Address Mode:
PPTP IP Address:
Select
Advanced Domain Name System (DNS) services enhances your Internet performance by getting you the information and web pages you are looking for faster and more reliably. In addition, it improves your overall Internet experience by correcting many common typo mistakes automatically, taking you where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability, functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the throughput of the WAN-LAN connectivity of the router.
Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPTP only).
PPTP (Username/Password) from the drop-down menu.
PPTP Subnet
Mask:
PPTP Gateway:
PPTP Server IP:
Enter the Primary and Secondary DNS Server Addresses (Static PPTP only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
33D-Link DIR-865L User Manual
Section 3 - Conguration
Username:
Password:
Reconnect
Mode:
Maximum Idle
Time:
DNS Servers:
MTU:
MAC Address:
Enter your PPTP username.
Enter your PPTP password and then retype the password in the next box.
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.
The DNS server information will be supplied by your ISP (Internet Service Provider.)
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1400 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Clone Your PC’s MAC Address button to
34D-Link DIR-865L User Manual
Section 3 - Conguration
Internet Setup
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.
My Internet
Connection:
Enable
Advanced DNS
Service:
Enable True
Gigabit Routing
Connectivity:
Address Mode:
Select
Advanced Domain Name System (DNS) services enhances your Internet performance by getting you the information and web pages you are looking for faster and more reliably. In addition, it improves your overall Internet experience by correcting many common typo mistakes automatically, taking you where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability, functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the through-put of the WAN-LAN connectivity of the router.
Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select
Dynamic.
L2TP (Username/Password) from the drop-down menu.
L2TP IP Address:
L2TP Subnet
Mask:
L2TP Gateway:
L2TP Server IP:
Enter the L2TP IP address supplied by your ISP (Static only).
Enter the Subnet Mask supplied by your ISP (Static only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
35D-Link DIR-865L User Manual
Section 3 - Conguration
Username:
Password:
Reconnect
Mode:
Maximum Idle
Time:
DNS Servers:
MTU:
Clone MAC
Address:
Enter your L2TP username.
Enter your L2TP password and then retype the password in the next box.
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static L2TP only).
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1400 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Clone Your PC’s MAC Address button to
36D-Link DIR-865L User Manual
Section 3 - Conguration
Internet Setup

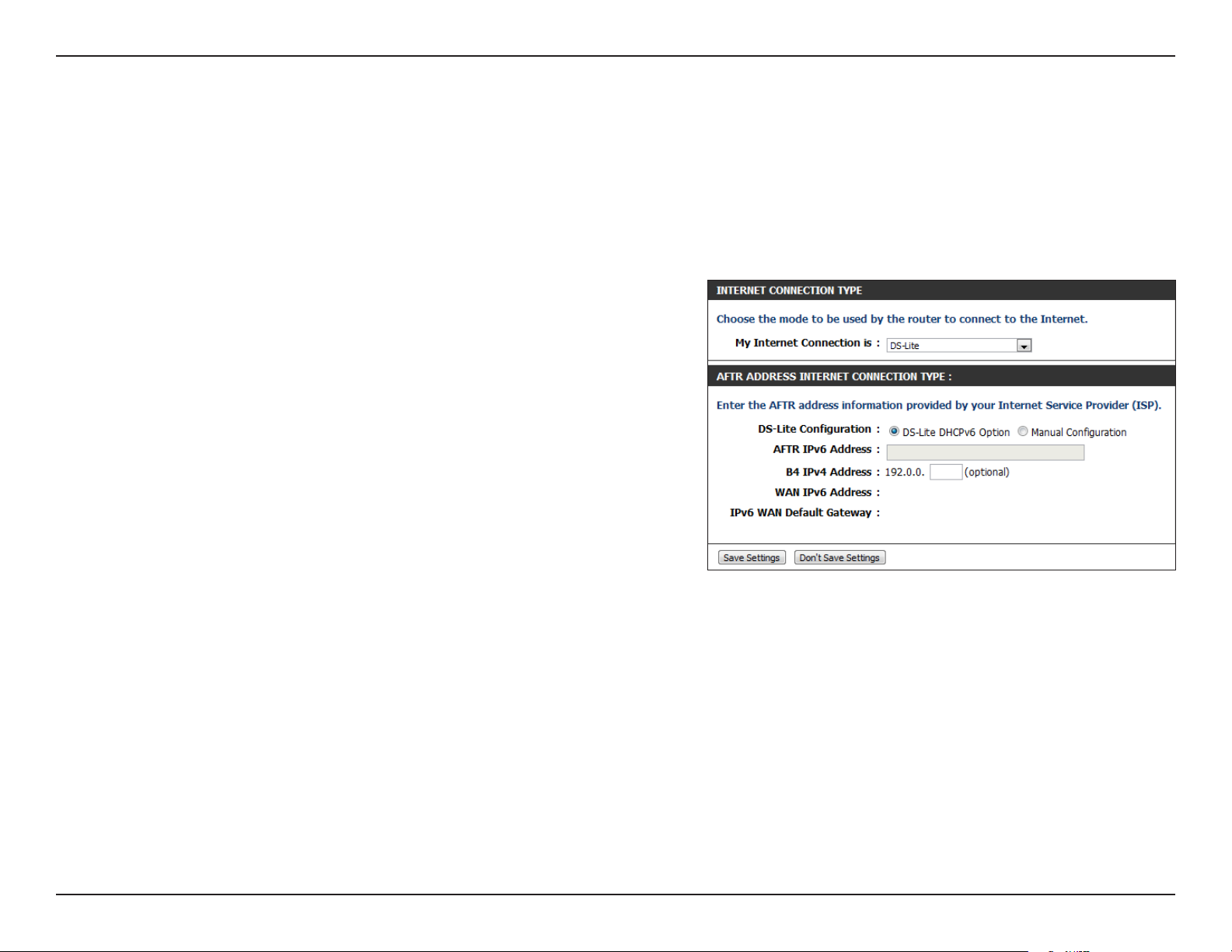

DS-Lite
Another Internet Connection type is DS-Lite.
DS-Lite is an IPv6 connection type. After selecting DS-Lite, the following parameters will be available for conguration:
DS-Lite
Conguration:
AFTR IPv6
Address:
B4 IPv4 Address: Enter the B4 IPv4 address value used here.
WAN IPv6
Address:
IPv6 WAN
Default Gateway
Select the DS-Lite DHCPv6 option to let the router allocate the AFTR IPv6 address automatically. Select the Manual Conguration to enter the AFTR IPv6 address in manually.
After selecting the Manual Conguration option above, enter the AFTR IPv6 address used here.
Once connected, the WAN IPv6 address will be displayed here.
Once connected, the IPv6 WAN Default Gateway address will be displayed here.
37D-Link DIR-865L User Manual
Section 3 - Conguration

Wireless Settings

If you want to congure the wireless settings on your router using the wizard, click Wireless Security Setup Wizard and refer to page 45.
Click Add Wireless Device with WPS if you want to add a wireless device using Wi-Fi Protected Setup (WPS) and refer to page 47.
If you want to manually congure the wireless settings on your router click Manual Wireless Network Setup and refer to the next page.
38D-Link DIR-865L User Manual
Section 3 - Conguration

Manual Wireless Settings

802.11n/g (2.4GHz)
Enable Wireless:
Schedule:
Wireless Network
Name:
802.11 Mode:
Enable Auto Channel
Scan:
Wireless Channel:
Check the box to enable the wireless function. If you do not want to use wireless, uncheck the box to disable all the wireless functions.
Select the time frame that you would like your wireless network enabled. The schedule may be set to Always. Any schedule you create will be available in the drop-down menu. Click New Schedule to create a schedule.
Service Set Identier (SSID) is the name of your wireless network. Create a name for your wireless network using up to 32 characters. The SSID is case-sensitive.
Select one of the following:
802.11b Only - Select only if all of your wireless clients are 802.11b.
802.11g Only - Select only if all of your wireless clients are 802.11g.
802.11n Only - Select only if all of your wireless clients are 802.11n. Mixed 802.11g and 802.11b - Select if you are using both 802.11g and
802.11b wireless clients.
Mixed 802.11n and 802.11g - Select if you are using both 802.11n and 802.11g wireless clients. Mixed 802.11n, 11g, and 11b - Select if you are using a mix of 802.11n, 802.11g, and 802.11b wireless clients.
The Auto Channel Scan setting can be selected to allow the DIR-865L to choose the channel with the least amount of interference.
Indicates the channel setting for the DIR-865L. By default the channel is set to 6. The Channel can be changed to t the channel setting for an existing wireless network or to customize the wireless network. If you enable Auto Channel Scan, this option will be greyed out.
Channel Width:
Visibility Status:
Wireless Security:
Select the Channel Width:
Auto 20/40 - This is the default setting. Select if you are using both 802.11n and non-802.11n wireless devices. 20MHz - Select if you are not using any 802.11n wireless clients.
Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the DIR-865L. If Invisible is selected, the SSID of the DIR-865L will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-865L in order to connect to it.
Refer to page 44 for more information regarding wireless security.
39D-Link DIR-865L User Manual
Section 3 - Conguration
802.11ac/n/a (5GHz)
Enable Wireless:
Schedule:
Wireless Network
Name:
802.11 Mode:
Enable Auto Channel
Scan:
Wireless Channel:
Check the box to enable the wireless function. If you do not want to use wireless, uncheck the box to disable all the wireless functions.
Select the time frame that you would like your wireless network enabled. The schedule may be set to Always. Any schedule you create will be available in the drop-down menu. Click New Schedule to create a schedule.
Service Set Identier (SSID) is the name of your wireless network. Create a name for your wireless network using up to 32 characters. The SSID is case-sensitive.
Select one of the following:
802.11a Only - Select if all of your wireless clients are 802.11a.
802.11n Only - Select only if all of your wireless clients are 802.11n. Mixed 802.11a and 802.11n - Select if you are using both 802.11n
and 802.11a wireless clients. Mixed 802.11ac - Select if you are using 802.11ac, 802.11n and
802.11a wireless clients.
The Auto Channel Scan setting can be selected to allow the DIR-865L to choose the channel with the least amount of interference.
Indicates the channel setting for the DIR-865L. By default the channel is set to 6. The Channel can be changed to t the channel setting for an existing wireless network or to customize the wireless network. If you enable Auto Channel Scan, this option will be greyed out.
Channel Width:
Visibility Status:
Wireless Security:
Select the Channel Width:
20MHz - Select if you are not using any 802.11n wireless clients. 20/40MHz (Auto) - This is the default setting. Select if you are using both 802.11n and non-802.11n wireless devices. 20/40/80MHz (Auto) - Select if you are using 802.11ac, 802.11n and non-802.11n wireless devices. This option is only available when the 802.11 Mode is set
to Mixed 802.11ac.
Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the DIR-865L. If Invisible is selected, the SSID of the DIR-865L will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-865L in order to connect to it.
Refer to page 44 for more information regarding wireless security.
40D-Link DIR-865L User Manual
Section 3 - Conguration

Wireless Bridge Mode

If you want to wirelessly connect multiple Ethernet-enabled devices such as game consoles, media players, or network attached storage (NAS) devices you can set the DIR-865L to Bridge mode. You must have a wireless router for this feature.
Note: For 802.11ac performance, you must connect to another 802.11ac wireless router. The DIR-865L will automatically adjust to the connection type of your router.
Wireless Laptop
Computer
Internet
Modem
USB
4
3
LAN
2
1
INTERNET
RESET
POWER
3A
12V
DIR-865L
(router mode)
USB
4
3
LAN
2
1
INTERNET
RESET
POWER
3A
12V
DIR-865L
(router mode)
Game Console
41D-Link DIR-865L User Manual
Section 3 - Conguration
To congure your DIR-865L router to a wireless client/bridge, follow the steps below:
Step 1 - From the Setup > Internet page, check the Enable Wireless Bridge box and click Save Settings. Click OK to the pop-up message.
Note: When you enable Bridge mode, the DIR-865L’s default IP address will change to 192.168.0.50.
Step 2 - The following message will appear. The router will automatically reboot.
Step 3 - Once the router reboots, you may get a “connect display page” error on your web browser. This is because the IP address of the router changed. In your web browser, enter http://192.168.0.50 to access the web interface. If you still cannot connect, enter
http://dlinkrouter to access the DIR-865L.
Step 4 - At the login screen, enter admin for the User Name and enter
your password (leave blank by default).
Step 5 - From the Setup > Internet page, click the Site Survey button. This will display a list of wireless networks in your area.
You may also manually enter the wireless network name you want to connect to (SSID) and any security/encryption settings (from the Security Mode drop-down menu). Enter your wireless network information, click Save Settings, and then skip to step 7.
42D-Link DIR-865L User Manual
Section 3 - Conguration
Step 6 - When the site survey screen appears, select the network you want to connect to (click the radio button under Select) and then click Connect.
If the network is secure/encrypted, you will need to enter the passphrase/encryption key.
Please allow a minute to connect.
Step 7 - Once connected, any Ethernet device connected to the DIR-865L will connect to the wireless network.
Note: Wireless clients cannot connect to the DIR-865L while in bridge mode.
43D-Link DIR-865L User Manual
Section 4 - Security

Wireless Security

This section will show you the dierent levels of security you can use to protect your data from intruders. The DIR-865L oers the following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
What is WPA?
WPA (Wi-Fi Protected Access), is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple to be snied out and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your wireless router or access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption system to ensure that only authorized network users can access the network.
44D-Link DIR-865L User Manual
Section 4 - Security
Wireless Security Setup Wizard
To run the security wizard, click on Setup at the top and then click Wireless Network Setup Wizard.
Type your desired wireless network name (SSID).
Automatically: Select this option to automatically generate the router’s network key and click Next.
Manually: Select this option to manually enter your network key and click Next.
45D-Link DIR-865L User Manual
Section 4 - Security
If you selected Automatically, the summary window will display your settings. Write down the security key and enter this on your wireless clients. Click Save to save your settings.
If you selected Manually, the following screen will appear. Create a passphrase for your security password. Click Next to continue.
46D-Link DIR-865L User Manual
Section 4 - Security
Add Wireless Device with WPS Wizard
From the Setup > Wireless Settings screen, click Add Wireless Device with WPS.
Select Auto to add a wireless client using WPS (Wi-Fi Protected Setup) and then click Next. Skip to the next page.
If you select Manual, a settings summary screen will appear. Write down the security key and enter this on your wireless clients. Click OK to nish.
47D-Link DIR-865L User Manual
Section 4 - Security
PIN: Select this option to use PIN method. In order to use this method you must know the wireless client’s 8 digit PIN and click
Connect.
PBC: Select this option to use PBC (Push Button) method to add
a wireless client. Click Connect.
Once you click Connect, you will have a 120 second time limit to apply the settings to your wireless client(s) and successfully establish a connection.
48D-Link DIR-865L User Manual
Section 4 - Security
WPA/WPA2-Personal (PSK)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration by opening a web browser and entering the IP address of the router (192.168.0.1). Click on Setup and then click
2. Next to Security Mode, select WPA-Personal.
3. Next to WPA Mode, select Auto, WPA2 Only, or WPA Only. Use Auto if you have wireless clients using both WPA and WPA2.
Wireless Settings on the left side.
4. Next to Cypher Type, select TKIP and AES, TKIP, or AES.
5. Next to Group Key Update Interval, enter the amount of time before the group key used for broadcast and multicast data is changed (3600 is default).
6. Next to Pre-Shared Key, enter a key (passphrase). The key is entered as a pass-phrase in ASCII format at both ends of the wireless connection. The pass-phrase must be between 8-63 characters.
7. Click Save Settings to save your settings. If you are conguring the router with a wireless adapter, you will lose connectivity until you enable WPA-PSK on your adapter and enter the same passphrase as you did on the router.
49D-Link DIR-865L User Manual
Section 4 - Security
Congure WPA/WPA2-Enterprise (RADIUS)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration by opening a web browser and entering the IP address of the router (192.168.0.1). Click on Setup and then click Wireless Settings on the left side.
2. Next to Security Mode, select WPA-Enterprise.
3. Next to WPA Mode, select Auto, WPA2 Only, or WPA Only. Use Auto if you have wireless clients using both WPA and WPA2.
4. Next to Cypher Type, select TKIP and AES, TKIP, or AES.
5. Next to Group Key Update Interval, enter the amount of time before the group key used for broadcast and multicast data is changed (3600 is default).
6. Next to Authentication Timeout, enter the amount of time before a client is required to re-authenticate (60 minutes is default).
7. Next to RADIUS Server IP Address enter the IP Address of your RADIUS server.
50D-Link DIR-865L User Manual
Section 4 - Security
8. Next to RADIUS Server Port, enter the port you are using with
your RADIUS server. 1812 is the default port.
9. Next to RADIUS Server Shared Secret, enter the security key.
10. If the MAC Address Authentication box is selected then the user
will need to connect from the same computer whenever logging into the wireless network.
11. Click Advanced to enter settings for a secondary RADIUS Server.
12. Click Apply Settings to save your settings.
51D-Link DIR-865L User Manual
Section 3 - Conguration

Network Settings

This section will allow you to change the local network settings of the router and to congure the DHCP settings.
Router Settings
Router IP Address:
Subnet Mask:
Device Name:
Local Domain:
Enable DNS Relay:
Enter the IP address of the router. The default IP address is 192.168.0.1.
If you change the IP address, once you click Save Settings, you will need to enter the new IP address in your browser to get back into the conguration utility.
Enter the Subnet Mask. The default subnet mask is
255.255.255.0.
Enter a name for the router.
Enter the Domain name (Optional).
Uncheck the box to transfer the DNS server information from your ISP to your computers. If checked, your computers will use the router for a DNS server.
52D-Link DIR-865L User Manual
Section 3 - Conguration
DHCP Server Settings
DHCP stands for Dynamic Host Control Protocol. The DIR-865L has a built-in DHCP server. The DHCP Server will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.” When you turn your computers on, they will automatically load the proper TCP/IP settings provided by the DIR-865L. The DHCP Server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool.
Enable DHCP
Server:
DHCP IP Address
Range:
DHCP Lease Time:
Always
Broadcast:
NetBIOS
Announcement:
Learn NetBIOS
from WAN:
Check this box to enable the DHCP server on your router. Uncheck to disable this function.
Enter the starting and ending IP addresses for the DHCP server’s IP assignment.
Note: If you statically (manually) assign IP addresses to your computers or devices, make sure the IP addresses are outside of this range or you may have an IP conict.
The length of time for the IP address lease. Enter the Lease time in minutes.
Enable this feature to broadcast your networks DHCP server to LAN/WLAN clients.
NetBIOS allows LAN hosts to discover all other computers within the network, enable this feature to allow the DHCP Server to oer NetBIOS conguration settings.
Enable this feature to allow WINS information to be learned from the WAN side, disable to allow manual conguration.
NetBIOS Scope:
This feature allows the conguration of a NetBIOS ‘domain’ name under which network hosts operates. This setting has no eect if the ‘Learn NetBIOS information from WAN’ is activated.
53D-Link DIR-865L User Manual
Section 3 - Conguration
NetBIOS Node:
WINS IP
Address:
Select the dierent type of NetBIOS node;
Enter your WINS Server IP address(es).
Broadcast only, Point-to-Point, Mixed-mode, and Hybrid.
54D-Link DIR-865L User Manual
Section 3 - Conguration
DHCP Reservation
If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router will assign the IP address only to that computer or device.
Note: This IP address must be within the DHCP IP Address Range.
Enable:
Computer Name:
IP Address:
MAC Address:
Copy Your PC’s
MAC Address:
Save:
DHCP
Reservations List:
Check this box to enable the reservation.
Enter the computer name or select from the drop-down menu and click <<.
Enter the IP address you want to assign to the computer or device. This IP Address must be within the DHCP IP Address Range.
Enter the MAC address of the computer or device.
If you want to assign an IP address to the computer you are currently on, click this button to populate the elds.
Click Save to save your entry. You must click Save Settings at the top to activate your reservations.
DHCP Reservations List
Displays any reservation entries. Displays the host name (name of your computer or device), MAC Address, and IP address.
Enable:
Edit:
Delete:
Check to enable the reservation.
Click the edit icon to make changes to the reservation entry.
Click to remove the reservation from the list.
55D-Link DIR-865L User Manual
Section 3 - Conguration
Advanced DNS:

Parental Control

Advanced DNS Service is a free security option that provides anti-phishing protection to your network and oers navigation improvements such as auto-correction of common URL typos.
FamilyShield:
Parental Controls:
None:
Faster, more reliable Internet browsing.
Includes Advanced DNS and automatic protection from malware, phishing, and adult websites. This option uses OpenDNS.
Includes Advanced DNS, FamilyShield, and customizable blocking of malware and phishing sites. You may also customize ltering of web content by category. This option uses OpenDNS.
DNS servers will be provided via DHCP by your ISP or you may manually enter DNS servers.
56D-Link DIR-865L User Manual
Section 3 - Conguration

Storage

This page will allow you to access les from a USB external hard drive or thumb drive that is plugged into the router from your local network or from the Internet using either a web browser or an app for your smartphone or tablet. You can create users to be allowed to access these les.
Enable SharePort
Access:
Enable HTTP
Storage Remote
Access:
Remote Access
Port:
Enable HTTPS
Storage Remote
Access:
Remote HTTPS
Port:
User Name:
Check to enable sharing les on your USB storage device that is plugged in your router.
Check to enable HTTP access to your router’s storage. You will have to type HTTP in the URL.
Enter a port (8181 is default). You will have to enter this port in the URL when connecting to the shared les. For example: (http://192.168.0.1:8181).
Check to enable HTTPS (secure) access to your router’s storage. You will have to type HTTPS in the URL.
Enter a port (4433 is default). You will have to enter this port in the URL when connecting to the shared les. For example: (https://192.168.0.1:4433).
To create a new user, enter a user name.
Password:
Verify Password:
User List:
Number of
Devices:
Enter a password for this account.
Re-enter the password. Click Add/Edit to create the user.
Displays the accounts. The Admin and Guest accounts are built-in to the router.
Displays the USB device plugged into the router.
57D-Link DIR-865L User Manual
Section 3 - Conguration
Access Files from the Internet
If you would like to access your les that are on your USB thumb drive or external hard drive that is connected to your router, follow the steps below:
Step 1 - Enable Web File Access
Check the Enable Web File Access checkbox to enable. Then select if you want to use HTTP or HTTPS (secure) and enter the port(s) you want to use. The default for HTTP is 8181 and HTTPS is 4433.
Step 2 - Create a User Account
Under User Creation, enter a username and password, and then click
Add/Edit.
Step 3 - Congure your Access Path
Under User List, click the Modify icon for the user you just created. Here you can browse to the folder on your USB storage device you want to assign the Access Path to.
Step 4 - Save Settings
If you want to add more users, repeat steps 3 and 4. Once you are nished, click the settings.
Note that under the HTTP Storage Link (at the bottom) will display the URL(s) you can use to connect. Also if you selected HTTPS, you must type in HTTPS:// instead of HTTP:// to get a secure connection.
For example, if you selected HTTPS and changed the port to 3200, and your WAN IP address is 1.2.3.4, then you would enter
HTTPS://1.2.3.4:3200 to connect.
Save Settings button at the top to save your
58D-Link DIR-865L User Manual
Section 3 - Conguration

IPv6

On this page, the user can congure the IPv6 Connection type. There are two ways to set up the IPv6 Internet connection. You can use the Web-based IPv6 Internet Connection Setup Wizard, or you can manually congure the connection.
For the beginner user that has not congured a router before, click on the
IPv6 Internet Connection Setup Wizard button and the router will
guide you through a few simple steps to get your network up and running.
For the advanced user that has congured a router before, click on the Manual IPv6 Internet Connection Setup button to input all the settings manually.
To congure the IPv6 local settings, click on the IPv6 Local Connectivity Setup button.
59D-Link DIR-865L User Manual
Section 3 - Conguration
IPv6 Internet Connection Setup Wizard
On this page, the user can congure the IPv6 Connection type using the IPv6 Internet Connection Setup Wizard.
Click the IPv6 Internet Connection Setup Wizard button and the router will guide you through a few simple steps to get your network up and running.
Click Next to continue to the next page. Click Cancel to discard the changes made and return to the main page.
The router will try to detect whether its possible to obtain the IPv6 Internet connection type automatically. If this succeeds then the user will be guided through the input of the appropriate parameters for the connection type found.
60D-Link DIR-865L User Manual
Section 3 - Conguration
However, if the automatic detection fails, the user will be prompt to either Try again or to click on the Guide me through the IPv6 settings button to initiate the manual continual of the wizard.
There are several connection types to choose from. If you are unsure of your connection method, please contact your IPv6 Internet Service Provider.
Note: If using the PPPoE option, you will need to ensure that any PPPoE client software on your computers has been removed or disabled. The 3 options available on this page are Connection.
Choose the required IPv6 Internet Connection type and click on the Next button to continue. Click on the Prev button to return to the previous page. Click on the
Cancel button to discard all the changes made and return to the main page.
IPv6 over PPPoE, Static IPv6 address and Route, and Tunneling
Click on the Next button to continue. Click on the Prev button to return to the previous page.
Click on the Cancel button to discard all the changes made and return to the main page.
61D-Link DIR-865L User Manual
Section 3 - Conguration
IPv6 over PPPoE
After selecting the IPv6 over PPPoE option, the user will be able to congure the IPv6 Internet connection that requires a username and password to get online. Most DSL modems use this type of connection.
The following parameters will be available for conguration:
PPPoE Session: Select the PPPoE Session value used here. This
option will state that this connection shares it’s information with the already congured IPv6 PPPoE connection, or the user can create a new PPPoE connection here.
User Name: Enter the PPPoE username used here. If you do not
know your user name, please contact your ISP.
Password: Enter the PPPoE password used here. If you do not
know your password, please contact your ISP.
Verify Password: Re-enter the PPPoE password used here.
Service Name: Enter the service name for this connection here.
This option is optional.
62D-Link DIR-865L User Manual
Section 3 - Conguration
Static IPv6 Address Connection
This mode is used when your ISP provides you with a set IPv6 addresses that does not change. The IPv6 information is manually entered in your IPv6 conguration settings. You must enter the IPv6 address, Subnet Prex Length, Default Gateway, Primary DNS Server, and Secondary DNS Server. Your ISP provides you with all this information.
Use Link-Local
Address:
IPv6 Address:
Subnet Prex
Length:
Default Gateway:
Primary IPv6 DNS
Address:
Secondary IPv6
DNS Address:
LAN IPv6 Address:
The Link-local address is used by nodes and routers when communicating with neighboring nodes on the same link. This mode enables IPv6-capable devices to communicate with each other on the LAN side.
Enter the WAN IPv6 address for the router here.
Enter the WAN subnet prex length value used here.
Enter the WAN default gateway IPv6 address used here.
Enter the WAN primary DNS Server address used here.
Enter the WAN secondary DNS Server address used here.
These are the settings of the LAN (Local Area Network) IPv6 interface for the router. The router’s LAN IPv6 Address conguration is based on the IPv6 Address and Subnet assigned by your ISP. (A subnet with prex /64 is supported in LAN.)
63D-Link DIR-865L User Manual
Section 3 - Conguration
Tunneling Connection (6rd)
After selecting the Tunneling Connection (6rd) option, the user can congure the IPv6 6rd connection settings.
The following parameters will be available for conguration:
6rd IPv6 Prex: Enter the 6rd IPv6 address and prex value used
here.
IPv4 Address: Enter the IPv4 address used here.
Mask Length: Enter the IPv4 mask length used here.
Assigned IPv6 Prex: Displays the IPv6 assigned prex value here.
6rd Border Relay IPv4
Address:
IPv6 DNS Server: Enter the primary DNS Server address used here.
The IPv6 Internet Connection Setup Wizard is complete.
Click on the Connect button to continue. Click on the Prev button to return to the previous page. Click on the Cancel button to discard all the changes made and return to the main page.
Enter the 6rd border relay IPv4 address used here.
64D-Link DIR-865L User Manual
Section 3 - Conguration
IPv6 Manual Setup
There are several connection types to choose from: Auto Detection, Static IPv6, Autoconguration (SLAAC/DHCPv6), PPPoE, IPv6 in IPv4 Tunnel, 6to4, 6rd, and Link-local. If you are unsure of your connection method, please contact your IPv6 Internet Service Provider.
Note: If using the PPPoE option, you will need to ensure that any PPPoE client software on your computers has been removed or disabled.
Auto Detection
Select Auto Detection to have the router detect and automatically congure your IPv6 setting from your ISP.
65D-Link DIR-865L User Manual
Section 3 - Conguration
Static IPv6
My IPv6 Connection:
WAN IPv6 Address
Settings:
LAN IPv6 Address:
LAN Link-Local Address:
Enable
Autoconguration:
Autoconguration Type:
IPv6 Address Range
Start:
IPv6 Address Range
End:
IPv6 Address Lifetime:
Select Static IPv6 from the drop-down menu.
Enter the address settings supplied by your Internet provider (ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless DHCPv6.
Enter the start IPv6 Address for the DHCPv6 range for your local computers.
Enter the end IPv6 Address for the DHCPv6 range for your local computers.
Enter the IPv6 Address Lifetime (in minutes).
66D-Link DIR-865L User Manual
Section 3 - Conguration
Autoconguration
My IPv6 Connection:
IPv6 DNS Settings:
Primary/Secondary DNS
Address:
LAN IPv6 Address:
LAN Link-Local Address:
Enable
Autoconguration:
Autoconguration Type:
IPv6 Address Range
Start:
Select Autoconguration (Stateless/DHCPv6) from the drop-down menu.
Select either Obtain DNS server address automatically or Use the following DNS Address.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateless DHCPv6.
Enter the start IPv6 Address for the DHCPv6 range for your local computers.
Stateful (DHCPv6), SLAAC + RDNSS or SLAAC +
IPv6 Address Range
End:
IPv6 Address Lifetime:
Enter the end IPv6 Address for the DHCPv6 range for your local computers.
Enter the IPv6 Address Lifetime (in minutes).
67D-Link DIR-865L User Manual
Section 3 - Conguration
PPPoE
My IPv6 Connection:
PPPoE:
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnection Mode:
Maximum Idle Time:
Select PPPoE from the drop-down menu.
Enter the PPPoE account settings supplied by your Internet provider (ISP).
Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password in the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.
MTU:
IPv6 DNS Settings:
Primary/Secondary DNS
Address:
LAN IPv6 Address:
LAN Link-Local Address:
Enable Autoconguration:
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1492 is the default MTU.
Select either the following DNS Address.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Obtain DNS server address automatically or Use
68D-Link DIR-865L User Manual
Section 3 - Conguration
Autoconguration Type:
IPv6 Address Range Start:
IPv6 Address Range End:
IPv6 Address Lifetime:
Select
Enter the start IPv6 Address for the DHCPv6 range for your local computers.
Enter the end IPv6 Address for the DHCPv6 range for your local computers.
Enter the IPv6 Address Lifetime (in minutes).
Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless DHCPv6.
69D-Link DIR-865L User Manual
Section 3 - Conguration
IPv6 in IPv4 Tunneling
My IPv6
Connection:
IPv6 in IPv4 Tunnel
Settings:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable
Autoconguration:
Autoconguration
Type:
IPv6 Address
Range Start:
IPv6 Address
Range End:
Select IPv6 in IPv4 Tunnel from the drop-down menu.
Enter the settings supplied by your Internet provider (ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless DHCPv6.
Enter the start IPv6 Address for the DHCPv6 range for your local computers.
Enter the end IPv6 Address for the DHCPv6 range for your local computers.
Pv6 Address
Lifetime:
Enter the Router Advertisement Lifetime (in minutes).
70D-Link DIR-865L User Manual
Section 3 - Conguration
6 to 4 Tunneling
My IPv6 Connection:
6 to 4 Settings:
Primary/Secondary
DNS Address:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable
Autoconguration:
Autoconguration
Type:
IPv6 Address Range
Start:
IPv6 Address Range
End:
Select 6 to 4 from the drop-down menu.
Enter the IPv6 settings supplied by your Internet provider (ISP).
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless DHCPv6.
Enter the start IPv6 Address for the DHCPv6 range for your local computers.
Enter the end IPv6 Address for the DHCPv6 range for your local computers.
IPv6 Address
Lifetime:
Enter the IPv6 Address Lifetime (in minutes).
71D-Link DIR-865L User Manual
Section 3 - Conguration
6rd
My IPv6 Connection:
6RD Settings:
LAN IPv6 Address:
LAN Link-Local Address:
Enable
Autoconguration:
Autoconguration Type:
Router Advertisement
Lifetime:
Select 6rd from the drop-down menu.
Enter the address settings supplied by your Internet provider (ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful (DHCPv6), SLAAC+RDNSS or SLAAC + Stateless
DHCPv6.
Enter the Router Advertisement Lifetime (in minutes).
72D-Link DIR-865L User Manual
Section 3 - Conguration
Link-Local Connectivity
My IPv6 Connection:
LAN IPv6 Address
Settings:
Select menu.
Displays the IPv6 address of the router.
Link-Local Only from the drop-down
73D-Link DIR-865L User Manual
Section 3 - Conguration

mydlink Settings

mydlink Service:
Register mydlink
Settings:
Displays whether your device is registered with a mydlink account or not.
Click to go to the mydlink website to register or edit your settings.
74D-Link DIR-865L User Manual
Section 3 - Conguration

Advanced

Virtual Server
This will allow you to open a single port. If you would like to open a range of ports, refer to the next page.
Name:
IP Address:
Private Port/
Public Port:
Protocol Type:
Schedule:
Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the elds.
Enter the IP address of the computer on your local network that you want to allow the incoming service to. If your computer is receiving an IP address automatically from the router (DHCP), you computer will be listed in the “Computer Name” drop-down menu. Select your computer and click <<.
Enter the port that you want to open next to Private Port and Public Port. The private and public ports are usually the same. The public port is the port seen from the Internet side, and the private port is the port being used by the application on the computer within your local network.
Select TCP, UDP, or Both from the drop-down menu.
The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section.
Inbound Filter:
Select Allow All (most common) or a created Inbound lter. You may create your own inbound lters in the Advanced > Inbound Filter page.
75D-Link DIR-865L User Manual
Section 3 - Conguration
Port Forwarding
This will allow you to open a single port or a range of ports.
Name:
IP Address:
TCP/UDP:
Schedule:
Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the elds.
Enter the IP address of the computer on your local network that you want to allow the incoming service to. If your computer is receiving an IP address automatically from the router (DHCP), you computer will be listed in the “Computer Name” drop-down menu. Select your computer and click <<.
Enter the TCP and/or UDP port or ports that you want to open. You can enter a single port or a range of ports. Separate ports with a common.
Example: 24,1009,3000-4000
The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section.
Inbound Filter:
Select Allow All (most common) or a created Inbound lter. You may create your own inbound lters in the Advanced > Inbound Filter page.
76D-Link DIR-865L User Manual
Section 3 - Conguration
Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications have diculties working through NAT (Network Address Translation). Special Applications makes some of these applications work with the DIR-865L. If you need to run applications that require multiple connections, specify the port normally associated with an application in the “Trigger Port” eld, select the protocol type as TCP or UDP, then enter the rewall (public) ports associated with the trigger port to open them for inbound trac.
The DIR-865L provides some predened applications in the table on the bottom of the web page. Select the application you want to use and enable it.
Name:
Trigger:
Trac Type:
Firewall:
Trac Type:
Schedule:
Enter a name for the rule. You may select a pre-dened application from the drop-down menu and click <<.
This is the port used to trigger the application. It can be either a single port or a range of ports.
Select the protocol of the trigger port (TCP, UDP, or Both).
This is the port number on the Internet side that will be used to access the application. You may dene a single port or a range of ports. You can use a comma to add multiple ports or port ranges.
Select the protocol of the rewall port (TCP, UDP, or Both).
The schedule of time when the Application Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section.
77D-Link DIR-865L User Manual
Section 3 - Conguration
QoS Engine
The QoS Engine option helps improve your network gaming performance by prioritizing applications. By default the QoS Engine settings are disabled and application priority is not classied automatically.
Enable QoS:
Uplink Speed:
Downlink Speed:
Queue Type:
Classication Rules:
Name:
Queue ID:
Protocol:
This option is disabled by default. Enable this option for better performance and experience with online games and other interactive applications, such as VoIP.
The speed at which data can be transferred from the router to your ISP. This is determined by your ISP.
The speed at which data can be transferred from the Internet to your router. This is determined by your ISP.
Select either Strict Priority Queue (rank in order) or Weighted Fair Queue (percentage).
A Classication Rule identies a specic message ow and assigns a priority to that ow. For most applications, automatic classication will be adequate, and specic QoS Engine Rules will not be required.
The QoS Engine supports overlaps between rules, where more than one rule can match for a specic message ow. If more than one rule is found to match the rule with the highest priority will be used.
Create a name for the rule that is meaningful to you.
The priority of the message ow is entered here -- 1 receives the highest priority (most urgent) and 255 receives the lowest priority (least urgent).
The protocol used by the messages.
Local IP Range:
Local Port Range:
Remote IP Range:
Remote Port Range:
Application Port:
The rule applies to a ow of messages whose LAN-side IP address falls within the range set here.
The rule applies to a ow of messages whose LAN-side port number is within the range set here.
The rule applies to a ow of messages whose WAN-side IP address falls within the range set here.
The rule applies to a ow of messages whose WAN-side port number is within the range set here.
Select a service or port you want to assign to this rule.
78D-Link DIR-865L User Manual
Section 3 - Conguration
Network Filters
Use MAC (Media Access Control) Filters to allow or deny LAN (Local Area Network) computers by their MAC addresses from accessing the network. You can either manually add a MAC address or select the MAC address from the list of clients that are currently connected to the Broadband Router.
Congure MAC
Filtering:
MAC Address:
DHCP Client:
Clear:
Select Turn MAC Filtering O, Allow MAC addresses listed below, or Deny MAC addresses listed below
from the drop-down menu.
Enter the MAC address you would like to lter.
To nd the MAC address on a computer, please refer to the Networking Basics section in this manual.
Select a DHCP client from the drop-down menu and click << to copy that MAC Address.
Click to remove the MAC address.
79D-Link DIR-865L User Manual
Section 3 - Conguration
Access Control
The Access Control section allows you to control access in and out of your network. Use this feature as Parental Controls to only grant access to approved sites, limit web access based on time or dates, and/or block access from applications like P2P utilities or games.
Add Policy:
Click the Add Policy button to start the Access Control Wizard.
Click Next to continue with the wizard.
Access Control Wizard
80D-Link DIR-865L User Manual
Section 3 - Conguration
Enter a name for the policy and then click Next to continue.
Select a schedule (I.E. Always) from the drop-down menu and then click Next to continue.
Enter the following information and then click Next to continue.
Address Type - Select IP address, MAC address, or Other Machines.
IP Address - Enter the IP address of the computer you want to apply the rule to.
Machine Address - Enter the PC MAC address (i.e. 00:00.00.00.00).
Select the ltering method and then click Next to continue.
81D-Link DIR-865L User Manual
Section 3 - Conguration
Enter the rule:
Enable - Check to enable the rule. Name - Enter a name for your rule. Dest IP Start - Enter the starting IP address. Dest IP End - Enter the ending IP address. Protocol - Select the protocol. Dest Port Start - Enter the starting port number. Dest Port End - Enter the ending port number.
To enable web logging, click Enable.
Click Save to save the access control rule.
Your newly created policy will now show up under
Policy Table.
82D-Link DIR-865L User Manual
Section 3 - Conguration
Website Filters
Website Filters are used to allow you to set up a list of Web sites that can be viewed by multiple users through the network. To use this feature select to Allow or Deny, enter the domain or website and click Save Settings. You must also select Apply Web Filter under the Access Control section (page 80).
Add Website
Filtering Rule:
Website URL/
Domain:
Select either DENY computers access to ONLY these sites or ALLOW computers access to ONLY these sites.
Enter the keywords or URLs that you want to allow or block. Click Save Settings.
83D-Link DIR-865L User Manual
Section 3 - Conguration
Inbound Filters
The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can congure inbound data ltering rules that control data based on an IP address range. Inbound Filters can be used with Virtual Server, Port Forwarding, or Remote Administration features.
Name:
Action:
Enable:
Remote IP Start:
Remote IP End:
Add:
Inbound Filter
Rules List:
Enter a name for the inbound lter rule.
Select Allow or Deny.
Check to enable rule.
Enter the starting IP address. Enter 0.0.0.0 if you do not want to specify an IP range.
Enter the ending IP address. Enter 255.255.255.255 if you do not want to specify and IP range.
Click the Add button to apply your settings. You must click settings.
This section will list any rules that are created. You may click the Edit icon to change the settings or enable/disable the rule, or click the Delete icon to remove the rule.
Save Settings at the top to save the
84D-Link DIR-865L User Manual
Section 3 - Conguration
Firewall Settings
A rewall protects your network from the outside world. The DIR-865L oers a rewall type functionality. The SPI feature helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the chosen computer completely to the outside world.
Enable SPI:
NAT Endpoint
Filtering:
Anti-Spoof Check:
Enable DMZ:
SPI (Stateful Packet Inspection, also known as dynamic packet ltering) helps to prevent cyber attacks by tracking more state per session. It validates that the trac passing through the session conforms to the protocol.
Select one of the following for TCP and UDP ports: Endpoint Independent - Any incoming trac sent to an open port will be forwarded to the application that opened the port. The port will close if idle for 5 minutes.
Address Restricted - Incoming trac must match the IP address of the outgoing connection.
Address + Port Restriction - Incoming trac must match the IP address and port of the outgoing connection.
Enable this feature to protect your network from certain kinds of “spoong” attacks.
If an application has trouble working from behind the router, you can expose one computer to the Internet and run the application on that computer.
DMZ IP Address:
Note: Placing a computer in the DMZ may expose that computer to a variety of security risks. Use of this option is only recommended as a last resort.
Specify the IP address of the computer on the LAN that you want to have unrestricted Internet communication. If this computer obtains it’s IP address automatically using DHCP, be sure to make a static reservation on the Setup > Network Settings page so that the IP address of the DMZ machine does not change.
85D-Link DIR-865L User Manual
Section 3 - Conguration
PPTP:
IPSEC (VPN):
RTSP:
SIP:
Allows multiple machines on the LAN to connect to their corporate network using PPTP protocol.
Allows multiple VPN clients to connect to their corporate network using IPSec. Some VPN clients support traversal of IPSec through NAT. This ALG may interfere with the operation of such VPN clients. If you are having trouble connecting with your corporate network, try turning this ALG o. Please check with the system administrator of your corporate network whether your VPN client supports NAT traversal.
Allows application that uses Real Time Streaming Protocol to receive streaming media from the Internet. QuickTime and Real Player are some of the common applications using this protocol.
Allows devices and applications using VoIP (Voice over IP) to communicate across NAT. Some VoIP applications and devices have the ability to discover NAT devices and work around them. This ALG may interfere with the operation of such devices. If you are having trouble making VoIP calls, try turning this ALG o.
86D-Link DIR-865L User Manual
Section 3 - Conguration
Routing
The Routing option is an advanced method of customizing specic routes of data through your network.
Name:
Destination IP:
Netmask:
Gateway:
Metric:
Interface:
Enter a name for your route.
Enter the IP address of packets that will take this route.
Enter the netmask of the route, please note that the octets must match your destination IP address.
Enter your next hop gateway to be taken if this route is used.
The route metric is a value from 1 to 16 that indicates the cost of using this route. A value 1 is the lowest cost and 15 is the highest cost.
Select the interface that the IP packet must use to transit out of the router when this route is used.
87D-Link DIR-865L User Manual
Section 3 - Conguration
Advanced Wireless
Transmit Power:
WLAN Partition:
WMM Enable:
Short GI:
HT20/40 Coexistence:
Set the transmit power of the antennas.
This enables 802.11d operation. 802.11d is a wireless specication developed to allow implementation of wireless networks in countries that cannot use the
802.11 standard. This feature should only be enabled if you are in a country that requires it.
WMM is QoS for your wireless network. This will improve the quality of video and voice applications for your wireless clients.
Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create higher data loss.
Enable this option to reduce inter ference from other wireless networks in your area. If the channel width is operating at 40MHz and there is another wireless network’s channel over-lapping and causing interference, the router will automatically change to 20MHz.
88D-Link DIR-865L User Manual
Section 3 - Conguration
Wi-Fi Protected Setup (WPS)
Wi-Fi Protected Setup (WPS) System is a simplied method for securing your wireless network during the “Initial setup” as well as the “Add New Device” processes. The Wi-Fi Alliance (WFA) has certied it across dierent products as well as manufactures. The process is just as easy as pressing a button for the Push-Button Method or correctly entering the 8-digit code for the Pin Code Method. The time reduction in setup and ease of use are quite benecial, while the highest wireless Security setting of WPA2 is automatically used.
Enable:
WiFi Protected
Setup:
Lock Wireless
Security Settings:
PIN Settings:
PIN:
Reset PIN to
Default:
Enable the Wi-Fi Protected Setup feature.
Note: if this option is unchecked, the WPS button on the side of the router will be disabled.
Displays the current WPS status.
Locking the wireless security settings prevents the settings from being changed by the Wi-Fi Protected Setup feature of the router. Devices can still be added to the network using Wi-Fi Protected Setup. However, the settings of the network will not change once this option is checked.
A PIN is a unique number that can be used to add the router to an existing network or to create a new network. Only the Administrator (“admin” account) can change or reset the PIN.
Shows the current PIN.
Click to restore the default PIN of the router.
Generate New PIN:
Create a random number that is a valid PIN. This becomes the router’s PIN. You can then copy this PIN to the user interface of the wireless client.
89D-Link DIR-865L User Manual
Section 3 - Conguration
Add Wireless
Station:
Add Wireless
Device Wizard:
This Wizard helps you add wireless devices to the wireless network.
The wizard will either display the wireless network settings to guide you through manual conguration, prompt you to enter the PIN for the device, or ask you to press the conguration button on the device. If the device supports Wi-Fi Protected Setup and has a conguration button, you can add it to the network by pressing the conguration button on the device and then the on the router within 60 seconds. The status LED on the router will ash three times if the device has been successfully added to the network.
There are several ways to add a wireless device to your network. A “registrar” controls access to the wireless network. A registrar only allows devices onto the wireless network if you have entered the PIN, or pressed a special Wi-Fi Protected Setup button on the device. The router acts as a registrar for the network, although other devices may act as a registrar as well.
Click to start the wizard and skip to page 47.
WPS Button
You can also simply press the WPS button on the side of the router, and then press the WPS button on your wireless client to automatically connect without logging into the router.
Refer to page 112 for more information.
WPS Button
90D-Link DIR-865L User Manual
Section 3 - Conguration
Enable UPnP:
To use the Universal Plug and Play (UPnP Enabled. UPnP provides compatibility with networking equipment, software and peripherals.
Advanced Network Settings
) feature click on
WAN Ping:
WAN Port Speed:
Enable IPV4
Multicast Streams:
Enable IPV6
Multicast Streams:
Checking the box will allow the DIR-865L to respond to pings. Unchecking the box may provide some extra security from hackers.
You may set the port speed of the Internet port to 10Mbps, 100Mbps, 1000Mbps, or Auto (recommended).
Check the box to allow multicast trac to pass through the router from the Internet (IPv4).
Check the box to allow multicast trac to pass through the router from the Internet (IPv6).
91D-Link DIR-865L User Manual
Section 3 - Conguration
DLNA Settings
Enable:
Name your
Media Library:
Folder:
Check this box to share your media les to your network. Plug a USB thumb drive into the USB port on the router.
Enter a name for your shared les. This is the folder that will be displayed on the computers connecting to your router.
Species the folder or directory that will be shared by the router. Select root to share all les on your thumb drive or click Browse to select a specic folder.
92D-Link DIR-865L User Manual
Section 3 - Conguration
iTunes Server
The DIR-865L features an iTunes® Server. This server provides the ability to share music and videos to computers on your local network running iTunes. If the server is enabled, the router will be automatically be detected by the iTunes program and the music and videos contained in the specied directory will be available to stream over the network.
iTunes Server:
Folder:
Select to Enable or Disable the iTunes server feature.
Species the folder or directory that will be shared by the iTunes server. Select root to share all les on all volumes or click Browse to select a specic folder.
93D-Link DIR-865L User Manual
Section 3 - Conguration
Guest Zone
The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These zones will be separate from your main wireless network. You may congure dierent zones for the 2.4GHz and 5GHz wireless bands.
Enable Guest
Zone:
Enable Routing
Between Zones:
Schedule:
Wireless
Network Name:
Security Mode:
Check to enable the Guest Zone feature.
Check to allow network connectivity between the dierent zones created.
The schedule of time when the Guest Zone will be active. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section or click Add New.
Enter a wireless network name (SSID) that is dierent from your main wireless network.
Select the type of security or encryption you would like to enable for the guest zone.
94D-Link DIR-865L User Manual
Section 3 - Conguration
IPv6 Firewall
The DIR-865L’s IPv6 Firewall feature allows you to congure which kind of IPv6 trac is allowed to pass through the device. The DIR-865L’s IPv6 Firewall functions in a similar way to the IP Filters feature.
Enable Checkbox:
Congure IPv6
Firewall:
Name:
Schedule:
Source:
IP Address Range:
Dest:
Check the box to enable the IPv6 rewall simple security.
Select an action from the drop-down menu.
Enter a name to identify the IPv6 rewall rule.
Use the drop-down menu to select the time schedule that the IPv6 Firewall Rule will be enabled on. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section.
Use the Source drop-down menu to specify the interface that connects to the source IPv6 addresses of the rewall rule.
Enter the source IPv6 address range in the adjacent IP Address Range eld.
Use the Dest drop-down menu to specify the interface that connects to the destination IP addresses of the rewall rule.
Protocol:
Port Range:
Select the protocol of the rewall port (All, TCP, UDP, or ICMP).
Enter the rst port of the range that will be used for the rewall rule in the rst box and enter the last port in the eld in the second box.
95D-Link DIR-865L User Manual
