Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Revision Date Description
3.0 November 30, 2011 • Initial release for Revision C1
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2011 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
iD-Link DIR-825 User Manual
Page 3
Table of Contents
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 2
Introduction ...................................................................................3
Features ............................................................................................4
Hardware Overview ..................................................................... 5
Connections ...........................................................................5
LEDs ...........................................................................................6
Installation .........................................................................7
Before you Begin ...........................................................................7
Wireless Installation Considerations ......................................8
Manual Setup ................................................................................. 9
Connect to an Existing Router ...............................................11
Conguration ...................................................................13
Quick Router Setup Wizard (CD) ...........................................13
Quick Setup Wizard ....................................................................15
Web-based Conguration Utility ..........................................21
Internet Connection Setup .............................................22
Static (assigned by ISP) ................................................23
Dynamic (Cable) .............................................................25

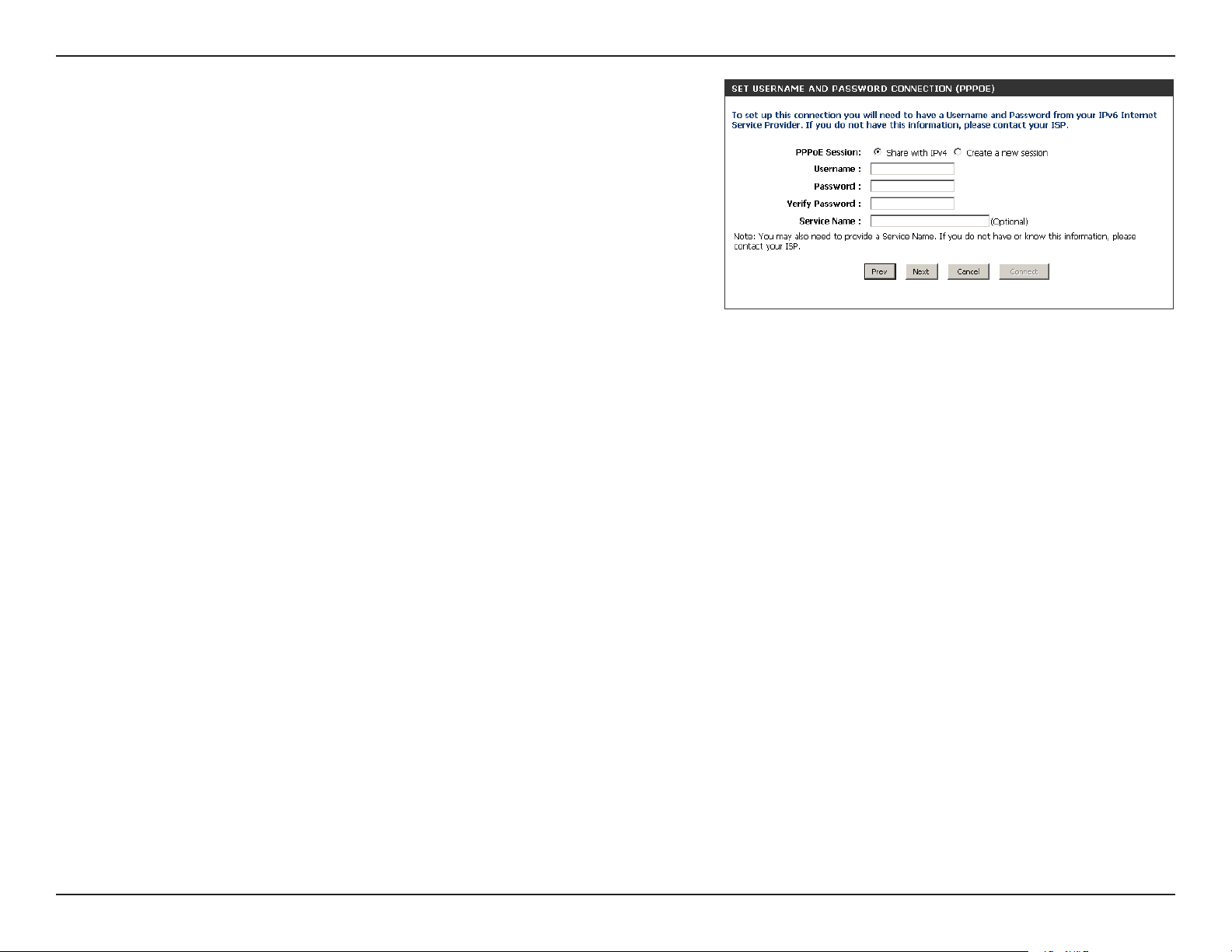

PPPoE (DSL) ......................................................................26
PPTP ....................................................................................28
L2TP ....................................................................................30
DS-Lite ...............................................................................32
Wireless Settings .................................................................33
Manual Wireless Settings .................................................34
802.11n/g (2.4GHz) .......................................................34
802.11n/a (5GHz) ...........................................................36
Wireless Security .................................................................38
What is WPA? ...................................................................38

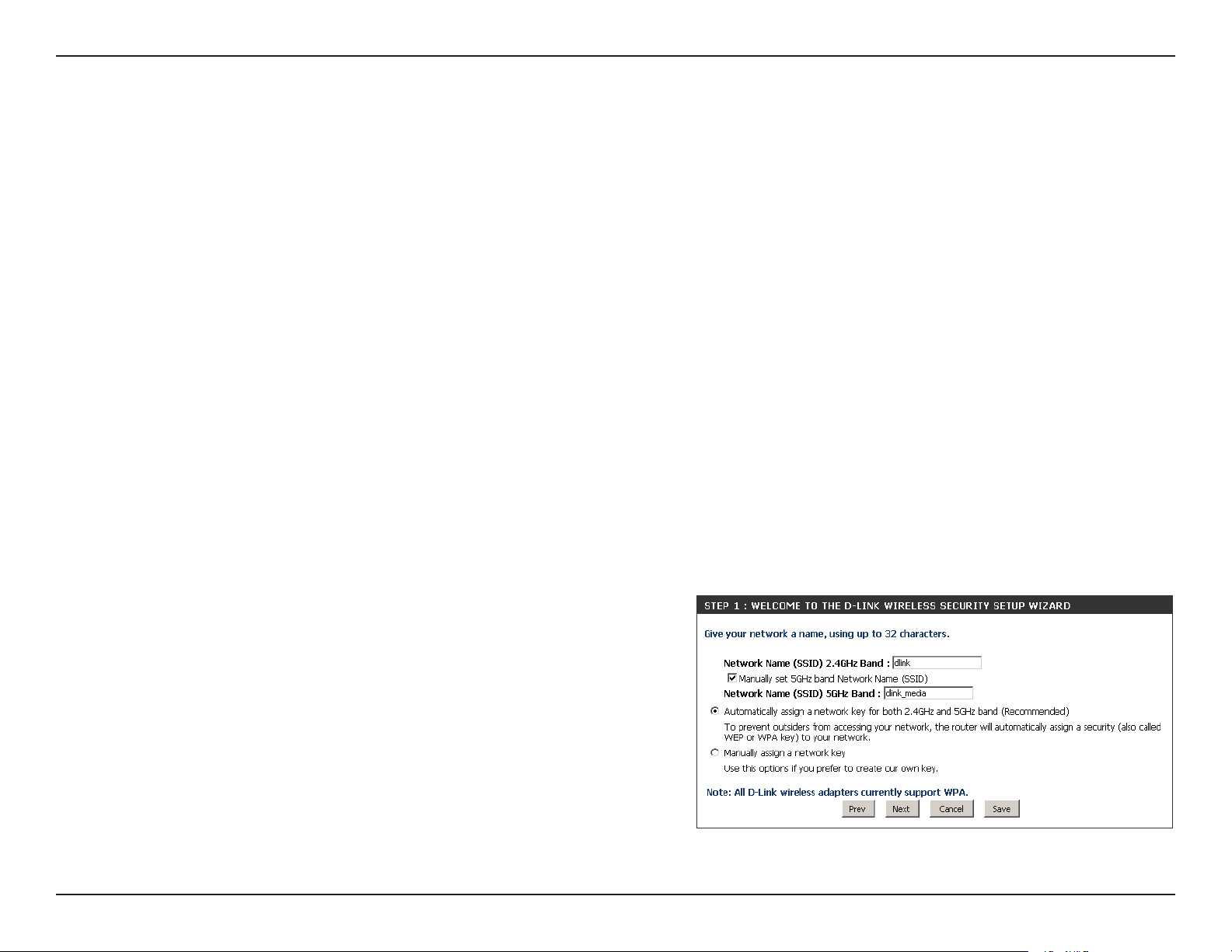

Wireless Security Setup Wizard .................................39

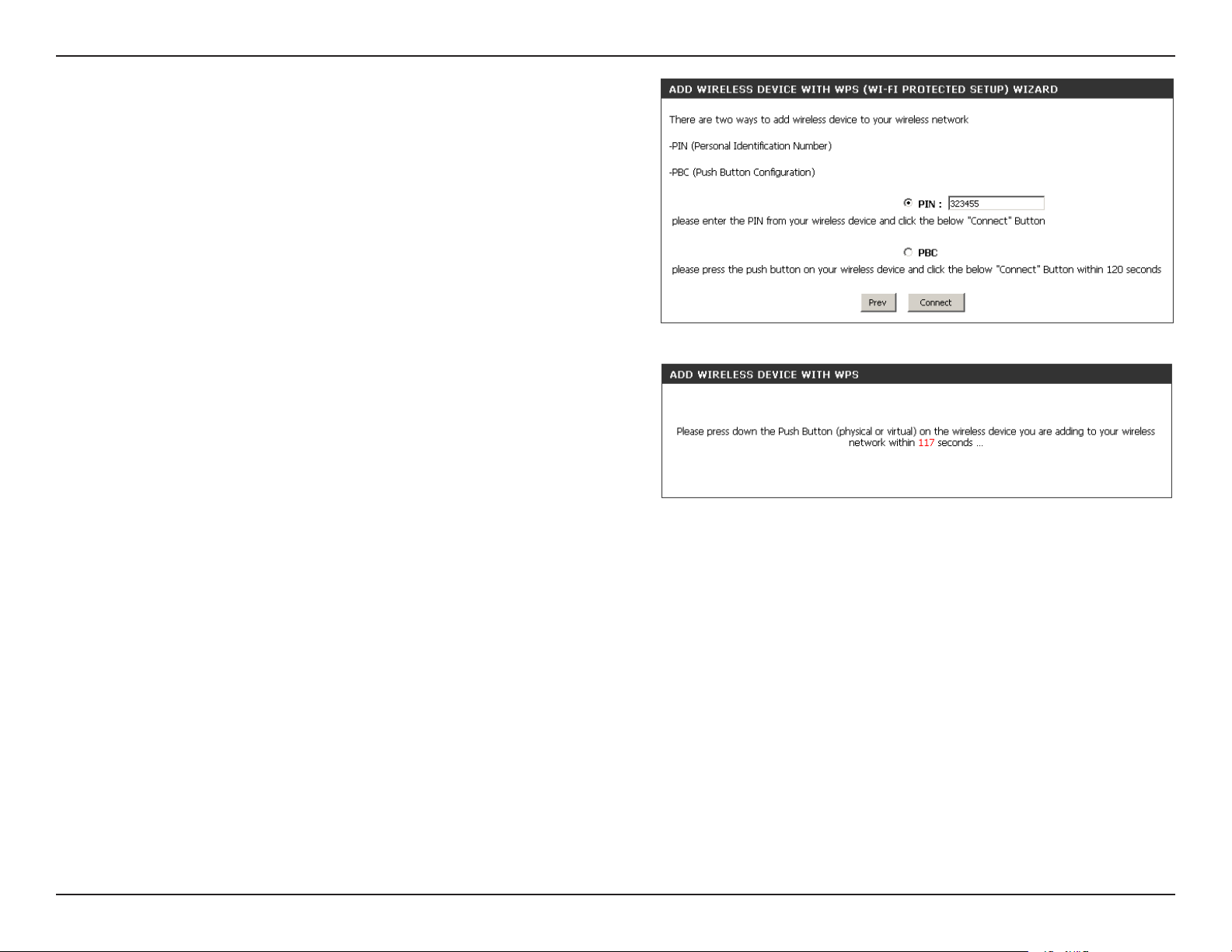

Add Wireless Device with WPS Wizard ...................41
WPA/WPA2-Personal (PSK) .........................................43
Congure WPA/WPA2-Enterprise (RADIUS)..........44
Network Settings ................................................................46
Router Settings ...............................................................46
DHCP Server Settings ...................................................47
DHCP Reservation .........................................................49
Media Server.........................................................................50
Storage ...................................................................................51
IPv6 ..........................................................................................52
IPv6 Internet Connection Setup Wizard ................53
IPv6 Manual Setup.........................................................58
Advanced ...............................................................................67
Virtual Server ...................................................................67
Port Forwarding .............................................................68
Application Rules ...........................................................69
QoS Engine .......................................................................70
iiD-Link DIR-825 User Manual
Page 4
Table of Contents
Network Filters ................................................................71
Access Control .................................................................72
Website Filters .................................................................75
Inbound Filters ................................................................76
Firewall Settings .............................................................77
Routing ..............................................................................79
Advanced Wireless ........................................................80
Wi-Fi Protected Setup (WPS) .....................................81
Advanced Network Settings ......................................83
Guest Zone .......................................................................84
IPv6 Firewall .....................................................................85
IPv6 Routing ....................................................................86
Tools ........................................................................................87
Admin.................................................................................87
Time ....................................................................................88
SysLog ................................................................................89
Email Settings..................................................................90
Internet Sessions ......................................................... 100
Routing ........................................................................... 101
Wireless...........................................................................102
IPv6 ..................................................................................103
IPV6 Routing ................................................................. 104
Support ............................................................................... 105
Connect a Wireless Client to your Router ....................106
WPS Button ................................................................................ 106
Windows® 7 ................................................................................107
WPA/WPA2 ......................................................................... 107
WPS ....................................................................................... 110
Windows Vista® ......................................................................... 114
WPA/WPA2 ......................................................................... 115
WPS/WCN 2.0 .................................................................... 117
Windows® XP ............................................................................. 118
WPA/WPA2 ......................................................................... 119
System ...............................................................................91
Firmware ...........................................................................92
Language Pack ................................................................92
Dynamic DNS ..................................................................93
System Check ..................................................................95
Schedules .........................................................................96
Status ......................................................................................97
Device Info .......................................................................97
Logs.....................................................................................98
Statistics ............................................................................99
Troubleshooting ............................................................121
Wireless Basics ...............................................................125
What is Wireless? ...................................................................... 126
Tips ................................................................................................ 128
Wireless Modes ......................................................................... 129
Networking Basics .........................................................130
Check your IP address ............................................................ 130
Statically Assign an IP address ............................................ 131
iiiD-Link DIR-825 User Manual
Page 5
Table of Contents
Technical Specications ................................................132
Contacting Technical Support ......................................133
GPL Code Statement......................................................134
Warranty .........................................................................146
Registration ...................................................................153
ivD-Link DIR-825 User Manual
Page 6
Section 1 - Product Overview
DIR-825 Xtreme N® Dual Band Gigabit Router
Ethernet Cable
Two Detachable Antennas
Power Adapter
Product Overview
Package Contents
CD-ROM with Manual and Setup Wizard
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-825 will cause damage and void the warranty
for this product.
1D-Link DIR-825 User Manual
Page 7
Section 1 - Product Overview
Network Requirements
Web-based Conguration
Utility Requirements
System Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11n or 802.11g wireless clients
• IEEE 802.11a wireless clients
• 10/100/1000 Ethernet
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 6 or higher
• Firefox 3.0 or higher
• Safari 3.0 or higher
• Chrome 2.0 or higher
CD Installation Wizard
Requirements
Windows® Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
Computer with the following:
• Windows® 7, Vista®, or XP (Service Pack 2 or higher)
• An installed Ethernet adapter
• CD-ROM drive
2D-Link DIR-825 User Manual
Page 8
Section 1 - Product Overview
Introduction
TOTAL PERFORMANCE
Combines award winning router features and IEEE 802.11a/g/n wireless technology to provide the best wireless performance.
TOTAL SECURITY
The most complete set of security features including Active Firewall and WPA/WPA2 to protect your network against outside intruders.
TOTAL COVERAGE
Provides greater wireless signal rates even at farther distances for best-in-class Whole Home Coverage.
ULTIMATE PERFORMANCE
The D-Link Xtreme N® Dual Band Gigabit Router (DIR-825) is a 802.11n/802.11a compliant device that delivers real world performance of
up to 14x faster than an 802.11g wireless connection (also faster than a 100Mbps wired Ethernet connection). Create a secure wireless
network to share photos, les, music, video, printers, and network storage throughout your home. Connect the DIR-825 router to a cable
or DSL modem and share your high-speed Internet access with everyone on the network. In addition, this Router includes a Quality
of Service (QoS) engine that keeps digital phone calls (VoIP) and online gaming smooth and responsive, providing a better Internet
experience.
EXTENDED WHOLE HOME COVERAGE
Powered by Wireless N technology, this high performance router provides superior Whole Home Coverage while reducing dead spots.
The router is designed for use in bigger homes and for users who demand higher performance networking. Add a Wireless N notebook
or desktop adapter and stay connected to your network from virtually anywhere in your home.
TOTAL NETWORK SECURITY
The Wireless N router supports all of the latest wireless security features to prevent unauthorized access, be it from over the wireless
network or from the Internet. Support for WPA/WPA2 standards ensure that you’ll be able to use the best possible encryption method,
regardless of your client devices. In addition, this router utilizes dual active rewalls (SPI and NAT) to prevent potential attacks from
across the Internet.
* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will
adversely aect wireless signal range.
3D-Link DIR-825 User Manual
Page 9
Section 1 - Product Overview
• Faster Wireless Networking - The DIR-825 provides up to 300Mbps* wireless connection with other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video streaming,
online gaming, and real-time audio. The performance of this 802.11n wireless router gives you the freedom of
wireless networking at speeds 14x faster than 802.11g.
• Compatible with 802.11a/g Devices - The DIR-825 is still fully compatible with the IEEE 802.11g and 802.11a
standards, so it can connect with existing 802.11g and 802.11a PCI, USB, and Cardbus adapters.
• Advanced Firewall Features - The Web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on MAC Address, URL, and/or Domain
Name.
Features
• Filter Scheduling - These lters can be scheduled to be active on certain days or for a duration of
hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-825 can pass through VPN sessions. It supports
multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-825 can securely access
corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DIR-825 lets you control what
information is accessible to those on the wireless network, whether from the Internet or from your company’s
server. Congure your router to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11a, and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will
adversely aect wireless signal range.
4D-Link DIR-825 User Manual
Page 10
Section 1 - Product Overview
Hardware Overview
Connections
1 2 3 4 65
1 LAN Ports (1-4) Connect 10/100/1000 Ethernet devices such as computers, switches, and NAS.
2 Internet Port The auto MDI/MDIX Internet port is the connection for the Ethernet cable to the cable or DSL modem.
3 USB Port
4 Power Button Press the power button to power on and o.
5 Reset Button Pressing the Reset button restores the router to its original factory default settings.
6 Power Receptor Receptor for the supplied power adapter.
Connect a USB 1.1 or 2.0 ash drive to congure the wireless settings using WCN and SharePort. SharePort
allows you to share a printer or storage device with your local network.
5D-Link DIR-825 User Manual
Page 11
Section 1 - Product Overview
Hardware Overview
LEDs
1 2 3
1 Power LED A solid light indicates a proper connection to the power supply.
2 Internet LED A solid light indicates connection on the Internet port. This LED blinks during data transmission.
3 WLAN LED (2.4GHz)
4 WLAN LED (5GHz)
5 LAN LEDs (1-4)
6 WCN/USB LED
A solid light indicates that the 2.4GHz wireless segment is ready. This LED blinks during wireless data
transmission.
A solid light indicates that the 5GHz wireless segment is ready. This LED blinks during wireless data
transmission.
A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks during
data transmission.
Insert a USB ash drive with WCN information. The LED will blink 3 times when it successfully transfers
the wireless settings. This LED is also for SharePort.
4
5 6
6D-Link DIR-825 User Manual
Page 12
Section 2 - Installation
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in the attic or garage.
Before you Begin
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router,
then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port
on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection
types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet,
Broadjump, or Enternet 300 from your computer or you will not be able to connect to the Internet.
• When running the Setup Wizard from the D-Link CD, make sure the computer you are running the CD from is
connected to the Internet and online or the wizard will not work. If you have disconnected any hardware, re-connect
your computer back to the modem and make sure you are online.
7D-Link DIR-825 User Manual
Page 13
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not
in use.
8D-Link DIR-825 User Manual
Page 14
Section 2 - Installation
Manual Setup
Important: for best results, insert the Installation CD and follow the on-screen instructions. If you are unable to use the CD or
are using Mac or Linux, please use the following installation steps:
1. Turn o and unplug your cable or DSL broadband modem. This is required.
modem
2. Position your router close to your modem and a computer. Place the router in an open area of your intended
work area for better wireless coverage.
3. Unplug the Ethernet cable from your modem (or existing router if upgrading) that is connected to your computer.
Plug it into the blue port labeled 1 on the back of your router. The router is now connected to your computer.
DIR-825
4 3 LAN 2 1 INTERNET USB
RESET
12V
2A
-- -
computer
9D-Link DIR-825 User Manual
Page 15
Section 2 - Installation
4. Plug one end of the included blue Ethernet cable that came with your router into the yellow port labeled
INTERNET on the back of the router. Plug the other end of this cable into the Ethernet port on your modem.
DIR-825
4 3 LAN 2 4 INTERNET USB
RESET
12V
2A
-- -
modem
5. Reconnect the power adapter to your cable or DSL broadband modem and wait for two minutes.
6. Connect the supplied power adapter into the power port on the back of the router and then plug it into a power
outlet or surge protector. Press the power button and verify that the power LED is lit. Allow 1 minute for the
router to boot up.
DIR-825
4 3 LAN 2 1 INTERNET USB
RESET
12V
2A
-- -
7. If you are connecting to a Broadband service that uses a dynamic connection (not PPPoE), you may be online
already. Try opening a web browser and enter a web site. If you connect, you are nished with your Internet setup.
Please skip to page 13 to congure your router and use the manual setup procedure to congure your network
and wireless settings. If you did not connect to the Internet, use the D-Link Setup Wizard (refer to page 15).
10D-Link DIR-825 User Manual
Page 16
Section 2 - Installation
Connect to an Existing Router
Note: It is strongly recommended to replace your existing router with the DIR-825 instead of using both. If your modem is a combo
router, you may want to contact your ISP or manufacturer’s user guide to put the router into Bridge mode, which will ‘turn o’ the
router (NAT) functions.
If you are connecting the DIR-825 router to an existing router to use as a wireless access point and/or switch, you will have to
do the following to the DIR-825 before connecting it to your network:
• Disable UPnP
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept
a DHCP address from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable. Make sure
your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking Basics
section for more information. If you need to change the settings, write down your existing settings before making any
changes. In most cases, your computer should be set to receive an IP address automatically in which case you will not have
to do anything to your computer.
2. Open a web browser, enter http://192.168.0.1 and press Enter. When the login window appears, set the user name to
Admin and leave the password box empty. Click Log In to continue.
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.
™
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server checkbox. Click Save Settings to continue.
11D-Link DIR-825 User Manual
Page 17
Section 2 - Installation
5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to save your
settings. Use this new IP address to access the conguration utility of the router in the future. Close the browser and change
your computer’s IP settings back to the original values as in Step 1.
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything
into the Internet (WAN) port of the D-Link router.
8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To congure your wireless network,
open a web browser and enter the IP address you assigned to the router. Refer to the Conguration and Wireless Security
sections for more information on setting up your wireless network.
Laptop
Computer
DIR-825
1 2 LAN 3 4 INTERNET USB
Existing Router
RESET
12V
3A
-- -
Modem
Internet
12D-Link DIR-825 User Manual
Page 18
Section 2 - Installation
Conguration
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• Quick Router Setup Wizard - Insert the supplied CD and launch the setup wizard (see below).
• D-Link Setup Wizard - This wizard will launch if you do not run the CD wizard and log into the router for the rst time.
Refer to page 15.
• Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to page 21.
Quick Router Setup Wizard (CD)
To run the Quick Router Setup Wizard, insert the CD in the CD-ROM drive. When the autorun screen appears, click English
(or French), and then click the Install button.
Note: If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type D:\autorun.exe
(where D: represents the drive letter of your CD-ROM drive).
13D-Link DIR-825 User Manual
Page 19
Section 3 - Conguration
When the Wizard appears, select your language from the drop-down menu and then click Next to continue. Follow the on-screen
instructions to congure your router.
Once you are nished, you may skip to page 21 and will be able to log into the web-based conguration utility and congure
more advanced features.
14D-Link DIR-825 User Manual
Page 20
Section 3 - Conguration
Quick Setup Wizard
If this is your rst time installing the router, open the web browser.
You will automatically be directed to the Wizard Setup Screen.
If you have already congured your settings and you would like
to access the conguration utility, open a web-browser such as
Internet Explorer and enter (http://192.168.0.1).
Windows and Mac users may also connect by typing:
http://dlinkrouter or http://dlinkrouter.local in the address bar.
If you did not run the setup wizard from the CD and this is the rst
time logging into the router, this wizard will start automatically.
This wizard is designed to guide you through a step-by-step
process to congure your new D-Link router and connect to the
Internet.
Click Next to continue.
15D-Link DIR-825 User Manual
Page 21
Section 3 - Conguration
Please wait while your router detects your internet connection type.
If the router detects your Internet connection, you may need to enter
your ISP information such as username and password.
If the router does not detect a valid Ethernet connection from the
Internet port, this screen will appear. Connect your broadband modem
to the Internet port and then click Try Again.
If the router detects an Ethernet connection but does not detect the type
of Internet connection you have, this screen will appear. Click Guide me
through the Internet Connection Settings to display a list of connection
types to choose from.
16D-Link DIR-825 User Manual
Page 22
Section 3 - Conguration
Select your Internet connection type and click Next to continue.
If the router detected or you selected PPPoE, enter your PPPoE username
and password and click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The
software is no longer needed and will not work through a router.
If the router detected or you selected PPTP, enter your PPTP username,
password, and other information supplied by your ISP. Click Next to
continue.
17D-Link DIR-825 User Manual
Page 23
Section 3 - Conguration
If the router detected or you selected L2TP, enter your L2TP username,
password, and other information supplied by your ISP. Click Next to
continue.
If the router detected or you selected Static, enter the IP and DNS
settings supplied by your ISP. Click Next to continue.
18D-Link DIR-825 User Manual
Page 24
Section 3 - Conguration
For both the 2.4GHz and 5GHz segments, create a wireless network a
name (SSID) using up to 32 characters.
Create a wireless security passphrase or key (between 8-63 characters).
Your wireless clients will need to have this passphrase or key entered
to be able to connect to your wireless network.
Click Next to continue.
In order to secure your router, please enter a new password. Check the
Enable Graphical Authentication box to enable CAPTCHA authentication
for added security. Click Next to continue.
Select your time zone from the drop-down menu and click Next to
continue.
19D-Link DIR-825 User Manual
Page 25
Section 3 - Conguration
The Setup Complete window will display your wireless settings. Click
Save and Connect to continue.
If you want to create a bookmark to the router, click OK. Click Cancel if
you do not want to create a bookmark.
If you clicked Yes, a window may appear (depending on what web
browser you are using) to create a bookmark.
The router will now reboot. Please allow a minute or two. Click the
Continue button once it is active.
20D-Link DIR-825 User Manual
Page 26
Section 3 - Conguration
Web-based Conguration Utility
To access the configuration utility, open a web-browser such
as Internet Explorer and enter the IP address of the router
(http://192.168.0.1).
Windows and Mac users may also connect by typing:
http://dlinkrouter or http://dlinkrouter.local in the address bar.
Select Admin from the drop-down menu and then enter
your password. Leave the password blank by default.
21D-Link DIR-825 User Manual
Page 27
Section 3 - Conguration
Internet Connection Setup
Click Manual Internet Connection Setup to congure your
connection manually and continue to the next page.
If you want to congure your router to connect to the Internet
using the wizard, click Internet Connection Setup Wizard.
You will be directed to the Quick Setup Wizard. Please skip
to page 15.
22D-Link DIR-825 User Manual
Page 28
Section 3 - Conguration
Manual Internet Setup
Static (assigned by ISP)
Select Static IP Address if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask,
gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the elds must be in the appropriate IP form, which
are four octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.
My Internet Connection:
Enable Advanced DNS
Service:
Enable True Gigabit
Routing Connectivity:
IP Address:
Subnet Mask:
Default Gateway:
Select Static IP to manually enter the IP settings supplied by
your ISP.
Advanced Domain Name System (DNS) services enhances your
Internet performance by getting you the information and web
pages you are looking for faster and more reliably. In addition,
it improves your overall Internet experience by correcting many
common typo mistakes automatically, taking you where you
intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability,
functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the
through-put of the WAN-LAN connectivity of the router.
Enter the IP address assigned by your ISP.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.
DNS Servers:
MTU:
The DNS server information will be supplied by your ISP (Internet
Service Provider.)
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1500 is the
default MTU.
23D-Link DIR-825 User Manual
Page 29
Section 3 - Conguration
MAC Address: The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Copy Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
24D-Link DIR-825 User Manual
Page 30
Section 3 - Conguration
Dynamic (Cable)
My Internet
Connection:
Enable Advanced
DNS Service:
Enable True Gigabit
Routing Connectivity:
Host Name:
Use Unicasting:
Select Dynamic IP (DHCP) to obtain IP Address information
automatically from your ISP. Select this option if your ISP does not give
you any IP numbers to use. This option is commonly used for cable
modem services.
Advanced Domain Name System (DNS) services enhances your Internet
performance by getting you the information and web pages you
are looking for faster and more reliably. In addition, it improves your
overall Internet experience by correcting many common typo mistakes
automatically, taking you where you intended to go and saving you
valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability,
functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the through-put
of the WAN-LAN connectivity of the router.
The Host Name is optional but may be required by some ISPs. Leave
blank if you are not sure.
Check the box if you are having problems obtaining an IP address
from your ISP.
Primary/Secondary
DNS Server:
MTU:
MAC Address:
Enter the Primary and secondary DNS server IP addresses assigned by your ISP. These addresses are usually obtained automatically
from your ISP. Leave at 0.0.0.0 if you did not specically receive these from your ISP.
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1500 is the
default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Copy Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
25D-Link DIR-825 User Manual
Page 31
Section 3 - Conguration
Internet Setup
PPPoE (DSL)
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a
username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your
computer. The software is no longer needed and will not work through a router.
My Internet
Connection:
Enable
Advanced DNS
Service:
Enable True
Gigabit Routing
Connectivity:
Address Mode:
IP Address:
User Name:
Select PPPoE (Username/Password) from the drop-down menu.
Advanced Domain Name System (DNS) services enhances your Internet
performance by getting you the information and web pages you are looking
for faster and more reliably. In addition, it improves your overall Internet
experience by correcting many common typo mistakes automatically, taking
you where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability, functionality
and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the through-put of
the WAN-LAN connectivity of the router.
Select Static IP if your ISP assigned you the IP address, subnet mask, gateway,
and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Password:
Service Name:
Reconnect
Mode:
Enter your PPPoE password and then retype the password in the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
26D-Link DIR-825 User Manual
Page 32
Section 3 - Conguration
Maximum
Idle Time:
DNS
Addresses:
MTU:
MAC Address:
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1492 is the default
MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Copy Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
27D-Link DIR-825 User Manual
Page 33
Section 3 - Conguration
Internet Setup
PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with a username
and password. This option is typically used for DSL services.
My Internet
Connection:
Enable
Advanced DNS
Service:
Enable True
Gigabit Routing
Connectivity:
Address Mode:
PPTP IP Address:
Select PPTP (Username/Password) from the drop-down menu.
Advanced Domain Name System (DNS) services enhances your Internet
performance by getting you the information and web pages you
are looking for faster and more reliably. In addition, it improves your
overall Internet experience by correcting many common typo mistakes
automatically, taking you where you intended to go and saving you
valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability,
functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the throughput of the WAN-LAN connectivity of the router.
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPTP only).
PPTP Subnet
Mask:
PPTP Gateway:
PPTP Server IP:
Enter the Primary and Secondary DNS Server Addresses (Static PPTP
only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
28D-Link DIR-825 User Manual
Page 34
Section 3 - Conguration
Username:
Password:
Reconnect
Mode:
Maximum Idle
Time:
DNS Servers:
MTU:
MAC Address:
Enter your PPTP username.
Enter your PPTP password and then retype the password in the next box.
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
The DNS server information will be supplied by your ISP (Internet Service Provider.)
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1400 is the default
MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
29D-Link DIR-825 User Manual
Page 35
Section 3 - Conguration
Internet Setup
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and
password. This option is typically used for DSL services.
My Internet
Connection:
Enable
Advanced DNS
Service:
Enable True
Gigabit Routing
Connectivity:
Address Mode:
Select L2TP (Username/Password) from the drop-down menu.
Advanced Domain Name System (DNS) services enhances your
Internet performance by getting you the information and web
pages you are looking for faster and more reliably. In addition,
it improves your overall Internet experience by correcting many
common typo mistakes automatically, taking you where you
intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability,
reliability, functionality and operation of the Advanced DNS service
or its features.
Check to enable true Gigabit routing. This will increase the
through-put of the WAN-LAN connectivity of the router.
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses. In most cases, select
Dynamic.
L2TP IP Address:
L2TP Subnet
Mask:
L2TP Gateway:
L2TP Server IP:
Enter the L2TP IP address supplied by your ISP (Static only).
Enter the Subnet Mask supplied by your ISP (Static only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
30D-Link DIR-825 User Manual
Page 36
Section 3 - Conguration
Username:
Password:
Reconnect
Mode:
Maximum Idle
Time:
DNS Servers:
MTU:
Clone MAC
Address:
Enter your L2TP username.
Enter your L2TP password and then retype the password in the next box.
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static L2TP only).
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1400 is the default
MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
31D-Link DIR-825 User Manual
Page 37
Section 3 - Conguration
Internet Setup
DS-Lite
Another Internet Connection type is DS-Lite.
DS-Lite is an IPv6 connection type. After selecting DS-Lite, the following parameters will be available for conguration:
DS-Lite
Conguration:
AFTR IPv6
Address:
B4 IPv4 Address: Enter the B4 IPv4 address value used here.
WAN IPv6
Address:
IPv6 WAN
Default Gateway
Select the DS-Lite DHCPv6 option to let the router allocate the
AFTR IPv6 address automatically. Select the Manual Conguration
to enter the AFTR IPv6 address in manually.
After selecting the Manual Conguration option above, enter the
AFTR IPv6 address used here.
Once connected, the WAN IPv6 address will be displayed here.
Once connected, the IPv6 WAN Default Gateway address will be
displayed here.
32D-Link DIR-825 User Manual
Page 38
Section 3 - Conguration
Wireless Settings
If you want to congure the wireless settings on your router using
the wizard, click Wireless Security Setup Wizard and refer to
page 38.
Click Add Wireless Device with WPS if you want to add a wireless
device using Wi-Fi Protected Setup (WPS) and refer to page 41.
If you want to manually congure the wireless settings on your
router click Manual Wireless Network Setup and refer to the
next page.
33D-Link DIR-825 User Manual
Page 39
Section 3 - Conguration
Manual Wireless Settings
802.11n/g (2.4GHz)
Enable Wireless:
Schedule:
Wireless Network
Name:
802.11 Mode:
Enable Auto
Channel Scan:
Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all the
wireless functions.
Select the time frame that you would like your wireless
network enabled. The schedule may be set to Always. Any
schedule you create will be available in the drop-down menu.
Click New Schedule to create a schedule.
Service Set Identier (SSID) is the name of your wireless
network. Create a name for your wireless network using up to 32 characters. The SSID is case-sensitive.
Select one of the following:
802.11b Only - Select only if all of your wireless clients are 802.11b.
802.11g Only - Select only if all of your wireless clients are 802.11g.
802.11n Only - Select only if all of your wireless clients are 802.11n.
Mixed 802.11g and 802.11b - Select if you are using both 802.11g and 802.11b wireless clients.
Mixed 802.11n and 802.11g - Select if you are using both 802.11n and 802.11g wireless clients.
Mixed 802.11n, 11g, and 11b - Select if you are using a mix of 802.11n, 802.11g, and 802.11b wireless clients.
The Auto Channel Scan setting can be selected to allow the DIR-825 to choose the channel with the least amount of interference.
Wireless Channel:
Transmission Rate:
Indicates the channel setting for the DIR-825. By default the channel is set to 6. The Channel can be changed to t the channel
setting for an existing wireless network or to customize the wireless network. If you enable Auto Channel Scan, this option will
be greyed out.
Select the transmit rate. It is strongly suggested to select Best (Auto) for best performance.
34D-Link DIR-825 User Manual
Page 40
Section 3 - Conguration
Channel Width:
Visibility Status:
Wireless Security:
Select the Channel Width:
Auto 20/40 - This is the default setting. Select if you are using both 802.11n and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients.
Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the DIR-825. If Invisible is selected, the
SSID of the DIR-825 will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-825 in
order to connect to it.
Refer to page 38 for more information regarding wireless security.
35D-Link DIR-825 User Manual
Page 41
Section 3 - Conguration
802.11n/a (5GHz)
Enable Wireless:
Schedule:
Wireless Network
Name:
802.11 Mode:
Enable Auto
Channel Scan:
Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all
the wireless functions.
Select the time frame that you would like your wireless
network enabled. The schedule may be set to Always.
Any schedule you create will be available in the dropdown menu. Click New Schedule to create a schedule.
Service Set Identier (SSID) is the name of your wireless
network. Create a name for your wireless network using
up to 32 characters. The SSID is case-sensitive.
Select one of the following:
802.11a Only - Select if all of your wireless clients are 802.11a.
802.11n Only - Select only if all of your wireless clients are 802.11n.
Mixed 802.11n and 802.11a - Select if you are using both 802.11n and 802.11a wireless clients.
The Auto Channel Scan setting can be selected to allow the DIR-825 to choose the channel with the least amount of interference.
Wireless Channel:
Transmission Rate:
Indicates the channel setting for the DIR-825. By default the channel is set to 6. The Channel can be changed to t the channel
setting for an existing wireless network or to customize the wireless network. If you enable Auto Channel Scan, this option will
be greyed out.
Select the transmit rate. It is strongly suggested to select Best (Auto) for best performance.
36D-Link DIR-825 User Manual
Page 42
Section 3 - Conguration
Channel Width:
Visibility Status:
Wireless Security:
Select the Channel Width:
Auto 20/40 - This is the default setting. Select if you are using both 802.11n and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients.
Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the DIR-825. If Invisible is selected, the
SSID of the DIR-825 will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-825 in
order to connect to it.
Refer to page 38 for more information regarding wireless security.
37D-Link DIR-825 User Manual
Page 43
Section 4 - Security
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The DIR-825 oers the following
types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
What is WPA?
WPA (Wi-Fi Protected Access), is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing
algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is
based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP
regulates access to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple
to be snied out and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized
network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between
8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your
wireless router or access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public
key encryption system to ensure that only authorized network users can access the network.
38D-Link DIR-825 User Manual
Page 44
Section 4 - Security
Wireless Security Setup Wizard
To run the security wizard, click on Setup at the top and then click
Wireless Network Setup Wizard.
Check the Manually set 5GHz band Network Name... box to
manually set your desired wireless network name for the 5GHz band.
Type your desired wireless network name (SSID).
Automatically: Select this option to automatically generate
the router’s network key and click Next.
Manually: Select this option to manually enter your network
key and click Next.
39D-Link DIR-825 User Manual
Page 45
Section 4 - Security
If you selected Automatically, the summary window will display
your settings. Write down the security key and enter this on your
wireless clients. Click Save to save your settings.
If you selected Manually, the following screen will appear.
40D-Link DIR-825 User Manual
Page 46
Section 4 - Security
Add Wireless Device with WPS Wizard
From the Setup > Wireless Settings screen, click Add Wireless
Device with WPS.
Select Auto to add a wireless client using WPS (Wi-Fi Protected
Setup) and then click Next. Skip to the next page.
If you select Manual, a settings summary screen will appear. Write
down the security key and enter this on your wireless clients. Click
OK to nish.
41D-Link DIR-825 User Manual
Page 47
Section 4 - Security
PIN: Select this option to use PIN method. In order to use this
method you must know the wireless client’s 8 digit PIN and click
Connect.
PBC: Select this option to use PBC (Push Button) method to add a
wireless client. Click Connect.
Once you click Connect, you will have a 120 second time limit
to apply the settings to your wireless client(s) and successfully
establish a connection.
42D-Link DIR-825 User Manual
Page 48
Section 4 - Security
WPA/WPA2-Personal (PSK)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based conguration by opening a web browser and
entering the IP address of the router (192.168.0.1). Click on Setup and
then click Wireless Settings on the left side.
2. Next to Security Mode, select WPA-Personal.
3. Next to WPA Mode, select Auto, WPA2 Only, or WPA Only. Use Auto
if you have wireless clients using both WPA and WPA2.
4. Next to Cypher Type, select TKIP and AES, TKIP, or AES.
5. Next to Group Key Update Interval, enter the amount of time before
the group key used for broadcast and multicast data is changed (3600
is default).
6. Next to Pre-Shared Key, enter a key (passphrase). The key is entered as
a pass-phrase in ASCII format at both ends of the wireless connection.
The pass-phrase must be between 8-63 characters.
7. Click Save Settings to save your settings. If you are conguring the
router with a wireless adapter, you will lose connectivity until you
enable WPA-PSK on your adapter and enter the same passphrase as
you did on the router.
43D-Link DIR-825 User Manual
Page 49
Section 4 - Security
Congure WPA/WPA2-Enterprise (RADIUS)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based conguration by opening a web browser and
entering the IP address of the router (192.168.0.1). Click on Setup
and then click Wireless Settings on the left side.
2. Next to Security Mode, select WPA-Enterprise.
3. Next to WPA Mode, select Auto, WPA2 Only, or WPA Only. Use Auto
if you have wireless clients using both WPA and WPA2.
4. Next to Cypher Type, select TKIP and AES, TKIP, or AES.
5. Next to Group Key Update Interval, enter the amount of time before
the group key used for broadcast and multicast data is changed
(3600 is default).
6. Next to Authentication Timeout, enter the amount of time before a
client is required to re-authenticate (60 minutes is default).
7. Next to RADIUS Server IP Address enter the IP Address of your RADIUS
server.
44D-Link DIR-825 User Manual
Page 50
Section 4 - Security
8. Next to RADIUS Server Port, enter the port you are using with
your RADIUS server. 1812 is the default port.
9. Next to RADIUS Server Shared Secret, enter the security key.
10. If the MAC Address Authentication box is selected then the user
will need to connect from the same computer whenever logging
into the wireless network.
11. Click Advanced to enter settings for a secondary RADIUS Server.
12. Click Apply Settings to save your settings.
45D-Link DIR-825 User Manual
Page 51
Section 3 - Conguration
Network Settings
This section will allow you to change the local network settings of the router and to congure the DHCP settings.
Router Settings
Router IP Address:
Subnet Mask:
Device Name:
Local Domain:
Enable DNS Relay:
Enter the IP address of the router. The default IP address
is 192.168.0.1.
If you change the IP address, once you click Save Settings,
you will need to enter the new IP address in your browser
to get back into the conguration utility.
Enter the Subnet Mask. The default subnet mask is
255.255.255.0.
Enter a name for the router.
Enter the Domain name (Optional).
Uncheck the box to transfer the DNS server information
from your ISP to your computers. If checked, your
computers will use the router for a DNS server.
46D-Link DIR-825 User Manual
Page 52
Section 3 - Conguration
DHCP Server Settings
DHCP stands for Dynamic Host Control Protocol. The DIR-825 has a built-in DHCP server. The DHCP Server will automatically
assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting
their TCP/IP settings to “Obtain an IP Address Automatically.” When you turn your computers on, they will automatically load
the proper TCP/IP settings provided by the DIR-825. The DHCP Server will automatically allocate an unused IP address from
the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool.
Enable DHCP
Server:
DHCP IP Address
Range:
DHCP Lease Time:
Always
Broadcast:
NetBIOS
Announcement:
Learn NetBIOS
from WAN:
Check this box to enable the DHCP server on your router.
Uncheck to disable this function.
Enter the starting and ending IP addresses for the DHCP server’s
IP assignment.
Note: If you statically (manually) assign IP addresses to your
computers or devices, make sure the IP addresses are outside of
this range or you may have an IP conict.
The length of time for the IP address lease. Enter the Lease time
in minutes.
Enable this feature to broadcast your networks DHCP server to
LAN/WLAN clients.
NetBIOS allows LAN hosts to discover all other computers within
the network, enable this feature to allow the DHCP Server to
oer NetBIOS conguration settings.
Enable this feature to allow WINS information to be learned from the WAN side, disable to allow manual conguration.
NetBIOS Scope:
This feature allows the conguration of a NetBIOS ‘domain’ name under which network hosts operates. This setting has no eect if
the ‘Learn NetBIOS information from WAN’ is activated.
47D-Link DIR-825 User Manual
Page 53
Section 3 - Conguration
NetBIOS Node:
WINS IP
Address:
Select the dierent type of NetBIOS node; Broadcast only, Point-to-Point, Mixed-mode, and Hybrid.
Enter your WINS Server IP address(es).
48D-Link DIR-825 User Manual
Page 54
Section 3 - Conguration
DHCP Reservation
If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router will assign the IP
address only to that computer or device.
Note: This IP address must be within the DHCP IP Address Range.
Enable:
Computer Name:
IP Address:
MAC Address:
Copy Your PC’s
MAC Address:
Save:
DHCP
Reservations List:
Check this box to enable the reservation.
Enter the computer name or select from the drop-down
menu and click <<.
Enter the IP address you want to assign to the computer
or device. This IP Address must be within the DHCP IP
Address Range.
Enter the MAC address of the computer or device.
If you want to assign an IP address to the computer you
are currently on, click this button to populate the elds.
Click Save to save your entry. You must click Save Settings
at the top to activate your reservations.
DHCP Reservations List
Displays any reservation entries. Displays the host name
(name of your computer or device), MAC Address, and IP
address.
Enable:
Edit:
Delete:
Check to enable the reservation.
Click the edit icon to make changes to the reservation entry.
Click to remove the reservation from the list.
49D-Link DIR-825 User Manual
Page 55
Section 3 - Conguration
Media Server
This feature allows you to share music, pictures and videos with any devices connected to your network.
Enable Media
Server:
Computer
Name:
Check this box to enable the media server feature.
Enter the media server’s name.
50D-Link DIR-825 User Manual
Page 56
Section 3 - Conguration
Storage
This page will allow you to access les from a USB external hard drive or thumb drive that is plugged into the router from your
local network or from the Internet using either a web browser or an app for your smartphone or tablet. You can create users
to be allowed to access these les.
Enable Web File
Access:
Enable HTTP
Storage Remote
Access:
Remote Access
Port:
Enable HTTPS
Storage Remote
Access:
Remote HTTPS
Port:
User Name:
Check to enable sharing les on your USB storage device
that is plugged in your router.
Check to enable HTTP access to your router’s storage. You
will have to type HTTP in the URL.
Enter a port (8181 is default). You will have to enter this port
in the URL when connecting to the shared les. For example:
(http://192.168.0.1:8181).
Check to enable HTTPS (secure) access to your router’s
storage. You will have to type HTTPS in the URL.
Enter a port (4433 is default). You will have to enter this port
in the URL when connecting to the shared les. For example:
(https://192.168.0.1:8181).
To create a new user, enter a user name.
Password:
Verify Password:
User List:
Number of
Devices:
Enter a password for this account.
Re-enter the password. Click Add/Edit to create the user.
Displays the accounts. The Admin and Guest accounts are
built-in to the router.
Displays the USB device plugged into the router.
51D-Link DIR-825 User Manual
Page 57
Section 3 - Conguration
IPv6
On this page, the user can congure the IPv6 Connection type. There are two ways to set up the IPv6 Internet connection. You
can use the Web-based IPv6 Internet Connection Setup Wizard, or you can manually congure the connection.
For the beginner user that has not congured a router before, click on
the IPv6 Internet Connection Setup Wizard button and the router will
guide you through a few simple steps to get your network up and running.
For the advanced user that has congured a router before, click on the
Manual IPv6 Internet Connection Setup button to input all the settings
manually.
To congure the IPv6 local settings, click on the IPv6 Local Connectivity
Setup button.
52D-Link DIR-825 User Manual
Page 58
Section 3 - Conguration
IPv6 Internet Connection Setup Wizard
On this page, the user can congure the IPv6 Connection type using the IPv6 Internet Connection Setup Wizard.
Click the IPv6 Internet Connection Setup Wizard button and the router will guide
you through a few simple steps to get your network up and running.
Click Next to continue to the next page. Click Cancel to discard the changes made
and return to the main page.
The router will try to detect whether its possible to obtain the IPv6 Internet
connection type automatically. If this succeeds then the user will be guided through
the input of the appropriate parameters for the connection type found.
53D-Link DIR-825 User Manual
Page 59
Section 3 - Conguration
However, if the automatic detection fails, the user will be prompt to either Try
again or to click on the Guide me through the IPv6 settings button to initiate the
manual continual of the wizard.
There are several connection types to choose from. If you are unsure of your
connection method, please contact your IPv6 Internet Service Provider.
Note: If using the PPPoE option, you will need to ensure that any PPPoE client
software on your computers has been removed or disabled. The 3 options available
on this page are IPv6 over PPPoE, Static IPv6 address and Route, and Tunneling
Connection.
Choose the required IPv6 Internet Connection type and click on the Next button
to continue. Click on the Prev button to return to the previous page. Click on the
Cancel button to discard all the changes made and return to the main page.
Click on the Next button to continue. Click on the Prev button to return to the previous page.
Click on the Cancel button to discard all the changes made and return to the main page.
54D-Link DIR-825 User Manual
Page 60
Section 3 - Conguration
IPv6 over PPPoE
After selecting the IPv6 over PPPoE option, the user will be able to congure the
IPv6 Internet connection that requires a username and password to get online.
Most DSL modems use this type of connection.
The following parameters will be available for conguration:
PPPoE Session: Select the PPPoE Session value used here. This
option will state that this connection shares it’s
information with the already congured IPv6
PPPoE connection, or the user can create a new
PPPoE connection here.
User Name: Enter the PPPoE username used here. If you do not
know your user name, please contact your ISP.
Password: Enter the PPPoE password used here. If you do not
know your password, please contact your ISP.
Verify Password: Re-enter the PPPoE password used here.
Service Name: Enter the service name for this connection here.
This option is optional.
55D-Link DIR-825 User Manual
Page 61
Section 3 - Conguration
Static IPv6 Address Connection
This mode is used when your ISP provides you with a set IPv6 addresses that does not change. The IPv6 information is manually entered in your
IPv6 conguration settings. You must enter the IPv6 address, Subnet Prex Length, Default Gateway, Primary DNS Server, and Secondary DNS
Server. Your ISP provides you with all this information.
Use Link-Local
Address:
IPv6 Address:
Subnet Prex
Length:
Default Gateway:
Primary IPv6 DNS
Address:
Secondary IPv6
DNS Address:
LAN IPv6 Address:
The Link-local address is used by nodes and routers when
communicating with neighboring nodes on the same link.
This mode enables IPv6-capable devices to communicate
with each other on the LAN side.
Enter the WAN IPv6 address for the router here.
Enter the WAN subnet prex length value used here.
Enter the WAN default gateway IPv6 address used here.
Enter the WAN primary DNS Server address used here.
Enter the WAN secondary DNS Server address used here.
These are the settings of the LAN (Local Area Network)
IPv6 interface for the router. The router’s LAN IPv6 Address
conguration is based on the IPv6 Address and Subnet
assigned by your ISP. (A subnet with prex /64 is supported
in LAN.)
56D-Link DIR-825 User Manual
Page 62
Section 3 - Conguration
Tunneling Connection (6rd)
After selecting the Tunneling Connection (6rd) option, the user can congure the IPv6 6rd connection settings.
The following parameters will be available for conguration:
6rd IPv6 Prex: Enter the 6rd IPv6 address and prex value used
here.
IPv4 Address: Enter the IPv4 address used here.
Mask Length: Enter the IPv4 mask length used here.
Assigned IPv6 Prex: Displays the IPv6 assigned prex value here.
6rd Border Relay IPv4
Address:
IPv6 DNS Server: Enter the primary DNS Server address used here.
The IPv6 Internet Connection Setup Wizard is complete.
Click on the Connect button to continue. Click on the Prev button to return to
the previous page. Click on the Cancel button to discard all the changes made
and return to the main page.
Enter the 6rd border relay IPv4 address used here.
57D-Link DIR-825 User Manual
Page 63
Section 3 - Conguration
IPv6 Manual Setup
There are several connection types to choose from: Auto Detection, Static IPv6, Autoconguration (SLAAC/DHCPv6), PPPoE,
IPv6 in IPv4 Tunnel, 6to4, 6rd, and Link-local. If you are unsure of your connection method, please contact your IPv6 Internet
Service Provider.
Note: If using the PPPoE option, you will need to ensure that any PPPoE client software on your computers has been removed
or disabled.
Auto Detection
Select Auto Detection to have the router detect and automatically
congure your IPv6 setting from your ISP.
58D-Link DIR-825 User Manual
Page 64
Section 3 - Conguration
Static IPv6
My IPv6 Connection:
WAN IPv6 Address
Settings:
LAN IPv6 Address:
LAN Link-Local Address:
Enable
Autoconguration:
Autoconguration Type:
IPv6 Address Range
Start:
IPv6 Address Range
End:
IPv6 Address Lifetime:
Select Static IPv6 from the drop-down menu.
Enter the address settings supplied by your Internet provider
(ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC +
Stateless DHCPv6.
Enter the start IPv6 Address for the DHCPv6 range for your
local computers.
Enter the end IPv6 Address for the DHCPv6 range for your
local computers.
Enter the IPv6 Address Lifetime (in minutes).
59D-Link DIR-825 User Manual
Page 65
Section 3 - Conguration
Autoconguration
My IPv6 Connection:
IPv6 DNS Settings:
Primary/Secondary DNS
Address:
LAN IPv6 Address:
LAN Link-Local Address:
Enable
Autoconguration:
Autoconguration Type:
IPv6 Address Range
Start:
Select Autoconguration (Stateless/DHCPv6) from the
drop-down menu.
Select either Obtain DNS server address automatically or
Use the following DNS Address.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC +
Stateless DHCPv6.
Enter the start IPv6 Address for the DHCPv6 range for your
local computers.
IPv6 Address Range
End:
IPv6 Address Lifetime:
Enter the end IPv6 Address for the DHCPv6 range for your
local computers.
Enter the IPv6 Address Lifetime (in minutes).
60D-Link DIR-825 User Manual
Page 66
Section 3 - Conguration
PPPoE
My IPv6 Connection:
PPPoE:
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnection Mode:
Maximum Idle Time:
Select PPPoE from the drop-down menu.
Enter the PPPoE account settings supplied by your Internet
provider (ISP).
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password in the
next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
MTU:
IPv6 DNS Settings:
Primary/Secondary DNS
Address:
LAN IPv6 Address:
LAN Link-Local Address:
Enable Autoconguration:
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specic ISP. 1492 is the default MTU.
Select either Obtain DNS server address automatically or Use
the following DNS Address.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
61D-Link DIR-825 User Manual
Page 67
Section 3 - Conguration
Autoconguration Type:
IPv6 Address Range Start:
IPv6 Address Range End:
IPv6 Address Lifetime:
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless DHCPv6.
Enter the start IPv6 Address for the DHCPv6 range for your local computers.
Enter the end IPv6 Address for the DHCPv6 range for your local computers.
Enter the IPv6 Address Lifetime (in minutes).
62D-Link DIR-825 User Manual
Page 68
Section 3 - Conguration
IPv6 in IPv4 Tunneling
My IPv6
Connection:
IPv6 in IPv4 Tunnel
Settings:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable
Autoconguration:
Autoconguration
Type:
IPv6 Address
Range Start:
IPv6 Address
Range End:
Select IPv6 in IPv4 Tunnel from the drop-down menu.
Enter the settings supplied by your Internet provider (ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the start IPv6 Address for the DHCPv6 range for your local
computers.
Enter the end IPv6 Address for the DHCPv6 range for your local
computers.
Pv6 Address
Lifetime:
Enter the Router Advertisement Lifetime (in minutes).
63D-Link DIR-825 User Manual
Page 69
Section 3 - Conguration
6 to 4 Tunneling
My IPv6 Connection:
6 to 4 Settings:
Primary/Secondary
DNS Address:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable
Autoconguration:
Autoconguration
Type:
IPv6 Address Range
Start:
IPv6 Address Range
End:
Select 6 to 4 from the drop-down menu.
Enter the IPv6 settings supplied by your Internet provider (ISP).
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the start IPv6 Address for the DHCPv6 range for your local
computers.
Enter the end IPv6 Address for the DHCPv6 range for your local
computers.
IPv6 Address
Lifetime:
Enter the IPv6 Address Lifetime (in minutes).
64D-Link DIR-825 User Manual
Page 70
Section 3 - Conguration
6rd
My IPv6 Connection:
6RD Settings:
LAN IPv6 Address:
LAN Link-Local Address:
Enable
Autoconguration:
Autoconguration Type:
Router Advertisement
Lifetime:
Select 6rd from the drop-down menu.
Enter the address settings supplied by your Internet provider
(ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful (DHCPv6), SLAAC+RDNSS or SLAAC + Stateless
DHCPv6.
Enter the Router Advertisement Lifetime (in minutes).
65D-Link DIR-825 User Manual
Page 71
Section 3 - Conguration
Link-Local Connectivity
My IPv6 Connection:
LAN IPv6 Address
Settings:
Select Link-Local Only from the drop-down
menu.
Displays the IPv6 address of the router.
66D-Link DIR-825 User Manual
Page 72
Section 3 - Conguration
Advanced
Virtual Server
This will allow you to open a single port. If you would like to open a range of ports, refer to the next page.
Name:
IP Address:
Private Port/
Public Port:
Protocol Type:
Schedule:
Enter a name for the rule or select an application from
the drop-down menu. Select an application and click
<< to populate the elds.
Enter the IP address of the computer on your local
network that you want to allow the incoming
service to. If your computer is receiving an IP address
automatically from the router (DHCP), you computer
will be listed in the “Computer Name” drop-down
menu. Select your computer and click <<.
Enter the port that you want to open next to Private
Port and Public Port. The private and public ports are
usually the same. The public port is the port seen from
the Internet side, and the private port is the port being
used by the application on the computer within your
local network.
Select TCP, UDP, or Both from the drop-down menu.
The schedule of time when the Virtual Server Rule
will be enabled. The schedule may be set to Always,
which will allow the particular service to always be
enabled. You can create your own times in the Tools
> Schedules section.
Inbound Filter:
Select Allow All (most common) or a created Inbound
lter. You may create your own inbound lters in the
Advanced > Inbound Filter page.
67D-Link DIR-825 User Manual
Page 73
Section 3 - Conguration
Port Forwarding
This will allow you to open a single port or a range of ports.
Name:
IP Address:
TCP/UDP:
Schedule:
Enter a name for the rule or select an application
from the drop-down menu. Select an application
and click << to populate the elds.
Enter the IP address of the computer on your local
network that you want to allow the incoming service
to. If your computer is receiving an IP address
automatically from the router (DHCP), you computer
will be listed in the “Computer Name” drop-down
menu. Select your computer and click <<.
Enter the TCP and/or UDP port or ports that you
want to open. You can enter a single port or a range
of ports. Separate ports with a common.
Example: 24,1009,3000-4000
The schedule of time when the Virtual Server Rule
will be enabled. The schedule may be set to Always,
which will allow the particular service to always be
enabled. You can create your own times in the Tools
> Schedules section.
Inbound Filter:
Select Allow All (most common) or a created
Inbound lter. You may create your own inbound
lters in the Advanced > Inbound Filter page.
68D-Link DIR-825 User Manual
Page 74
Section 3 - Conguration
Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others.
These applications have diculties working through NAT (Network Address Translation). Special Applications makes some of
these applications work with the DIR-825. If you need to run applications that require multiple connections, specify the port
normally associated with an application in the “Trigger Port” eld, select the protocol type as TCP or UDP, then enter the rewall
(public) ports associated with the trigger port to open them for inbound trac.
The DIR-825 provides some predened applications in the table on the bottom of the web page. Select the application you
want to use and enable it.
Name:
Trigger:
Trac Type:
Firewall:
Trac Type:
Schedule:
Enter a name for the rule. You may select a
pre-dened application from the drop-down menu
and click <<.
This is the port used to trigger the application. It
can be either a single port or a range of ports.
Select the protocol of the trigger port (TCP, UDP,
or Both).
This is the port number on the Internet side that
will be used to access the application. You may
dene a single port or a range of ports. You can use
a comma to add multiple ports or port ranges.
Select the protocol of the rewall port (TCP, UDP,
or Both).
The schedule of time when the Application Rule
will be enabled. The schedule may be set to Always,
which will allow the particular service to always
be enabled. You can create your own times in the
Tools > Schedules section.
69D-Link DIR-825 User Manual
Page 75
Section 3 - Conguration
QoS Engine
The QoS Engine option helps improve your network gaming performance by prioritizing applications. By default the QoS Engine settings are
disabled and application priority is not classied automatically.
Enable Trac
Shaping:
Automatic Uplink
Speed:
Measured Uplink
Speed:
Manual Uplink
Speed:
Enable QoS
Engine:
This option is disabled by default. Enable this option for
better performance and experience with online games and
other interactive applications, such as VoIP.
This option is enabled by default when the QoS Engine
option is enabled. This option will allow your router to
automatically determine the uplink speed of your Internet
connection.
This displays the detected uplink speed.
The speed at which data can be transferred from the
router to your ISP. This is determined by your ISP. ISP’s
often speed as a download/upload pair. For example,
1.5Mbits/284Kbits. Using this example, you would enter
284. Alternatively you can test your uplink speed with a
service such as speedtest.net.
This option is enabled by default. This will allow your router
to automatically determine the network priority of running
programs.
Automatic
Classication:
Dynamic
Fragmentation:
This option should be enabled when you have a slow Internet uplink. It helps to reduce the impact that large low priority network
packets can have on more urgent ones.
This option should be enabled when you have a slow Internet uplink. It helps to reduce the impact that large low priority network
packets can have on more urgent ones.
70D-Link DIR-825 User Manual
Page 76
Section 3 - Conguration
Network Filters
Use MAC (Media Access Control) Filters to allow or deny LAN (Local Area Network) computers by their MAC addresses from
accessing the network. You can either manually add a MAC address or select the MAC address from the list of clients that are
currently connected to the Broadband Router.
Congure MAC
Filtering:
MAC Address:
DHCP Client:
Clear:
Select Turn MAC Filtering Off, Allow MAC
addresses listed below, or Deny MAC addresses
listed below from the drop-down menu.
Enter the MAC address you would like to lter.
To nd the MAC address on a computer, please refer
to the Networking Basics section in this manual.
Select a DHCP client from the drop-down menu and
click << to copy that MAC Address.
Click to remove the MAC address.
71D-Link DIR-825 User Manual
Page 77
Section 3 - Conguration
Access Control
The Access Control section allows you to control access in and out of your network. Use this feature as Parental Controls to
only grant access to approved sites, limit web access based on time or dates, and/or block access from applications like P2P
utilities or games.
Add Policy:
Click the Add Policy button to start the Access
Control Wizard.
Click Next to continue with the wizard.
Access Control Wizard
72D-Link DIR-825 User Manual
Page 78
Section 3 - Conguration
Enter a name for the policy and then click Next to continue.
Select a schedule (I.E. Always) from the drop-down menu and
then click Next to continue.
Enter the following information and then click Next to continue.
• Address Type - Select IP address, MAC address, or Other
Machines.
• IP Address - Enter the IP address of the computer you want to
apply the rule to.
• Machine Address - Enter the PC MAC address (i.e. 00:00.00.00.00).
Select the ltering method and then click Next to continue.
73D-Link DIR-825 User Manual
Page 79
Section 3 - Conguration
Enter the rule:
Enable - Check to enable the rule.
Name - Enter a name for your rule.
Dest IP Start - Enter the starting IP address.
Dest IP End - Enter the ending IP address.
Protocol - Select the protocol.
Dest Port Start - Enter the starting port number.
Dest Port End - Enter the ending port number.
To enable web logging, click Enable.
Click Save to save the access control rule.
Your newly created policy will now show up under Policy Table.
74D-Link DIR-825 User Manual
Page 80
Section 3 - Conguration
Website Filters
Website Filters are used to allow you to set up a list of Web sites that can be viewed by multiple users through the network.
To use this feature select to Allow or Deny, enter the domain or website and click Save Settings. You must also select Apply
Web Filter under the Access Control section (page 42).
Add Website
Filtering Rule:
Website URL/
Domain:
Select either DENY computers access to ONLY
these sites or ALLOW computers access to ONLY
these sites.
Enter the keywords or URLs that you want to allow
or block. Click Save Settings.
75D-Link DIR-825 User Manual
Page 81
Section 3 - Conguration
Inbound Filters
The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can
congure inbound data ltering rules that control data based on an IP address range. Inbound Filters can be used with Virtual
Server, Port Forwarding, or Remote Administration features.
Name:
Action:
Enable:
Remote IP Start:
Remote IP End:
Add:
Inbound Filter
Rules List:
Enter a name for the inbound lter rule.
Select Allow or Deny.
Check to enable rule.
Enter the starting IP address. Enter 0.0.0.0 if you
do not want to specify an IP range.
Enter the ending IP address. Enter 255.255.255.255
if you do not want to specify and IP range.
Click the Add button to apply your settings. You
must click Save Settings at the top to save the
settings.
This section will list any rules that are created. You
may click the Edit icon to change the settings or
enable/disable the rule, or click the Delete icon
to remove the rule.
76D-Link DIR-825 User Manual
Page 82
Section 3 - Conguration
Firewall Settings
A rewall protects your network from the outside world. The DIR-825 oers a rewall type functionality. The SPI feature helps
prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications.
If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the
chosen computer completely to the outside world.
Enable SPI:
Anti-Spoof Check:
Enable DMZ:
DMZ IP Address:
SPI (Stateful Packet Inspection, also known as dynamic packet ltering)
helps to prevent cyber attacks by tracking more state per session. It
validates that the trac passing through the session conforms to the
protocol.
Enable this feature to protect your network from certain kinds of
“spoong” attacks.
If an application has trouble working from behind the router, you can
expose one computer to the Internet and run the application on that
computer.
Note: Placing a computer in the DMZ may expose that computer to a
variety of security risks. Use of this option is only recommended as a last
resort.
Specify the IP address of the computer on the LAN that you want to have
unrestricted Internet communication. If this computer obtains it’s IP
address automatically using DHCP, be sure to make a static reservation
on the Setup > Network Settings page so that the IP address of the
DMZ machine does not change.
PPTP:
IPSEC (VPN):
Allows multiple machines on the LAN to connect to their corporate network using PPTP protocol.
Allows multiple VPN clients to connect to their corporate network using IPSec. Some VPN clients support traversal of IPSec through
NAT. This ALG may interfere with the operation of such VPN clients. If you are having trouble connecting with your corporate network,
try turning this ALG o. Please check with the system administrator of your corporate network whether your VPN client supports
NAT traversal.
77D-Link DIR-825 User Manual
Page 83
Section 3 - Conguration
RTSP:
SIP:
Allows application that uses Real Time Streaming Protocol to receive streaming media from the Internet. QuickTime and Real Player
are some of the common applications using this protocol.
Allows devices and applications using VoIP (Voice over IP) to communicate across NAT. Some VoIP applications and devices have
the ability to discover NAT devices and work around them. This ALG may interfere with the operation of such devices. If you are
having trouble making VoIP calls, try turning this ALG o.
78D-Link DIR-825 User Manual
Page 84
Section 3 - Conguration
Routing
The Routing option is an advanced method of customizing specic routes of data through your network.
Destination IP:
Netmask:
Gateway:
Metric:
Interface:
Enter the IP address of packets that will take this
route.
Enter the netmask of the route, please note
that the octets must match your destination IP
address.
Enter your next hop gateway to be taken if this
route is used.
The route metric is a value from 1 to 16 that
indicates the cost of using this route. A value 1 is
the lowest cost and 15 is the highest cost.
Select the interface that the IP packet must use to
transit out of the router when this route is used.
79D-Link DIR-825 User Manual
Page 85
Section 3 - Conguration
Advanced Wireless
Transmit Power:
WLAN Partition:
WMM Enable:
Short GI:
HT20/40 Coexistence
(2.4GHz only):
Set the transmit power of the antennas.
This enables 802.11d operation. 802.11d is a wireless
specication developed to allow implementation of
wireless networks in countries that cannot use the
802.11 standard. This feature should only be enabled
if you are in a country that requires it.
WMM is QoS for your wireless network. This will
improve the quality of video and voice applications
for your wireless clients.
Check this box to reduce the guard interval time
therefore increasing the data capacity. However, it’s
less reliable and may create higher data loss.
Select to Enable or Disable this feature.
80D-Link DIR-825 User Manual
Page 86
Section 3 - Conguration
Wi-Fi Protected Setup (WPS)
Wi-Fi Protected Setup (WPS) System is a simplied method for securing your wireless network during the “Initial setup” as well
as the “Add New Device” processes. The Wi-Fi Alliance (WFA) has certied it across dierent products as well as manufactures.
The process is just as easy as pressing a button for the Push-Button Method or correctly entering the 8-digit code for the Pin
Code Method. The time reduction in setup and ease of use are quite benecial, while the highest wireless Security setting of
WPA2 is automatically used.
Enable:
Lock Wireless
Security
Settings:
PIN Settings:
Current PIN:
Reset PIN to
Default:
Enable the Wi-Fi Protected Setup feature.
Note: if this option is unchecked, the WPS button on the
side of the router will be disabled.
Locking the wireless security settings prevents the
settings from being changed by the Wi-Fi Protected
Setup feature of the router. Devices can still be added
to the network using Wi-Fi Protected Setup. However,
the settings of the network will not change once this
option is checked.
A PIN is a unique number that can be used to add
the router to an existing network or to create a new
network. Only the Administrator (“admin” account) can
change or reset the PIN.
Shows the current PIN.
Restore the default PIN of the router.
Generate New
PIN:
Create a random number that is a valid PIN. This
becomes the router’s PIN. You can then copy this PIN
to the user interface of the wireless client.
81D-Link DIR-825 User Manual
Page 87
Section 3 - Conguration
Add Wireless
Station:
Add Wireless
Device Wizard:
This Wizard helps you add wireless devices to the wireless network.
The wizard will either display the wireless network settings to guide you through manual conguration, prompt you to enter the
PIN for the device, or ask you to press the conguration button on the device. If the device supports Wi-Fi Protected Setup and has a
conguration button, you can add it to the network by pressing the conguration button on the device and then the on the router
within 60 seconds. The status LED on the router will ash three times if the device has been successfully added to the network.
There are several ways to add a wireless device to your network. A “registrar” controls access to the wireless network. A registrar
only allows devices onto the wireless network if you have entered the PIN, or pressed a special Wi-Fi Protected Setup button on the
device. The router acts as a registrar for the network, although other devices may act as a registrar as well.
Click to start the wizard and skip to page 41.
WPS Button
You can also simply press the WPS button on the side of the router, and then press the WPS
button on your wireless client to automatically connect without logging into the router.
Refer to page 106 for more information.
82D-Link DIR-825 User Manual
Page 88
Section 3 - Conguration
Advanced Network Settings
Enable UPnP:
WAN Ping:
WAN Ping Inbound
Filter:
WAN Port Speed:
Enable IPV4
Multicast Streams:
Enable IPV6
Multicast Streams:
To use the Universal Plug and Play (UPnP™) feature click on
Enabled. UPnP provides compatibility with networking
equipment, software and peripherals.
Checking the box will allow the DIR-825 to respond to
pings. Unchecking the box may provide some extra
security from hackers.
Select from the drop-down menu if you would like to apply
the Inbound Filter to the WAN ping. Refer to the Inbound
Filters section for more information.
You may set the port speed of the Internet port to 10Mbps,
100Mbps, 1000Mbps, or Auto (recommended).
Check the box to allow multicast trac to pass through
the router from the Internet (IPv4).
Check the box to allow multicast trac to pass through
the router from the Internet (IPv6).
83D-Link DIR-825 User Manual
Page 89
Section 3 - Conguration
Guest Zone
The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These zones
will be separate from your main wireless network. You may congure dierent zones for the 2.4GHz and 5GHz wireless bands.
Enable Guest
Zone:
Schedule:
Wireless
Network Name:
Enable Routing
Between Zones:
Security Mode:
Check to enable the Guest Zone feature.
The schedule of time when the Guest Zone will be
active. The schedule may be set to Always, which will
allow the particular service to always be enabled. You
can create your own times in the Tools > Schedules
section.
Enter a wireless network name (SSID) that is dierent
from your main wireless network.
Check to allow network connectivity between the
dierent zones created.
Select the type of security or encryption you would
like to enable for the guest zone.
84D-Link DIR-825 User Manual
Page 90
Section 3 - Conguration
IPv6 Firewall
The DIR-825’s IPv6 Firewall feature allows you to congure which kind of IPv6 trac is allowed to pass through the device. The
DIR-825’s IPv6 Firewall functions in a similar way to the IP Filters feature.
Enable Checkbox:
Congure IPv6
Firewall:
Name:
Schedule:
Source:
IP Address Range:
Dest:
Check the box to enable the IPv6 rewall simple security.
Select an action from the drop-down menu.
Enter a name to identify the IPv6 rewall rule.
Use the drop-down menu to select the time schedule that
the IPv6 Firewall Rule will be enabled on. The schedule may
be set to Always, which will allow the particular service to
always be enabled. You can create your own times in the
Tools > Schedules section.
Use the Source drop-down menu to specify the interface
that connects to the source IPv6 addresses of the rewall
rule.
Enter the source IPv6 address range in the adjacent IP
Address Range eld.
Use the Dest drop-down menu to specify the interface that connects to the destination IP addresses of the rewall rule.
Protocol:
Port Range:
Select the protocol of the rewall port (All, TCP, UDP, or ICMP).
Enter the rst port of the range that will be used for the rewall rule in the rst box and enter the last port in the eld in the second
box.
85D-Link DIR-825 User Manual
Page 91
Section 3 - Conguration
IPv6 Routing
This page allows you to specify custom routes that determine how data is moved around your network.
Route List:
Name:
Destination IP/
Prex Length:
Metric:
Interface:
Gateway:
Check the box next to the route you wish to enable.
Enter a specic name to identify this route.
This is the IP address of the router used to reach the
specied destination or enter the IPv6 address prex
length of the packets that will take this route.
Enter the metric value for this rule here.
Use the drop-down menu to specify if the IP packet
must use the WAN or LAN interface to transit out of
the Router.
Enter the next hop that will be taken if this route is used.
86D-Link DIR-825 User Manual
Page 92
Section 3 - Conguration
Tools
Admin
This page will allow you to change the Administrator and User passwords. You can also enable Remote Management. There are
two accounts that can access the management interface through the web browser. The accounts are admin and user. Admin
has read/write access while user has read-only access. User can only view the settings but cannot make any changes. Only the
admin account has the ability to change both admin and user account passwords.
Admin Password:
User Password:
System Name:
Enable Graphical
Authentication:
Enable HTTPS
Server:
Enable Remote
Management:
Remote Admin Port:
Enter a new password for the Administrator Login Name. The administrator
can make changes to the settings.
Enter the new password for the User login. If you login as the User, you cannot
change the settings (you can only view them).
Enter a name for your router.
Enables a challenge-response test to require users to type letters or numbers
from a distorted image displayed on the screen to prevent online hackers and
unauthorized users from gaining access to your router’s network settings.
Check to enable HTTPS to connect to the router securely. This means to connect
to the router, you must enter https://192.168.0.1 (for example) instead of
http://192.168.0.1.
Remote management allows the DIR-825 to be congured from the Internet
by a web browser. A username/password is still required to access the Web
Management interface.
The port number used to access the DIR-825 is used in the URL. Example:
http://x.x.x.x:8080 whereas x.x.x.x is the Internet IP address of the DIR-825
and 8080 is the port used for the Web Management interface.
If you have enabled HTTPS Server, you must enter https:// as part of the URL
to access the router remotely.
Remote Admin
Inbound Filter:
This section will list any rules that are created. You may click the Edit icon to
change the settings or enable/disable the rule, or click the Delete icon to
remove the rule. Details will display the current status.
87D-Link DIR-825 User Manual
Page 93
Section 3 - Conguration
Time
The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system clock.
From this section you can set the time zone that you are in and set the Time Server. Daylight Saving can also be congured to
automatically adjust the time when needed.
Time:
Time Zone:
Enable Daylight
Saving:
Enable NTP Server:
NTP Server Used:
Manual:
Displays the current date and time of the router.
Select your Time Zone from the drop-down
menu.
To select Daylight Saving time manually, select
enabled or disabled, and enter a start date and
an end date for daylight saving time.
NTP is short for Network Time Protocol. A NTP
server will synch the time and date with your
router. This will only connect to a server on the
Internet, not a local server. Check the box to
enable this feature.
Enter the IP address of a NTP server or select one
from the drop-down menu.
To manually input the time, enter the values
in these elds for the Year, Month, Day, Hour,
Minute, and Second and then click Set Time.
You can also click Copy Your Computer’s Time
Settings to synch the date and time with the
computer you are currently on.
88D-Link DIR-825 User Manual
Page 94
Section 3 - Conguration
SysLog
The Broadband Router keeps a running log of events and activities occurring on the Router. You may send these logs to a
SysLog server on your network.
Enable Logging to
SysLog Server:
SysLog Server IP
Address:
Check this box to send the router logs to a SysLog
Server.
The address of the SysLog server that will be
used to send the logs. You may also select your
computer from the drop-down menu (only if
receiving an IP address from the router via DHCP).
89D-Link DIR-825 User Manual
Page 95
Section 3 - Conguration
Email Settings
The Email feature can be used to send the system log les, router alert messages, and rmware update notication to your
email address.
Enable Email
Notication:
From Email
Address:
To Email Address:
SMTP Server
Address:
SMTP Server Port:
Enable
Authentication:
Account Name:
Password:
When this option is enabled, router activity logs
are emailed to a designated email address.
This email address will appear as the sender
when you receive a log le or rmware upgrade
notication via email.
Enter the email address where you want the email
sent.
Enter the SMTP server address for sending email.
Enter the SMTP port used on the server.
Check this box if your SMTP server requires
authentication.
Enter your account for sending email.
Enter the password associated with the account.
Re-type the password associated with the account.
On Log Full:
On Schedule:
Schedule:
When this option is selected, logs will be sent via
email to your account when the log is full.
Selecting this option will send the logs via email according to schedule.
This option is enabled when On Schedule is selected. You can select a schedule from the list of dened schedules. To create a
schedule, go to Tools > Schedules.
90D-Link DIR-825 User Manual
Page 96
Section 3 - Conguration
System
This section allows you to manage the router’s conguration settings, reboot the router, and restore the router to the factory
default settings. Restoring the unit to the factory default settings will erase all settings, including any rules that you’ve created.
Save Settings to
Local Hard Drive:
Load Settings
from Local Hard
Drive:
Restore to
Factory Default
Settings:
Reboot Device:
Use this option to save the current router
conguration settings to a le on the hard disk of
the computer you are using. First, click the Save
button. A le dialog will appear, allowing you to
select a location and le name for the settings.
Use this option to load previously saved router
conguration settings. First, use the Browse option
to find a previously saved file of configuration
settings. Then, click the Load button to transfer
those settings to the router.
This option will restore all conguration settings
back to the settings that were in effect at the
time the router was shipped from the factory.
Any settings that have not been saved will be
lost, including any rules that you have created. If
you want to save the current router conguration
settings, use the Save button above.
Click to reboot the router.
91D-Link DIR-825 User Manual
Page 97
Section 3 - Conguration
Firmware
You can upgrade the rmware of the access point here. Make sure the rmware you want to use is on the local hard drive of
the computer. Click on Browse to locate the rmware le to be used for the update. Please check the D-Link support website
for rmware updates at http://support.dlink.com. You can download rmware upgrades to your hard drive from this site.
Browse:
Upload:
After you have downloaded the new rmware, click
Browse to locate the rmware update on your hard
drive. Click Upload to complete the rmware upgrade.
Once you have a rmware update on your computer,
use this option to browse for the le and then upload
the information into the access point.
Language Pack
You can change the language of the web UI by uploading
available language packs.
Browse:
After you have downloaded the new language pack,
click Browse to locate the language pack le on your
hard drive. Click Upload to complete the language
pack upgrade.
92D-Link DIR-825 User Manual
Page 98
Section 3 - Conguration
Dynamic DNS
The DDNS feature allows you to host a server (Web, FTP, Game Server, etc…) using a domain name that you have purchased
(www.whateveryournameis.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign
dynamic (changing) IP addresses. Using a DDNS service provider, your friends can enter in your domain name to connect to
your server no matter what your IP address is.
Enable
Dynamic DNS:
Server
Address:
Host Name:
Username or
Key:
Password or
Key:
Timeout:
Status:
Dynamic Domain Name System is a method of
keeping a domain name linked to a changing IP
Address. Check the box to enable DDNS.
Select your DDNS provider from the drop-down
menu or enter the DDNS server address.
Enter the Host Name that you registered with
your DDNS service provider.
Enter the Username or key for your DDNS
account.
Enter the Password or key for your DDNS account.
Enter a timeout time (in hours).
Displays the current connection status.
DDNS for IPv6 Hosts
Enable:
IPv6
Address:
Check the box to enable DDNS for IPv6 Hosts.
Enter the IPv6 address of your computer/server in
your local network. You can click the << button and
select a computer/server from the drop-down list.
93D-Link DIR-825 User Manual
Page 99
Section 3 - Conguration
Host Name:
IPv6 DDNS
List:
Enable:
Host Name:
IPv6 Address:
Edit/Delete:
Enter the IPv6 Host Name that you registered with your DDNS service provider.
Once you save your entry, the IPv6 DDNS host information will be displayed here.
Check to enable the entry.
Displays the name of your IPv6 DDNS host.
Displays the IPv6 address of your computer/server associated with the IPv6 DDNS host.
Click the edit icon to make changes to the entry or click the delete icon to remove the entry.
94D-Link DIR-825 User Manual
Page 100
Section 3 - Conguration
System Check
Ping Test:
IPv6 Ping Test:
Ping Results:
The Ping Test is used to send Ping packets to test if a
computer is on the Internet. Enter the IP address that you
wish to Ping and click Ping.
Enter the IPv6 address that you wish to Ping and click Ping.
The results of your ping attempts will be displayed here.
95D-Link DIR-825 User Manual
