D Link IR615E5 User Manual
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Revision Date Description
5.2 December 22, 2009 • Updated for revision E1
• Updated for revision E4
5.3 March 31, 2010
5.4 October 19, 2010 • Updated for revision E5
• Added WIndows® 7
• Added Language Pack
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows Vista, and Microsoft Windows 7
are registered trademarks of the Microsoft Corporation. All other company or product names mentioned herein are trademarks
or registered trademarks of their respective companies.
Copyright © 2008-2010 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
iD-Link DIR-615 User Manual
Table of Contents
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 2
Features ............................................................................................3
Hardware Overview ..................................................................... 4
Connections ...........................................................................4
LEDs ...........................................................................................5
Installation .........................................................................6
Before you Begin ...........................................................................6
Wireless Installation Considerations ......................................7
Network Diagram .........................................................................8
Connect to Cable/DSL/Satellite Modem .............................. 9
Connect to Another Router ....................................................10
Getting Started ............................................................................11
Wireless Settings .................................................................25
Manual Wireless Network Setup ..............................26
Network Settings ................................................................27
DHCP Server Settings ...................................................28
DHCP Reservation .........................................................29
Virtual Server ........................................................................30
Port Forwarding ..................................................................32
Application Rules ................................................................33
QoS Engine............................................................................34
Network Filters .....................................................................35
Access Control .....................................................................36
Access Control Wizard ..................................................36
Website Filters ......................................................................39
Inbound Filters.....................................................................40
Firewall Settings ..................................................................41
Routing ..................................................................................42
Advanced Wireless Settings ............................................43
Advanced Network Settings ...........................................44
Conguration ...................................................................12
Web-based Conguration Utility ..........................................12
Internet Connection Setup Wizard ...............................13
Manual Conguration .......................................................18
Dynamic (Cable) .............................................................18
PPPoE (DSL) ......................................................................20
PPTP ....................................................................................21
L2TP ....................................................................................22
Static IP Address .............................................................24
UPnP ...................................................................................44
Internet Ping Block ........................................................44
Internet Port Speed .......................................................44
Multicast Streams ..........................................................44
Administrator Settings ......................................................45
Change Password ..........................................................45
Remote Management ..................................................45
Time Settings .......................................................................46
SysLog .....................................................................................47
iiD-Link DIR-615 User Manual
Table of Contents
E-mail Settings .....................................................................48
System Settings ...................................................................49
Update Firmware ................................................................50
DDNS .......................................................................................51
System Check .......................................................................52
Schedules ..............................................................................53
Device Information ............................................................54
Log ...........................................................................................56
Statistics .................................................................................57
Internet Sessions .................................................................58
Routing Table .......................................................................60
Wireless ..................................................................................61
Support ..................................................................................62
Wireless Security .............................................................63
What is WPA? ................................................................................63

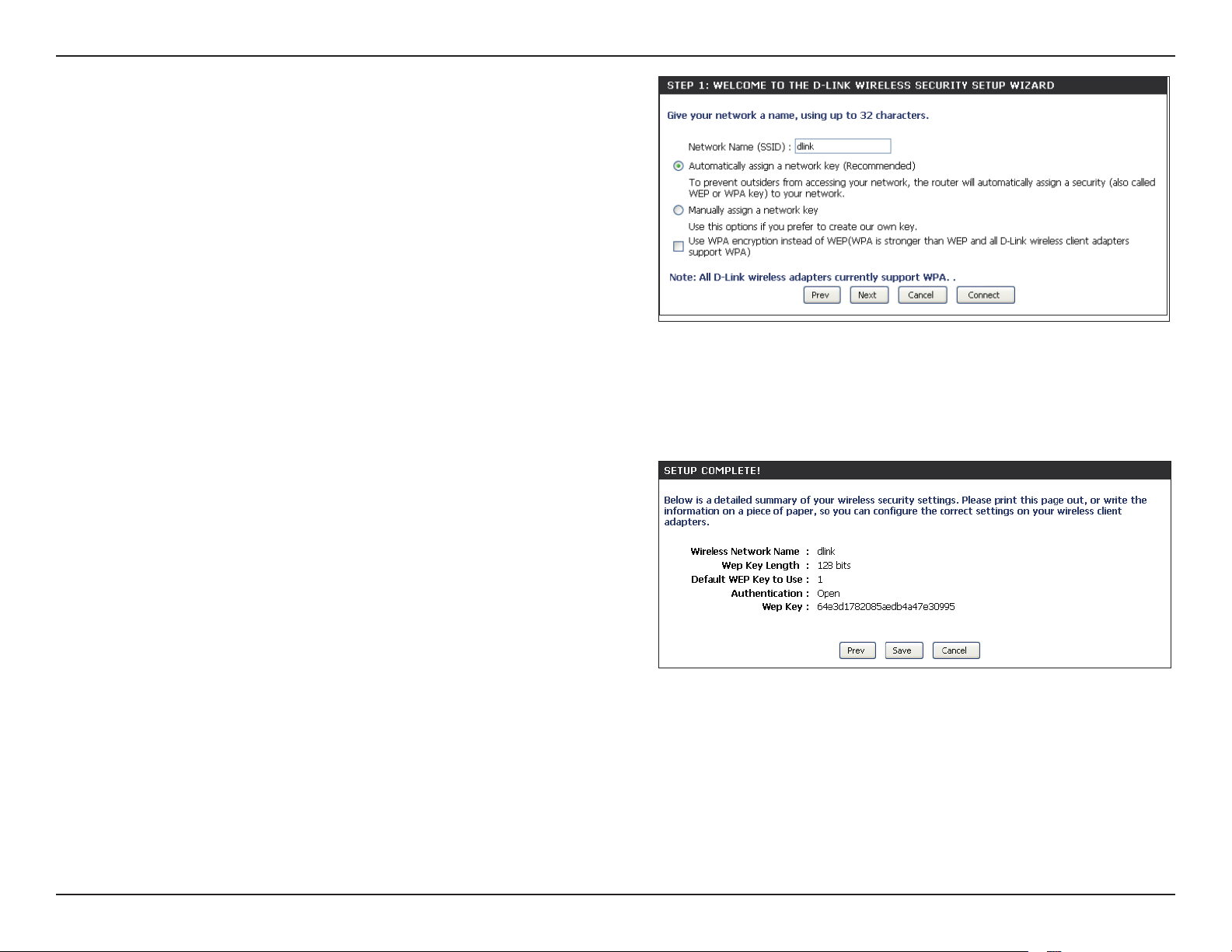

Wireless Network Setup Wizard ............................................64
Troubleshooting ..............................................................85
Wireless Basics ................................................................. 89
What is Wireless? .........................................................................90
Tips ...................................................................................................92
Wireless Modes ............................................................................93
Networking Basics ...........................................................94
Check your IP address ...............................................................94
Statically Assign an IP address ...............................................95
Technical Specications .................................................. 96

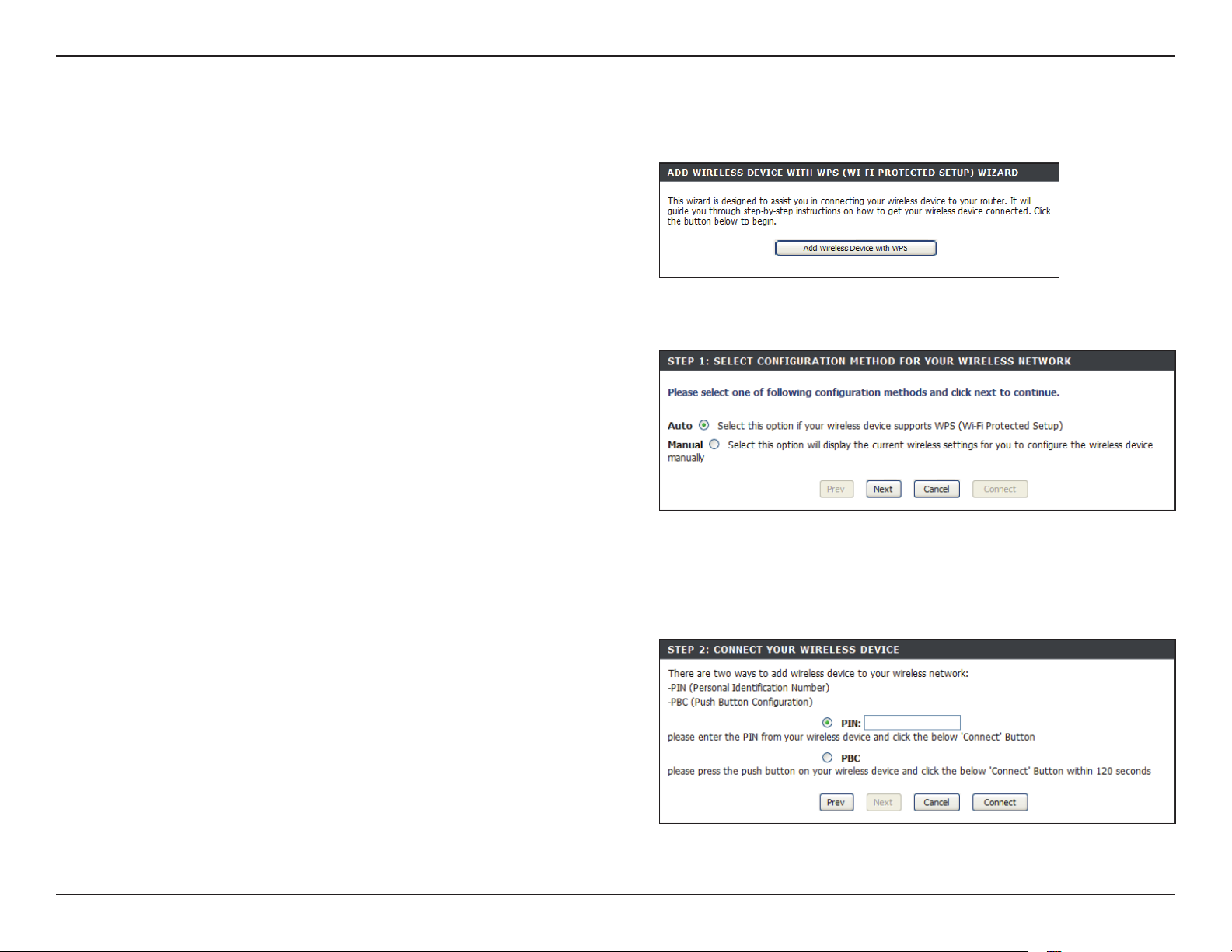

Add Wireless Device with WPS Wizard ................................67
Congure WPA-Personal (PSK) ...............................................68
Congure WPA-Enterprise (RADIUS) ....................................69
Connect to a Wireless Network .............................................71
®
Using Windows
7 ...............................................................71
Congure WPS ................................................................74
Connect to a Wireless Network .............................................78
Using Windows Vista
® .....................................................................................................78
Congure WPA/WPA2 ...................................................79
Connect Using WCN 2.0 ...................................................81
®
Using Windows
XP ............................................................82
Connect to a Wireless Network .............................................83
®
Using Windows
XP Through WPA-PSK .......................83
iiiD-Link DIR-615 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
D-Link DIR-615 Wireless N Router
Power Adapter
Ethernet Cable
CD-ROM
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-615 will cause damage and void the warranty for this product.
1D-Link DIR-615 User Manual
Section 1 - Product Overview
Network Requirements
Web-based Conguration
Utility Requirements
System Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11n/g wireless clients
• 10/100 Ethernet
Computer with the following:
• Windows
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 6 or higher
• Chrome 2.0 or higher
• Firefox 3.0 or higher
• Safari 3.0 or higher
®
, Macintosh, or Linux-based operating system
CD Installation Wizard
Requirements
®
Windows
installed. Visit www.java.com to download the latest version.
Computer with the following:
• Windows
• An installed Ethernet adapter
• CD-ROM drive
Users: Make sure you have the latest version of Java
®
XP (Service Pack 3), Vista® or Windows® 7
2D-Link DIR-615 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DIR-615 provides up to 300Mbps* wireless connection with other 802.11n wireless clients. This
capability allows users to participate in real-time activities online, such as video streaming, online gaming, and real-time audio.
• Compatible with 802.11g Devices - The DIR-615 is still fully compatible with the IEEE 802.11g standard, so it can connect with
existing 802.11g PCI, USB and Cardbus adapters.
• Advanced Firewall Features - The Web-based user interface displays a number of advanced network management features
including:
• Content Filtering - Easily applied content ltering based on MAC Address, URL, and/or Domain Name.
• Filter Scheduling - These lters can be scheduled to be active on certain days or for a duration of hours or
minutes.
• Secure Multiple/Concurrent Sessions - The DIR-615 can pass through VPN sessions. It supports multiple and
concurrent IPSec and PPTP sessions, so users behind the DIR-615 can securely access corporate networks.
Features
• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DIR-615 lets you control what information
is accessible to those on the wireless network, whether from the Internet or from your company’s server. Congure your router to
your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.
3D-Link DIR-615 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1
1 LAN Ports (1-4) Connect Ethernet devices such as computers, switches, and hubs.
2 Internet Port
3 Reset Button
4 Power Receptor Receptor for the supplied power adapter.
The auto MDI/MDIX Internet port is the connection for the Ethernet cable to the
cable or DSL modem.
Pressing the Reset button restores the router to its original factory default
settings.
2
3 4
4D-Link DIR-615 User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1 2 3 4
1 Power LED A solid light indicates a proper connection to the power supply.
2 Internet LED A solid light indicates connection on the Internet port. This LED blinks during data transmission.
3 WAN LED
4 LAN LEDs (1-4)
A solid light indicates that the wireless segment is ready. This LED blinks during wireless data
transmission.
A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks during
data transmission.
5D-Link DIR-615 User Manual
Section 2 - Installation
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area
such as a closet, cabinet, or in the attic or garage.
Before you Begin
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then you must
turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the router, and then turn
the modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet, Broadjump,
or Enternet 300 from your computer or you will not be able to connect to the Internet.
• When running the Setup Wizard from the D-Link CD, make sure the computer you are running the CD from is connected to the
Internet and online or the wizard will not work. If you have disconnected any hardware, re-connect your computer back to the
modem and make sure you are online.
6D-Link DIR-615 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating range of your
wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass
through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or
business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling
can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is
minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will
travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position
access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects
such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your
wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your
wireless devices as possible. The base transmits a signal even if the phone in not in use.
7D-Link DIR-615 User Manual
Section 2 - Installation
Network Diagram
8D-Link DIR-615 User Manual
Section 2 - Installation
Connect to Cable/DSL/Satellite Modem
If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below:
1. Place the router in an open and central location. Do not plug the power adapter into the router.
2. Turn the power o on your modem. If there is no on/o switch, then unplug the modem’s power adapter. Shut down your computer.
3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the Internet port on the
router.
4. Plug an Ethernet cable into one of the four LAN ports on the router. Plug the other end into the Ethernet port on your computer.
5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds).
6. Plug the power adapter to the router and connect to an outlet or power strip. Wait about 30 seconds for the router to boot.
7. Turn on your computer.
8. Verify the link lights on the router. The power light, Internet light, and the LAN light (the port that your computer is plugged into) should be lit.
If not, make sure your computer, modem, and router are powered on and verify the cable connections are correct.
9. Skip to page 12 to congure your router.
9D-Link DIR-615 User Manual
Section 2 - Installation
Connect to Another Router
If you are connecting the D-Link router to another router to use as a wireless access point and/or switch, you will have to do the following before
connecting the router to your network:
• Disable UPnP
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept a DHCP address
from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable. Make sure your IP address on
the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking Basics section for more information. If you need
to change the settings, write down your existing settings before making any changes. In most cases, your computer should be set to receive an
IP address automatically in which case you will not have to do anything to your computer.
2. Open a web browser and enter http://192.168.0.1 and press Enter. When the login window appears, set the user name to Admin and leave
the password box empty. Click Log In to continue.
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server server checkbox. Click Save Settings to continue.
5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to save your settings. Use this
new IP address to access the conguration utility of the router in the future. Close the browser and change your computer’s IP settings back to
the original values as in Step 1.
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
™
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything into the Internet port
of the D-Link router.
8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To congure your wireless network, open a web
browser and enter the IP address you assigned to the router. Refer to the Conguration and Wireless Security sections for more information
on setting up your wireless network.
10D-Link DIR-615 User Manual
Section 2 - Installation
Getting Started
The DIR-615 includes a Quick Router Setup Wizard CD. Follow the simple steps below to run the Setup Wizard to guide you quickly through the
installation process. You may manually congure your router without the wizard. Refer to the next page to manually setup your router.
®
Insert the Quick Router Setup Wizard CD in the CD-ROM drive. The step-by-step instructions that follow are shown in Windows
The steps and screens are similar for the other Windows® operating systems.
If the CD autorun function does not automatically start on your computer, go to Start > Run. In the run box type “D:\autorun.exe” (where
D: represents the drive letter of your CD-ROM drive).
When the autorun screen appears, click Install Router and follow the on-screen instructions.
XP or Vista®.
Note: It is recommended to write down the login password on the provided CD holder.
11D-Link DIR-615 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link wireless router using the web-based conguration utility.
Web-based Conguration Utility
To access the conguration utility, open a web-browser such as Internet
Explorer and enter the IP address of the router (192.168.0.1).
You may also connect using the NetBIOS name in the address bar
(http://dlinkrouter).
Select Admin from the drop-down menu and then enter your password.
Leave the password blank by default. Type in the graphical authentication
code (if you cannot read it, click Regenerate). The graphical authentication
will be disabled by default.
If you get a Page Cannot be Displayed error, please refer to the
Troubleshooting section for assistance.
12D-Link DIR-615 User Manual
Section 3 - Conguration
Internet Connection Setup Wizard
Once logged into the web interface of the router, the Setup > Internet page will appear. Click the Internet Connection Setup Wizard button to
quickly congure your router using the setup wizard.
If you want to enter your settings without running the wizard, click Manual Internet Conguration Wizard and skip to page 18.
13D-Link DIR-615 User Manual
Section 3 - Conguration
Click Next to continue.
Create a new password and then click Next to continue.
Select your time zone from the drop-down menu and then
click Next to continue.
14D-Link DIR-615 User Manual
Section 3 - Conguration
Select the type of Internet connection you use and then click
Next to continue.
If you selected Dynamic, you may need to enter the MAC address
of the computer that was last connected directly to your modem.
If you are currently using that computer, click Clone Your PC’s
MAC Address and then click Next to continue.
The Host Name is optional but may be required by some ISPs.
The default host name is the device name of the Router and may
be changed.
15D-Link DIR-615 User Manual
Section 3 - Conguration
If you selected PPPoE, enter your PPPoE username and password.
Click Next to continue.
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses.
Note: Make sure to remove your PPPoE software from your computer.
The software is no longer needed and will not work through a
router.
If you selected PPTP, enter your PPTP username and password.
Click Next to continue.
16D-Link DIR-615 User Manual
Section 3 - Conguration
If you selected L2TP, enter your L2TP username and password.
Click Next to continue.
If you selected Static, enter your network settings supplied by
your Internet provider. Click Next to continue.
The Setup is now complete. Click the Connect to save your
settings. Please allow 1-2 minutes to connect.
17D-Link DIR-615 User Manual
Section 3 - Conguration
Manual Conguration
Dynamic (Cable)
If you opt to set up your Internet connection manually, you will be redirected to a WAN page that allows you to select your Internet type and enter
the correct conguration parameters. Click the Save Settings button when you have congured the connection.
My Internet Connection:
Enable Advanced DNS
Service:
Host Name:
Use Unicasting:
Primary/Secondary DNS
Server:
Select Dynamic IP (DHCP) to obtain IP Address information automatically
from your ISP. Select this option if your ISP does not give you any IP numbers
to use. This option is commonly used for cable modem services such as
Comcast and Cox.
Advanced Domain Name System (DNS) services enhances your Internet
performance by getting you the information and web pages you are looking
for faster and more reliably. In addition, it improves your overall Internet
experience by correcting many common typo mistakes automatically, taking
you where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability,
functionality and operation of the Advanced DNS service or its features.
The Host Name is optional but may be required by some ISPs. Leave blank
if you are not sure.
Check the box if you are having problems obtaining an IP address from
your ISP.
Enter the Primary and secondary DNS server IP addresses assigned by your
ISP. These addresses are usually obtained automatically from your ISP. Leave
at 0.0.0.0 if you did not specically receive these from your ISP.
18D-Link DIR-615 User Manual
Section 3 - Conguration
MTU: Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1500 is the default MTU.
MAC Address:
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the
default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the
MAC address of your Ethernet card.
19D-Link DIR-615 User Manual
Section 3 - Conguration
PPPoE (DSL)
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password.
This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and
will not work through a router.
My Internet
Connection:
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnection Mode:
Maximum Idle Time:
Select PPPoE (Username/Password) from the drop-down
menu.
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses. In most cases,
select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password
in the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet
connection is maintained during inactivity. To disable this
feature, enable Auto-reconnect.
DNS Addresses:
MTU:
MAC Address:
Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1492 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the
default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the
MAC address of your Ethernet card.
20D-Link DIR-615 User Manual
Section 3 - Conguration
PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with a username and password. This
option is typically used for DSL services.
Address Mode:
PPTP IP Address:
PPTP Subnet Mask:
PPTP Gateway:
PPTP Server IP:
Username:
Password:
Reconnect Mode:
Maximum Idle Time:
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses. In most cases,
select Dynamic.
Enter the IP address (Static PPTP only).
Enter the Primary and Secondary DNS Server Addresses (Static
PPTP only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
Enter your PPTP username.
Enter your PPTP password and then retype the password in
the next box.
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet
connection is maintained during inactivity. To disable this
feature, enable Auto-reconnect.
DNS Servers:
MTU:
MAC Address:
The DNS server information will be supplied by your ISP (Internet Service Provider.)
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1400 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the
default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the
MAC address of your Ethernet card.
21D-Link DIR-615 User Manual
Section 3 - Conguration
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and password. This option
is typically used for DSL services.
Address Mode:
L2TP IP Address:
L2TP Subnet Mask:
L2TP Gateway:
L2TP Server IP:
Username:
Password:
Reconnect Mode:
Select Static if your ISP assigned you the IP address,
subnet mask, gateway, and DNS server addresses. In most
cases, select Dynamic.
Enter the L2TP IP address supplied by your ISP (Static
only).
Enter the Subnet Mask supplied by your ISP (Static
only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
Enter your L2TP username.
Enter your L2TP password and then retype the password
in the next box.
Select either Always-on, On-Demand, or Manual.
Maximum Idle Time:
DNS Servers:
Enter a maximum idle time during which the Internet
connection is maintained during inactivity. To disable this
feature, enable Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static L2TP only).
22D-Link DIR-615 User Manual
Section 3 - Conguration
MTU:
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1400 is the default MTU.
Clone MAC
Address:
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the
default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the
MAC address of your Ethernet card.
23D-Link DIR-615 User Manual
Section 3 - Conguration
Static IP Address
Select Static IP Address if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask,
gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the elds must be in the appropriate IP form, which
are four octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.
IP Address:
Subnet Mask:
Default Gateway:
DNS Servers:
MTU:
MAC Address:
Enter the IP address assigned by your ISP.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.
The DNS server information will be supplied by your ISP
(Internet Service Provider.)
Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your specic ISP. 1500
is the default MTU.
The default MAC Address is set to the Internet port’s physical
interface MAC address on the Broadband Router. It is not
recommended that you change the default MAC address
unless required by your ISP. You can use the Clone Your PC’s
MAC Address button to replace the Internet port’s MAC
address with the MAC address of your Ethernet card.
24D-Link DIR-615 User Manual
Section 3 - Conguration
Wireless Settings
If you want to congure the wireless settings on your router using
the wizard, click Wireless Network Setup Wizard and refer to
page 80.
Click Add Wireless Device with WPS if you want to add a wireless
device using Wi-Fi Protected Setup (WPS) and refer to page 83.
If you want to manually congure the wireless settings on your
router click Manual Wireless Network Setup and refer to the
next page.
25D-Link DIR-615 User Manual
Section 3 - Conguration
Manual Wireless Network Setup
Enable Wireless:
Wireless Network
Name:
802.11 Mode:
Enable Auto Channel
Scan:
Wireless Channel:
Check the box to enable the wireless function. If you do not
want to use wireless, uncheck the box to disable all the wireless
functions. Click Add New to create your own time schedule to
enable the wireless function.
Service Set Identier (SSID) is the name of your wireless network.
Create a name using up to 32 characters. The SSID is casesensitive.
Select one of the following:
802.11g Only - Select if all of your wireless clients are
802.11g.
802.11n Only - Select only if all of your wireless clients are
802.11n.
Mixed 802.11n and 802.11g - Select if you are using a mix
of 802.11n and 802.11g wireless clients.
The Auto Channel Scan setting can be selected to allow
the DIR-615 to choose the channel with the least amount of
interference.
Indicates the channel setting for the DIR-615. By default the
channel is set to 6. The Channel can be changed to t the channel
setting for an existing wireless network or to customize the
wireless network. If you enable Auto Channel Scan, this option
will be greyed out.
Transmission Rate:
Channel Width:
Visibility Status:
Wireless Security:
Select the transmit rate. It is strongly suggested to select Best
(Auto) for best performance.
Select the Channel Width:
Auto 20/40 - Select if you are using both 802.11n and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients. This is the default setting.
Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the DIR-615. If Invisible is selected, the SSID of the DIR-615 will not
be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-615 in order to connect to it.
Refer to page 79 for more information regarding wireless security.
26D-Link DIR-615 User Manual
Loading...
