D Link IR600B5 User Manual

WIRELESS N 150 HOME ROUTER
無線寬頻路由器
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.
Manual Revisions
Revision Date Description
1.0 December 10, 2010 DIR-600 Revision B5
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2010 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc.
iD-Link DIR-600 User Manual
Table of Contents
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 2
Features ............................................................................................3
Hardware Overview ..................................................................... 4
Connections ...........................................................................4
LEDs ...........................................................................................5
Installation .........................................................................6
Before you Begin ...........................................................................6
Wireless Installation Considerations ......................................7
Wall Mounting Your Device....................................................... 8
Connect to Cable/DSL/Satellite Modem .............................. 9
Connect to Another Router ....................................................10
Getting Started ............................................................................12
Conguration ...................................................................13
Web-based Conguration Utility ..........................................13
Setup ...............................................................................................14
Internet ...................................................................................14
Internet Connection Setup Wizard ...............................15
Manual Internet Connection Setup .............................22
Static IP ..............................................................................23
Dynamic IP (DHCP) ........................................................24
PPPoE (Username/Password) ....................................25
PPTP ....................................................................................27
L2TP ....................................................................................29
Russia PPTP (Dual Access) ...........................................31
Russia PPPoE (Dual Access) ........................................33
Wireless Settings .................................................................35
Manual Wireless Settings .................................................36
802.11n/b/g (2.4GHz) ...................................................36
Network Settings ................................................................37
Router Settings ...............................................................38
DHCP Server Settings ...................................................39
DHCP Reservation .........................................................40
Advanced ......................................................................................41
Virtual Server ........................................................................41
Port Forwarding ..................................................................43
Application Rules ................................................................44
QoS Engine............................................................................45
Network Filter.......................................................................46
Website Filter ........................................................................47
Firewall Settings ..................................................................48
Firewall Rules ...................................................................49
Routing ...................................................................................51
Advanced Wireless Settings ............................................52
802.11n/b/g (2.4GHz) ...................................................52
Wi-Fi Protected Setup (WPS) ..........................................53
iiD-Link DIR-600 User Manual
Table of Contents
Advanced Network ............................................................55
UPnP ...................................................................................55
Internet Ping Block ........................................................55
Internet Port Speed .......................................................55
Multicast Streams ..........................................................55
IPv6 ..........................................................................................56
Static IPv6 .........................................................................57
Link-local Only ................................................................58
Static IPv6 (Stateless) ....................................................59
Static IPv6 (Stateful) ......................................................60
Autoconguration(Stateless/DHCPv6) ..................61
Autoconguration(Stateless/DHCPv6)-
(Stateless) ..........................................................................62
Autoconguration(Stateless/DHCPv6)-
(Stateful) ............................................................................63
PPPoE .................................................................................64
IPv6 in IPv4 Tunnel ........................................................65
IPv6 in IPv4 Tunnel(Stateless) ....................................66
IPv6 in IPv4 Tunnel (Stateful) .....................................67
6to4 .....................................................................................68
6to4(Stateless) Autoconguration ..........................69
Firmware ................................................................................77
Dynamic DNS .......................................................................78
System Check .......................................................................79
Schedules ..............................................................................80
Status ..............................................................................................81
Device Info ............................................................................81
Logs .........................................................................................82
Statistics .................................................................................83
Internet Sessions .................................................................84
Wireless ..................................................................................85
IPv6 ..........................................................................................86
Support ..........................................................................................87
Wireless Security .............................................................88
What is WPA? ................................................................................88
Wireless Connection Setup Wizard ......................................89
Wireless Security Setup Wizard .............................................90
Add Wireless Device with WPS Wizard ................................92
Congure WEP .............................................................................93
Congure WPA/WPA2-Personal (PSK) .................................94
Congure WPA/WPA2-Enterprise (RADIUS) ......................95
6to4(Stateful) (DHCPv6) Autoconguration ........70
6rd .......................................................................................71
IPv6 Routing .........................................................................72
Tools ................................................................................................73
Admin .....................................................................................73
Time .........................................................................................74
Email Settings ......................................................................75
System ....................................................................................76
Connect to a Wireless Network .......................................96
Using Windows® 7 ......................................................................96
Congure WPS .....................................................................99
Using Windows Vista® ........................................................... 103
Congure Wireless Security ......................................... 104
Using Windows® XP ................................................................. 106
iiiD-Link DIR-600 User Manual
Table of Contents
Congure WPA-PSK ......................................................... 107
Troubleshooting ............................................................109
Wireless Basics ...............................................................113
What is Wireless? ...................................................................... 114
Tips ................................................................................................ 116
Wireless Modes ......................................................................... 117
Networking Basics .........................................................118
Check your IP address ............................................................ 118
Statically Assign an IP address ............................................ 119
Technical Specications ................................................120
ivD-Link DIR-600 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
DIR-600 Wireless N 150 Home
Router
Power Adapter
Ethernet Cable
D
O
A
B
-
E
E
R
D
I
E
U
A
G
D
L
E
L
R
A
-
T
U
S
T
I
L
I
T
H
T
Y
E
R
R
A
S
E
T
O
S
F
T
W
A
R
E
u
e
.
k
n
i
l
d
.
w
w
w
.
s
r
e
d
l
o
h
e
v
i
t
c
e
p
s
e
r
r
i
e
DIR-815
ver1.00(E )
a
d
e
m
a
r
k
s
o
f
t
h
e
D
-
L
i
n
k
C
o
r
p
a
r
o
h
t
f
o
y
t
r
e
p
o
r
p
e
h
t
e
r
a
s
k
r
a
m
e
d
a
r
t
d
e
r
e
t
s
i
g
e
r
r
o
s
k
r
a
m
e
d
a
r
t
r
e
h
t
o
l
l
A
.
n
o
i
t
CD-ROM
K
C
I
U
Q
-
L
A
U
N
A
M
c
o
p
y r
i
g
h
t
©
2
0
0
9
D
-
L
i
n
k
,
a
l
l
r
i
g
h
t
s
r
e
s
WIRELESS N QUAD BAND H OME ROU TER
e
r
v
e
d
.
D
-
L
i
n
k
a
n
d
t
h
e
D
-
L
i
n
k
l
o
g
o
a
r
e
r
e
g
i
s
t
e
r
N
I
e
d
t
r
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-600 will cause damage and void the warranty for this product.
1D-Link DIR-600 User Manual
Section 1 - Product Overview
Network Requirements
Web-based Conguration
Utility Requirements
System Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11n or 802.11g wireless clients
• 10/100 Ethernet
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 6 or higher
• Firefox 3.0 or higher
• Safari 3.0 or higher
• Chrome 2.0 or higher
CD Installation Wizard
Requirements
Windows® Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
Computer with the following:
• Windows® 7/ Vista® / XP with Service Pack 3
• An installed Ethernet adapter
• CD-ROM drive
2D-Link DIR-600 User Manual
Section 1 - Product Overview
Ŗ(CUVGT9KTGNGUU0GVYQTMKPI6JG&+4RTQXKFGUWRVQ/DRUYKTGNGUUEQPPGEVKQPYKVJQVJGT
PYKTGNGUUENKGPVU6JKUECRCDKNKV[CNNQYUWUGTUVQRCTVKEKRCVGKPTGCNVKOGCEVKXKVKGUQPNKPGUWEJCU XKFGQUVTGCOKPIQPNKPGICOKPICPFTGCNVKOGCWFKQ
Ŗ%QORCVKDNGYKVJDCPFI&GXKEGU6JG&+4KUUVKNNHWNN[EQORCVKDNGYKVJVJG+'''
DCPF+'''IUVCPFCTFUQKVECPEQPPGEVYKVJGZKUVKPIDCPF+'''I2%+ 75$CPF%CTFDWUCFCRVGTU
Ŗ#FXCPEGF(KTGYCNN(GCVWTGU6JG9GDDCUGFWUGTKPVGTHCEGFKURNC[UCPWODGTQHCFXCPEGFPGVYQTM
OCPCIGOGPVHGCVWTGUKPENWFKPI
Ŗ%QPVGPV (KNVGTKPI 'CUKN[ CRRNKGFEQPVGPVſNVGTKPI DCUGFQP /#% #FFTGUU74. CPFQT
&QOCKP0COG
Features
Ŗ(KNVGT 5EJGFWNKPI6JGUG ſNVGTUECP DG UEJGFWNGFVQ DGCEVKXGQP EGTVCKPFC[U QT HQTC
FWTCVKQPQHJQWTUQTOKPWVGU
Ŗ5GEWTG/WNVKRNG%QPEWTTGPV5GUUKQPU6JG&+4ECPRCUUVJTQWIJ820UGUUKQPU+V
UWRRQTVUOWNVKRNGCPFEQPEWTTGPV+25GECPF2262UGUUKQPUUQWUGTUDGJKPFVJG&+4 ECPUGEWTGN[CEEGUUEQTRQTCVGPGVYQTMU
Ŗ7UGTHTKGPFN[5GVWR9K\CTF6JTQWIJKVUGCU[VQWUG9GDDCUGFWUGTKPVGTHCEGVJG&+4NGVU[QW
EQPVTQNYJCVKPHQTOCVKQPKUCEEGUUKDNGVQVJQUGQPVJGYKTGNGUUPGVYQTMYJGVJGTHTQOVJG+PVGTPGVQTHTQO [QWTEQORCP[ŏUUGTXGT%QPſIWTG[QWTTQWVGTVQ[QWTURGEKſEUGVVKPIUYKVJKPOKPWVGU
/CZKOWOYKTGNGUU UKIPCNTCVGFGTKXGF HTQO+'''5VCPFCTF ICPF&TCHV PURGEKſECVKQPU#EVWCN FCVCVJTQWIJRWVYKNNXCT[0GVYQTMEQPFKVKQPUCPF GPXKTQPOGPVCNHCEVQTUKPENWFKPIXQNWOGQHPGVYQTMVTCHſEDWKNFKPIOCVGTKCNUCPFEQPUVTWEVKQPCPFPGVYQTMQXGTJGCFNQYGTCEVWCNFCVCVJTQWIJRWVTCVG'PXKTQPOGPVCN EQPFKVKQPUYKNNCFXGTUGN[CHHGEVYKTGNGUUUKIPCNTCPIG
3D-Link DIR-600 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
Pressing the Reset Button restores the router to its original factory default settings.
Receptor for the Power Adapter.
LAN Ports
Connect Ethernet devices such as computers, switches, and hubs.
The Auto MDI/MDIX WAN port is the connection for the Ethernet cable to the Cable or DSL modem.
4D-Link DIR-600 User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
INTERNET
A solid light indicates connection on the WAN port. This LED blinks during data transmission.
Power LED A solid light indicates a proper connection to the power supply.
WLAN LED A solid light indicates that the wireless segment is ready. This LED blinks during wireless data transmission.
Local Network LEDs
A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks during data transmission.
5D-Link DIR-600 User Manual
Section 2 - Installation
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or in the attic or garage.
Before you Begin
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to the Internet.
• When running the Setup Wizard from the D-Link CD, make sure the computer you are running the CD from is connected to the Internet and online or the wizard will not work. If you have disconnected any hardware, re­connect your computer back to the modem and make sure you are online.
6D-Link DIR-600 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum ­each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in use.
7D-Link DIR-600 User Manual
Section 2 - Installation
Wall Mounting Your Device
You can mount the DIR-600 to a wall or a partition for easy and convenient placement of your device.
To wall mount your device,
A. Screw the provided screws with the equipment to the wall or partition where the device to be placed. B. Place the mounting holes on the bottom of the device over the screws to mount it to the wall or partition. C. Connect your cables to the device.
Step A Step B Step C
8D-Link DIR-600 User Manual
Section 2 - Installation
Connect to Cable/DSL/Satellite Modem
If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below:
1. Place the router in an open and central location. Do not plug the power adapter into the router.
2. Unplug the modem’s power adapter. Shut down your computer.
3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the Internet port on the router.
4. Plug an Ethernet cable into one of the four LAN ports on the router. Plug the other end into the Ethernet port on your computer.
5. Plug in your modem. Wait for the modem to boot (about 30 seconds).
6. Plug the power adapter to the router and connect to an outlet or power strip.
7. Use the power switch to power on the router. Wait about 30 seconds for the router to boot.
8. Turn on your computer.
9. Refer to “Getting Started” on page 12 to congure your router.
9D-Link DIR-600 User Manual
Section 2 - Installation
Connect to Another Router
If you are connecting the D-Link router to another router to use as a wireless access point and/or switch, you will have to do the following before connecting the router to your network:
• Disable UPnP
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept a DHCP address from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router and use the power switch to power up the router. Connect one of your computers to the router (LAN port) using an Ethernet cable. Make sure your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking Basics section for more information. If you need to change the settings, write down your existing settings before making any changes. In most cases, your computer should be set to receive an IP address automatically in which case you will not have to do anything to your computer.
2. Open a web browser and enter http://192.168.0.1 and press Enter. When the login window appears, set the user name to Admin and leave the password box empty. Click Log In to continue.

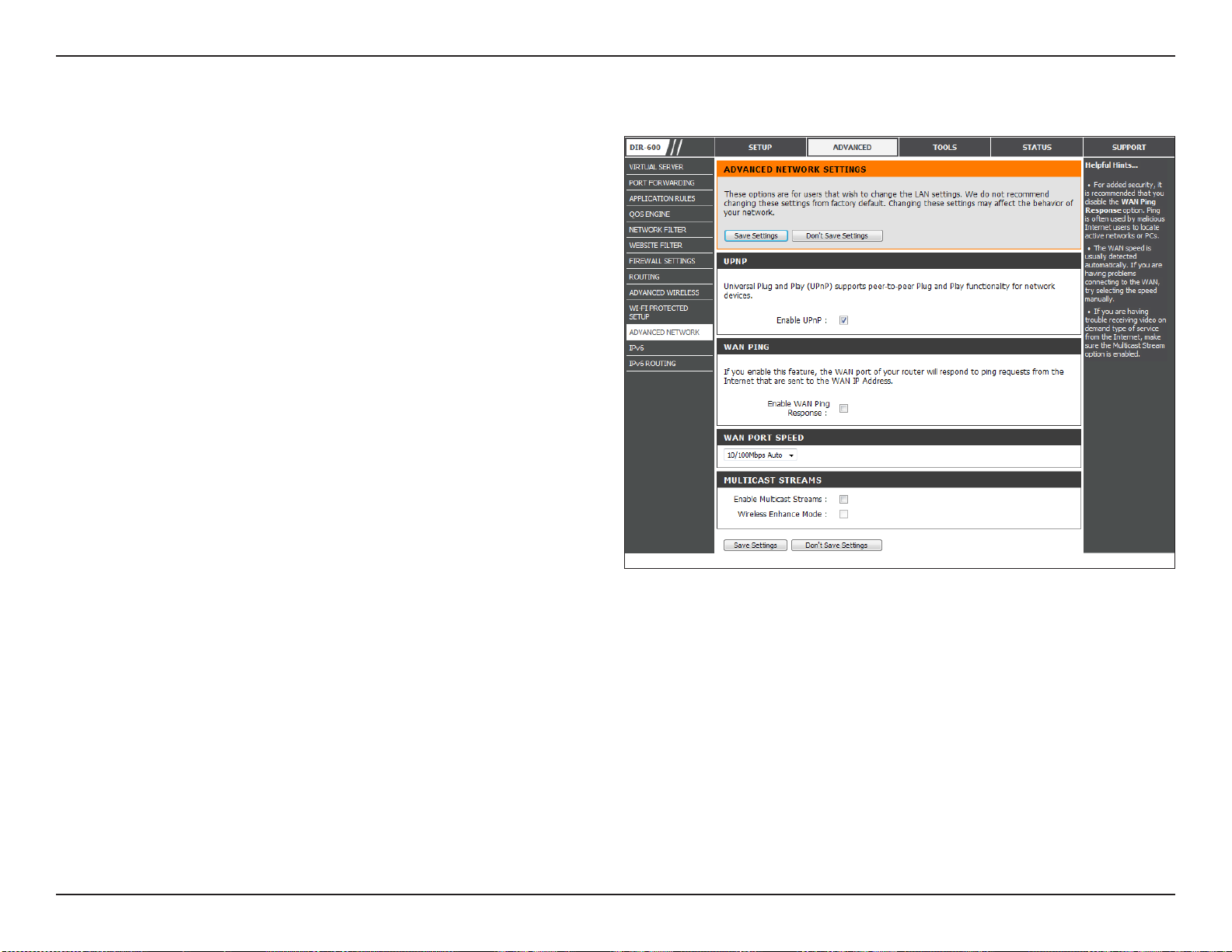

3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.

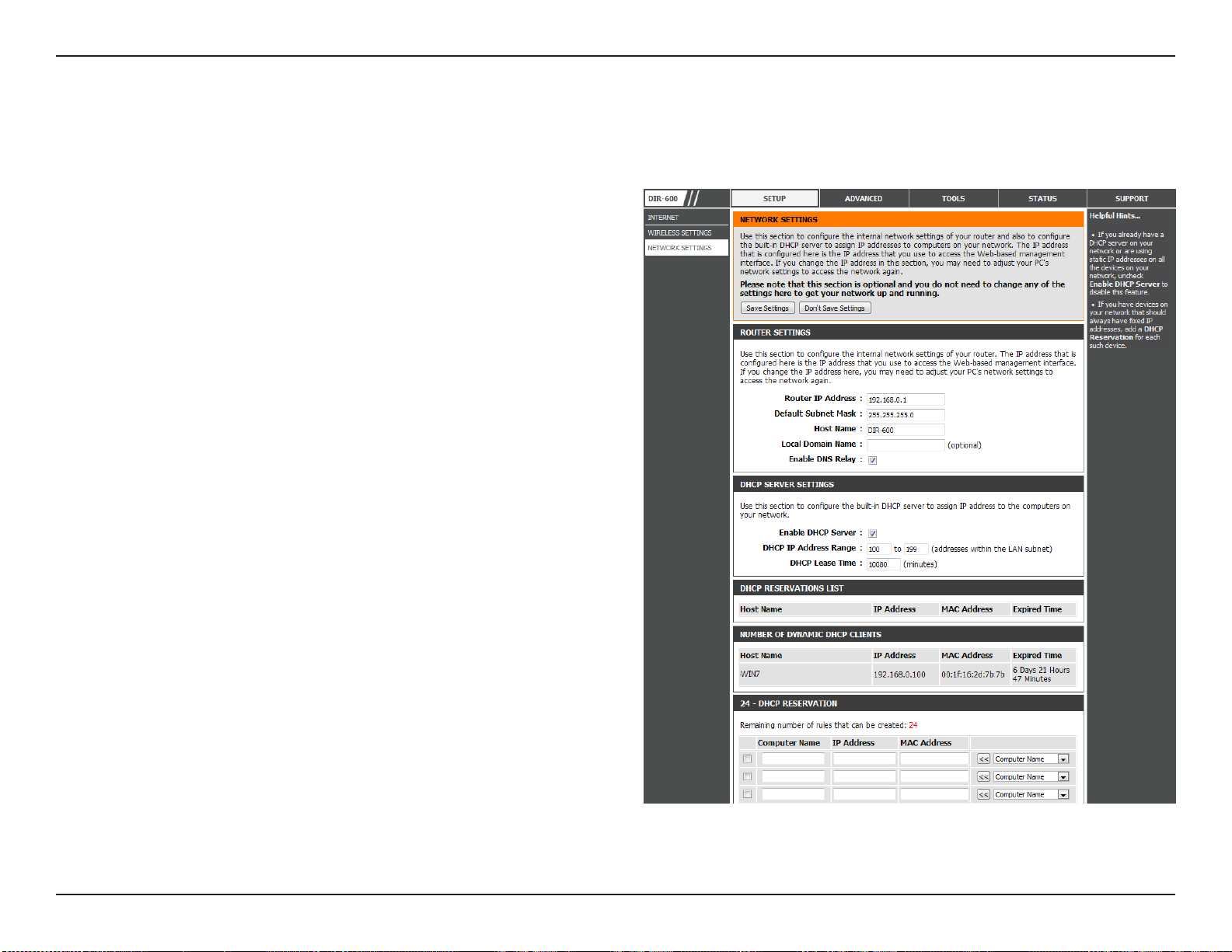

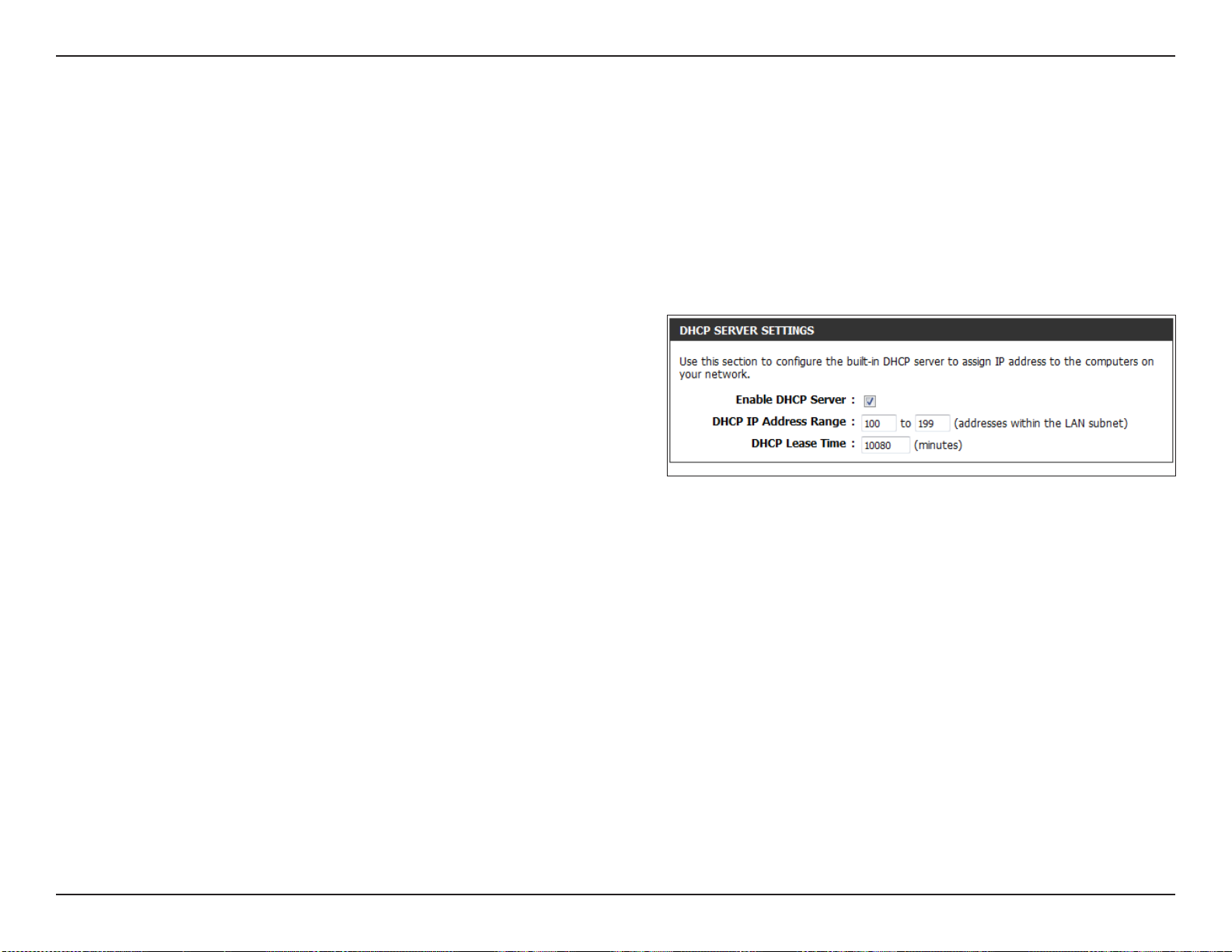

4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server checkbox. Click Save Settings to continue.

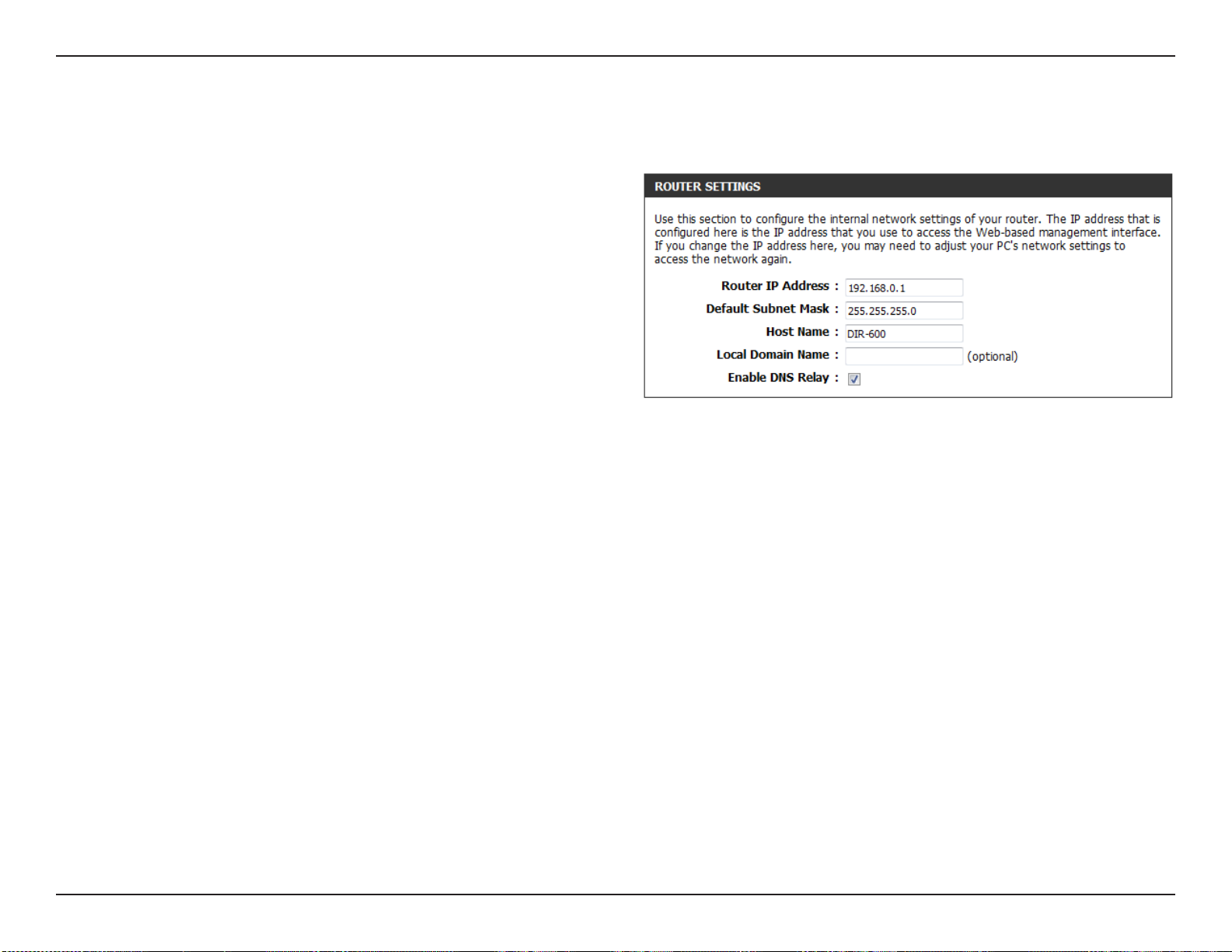

5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to save your settings. Use this new IP address to access the conguration utility of the router in the future. Close the browser and change your computer’s IP settings back to the original values as in Step 1.
10D-Link DIR-600 User Manual
Section 2 - Installation
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything into the Internet (WAN) port of the D-Link router.
8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To congure your wireless network, open a web browser and enter the IP address you assigned to the router. Refer to the Conguration and Wireless Security sections for more information on setting up your wireless network.
11D-Link DIR-600 User Manual
Section 2 - Installation
Getting Started
The DIR-600 includes a Setup Wizard CD. Follow the simple steps below to run the Setup Wizard to guide you quickly through the installation process.
Insert the Setup Wizard CD in the CD-ROM drive. The step-by-step instructions that follow are shown in Windows® XP. The steps and screens are similar for the other Windows operating systems.
If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type “D:\autorun.exe” (where D: represents the drive letter of your CD-ROM drive).
When the autorun screen appears, click Install.
Note: It is recommended to write down the SSID and Security Key, followed by the login password.
12D-Link DIR-600 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link wireless router using the web-based conguration utility.
Web-based Conguration Utility
To access the conguration utility, open a web-browser such as Internet Explorer and enter the IP address of the router (192.168.0.1).
Enter Admin in the User Name eld. Leave the password blank by default.
If you get a Page Cannot be Displayed error, please refer to the Troubleshooting section for assistance.
13D-Link DIR-600 User Manual
Section 3 - Conguration
Setup
Internet
This section allows you to congure your Router’s Internet settings.
Internet
Connection
Setup Wizard:
Manual Internet
Connection
Option:
The Internet Connection Setup Wizard provides a quick method for conguring your Internet settings. To start the Internet Connection Setup Wizard, click the Internet Connection Setup Wizard button. Refer to “Internet Connection Setup Wizard” on page 15 for more information on how to use the Internet Connection Setup Wizard.
Click the Manual Internet Connection Setup button if you want to enter your Internet settings without running the Internet Connection Setup Wizard. Refer to “Manual Internet Connection Setup” on page 22 for more information on how to congure your Internet settings manually.
14D-Link DIR-600 User Manual
Section 3 - Conguration
Internet Connection Setup Wizard
Click the Internet Connection Setup Wizard button to start the Internet Connection Setup Wizard.
15D-Link DIR-600 User Manual
Section 3 - Conguration
The following window appears, summarizing the steps required to complete the Internet Connection Setup Wizard:
Click Next to continue.
Create a new password and then click Next to continue.
Select your time zone from the drop-down menu and then click Next to continue.
16D-Link DIR-600 User Manual
Section 3 - Conguration
Select the type of Internet connection you use and then click Next to continue.
If you selected DHCP Connection (Dynamic IP Address), you may need to enter the MAC address of the computer that was last connected directly to your modem. If you are currently using that computer, click Clone Your PC’s MAC Address and then click Next to continue.
The Host Name is optional but may be required by some ISPs. The default host name is the device name of the router and may be changed.
17D-Link DIR-600 User Manual
Section 3 - Conguration
If you selected PPPoE, enter your PPPoE username and password.
If your ISP requires you to enter a PPPoE service name, enter the service name in the Service Name eld.
Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses.
Click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.
If you selected PPTP, enter your PPTP username and password.
Select Static if your ISP assigned you the IP address, subnet mask, gateway, and PPTP server addresses.
Click Next to continue.
18D-Link DIR-600 User Manual
Section 3 - Conguration
If you selected L2TP, enter your L2TP username and password.
Select Static if your ISP assigned you the IP address, subnet mask, gateway, and L2TP server addresses.
Click Next to continue.
If you selected Static, enter your network settings supplied by your Internet provider.
Click Next to continue.
19D-Link DIR-600 User Manual
Section 3 - Conguration
If you selected Russia PPTP (Dual Access), enter your PPTP username and password.
Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses.
Click Next to continue.
If you selected Russia PPPoE (Dual Access), enter your PPPoE username and password.
Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses.
If your ISP requires you to manually specify the WAN Physical IP settings, click the Static IP radio button and enter the required IP Address, Subnet Mask, Gateway, and DNS Server Addresses in their respective elds.
Click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.
20D-Link DIR-600 User Manual
Section 3 - Conguration
Click Connect to save your settings.
The following window appears to indicate that the settings are being saved. When the Router has nished saving all the changes, the Setup> Internet window will open.
Close your browser window and reopen it to test your Internet connection. It may take a few tries to initially connect to the Internet.
21D-Link DIR-600 User Manual
Section 3 - Conguration
Manual Internet Connection Setup
Access Point
Mode:
Internet
Connection
Type:
Check the Enabled Access Point Mode box if you want to disable NAT on the router and turn it into an Access Point.
Use the My Internet Connection is drop-down menu to select the mode that the router should use to connect to the Internet.
22D-Link DIR-600 User Manual
Section 3 - Conguration
Manual Internet Connection Setup
Static IP
Select Static IP from the drop-down menu if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask, gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the elds must be in the appropriate IP form, which are four octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.
IP Address:
Subnet Mask:
Default Gateway:
DNS Servers:
MTU:
MAC Address:
Enter the IP address assigned by your ISP.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.
The DNS server information will be supplied by your ISP (Internet Service Provider).
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1500 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Click the Save Settings button to save any changes made.
23D-Link DIR-600 User Manual
Section 3 - Conguration
Manual Internet Connection Setup
Dynamic IP (DHCP)
Select Dynamic IP (DHCP) from the drop-down menu to obtain IP Address information automatically from your ISP. Select this option if your ISP does not give you any IP numbers to use. This option is commonly used for cable modem services such as Comcast and Cox.
Host Name:
Primary/
Secondary DNS
Server:
MTU:
MAC Address:
The Host Name is optional but may be required by some ISPs. Leave blank if you are not sure.
Enter the Primary and Secondary DNS server IP addresses assigned by your ISP. These addresses are usually obtained automatically from your ISP. Enter the value 0.0.0.0 if you did not specically receive these from your ISP.
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1500 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Click the Save Settings button to save any changes made.
24D-Link DIR-600 User Manual
Section 3 - Conguration
Manual Internet Connection Setup
PPPoE (Username/Password)
Select PPPoE (Username/Password) from the drop-down menu if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnect
Mode:
Select Static IP if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password in the next box.
Enter the ISP Service Name (optional).
Use the radio buttons to specify the reconnect mode. The user can specify a custom schedule or specify the On Demand, or Manual option. To specify a custom schedule, use the drop-down menu to select one of the schedules that has been dened in the Tools> Schedules window. To create a new schedule, click the New Schedule button to open the Tools> Schedules window. Refer to “Schedules” on page 80 for more information.
Maximum Idle
Time:
DNS Servers:
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).
25D-Link DIR-600 User Manual
Section 3 - Conguration
MTU:
MAC Address:
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1454 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Click the Save Settings button to save any changes made.
26D-Link DIR-600 User Manual
Section 3 - Conguration
Manual Internet Connection Setup
PPTP
Select PPTP (Point-to-Point Tunneling Protocol) from the drop-down menu if your ISP uses a PPTP connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.
Address Mode:
PPTP IP Address:
PPTP Subnet
Mask:
PPTP Gateway IP
Address:
PPTP Server IP
Address:
Username:
Password:
Reconnect
Mode:
Select Static IP if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic IP.
Enter the IP address (Static PPTP only).
Enter the Primary and Secondary DNS Server Addresses (Static PPTP only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
Enter your PPTP username.
Enter your PPTP password and then retype the password in the next box.
Use the radio buttons to specify the reconnect mode. The user can specify a custom schedule or specify the On Demand, or Manual option.
To specify a custom schedule, use the drop-down menu to select one of the schedules that has been dened in the Tools> Schedules window. To create a new schedule, click the New Schedule button to open the Tools> Schedules window. Refer to “Schedules” on page 82 for more information.
27D-Link DIR-600 User Manual
Section 3 - Conguration
Maximum Idle
Time:
DNS Servers:
MTU:
MAC Address:
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.
The DNS server information will be supplied by your ISP (Internet Service Provider).
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1454 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Click the Save Settings button to save any changes made.
28D-Link DIR-600 User Manual
Section 3 - Conguration
Manual Internet Connection Setup
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.
Address Mode:
L2TP IP Address:
L2TP Subnet
Mask:
L2TP Gateway IP
Address:
L2TP Server IP
Address:
Username:
Password:
Reconnect
Mode:
Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the L2TP IP address supplied by your ISP (Static only).
Enter the Subnet Mask supplied by your ISP (Static only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
Enter your L2TP username.
Enter your L2TP password and then retype the password in the next box.
Use the radio buttons to specify the reconnect mode. The user can specify a custom schedule or specify the On Demand, or Manual option.
To specify a custom schedule, use the drop-down menu to select one of the schedules that has been dened in the Tools>
Schedules window. To create a new schedule, click the New Schedule button to open the Tools> Schedules window. Refer
to “Schedules” on page 80 for more information.
29D-Link DIR-600 User Manual
Section 3 - Conguration
Maximum Idle
Time:
DNS Servers:
MTU:
MAC Address:
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static L2TP only).
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1454 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Click the Save Settings button to save any changes made.
30D-Link DIR-600 User Manual
Section 3 - Conguration
Manual Internet Connection Setup
Russia PPTP (Dual Access)
Select PPTP (Point-to-Point Tunneling Protocol) from the drop-down menu if your ISP uses a PPTP connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.
Address Mode:
PPTP IP Address:
PPTP Subnet
Mask:
PPTP Gateway:
PPTP Server IP:
Username:
Password:
Reconnect
Mode:
Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPTP only).
Enter the Primary and Secondary DNS Server Addresses (Static PPTP only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
Enter your PPTP username.
Enter your PPTP password and then retype the password in the next box.
Use the radio buttons to specify the reconnect mode. The user can specify a custom schedule or specify the On Demand, or Manual option.
To specify a custom schedule, use the drop-down menu to select one of the schedules that has been dened in the Tools> Schedules window. To create a new schedule, click the New Schedule button to open the Tools> Schedules window. Refer to “Schedules” on page 80 for more information.
31D-Link DIR-600 User Manual
Section 3 - Conguration
Maximum Idle
Time:
DNS Servers:
MTU:
MAC Address:
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.
The DNS server information will be supplied by your ISP (Internet Service Provider).
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1454 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Click the Save Settings button to save any changes made.
32D-Link DIR-600 User Manual
Section 3 - Conguration
Manual Internet Connection Setup
Russia PPPoE (Dual Access)
Select PPPoE (Username/Password) from the drop-down menu if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnect
Mode:
Select Static IP if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic IP.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password in the next box.
Enter the ISP Service Name (optional).
Use the radio buttons to specify the reconnect mode. The user can specify a custom schedule or specify the On Demand, or Manual option.
To specify a custom schedule, use the drop-down menu to select one of the schedules that has been dened in the Tools> Schedules window. To create a new schedule, click the New Schedule button to open the Tools> Schedules window. Refer to “Schedules” on page 80 for more information.
Maximum Idle
Time:
DNS Addresses:
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto­reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).
33D-Link DIR-600 User Manual
Section 3 - Conguration
MTU:
MAC Address:
WAN Physical
Settings:
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1454 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
If your ISP requires you to manually specify the WAN Physical IP settings, click the Static IP radio button and enter the required IP Address, Subnet Mask, Gateway, and DNS Server Addresses in their respective elds.
Click the Save Settings button to save any changes made.
34D-Link DIR-600 User Manual
Section 3 - Conguration
Wireless Settings
If you want to congure the wireless settings on your router using the wizard, click Wireless Connection Setup Wizard and refer to ““Wireless Connection Setup Wizard” on page 89.
Click Add Wireless Device with WPS if you want to add a wireless device using Wi-Fi Protected Setup (WPS) and refer to “Add Wireless Device with WPS Wizard” on page 92.
If you want to manually congure the wireless settings on your router click Manual Wireless Connection Setup and refer to the next page.
35D-Link DIR-600 User Manual
Section 3 - Conguration
Manual Wireless Settings
802.11n/b/g (2.4GHz)
Enable Wireless:
Schedule:
Wireless Network
Name:
Enable Auto
Channel Selection:
Wireless Channel:
Transmission Rate:
Check the box to enable the wireless function. If you do not want to use wireless, uncheck the box to disable all the wireless functions.
Select the time frame that you would like your wireless network enabled. The schedule may be set to Always. Any schedule you create will be available in the drop-down menu. Click New Schedule to create a new schedule.
The Service Set Identier (SSID) is the name of your wireless network. Create a name using up to 32 characters. The SSID is case-sensitive.
The Auto Channel Selection setting can be selected to allow the DIR-600 to choose the channel with the least amount of interference.
Indicates the channel setting for the DIR-600. By default the channel is set to 1. The Channel can be changed to t the channel setting for an existing wireless network or to customize the wireless network. If you enable Auto Channel Selection, this option will be greyed out.
Select the transmit rate. It is strongly suggested to select Best (Automatic) for best performance.
WMM Enable:
Enable Hidden
Wireless
Wireless Security
Mode:
WMM (Wi-Fi Multimedia) is QoS for your wireless network. Check this box to improve the quality of video and voice applications for your wireless clients. This feature is not available in 802.11n congurations.
Check this box if you do not want the SSID of your wireless network to be broadcast by the DIR-600. If the SSID is hidden, the SSID of the DIR-600 will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-600 in order to connect to it.
Refer to “Wireless Security” on page 88 for more information regarding wireless security.
Click the Save Settings button to save any changes made.
36D-Link DIR-600 User Manual
Section 3 - Conguration
Network Settings
This section will allow you to change the local network settings of the router and to congure the DHCP settings.
Router
Settings:
DHCP Server
Settings:
DHCP
Reservations
List:
Number of
Dynamic
DHCP Clients:
DHCP
Reservation:
Use this section to congure the Router’s local network settings.
Use this section to congure the DIR-600’s built-in DHCP server settings.
Displays information about the devices that have a DHCP reservation from the DIR-600. The information includes the Host Name, IP Address, MAC Address, and Expiration Time.
Displays information about the devices that have a dynamic DHCP lease from the DIR-600. The information includes the Host Name, IP Address, MAC Address, and Lease Expiration Time.
Use this section to create a new DHCP reservation or manage existing DHCP reservations.
37D-Link DIR-600 User Manual
Section 3 - Conguration
Network Settings
Router Settings
Router IP Address:
Default Subnet
Mask:
Host Name:
Local Domain:
Enable DNS Relay:
Enter the IP address of the router. The default IP address is 192.168.0.1.
If you change the IP address, once you click Apply, you will need to enter the new IP address in your browser to get back into the conguration utility.
Enter the Subnet Mask. The default subnet mask is
255.255.255.0.
Enter a Host Name to identify the DIR-600.
Enter the Domain name (Optional).
Uncheck the box to transfer the DNS server information from your ISP to your computers. If checked, your computers will use the router for a DNS server.
Click the Save Settings button to save any changes made.
38D-Link DIR-600 User Manual
Section 3 - Conguration
Network Settings
DHCP Server Settings
DHCP stands for Dynamic Host Control Protocol. The DIR-600 has a built-in DHCP server. The DHCP Server will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.” When you turn your computers on, they will automatically load the proper TCP/IP settings provided by the DIR-600. The DHCP Server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool.
Enable DHCP
Server:
DHCP IP Address
Range:
DHCP Lease Time:
Check this box to enable the DHCP server on your router. Uncheck to disable this function.
Enter the starting and ending IP addresses for the DHCP server’s IP assignment.
Note: If you statically (manually) assign IP addresses to your computers or devices, make sure the IP addresses are outside of this range or you may have an IP conict.
The length of time for the IP address lease. Enter the Lease time in minutes.
When you have nished conguring the new DHCP Server Settings, click the Save Settings button at the top or bottom of the window.
39D-Link DIR-600 User Manual
Section 3 - Conguration
Network Settings
DHCP Reservation
If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router will assign the IP address only to that computer or device.
Note: This IP address must be within the DHCP IP Address Range.
Checkbox:
Computer
Name:
IP Address:
MAC Address:
Check this box to enable the reservation.
Enter the computer name. Alternatively, select a computer that currently has a DHCP lease from the drop down menu and click << to automatically populate the Computer Name, IP Address, and MAC Address elds.
Enter the IP address you want to assign to the computer or device. This IP Address must be within the DHCP IP Address Range.
Enter the MAC address of the computer or device.
When you have nished conguring the new DHCP Reservation, click the Save Settings button at the top or bottom of the window to activate your reservations.
40D-Link DIR-600 User Manual
Section 3 - Conguration
Advanced
Virtual Server
The DIR-600 can be congured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN (Local Area Network).
The DIR-600 rewall feature lters out unrecognized packets to protect your LAN network so all computers networked with the DIR-600 are invisible to the outside world. If you wish, you can make some of the LAN computers accessible from the Internet by enabling Virtual Server. Depending on the requested service, the DIR-600 redirects the external service request to the appropriate server within the LAN network.
The DIR-600 is also capable of port-redirection, meaning that incoming trac to a particular port may be redirected to a dierent port on the server computer.
For a list of ports for common applications, please visit http://support.dlink.com/faq/view.asp?prod_id=1191.
41D-Link DIR-600 User Manual
Section 3 - Conguration
The Virtual Server window allows you to open a single port. If you would like to open a range of ports, refer to the next page.
Enable
Checkbox:
Name:
IP Address:
Public Port/
Private Port:
Check the box on the left side to enable the Virtual Server rule.
Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the elds.
Enter the IP address of the computer on your local network that you want to allow the incoming service to. If your computer is receiving an IP address automatically from the router (DHCP), you computer will be listed in the Computer Name drop-down menu. Select your computer and click <<.
Enter the port that you want to open next to Public Port and Private Port. The public and private ports are usually the same. The public port is the port seen from the Internet side, and the private port is the port being used by the application on the computer within your local network.
Trac Type:
Schedule
Drop-Down
Menu:
Select TCP, UDP, or All from the Protocol drop-down menu.
Use the drop-down menu to schedule the time that the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section.
Click the Save Settings button to save any changes made.
42D-Link DIR-600 User Manual
Section 3 - Conguration
Port Forwarding
This will allow you to open a single port or a range of ports.
Enable Checkbox:
Name:
IP Address:
Public Port/
Private Port:
Tick the checkbox on the left side to enable the Port Forwarding rule.
Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the elds.
Enter the IP address of the computer on your local network that you want to allow the incoming service to. If your computer is receiving an IP address automatically from the router (DHCP), you computer will be listed in the Computer Name drop-down menu. Select your computer and click <<.
Enter the port that you want to open next to Public Port and Private Port. The public and private ports are usually the same. The public port is the port seen from the Internet side, and the private port is the port being used by the application on the computer within your local network.
Trac Type:
Schedule:
Select TCP, UDP, or All from the drop-down menu.
Use the drop-down menu to schedule the time that the Port Forwarding rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section.
Click the Save Settings button to save any changes made.
43D-Link DIR-600 User Manual
Section 3 - Conguration
Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications have diculties working through NAT (Network Address Translation). Special Applications makes some of these applications work with the DIR-600. If you need to run applications that require multiple connections, specify the port normally associated with an application in the “Trigger Port” eld, select the protocol type as TCP or UDP, then enter the rewall (public) ports associated with the trigger port to open them for inbound trac.
Enable Checkbox:
Name:
Trigger:
Trac Type:
Firewall:
Trac Type:
Schedule:
Check the box on the left side to enable the Application Rule.
Enter a n a me f o r th e rule. Yo u m a y sel e c t a pre-dened application from the Application drop-down menu and click <<.
This is the port used to trigger the application. It can be either a single port or a range of ports.
Select the protocol of the trigger port (TCP, UDP, or All).
This is the port number on the Internet side that will be used to access the application. You may dene a single port or a range of ports. You can use a comma to add multiple ports or port ranges.
Select the protocol of the rewall port (TCP, UDP, or All).
The schedule of time when the Application Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section.
Click the Save Settings button to save any changes made.
44D-Link DIR-600 User Manual
Section 3 - Conguration
QoS Engine
The QoS Engine option helps improve your network gaming performance by prioritizing applications. By default the QoS Engine settings are disabled and application priority is not classied automatically.
Enable QoS
Engine:
Automatic Uplink
Speed:
Measured Uplink
Speed:
Manual Uplink
Speed:
Connection Type:
This option is disabled by default. Enable this option for better performance and experience with online games and other interactive applications, such as VoIP.
This option is enabled by default when the QoS Engine option is enabled. This option will allow your router to automatically determine the uplink speed of your Internet connection.
This displays the detected uplink speed.
The speed at which data can be transferred from the router to your ISP. This is determined by your ISP. ISP’s often dene speed as a download/upload pair. For example, 1.5Mbits/284Kbits. Using this example, you would enter 284. Alternatively you can test your uplink speed with a service such as www.dslreports.com.
By default, the router automatically determines whether the underlying connection is an xDSL/Frame-relay network or some other connection type (such as cable modem or Ethernet), and it displays the result as Detected xDSL or Frame Relay Network. If you have an unusual network connection in which you are actually connected via xDSL but for which you congure either “Static” or “DHCP” in the Internet settings, setting this option to xDSL or Other Frame Relay Network ensures that the router will recognize that it needs to shape trac slightly dierently in order to give the best performance. Choosing xDSL or Other Frame Relay Network causes the measured uplink speed to be reported slightly lower than before on such connections, but gives much better results.
Detected xDSL or
Other Frame Relay
Network:
When Connection Type is set to auto-detect, the automatically detected connection type is displayed here.
Click the Save Settings button to save any changes made.
45D-Link DIR-600 User Manual
Section 3 - Conguration
Network Filter
Use MAC (Media Access Control) Filters to allow or deny LAN (Local Area Network) computers by their MAC addresses from accessing the network. You can either manually add a MAC address or select the MAC address from the list of clients that are currently connected to the Broadband Router.
Congure MAC
Filtering:
Enable Checkbox:
MAC Address:
DHCP Client List:
Schedule:
Select Turn MAC Filtering OFF, Turn MAC Filtering ON and ALLOW computers listed to access the network, or Turn MAC Filtering ON and DENY computers listed to access the network from the drop-down menu.
Check the box on the left side to enable the Network Filter.
Enter the MAC address you would like to lter.
To nd the MAC address on a computer, please refer to the Networking Basics section in this manual.
Select a DHCP client from the Computer Name drop down menu and click << to copy that MAC Address.
The schedule of time when the Network Filter will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. Click the New Schedule button to create your own times in the Tools > Schedules section.
Click the Save Settings button to save any changes made.
46D-Link DIR-600 User Manual
Section 3 - Conguration
Website Filter
Website Filters are used to allow you to set up a list of Web sites that can be viewed by multiple users through the network. To use this feature select the appropriate Web Filtering option, enter the domain or website, and click Save Settings.
Congure Web
Filtering:
Enable Checkbox:
Website URL:
Schedule:
Select Turn OFF WEBSITE FILTERING, ALLOW computers access to ONLY these sites, or DENY computers access to ONLY these sites from the drop-down menu.
Check the box on the left side to enable the Website Filter.
Enter the keywords or URLs that you want to allow or block.
The schedule of time when the Website Filter will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. Click the New Schedule button to create your own times in the Tools > Schedules section.
Click the Save Settings button to save any changes made.
47D-Link DIR-600 User Manual
Section 3 - Conguration
Firewall Settings
A rewall protects your network from the outside world. The DIR-600 oers a rewall type functionality. The SPI feature helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the chosen computer completely to the outside world.
Firewall Settings:
DMZ Host:
Check the Enable SPI box to enable the SPI (Stateful Packet Inspection, also known as dynamic packet ltering) feature. Enabling SPI helps to prevent cyber attacks by tracking more state per session. It validates that the trac passing through the session conforms to the protocol.
If an application has trouble working from behind the router, you can expose one computer to the Internet and run the application on that computer.
Carry out the following to create a DMZ host:
1. Check the Enable DMZ box.
2. Specify the IP address of the computer on the LAN that you want to have unrestricted Internet communication in the DMZ IP address eld. To specify an existing DHCP client, use the Computer Name drop-down to select the computer that you want to make a DMZ host. If selecting a computer that is a DHCP client, be sure to make a static reservation in the Setup > Network Settings page so that the IP address of the DMZ machine does not change.
3. Click the Save Settings button to add the new DMZ host.
Note: Placing a computer in the DMZ may expose that computer to a variety of security risks. Use of this option is only recommended as a last resort.
48D-Link DIR-600 User Manual
Section 3 - Conguration
Firewall Settings
Firewall Rules
Use the Firewall Rules section to create/modify rewall rules.
Enable Checkbox:
Name:
Action:
Source:
Dest:
Check the box on the left side to enable the rewall rule.
Enter a name to identify the rewall rule.
Use the drop-down menu to Allow or Deny transport of the data packets according to the criteria dened in the rewall rule.
Use the Source drop-down menu to specify the interface that connects to the source IP addresses of the rewall rule.
Enter the rst source IP address in the range in the adjacent top IP Address eld.
Enter the last source IP address in the range in the IP Address eld below.
Use the Dest drop-down menu to specify the interface that connects to the destination IP addresses of the rewall rule.
Enter the rst destination IP address in the range in the adjacent top IP Address eld.
Enter the last destination IP address in the range in the IP Address eld below.
49D-Link DIR-600 User Manual
Section 3 - Conguration
Protocol:
Port Range:
Select Schedule:
Select the protocol of the rewall port (All, TCP, UDP, or ICMP).
Enter the rst port of the range that will be used for the rewall rule in the top port range eld and enter the last port in the eld underneath.
Use the drop-down menu to schedule the time that the Firewall rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. Click the New Schedule button to create your own times in the Tools > Schedules section.
When you have nished conguring the rewall rules, click the Save Settings button at the top or bottom of the window to save any changes made.
50D-Link DIR-600 User Manual
Section 3 - Conguration
Routing
The Routing option is an advanced method of customizing specic routes of data through your network.
Enable:
Interface:
Destination:
Subnet Mask:
Gateway:
To enable a route, check the box that is on the left side of the route.
Use the drop-down menu to specify if the IP packet must use the WAN or LAN interface to transit out of the Router.
Enter the IP address of the packets that will take this route.
Enter the subnet mask to specify the subnet of the IP packets that will take this route.
Enter the next hop that will be taken if this route is used.
Click the Save Settings button to save any changes made.
51D-Link DIR-600 User Manual
Section 3 - Conguration
Advanced Wireless Settings
802.11n/b/g (2.4GHz)
Transmit Power:
Beacon Period:
RTS Threshold:
Fragmentation:
DTIM Interval:
Preamble Type:
Set the transmit power of the antennas.
Beacons are packets sent by an Access Point to synchronize a wireless network. Specify a value. 100 is the default setting and is recommended.
This value should remain at its default setting of 2346. If inconsistent data flow is a problem, only a minor modication should be made.
The fragmentation threshold, which is specied in bytes, determines whether packets will be fragmented. Packets exceeding the 2346 byte setting will be fragmented before transmission. 2346 is the default setting.
(Delivery Trac Indication Message) 1 is the default setting. A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages.
Use the radio buttons to specify whether the Router should use the Short Preamble or Long Preamble type. The preamble type denes the length of the CRC (Cyclic Redundancy Check) block for communication between the Router and roaming wireless adapters.
Wireless Mode:
Band
Width:
Short
Guard Interval:
Use the drop-down menu to specify the wireless mode that will be used by the 2.4GHz band. The available options are 802.11n only,
802.11 Mixed (g/b), and 802.11 Mixed (n/g/b).
Use the drop-down menu to select the channel bandwidth. If you selected the 802.11 Mixed (g/b) or 802.11 Mixed (n/g/b) wireless mode, the available options are 20 MHz and 20/40MHz. If selecting the 802.11n only wireless mode, 20MHz is the only available option.
Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create higher data loss.
Click the Save Settings button to save any changes made.
52D-Link DIR-600 User Manual
Section 3 - Conguration
Wi-Fi Protected Setup (WPS)
Wi-Fi Protected Setup (WPS) System is a simplied method for securing your wireless network during the “Initial setup” as well as the “Add New Device” processes. The Wi-Fi Alliance (WFA) has certied it across dierent products as well as manufactures. The process is just as easy, as depressing a button for the Push-Button Method or correctly entering the 8-digit code for the Pin-Code Method. The time reduction in setup and ease of use are quite benecial, while the highest wireless Security setting of WPA2 is automatically used.
Enable:
PIN Settings:
PIN:
Reset PIN to
Default:
Generate New
PIN:
Enable the Wi-Fi Protected Setup feature.
A PIN is a unique number that can be used to add the router to an existing network or to create a new network. The default PIN may be printed on the bottom of the router. For extra security, a new PIN can be generated. You can restore the default PIN at any time. Only the Administrator (“admin” account) can change or reset the PIN.
Shows the current value of the router’s PIN.
Click this button to restore the default PIN of the router.
Click this button to create a random number that is a valid PIN. This becomes the router’s PIN. You can then copy this PIN to the user interface of the registrar.
53D-Link DIR-600 User Manual
Section 3 - Conguration
Add Wireless
Station:
Click the Connect your Wireless Device button to start Wireless Connection Setup Wizard. This wizard helps you add wireless devices to the wireless network.
The wizard will either display the wireless network settings to guide you through manual conguration, prompt you to enter the PIN for the device, or ask you to press the conguration button on the device. If the device supports Wi-Fi Protected Setup and has a conguration button, you can add it to the network by pressing the conguration button on the device and then the on the router within 60 seconds. The status LED on the router will ash three times if the device has been successfully added to the network.
There are several ways to add a wireless device to your network. A “registrar” controls access to the wireless network. A registrar only allows devices onto the wireless network if you have entered the PIN, or pressed a special Wi-Fi Protected Setup button on the device. The router acts as a registrar for the network, although other devices may act as a registrar as well.
Click the Save Settings button to save any changes made.
54D-Link DIR-600 User Manual
Section 3 - Conguration
Advanced Network
Enable UPnP:
Enable WAN Ping
Response:
WAN Port Speed:
Enable Multicast
Streams:
Wireless Enhance
Mode:
To use the Universal Plug and Play (UPnP™) feature click on Enabled. UPNP provides compatibility with networking equipment, software and peripherals.
Unchecking the box will not allow the DIR-600 to respond to pings. Blocking the Ping may provide some extra security from hackers. Check the box to allow the Internet port to be “pinged”.
You may set the port speed of the Internet port to 10Mbps, 100Mbps, or auto. Some older cable or DSL modems may require you to set the port speed to 10Mbps.
Check the Enable Multicast Streams box to allow multicast trac to pass through the router from the Internet.
Check the Wireless Enhance Mode box to enable the router to forward all multicast streams from the Internet to the wireless station using a unicast stream. This feature helps improve the quality of multimedia applications for wireless users.
Internet Port Speed
Internet Ping Block
Multicast Streams
UPnP
Click the Save Settings button to save any changes made.
55D-Link DIR-600 User Manual
Section 3 - Conguration

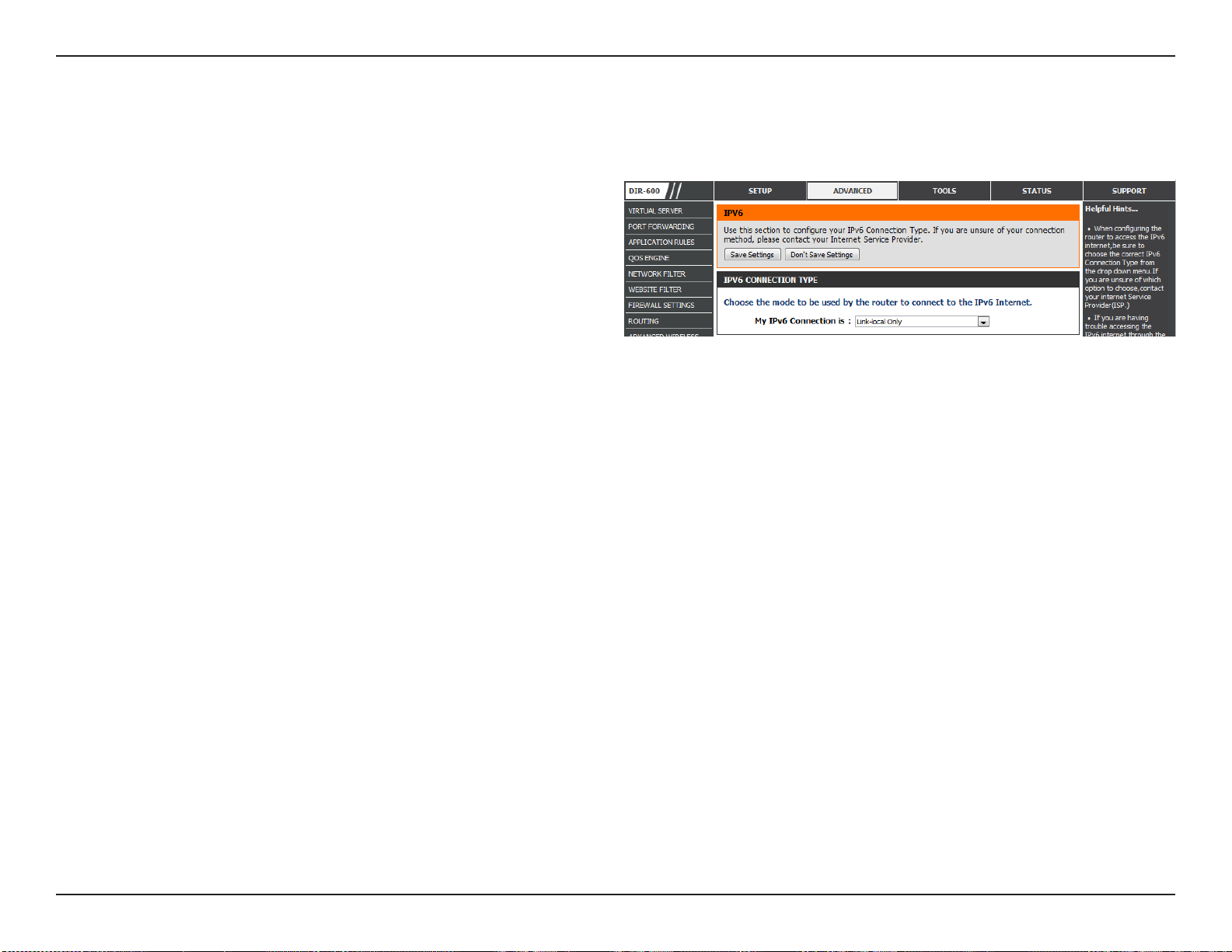

IPv6
Use the IPv6 window to congure the mode that the Router will use to access an IPv6 Internet connection.
My Internet
Connection is:
Use the drop-down menu to select the IPv6 Internet Connection mode.
56D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
Static IPv6
Select Static IPv6 from the My IPv6 Connection is drop-down menu if your Router will use a static IPv6 address to connect to the Internet.
WAN IPv6 Address
Settings:
LAN IPv6 Address:
LAN IPv6
Link-Local Address:
LAN Address
Autoconguration
Settings:
Enter the address settings supplied by your Internet provider (ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Use this section to congure the IPv6 autoconguration settings.
Click the Save Settings button to save any changes made.
57D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
Link-local Only
Select Link-local Only from the My IPv6 Connection is drop-down menu if your Router will use the IPv6 link local method to connect to the Internet.
LAN IPv6 Address
Settings:
Click the Save Settings button to save any changes made.
Displays the LAN IPv6 Link-Local address of the router.
58D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6

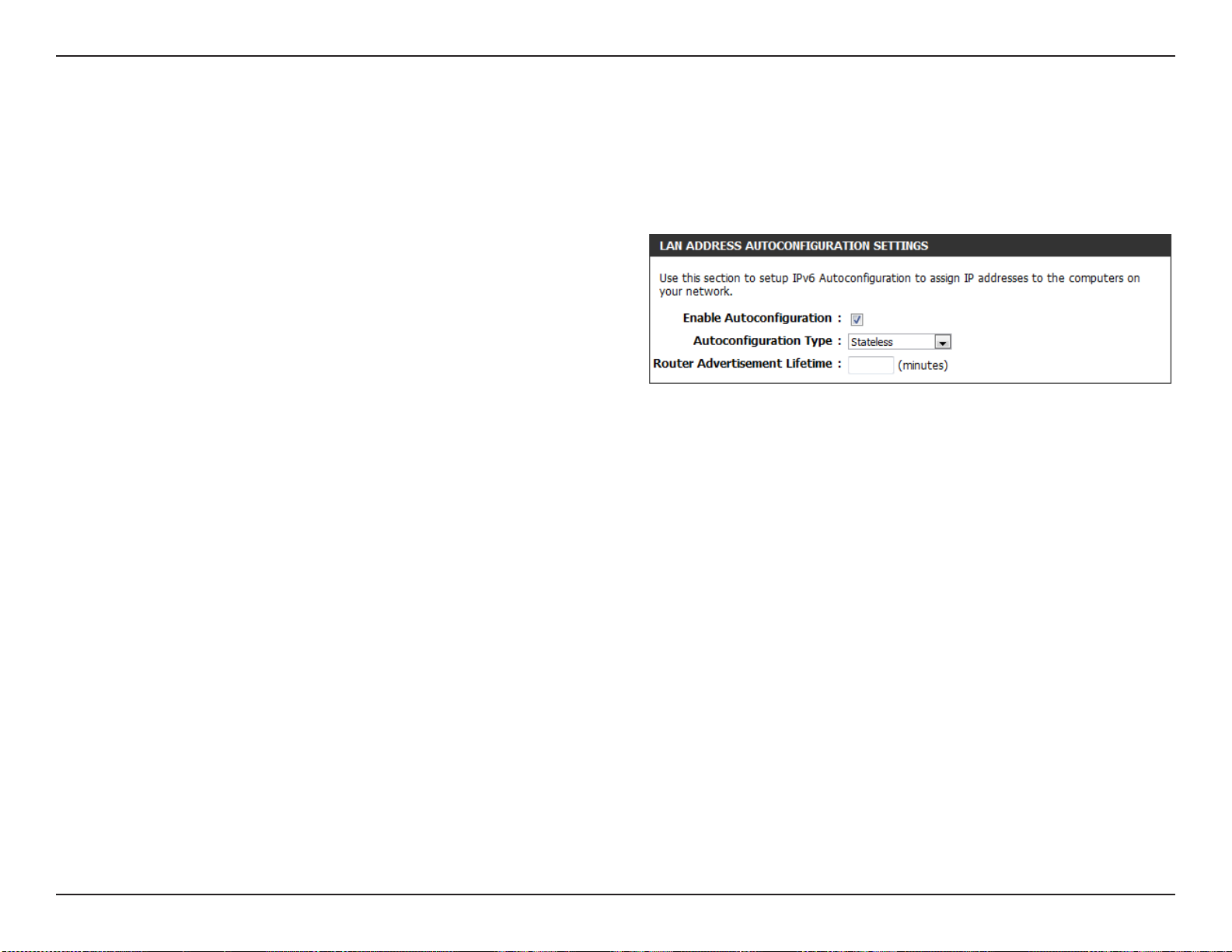

Static IPv6 (Stateless)
To congure the Router to use a Static IPv6 Stateless connection, congure the parameters in the LAN Address Autoconguration Settings section as described below:
Enable
Autoconguration:
Autoconguration
Type:
Router
Advertisement
Lifetime:
Check to enable the Autoconguration feature.
Select the Stateless option from the drop-down menu.
Enter the Router Advertisement Lifetime (in minutes).
Click the Save Settings button to save any changes made.
59D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6

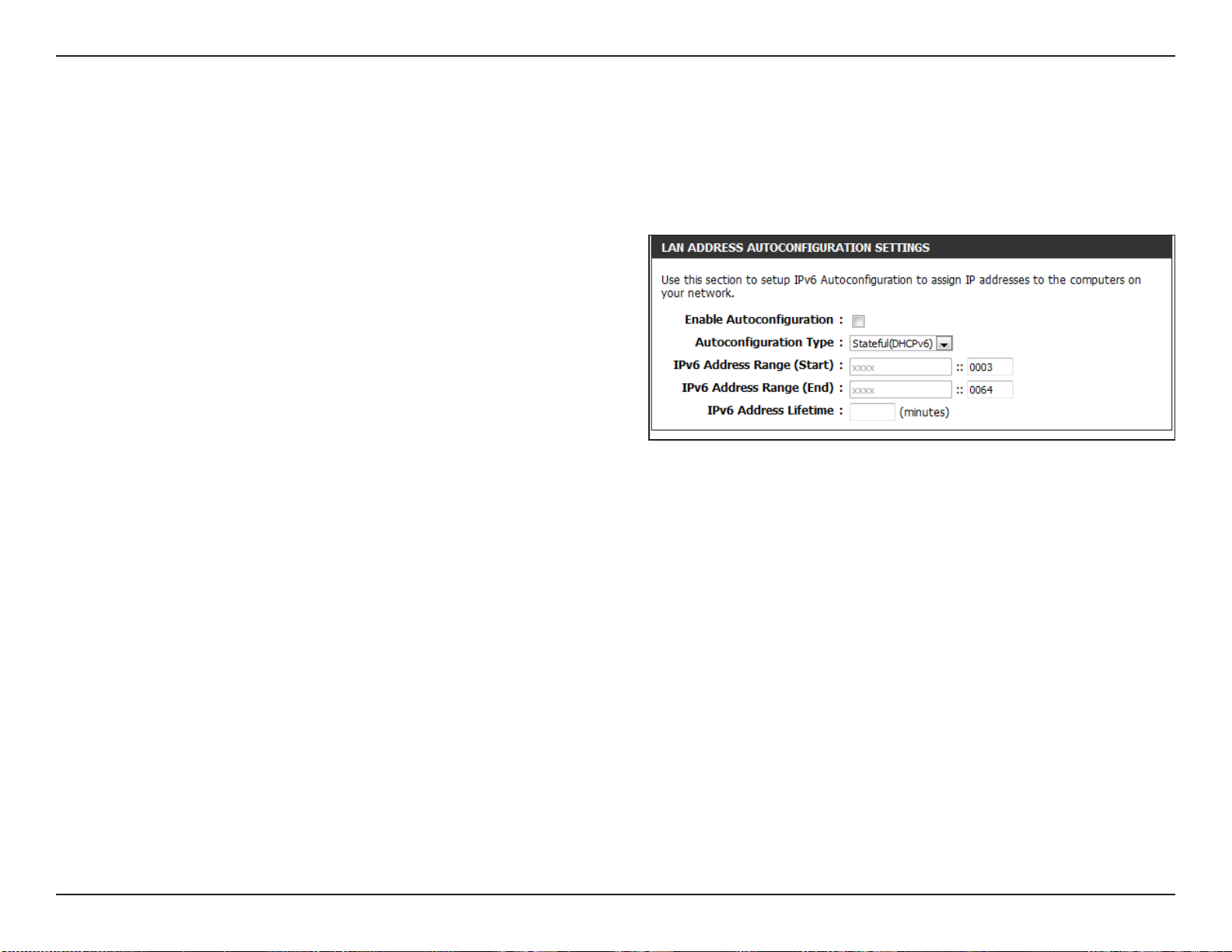

Static IPv6 (Stateful)
To congure the Router to use a Static IPv6 Stateful connection, congure the parameters in the LAN Address Autoconguration Settings section as described below:
Enable
Autoconguration:
Autoconguration
Type:
IPv6 Address Range
Start:
IPv6 Address Range
IPv6 Address
Lifetime:
Check to enable the Autoconguration feature.
Select the Stateful(DHCPv6) option from the drop-down menu.
Enter the start IPv6 Address for the DHCPv6 range for your local computers.
Enter the end IPv6 Address for the DHCPv6 range for your
End:
local computers.
Enter the IPv6 Address Lifetime (in minutes).
Click the Save Settings button to save any changes made.
60D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
Autoconguration(Stateless/DHCPv6)
Select Autoconguration(Stateless/DHCPv6) from the My IPv6 Connection is drop-down menu if your Router will use the IPv6 Autoconguration(Stateless/DHCPv6) method to connect to the Internet.
IPv6 DNS Settings:
Enable DHCP-PD:
LAN IPv6 Address:
LAN IPv6 Link-Local Address:
LAN Address Autoconguration Settings:
Select either Obtain DNS server address automatically or Use thefollowing DNS Address.
Select DHCP-PD to acquire the IPv6 prex for the Router.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Use this section to congure the IPv6 autoconguration settings.
61D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
Autoconguration(Stateless/DHCPv6)- (Stateless)
To congure the Router to use a 6rd Stateless connection, congure the parameters in the LAN Address Autoconguration Settings section as described below:
Enable
Autoconguration:
Autoconguration
Type:
Router
Advertisement
Lifetime:
Check to enable the Autoconguration feature.
Select the Stateless option from the drop-down menu.
Enter the Router Advertisement Lifetime (in minutes).
Click the Save Settings button to save any changes made.
62D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
Autoconguration(Stateless/DHCPv6)- (Stateful)
To congure the Router to use a 6rd Stateful connection, congure the parameters in the LAN Address Autoconguration Settings section as described below:
Enable
Autoconguration:
Autoconguration
Type:
IPv6 Address Range
(Start):
IPv6 Address Range
(End):
Router
Advertisement
Lifetime:
Check to enable the Autoconguration feature.
Select Stateful. Refer to the previous page for Stateful.
Enter the start IPv6 Address for the DHCPv6 range for your local computers.
Enter the end IPv6 Address for the DHCPv6 range for your local computers.
Enter the Router Advertisement Lifetime (in minutes).
Click the Save Settings button to save any changes made.
63D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
PPPoE
Select PPPoE from the My IPv6 Connection is drop-down menu if your Router will use the PPPoE method to connect to the Internet.
PPPoE:
IPv6 DNS Settings:
Enable DHCP-PD:
LAN IPv6 Address:
LAN IPv6 Link-Local
Address:
LAN Address
Autoconguration
Settings:
Enter the settings supplied by your Internet provider (ISP).
Select either Obtain DNS server address automatically or Use thefollowing DNS Address. Select DHCP-PD to acquire the IPv6 prex for the Router.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Use this section to congure the IPv6 autoconguration settings.
64D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
IPv6 in IPv4 Tunnel
Select 6rd from the My IPv6 Connection is drop-down menu if your Router will use the IPv6 6rd method to connect to the Internet.
IPv6 in IPv4 Tunnel
Settings:
IPv6 DNS Settings:
LAN IPv6 Address:
LAN IPv6 Link-Local
Address:
LAN Address
Autoconguration
Settings:
Enter the settings supplied by your Internet provider (ISP).
Select either Obtain DNS server address automatically or Use thefollowing DNS Address. Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Use this section to congure the IPv6 autoconguration settings.
65D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
IPv6 in IPv4 Tunnel(Stateless)
To congure the Router to use a 6rd Stateless connection, congure the parameters in the LAN Address Autoconguration Settings section as described below:
Enable
Autoconguration:
Autoconguration
Type:
Router
Advertisement
Lifetime:
Check to enable the Autoconguration feature.
Select the Stateless option from the drop-down menu.
Enter the Router Advertisement Lifetime (in minutes).
Click the Save Settings button to save any changes made.
66D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
IPv6 in IPv4 Tunnel (Stateful)
To congure the Router to use a 6rd Stateful connection, congure the parameters in the LAN Address Autoconguration Settings section as described below:
Enable
Autoconguration:
Autoconguration
Type :
IPv6 Address Range
(Start) :
IPv6 Address Range
(End) :
Router
Advertisement
Lifetime :
Check to enable the Autoconguration feature.
Select Stateful. Refer to the previous page for Stateful.
Enter the start IPv6 Address for the DHCPv6 range for your local computers.
Enter the end IPv6 Address for the DHCPv6 range for your local computers.
Enter the Router Advertisement Lifetime (in minutes).
Click the Save Settings button to save any changes made.
67D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
6to4
Select 6to4 from the My IPv6 Connection is drop-down menu if your Router will use an IPv6 to IPv4 tunnel to connect to the Internet.
WAN IPv6 Address
Settings:
LAN IPv6 Address:
LAN IPv6 Link-
Local Address:
LAN Address
Autoconguration
Settings:
Enter the address settings supplied by your Internet provider (ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Use this section to con餀gure the IPv6 autocon餀guration settings.
68D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
6to4(Stateless) Autoconguration
To congure the Router to use an IPv6 to IPv4 tunnel stateless autoconguration connection, congure the parameters in the
LAN Address Autoconguration Settings section as described below:
Enable
Autoconguration:
Autoconguration
Type:
Router
Advertisement
Lifetime:
Check to enable the Autoconguration feature.
Select the Stateless option from the drop-down menu.
Enter the Router Advertisement Lifetime (in minutes).
Click the Save Settings button to save any changes made.
69D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
6to4(Stateful) (DHCPv6) Autoconguration
To congure the Router to use an IPv6 to IPv4 tunnel stateful autoconguration connection, congure the parameters in the
LAN Address Autoconguration Settings section as described below:
Enable
Autoconguration:
Autoconguration
Type:
IPv6 Address Range
Start:
IPv6 Address Range
IPv6 Address
Lifetime:
Check to enable the Autoconguration feature.
Select the Stateful(DHCPv6) option from the drop-down menu.
Enter the start IPv6 Address for the DHCPv6 range for your local computers.
Enter the end IPv6 Address for the DHCPv6 range for your
End:
local computers.
Enter the IPv6 Address Lifetime (in minutes).
Click the Save Settings button to save any changes made.
70D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
6rd
Select 6rd from the My IPv6 Connection is drop-down menu if your Router will use the IPv6 6rd method to connect to the Internet.
WAN IPv6 Address
Settings:
LAN IPv6 Address:
LAN IPv6 Link-Local
Address:
LAN Address
Autoconguration
Settings:
Enter the address settings supplied by your Internet provider (ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Use this section to congure the IPv6 autoconguration settings.
71D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6 Routing
The Routing option is an advanced method of customizing specic routes of data through your network.
Enable:
Metric:
Interface:
Destination IPv6
/ Prex Length:
Gateway:
To enable a route, check the box that is on the left side of the route.
Use the drop-down menu to specify if the IP packet must use the WAN or LAN interface to transit out of the Router.
Use the drop-down menu to specify if the IP packet must use the WAN or LAN interface to transit out of the Router.
Enter the LAN (local) IPv6 address for the router and Prex Length.
Enter the next hop that will be taken if this route is used.
72D-Link DIR-600 User Manual
Section 3 - Conguration
Tools

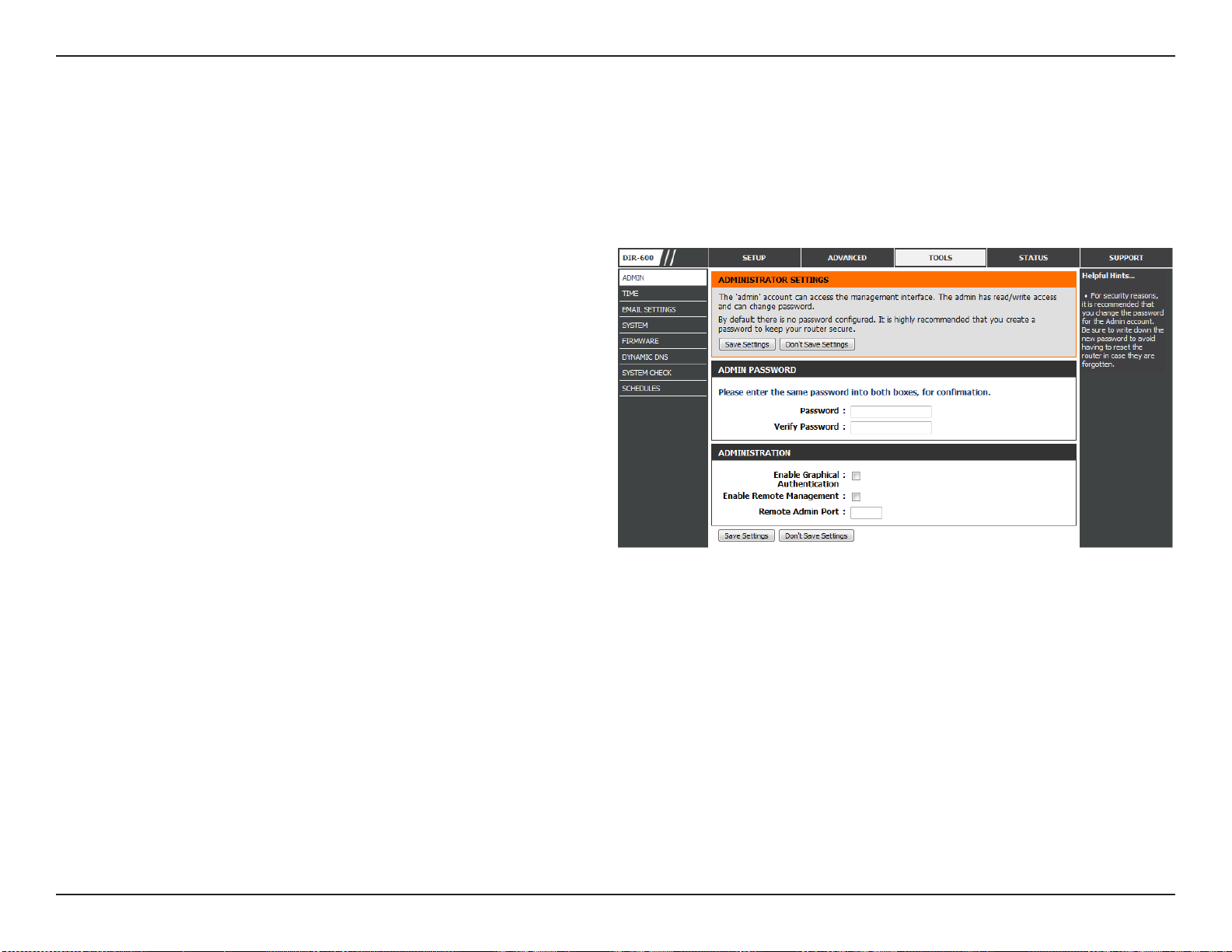

Admin
This page will allow you to change the Administrator password and congure the authentication settings. This window also allows you to enable Remote Management, via the Internet.
Admin
Password:
Enable
Graphical
Authentication:
Enable Remote
Management:
Remote
Admin Port:
Enter a new password for the Administrator Login Name. The administrator can make changes to the settings.
Enables a challenge-response test to require users to type letters or numbers from a distorted image displayed on the screen to prevent online hackers and unauthorized users from gaining access to your router’s network settings.
Remote management allows the DIR-600 to be congured from the Internet by a web browser. A username and password is still required to access the Web-Management interface. In general, only a member of your network can browse the built-in web pages to perform Administrator tasks. This feature enables you to perform Administrator tasks from the remote (Internet) host.
Enter the port number that will be used to access the DIR-815.
Click the Save Settings button to save any changes made.
73D-Link DIR-600 User Manual
Section 3 - Conguration
Time
The Time window allows you to congure, update, and maintain the correct time on the internal system clock. From this section you can set the time zone that you are in and set the Time Server. Daylight Saving can also be congured to automatically adjust the time when needed.
Time Zone:
Enable Daylight
Saving:
Sync. Your
Computer’s Time
Settings:
Automatic
Time and Date
Conguration:
Select the Time Zone from the drop-down menu.
Check this box if the country your are located in uses Daylight Saving time. Enter a start date and an end date for daylight saving time.
Click this button to synchronize the DIR-600’s system clock to your computer’s time settings.
NTP is short for Network Time Protocol. NTP synchronizes computer clock times in a network of computers. To enable NTP carry out the following:
1. Check the Automatically synchronize with D-Link’s Internet Time Server box.
2. Choose the D-Link NTP server that you would like to synchronize with from the NTP Server Used drop-down menu.
3. Click the Update Now button to update the time on the Router clock so that it is synchronized with the D-Link Internet Time Server.
Set the Time and
Date Manually:
Use this section to configure the time manually. To congure the time manually, use the drop-down menus to select the appropriate Year, Month, Day, Hour, Minute, and Second.
Click the Save Settings button to save any changes made.
74D-Link DIR-600 User Manual
Section 3 - Conguration

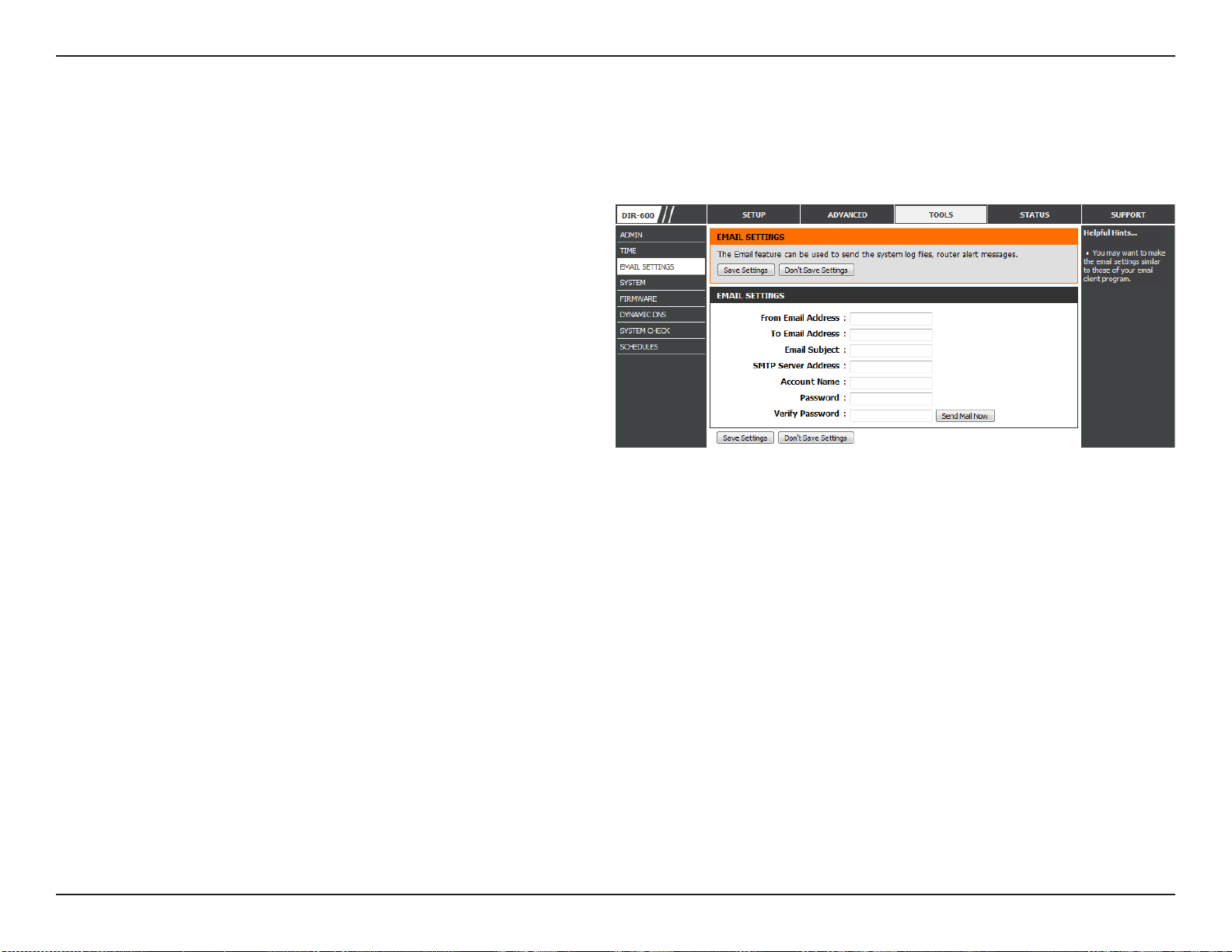

Email Settings
The Email feature can be used to send the system log les and router alert messages to your email address.
From Email
Address:
To Email Address:
Email Subject:
SMTP Server
Address:
Account Name:
Password:
Send Mail Now:
This email address will appear as the sender when you receive a log le or rmware upgrade notication via email.
Enter the email address where you want the email sent.
Enter the text that you want to appear in the subject line of the e-mail that is sent.
Enter the SMTP server address for sending email. If your SMTP server requires authentication, select this option.
Enter your account for sending email.
Enter the password associated with the account. Re-type the password associated with the account.
Click this button to send a test email from the Router to verify that the email settings have been congured correctly.
Click the Save Settings button to save any changes made.
75D-Link DIR-600 User Manual
Section 3 - Conguration
System
This section allows you to manage the router’s conguration settings, reboot the router, and restore the router to the factory default settings. Restoring the unit to the factory default settings will erase all settings, including any rules that you’ve created.
Save Settings to
Local Hard Drive:
Load Settings from
Local Hard Drive:
Restore to Factory
Default Settings:
Reboot Device:
Use this option to save the current router conguration settings to a le on the hard disk of the computer you are using. First, click the Save button. A le dialog will appear, allowing you to select a location and le name for the settings.
Use this option to load previously saved router conguration settings. First, use the Browse option to nd a previously saved le of conguration settings. Then, click the Upload Settings button below to transfer those settings to the router.
This option will restore all conguration settings back to the settings that were in eect at the time the router was shipped from the factory. Any settings that have not been saved will be lost, including any rules that you have created. If you want to save the current router conguration settings, use the Save button above.
Click to reboot the router.
Clear Language
Pack:
If you previously installed a language pack and want to revert all the menus on the Router interface back to the default language settings, click the Clear button.
76D-Link DIR-600 User Manual
Section 3 - Conguration
Firmware
Use the Firmware window to upgrade the rmware of the Router and install language packs. If you plan to install new rmware, make sure the rmware you want to use is on the local hard drive of the computer. If you want to install a new language pack, make sure that you have the language pack available. Please check the D-Link support site for rmware updates at http:// support.dlink.com. You can download rmware upgrades to your hard drive from the D-Link support site.
Firmware
Information:
Firmware Upgrade:
Language Pack
Upgrade:
This section displays information about the rmware that is loaded on the Router. Click the Check Now button to nd out if there is an updated rmware; if so, download the new rmware to your hard drive.
After you have downloaded the new rmware, click Browse to locate the rmware update on your hard drive. Click Upload to complete the rmware upgrade.
If you want to change the Router’s language pack, click Browse to locate the language pack. Click Upload to complete the load the new language pack.
77D-Link DIR-600 User Manual
Section 3 - Conguration
Dynamic DNS
The DDNS feature allows you to host a server (Web, FTP, Game Server, etc…) using a domain name that you have purchased (www.whateveryournameis.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic (changing) IP addresses. Using a DDNS service provider, your friends can enter in your domain name to connect to your server no matter what your IP address is.
Enable DDNS:
Server Address:
Host Name:
User Account:
Password:
DDNS Account
Testing:
Dynamic Domain Name System is a method of keeping a domain name linked to a changing IP Address. Check the box to enable DDNS.
Choose your DDNS provider from the drop down menu.
Enter the Host Name that you registered with your DDNS service provider.
Enter the Username for your DDNS account.
Enter the Password for your DDNS account.
Click this button to verify that the DDNS account user name and password have been entered correctly.
Click the Save Settings button to save any changes made.
78D-Link DIR-600 User Manual
Section 3 - Conguration
System Check
Ping Test:
IPv6 Ping
Test:
Ping Results:
The Ping Test is used to send Ping packets to test if a computer is on the Internet. Enter the IP Address that you wish to Ping, and click Ping. Click Stop to stop sending Ping packets
The IPv6 Ping Test is used to send IPv6 Ping packets to test if a computer is on the Internet. Enter the IPv6 Address that you wish to Ping, and click Ping. Click Stop to stop sending IPv6 Ping packets
The results of your Ping/IPv6 Ping attempts will be displayed here.
79D-Link DIR-600 User Manual
Section 3 - Conguration
Schedules
Schedules can be created for use with enforcing rules. For example, if you want to restrict web access to Mon-Fri from 3pm to 8pm, you could create a schedule selecting Mon, Tue, Wed, Thu, and Fri and enter a Start Time of 3pm and End Time of 8pm.
Name:
Days:
Time:
Add:
Schedule Rules
List:
Enter a name for your new schedule.
Select a day, a range of days, or All Week to include every day.
Check All Day - 24hrs or enter a Start Time and End Time for your schedule.
Click Add to save your schedule. You must click the Add button for your schedules to go into eect.
The list of schedules will be listed here. Click the Edit icon to make changes or click the Delete icon to remove the schedule.
80D-Link DIR-600 User Manual
Section 3 - Conguration
Status
Device Info
This page displays the current information for the DIR-600. It will display the LAN, WAN (Internet), and Wireless information. If your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use Release to disconnect from your ISP and use Renew to connect to your ISP.
If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use Disconnect to drop the PPPoE connection and use Connect to establish the PPPoE connection.
General:
WAN:
LAN:
Wireless LAN:
Displays the router’s time and rmware version.
Displays the MAC address and the public IP settings for the router.
Displays the MAC address and the private (local) IP settings for the router.
Displays the wireless MAC address and your wireless settings such as SSID and Channel.
81D-Link DIR-600 User Manual
Section 3 - Conguration
Logs
The router automatically logs (records) events of possible interest in it’s internal memory. If there isn’t enough internal memory for all events, logs of older events are deleted but logs of the latest events are retained. The Logs option allows you to view the router logs. You can dene what types of events you want to view and the level of the events to view. This router also has external Syslog Server support so you can send the log les to a computer on your network that is running a Syslog utility.
Save Log File:
Log Type:
Log Level:
Log Files:
First Page:
Last Page:
Previous:
Click the Save button save the Router’s log entries to a log le on your computer.
Use the radio buttons to select the types of messages that you want to display from the log. System, Firewall & Security, and Router Status messages can be selected.
There are three levels of message importance: Critical, Warning, and Information. Select the levels that you want displayed in the log.
Use this section to view and manage the Router’s log entries.
Click this button to view the rst page of the Router logs.
Click this button to view the last page of the Router logs.
Click this button to view the previous page of the Router logs.
Next:
Clear:
Link to Log
Settings:
Click this button to view the next page of the Router logs.
Clears all of the log contents.
Click this button to open the Tools > Email Settings screen so that you can change the Email conguration for sending logs.
82D-Link DIR-600 User Manual
Section 3 - Conguration
Statistics
The screen below displays the Trac Statistics. Here you can view the amount of packets that pass through the DIR-600 on both the WAN, LAN ports and the 802.11n/g (2.4GHz) wireless bands. The trac counter will reset if the device is rebooted.
Refresh:
Reset:
Click the Refresh button to refresh the Router’s trac statistics.
Click the Reset button to reset the Router’s trac statistics.
83D-Link DIR-600 User Manual
Section 3 - Conguration
Internet Sessions
The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is a conversation between a program or application on a LAN-side computer and a program or application on a WAN-side computer.
84D-Link DIR-600 User Manual
Section 3 - Conguration
Wireless
The wireless client table displays a list of current connected wireless clients. This table also displays the connection time and MAC address of the connected wireless clients.
85D-Link DIR-600 User Manual
Section 3 - Conguration
IPv6
The IPv6 page displays a summary of the Router’s IPv6 settings and lists the IPv6 address and host name of any IPv6 clients.
86D-Link DIR-600 User Manual
Section 3 - Conguration
Support
87D-Link DIR-600 User Manual
Section 4 - Security
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The DIR-600 oers the following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
What is WPA?
WPA (Wi-Fi Protected Access), is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple to be snied out and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your wireless router or access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption system to ensure that only authorized network users can access the network.
88D-Link DIR-600 User Manual
Section 4 - Security
Wireless Connection Setup Wizard
To run the Wireless Connection Setup Wizard, click the Wireless Connection Setup Wizard button in the Setup>Wireless Settings window.
89D-Link DIR-600 User Manual
Section 4 - Security
Wireless Security Setup Wizard
Type your desired wireless network name (SSID).
Automatically: Select this option to automatically generate the router’s network key and click Next.
Manually: Select this option to manually enter your network key and click Next.
If you selected Automatically, the summary window will display your settings. Write down the security key and enter this on your wireless clients. Click Save to save your settings.
90D-Link DIR-600 User Manual
Section 4 - Security
If you selected Manually, the following screen will appear.
Enter the Wireless Security Password you would like to use for your wireless network and click Next to proceed to the next window.
The summary window will display your settings. Write down the security key and enter this on your wireless clients. Click Save to save your settings.
91D-Link DIR-600 User Manual
Section 4 - Security
Add Wireless Device with WPS Wizard
From the Setup > Wireless Settings screen, click Add Wireless Device with WPS.
Select Auto to add a wireless client using WPS (Wi-Fi Protected Setup). Once you select Auto and click Connect, you will have a 120 second time limit to apply the settings to your wireless client(s) and successfully establish a connection.
If you select Manual, a settings summary screen will appear. Write down the security key and enter this on your wireless clients.
PIN: Select this option to use PIN method. In order to use this method you must know the wireless client’s 8 digit PIN and click
Connect.
PBC: Select this option to use PBC (Push Button) method to add
a wireless client. Click Connect.
92D-Link DIR-600 User Manual
Section 4 - Security
Congure WEP
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration by opening a web browser and entering the IP address of the router (192.168.0.1).
2. Click on Setup and then click Wireless Settings on the left side.
3. Click the Manual Wireless Connection Setup button.
4. Next to Security Mode, select Enable WEP Wireless Security (basic).
5. Next to WEP Encryption, select 64bit or 128bit.
6. Next to Default WEP Key, select the WEP key you would like to use as the default WEP key. The available options are WEP Key 1, WEP Key 2, WEP Key 3, or WEP Key 4.
7. Enter the WEP key you would like to use in the WEP Key eld.
8. Click Save Settings to save your settings. If you are conguring the router with a wireless adapter, you will lose connectivity until you enable WEP on your adapter and enter the same WEP key as you did on the router.
93D-Link DIR-600 User Manual
Section 4 - Security
Congure WPA/WPA2-Personal (PSK)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration by opening a web browser and entering the IP address of the router (192.168.0.1).
2. Click on Setup and then click Wireless Settings on the left side.
3. Click the Manual Wireless Connection Setup button.
4. Next to Security Mode, select Enable WPA/WPA2 Wireless Security (enhanced).
5. Next to Cipher Type, select Auto (TKIP/AES), TKIP, or AES.
6. Next to PSK/EAP, select PSK.
7. Enter the WPA network key you would like to use in the Network Key eld.
8. Click Save Settings to save your settings. If you are conguring the router with a wireless adapter, you will lose connectivity until you enable WPA-PSK on your adapter and enter the same passphrase as you did on the router.
94D-Link DIR-600 User Manual
Section 4 - Security
Congure WPA/WPA2-Enterprise (RADIUS)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration by opening a web browser and entering the IP address of the router (192.168.0.1).
2. Click on Setup and then click Wireless Settings on the left side.
3. Click the Manual Wireless Connection Setup button.
4. Next to Security Mode, select Enable WPA/WPA2 Wireless Security (enhanced).
5. Next to Cipher Type, select Auto (TKIP/AES), TKIP, or AES.
6. Next to PSK/EAP, select EAP.
7. Next to RADIUS Server IP Address enter the IP Address of your RADIUS server.
8. Next to Port, enter the port you are using with your RADIUS server. 1812 is the default port.
9. Next to Shared Secret, enter the security key.
10. Click Save Settings to save your settings.
95D-Link DIR-600 User Manual
