Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Revision Date Description
1.0 January 11, 2012 • Initial release for Revision A1
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2011 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
iD-Link DIR-505 User Manual
Table of Contents
Table of Contents
Preface ................................................................................. i
Manual Revisions
Trademarks
Product Overview .............................................................. 1
Package Contents
System Requirements
Introduction
Features
Hardware Overview
Connections
LEDs
Installation ......................................................................... 7
Operation Modes
Access Point Mode
Repeater Mode
Hot Spot Mode
Wireless Installation Considerations
Manual Setup
Connect to an Existing Router
Conguration ...................................................................16
Quick Router Setup Wizard (CD)
Quick Setup Wizard
Web-based Conguration Utility
Internet Connection Setup
Manual Internet Setup
...................................................................................... i
............................................................................................4
........................................................................................... 6
........................................................................... i
.........................................................................1
................................................................. 2
...................................................................................3
..................................................................... 5
...........................................................................5
..........................................................................7
............................................................... 8
...................................................................... 9
....................................................................10
....................................11
...............................................................................12
...............................................14
...........................................16
....................................................................18
..........................................21
.............................................22
..............................................................27
Dynamic (Cable)
Internet Setup
PPPoE
Wireless Settings
Wireless Security Setup Wizard
Manual Conguration
Wireless Settings
Access Point Mode
Wireless Security
What is WEP?
Congure WEP
Congure WPA/WPA2 Personal
Congure WPA Enterprise
Network Settings
Router Settings
DHCP Reservation
Storage
Advanced
Virtual Server
Application Rules
MAC Address Filter
Website Filters
Firewall Settings
Advanced Wireless
Wi-Fi Protected Setup (WPS)
UPnP Settings.......................................................................50
.................................................................................28
.............................................................................36
...................................................................................41
......................................................................................42
..................................................................27
......................................................................28
.................................................................29
.................................30
...............................................................32
.................................................................32
........................................................33
.........................................................................35
........................................................................35
.............................................37
.......................................................38
................................................................39
...............................................................39
.........................................................40
........................................................................42
................................................................43
.............................................................44
......................................................................45
..................................................................46
.............................................................47
..........................................48
iiD-Link DIR-505 User Manual
Table of Contents
Guest Zone ............................................................................51
.........................................................................................52
DMZ
Maintance......................................................................................53
Admin
Time
System
Firmware
Dynamic DNS
System Check
Schedules
Status
Device Info
Logs
Statistics
Internet Sessions
Wireless
Help
.....................................................................................53
.........................................................................................54
....................................................................................55
................................................................................56
.......................................................................57
.......................................................................58
..............................................................................59
..............................................................................................60
............................................................................60
.........................................................................................61
.................................................................................62
.................................................................63
.................................................................................64
.........................................................................................65
Congure WPA/WPA2 Personal
LAN Settings
Static IP
Advanced
......................................................................................77
Advanced Wireless
Wi-Fi Protected Setup
Maintenance
Admin
System
.....................................................................................79
....................................................................................80
Language Pack
Firmware
.........................................................................................82
Time
Status
..............................................................................................83
Device Info
.........................................................................................84
Logs
Statistics
Quick Setup Wizard
.........................................................................75
..............................................................................76
.............................................................77
...............................................................78
................................................................................79
.....................................................................81
................................................................................81
............................................................................83
.................................................................................85
....................................................................86
.............................................74
Quick Setup Wizard
Repeater Mode
Setup Wizard
....................................................................66
....................................................................66
........................................................................68
To start the Setup Wizard click Next.
Manual Conguration
Wireless Settings
Repeater Mode
Wireless Security
What is WEP?
Congure WEP
.............................................................................73
...............................................................70
.................................................................70
...............................................................71
.........................................................................72
........................................................................72
...........................68
WiFi Hot Spot
Setup
...............................................................................................90
Wi-Fi Hot Spot Setup
Congure WPA/WPA2 Personal
WAN Settings
Wireless Setup
Manual Wireless Settings
LAN Setup
Advanced
......................................................................................97
Advanced Wireless
........................................................................86
.........................................................90
.............................................92
.......................................................................93
......................................................................94
.................................................95
..............................................................................96
.............................................................97
Maintance......................................................................................98
Admin
.....................................................................................98
iiiD-Link DIR-505 User Manual
Table of Contents
System ....................................................................................99
Language Pack
Firmware
Time
Status
........................................................................................... 102
............................................................................. 100
...................................................................................... 101
Device Info
......................................................................................103
Logs
Statistics
.............................................................................................. 105
Help
.............................................................................. 104
.................................................................. 100
......................................................................... 102
Connect a Wireless Client to your Router ....................106
WPS Button
Windows® 7
WPA/WPA2
WPS
Windows Vista®
WPA/WPA2
................................................................................ 106
................................................................................ 107
......................................................................... 107
....................................................................................... 110
......................................................................... 114
......................................................................... 115
Technical Specications..............................................132
Contacting Technical Support....................................133
GPL Code Statement...................................................134
Warranty.......................................................................149
Registration.................................................................156
WPS/WCN 2.0
Windows® XP
WPA/WPA2
.................................................................... 117
............................................................................. 118
......................................................................... 119
Troubleshooting ............................................................121
Wireless Basics ...............................................................125
What is Wireless?
................................................................................................ 128
Tips
Wireless Modes
...................................................................... 126
......................................................................... 129
Networking Basics .........................................................130
Check your IP address
Statically Assign an IP address
............................................................ 130
............................................ 131
ivD-Link DIR-505 User Manual
Section 1 - Product Overview
DIR-505 All-in-One Mobile Companion
Ethernet Cable
CD-ROM with Manual and Setup Wizard
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-505 will cause damage and void the warranty
for this product.
1D-Link DIR-505 User Manual
Section 1 - Product Overview
Network Requirements
Web-based Conguration
Utility Requirements
System Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11n or 802.11g wireless clients
• IEEE 802.11a wireless clients
• 10/100/1000 Ethernet
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 6 or higher
• Firefox 3.0 or higher
• Safari 3.0 or higher
• Chrome 2.0 or higher
CD Installation Wizard
Requirements
Windows
installed. Visit www.java.com to download the latest version.
Computer with the following:
• Windows® 7, Vista®, or XP (Service Pack 2 or higher)
• An installed Ethernet adapter
• CD-ROM drive
®
Users: Make sure you have the latest version of Java
2D-Link DIR-505 User Manual
Section 1 - Product Overview
Introduction
TOTAL PERFORMANCE
Combines award winning router features and IEEE 802.11a/g/n wireless technology to provide the best wireless performance.
TOTAL SECURITY
The most complete set of security features including Active Firewall and WPA/WPA2 to protect your network against outside intruders.
TOTAL COVERAGE
Provides greater wireless signal rates even at farther distances for best-in-class Whole Home Coverage.
ULTIMATE PERFORMANCE
The D-Link All-in-One Mobile Companion (DIR-505) is a 802.11n/802.11a compliant device that delivers real world performance of up to
14x faster than an 802.11g wireless connection (also faster than a 100Mbps wired Ethernet connection). Create a secure wireless network
to share photos, les, music, video, printers, and network storage throughout your home. Connect the DIR-505 router to a cable or DSL
modem and share your high-speed Internet access with everyone on the network. In addition, this Router includes a Quality of Service
(QoS) engine that keeps digital phone calls (VoIP) and online gaming smooth and responsive, providing a better Internet experience.
EXTENDED WHOLE HOME COVERAGE
Powered by Wireless N technology, this high performance router provides superior Whole Home Coverage while reducing dead spots.
The router is designed for use in bigger homes and for users who demand higher performance networking. Add a Wireless N
or desktop adapter and stay connected to your network from virtually anywhere in your home.
notebook
TOTAL NETWORK SECURITY
The Wireless N router supports all of the latest wireless security features to prevent unauthorized access, be it from over the wireless
network or from the Internet. Support for WPA/WPA2 standards ensure that you’ll be able to use the best possible encryption method,
regardless of your client devices. In addition, this router utilizes dual active rewalls (SPI and NAT) to prevent potential attacks from
across the Internet.
* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will
adversely aect wireless signal range.
3D-Link DIR-505 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DIR-505 provides up to 300Mbps* wireless connection with other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video streaming,
online gaming, and real-time audio. The performance of this 802.11n wireless router gives you the freedom of
wireless networking at speeds 14x faster than 802.11g.
• Compatible with 802.11a/g Devices - The DIR-505 is still fully compatible with the IEEE 802.11g and 802.11a
standards, so it can connect with existing 802.11g and 802.11a PCI, USB, and Cardbus adapters.
• Advanced Firewall Features - The Web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on MAC Address, URL, and/or Domain
Name.
Features
• Filter Scheduling - These lters can be scheduled to be active on certain days or for a duration of
hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-505 can pass through VPN sessions. It supports
multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-505 can securely access
corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DIR-505 lets you control what
information is accessible to those on the wireless network, whether from the Internet or from your company’s
server. Congure your router to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11a, and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will
adversely aect wireless signal range.
4D-Link DIR-505 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1 2
1 USB Port
2 Reset Button Pressing the Reset button restores the router to its original factory default settings.
3 Ethernet Port The auto MDI/MDIX Internet port is the connection for the Ethernet cable to the cable or DSL modem.
Connect a USB 1.1 or 2.0 ash drive to congure the wireless settings using WCN and SharePort. SharePort
allows you to share a printer or storage device with your local network.
3
5D-Link DIR-505 User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1
LED Indicator Color Status Description
Solid Green The device is powered ON and operating properly
Green
Power/Status
Red
Blinking Green The device is processing WPS
Light o The device is o
Solid Red During Power ON or system is defective
Blinking Red The device is under recovery mode
Light o The device is powered o
6D-Link DIR-505 User Manual
Section 1 - Product Overview
Installation
Please congure the DIR-505 with a computer connected directly to the AP. The next few pages will explain the dierent
operational modes you can use.
Operation Modes
Depending on how you want to use your DIR-505 will determine which mode you use. This section will help you gure out
which setting works with your setup.
• Access Point mode - page 13
• Wireless Client mode - page 14
• Range Extender Mode - page 15
• Bridge mode - page 16
• Bridge with AP mode - page 17
• WISP Client Router mode - page 18
• WISP Range Extender Mode - page 19
7D-Link DIR-505 User Manual
Section 2 - Installation
Access Point Mode
In the Access Point mode, the DIR-505 acts as a central connection point for any computer (client) that has a 802.11n or
backward-compatible 802.11g wireless network interface and is within range of the AP. Clients must use the same SSID (wireless
network name) and channel as the AP in order to connect. If wireless security is enabled on the AP, the client will need to enter
a password to connect to the AP. In Access Point mode, multiple clients can connect to the AP at the same time.
8D-Link DIR-505 User Manual
Section 2 - Installation
Repeater Mode
In the Wireless Client mode, the DIR-505 acts as a wireless network adapter for your Ethernet-enabled device (such as a game
console or a TV set-top box). Connect your Ethernet-enabled device to the AP using an Ethernet cable. The AP Client mode
can support multiple wired clients.
If you are going to connect several Ethernet-enabled devices to your DIR-505, connect the LAN port of the DIR-505 to an
Ethernet switch, then connect your devices to this switch.
Example: Connect a gaming console using an ethernet cable to the DIR-505. The unit is set to Wireless Client mode which will
wirelessly connect to a wireless router on your network.
9D-Link DIR-505 User Manual
Section 2 - Installation
Hot Spot Mode
In Range Extender Mode, the DIR-505 increases the range of your wireless network by extending the wireless coverage of
another AP or wireless router. The APs and wireless router (if used) must be within range of each other. Make sure that all clients,
APs, and the wireless router all use the same SSID (wireless network name), channel, and security settings.
10D-Link DIR-505 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not
in use.
11D-Link DIR-505 User Manual
Section 2 - Installation
Manual Setup
Important: for best results, insert the Installation CD and follow the on-screen instructions. If you are unable to use the CD or
are using Mac or Linux, please use the following installation steps:
1. Turn o and unplug your cable or DSL broadband modem. This is required.
2. Position your router close to your modem and a computer. Place the router in an open area of your intended
work area for better wireless coverage.
3. Unplug the Ethernet cable from your modem (or existing router if upgrading) that is connected to your computer.
Plug it into the blue port labeled 1 on the back of your router. The router is now connected to your computer.
12D-Link DIR-505 User Manual
Section 2 - Installation
4. Plug one end of the included blue Ethernet cable that came with your router into the yellow port labeled
INTERNET on the back of the router. Plug the other end of this cable into the Ethernet port on your modem.
5. Reconnect the power adapter to your cable or DSL broadband modem and wait for two minutes.
6. Connect the supplied power adapter into the power port on the back of the router and then plug it into a power
outlet or surge protector. Press the power button and verify that the power LED is lit. Allow 1 minute for the
router to boot up.
7. If you are connecting to a Broadband service that uses a dynamic connection (not PPPoE), you may be online
already. Try opening a web browser and enter a web site. If you connect, you are nished with your Internet setup.
Please skip to page 13 to congure your router and use the manual setup procedure to congure your network
and wireless settings. If you did not connect to the Internet, use the D-Link Setup Wizard (refer to page 15).
13D-Link DIR-505 User Manual
Section 2 - Installation
Connect to an Existing Router
Note: It is strongly recommended to replace your existing router with the DIR-505 instead of using both. If your modem is a combo
router, you may want to contact your ISP or manufacturer’s user guide to put the router into Bridge mode, which will ‘turn o’ the
router (NAT) functions.
If you are connecting the DIR-505 router to an existing router to use as a wireless access point and/or switch, you will have to
do the following to the DIR-505 before connecting it to your network:
• Disable UPnP
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept
a DHCP address from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable. Make sure
your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking Basics
section for more information. If you need to change the settings, write down your existing settings before making any
changes. In most cases, your computer should be set to receive an IP address automatically in which case you will not have
to do anything to your computer.
2. Open a web browser, enter http://192.168.0.1 and press Enter. When the login window appears, set the user name to
Admin and leave the password box empty. Click
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.
™
Log In to continue.
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server checkbox. Click Save Settings to continue.
14D-Link DIR-505 User Manual
Section 2 - Installation
5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to save your
settings. Use this new IP address to access the conguration utility of the router in the future. Close the browser and change
your computer’s IP settings back to the original values as in Step 1.
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything
into the Internet (WAN) port of the D-Link router.
8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To congure your wireless network,
open a web browser and enter the IP address you assigned to the router. Refer to the Conguration and Wireless Security
sections for more information on setting up your wireless network.
15D-Link DIR-505 User Manual
Section 2 - Installation
Conguration
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• Quick Router Setup Wizard - Insert the supplied CD and launch the setup wizard (see below).
• D-Link Setup Wizard - This wizard will launch if you do not run the CD wizard and log into the router for the rst time.
Refer to page 15.
• Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to page 21.
Quick Router Setup Wizard (CD)
To run the
(or French), and then click the Install button.
Note: If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type D:\autorun.exe
(where D: represents the drive letter of your CD-ROM drive).
Quick Router Setup Wizard, insert the CD in the CD-ROM drive. When the autorun screen appears, click English
16D-Link DIR-505 User Manual
Section 3 - Conguration
When the Wizard appears, select your language from the drop-down menu and then click Next to continue. Follow the on-screen
instructions to congure your router.
Once you are nished, you may skip to page 21 and will be able to log into the web-based conguration utility and congure
more advanced features.
17D-Link DIR-505 User Manual
Section 3 - Conguration
Quick Setup Wizard
If this is your rst time installing the router, open your web
browser. You will automatically be directed to the Wizard Setup
Screen.
If you have already congured your settings and you would like
to access the conguration utility, please refer to page 20.
If you did not run the setup wizard from the CD and this is the rst
time logging into the router, this wizard will start automatically.
This wizard is designed to guide you through a step-by-step
process to congure your new D-Link router and connect to the
Internet.
Click Next to continue.
18D-Link DIR-505 User Manual
Section 3 - Conguration
Please wait while your router detects your internet connection type.
If the router detects your Internet connection, you may need to enter
your ISP information such as username and password.
Create a wireless security passphrase or key (between 8-63 characters).
Your wireless clients will need to have this passphrase or key entered
to be able to connect to your wireless network.
Click Next to continue.
In order to secure your router, please enter a new password. Check the
Enable Graphical Authentication box to enable CAPTCHA authentication
for added security. Click Next to continue.
Select your time zone from the drop-down menu and click Next to
continue.
19D-Link DIR-505 User Manual
Section 3 - Conguration
The Setup Complete window will display your wireless settings. Click
Save to continue.
If you want to create a bookmark to the router, click OK. Click Cancel if
you do not want to create a bookmark.
If you clicked Yes, a window may appear (depending on what web
browser you are using) to create a bookmark.
The router will now reboot. Please allow a minute or two. Click the
Continue button once it is active.
20D-Link DIR-505 User Manual
Section 3 - Conguration
Web-based Conguration Utility
To access the conguration utility, open a web-browser such
as Internet Explorer and enter the IP address of the router
(http://192.168.0.1).
Windows and Mac users may also connect by typing
http://dlinkrouter or
http://dlinkrouter.local in the address bar.
Select Admin from the drop-down menu and then enter your
password. Leave the password blank by default.
21D-Link DIR-505 User Manual
Section 3 - Conguration
Internet Connection Setup
Click Manual Internet Connection Setup to congure your
connection manually and continue to the next page.
If you want to congure your router to connect to the Internet
using the wizard, click Internet Connection Setup Wizard.
You will be directed to the Quick Setup Wizard. Please skip
to page 24.
22D-Link DIR-505 User Manual
Section 3 - Conguration
If you did not run the setup wizard from the CD and this is the rst
time logging into the router, this wizard will start automatically.
This wizard is designed to guide you through a step-by-step process
to congure your new D-Link router and connect to the Internet.
Click Next to continue.
In order to secure your router, please enter a new password. Check
the Enable Graphical Authentication box to enable CAPTCHA
authentication for added security. Click Next to continue.
Select your time zone from the drop-down menu and click Next
to continue.
23D-Link DIR-505 User Manual
Section 3 - Conguration
Select your Internet connection type and click Next to continue.
Verify that you are connected to the D-Link Router with the PC
that was originally connected to your broadband connection,
and if you are, then click the Clone MAC button to copy your
computer’s MAC Address.
Click Next to continue.
Your setup is complete. Click Connect to save your settings and
reboot your router.
24D-Link DIR-505 User Manual
Section 3 - Conguration
If the router detected or you selected PPPoE, enter your PPPoE
username and password and click Next to continue.
Note: Make sure to remove your PPPoE software from your computer.
The software is no longer needed and will not work through a router.
If the router detected or you selected PPTP, enter your PPTP
username, password, and other information supplied by your ISP.
Click Next to continue.
25D-Link DIR-505 User Manual
Section 3 - Conguration
If the router detected or you selected L2TP, enter your L2TP
username, password, and other information supplied by your ISP.
Click Next to continue.
If the router detected or you selected Static, enter the IP and DNS
settings supplied by your ISP. Click Next to continue.
26D-Link DIR-505 User Manual
Section 3 - Conguration
Manual Internet Setup
Dynamic (Cable)
My Internet
Connection:
Host Name:
Use Unicasting:
Primary/Secondary
DNS Server:
MTU:
MAC Address:
Select
automatically from your ISP. Select this option if your ISP does
not give you any IP numbers to use. This option is commonly
used for cable modem services.
The Host Name is optional but may be required by some ISPs.
Leave blank if you are not sure.
Check the box if you are having problems obtaining an IP
address from your ISP.
Enter the Primary and secondary DNS server IP addresses
assigned by your ISP. These addresses are usually obtained
automatically from your ISP. Leave at 0.0.0.0 if you did not
specically receive these from your ISP.
Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your specic ISP. 1500 is
the default MTU.
The default MAC Address is set to the Internet port’s physical
interface MAC address on the Broadband Router. It is not
recommended that you change the default MAC address unless
required by your ISP. You can use the
Address button to replace the Internet port’s MAC address
with the MAC address of your Ethernet card.
Dynamic IP (DHCP) to obtain IP Address information
Copy Your PC’s MAC
27D-Link DIR-505 User Manual
Section 3 - Conguration
Internet Setup
PPPoE
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a
username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your
computer. The software is no longer needed and will not work through a router.
My Internet
Connection:
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnect
Mode:
Maximum Idle
Time:
Primary DNS
Server:
Select
Select Static IP if your ISP assigned you the IP address, subnet mask, gateway,
and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password in the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection is maintained
during inactivity. To disable this feature, enable Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).
PPPoE (Username/Password) from the drop-down menu.
MTU:
MAC Address:
Maximum Transmission Unit - you may need to change the MTU for optimal
performance with your specic ISP. 1492 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC
address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP.
You can use the
Ethernet card.
Copy Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your
28D-Link DIR-505 User Manual
Section 3 - Conguration
Wireless Settings
If you want to congure the wireless settings on your router using
the wizard, click Wireless Security Setup Wizard and refer to
page 38.

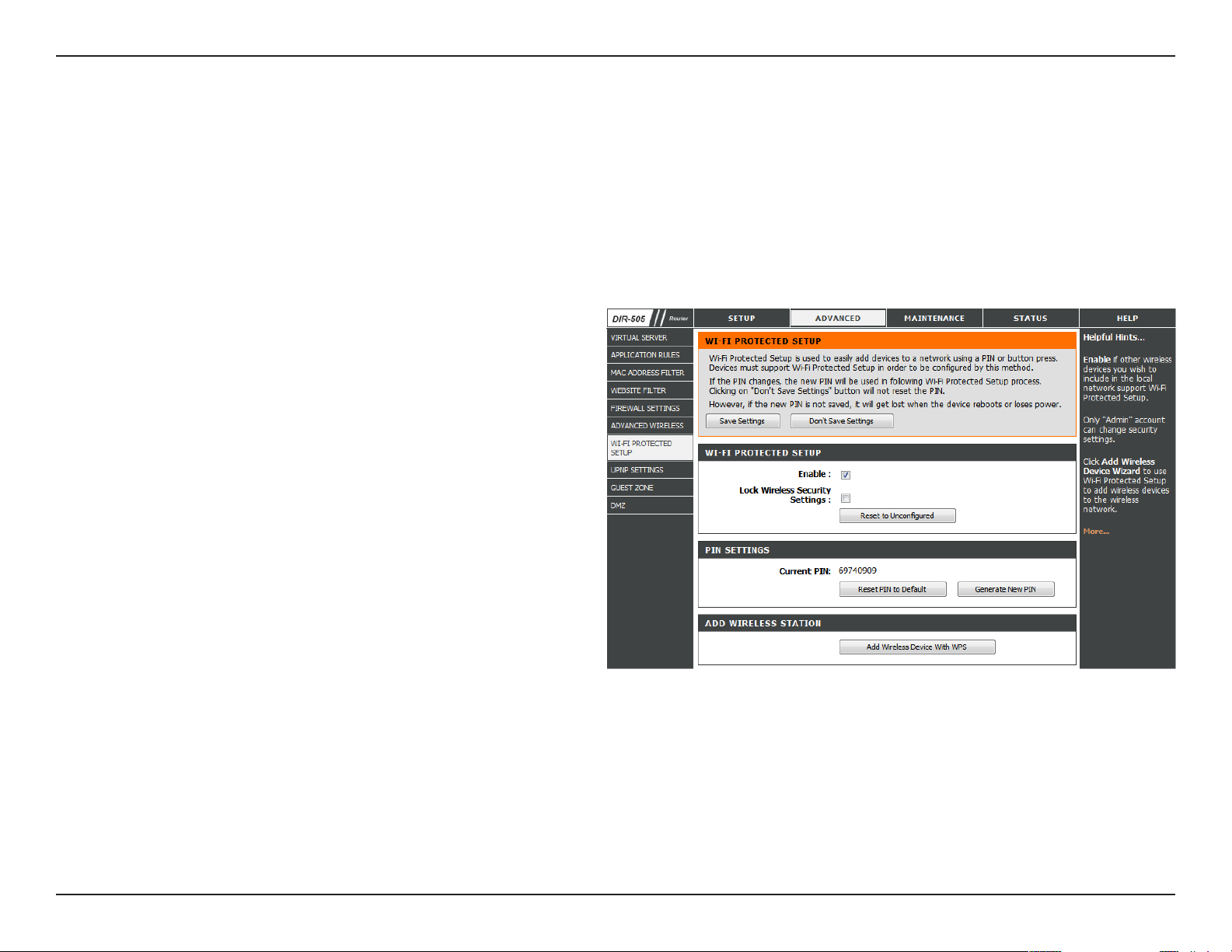

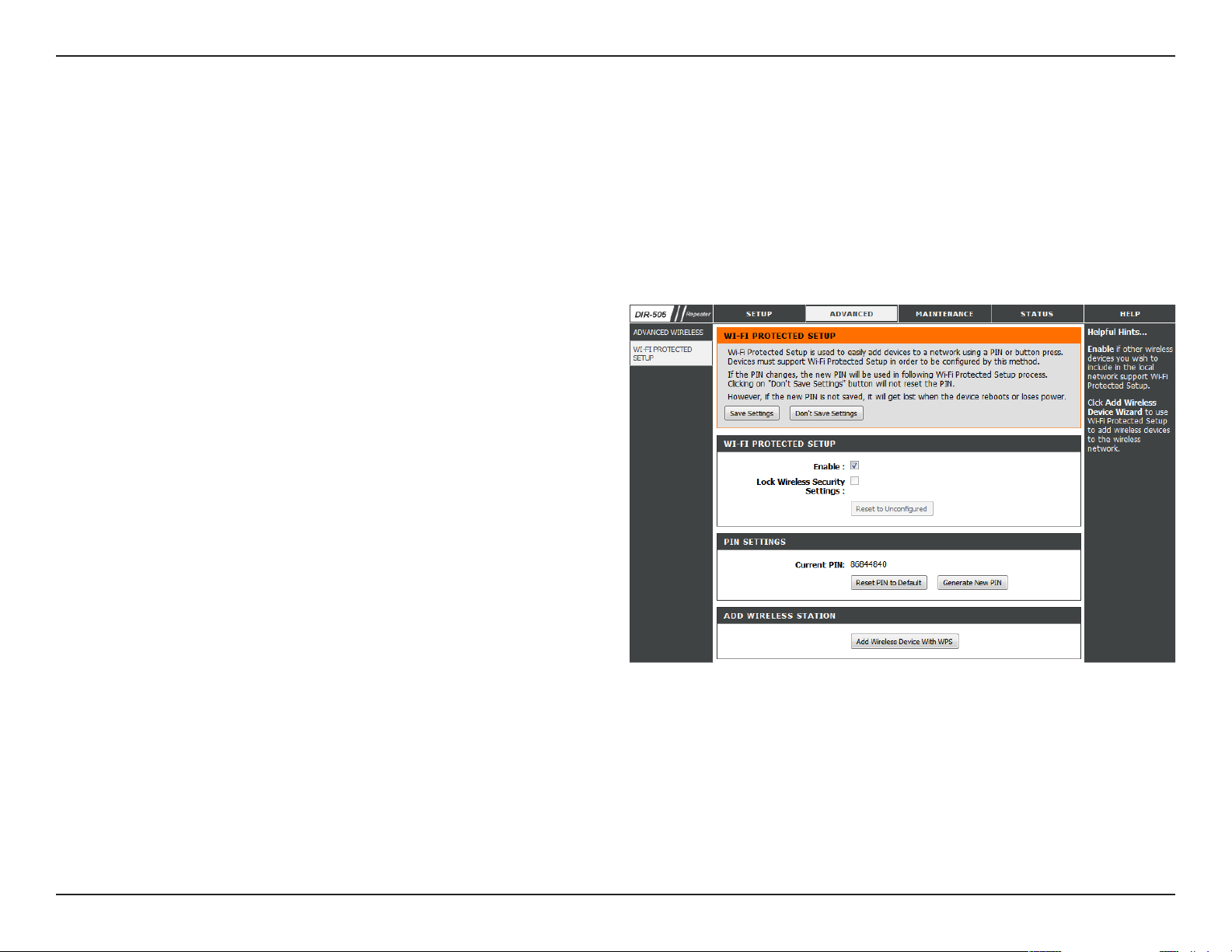

Click Add Wireless Device with WPS if you want to add a wireless
device using Wi-Fi Protected Setup (WPS) and refer to page 41.
If you want to manually congure the wireless settings on your
router click Manual Wireless Network Setup and refer to the
next page.
29D-Link DIR-505 User Manual
Section 4 - Security
Wireless Security Setup Wizard
To run the security wizard, click on Setup at the top and then click
Wireless Network Setup Wizard.
Check the
manually set your desired wireless network name for the 5GHz band.
Type your desired wireless network name (SSID).
Automatically: Select this option to automatically generate
the router’s network key and click Next.
Manually: Select this option to manually enter your network
key and click Next.
Manually set 5GHz band Network Name... box to
30D-Link DIR-505 User Manual
Section 4 - Security
If you selected Automatically, the summary window will display
your settings. Write down the security key and enter this on your
wireless clients. Click Save to save your settings.
Select Manually to manually enter your network key and click
Next.
If you selected Manually, the following screen will appear once
the setup is complete.
31D-Link DIR-505 User Manual
Section 4 - Security
Manual Conguration
Wireless Settings
32D-Link DIR-505 User Manual
Section 4 - Security
Access Point Mode
Enable Wireless:
Wireless Mode:
Wireless
Network Name:
802.11 Mode:
Check the box to enable the wireless function. If
you do not want to use wireless, uncheck the box to
disable all the wireless functions. You may also set up
a specic time range (schedule). Select a schedule
from the drop-down menu or click
a new schedule.
Select Access Point from the drop-down menu.
When you are browsing for available wireless
networks, this is the name that will appear in the list
(unless Visibility Status is set to Invisible, see below).
This name is also referred to as the SSID. For security
purposes, it is highly recommended to change from
the default network name.
Select one of the following:
802.11b Only - Select if you are only using 802.11b
wireless clients.
802.11g Only - Select if you are only using 802.11g
wireless clients.
802.11n Only - Select if you are only using 802.11n wireless clients.
Mixed 802.11g and 802.11b - Select if you are using a mix of 802.11g and 11b wireless clients.
Mixed 802.11n and 802.11g - Select if you are using a mix of 802.11n and 11g wireless clients.
Mixed 802.11n, 802.11g and 802.11b - Select if you are using a mix of 802.11n, 11g, and 11b wireless clients.
Add New to create
Wireless
Channel:
Enable Auto
Channel Scan:
Indicates the channel setting for the DIR-505. The Channel can be changed to t the channel setting for an existing wireless
network or to customize the wireless network. If you enable Auto Channel Scan, this option will be grayed out.
The
Auto Channel Scan setting can be selected to allow the DIR-505 to choose the channel with the least amount of interference.
33D-Link DIR-505 User Manual
Section 4 - Security
Channel Width:
Visibility Status:
Security Mode:
Select the Channel Width:
Auto 20/40 - Select if you are using both 802.11n and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients.
Check the box if you do not want the SSID of your wireless network to be broadcasted by the DIR-505. If checked, the SSID of
the DIR-505 will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-505 in order
to connect to it.
Refer to page 30 for more information regarding the wireless security.
34D-Link DIR-505 User Manual
Section 4 - Security
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The
DIR-605L oers the following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
• WEP (Wired Equivalent Privacy)
What is WEP?
WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP
provides security by encrypting data over your wireless network so that it is protected as it is transmitted from one wireless
device to another.
To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP,
you must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a
longer key than 64-bit encryption. Keys are dened by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or
ASCII (American Standard Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so
you can enter a string that is easier to remember. The ASCII string is converted to HEX for use over the network. Four keys can
be dened so that you can change keys easily.
35D-Link DIR-505 User Manual
Section 4 - Security
Congure WEP
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based conguration by opening a web browser and entering the IP address of the router (192.168.0.1).
Click on Wireless Setup on the left side.
2. In the Security Mode section, select WEP from the drop-down
menu.
3. In WEP Key Length, select either 64Bit or 128Bit encryption from
the drop-down menu.
5. Next to WEP Key 1, enter a WEP key that you create. Make sure
you enter this key exactly on all your wireless devices. You may
enter up to four dierent keys either using Hex or ASCII. Hex is
recommended (letters A-F and numbers 0-9 are valid). In ASCII all
numbers and letters are valid.
6. Click Save Settings to save your settings. If you are conguring
the router with a wireless adapter, you will lose connectivity until
you enable WEP on your adapter and enter the same WEP key as
you did on the router.
36D-Link DIR-505 User Manual
Section 4 - Security

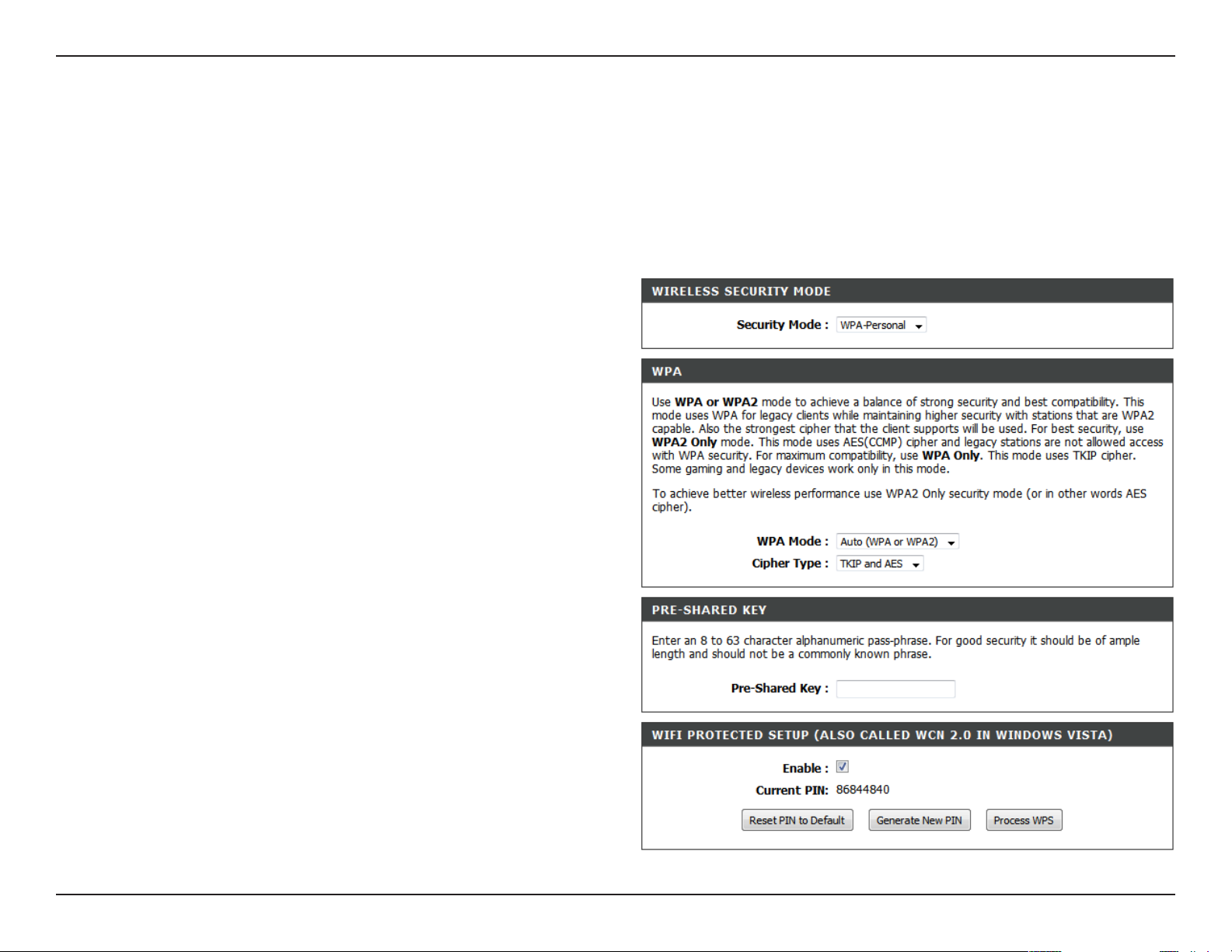

Congure WPA/WPA2 Personal
It is recommended to enable encryption on your wireless access
point before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless
signal may degrade when enabling encryption due to the added
overhead.
1. Log into the web-based conguration by opening a web browser
and entering the IP address of the access point (192.168.0.50).
Click on Setup and then click Wireless Settings on the left side.
2. Next to Security Mode, select WPA-Personal.
3. Next to Cipher Type, select TKIP, AES, or Auto.
4. Next to Passphrase, enter a key. The key is entered as a passphrase
in ASCII format at both ends of the wireless connection. The
passphrase must be between 8-63 characters.
6. Click Save Settings at the top of the window to save your settings.
If you are conguring the access point with a wireless adapter, you will lose connectivity until you enable WPA-PSK on your
adapter and enter the same passphrase as you did on the access point.
37D-Link DIR-505 User Manual
Section 4 - Security

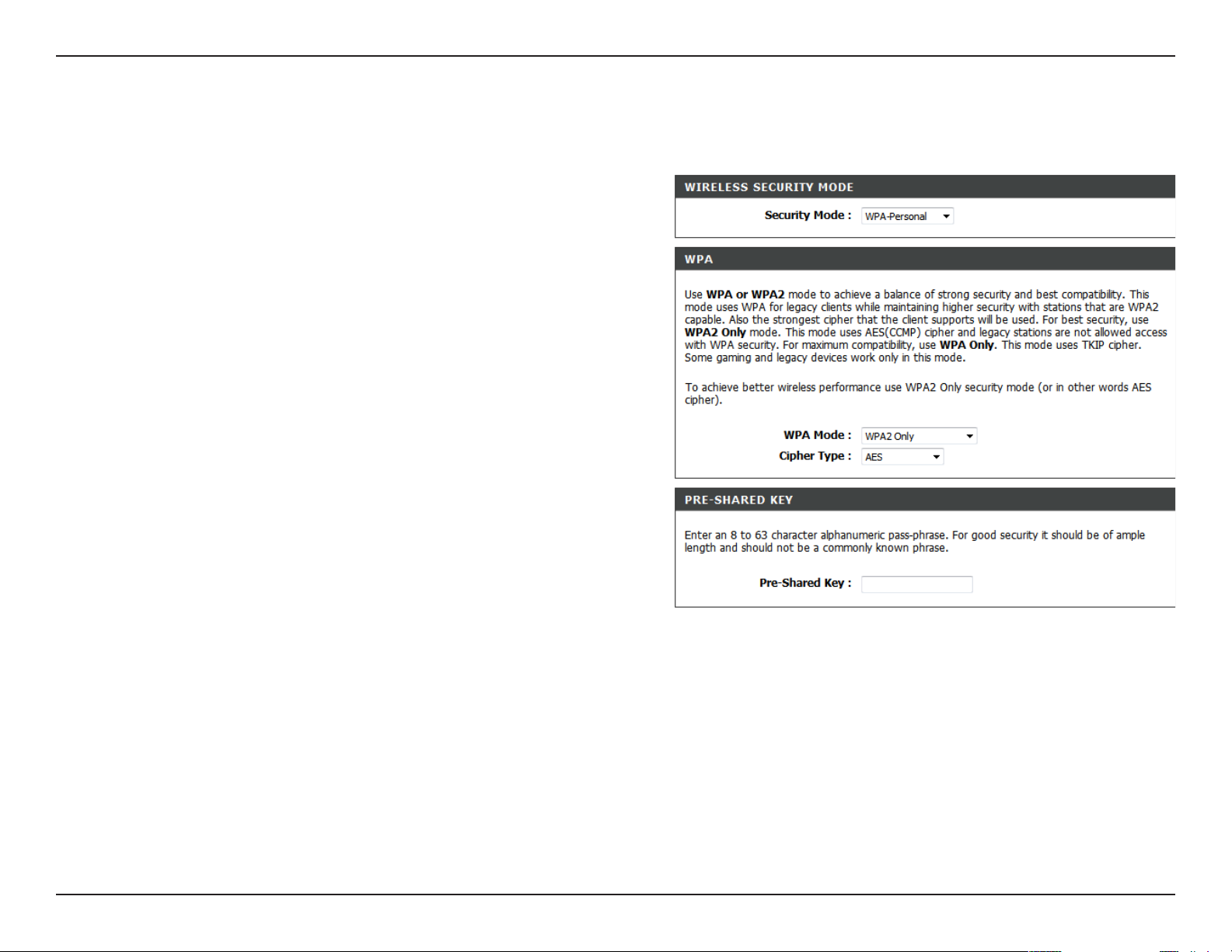

Congure WPA Enterprise
It is recommended to enable encryption on your wireless access
point before your wireless network adapters. Please establish wireless
connectivity before enabling encryption. Your wireless signal may
degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration by opening a web browser
and entering the IP address of the access point (192.168.0.50). Click
on Setup and then click Wireless Settings on the left side.
2. Next to Security Mode, select WPA-Enterprise.
3. Next to WPA Mode select Auto (WPA or WPA2).
4. Next to Cipher Mode, select TKIP, AES, or Auto.
5. Next to RADIUS Server, enter the IP Address of your RADIUS server.
6. Next to RADIUS Server Port, enter the port you are using with your
RADIUS server. 1812 is the default port.
7. Next to Shared Secret, enter the security key.
8. Click Save Settings to save your settings.
38D-Link DIR-505 User Manual
Section 3 - Conguration
Network Settings
This section will allow you to change the local network settings of the router and to congure the DHCP settings.
Router Settings
Router IP
Address:
Subnet Mask:
Device Name:
Local Domain:
Enable DNS
Relay:
Enter the IP address of the router. The default IP address
is 192.168.0.1.
If you change the IP address, once you click Save Settings,
you will need to enter the new IP address in your browser
to get back into the conguration utility.
Enter the Subnet Mask. The default subnet mask is
255.255.255.0.
Enter a name for the router.
Enter the Domain name (Optional).
Uncheck the box to transfer the DNS server information
from your ISP to your computers. If checked, your
computers will use the router for a DNS server.
39D-Link DIR-505 User Manual
Section 3 - Conguration

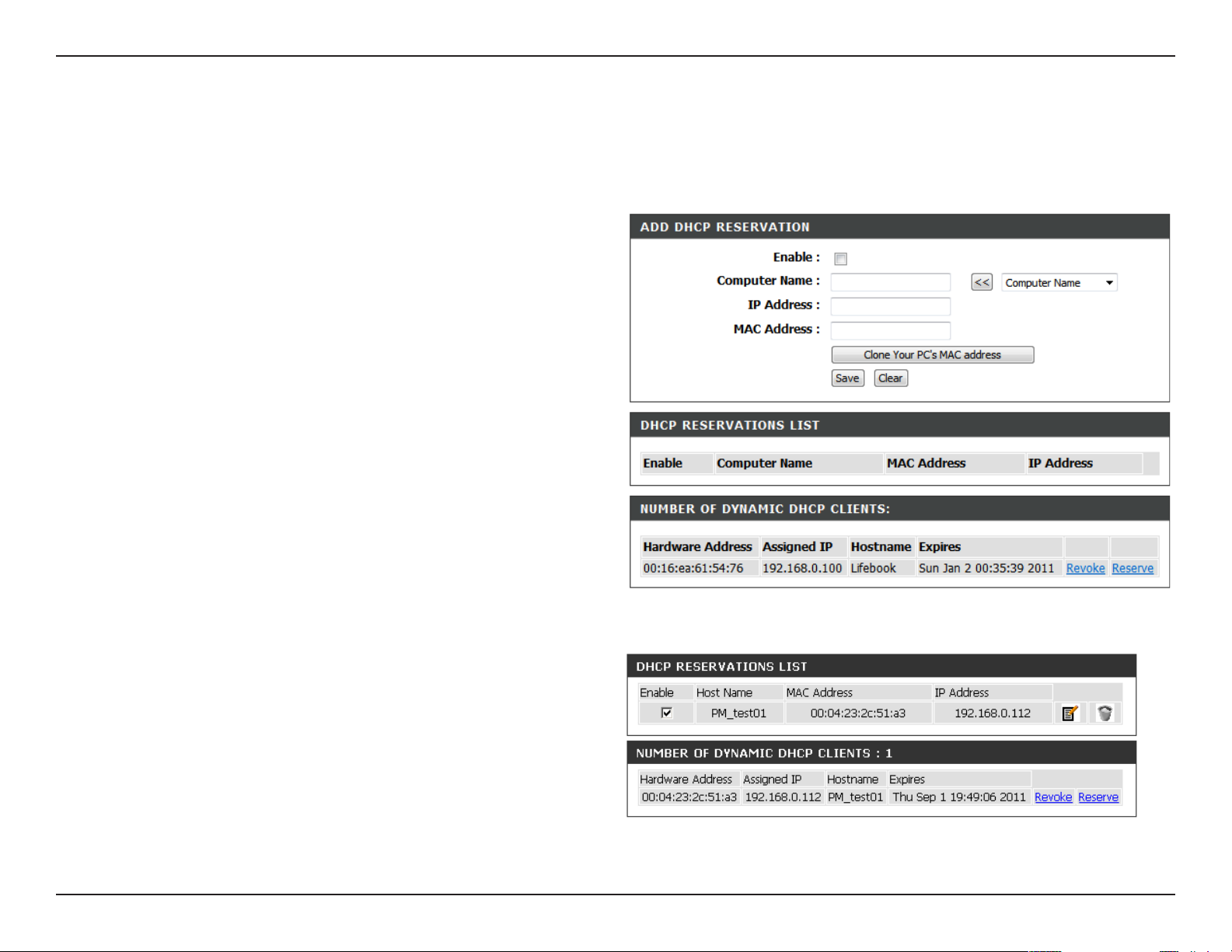

DHCP Reservation
If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router will assign the IP
address only to that computer or device.
Note: This IP address must be within the DHCP IP Address Range.
Enable:
Computer Name:
IP Address:
MAC Address:
Clone Your PC’s
MAC Address:
Save:
DHCP
Reservations List:
Check this box to enable the reservation.
Enter the computer name or select from the drop-down
menu and click <<.
Enter the IP address you want to assign to the computer
or device. This IP Address must be within the DHCP IP
Address Range.
Enter the MAC address of the computer or device.
If you want to assign an IP address to the computer you
are currently on, click this button to populate the elds.
Click Save to save your entry. You must click
at the top to activate your reservations.
Save Settings
DHCP Reservations List
Displays any reservation entries. Displays the host name
(name of your computer or device), MAC Address, and IP
address.
Enable:
Edit:
Delete:
Check to enable the reservation.
Click the edit icon to make changes to the reservation entry.
Click to remove the reservation from the list.
40D-Link DIR-505 User Manual
Section 3 - Conguration

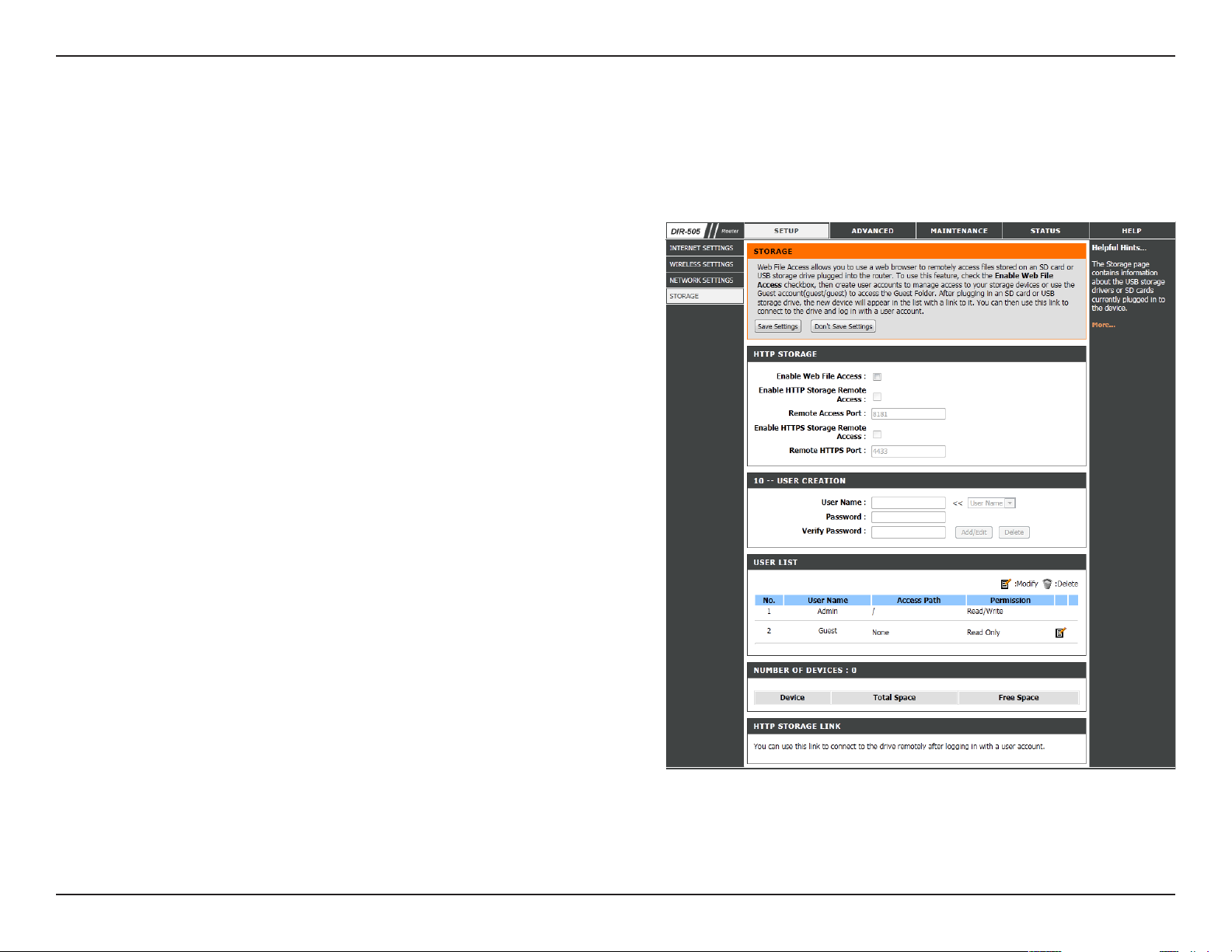

Storage
This page will allow you to access les from a USB external hard drive or thumb drive that is plugged into the router from your
local network or from the Internet using either a web browser or an app for your smartphone or tablet. You can create users
to be allowed to access these les.
Enable Web File
Access:
Enable HTTP
Storage Remote
Access:
Remote Access
Port:
Enable HTTPS
Storage Remote
Access:
Remote HTTPS
Port:
User Name:
Check to enable sharing les on your USB storage device
that is plugged in your router.
Check to enable HTTP access to your router’s storage. You
will have to type HTTP in the URL.
Enter a port (8181 is default). You will have to enter this port
in the URL when connecting to the shared les. For example:
(http://192.168.0.1:8181).
Check to enable HTTPS (secure) access to your router’s
storage. You will have to type HTTPS in the URL.
Enter a port (4433 is default). You will have to enter this port
in the URL when connecting to the shared les. For example:
(https://192.168.0.1:8181).
To create a new user, enter a user name.
Password:
Verify Password:
User List:
Number of
Devices:
Enter a password for this account.
Re-enter the password. Click Add/Edit to create the user.
Displays the accounts. The Admin and Guest accounts are
built-in to the router.
Displays the USB device plugged into the router.
41D-Link DIR-505 User Manual
Section 3 - Conguration
Advanced
Virtual Server
This will allow you to open a single port. If you would like to open a range of ports, refer to the next page.
Name:
IP Address:
Private Port/
Public Port:
Protocol Type:
Enter a name for the rule or select an application from
the drop-down menu. Select an application and click
<< to populate the elds.
Enter the IP address of the computer on your local
network that you want to allow the incoming
service to. If your computer is receiving an IP address
automatically from the router (DHCP), you computer
will be listed in the “Computer Name” drop-down
menu. Select your computer and click <<.
Enter the port that you want to open next to Private
Port and Public Port. The private and public ports are
usually the same. The public port is the port seen from
the Internet side, and the private port is the port being
used by the application on the computer within your
local network.
Select TCP, UDP, or Both from the drop-down menu.
42D-Link DIR-505 User Manual
Section 3 - Conguration
Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others.
These applications have diculties working through NAT (Network Address Translation). Special Applications makes some of
these applications work with the DIR-505. If you need to run applications that require multiple connections, specify the port
normally associated with an application in the “Trigger Port” eld, select the protocol type as TCP or UDP, then enter the rewall
(public) ports associated with the trigger port to open them for inbound trac.
The DIR-505 provides some predened applications in the table on the bottom of the web page. Select the application you
want to use and enable it.
Name:
Trigger:
Trac Type:
Firewall:
Trac Type:
Schedule:
Enter a name for the rule. You may select a
pre-dened application from the drop-down menu
and click <<.
This is the port used to trigger the application. It
can be either a single port or a range of ports.
Select the protocol of the trigger port (TCP, UDP,
or Both).
This is the port number on the Internet side that
will be used to access the application. You may
dene a single port or a range of ports. You can
use a comma to add multiple ports or port ranges.
Select the protocol of the rewall port (TCP, UDP,
or Both).
The schedule of time when the Application Rule
will be enabled. The schedule may be set to Always,
which will allow the particular service to always
be enabled. You can create your own times in the
Tools > Schedules section.
43D-Link DIR-505 User Manual
Section 3 - Conguration
MAC Address Filter
The MAC address lter section can be used to lter network access by machines based on the unique MAC addresses of their
network adapter(s). It is most useful to prevent unauthorized wireless devices from connecting to your network. A MAC address
is a unique ID assigned by the manufacturer of the network adapter.
Congure
MAC Filtering:
Add MAC
Filtering
Rule:
When you
addresses are not used to control network access. When
Turn MAC Filtering ON and ALLOW computers listed
to access the network is selected, only computers with
MAC addresses listed in the MAC Address List are granted
network access. When
computers listed to access the network is selected, any
computer with a MAC address listed in the MAC Address
List is refused access to the network.
This parameter allows you to manually add a MAC ltering
rule. Click the Add button to add the new MAC ltering rule
to the MAC Filtering Rules list at the bottom of this screen.
Turn MAC Filtering OFF is selected, MAC
Turn MAC Filtering ON and DENY
44D-Link DIR-505 User Manual
Section 3 - Conguration
Website Filters
Website Filters are used to allow you to set up a list of Web sites that can be viewed by multiple users through the network.
To use this feature select to Allow or Deny, enter the domain or website and click Save Settings. You must also select Apply
Web Filter under the Access Control section (page 33).
Add Website
Filtering Rule:
Website URL/
Domain:
Select either DENY computers access to ONLY
these sites or ALLOW computers access to ONLY
these sites.
Enter the keywords or URLs that you want to allow
or block. Click Save Settings.
45D-Link DIR-505 User Manual
Section 3 - Conguration
Firewall Settings
A rewall protects your network from the outside world. The DIR-505 oers a rewall type functionality. The SPI feature helps
prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications.
If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the
chosen computer completely to the outside world.
Enable SPI:
Anti-Spoof
Check:
SPI (Stateful Packet Inspection, also known as dynamic
packet ltering) helps to prevent cyber attacks by tracking
more state per session. It validates that the trac passing
through the session conforms to the protocol.
Enable this feature to protect your network from certain
kinds of “spoong” attacks.
46D-Link DIR-505 User Manual
Section 3 - Conguration

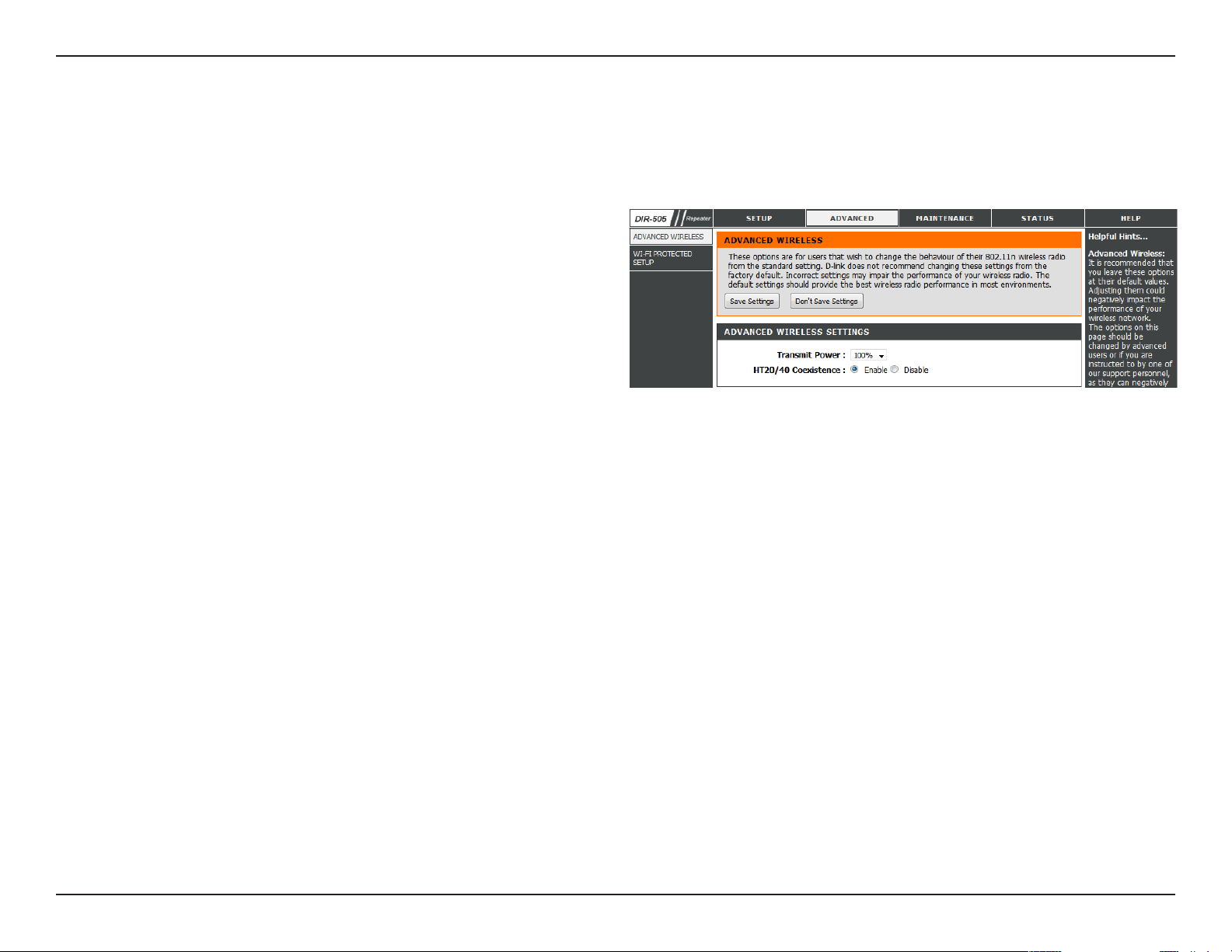

Advanced Wireless
Transmit
Power:
WMM Enable:
Short GI:
IGMP
Snooping:
WLAN
Partition:
Set the transmit power of the antennas.
WMM is QoS for your wireless network. This will improve
the quality of video and voice applications for your
wireless clients.
Check this box to reduce the guard interval time therefore
increasing the data capacity. However, it’s less reliable
and may create higher data loss.
Check to enable this feature.
This enables 802.11d operation. 802.11d is a wireless
specification developed to allow implementation of
wireless networks in countries that cannot use the 802.11
standard. This feature should only be enabled if you are
in a country that requires it.
47D-Link DIR-505 User Manual
Section 3 - Conguration
Wi-Fi Protected Setup (WPS)
Wi-Fi Protected Setup (WPS) System is a simplied method for securing your wireless network during the “Initial setup” as well
as the “Add New Device” processes. The Wi-Fi Alliance (WFA) has certied it across dierent products as well as manufactures.
The process is just as easy as pressing a button for the Push-Button Method or correctly entering the 8-digit code for the Pin
Code Method. The time reduction in setup and ease of use are quite benecial, while the highest wireless Security setting of
WPA2 is automatically used.
Enable:
Lock Wireless
Security
Settings:
PIN Settings:
Current PIN:
Reset PIN to
Default:
Enable the Wi-Fi Protected Setup feature.
Note: if this option is unchecked, the WPS button on the
side of the router will be disabled.
Locking the wireless security settings prevents the
settings from being changed by the Wi-Fi Protected
Setup feature of the router. Devices can still be added
to the network using Wi-Fi Protected Setup. However,
the settings of the network will not change once this
option is checked.
A PIN is a unique number that can be used to add
the router to an existing network or to create a new
network. Only the Administrator (“admin” account) can
change or reset the PIN.
Shows the current PIN.
Restore the default PIN of the router.
Generate New
PIN:
Create a random number that is a valid PIN. This becomes
the router’s PIN. You can then copy this PIN to the user
interface of the wireless client.
48D-Link DIR-505 User Manual
Section 3 - Conguration
Add Wireless
Station:
Add Wireless
Device Wizard:
This Wizard helps you add wireless devices to the wireless network.
The wizard will either display the wireless network settings to guide you through manual conguration, prompt you to enter the
PIN for the device, or ask you to press the conguration button on the device. If the device supports Wi-Fi Protected Setup and has a
conguration button, you can add it to the network by pressing the conguration button on the device and then the on the router
within 60 seconds. The status LED on the router will ash three times if the device has been successfully added to the network.
There are several ways to add a wireless device to your network. A “registrar” controls access to the wireless network. A registrar
only allows devices onto the wireless network if you have entered the PIN, or pressed a special Wi-Fi Protected Setup button on the
device. The router acts as a registrar for the network, although other devices may act as a registrar as well.
Click to start the wizard.
WPS Button
You can also simply press the WPS button on the side of the router, and then press the WPS
button on your wireless client to automatically connect without logging into the router.
Refer to page 106 for more information.
49D-Link DIR-505 User Manual
Section 3 - Conguration
Enable UPnP:
To use the Universal Plug and Play (UPnP
Enabled. UPnP provides compatibility with networking
equipment, software and peripherals.
UPnP Settings
™
) feature click on
50D-Link DIR-505 User Manual
Section 3 - Conguration
Guest Zone
The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These zones
will be separate from your main wireless network. You may congure dierent zones for the 2.4GHz and 5GHz wireless bands.
Enable Guest
Zone:
Add New
Schedule:
Wireless
Network Name:
Enable Routing
Between Zones:
Security Mode:
Check to enable the Guest Zone feature.
The schedule of time when the Guest Zone will be
active. The schedule may be set to Always, which will
allow the particular service to always be enabled. You
can create your own times in the Tools > Schedules
section.
Enter a wireless network name (SSID) that is dierent
from your main wireless network.
Check to allow network connectivity between the
dierent zones created.
Select the type of security or encryption you would
like to enable for the guest zone.
51D-Link DIR-505 User Manual
Section 3 - Conguration
DMZ
This feature allows you to set a single computer from your network to outside of the router and get unrestricted Internet access.
Enable DMZ:
DMZ IP Address:
Check the box to enable DMZ.
Enter the DMZ IP Address.
52D-Link DIR-505 User Manual
Section 3 - Conguration
Maintance
Admin
This page will allow you to change the Administrator and User passwords. You can also enable Remote Management. There are
two accounts that can access the management interface through the web browser. The accounts are admin and user. Admin
has read/write access while user has read-only access. User can only view the settings but cannot make any changes. Only the
admin account has the ability to change both admin and user account passwords.
Admin
Password:
User Password:
Enable Graphical
Authentication:
Enable HTTPS
Server:
Enable Remote
Management:
Remote Admin
Port:
Enter a new password for the Administrator Login Name. The
administrator can make changes to the settings.
Enter the new password for the User login. If you login as the User,
you cannot change the settings (you can only view them).
Enables a challenge-response test to require users to type letters
or numbers from a distorted image displayed on the screen to
prevent online hackers and unauthorized users from gaining
access to your router’s network settings.
Check to enable HTTPS to connect to the router securely. This
means to connect to the router, you must enter https://192.168.0.1
(for example) instead of http://192.168.0.1.
Remote management allows the DIR-505 to be congured from the Internet by a web browser. A username/password is still required to
access the Web Management interface.
The port number used to access the DIR-505 is used in the URL. Example: http://x.x.x.x:8080 whereas x.x.x.x is the Internet IP address of
the DIR-505 and 8080 is the port used for the Web Management interface.
If you have enabled HTTPS Server, you must enter https:// as part of the URL to access the router remotely.
53D-Link DIR-505 User Manual
Section 3 - Conguration
Time
The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system clock.
From this section you can set the time zone that you are in and set the Time Server. Daylight Saving can also be congured to
automatically adjust the time when needed.
Current Router
Time:
Time Zone:
Enable Daylight
Saving:
Enable NTP Server:
NTP Server Used:
Set the Date and
Time Manually:
Displays the current date and time of the router.
Select your Time Zone from the drop-down menu.
To select Daylight Saving time manually, select enabled
or disabled, and enter a start date and an end date for
daylight saving time.
NTP is short for Network Time Protocol. A NTP server will
synch the time and date with your router. This will only
connect to a server on the Internet, not a local server.
Check the box to enable this feature.
Enter the IP address of a NTP server or select one from
the drop-down menu.
To manually input the time, enter the values in these
elds for the Year, Month, Day, Hour, Minute, and Second
and then click Set Time.
You can also click Copy Your Computer’s Time Settings
to synch the date and time with the computer you are
currently on.
54D-Link DIR-505 User Manual
Section 3 - Conguration
System
This section allows you to manage the router’s conguration settings, reboot the router, and restore the router to the factory
default settings. Restoring the unit to the factory default settings will erase all settings, including any rules that you’ve created.
Save Settings
to Local Hard
Drive:
Load Settings
from Local Hard
Drive:
Restore to
Factory Default
Settings:
Reboot Device:
Use this option to save the current router conguration
settings to a le on the hard disk of the computer you
are using. First, click the Save button. A le dialog will
appear, allowing you to select a location and le name
for the settings.
Use this option to load previously saved router conguration
settings. First, use the Browse option to nd a previously
saved le of conguration settings. Then, click the Upload
Settings button below to transfer those settings to the
router.
This option will restore all conguration settings back
to the settings that were in eect at the time the router
was shipped from the factory. Any settings that have
not been saved will be lost, including any rules that
you have created. If you want to save the current router
conguration settings, use the Save button above.
Click to reboot the router.
Clear Language
Pack:
If you previously installed a language pack and want to
revert all the menus on the Router interface back to the
default language settings, click the Clear button.
55D-Link DIR-505 User Manual
Section 3 - Conguration
Firmware
Use the Firmware window to upgrade the rmware of the Router and install language packs. If you plan to install new rmware, make
sure the rmware you want to use is on the local hard drive of the computer. If you want to install a new language pack, make sure that
you have the language pack available. Please check the D-Link support site for rmware updates at http://support.dlink.com. You can
download rmware upgrades to your hard drive from the D-Link support site.
Firmware
Information:
Firmware
Upgrade:
Language Pack
Upgrade:
This section displays information about the rmware
that is loaded on the Router. Click the Check Now
button to nd out if there is an updated rmware; if so,
download the new rmware to your hard drive.
After you have downloaded the new rmware, click
Browse to locate the rmware update on your hard
drive. Click Upload to complete the rmware upgrade.
If you want to change the Router’s language pack, click
Browse to locate the language pack. Click Upload to
complete the load the new language pack.
56D-Link DIR-505 User Manual
Section 3 - Conguration
Dynamic DNS
The DDNS feature allows you to host a server (Web, FTP, Game Server, etc…) using a domain name that you have purchased
(www.whateveryournameis.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign
dynamic (changing) IP addresses. Using a DDNS service provider, your friends can enter in your domain name to connect to
your server no matter what your IP address is.
Enable
Dynamic DNS:
Server
Address:
Host Name:
Username or
Key:
Password or
Key:
Timeout:
Status:
Dynamic Domain Name System is a method of keeping
a domain name linked to a changing IP Address. Check
the box to enable DDNS.
Select your DDNS provider from the drop-down menu
or enter the DDNS server address.
Enter the Host Name that you registered with your DDNS
service provider.
Enter the Username or key for your DDNS account.
Enter the Password or key for your DDNS account.
Enter a timeout time (in hours).
Displays the current connection status.
57D-Link DIR-505 User Manual
Section 3 - Conguration
System Check
Ping Test:
IPv6 Ping Test:
Ping Results:
The Ping Test is used to send Ping packets to test if a
computer is on the Internet. Enter the IP address that you
wish to Ping and click Ping.
Enter the IPv6 address that you wish to Ping and click Ping.
The results of your ping attempts will be displayed here.
58D-Link DIR-505 User Manual
Section 3 - Conguration
Schedules
Schedules can be created for use with enforcing rules. For example, if you want to restrict web access to Mon-Fri from 3pm to
8pm, you could create a schedule selecting Mon, Tue, Wed, Thu, and Fri and enter a Start Time of 3pm and End Time of 8pm.
Name:
Days:
Time format:
Save:
Schedule Rules
List:
Enter a name for your new schedule.
Select a day, a range of days, or All Week to include
every day.
Check All Day - 24hrs or enter a start and end
time for your schedule.
You must click Save Settings at the top for your
schedules to go into eect.
The list of schedules will be listed here. Click the
Edit icon to make changes or click the Delete icon
to remove the schedule.
59D-Link DIR-505 User Manual
Section 3 - Conguration
Status
Device Info
This page displays the current information for the DIR-505. It will display the LAN, WAN (Internet), and Wireless information. If
your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use
Release to disconnect from your ISP and use Renew to connect to your ISP.
If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use Disconnect
to drop the PPPoE connection and use Connect to establish the PPPoE connection.
General:
WAN:
LAN:
Wireless LAN:
Displays the router’s time and rmware version.
Displays the MAC address and the public IP settings for
the router.
Displays the MAC address and the private (local) IP settings
for the router.
Displays the wireless MAC address and your wireless
settings such as SSID and Channel.
60D-Link DIR-505 User Manual
Section 3 - Conguration
Logs
The Broadband Router keeps a running log of events and activities occurring on the Router. You may send these logs to a
SysLog server on your network.
Log Type:
Log Level:
Log Files:
First Page:
Last Page:
Previous:
Next:
Clear:
Use the radio buttons to select the types of messages
that you want to display from the log. System, Firewall
& Security, and Router Status messages can be selected.
There are three levels of message importance: Critical,
Warning, and Information. Select the levels that you
want displayed in the log.
Use this section to view and manage the Router’s log
entries.
Click this button to view the rst page of the Router logs.
Click this button to view the last page of the Router logs.
Click this button to view the previous page of the Router
logs.
Click this button to view the next page of the Router logs.
Clears all of the log contents.
61D-Link DIR-505 User Manual
Section 3 - Conguration
Statistics
The screen below displays the Trac Statistics. Here you can view the amount of packets that pass through the DIR-505 on both
the WAN, LAN ports and both the 802.11n/g (2.4GHz) and 802.11n/a (5GHz) wireless bands. The trac counter will reset if the
device is rebooted.
Refresh:
Reset:
Click the Refresh button to refresh the Router’s trac
statistics.
Click the Reset button to reset the Router’s traffic
statistics.
62D-Link DIR-505 User Manual
Section 3 - Conguration
Internet Sessions
The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is a
conversation between a program or application on a LAN-side computer and a program or application on a WAN-side computer.
63D-Link DIR-505 User Manual
Section 3 - Conguration
Wireless
The wireless client table displays a list of current connected wireless clients. This table also displays the connection time and
MAC address of the connected wireless clients.
64D-Link DIR-505 User Manual
Section 3 - Conguration
Help
65D-Link DIR-505 User Manual
Section 3 - Conguration
Quick Setup Wizard
Repeater Mode
This Wizard is designed to assist you in conguring your DIR-505 as an repeater.
To start the Setup Wizard click Next.
Select WPS as the conguration method only if your wireless
device supports Wi-Fi Protected Setup (WPS). For Manual setup,
skip to page 67.
Click Next to continue.
Press down the Push Button on the Wireless device you are adding
to your wireless network.
66D-Link DIR-505 User Manual
Section 3 - Conguration
Select Manual as the configuration method to set up your
network manually.
Click Next to continue.
Please wait while your device scans for available Wi-Fi networks.
Select the network you would like your device to connect to.
67D-Link DIR-505 User Manual
Section 3 - Conguration
Setup Wizard
Click Launch Wireless Setup Wizard to begin the Setup
Wizard.
To start the Setup Wizard click Next.
Select WPS as the conguration method only if your wireless
device supports Wi-Fi Protected Setup (WPS).
Click Next to continue.
Press down the Push Button on the Wireless device you are
adding to your wireless network.
68D-Link DIR-505 User Manual
Section 3 - Conguration
Select Manual as the conguration method to set up your
network manually.
Click Next to continue.
Select the network you would like your device to connect
to.
69D-Link DIR-505 User Manual
Section 3 - Conguration
Manual Conguration
Wireless Settings
70D-Link DIR-505 User Manual
Section 3 - Conguration
Repeater Mode
Enable Wireless:
Wireless Mode:
Wireless
Network Name:
Channel Width:
Security Mode:
Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all
the wireless functions. You may also set up a specic time
range (schedule). Select a schedule from the drop-down
menu or click
Select
When you are browsing for available wireless networks,
this is the name that will appear in the list (unless Visibility
Status is set to Invisible, see below). This name is also
referred to as the SSID. For security purposes, it is highly
recommended to change from the default network name.
Select the appropriate channel width between 20MHz or
Auto 20/40MHz from the drop-down menu.
Select WEP or WPA Personal.
Repeater Mode from the drop-down menu.
Add New to create a new schedule.
71D-Link DIR-505 User Manual
Section 3 - Conguration
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The
DIR-605L oers the following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
• WEP (Wired Equivalent Privacy)
What is WEP?
WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP
provides security by encrypting data over your wireless network so that it is protected as it is transmitted from one wireless
device to another.
To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP,
you must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a
longer key than 64-bit encryption. Keys are dened by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or
ASCII (American Standard Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so
you can enter a string that is easier to remember. The ASCII string is converted to HEX for use over the network. Four keys can
be dened so that you can change keys easily.
72D-Link DIR-505 User Manual
Section 3 - Conguration
Congure WEP
It is recommended to enable encryption on your wireless router
before your wireless network adapters. Please establish wireless
connectivity before enabling encryption. Your wireless signal may
degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration by opening a web browser
and entering the IP address of the router (192.168.0.1).
Click on Wireless Setup on the left side.
2. In the Security Mode section, select WEP from the drop-down
menu.
3. In WEP Key Length, select either 64Bit or 128Bit encryption from
the drop-down menu.
5. Next to WEP Key 1, enter a WEP key that you create. Make sure
you enter this key exactly on all your wireless devices. You may
enter up to four dierent keys either using Hex or ASCII. Hex is
recommended (letters A-F and numbers 0-9 are valid). In ASCII all
numbers and letters are valid.
6. Click Save Settings to save your settings. If you are conguring the router with a wireless adapter, you will lose connectivity
until you enable WEP on your adapter and enter the same WEP key as you did on the router.
73D-Link DIR-505 User Manual
Section 3 - Conguration
Congure WPA/WPA2 Personal
It is recommended to enable encryption on your wireless access point before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based configuration by opening a web
browser and entering the IP address of the access point
(192.168.0.50). Click on Setup and then click Wireless Settings
on the left side.
2. Next to Security Mode, select WPA-Personal.
3. Next to Cipher Type, select TKIP, AES, or Auto.
4. Next to Passphrase, enter a key. The key is entered as a
passphrase in ASCII format at both ends of the wireless
connection. The passphrase must be between 8-63 characters.
6. Click Save Settings at the top of the window to save your
settings. If you are conguring the access point with a wireless
adapter, you will lose connectivity until you enable WPA-PSK
on your adapter and enter the same passphrase as you did on
the access point.
74D-Link DIR-505 User Manual
Section 3 - Conguration
LAN Settings
This section will allow you to change the local network settings of the access point and to congure the DHCP settings.
Device Name:
LAN Connection
Type:
My IPv6
Connection Type:
IP Address:
Subnet Mask:
Gateway
Address:
Enter the Device Name of the AP. It is recommended to
change the Device Name if there is more than one D-Link
device within the subnet.
Use the drop-down menu to select Dynamic IP (DHCP)
to automatically obtain an IP address on the LAN/private
network.
Select from the drop-down menu the type of IPv6
connection you would like to use.
Enter the IP address of the access point. The default IP
address is 192.168.0.50. If you change the IP address, once
you click Apply, you will need to enter the new IP address
in your browser to get back into the conguration utility.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.
75D-Link DIR-505 User Manual
Section 3 - Conguration
Static IP
Select Static IP Address if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP
address, subnet mask, gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the elds
must be in the appropriate IP form, which are four octets separated by a dot (x.x.x.x). The Access point will not accept the IP
address if it is not in this format.
Device Name:
LAN Connection
Type:
IP Address:
Subnet Mask:
Default Gateway:
Enter the Device Name of the AP. It recommended to
change the Device Name if there is more than one D-Link
device within the subnet. You can enter the device name
of the AP into your web browser to access the instead of
IP address for conguration. If you are using the device
name to connect, ensure that your PC and your DIR-505
are on the same network.
Select Static IP from the drop-down menu.
Enter the IP address of the access point. The default IP
address is 192.168.0.50. If you change the IP address, once
you click Apply, you will need to enter the new IP address
in your browser to get back into the conguration utility.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.
76D-Link DIR-505 User Manual
Section 3 - Conguration
Advanced
Advanced Wireless
Transmit Power:
HT 20/40
Coexistance:
Sets the transmit power of the antennas.
Check to enable or disable this feature.
77D-Link DIR-505 User Manual
Section 3 - Conguration
Wi-Fi Protected Setup
Wi-Fi Protected Setup (WPS) System is a simplied method for securing your wireless network during the “Initial setup” as well
as the “Add New Device” processes. The Wi-Fi Alliance (WFA) has certied it across dierent products as well as manufactures.
The process is just as easy, as depressing a button for the Push-Button Method or correctly entering the 8-digit code for the
Pin-Code Method. The time reduction in setup and ease of use are quite benecial, while the highest wireless Security setting
of WPA2 is automatically used.
Enable:
Lock Wireless
Security Settings:
Pin Settings:
Current PIN:
Reset PIN to
Default:
Generate New
PIN:
Check this box to enable the function
Locking the wireless security settings prevents the
settings from being changed by the Wi-Fi Protected
Setup feature of the router. Devices can still be added
to the network using Wi-Fi Protected Setup. However,
the settings of the network will not change once this
option is checked.
Press the button to generate a new PIN or Reset to
Default.
Shows the current value of the router’s PIN.
Restore the default PIN of the access point.
Create a random number that is a valid PIN. This becomes
the router’s PIN. You can then copy this PIN to the user
interface of the registrar.
Add Wireless
Station:
Press the button to start with the wizard to setup the
WPS.
78D-Link DIR-505 User Manual
Section 3 - Conguration
Maintenance
Admin
This page will allow you to change the Administrator password. The administrator password has read/write access.
Password:
Conrm
Password:
Enable
Graphical
Authentication:
Enter a new password for the Administrator Login Name.
The administrator can make changes to the settings.
Enter the same password that you entered in the
previous textbox in order to conrm its accuracy.
Check to enable this feature.
79D-Link DIR-505 User Manual
Section 3 - Conguration
System
Save to Local
Hard Drive:
Upload from
Local Hard Drive:
Restore to
Factory Default:
Use this option to save the current access point
conguration settings to a le on the hard disk of the
computer you are using. Click the
then see a le dialog where you can select a location
and le name for the settings.
Use this option to load previously saved access point
conguration settings. Click Browse to nd a previously
saved conguration le. Then, click the
button to transfer those settings to the access point.
This option will restore all conguration settings back
to the settings that were in eect at the time the access
point was shipped from the factory. Any settings that
have not been saved will be lost, including any rules that
you have created. If you want to save the current access
point conguration settings, use the Save button above.
Note: Restoring the factory default settings will not reset
the Wi-Fi Protected Status to Not Congured.
Save button. You will
Upload Settings
Reboot the
Device:
Click to reboot the access point.
80D-Link DIR-505 User Manual
Section 3 - Conguration
Firmware
You can upgrade the rmware of the access point here. Make sure the rmware you want to use is on the local hard drive of
the computer. Click on Browse to locate the rmware le to be used for the update. Please check the D-Link support website
for rmware updates at http://support.dlink.com. You can download rmware upgrades to your hard drive from this site.
Firmware
Upgrade:
Browse:
Upload:
Click on
rmware; if so, download the new rmware to your
hard drive.
After you have downloaded the new rmware, click
Browse to locate the rmware update on your hard
drive. Click Upload to complete the rmware upgrade.
Once you have a rmware update on your computer,
use this option to browse for the le and then upload
the information into the access point.
Check Now to nd out if there is an updated
Language Pack
You can change the language of the web UI by uploading
available language packs.
Browse:
After you have downloaded the new language pack,
click Browse to locate the language pack le on your
hard drive. Click Upload to complete the language
pack upgrade.
81D-Link DIR-505 User Manual
Section 3 - Conguration
Time
The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system clock.
From this section you can set the time zone that you are in. Daylight Saving can also be congured to automatically adjust the
time when needed.
Time Zone:
Daylight
Saving:
Enable NTP
Server:
NTP Server
Used:
Date and Time:
Select the Time Zone from the drop-down menu.
To select Daylight Saving time manually, click the
Daylight Saving check box. Next use the drop-down
menu to select a Daylight Saving Oset and then enter a
start date and an end date for daylight saving time.
NTP is short for Network Time Protocol. NTP synchronizes
computer clock times in a network of computers. Check
this box to use a NTP server. This will only connect to a
server on the Internet, not a local server.
Enter the NTP server or select one from the drop-down
menu.
To manually input the time, enter the values in these
elds for the Year, Month, Day, Hour, Minute, and Second
and then click
Your Computer’s Time Settings button at the bottom
of the screen.
Save Settings. You can also click the Copy
Enable
82D-Link DIR-505 User Manual
Section 3 - Conguration
Status
Device Info
This page displays the current information for the DIR-505. It will display the LAN and wireless LAN information.
General:
LAN:
Wireless LAN:
Displays the access point’s time and firmware
version.
Displays the MAC address and the private (local) IP
settings for the access point.
Displays the wireless MAC address and your
wireless settings such as SSID and Channel.
83D-Link DIR-505 User Manual
Section 3 - Conguration
Logs
The DIR-505 keeps a running log of events and activities occurring on the AP. If the AP is rebooted, the logs are automatically
cleared. You can save the log les under Log Setting.
Log Options:
First Page:
Last Page:
Previous Page:
Next Page:
Clear Log:
Log Settings:
Refresh:
There are several types of logs that can be viewed:
System Activity, Debug Information, Attacks,
Dropped Packets and Notice.
This button directs you to the rst page of the log.
This button directs you to the last page of the log.
This button directs you to the previous page of
the log.
This button directs you to the next page of the log.
This button clears all current log content.
This button opens a new menu where you can
congure the log settings.
This button refreshes the log.
84D-Link DIR-505 User Manual
Section 3 - Conguration
Statistics
The DIR-505 keeps statistics of the trac that passes through it. You can view the amount of packets that pass through the
LAN and wireless portions of the network. The trac counter will reset if the access point is rebooted.
85D-Link DIR-505 User Manual
Section 3 - Conguration
Quick Setup Wizard
WiFi Hot Spot
If this is your rst time using this device, you will be directed
to the Pre-Setup Wizard. If you have already completed the
Pre-Setup Wizard, please continue to page 88.
Enter Admin in the User Name eld. Leave the password blank
by default.
Click Next to continue.
Please wait while your device scans for an available Wi-Fi
Network.
86D-Link DIR-505 User Manual
Section 3 - Conguration
Select the Network you would like your device to connect
to and click Connect.
Enter the Wi-Fi password and click Next to continue.
Select Use the same Wi-Fi Network name for the extended
Network and click Next.
Your setup is now complete. Click Save to nish.
87D-Link DIR-505 User Manual
Section 3 - Conguration
To start the Wizard, click Next to continue.
Please wait while your device scans for an available Wi-Fi
Network.
Select the Network you would like your device to connect
to and click Connect.
88D-Link DIR-505 User Manual
Section 3 - Conguration
Enter the Wi-Fi password and click Next to continue.
Select Use the same Wi-Fi Network name for the extended
Network and click Next.
Your setup is now complete. Click Save to nish.
89D-Link DIR-505 User Manual
Section 3 - Conguration
Setup
Wi-Fi Hot Spot Setup
Enable Wireless:
Wireless Mode:
Wireless
Network Name:
Channel Width:
Security Mode:
Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all
the wireless functions. You may also set up a specic time
range (schedule). Select a schedule from the drop-down
menu or click
Select
When you are browsing for available wireless networks,
this is the name that will appear in the list (unless
Visibility Status is set to Invisible, see below). This name
is also referred to as the SSID. For security purposes,
it is highly recommended to change from the default
network name.
Select the appropriate channel width between 20MHz
or
Select WEP or WPA Personal.
Wi-Fi Hot Spot Mode from the drop-down menu.
Auto 20/40MHz from the drop-down menu.
Add New to create a new schedule.
90D-Link DIR-505 User Manual
Section 3 - Conguration
Please Select the Wi-Fi Hotspot you would like to connect to
with your device.
91D-Link DIR-505 User Manual
Section 3 - Conguration
Congure WPA/WPA2 Personal
It is recommended to enable encryption on your wireless access
point before your wireless network adapters. Please establish wireless
connectivity before enabling encryption. Your wireless signal may
degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration by opening a web browser
and entering the IP address of the access point (192.168.0.50).
Click on Setup and then click Wireless Settings on the left side.
2. Next to Security Mode, select WPA-Personal.
3. Next to WPA Mode, select Auto (WPA or WPA2).
4. Next to Cipher Type, select TKIP, AES, or Auto.
5. Next to Passphrase, enter a key. The key is entered as a passphrase
in ASCII format at both ends of the wireless connection. The
passphrase must be between 8-63 characters.
7. Click Save Settings at the top of the window to save your settings.
If you are conguring the access point with a wireless adapter, you
will lose connectivity until you enable WPA-PSK on your adapter and enter the same passphrase as you did on the access
point.
92D-Link DIR-505 User Manual
Section 3 - Conguration
WAN Settings
This section will allow you to change the local network settings of the access point and to congure the DHCP settings.
My Internet
Connection is:
Host Name:
MTU:
Mac Address:
Use the drop-down menu to select Dynamic IP (DHCP)
to automatically obtain an IP address on the LAN/private
network.
The Host Name is optional but may be required by some
ISPs. Leave blank if you are
not sure.
Maximum Transmission Unit - you may need to change
the MTU for optimal performance with your specic ISP.
1500 is the default MTU.
The default MAC Address is set to the Internet port’s
physical interface MAC address on the Broadband Router.
It is not recommended that you change the default
MAC address unless required by your ISP. You can use
the Clone Your PC’s MAC Address button to replace the
Internet port’s MAC address with the MAC address of your
Ethernet card.
93D-Link DIR-505 User Manual
Section 3 - Conguration
Wireless Setup
Extended SSID:
Channel Width:
Security Mode:
Use the drop-down menu to select Dynamic IP (DHCP)
to automatically obtain an IP address on the LAN/private
network.
20MHz - Select if you are not using any 802.11n wireless
clients.
40MHz - Select if you are using 802.11n wireless clients
only.
Select from the drop-down menu the type of security
mode you would like to use.
94D-Link DIR-505 User Manual
Section 3 - Conguration
Manual Wireless Settings
Extended SSID:
Channel Width:
Security Mode:
WPA Mode:
Cipher Type:
Pre-Shared Key:
Select Remain the same as SSID or Create Extended
SSID.
20MHz - Select if you are not using any 802.11n wireless
clients.
40MHz - Select if you are using 802.11n wireless clients
only.
Select from the drop-down menu the type of security
mode you would like to use.
Select Auto, WPA2 Only, or WPA Only. Use Auto if you
have wireless clients using both WPA and WPA2.
Select TKIP and AES, TKIP, or AES.
Enter a key (passphrase). The key is entered as a passphrase
in ASCII format at both ends of the wireless connection.
The pass-phrase must be between 8-63 characters.
95D-Link DIR-505 User Manual
