Version 1.00| 2018/08/03
User Manual

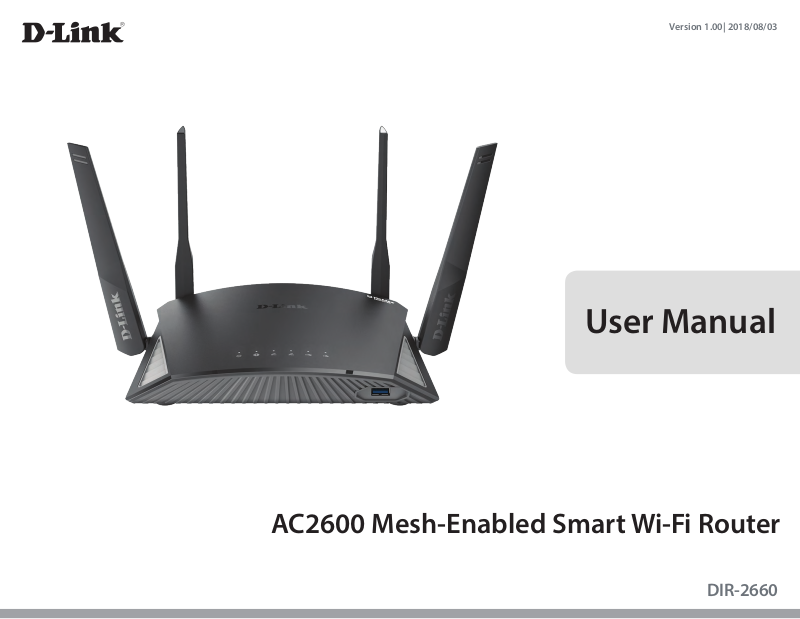

AC2600 Mesh-Enabled Smart Wi-Fi Router
DIR-2660
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Revision Date Description
1.00 August 03, 2018 Initial release.
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App Store
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
SM
is a service mark of Apple Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2018 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. It can also be turned o through a power switch to save energy when it is not
needed.
Network Standby: 4.87 watts
Switched O: 0.06 watts
iD-Link DIR-2660 User Manual
Table of Contents
Table of Contents
Product Overview ..............................................................1
Package Contents .........................................................................1
System Requirements ................................................................. 2
Introduction ................................................................................... 3
Features ............................................................................................5
Hardware Overview .....................................................................6
LED Indicators ........................................................................ 6
Back Panel ...............................................................................7
Front Panel .............................................................................. 8
Installation ......................................................................... 9
Before you Begin ...........................................................................9
Wireless Installation Considerations ....................................10
Hardware Setup ..........................................................................11
Completing Setup ......................................................................14
Setup Wizard ........................................................................15
Conguration ................................................................... 19
Home ..............................................................................................20
Internet ...................................................................................20
DIR-2660.................................................................................21
Connected Clients ..............................................................22
USB Device ............................................................................23
Settings ..........................................................................................24
Wizard .....................................................................................24
Internet ...................................................................................24
IPv6 .....................................................................................34
VLAN ...................................................................................54
Wireless ..................................................................................56
Guest Zone .......................................................................59
Network ..................................................................................60
USB Sharing ..........................................................................62
Features ..........................................................................................63
QoS Engine............................................................................63
Firewall ...................................................................................64
IPv4/IPv6 Rules ...............................................................66
Port Forwarding ..................................................................67
Virtual Server ................................................................... 68
Website Filter ........................................................................69
Static Routes .........................................................................70
IPv6 .....................................................................................71
Dynamic DNS .......................................................................72
IPv6 Host ...........................................................................73
Quick VPN ..............................................................................74
Management ................................................................................76
Time & Schedule .................................................................76
Time ....................................................................................76
Schedule ...........................................................................77
System Log ............................................................................78
System Admin ......................................................................80
System ...............................................................................81
User & Device .......................................................................82
User .....................................................................................82
Device ................................................................................84
Upgrade .................................................................................85
iiD-Link DIR-2660 User Manual
Table of Contents
Statistics .................................................................................86
Quick VPN .........................................................................87
Important Information .............................................................88
Quick VPN Server Setup Instructions ..................................89
iOS Devices ...................................................................................90
Mac OS X ........................................................................................94
Windows 7 .....................................................................................97
Windows 8.1/8 .......................................................................... 101
Windows 10 ............................................................................... 107
Android ....................................................................................... 110
Connect a Wireless Client to your Router ....................114
WPS Button ................................................................................114
Windows® 10 ............................................................................. 115
Windows® 8 ................................................................................117
WPA/WPA2 ......................................................................... 117
Check your IP address ............................................................ 138
Statically Assign an IP address ............................................ 139
Wireless Security ......................................................... 140
What is WPA? ................................................................ 140
Technical Specications ................................................ 141
Regulatory Statements .................................................142
Windows® 7 ................................................................................119
WPA/WPA2 ......................................................................... 119
WPS ....................................................................................... 122
Windows Vista® .........................................................................126
WPA/WPA2 ......................................................................... 127
Troubleshooting ............................................................129
Wireless Basics ...............................................................133
What is Wireless? ...................................................................... 134
Tips ................................................................................................136
Wireless Modes .........................................................................137
Networking Basics .........................................................138
iiiD-Link DIR-2660 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
DIR-2660
Ethernet Cable
Power Adapter
If any of the above items are missing or damaged, please contact your local reseller.
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-2660 will cause damage and void the warranty
for this product.
Quick Installation Guide
1D-Link DIR-2660 User Manual
Section 1 - Product Overview
Network Requirements
Web-based Conguration
Utility Requirements
System Requirements
• An Ethernet-based cable or DSL modem
• IEEE 802.11ac/n/g/b/a wireless clients
• 10/100/1000 Ethernet
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 10 or higher
• Firefox 28 or higher
• Safari 6 or higher
• Chrome 28 or higher
Wi-Fi APP Requirments
Windows
installed. Visit www.java.com to download the latest version.
• iPhone®/iPad®/iPod Touch®, Android™, or Windows smartphone
or tablet. (Please refer to the mobile app's store page to check
whether your device is compatible)
®
Users: Make sure you have the latest version of Java
2D-Link DIR-2660 User Manual
Section 1 - Product Overview
Introduction
The D-Link DIR-2660 AC2600 Mesh-Enabled Smart Wi-Fi Router shares your Internet connection over a blazing-fast Gigabit
1
Wireless AC connection of up to 2600 Mbps (Up to 1723 Mbps 5 GHz Wireless AC and up to 800 Mbps 2.4 GHz Wireless N)
using advanced AC beamforming technology to signicantly outperform 802.11n and other 802.11ac devices. Equipped with
one Gigabit WAN/Internet port and four Gigabit LAN ports to provide wired speeds of up to 10 times faster than standard
10/100 ports, the DIR-2660 creates the best networking experience to date.
Featuring four antennas and a 4 x 4 Multiple In Multiple Out (MIMO) antenna conguration, the DIR-2660 oers better
data rates, fewer dead-spots, more coverage, and higher reliability. Operating exclusively in the 5 GHz band, the DIR-2660's
802.11ac wireless connections avoid the crowded 2.4 GHz band, allowing you faster speeds while still maintaining backwards
compatibility with older 802.11n/g/b devices. The DIR-2660 prepares your home to become a Connected Home by bringing
Wi-Fi to places your old signal can’t reach. A stronger Wi-Fi signal means you can install more wireless surveillance cameras,
baby monitors, sensors, and alarms in the places where you need them.
The DIR-2660's Smart Connect Technology makes connecting to wireless networks easy by eliminating the confusion of
multiple networks. Ever since the introduction of 5 GHz multi-band wireless technology, users have had to guess whether
the 5 GHz or 2.4 GHz band network would provide them with better range and speed. Smart Connect simplies this by only
presenting a single wireless network for you to connect to. Behind the scenes, when a connection is initiated, the DIR-2660's
advanced algorithms determine the best band for your device to connect to, automatically distributing devices to the optimal
band, thereby ensuring a faster, more reliable, and hassle-free experience for all of your users and devices.
,
This router is equipped with D-Link's Quick VPN technology. Using Quick VPN allows you to securely connect your computer
or mobile device to places with free, untrusted Wi-Fi hotspots by encrypting and relaying your connection through your home
Internet connection. This extra 'hop' reduces the chances of hackers stealing your information, such as logins, passwords, and
credit card numbers. When traveling, Quick VPN lets you watch sports and use video streaming services without experiencing
blackouts or ltering. You can surf the whole Internet unltered and unblocked, just as you would at home.
3D-Link DIR-2660 User Manual
Section 1 - Product Overview
Introduction (continued)
The DIR-2660 supports the latest wireless security features to help prevent unauthorized access, be it from over a wireless
network or the Internet. Support for WPA™ and WPA2™ standards ensure that you will be able to use the best possible
encryption regardless of your client devices. In addition, this router is equipped with a dual-active rewall (SPI and NAT) to help
prevent potential attacks over the Internet.
The DIR-2660 AC2600 Mesh-Enabled Smart Wi-Fi Router provides incredible speeds, smart antenna technology, fast ports,
cloud features, and advanced security features. It also features an innovative design and easy installation options.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate.
4D-Link DIR-2660 User Manual
Section 1 - Product Overview
• Superior Wireless Networking - The DIR-2660 provides Gigabit wireless speeds of up to a combined 2600
Mbps (1732 Mbps 802.11ac 5 GHz, plus 800 Mbps 802.11n 2.4 GHz)1. This capability rivals wired connections,
allowing users to participate in real-time activities online, such as HD video communication, online gaming, and
use mobile devices from anywhere in your home while still oering full 802.11n/g/b backward compatibility.
• Extreme Wired LAN and WAN Networking - With four 10/100/1000 Gigabit Ethernet LAN ports, and a
10/100/1000 Gigabit Ethernet WAN port, the DIR-2660 has an enormous amount of bandwidth to take full
advantage of the highest speed broadband connections available.
IPv6 Support - The DIR-2660 fully supports IPv6 and includes support for a variety of IPv6 connection types
including: SLAAC/DHCPv6, 6to4, 6rd, Static IPv6, IPv6 PPPoE, IPv6 in IPv4 tunneling, and local connectivity.
• Smart Connect - Creates a 'single' wireless network for your devices to connect to. Behind the scenes, the
DIR-2660 automatically determines whether to connect a device to the 2.4 or 5 GHz band, thereby providing the
best speed and range for each device and optimally distributing devices to each network.
Features
• Advanced Firewall Features - The web-based user interface displays a number of advanced network
management features. Easily apply content ltering based on MAC address, URL, and/or domain name.
Schedule these lters to be active on certain days or for a duration of hours or minutes.
• Encrypted Multiple/Concurrent Sessions - The DIR-2660 can pass through VPN sessions. It supports multiple
and concurrent IPSec and PPTP sessions, so users behind the DIR-2660 can access corporate networks through
encrypted channels.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface or D-Link Wi-Fi App, the
DIR-2660 lets you quickly congure and secure your router to your specic settings in minutes.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
5D-Link DIR-2660 User Manual
Section 1 - Product Overview
Hardware Overview
LED Indicators
3
21
1 Power LED
2 Internet LED
3 Wireless (2.4 GHz LED) A solid white light indicates that the 2.4 GHz wireless band is enabled.
4 Wireless (5 GHz LED) A solid white light indicates that the 5 GHz wireless band is enabled.
5 USB LED A solid white light indicates a USB storage device is connected to the router.
A solid white light indicates a proper connection to the power supply. The light will be solid orange during boot
up.
A solid white light indicates a connection on the Internet port. If the LED is orange, the router cannot connect to
the Internet.
4 5
6D-Link DIR-2660 User Manual
Section 1 - Product Overview
Hardware Overview
Back Panel
2
1
1 Gigabit LAN Ports (1- 4) Connect Ethernet devices such as computers, switches, storage (NAS) devices, and game consoles.
2
3 Reset Button
4 WPS Button Press to start the WPS process and automatically create an encrypted connection to a WPS client.
5 Power Connector Connector for the supplied power adapter.
6 Power Button Press the power button to power the device on or o.
Gigabit WAN Port
Using an Ethernet cable, connect your broadband modem to this port.
Insert a paperclip in the hole, press the recessed button, wait for 10 seconds, and release to reset the
router to default settings.
3 4 5 6
7D-Link DIR-2660 User Manual
Section 1 - Product Overview
Front Panel
1
1 USB 3.0 Port Connect a USB storage device to share les over the network.
8D-Link DIR-2660 User Manual
Section 3 - Installation
Installation
This section will walk you through the installation of the DIR-2660.
Before you Begin
• Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet,
attic, or garage.
• Congure the router with the computer that was last connected directly to your Internet connection. Verify that it
is connected to the Internet before connecting additional devices.
• If your ISP provided you with a modem/router combo, you will need to set it to “bridge” mode so the router can
work properly. Please contact your ISP or refer to the user manual for your modem/router device.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router,
then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet
port on the router, and then turn the modem back on. In some cases, you may need to call your Internet Service
Provider (ISP) to change connection types (USB to Ethernet).
• If connecting to a DSL modem, make sure to have your DSL service information provided by your Internet Service
Provider handy. This information is likely to include your DSL account's Username and Password. Your ISP may also
supply you with additional WAN conguration settings which might be necessary to establish a connection.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to
label each cable or take a picture of your existing setup before making any changes.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as
WinPoET, BroadJump, or EnterNet 300 from your computer or you will not be able to connect to the Internet.
9D-Link DIR-2660 User Manual
Section 3 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or
open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors,
le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone is not in use.
10D-Link DIR-2660 User Manual
Section 3 - Installation
Hardware Setup
1. The DIR-2660 is designed to give you the fastest, most stable network connection possible. In order to maximize
performance, fully extend the antennas into a 105 degree angle to provide optimal wireless coverage. Keep the router
in an open area for better wireless coverage.
105˚
2. Position your DIR-2660 near your Internet-connected modem. Place it in an open area for better wireless coverage.
DIR-2660
4 3 2 1 INTERNETRR ESET WPS
DCIN
POWER
12V...2A
Modem
3. Turn o and unplug the power and Ethernet cable to your cable or DSL broadband modem. This is required. In some
cases, you may need to turn it o for up to ve minutes.
DIR-2660
4 3 2 1 INTERNETRR ESET WPS
DCIN
POWER
12V...2A
Modem
11D-Link DIR-2660 User Manual
Section 3 - Installation
4. Use the included Ethernet cable to connect your modem to the yellow port labeled INTERNET on the router.
DIR-2660
4 3 2 1 INTERNETRR ESET WPS
DCIN
POWER
12V...2A
Modem
5. Turn on or plug your modem back in and wait approximately one minute before proceeding onward.
DIR-2660
4 3 2 1 INTERNETRR ESET WPS
DCIN
POWER
12V...2A
Modem
6. Connect the supplied power adapter to the router and a power outlet, press the power button, and wait approximately
one minute until the LED indicator on the front of the device changes from orange to solid white.
DIR-2660
4 3 2 1 INTERNETRR ESET WPS
DCIN
POWER
12V...2A
Modem
Note: This unit is to be used with power supply model S36B52-120A250-04.
12D-Link DIR-2660 User Manual
Section 3 - Installation
7. If you are conguring the DIR-2660 wirelessly from a PC, connect to a Wi-Fi network. You can also nd the Wi-Fi
network names and passwords printed on the label attached to the bottom your router.
DIR-2660
4 3 2 1 INTERNETRR ES ET WPS
DCIN
POWER
12V...2A
Modem
If you are conguring the DIR-2660 from a PC with a wired Ethernet connection, plug one end of an Ethernet cable
into the port labeled 1 on the back of the router, and the other end into the Ethernet port on your computer.
DIR-2660
4 3 2 1 INTERNETRR ES ET WPS
DCIN
POWER
12V...2A
Modem
8. If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online already.
Try opening a web browser and connecting to a website. If the website does not load, proceed to Completing Setup
on page 14.
13D-Link DIR-2660 User Manual
Section 3 - Installation
Completing Setup
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Wi-Fi - Use your Android device, iPhone, iPad, or iPod touch to congure your router.
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time.
Refer to Setup Wizard on page 15.
• Manual Setup - Log in to the router and manually congure your router.
Refer to Conguration on page 19.
14D-Link DIR-2660 User Manual
Section 3 - Installation
Setup Wizard
If this is your rst time installing the router, open your web browser and enter
http://dlinkrouter.local./ in the address bar. Alternatively, enter the IP address
of the router (default: http://192.168.0.1).
The wizard is designed to guide you through a step-by-step process to congure
your new D-Link router and connect to the Internet.
Click Next to continue.
Please wait while your router detects your Internet connection type. If the router
detects your Internet connection, you may need to enter your ISP information
such as username and password.
If the router does not detect a valid Internet connection, a list of connection
types to choose from will be displayed.
Select your Internet connection type (this information can be obtained from
your Internet Service Provider) and click Next to continue.
15D-Link DIR-2660 User Manual
Section 3 - Installation
Setup Wizard (continued)
If the router detected or you selected PPPoE, enter your PPPoE username and
password and click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The software
is no longer needed and will not work through a router.
If the router detected or you selected Static, enter the IP and DNS settings
supplied by your ISP. Click Next to continue.
16D-Link DIR-2660 User Manual
Section 3 - Installation
Setup Wizard (continued)
Create a Wi-Fi password (between 8-63 characters). Your wireless clients will
need to have this passphrase or key entered to be able to connect to your
wireless network.
Click Next to continue.
Note: The DIR-2660's Smart Connect feature presents a single wireless network.
When connecting clients to an extension network, they will be automatically
added to the best band, either 2.4 GHz or 5 GHz. To disable the Smart Connect
feature and individually congure 2.4 GHz and 5 GHz networks, refer to Wireless
on page 56.
In order to secure the router, please enter a new password. You will be prompted
for this password every time you want to use the router’s web conguration
utility. Click Next to continue.
17D-Link DIR-2660 User Manual
Section 3 - Installation
Setup Wizard (continued)
You will be presented with a summary of your settings. Click Next to nalize
the settings or Back to make changes.
At the end of the wizard, you will be presented with a nal summary of your
settings. Click Finish to close the wizard.
Congratulations, your device has been successfully congured!
18D-Link DIR-2660 User Manual
Section 4 - Conguration
Conguration
To access the conguration utility, open a web-browser such as Internet
Explorer and enter http://dlinkrouter.local./ or you may also connect by
typing the IP address of the router (by default this is http://192.168.0.1) in the
address bar.
Enter your password. If you previously followed the setup wizard, please use
the admin password you entered during the wizard. Otherwise, leave the
password blank. Click Log In to proceed.
Note: If you cannot remember your password and cannot log in, press the reset/
wps button on the back of the device for longer than 10 seconds to restore the
router to its default settings.
The router’s home page will open displaying its current connection status.
The bar at the top of the page has quick access to Settings and Management
functions. You may quickly jump back Home at any time.
Note: The system will automatically log out after a period of inactivity.
19D-Link DIR-2660 User Manual
Section 4 - Conguration
Home
The Home page displays the current status of the router in the form of an
interactive diagram. You can click each icon to display information about each
part of the network at the bottom of the screen. The menu bar at the top of
the page will allow you to quickly navigate to other pages.
The Home page displays whether or not the router is currently connected to
the Internet. If it is disconnected, click Click to repair to bring up the setup
wizard, refer to Setup Wizard on page 15 for more information.
Internet
To bring up more details about your Internet connection, click on the
Internet icon. Click IPv4 or IPv6 to see details of the IPv4 connection and IPv6
connection respectively.
Click Release IP Address to disconnect from the Internet. If you do this and
wish to reconnect, click Renew.
To recongure the Internet settings, refer to Internet on page 24.
20D-Link DIR-2660 User Manual
Section 4 - Conguration
DIR-2660
Click on the DIR-2660 icon to view details about the router and its wireless
settings.
Here you can see the router’s current Wi-Fi network name and password, as
well as the router's MAC address, IPv4 address, and IPv6 address.
To recongure the network settings, either click Go to settings on the lower
left, or click Settings (at the top of the page) and then Network on the menu
that appears. Refer to Network on page 60 for more information.
To recongure the wireless settings, either click Go to settings, on the lower
right, or click Settings (at the top of the page) and then Wireless on the menu
that appears. Refer to Wireless on page 56 for more information.
21D-Link DIR-2660 User Manual
Section 4 - Conguration
Connected Clients
Click on the Connected Clients icon to view details about the router and its
wireless settings.
On this page you can see all the clients currently connected to the router, and
their IP addresses.
To edit each client’s settings, click the pencil icon on the client you want to
edit.
Name: Enter a custom name for this client.
Vendor: Displays the vendor of the device.
MAC Address: Displays the MAC address of the device.
IP Address: Displays the current IP address of this client.
Reserve IP: Enable to reserve this IP address for this client.
IP Address
(Reserved):
Parental Control: Allow or Block access to the router.
Specify an IP address for the DIR-2660's DHCP server to assign.
Click Save when you are done.
22D-Link DIR-2660 User Manual
Section 4 - Conguration
USB Device
Click on the USB Device icon to view details about the currently connected
USB storage device, DLNA media server, Windows File Sharing, and FTP.
If you have a USB device connected, you can see its name and how much free
space it has.
To recongure the USB sharing settings, either click Go to settings on the
lower right, or click Settings (at the top of the page) and then USB Sharing
on the menu that appears. Refer to USB Sharing on page 67 for more
information.
23D-Link DIR-2660 User Manual
Section 4 - Conguration
Settings
Wizard
In the Settings menu on the bar on the top of the page, click Wizard to open the setup wizard. This is the same wizard that
appears when you start the router for the rst time. Refer to Setup Wizard on page 15 for details.
Internet
In the Settings menu on the bar on the top of the page, click Internet to see the Internet conguration options.
My Internet
Connection Is:
For Dynamic IP (DHCP) refer to page 25.
For Static IP refer to page 26.
For PPPoE refer to page 27.
For PPTP refer to page 29.
For L2TP refer to page 31.
For DS-Lite refer to page 33.
To congure an IPv6 connection, click the IPv6 link. Refer to page 34.
Choose your Internet connection type from the drop-down menu. You
will be presented with the appropriate options for your connection
type. Click Advanced Settings... to expand the list and see all of the
options.
24D-Link DIR-2660 User Manual
Section 4 - Conguration
Dynamic IP (DHCP)
Select Dynamic IP (DHCP) to obtain IP address information automatically
from your Internet Service Provider (ISP). Select this option if your ISP does not
specify an IP address to use.
Advanced Settings
Host Name: The host name is optional but may be required by some ISPs. Leave
it blank if you are not sure.
Primary DNS
Server:
Secondary DNS
Server:
MTU: Maximum Transmission Unit - you may need to change the MTU for
MAC Address
Clone:
Enter the primary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
Enter the secondary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
optimal performance with your ISP.
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.
Click Save when you are done.
25D-Link DIR-2660 User Manual
Section 4 - Conguration
Static IP
Select Static IP if your IP information is provided by your Internet Service
Provider (ISP).
IP Address: Enter the IP address provided by your ISP.
Subnet Mask: Enter the subnet mask provided by your ISP.
Default Gateway: Enter the default gateway address provided by your ISP.
Primary DNS
Server:
Advanced Settings
Secondary DNS
Server:
MTU: Maximum Transmission Unit - you may need to change the MTU for
MAC Address
Clone:
Enter the primary DNS server IP address assigned by your ISP.
Enter the secondary DNS server IP address assigned by your ISP.
optimal performance with your ISP. The recommended setting is Auto.
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.
Click Save when you are done.
26D-Link DIR-2660 User Manual
Section 4 - Conguration
PPPoE
Select PPPoE if your ISP provides and requires you to enter a PPPoE username
and password in order to connect to the Internet.
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Reconnect Mode: Select either Always on, On Demand, or Manual.
Maximum Idle
Time:
Enter a maximum idle time during which the Internet connection is
maintained during inactivity. To disable this feature, select Always
on as the reconnect mode.
Advanced Settings
Address Mode: Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Dynamic IP
Service Name: Enter the ISP service name (optional).
Primary DNS
Server:
Secondary DNS
Server:
MTU: Maximum Transmission Unit - you may need to change the MTU for
Enter the primary DNS server IP address assigned by your ISP.
Enter the secondary DNS server IP address assigned by your ISP.
optimal performance with your ISP. The recommended setting is Auto.
27D-Link DIR-2660 User Manual
Section 4 - Conguration
PPPoE (continued)
MAC Address
Clone:
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.
Static IP
IP Address: Enter the IP address provided by your ISP.
Service Name: Enter the ISP service name (optional).
Primary DNS
Server:
Secondary DNS
Server:
MTU: Maximum Transmission Unit - you may need to change the MTU for
MAC Address
Clone:
Enter the primary DNS server IP address assigned by your ISP.
Enter the secondary DNS server IP address assigned by your ISP.
optimal performance with your ISP. The recommended setting is Auto.
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.
Click Save when you are done.
28D-Link DIR-2660 User Manual
Section 4 - Conguration
PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol ) if your Internet Service
Provider (ISP) uses a PPTP connection. Your ISP will provide you with a
username and password.
PPTP Server IP
Address:
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Reconnect Mode: Select either Always on, On demand, or Manual.
Maximum Idle
Time:
Enter the PPTP server IP address provided by your ISP.
Enter a maximum idle time during which the Internet connection is
maintained during inactivity. To disable this feature, select Always
on as the reconnect mode.
Advanced Settings
Address Mode: Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Dynamic IP
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
MTU: Maximum Transmission Unit - you may need to change the MTU for
Enter the secondary DNS server IP address assigned by your ISP.
optimal performance with your ISP. The recommended setting is Auto.
29D-Link DIR-2660 User Manual
Section 4 - Conguration
Static IP
PPTP IP Address: Enter the IP address provided by your ISP.
PPTP (continued)
PPTP Subnet
Mask:
PPTP Gateway IP
Address:
Primary DNS
Server:
Secondary DNS
Server:
MTU: Maximum Transmission Unit - you may need to change the MTU for
Enter the subnet mask provided by your ISP.
Enter the gateway IP address provided by your ISP.
Enter the primary DNS server IP address assigned by your ISP.
Enter the secondary DNS server IP address assigned by your ISP.
optimal performance with your ISP. The recommended setting is Auto.
Click Save when you are done.
30D-Link DIR-2660 User Manual
Section 4 - Conguration
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your Internet Service Provider
(ISP) uses a L2TP connection. Your ISP will provide you with a username and
password.
L2TP Server: Enter the L2TP server IP address provided by your ISP.
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Reconnect Mode: Select either Always on, On demand, or Manual.
Maximum Idle
Time:
Enter a maximum idle time during which the Internet connection is
maintained during inactivity. To disable this feature, select Always
on as the reconnect mode.
Advanced Settings
Address Mode: Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Dynamic IP
Primary DNS
Server:
Secondary DNS
Server:
MTU: Maximum Transmission Unit - you may need to change the MTU for
Enter the primary DNS server IP address assigned by your ISP.
Enter the secondary DNS server IP address assigned by your ISP.
optimal performance with your ISP. The recommended setting is Auto.
31D-Link DIR-2660 User Manual
Section 4 - Conguration
Static IP
L2TP IP Address: Enter the IP address provided by your ISP.
L2TP (continued)
L2TP Subnet
Mask:
L2TP Gateway IP
Address:
Primary DNS
Server:
Secondary DNS
Server:
MTU: Maximum Transmission Unit - you may need to change the MTU for
Enter the subnet mask provided by your ISP.
Enter the gateway IP address provided by your ISP.
Enter the primary DNS server IP address assigned by your ISP.
Enter the secondary DNS server IP address assigned by your ISP.
optimal performance with your ISP. The recommended setting is Auto.
Click Save when you are done.
32D-Link DIR-2660 User Manual
Section 4 - Conguration
DS-Lite
DS-Lite is an IPv6 connection type. After selecting DS-Lite, the following
parameters will be available for conguration:
Advanced Settings
DS-Lite
Conguration:
Select DS-Lite DHCPv6 Option to let the router allocate the AFTR
IPv6 address automatically. Select Manual Conguration to enter
the AFTR IPv6 address manually.
DS-Lite DHCPv6
B4 IPv6 Address: Enter the B4 IPv4 address value used here.
WAN IPv6
Address:
IPv6 WAN Default
Gateway:
Once connected, the WAN IPv6 address will be displayed here.
Once connected, the IPv6 WAN default gateway address will be
displayed here.
Manual
AFTR IPv6
Address:
B4 IPv6 Address: Enter the B4 IPv4 address value used here.
Enter the AFTR IPv6 address used here.
WAN IPv6
Address:
IPv6 WAN Default
Gateway:
Once connected, the WAN IPv6 address will be displayed here.
Once connected, the IPv6 WAN default gateway address will be
displayed here.
Click Save when you are done.
33D-Link DIR-2660 User Manual
Section 4 - Conguration
IPv6
To congure an IPv6 connection, click the IPv6 link. To return to the IPv4
settings, click IPv4.
My Internet
Connection Is:
Choose your IPv6 connection type from the drop-down menu. You
will be presented with the appropriate options for your connection
type. Click Advanced Settings... to expand the list and see all of the
options.
For Auto Detection refer to page 35.
For Static IPv6 refer to page 37.
For Auto Conguration (SLAAC/DHCPv6) refer to page 39.
For PPPoE refer to page 42.
For IPv6 in IPv4 Tunnel refer to page 46.
For 6 to 4 refer to page 49.
For 6rd refer to page 51.
For Local Connectivity Only refer to page 53.
34D-Link DIR-2660 User Manual
Section 4 - Conguration
Auto Detection
Select Auto Detection to automatically detect the IPv6 connection method
used by your Internet Service Provider (ISP). If Auto Detection fails, you can
manually select another IPv6 connection type.
IPv6 DNS Settings
DNS Type: Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server:
Secondary DNS
Server:
If you selected Use the following DNS address above, enter the
primary DNS server address.
If you selected Use the following DNS address above, enter the
secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD: Enable or disable DHCP Prex Delegation.
LAN IPv6 LinkLocal Address:
If Enable DHCP-PD is disabled, these additional parameters are available for conguration:
LAN IPv6 Address: Enter a valid LAN IPv6 address.
LAN IPv6 LinkLocal Address:
Displays the router’s LAN link-local address.
Displays the router’s LAN link-local address.
35D-Link DIR-2660 User Manual
Section 4 - Conguration
Auto Detection (continued)
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable Automatic
DHCP-PD in LAN:
Autoconguration
Type:
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime:
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enable or disable the Automatic IPv6 Address Assignment feature.
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface.
Note: This feature requires a smaller subnet prex than /64 (i.e. allowing
for a larger address allocation), such as /63. Contact your ISP for more
information.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
Enter the router advertisement lifetime (in minutes).
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Click Save when you are done.
36D-Link DIR-2660 User Manual
Section 4 - Conguration
Static IPv6
Select Static IP if your IPv6 information is provided by your Internet Service
Provider (ISP).
Use Link-Local
Address:
Default Gateway: Enter the default gateway for your IPv6 connection.
Primary DNS
Server:
Secondary DNS
Server:
If Use Link-Local Address is disabled these additional parameters are available for
conguration:
IPv6 Address: Enter the address supplied by your ISP.
Subnet Prex
Length:
Enable or disable link-local address use.
Enter the primary DNS server address.
Enter the secondary DNS server address.
Enter the subnet prex length supplied by your ISP.
LAN IPv6 Address Settings
LAN IPv6 Address: Enter the LAN (local) IPv6 address for the router.
LAN IPv6 LinkLocal Address:
Displays the router’s LAN link-local address.
37D-Link DIR-2660 User Manual
Section 4 - Conguration
Static IPv6 (continued)
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Autoconguration
Type:
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime:
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
IPv6 Address
Range (End):
IPv6
Advertisement
Lifetime:
Enable or disable the Automatic IPv6 Address Assignment feature.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
Enter the router advertisement lifetime (in minutes).
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
38D-Link DIR-2660 User Manual
Section 4 - Conguration
Auto Conguration (SLAAC/DHCPv6)
Select Auto Conguration if your ISP assigns your IPv6 address when your
router requests one from the ISP’s server. Some ISPs require you to adjust
settings on your side before your router can connect to the IPv6 Internet.
IPv6 DNS Settings
DNS Type: Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server:
Secondary DNS
Server:
Enter the primary DNS server address.
Enter the secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD: Enable or disable prex delegation services.
LAN IPv6 LinkLocal Address:
If Enable DHCP-PD is disabled, these additional parameters are available for conguration:
LAN IPv6 Address: Enter a valid LAN IPv6 address.
LAN IPv6 LinkLocal Address:
Displays the router’s LAN link-local address.
Displays the router’s LAN link-local address.
39D-Link DIR-2660 User Manual
Section 4 - Conguration
Auto Conguration (SLAAC/DHCPv6) (continued)
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
If DHCP-PD is enabled in LAN IPv6 Address Settings:
Enable Automatic
DHCP-PD in LAN:
Autoconguration
Type:
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime:
If you selected Stateful DHCPv6 as the Autoconguration Type:
Enable or disable the Automatic IPv6 Address Assignment feature.
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface.
Note: This feature requires a smaller subnet prex than /64 (i.e. allowing
for a larger address allocation), such as /63. Contact your ISP for more
information.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
Enter the router advertisement lifetime (in minutes).
IPv6 Address
Range (Start):
IPv6 Address
Range (End):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
40D-Link DIR-2660 User Manual
Section 4 - Conguration
Auto Conguration (SLAAC/DHCPv6) (continued)
If DHCP-PD is disabled in LAN IPv6 Address Settings and SLAAC+Stateless DHCP or
SLAAC+RDNSS is chosen as the Autoconguration Type:
Router
Advertisement
Lifetime:
If DHCP-PD is disabled in LAN IPv6 Address Settings and Stateful DHCPv6 is chosen as the
Autoconguration Type:
IPv6 Address
Range (Start):
IPv6 Address
Range (End):
IPv6
Advertisement
Lifetime:
Enter the router advertisement lifetime (in minutes).
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
41D-Link DIR-2660 User Manual
Section 4 - Conguration
PPPoE
Select PPPoE if your ISP provides and requires you to enter a PPPoE username
and password in order to connect to the Internet.
PPPoE Session: Choose Share with IPv4 to re-use your IPv4 PPPoE username and
password, or Create a new session.
Address Mode Select Static IP if your ISP assigned you an IP address. In most cases,
select Dynamic IP.
MTU Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
If you selected Static IP as the Address Mode and Share with IPv4 as the PPPoE Session:
IP Address: Enter the IP address provided by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
If you selected Create a new session as the PPPoE Session:
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Address Mode: Select either Dynamic IP or Static IP.
Service Name: Enter the ISP service name (optional).
Reconnect Mode Select either Always On or Manual.
MTU Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
42D-Link DIR-2660 User Manual
Section 4 - Conguration
PPPoE (continued)
If you selected Static IP as the Address Mode and Create a new session as the PPPoE Session:
IP Address Enter the IP address provided by your ISP
Service Name Enter the ISP service name (optional).
Reconnect Mode Select either Always-on or Manual.
MTU Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
IPv6 DNS Settings
DNS Type: Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server:
Secondary DNS
Server:
Enter the primary DNS server address.
Enter the secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD: Enable or disable prefix delegation services. This option is only
available if you selected Dynamic IP for address mode.
LAN IPv6 LinkLocal Address:
Displays the router’s LAN link-local address.
43D-Link DIR-2660 User Manual
Section 4 - Conguration
PPPoE (continued)
If Enable DHCP-PD is disabled these additional parameters are available for conguration:
LAN IPv6 Address: If DHCP-PD disabled or static address mode is selected, enter the LAN
(local) IPv6 address for the router.
LAN IPv6 LinkLocal Address:
Displays the router’s LAN link-local address.
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
If DHCP-PD is enabled in LAN IPv6 Address Settings:
Enable Automatic
DHCP-PD in LAN:
Autoconguration
Type:
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Enable or disable the Automatic IPv6 Address Assignment feature.
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface.
Note: This feature requires a smaller subnet prex than /64 (i.e. allowing
for a larger address allocation), such as /63. Contact your ISP for more
information.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
Router
Advertisement
Lifetime:
Enter the router advertisement lifetime (in minutes).
44D-Link DIR-2660 User Manual
Section 4 - Conguration
PPPoE (continued)
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
IPv6 Address
Range (End):
If DHCP-PD is disabled in LAN IPv6 Address Settings:
IPv6 Address
Range (Start):
IPv6 Address
Range (End):
IPv6
Advertisement
Lifetime:
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
45D-Link DIR-2660 User Manual
Section 4 - Conguration
IPv6 in IPv4 Tunnel
The user can congure the IPv6 connection to run in IPv4 Tunnel mode. IPv6
over IPv4 tunnelling encapsulates IPv6 packets in IPv4 packets so that IPv6
packets can be sent over an IPv4 infrastructure.
Remote IPv4
Address:
Remote IPv6
Address:
Local IPv4
Address:
Local IPv6
Address:
Subnet Prex
Length:
Enter the IPv4 remote address you will use.
Enter the IPv6 remote address you will use.
Displays the current local IPv4 address.
Enter the IPv6 local address you will use.
Enter the subnet prex length supplied by your ISP.
IPv6 DNS Settings
DNS Type: Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server:
Secondary DNS
Server:
Enter the primary DNS server address.
Enter the secondary DNS server address.
46D-Link DIR-2660 User Manual
Section 4 - Conguration
IPv6 in IPv4 Tunnel (continued)
LAN IPv6 Address Settings
Enable DHCP-PD: Enable or disable prefix delegation services. This option is only
available if you selected Dynamic IP for address mode.
LAN IPv6 LinkLocal Address:
If Enable DHCP-PD is disabled, these additional parameters are available for
conguration:
LAN IPv6 Address: If DHCP-PD disabled or static address mode is selected, enter the LAN
LAN IPv6 LinkLocal Address:
Displays the router’s LAN link-local address.
(local) IPv6 address for the router.
Displays the router’s LAN link-local address.
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
If DHCP-PD is enabled in LAN IPv6 Address Settings:
Enable Automatic
DHCP-PD in LAN:
Enable or disable the Automatic IPv6 Address Assignment feature.
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface.
Note: This feature requires a smaller subnet prex than /64 (i.e. allowing
for a larger address allocation), such as /63. Contact your ISP for more
information.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
47D-Link DIR-2660 User Manual
Section 4 - Conguration
IPv6 in IPv4 Tunnel (continued)
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime:
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
IPv6 Address
Range (End):
If DHCP-PD is disabled in LAN IPv6 Address Settings and SLAAC+Stateless DHCP or
SLAAC+RDNSS is chosen as the Autoconguration Type:
Router
Advertisement
Lifetime:
If DHCP-PD is disabled in LAN IPv6 Address Settings and Stateful DHCPv6 is chosen as the
Autoconguration Type:
Enter the router advertisement lifetime (in minutes).
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Enter the router advertisement lifetime (in minutes).
IPv6 Address
Range (Start):
IPv6 Address
Range (End):
IPv6
Advertisement
Lifetime:
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
48D-Link DIR-2660 User Manual
Section 4 - Conguration
6to4
In this section the user can congure the IPv6 6 to 4 connection settings. 6to4
is an IPv6 address assignment and automatic tunneling technology that is
used to provide unicast IPv6 connectivity between IPv6 sites and hosts across
the IPv4 Internet.
6to4 Address: Displays the 6 to 4 address.
6to4 Relay: Enter the 6 to 4 relay supplied by your ISP.
Primary DNS
Server:
Secondary DNS
Server:
Enter the primary DNS server address.
Enter the secondary DNS server address.
LAN IPv6 Address Settings
LAN IPv6 Address: Enter the LAN (local) IPv6 address for the router.
LAN IPv6 LinkLocal Address:
Displays the router’s LAN link-local address.
49D-Link DIR-2660 User Manual
Section 4 - Conguration
6to4 (continued)
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Autoconguration
Type:
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime:
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
IPv6 Address
Range (End):
IPv6
Advertisement
Lifetime:
Enable or disable the Automatic IPv6 Address Assignment feature.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
Enter the router advertisement lifetime (in minutes).
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
50D-Link DIR-2660 User Manual
Section 4 - Conguration
6rd
In this section the user can congure the IPv6 6rd connection settings.
Assign IPv6 Prex: Currently unsupported.
Primary DNS
Server:
Secondary DNS
Server:
Enter the primary DNS server address.
Enter the secondary DNS server address.
6rd Manual Conguration
Enable Hub and
Spoke Mode:
6rd Conguration: Choose the 6rd DHCPv4 Option to automatically discover and
If you selected Manual conguration
6rd IPv6 Prex: Enter the 6rd IPv6 prex and mask length supplied by your ISP.
WAN IPv4 Address Displays the router’s IPv4 address.
6rd Border Relay
IPv4 Address:
Enable this option if you want to minimize the number of routes to
the destination by using a hub and spoke method of networking.
populate the data values, or Manual Conguration to enter the
settings yourself.
Enter the 6rd border relay IPv4 address settings supplied by your ISP.
LAN IPv6 Address Settings
LAN IPv6 Address: Displays the router’s LAN IPv6 Address link-local address.
LAN IPv6 LinkLocal Address:
Displays the router’s LAN link-local address.
51D-Link DIR-2660 User Manual
Section 4 - Conguration
6rd (continued)
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Autoconguration
Type:
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime:
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
IPv6 Address
Range (End):
IPv6
Advertisement
Lifetime:
Enable or disable the Automatic IPv6 Address Assignment feature.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
Enter the router advertisement lifetime (in minutes).
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
52D-Link DIR-2660 User Manual
Section 4 - Conguration
Local Connectivity Only
Local Connectivity Only allows you to set up an IPv6 connection that will not
connect to the Internet.
Advanced Settings
IPv6 ULA Settings
Enable ULA: Click here to enable Unique Local IPv6 Unicast Addresses settings.
Use Default ULA
Prex:
If you selected Enable ULA and disabled Default ULA Prex:
ULA Prex: Enter your own ULA prex.
Enable this option to use the default ULA prex.
Current IPv6 ULA Settings
Current ULA
Prex:
LAN IPv6 ULA: Displays the LAN's IPv6 ULA.
Displays the current ULA prex.
Click Save when you are done.
53D-Link DIR-2660 User Manual
Section 4 - Conguration
VLAN
VLAN allows for services such as Triple-Play to be used, and divides a network
into segments that can only be accessed by other devices in the same VLAN.
In the Settings menu on the bar on the top of the page, click Internet, then
click the VLAN link.
Triple-Play
Status: Click to enable or disable the Triple-Play VLAN feature.
Priority ID: Enable or disable trac priority ID for the Internet, IPTV, and VoIP
VLANs.
If Status is enabled:
Internet VLAN ID Enter the VLAN ID for your Internet connection, as provided by your
ISP.
IPTV VLAN ID Enter the VLAN ID for your IPTV service, as provided by your ISP.
VOIP VLAN ID: Enter the VLAN ID for your VoIP network, as provided by your ISP.
If Priority ID is enabled:
Priority ID: Select a priority ID from the drop-down menu to assign to the
corresponding VLAN. Higher priority ID trac takes precedence over
trac with a low priority ID tag.
54D-Link DIR-2660 User Manual
Section 4 - Conguration
Interface Trac Type Setting
VLAN (continued)
LAN 1-4, Wireless,
Guest Zone:
From the drop-down menu, you can select the type of connection
(Internet, IPTV, or Voice over IP) coming from the WAN connection to
each interface on the DIR-2660.
Click Save when you are done.
55D-Link DIR-2660 User Manual
Section 4 - Conguration
Wireless
From this page you can congure your wireless network settings.
Smart Connect
Smart Connect: Enable or disable the Smart Connect Feature. When enabled, only
a few conguration options are available to simplify conguration.
Wi-Fi Name (SSID): Create a name for your wireless network using up to 32 characters.
Password: Create a password to use for wireless security. Wireless clients will
need to enter this password to successfully connect to the network.
Advanced Settings
Security Mode: Choose None or WPA/WPA2-Personal (recommended).
Transmission
Power:
Schedule: Use the drop-down menu to select the time schedule that the rule
Select the desired wireless transmission power.
will be enabled for. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Schedule on page 77 for more information.
Wi-Fi Protected Setup
The easiest way to connect your wireless devices to the router is with Wi-Fi Protected Setup
(WPS). Using WPS-PIN is disabled by default due to security vulnerabilities.
WPS-PBC Status: Enable or disable WPS-PBC (Push Button Conguration) fuctionality.
WPS-PIN Status: Enable or disable WPS-PIN fuctionality.
Refer to the next page if you wish to disable Smart Connect or click
Save when you are done.
56D-Link DIR-2660 User Manual
Section 4 - Conguration
Wireless - Smart Connect Disabled
If Smart Connect is disabled the following options are available:
2.4GHz / 5GHz
Status: Enable or disable the 2.4 GHz / 5 GHz wireless network.
Wi-Fi Name (SSID): Create a name for your wireless network using up to 32 characters.
Password: Create a password to use for wireless security.
Advanced Settings
Security Mode: Choose None or WPA/WPA2-Personal (recommended).
802.11 Mode
(2.4 GHz):
802.11 Mode
(5 GHz):
Wi-Fi Channel: Select the desired channel. The default is Auto (recommended).
Transmission
Power:
Channel Width
(2.4 GHz):
Channel Width
(5 GHz):
Select the desired wireless networking standards to use.
The available options for the 2.4 GHz wireless network are Mixed
802.11b/g/n, Mixed 802.11g/n, 802.11n only.
Select the desired wireless networking standards to use.
The available options for the 5 GHz wireless network are Mixed
802.11a/n/ac, Mixed 802.11n/ac, 802.11ac only, Mixed 802.11a/n,
Mixed 802.11n only, or 802.11a only.
Select the desired wireless transmission power.
Select Auto 20/40 if you are using both 802.11n and non-802.11n
devices, or select 20 MHz if you are not using any 802.11n devices.
Select Auto 20/40/80 if you are using 802.11ac, 802.11n, and 802.11a
devices, select Auto 20/40 if you are using 802.11n and 802.11a
devices, or select 20 MHz if you are only using 802.11a devices.
57D-Link DIR-2660 User Manual
Section 4 - Conguration
HT20/40
Coexistence:
(2.4 GHz):
Visibility Status: The default setting is Visible. Select Invisible if you do not want to
Schedule: Use the drop-down menu to select the time schedule that the rule
Enable or disable HT20/40 Coexistence.
broadcast the SSID of your wireless network.
will be enabled for. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Schedule on page 77 for more information.
Wi-Fi Protected Setup
The easiest way to connect your wireless devices to the router is with Wi-Fi Protected Setup
(WPS). Using WPS-PIN disabled by default due to security vulnerabilities.
WPS-PBC Status: Enable or disable WPS-PBC (Push Button Conguration) fuctionality.
WPS-PIN Status: Enable or disable WPS-PIN fuctionality.
Click Save when you are done.
58D-Link DIR-2660 User Manual
Section 4 - Conguration
Guest Zone
The Guest Zone feature will allow you to create temporary zones that can be
used by guests to access the Internet. These zones will be separate from your
main wireless network. You may congure dierent zones for the 2.4 GHz and
5 GHz wireless bands.
Note: If Smart Connect is enabled, Guest Zone is unavailable.
In the Settings menu on the bar on the top of the page, click Wireless, then
click the Guest Zone link.
2.4 GHz / 5 GHz
Status: Enable or disable the 2.4 GHz / 5 GHz wireless network.
Wi-Fi Name (SSID): Create a name for your wireless network using up to 32 characters.
Password: Create a password to use for wireless security.
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled for. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Schedule on page 77 for more information.
Home Network Access
Internet Access
Only:
Enabling this option will confine connectivity to the Internet,
preventing guests from accessing other local network devices.
Click Save when you are done.
59D-Link DIR-2660 User Manual
Section 4 - Conguration
Network
This section will allow you to change the local network settings of the router
and to congure the DHCP settings. In the Settings menu on the bar on the
top of the page, click Network. Click Advanced Settings... to expand the list
and see all of the options.
Network Settings
LAN IP Address: Enter the IP address of the router. The default IP address is 192.168.0.1.
If you change the IP address, once you click Save, you will need
to enter the new IP address in your browser to get back into the
conguration utility.
Subnet Mask: Enter the subnet mask of the router. The default subnet mask is
255.255.255.0.
Management
Link:
Local Domain
Name:
Enable DNS Relay: Disable to transfer the DNS server information from your ISP to your
The default address to access the router’s conguration is
http://dlinkrouter.local/ Here, you can replace dlinkrouter with a
name of your choice.
Enter the domain name (optional).
computers. If enabled, your computers will use the router for a DNS
server.
60D-Link DIR-2660 User Manual
Section 4 - Conguration
DHCP Server
Status: Enable or disable the DHCP server.
Network (continued)
DHCP IP Address
Range:
DHCP Lease Time: Enter the length of time for the IP address lease in minutes.
Always Broadcast: Enable this feature to broadcast your network's DHCP server to LAN/
Enter the starting and ending IP addresses for the DHCP server’s IP
assignment.
Note: If you statically (manually) assign IP addresses to your computers
or devices, make sure the IP addresses are outside of this range or you
may have an IP conict.
WLAN clients.
Advanced Settings
WAN Port Speed: You may set the port speed of the Internet port to 10 Mbps, 100
Mbps, 1000 Mbps, or Auto (recommended).
UPnP: Enable or disable Universal Plug and Play (UPnP). UPnP provides
compatibility with networking equipment, software, and peripherals.
IPv4 Multicast
Stream:
Enable to allow IPv4 multicast trac to pass through the router from
the Internet.
IPv6 Multicast
Stream:
Enable to allow IPv6 multicast trac to pass through the router from
the Internet.
Click Save when you are done.
61D-Link DIR-2660 User Manual
Section 4 - Conguration
USB Sharing
This page will allow you to set up access to les on an external USB drive
plugged into the router. You can access shared les through the local network
or from the Internet using a web browser or an app on your mobile device. In
the Settings menu on the bar on the top of the page, click USB Sharing.
DLNA Media Server
Status Enable or disable the DLNA media server function, allowing connected
clients access to media les over the network.
DLNA Media
Server
Choose a name for your DLNA media server so that it can be found.
Windows File Sharing (SAMBA)
Status Enable or disable the Windows file sharing function, allowing
connected clients access to shared les over the network.
FTP Server
Status Enable or disable the FTP server function, allowing connected clients
access to media les through FTP.
FTP Server - Advanced Settings
Enable Remote
Sharing
FTP Server Port Enter the port number of FTP server.
Idle Time Enter the time (in minutes) before connected clients will be considered
If FTP server is enabled, enable or disable remote access to les stored
on a USB device plugged into the router through a web browser.
idle.
Click Save when you are done.
62D-Link DIR-2660 User Manual
Section 4 - Conguration
Features
QoS Engine
This Quality of Service (QoS) Engine will allow you to prioritize particular
clients over others, so that those clients receive higher bandwidth. For
example, if one client is streaming a movie and another is downloading a nonurgent le, you might wish to assign the former device a higher priority than
the latter so that the movie streaming is not disrupted by the trac of the
other devices on the network.
In the Features menu on the bar on the top of the page, click QoS Engine.
Under Connected Clients, you will see device cards representing each
connected client. If some are o-screen, you can use the < and > buttons to
scroll through the cards.
A maximum of one device can be assigned Highest priority.
A maximum of two devices can be assigned High priority.
A maximum of eight devices can be assigned Medium priority.
If no devices are explicitly assigned a priority, they will all be treated with
equal priority. If some devices are not assigned a priority and others are, the
unassigned devices will be treated with the lowest priority.
To assign a priority level to a device, drag the device card from the All Devices
list over an empty slot and release the mouse button. The card will remain in
the slot. If you want to remove a priority assignment from a device and return
it to the All Devices list, click the cross icon in the top right of the device card.
Click Save when you are done.
63D-Link DIR-2660 User Manual
Section 4 - Conguration
Firewall
The router’s rewall protects your network from malicious attacks over
the Internet. In the Features menu on the bar on the top of the page, click
Firewall. Click Advanced Settings... to expand the list and see all of the
options.
Enable DMZ: Enable or disable Demilitarized Zone (DMZ). This completely exposes
the client to threats over the Internet, and is not recommended in
ordinary situations.
DMZ IP Address: If you enabled DMZ, enter the IP address of the client you wish to
expose, or use the drop-down menu to quickly select it.
Enable SPI IPv4: Enabling Stateful Packet Inspection (SPI) helps to prevent cyber
attacks by validating that the trac passing through the session
conforms to the protocol.
Enable Anti-Spoof
Checking:
IPv6 Simple
Security:
IPv6 Ingress
Filtering:
Enable this feature to help protect your network from certain kinds
of “spoong” attacks.
Enable or disable IPv6 simple security.
Enable or disable IPv6 ingress ltering.
64D-Link DIR-2660 User Manual
Section 4 - Conguration
Firewall Settings (continued)
Advanced Settings - Application Level Gateway (ALG) Conguration
PPTP: Allows multiple machines on the LAN to connect to their corporate
network using the PPTP protocol.
IPSec (VPN): Allows multiple VPN clients to connect to their corporate network
using IPSec. Some VPN clients support traversal of IPSec through
NAT. This Application Level Gateway (ALG) may interfere with the
operation of such VPN clients. If you are having trouble connecting
with your corporate network, try turning this ALG o. Please check
with the system administrator of your corporate network whether
your VPN client supports NAT traversal.
RTSP: Allows applications that uses Real Time Streaming Protocol (RTSP) to
receive streaming media from the Internet.
SIP: Allows devices and applications using VoIP (Voice over IP) to
communicate across NAT. Some VoIP applications and devices have
the ability to discover NAT devices and work around them. This ALG
may interfere with the operation of such devices. If you are having
trouble making VoIP calls, try turning this ALG o.
Click Save when you are done.
65D-Link DIR-2660 User Manual
Section 4 - Conguration
IPv4/IPv6 Rules
The IPv4/IPv6 Rules section is an advanced option that lets you congure what
kind of trac is allowed to pass through the network. To congure the IPv4
rules, from the Firewall Settings page click IPv4 Rules. To congure IPv6 rules,
from the Firewall Settings page click IPv6 Rules. To return to the main Firewall
Settings page, click Advanced.
To begin, use the drop-down menu to select whether you want to ALLOW or
DENY the rules you create. You can also choose to turn ltering OFF.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Rule button. Click Save when you are done. If
you edit or create a rule, the following options will appear:
Name: Enter a name for the rule.
Source IP Address
Range:
Destination IP
Address Range:
Protocol & Port
Range:
Schedule: Use the drop-down menu to select the time schedule that the rule
Enter the source IP address range that the rule will apply to, and using
the drop-down menu, specify whether it is a WAN or LAN IP address.
Enter the destination IP address range that the rule will apply to, and
using the drop-down menu, specify whether it is a WAN or LAN IP
address.
Select the protocol of the trac to allow or deny (Any, TCP, or UDP)
and then enter the range of ports that the rule will apply to.
will be enabled for. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Refer to Schedule on page 77 for more information.
Click Save when you are done.
66D-Link DIR-2660 User Manual
Section 4 - Conguration
Port Forwarding
Port forwarding allows you to specify a port or range of ports to open
for specic devices on the network. This might be necessary for certain
applications to connect through the router. In the Features menu on the bar
on the top of the page, click Port Forwarding.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Rule button. Click Save when you are done. If
you edit or create a rule, the following options will appear:
Name: Enter a name for the rule.
Local IP: Enter the IP address of the computer on your local network that you
want to allow the incoming service to. Alternatively, select the device
from the drop-down menu.
TCP Port: Enter the TCP ports that you want to open. You can enter a single
port or a range of ports. Separate ports with a comma (for example:
24,1009,3000-4000).
UDP Port: Enter the UDP ports that you want to open. You can enter a single
port or a range of ports. Separate ports with a comma (for example:
24,1009,3000-4000).
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled for. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Schedule on page 77 for more information.
Click Save when you are done.
67D-Link DIR-2660 User Manual
Section 4 - Conguration
Virtual Server
The virtual server allows you to specify a single public port on your router for
redirection to an internal LAN IP address and Private LAN port. To congure
the virtual server, from the Port Forwarding page click Virtual Server. To
return to the main Port Forwarding page, click Port Forwarding.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Rules button. Click Save when you are done. If
you edit or create a rule, the following options will appear:
Name: Enter a name for the rule. Alternatively, select the protocol/Application
from the drop-down menu.
Local IP: Enter the IP address of the computer on your local network that you
want to allow the incoming service to. Alternatively, select the device
from the drop-down menu.
Protocol: Select the protocol of the trac to allow or deny (TCP, UDP, Both,
or Other).
Protocol Number: If you entered Other above, enter the protocol number.
External Port: Enter the public port you want to open.
Internal Port: Enter the private port you want to open.
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled for. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Schedule on page 77 for more information.
Click Save when you are done.
68D-Link DIR-2660 User Manual
Section 4 - Conguration
Website Filter
The website lter settings allow you to block access to certain web sites. You
can either create a list of sites to block, or create a list of sites to allow (with all
other sites being blocked).
In the Features menu on the bar on the top of the page, click Website Filter.
If you want to create a list of sites to block, select DENY client access to ONLY
these sites from the drop-down menu. All other sites will be accessible. If you
want to specify a list of sites to allow, select ALLOW clients access to ONLY
these sites from the drop-down menu. All other sites will be blocked.
You may specify a maximum of twenty four web sites. To add a new site to the
list, click Add Rule. Next, under Website URL/Domain enter the URL or domain.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, simply replace the URL or domain.
Click Save when you are done.
69D-Link DIR-2660 User Manual
Section 4 - Conguration
Static Routes
The Static Routes section allows you to dene custom routes to control how
data trac is moved around your network.
In the Features menu on the bar on the top of the page, click Static Route.
To congure IPv6 rules, click IPv6 and refer to IPv6 on page 71. To return to
the main IPv4 static routes page, click IPv4.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Route button. Click Save when you are done.
If you edit or create a rule, the following options will appear:
Name: Enter a name for the rule.
Destination
Network:
Mask: Enter the subnet mask of the route.
Gateway: Enter your next hop gateway to be taken if this route is used.
Metric: Enter a route metric value ranging from 0 to 15. This value indicates
Interface: Select the interface that the IP packet must use to transit out of the
Enter the IP address of packets that will take this route.
the cost of using this route.
router when this route is used.
Click Save when you are done.
70D-Link DIR-2660 User Manual
Section 4 - Conguration
IPv6
To congure IPv6 rules, on the Static Routes page click IPv6. To return to the
main IPv4 static routes page, click IPv4.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Rules button. Click Save when you are done. If
you edit or create a rule, the following options will appear:
Name: Enter a name for the rule.
DestNetwork: This is the IP address of the router used to reach the specified
destination.
PrexLen: Enter the IPv6 address prex length of the packets that will take this
route.
Gateway: Enter your next hop gateway to be taken if this route is used.
Metric: Enter a route metric value ranging from 0 to 15. This value indicates
the cost of using this route.
Interface: Select the interface that the IP packet must use to transit out of the
router when this route is used.
Click Save when you are done.
71D-Link DIR-2660 User Manual
Section 4 - Conguration
Dynamic DNS
Most Internet Service Providers (ISPs) assign dynamic (changing) IP addresses.
Using a dynamic DNS service provider, people can enter your domain name in
their web browser to connect to your server no matter what your IP address is.
In the Features menu on the bar on the top of the page, click Dynamic DNS.
Enable Dynamic
DNS:
Status: Displays the current dynamic DNS connection status.
Server Address: Enter the address of your dynamic DNS server, or select one from the
Host Name: Enter the host name that you registered with your dynamic DNS
User Name: Enter your dynamic DNS username.
Password: Enter your dynamic DNS password.
Time Out: Enter a time out time (in hours).
Enable or disable dynamic DNS. Enabling this feature will reveal
further conguration options.
drop-down menu.
service provider.
Click Save when you are done.
At the bottom of the page are the IPv6 host settings. To congure an IPv6
dynamic DNS host, refer to IPv6 Host on page 73.
72D-Link DIR-2660 User Manual
Section 4 - Conguration
IPv6 Host
The IPv6 host settings are found at the bottom of the Dynamic DNS page.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Record button. Click Save when you are done.
If you edit or create a rule, the following options will appear:
Host Name: Enter the host name that you registered with your dynamic DNS
service provider.
IPv6 Address: Enter the IPv6 address of the dynamic DNS server. Alternatively, select
the server device in the drop-down menu.
Click Save when you are done.
73D-Link DIR-2660 User Manual
Section 4 - Conguration
Quick VPN
This page will help you congure the Quick VPN feature of your router. For
more information refer to Quick VPN on page 88. Before proceeding, ensure
that your Internet connection is working properly. We recommend conguring
Dynamic DNS before proceeding with Quick VPN setup. If your router is
assigned an IP address from your ISP using DHCP, it may frequently change,
requiring clients credentials to be set up again and a simple DDNS address will
be easier than an IP address.
In the Features menu on the bar on the top of the page, click Quick VPN.
Click User to create, manage, and delete user accounts with user-dened
access to certain router services. Refer to User on page 87.
Congure the following options:
L2TP over IPsec: Enable or disable the Quick VPN server.
If Quick VPN is enabled, the following options are available:
Username: Enter a username between 1 and 20 characters.
Password Enter a username between 1 and 20 characters.
PSK Enter a passkey between 6 and 64 characters.
74D-Link DIR-2660 User Manual
Section 4 - Conguration
Quick VPN (continued)
Advanced Settings - Address Autoconguration Settings
Authentication
Protocol:
MPPE: Select the encryption cipher strength: None, RC4-40, or RC4-128.
Choose the authentication protocol type: MSCHAPv2, PAP, or CHAP.
MSCHAPv2 is the default.
RC4-128 is the default.
Click Save when you are done.
75D-Link DIR-2660 User Manual
Section 4 - Conguration
Management
Time & Schedule
Time
The Time page allows you to congure, update, and maintain the correct
time on the internal system clock. From here you can set the time zone, the
Network Time Protocol (NTP) server, and enable or disable daylight saving
time.
In the Management menu on the bar on the top of the page, click Time &
Schedule.
Time Conguration
Time Zone: Select your time zone from the drop-down menu.
Time: Displays the current date and time of the router.
Enable Daylight
Saving:
Automatic Time Conguration
Update Time
Using an NTP
Server:
To congure and manage your schedules, click Schedule and refer to
Schedule on page 77.
Enable or disable daylight saving time.
Enable or disable to allow an NTP server on the Internet to synchronize
the time and date with your router. If you enable this option, select
an NTP server from the drop-down menu. To congure the router's
time and date manually, disable this option and use the drop-down
menus that appear to input the time and date.
Click Save when you are done.
76D-Link DIR-2660 User Manual
Section 4 - Conguration
Schedule
Some router functions can be controlled through a pre-congured schedule.
To create, edit, or delete schedules, from the Time page click Schedule. To
return to the Time page, click Time.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Rule button. Click Save when you are done. If
you edit or create a rule, the following screen will appear:
First, enter the name of your schedule in the Name eld.
Each box represents one hour, with the time at the top of each column. To add
a time period to the schedule, simply click on the starting hour and drag to the
ending hour. You can add multiple days to the schedule, but only one period
per day.
To remove a time period from the schedule, click on the cross icon.
Click Save when you are done.
77D-Link DIR-2660 User Manual
Section 4 - Conguration
System Log
The router keeps a running log of events. This log can be sent to a Syslog
server, or sent to your email address. In the Management menu on the bar on
the top of the page, click System Log.
Log Settings
System Log Click the Check System Log button to download a text le containing
the system log.
SysLog Settings
Enable Logging to
Syslog Server:
If Logging to the Syslog Server is Enabled:
Syslog Server IP
Address:
Check this box to send the router logs to a SysLog Server.
Enter the IP address for the Syslog server. If the Syslog server is
connected to the extender, select it from the drop-down menu to
automatically populate the eld.
Email Settings
Enable E-mail
Notication:
If E-mail notication is Enabled:
From E-mail
Address:
To E-mail Address: Enter the email address your SysLog messages will be sent to.
SMTP Server
Address:
Enable this option if you want the logs to be automatically sent to
an email address.
Enter the email address your SysLog messages will be sent from.
Enter your SMTP server address.
78D-Link DIR-2660 User Manual
Section 4 - Conguration
SMTP Server Port: Enter your SMTP server port.
System Log (continued)
Enable
Authentication:
Account Name: Enter your SMTP account name.
Password: Enter your SMTP account's password
Check this box if your SMTP server requires authentication.
E-mail Log When Full or On Schedule
Send When Log
Send on Schedule: If enabled, this option will set the router to send according to a set
Schedule: If you enable Send On Schedule, use the drop-down menu to select
If enabled, this option will set the router to send the log when it is full.
Full:
schedule.
a schedule to apply. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Schedule on page 77 for more information.
Click Save when you are done.
79D-Link DIR-2660 User Manual
Section 4 - Conguration
System Admin
This page will allow you to change the administrator (Admin) password and
enable remote management. In the Management menu on the bar on the top
of the page, click System Admin. To load, save, reset settings, or reboot the
router, click System and refer to Schedule on page 77.
Admin Password
Password: Enter a new password for the administrator account. You will need to
enter this password whenever you congure the router using a web
browser.
Enable Graphical
Authentication
(CAPTCHA):
Enables a challenge-response test to require users to type letters or
numbers from a distorted image displayed on the screen to prevent
online hackers and unauthorized users from gaining access to your
router’s network settings.
Advanced Settings - Administration
Enable HTTPS
Server:
Enable Remote
Management:
Remote Admin
Port:
Check to enable HTTPS to connect to the router securely. Instead of using
http://dlinkrouter.local./, you must use https://dlinkrouter.local./ in
order to connect to the router.
Remote management allows the DIR-2660 to be congured from the
Internet by a web browser. A password is still required to access the web
management interface.
The port number used to access the DIR-2660 is used in the URL. Example:
http://x.x.x.x:8080 where x.x.x.x is the Internet IP address of the DIR-2660
and 8080 is the port used for the web management interface.
Note: If you enabled Use HTTPS and wish to access the router remotely and
securely, you must enter https:// at the beginning of the address.
Click Save when you are done.
80D-Link DIR-2660 User Manual
Section 4 - Conguration
System
This page allows you to save the router’s current conguration, load a
previously saved conguration, reset the router to its factory default settings,
or reboot the router.
From the Admin page, click System. To return to the Admin page, click Admin.
System
Save Settings To
Local Hard Drive:
Load Settings
From Local Hard
Drive:
Restore To Factory
Default Settings:
This option will save the current router conguration settings to a le
on your computer.
This option will load a previously saved router conguration le. This will
overwrite the router’s current conguration.
This option will restore all conguration settings back to the settings that
were in eect at the time the router was shipped from the factory. Any
settings that have not been saved will be lost, including any rules that
you have created. If you want to save the current router conguration
settings, use the Save Settings To Local Hard Drive button above.
Auto Reboot Conguration
Reboot The
Device:
Auto Reboot: You may set the DIR-2660 to automatically reboot at a set time. The
Click to reboot the router immediately.
options are Never, Daily, Weekly. You may set the hour using a 24
hour format, the minute, and the day you wish to have the DIR-2660
automatically reboot.
Click Save when you are done.
81D-Link DIR-2660 User Manual
Section 4 - Conguration
User & Device
User
The User section is used to create, manage, and delete user accounts with
user-dened access to certain router services.
In the Management menu on the bar on the top of the page, click User &
Device. To congure user accounts, click on the User tab.
If you wish to remove a user account, click on its trash can icon in the Delete
column. If you wish to edit a user account, click on its pencil icon in the Edit
column. If you wish to create a new user, click the Create User button. Click
Save when you are done. If you edit or create a rule, the following options will
appear:
User Name: Enter a username for the new user account.
SAMBA
Password: Enter a password for the new user account.
Status: Enable or disable the Windows le sharing function for this user,
allowing connected clients access to media les over the network.
Permission: If SAMBA is enabled, choose to assign either Read Only or Read/
Write permission.
Folder: Click Browse to select the folder you want to share.
82D-Link DIR-2660 User Manual
Section 4 - Conguration
FTP
Status: Enable or disable FTP server access for this user.
Permission: If FTP is enabled, choose to assign either Read Only or Read/Write
permission.
Folder: Click Browse to select the folder you want to share.
VPN
Status: Enable or disable Virtual Private Network (VPN) functionality for this
user.
Click Save when you are done.
User (continued)
83D-Link DIR-2660 User Manual
Section 4 - Conguration
Device
On the Device page, you can manage Parental Control settings for devices
added to the list, which will allow or block access to the network for those
devices based on the selected schedule.
To begin, use the drop-down menu to select whether you want to ALLOW or
DENY the rules you create.
From the User page, click Device. To return to the User page, click User.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Rule button. Click Apply when you are done.
If you edit or create a rule, the following options will appear:
Name: Enter a name for the rule.
Mac Address: Enter the MAC address of the device on your local network that you
want to apply the rule to. Alternatively, select the device from the
drop-down menu.
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled for. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Schedule on page 77 for more information.
Click Save when you are done.
84D-Link DIR-2660 User Manual
Section 4 - Conguration
Upgrade
This page will allow you to upgrade the router’s rmware or language pack,
either automatically or manually. To manually upgrade the rmware or
language pack, you must rst download the relevant le from http://support.
dlink.com.
In the Management menu on the bar on the top of the page, click Upgrade.
Firmware Information
Current Firmware
Version/Date :
Check for New
Firmware:
Upgrade Manually
Upgrade
Firmware:
The current rmware's version and date will be displayed.
Click this button to prompt the router to automatically check for a new
rmware version. If a newer version is found, it will prompt you to install it.
If you wish to upgrade manually, rst download the rmware le you wish
to upgrade to. Next, click the Upgrade Firmware button and browse to
the le to install the new rmware. You can also browse to a language
pack le to install a new language pack.
85D-Link DIR-2660 User Manual
Section 4 - Conguration
Statistics
On the Statistics page you can view the amount of packets that pass through
the router on the WAN, LAN, and wireless segments.
In the Management menu on the bar on the top of the page, click Statistics.
You can view the Internet, LAN, Wi-Fi 2.4 GHz, or Wi-Fi 5 GHz by clicking on
the respective tabs at the top. The graph will update in real time. To clear the
information on the graph, click Clear.
The trac counter will reset if the device is rebooted.
86D-Link DIR-2660 User Manual
Section 5 - Quick VPN
Quick VPN
This router is equipped with D-Link's Quick VPN technology. Virtual Private Networking (VPN) creates a connection between
devices across the Internet. Using Quick VPN allows you to securely connect your computer or mobile device to places with
free, untrusted Wi-Fi hotspots in places like coee shops and hotels by encrypting and relaying it through your home Internet
connection. This extra 'hop' reduces the chances of hackers stealing your information, such as logins, passwords, and credit
card numbers. When traveling, Quick VPN lets you watch sports and use video streaming services without experiencing
blackouts or ltering. You can surf the whole Internet unltered and unblocked, just as you would at home.
Without Quick VPN
Your Laptop
Stealing Data
With Quick VPN
Wi-Fi Hotspot
Public Unsecured
Wi-Fi Hotspot
InternetPublic Unsecured
Unencrypted Data
Encrypted Data
InternetYour Laptop Potential Hacker
Your Network with
Quick VPN Server
87D-Link DIR-2660 User Manual
Section 5 - Quick VPN
Important Information
The following instructions explain and help you to congure your D-Link Quick VPN enabled router and devices to create a Virtual Private Network
(VPN). This feature is provided for advanced users who wish to connect remotely and use their router's Internet connection to add a layer of security
while using untrusted networks. Congure the Quick VPN Server on your router rst and then set up client devices to connect through your router's
WAN connection.
• Quick VPN only provides an added layer of security against specic types of snooping attacks and does not guarantee complete data
integrity or protection. Only trac in the tunnel between your router and device will be encrypted, WAN trac will leave your D-Link
Quick VPN enabled router unencrypted.
• Keep your Quick VPN Username, Password, and Passkey safe. Keep your Quick VPN Username, Password, and Passkey safe. It is
recommended that you change these credentials periodically.
• A device connected via Quick VPN tunnel may experience lower data throughput and higher latency due to a number of factors
including: Internet conditions, local and remote network Wi-Fi and WAN bandwidth limitations, and increased latency. This may
negatively impact real time voice and video communication.
• Quick VPN supports up to ve concurrent VPN client sessions using the same login and password are supported. Quick VPN uses
L2TP/IPsec with MSCHAPv2, PAP, or CHAP authentication.
• You device may warn you that your information may be intercepted, since you control the Quick VPN server, you may ignore this.
• UDP Ports 500, 4500, 1701 and IP Port 50 must be open in order for Quick VPN to work.
• L2TP/IPsec VPN usage may be restricted in some countries and on some networks. If you have trouble using Quick VPN on some
networks, but not others and are not violating network access rules, try contacting your ISP or network administrator.
• Devices connected via Quick VPN are assigned addresses on a separate subnet (ex. 192.168.1.x). Some network resources may be
unavailable when connecting via Quick VPN.
• If your Internet connection uses DHCP, it is strongly recommended that you rst set up Dynamic DNS (DDNS), such as D-Link DDNS,
to eliminate the need to recongure client devices in the event your ISP assigns you a new WAN IP address.
88D-Link DIR-2660 User Manual
Section 5 - Quick VPN
Quick VPN Server Setup Instructions
Congure the following options:
L2TP over IPSec: Enable or disable the Quick VPN server.
If you enable Quick VPN, the following options are available:
Username: . Enter a username between 1 and 20 characters
Password: Enter a password between 1 and 20 characters.
PSK: Enter a passkey between 6 and 64 characters.
Authentication
Protocol:
MPPE: Select the encryption cipher strength: none, RC4-40, or RC4-128.
Click Save and proceed to client setup pages.
Choose the authentication protocol type: MSCHAPv2, PAP, or CHAP.
MSCHAPv2 is the default.
RC4-128 is the default.
Click Save when you are done.
89D-Link DIR-2660 User Manual
Section 5 - Quick VPN
iOS Devices
VPN Setup Instructions
This section provides Quick VPN setup instructions for iOS devices using the Export
Prole function. Refer to Quick VPN Server Setup Instructions on page 89 for
more information.
Open the e-mail containing your Quick VPN prole.
Open the attachment.
90D-Link DIR-2660 User Manual
Section 5 - Quick VPN
VPN Setup Instructions (Continued)
The Install Prole dialog will appear, tap Install in the upper right hand corner of
your screen.
Enter your device's passcode when prompted.
91D-Link DIR-2660 User Manual
Section 5 - Quick VPN
VPN Setup Instructions (Continued)
Acknowledge the disclaimer by tapping Install in the upper right hand corner. Tap
the red Install button.
Enter the Shared Secret (PSK) from the Quick VPN conguration page. Tap Done.
Your iOS device is now congured to connect to your Quick VPN server.
92D-Link DIR-2660 User Manual
Section 5 - Quick VPN
Connect or Disconnect
To connect or disconnect from to your Quick VPN server, open Settings and tap
the button next to VPN.
The VPN icon will appear in the notication area at the top of your screen indicating
that your device is currently connected to the Quick VPN server.
93D-Link DIR-2660 User Manual
Section 5 - Quick VPN
Mac OS X
VPN Setup Instructions
This section provides Quick VPN setup instructions for OS X using the Export Prole
function. Refer to Quick VPN Server Setup Instructions on page 89 for more
information.
Open the exported prole. The Install Prole dialog will appear; click Continue and
Install.
Enter your user account password when prompted. Close the Proles dialog.
Go to > System Preferences... > Network and select the Quick VPN connection
and click Authentication Settings.
94D-Link DIR-2660 User Manual
Section 5 - Quick VPN
VPN Setup Instructions (Continued)
Enter your Passkey in the Shared Secret text box and click OK, Apply, then OK.
Your Mac is now congured to connect to your Quick VPN server.
95D-Link DIR-2660 User Manual
Section 5 - Quick VPN
Connect or Disconnect
To connect to or disconnect from your Quick VPN server, go to > System
Preferences... > Network.
Select the Quick VPN connection and click on the Connect or Disconnect button.
96D-Link DIR-2660 User Manual
Loading...
