Section 3 - Conguration
IPv6 - PPPoE
Select PPPoE if your ISP provides and requires you to enter a PPPoE username and password in order to connect to the
Internet. Click Save at any time to save the changes you have made on this page.
PPPoE Session Create a new PPPoE session.
Username Enter the username provided by your ISP.
Password Enter the password provided by your ISP.
Address Mode Select either Dynamic IP or Static IP.
IP Address Configurable if Static IP is chosen. Enter the IP address
provided by your ISP.
Service Name Enter the ISP service name (optional).
Reconnect Mode Select either Always On or Manual.
MTU Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your ISP.
51D-Link DIR-2640 User Manual
Section 3 - Conguration
If
IPv6 DNS Settings
DNS Type Select either Obtain DNS server address automatically or
Use the following DNS address.
Primary DNS Server If you selected Use the following DNS address, enter the
primary DNS server address.
Secondary DNS Server If you selected Use the following DNS address, enter the
secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD Enable or disable prex delegation services.
LAN IPv6 Link-Local
Address
Enable DHCP-PD is disabled, these additional parameters are available for conguration:
LAN IPv6 Address Enter a valid LAN IPv6 address.
LAN IPv6 Link-Local
Address
Displays the router’s LAN link-local address.
Displays the router’s LAN link-local address.
52D-Link DIR-2640 User Manual
Section 3 - Conguration
If
If you selected
If you selected
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable DHCP-PD is enabled in the previous LAN IPv6 Address Settings:
Enable Automatic
DHCP-PD in LAN
Autoconguration
Type
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Stateful DHCPv6 as the Autoconguration Type:
Enable or disable the Automatic IPv6 Address Assignment
feature.
Enable or disable DHCP-PD for other IPv6 routers connected
to the LAN interface.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
Enter the router advertisement lifetime (in minutes).
IPv6 Address
Range (Start)
IPv6 Address
Range (End)
Enter the starting IPv6 address for the DHCP server’s IPv6
assignment.
Enter the ending IPv6 address for the DHCP server’s IPv6
assignment.
53D-Link DIR-2640 User Manual
Section 3 - Conguration
If
If you selected
If you selected
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable DHCP-PD is disabled in the previous LAN IPv6 Address Settings:
Autoconguration
Type
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enable or disable the Automatic IPv6 Address Assignment
feature.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
Enter the router advertisement lifetime (in minutes).
Enter the starting IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address Lifetime Enter the IPv6 address lifetime (in minutes).
IPv6 Address
Range (End)
Enter the ending IPv6 address for the DHCP server’s IPv6
assignment.
54D-Link DIR-2640 User Manual
Section 3 - Conguration
If you selected
IPv6 - 6rd
In this section the user can congure the IPv6 6rd connection settings. Click Save at any time to save the changes you have
made on this page.
Assign IPv6 Prex Currently unsupported.
Primary DNS Server Enter the primary DNS server address.
Secondary DNS Server Enter the secondary DNS server address.
Enable Hub and Spoke
WAN IPv4 Address Displays the router’s IPv4 address.
6rd Border Relay IPv4
6rd Manual Conguration
Enable this option if you want to minimize the number of
Mode
6rd Conguration Choose the 6rd DHCPv4 Option to automatically discover
Manual Conguration as the 6rd Conguration:
6rd IPv6 Prex Enter the 6rd IPv6 prex and mask length supplied by your ISP.
Address
routes to the destination by using a hub and spoke method
of networking.
and populate the data values, or Manual Conguration to
enter the settings yourself.
Enter the 6rd border relay IPv4 address settings supplied by
your ISP.
55D-Link DIR-2640 User Manual
Section 3 - Conguration
If you selected
If you selected
LAN IPv6 Address Settings
LAN IPv6 Address Displays the router’s LAN IPv6 Address link-local address.
LAN IPv6 Link-Local
Address
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Autoconguration
Type
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Displays the router’s LAN link-local address.
Enable or disable the Automatic IPv6 Address Assignment
feature.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
Enter the router advertisement lifetime (in minutes).
IPv6 Address Lifetime Enter the IPv6 address lifetime (in minutes).
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
IPv6 Address
Range (End)
Enter the starting IPv6 address for the DHCP server’s IPv6
assignment.
Enter the ending IPv6 address for the DHCP server’s IPv6
assignment.
56D-Link DIR-2640 User Manual
Section 3 - Conguration
IPv6 - Local Connectivity Only
Local Connectivity Only allows you to set up an IPv6 connection that will
not connect to the Internet. Click Save at any time to save the changes you
have made on this page.
Advanced Settings... - IPv6 ULA Settings
Enable ULA Click here to enable Unique Local IPv6 Unicast Addresses
settings.
Use Default ULA Prex Enable this option to use the default ULA prex.
ULA Prex Congurable if you disable Use Default ULA Prex. Enter your
own ULA prex.
Advanced Settings... - Current IPv6 ULA Settings
Current ULA Prex Displays the current ULA prex.
LAN IPv6 ULA Displays the LAN's IPv6 ULA.
57D-Link DIR-2640 User Manual
Section 3 - Conguration
Internet - VLAN
In the Settings menu on the bar at the top of the page, click Internet to see the Internet conguration options for the IPv4
connection details, then click the VLAN link to access the conguration options for the VLAN connection details.
VLAN allows for services such as Triple-Play to be used, and divides a network into segments that can only be accessed by
other devices in the same VLAN.
To congure the IPv4 Internet and network connection details, click the IPv4 link. Refer to Internet - IPv4 on page 33
To congure the IPv6 Internet and network connection details, click the IPv6 link. Refer to Internet - IPv6 on page 43
Click Save at any time to save the changes you have made on this page.
Status Click to enable or disable the Triple-Play VLAN feature. More
conguration options will be available if the Status is enabled.
58D-Link DIR-2640 User Manual
Section 3 - Conguration
If Triple-Play Status is
Enabled:
Priority ID Enable or disable trac priority ID for the Internet, IPTV, and
Internet VLAN ID Enter the VLAN ID for your Internet connection, as provided
IPTV VLAN ID Enter the VLAN ID for your IPTV service, as provided by your ISP.
VOIP VLAN ID Enter the VLAN ID for your VoIP network, as provided by your
VoIP VLANs. If Priority ID is enabled, Priority ID options are
available for conguration. Select a priority ID from the dropdown menus to assign to the corresponding VLAN. Higher
priority ID trac takes precedence over trac with a low
priority ID tag.
by your ISP.
ISP.
LAN Port 1-4 From the drop-down menu, you can select the type of
Interface Trac Type Setting
connection (Internet, IPTV, or Voice over IP) coming from the
WAN connection to each interface on the router.
59D-Link DIR-2640 User Manual
Section 3 - Conguration
Wireless
In the Settings menu on the bar at the top of the page, click Wireless to see your wireless network settings for your
DIR-2640.
Click Save at any time to save the changes you have made on this page.
Wi-Fi Mesh
Status Enable or disable the Wi-Fi Mesh feature. Refer to Mesh
Network on page 30 for more information.
60D-Link DIR-2640 User Manual
Section 3 - Conguration
If Smart Connect is Status is
Smart Connect
Status Enable or disable the Smart Connect Feature. When enabled,
only a few conguration options are available to simplify
conguration.
Enabled:
Wireless
Wi-Fi Name (SSID) Create a name for your wireless network using up to 32
characters.
Password Create a password to use for wireless security. Wireless clients
will need to enter this password to successfully connect to
the network.
Wireless - Advanced Settings...
Security Mode Choose None or WPA/WPA2-Personal (recommended).
Transmission Power Select the desired wireless transmission power.
Schedule Use the drop-down menu to select the time schedule that the
rule will be enabled for. The schedule may be set to Always
Enable, or you can create your own schedules in the Schedules
section. Refer to Time & Schedule - Schedule on page 89
for more information.
61D-Link DIR-2640 User Manual
Section 3 - Conguration
If Smart Connect is Status is
Smart Connect
Status Enable or disable the Smart Connect Feature. When disabled,
2.4GHz and 5GHz conguration options become available.
Disabled:
2.4GHz / 5GHz
Status Enable or disable the 2.4GHz / 5GHz wireless network.
Wi-Fi Name (SSID) Create a name for your wireless network using up to 32
characters.
Password Create a password to use for wireless security. Wireless clients
will need to enter this password to successfully connect to
the network.
62D-Link DIR-2640 User Manual
Section 3 - Conguration
2.4GHz / 5GHz - Advanced Settings...
Security Mode Choose None or WPA/WPA2-Personal (recommended).
802.11 Mode (2.4GHz) Select the desired wireless networking standards to use.
The available options for the 2.4 GHz wireless network are
Mixed 802.11b/g/n, Mixed 802.11g/n, or 802.11n only.
802.11 Mode (5GHz) Select the desired wireless networking standards to use.
The available options for the 5 GHz wireless network are
Mixed 802.11a/n/ac, Mixed 802.11n/ac, Mixed 802.11a/n,
802.11ac only, Mixed 802.11a only, or 802.11n only.
Wi-Fi Channel Select the desired channel. The default is Auto (recommended).
Transmission Power Select the desired wireless transmission power.
Channel Width
(2.4GHz)
Channel Width (5GHz) Select Auto 20/40/80 if you are using 802.11ac, 802.11n, and
HT20/40 Coexistence
(2.4GHz)
Visibility Status The default setting is Visible. Select Invisible if you do not
Schedule Use the drop-down menu to select the time schedule that
Select Auto 20/40 if you are using both 802.11n and non-
802.11n devices, or select 20 MHz if you are not using any
802.11n devices.
802.11a devices, select Auto 20/40 if you are using 802.11n
and 802.11a devices, or select 20 MHz if you are using 802.11a
devices.
Enable or disable HT20/40 Coexistence.
want to broadcast the SSID of your wireless network.
the rule will be enabled for. The schedule may be set to
Always Enable, or you can create your own schedules in the
Schedules section. Refer to Time & Schedule - Schedule on
page 89 for more information.
63D-Link DIR-2640 User Manual
Section 3 - Conguration
The easiest way to connect your wireless devices to the router is with Wi-Fi Protected Setup (WPS).
WPS-PBC Status Enable or disable WPS-PBC (Push Button Configuration)
Wi-Fi Protected Setup
functionality.
64D-Link DIR-2640 User Manual
Section 3 - Conguration
If Smart Connect is Status is
Guest Zone
In the Settings menu on the bar at the top of the page, click Wireless to see your wireless network settings for your
DIR-2640. Then click the link to Guest Zone to congure your guest zone settings.
The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These
zones will be separate from your main wireless network. You may congure dierent zones for the 2.4 GHz and 5 GHz
wireless bands.
Click Save at any time to save the changes you have made on this page.
Enabled in the previous Wireless settings:
Wireless
Status Enable or disable the Guest Zone feature. The status is disabled
by default.
Wireless Name (SSID) Create a name for your wireless network using up to 32
Password Create a password to use for wireless security.
Schedule Use the drop-down menu to select the time schedule that
Internet Access Only Enabling this option will conne connectivity to the Internet,
characters.
the rule will be enabled for. The schedule may be set to
Always Enable, or you can create your own schedules in the
Schedules section. Refer to Time & Schedule - Schedule on
page 89 for more information.
Home Network Access
preventing guests from accessing other local network devices.
65D-Link DIR-2640 User Manual
Section 3 - Conguration
If Smart Connect is Status is
Disabled in the previous Wireless settings:
2.4 GHz / 5GHz
Status Enable or disable the Guest Zone feature. The status is disabled
by default.
Wireless Name (SSID) Create a name for your wireless network using up to 32
characters.
Password Create a password to use for wireless security.
Schedule Use the drop-down menu to select the time schedule that
the rule will be enabled for. The schedule may be set to
Always Enable, or you can create your own schedules in the
Schedules section. Refer to Time & Schedule - Schedule on
page 89 for more information.
Internet Access Only Enabling this option will conne connectivity to the Internet,
Home Network Access
preventing guests from accessing other local network devices.
66D-Link DIR-2640 User Manual
Section 3 - Conguration
Network
In the Settings menu on the bar at the top of the page, click Network to change the local network settings of the router and
to congure the DHCP settings.
Click Save at any time to save the changes you have made on this page.
Network Settings
LAN IP Address Enter the IP address of the router. The default IP address is
192.168.0.1. If you change the IP address, once you click Save,
you will need to enter the new IP address in your browser to
get back into the conguration utility.
Subnet Mask Enter the subnet mask of the router. The default subnet mask
is 255.255.255.0.
Management Link The default address to access the router’s conguration is
http://dlinkrouter.local/. You can replace dlinkrouter with
a name of your choice.
Local Domain Name Enter the domain name (optional).
Enable DNS Relay Disable to transfer the DNS server information from your ISP
to your computers. If enabled, your computers will use the
router for a DNS server.
67D-Link DIR-2640 User Manual
Section 3 - Conguration
IPv4 Multicast Streams
IPv6 Multicast Streams
Status Enable or disable the DHCP server.
DHCP Server
DHCP IP Address
Range
DHCP Lease Time Enter the length of time for the IP address lease in minutes.
Always Broadcast Enable this feature to broadcast your network's DHCP server
Enter the starting and ending IP addresses for the DHCP
server's IP assignment. Note: If you statically assign IP addresses
to your computers or devices, make sure the IP addresses are
outside of this range or you may have an IP conict.
to LAN/WLAN clients.
Advanced Settings
WAN Port Speed You may set the port speed of the Internet port to 10 Mbps,
100 Mbps, 1000 Mbps, or Auto (recommended).
UPnP Enable or disable Universal Plug and Play (UPnP). UPnP
provides compatibility with networking equipment, software,
and peripherals.
Enable to allow IPv4 multicast trac to pass through the router
from the Internet. This is enabled by default.
Enable to allow IPv6 multicast trac to pass through the router
from the Internet. This is enabled by default.
68D-Link DIR-2640 User Manual
Section 3 - Conguration
USB Sharing
In the Settings menu on the bar at the top of the page, click USB Sharing to set up access to les on an external USB drive
plugged into the router. You can access shared les such as photos, music, and movies through your local network or from
the Internet using FTP. Access your les on your local network using SAMBA or UPnP media sharing, or access them over the
web using FTP.
You can also click on the User tab which will redirect you to create and congure user accounts. For more details, refer to
User on page 94
Click Save at any time to save the changes you have made on this page.
UPnP Media Server
Status Enable or disable the UPnP media server function, allowing
connected clients access to media les over the network.
UPnP Media Server Choose a name for your UPnP media server so that it can be
found.
Windows File Sharing (SAMBA)
Status Enable or disable the Windows le sharing function, allowing
connected clients access to shared les over the network.
69D-Link DIR-2640 User Manual
Section 3 - Conguration
Status Enable or disable the FTP server function, allowing connected
FTP Server
clients access to media les through FTP.
FTP Server - Advanced Settings...
Enable Remote
Sharing
FTP Server Port Enter the port number of FTP server.
Idle Time Enter the time (in minutes) before connected clients will be
If FTP server is enabled, enable or disable remote access to
les stored on a USB device plugged into the router through
a web browser.
considered idle.
70D-Link DIR-2640 User Manual
Section 3 - Conguration
D-Link Cloud
In the Settings menu on the bar at the top of the page, click D-Link Cloud to see your D-Link Cloud Service details. This
page lists whether you are registered with D-Link Cloud Service and email address associated with the account. Use the
D-Link Wi-Fi app to nd out more about D-Link Cloud's features.
71D-Link DIR-2640 User Manual
Section 3 - Conguration
Features
QoS Engine
In the Features menu on the bar at the top of the page, click QoS Engine to congure connected clients Internet access
priority.
Click Save at any time to save the changes you have made on this page.
Internet Speed
Checkup
Management Type Use the drop-down menu to select the Management Type that
Download Speed
(Mbps)
Upload Speed (Mbps) Set the upload speed based on your ISP subscription plan in
Click on the Check Speed button to launch the Internet
Speedtest. A window will pop up to show you the results
of the speedtest. When the test is complete, you can either
choose Detect Again to run the speedtest again, or you can
choose Apply to QoS to apply the results to the download
and upload speeds.
the rule will be enabled for. This may be set to O or Manage
By Device.
Set the download speed based on your ISP subscription plan
in order to adjust the QoS engine. Alternatively, you can input
the values from the speedtest through the Check Speed
button above and apply the results by clicking Apply to QoS
after the speedtest is complete.
order to adjust the QoS engine. Alternatively, you can input the
values from the speedtest through the Check Speed button
above and apply the results by clicking Apply to QoS after
the speedtest is complete.
72D-Link DIR-2640 User Manual
Section 3 - Conguration
This Quality of Service (QoS) Engine will allow you to prioritize particular
clients over others, so that those clients receive higher bandwidth. For
example, if one client is streaming a movie and another is downloading a
non-urgent le, you might wish to assign the former device a higher priority
than the latter so that the movie streaming is not disrupted by the trac of
the other devices on the network.
Under Connected Clients, you will see device cards representing each
connected client. If some are o-screen, you can use the < and > buttons to
scroll through the cards.
A maximum of one device can be assigned Highest priority.
A maximum of two devices can be assigned High priority.
A maximum of eight devices can be assigned Medium priority.
If no devices are explicitly assigned a priority, they will all be treated with
equal priority. If some devices are not assigned a priority and others are, the
unassigned devices will be treated with the lowest priority.
To assign a priority level to a device, drag the device card from the All
Devices list over an empty slot and release the mouse button. The card will
remain in the slot. If you want to remove a priority assignment from a device
and return it to the All Devices list, click the cross icon in the top right of the
device card.
73D-Link DIR-2640 User Manual
Section 3 - Conguration
Firewall Settings - Advanced
In the Features menu on the bar at the top of the page, click Firewall to congure the router’s rewall settings. The rewall
feature protects your network from malicious attacks over the Internet.
To congure the IPv4 rewall rules, click the IPv4 Rules link. Refer to Firewall Settings - IPv4/IPv6 Rules on page 76
To congure the IPv6 rewall rules, click the IPv6 Rules link. Refer to Firewall Settings - IPv4/IPv6 Rules on page 76
Click Save at any time to save the changes you have made on this page.
Enable DMZ Enable or disable Demilitarized Zone (DMZ). This completely
exposes the client to threats over the Internet, and is not
recommended in ordinary situations.
DMZ IP Address If you enabled DMZ, enter the IP address of the client you wish
to expose, or use the drop-down menu to quickly select it.
Enable SPI IPv4 Enabling Stateful Packet Inspection (SPI) helps to prevent
cyber attacks by validating that the trac passing through
the session conforms to the protocol.
Enable Anti-spoof
Checking
IPv6 Simple Security Enable or disable IPv6 simple security.
IPv6 Ingress Filtering Enable or disable IPv6 ingress ltering.
Enable this feature to help protect your network from certain
kinds of “spoong” attacks.
74D-Link DIR-2640 User Manual
Section 3 - Conguration
Advanced Settings... - Application Level Gateway (ALG) Conguration
PPTP Allows multiple machines on the LAN to connect to their
corporate network using the PPTP protocol.
IPSec (VPN) Allows multiple VPN clients to connect to their corporate
network using IPSec. Some VPN clients support traversal of
IPSec through NAT. This Application Level Gateway (ALG)
may interfere with the operation of such VPN clients. If you
are having trouble connecting with your corporate network,
try turning this ALG off. Please check with the system
administrator of your corporate network whether your VPN
client supports NAT traversal.
RTSP Allows applications that uses Real Time Streaming Protocol
(RTSP) to receive streaming media from the Internet.
SIP Allows devices and applications using VoIP (Voice over IP)
to communicate across NAT. Some VoIP applications and
devices have the ability to discover NAT devices and work
around them. This ALG may interfere with the operation of
such devices. If you are having trouble making VoIP calls, try
turning this ALG o.
75D-Link DIR-2640 User Manual
Section 3 - Conguration
Firewall Settings - IPv4/IPv6 Rules
In the Features menu on the bar at the top of the page, click Firewall to congure the router’s rewall settings, then click
the IPv4 Rules link or the IPv6 Rules link to congure what kind of trac is allowed to pass through the network.
To congure the Firewall Advanced settings, click the Advanced link. Refer to Firewall Settings - Advanced on page 74
Click Save at any time to save the changes you have made on this page.
To begin, use the drop-down menu to select whether you want to ALLOW or DENY the
rules you create. You can also choose to turn ltering OFF.
If you wish to remove a rule, click on the trash can icon in the Delete column. If you wish to
edit a rule, click on the pencil icon in the Edit column. If you wish to create a new rule, click
the Add Rule button.
76D-Link DIR-2640 User Manual
Section 3 - Conguration
If you clicked on
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
Source IP Address
Range
Destination IP Address
Range
Protocol & Port Range Select the protocol of the trac to allow or deny (Any, TCP,
Schedule Use the drop-down menu to select the time schedule that
Enter the source IP address range that the rule will apply to.
Using the drop-down menu, specify whether it is a WAN or
LAN IP address.
Enter the destination IP address range that the rule will apply
to. Using the drop-down menu, specify whether it is a WAN
or LAN IP address.
or UDP) and then enter the range of ports that the rule will
apply to.
the rule will be enabled for. The schedule may be set to
Always Enable, or you can create your own schedules in the
Schedules section. Refer to Time & Schedule - Schedule on
page 89 for more information.
77D-Link DIR-2640 User Manual
Section 3 - Conguration
Port Forwarding
In the Features menu on the bar at the top of the page, click Port Forwarding to specify a port or range of ports to open for
specic devices on the network. This might be necessary for certain applications to connect through the router.
To congure the Virtual Server settings, click the Virtual Server link. Refer to Port Forwarding - Virtual Server on page
80
Click Save at any time to save the changes you have made on this page.
If you wish to remove a rule, click on the trash can icon in the Delete column. If you wish to
edit a rule, click on the pencil icon in the Edit column. If you wish to create a new rule, click
the Add Rule button.
78D-Link DIR-2640 User Manual
Section 3 - Conguration
If you clicked on
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
Local IP Enter the IP address of the computer on your local network
TCP Port Enter the TCP ports that you want to open. You can enter a
UDP Port Enter the UDP ports that you want to open. You can enter a
Schedule Use the drop-down menu to select the time schedule that
that you want to allow the incoming service to. Alternatively,
select the device from the drop-down menu.
single port or a range of ports. Separate ports with a comma
(for example: 24,1009,3000-4000).
single port or a range of ports. Separate ports with a comma
(for example: 24,1009,3000-4000).
the rule will be enabled for. The schedule may be set to
Always Enable, or you can create your own schedules in the
Schedules section. Refer to Time & Schedule - Schedule on
page 89 for more information.
79D-Link DIR-2640 User Manual
Section 3 - Conguration
Port Forwarding - Virtual Server
In the Features menu on the bar at the top of the page, click Port Forwarding then click the Virtual Server link to congure
its settings and specify a single public port on your router for redirection to an internal LAN IP address and Private LAN port.
This might be necessary for certain applications to connect through the router.
To congure the Port Forwarding settings, click the Port Forwarding link. Refer to Port Forwarding on page 78
Click Save at any time to save the changes you have made on this page.
If you wish to remove a rule, click on the trash can icon in the Delete column. If you wish to
edit a rule, click on the pencil icon in the Edit column. If you wish to create a new rule, click
the Add Rule button.
80D-Link DIR-2640 User Manual
Section 3 - Conguration
If you clicked on
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule. Alternatively, select the protocol/
Local IP Enter the IP address of the computer on your local network
Protocol Select the protocol of the trac to allow or deny (TCP, UDP,
Protocol Number If you entered Other above, enter the protocol number.
External Port Enter the public port you want to open.
Internal Port Enter the private port you want to open.
Application Name from the drop-down menu.
that you want to allow the incoming service to. Alternatively,
select the device from the drop-down menu.
Both, or Other).
Schedule Use the drop-down menu to select the time schedule that
the rule will be enabled for. The schedule may be set to
Always Enable, or you can create your own schedules in the
Schedules section. Refer to Time & Schedule - Schedule on
page 89 for more information.
81D-Link DIR-2640 User Manual
Section 3 - Conguration
Website Filter
In the Features menu on the bar at the top of the page, click Website Filter. The website lters feature allows rules to be set
that restrict access to a specied web address (URL) or blocks specied keywords in the URL. You can use Website Filter to
restrict access to potentially harmful and inappropriate websites.
Click Save at any time to save the changes you have made on this page.
To begin, use the drop-down menu to select whether you want to ALLOW or DENY the
access to the listed sites.
If you wish to remove a Website URL/Domain, click on the trash can icon in the Delete
column. If you wish to list a new site to allow or deny access to, click the Add Rule button.
82D-Link DIR-2640 User Manual
Section 3 - Conguration
If you clicked on
Static Route - IPv4
In the Features menu on the bar at the top of the page, click Static Route to dene custom routes, controlling how data
trac is moved around your network.
To congure the Static Route IPv6 settings, click the IPv6 link. Refer to Static Route - IPv6 on page 84
Click Save at any time to save the changes you have made on this page.
If you wish to remove a route, click on the trash can icon in the Delete column. If you wish
to edit a route, click on the pencil icon in the Edit column. If you wish to create a new route,
click the Add Route button.
Destination Network Enter the IP address of packets that will take this route.
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
Mask Enter the subnet mask of the route.
Gateway Enter your next hop gateway to be taken when this route is
used.
Metric Enter a route metric value ranging from 0 to 15. This value
indicates the cost of using this route.
Interface Select the interface that the IP packet must use to transit out
of the router when this route is used.
83D-Link DIR-2640 User Manual
Section 3 - Conguration
If you clicked on
Static Route - IPv6
In the Features menu on the bar at the top of the page, click Static Route to access the IPv4 Static Route settings, then click
IPv6 to congure the IPv6 Static Routes.
To congure the Static Route IPv4 settings, click the IPv4 link. Refer to Static Route - IPv4 on page 83
Click Save at any time to save the changes you have made on this page.
If you wish to remove a route, click on the trash can icon in the Delete column. If you wish
to edit a route, click on the pencil icon in the Edit column. If you wish to create a new route,
click the Add Route button.
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
DestNetwork This is the IP address of the router used to reach the specied
destination.
PrexLen Enter the IPv6 address prex length of the packets that will
take this route.
Gateway Enter your next hop gateway to be taken when this route is
used.
Metric Enter a route metric value ranging from 0 to 15. This value
indicates the cost of using this route.
Interface Select the interface that the IP packet must use to transit out
of the router when this route is used.
84D-Link DIR-2640 User Manual
Section 3 - Conguration
Dynamic DNS
In the Features menu on the bar at the top of the page, click Dynamic DNS. This setting allows your router to associate an
easy-to-remember domain name such as [YourDomainName].com with the regularly changing IP address assigned by your
Internet Service provider. This feature is helpful when running a virtual server.
Click Save at any time to save the changes you have made on this page.
Enable Dynamic DNS Enable or disable dynamic DNS. Enabling this feature will
reveal further conguration options.
Status Displays the current dynamic DNS connection status.
Server Address Enter the address of your dynamic DNS server, or select one
from the drop-down menu.
Host Name Enter the host name that you registered with your dynamic
DNS service provider.
User Name Enter your dynamic DNS username.
Password Enter your dynamic DNS password.
Time Out Enter a time out time (in hours).
85D-Link DIR-2640 User Manual
Section 3 - Conguration
At the bottom of the page are the IPv6 host settings.
If you wish to remove a record, click on the trash can icon in the Delete column. If you wish to
edit a record, click on the pencil icon in the Edit column. If you wish to create a new record,
click the Add Record button.
Host Name Enter the host name that you registered with your dynamic
DNS service provider.
IPv6 Address Enter the IPv6 address of the dynamic DNS server. Alternatively,
select the server device in the drop-down menu.
86D-Link DIR-2640 User Manual
Section 3 - Conguration
Quick VPN
In the Features menu on the bar at the top of the page, click Quick VPN. This page will help you congure the Quick VPN
feature of your router. For more information, refer to Quick VPN on page 114. Before proceeding, ensure that your Internet
connection is working properly. We recommend conguring Dynamic DNS before proceeding with Quick VPN setup. If your
router is assigned an IP address from your ISP using DHCP, it may frequently change, requiring clients credentials to be set
up again and a simple DDNS address will be easier than an IP address.
To congure the User settings and create, manage, and delete user accounts with user-dened access to certain router
services, click the User link. Refer to User on page 94
Click Save at any time to save the changes you have made on this page.
L2TP over IPSec Enable or disable the Quick VPN server.
Username Enter a username between 1 and 20 characters.
Password Enter a password between 1 and 20 characters.
PSK Enter a passkey between 6 and 64 characters.
VPN Prole for iOS
Device and MAC OS X
Authentication
Protocol
MPPE Select the encryption cipher strength: None, RC4-40, or RC4-
Click export to save the VPN prole settings le for iOS devices
or Mac OS X.
Advanced Settings...
Choose the authentication protocol type: MSCHAPv2, PAP,
or CHAP. MSCHAPv2 is the default.
128.RC4-128 is the default.
87D-Link DIR-2640 User Manual
Section 3 - Conguration
Management
Time & Schedule - Time
In the Management menu on the bar at the top of the page, click Time & Schedule. The Time page allows you to congure,
update, and maintain the correct time on the internal system clock. From here you can set the time zone and the Network
Time Protocol (NTP) server.
To congure the Schedule settings, click the Schedule link. Refer to Time & Schedule - Schedule on page 89
Click Save at any time to save the changes you have made on this page.
Time Conguration
Time Zone Select your time zone from the drop-down menu.
Time Displays the current date and time of the router.
Automatic Time Conguration
NTP Server Select from the drop-down menu to either use the D-Link
NTP Server to synchronize the time and date for your router,
or choose Manual to set the NTP server's IP address.
88D-Link DIR-2640 User Manual
Section 3 - Conguration
Time & Schedule - Schedule
In the Management menu on the bar at the top of the page, click Time & Schedule to access the Time page, then click the
Schedule link. The Schedule page allows you to control some of the router functions through a pre-congured schedule.
To congure the Time settings, click the Time link. Refer to Time & Schedule - Time on page 88
Click Save at any time to save the changes you have made on this page.
If you wish to remove a schedule, click on the trash can icon in the Delete column. If you
wish to edit a schedule, click on the pencil icon in the Edit column. If you wish to create a
new schedule, click the Add a Schedule button.
First, enter the name of your schedule in the Name eld.
Each box represents one hour, with the time at the top of each column. To add a time period
to the schedule, simply click on the starting hour and drag to the ending hour. You can add
multiple days to the schedule, but only one period per day.
To remove a time period from the schedule, click on the cross icon.
Click Apply when you are done.
89D-Link DIR-2640 User Manual
Section 3 - Conguration
System Log
In the Management menu on the bar at the top of the page, click System Log. The router keeps a running log of events. This
log can be sent to a Syslog server, or sent to your email address.
Click Save at any time to save the changes you have made on this page.
Log Settings
System Log Click the Check System Log button to download a text le
containing the system log.
Enable Logging to
Syslog Server
SysLog Server IP
Address
SysLog Settings
Check this box to send the router logs to a SysLog Server.
Congurable if Enable Logging to Syslog Server is enabled.
Enter the IP address for the Syslog server. If the Syslog server
is connected to the router, select it from the drop-down menu
to automatically populate the eld.
90D-Link DIR-2640 User Manual
Section 3 - Conguration
If you enabled
Email Settings
Enable E-mail
Notication
Enable E-mail Notication, the following options will appear:
From E-mail Address Enter the email address your SysLog messages will be sent
To E-mail Address Enter the email address your SysLog messages will be sent to.
SMTP Server Address Enter your SMTP server address.
SMTP Server Port Enter your SMTP server port.
Enable Authentication Check this box if your SMTP server requires authentication.
Account Name Enter your SMTP account name.
Password Enter your SMTP account's password.
Enable this option if you want the logs to be automatically
sent to an email address.
from.
E-mail Log When Full or On Schedule
Send When Log Full If enabled, this option will set the router to send the log when
it is full.
Send on Schedule If enabled, this option will set the router to send according to
a set schedule.
Schedule If you enable Send On Schedule, use the drop-down menu to
select a schedule to apply. The schedule may be set to Always
Enable, or you can create your own schedules in the Schedules
section. Refer to Time & Schedule - Schedule on page 89
for more information.
91D-Link DIR-2640 User Manual
Section 3 - Conguration
System Admin - Admin
In the Management menu on the bar at the top of the page, click System Admin to access the Admin page. This page will
allow you to change the administrator (Admin) password.
To congure the System settings, click the System link. Refer to System Admin - System on page 93
Click Save at any time to save the changes you have made on this page.
Admin Password
Password Enter a new password for the administrator account. You will
need to enter this password whenever you congure the
router using a web browser or the D-Link Wi-Fi app.
Advanced Settings... - Administration
Enable Remote
Management
Remote Admin Port Specify the port number for accessing the web conguration
Click the toggle to enable remote management for your router.
settings UI.
LED Control
Status LED Turn the LED status lights on or o.
92D-Link DIR-2640 User Manual
Section 3 - Conguration
System Admin - System
In the Management menu on the bar at the top of the page, click System Admin to access the Admin page, then click
System. This page allows you to save the router’s current conguration, load a previously saved conguration, reset the
router to its factory default settings, or reboot the router.
To congure the Admin settings, click the Admin link. Refer to System Admin - Admin on page 92
Click Save at any time to save the changes you have made on this page.
System
Save Settings to Local
Hard Drive
Load Settings from
Local Hard Drive
Restore to Factory
Default Settings
This option will save the current router conguration settings
to a le on your computer.
This option will load a previously saved router conguration
le. This will overwrite the router’s current conguration.
This option will restore the router back to the default
congurations stored in the rmware. Any settings that have
not been saved will be lost, including any rules that you have
created. If you want to save the current router conguration
settings, use the Save Settings To Local Hard Drive button
above.
Auto Reboot Conguration
Reboot the Device Click to reboot the router immediately.
Auto Reboot You may set the router to automatically reboot at a set time.
The options are Never, Daily, or Weekly. You may set the
hour, the minute, and the day you wish to have the router
automatically reboot at.
93D-Link DIR-2640 User Manual
Section 3 - Conguration
User
In the Management menu on the bar at the top of the page, click User. The User section is used to create, manage, and
delete user accounts with user-dened access to certain router services.
Click Save at any time to save the changes you have made on this page.
If you wish to remove a user, click on the trash can icon in the Delete column. If you wish
to edit a user, click on the pencil icon in the Edit column. If you wish to create a new user,
click the Create User button.
94D-Link DIR-2640 User Manual
Section 3 - Conguration
User Name Enter a username for the new user account.
Password Enter a password for the new user account.
Status Enable or disable the Windows le sharing function for this
Permission If SAMBA is enabled, choose to assign either Read Only or
Folder Click Browse to select the folder you want to share.
Status Enable or disable FTP server access for this user.
SAMBA
user, allowing connected clients access to media les over
the network.
Read/Write permission.
FTP
Permission If FTP is enabled, choose to assign either Read Only or Read/
Write permission.
Folder Click Browse to select the folder you want to share.
VPN
Status Enable or disable Virtual Private Network (VPN) functionality
for this user.
95D-Link DIR-2640 User Manual
Section 3 - Conguration
Upgrade
In the Management menu on the bar at the top of the page, click Upgrade. This page will allow you to upgrade the router’s
rmware, either automatically or manually. To manually upgrade the rmware, you must rst download the relevant le
from http://support.dlink.com.
Click Save at any time to save the changes you have made on this page.
Firmware
Current Firmware
Version
Check for New
Firmware
The current rmware's version will be displayed.
Click this button to prompt the router to automatically check
for a new rmware version. If a newer version is found, it will
prompt you to install it.
Automatic Firmware Upgrade
Automatic Upgrade If enabled, the router will automatically check for and upgrade
to the newest rmware.
Choose Upgrade Time Enable this function to set the router to automatically upgrade
its rmware at a set time.
Upgrade Time Congurable if Choose Upgrade Time is enabled. Set the
hour and minute to automatically upgrade by using the dropdown menus.
Upgrade Firmware
Upgrade Firmware If you wish to upgrade manually, rst download the rmware
le you wish to upgrade to. Next, click the Select File button
and browse to the le to install the new rmware.
96D-Link DIR-2640 User Manual
Section 3 - Conguration
Statistics
In the Management menu on the bar at the top of the page, click Statistics. On the Statistics page you can view the amount of
packets that pass through the router on the Internet, LAN, Wi-Fi 2.4 GHz and Wi-Fi 5GHz networks.
To view the Extender statistics, click the Extender link. Refer to Statistics - Extender on page 98
You can view the Internet, LAN, Wi-Fi 2.4 GHz, or Wi-Fi 5 GHz by clicking on the respective
tabs at the top. The graph will update in real time. To clear the information on the graph,
click Clear near the top of the page.
The trac counter will reset if the device is rebooted.
97D-Link DIR-2640 User Manual
Section 3 - Conguration
Statistics - Extender
In the Management menu on the bar at the top of the page, click Statistics to access the Statistics page, then click
Extender. This page lets you view the amount of packets that pass through connected extenders.
To view the router's statistics, click the Router link. Refer to Statistics on page 97
Click the tabs at the top of the graph to view dierent extenders if you have more than one
connected. The graph will update in real time.
The trac counter will reset if the device is rebooted.
98D-Link DIR-2640 User Manual
Section 4 - Third Party Services
Third Party Services
With the DIR-2640, you can command your router’s functionality with your voice through Amazon Alexa and the Google
Assistant, enabling you to control your network with voice commands. Features include enabling and disabling your Wi-Fi
guest zone without having to go into the UI, rebooting the router and checking your router for rmware upgrades. In order
to use third party services to control and manage your device, please register your device with D-Link Cloud Service.
99D-Link DIR-2640 User Manual
Section 4 - Third Party Services
Registering a D-Link Cloud Service Account
In order to use third party services to control and manage your device, you will rst need to register your device with D-Link
Cloud Service. Follow the steps below if you do not have a D-Link Cloud Service account.
Step 1
Launch the D-Link Wi-Fi app.
D-Link Wi-Fi
Step 2
Tap the settings gear icon on the top right corner of the screen.
DIR-2640
100D-Link DIR-2640 User Manual
Section 4 - Third Party Services
Step 3
Tap the Cloud Service icon.
Step 4
Tap the Register button.
101D-Link DIR-2640 User Manual
Section 4 - Third Party Services
Step 5
In this menu, you can sign up for a D-Link account using Facebook, Google
or an Email address. If you already have a D-Link account, you can tap the
Log In link at the bottom of the screen to be redirected to the login page.
102D-Link DIR-2640 User Manual
Section 4 - Third Party Services
Amazon Alexa Setup
You will need the Amazon Alexa app, an Amazon account, an Amazon Alexa device and a D-Link Cloud Service account to
use this feature.
Note: The screenshots may be dierent depending on your mobile device’s OS version. The following steps show the iOS interface.
If you are using an Android device, the appearance may be dierent from that of the screenshots, but the process is the same.
Step 1
Launch the Amazon Alexa app.
Amazon Alexa
Step 2
Tap the menu icon on the top left-hand corner of the home screen.
103D-Link DIR-2640 User Manual
Section 4 - Third Party Services
Step 3
Tap on Skills & Games.
Step 4
Search for "D-Link Wi-Fi". Tap on the search result.
104D-Link DIR-2640 User Manual
Section 4 - Third Party Services

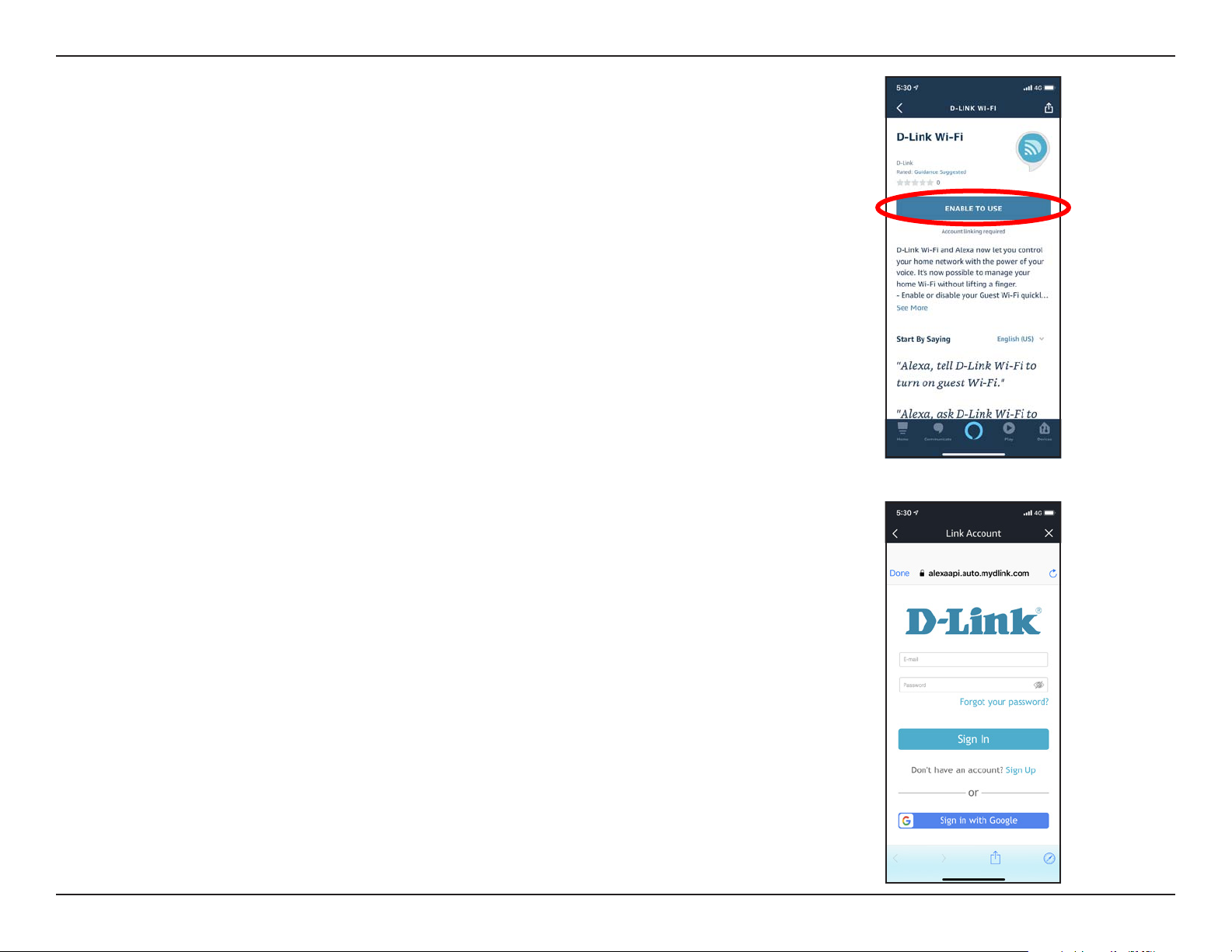

Step 5
Tap Enable to link the skill.
Step 6
Sign in using your D-Link account details.
105D-Link DIR-2640 User Manual
Section 4 - Third Party Services
Step 7
Congratulations! D-Link Wi-Fi has been successfully linked as a skill for your
Amazon device. Close the window by tapping Done on the top left corner
of the screen. Refer to Amazon Alexa Voice Commands on page 107 for
tasks that you can ask your Amazon Alexa to perform.
106D-Link DIR-2640 User Manual
Section 4 - Third Party Services
Amazon Alexa Voice Commands
With D-Link Wi-Fi enabled as a skill for Alexa, you can ask Alexa to do any of these tasks:
Task Command
Enable the guest zone. “Alexa, ask D-Link Wi-Fi to enable my guest zone.”
Disable the guest zone. “Alexa, ask D-Link Wi-Fi to disable my guest zone.”
Find out the guest zone credentials. "Alexa, ask D-Link Wi-Fi what are my guest network
credentials.”
Reboot the router. "Alexa, ask D-Link Wi-Fi to reboot the router."
Upgrade the router. “Alexa, ask D-Link Wi-Fi to upgrade my router.”
107D-Link DIR-2640 User Manual
Section 4 - Third Party Services
The Google Assistant Setup
You will need the Google Assistant app, a Google account and a D-Link Cloud Service account to use this feature.
Note: The screenshots may be dierent depending on your mobile device’s OS version. The following steps show the iOS interface.
If you are using an Android device, the appearance may be dierent from that of the screenshots, but the process is the same.
Step 1
Launch the Google Assistant app.
Assistant
Step 2
Tell your Google Assistant to "Talk to D-Link Wi-Fi."
108D-Link DIR-2640 User Manual
Section 4 - Third Party Services
Step 3
Tap Ye s .
Step 4
Sign in using your D-Link account details.
109D-Link DIR-2640 User Manual
Section 4 - Third Party Services
Step 5
Tap Allow to continue setup..
Step 6
Congratulations! D-Link Wi-Fi has been successfully linked to your Google
Assistant. Refer to The Google Assistant Voice Commands on page 111
for tasks that you can ask your Google Assistant to perform.
110D-Link DIR-2640 User Manual
Section 4 - Third Party Services
The Google Assistant Voice Commands
With D-Link Wi-Fi enabled as a skill for the Google Assistant, you can ask your Google Assistant to do any of these tasks:
Task Command
Enable the guest zone. “OK Google, talk to D-Link Wi-Fi to enable my guest zone.”
Disable the guest zone. “OK Google, talk to D-Link Wi-Fi to disable my guest zone.”
Find out the guest zone credentials. "OK Google, talk to D-Link Wi-Fi to tell me my guest zone
credentials.”
Reboot the router. "OK Google, talk to D-Link Wi-Fi to reboot the router."
Upgrade the router. “OK Google, talk to D-Link Wi-Fi to upgrade my router.”
111D-Link DIR-2640 User Manual
Section 5 - Wi-Fi Mesh Setup
Wi-Fi Mesh Setup
D-Link’s Wi-Fi Mesh is a scalable solution that allows you to easily increase the coverage of your home or oce wireless AC
network. Expand your Wi-Fi coverage by adding compatible D-Link access points. Mix and match suitable D-Link devices
according to your budget and preferences to t any oorplan. Setup is eortless; conguration of multiple access points can
be done in minutes as settings can be passed on to other access points once the rst access point is congured.
Wi-Fi Mesh intelligently nds the shortest/fastest path to your router. So even if you have eight mesh nodes, you can count
on Wi-Fi Mesh to push your 4K streaming movies and intense VR games to your device at lightning speeds. Wi-Fi Mesh can
also automatically detect malfunctioning nodes and reroute the connection to your working mesh devices.
Please refer to the Wi-Fi Mesh on page 60 for Wi-Fi Mesh conguration options.
112D-Link DIR-2640 User Manual
Section 5 - Wi-Fi Mesh Setup
Setup Using an Ethernet Cable
Step 1
Connect and plug in the Wi-Fi Mesh compatible device close to your
DIR-2640 and wait for the device to be ready. Refer to the device's manual for
behavioural indications.
Step 2
Use the Ethernet cable to connect the Wi-Fi Mesh compatible device to
one of the LAN ports on the DIR-2640. Refer to the device's manual for
behavioural indications signifying that your device has nished being paired.
Note: Please make sure that the device you are pairing to is in factory default
settings prior to initiating the mesh pairing process.
< 1 m
Step 3
Disconnect the Ethernet cable and place the Wi-Fi Mesh compatible device
anywhere in your home to extend your whole home Wi-Fi.
113D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Quick VPN
This router is equipped with D-Link's Quick VPN technology. Virtual Private Networking (VPN) creates a connection between
devices across the Internet. Using Quick VPN allows you to securely connect your computer or mobile device to places
with free, untrusted Wi-Fi hotspots in places like coee shops and hotels by encrypting and relaying it through your home
Internet connection. This extra 'hop' reduces the chances of hackers stealing your information, such as logins, passwords,
and credit card numbers. When traveling, Quick VPN lets you watch sports and use video streaming services without
experiencing blackouts or ltering. You can surf the whole Internet unltered and unblocked, just as you would at home.
Without Quick VPN
Your Laptop
Your Laptop
Potential Hacker
Stealing Data
Public Unsecured
Wi-Fi Hotspot
Internet
With Quick VPN
InternetPublic
Unsecured Wi-Fi
Hotspot
Unencrypted Data Encrypted Data
Your Network with
Quick VPN Server
114D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Important Information
The following instructions explain and help you to congure your D-Link Quick VPN enabled router and devices to create
a Virtual Private Network (VPN). This feature is provided for advanced users who wish to connect remotely and use their
router's Internet connection to add a layer of security while using untrusted networks. Congure the Quick VPN Server on
your router rst and then set up client devices to connect through your router's WAN connection.
• Quick VPN only provides an added layer of security against specic types of snooping attacks and does not guarantee complete data integrity
or protection. Only trac in the tunnel between your router and device will be encrypted, WAN trac will leave your D-Link Quick VPN enabled
router unencrypted.
• Keep your Quick VPN Username, Password, and Passkey safe. Keep your Quick VPN Username, Password, and Passkey safe. It is recommended
that you change these credentials periodically.
• A device connected via Quick VPN tunnel may experience lower data throughput and higher latency due to a number of factors including:
Internet conditions, local and remote network Wi-Fi and WAN bandwidth limitations, and increased latency. This may negatively impact real
time voice and video communication.
• Quick VPN supports up to ve concurrent VPN client sessions using the same login and password are supported. Quick VPN uses L2TP/IPsec
with MSCHAPv2, PAP, or CHAP authentication.
• You device may warn you that your information may be intercepted, since you control the Quick VPN server, you may ignore this.
• UDP Ports 500, 4500, 1701 and IP Port 50 must be open in order for Quick VPN to work.
• L2TP/IPsec VPN usage may be restricted in some countries and on some networks. If you have trouble using Quick VPN on some networks, but
not others and are not violating network access rules, try contacting your ISP or network administrator.
• Devices connected via Quick VPN are assigned addresses on a separate subnet (ex. 192.168.1.x). Some network resources may be unavailable
when connecting via Quick VPN.
• If your Internet connection uses DHCP, it is strongly recommended that you rst set up Dynamic DNS (DDNS), such as D-Link DDNS, to eliminate
the need to recongure client devices in the event your ISP assigns you a new WAN IP address.
115D-Link DIR-2640 User Manual
Section 6 - Quick VPN
iOS Devices
VPN Setup Instructions
This section provides Quick VPN setup instructions for iOS devices. Refer to Quick VPN on page 87 for your router setup
instructions.
Go into Settings on your compatible iOS device.
Scroll to and tap General.
Scroll to and tap VPN.
Tap Add VPN Conguration...
116D-Link DIR-2640 User Manual
Section 6 - Quick VPN
You should see a pop up window asking you to ll out the details of your VPN
connection.
Type: Choose IPSec. Tap Back to return to the Add Conguration page.
Description: For reference purposes only, used to dierentiate between
multiple VPN connections.
Server: Enter the IP/DDNS address of your Quick VPN server.
Account: Enter the Username used to authenticate login to VPN server
Password: Enter Password used to authenticate login to VPN server
Secret: Enter your Passkey (PSK).
Tap Done at the top right corner of the page to nish adding the conguration.
Your iOS device is now congured to connect to your Quick VPN server.
117D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Connect or Disconnect
To connect or disconnect from to your Quick VPN server, open Settings and
tap the button next to VPN.
The VPN icon will appear in the notication area at the top of your screen
indicating that your device is currently connected to the Quick VPN server.
118D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Mac OS X
VPN Setup Instructions
This section provides Quick VPN setup instructions for OS X using the Export Prole function. Refer to Quick VPN on page
87 for your router setup instructions.
Open the exported prole. The Install Prole dialogue will appear; click
Continue and Install.
Enter your user account password when prompted. Close the Proles
dialogue.
Go to > System Preferences... > Network and select the Quick VPN
connection and click Authentication Settings.
119D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Enter your Passkey in the Shared Secret text box and click OK, Apply, then
OK.
Your Mac is now congured to connect to your Quick VPN server.
120D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Connect or Disconnect
To connect to or disconnect from your Quick VPN server, go to > System
Preferences... > Network.
Select the Quick VPN connection and click on the Connect or Disconnect
button.
121D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Windows 7
VPN Setup Instructions
This section provides Quick VPN setup instructions for Windows 7. Refer to Quick VPN on page 87 for your router setup
instructions.
Click the Start button and type vpn into the Search programs and les
box.
Select Set up a virtual private network (VPN) connection.
Enter the IP/DDNS address of your Quick VPN server in the Internet
address box, create a name for your connection in the Destination Name,
check Don't Connect now; just set it up so I can connect later, and click
Next.
122D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Enter your Username. If you would like windows to save your password,
enter your Password and check Remember this password. Click Create to
continue.
Do not click Connect Now.
Click Close. Click the Start button and type view network connections into
the Search programs and les text box. Select View network connections.
123D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Click Advanced settings. Enter your Passkey in the Key text box under Use
preshared key for authentication. Click OK to close Advanced Properties
and click OK to close Quick VPN Connection Properties.
Your Windows 7 system is now congured to connect to your Quick VPN
server.
124D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Connect or Disconnect
To connect to or disconnect from your Quick VPN server, click on the
Network Settings icon in the notication area of the Windows taskbar and
from the Dial Up and VPN section click on your Quick VPN connection and
click on the Connect or Disconnect button.
125D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Windows 8.1/8
VPN Setup Instructions
This section provides Quick VPN setup instructions for Windows 8.1/8. Refer to Quick VPN on page 87 for your router
setup instructions.
This section provides Quick VPN setup instructions for Windows 8.1/8.
Click the Start button and type vpn.
Select Manage virtual private networks.
From the Network Settings page, click Add a VPN Connection.
126D-Link DIR-2640 User Manual
Section 6 - Quick VPN
1
Select Microsoft from VPN Provider.
2
Create a name for your VPN connection.
3
Enter your IP/DDNS address of your Quick VPN server.
4
Select User name and password from Type of sign-in info.
If you would like windows to remember your sign-in information, enter
5
your User name, Password, and select Remember my sign-in info
6
Choose Save.
127D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Right-click on the Quick VPN Connection you just created and left-click on
Properties.
Select the Security tab. For the Type of VPN, select Layer2Tunneling with
IPsec (L2TP/IPSec).
128D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Click the Start button and type view network connections.
Select View network connections.
Right-click your Quick VPN Connection and left-click Properties.
Select the Security tab.
For the Type of VPN, select Layer 2 Tunneling with IPsec (L2TP/IPSec).
129D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Click Advanced settings. Enter your Passkey in the Key text box under Use
preshared key for authentication.
Click OK to close Advanced Properties and click OK to close Quick VPN
Properties.
Your Windows 8.1/8 system is now congured to connect to your Quick VPN
server.
130D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Connect or Disconnect
To connect to or disconnect from your Quick VPN server, click on the
Network Settings icon in the notication area of the Windows taskbar. Click
on your Quick VPN connection and click on the Connect or Disconnect
button.
131D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Windows 10
VPN Setup Instructions
This section provides Quick VPN setup instructions for Windows 7. Refer to Quick VPN on page 87 for your router setup
instructions.
This section provides Quick VPN setup instructions for Windows 10.
Click Start > Settings > Network & Internet >
NetworkandSharingCenter > VPN > Add a VPN Connection.
132D-Link DIR-2640 User Manual
Section 6 - Quick VPN
1
Select Windows (built-in) from the VPN Provider drop down menu.
2
Create a name for your VPN connection.
3
Enter your IP/DDNS address of your Quick VPN server.
4
Select L2TP/IPSec with pre-shared key from VPN type.
5
Enter the Passkey.
6
Select User name and password from Type of sign-in info.
If you would like windows to remember your sign-in information, enter
your User name, Password, and select Remember my sign-in info
7
Choose Save.
Your Windows 10 system is now congured to connect to your Quick VPN
server.
133D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Connect or Disconnect
To connect to or disconnect from your Quick VPN server, click on the
Network Settings icon in the notication area of the Windows taskbar and
click on your Quick VPN connection. The Network & Internet Settings page
will open. Click on the Connect or Disconnect button.
134D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Android
VPN Setup Instructions
This section provides Quick VPN setup instructions for Android devices. Your
device's screens may vary. Refer to Quick VPN on page 87 for your router
setup instructions.
Go to Settings > More from the Wireless & networks > VPN > +
135D-Link DIR-2640 User Manual
Section 6 - Quick VPN
1
Enter a name for your VPN connection.
2
Select L2TP/IPSec PSK for Type.
3
Enter the IP/DDNS address of your Quick VPN server.
4
Enter your Passkey in IPSec pre-shared key eld.
5
Choose Save.
Your Android device is now congured to connect to your Quick VPN
server.
136D-Link DIR-2640 User Manual
Section 6 - Quick VPN
Connect or Disconnect
To connect to or disconnect from your Quick VPN server, go to Settings
> More from the Wireless & networks > VPN and select the Quick VPN
connection you created.
137D-Link DIR-2640 User Manual
Section 6 - Quick VPN
To connect, enter your Username and Password and select CONNECT.
To disconnect, select DISCONNECT.
138D-Link DIR-2640 User Manual
Section 7 - Connect a Wireless Client to your Router
Connect a Wireless Client to your Router
WPS Button
The easiest and most secure way to connect your wireless devices to the router is with WPS (Wi-Fi Protected Setup). Most
wireless devices such as wireless adapters, media players, Blu-ray DVD players, wireless printers and cameras will have a WPS
button (or a software utility with WPS) that you can press to connect to the router. Please refer to your user manual for the
wireless device you want to connect to make sure you understand how to enable WPS. Once you know, follow the steps
below:
Step 1 - Press the WPS button on the router for about 1 second. The wireless LEDs will start to blink.
WPS Button
Step 2 - Within 2 minutes, press the WPS button on your wireless device (or launch the software utility and start the WPS
process).
Step 3 - Allow up to 1 minute for your connection to be congured. Once the Internet light stops blinking, you will be
connected and your wireless connection will be secure with WPA2.
139D-Link DIR-2640 User Manual
Section 7 - Connect a Wireless Client to your Router
Windows® 10
To join an existing network, locate the wireless network icon in the taskbar,
next to the time display and click on it.
Clicking on this icon will display a list of wireless networks which are within
range of your computer. Select the desired network by clicking on the SSID.
To connect to the SSID, click Connect.
To automatically connect with the router when your device next detects the
SSID, check the Connect Automatically check box.
Wireless Icon
You will then be prompted to enter the Wi-Fi password (network security
key) for the wireless network. Enter the password into the box and click Next
to connect to the network. Your computer will now automatically connect to
this wireless network when it is detected.
140D-Link DIR-2640 User Manual
Section 7 - Connect a Wireless Client to your Router
Windows® 8 - WPA/WPA2
To join an existing network, locate the wireless network icon in the taskbar, next
to the time display.
Clicking on this icon will display a list of wireless networks which are within
connecting proximity of your computer. Select the extender’s network by clicking
on the network name.
Wireless Icon
dlink
You will then be prompted to enter the network security key (Wi-Fi password) for
the wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you
can also press the WPS button on your router at this point to enable the WPS
function.
dlink
141D-Link DIR-2640 User Manual
Section 7 - Connect a Wireless Client to your Router
When you have established a successful connection with a wireless network, the
word Connected will appear next to the name of the network to which you are
connected.
dlink
142D-Link DIR-2640 User Manual
Section 7 - Connect a Wireless Client to your Router
Windows® 7
WPA/WPA2
It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before conguring
your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being
used.
Click on the wireless icon in your system tray (lower-right corner).
Wireless Icon
The utility will display any available wireless networks in your area.
Highlight the wireless connection with Wi-Fi name (SSID) you would like to
connect to and click the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/IP
settings for your wireless adapter. Refer to Networking Basics on page 152
for more information.
143D-Link DIR-2640 User Manual
Section 7 - Connect a Wireless Client to your Router
The following window appears while your computer tries to connect to the
router.
Enter the same security key or passphrase (Wi-Fi password) that is on your
router and click OK. You can also connect by pushing the WPS button on the
router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The key
or passphrase must be exactly the same as the one on the wireless router.
144D-Link DIR-2640 User Manual
Section 8 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the router. Read the
following descriptions if you are having problems.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website, nor do
you have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer
must be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
- Microsoft Internet Explorer® 10 or higher
- Mozilla Firefox 28 or higher
- Google™ Chrome 28 or higher
- Apple Safari 6 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a
dierent cable, or connect to a dierent port on the device if possible. If the computer is turned o, the link light may not
be on.
• Disable any Internet security software running on the computer. Software rewalls such as ZoneAlarm, BlackICE, Sygate
and Norton Personal Firewall may block access to the conguration pages. Check the help les included with your rewall
software for more information on disabling or conguring it.
145D-Link DIR-2640 User Manual
Section 8 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the
button to restore the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button. Make
sure nothing is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar.
This should open the login page for your web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30
seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. This process will change all your settings back to the factory
defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip
to hold the recessed button down for 10 seconds. Release the button and the router will go through its reboot process.
Wait about 30 seconds to access the router. The default IP address is 192.168.0.1. When logging in, leave the password box
empty.
146D-Link DIR-2640 User Manual
Appendix A - Wireless Basics
Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity
within your home, business, or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of
products will allow you to securely access the data you want, when, and where you want it. You will be able to enjoy the freedom
that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of
wires. Wireless LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops
and universities. Innovative ways to utilize WLAN technology are helping people work, and communicate more eciently. Increased
mobility and the absence of cabling and other xed infrastructure have proven to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop
systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use
servers, printers or an Internet connection supplied through the wired LAN. A wireless router is a device used to provide this link.
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses
radio frequency to connect wirelessly so you have the freedom to connect computers anywhere in your home or oce
network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link
delivers the performance you need at a price you can aord. D-Link has all the products you need to build your network.
147D-Link DIR-2640 User Manual
Appendix A - Wireless Basics
How does wireless work?
Wireless works similarly to how cordless phones work, through radio signals that transmit data from one point A to point B. But
wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area to
be able to connect your computer. There are two dierent types of wireless networks: Wireless Local Area Network (WLAN), and
Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has
a small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point
the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like
manufacturing plants, industrial locations, university and high school campuses, airports, golf courses, and many other outdoor
venues.
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30
feet away. Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly
as much power. This makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other
devices that operate on batteries.
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce, business,
D-Link has a wireless solution for it.
148D-Link DIR-2640 User Manual
Appendix A - Wireless Basics
Home Uses/Benets
• Gives everyone at home broadband access
• Surf the web, check email, instant message, etc.
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce Uses/Benets
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
Where is wireless used?
Wireless technology is expanding everywhere, not just at home or oce. People like the freedom of mobility and it’s becoming so
popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public places
is usually called “hotspots”.
Using a D-Link USB adapter with your laptop, you can access the hotspot to connect to the Internet from remote locations like:
airports, hotels, coee shops, libraries, restaurants, and convention centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start. That’s
why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
149D-Link DIR-2640 User Manual
Appendix A - Wireless Basics
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or access point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to
place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you
have a two-story home, you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/
access point. This would signicantly reduce any interference that the appliances might cause since they operate on same
frequency.
Security
Don’t let your next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning
on the WPA or WEP security feature on the router. Refer to the product manual for detail information on how to set it up.
150D-Link DIR-2640 User Manual
Loading...
