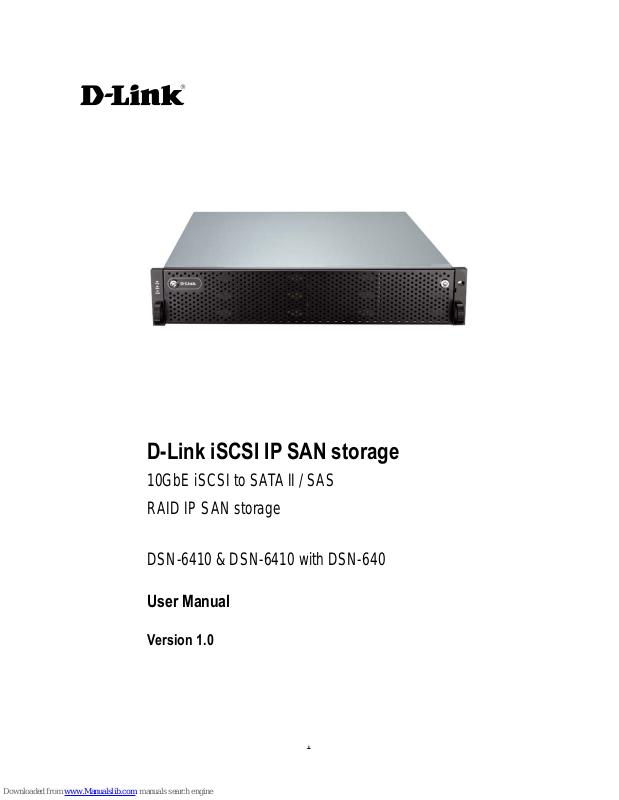

Page 1

D-Link iSCSI IP SAN storage

10GbE iSCSI to SA TA II / SAS RAID IP SAN storage

DSN-6410 & DSN-6410 with DSN-640

User Manual

Version 1.0

Page 2

Preface

Trademarks

All products and trade names used in this manual are trademarks or registered trademarks of their respective companies.

About this manual

This manual is the introduction of D-Link DSN-64x0 IP SAN stor age and it aims to help users know the operations of the disk array system easily. Information contained in this manual has been reviewed for accuracy, but not for product warranty because of the various environments / OS / settings. Information and specification herein are subject to change without notice. For any update information, please visit www.dlink.com.

Model comparison

DSN-6400 series adopted the 2U12 form factor for all models. DSN-64x0 IP SAN

storages stand for the following models.

DSN-6410 with DSN-640: Dual contro ll ers.

- This manual will use “DSN-6410w/DSN-640” for this configuration DSN-6410: Single controller, can be upgr adable to dual mode.

The dual controller specific functions such as dual-active, cache mirroring, flexible RG ownership management, management port seamless take-over, no system down time, and etc are not available in DSN-6410.

Caution

Do not attempt to service, change, disassemble or upgrade the equipmen t’s

components by yourself. Doing so may violate your warranty and expose you to electric shock. Refer all servicing to authorized service personnel.

Please always follow the instructions in this user’s manual.

Page 3

Table of Contents

Chapter 1 Overview .................................................................. 6

1.1 Features ........................................................................................ 6

1.1.1 Highlights ................................................................................................................... 7

1.2 RAID concepts .............................................................................. 8

1.2.1 Terminology ............................................................................................................... 8

1.2.2 RAID levels .............................................................................................................. 10

1.2.3 Volume relationship ................................................................................................. 11

1.3 iSCSI concepts ............................................................................ 12

1.4 IP SAN storage specifications ...................................................... 13

1.4.1 Technical specifications ........................................................................................... 13

1.4.2 FCC and CE statements ........................................................................................... 16

Chapter 2 Installation ............................................................ 19

2.1 Package contents ........................................................................ 19

2.2 Before instal lation ....................................................................... 19

2.3 Enclosure .................................................................................... 19

2.3.1 Front view ................................................................................................................ 19

2.3.2 Front LED lights ....................................................................................................... 20

2.3.3 Install drives ............................................................................................................ 21

2.3.4 Rear view ................................................................................................................. 22

2.4 Install battery backup module..................................................... 25

2.5 Deployment ................................................................................ 26

Chapter 3 Quick setup ............................................................ 29

3.1 Management interfaces ............................................................... 29

3.1.1 Serial console .......................................................................................................... 29

3.1.2 Remote control ........................................................................................................ 29

3.1.3 Web UI .................................................................................................................... 30

3.2 How to use the system quickly ................................................... 32

3.2.1 Quick installation ..................................................................................................... 32

3.2.2 Volume creation wizard ........................................................................................... 35

Chapter 4 Configuration ........................................................ 38

4.1 Web UI management interface hierarchy .................................... 38

4.2 System configuration .................................................................. 39

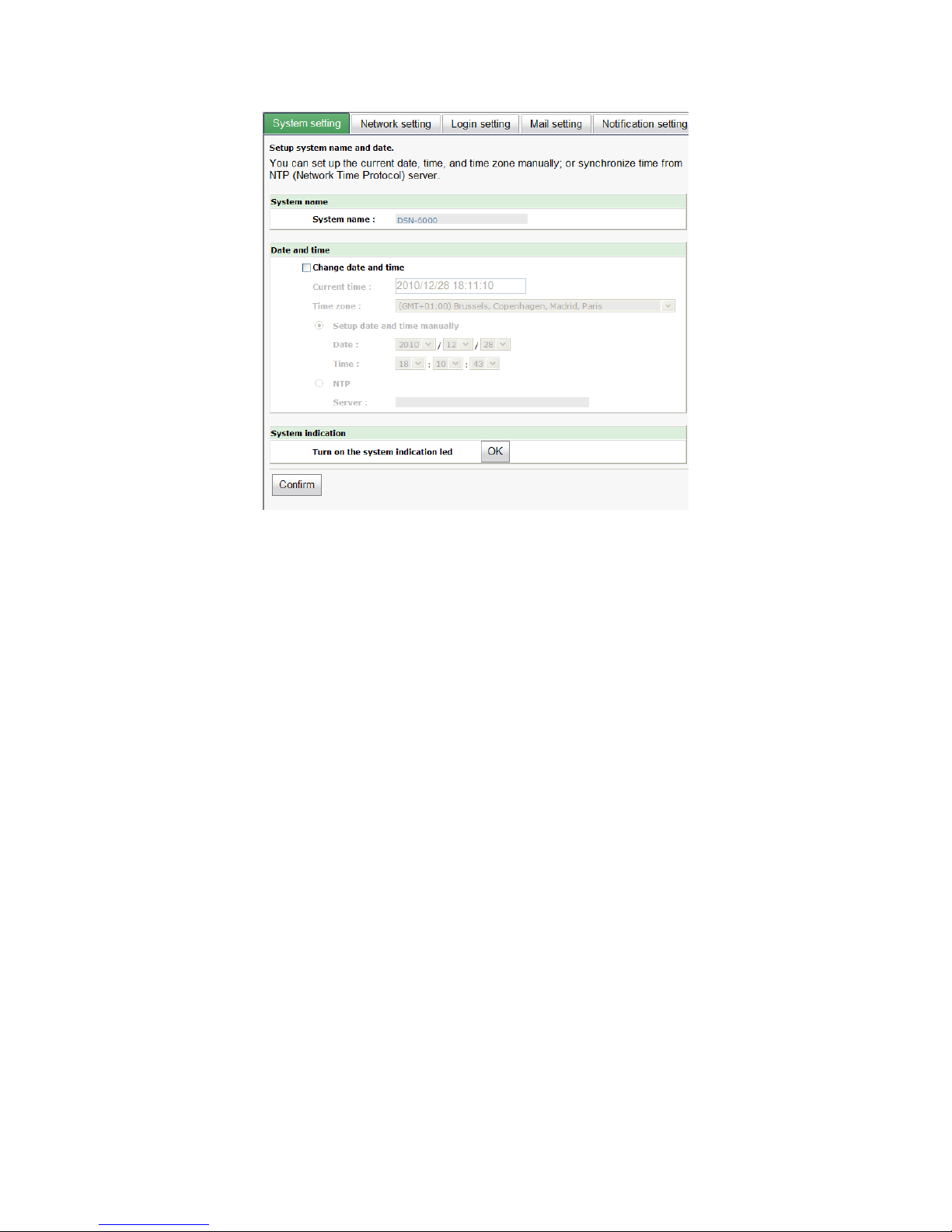

4.2.1 System setting ......................................................................................................... 39

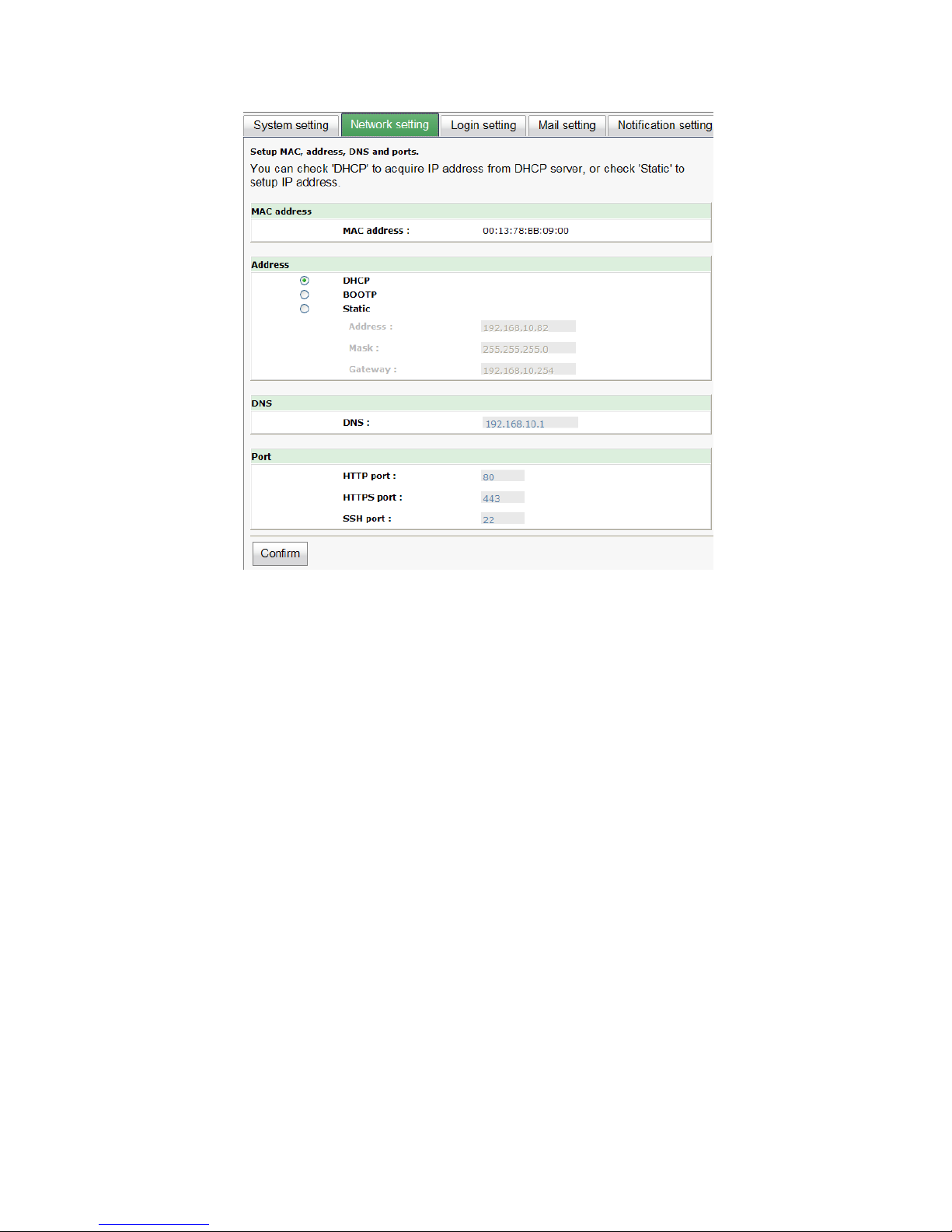

4.2.2 Network setting ....................................................................................................... 40

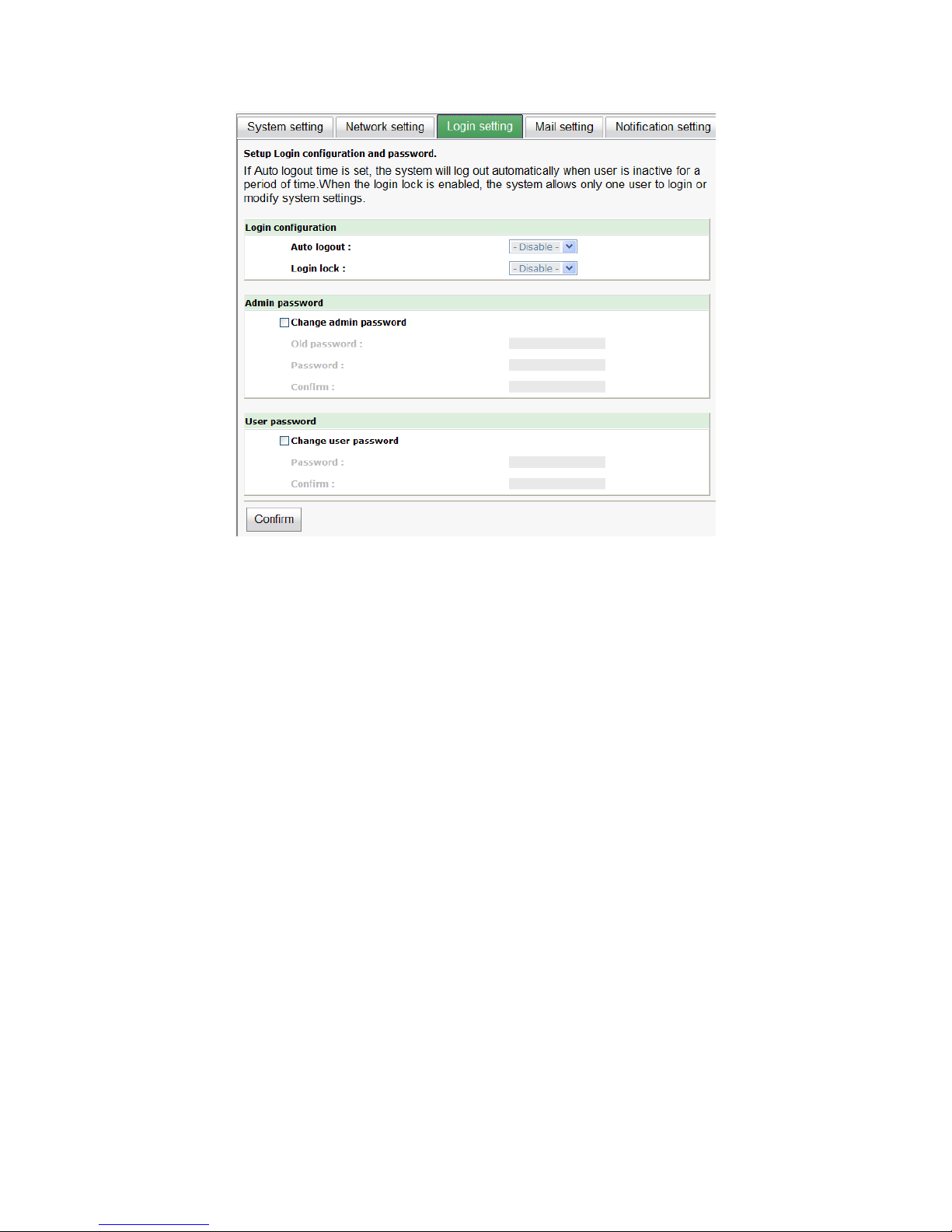

4.2.3 Login setting ............................................................................................................ 41

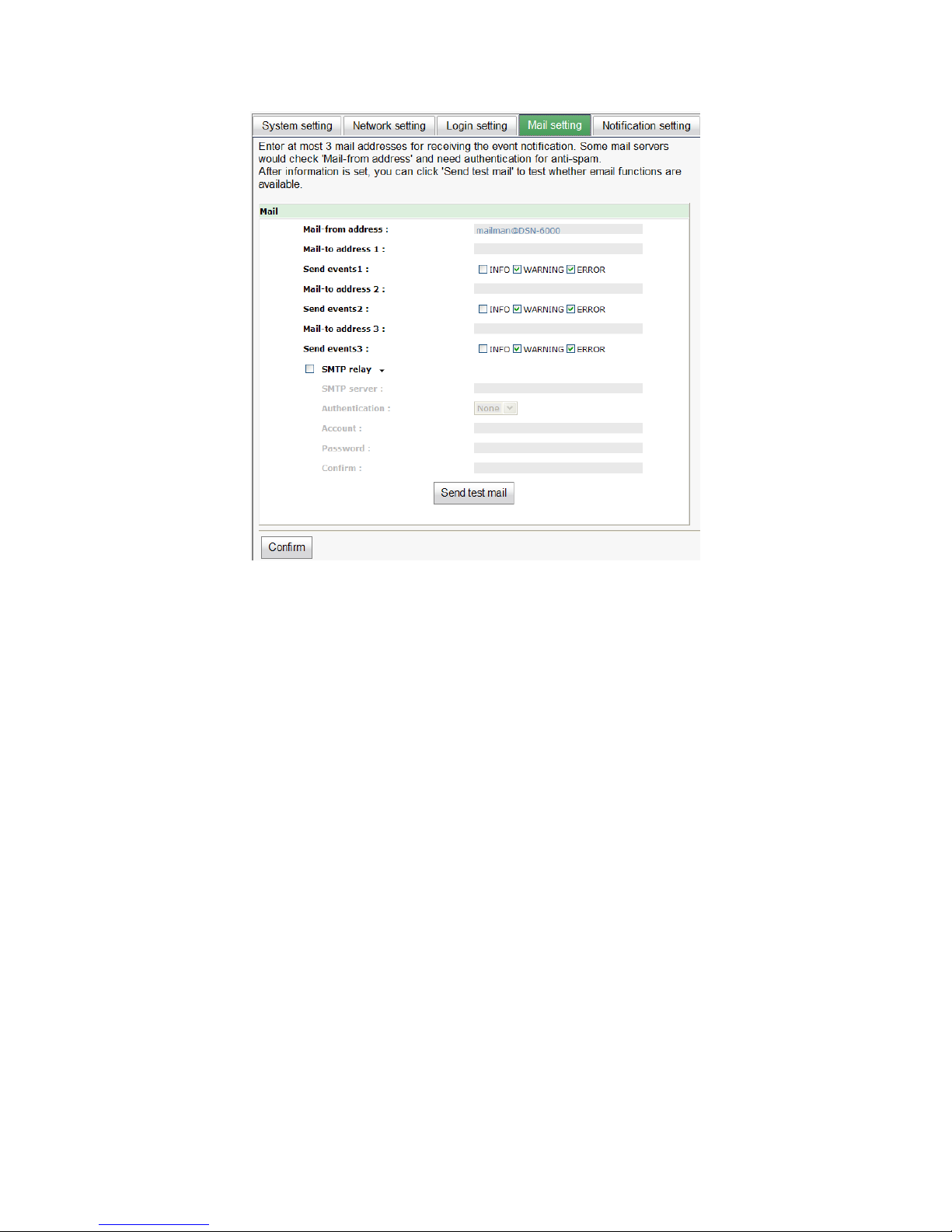

4.2.4 Mail setting .............................................................................................................. 42

4.2.5 Notification setting .................................................................................................. 43

4.3 iSCSI configuration ..................................................................... 45

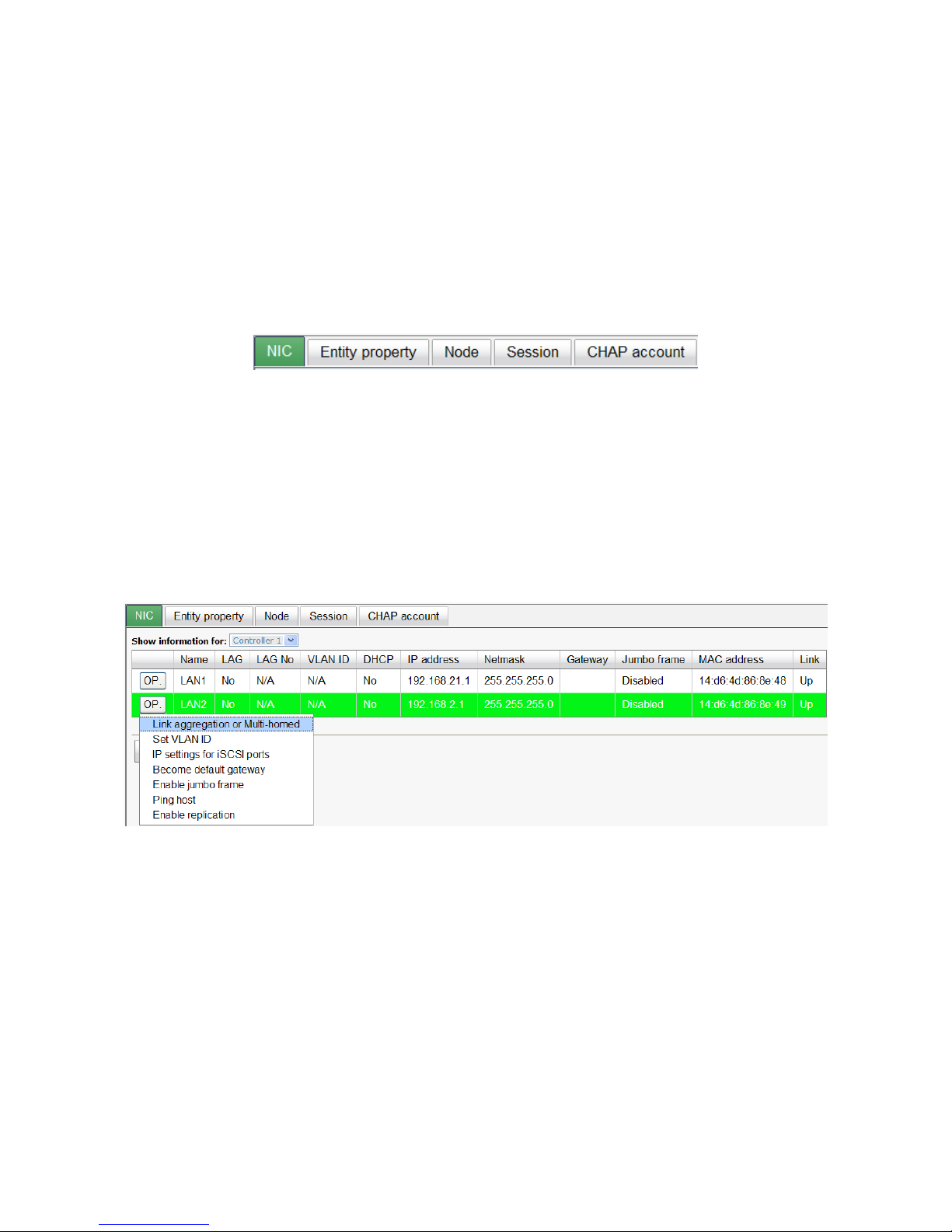

4.3.1 NIC........................................................................................................................... 45

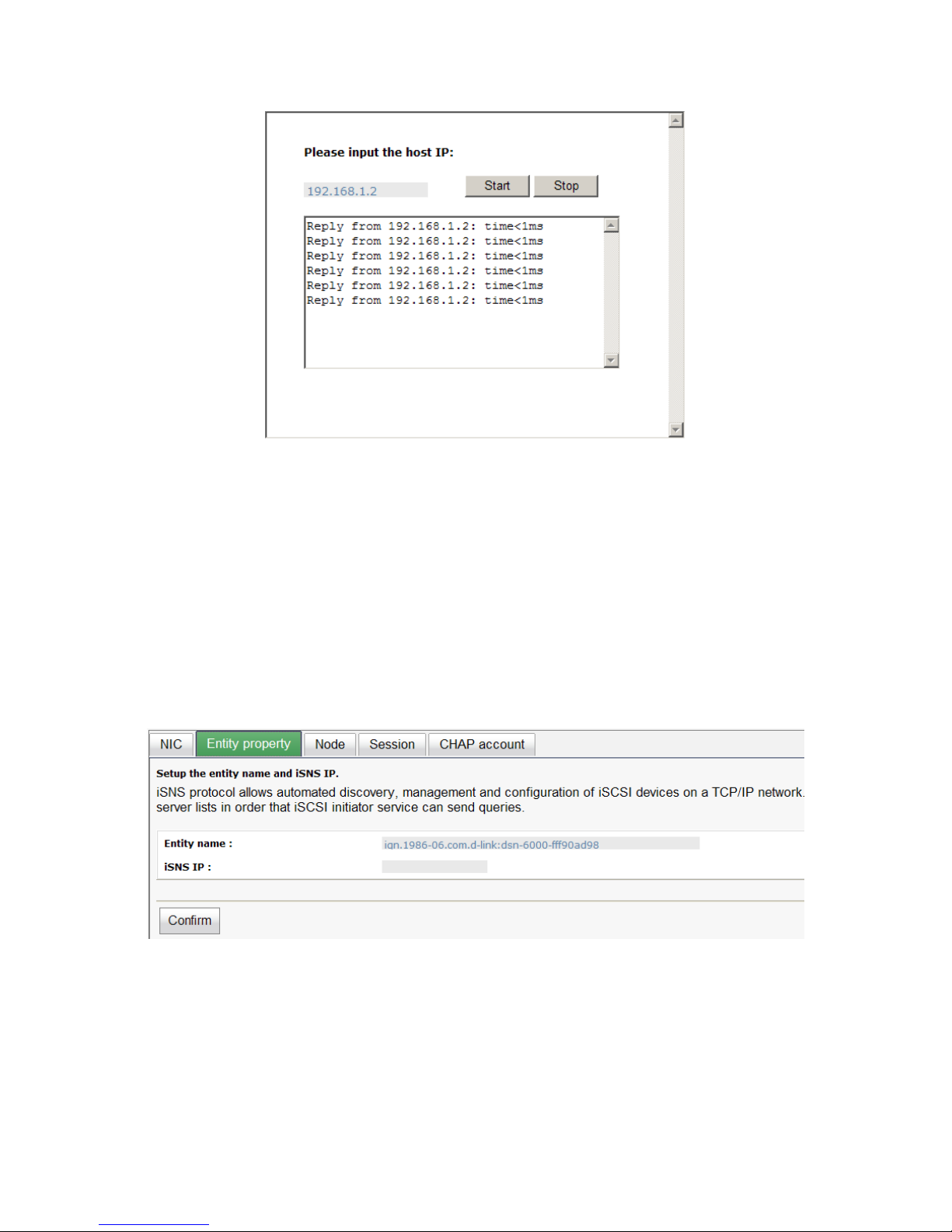

4.3.2 Entity property ......................................................................................................... 48

4.3.3 Node ........................................................................................................................ 48

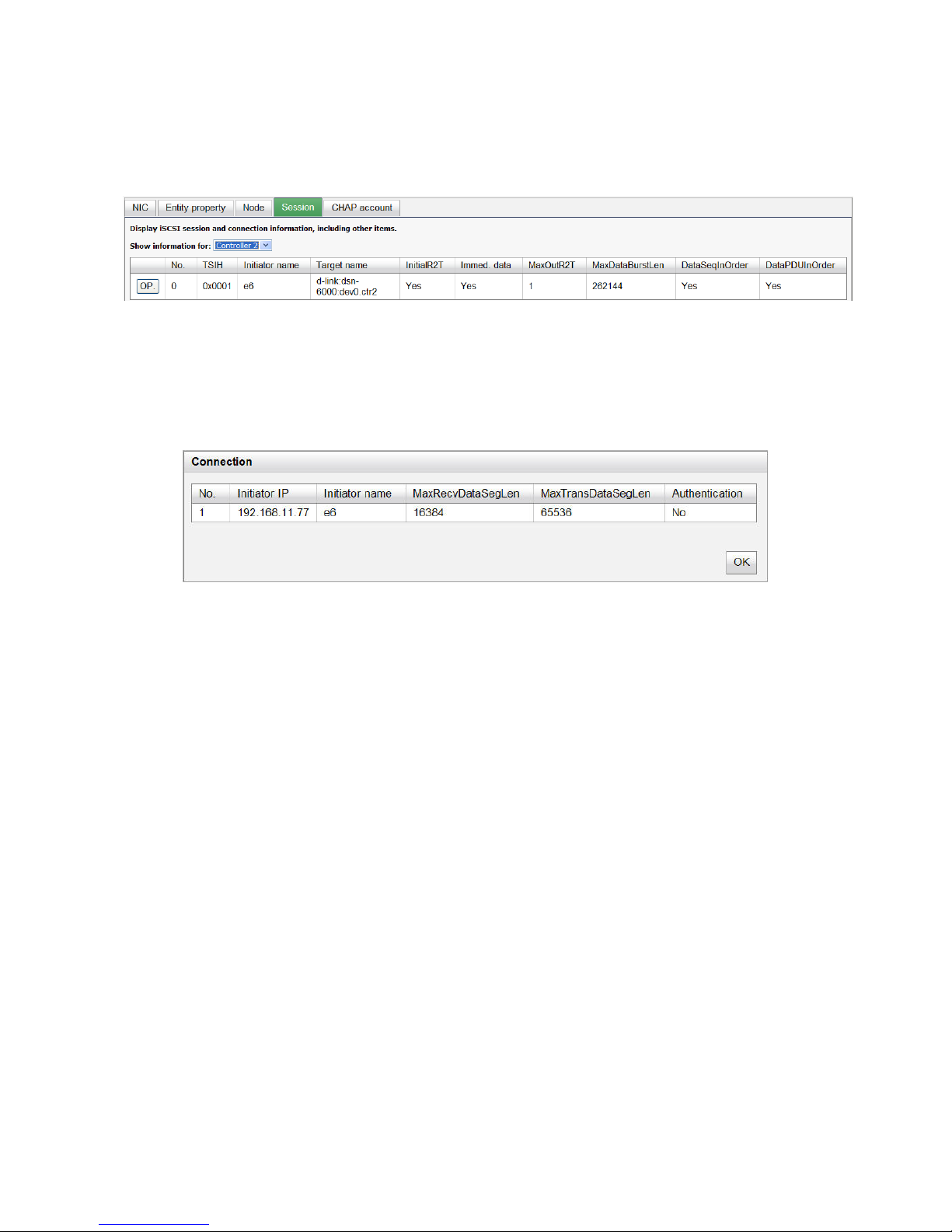

4.3.4 Session .................................................................................................................... 51

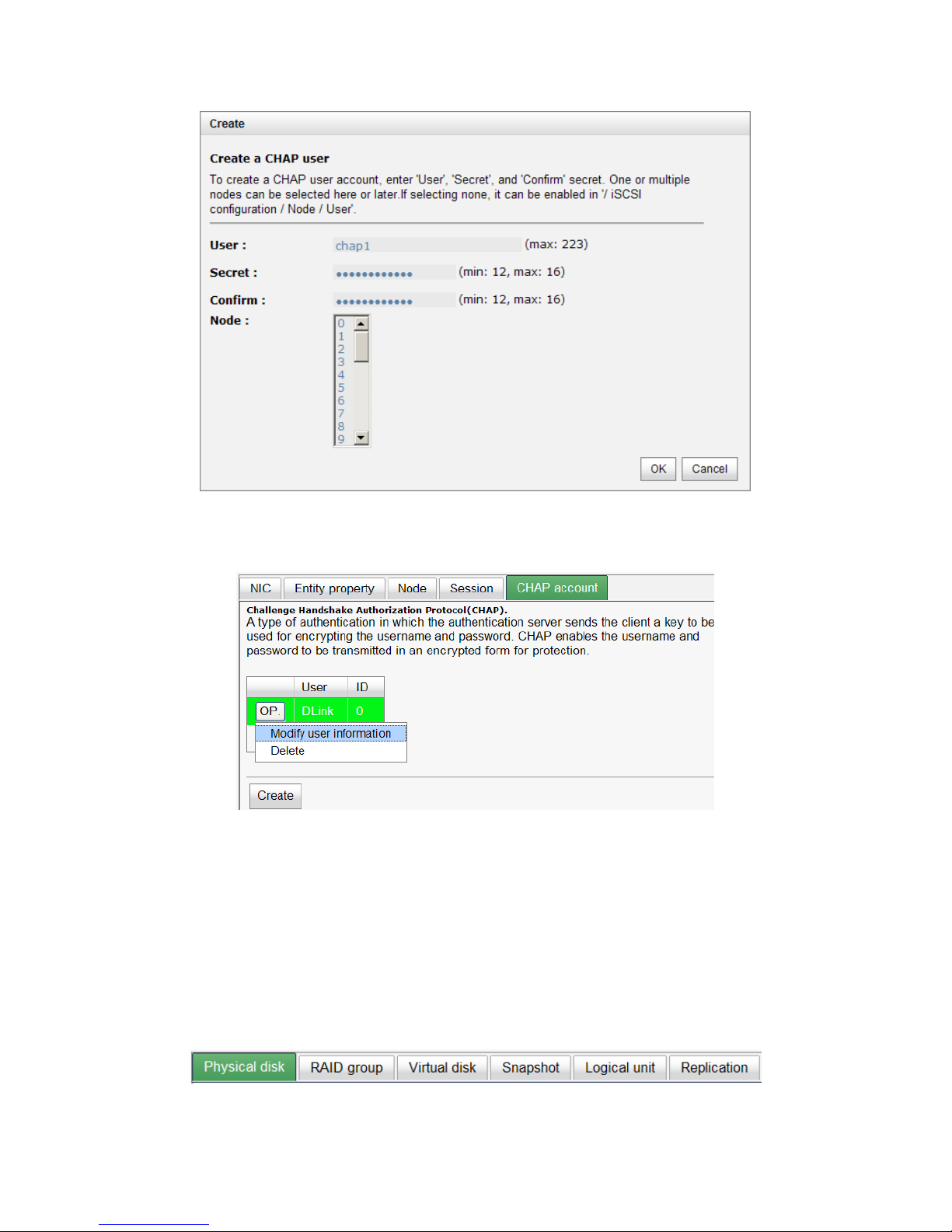

4.3.5 CHAP acc ount .......................................................................................................... 52

4.4 Volume configuration .................................................................. 53

Page 4

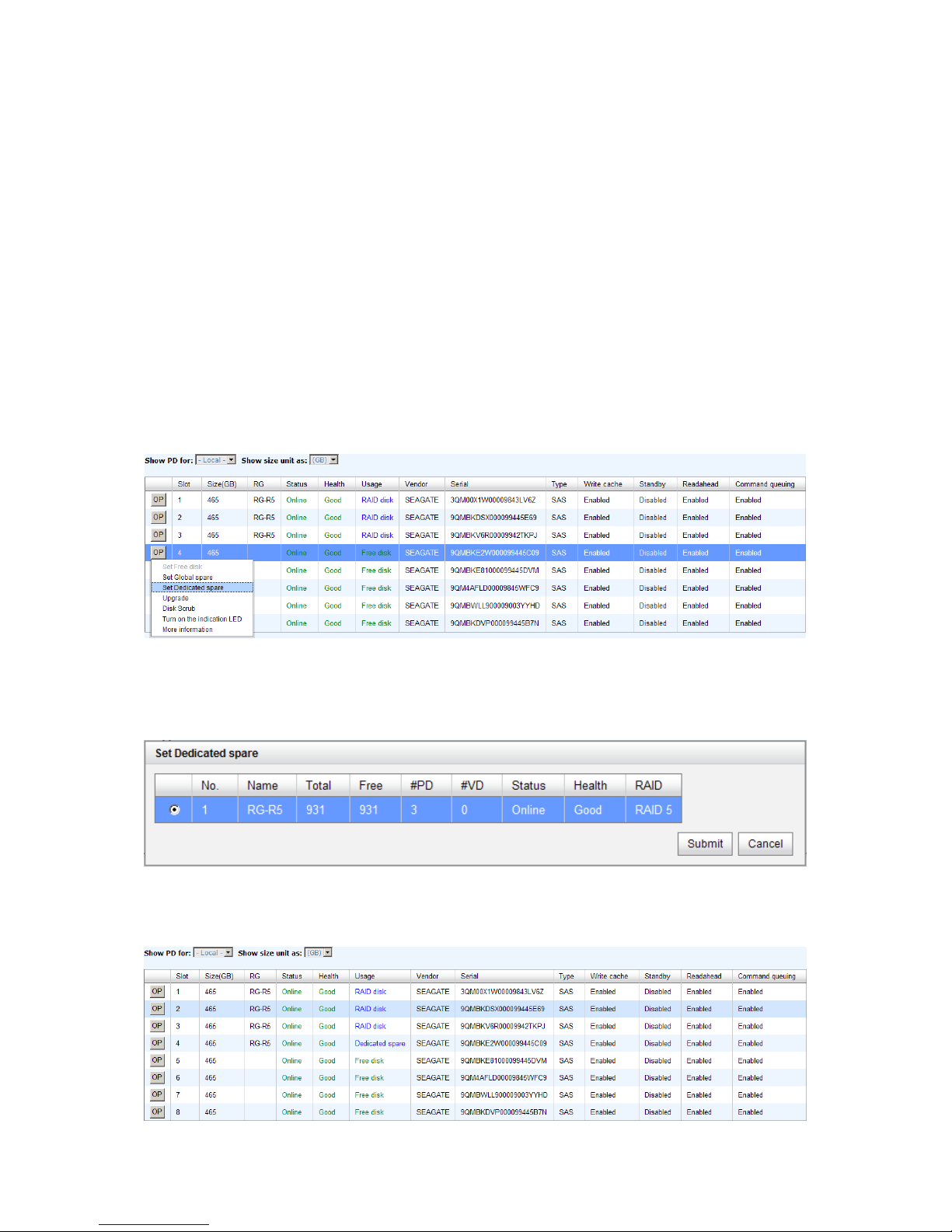

4.4.1 Physical disk ............................................................................................................ 54

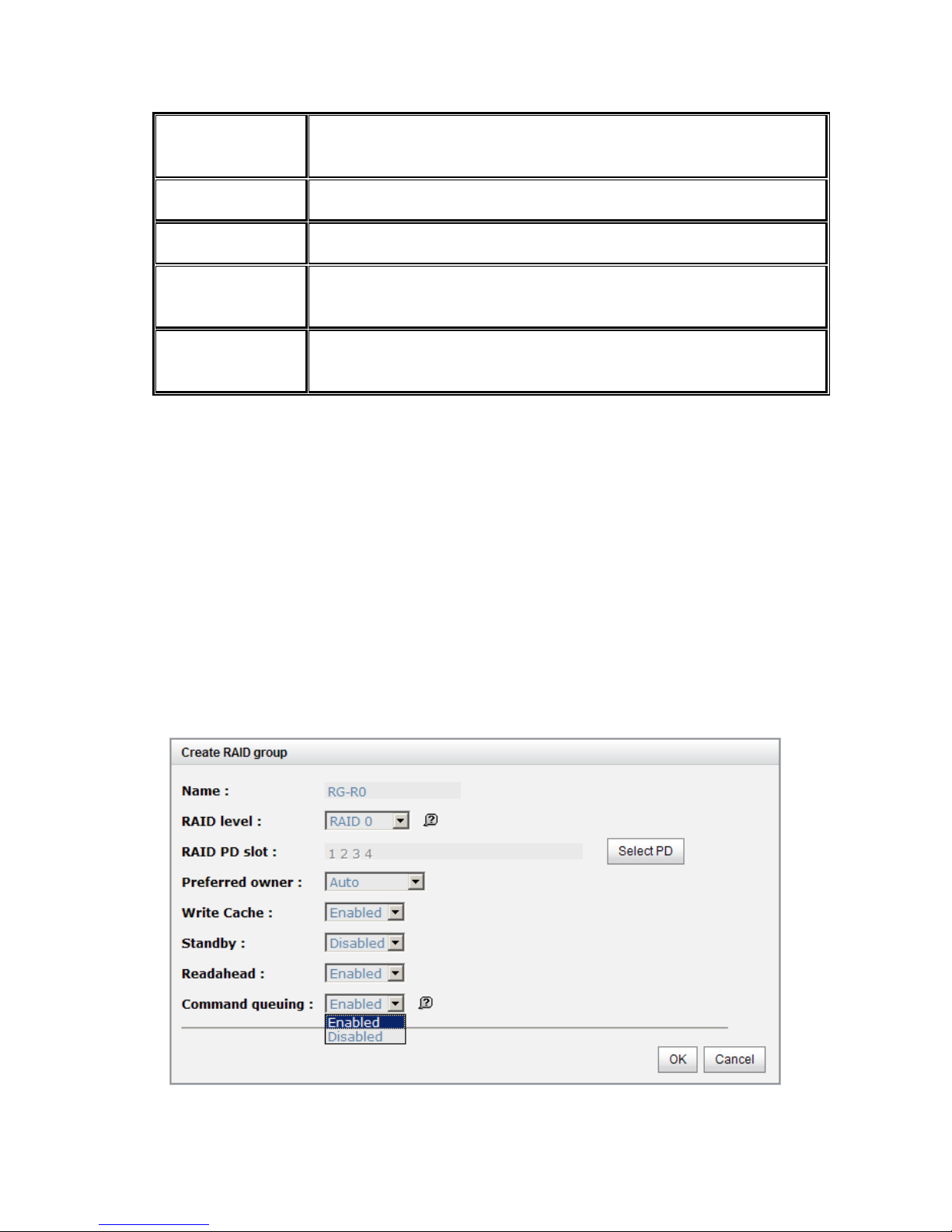

4.4.2 RAID group .............................................................................................................. 57

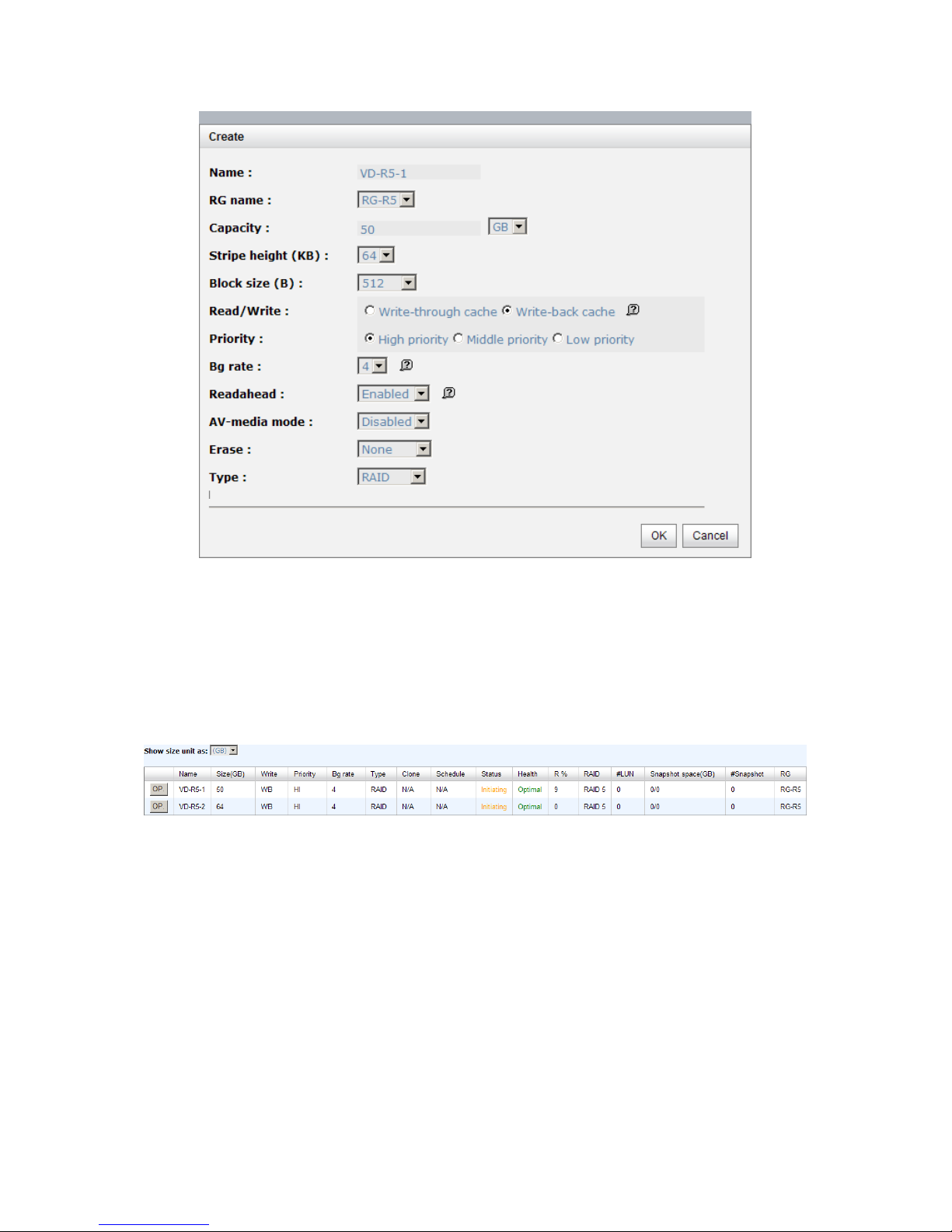

4.4.3 Virtual disk ............................................................................................................... 60

4.4.4 Snapshot .................................................................................................................. 65

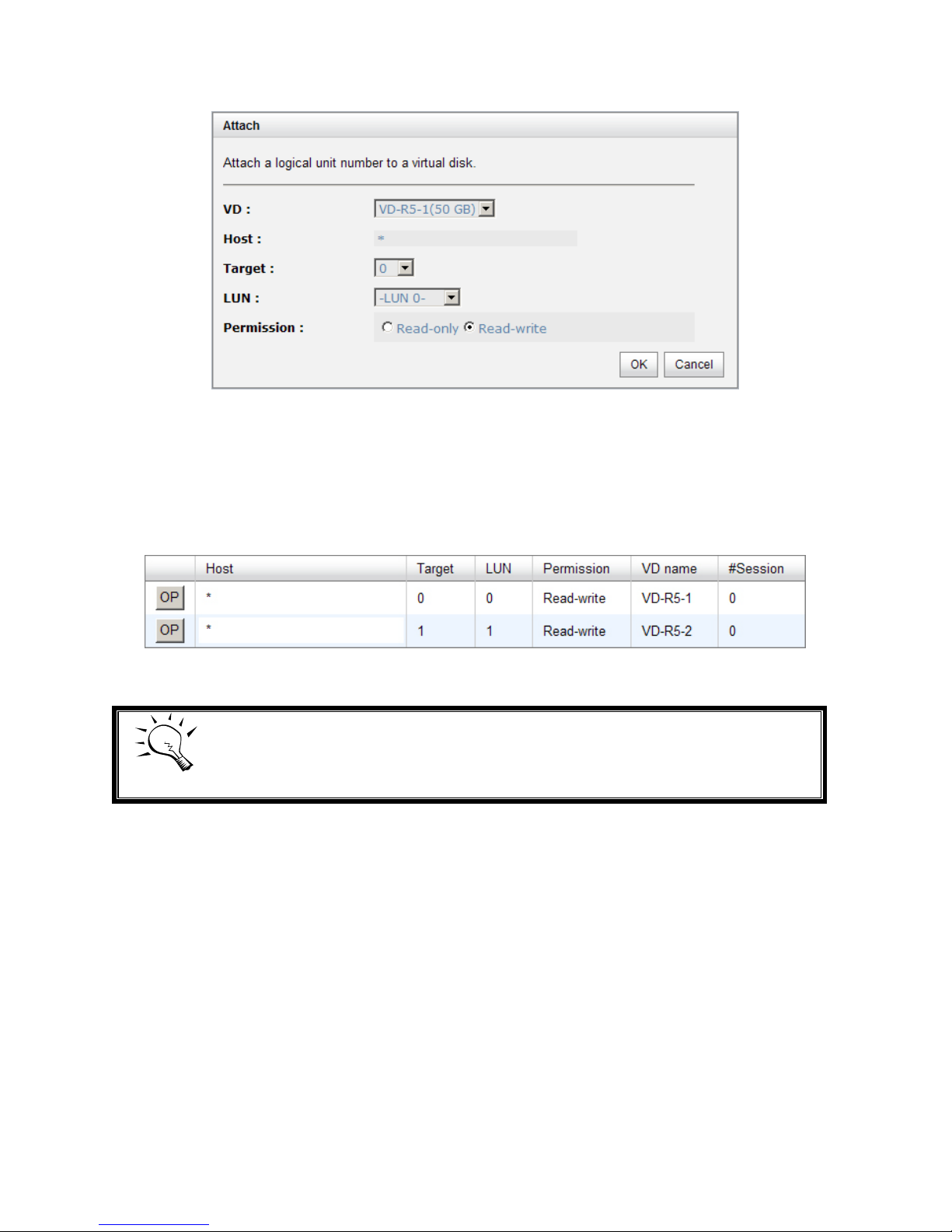

4.4.5 Logical unit .............................................................................................................. 68

4.4.6 Example ................................................................................................................... 69

4.5 Enclosure management .............................................................. 74

4.5.1 Hardware monit or ................................................................................................... 75

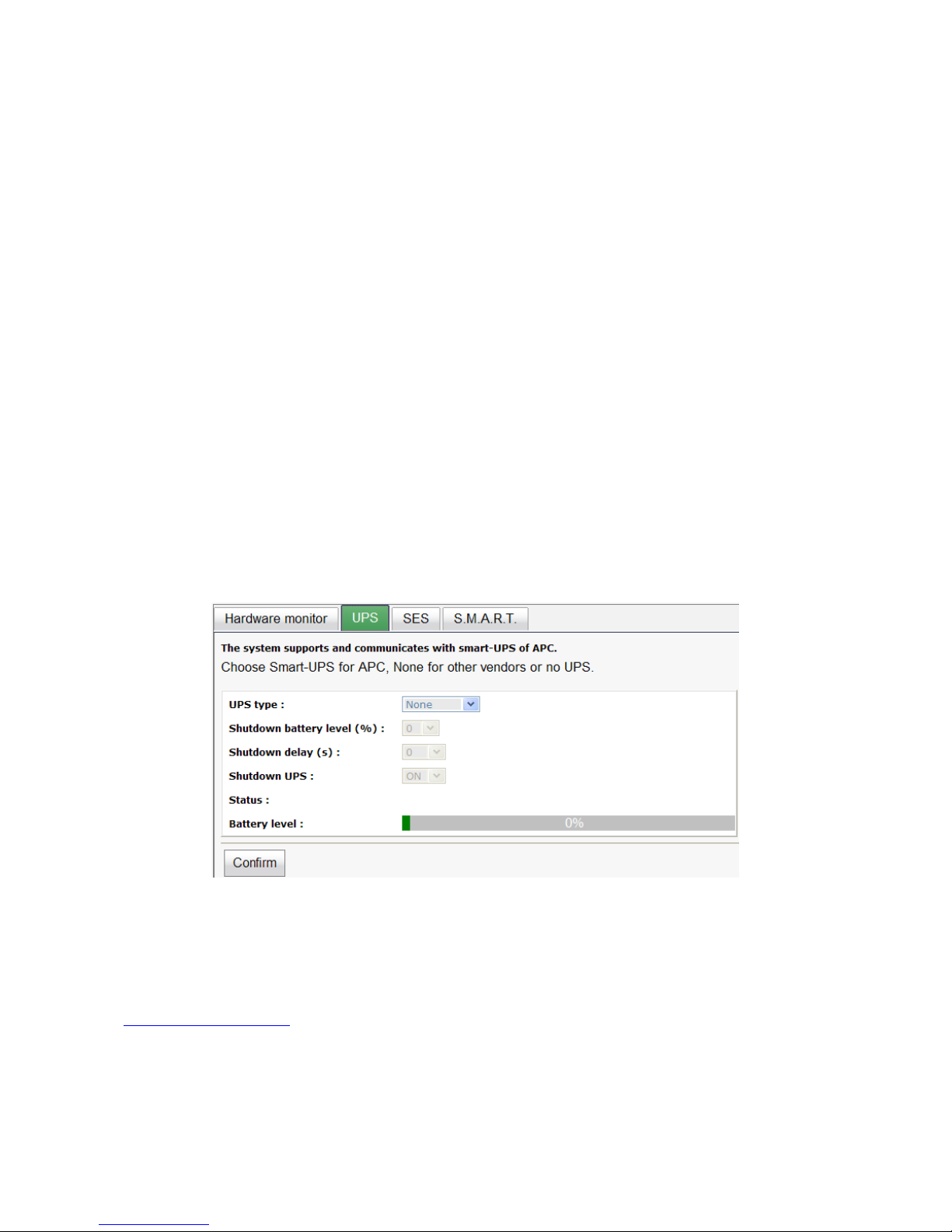

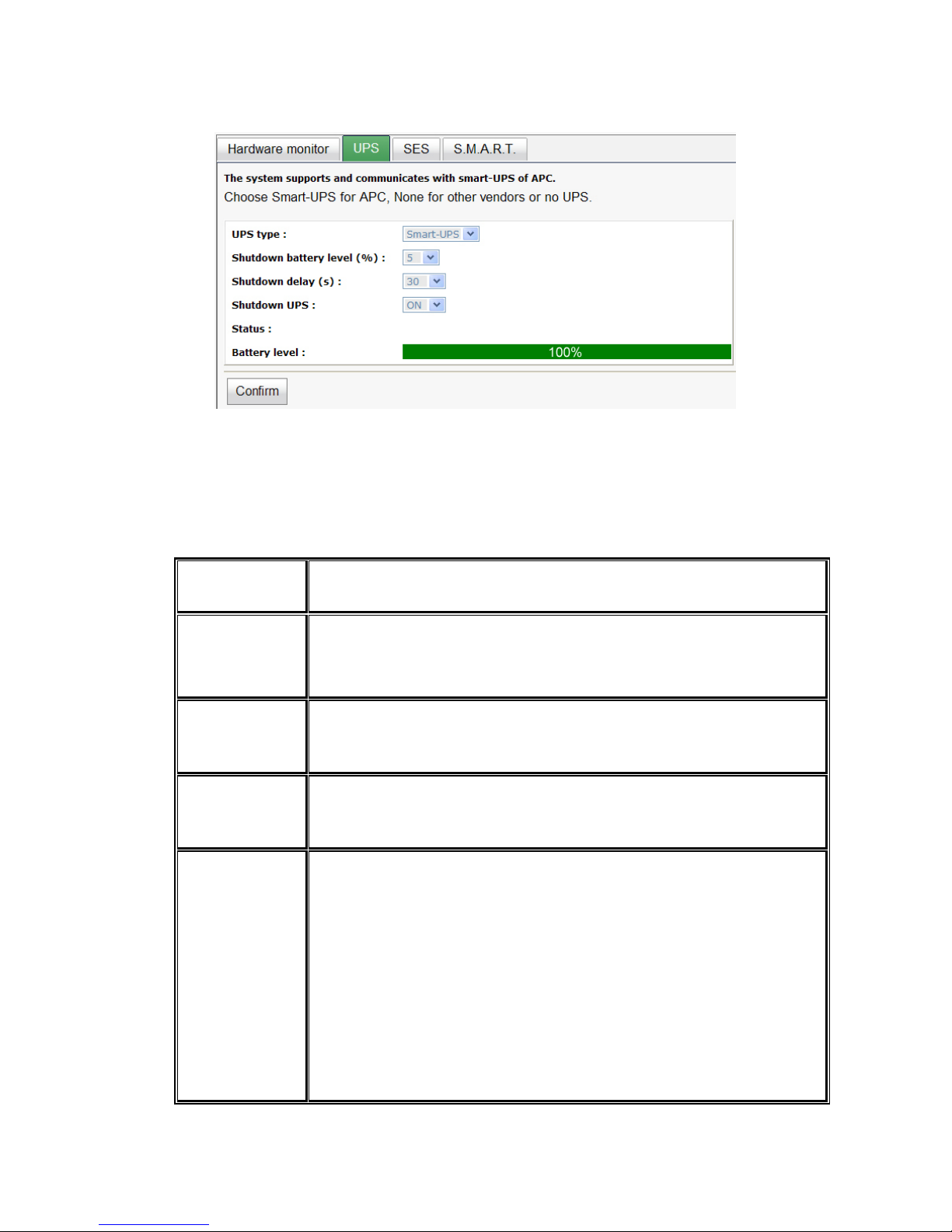

4.5.2 UPS .......................................................................................................................... 76

4.5.3 SES .......................................................................................................................... 78

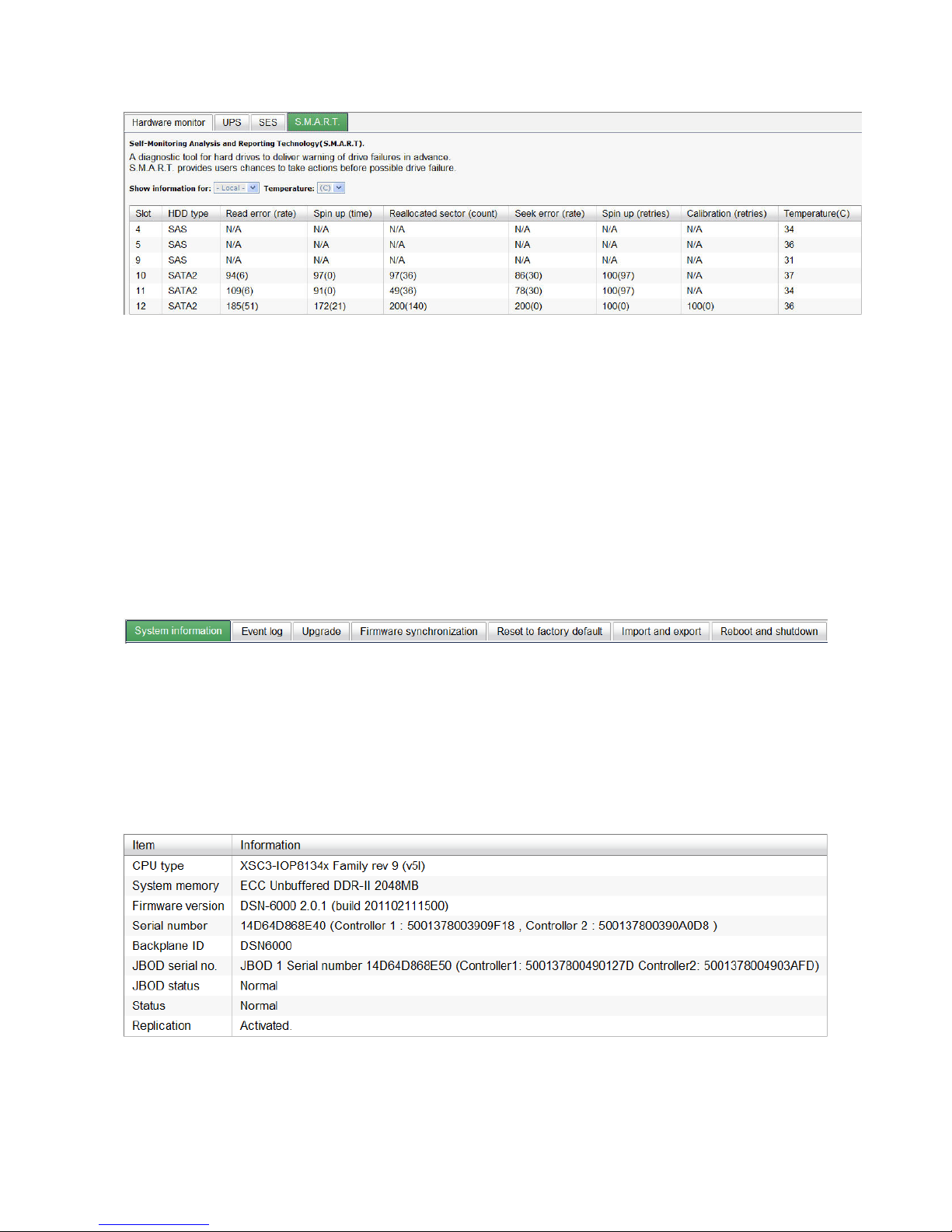

4.5.4 Hard drive S.M.A.R.T. .............................................................................................. 78

4.6 System maintenance ................................................................... 79

4.6.1 System informat ion ................................................................................................. 79

4.6.2 Event log.................................................................................................................. 80

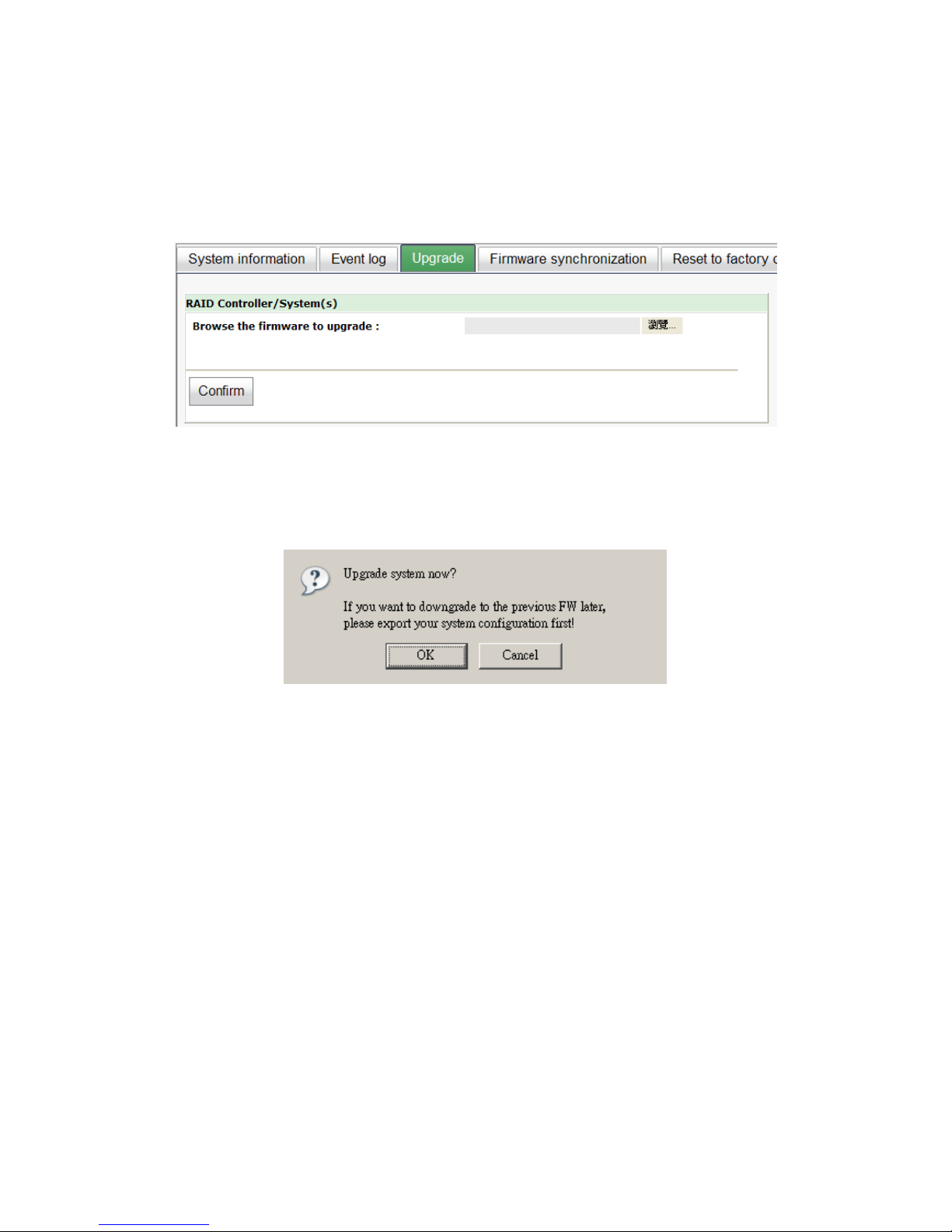

4.6.3 Upgrade ................................................................................................................... 82

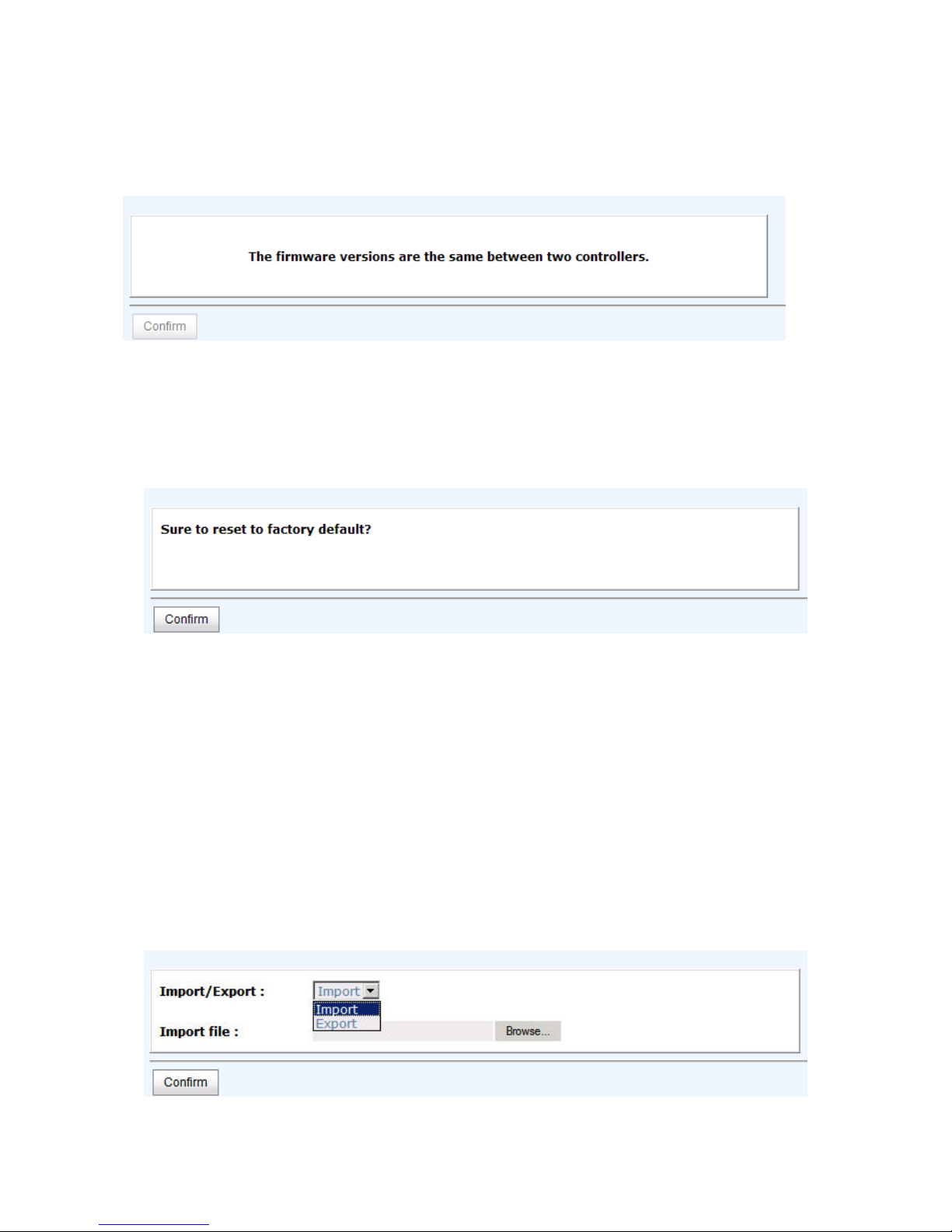

4.6.4 Firmware synchronization ....................................................................................... 82

4.6.5 Reset to factory default ........................................................................................... 83

4.6.6 Import and export ................................................................................................... 83

4.6.7 Reboot and shutdown ............................................................................................. 84

4.7 Home/Logout/Mute ..................................................................... 84

4.7.1 Home ....................................................................................................................... 84

4.7.2 Logout ..................................................................................................................... 84

4.7.3 Mute......................................................................................................................... 85

Chapter 5 Advanced operations ........................................... 86

5.1 Volume rebuild ............................................................................ 86

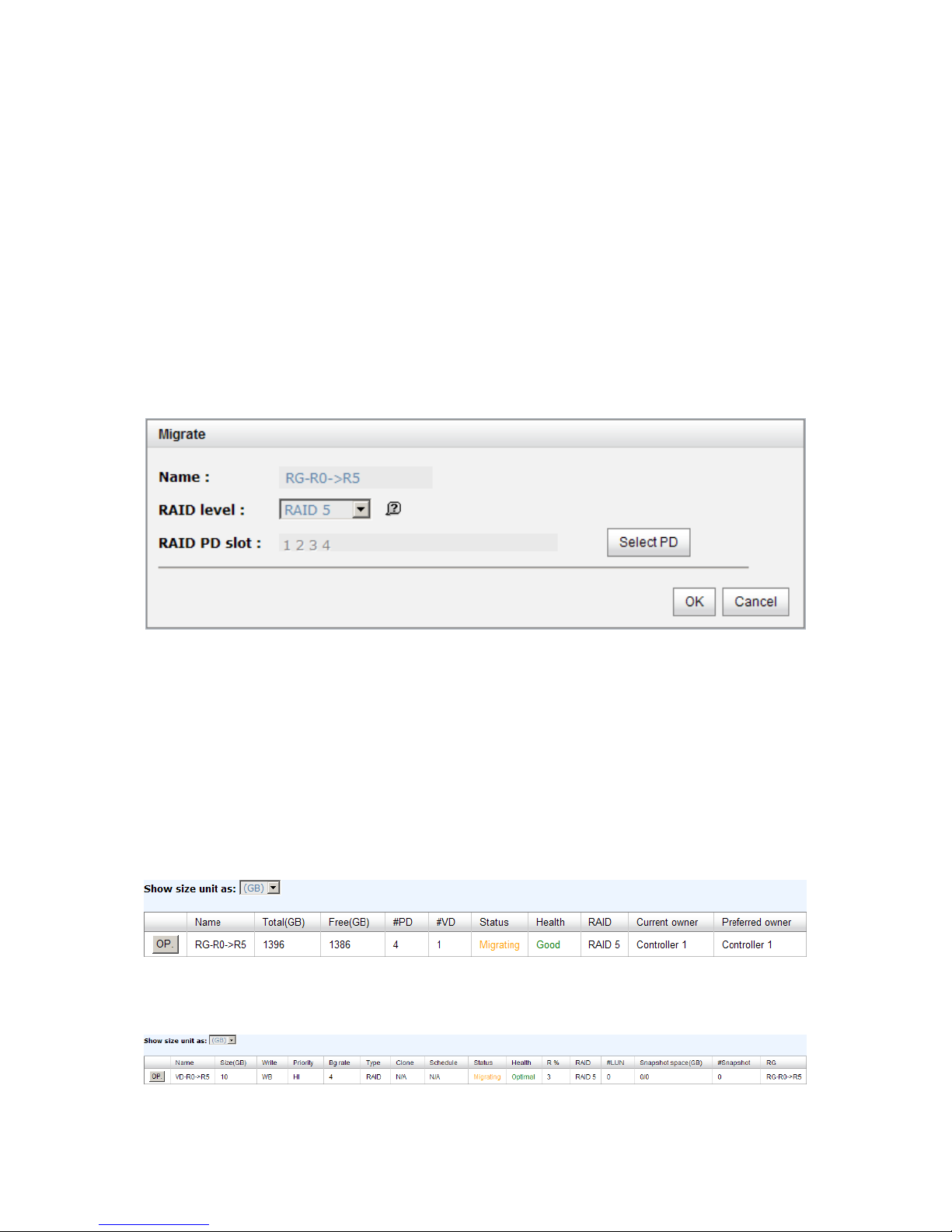

5.2 RG migration ............................................................................... 88

5.3 VD extension............................................................................... 89

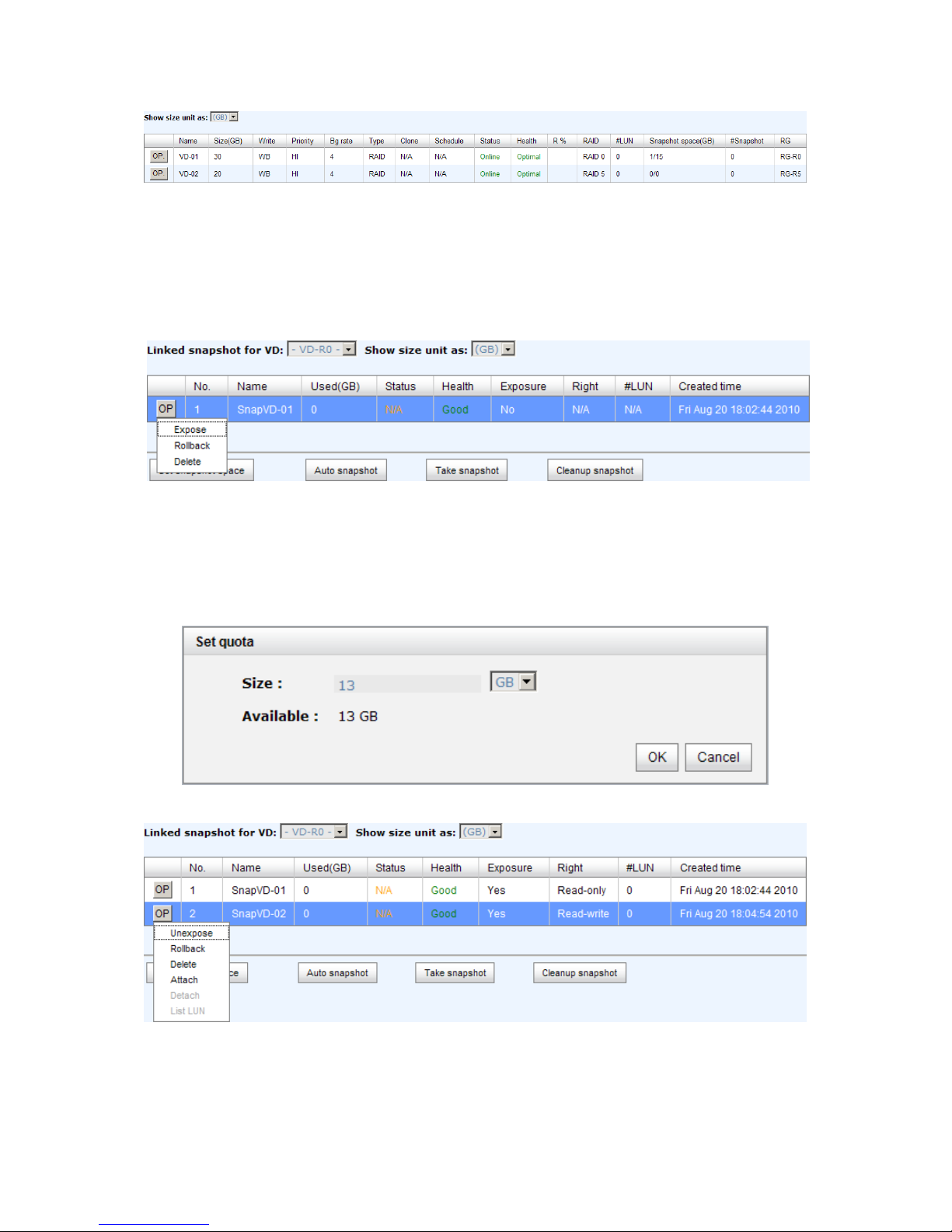

5.4 Snapshot ..................................................................................... 89

5.4.1 Create snapshot volume .......................................................................................... 90

5.4.2 Auto snapshot.......................................................................................................... 91

5.4.3 Rollback ................................................................................................................... 92

5.4.4 Snapshot constraint ................................................................................................. 93

5.5 Disk roaming ............................................................................... 95

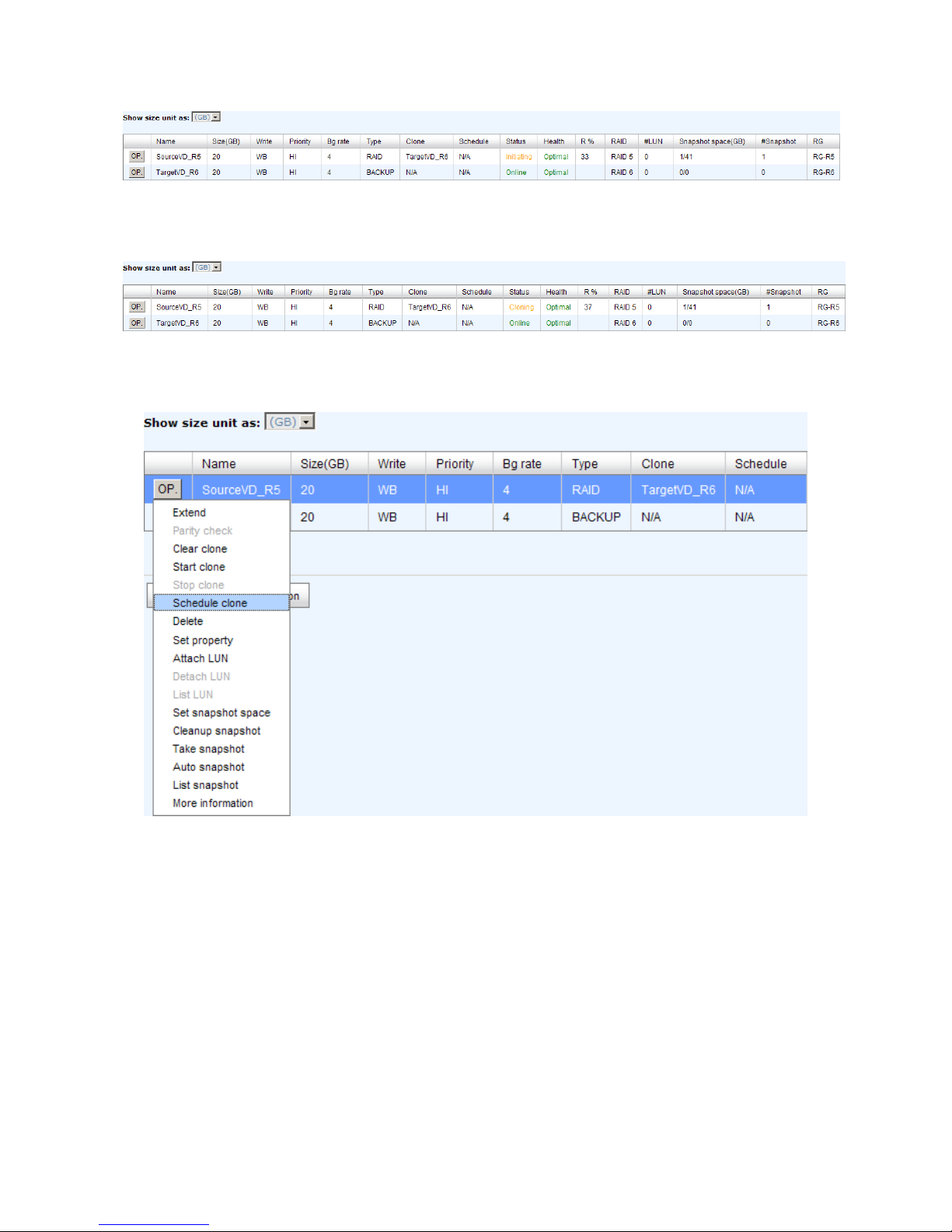

5.6 VD clone ..................................................................................... 95

5.7 SAS JBOD expansion ................................................................. 103

5.7.1 Connecting JBOD ................................................................................................... 103

5.7.2 Upgrade firmware of JBOD ................................................................................... 105

5.8 MPIO and MC/S ........................................................................ 106

5.9 Trunking and LACP ................................................................... 108

5.10 Dual controllers (only for DSN-6410 with DSN-640).................. 109

5.10.1 Perform I/O ........................................................................................................... 109

5.10.2 Ownership ............................................................................................................. 110

5.10.3 Controller status .................................................................................................... 111

5.11 Replication ................................................................................ 112

5.12 VLAN ......................................................................................... 122

Chapter 6 Troubleshooting.................................................. 125

6.1 System buzzer .......................................................................... 125

Page 5

6.2 Event notifications .................................................................... 125

Appendix 133

A. Certification list ......................................................................... 133

B. Microsoft iSCSI initiator ............................................................. 136

C. From Single controller to Dual Controller ……………………. 142

Page 6

Chapter 1 Overview

1.1 Features

D-LINK DSN-6000 series IP S AN storage provides non-stop service with a high degree of

fault tolerance by using D-LINK RAID technology and advanced array management features.

DSN-6410 & 6410w/640 IP SAN storage connects to the host system by iSCSI interface. It can be configured to numerous RAID level. The IP SAN storage provides reliable data protection for servers by using RAID 6. The RAID 6 allows two HDD failures without any impact on the existing data. Data can be recovered from the existing data and parity drives. (Data can be recovered from the rest drives.)

Figure 1.1.1 (DSN-6410 & 6410w/640)

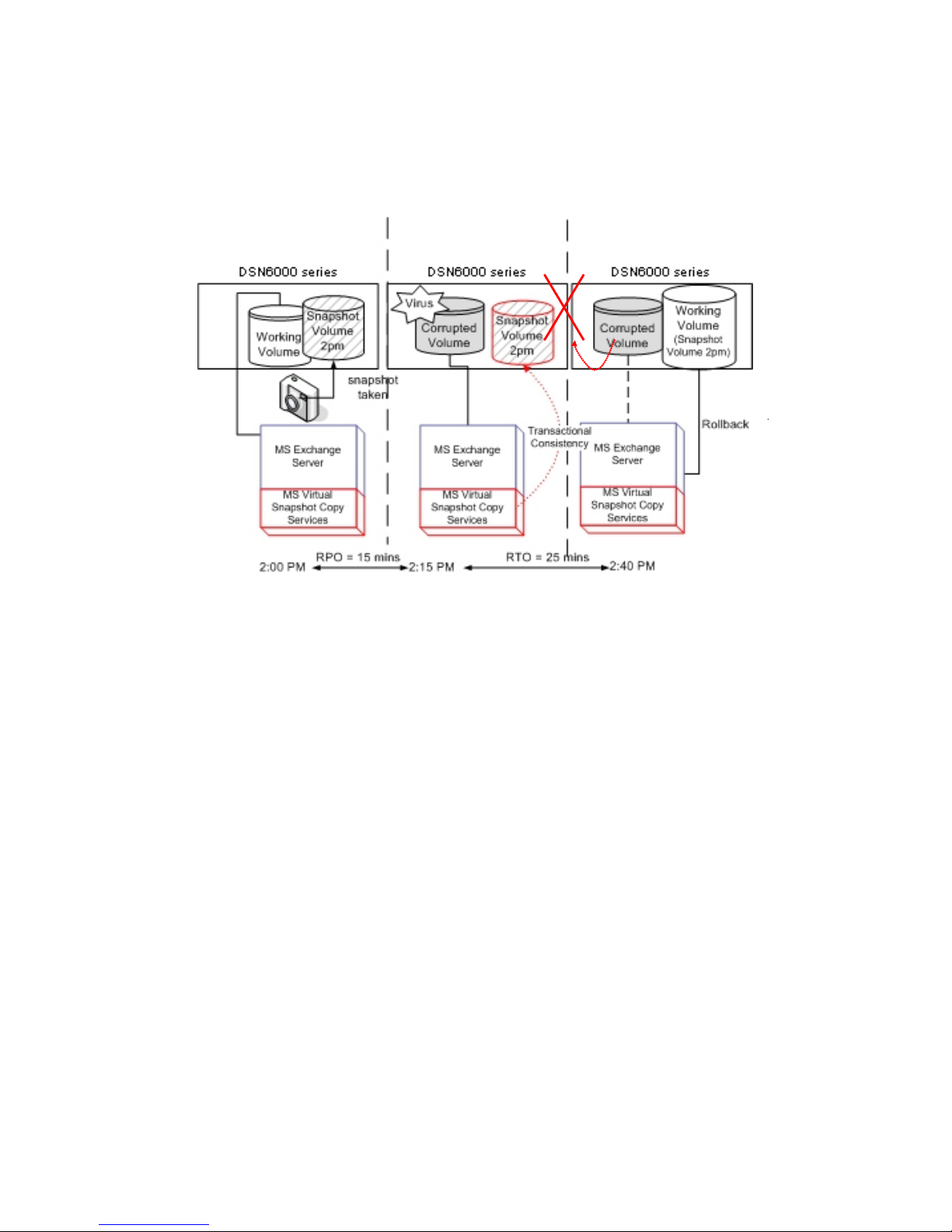

Snapshot-on-the-box is a fully usable copy of a defined collection of data that c ontai ns

an image of the data as it appeared at the point in time, which means a point-in-time data replication. It provides consistent and instant copies of data volumes without any system downtime. Snapshot-on-the-box can keep up to 32 snapshots for one logical volume. Rollback feature is provided for restoring the previous-snapshot data easily while continuously using the volume for further data access. The data access which includes read / write is working as usual without any impact to end users. The "on-the-box" implies that it does not require any proprietary agents installed at host side. The snapshot is ta ken at target side. It will not consume any host CPU time thus the server is dedicated to the specific or other application. The snapshot copies can be taken manually or by schedule every hour or every day, depends on the mo dification.

D-LINK IP SAN storage is the most cost-effective disk array system with completely integrated high-performance and data-protection capabilities which meet or exceed the highest industry standards, and the best da ta solutio n for small / med ium business

(SMB) and enterprise users.

Page 7

1.1.1 Highlights

• D-LINK DSN-6410 & 6410w/640 feature highlights

Host Interface

4 x 10GbE iSCSI ports (DSN-6410 with DSN-640) 2 x 10GbE iSCSI ports (DSN-6410)

Drive Interface

12 x SAS or SATA II

RAID Controllers

Dual-active RAID controllers (DSN-6410 with DSN-640) Single controller, but can be upg radable to dual (DSN-6410)

Scalability SAS JBOD expansion port Green Auto disk spin-down

Advanced cooling

RAID Level RAID 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60 and JBOD

N-way mirror

Compatibility Support multiple OSes, applications, 10GbE NIC, 10GbE iSCSI

HBA, and etc.

Virtualization VMWare, Hyper-V, Citrix

Data Protection

Snapshot (Read only and Writeable), Storage base Replication

Connection Availability

Load balancing and failover support on the 4 x 10GbE iSCSI

ports

Dimension

(W x D x H)

442.8 x 500.6 x 88.0 ( mm)

Power Supply

2 x 500W PSU

Cache Protection

Hot pluggable battery backup module

Fan Redundant

Page 8

1.2 RAID concepts

RAID is the abbreviation of “Redundant Array of Independent Disks”. The basic idea of

RAID is to combine multiple drives together to form one large logical drive. This RAID drive obtains performance, capacity and reliability than a single drive. The operating system detects the R AID drive as a single storage device.

1.2.1 Terminology

The document uses the following terms:

• Part 1: Common

RAID Redundant Array of Independent D

isks. There are different

RAID levels with d

ifferent degree of data protection, data

availability, and performance to host environment.

PD The Physical D

isk belongs to the member disk of one specific

RAID group.

RG Raid Group. A collection of removable media. One RG consists

of a set of VDs and owns one RAID level attribute.

VD Virtual Disk. Each RD could be divided into several VDs. The VDs

from one RG have the same RAID level, but may have different

volume capacity.

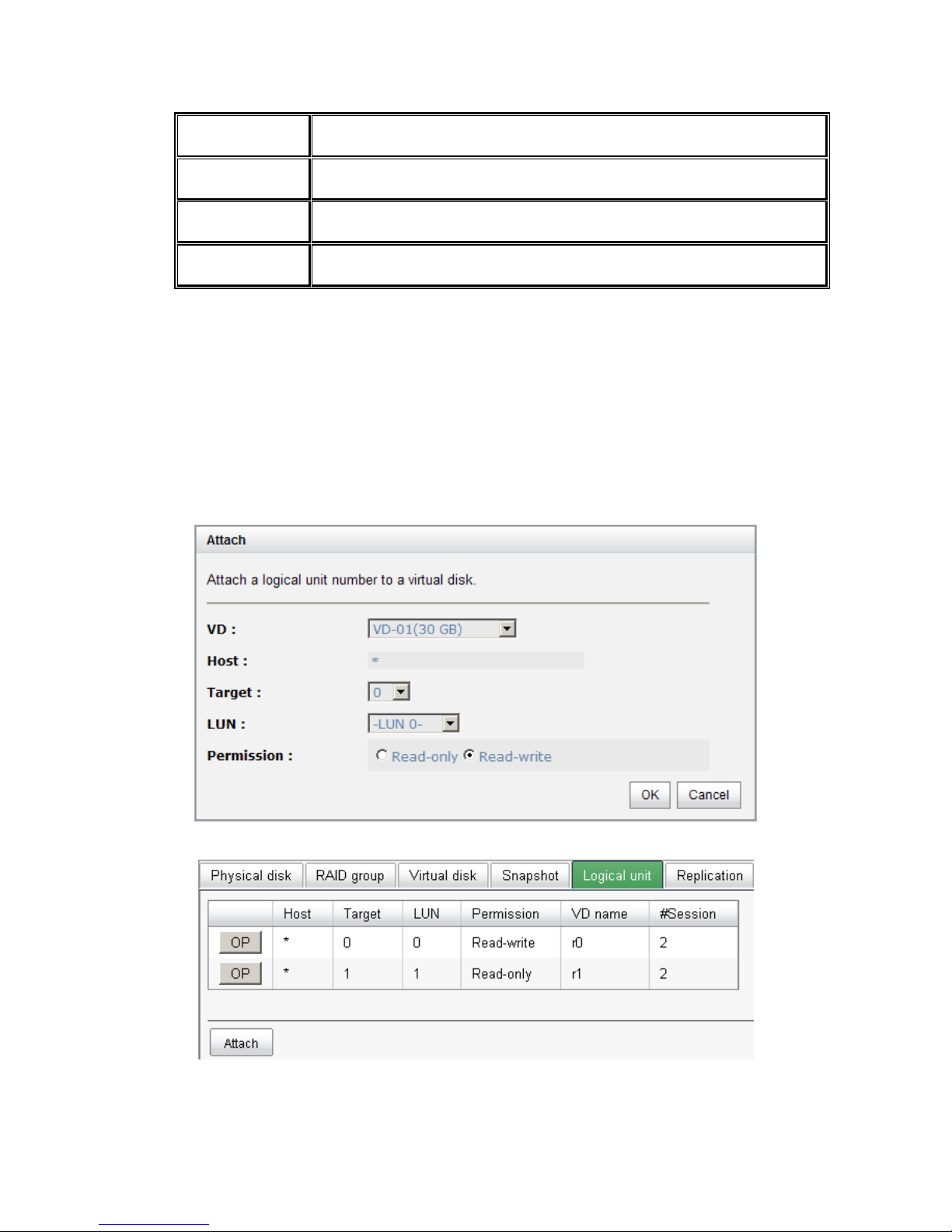

LUN Logical Unit Number.

A logical unit number (LUN) is a unique

identifier whi

ch enables it to differentiate among separate

devices (each one is a logical unit ).

GUI Graphic User Interface.

RAID cell

When creating a RAID group with a compound RAID level, such as 10,

30, 50 and 60, this field indicates the number of subgroups in the RAID

group. For example, 8 disks can be grouped into a RAID group of RAID

10 with 2 cells, 4 cells. In the 2-

cell case, PD {0, 1, 2, 3} forms one RAID

1 subgro up and P D {4, 5, 6, 7} fo rm s a not h er R AI D 1 sub gr o up. In th e 4 cells, the 4 subgroups are PD {0, 1}, PD {2, 3}, PD {4, 5} and PD {6,7}.

WT Write-Through cache-

write policy. A caching technique in which

the completion of a write request is not signaled until data is

safely stored in non-

volatile media. Each data is synchronized in

Page 9

both data cache and accessed physical disks.

WB Write-Back cache-write policy. A caching technique in which the

completion of a write request is signaled as soon as the data is

in cache and actual writing to non-

volatile media occurs at a

later time. It speeds up system wr

ite performance but needs to

bear the risk where data may be inconsistent between data

cache and the physical disks in one short time interval.

RO Set the volume to be Read-Only. DS Dedicated S

pare disks. The spare disks are only used by one

specific RG.

Others could not use these dedicated spare disks for

any rebuilding purpose.

GS Global Spare disks. GS is shared for r ebuildin g purpose. If s ome

RGs need to use the global spare disks for rebuilding, they could get the spare disks out from the common spa

re disks pool for

such requirement.

DG DeG

raded mode. Not all of the array’s member disks are

functioning, but the array is able to respond to application read

and write requests to its virtual disks.

SCSI Small Computer Systems Interface. SAS Serial Attached SCSI. S.M.A.R.T. Self-Monitoring Analysis and Reporting Technology. WWN World Wide Name. HBA Host Bus Adapter. SES SCSI Enclosure Services. NIC Network Interface Card. BBM Battery Backup Module

• Part 2: iSCSI

iSCSI Internet Small Computer Systems Interface. LACP Link Aggregation Control Protocol.

Page 10

MPIO Multi-Path Input/Output. MC/S Multiple Connections per Session MTU Maximum Transmission Unit. CHAP

hallenge Handshake Authentication

Protocol. An optional

security mechanism to control access to an iSCSI storage system over the iSCSI data ports.

iSNS Internet Storage Name Service.

• Part 3: Dual controller

SBB Storage Bridge B

ay. The objective of the Storage Bridge Bay

Working Group (SBB) is to create a specification that defines

mechanical, electrical and low-

level enclosure management requirements for an enclosure controller slot that will support a variety of storage controllers from a variety of independent

hardware vendors (“IHVs”) and system vendors.

• Part 4: 10GbE

SFP+ Small Form-factor Pluggable is a compact, hot-pluggable

transceiver used for both Fibre Channel and 10GbE.

CX4 10GBASE-CX4, a cop per based 10 Gigabit Ethernet PHY.

1.2.2 RAID levels

There are different RAID levels with different degree of data protection, data availability, and performance to host environment. The description of RAID levels are on the following:

RAID 0 Disk striping. RAID 0 needs at least one hard drive. RAID 1 Disk mirroring over two disks. RAID 1 needs at least two hard drives. N-way mirror Extension to RAID 1 level. It has N copies of the disk. RAID 3 Striping with parity on the dedicated disk. RAID 3 needs at least three

hard drives.

RAID 5

Striping with interspersed parity over the member disks. RAID 3

needs at least three hard drives.

Page 11

RAID 6 2-dim

ensional parity protection over the member disks. RAID 6 needs

at least four hard drives.

RAID 0+1

Mirroring of the member RAID 0 volumes. RAID 0+1 needs at least

four hard drives.

RAID 10

Striping over the member RAID 1 volumes. RAID 10 needs at least

four hard drives.

RAID 30

Striping over the member RAID 3 volumes. RAID 30 needs at least six

hard drives.

RAID 50

Striping over the member RAID 5 volumes. RAID 50 needs at least six

hard drives.

RAID 60 Striping over the member RAID 6 volumes. RAID 60 n

eeds at least

eight hard drives.

JBOD The abbreviation of “Just a Bunch Of Disks”

. JBOD needs at least

one hard drive.

1.2.3 Volume relationship

The below graphic is the volume structure which D-LINK has designed. It describes the relationship of RAID components. One RG (RAID group) consists of a set of VDs (Virtual Disk) and owns one RAID level attribute. Each RG can be divided into several VDs. The VDs in one RG share the same RAID level, but may have different volume capacity. All VDs share the CV (Cache Volume) to execute the data transaction. LUN (Logical Unit Number) is a unique identifier, in which users can access through SCSI command s.

Figure 1.2.3.1

PD 2 PD 3 DS PD 1

VD 1

VD 2

Snapshot

Cache Volume

+++

Page 12

1.3 iSCSI concepts

iSCSI (Internet SCSI) is a protocol which encapsulates SCSI (Small Computer System Interface) commands and data in TCP/IP packets for linking storage devices with servers over common IP infrastructu res. iSCSI provides high performanc e SANs over standard IP networks like LAN, WAN or the Internet.

IP SANs are true SANs (Storage Area Networks) which allow several servers to attach to an infinite number of storage volumes by using iSCSI over TCP/IP networks. IP SANs can scale the storage capacity with any type and brand of storage system. In addition, i t can be used by any type of network (Ethernet, Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet) and combination of operating systems (Microsoft Windows, Linux, Solaris, Mac, etc.) within the SAN network. IP-SANs also include mechanisms for security, data replication, multi-path and high availability.

Storage protocol, such as iSCSI, has “two ends” in the connection. These ends are initiator and target. In iSCSI, we call them iSCSI initiator and iSCSI target. The iSCSI initiator requests or initiates any iSCSI communication. It requests all SCSI operations like read or write. An initiator is usually located on the host side (either an iSCSI HBA or iSCSI SW initiator).

The target is the storage device itself or an appliance which controls and serves volumes or virtual volumes. The target is the device which performs SCSI command or bridge to an attached storage device.

Figure 1.3.1

The host side needs an iSCSI initiator. The initiator is a driver which handles the SCSI traffic over iSCSI. The initiator can be software or hardware (HBA). Please refer to the certification list of iSCSI HBA(s) in Appendix A. OS native initiators or other software

iSCSI device 1

(target)

Host 1

(initiator)

NIC

IP SAN

Host 2

(initiator)

iSCSI

HBA

iSCSI device 2

(target)

Page 13

initiators use standard TCP/IP stack and Ethernet hardware, while iSCSI HBA(s) use their own iSCSI and TCP/IP stacks on board.

Hardware iSCSI HBA(s) provide its own initiator tool. Please refer to the vendors’ HBA user manual. Microsoft, Linux, Solaris and Mac provide iSCSI initiator driver. Please contact D- LINK for the latest certification list. Below are the available links:

1. Link to download the Microsoft iSCSI software initiator:

http://www.microsoft.com/downloads/details.aspx?FamilyID=12cb3c1a-15d6-4585b385-befd1319f825&DisplayLang=en

2. In current Linux distributions, OS built-in iSCSI initiators are usually available. For different kernels, there are different iSCSI drivers. Please check Appendix A for iSCSI initiator certification list. If user needs the latest Linux iSCSI initiator, please visit Open-iSCSI project for most update information. Linux-iSCSI (sfnet) and Open-iSCSI projects merged in April 11, 2005.

Open-iSCSI website: http://www.open-iscsi.org/ Open-iSCSI README: http://www.open-iscsi.org/docs/README Features: http://www.open-iscsi.org/cgi-bin/wiki.pl/Roadmap Support Kernels:

http://www.open-iscsi.org/cgi-bin/wiki.pl/Supported_Kernels

Google groups:

http://groups.google.com/group/open-iscsi/threads?gvc=2 http://groups.google.com/group/open-iscsi/topics

Open-iSCSI Wiki: http://www.open-iscsi.org/cgi-bin/wiki.pl

3. ATTO iSCSI initiator is available for Mac.

Website: http://www.attotech.com/xtend.html

4. Solaris iSCSI initia tor

Version: Solaris 10 u6 (10/08)

1.4 IP SAN storage specifications

1.4.1 Technical specifications

• Controller features

1. Dual-active configuration support (only for DSN-6410 with DSN-640)

2. Better performance, when comparing to other competitors' products in the same segment

3. Cache mirroring through high bandwidth channels (only for DSN-6410 with DSN-

640)

Page 14

4. Flexible RAID group (RG) own ers hip mana geme nt (only for DSN-6410 with DSN-

640)

 Each RG can be assigned to one of the two controllers  Each LUN can be exported from both controllers

5. Management port seamless take-over (only for DSN-6410 with DSN-640)

 The management port can be transferred smoothly to the other controller with

the same IP address

6. Online firmware upgrade, no system down time (only for DSN-6410 with DSN-

640)

7. Multiple target iSCSI nodes per controller support

 Each LUN can be attached to one of 32 nodes from each cont roller

8. Front-end 2 x 10GbE iSCSI ports with high availability/load balancing/fail-over support per controller

 Microsoft MPIO, MC/S, Trunking, LACP, and etc .

9. SBB Compliant

• System key components

1. CPU: Intel Xscale IOP 81342

2. Memory: 4GB DDRII 533 DIMM

3. Hardware iSCSI off-load engine

4. 2 x UARTs: serial console mana gement and UPS

5. Fast Ethernet port for web-based management use

6. Backend: 12 x SAS or SATA II drive connections

7. Front-end: 2 x 10GbE iSCSI ports per controller

8. Hot pluggable BBM

9. SAS JBOD expansion port for expansion

10. Multiplexer board support for SATA drives (optional, on Dual controller mode)

11. Two power supplies

12. Redundant fans

• RAID and volume operation

1. RAID level: 0,1,0+1,3,5,6,10,3 0,50, 60, JBOD, an d N-way mirror

2. Up to 1024 logical volumes in the system

3. Up to 32 PDs can be included in one volume group

4. Global and dedicated hot spare disks

5. Write-through or write-back cache polic y for different application usage

6. Multiple RAID volumes support

7. Configurable RAI D stripe size

8. Online volume expansion

9. Instant RAID volume avail ability

10. Auto volume rebuilding

11. On-line volume migration with no system down-time

• Advanced data protection

1. D-Link writeable snap shot

Page 15

 Built-in snapshot with rollback enabled  Snapshot enabled up to 16 volumes, each logical volume supports up to 32

snapshot volumes, total 512 snapshot vo lumes per system

2. Microsoft Windows Volume Shadow Copy Services (VSS)

3. Configurable N-way mirror for high data protection

4. Online disk roaming

5. Instant volume confi guration restoration

6. Smart faulty sector r elocation

7. Hot pluggable battery backup module support

• Enclosure monitoring

1. S.E.S. inband management

2. UPS management via dedic ated serial port

3. Fan speed monitors

4. Redundant power supp l y m onitors

5. Voltage monitors

6. Thermal sensors for both RAID controller and enclosure

7. Status monitor s for D-LINK SAS JBODs

• Management interface

1. Management UI via

 serial console  SSH telnet  HTTP Web UI  secured Web (HTTPS)

2. Notification via

 Email  SNMP trap  Browser pop-up windows  Syslog  Windows Messenger

3. iSNS support

4. DHCP support

• iSCSI features

1. iSCSI jumbo frame support

2. Header/Data digest support

3. CHAP authentication enabled

4. Load-balancing and failover throug h M PIO, MC/S, Trunking, and LACP

5. Up to 32 multiple nodes support

6. VLAN support

• Host connection

1. 2 x 10GbE iSCSI ports per controller

Page 16

2. Host access control: Read-Write and Read-Only

3. Up to 128 sessions per controller

4. One logic volume can b e shared by as many as 16 hosts

• OS support

 Windows  Linux  Solaris  Mac

• Drive support

1. SAS

2. SATA II (optional)

3. SCSI-3 compliant

4. Multiple IO tra nsaction processing

5. Tagged command queuing

6. Disk auto spin-down support

7. S.M.A.R.T. for SATA II drives

8. SAS JBODs expansion

• Power and Environment

 AC input: 100-240V ~ 7A-4A 500W with PFC (Auto Switchi ng)  DC output: 3.3V-21A; 5V-39A; 12V-30A  Operating Temperature: 0 to 40 ℃  Relative Humidity: 5% to 95% non-condensing

• Dimensions

2U 12 bay 19 inch rackmount chassis

442.8mm x 500.6mm x 88.0mm (W x D x H)

1.4.2 FCC and CE statements

FCC statement

This device has been shown to be in compliance with and was tested in accordance with the measurement procedures specified in the Standards and Specifications listed below and as indicated in the measurement report number: xxxxxxxx-F

Technical Standard: FCC Part 15 Class A (Verification) IC ICES-003

CE statement

Page 17

Technical Standard: EMC DIRECTIVE 2004/108/EC (EN55022 / EN55024)

UL statement

FCC statement

Technical Standard: FCC Part 15 Class A (Verification) IC ICES-003

CE statement

Technical Standard: EMC DIRECTIVE 2004/108/EC (EN55022 / EN55024)

UL statement

Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions:

A. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the

operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.

B. Reduced Air Flow - Installation of the equipment in a rack should be such that the

amount of air flow required for safe operation of the equipment is not compromised.

C. Mechanical Loading - Mounting of the equipment in the rack should be such that a

hazardous condition is not ac hieved due to uneven mechanical loading.

D. Circuit Overloading - Consideration should be given to the connection of the

equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

Page 18

E. Reliable Earthing - Reliable earthing of rack-mounted equipment should be

maintained. Particular attention should be given to supply connections other than direct connections to the branch circ uit (e.g. use of power strips).

Caution

The main purpose of the handles is for rack mount use only. Do not use the

handles to carry or transport the systems.

The ITE is not intended to be installed and used in a home, school or public area accessible to the general population, and the thumbscrews should be tightened with a tool after both initial installation and subsequent access to the panel.

Warning: Remove all power supply c ords before service This equipment intended for installation in restricted access location.  Access can only be gained by SERVICE PERSONS or by USERS who have been

instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken.

 Access is through the use of a TOOL or lock and key, or other means of security, and

is controlled by the authority responsible for the location.

Caution Risk of explosion if battery is replaced by incorrect type. Dispose of used

batteries according to the instructions.

Page 19

Chapter 2 Installation

2.1 Package contents

The package contains the following items:

1. DSN-6410 & 6410w/640 IP SAN storage (x1)

2. HDD trays (x12)

3. Power cords (x4)

4. RS-232 cables (x2), one is for console, the other is for UPS.

5. CD (x1)

6. Rail kit (x1 set)

7. Keys, screws for drives and rail kit (x1 packet)

8. SFP and 5 Meter cable

2.2 Before installation

Before starting, prepare the following items.

1. A host with a Gigabit Ethernet NIC or iSCSI HBA.

2. CAT 5e, or CAT 6 network cables for management port and iSCSI data ports.

3. Prepare storage system configuration plan.

4. Prepare management port and iSCSI data ports network information. When using static IP, please p repare static IP addresses, subnet mask, a n d default gateway.

5. 10GbE switches (recommended). Or 10GbE switches with LCAP / Trunking (optional).

6. CHAP security information, including CHAP username and secret (optional).

2.3 Enclosure

2.3.1 Front view

Figure 2.3.1.1 (DSN-6410 & 6410w/640)

Drive slot numbering

Slot 1

Slot 4

Slot 7

Slot 10

Slot 2 Slot 5 Slot 8 Slot 11 Slot 3 Slot 6 Slot 9 Slot 12

Page 20

The drives can be installed into any slot in the enclosure. Slot numbering will be reflected in web UI.

Tips

It is advisable to install at least one drive in slots 1 ~ 4. System event logs

are saved to drives in these slots; If no drives are fitted the event log

s will

be lost in the event of a system reboot.

2.3.2 Front LED lights

There are three LED lights on the left frame bar.

Figure 2.3.2.1

• LED lights description:



Power LED:

 Green  Power on.  Off  Power off.



Status LED:

 Red  System is failure.  Off  System is good.



Access LED:

 Blue  Host is accessing.  Off  Host is no access.

  

Page 21

2.3.3 Install drives

Note : Skip this section if you purchased a solution populated with drives. To install SAS or SATA drives with no Bridge Board use the front mounting holes:

To install SATA drives with Bridge Boa r d (DSN-654), fit the Bridge Board first

Then install the drive using the rear mounting holes:

Page 22

Figure 2.3.3.3

• HDD tray description:



HDD power LED:

 Green  HDD is inserted and good.  Off  No HDD.



HDD access LED:

 Blue blinking  HDD is accessing.  Off  No HDD.



HDD tray handhold.



Latch for tray kit removal.

2.3.4 Rear view

Figure 2.3.4.1 (DSN-6410 with DSN-640 SFP+)

• PSU and Fan module description:







      

Page 23



Controller 2. (only on DSN-6410 with DSN-640)



Controller 1.



Power supply unit (PSU1).



Fan module (FAN1 / FAN2).



Power supply unit (PSU2).



Fan module (FAN3 / FAN4).

Page 24

Figure 2.3.4.3 (DSN-6410 SFP+)

• Connector, LED and button description:



10GbE ports (x2). Link LED:  Orange 

Asserted when a 1G link is established and

maintained.

 Blue 

Asserted when a 10G link is establish and

maintained. Access LED:  Yellow 

Asserted when the link is established and

packets are b

eing transmitted along with any receive

activity.



LED (from right to left) Controller Health LED:

 Green  Controller status normal or in the booting.  Red  Other than above status.

Master Slave LED: (only for DSN-6410 with DSN-640)

 Green  Master controller.  Off  Slave controller.

Dirty Cache LED:

 Orange  Data on the cache waiting for flush to disks.  Off  No data on the cach e .

BBM LED:

 Green  BBM installed and powered  Off  No BBM

  

  



Page 25



BBM Status Button:  When the system power is off, press the BBM status button,

if the BBM LED is Green, then the BBM still has power to keep data on the cache. If not, then the BBM power is ran

out and cannot keep the data on the cache anymore.



Management port.



Console port.



RS 232 port for UPS.



SAS JBOD expansion port.

2.4 Install battery backup module

To install the IP SAN storage with a battery backup module, please follow the procedure.

Figure 2.4.1

1. BBM (Battery Backup Module) supports hot pluggable. Regardless of the IP SAN storage is turned on or off.

2. Remove the cover of BBM.

3. Insert the BBM.

4. Tighten the BBM and use screws to lock the both sides.

5. Done.

Page 26

2.5 Deployment

Please refer to the following topology and have all the connections ready.

Figure 2.5.1 (DSN-6410 with DSN-640)

Figure 2.5.2 (DSN-6410)

1. Setup the hardware connection before power on servers. Connect console cable, management port cable, and iSCSI data port cables in advance.

Page 27

2. In addition, installing an iSNS server is recommended for dual controller system.

3. Power on the DSN-6410 or DSN-6410w/DSN-640 and the DSN-6020 (optional) first, and then power on hosts and iSNS server .

4. Host server is suggested to logon the target twice (both controller 1 and controller 2), and then MPIO should be setup automatically. (only for DSN-6410 with DSN-640)

Tips iSNS server is recommended for dual controller system.

For better data service availability, all the connections among host servers, 10GbE switches, and the dual controllers are recommended as redundant as below.

Figure 2.5.3 (only for DSN-6410 with DSN-640)

The following topology is the connections for console and UPS (optional).

Page 28

Figure 2.5.4

1. Using RS-232 cable for console (back color, phone jack to DB9 female) to connect from controller to management PC directly.

2. Using RS-232 cable for UPS (gray color, phone jack to DB9 male) to connect from controller to APC Smart UPS serial cable (DB9 female side), and then connect the serial cable to APC Smart UPS.

Caution

It may not work when connecting the RS-

232 cable for UPS (gray color,

phone jack to DB9 male) to APC Smart UPS directly.

Page 29

Chapter 3 Quick setup

3.1 Management interfaces

There are three management methods to manage D-LINK IP SAN storage, describe in the following:

3.1.1 Serial console

Use console cable (NULL mode m cable) to connect from console port of D-LINK IP SAN storage to RS 232 port of management PC. Please refer to figure 2.3.1. The console settings are on the following:

Baud rate: 115200, 8 data bit, no parity, 1 stop bit, and no flow control. Terminal type: vt100 Login name: admin Default password: 123456

3.1.2 Remote control

SSH (secure shell) software is required for remote login. The SSH client software is available at the following web site:

SSH Tectia Client: http://www.ssh.com/ PuTTY: http://www.chiark.greenend.org.uk/

Host name: 192.168.0.32 (Please check the DHCP address first on LCM.) Login name: admin Default password: 123456

Tips

D-LINK product supp orts SSH for remote control

only. For using SSH, the

IP address and password are required for login.

Page 30

3.1.3 Web UI

D-LINK IP SAN storage supports graphic user interface (GUI) to operate. Be sure to connect the LAN cable. The default I P sett i ng is DHCP; open the browser and enter:

http://192.168.0.32

And then it will pop up a dialog for authentication.

Figure 3.1.4.1

User name: admin Default password: 123456

After login, choose the functions which lists on the left side of window to make any configuration.

Figure 3.1.4.2

There are seven indicators and three icons at the top-right corner.

Figure 3.1.4.3

Page 31

• Indicator description:

RAID light:

 Green  RAID works well.  Red  RAID fails.

Temperature light:

 Green  Temperature is normal.  Red  Temperature is abnormal.

Voltage light:

 Green  voltage is normal.  Red  voltage is abnormal.

UPS light:

 Green  UPS works well.  Red  UPS fails.

Fan light:

 Green  Fan works well.  Red  Fan fails.

Power light:

 Green  Power works well.  Red  Power fails.

Dual controller light:  Green 

Both controller 1 and controller 2 are present and

well.

 Orange 

The system is degraded and there is only 1

controller alive and well.

Return to home page.

Logout the management web UI.

Page 32

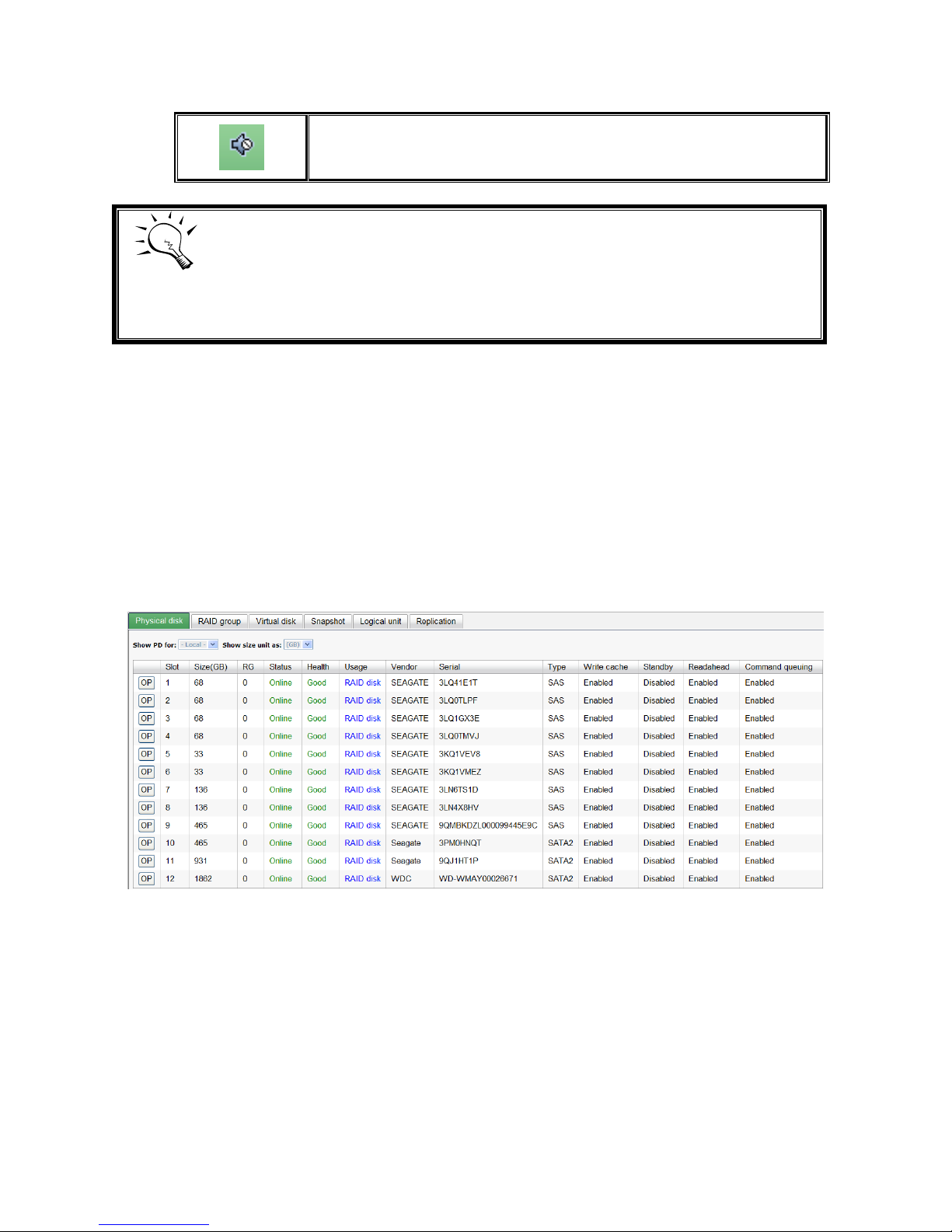

Mute alarm beeper.

Tips

If the status indica tors in Internet Explorer (IE) are displ ayed in gray, but not in blinking red, please enable “Internet Options”  “Advanced”  “Play animations in webpages”

options in IE. The default value is

enabled, but some applications w il l disable it.

3.2 How to use the system quickly

The following methods will describe the quick guide to use this IP SAN storage.

3.2.1 Quick installation

Please make sure that there are some free drives installed in this system. SAS drivers are recommended. Please check the hard drive details in “/ Volume configuration /

Physical disk”.

Figure 3.2.1.1

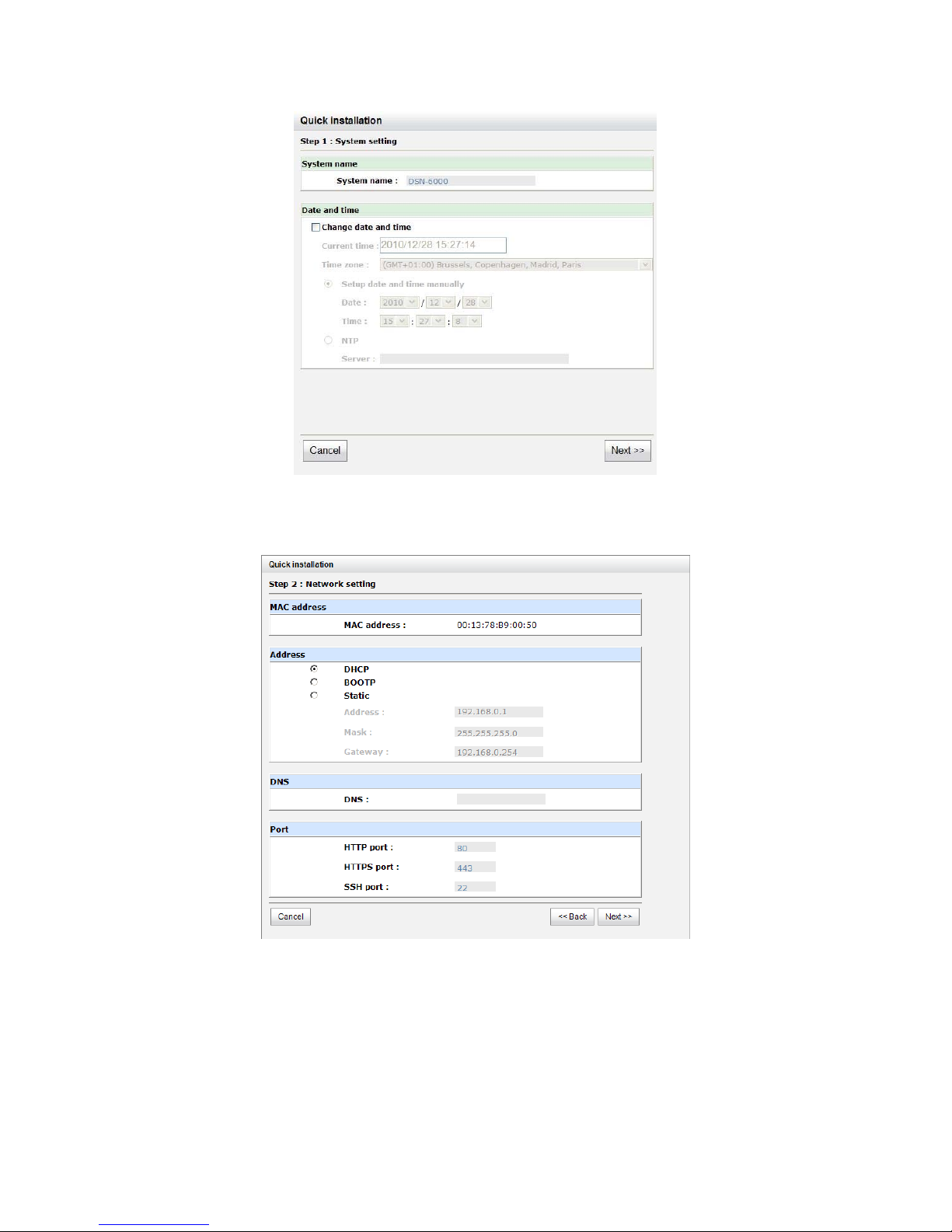

Step1: Click the “Quick installation” menu item; follow the steps to set up system

name and date / time.

Page 33

Figure 3.2.1.2

Step2: Confirm the management port IP address and DNS, and then click “Next”.

Figure 3.2.1.3

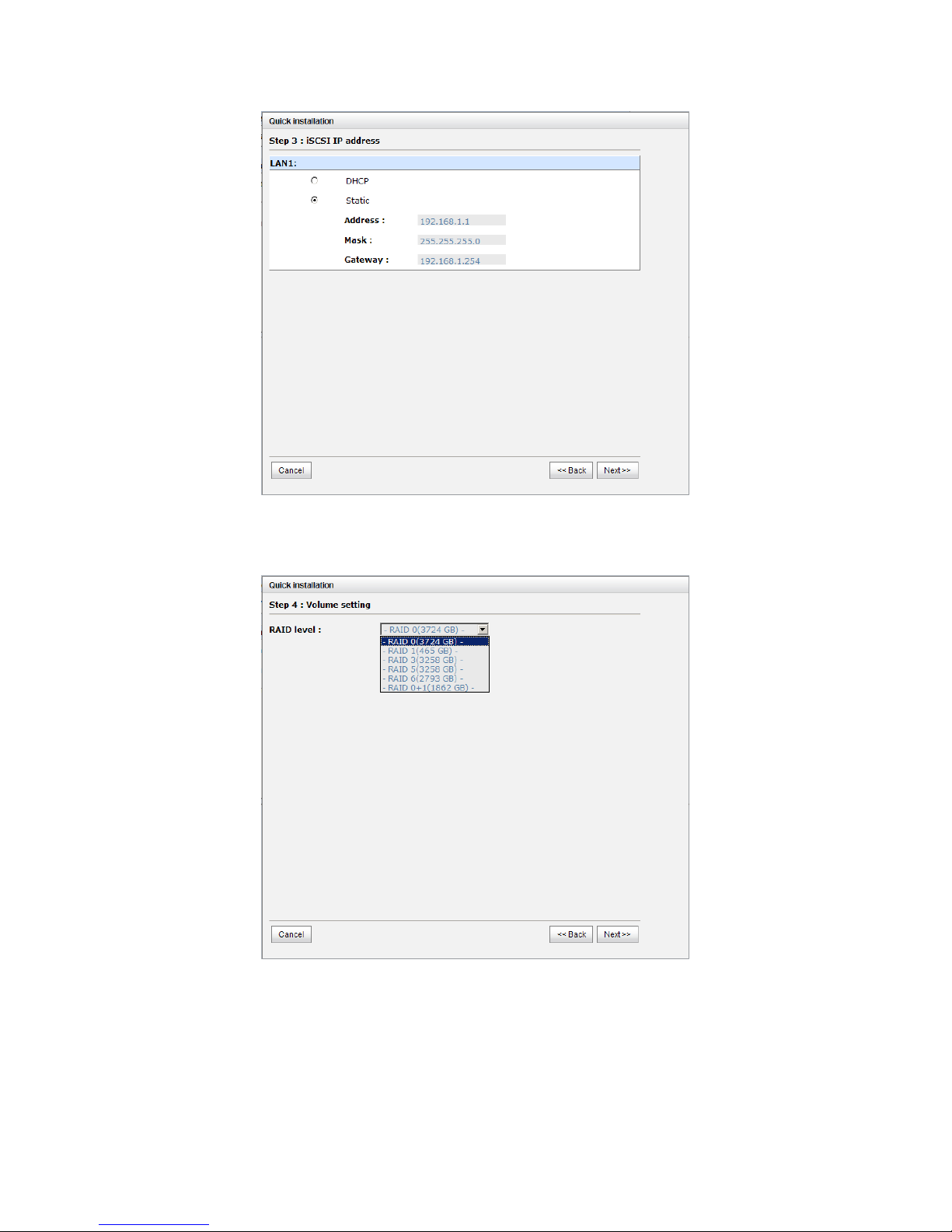

Step 3: Set up the data port IP and click “Next”.

Page 34

Figure 3.2.1.4

Step 4: Set up the RAID level and volume size and click “Next”.

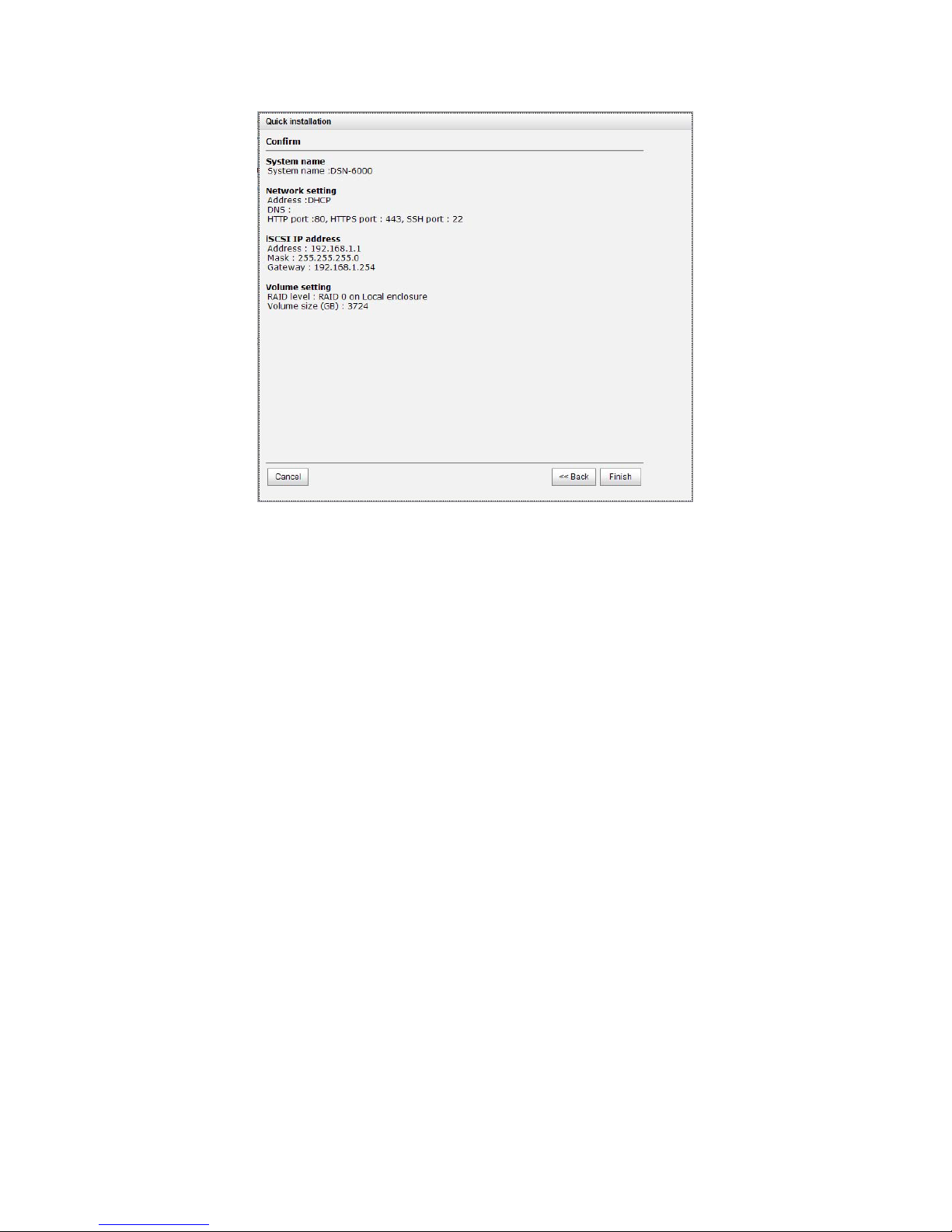

Figure 3.2.1.5

Step 5: Check all items, and click “Finish”.

Page 35

Figure 3.2.1.6

Step 6: Done.

3.2.2 Volume creation wizard

“Volume create wizard” has a smarter policy. When the system is inserted with some

HDDs. “Volume create wizard” lists all possibilities and sizes in different RAID levels, it will use all available HDDs for RAID level depends on which user chooses. When system has different sizes of HDDs, e.g., 8*200G and 8*80G, it lists all possibilities and combination in different RAID level and different sizes. After user chooses RAID level, user may find that some HDDs are available (free status). The result is using smarter policy designed by D- LINK. It gives user:

1. Biggest capacity of RAID level for user to choose and,

2. The fewest disk number for RAID level / volume size.

E.g., user chooses RAID 5 and the controller has 12*200G + 4*80G HDDs inserted. If we use all 16 HDDs for a RAID 5, and then the maximum size of volume is 1200G (80G*15). By the wizard, we do smarter check and find out the most efficient way of using HDDs. The wizard only uses 200G HDDs (Volume size is 200G*11=2200G), the volume size is bigger and fully uses HDD capac ity.

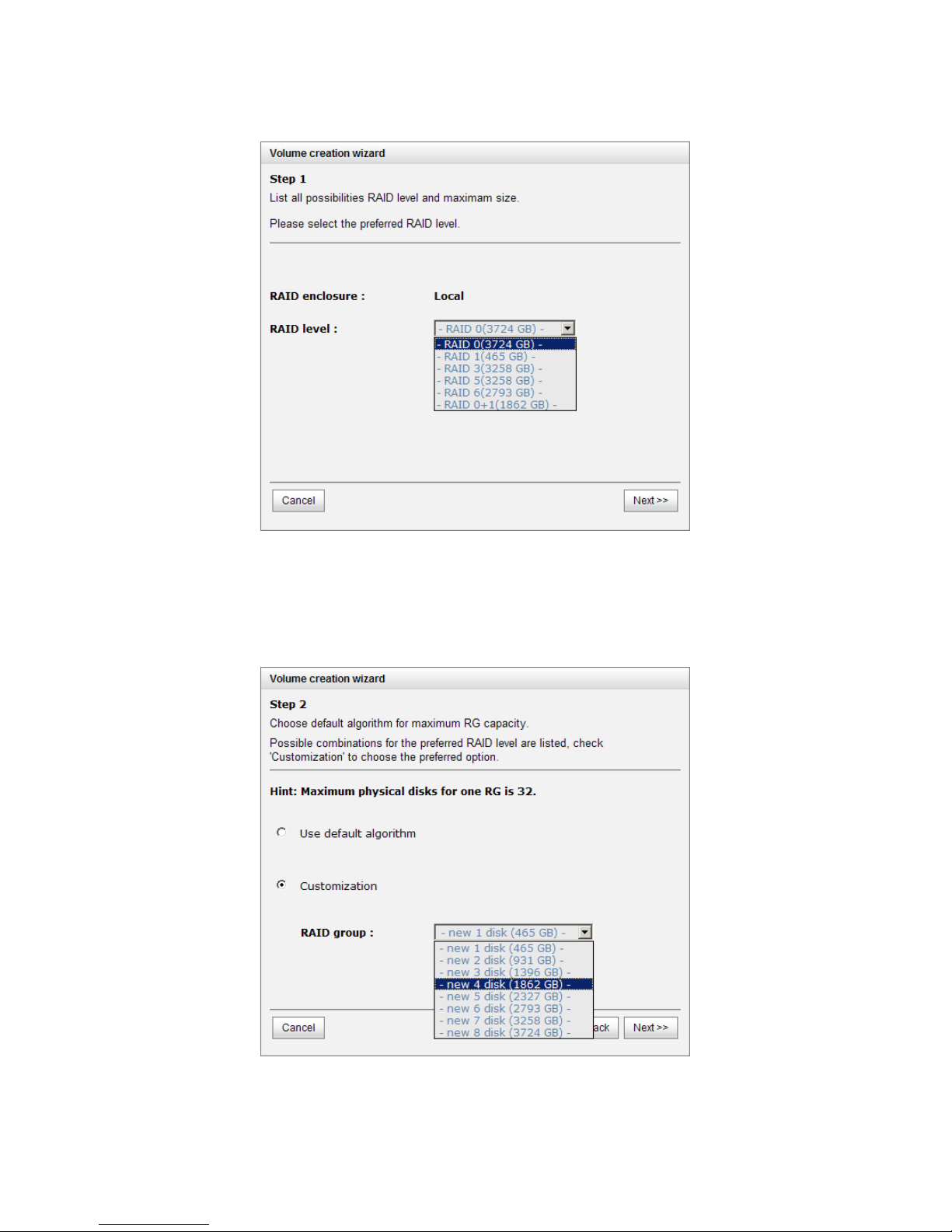

Step 1: Select “Volume create wiza rd” and then choose the RAID level. After the RAID level is chosen, click “Next”.

Page 36

Figure 3.2.2.1

Step 2: Please select the combination of the RG capacity, or “Use default algorithm” for maximum RG capacity. After RG size is c hosen, cli c k “Next”.

Figure 3.2.2.2

Page 37

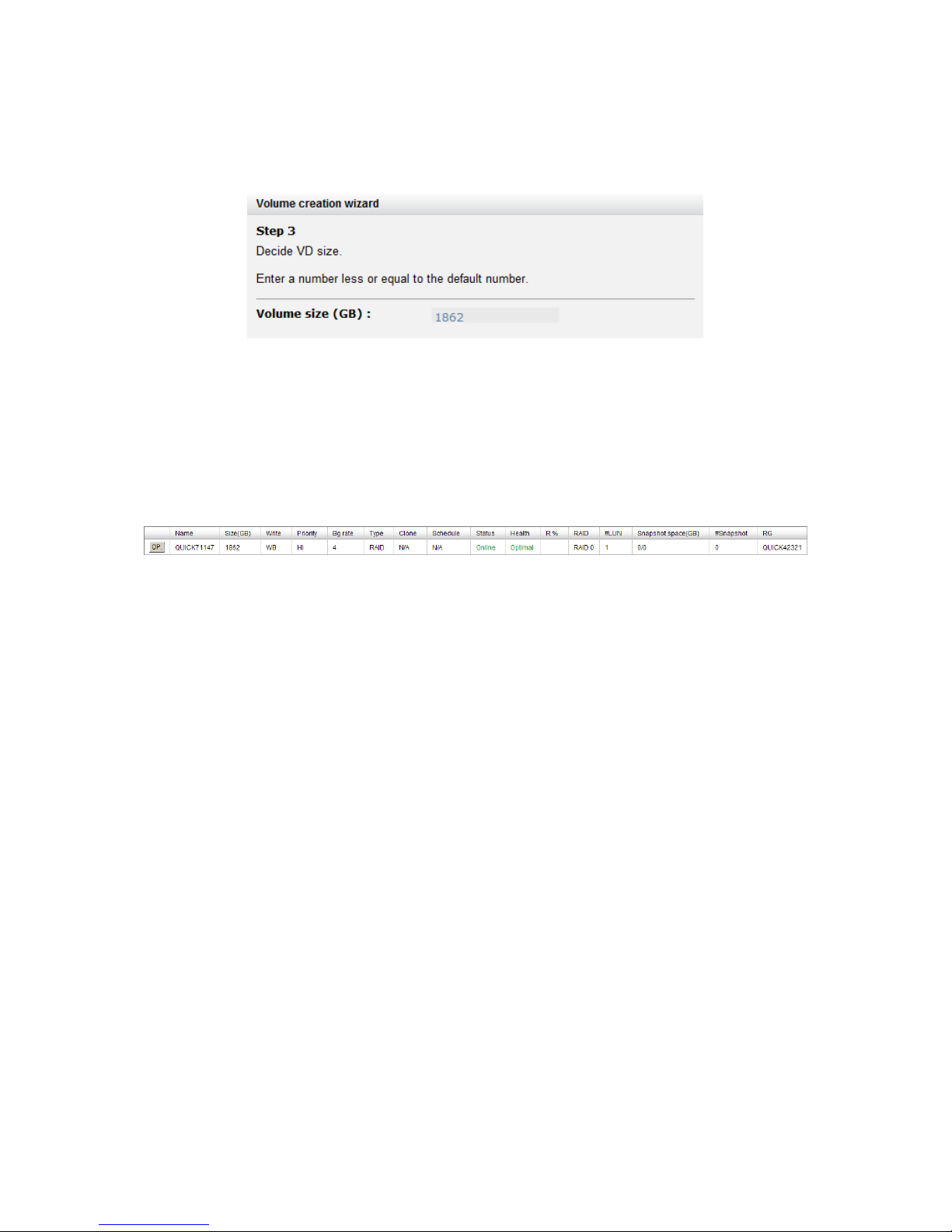

Step 3: Decide VD size. User can enter a number less or equal to the default number. Then click “Next”.

Figure 3.2.2.3

Step 4: Confirmation page. Click “Finish” if all setups are correct. Then a VD will be

created.

Step 5: Done. The system is available now.

Figure 3.2.2.4

(Figure 3.2.2.4: A virtual disk of RAID 0 is created and is named by system itself.)

Page 38

Chapter 4 Configuration

4.1 Web UI management interface hierarchy

The below table is the hierarchy of web GUI .

System configuration

System setting



System name / Date and time / System indication

Network

setting



MAC address / Address / DNS / Port



Mail setting



Mail

Notification

setting



SNMP / Messenger / System log server / Event log filter

iSCSI configuration

NIC



Show information for:(Controller 1/ Controller 2)

Link aggregation or multi-homed /

IP settings for iSCSI ports /

Become default gateway / Enable jumbo frame / Ping host

Enable Replication / Replication IP sett ing / Disable Replication

VLAN

Entity property



Entity name / iSNS IP

Node



Show information for:(Controller 1/ Controller 2)

Authenticate / Change portal / Rename alias/ User

Session



Show information for:(Controller 1/ Controller 2)

List connection / Delete

CHAP account



Create / Modify user information / Delete

Volume configuration

Physical disk



Set Free disk / Set Global spare / Set Dedicated spare / Upgrade

/ Disk Scrub / Turn on/off the indication LED / More informat ion

RAID group



Create / Migrate / Move / Activate / Deactivate / Parity check /

Delete / Set preferred owner /Set di

sk property / More

information

Virtual disk



Create / Extend / Parity check / Delete / Set property / Attach LUN / Detach LUN / List LUN / Set clone / Clear clone / Start clone / Stop clone / Schedule clone / Set snapshot space /

Cleanup snapshot / Take

snapshot / Auto snapshot / List

snapshot / More information

Snapshot



Set snapshot space / Auto snapshot / Take snapshot / Export /

Rollback / Delete/ Cleanup snapshot

Logical unit



Attach / Detach/ Session

Replication



Create / Rebuild / Config

uration / Start / Stop / Refresh / Create

multi-path / Delete multi-path / Schedule / Delete

Enclosure management

Hardware

monitor



Controller 1 / BPL / Controller 2 / Auto shutdown

UPS



UPS Type / Shutdow n ba tt er y leve l / Sh utd ow n delay /

Shutdown

UPS

SES



Enable / Disable

S.M.A.R.T.



S.M.A.R.T. information

(Only for SATA hard drives)

Page 39

Maintenance

System

information



System information

Event log



Download / Mute / Clear

Upgrade



Browse the firmware to upgrade

Firmware

synchronization



Synchronize the slave controller’s firmware version with the

master’s

Reset to factory

default



Sure to reset to factory default?

Import and

export

Import/Export / Import file

Reboot and

shutdown



Reboot / Shutdown

Quick installation

Step 1 / Step 2 / Step 3 / Step 4 / Confirm

Volume creation wizard

Step 1 / Step 2 / Step 3 / Confirm

4.2 System configuration

“System configuration” is designed for setting up the “System setting”, “Network setting”, “Login setting”, “Mail setting”, and “Notification setting”.

Figure 4.2.1

4.2.1 System setting

“System setting” can setup system name and date. Default “System name” is

composed of model name and serial number of this system.

Page 40

Figure 4.2.1.1

Check “Change date and time” to set up the current date, time, and time zone before using or synchronize time from NTP (Network Time Protocol) server. Click “Confirm” in

System indication to turn on the system indication LED. Click again to turn off.

4.2.2 Network setting

“Network setting” is for changing IP address for remote administration usage. There

are 3 options, DHCP (Get IP address from DHCP server), BOOTP (Get IP address from BOOTP server) and static IP. The default setting is DHCP. User can change the HTTP, HTTPS, and SSH port number when the default port number is not allowed on host/server.

Page 41

Figure 4.2.2.1

4.2.3 Login setting

“Login setting” can set single admin, auto logout time and admin / user password. The

single admin is to prevent multiple users a ccess the same system in the same time.

1. Auto logout: The options are (1) Disa bled; (2) 5 minutes; (3) 30 minutes; (4) 1 hour. The system will log out automatically w hen user is inactive for a period of time.

2. Login lock: Disabled or Enabled. When the login lock is enabled, the system allows only one user to login or modify system settings.

Page 42

Figure 4.2.3.1

Check “Change admin password” or “Change user password” to change admin or user password. The maximum length of password is 12 characters.

4.2.4 Mail setting

“Mail setting” can enter 3 mail addresses for receiving the event notification. Some mail

servers would check “Mail-from address” and need authentication for anti-spam. Please fill the necessary fields and click “Send test mail” to test whether email functions are available. User can also select which levels of event logs are needed to be sent via Mail. Default setting only enables ERROR and WARNING event logs. Please also make sure the DNS server IP is well-setup so the event notification mails can be sent successfully.

Page 43

Figure 4.2.4.1

4.2.5 Notification setting

“Notification setting” can set up SNMP trap for alerting via SNMP, pop-up message via

Windows messenge r (not MSN), alert via syslog protocol, and event log filter for web UI and LCM notifications.

Page 44

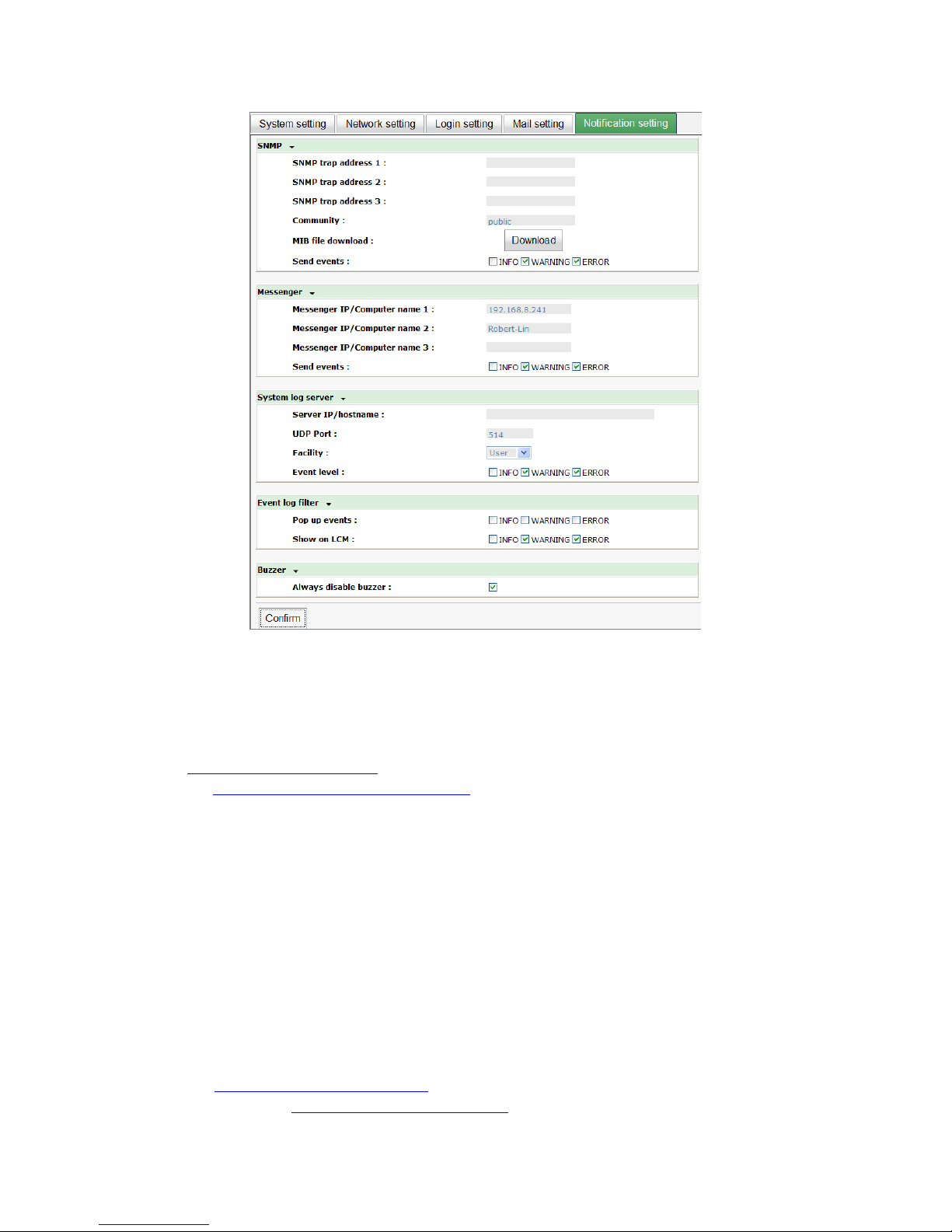

Figure 4.2.5.1

“SNMP” allows up to 3 SNMP trap addresses. Default community setting is “public”. User

can choose the event log levels and default setting enables ERROR and WARNING event log in SNMP. There are many SNMP tools. The follo wing web sites are for your reference:

SNMPc: http://www.snmpc.com/ Net-SNMP: http://net-snmp.sourceforge.net/

If necessary, click “Download” to get MIB file and import to SNMP. To use “Messenger”, user must enable the service “Messenger” in Windows (Start 

Control Panel  Administrative Tools  Services  Messenger), and then event logs can be received. It allows up to 3 messenger addresses. User can choose the event log levels and default setting enables the WARNING and ERROR event lo gs.

Using “System log server”, user can choose the facility and the event log level. The default port of syslog is 514. The default setting enables event level: INFO, WARNING and ERROR event logs.

There are some syslog server tools. The following web sites are for your reference: WinSyslog: http://www.winsyslog.com/ Kiwi Syslog Daemon: http://www.kiwisyslog.com/

Page 45

Most UNIX systems build in syslog daemon.

“Event log filter” setting can enable event log display on “Pop up events” and “LCM”.

4.3 iSCSI configuration

“iSCSI configuration” is designed for setting up the “Entity Property”, “NIC”, “Node”, “Session”, and “CHAP account”.

Figure 4.3.1

4.3.1 NIC

“NIC” can chan ge IP addre sses of iSCSI dat a ports. DSN-6410 & 6410w/640 has two

10GbE ports on each controller to transmit data. Each of them must be assigned to an IP address and be set up in multi-homed mode, or the link aggregation / trunking mode has been set up. When there are multiple data ports setting up in link aggregation or trunking mode, all the data ports share single add ress.

Figure 4.3.1.1

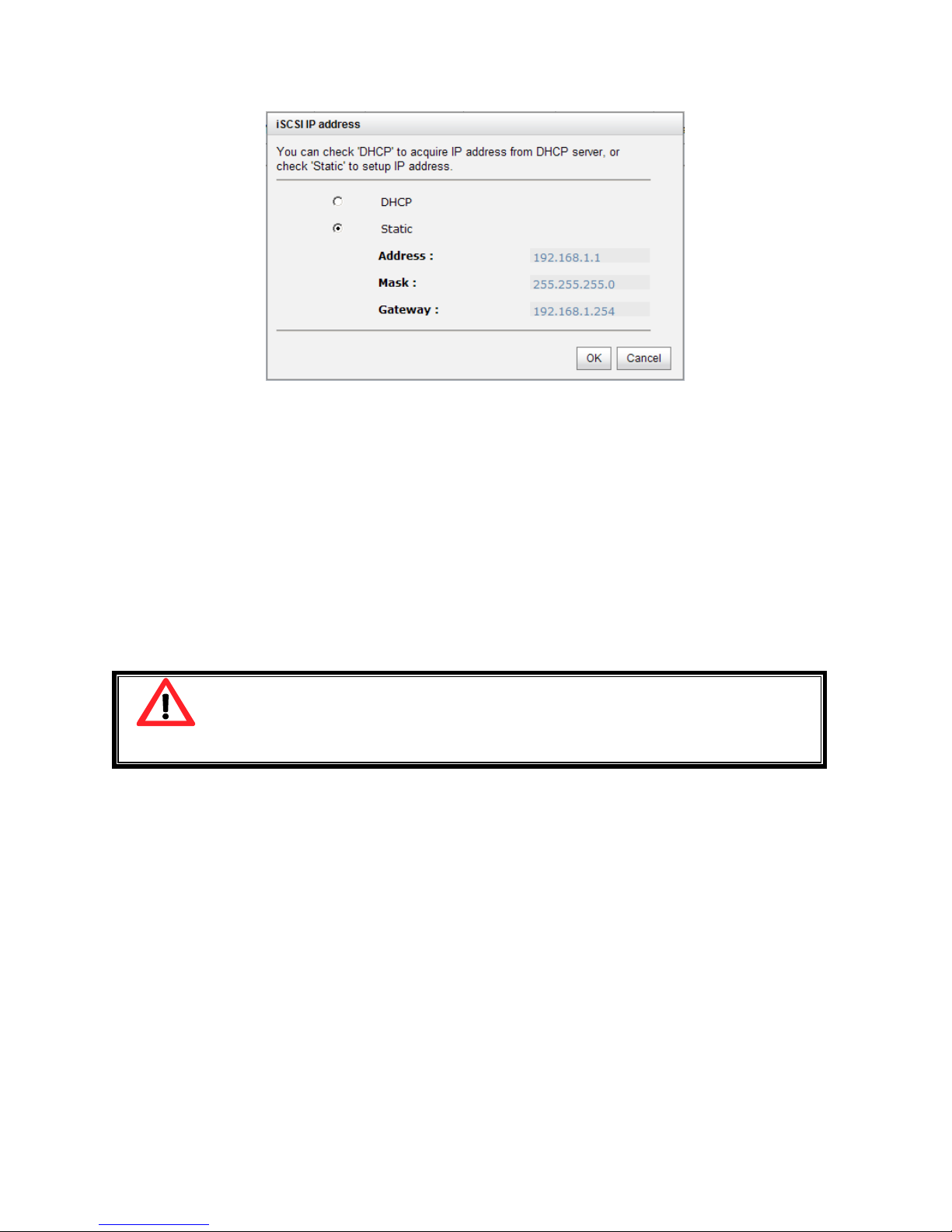

• IP settings:

User can change IP address by checking the gray button of LAN port, click “IP settings for iSCSI ports”. There are 2 selections, DHCP (Get IP address from DHCP server) or

static IP.

Page 46

Figure 4.3.1.2

• Default gateway:

Default gateway can be changed by checking the gray button of LAN port, click “Become default gateway”. There can be only one default gateway.

• MTU / Jumbo frame:

MTU (Maximum Transmission Unit) size can be enabled by checking the gray button of LAN port, click “Enable jumbo frame”. Maximum jumbo frame size is 3900 bytes.

Caution

The MTU size o

f switching hub and HBA on host must be enabled.

Otherwise, the LAN connection can not work properly.

• Multi-homed / Trunking / LACP:

The following is the description of multi-homed / trunking / LACP functions.

1. Multi-homed: Default mode. Each of iSCSI data port is connected by itself and is not link aggregation and trunking. This function is also for Multipath functions. Select this mode can also remove the setting o f Trunking / LACP in same time.

2. Trunking: defines the use of multiple iSCSI data ports in parallel to increase the link speed beyond the limits of any single port.

3. LACP: The Link Aggregation Control Protocol (LACP) is part of IEEE specification

802.3ad that allows bundling several physical ports together to form a single logical channel. LACP allows a network switch to negotiate an automatic bundle by sending

Page 47

LACP packets to the peer. The advantages of LACP are (1) increases the bandwidth. (2) failover when link status fails on a port.

Trunking / LACP setting can b e changed by clicking the button “Aggregation”.

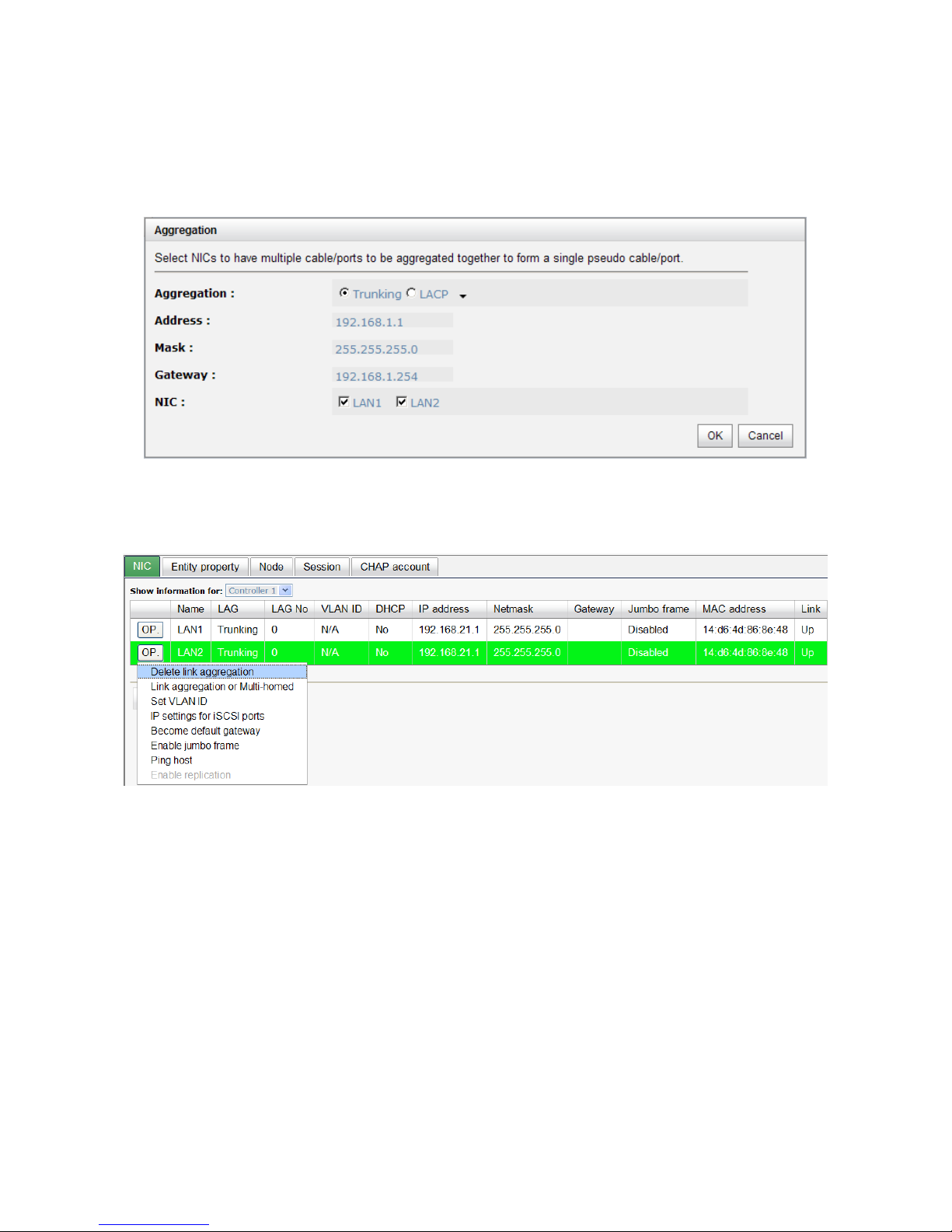

Figure 4.3.1.3

(Figure 4.3.1.3: There are 2 iSCS I da ta ports on each c ontroller, select a t l ea s t two NICs for lin k aggregation.)

Figure 4.3.1.4

For example, LAN1 and LAN2 are set as Trunking mode. To remove Trunking / LACP setting, check the gray button of LAN port, click “Delete link aggregation”. Then it will pop up a message to confirm.

• Ping host:

User can ping the corresponding host data port from the target, click “Ping host”.

Page 48

Figure 4.3.1.5

(Figure 4.3.1.5 shows a user can ping host from the target to make sure the data port connection is well.)

4.3.2 Entity property

“Entity property” can view the entity name of the system, and setup “iSNS IP” for

iSNS (Internet Storage Name Service). iSNS protocol allows automated discovery, management and configuration of iSCSI devices on a TCP/IP network. Using iSNS, it needs to install an iSNS server in SAN. Add an iSNS server IP address into iSNS server lists in order that iSCSI initiator service can send q ueries. The entity name can be changed.

Figure 4.3.2.1

4.3.3 Node

“Node” can view the target name for iSCSI initiator. DSN-6410 & 6410w/640 supports

up to 32 multi-nodes. There are 32 default nodes cr eated for each controller.

Page 49

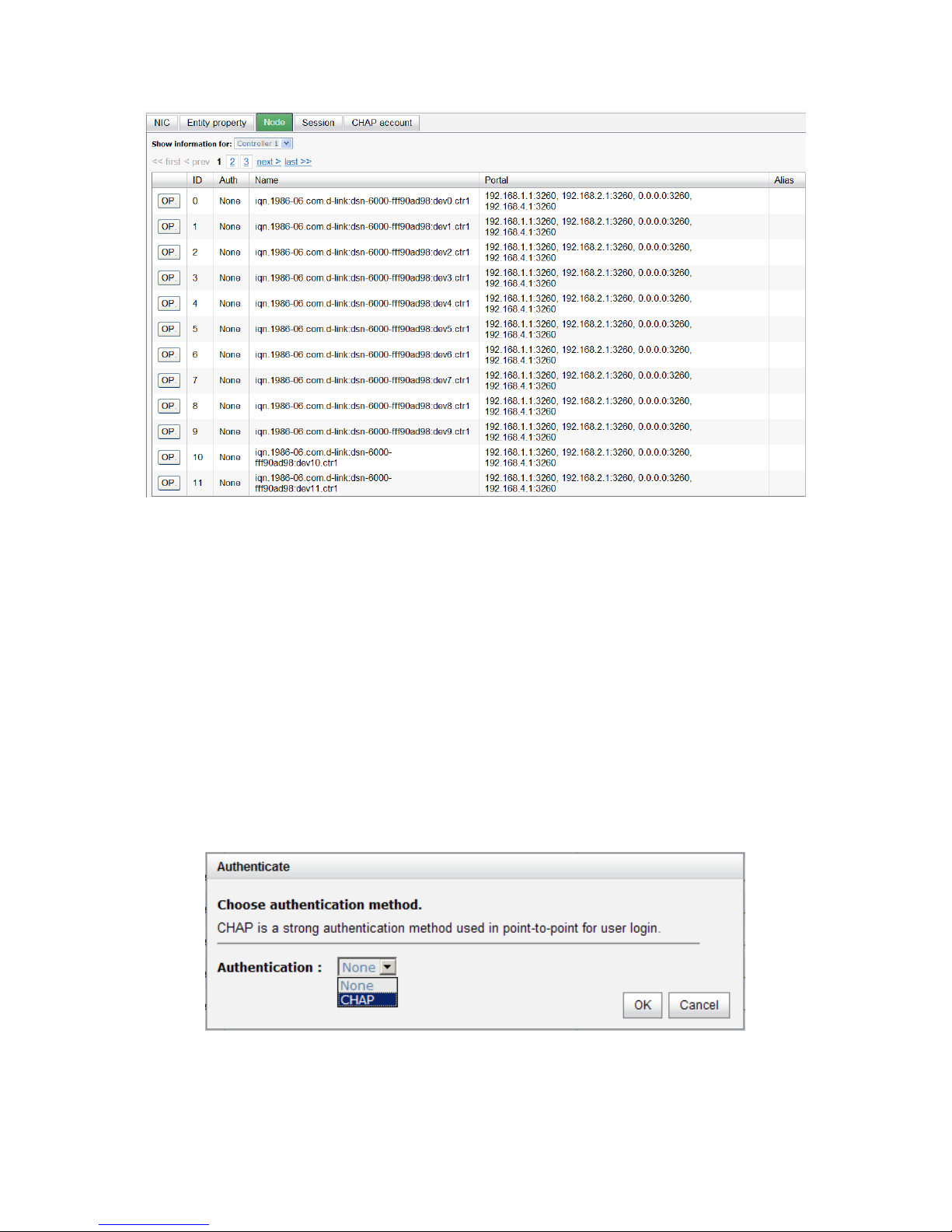

Figure 4.3.3.1

• CHAP:

CHAP is the abbreviation of Challenge Handshake Authentication Protocol. CHAP is a strong authentication method used in point-to-point for user login. It’s a type of authentication in which the authentication server sends the client a key to be used for encrypting the username and password. CHAP enables the username and password to transmit in an encrypted form for protection.

To use CHAP authentication, please follo w the procedures.

1. Select one of 32 default nodes from one controller.

2. Check the gray button of “OP.” column, click “Authenticate”.

3. Select “CHAP”.

Figure 4.3.3.2

4. Click “OK”.

Page 50

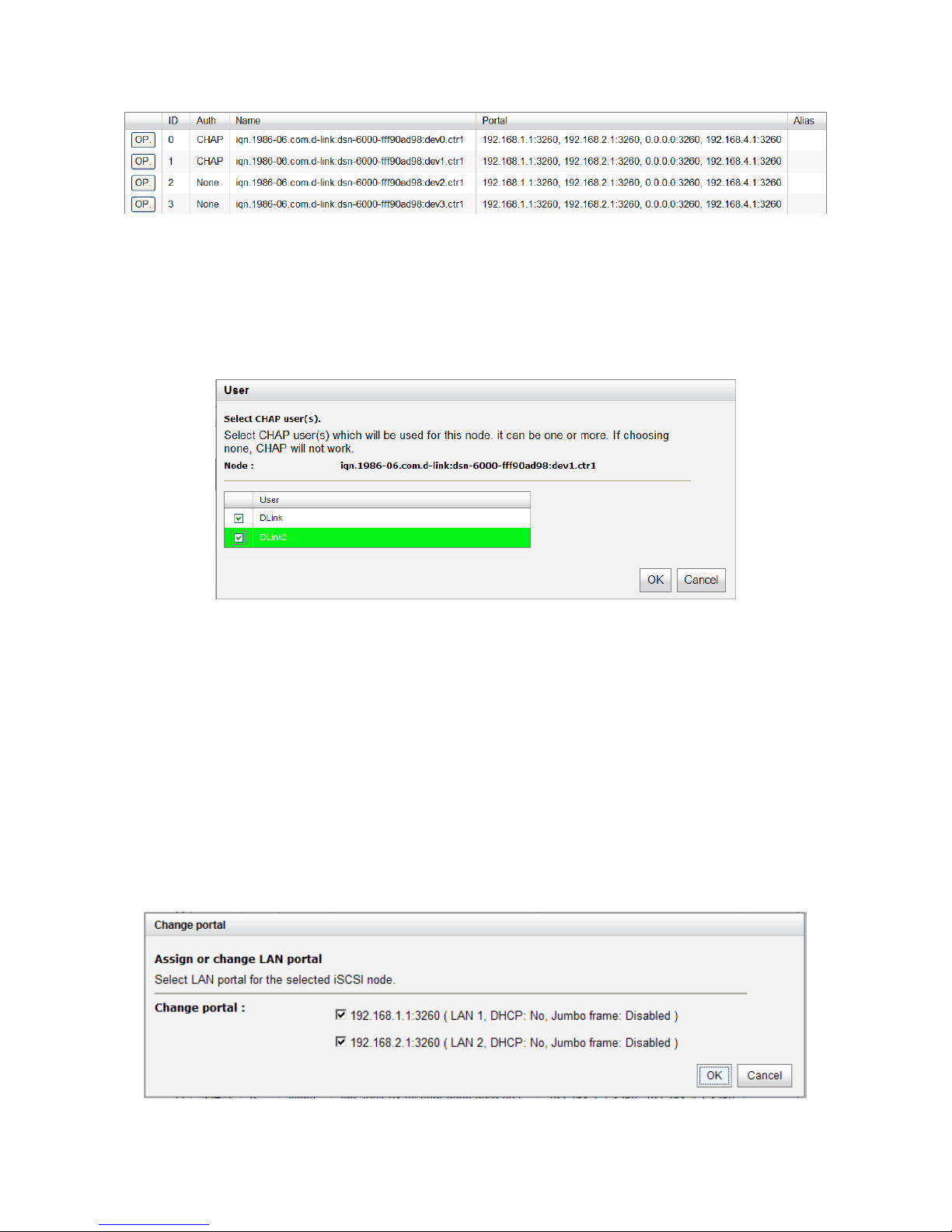

Figure 4.3.3.3

5. Go to “/ iSCSI configuration / CHAP account” page to create CHAP account. Please refer to next section for more detail.

6. Check the gray button of “OP.” column, click “User”.

7. Select CHAP user(s) which will be used. It’s a multi option; it can be one or more. If choosing none, CHAP can not work.

Figure 4.3.3.4

8. Click “OK”.

9. In “Authenticate” of “OP” page, select “None” to disable CHAP.

• Change portal:

Users can change the portals belonging to the device nod e of each controller.

1. Check the gray button of “OP.” column next to one device node.

2. Select “Change portal”.

3. Choose the portals for the controller.

4. Click “OK” to confirm.

Figure 4.3.3.5

Page 51

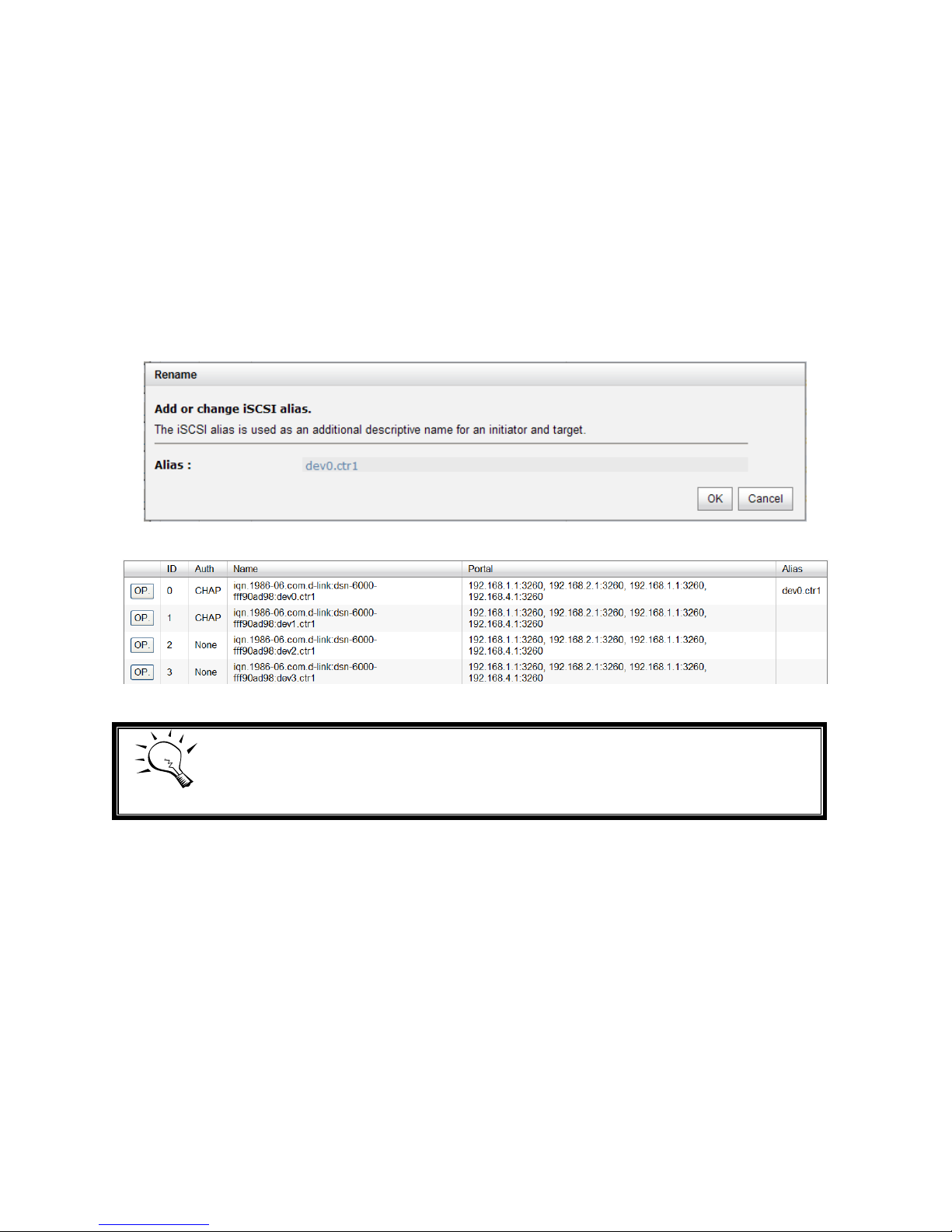

• Rename alias:

User can create an alias to one device node.

1. Check the gray button of “OP.” column next to one device node.

2. Select “Rename alias”.

3. Create an alias for that device node.

4. Click “OK” to confirm.

5. An alias appears at the end of that device node.

Figure 4.3.3.6

Figure 4.3.3.7

Tips

After setting CHAP, the initiator in host should be set with the same CHAP

account. Otherwise, user cannot login.

4.3.4 Session

“Session” can display current iSCSI session and connection information, including the

following items:

1. TSIH (target session identifying handle)

2. Host (Initiator Name)

3. Controller (Target Name)

4. InitialR2T(Initial Ready to Transfer)

5. Immed. data(Immediate data)

6. MaxDataOutR2T(Maximum Data Outstanding Ready to Transfer)

7. MaxDataBurstLen(Maximum Data Burst Length)

Page 52

8. DataSeginOrder(Data Sequence in Order)

9. DataPDUInOrder(Data PDU in Order)

10. Detail of Authentication status and Source IP: port numb er.

Figure 4.3.4.1

(Figure 4.3.4.1: iSCSI Session.)

Check the gray button of session number, click “List connection”. It can list all connection(s) of the session.

Figure 4.3.4.2

(Figure 4.3.4.2: iSCSI Connection.)

4.3.5 CHAP account

“CHAP account” can manage a CHAP account for authentication. DSN-6410 with DSN-640/6410 can create multiple CHAP acco unts.

To setup CHAP account, please follow the procedures.

1. Click “Create”.

2. Enter “User”, “Secret”, and “Confirm” secret again. “Node” can be selected here or later. If selecting none, it can be enabled later in “/ iSCSI config uration / Node / User”.

Page 53

Figure 4.3.5.1

3. Click “OK”.

Figure 4.3.5.2

4. Click “Delete” to delete CHAP account.

4.4 Volume configuration

“Volume configuration” is designed for setting up the volume configuration which

includes “Physical disk”, “RAID group”, “Virtual disk”, “Snapshot”, “Logical unit ”, and “Replication”.

Figure 4.4.1

Page 54

4.4.1 Physical disk

“Physical disk” can view the status of hard drives in the system. The followings are

operational steps:

1. Check the gray button next to the number of slot, it will show the functions which can be executed.

2. Active function can be selected, and inactive functions show up in gray color and cannot be selected.

For example, set P D sl ot number 4 to dedicated spare disk. Step 1: Check to the gray button of PD 4, select “Set Dedicated spare”, it will link to

next page.

Figure 4.4.1.1

Step 2: If there is any RG which is in protected RAID level and can be set with dedicate spare disk, select one RG, and then click “Submit”.

Figure 4.4.1.2

Step 3: Done. View “Physical disk” page.

Page 55

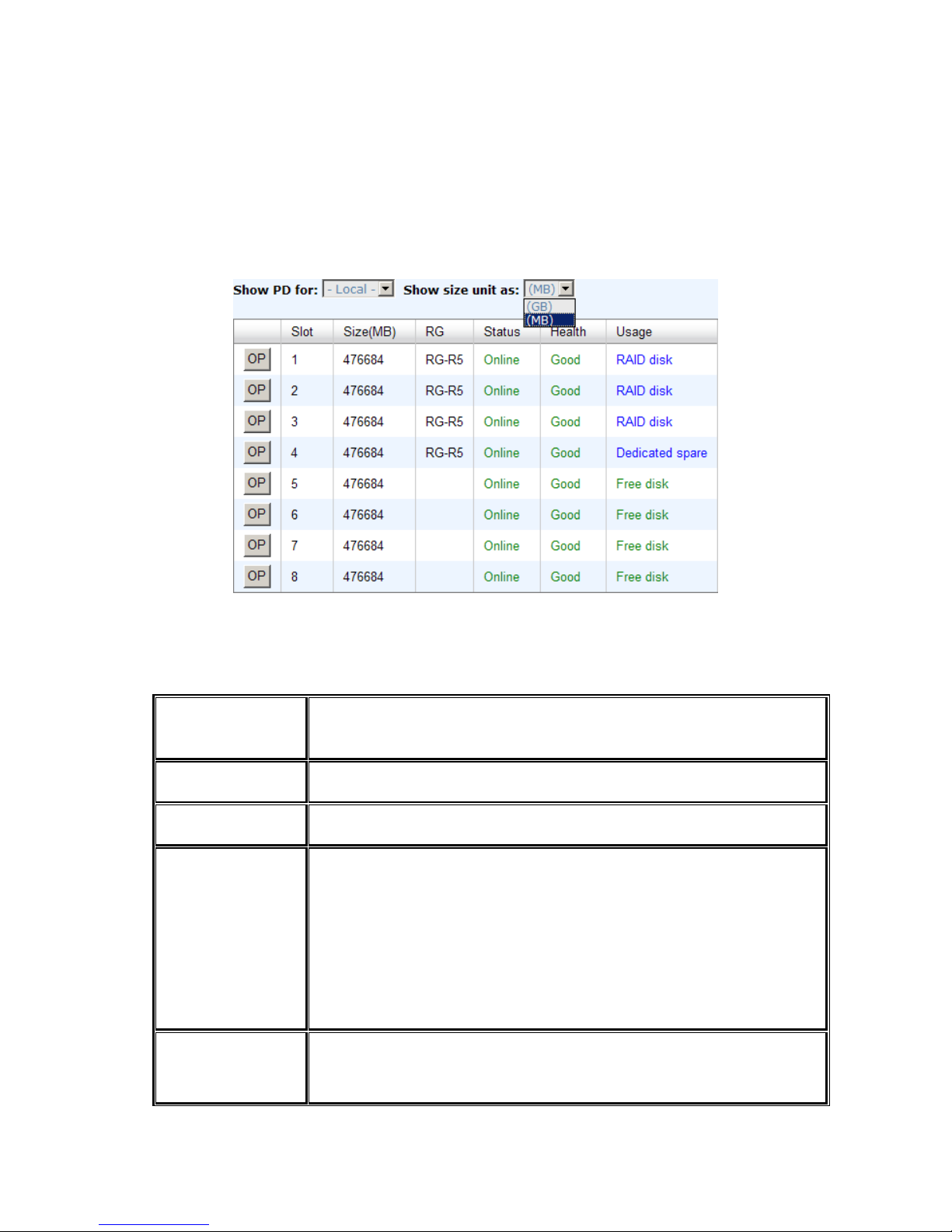

Figure 4.4.1.3

(Figure 4.4.1.3: Phy sica l dis ks in s lot 1,2 ,3 are cr eated for a RG nam ed “ RG -R5 ”. S lo t 4 is se t a s dedicated spare disk of the RG named “RG-R5”. The others are free disks.)

Step 4: The unit of size can be changed from (GB) to (MB). It will display the capacity of hard drive in MB.

Figure 4.4.1.4

• PD column description:

Slot The position of a hard drive.

The button next to the number of

slot shows the functions which can be executed.

Size (GB) (MB) Capacity of hard drive. The unit can b e displayed in GB or MB. RG Name RAID group name. Status The status of hard drive:

 “Online”  the hard drive is online.  “Rebuilding”  the hard drive is being rebuilt.  “Transition” 

the hard drive is being migrated or is

replaced by another disk when rebuilding oc c ur s.

 “Scrubbing”  the hard drive is being scrubbed.

Health The health of hard drive:

 “Good”  the hard drive is good.

Page 56



“Failed”

 the hard drive is failed.

 “Error Alert”  S.M.A.R.T. error alert.  “Read Errors” 

the hard drive has unrecoverable read

errors.

Usage The usage of hard drive:

 “RAID disk”  This hard drive has been set to a

RAID group.

 “Free disk”  This hard drive is free for use.  “Dedicated spare” 

This hard drive has been set as

dedicated spare of a RG.

 “Global spare” 

This hard drive has been set as

global spare of all RGs.

Vendor Hard drive vendor. Serial Hard drive serial number. Type Hard drive type:

 “SATA”  SATA disk.  “SATA2”  SATA II disk.  “SAS”  SAS disk.

Write cache

Hard drive write cache is enabled or disabled. Default is

“Enabled”. Standby HDD auto spin-down to save power. Defa ult is “Disabled”. Readahead This feature makes data be loaded to disk’s buffer in adva nce for

further use. Default is “Enabled”.

Command queuing

Newer SATA and most SCSI disks can queue multiple commands

and handle one by one. Default is “Enabled”.

• PD operation description:

Set Free disk Make the selected hard drive be free for use.

Set Global spare

Set the selected har d drive to global spare of all RGs.

Page 57

Set Dedicated spares

Set a hard drive to dedicated spare of the selected RG.

Upgrade Upgrade hard drive firmware. Disk Scrub Scrub the hard drive.

Turn on/off the indication LED

Turn on the indication LED of the hard drive. Click again to turn

off.

More information

Show hard drive detail information.

4.4.2 RAID group

“RAID group” can view the status of each RAID group, create, and modify RAID groups.

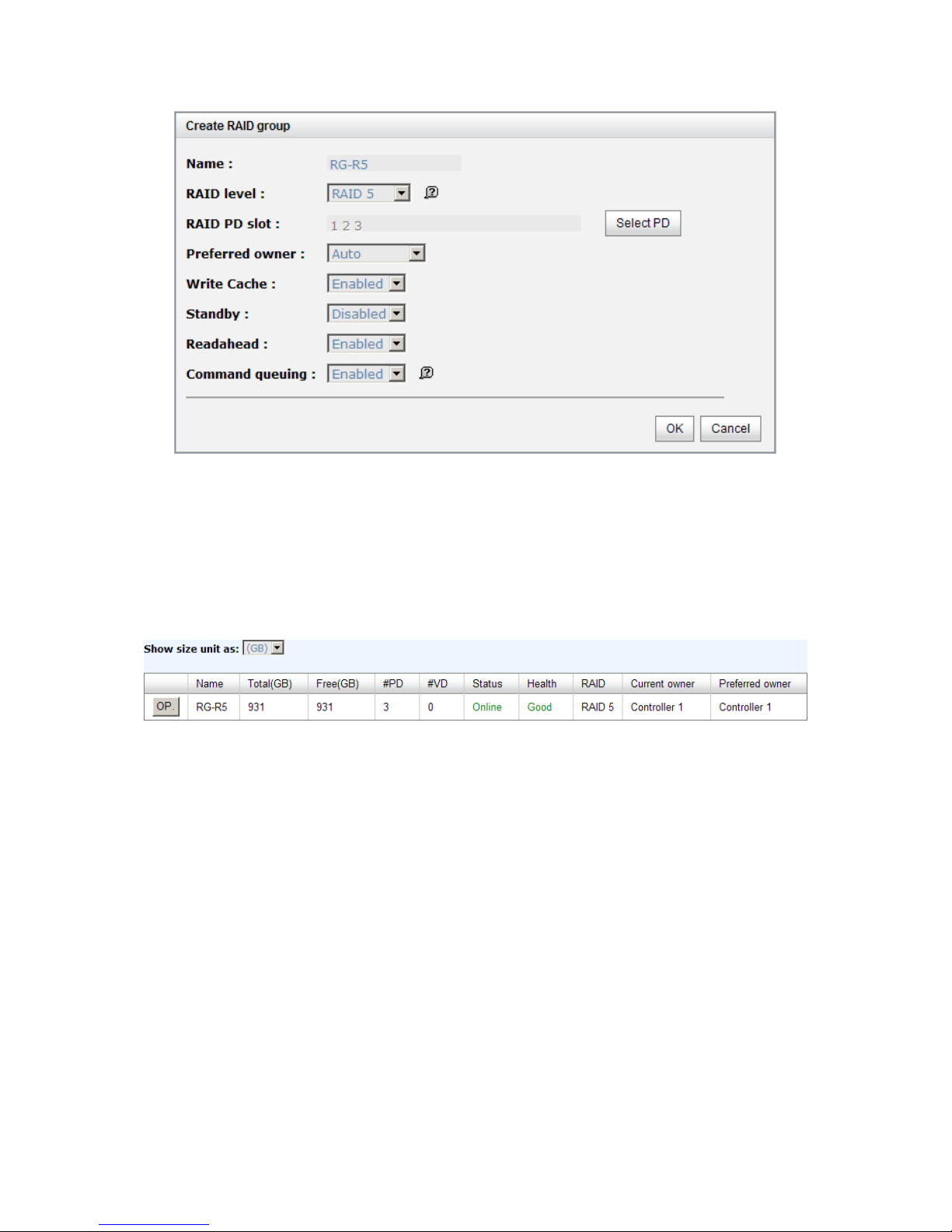

The following is an example to c r eate a RG. Step 1: Click “Create”, enter “Name”, choose “RAID level”, click “Select PD” to

select PD, assign the RG’s “Preferred owner”. Then click “OK”. The “Write Cache” option is to enable or disable the write cache option of hard drives. The “Standby” option is to enable or disable the auto spin-down function of hard drives, when this option is enabled and hard drives have no I/O access after certain period of time, they will spindown automatically. The “Readahead” option is to enable or disable the read ahead function. The “Command queuing” option is to enable or disable the hard drives’ command queue function.

Figure 4.4.2.1

Page 58

Step 2: Confirm page. Click “OK” if all setups are correct.

Figure 4.4.2.2

(Figure 4.4.2.2: There is a RAID 0 with 4 physical disks, named “RG-R0”. The second RAID group is a RAID 5 with 3 physical disks, named “RG-R5”.)

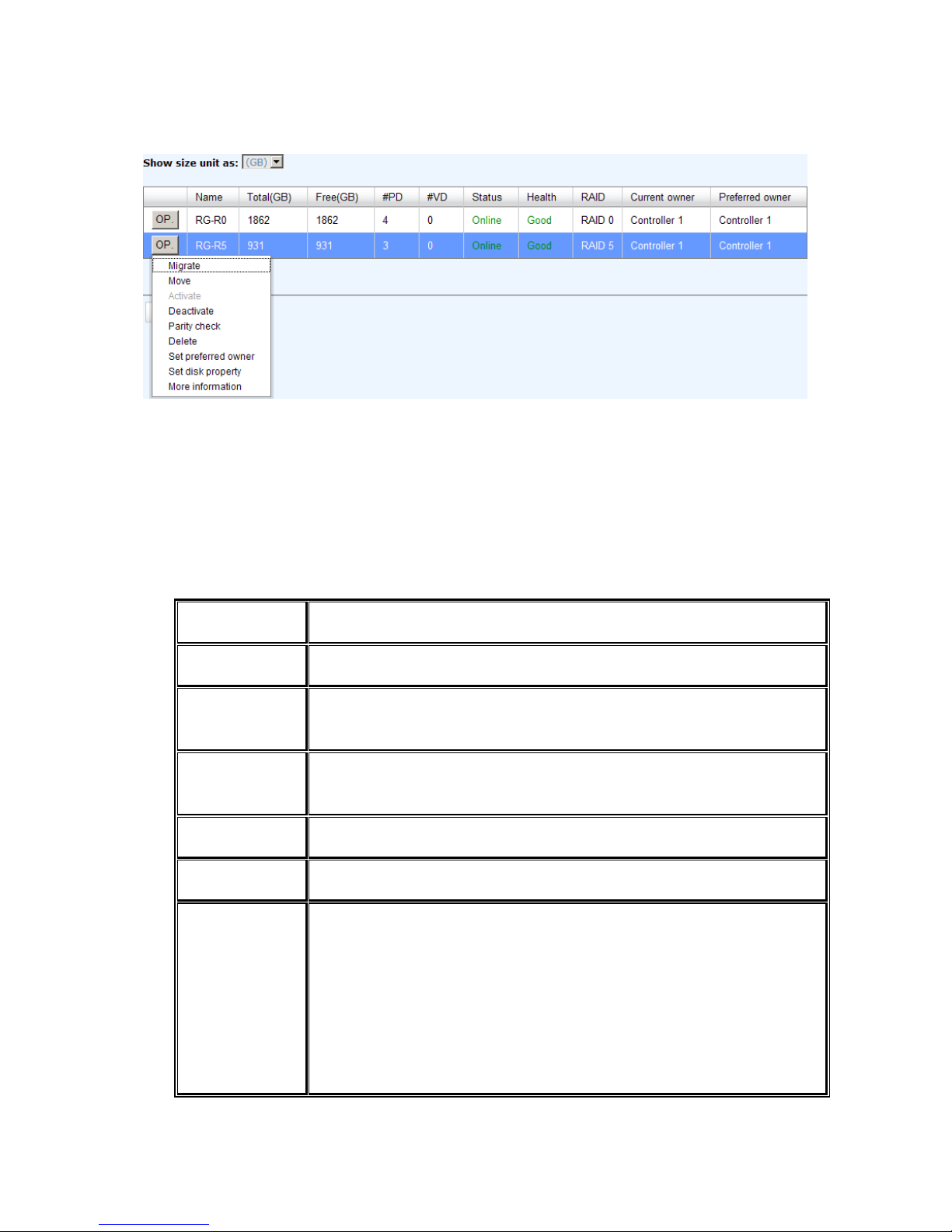

Step 3: Done. View “RAID group” page.

• RG column description:

The button includes the functions which can be executed. Name RAID group name.

Total (GB) (MB)

Total capacity of this RAID group. The unit can be displayed in

GB or MB.

Free (GB) (MB)

Free capacity of this RAID group. The unit can be displayed in

GB or MB.

#PD The number of physical disks in a RAID group. #VD The number of virtual disks in a RAID group. Status The status of RAID group:

 “Online”  the RAID group is online.

 “Offline”  the RAID group is offline.

 “Rebuild”  the RAID group is being rebuilt.

 “Migrate”  the RAID group is being migrated.

 “Scrubbing”  the RAID group is being scrubbed.

Page 59

Health The health of RAID group:

 “Good”  the RAID group is good.

 “Failed”  the RAID group fails.

 “Degraded” 

the RAID group is not healthy and not

completed. The reason could be lac

k of disk(s) or have

failed disk

RAID The RAID level of the RAID group.

Current owner

The owner of the RAID group. The default owner is controller 1.

Preferred owner

The preferred owner of the RAID group. The default owner is

controller 1.

• RG operation description:

Create Create a RAID group.

Migrate

Change the RAID level of a RAID group. Please refer to next

chapter for details.

Move Move the member disks of RAID group to totally different

physical disks.

Activate Activate the RAID group after disk

roaming; it can be executed

when RG status is offline. This is for online disk roaming

purpose.

Deactivate

Deactivate the RAID group before disk roaming; it can be executed when RG status is online. This is for online disk

roaming purpose.

Parity check Regenerate parity for the RAID group. It su p por ts RAID 3 / 5 / 6

/ 30 / 50 / 60.

Delete Delete the RAID group.

Set preferred owner

Set the RG ownership to the other contr oller.

Set disk Change the disk property of write cache and standby options.

Page 60

property

Write cache:

 “Enabled”  Enable disk write cache. (Default)

 “Disabled”  Disable disk write cache.

Standby:

 “Disabled”  Disable auto spin-down. (Default)

 “30 sec / 1 min / 5 min / 30 min”  Enable hard drive

auto spin-down to save power when no access after certain period of time.

Read ahead:

 “Enabled”  Enable disk read ahead. (Default)

 “Disabled”  Disable disk read ahead.

Command queuing:

 “Enabled”  Enable disk command queue. (Default)

 “Disabled”  Disable disk command queue.

More information

Show RAID group detail information.

4.4.3 Virtual disk

“Virtual disk” can view the status of each Virtual disk, create, and modify virtual disks.

The following is an example to c r eate a VD.

Step 1: Click “Create”, enter “Name”, select RAID group from “RG name”, enter required “Capacity (GB)/(MB)”, change “Stripe height (KB)”, change “Block size (B)”, change “Read/Write” mode, set virtual disk “Priority”, select “Bg rate” (Background task priority), and change “Readahead” option if necessary. “Erase” option will wipe out old data in VD to prevent that OS recognizes the old partition. There are three options in “Erase”: None (default), erase first 1GB or full disk. Last, select “Type” mode for normal or clone usage. Then clic k “OK”.

Page 61

Figure 4.4.3.1

Caution

If s

hutdown or reboot the system when creating VD, the erase process will

stop.

Step 2: Confirm page. Click “OK” if all setups are correct.

Figure 4.4.3.2

(Figure 4.4.3.2: Create a VD na med “VD-01”, from “RG-R0”. The secon d VD is named “VD-02”, it’s initializing.)

Step 3: Done. View “Virtual disk” page.

Page 62

• VD column description:

The button includes the functions which can be executed. Name Virtual disk name.

Size (GB) (MB)

Total capacity of the virtual disk. The unit can be displayed in

GB or MB.

Write The right of virtual disk:

 “WT”  Write Through.  “WB”  Write Back.  “RO”  Read Only.

Priority The priority of virtual disk:

 “HI”  HIgh priority.  “MD”  MiDdle priority.  “LO”  LOw priority.

Bg rate Background task priority:

 “4 / 3 / 2 / 1 / 0”  Def

ault value is 4. The higher

number the background priority of a VD is, the more

background I/O will be scheduled to execute.

Status The status of virtual disk:

 “Online”  The virtual disk is online.  “Offline”  The virtual disk is offline.  “Initiating”  The virtual disk is being initialized.  “Rebuild”  The virtual disk is being rebuilt.  “Migrate”  The virtual disk is being migrated.  “Rollback”  The virtual disk is being rolled back.  “Parity checking” 

The virtual disk is being parity

check.

Type The type of virtual disk:

 “RAID”  the virtual disk is normal.  “BACKUP”  the virtual disk is for clone usage.

Page 63

Clone The target name of virtual disk. Schedule The clone schedule of virtual disk: Health The health of virtual disk:

 “Optimal”  the virtual dis

k is working well and there is

no failed disk in the RG.

 “Degraded”  At least one disk from the RG of the Virtual

disk is failed or plugged out.

 “Failed” 

the RAID group disk of the VD has single or

multiple failed disks than its RAID level can recover from data loss.

 “Partially optimal” 

the virtual disk has experienced

recoverable read errors. After passing parity check, the

health will become “Optimal”.

R %

Ratio (%) of initializing or rebuild ing.

RAID RAID level. #LUN Number of LUN(s) that virtual d i sk is attached to.

Snapshot (GB) (MB)

The virtual disk size that is used for snapshot. The number

means “Used snapshot space” / “Total snapshot space”. The unit can be displayed in GB or MB.

#Snapshot Number of snapshot(s) that have been taken. RG name The RG name of the virtual disk

• VD operation description:

Create Create a virtual disk. Extend Extend t he vir tual disk capacity. Parity check Execute parity check for the virtual disk. It supports RAID 3 / 5 /

6 / 30 / 50 / 60. Regenerate parity:

 “Yes”  Regenerate RAID parity and write.  “No” 

Execute parity check only and find mismatches. It

will stop checking when mismatches count to 1 / 10 / 20

Page 64

/ … / 100.

Delete Delete the virtual disk. Set property Change the VD name, right, priority, bg rate and read ahead.

Right:

 “WT”  Write Through.  “WB”  Write Back. (Default)  “RO”  Read Only.

Priority:

 “HI”  HIgh priority. (Default)  “MD”  MiDdle priority.  “LO”  LOw priority.

Bg rate:

 “4 / 3 / 2 / 1 / 0” 

Default value is 4. The higher

number the back

ground priority of a VD is, the more

background I/O will be scheduled to execute.

Read ahead:

 “Enabled”  Enable disk read ahead. (Default)  “Disabled”  Disable disk read ahead.

AV-media mode:  “Enabled”  Enable AV-media mode for optimizing vi deo

editing.  “Disabled”  Disable AV-media mode. (Default) Type:

 “RAID”  the virtual disk is normal. (Default)  “Backup”  the virtual disk is for clone usage.

Attach LUN Attach to a LUN. Detach LUN Detach to a LUN. List LUN List atta ched LUN(s). Set clone Set the target virtual disk for clone. Clear clone Clear clone function. Start clone Start clone function.

Page 65

Stop clone Stop clone function.

Schedule clone

Set clone function by schedule.

Set snapshot space

Set snapshot space for taking snapshot. Please refer t

o next

chapter for more detail.

Cleanup snapshot

Clean all snapshots of a VD and relea se the snapshot space.

Take snapshot

Take a snapshot on the virtual disk.

Auto snapshot

Set auto snapshot on the virtual disk.

List snapshot List all snapshots of the virtual disk.

More information

Show virtual disk detail information.

4.4.4 Snapshot

“Snapshot” can view the status of snapshot, create, and modify snapshots. Please refer

to next chapter for more detail about snapshot concept. The following is an example to take a snapshot.

Step 1: Create snapshot space. In “/ Volume configuration / Virtual disk”, Check to the gray button next to the VD number; click “Set snapshot space”.

Step 2: Set snapshot space. Then click “OK”. The snap sh ot space is created.

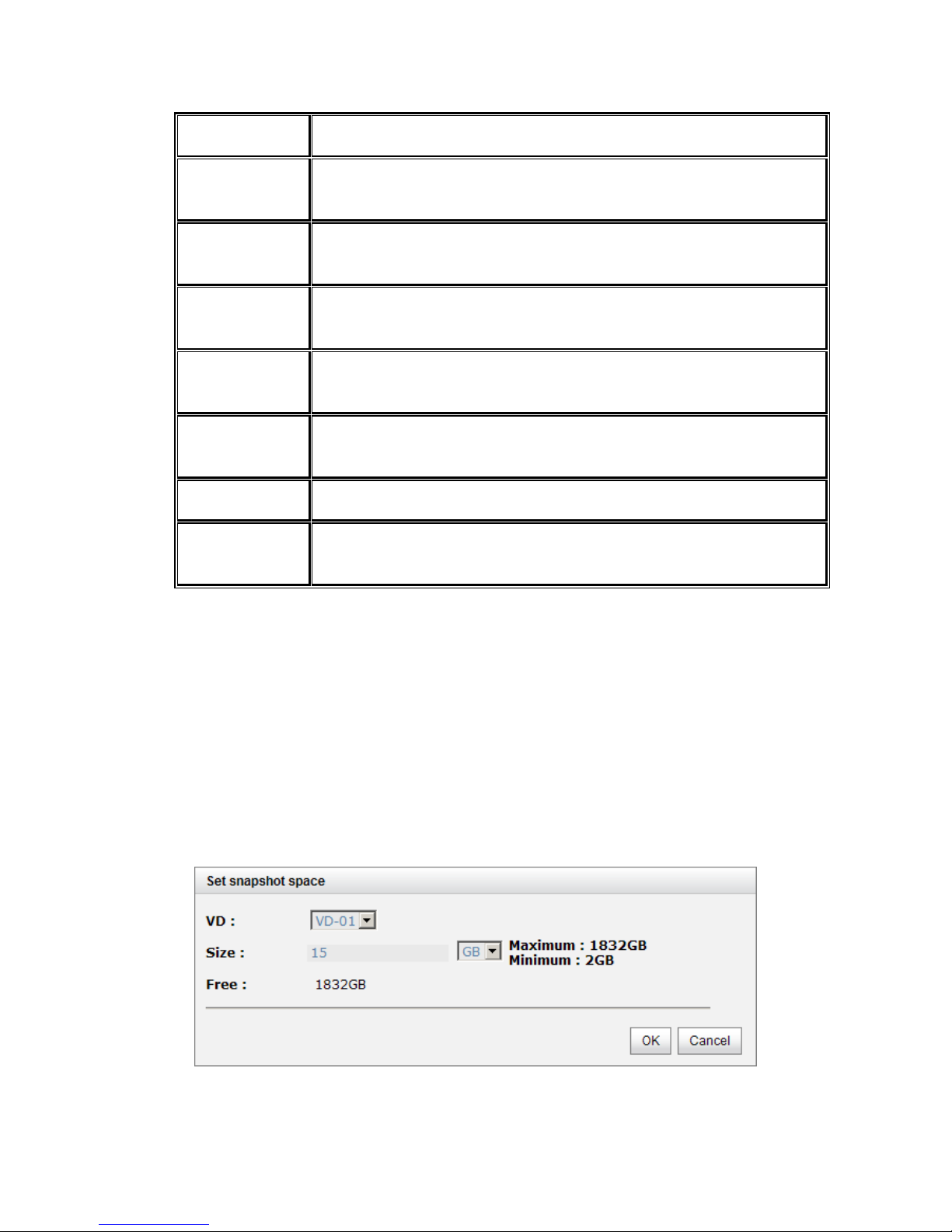

Figure 4.4.4.1

Page 66

Figure 4.4.4.2

(Figure 4.4.4.2: “ VD-01” snapshot space has been created, snapshot s pace is 15GB, and used 1GB for saving snapshot index.)

Step 3: Take a snapshot. In “/ Volume configuration / Snapshot”, click “Take snapshot”. It will link to next page. Enter a snapshot name.

Figure 4.4.4.3

Step 4: Expose the snapshot VD. Check to the gray button next to the Snapshot VD

number; click “Expose”. Enter a capacity for snapshot VD. If size is zero, the exposed snapshot VD will be read only. Otherwise, the exposed snapshot VD can be read / written, and the size will be the maximum capacity for writing.

Figure 4.4.4.4

Figure 4.4.4.5

(Figure 4.4.4.5: This is the snapshot list of “VD-01”. There are two snapshots. Snapshot VD “SnapVD-01” is exposed as read-only, “SnapVD-02” is exposed as read-write.)

Page 67

Step 5: Attach a LUN to a snapshot VD. Please refer to the next section for attaching a LUN.

Step 6: Done. Snapshot VD can be used.

• Snapshot column description:

The button includes the functions which can be executed. Name Snapshot VD name.

Used (GB) (MB)

The amount of snapshot space that has been used. The unit can

be displayed in GB or MB.

Status The status of snapshot:

 “N/A”  The snapshot is normal.  “Replicated”  The snapshot is for clone or replication

usage.

 “Abort”  The snapshot is over space and abort.

Health The health of snapshot:

 “Good”  The snapshot is good.  “Failed”  The snapshot fails.

Exposure Snapshot VD is exposed or not. Right The right of snapshot:

 “Read-write”  The snapshot VD can be read / write.  “Read-only”  The snapshot VD is read only.

#LUN Number of LUN(s) that snapshot VD is attached. Created time Snapshot VD created time.

• Snapshot operation description:

Expose/ Unexpose

Expose / unexpose the snapshot VD.

Rollback Rollback the snapshot VD.

Page 68

Delete Delete the snapshot VD. Attach Attach a LUN. Detach Detach a LUN. List LUN List atta ched LUN(s).

4.4.5 Logical unit

“Logical unit” can view, create, and modify the status of attached logical unit number(s)

of each VD. User can attach LUN by clicking the “Attach”. “Host” must enter with an iSCSI node

name for access control, or fill-in wildcard “*”, which means every host can access the volume. Choose LUN number and perm issio n, and then click “OK”.

Figure 4.4.5.1

Figure 4.4.5.2

(Figure 4.4.5.2: r0 is attached to LUN 0 and every host can access. r1 is attached to LUN 1.)

Page 69

• LUN operation description:

Attach Attach a logical uni t number to a virtual disk. Detach Detach a logical unit number from a vi r tual disk.

The matching rules of access control are followed from the LUN’ created time; the earlier created LUN is prior to the matching rules. For example: there are 2 LUN rules for the same VD, one is “*”, LUN 0; and the other is “iqn.host1”, LUN 1. The host “iqn.host2” can login successfully because it matches the rule 1.

Wildcard “*” and “?” are allowed in this field. “*” can replace any word. “?” can replace only one character. For example:

“iqn.host?”  “iqn.host1” and “iqn.host2” are accepted. “iqn.host*”  “iqn.host1” and “iqn.host12345” are accepted.

This field can not accept comma, so “iqn.host1, iqn.host2” stands a long string, not 2 iqns.

4.4.6 Example

The following is an example to create volumes. This example is to create two VDs and set a global spare disk.

• Example

This example is to create two VDs in one RG, each VD shares the cache volume. The cache volume is created after system boots up automatically. Then set a global spare disk. Last, delete all of them.

Step 1: Create a RG (RAID group). To create a RAID group, please follow the procedures:

Page 70

Figure 4.4.6.1

1. Select “/ Volume configuration / RAID group”.

2. Click “Create“.

3. Input a RG Name, choose a RAID level from the list, click “Select PD“ to choose the RAID physical disks, then click “OK“.

4. Check the setting. Click “OK“ if all setups are correct.

5. Done. A RG has been created.

Figure 4.4.6.2

(Figure 4.4.6.2: Creating a RAID 5 with 3 physical disks, named “RG-R5”.)

Step 2: Create VD (Virtual Disk).

To create a data user volume, please follow the procedures.

Page 71

Figure 4.4.6.3

1. Select “/ Volume configuration / Virtual disk”.

2. Click “Create”.

3. Input a VD name, choose a RG Name and enter a size for this VD; decide the stripe height, block size, read / writ e m ode, bg rate, and set priority, finally click “OK”.

4. Done. A VD has been created.

5. Follow the above steps to create another VD.

Figure 4.4.6.4

(Figure 4.4.6.4: Cr eating VDs named “VD -R5-1” and “VD-R5-2” from RAID gr oup “RG-R5”, the size of “VD-R5-1” is 50GB, and the size of “VD-R5-2” is 64GB. There is no LUN attached.)

Step 3: Attach a LUN to a VD.

There are 2 methods to attach a LUN to a VD.

1. In “/ Volume configuration / Virtual d isk”, check the gray button next to the VD number; click “Attach LUN”.

2. In “/ Volume configuration / Logical unit”, click “Attach”.

The procedures ar e as follows:

Page 72

Figure 4.4.6.5

1. Select a VD.

2. Input “Host” IQN, which is an iSCSI node name for access control, or fill-in wildcard “*”, which means every host can access to this volume. Choose LUN and permission, and then click “OK”.

3. Done.

Figure 4.4.6.6

Tips

The matching rules of access control are from the LUNs’ created time, the

earlier created LUN is prior to the matchi ng rules.

Step 4: Set a global spare disk. To set a global spare disk, please follow the procedures.

1. Select “/ Volume configuration / Physical disk”.

2. Check the gray button next to the PD slot; click “Set global space”.

3. “Global spare” status is shown in “Usage” column.

Page 73

Figure 4.4.6.7

(Figure 4.4.6.7: Slot 4 is set as a global spare disk.)

Step 5: Done.

Delete VDs, RG, please follow the below steps. Step 6: Detach a LUN from the VD. In “/ Volume configuration / Logical unit”,

Figure 4.4.6.8

1. Check the gray button next to the LUN; click “Detach”. There will pop up a confirmation page.

2. Choose “OK”.

3. Done.

Step 7: Delete a VD (Virtual Disk). To delete the virtual disk, please follow the procedures:

1. Select “/ Volume configuration / Virtual disk”.

2. Check the gray button next to the VD number; click “Delete”. There will pop up a confirmation page, click “OK”.

3. Done. Then, the VD is deleted.

Tips When deleting VD directly, the attached LUN(s) of to this VD will be

detached together.

Step 8: Delete a RG (RAID group).

Page 74

To delete a RAID group, please follow the procedures:

1. Select “/ Volume configuration / RAID group”.

2. Select a RG which all its VD are deleted, otherwise the this RG cannot be deleted.

3. Check the gray button next to the RG number click “Delete”.

4. There will pop up a confirmation page, click “OK”.

5. Done. The RG has been deleted.

Tips The action of deleting one RG will succeed only when all of the related

VD(s) are deleted i n this RG. Otherwise, user cannot delete this R G.

Step 9: Free a global spare disk. To free a global spare disk, please follow the procedures.

1. Select “/ Volume configuration / Physical disk”.

2. Check the gray button next to the PD slot; click “Set Free disk”.

Step 10: Done, all volumes have been deleted.

4.5 Enclosure management

“Enclosure management” allows managing enclosure information including “Hardware monitor”, “UPS”, “SES”, and “S.M.A.R.T.”. For the enclosure

management, there are many sensors for different purposes, such as temperature sensors, voltage sensors, hard disk status, fan sensors, power sensors, and LED status. Due to the different hardware characteristics among these sensors, they have different polling intervals. Below are the details of t he polling time intervals:

1. Temperature sensors: 1 minute.

2. Voltage sensors: 1 minute.

3. Hard disk sensors: 10 minutes.

4. Fan sensors: 10 seconds . When there are 3 errors consecutively, system sends ERROR event log.

5. Power sensors: 10 seconds, when there are 3 errors consecutively, system sends ERROR event log.

6. LED status: 10 seconds.

Figure 4.5.1

Page 75

4.5.1 Hardware monitor

“Hardware monitor” can view the information of current voltages and temperatures.

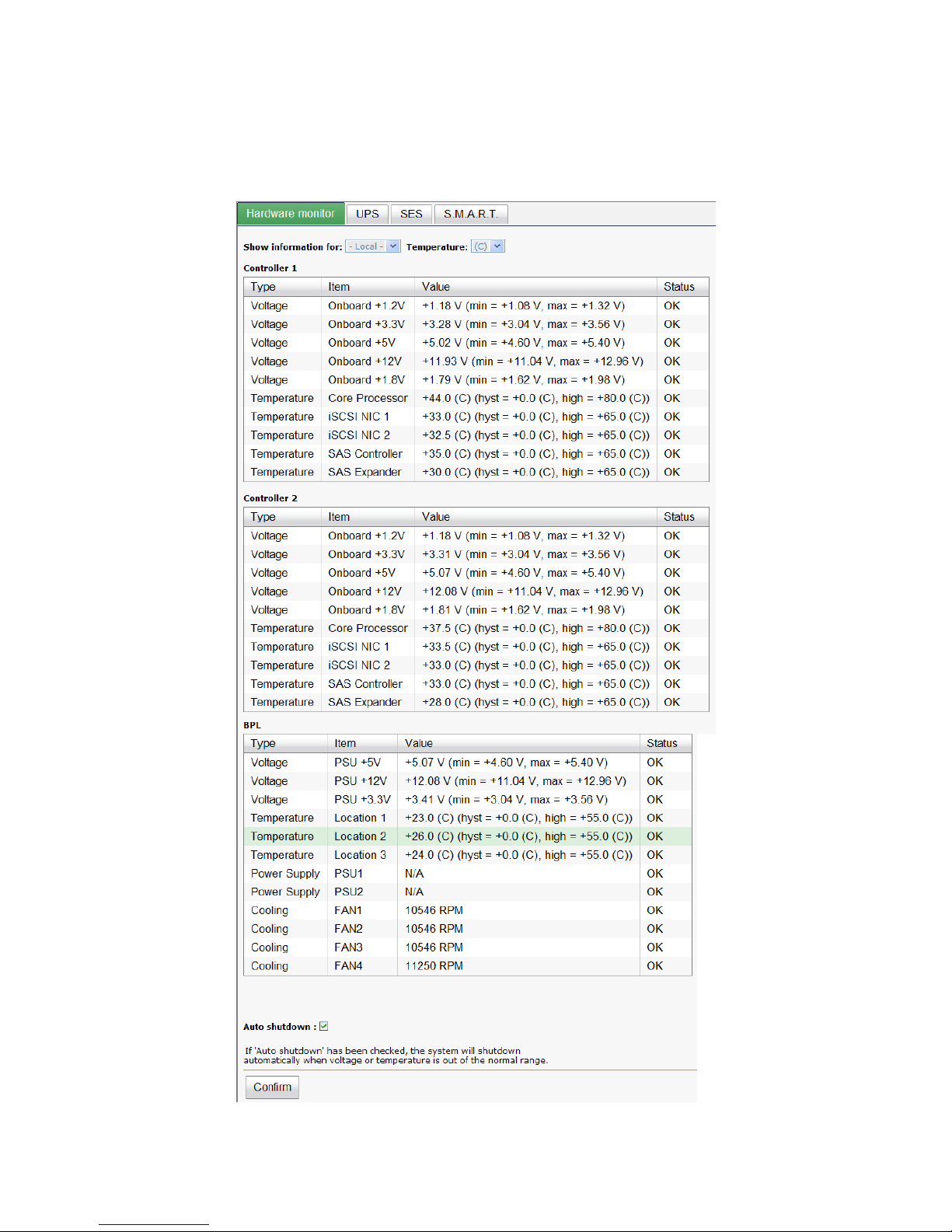

Figure 4.5.1.1

Page 76

If “Auto shutdown” is checked, the system will shutdown automatically when voltage or temperature is out of the normal range. For better data protection, please check “Auto Shutdown”.

For better protection and avoiding single short period of high temperature triggering auto shutdown, the system use multiple condition judgments to trigger auto shutdown, below are the details of when the Auto shutdown w i ll be triggered.

1. There are several sensors placed on systems for temperature checking. System will check each sensor for every 30 seconds. When one of these sensor is over high temperature threshold for continuous 3 minutes, auto shutdown will be triggered immediately.

2. The core processor temperature limit is 80℃. The iSCSI NI C temperature lim it is 65℃. The SAS expandor and SAS controller tem perature lim it is 65℃.

3. If the high temperature situation doesn’t last for 3 minutes, system will not trigger auto shutdown.

4.5.2 UPS

“UPS” can set up UPS (Uninterruptible Power Supply).

Figure 4.5.2.1

(Figure 4.5.2.1: Without UPS.)

Currently, the system only supports and communicates with smart-UPS of APC (American Power Conversion Corp.) UPS. Please review the details from the website:

http://www.apc.com/.

First, connect the system and APC UPS via RS-232 for communication. Then set up the shutdown values (shutdown battery level %) when power is failed. UPS in other companies can work well, but they have no such c ommunication feature with the system.

Page 77

Figure 4.5.2.2

(Figure 4.5.2.2: With Smart-UPS.)

• UPS column description:

UPS Type

Select UPS Type. Choose Smart-

UPS for APC, None for other

vendors or no UPS.

Shutdown Battery Level (%)

When below the setting level, system

will shutdown. Setting

level to “0” will disable UPS.

Shutdown Delay (s)

If power failure occurs, and system power can not recover, the

system will shutdown. Setting delay to “0”

will disable the

function.

Shutdown UPS

Select ON, when power is gone , U PS will shutdown by itself after the system shutdown successfully. After power comes back, UPS will start working and notify system to boot up. OFF will not.

Status The status of UPS:

 “Detecting…”  “Running”  “Unable to detect UPS”  “Communication lost”  “UPS reboot in progress”  “UPS shutdown in progress”  “Batteries failed. Please change them NOW!”

Page 78

Battery Level (%)

Current power percentage of battery level.

4.5.3 SES

SES represents SCSI Enclosure Services, one of the enclosure management standards. “SES configuration” can enable or disable the management of SES.

Figure 4.5.3.1

(Figure 4.5.1.1: Enable SES in LUN 0, and can be accessed from every host)

The SES client software is available at the following web site: SANtools: http://www.santools.com/

4.5.4 Hard drive S.M.A.R.T.

S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) is a diagnostic tool for

hard drives to deliver warning of drive failures in advance. S.M.A.R.T. provides users chances to take actions before possible drive failure.

S.M.A.R.T. measures many attributes of the hard drive all the time and inspects the properties of hard drives which are close to be out of tolerance. The advanced notice of possible hard drive failure can allow users to back up hard drive or replace the hard drive. This is much better than hard drive crash when it is writing data or rebuilding a failed hard drive.

“S.M.A.R.T.” can display S.M.A.R.T. information of hard drives. The number is the current value; the number in parenthesis is the threshold value. The threshold values from different hard drive vendors are different; please refer to hard drive vendors’ specification for details.

S.M.A.R.T. only supports SATA drives. SAS drives do not have this function now. It will show N/A in the web page for SAS drives.

Page 79

Figure 4.5.4.1 (SAS drives & SATA drives)

4.6 System maintenance

“Maintenance” allows the operations of system functions which include “System information” to show the system version and details, “Event log” to view system event logs to record critical events, “Upgrade” to the latest firmware, “Firmware synchronization” to synchronized firmware versions on both controllers, “Reset to factory default” to reset all controller configuration values to factory settings, “Import and export” to import and export all controller configuration to a file, and “Reboot and shutdown” to reboot or shutdown the system.

Figure 4.6.1

4.6.1 System information

“System information” can display system information, including CPU type, installed

system memory, firmware version, serial numbers of dual controllers, backplane ID, and system status.

Figure 4.6.1.1

Page 80

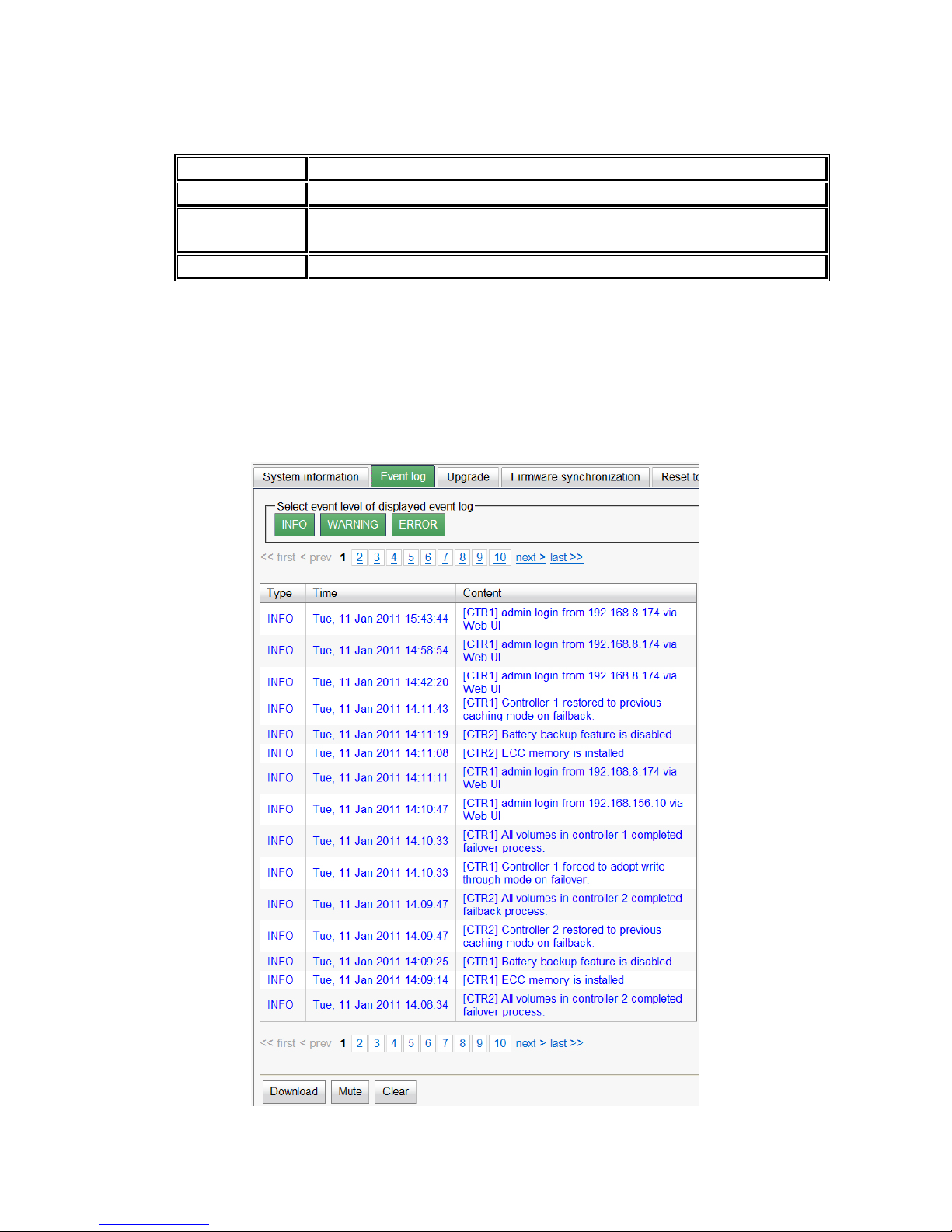

• Status description:

Normal Dual controllers are in normal stage.

Degraded

One controller fails or has been plugged out.

Lockdown

The firmware of two controllers is different or the size of

memory of two controllers is different.

Single Single controller mode.

4.6.2 Event log

“Event log” can view the event messages. Check the checkbox of INFO, WARNING, and

ERROR to choose the level of event log display. Click “Download” button to save the whole event log as a text file with file name “log-ModelName-SerialNumber-Date-Time.txt”. Click “Clear” button to clear all event logs. Click “Mute” button to stop alarm if sy stem alerts.

Figure 4.6.2.1

Page 81

The event log is displayed in reverse order which means the latest event log is on the first / top page. The event logs are actually saved in the first four hard drives; each hard drive has one copy of event log. For one system, there are four copies of even t logs to make sure users can check event log any t i m e w hen there a r e failed disks.

Page 82

4.6.3 Upgrade

“Upgrade” can upgrade controller firmware, JBOD firmware, change operation mode, and activate Replication license.

Figure 4.6.3.1

Please prepare new controller firmware file named “xxxx.bin” in local hard drive, then click “Browse” to select the file. Click “Confirm”, it will pop up a warning message, click

“OK” to start to upgrade firmware.

Figure 4.6.3.2

When upgrading, there is a progress bar running. After finished upgrading, the system must reboot manually to make the new firmware took effect.

To upgrade JBOD firmware, the steps are the same as controller firmware but choosing number of JBOD first.

Controller mode can be modified to dual or single here. If the IP SAN storage has one controller only, switch this mode to “Single”. This mode indicates singel upgradable. Enter the MAC address displayed in “\ System configuration \ Network setting” such as 001378xxxxxx (case-insensitive), and then click “Confirm”.

At last, it can activate Replication function if there is a license here. Select the license file, and then click “Confirm” .

4.6.4 Firmware synchronization

“Firmware synchronization” can synchronize the firmware version when controller 1

and controller 2’s firmware are different. It will upgrade the firmware of slave controller to

Page 83

master ones no matter what the firmware version of sla ve c ontroller is newer or older than master. In normal status, the firmware versions in controller 1 and 2 are the same as below figure.

Figure 4.6.4.1

4.6.5 Reset to factory default

“Reset to facto ry default” allows user to reset IP SAN storage to factory default setting.

Figure 4.6.5.1

Reset to default value, the password is: 123456, a nd IP address to default 192.168.0.32.

4.6.6 Import and expo r t

“Import and expo rt” allows user to save system configuration values: export, and apply

all configuration: import. For the volume configuration setting, the values are available in export and not available in import which can avoid confliction / date-deleting between two IP SAN storages which mean if one system already has valuable volumes in the disks and user may forget and overwrite it. Use import could return to original configuration. If the volume setting was also imported, user’s current volumes will be overwritten with different configuration.

Figure 4.6.6.1

Page 84

1. Import: Import all system configurations exclud ing volume configuration.

2. Export: Export all configurations to a file.

Caution “Import” will im

port all system configurations excluding volume

configuration; the current configurations will be replaced.

4.6.7 Reboot and shutdown

“Reboot and shutdown” can “Reboot” and “Shutdown” the system. Before power

off, it’s better to execute “Shutdown” to flush the data from cache to physical disks. The step is necessary for data protection.

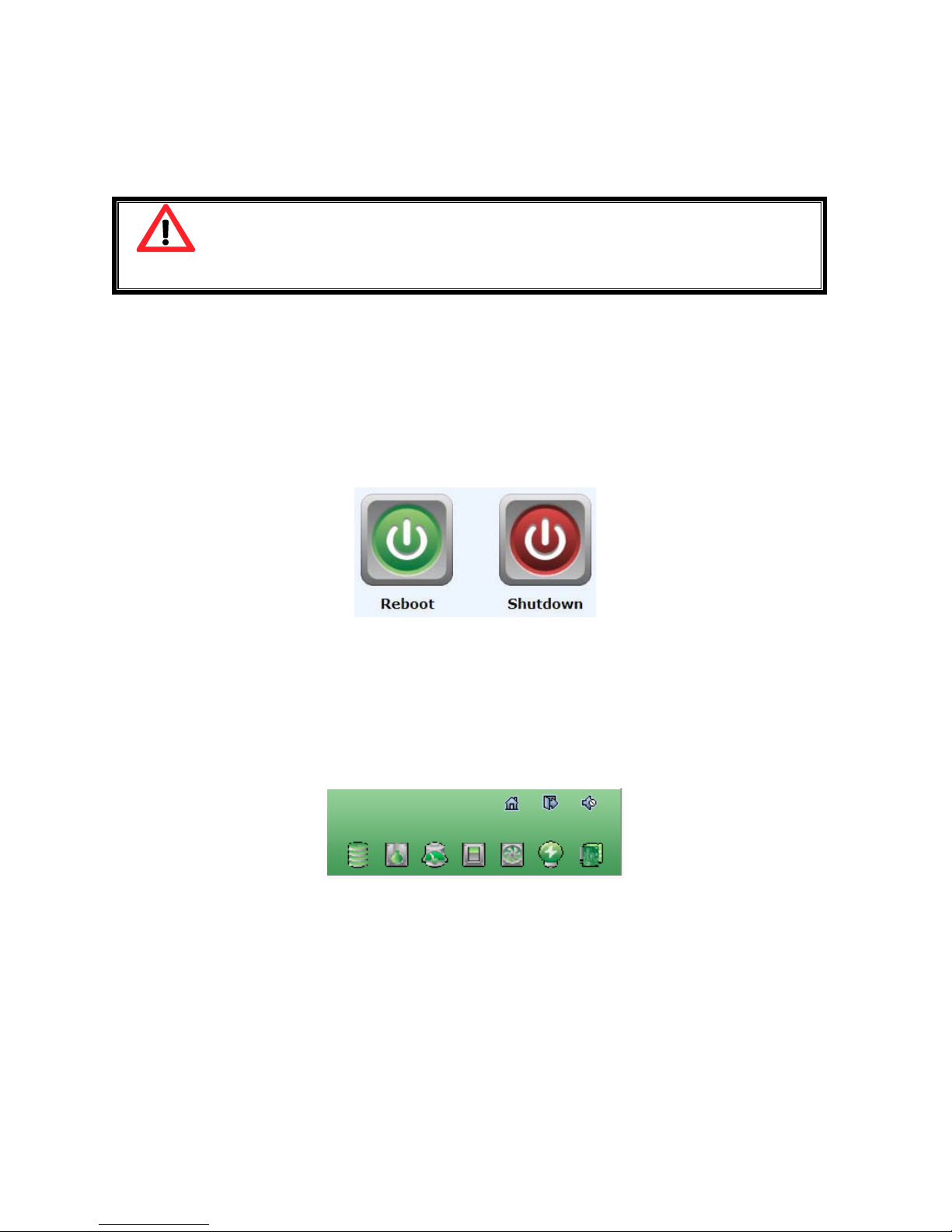

Figure 4.6.7.1

4.7 Home/Logout/Mute

In the right-upper corner of web UI, there are 3 individual icons, “Home”, “Logout”, and “Mute”.

Figure 4.7.1

4.7.1 Home

Click “Home” to return to home page.

4.7.2 Logout

Page 85

For security reason, please use “Logout” to exit the web UI. To re-login the system, please enter username and password again.

4.7.3 Mute

Click “Mute” to stop the alarm when error occurs.

Page 86

Chapter 5 Advanced operations

5.1 Volume rebuild

If one physical disk of the RG which is set as protected RAID level (e.g.: RAID 3, RAID 5, or RAID 6) is FAILED or has been unplugged / removed, then the status of RG is changed to degraded mode, the system will search/detect spare disk to rebuild the degraded RG to a complete one. It will detect dedicated spare dis k as rebuild disk first, the n global spare disk.

D-LINK IP SAN storages support Auto-Rebuild. Take RAID 6 for example:

1. When there is no global spare disk or dedicated s pare disk i n the system, The RG will be in degraded mode and wait until (1 ) ther e i s one disk assi gned as spare dis k, or (2) the failed disk is removed and replaced with new clean disk, then the Auto-Rebuild starts. The new disk will be a spare disk to the original RG automatically. If the new added disk is not clean (with other RG information), it would be marked as RS (reserved) and the system will not start "auto-rebuild". If this disk is not belonging to any existing RG, it would be FR (Free) disk and the system will start Auto-Rebuild. If user only removes the failed disk and plugs the same failed disk in the same slot again, the auto-rebuild will start running. But rebuilding in the same failed disk may impact customer data if the status of disk is unstable. D-LINK suggests all customers not to rebuild in the failed disk for better data protection.

2. When there is enough global spare disk(s) or dedicated spare disk(s) for the degraded array, system starts Auto-Rebuild immediately. And in RAID 6, if there is another disk failure occurs during rebuilding, system will start the above Auto-Rebuild process as well. Auto-Rebuild feature only works at that the status of RG is "Online". It will not work at “Offline”. Thus, it will not conflict with the “Online roaming” feature.

3. In degr aded mode, the status of RG is “Degraded”. When rebuilding, the status of RG / VD will be “Rebuild”, the column “R%” in VD will display the ratio in percentage. After complete rebuilding, the status will become “Online”. RG will become completely one.

Tips

“Set dedicated spare”

is not available if there is no RG or only RG of

RAID 0, JBOD, because user can not set dedicated spare disk to RAID 0 and

JBOD.

Sometimes, rebuild is called recover; they are the same meaning. The following table is the relationship between RAID levels and rebuild.

Page 87

• Rebuild operation description:

RAID 0

Disk striping. No protection for data. RG fails if any hard drive

fails or unplugs.

RAID 1

Disk mirroring over 2 disks. RAID 1 allows one hard drive fails or

unplu

gging. Need one new hard drive to insert to the system

and rebuild to be completed.

N-way mirror

Extension to RAID 1 level. It has N copies of the disk. N-way mirror allows N-1 hard drives failure or unplugging.

RAID 3 Striping with parity on the dedica

ted disk. RAID 3 allows one

hard drive failure or unplugging.

RAID 5

Striping with interspersed parity over the member disks. RAID 5

allows one hard drive failure or unplugging.

RAID 6 2-

dimensional parity protection over the member disks. RAID 6

allows

two hard drives failure or unplugging. If it needs to

rebuild two hard drives at the same time, it will rebuild the first

one, then the other in sequence.

RAID 0+1

Mirroring of RAID 0 volumes. RAID 0+1 allows two hard drive

failures or unplugging, but at the same array.

RAID 10

Striping over the member of RAID 1 volumes. RAID 10 allows

two hard drive failure or unplugging, but in different arrays.

RAID 30

Striping over the member of RAID 3 volumes. RAID 30 allows

two hard drive failure or unplugging, but in different arrays.

RAID 50

Striping over the member of RAID 5 volumes. RAID 50 allows

two hard drive failures or unplugg ing, but in different arrays.

RAID 60

Striping over the member of RAID 6 volumes. RAID 60 allows

four hard drive failures or unplug

ging, every two in different

arrays.

JBOD The abbreviation of “Just a Bunch Of Disks”

. No data

protection. RG fails if any hard dr ive failures or unplugs.

Page 88

5.2 RG migration

To migrate the RAID level, please follow below procedures.

1. Select “/ Volume configuration / RAID group”.

2. Check the gray button next to the RG number; click “Migrate”.

3. Change the RAID level by clicking the down arrow to “RAID 5”. There will be a pupup which indicates that HDD is not enough to support the new setting of RAID level, click “Select PD” to increase hard drives, then click “OK“ to go back t o setup page. When doing migration to lower RAID level, such as the original RAID level is RAID 6 and user wants to migrate to RAID 0, system will evaluate whether this operation is safe or not, and appear a warning message of "Sure to migrate to a lower

protection array?”.

Figure 5.2.2

4. Double check the setting of RAID level and RAID PD slot. If there is no problem, click “OK“.

5. Finally a confirmation page shows the detail of RAID information. If there is no problem, click “OK” to start migration. System also pops up a message of “Warning: power lost during migration may cause damage of data!” to give user warning. When the power is abnormally off during the migration, the data is in high risk.

6. Migration starts and it can be seen from the “status” of a RG with “Migrating”. In “/ Volume configuration / Virtual disk”, it displays a “Migrating” in “Status” and complete percentage of migratio n i n “R%”.

Figure 5.2.3

(Figure 5.2.2: A RAID 0 with 3 physical disks migrates to RAID 5 with 4 physical disks.)

Figure 5.2.4

Page 89

5.3 VD extension

To extend VD size, please follow the proc edures.

1. Select “/ Volume configuration / Virtual disk”.

2. Check the gray button next to the VD number; click “Extend”.

3. Change the size. The size must be larger than the original, and then click “OK” to start extension.

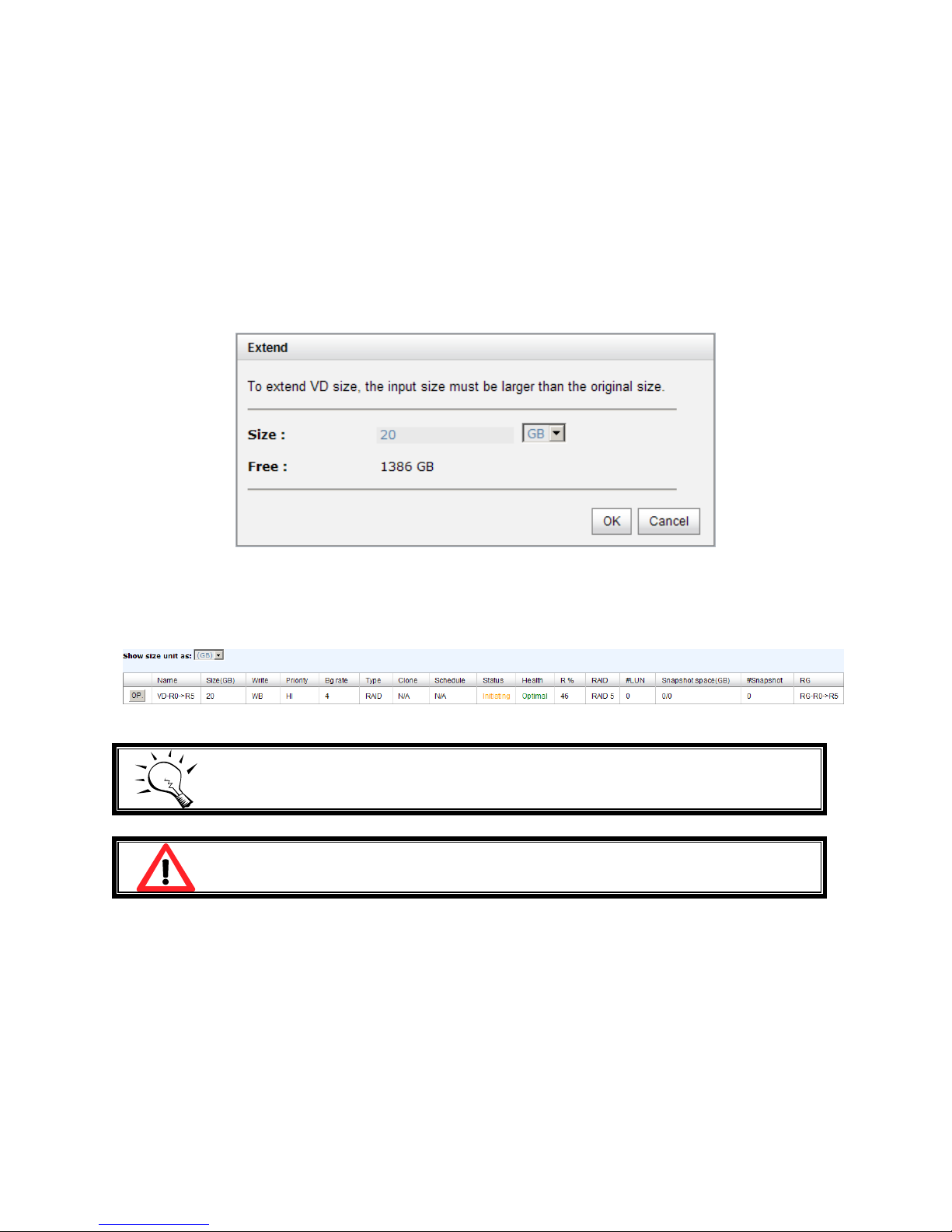

Figure 5.3.1

4. Extension starts. If VD needs initialization, it will display an “Initiating” in “Status” and complete percentage of initialization in “R%”.

Figure 5.3.2

Tips

The size of VD extension must be larger than original.

Caution

VD Extension cannot be executed during rebuilding or migration.

5.4 Snapshot

Snapshot-on-the-box captures the instant state of data in the target volume in a logical

sense. The underlying logic is Copy-on-Write -- moving out the data which would be written to certain location where a write action occurs since the time of data capture. The certain location, named as “Snap VD”, is essentially a new VD which can be attached to a LUN provisioned to a host as a disk like other ordinary VDs in the system. Rollback restores the data back to the state of any time which was previously captured in case for

Page 90

any unfortunate reason it might be (e.g. virus attack, data corruption, human errors and so on). Snap VD is allocated within the same RG in which the snapshot is taken, we suggest to reserve 20% of RG size or more for snapshot space. Please refer to the following figure for snapshot concept.

Figure 5.4.1

5.4.1 Create snapshot volume

To take a snapshot of the data, please follow the procedures.

1. Select “/ Volume configuration / Virtual disk”.

2. Check the gray button next to the VD number; click “Set snapshot space”.

3. Set up the size for snapshot. The minimum size is suggested to be 20% of VD size, and then click “OK”. It will go back to the VD page and the size will show in snapshot column. It may not be the same as the number entered because some size is reserved for snapshot internal usage. There will be 2 numbers in “Snapshot” column. These numbers mean “Used snapshot space” and “Total snapshot space”.

4. There are two methods to take snapshot. In “/ Volume configuration / Virtual

disk”, check the gray button next to the VD number; click “Take snapshot”. Or in “/ Volume configuration / Snapshot”, click “Take snapshot”.

5. Enter a snapshot name, and then click “OK”. A snapshot VD is created.

6. Select “/ Volume configuration / Snapshot” to display all snapshot VDs taken from the VD.

Page 91

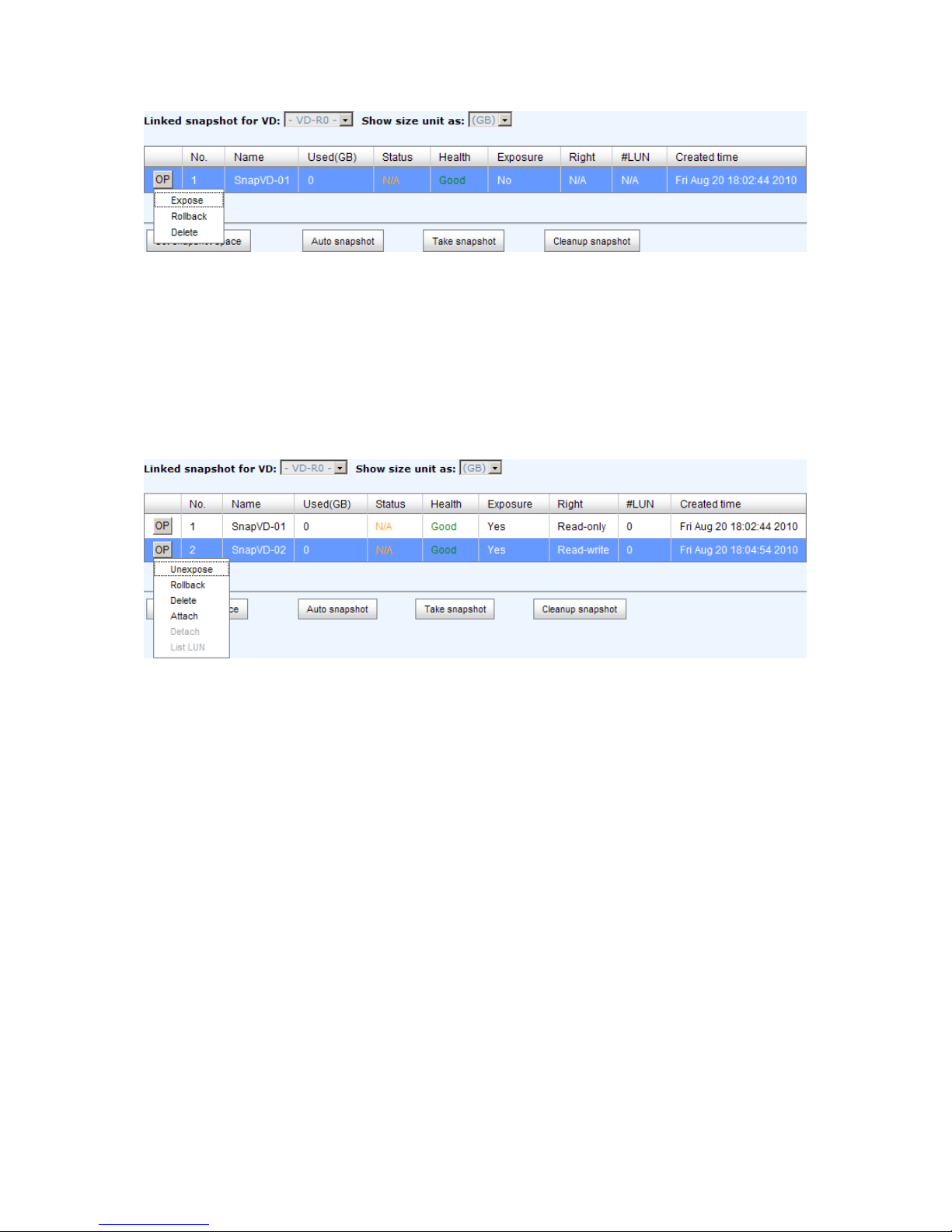

Figure 5.4.1.1

7. Check the gray button next to the Snapshot VD number; click “Expose”. Enter a capacity for snapshot VD. If size is zero, the exposed snapshot VD is read only. Otherwise, the exposed snapshot VD can be read / written, and the size is the maximum capacity for writing.

8. Attac h a LUN to the s napshot VD. Please refer to the previous chapter for attaching a LUN.

9. Done. It can be used as a disk.

Figure 5.4.1.2

(Figure 5.4.1.2: This is the snapshot list of “VD-01”. There are two snapshots. Snapshot VD “SnapVD-01” is exposed as read-only, “SnapVD-02” is exposed as read-write.)

1. There are two methods to clean all snapshots. In “/ Volume configuration / Virtual disk”, check the gray button next to the VD number; click “Cleanup snapshot”. Or in “/ Volume configuration / Snapshot”, click “Cleanup”.

2. “Cleanup snapshot” will delete all snapshots of the VD and release sna pshot space.

5.4.2 Auto snapshot

The snapshot copies can be taken manually or by schedule such as hourly or daily. Please follow the procedures.

1. There are two methods to set auto snapshot. In “/ Volume configuration / Virtual disk”, check the gray button next to the VD number; click “Auto snapshot ”. Or in “/ Volume configuration / Snapshot”, click “Auto snapshot”.

2. The auto snapshot can be set monthly, weekly, daily, or hourly.

3. Done. It will take snapshots automatically.

Page 92

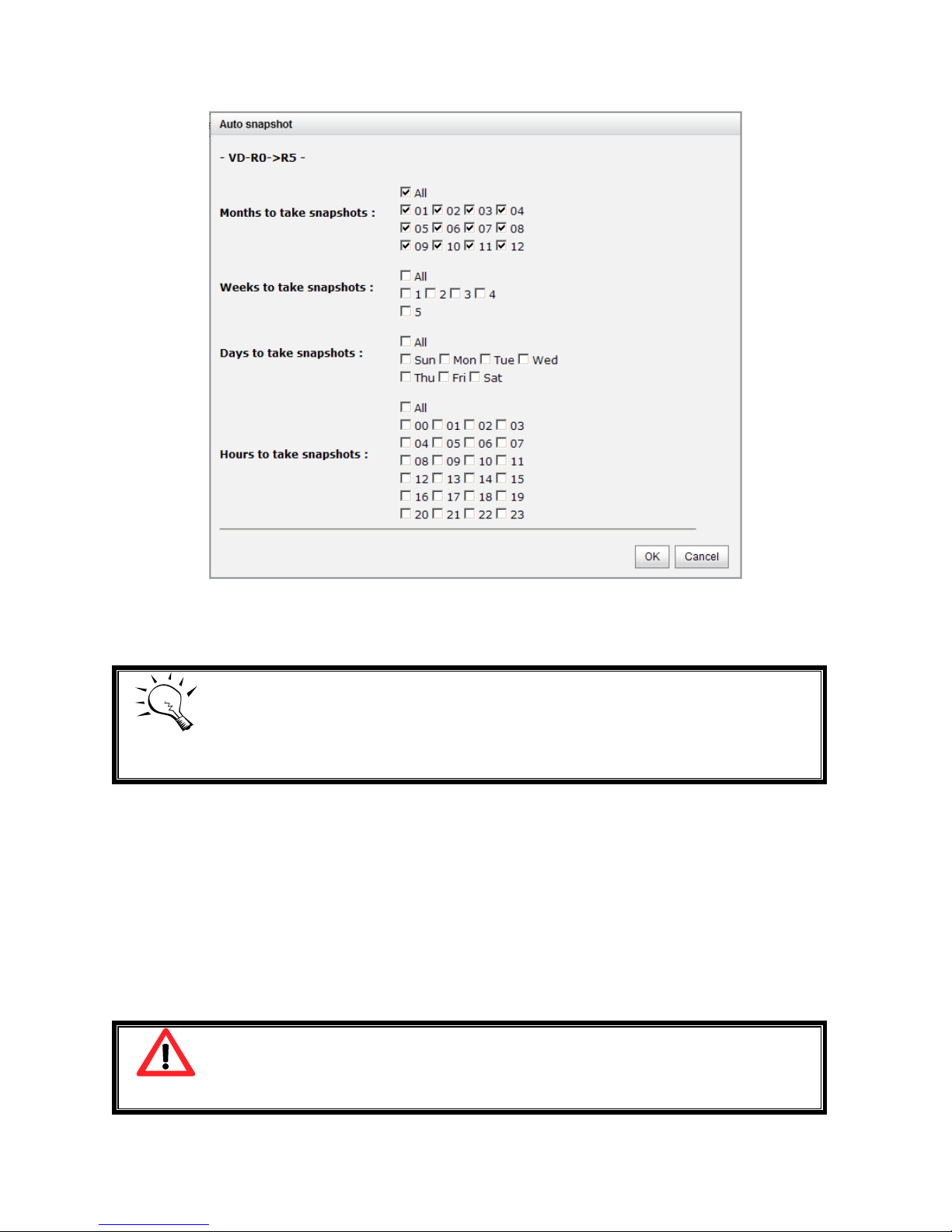

Figure 5.4.2.1

(Figure 5.4.2.1: It will take snapshots every month, and keep the last 32 snapshot copies.)

Tips

Daily snapshot will be taken at every 00:00. Weekly snapshot will be taken

every Sunday 00:00. Monthly snapshot

will be taken every first day of

month 00:00.

5.4.3 Rollback

The data in snapshot VD can rollback to original VD. Please follow the procedures.

1. Select “/ Volume configuration / Snapshot”.

2. Check the gray button next to the Snap VD number which user wants to rollback the data; click “Rollback”.

3. Done, the data in snapshot VD is rollback to original VD.

Caution Before executing rollback, it is better to dismount file system for flushing

data from cache to disks in OS first. System sends pop-

up message when

user executes rollback function.

Page 93

5.4.4 Snapshot constraint

D-LINK snapshot function applies Copy-on-Write technique on UDV/VD and provides a

quick and efficient backup methodology. When taking a snapshot, it does not copy any data at first time until a request of data modification comes in. The snapshot copies the original data to snapshot space and then overwrites the original data with new changes. With this technique, snapshot only co pies the changed data instead of copying whole data. It will save a lot of disk space.

• Create a data-consistent snapshot

Before using snapshot, user has to know why sometimes the data corrupts after rollback of snapshot. Please refer to the fo ll owing diagram.

When user modifies the data from host, the data will pass through file system and memory of the host (write caching). Then the host will flush the data from memory to physical disks, no ma tter the disk is loc al disk (IDE or S ATA), DAS (SCSI or S AS), or SAN (fibre or iSCSI). From the viewpoint of storage device, it can not control the behavior of host side. This case maybe happens. If user takes a snapshot, some data is still in memory and not flush to disk. Then the snapshot may have an incomplete image of original data. The problem does not belong to the storage device. To avoid this data inconsistent issue between snapshot and original data, user has to make the operating system flush the data from memory of host (write caching) into disk before taking snapshot.

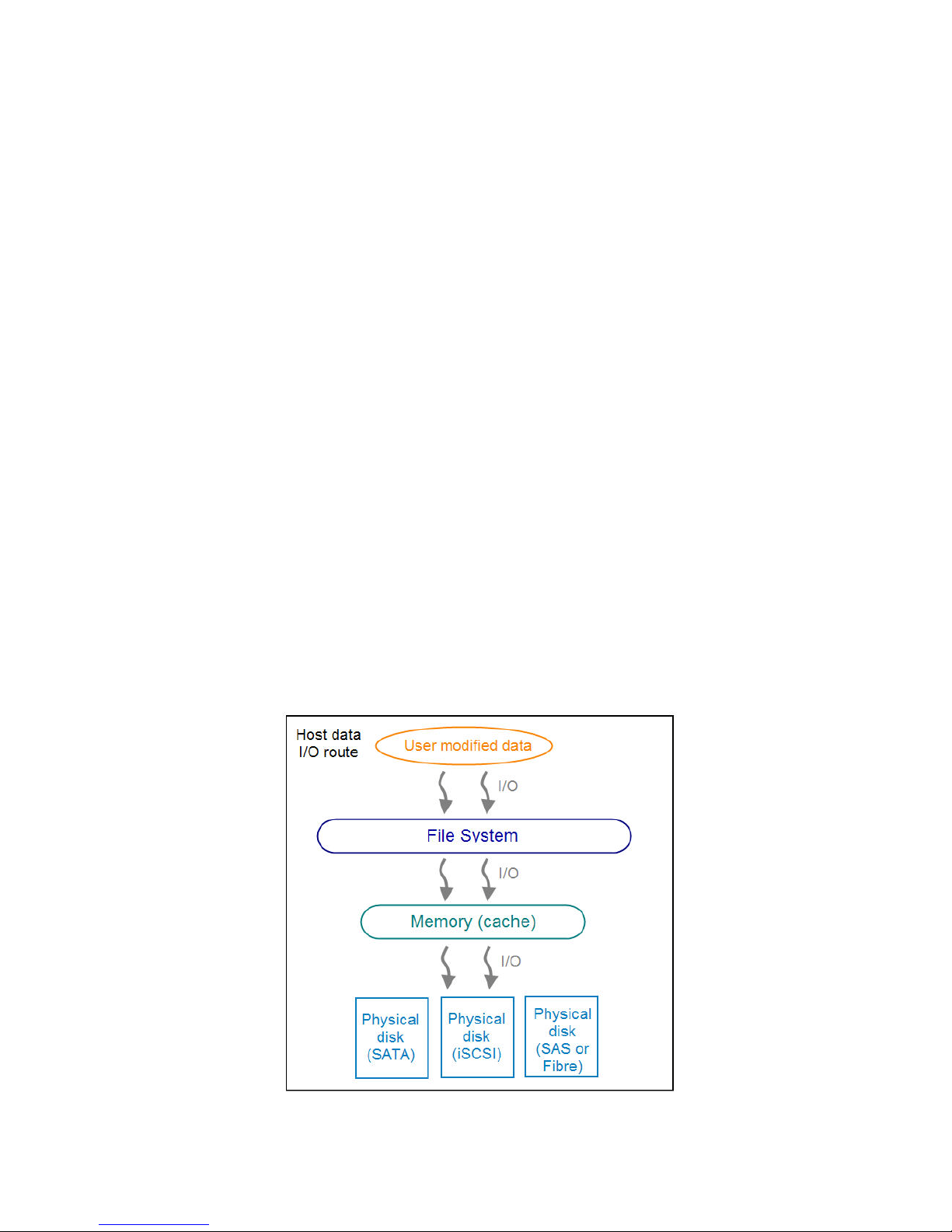

Figure 5.4.4.1

Page 94

On Linux and UNIX platform, a command named sync can be us ed to make the operating system flush data from write caching into disk. For Windows platform, Microsoft also provides a tool – sync, which can do exactly the same thing as the sync command in Linux/UNIX. It will tell the OS to flush the data on demand. For more detail about sync tool, please refer to: http://technet.microsoft.com/en-us/sysinternals/bb897438.aspx

Besides the sync tool, Microsoft dev elops VSS (volume sh adow copy service) to pre vent this issue. VSS is a mechanism for creating consistent point-in-time copies of data known as shadow copies. It is a coordinator between backup software, application (SQL or Exchange…) and storages to make sure the snapshot without the problem of datainconsistent. For more detail about the VSS, please refer to

http://technet.microsoft.com/en-us/library/cc785914.aspx. DSN-6410 with DSN-

640/6410 can support Microsoft VSS.

• What if the snapshot space is over?

Before using snapshot, a snapshot space is needed from RG capacity. After a period of working snapshot, what if the snapshot size over the snapshot space of user defined? There are two different situations:

1. If there are two or more snapshots existed, the system will try to remove the oldest snapshots (to release more space for the latest snapshot) until enough space is released.

2. If there is only one snapshot existed, the snapshot will fail. Because the snapshot space is run out.

For example, there are two or more snapshots existed on a VD and the latest snapshot keeps growing. When it comes to the moment that the snapshot space is run out, the system will try to remove the oldest snapshot to release more space for the latest snapshot usage. As the latest snapshot is growing, the system keeps removing the old snapshots. When it comes that the latest snapshot is the only one in system, there is no more snapshot space which can be relea sed for incoming changes, then snapshot will fail.

• How many snapshots can be created on a VD

There are up to 32 snapshots can be created on a UDV/VD. What if the 33rd snapshot has been taken? There are two different situations:

1. If the snapshot is configured as auto snapshot, the latest one (the 33rd snapshot) will replace the oldest one (the first snapshot) and so on.

2. If the snapshot is taken manually, when taking the 33rd snapshot will fail and a warning message w ill be showed on Web UI.

• Rollback / Delete snapshot

Page 95

When a snapshot has been rollbacked, the other snapshots which are earlier than it will also be removed. But the rest snapshots will be kept after rollback. If a snapshot has been deleted, the other snapshots which are earlier than it will also be deleted. The space occupied by these sn apshots will be released after deleting.

5.5 Disk roaming

Physical disks can be re-sequenced in the same system or move all physical disks in the same RAID group from system-1 to system-2. This is called disk roaming. System can execute disk roaming online. Please follow the procedures.

1. Select “/ Volume configuration / RAID group”.

2. Check the gray button next to the RG number; click “Deactivate”.

3. Move all PDs of the RG to another system.

4. Check the gray button next to the RG number; click “Activate”.

5. Done.

Disk roaming has some constraint s as described in the followings:

1. Check the firmware version of two systems first. It is better that either both systems have the same firmware version or system-2 fir mware version is newer.

2. All physical disks of the RG should be moved from system-1 to system-2 together. The configuration of both RG and VD will be kept but LUN configuration will be cleared in order to avoid conflict with system-2’s original setting.

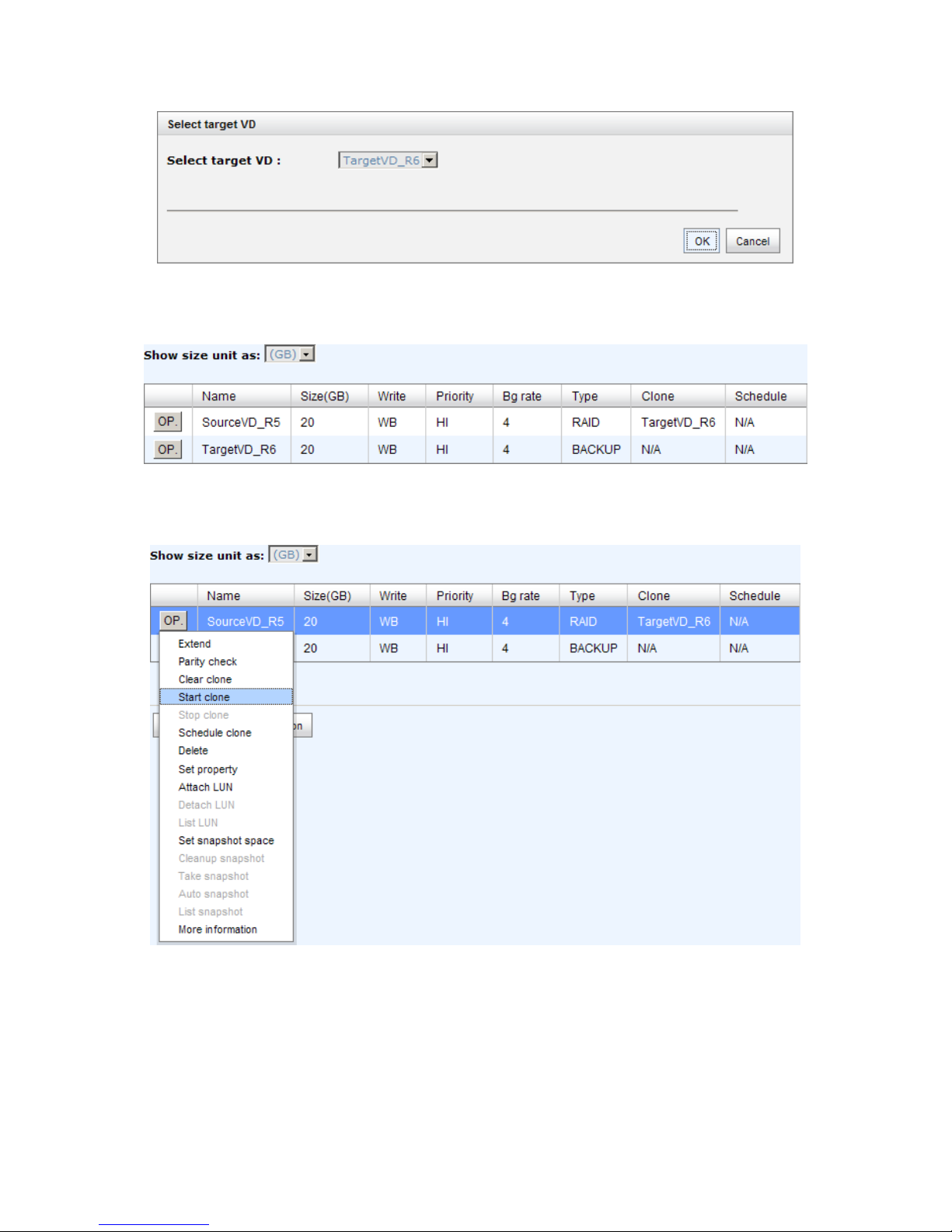

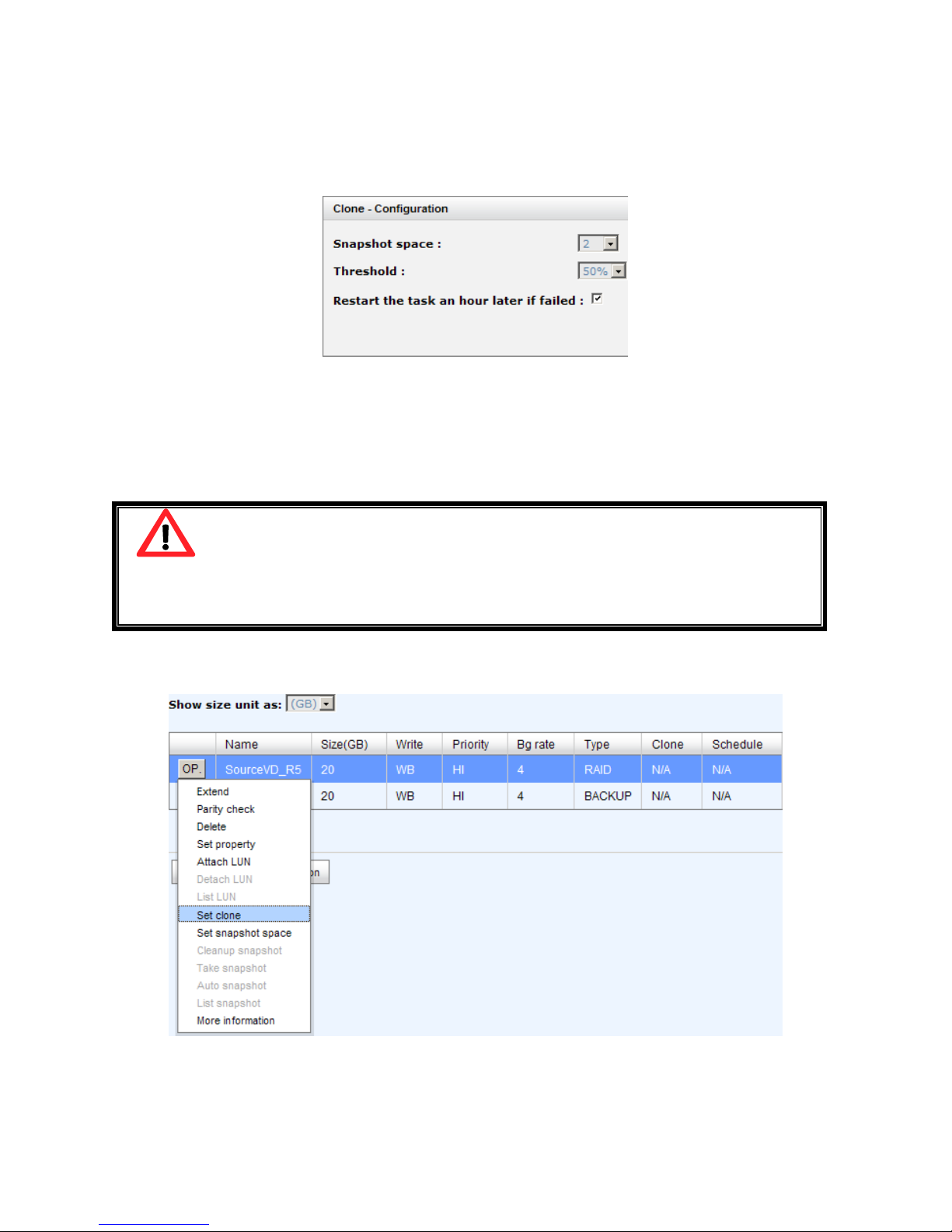

5.6 VD clone

The user can use VD clone function to backup data from source VD to target VD, set up backup schedule, and deploy the clone rules.

The procedures of VD clone are on the following:

1. Copy all data from source VD to tar get VD at the beginning (full copy).

2. Use Snapshot technology to perform the incremental copy afterwards. Please be fully

aware that the incremental copy needs to use snapshot to compare the data difference. Therefore, the enough snapshot space for VD clone is very important.

The following contents will take an example of a RAID 5 virtual disk (SourceVD_Raid5) clone to RAID 6 virtual disk (TargetVD_Raid6).

• Start VD clone

1. Create a RAID group (RG) in advance.

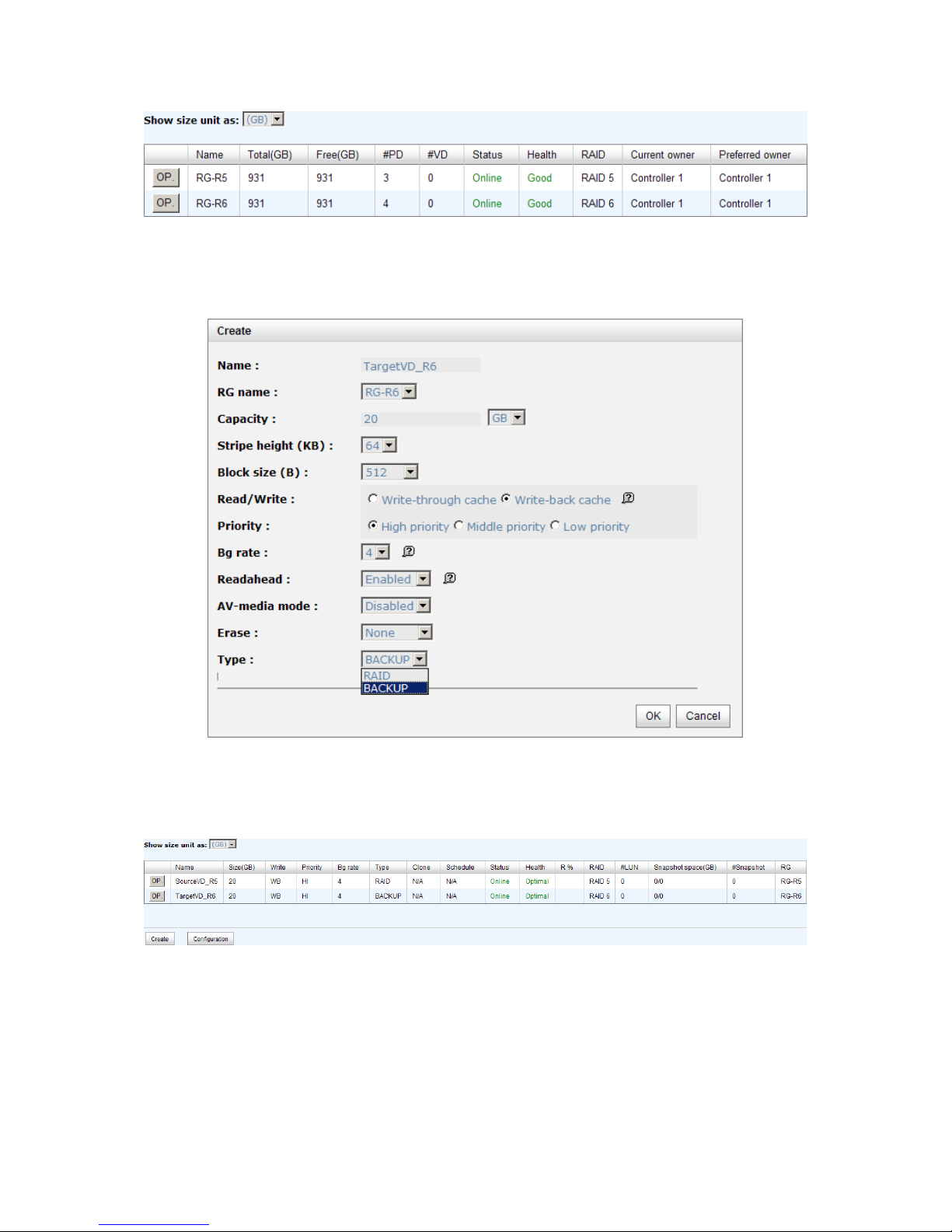

Page 96

Figure 5.6.1

2. Create two virtual disks (VD) “SourceVD_R5” and “TargetVD_R6”. The raid type of backup target needs to be set as “BACKUP”.

Figure 5.6.2

3. Here are the objects, a Source VD and a Target VD. Before starting clone process, it needs to deploy the VD Clone rule first. Cli c k “Configuration”.

Figure 5.6.3

4. There are three clone configurations, describe on the following.

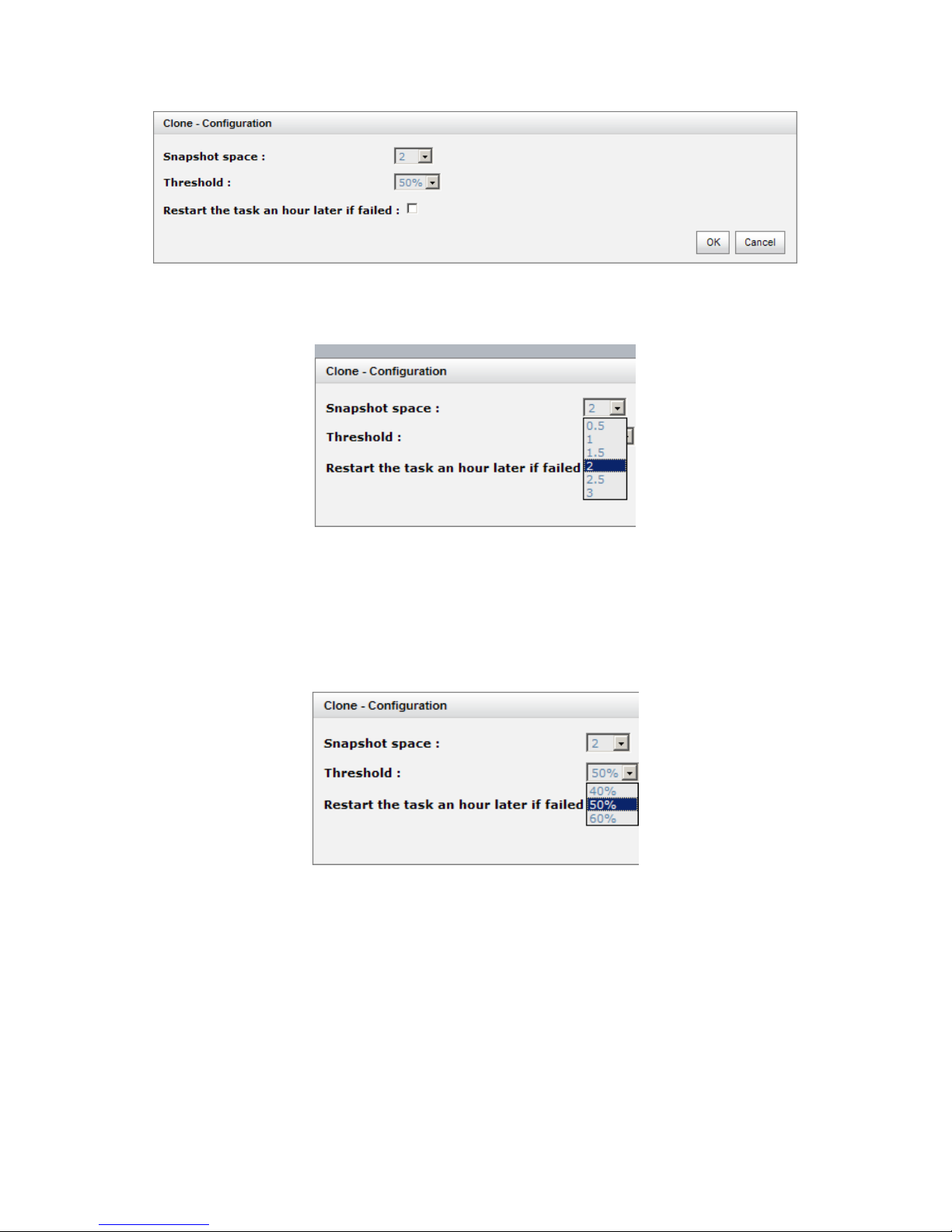

Page 97

Figure 5.6.4

 Snapshot space:

Figure 5.6.5

This setting is the ratio of source VD and snapshot space. The default ratio is 2 to 1. It means when the clone process is starting, the system will automatically use the free RG space to cr eate a snapshot space which c apacity is double the source VD.

 Threshold: (The setting will be effective after enabling schedule clone)

Figure 5.6.6

The threshold setting will monitor the usage amount of snapshot space. When the used snapshot space achieves its threshold, system will automatically take a clone snapshot and start VD clone process. The purpose of threshold could prevent the incremental copy fail immediately when r unning out of snapshot space.

For example, the default threshold is 50%. The system will check the snapshot space every hour. When the snapshot space is used over 50%, the system will synchronize the source VD and target VD automatically. Next time, when the rest snapshot space has been used 50%, in other words, the total snapshot space has been used 75%, the system will synchronize the source VD and target VD again.

Page 98

 Restart the task an hour later if fail ed: (The setting will be effective a fter

enabling schedule clone)

Figure 5.6.7

When running out of snapshot space, the VD clone process will be stopped because there is no more available snapshot space. If this option has been checked, system will clear the snapshots of clone in order to release snapshot space automatically, and the VD clone will restart the task aft er an hour. This task will start a full copy.

Caution

The default snapshot space allocated by the IP SAN storage is two times the size of source virtual disk. That is the best value of D-LINK’

s suggestion. If user sets snapshot space by manually and lower than the default value, user should take the risk if the snapshot space is not enough

and VD clone job will fail.

5. After deploying the VD clone rule, the VD clone process can be started now. Firstly, Click “Set clone” to set the target VD at the VD name “SourceVD_R5”.

Figure 5.6.8

6. Select the target VD. Then click “Confirm”.

Page 99

Figure 5.6.9

7. Now, the clone target “TargetVD_R6” has been set.

Figure 5.6.10

8. Click “Start clone”, the clone process will start.

Figure 5.6.11

9. The default setting will create a snapshot space automatically which the capacity is double size of the VD space. Before starting clone, system will initiate the snapshot space.

Page 100

100

Figure 5.6.12

10. After initiating the snapshot space, it will start clo ni ng.

Figure 5.6.13

11. Click “Schedule clone” to set up the clone by schedule.

Figure 5.6.14

12. There are “Set Clone schedul e” and “Clear Clone schedule” i n this page. Please remember that “Threshold” and “Restart the task an hour later if failed” options in VD configuration will take effect after clone schedule has been set.
