D-Link iSCSI IP SAN storage

GbE iSCSI to SATA II / SAS RAID IP SAN storage

DSN-6110 & DSN-6120

User Manual

Version 1.0

Page 2

Preface

Trademarks

All products and trade names used in this manual are trademarks or registered trademarks of their respective companies.

About this manual

This manual is the introduction of D-Link DSN-61x0 IP SAN storage and it aims to help users know the operations of the disk array system easily. Information contained in this manual has been reviewed for accuracy, but not for product warranty because of the various environments / OS / settings. Information and specification herein are subject to change without notice. For any update information, please visit www.dlink.com.

Model comparison

DSN-6100 series adopt 2U12 form factor for all models. DSN-61x0 IP SAN storages

stand for the following models.

DSN-6120: Dual controllers. DSN-6110: Single controller, can be upgradable to dual mode.

The dual controller specific functions such as dual-active, cache mirroring, flexible RG ownership management, management port seamless take-over, no system down time, and etc are not available in DSN-6110.

Caution Do not attempt to service, change, disassemble or upgrade the equipment’s components by yourself. Doing so may violate your warranty and expose you to electric shock. Refer all servicing to authorized service personnel. Please always follow the instructions in this user’s manual.

Page 3

Table of Contents

Chapter 1 Overview...................................................... 6

1.1 Features.........................................................................................6

1.1.1 Highlights.................................................................................................................7

1.2 RAID concepts...............................................................................8

1.2.1 Terminology.............................................................................................................8

1.2.2 RAID levels.............................................................................................................10

1.2.3 Volume relationship................................................................................................11

1.3 iSCSI concepts.............................................................................11

1.4 IP SAN storage specifications ......................................................13

1.4.1 Technical specifications..........................................................................................13

1.4.2 FCC and CE statements..........................................................................................16

Chapter 2 Installation................................................ 18

2.1 Package contents.........................................................................18

2.2 Before installation........................................................................18

2.3 Enclosure .....................................................................................18

2.3.1 Front view..............................................................................................................18

2.3.2 Front LED lights .....................................................................................................19

2.3.3 Install drives...........................................................................................................20

2.3.4 Rear view...............................................................................................................21

2.4 Install battery backup module .....................................................23

2.5 Deployment..................................................................................25

Chapter 3 Quick setup................................................ 27

3.1 Management interfaces ...............................................................27

3.1.1 Serial console.........................................................................................................27

3.1.2 Remote control.......................................................................................................27

3.1.3 Web UI...................................................................................................................27

3.2 How to use the system quickly....................................................30

3.2.1 Quick installation....................................................................................................30

3.2.2 Volume creation wizard..........................................................................................32

Chapter 4 Configuration ............................................ 35

4.1 Web UI management interface hierarchy....................................35

4.2 System configuration...................................................................36

4.2.1 System setting .......................................................................................................36

4.2.2 Network setting......................................................................................................37

4.2.3 Login setting ..........................................................................................................37

4.2.4 Mail setting.............................................................................................................38

4.2.5 Notification setting.................................................................................................39

4.3 iSCSI configuration ......................................................................41

4.3.1 NIC.........................................................................................................................41

4.3.2 Entity property.......................................................................................................44

4.3.3 Node ......................................................................................................................44

4.3.4 Session...................................................................................................................47

4.3.5 CHAP account ........................................................................................................48

4.4 Volume configuration...................................................................49

Page 4

4.4.1

 Physical disk...........................................................................................................49

4.4.2 RAID group............................................................................................................53

4.4.3 Virtual disk.............................................................................................................56

4.4.4 Snapshot................................................................................................................61

4.4.5 Logical unit.............................................................................................................63

4.4.6 Example.................................................................................................................65

4.5 Enclosure management ...............................................................69

4.5.1 Hardware monitor..................................................................................................70

4.5.2 UPS ........................................................................................................................71

4.5.3 SES.........................................................................................................................73

4.5.4 Hard drive S.M.A.R.T. ............................................................................................73

4.6 System maintenance....................................................................74

4.6.1 System information................................................................................................74

4.6.2 Event log................................................................................................................75

4.6.3 Upgrade.................................................................................................................77

4.6.4 Firmware synchronization ......................................................................................77

4.6.5 Reset to factory default..........................................................................................78

4.6.6 Import and export..................................................................................................78

4.6.7 Reboot and shutdown............................................................................................79

4.7 Home/Logout/Mute......................................................................79

4.7.1 Home .....................................................................................................................79

4.7.2 Logout....................................................................................................................79

4.7.3 Mute.......................................................................................................................79

Chapter 5 Advanced operations............................... 80

5.1 Volume rebuild.............................................................................80

5.2 RG migration................................................................................82

5.3 VD extension................................................................................83

5.4 Snapshot......................................................................................84

5.4.1 Create snapshot volume.........................................................................................85

5.4.2 Auto snapshot........................................................................................................86

5.4.3 Rollback..................................................................................................................87

5.4.4 Snapshot constraint ...............................................................................................87

5.5 Disk roaming................................................................................89

5.6 VD clone ......................................................................................90

5.7 SAS JBOD expansion....................................................................97

5.7.1 Connecting JBOD ...................................................................................................97

5.7.2 Upgrade firmware of JBOD ....................................................................................97

5.8 MPIO and MC/S ...........................................................................98

5.9 Trunking and LACP ....................................................................100

5.10 Dual controllers (only for DSN-6120).........................................101

5.10.1 Perform I/O..........................................................................................................101

5.10.2 Ownership............................................................................................................102

5.10.3 Controller status...................................................................................................103

5.11 Replication.................................................................................104

5.12 VLAN..........................................................................................114

Chapter 6 Troubleshooting ..................................... 117

6.1 System buzzer............................................................................117

Page 5

6.2 Event notifications .....................................................................117

A. Certification list..........................................................................123

B. Microsoft iSCSI initiator..............................................................126

C. From single controller to Dual controller …………………………… 132

Page 6

Chapter 1 Overview

1.1 Features

D-Link DSN-6000 series IP SAN storage provides non-stop service with a high degree of

fault tolerance by using D-Link RAID technology and advanced array management features.

DSN-6110/6120 IP SAN storage connects to the host system by iSCSI interface. It can be configured to numerous RAID level. The IP SAN storage provides reliable data protection for servers by using RAID 6. The RAID 6 allows two HDD failures without any impact on the existing data. Data can be recovered from the existing data and parity drives. (Data can be recovered from the rest drives.)

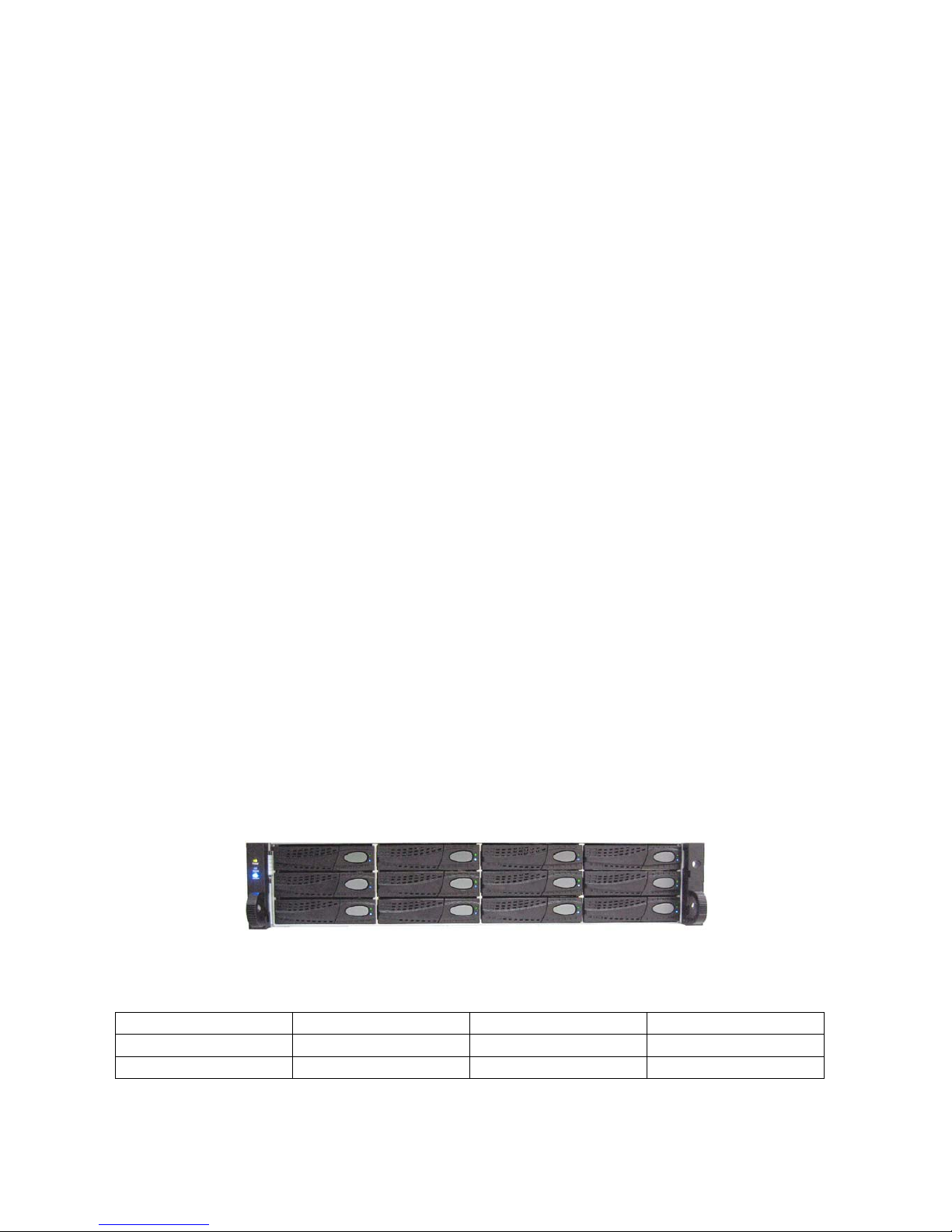

Figure 1.1.1 (DSN-6110/6120)

Snapshot-on-the-box is a fully usable copy of a defined collection of data that contains

an image of the data as it appeared at the point in time, which means a point-in-time data replication. It provides consistent and instant copies of data volumes without any system downtime. Snapshot-on-the-box can keep up to 32 snapshots for one logical volume. Rollback feature is provided for restoring the previous-snapshot data easily while continuously using the volume for further data access. The data access which includes read / write is working as usual without any impact to end users. The "on-the-box" implies that it does not require any proprietary agents installed at host side. The snapshot is taken at target side. It will not consume any host CPU time thus the server is dedicated to the specific or other application. The snapshot copies can be taken manually or by schedule every hour or every day, depends on the modification.

D-Link IP SAN storage is the most cost-effective disk array system with completely integrated high-performance and data-protection capabilities which meet or exceed the highest industry standards, and the best data solution for small / medium business

(SMB) and enterprise users.

Page 7

1.1.1 Highlights

 D-Link DSN-6110/6120 feature highlights

Host Interface

8 x iSCSI GbE ports (DSN-6120) 4 x iSCSI GbE ports (DSN-6110)

Drive Interface

12 x SAS or SATA II

RAID Controllers

Single controller, can be upgradable to dual (DSN-6110) Dual-active RAID controllers (DSN-6120)

Scalability SAS JBOD expansion port Green Auto disk spin-down

Advanced cooling

RAID Level RAID 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60 and JBOD

N-way mirror

Compatibility Support multiple OSes, applications, iSCSI HBA, software

initiators, and etc.

Virtualization VMWare, Hyper-V, Citrix

Data Protection

Snapshot (Read only and Writeable), Storage base Replication

Connection Availability

Load balancing and failover support on the iSCSI GbE ports

Dimension (W x D x H)

442.8 x 500.6 x 88.0 (mm)

Power Supply

2 x 500W PSU

Cache Protection

Hot pluggable battery backup module

Fan Redundant

Page 8

1.2 RAID concepts

RAID is the abbreviation of “Redundant Array of Independent Disks”. The basic idea of

RAID is to combine multiple drives together to form one large logical drive. This RAID drive obtains performance, capacity and reliability than a single drive. The operating system detects the RAID drive as a single storage device.

1.2.1 Terminology

The document uses the following terms:

 Part 1: Common

RAID Redundant Array of Independent Disks. There are different

RAID levels with different degree of data protection, data availability, and performance to host environment.

PD The Physical Disk belongs to the member disk of one specific

RAID group.

RG Raid Group. A collection of removable media. One RG consists

of a set of VDs and owns one RAID level attribute.

VD Virtual Disk. Each RD could be divided into several VDs. The VDs

from one RG have the same RAID level, but may have different volume capacity.

LUN Logical Unit Number. A logical unit number (LUN) is a unique

identifier which enables it to differentiate among separate devices (each one is a logical unit).

GUI Graphic User Interface.

RAID cell

When creating a RAID group with a compound RAID level, such as 10, 30, 50 and 60, this field indicates the number of subgroups in the RAID group. For example, 8 disks can be grouped into a RAID group of RAID 10 with 2 cells, 4 cells. In the 2-cell case, PD {0, 1, 2, 3} forms one RAID 1 subgroup and PD {4, 5, 6, 7} forms another RAID 1 subgroup. In the 4cells, the 4 subgroups are PD {0, 1}, PD {2, 3}, PD {4, 5} and PD {6,7}.

WT Write-Through cache-write policy. A caching technique in which

the completion of a write request is not signaled until data is safely stored in non-volatile media. Each data is synchronized in

Page 9

both data cache and accessed physical disks.

WB Write-Back cache-write policy. A caching technique in which the

completion of a write request is signaled as soon as the data is in cache and actual writing to non-volatile media occurs at a later time. It speeds up system write performance but needs to bear the risk where data may be inconsistent between data cache and the physical disks in one short time interval.

RO Set the volume to be Read-Only. DS Dedicated Spare disks. The spare disks are only used by one

specific RG. Others could not use these dedicated spare disks for any rebuilding purpose.

GS Global Spare disks. GS is shared for rebuilding purpose. If some

RGs need to use the global spare disks for rebuilding, they could get the spare disks out from the common spare disks pool for such requirement.

DG DeGraded mode. Not all of the array’s member disks are

functioning, but the array is able to respond to application read and write requests to its virtual disks.

SCSI Small Computer Systems Interface. SAS Serial Attached SCSI. S.M.A.R.T. Self-Monitoring Analysis and Reporting Technology. WWN World Wide Name. HBA Host Bus Adapter. SES SCSI Enclosure Services. NIC Network Interface Card. BBM Battery Backup Module

 Part 2: iSCSI

iSCSI Internet Small Computer Systems Interface. LACP Link Aggregation Control Protocol.

Page 10

MPIO Multi-Path Input/Output. MC/S Multiple Connections per Session MTU Maximum Transmission Unit.

CHAP

Challenge Handshake Authentication Protocol. An optional

security mechanism to control access to an iSCSI storage system over the iSCSI data ports.

iSNS Internet Storage Name Service.

 Part 3: Dual controller

SBB Storage Bridge Bay. The objective of the Storage Bridge Bay

Working Group (SBB) is to create a specification that defines mechanical, electrical and low-level enclosure management requirements for an enclosure controller slot that will support a variety of storage controllers from a variety of independent hardware vendors (“IHVs”) and system vendors.

1.2.2 RAID levels

There are different RAID levels with different degree of data protection, data availability, and performance to host environment. The description of RAID levels are on the following:

RAID 0

Disk striping. RAID 0 needs at least one hard drive.

RAID 1

Disk mirroring over two disks. RAID 1 needs at least two hard drives.

N-way mirror

Extension to RAID 1 level. It has N copies of the disk.

RAID 3

Striping with parity on the dedicated disk. RAID 3 needs at least three hard drives.

RAID 5

Striping with interspersed parity over the member disks. RAID 3 needs at least three hard drives.

RAID 6

2-dimensional parity protection over the member disks. RAID 6 needs at least four hard drives.

RAID 0+1

Mirroring of the member RAID 0 volumes. RAID 0+1 needs at least four hard drives.

RAID 10

Striping over the member RAID 1 volumes. RAID 10 needs at least four hard drives.

Page 11

RAID 30

Striping over the member RAID 3 volumes. RAID 30 needs at least six hard drives.

RAID 50

Striping over the member RAID 5 volumes. RAID 50 needs at least six hard drives.

RAID 60

Striping over the member RAID 6 volumes. RAID 60 needs at least eight hard drives.

JBOD

The abbreviation of “Just a Bunch Of Disks”. JBOD needs at least one hard drive.

1.2.3 Volume relationship

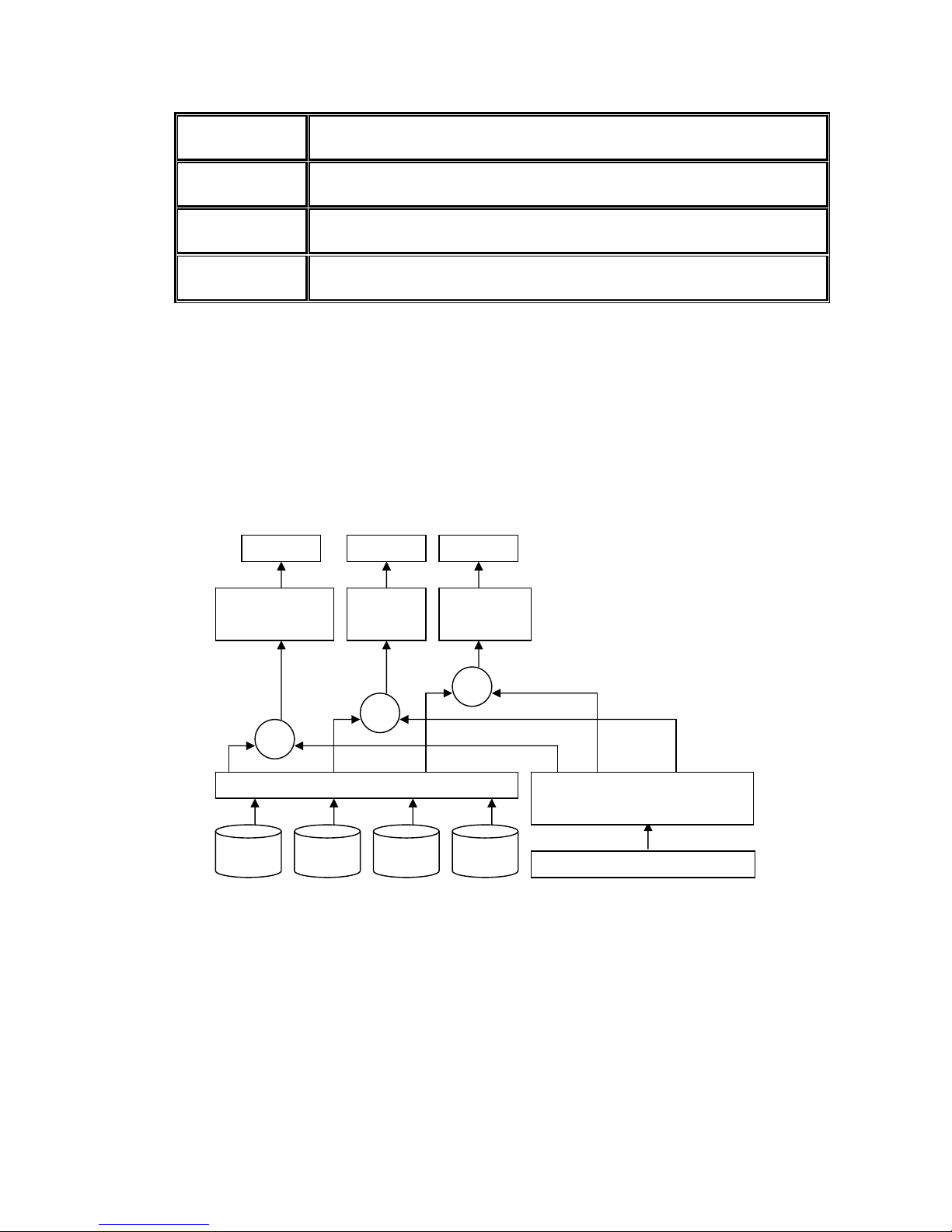

The below graphic describes the relationship of RAID components. One RG (RAID group) consists of a set of VDs (Virtual Disk) and owns one RAID level attribute. Each RG can be divided into several VDs. The VDs in one RG share the same RAID level, but may have different volume capacity. All VDs share the CV (Cache Volume) to execute the data transaction. LUN (Logical Unit Number) is an unique identifier, in which users can access through SCSI commands.

Figure 1.2.3.1

1.3 iSCSI concepts

iSCSI (Internet SCSI) is a protocol which encapsulates SCSI (Small Computer System Interface) commands and data in TCP/IP packets for linking storage devices with servers over common IP infrastructures. iSCSI provides high performance SANs over standard IP networks like LAN, WAN or the Internet.

PD 2 PD 3 DS PD 1

VD 1 VD 2

Snapshot

RAM

Cache Volume

LUN 1 LUN 2 LUN

Page 12

IP SANs are true SANs (Storage Area Networks) which allow several servers to attach to an infinite number of storage volumes by using iSCSI over TCP/IP networks. IP SANs can scale the storage capacity with any type and brand of storage system. In addition, it can be used by any type of network (Ethernet, Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet) and combination of operating systems (Microsoft Windows, Linux, Solaris, Mac, etc.) within the SAN network. IP-SANs also include mechanisms for security, data replication, multi-path and high availability.

Storage protocol, such as iSCSI, has “two ends” in the connection. These ends are initiator and target. In iSCSI, we call them iSCSI initiator and iSCSI target. The iSCSI initiator requests or initiates any iSCSI communication. It requests all SCSI operations like read or write. An initiator is usually located on the host side (either an iSCSI HBA or iSCSI SW initiator).

The target is the storage device itself or an appliance which controls and serves volumes or virtual volumes. The target is the device which performs SCSI command or bridge to an attached storage device.

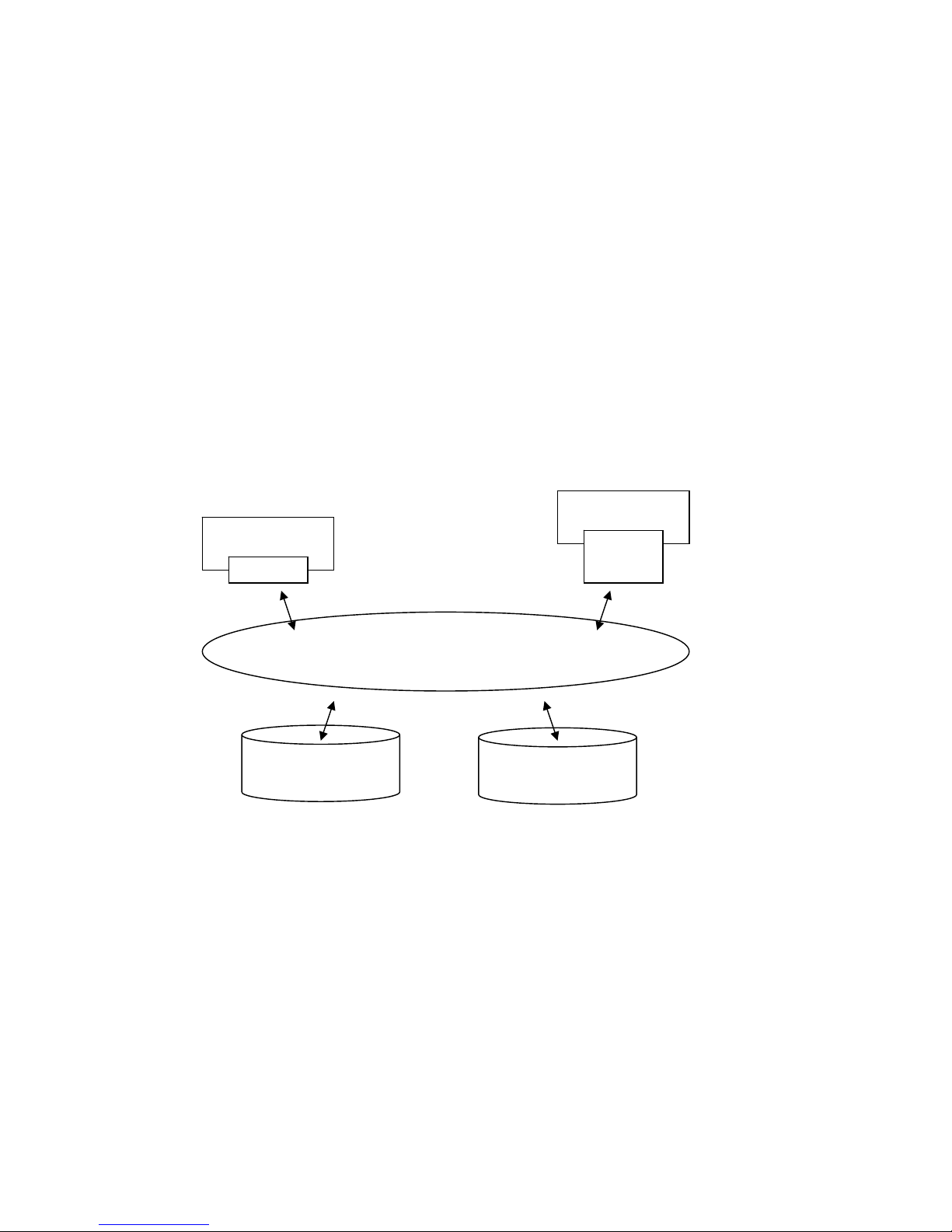

Figure 1.3.1

The host side needs an iSCSI initiator. The initiator is a driver which handles the SCSI traffic over iSCSI. The initiator can be software or hardware (HBA). Please refer to the certification list of iSCSI HBA(s) in Appendix A. OS native initiators or other software initiators use standard TCP/IP stack and Ethernet hardware, while iSCSI HBA(s) use their own iSCSI and TCP/IP stacks on board.

Hardware iSCSI HBA(s) provide its own initiator tool. Please refer to the vendors’ HBA user manual. Microsoft, Linux, Solaris and Mac provide iSCSI initiator driver. Please contact D- Link for the latest certification list. Below are the available links:

1. Link to download the Microsoft iSCSI software initiator:

iSCSI device 1

(target)

Host 1

(initiator)

NIC

IP SAN

Host 2

(initiator)

iSCSI

HBA

iSCSI device 2

(target)

Page 13

http://www.microsoft.com/downloads/details.aspx?FamilyID=12cb3c1a-15d6-4585b385-befd1319f825&DisplayLang=en

2. In current Linux distributions, OS built-in iSCSI initiators are usually available. For different kernels, there are different iSCSI drivers. Please check Appendix A for iSCSI initiator certification list. If user needs the latest Linux iSCSI initiator, please visit Open-iSCSI project for most update information. Linux-iSCSI (sfnet) and Open-iSCSI projects merged in April 11, 2005.

Open-iSCSI website: http://www.open-iscsi.org/ Open-iSCSI README: http://www.open-iscsi.org/docs/README Features: http://www.open-iscsi.org/cgi-bin/wiki.pl/Roadmap Support Kernels:

http://www.open-iscsi.org/cgi-bin/wiki.pl/Supported_Kernels

Google groups:

http://groups.google.com/group/open-iscsi/threads?gvc=2 http://groups.google.com/group/open-iscsi/topics

Open-iSCSI Wiki: http://www.open-iscsi.org/cgi-bin/wiki.pl

3. ATTO iSCSI initiator is available for Mac.

Website: http://www.attotech.com/xtend.html

4. Solaris iSCSI initiator

Version: Solaris 10 u6 (10/08)

1.4 IP SAN storage specifications

1.4.1 Technical specifications

 Controller features

1. Dual-active configuration support (only for DSN-6120)

2. Better performance, when comparing to other competitors' products in the same segment

3. Cache mirroring through high bandwidth channels (only for DSN-6120)

4. Flexible RAID group (RG) ownership management (only for DSN-6120)

 Each RG can be assigned to one of the two controllers  Each LUN can be exported from both controllers

5. Management port seamless take-over (only for DSN-6120)

 The management port can be transferred smoothly to the other controller with

the same IP address

6. Online firmware upgrade, no system down time (only for DSN-6120)

7. Multiple target iSCSI nodes per controller support

 Each LUN can be attached to one of 32 nodes from each controller

Page 14

8. Front-end 4 GbE NIC ports with high availability/load balancing/fail-over support per controller

 Microsoft MPIO, MC/S, Trunking, LACP, and etc.

9. SBB Compliant

 System key components

1. CPU: Intel Xscale IOP 81342

2. Memory: 4GB DDRII 533 DIMM per controller board

3. Hardware iSCSI off-load engine

4. 2 x UARTs: serial console management and UPS

5. Fast Ethernet port for web-based management use

6. Backend: 12 x SAS or SATA II drive connections

7. Front-end: 4x iSCSI GbE ports per controller board

8. LCM for quick management

9. Hot pluggable BBM support

10. SAS JBOD expansion port for expansion

11. Multiplexer board support for SATA drives (optional, on Dual controller mode)

12. Two power supplies

13. Redundant fans

 RAID and volume operation

1. RAID level: 0,1,0+1,3,5,6,10,30,50, 60, JBOD, and N-way mirror

2. Up to 1024 logical volumes in the system

3. Up to 32 PDs can be included in one volume group

4. Global and dedicated hot spare disks

5. Write-through or write-back cache policy for different application usage

6. Multiple RAID volumes support

7. Configurable RAID stripe size

8. Online volume expansion

9. Instant RAID volume availability

10. Auto volume rebuilding

11. On-line volume migration with no system down-time

 Advanced data protection

1. D-Link writeable snapshot

 Built-in snapshot with rollback enabled  Snapshot enabled up to 16 volumes, each logical volume supports up to 32

snapshot volumes, total 512 snapshot volumes per system

2. Microsoft Windows Volume Shadow Copy Services (VSS)

3. Configurable N-way mirror for high data protection

4. Online disk roaming

5. Instant volume configuration restoration

6. Smart faulty sector relocation

7. Hot pluggable battery backup module support

Page 15

 Enclosure monitoring

1. S.E.S. inband management

2. UPS management via dedicated serial port

3. Fan speed monitors

4. Redundant power supply monitors

5. Voltage monitors

6. Thermal sensors for both RAID controller and enclosure

7. Status monitors for SAS JBODs

 Management interface

1. Management UI via

 serial console  SSH telnet  HTTP Web UI  secured Web (HTTPS)

2. Notification via

 Email  SNMP trap  Browser pop-up windows  Syslog  Windows Messenger

3. iSNS support

4. DHCP support

 iSCSI features

1. iSCSI jumbo frame support

2. Header/Data digest support

3. CHAP authentication enabled

4. Load-balancing and failover through MPIO, MC/S, Trunking, and LACP

5. Up to 32 multiple nodes support

6. VLAN support

 Host connection

1. 4x GbE ports (DSN-6110)/ 8 x GbE ports (DSN-6120)

2. Host access control: Read-Write and Read-Only

3. Up to 128 sessions

4. One logic volume can be shared by as many as 16 hosts

 OS support

 Windows  Linux  Solaris  Mac

Page 16

 Drive support

1. SAS

2. SATA II (optional, need SATA Bridge board)

3. SCSI-3 compliant

4. Multiple IO transaction processing

5. Tagged command queuing

6. Disk auto spin-down support

7. S.M.A.R.T. for SATA II drives

8. SAS JBODs expansion

 Power and Environment

 AC input: 100-240V ~ 7A-4A 500W with PFC (Auto Switching)  DC output: 3.3V-21A; 5V-39A; 12V-30A  Operating Temperature: 0 to 40 ℃  Relative Humidity: 5% to 95% non-condensing

 Dimensions

2U 12 bay 19 inch rackmount chassis

442.8mm x 500.6mm x 88.0mm (W x D x H)

1.4.2 FCC and CE statements

FCC statement

This device has been shown to be in compliance with and was tested in accordance with the measurement procedures specified in the Standards and Specifications listed below and as indicated in the measurement report number: xxxxxxxx-F

Technical Standard: FCC Part 15 Class A (Verification) IC ICES-003

CE statement

Technical Standard: EMC DIRECTIVE 2004/108/EC (EN55022 / EN55024)

UL statement

Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions:

Page 17

A. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the

operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.

B. Reduced Air Flow - Installation of the equipment in a rack should be such that the

amount of air flow required for safe operation of the equipment is not compromised.

C. Mechanical Loading - Mounting of the equipment in the rack should be such that a

hazardous condition is not achieved due to uneven mechanical loading.

D. Circuit Overloading - Consideration should be given to the connection of the

equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

E. Reliable Earthing - Reliable earthing of rack-mounted equipment should be

maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

Caution

he main purpose of the handles is for rack mount use only. Do not use the

handles to carry or transport the systems.

The ITE is not intended to be installed and used in a home, school or public area accessible to the general population, and the thumbscrews should be tightened with a tool after both initial installation and subsequent access to the panel.

Warning: Remove all power supply cords before service This equipment intended for installation in restricted access location.  Access can only be gained by SERVICE PERSONS or by USERS who have been

instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken.

 Access is through the use of a TOOL or lock and key, or other means of security, and

is controlled by the authority responsible for the location.

Caution Risk of explosion if battery is replaced by incorrect type. Dispose of used batteries according to the instructions.

Page 18

Chapter 2 Installation

2.1 Package contents

The package contains the following items:

1. DSN-6110/6120 IP SAN storage (x1)

2. HDD trays (x12)

3. Power cords (x4)

4. RS-232 cables (x2), one is for console, the other is for UPS.

5. CD (x1)

6. Rail kit (x1 set)

7. Keys, screws for drives and rail kit (x1 packet)

2.2 Before installation

Before starting, prepare the following items.

1. A host with a Gigabit Ethernet NIC or iSCSI HBA.

2. CAT 5e, or CAT 6 network cables for management port and iSCSI data ports.

3. Prepare storage system configuration plan.

4. Prepare management port and iSCSI data ports network information. When using static IP, please prepare static IP addresses, subnet mask, and default gateway.

5. Gigabit switches (recommended). Or Gigabit switches with LCAP / Trunking (optional).

6. CHAP security information, including CHAP username and secret (optional).

2.3 Enclosure

2.3.1 Front view

Figure 2.3.1.1 (DSN-6110/6120)

Drive slot numbering

Slot 1 Slot 4 Slot 7 Slot 10 Slot 2 Slot 5 Slot 8 Slot 11 Slot 3 Slot 6 Slot 9 Slot 12

Page 19

The drives can be installed into any slot in the enclosure. Slot numbering will be reflected in web UI.

Tips It is advisable to install at least one drive in slots 1 ~ 4. System event logs are saved to drives in these slots; If no drives are fitted the event logs will be lost in the event of a system reboot.

2.3.2 Front LED lights

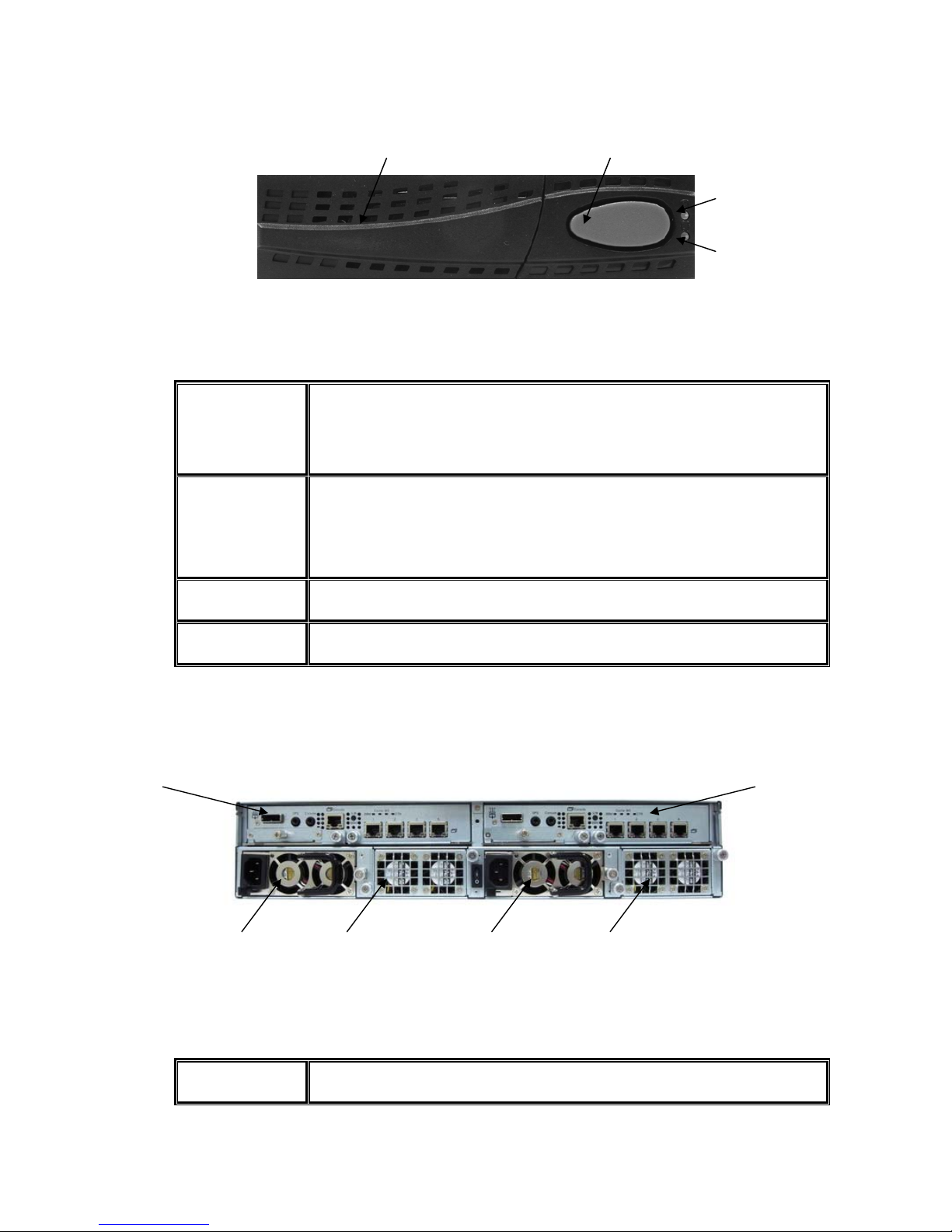

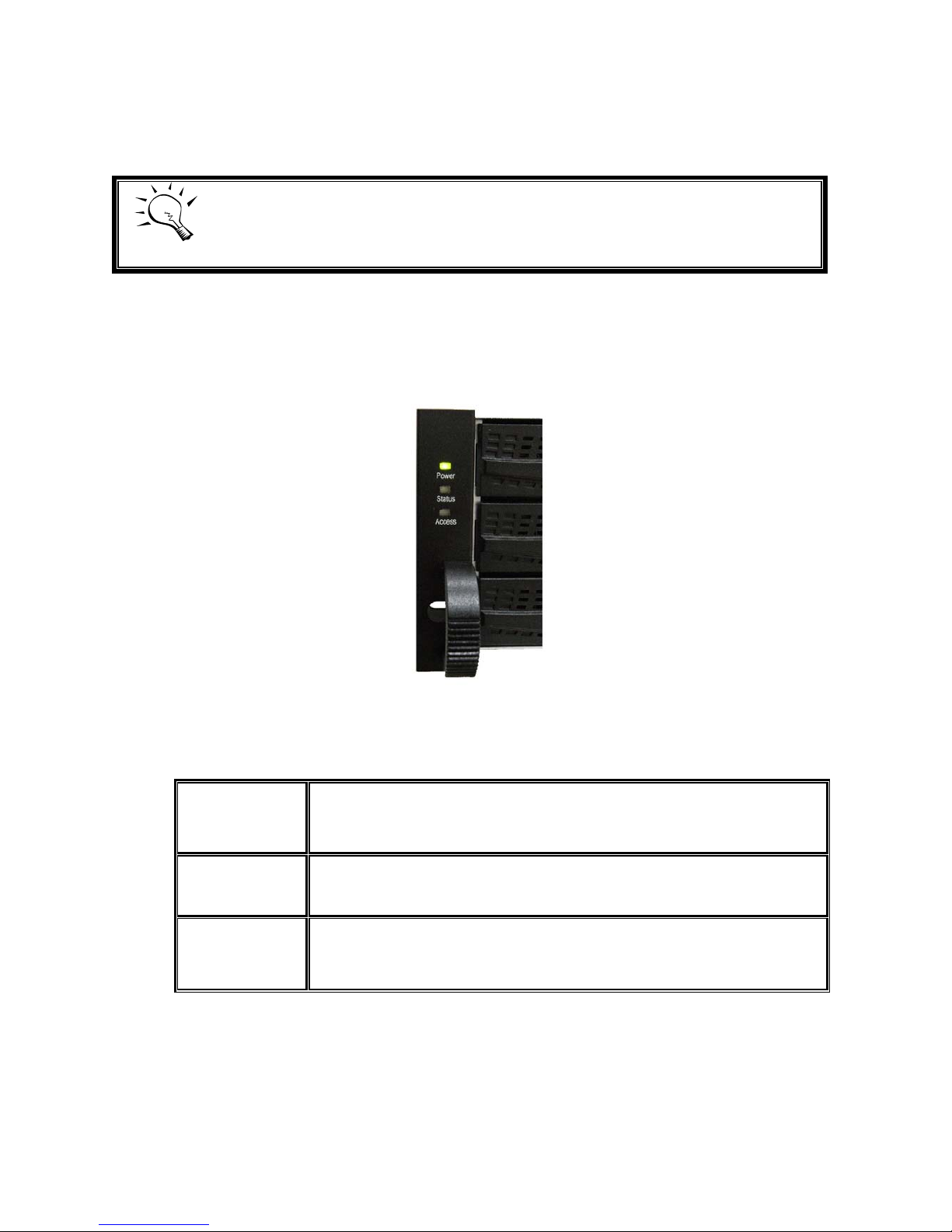

There are three LED lights on the left frame bar.

Figure 2.3.2.1

 LED lights description:



Power LED:

 Green  Power on.  Off  Power off.



Status LED:

 Red  System is failure.  Off  System is good.



Access LED:

 Blue  Host is accessing.  Off  Host is no access.







Page 20

2.3.3 Install drives

Note : Skip this section if you purchased a solution populated with drives.

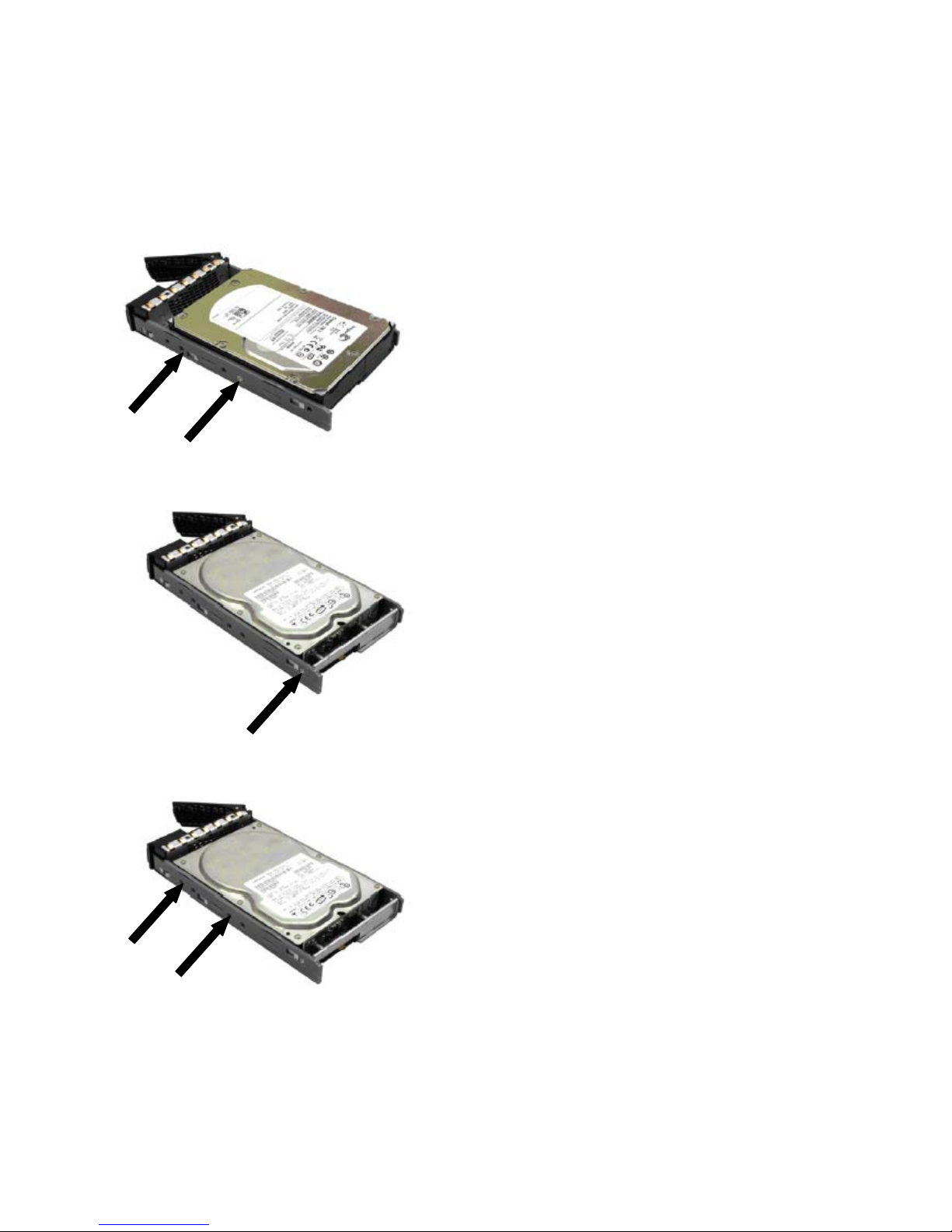

To install SAS or SATA drives with no Bridge Board use the front mounting holes:

To install SATA drives with Bridge Board (DSN-654), fit the Bridge Board first

Then install the drive using the rear mounting holes:

Page 21

Figure 2.2.3.3

 HDD tray description:



HDD power LED:

 Green  HDD is inserted and good.  Off  No HDD.



HDD access LED:

 Blue blinking  HDD is accessing.  Off  No HDD.



HDD tray handhold.



Latch for tray kit removal.

2.3.4 Rear view

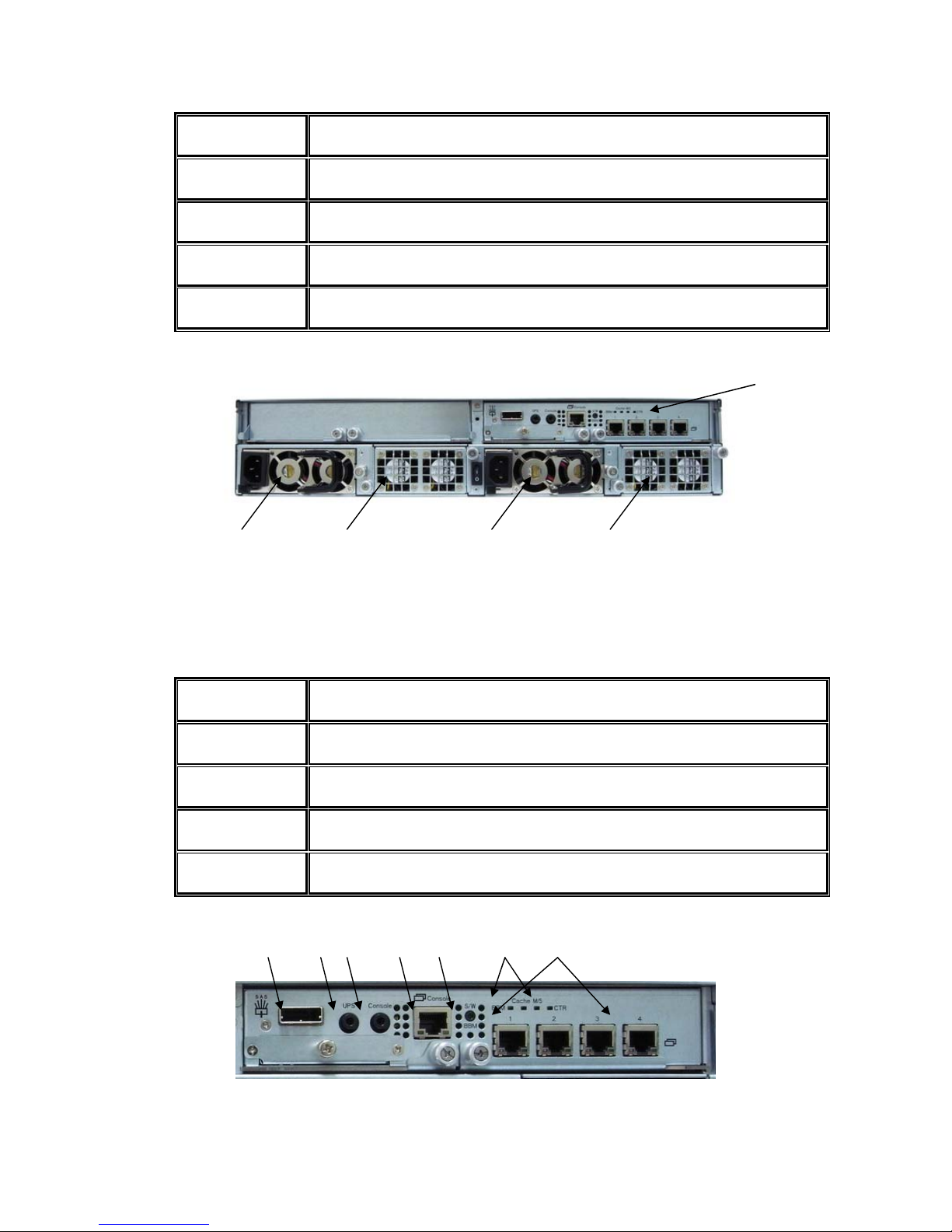

Figure 2.3.4.1 (DSN-6120)

 PSU and Fan module description:



Controller 2.





 









 

Page 22



Controller 1.



Power supply unit (PSU2).



Fan module (FAN3 / FAN4).



Power supply unit (PSU1).



Fan module (FAN1 / FAN2).

Figure 2.3.4.2 (DSN-6110)

 PSU and Fan module description:



Controller.



Power supply unit (PSU2).



Fan module (FAN3 / FAN4).



Power supply unit (PSU1).



Fan module (FAN1 / FAN2).

Figure 2.3.4.3 (DSN-6110/6120)





 

   

Page 23

 Connector, LED and button description:



Gigabit ports (x4).



LED (from left to right) Controller Health LED:

 Green  Controller status normal or in the booting.  Red  Other than above status.

Master Slave LED: (only for DSN-6120)

 Green  Master controller.  Off  Slave controller.

Dirty Cache LED:

 Orange  Data on the cache waiting for flush to disks.  Off  No data on the cache.

BBM LED:

 Green  BBM installed and powered  Off  No BBM



BBM Status Button:  When the system power is off, press the BBM status button,

if the BBM LED is Green, then the BBM still has power to keep data on the cache. If not, then the BBM power is ran out and cannot keep the data on the cache anymore.



Management port.



Console port.



RS 232 port for UPS.



SAS JBOD expansion port.



Power switch.

2.4 Install battery backup module

To install the IP SAN storage with a battery backup module, please follow the procedure.

Page 24

1. Shutdown IP SAN storage, then power off.

2. Remove the cover of battery backup module.

3. Insert the battery backup module.

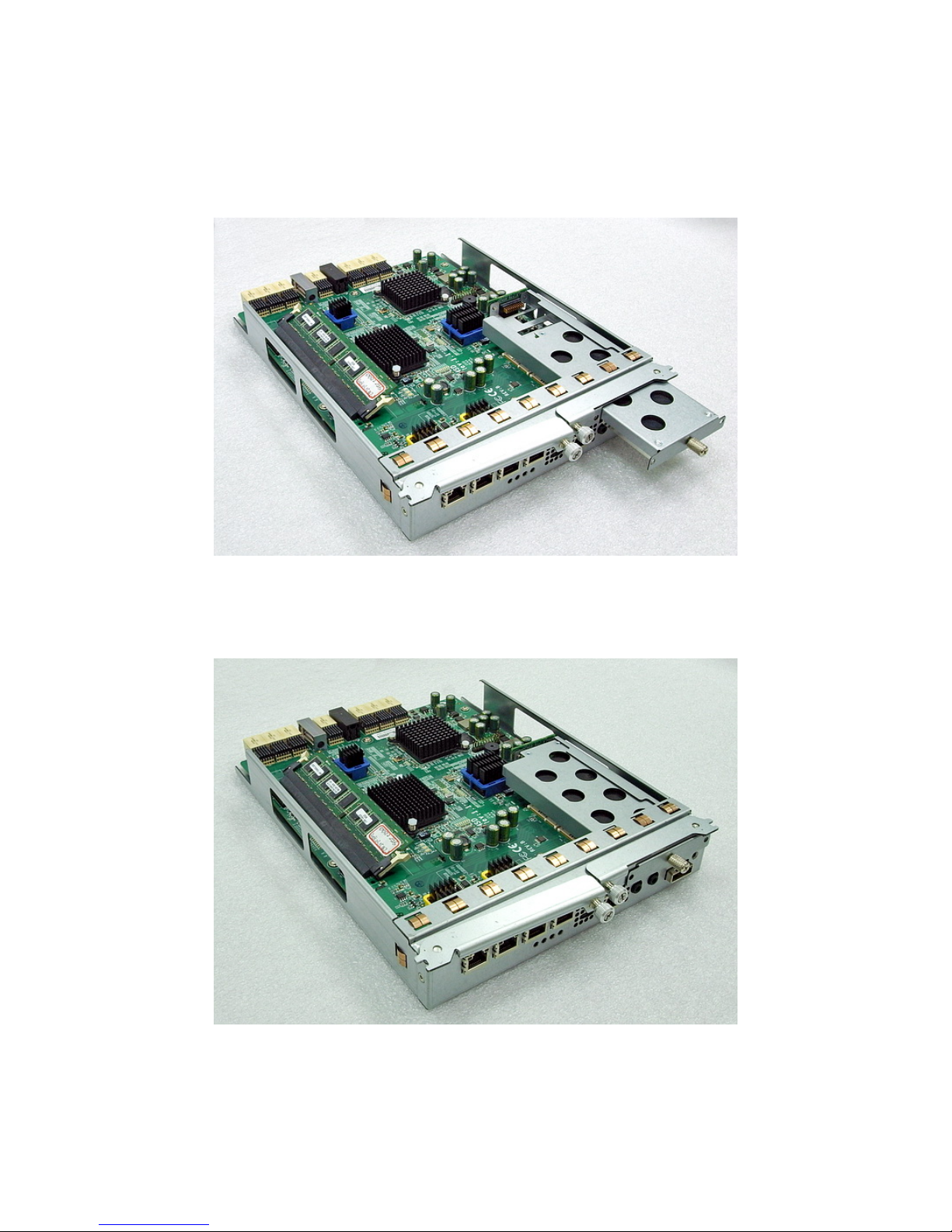

Figure 2.4.1

4. Tighten the screws up.

5. Power on, BBM will work.

Figure 2.4.2

Page 25

2.5 Deployment

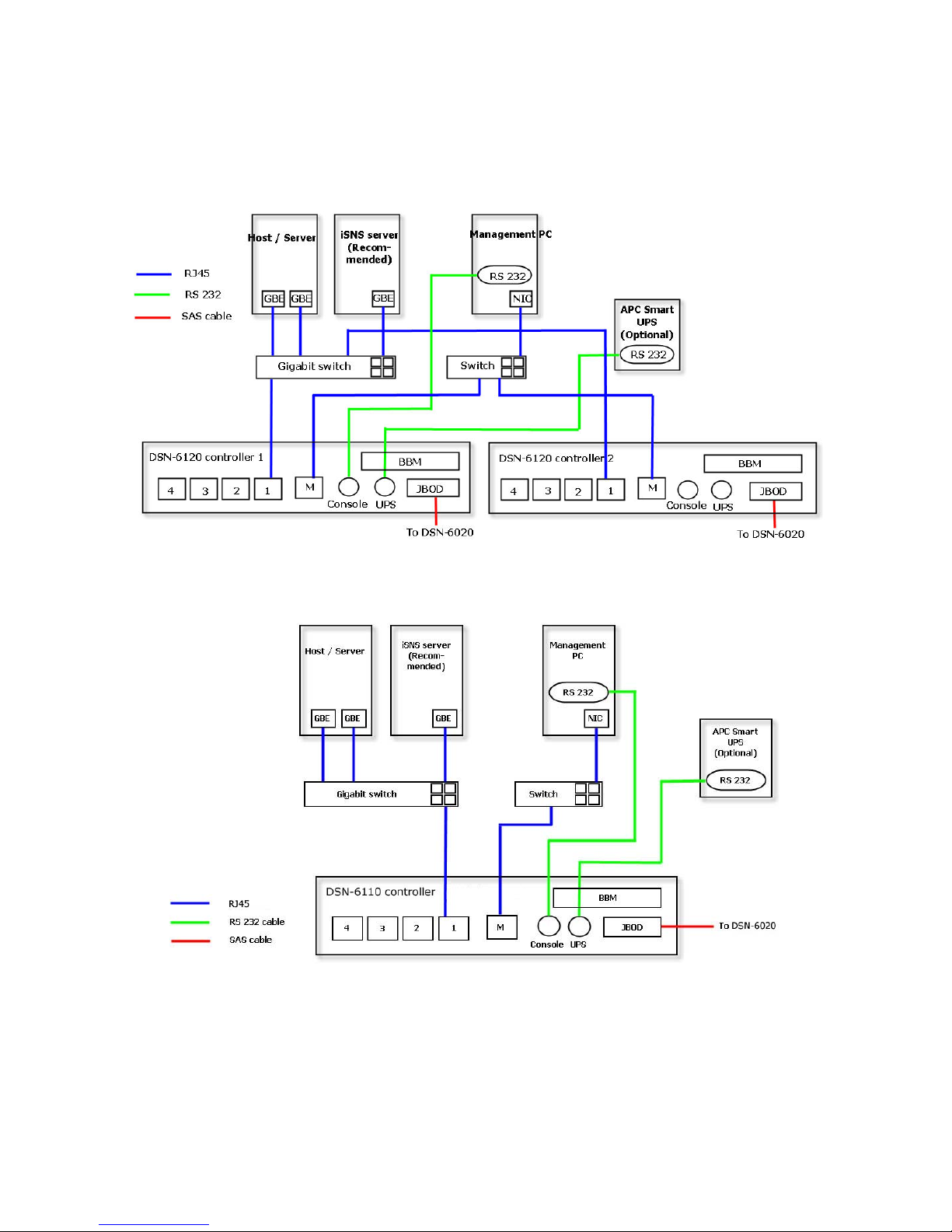

Please refer to the following topology and have all the connections ready.

Figure 2.5.1 (DSN-6120)

Figure 2.5.2 (DSN-6110)

1. Setup the hardware connection before power on servers. Connect console cable, management port cable, and iSCSI data port cables in advance.

2. In addition, installing an iSNS server is recommended for dual controller system.

3. Power on DSN-6110/6120 a nd DSN-6020 (optional) first, and then power on hosts and iSNS server.

Page 26

4. Host server is suggested to logon the target twice (both co ntroller 1 and controller 2), and then MPIO should be setup automatically. (only for DSN-6120)

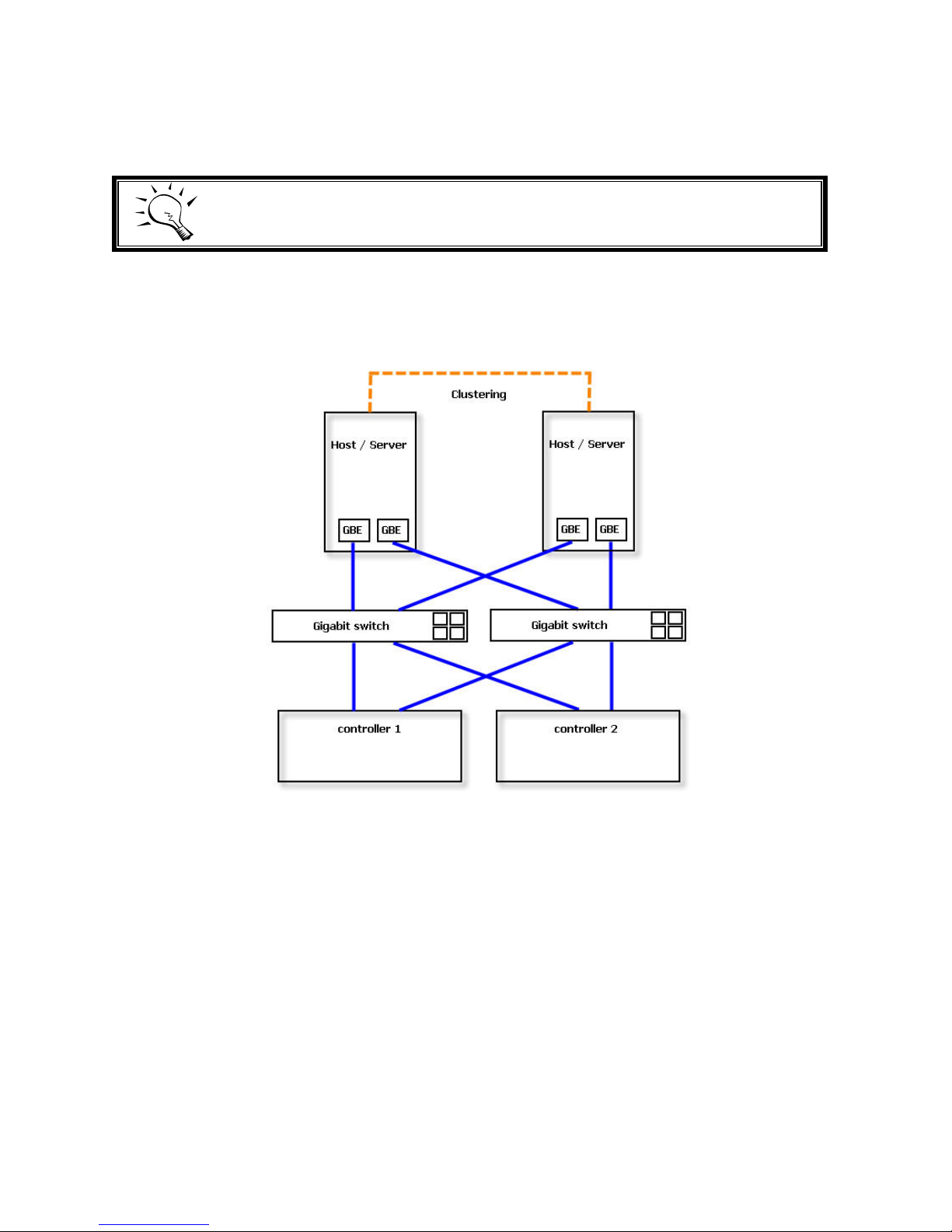

Tips iSNS server is recommended for dual controller system.

For better data service availability, all the connections among host servers, GbE switches, and the dual controllers are recommended as redundant as below.

Figure 2.5.3 (only for DSN-6120)

Page 27

Chapter 3 Quick setup

3.1 Management interfaces

There are three management methods to manage D-Link IP SAN storage, describe in the following:

3.1.1 Serial console

Use console cable (NULL modem cable) to connect from console port of D-Link IP SAN storage to RS 232 port of management PC. Please refer to figure 2.3.1. The console settings are on the following:

Baud rate: 115200, 8 data bit, no parity, 1 stop bit, and no flow control. Terminal type: VT100 Login name: admin Default password: 123456

3.1.2 Remote control

SSH (secure shell) software is required for remote login. The SSH client software is available at the following web site:

SSH Tectia Client: http://www.ssh.com/ PuTTY: http://www.chiark.greenend.org.uk/

Host name: 192.168.0.32 (Default IP) Login name: admin Default password: 123456

Tips D-Link product supports SSH for remote control only. For using SSH, the IP

address and password are required for login.

3.1.3 Web UI

D-Link IP SAN storage supports graphic user interface (GUI) to operate. Be sure to

connect the LAN cable. The default IP setting is 192.168.0.32; open the browser and enter: http://192.168.0.32 And then it will pop up a dialog for authentication.

Page 28

Figure 3.1.4.1

User name: admin Default password: 123456

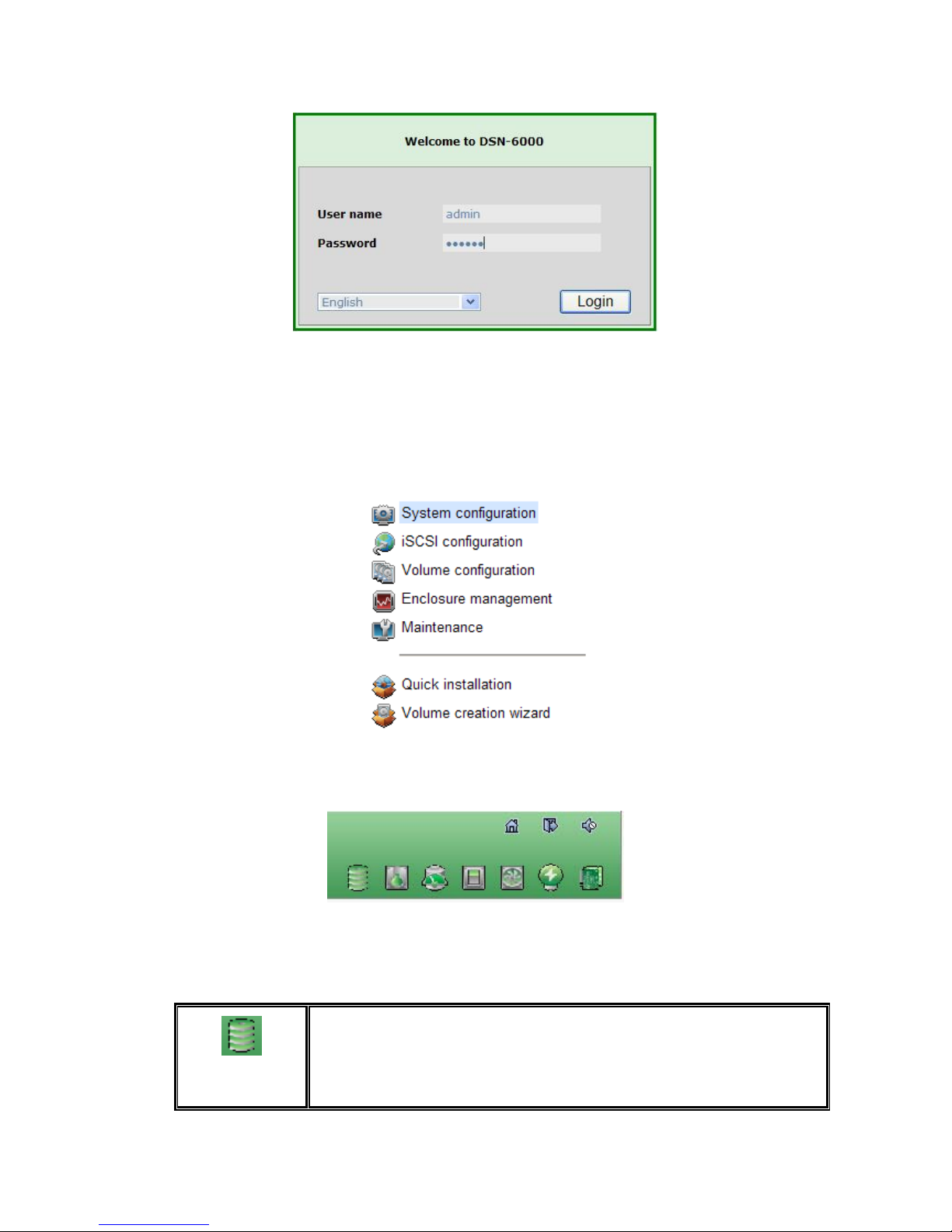

After login, choose the functions which lists on the left side of window to make any configuration.

Figure 3.1.4.2

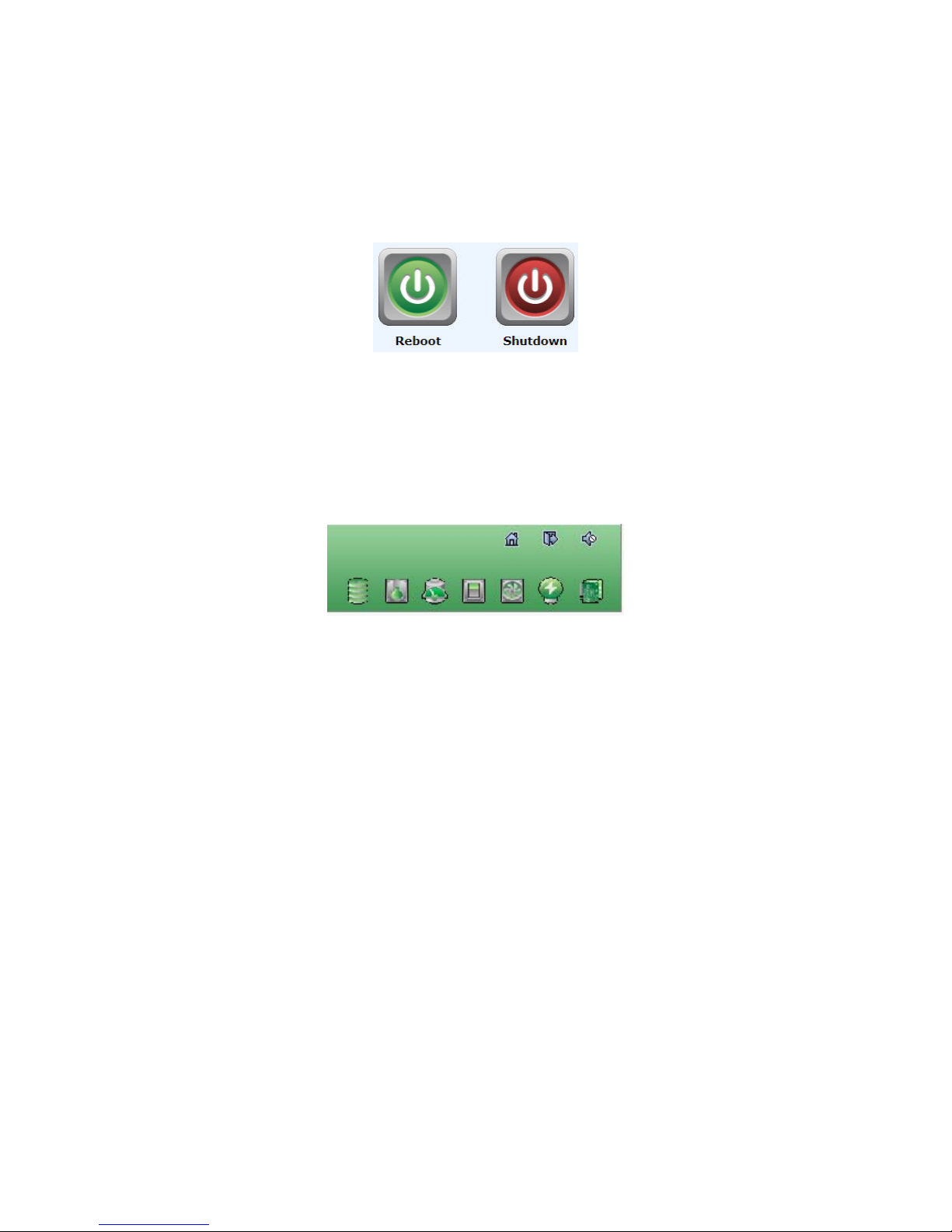

There are seven indicators and three icons at the top-right corner.

Figure 3.1.4.3

 Indicator description:

RAID light:

 Green  RAID works well.  Red  RAID fails.

Page 29

Temperature light:

 Green  Temperature is normal.  Red  Temperature is abnormal.

Voltage light:

 Green  voltage is normal.  Red  voltage is abnormal.

UPS light:

 Green  UPS works well.  Red  UPS fails.

Fan light:

 Green  Fan works well.  Red  Fan fails.

Power light:

 Green  Power works well.  Red  Power fails.

Dual controller light:  Green  Both controller 1 and controller 2 are present and

well.

 Orange  The system is degraded and there is only 1

controller alive and well.

Return to home page.

Logout the management web UI.

Mute alarm beeper.

Tips If the status indicators in Internet Explorer (IE) are displayed in

ray, but not in blinking red, please enable “Internet Options”  “Advanced”  “Play animations in webpages” options in IE. The default value is enabled, but some applications will disable it.

Page 30

3.2 How to use the system quickly

The following methods will describe the quick guide to use this IP SAN storage.

3.2.1 Quick installation

Please make sure that there are some free drives installed in this system. SAS drives are recommended. Please check the hard drive details in “/ Volume configuration /

Physical disk”.

Figure 3.2.1.1

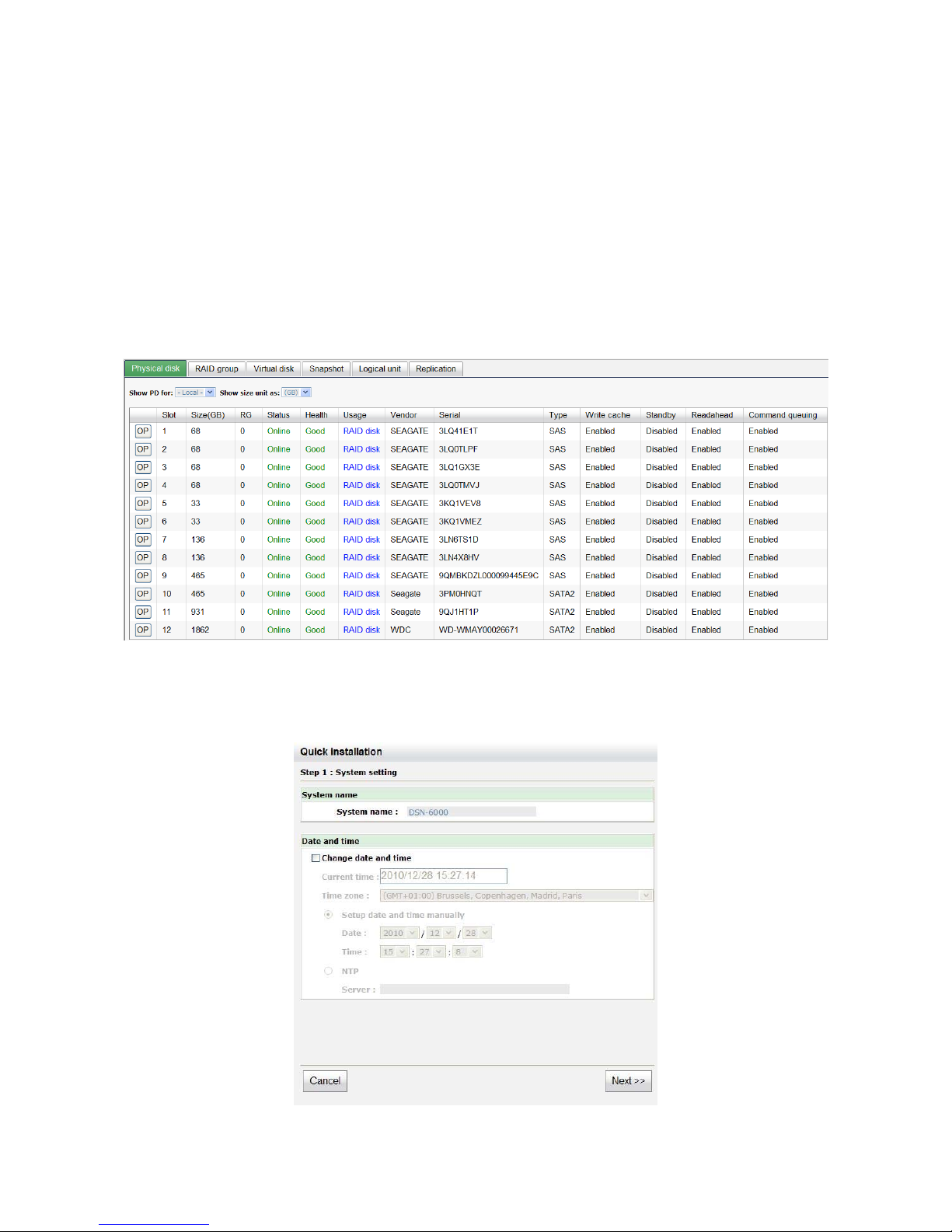

Step1: Click the “Quick installation” menu item; follow the steps to set up system

name and date / time.

Figure 3.2.1.2

Page 31

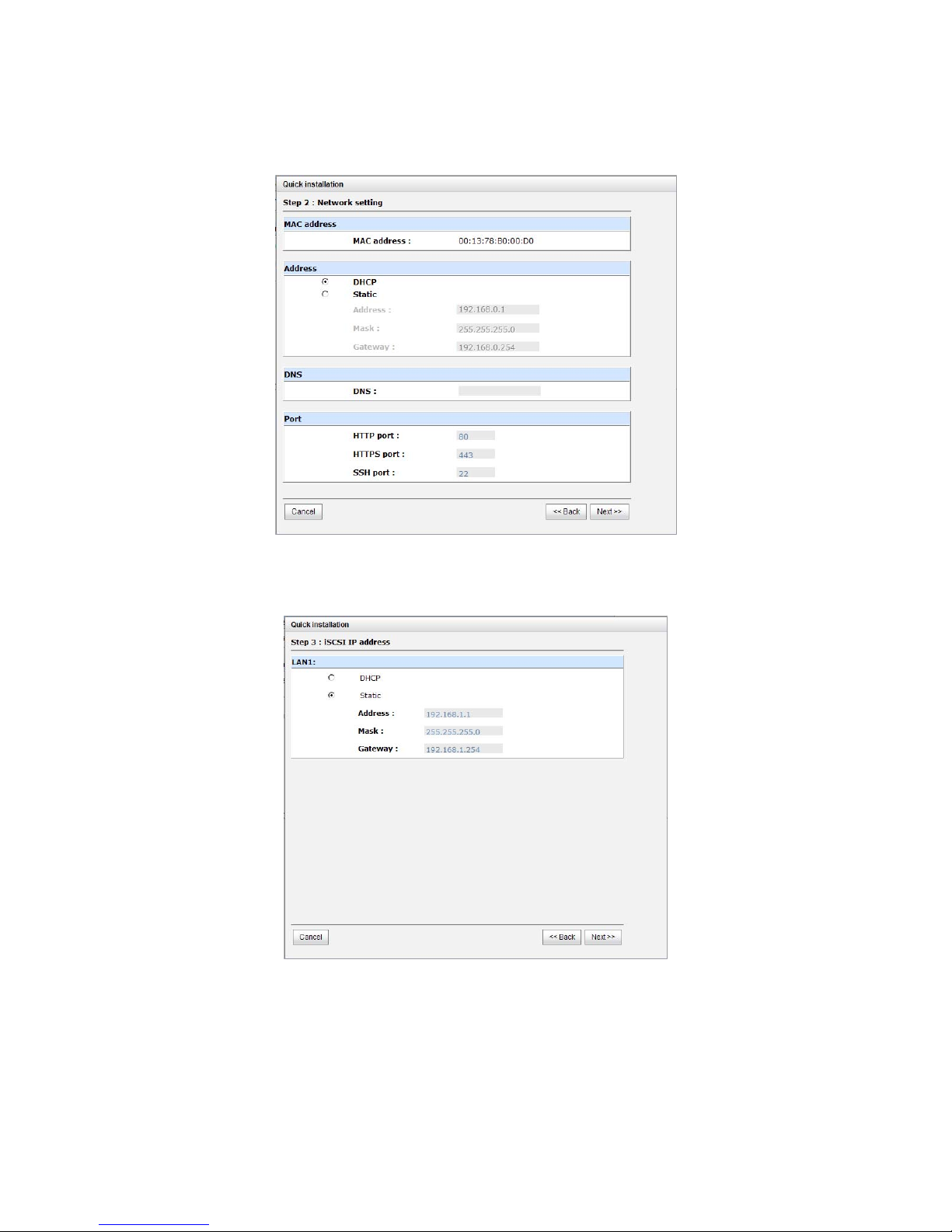

Step2: Confirm the management port IP address and DNS, and then click “Next”.

Figure 3.2.1.3

Step 3: Set up the data port IP and click “Next”.

Figure 3.2.1.4

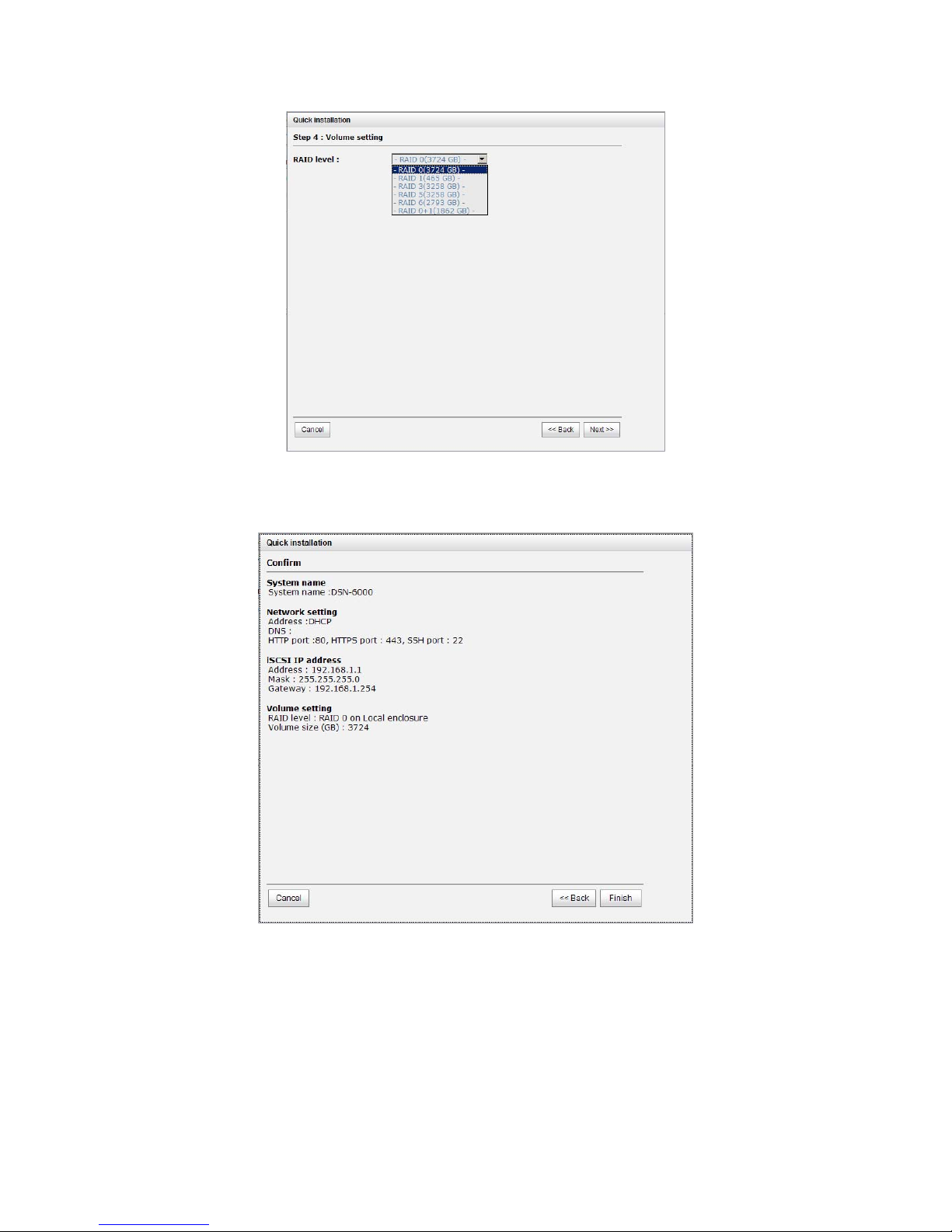

Step 4: Set up the RAID level and volume size and click “Next”.

Page 32

Figure 3.2.1.5

Step 5: Check all items, and click “Finish”.

Figure 3.2.1.6

3.2.2 Volume creation wizard

“Volume create wizard” has a smarter policy. When the system is inserted with some

HDDs. “Volume create wizard” lists all possibilities and sizes in different RAID levels, it will use all available HDDs for RAID level depends on which user chooses. When system has

Page 33

different sizes of HDDs, e.g., 8*200G and 8*80G, it lists all possibilities and combination in different RAID level and different sizes. After user chooses RAID level, user may find that some HDDs are available (free status). The result is using smarter policy designed by D- Link. It gives user:

1. Biggest capacity of RAID level for user to choose and,

2. The fewest disk number for RAID level / volume size.

E.g., user chooses RAID 5 and the controller has 12*200G + 4*80G HDDs inserted. If we use all 16 HDDs for a RAID 5, and then the maximum size of volume is 1200G (80G*15). By the wizard, we do smarter check and find out the most efficient way of using HDDs. The wizard only uses 200G HDDs (Volume size is 200G*11=2200G), the volume size is bigger and fully uses HDD capacity.

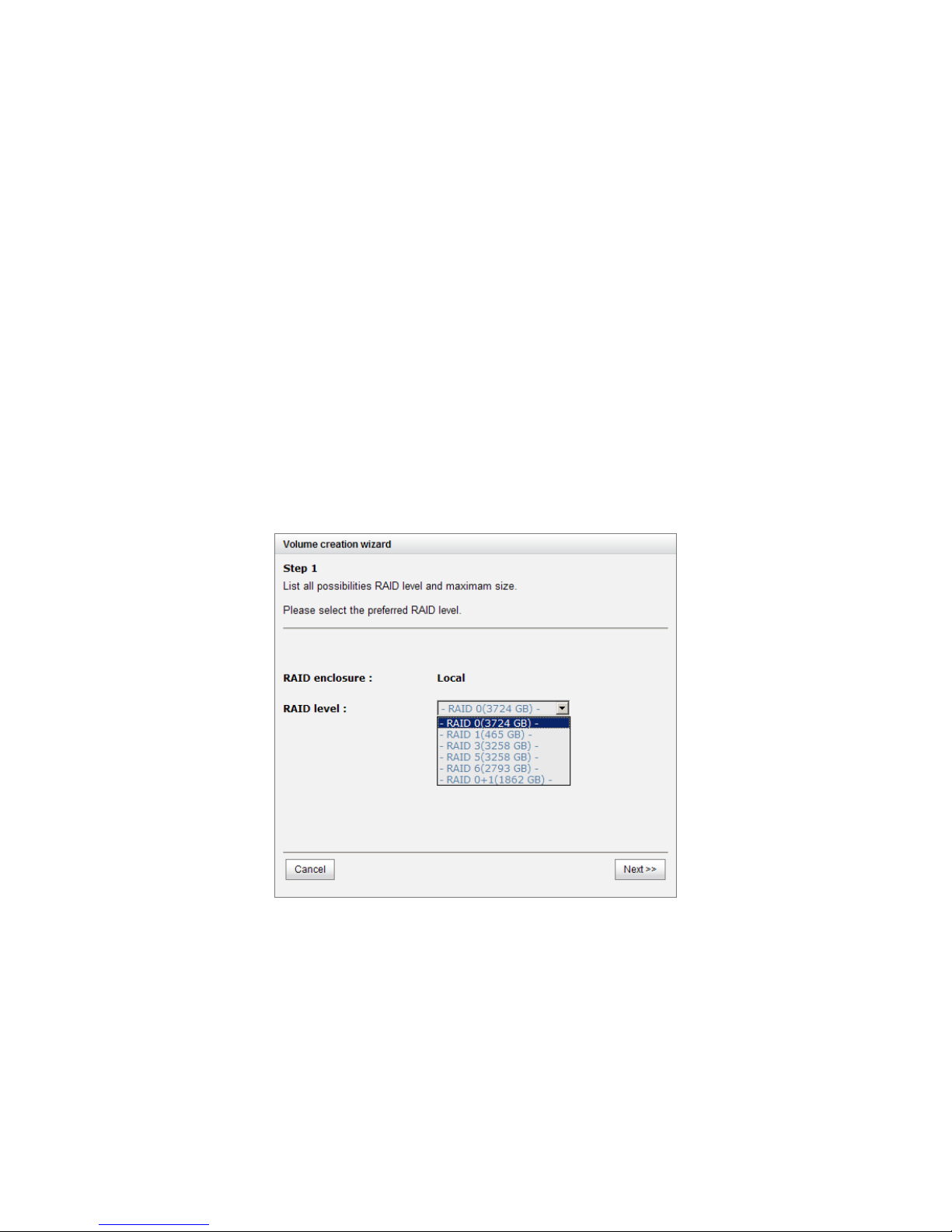

Step 1: Select “Volume create wizard” and then choose the RAID level. After the RAID level is chosen, click “Next”.

Figure 3.2.2.1

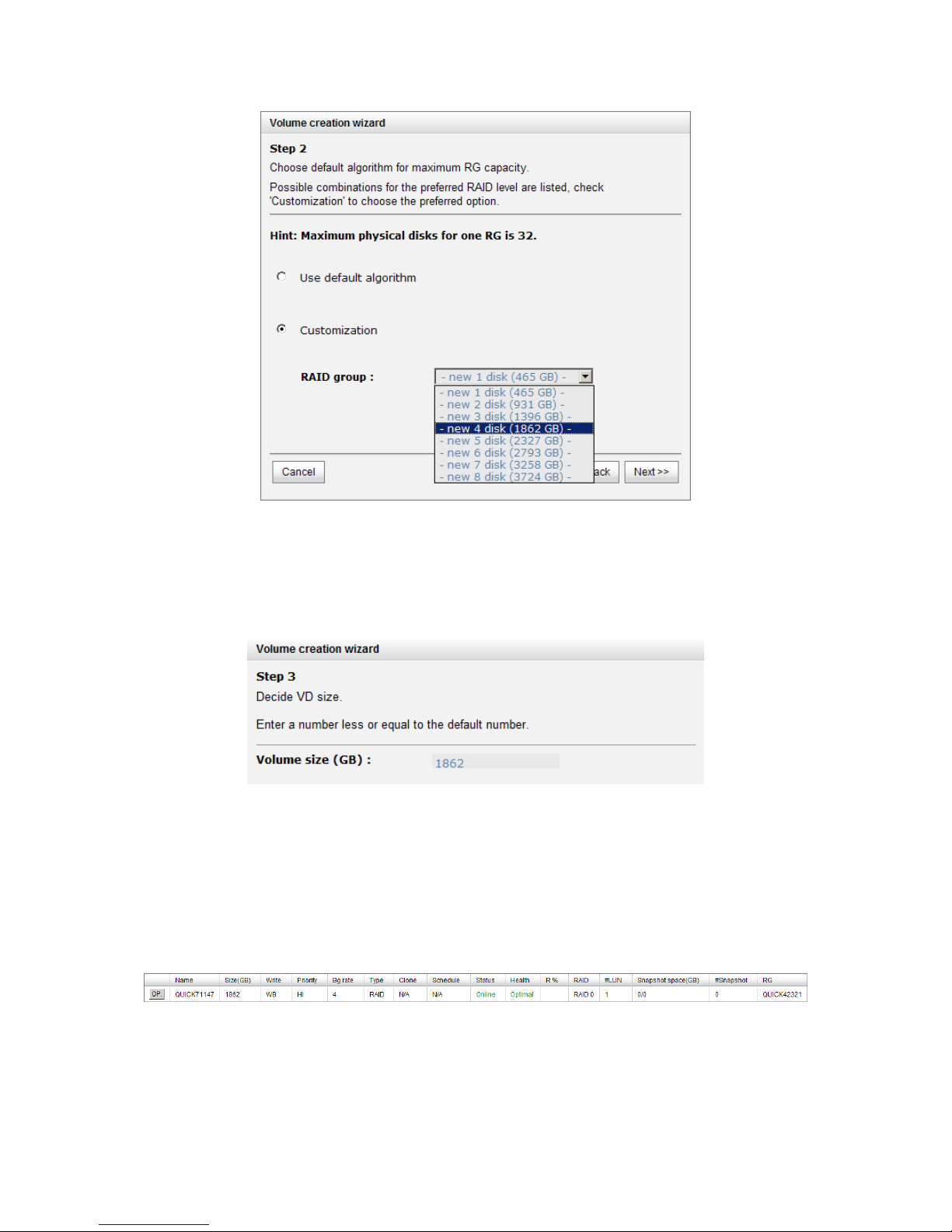

Step 2: Please select the combination of the RG capacity, or “Use default algorithm” for maximum RG capacity. After RG size is chosen, click “Next”.

Page 34

Figure 3.2.2.2

Step 3: Decide VD size. User can enter a number less or equal to the default number. Then click “Next”.

Figure 3.2.2.3

Step 4: Confirmation page. Click “Finish” if all setups are correct. Then a VD will be

created.

Step 5: Done. The system is available now.

Figure 3.2.2.4

(Figure 3.2.2.4: A virtual disk of RAID 0 is created and is named by system itself.)

Page 35

Chapter 4 Configuration

4.1 Web UI management interface hierarchy

The below table is the hierarchy of web GUI.

System configuration

System setting



System name / Date and time / System indication

Network settin



MAC address / Address / DNS / Port



Mail setting



Mail

Notification

setting



SNMP / Messenger / System log server / Event log filter

iSCSI configuration

NIC



Show information for:(Controller 1/ Controller 2) Aggregation / VLAN / IP settings for iSCSI ports / Become default gateway / Enable jumbo frame / Ping host

Entity property



Entity name / iSNS IP

Node



Show information for:(Controller 1/ Controller 2) Authenticate / Change portal / Rename alias/ User

Session



Show information for:(Controller 1/ Controller 2) List connection / Delete

CHAP account



Create / Modify user information / Delete

Volume configuration

Physical disk



Set Free disk / Set Global spare / Set Dedicated spare / Up

rade

/ Disk Scrub / Turn on/off the indication LED / More information

RAID group



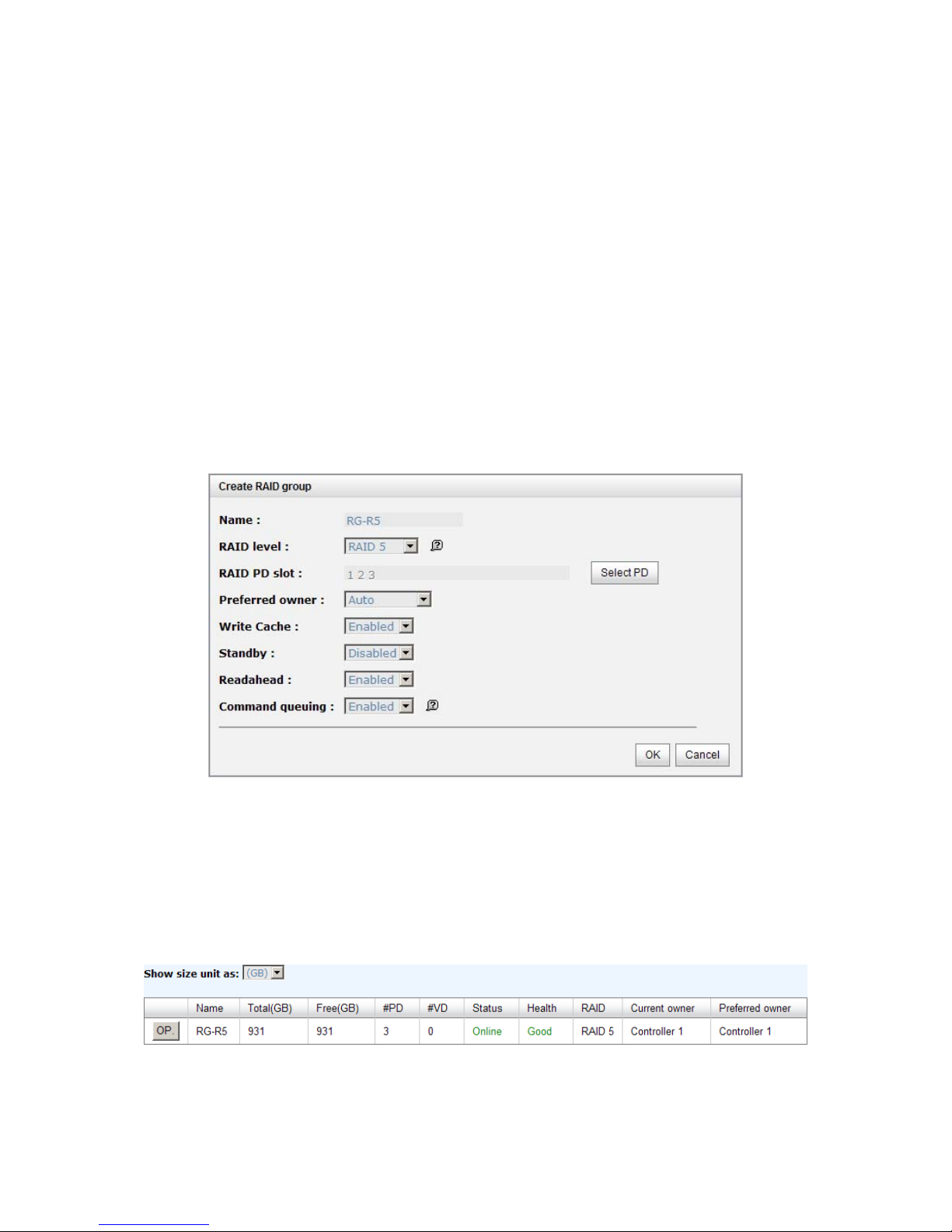

Create / Mi

rate / Activate / Deactivate / Parity check / Delete /

Set preferred owner /Set disk property / More information

Virtual disk



Create / Extend / Parity check / Delete / Set property / Attach LUN / Detach LUN / List LUN / Set clone / Clear clone / Start clone / Stop clone / Schedule clone / Set snapshot space / Cleanup snapshot / Take snapshot / Auto snapshot / List snapshot / More information

Snapshot



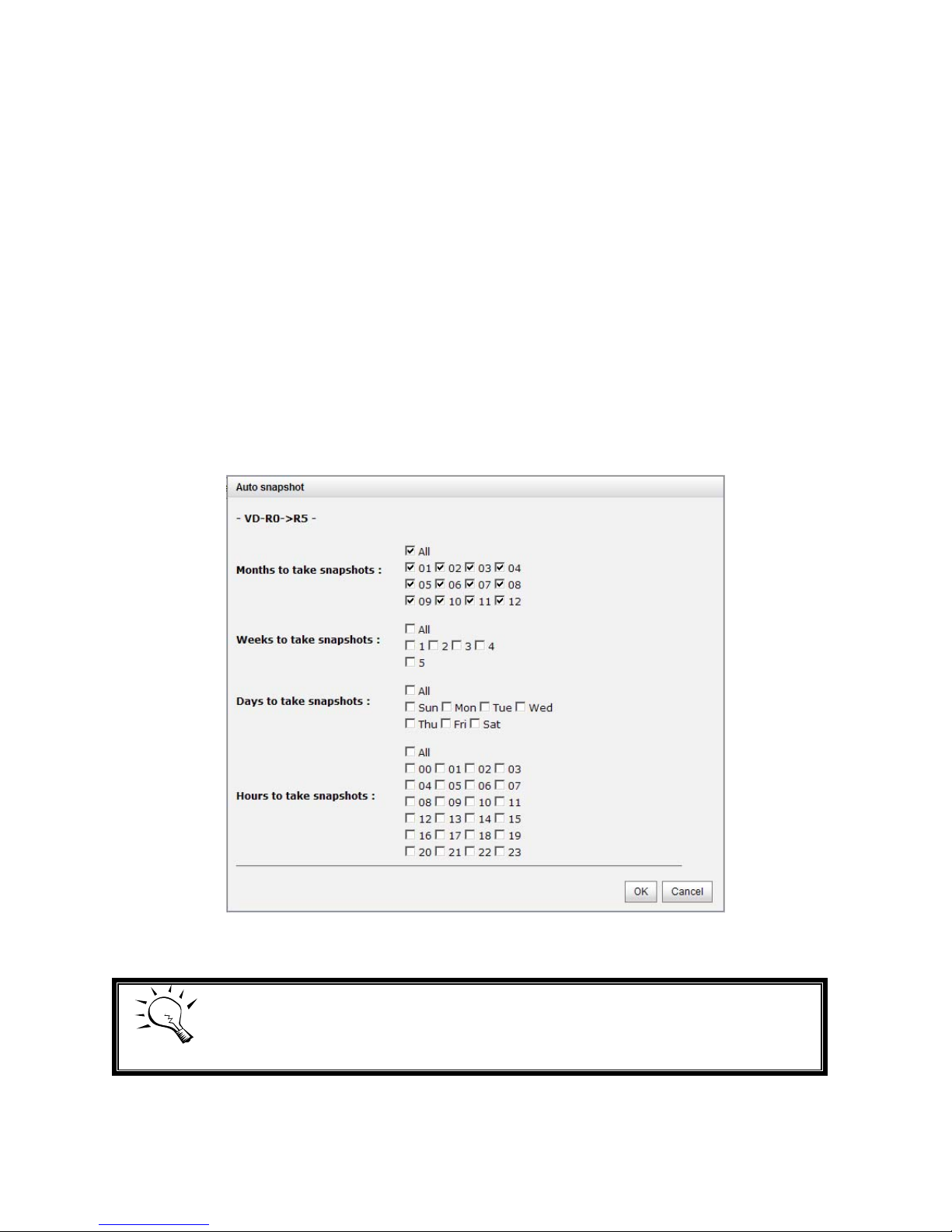

Set snapshot space / Auto snapshot / Take snapshot / Export / Rollback / Delete/ Cleanup snapshot

Logical unit



Attach / Detach/ Session

Enclosure management

Hardware

monitor



Controller 1 / BPL / Controller 2 / Auto shutdown

UPS



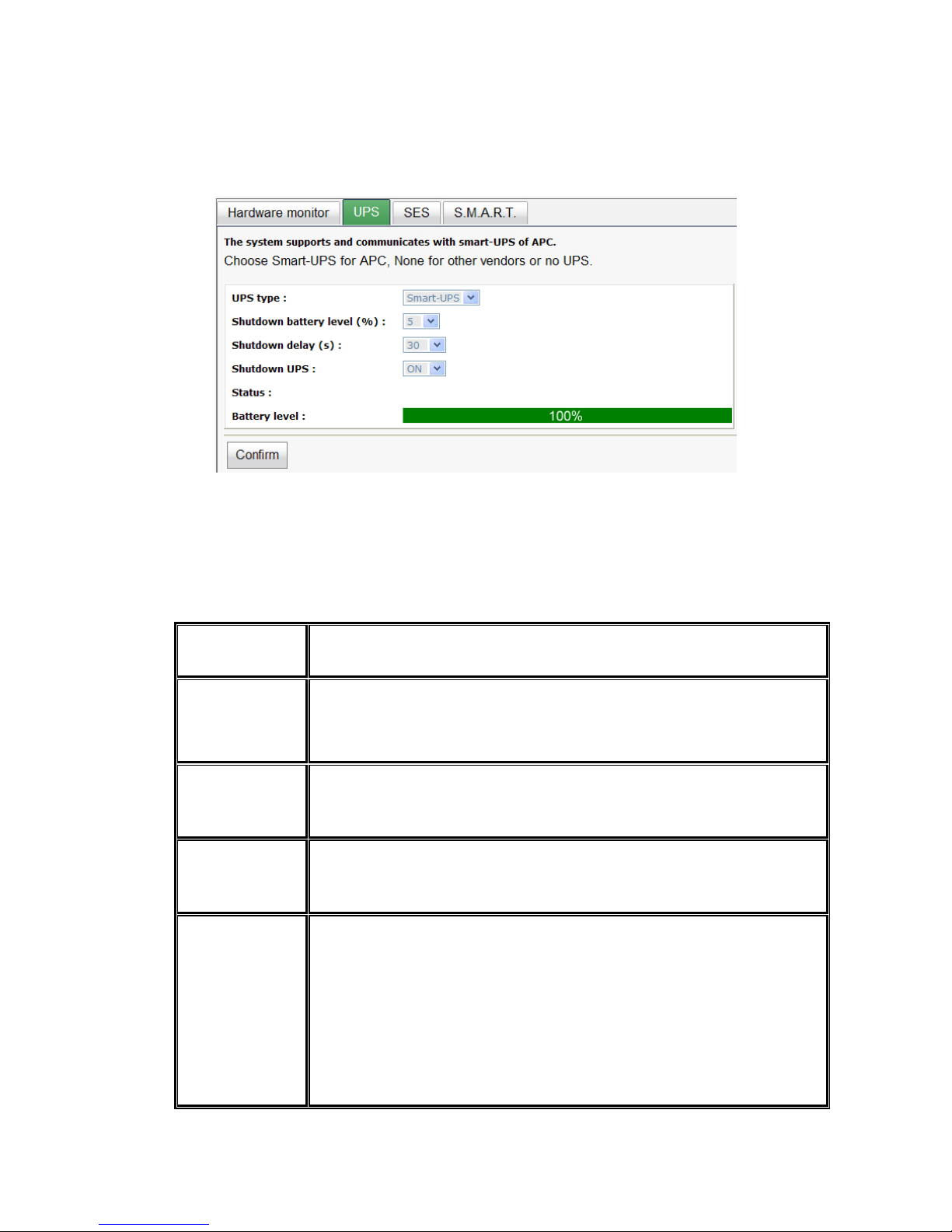

UPS Type / Shutdown battery level / Shutdown delay / Shutdown UPS

SES



Enable / Disable

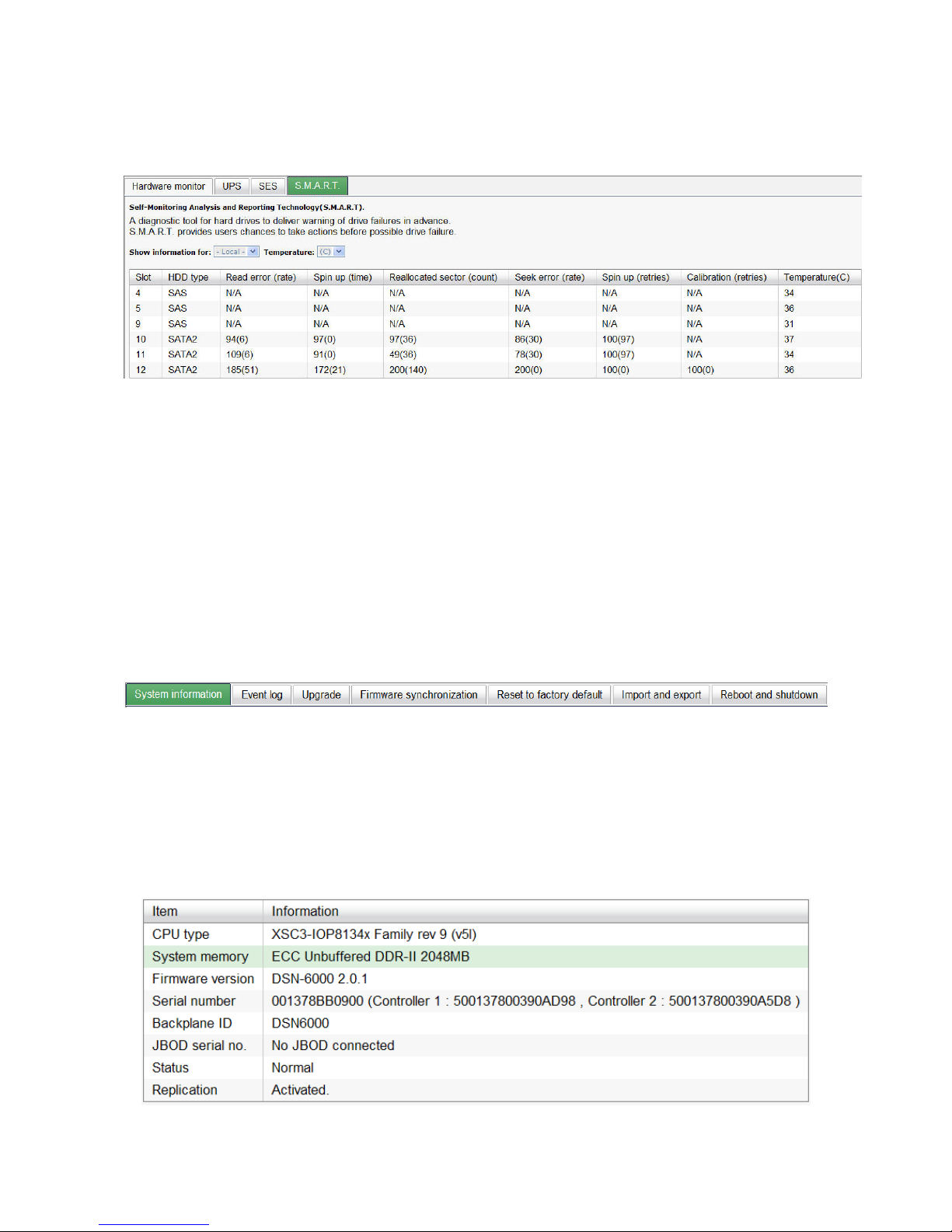

S.M.A.R.T.



S.M.A.R.T. information (Only for SATA hard drives)

Maintenance

System

information



System information

Event log



Download / Mute / Clear

Page 36

Upgrade



Browse the firmware to upgrade

Firmware synch

ronization



Synchronize the slave controller’s firmware version with the master’s

Reset to factory

default



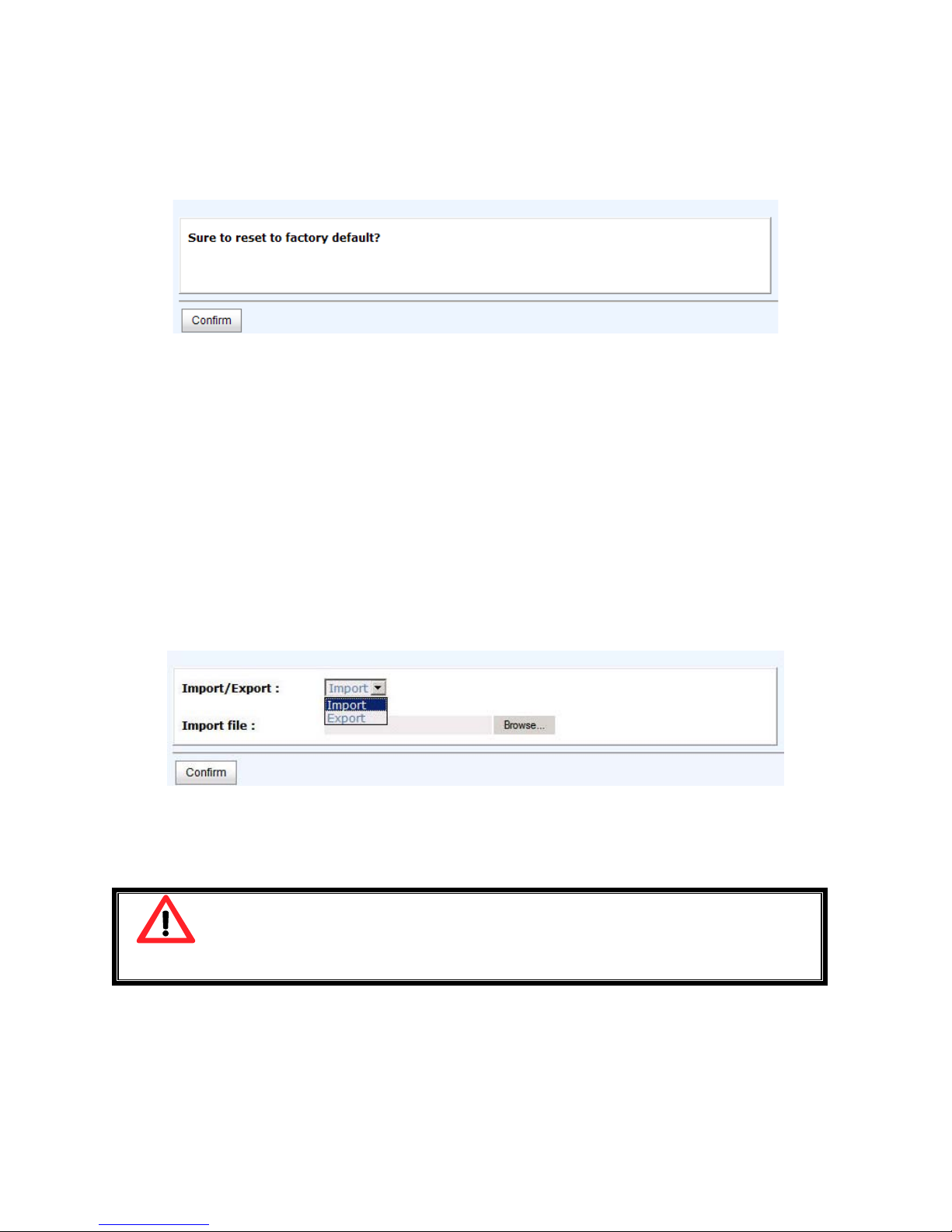

Sure to reset to factory default?

Import and

export

Import/Export / Import file

Reboot and shu

tdown



Reboot / Shutdown

Quick installation

Step 1 / Step 2 / Step 3 / Step 4 / Confirm

Volume creation wizard

Step 1 / Step 2 / Step 3 / Confirm

4.2 System configuration

“System configuration” is designed for setting up the “System setting”, “Network setting”, “Login setting”, “Mail setting”, and “Notification setting”.

Figure 4.2.1

4.2.1 System setting

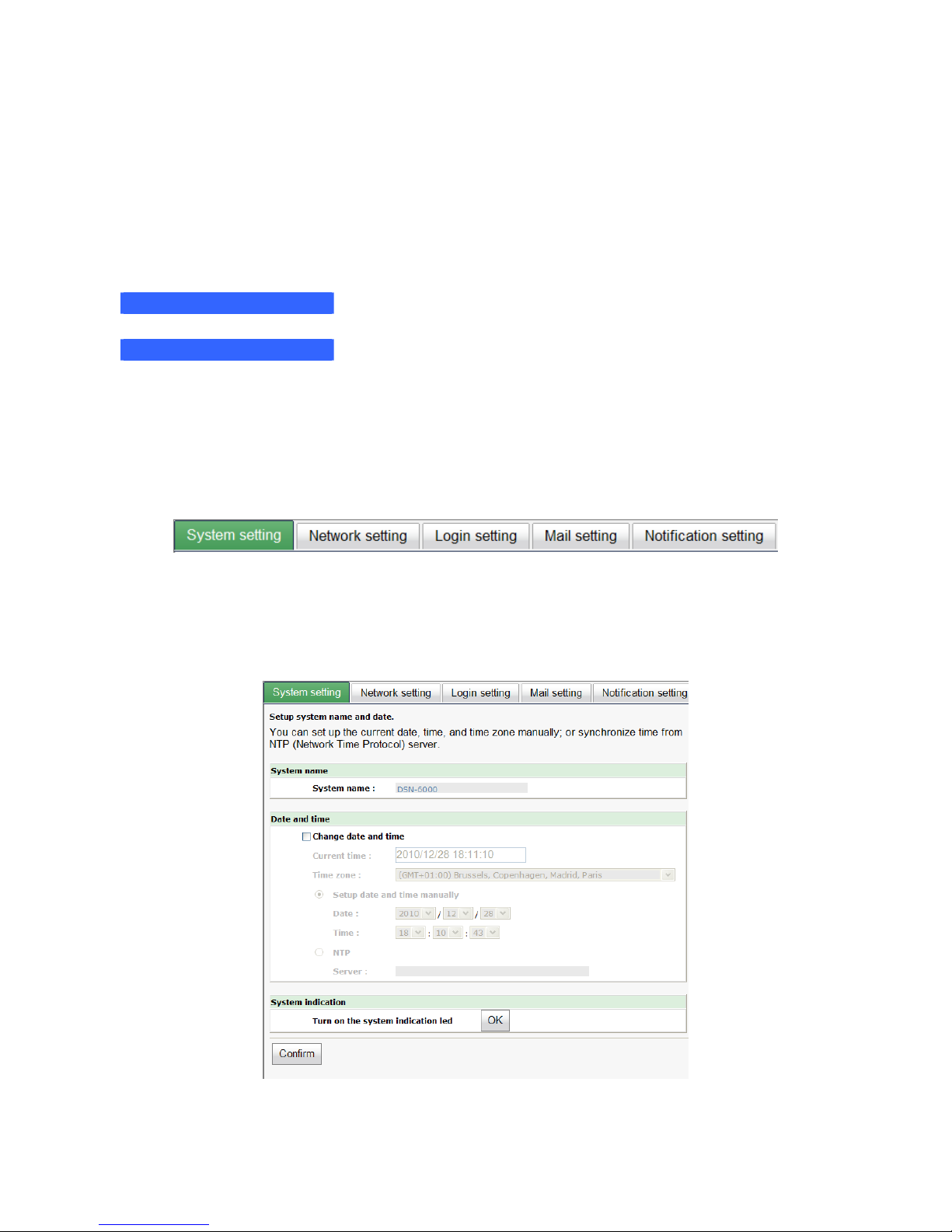

“System setting” can setup system name and date. Default “System name” is

composed of model name and serial number of this system.

Figure 4.2.1.1

Page 37

Check “Change date and time” to set up the current date, time, and time zone before using or synchronize time from NTP (Network Time Protocol) server. Click “Confirm” in

System indication to turn on the system indication LED. Click again to turn off.

4.2.2 Network setting

“Network setting” is for changing IP address for remote administration usage. There

are 2 options, DHCP (Get IP address from DHCP server) and static IP. The default setting is DHCP. User can change the HTTP, HTTPS, and SSH port number when the default port number is not allowed on host/server.

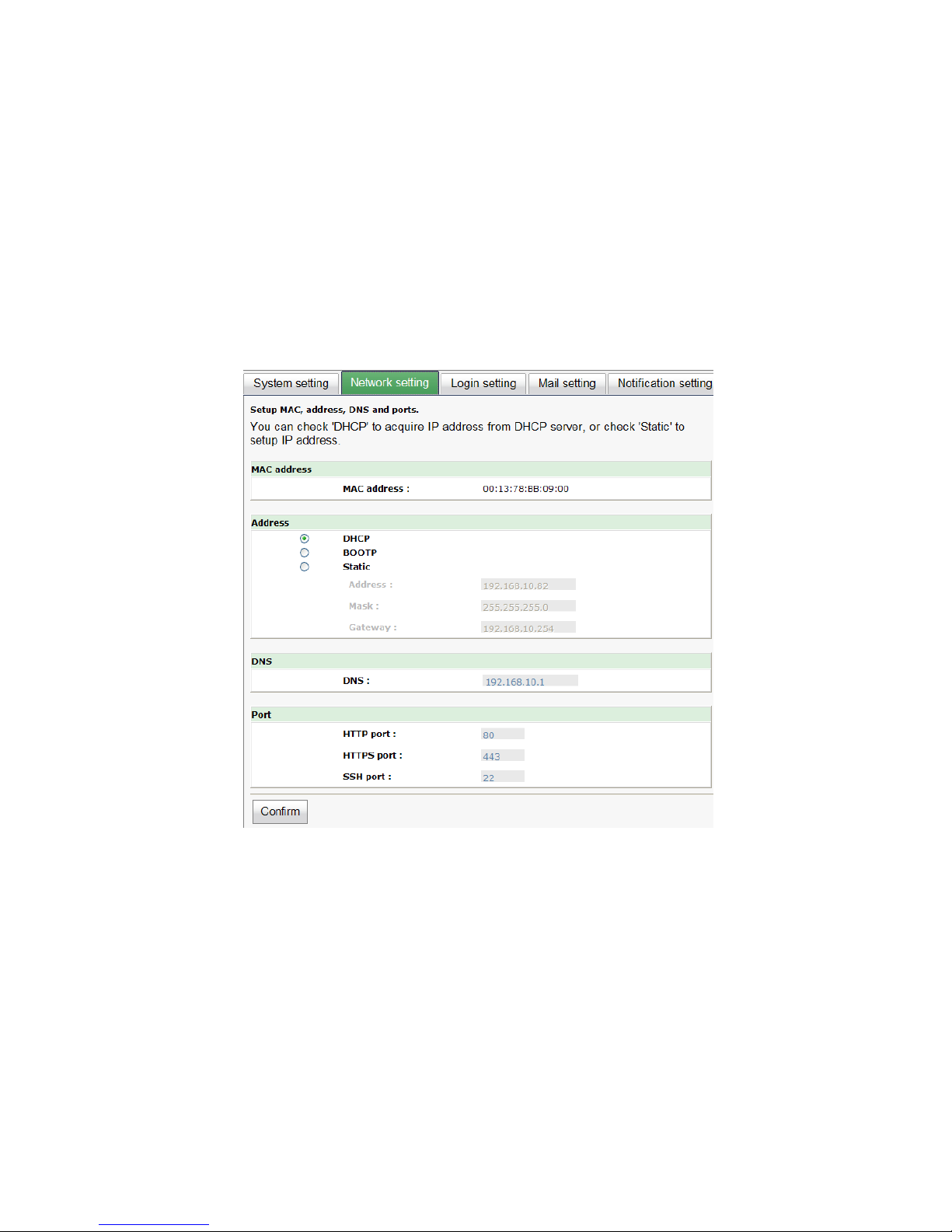

Figure 4.2.2.1

4.2.3 Login setting

“Login setting” can set single admin, auto logout time and admin / user password. The

single admin is to prevent multiple users access the same system in the same time.

1. Auto logout: The options are (1) Disabled; (2) 5 minutes; (3) 30 minutes; (4) 1 hour. The system will log out automatically when user is inactive for a period of time.

2. Login lock: Disabled or Enabled. When the login lock is enabled, the system allows only one user to login or modify system settings.

Page 38

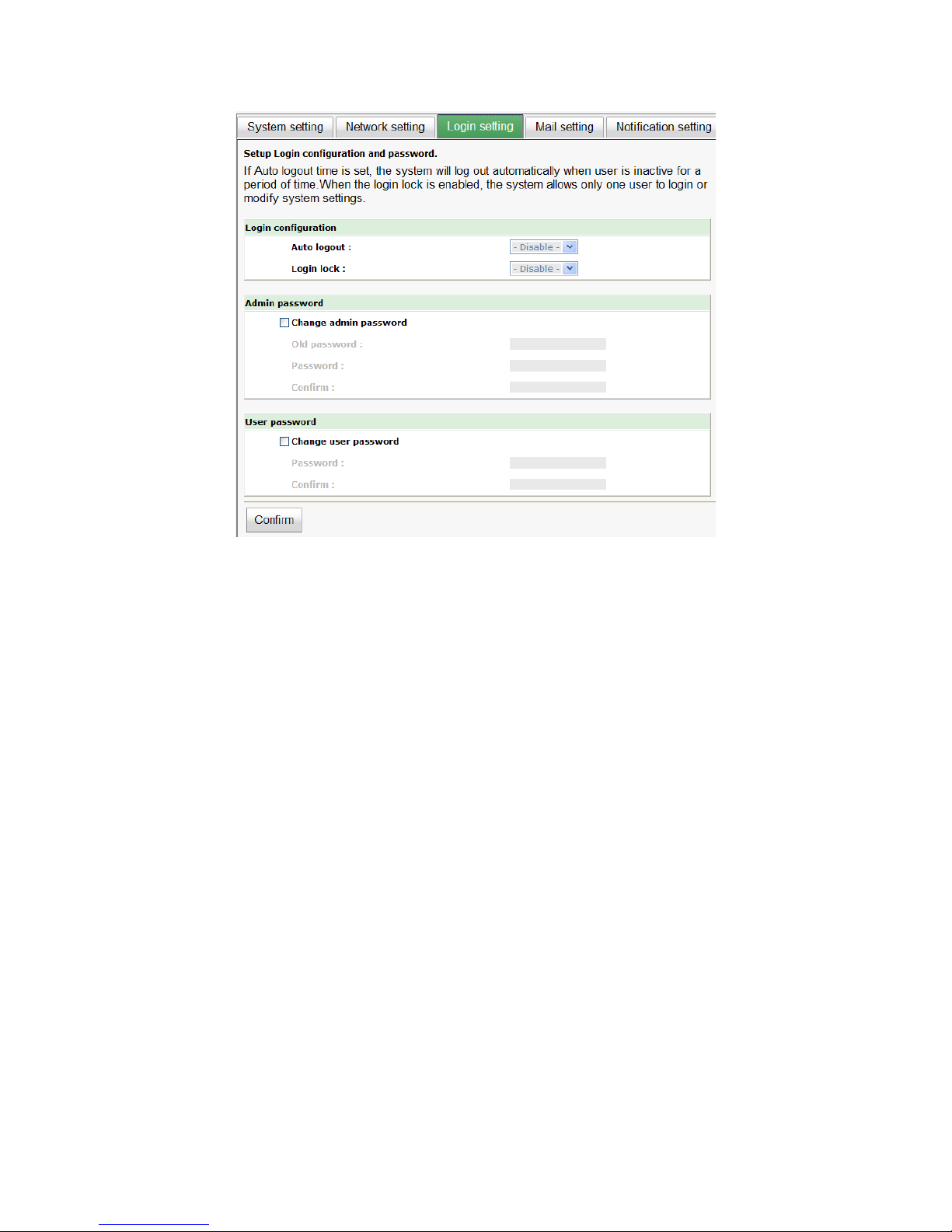

Figure 4.2.3.1

Check “Change admin password” or “Change user password” to change admin or user password. The maximum length of password is 12 characters.

4.2.4 Mail setting

“Mail setting” can enter 3 mail addresses for receiving the event notification. Some mail

servers would check “Mail-from address” and need authentication for anti-spam. Please fill the necessary fields and click “Send test mail” to test whether email functions are available. User can also select which levels of event logs are needed to be sent via Mail. Default setting only enables ERROR and WARNING event logs. Please also make sure the DNS server IP is well-setup so the event notification mails can be sent successfully.

Page 39

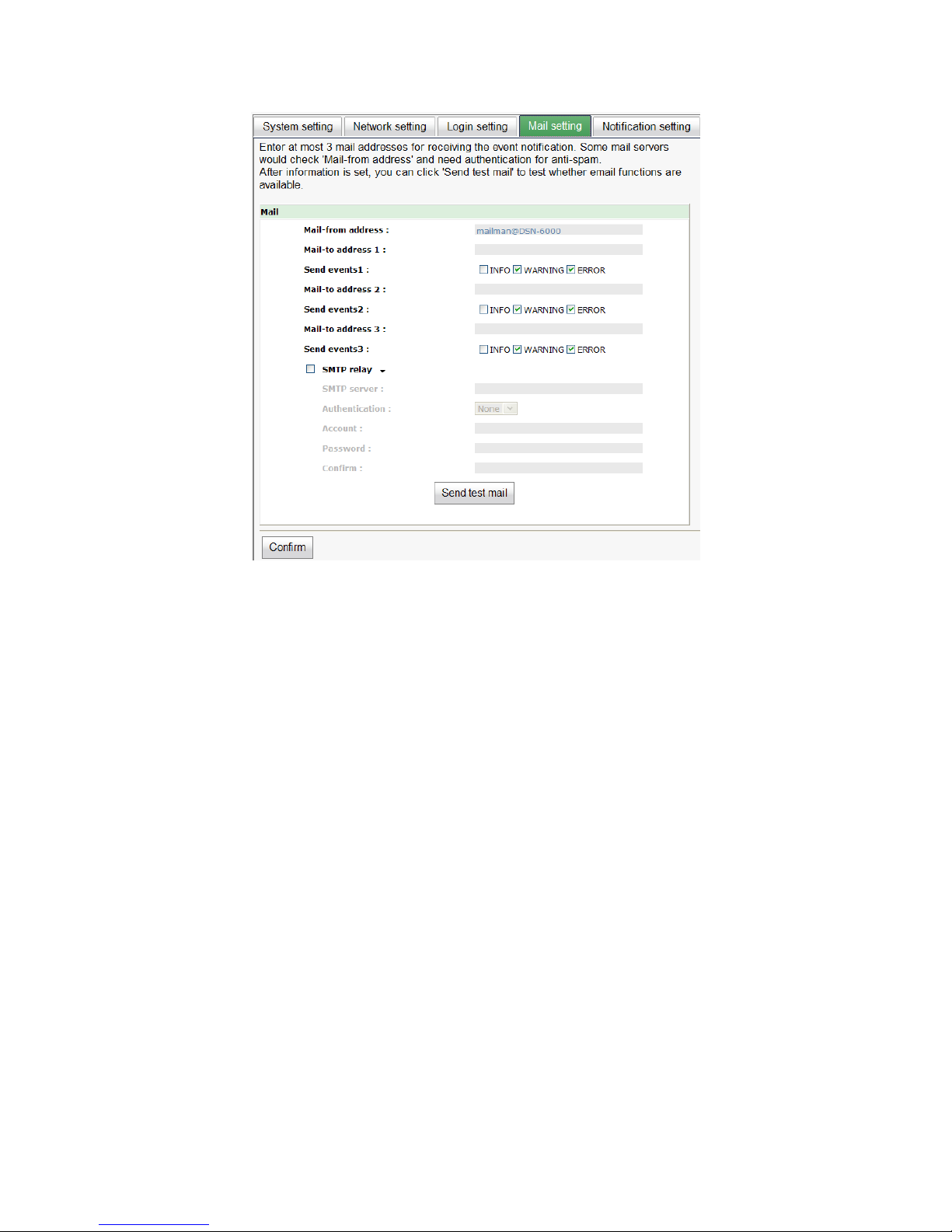

Figure 4.2.4.1

4.2.5 Notification setting

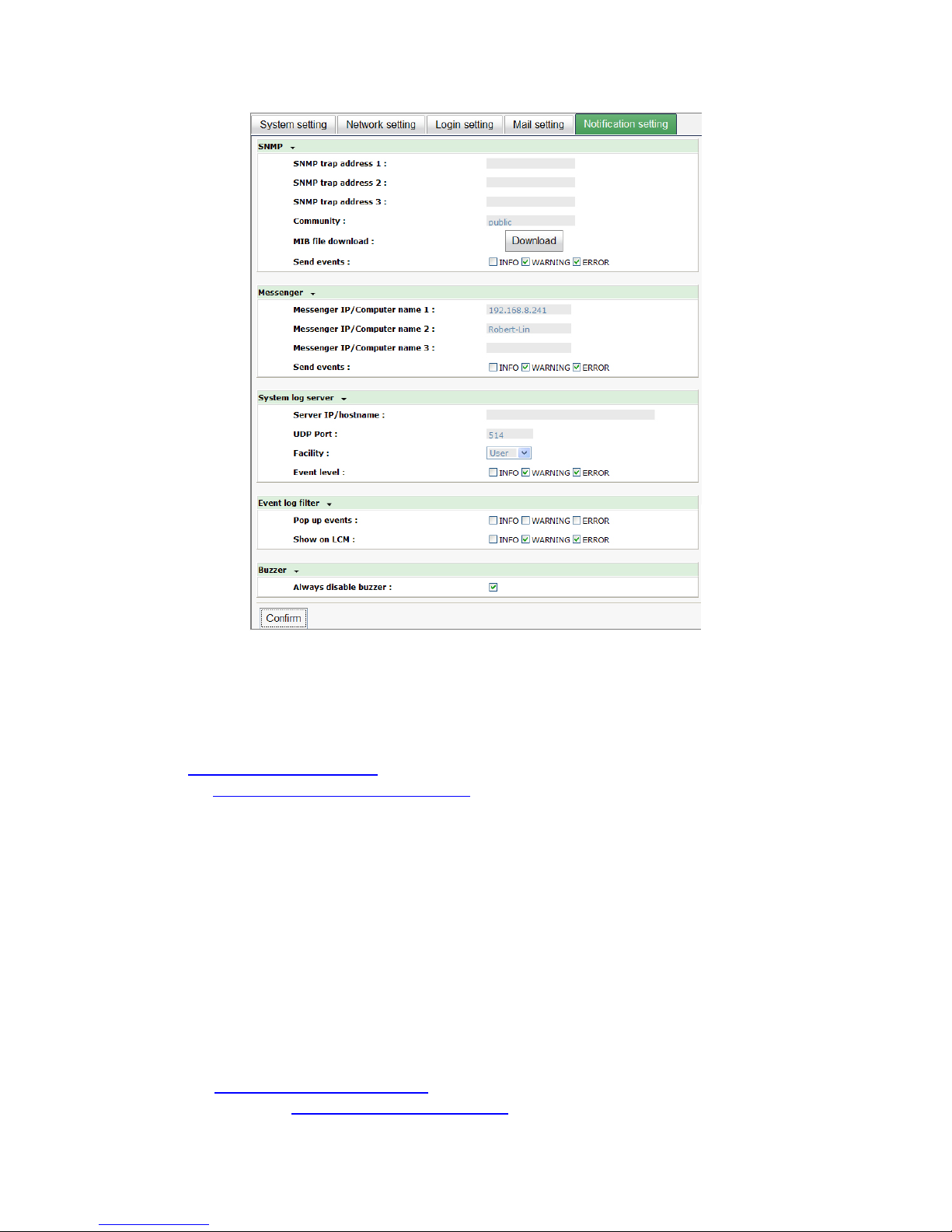

“Notification setting” can set up SNMP trap for alerting via SNMP, pop-up message via

Windows messenger (not MSN), alert via syslog protocol, and event log filter for web UI.

Page 40

Figure 4.2.5.1

“SNMP” allows up to 3 SNMP trap addresses. Default community setting is “public”. User

can choose the event log levels and default setting enables ERROR and WARNING event log in SNMP. There are many SNMP tools. The following web sites are for your reference:

SNMPc: http://www.snmpc.com/ Net-SNMP: http://net-snmp.sourceforge.net/

If necessary, click “Download” to get MIB file and import to SNMP. To use “Messenger”, user must enable the service “Messenger” in Windows (Start 

Control Panel  Administrative Tools  Services  Messenger), and then event logs can be received. It allows up to 3 messenger addresses. User can choose the event log levels and default setting enables the WARNING and ERROR event logs.

Using “System log server”, user can choose the facility and the event log level. The default port of syslog is 514. The default setting enables event level: INFO, WARNING and ERROR event logs.

There are some syslog server tools. The following web sites are for your reference: WinSyslog: http://www.winsyslog.com/ Kiwi Syslog Daemon: http://www.kiwisyslog.com/

Page 41

Most UNIX systems build in syslog daemon.

“Event log filter” setting can enable event log display on “Pop up events”.

4.3 iSCSI configuration

“iSCSI configuration” is designed for setting up the “Entity Property”, “NIC”, “Node”, “Session”, and “CHAP account”.

Figure 4.3.1

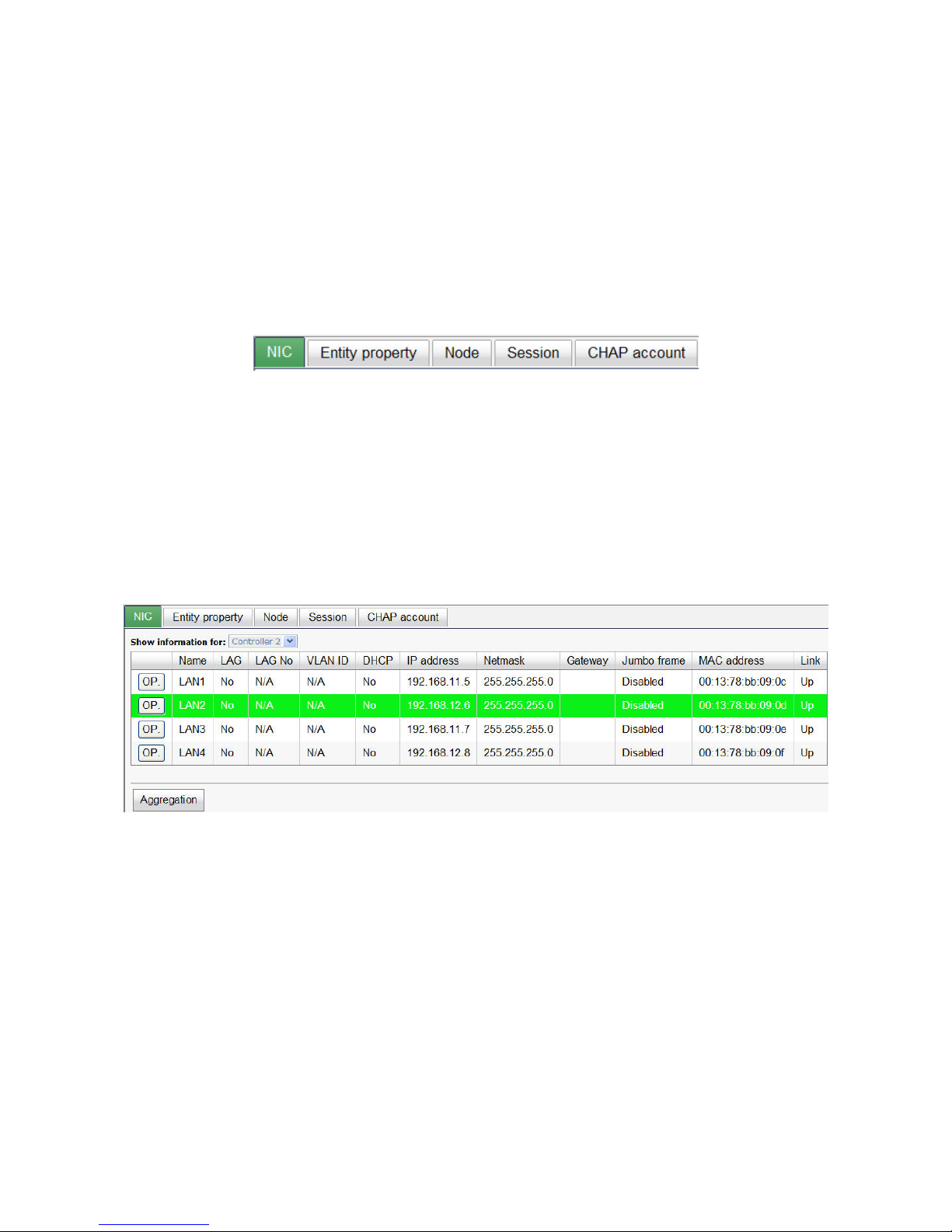

4.3.1 NIC

“NIC” can change IP addresses of iSCSI data ports. DSN-6110/6120 has four gigabit

ports on each controller to transmit data. Each of them must be assigned to an IP address and be set up in multi-homed mode, or the link aggregation / trunking mode has been set up. When there are multiple data ports setting up in link aggregation or trunking mode, all the data ports share single address.

Figure 4.3.1.1

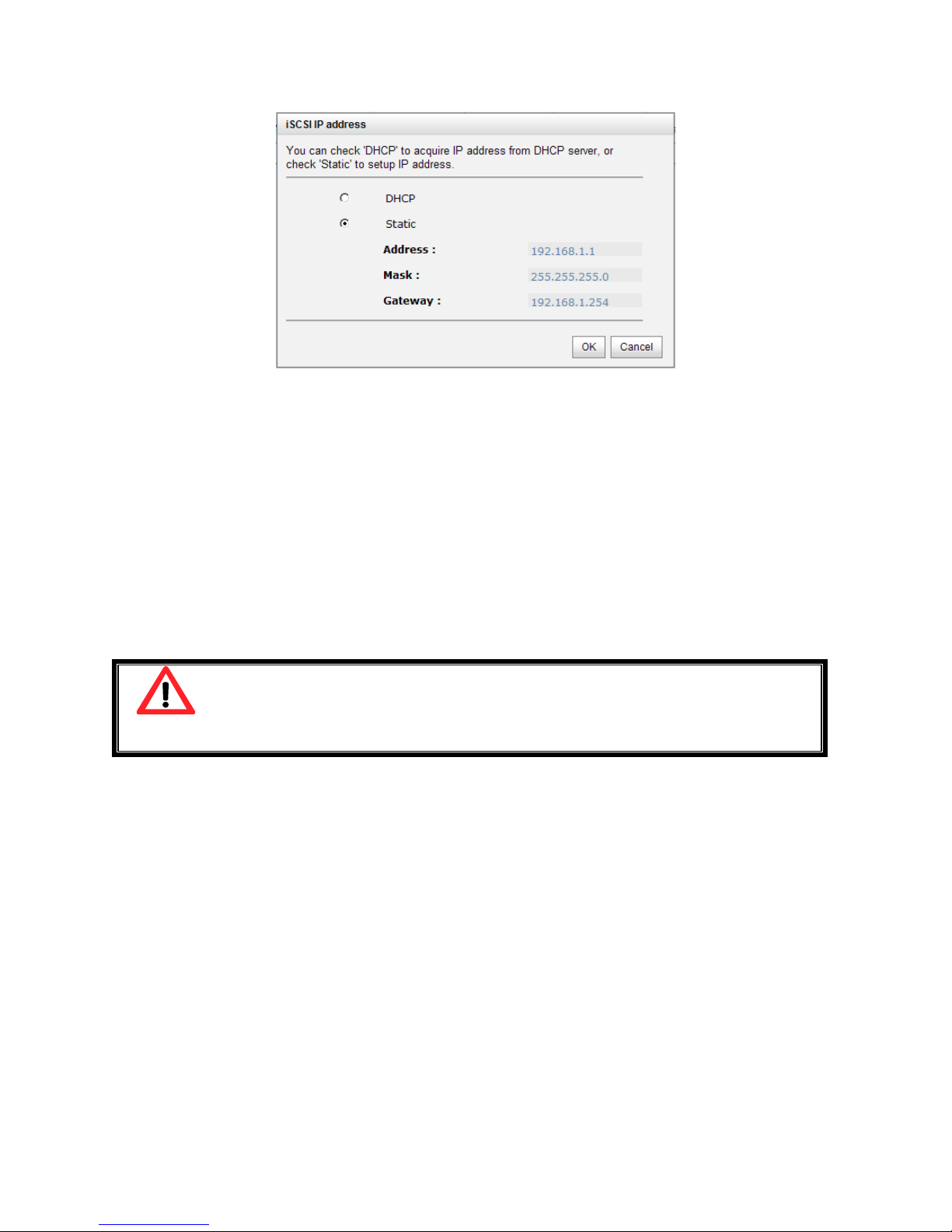

(Figure 4.3.1.1: There are 4 iSCSI data ports on each controller. 4 data ports are set with static IP.)

 IP settings:

User can change IP address by checking the gray button of LAN port, click “IP settings for iSCSI ports”. There are 2 selections, DHCP (Get IP address from DHCP server) or

static IP.

Page 42

Figure 4.3.1.2

 Default gateway:

Default gateway can be changed by checking the gray button of LAN port, click “Become default gateway”. There can be only one default gateway.

 MTU / Jumbo frame:

MTU (Maximum Transmission Unit) size can be enabled by checking the gray button of LAN port, click “Enable jumbo frame”. Maximum jumbo frame size is 3900 bytes.

Caution

he MTU size of switching hub and HBA on host must be enabled.

Otherwise, the LAN connection can not work properly.

 Multi-homed / Trunking / LACP:

The following is the description of multi-homed / trunking / LACP functions.

1. Multi-homed: Default mode. Each of iSCSI data port is connected by itself and is not link aggregation and trunking. This function is also for Multipath functions. Select this mode can also remove the setting of Trunking / LACP in same time.

2. Trunking: defines the use of multiple iSCSI data ports in parallel to increase the link speed beyond the limits of any single port.

3. LACP: The Link Aggregation Control Protocol (LACP) is part of IEEE specification

802.3ad that allows bundling several physical ports together to form a single logical channel. LACP allows a network switch to negotiate an automatic bundle by sending

Page 43

LACP packets to the peer. The advantages of LACP are (1) increases the bandwidth. (2) failover when link status fails on a port.

Trunking / LACP setting can be changed by clicking the button “Aggregation”.

Figure 4.3.1.3

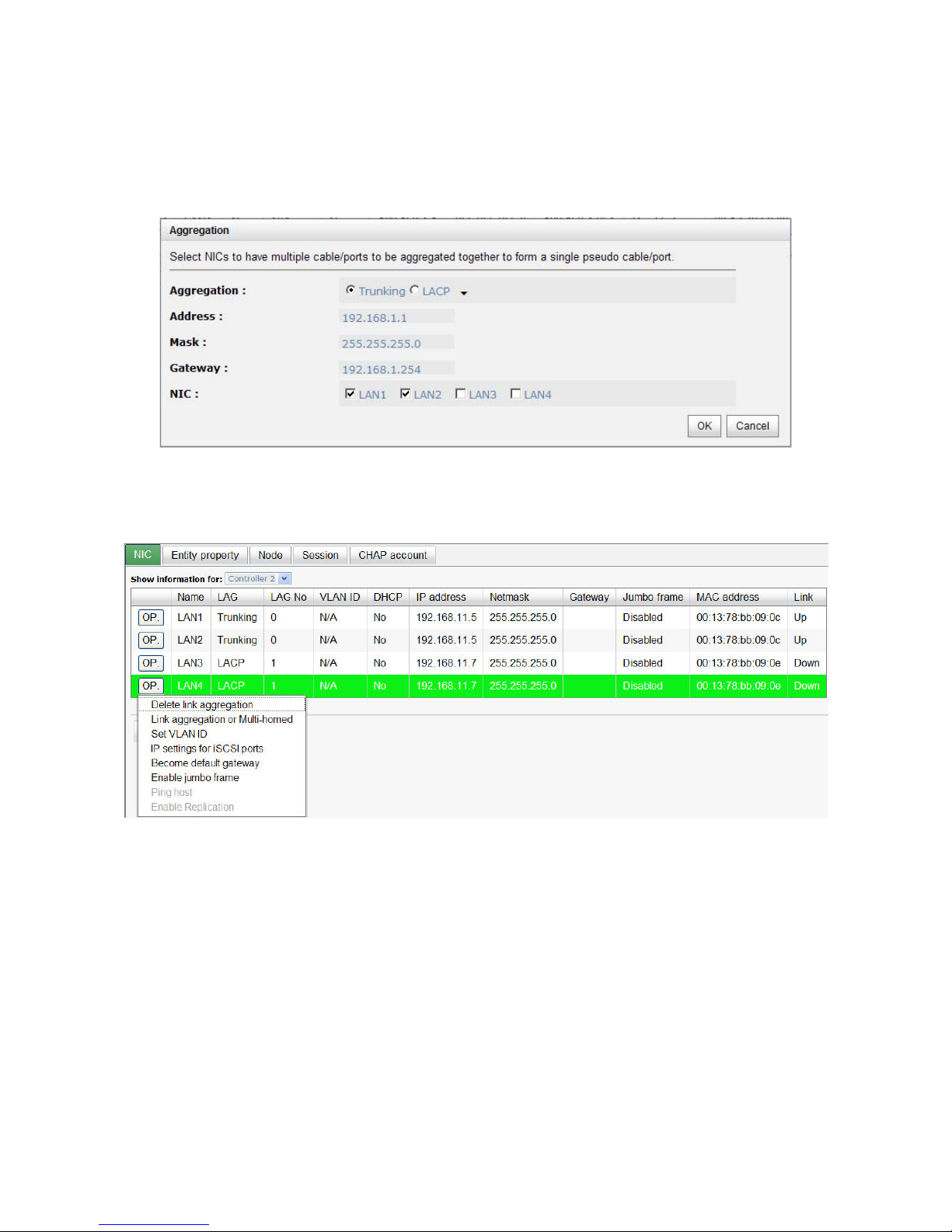

(Figure 4.3.1.3: There are 4 iSCSI data ports on each controller, select at least two NICs for link aggregation.)

Figure 4.3.1.4

For example, LAN1 and LAN2 are set as Trunking mode. LAN3 and LAN4 are set as LACP mode. To remove Trunking / LACP setting, check the gray button of LAN port, click “Delete link aggregation”. Then it will pop up a message to confirm.

 Ping host:

User can ping the corresponding host data port from the target, click “Ping host”.

Page 44

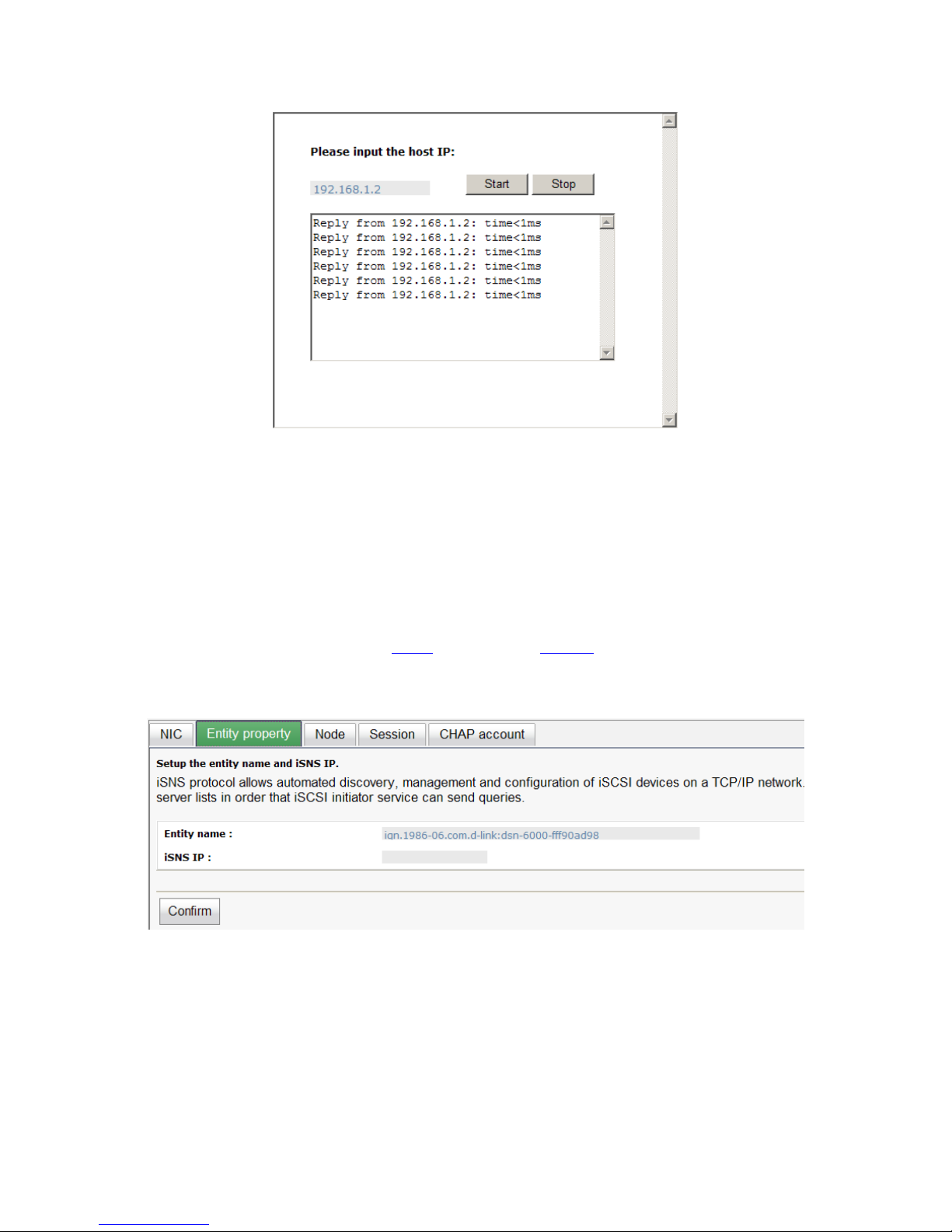

Figure 4.3.1.5

(Figure 4.3.1.5 shows a user can ping host from the target to make sure the data port connection is well.)

4.3.2 Entity property

“Entity property” can view the entity name of the system, and setup “iSNS IP” for

iSNS (Internet Storage Name Service). iSNS protocol allows automated discovery, management and configuration of iSCSI devices on a TCP/IP network. Using iSNS, it needs to install an iSNS server in SAN. Add an iSNS server IP address into iSNS server lists in order that iSCSI initiator service can send queries. The entity name can be changed.

Figure 4.3.2.1

4.3.3 Node

“Node” can view the target name for iSCSI initiator. DSN-6110/6120 supports up to 32

multi-nodes. There are 32 default nodes created for each controller.

Page 45

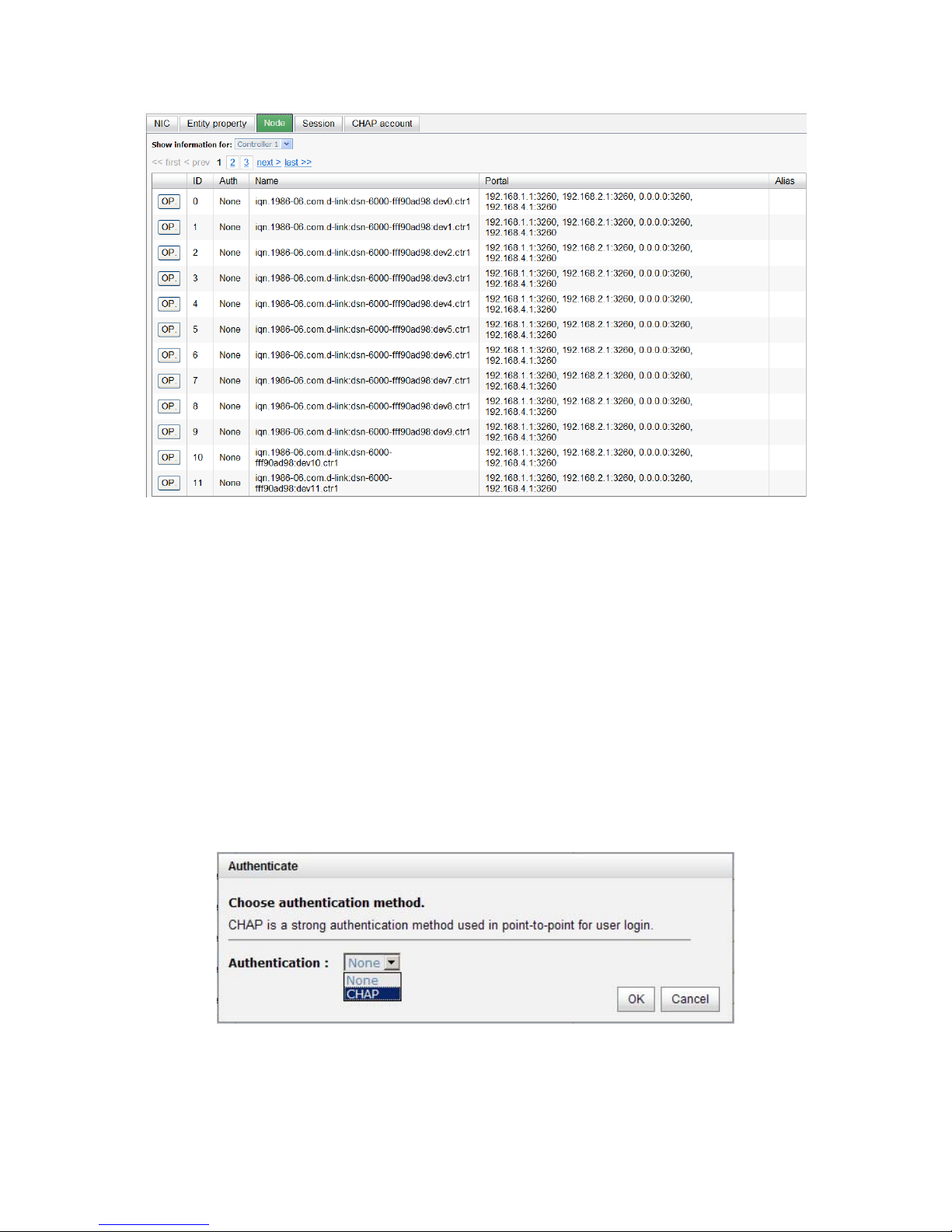

Figure 4.3.3.1

 CHAP:

CHAP is the abbreviation of Challenge Handshake Authentication Protocol. CHAP is a strong authentication method used in point-to-point for user login. It’s a type of authentication in which the authentication server sends the client a key to be used for encrypting the username and password. CHAP enables the username and password to transmit in an encrypted form for protection.

To use CHAP authentication, please follow the procedures.

1. Select one of 32 default nodes from one controller.

2. Check the gray button of “OP.” column, click “Authenticate”.

3. Select “CHAP”.

Figure 4.3.3.2

4. Click “OK”.

Page 46

Figure 4.3.3.3

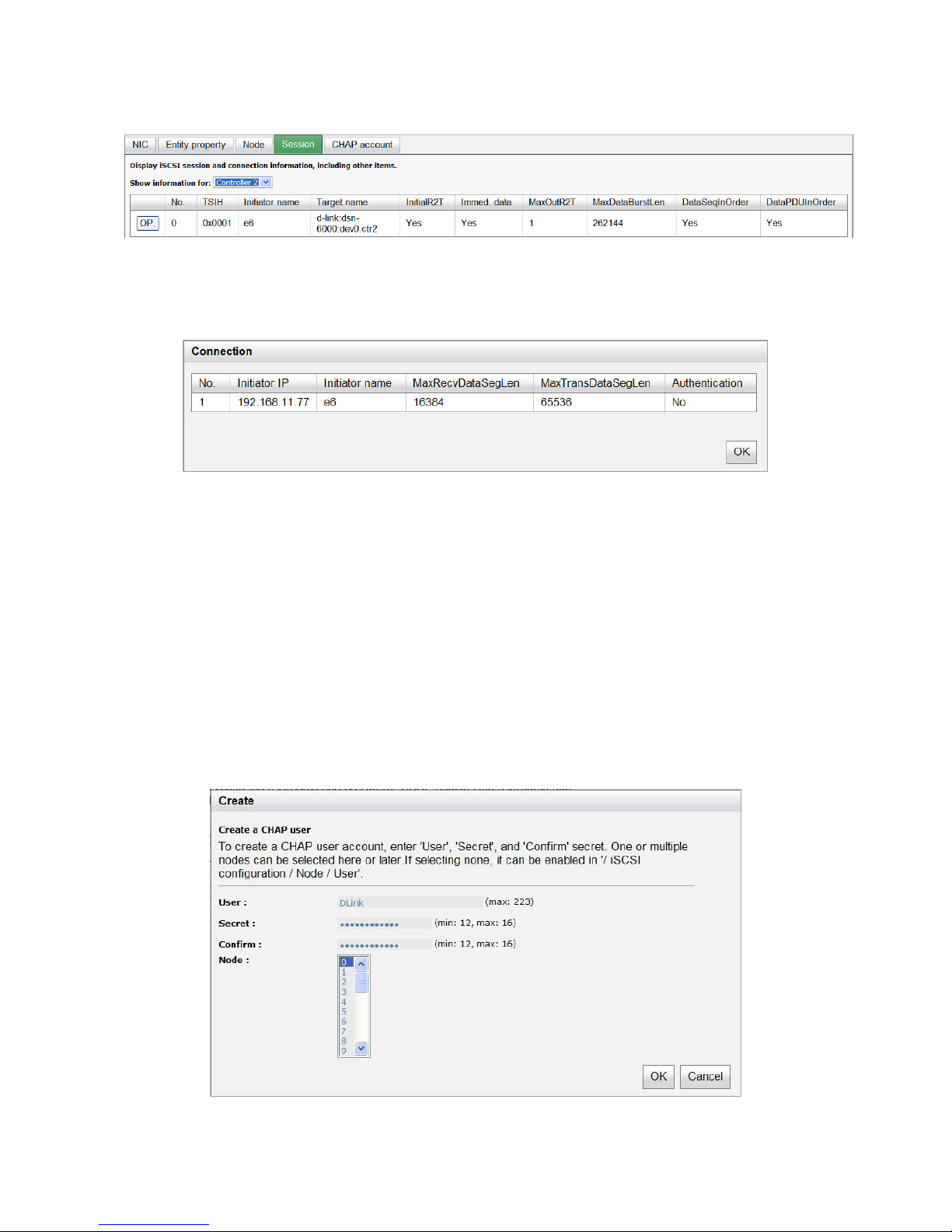

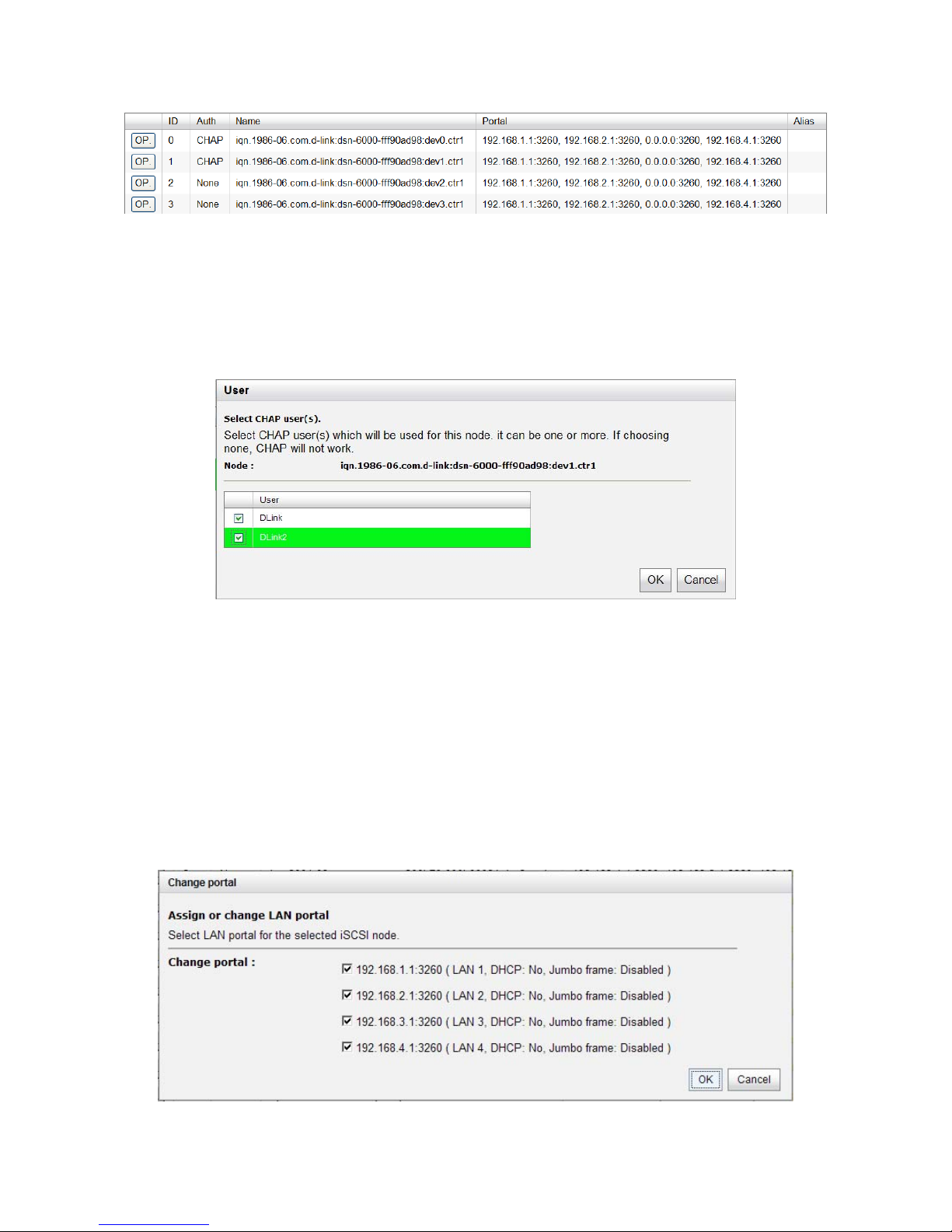

5. Go to “/ iSCSI configuration / CHAP account” page to create CHAP account. Please refer to next section for more detail.

6. Check the gray button of “OP.” column, click “User”.

7. Select CHAP user(s) which will be used. It’s a multi option; it can be one or more. If choosing none, CHAP can not work.

Figure 4.3.3.4

8. Click “OK”.

9. In “Authenticate” of “OP” page, select “None” to disable CHAP.

 Change portal:

Users can change the portals belonging to the device node of each controller.

1. Check the gray button of “OP.” column next to one device node.

2. Select “Change portal”.

3. Choose the portals for the controller.

4. Click “OK” to confirm.

Figure 4.3.3.5

Page 47

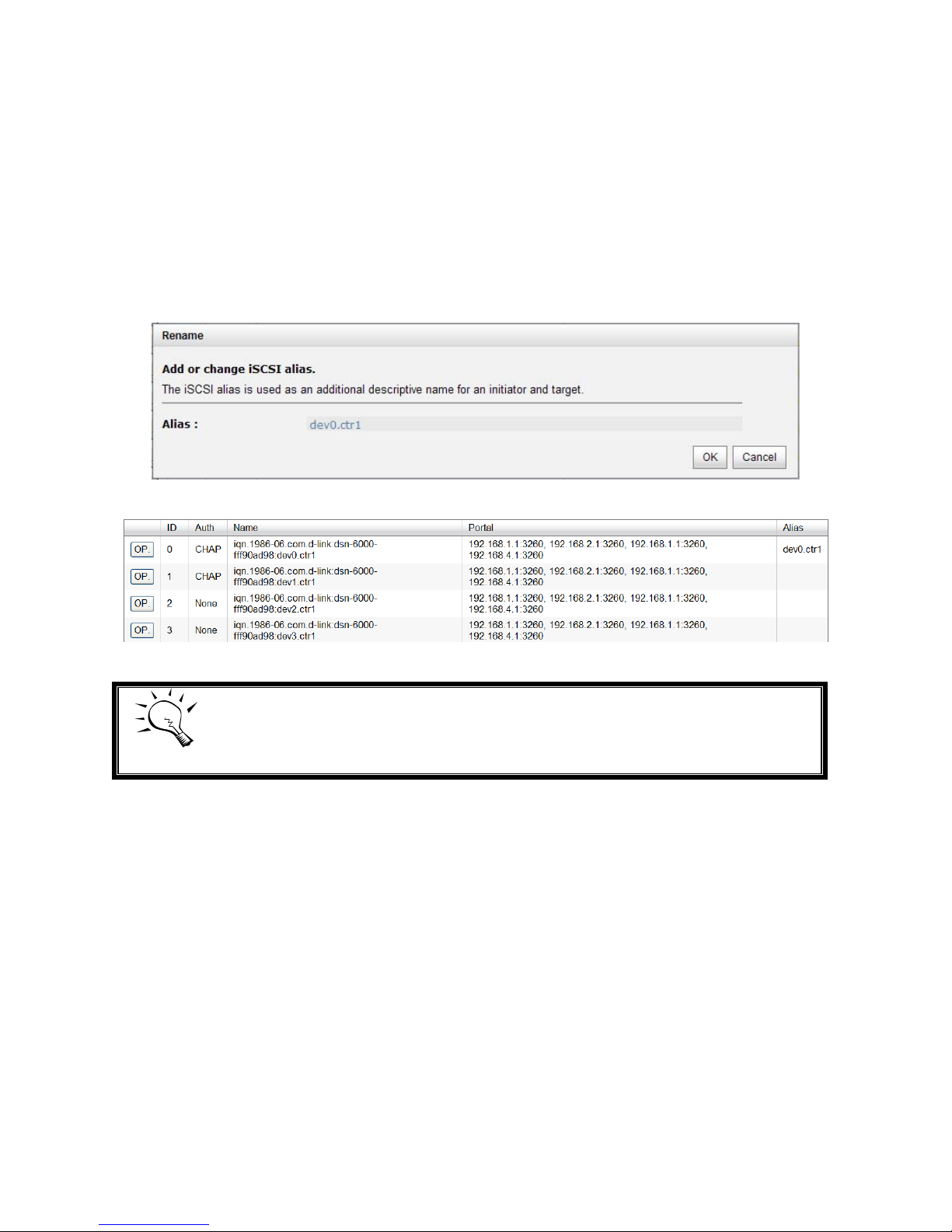

 Rename alias:

User can create an alias to one device node.

1. Check the gray button of “OP.” column next to one device node.

2. Select “Rename alias”.

3. Create an alias for that device node.

4. Click “OK” to confirm.

5. An alias appears at the end of that device node.

Figure 4.3.3.6

Figure 4.3.3.7

Tips

After setting CHAP, the initiator in host should be set with the same CHAP account. Otherwise, user cannot login.

4.3.4 Session

“Session” can display current iSCSI session and connection information, including the

following items:

1. TSIH (target session identifying handle)

2. Host (In i tiator Name)

3. Controller (Target Name)

4. InitialR2T(Initial Ready to Transfer)

5. Immed. data(Immediate data)

6. MaxDataOutR2T(Maximum Data Outstanding Ready to Transfer)

7. MaxDataBurstLen(Maximum Data Burst Length)

8. DataSeginOrder(Data Sequence in Order)

9. DataPDUInOrder(Data PDU in Order)

10. Detail of Authentication status and Source IP: port number.

Page 48

Figure 4.3.4.1 (iSCSI Session)

Check the gray button of session number, click “List connection”. It can list all connection(s) of the session.

Figure 4.3.4.2 (iSCSI Connection)

4.3.5 CHAP account

“CHAP account” can manage a CHAP account for authentication. DSN-6110/6120 can

create multiple CHAP accounts. To setup CHAP account, please follow the procedures.

1. Click “Create”.

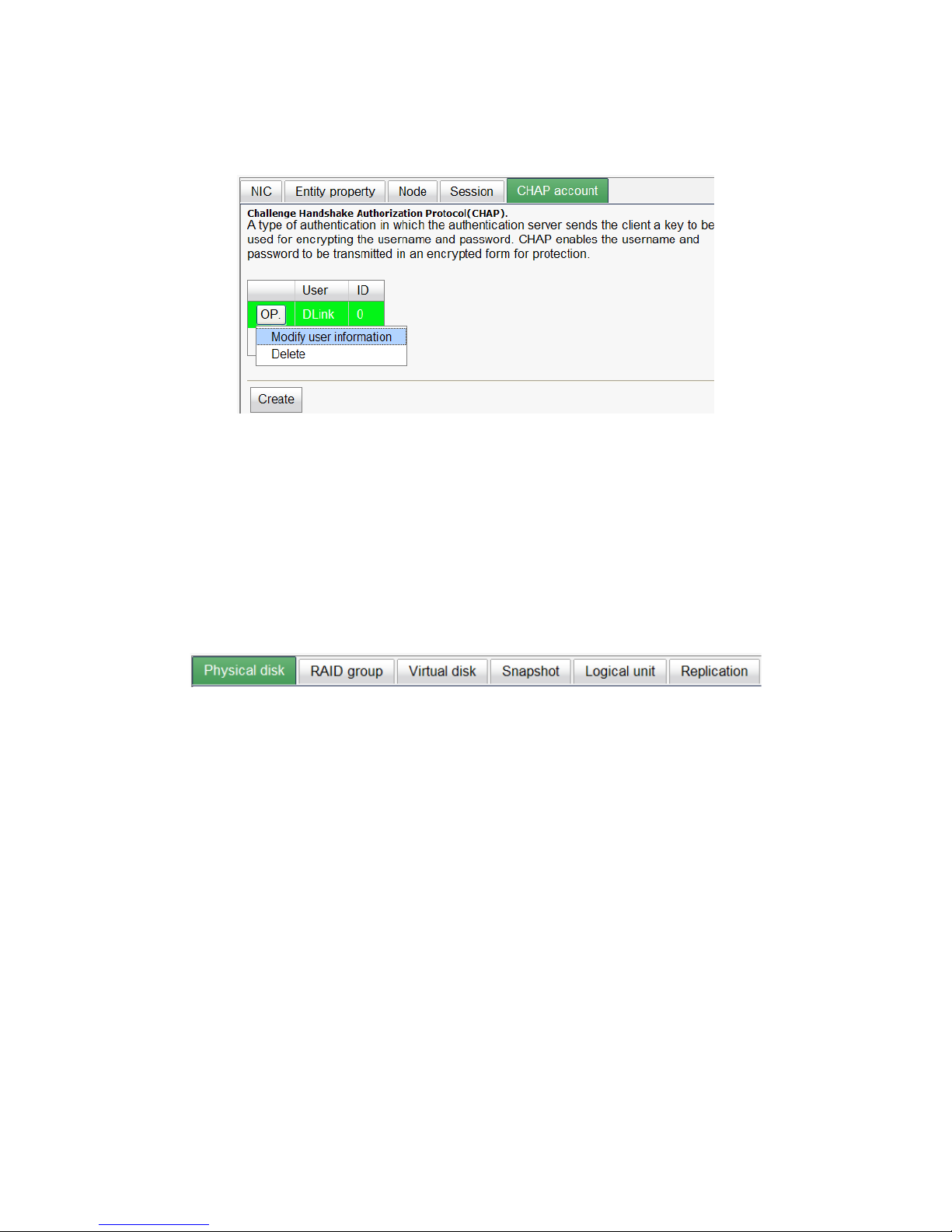

2. Enter “User”, “Secret”, and “Confirm” secret again. “Node” can be selected here or later. If selecting none, it can be enabled later in “/ iSCSI configuration / Node

/ User”.

Figure 4.3.5.1

Page 49

3. Click “OK”.

Figure 4.3.5.2

4. Click “Delete” to delete CHAP account.

4.4 Volume configuration

“Volume configuration” is designed for setting up the volume configuration which

includes “Physical disk”, “RAID group”, “Virtual disk”, “Snapshot”, “Logical unit”, and “Replication” (optional).

Figure 4.4.1

4.4.1 Physical disk

“Physical disk” can view the status of hard drives in the system. The followings are

operational steps:

1. Check the gray button next to the number of slot, it will show the functions which can be executed.

2. Active function can be selected, and inactive functions show up in gray color and cannot be selected.

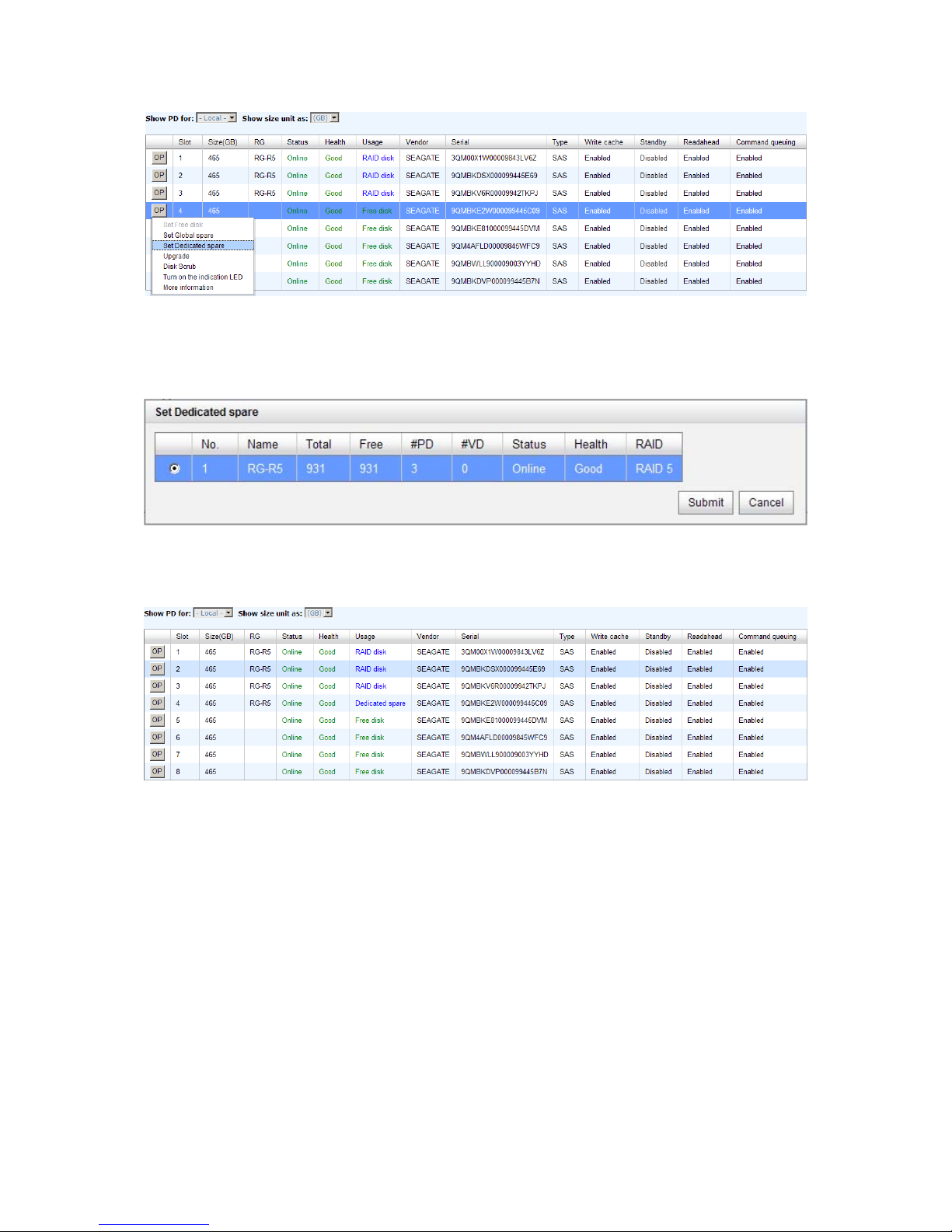

For example, set PD slot number 4 to dedicated spare disk. Step 1: Check to the gray button of PD 4, select “Set Dedicated spare”, it will link to

next page.

Page 50

Figure 4.4.1.1

Step 2: If there is any RG which is in protected RAID level and can be set with dedicate spare disk, select one RG, and then click “Submit”.

Figure 4.4.1.2

Step 3: Done. View “Physical disk” page.

Figure 4.4.1.3

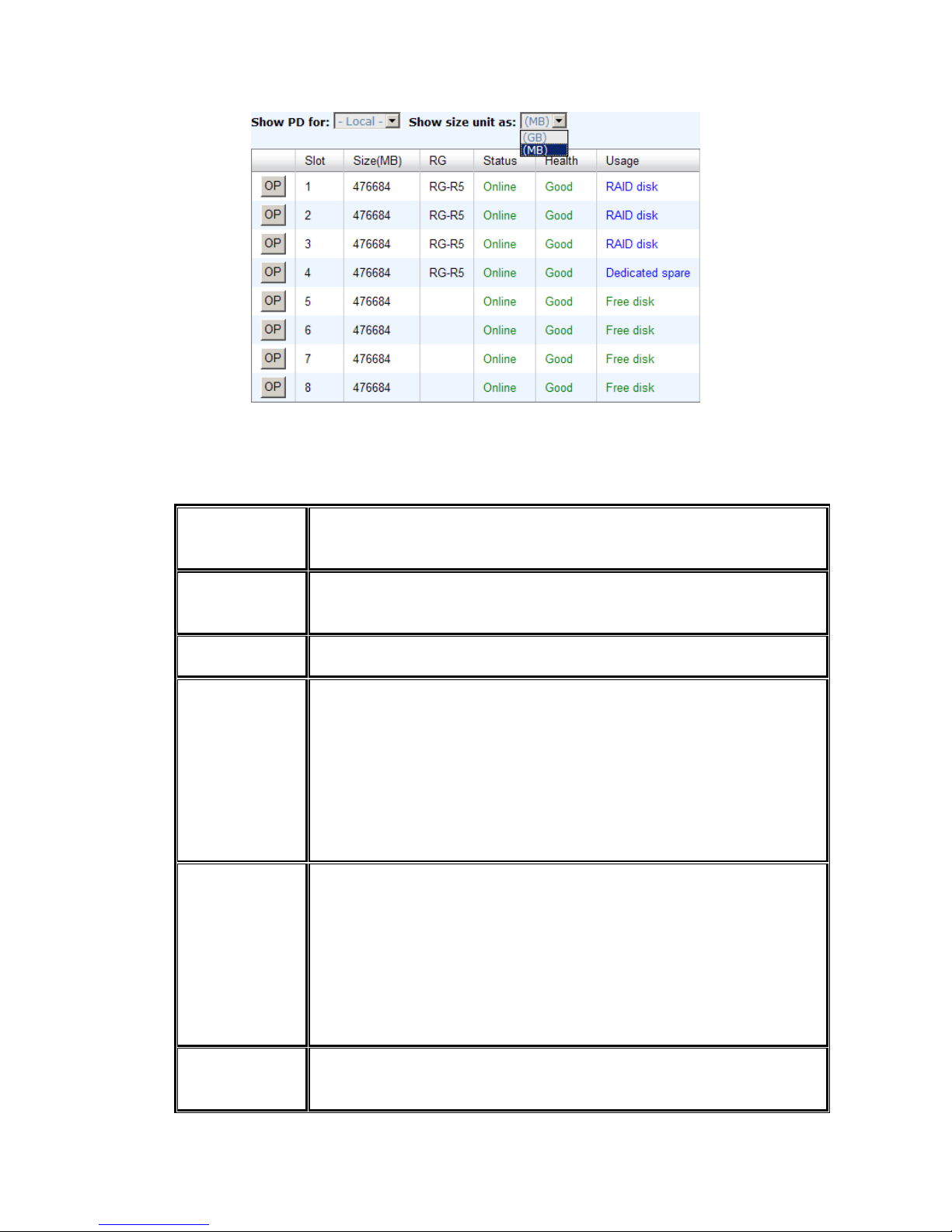

(Figure 4.4.1.3: Physical disks in slot 1,2,3 are created for a RG named “RG-R5”. Slot 4 is set as dedicated spare disk of the RG named “RG-R5”. The others are free disks.)

Step 4: The unit of size can be changed from (GB) to (MB). It will display the capacity of hard drive in MB.

Page 51

Figure 4.4.1.4

 PD column description:

Slot The position of a hard drive. The button next to the number of

slot shows the functions which can be executed.

Size (GB) (MB)

Capacity of hard drive. The unit can be displayed in GB or MB.

RG Name RAID group name. Status The status of hard drive:

 “Online”  the hard drive is online.  “Rebuilding”  the hard drive is being rebuilt.  “Transition”  the hard drive is being migrated or is

replaced by another disk when rebuilding occurs.

 “Scrubbing”  the hard drive is being scrubbed.

Health The health of hard drive:

 “Good”  the hard drive is good.  “Failed”  the hard drive is failed.  “Error Alert”  S.M.A.R.T. error alert.  “Read Errors”  the hard drive has unrecoverable read

errors.

Usage The usage of hard drive:

 “RAID disk”  This hard drive has been set to a

Page 52

RAID group.

 “Free disk”  This hard drive is free for use.  “Dedicated spare”  This hard drive has been set as

dedicated spare of a RG.

 “Global spare”  This hard drive has been set as

global spare of all RGs.

Vendor Hard drive vendor. Serial Hard drive serial number. Type Hard drive type:

 “SATA”  SATA disk.  “SATA2”  SATA II disk.  “SAS”  SAS disk.

Write cache Hard drive write cache is enabled or disabled. Default is

“Enabled”. Standby HDD auto spindown to save power. Default is “Disabled”. Readahead This feature makes data be loaded to disk’s buffer in advance for

further use. Default is “Enabled”.

Command queuing

Newer SATA and most SCSI disks can queue multiple commands

and handle one by one. Default is “Enabled”.

 PD operation description:

Set Free disk Make the selected hard drive be free for use.

Set Global spare

Set the selected hard drive to global spare of all RGs.

Set Dedicated spares

Set a hard drive to dedicated spare of the selected RG.

Upgrade Upgrade hard drive firmware. Disk Scrub Scrub the hard drive. Turn on/off Turn on the indication LED of the hard drive. Click again to turn

Page 53

the indication LED

off.

More information

Show hard drive detail information.

4.4.2 RAID group

“RAID group” can view the status of each RAID group, create, and modify RAID groups.

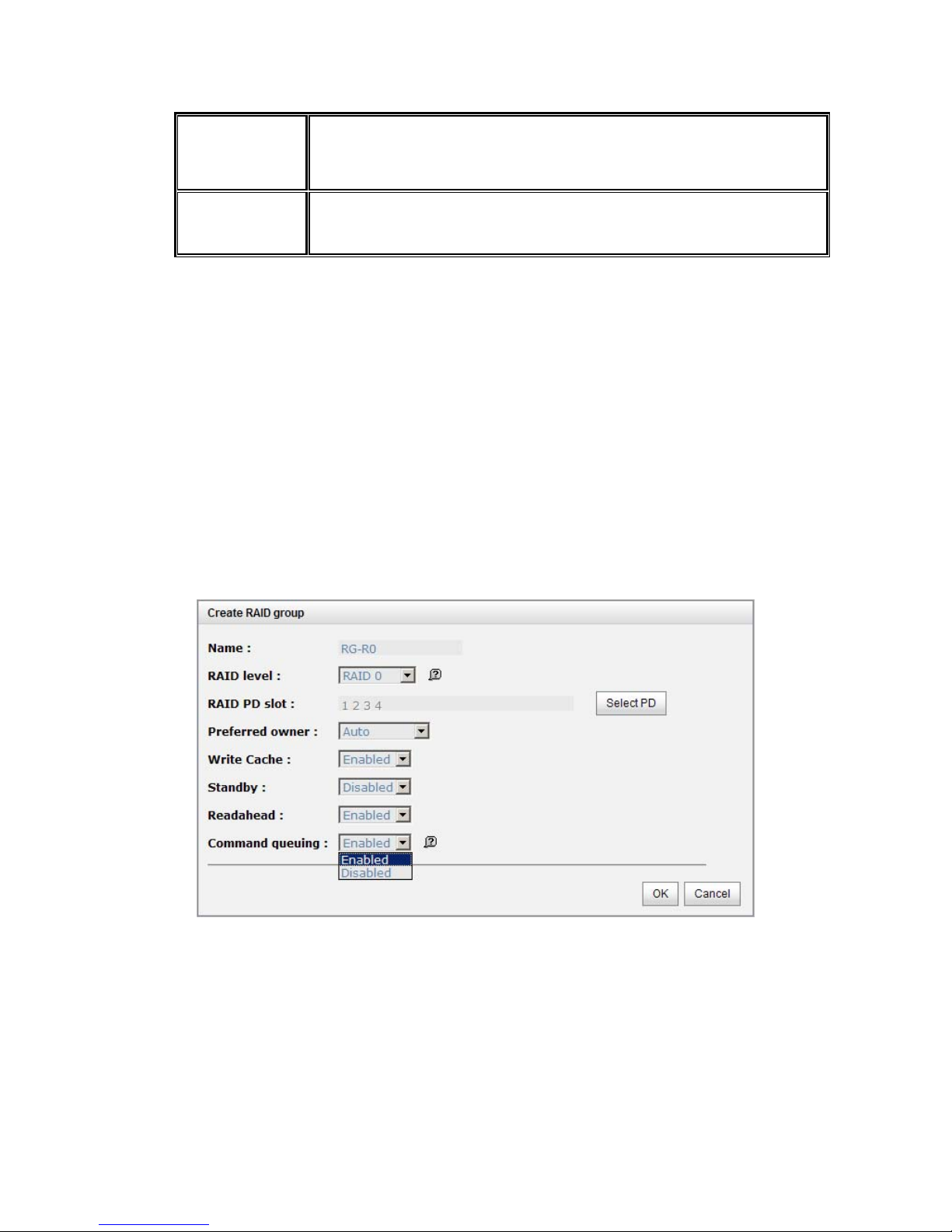

The following is an example to create a RG. Step 1: Click “Create”, enter “Name”, choose “RAID level”, click “Select PD” to

select PD, assign the RG’s “Preferred owner”. Then click “OK”. The “Write Cache” option is to enable or disable the write cache option of hard drives. The “Standby” option is to enable or disable the auto spindown function of hard drives, when this option is enabled and hard drives have no I/O access after certain period of time, they will spin down automatically. The “Readahead” option is to enable or disable the read ahead function. The “Command queuing” option is to enable or disable the hard drives’ command queue function.

Figure 4.4.2.1

Step 2: Confirm page. Click “OK” if all setups are correct.

Page 54

Figure 4.4.2.2

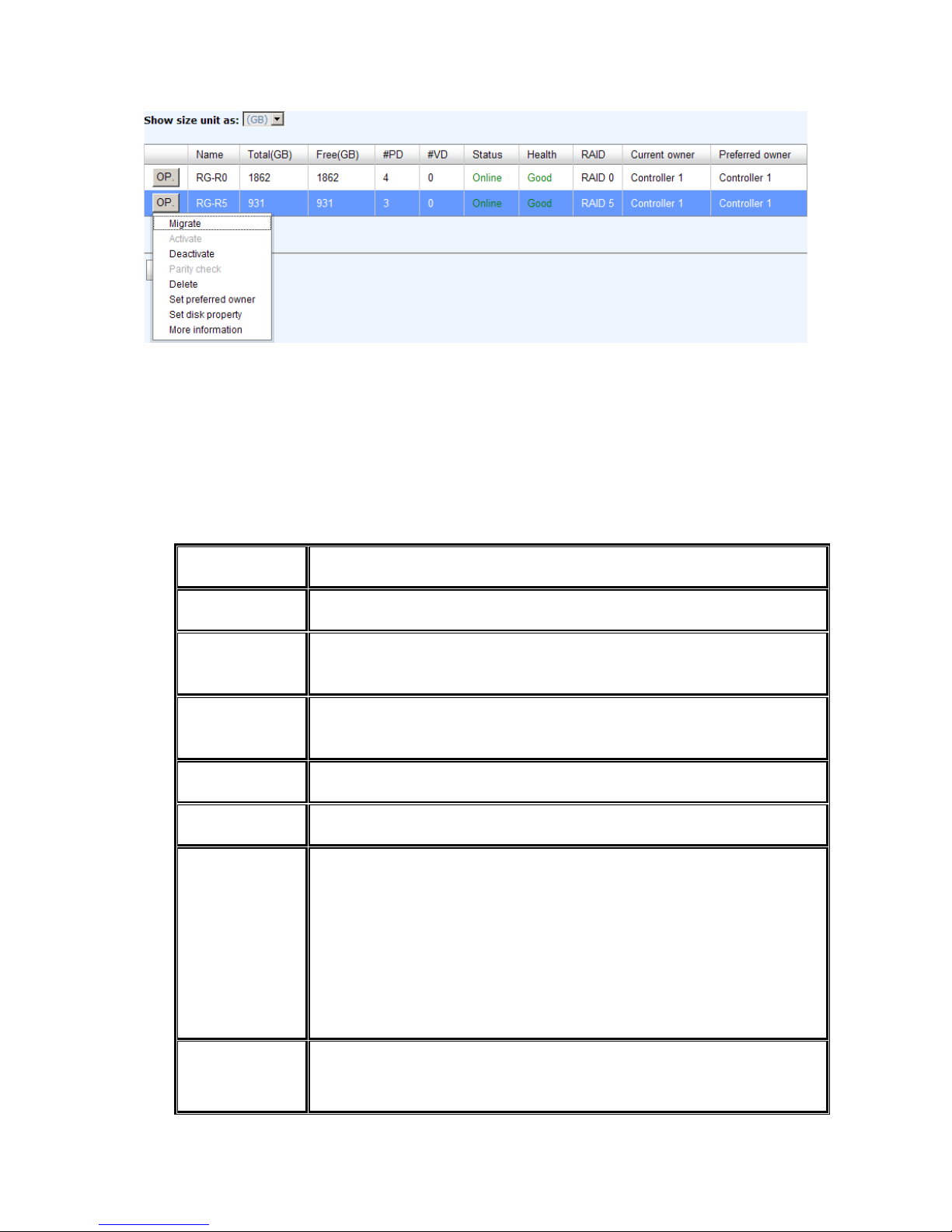

(Figure 4.4.2.2: There is a RAID 0 with 4 physical disks, named “RG-R0”. The second RAID group is a RAID 5 with 3 physical disks, named “RG-R5”.)

Step 3: Done. View “RAID group” page.

 RG column description:

The button includes the functions which can be executed. Name RAID group name.

Total (GB) (MB)

Total capacity of this RAID group. The unit can be displayed in

GB or MB.

Free (GB) (MB)

Free capacity of this RAID group. The unit can be displayed in

GB or MB.

#PD The number of physical disks in a RAID group. #VD The number of virtual disks in a RAID group. Status The status of RAID group:

 “Online”  the RAID group is online.

 “Offline”  the RAID group is offline.

 “Rebuild”  the RAID group is being rebuilt.

 “Migrate”  the RAID group is being migrated.

 “Scrubbing”  the RAID group is being scrubbed.

Health The health of RAID group:

 “Good”  the RAID group is good.

Page 55

 “Failed”  the RAID group fails.

 “Degraded”  the RAID group is not healthy and not

completed. The reason could be lack of disk(s) or have failed disk

RAID The RAID level of the RAID group.

Current owner

The owner of the RAID group. The default owner is controller 1.

Preferred owner

The preferred owner of the RAID group. The default owner is

controller 1.

 RG operation description:

Create

Create a RAID group.

Migrate

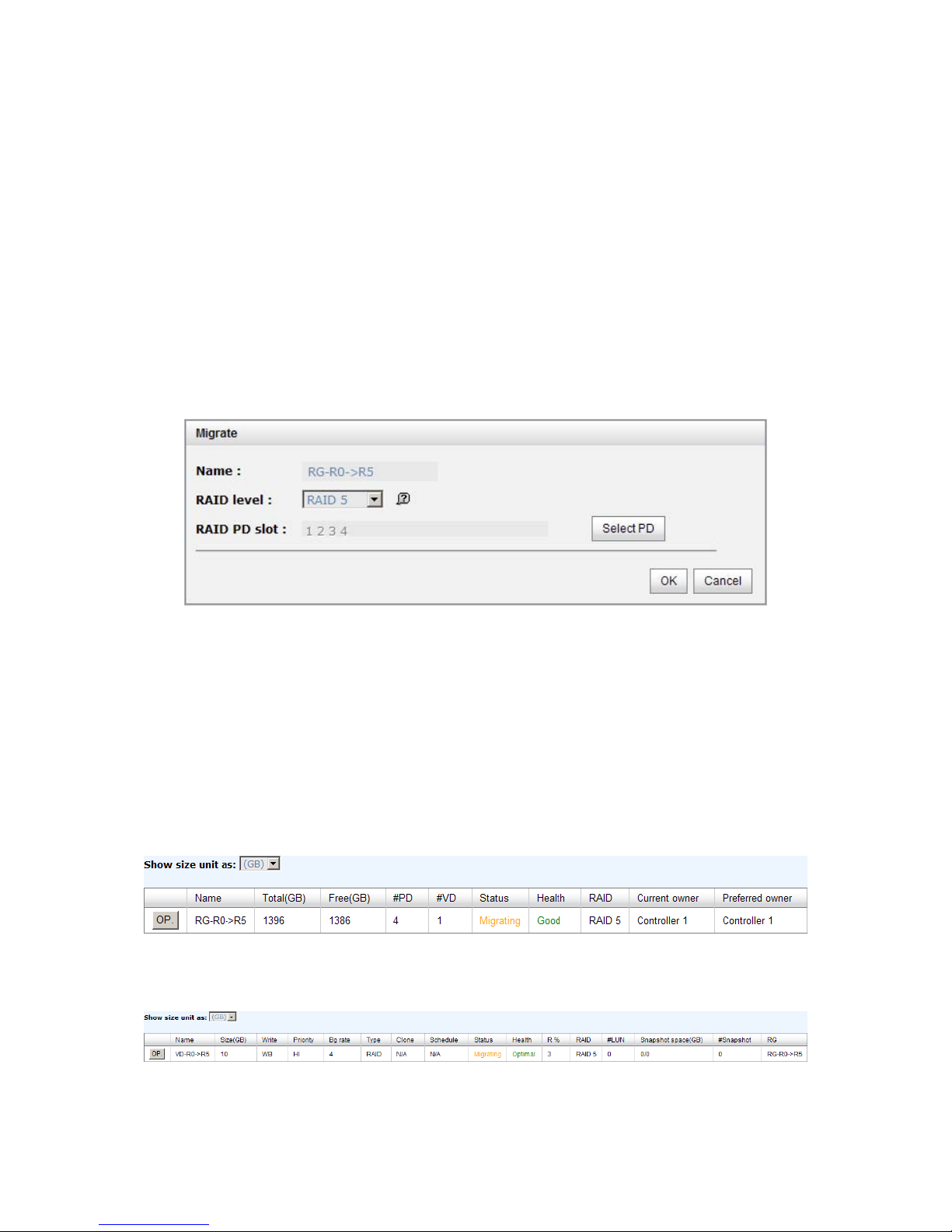

Change the RAID level of a RAID group. Please refer to next

chapter for details.

Activate

Activate the RAID group after disk roaming; it can be executed

when RG status is offline. This is for online disk roaming

purpose.

Deactivate

Deactivate the RAID group before disk roaming; it can be

executed when RG status is online. This is for online disk

roaming purpose.

Parity check

Regenerate parity for the RAID group. It supports RAID 3 / 5 / 6

/ 30 / 50 / 60.

Delete

Delete the RAID group.

Set preferred owner

Set the RG ownership to the other controller.

Set disk property

Change the disk property of write cache and standby options.

Write cache:

“Enabled”  Enable disk write cache. (Default) “Disabled”  Disable disk write cache.

Standby:

“Disabled”  Disable auto spindown. (Default) “30 sec / 1 min / 5 min / 30 min”  Enable hard drive

auto spindown to save power when no access after certain

period of time.

Read ahead:

“Enabled”  Enable disk read ahead. (Default) “Disabled”  Disable disk read ahead.

Page 56

Command queuing:

“Enabled”  Enable disk command queue. (Default) “Disabled”  Disable disk command queue.

More information

Show RAID group detail information.

4.4.3 Virtual disk

“Virtual disk” can view the status of each Virtual disk, create, and modify virtual disks.

The following is an example to create a VD.

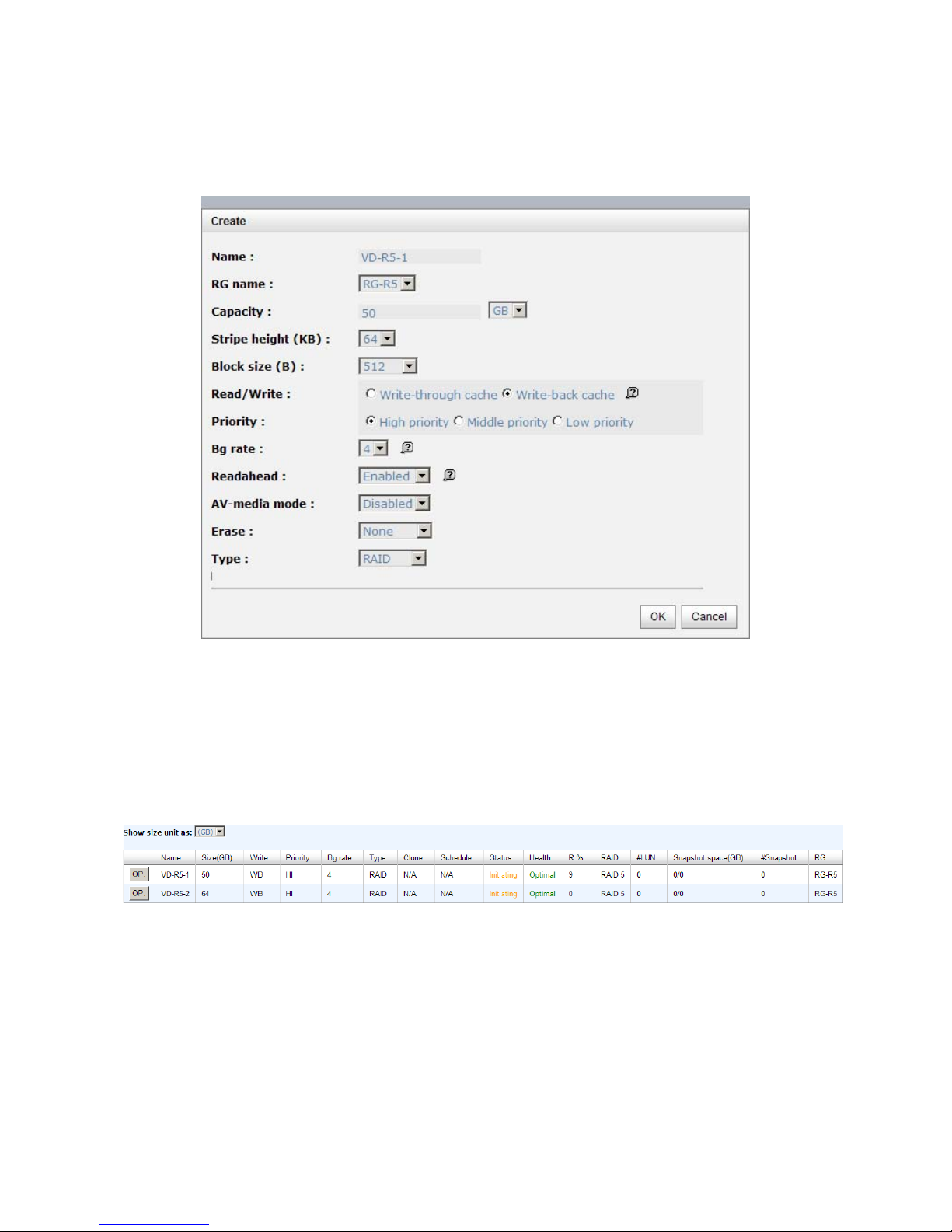

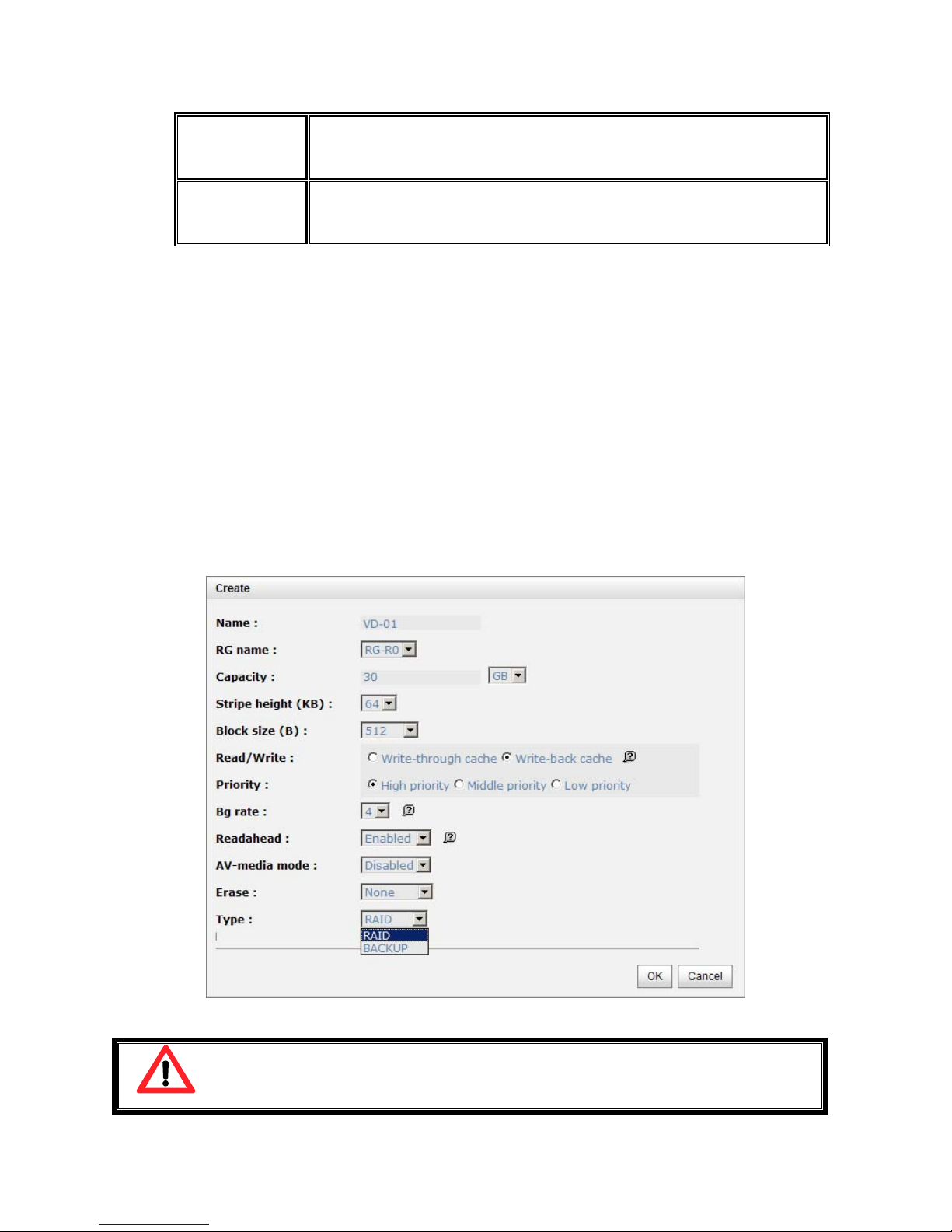

Step 1: Click “Create”, enter “Name”, select RAID group from “RG name”, enter required “Capacity (GB)/(MB)”, change “Stripe height (KB)”, change “Block size (B)”, change “Read/Write” mode, set virtual disk “Priority”, select “Bg rate” (Background task priority), and change “Readahead” option if necessary. “Erase” option will wipe out old data in VD to prevent that OS recognizes the old partition. There are three options in “Erase”: None (default), erase first 1GB or full disk. Last, select “Type” mode for normal or clone usage. Then click “OK”.

Figure 4.4.3.1

Caution

If shutdown or reboot the system when creatin

VD, the erase process will

stop.

Page 57

Step 2: Confirm page. Click “OK” if all setups are correct.

Figure 4.4.3.2

(Figure 4.4.3.2: Create a VD named “VD-01”, from “RG-R0”.)

Step 3: Done. View “Virtual disk” page.

 VD column description:

The button includes the functions which can be executed. Name Virtual disk name.

Size (GB) (MB)

Total capacity of the virtual disk. The unit can be displayed in GB or MB.

Write The righ t of virtu a l disk:

 “WT”  Write Through.  “WB”  Write Back.  “RO”  Read Only.

Priority The priority of virtual disk:

 “HI”  HIgh priority.  “MD”  MiDdle priority.  “LO”  LOw priority.

Bg rate Background task priority:

 “4 / 3 / 2 / 1 / 0”  Default value is 4. The higher

Page 58

number the background priority of a VD is, the more background I/O will be scheduled to execute.

Status The status of virtual disk:

 “Online”  The virtual disk is online.  “Offline”  The virtual disk is offline.  “Initiating”  The virtual disk is being initialized.  “Rebuild”  The virtual disk is being rebuilt.  “Migrate”  The virtual disk is being migrated.  “Rollback”  The virtual disk is being rolled back.  “Parity checking”  The virtual disk is being parity

check.

Type The type of virtual disk:

 “RAID”  the virtual disk is normal.  “BACKUP”  the virtual disk is for clone usage.

Clone The target name of virtual disk. Schedule The clone schedule of virtual disk: Health The health of virtual disk:

 “Optimal”  the virtual disk is working well and there is

no failed disk in the RG.

 “Degraded”  At least one disk from the RG of the Virtual

disk is failed or plugged out.

 “Failed”  the RAID group disk of the VD has single or

multiple failed disks than its RAID level can recover from data loss.

 “Partially optimal”  the virtual disk has experienced

recoverable read errors. After passing parity check, the health will become “Optimal”.

R %

Ratio (%) of initializing or rebuilding.

RAID RAID level. #LUN Number of LUN(s) that virtual disk is attached to.

Snapshot (GB) (MB)

The virtual disk size that is used for snapshot. The number means “Used snapshot space” / “Total snapshot space”.

Page 59

The unit can be displayed in GB or MB.

#Snapshot Number of snapshot(s) that have been taken. RG name The RG name of the virtual disk

 VD operation description:

Create Create a virtual disk. Extend Extend the virtual disk capacity. Parity check Execute parity check for the virtual disk. It supports RAID 3 / 5 /

6 / 30 / 50 / 60. Regenerate parity:

 “Yes”  Regenerate RAID parity and write.  “No”  Execute parity check only and find mismatches. It

will stop checking when mismatches count to 1 / 10 / 20 / … / 100.

Delete Delete the virtual disk.

Set property

Change the VD name, right, priority, bg rate and read ahead. Right:

 “WT”  Write Through.  “WB”  Write Back. (Default)  “RO”  Read Only.

Priority:

 “HI”  HIgh priority. (Default)  “MD”  MiDdle priority.  “LO”  LOw priority.

Bg rate:  “4 / 3 / 2 / 1 / 0”  Default value is 4. The higher

number the background priority of a VD is, the more background I/O will be scheduled to execute.

Read ahead:

 “Enabled”  Enable disk read ahead. (Default)  “Disabled”  Disable disk read ahead.

AV-media mode:  “Enabled”  Enable AV-media mode for optimizing video

Page 60

editing.  “Disabled”  Disable AV-media mode. (Default) Type:

 “RAID”  the virtual disk is normal. (Default)  “Backup”  the virtual disk is for clone usage.

Attach LUN Attach to a LUN. Detach LUN Detach to a LUN. List LUN List attached LUN(s). Set clone Set the target virtual disk for clone. Clear clone Clear clone function. Start clone Start clone function. Stop clone Stop clone function.

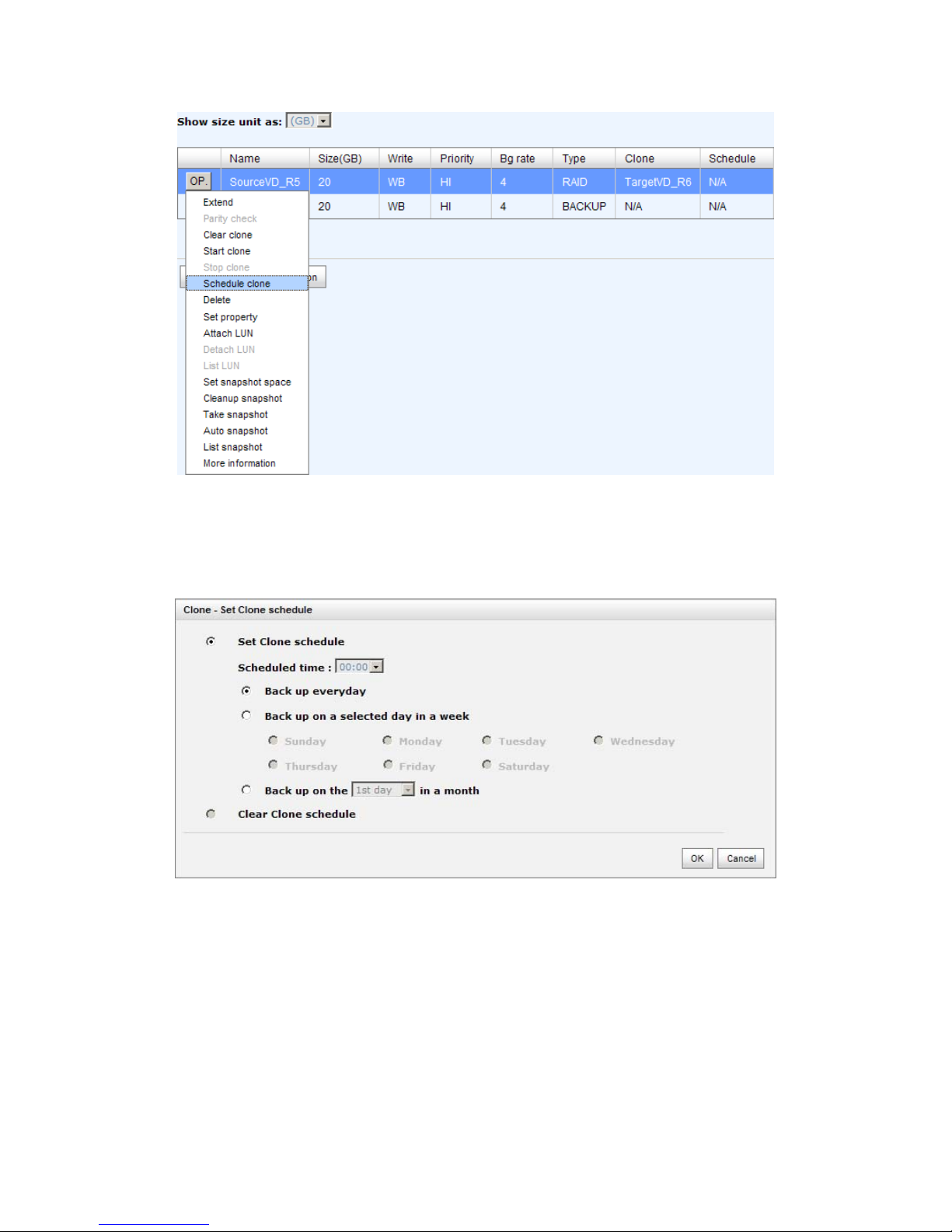

Schedule clone

Set clone function by schedule.

Set snapshot space

Set snapshot space for taking snapshot. Please refer to next chapter for more detail.

Cleanup snapshot

Clean all snapshots of a VD and release the snapshot space.

Take snapshot

Take a snapshot on the virtual disk.

Auto snapshot

Set auto snapshot on the virtual disk.

List snapshot List all snapshots of the virtu a l di sk.

More information

Show virtual disk detail information.

Page 61

4.4.4 Snapshot

“Snapshot” can view the status of snapshot, create, and modify snapshots. Please refer

to next chapter for more detail about snapshot concept. The following is an example to take a snapshot.

Step 1: Create snapshot space. In “/ Volume configuration / Virtual disk”, Check to the gray button next to the VD number; click “Set snapshot space”.

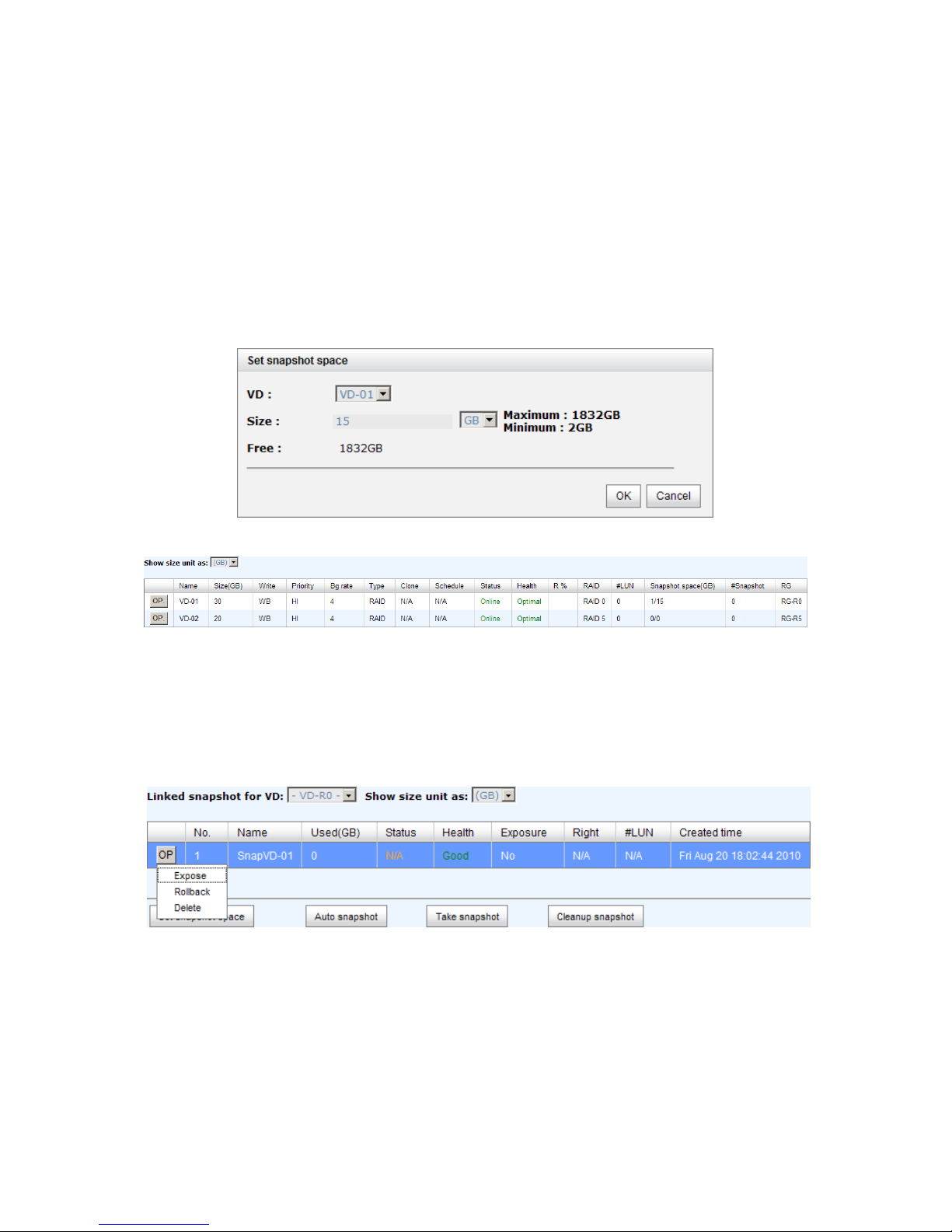

Step 2: Set snapshot space. Then click “OK”. The snapshot space is created.

Figure 4.4.4.1

Figure 4.4.4.2

(Figure 4.4.4.2: “VD-01” snapshot space has been created, snapshot space is 15GB, and used 1GB for saving snapshot index.)

Step 3: Take a snapshot. In “/ Volume configuration / Snapshot”, click “Take snapshot”. It will link to next page. Enter a snapshot name.

Figure 4.4.4.3

Step 4: Expose the snapshot VD. Check to the gray button next to the Snapshot VD

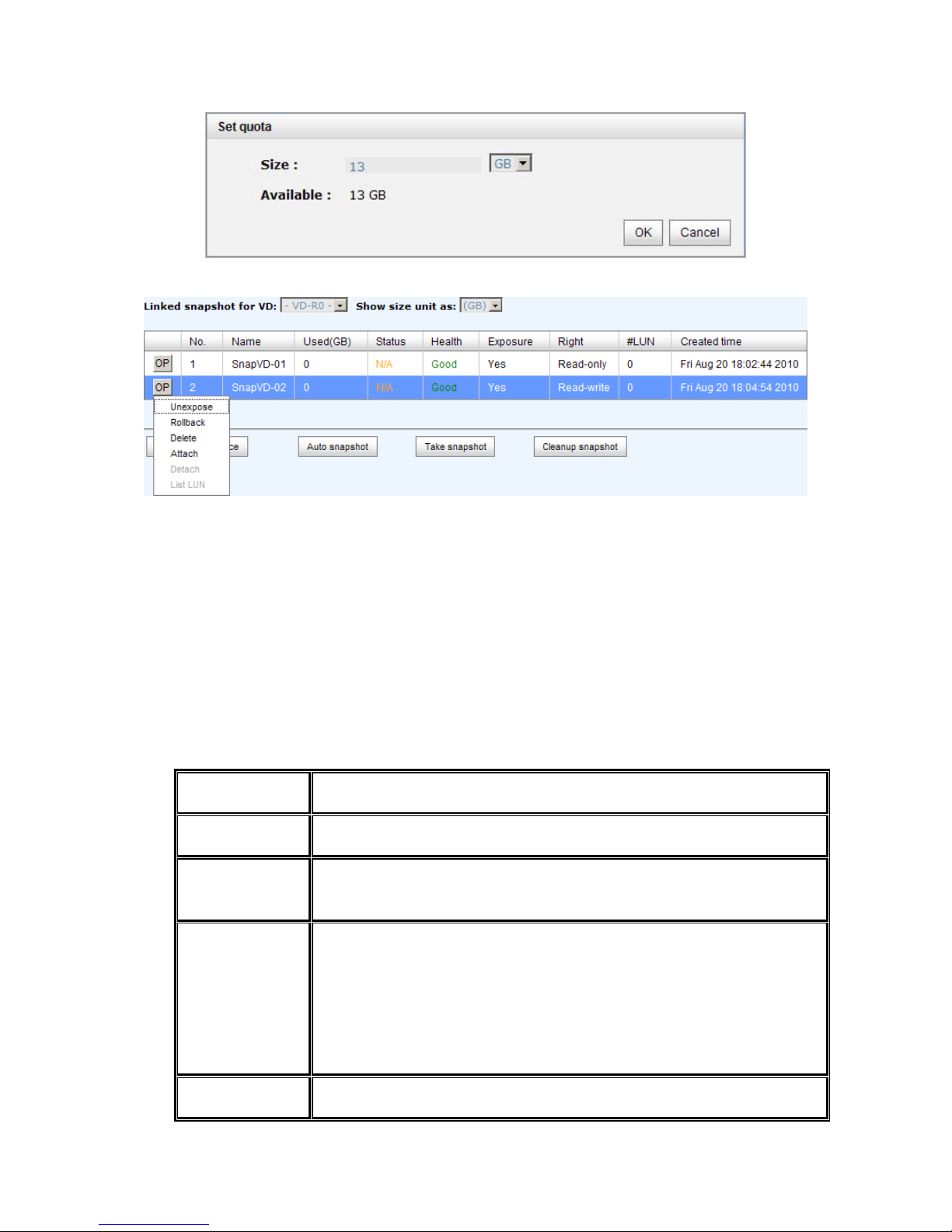

number; click “Expose”. Enter a capacity for snapshot VD. If size is zero, the exposed snapshot VD will be read only. Otherwise, the exposed snapshot VD can be read / written, and the size will be the maximum capacity for read / write.

Page 62

Figure 4.4.4.4

Figure 4.4.4.5

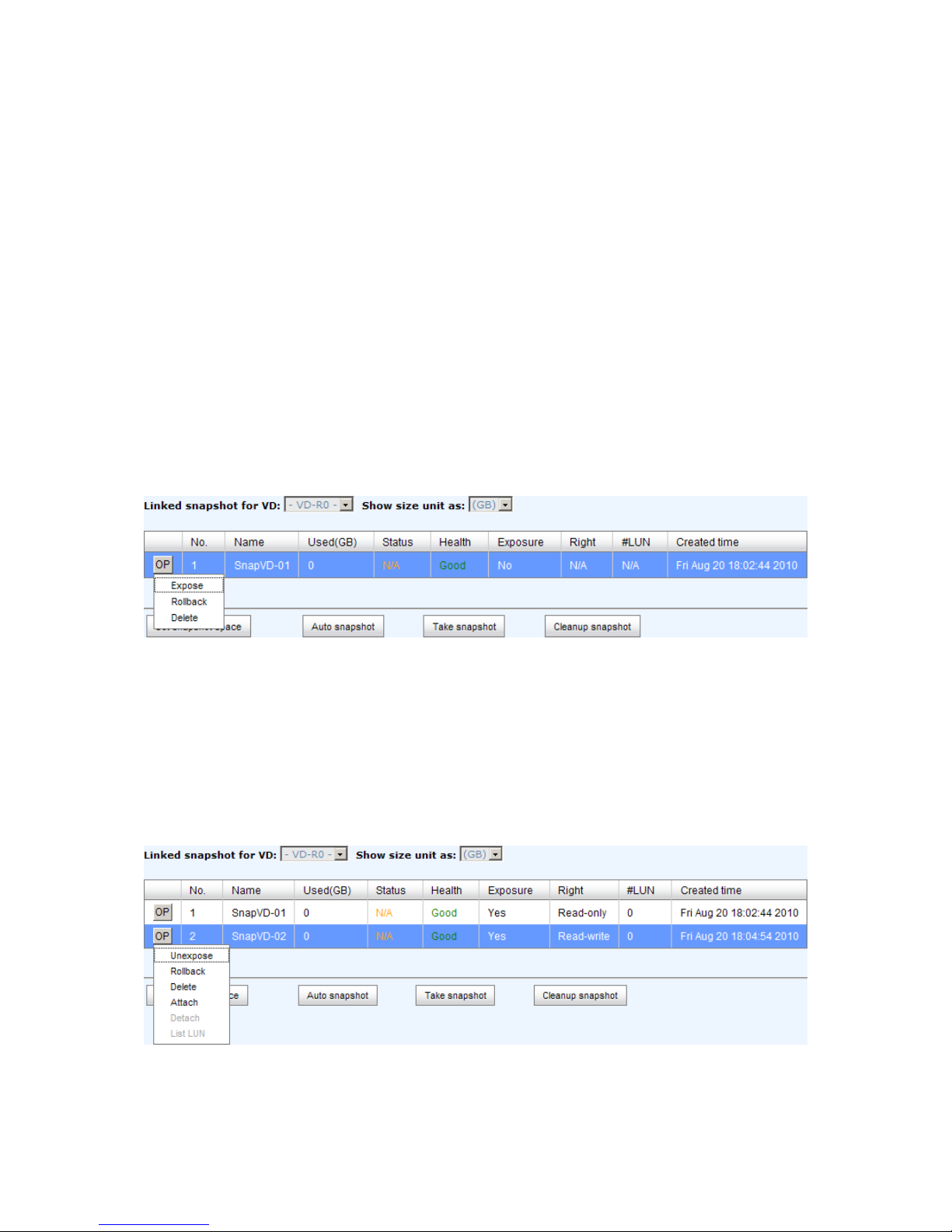

(Figure 4.4.4.5: This is the snapshot list of “VD-01”. There are two snapshots. Snapshot VD “SnapVD-01” is exposed as read-only, “SnapVD-02” is exposed as read-write.)

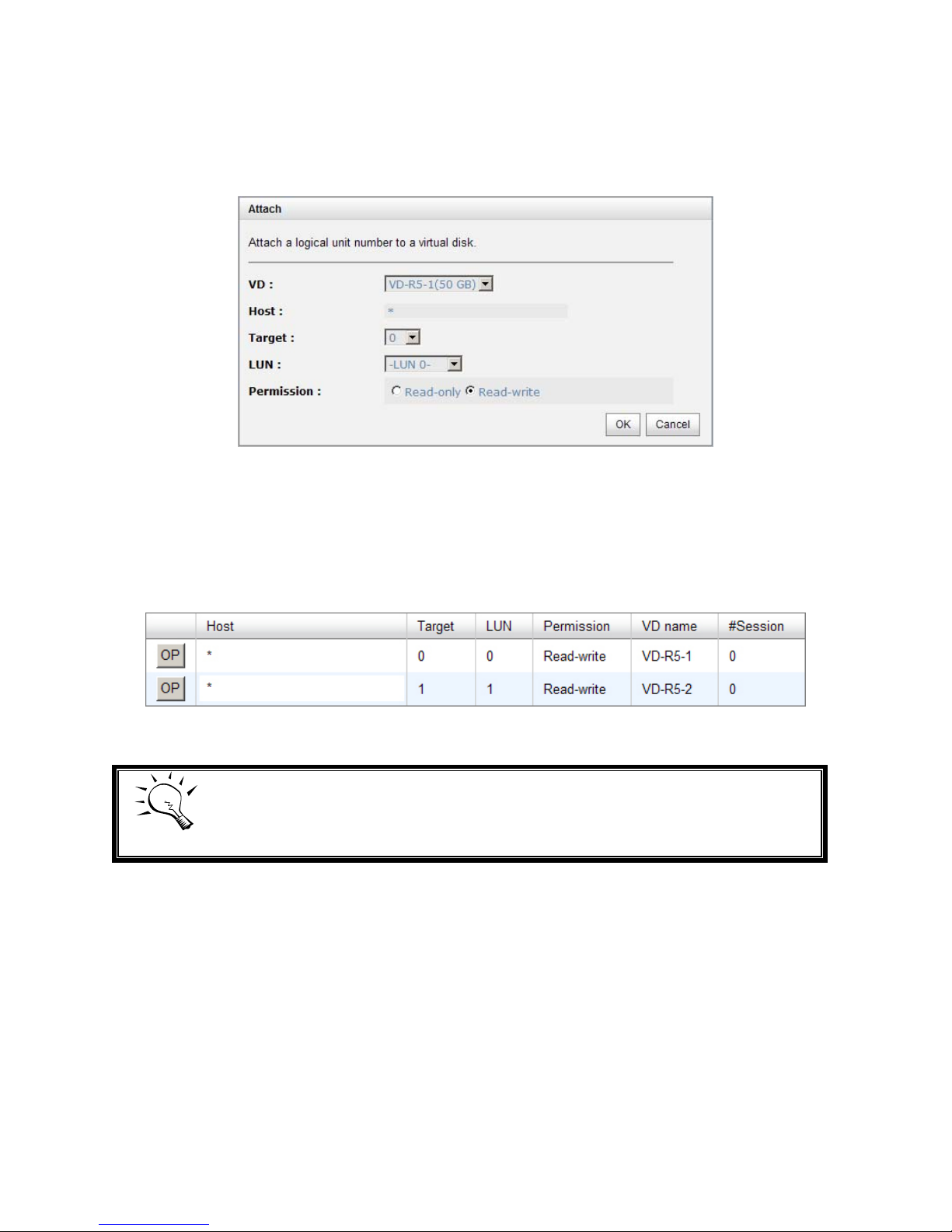

Step 5: Attach a LUN to a snapshot VD. Please refer to the next section for attaching a

LUN.

Step 6: Done. Snapshot VD can be used.

 Snapshot column description:

The button includes the functions which can be executed. Name Snapshot VD name.

Used (GB) (MB)

The amount of snapshot space that has been used. The unit can be displayed in GB or MB.

Status The status of snapshot:

 “N/A”  The snapshot is normal.  “Replicated”  The snapshot is for clone or Replication

usage.

 “Abort”  The snapshot is over space and abort.

Health The health of snapshot:

Page 63

 “Good”  The snapshot is good.  “Failed”  The snapshot fails.

Exposure Snapshot VD is exposed or not. Right The right of snapshot:

 “Read-write”  The snapshot VD can be read / write.  “Read-only”  The snapshot VD is read only.

#LUN Number of LUN(s) that snapshot VD is attached. Created time Snapshot VD created time.

 Snapshot operation description:

Expose/ Unexpose

Expose / unexpose the snapshot VD.

Rollback Rollback the snapshot VD. Delete Delete the snapshot VD. Attach Attach a LUN. Detach Detach a LUN. List LUN List attached LUN(s).

4.4.5 Logical unit

“Logical unit” can view, create, and modify the status of attached logical unit number(s)

of each VD.

User can attach LUN by clicking the “Attach”. “Host” must enter with an iSCSI node name for access control, or fill-in wildcard “*”, which means every host can access the volume. Choose LUN number and permission, and then click “OK”.

Page 64

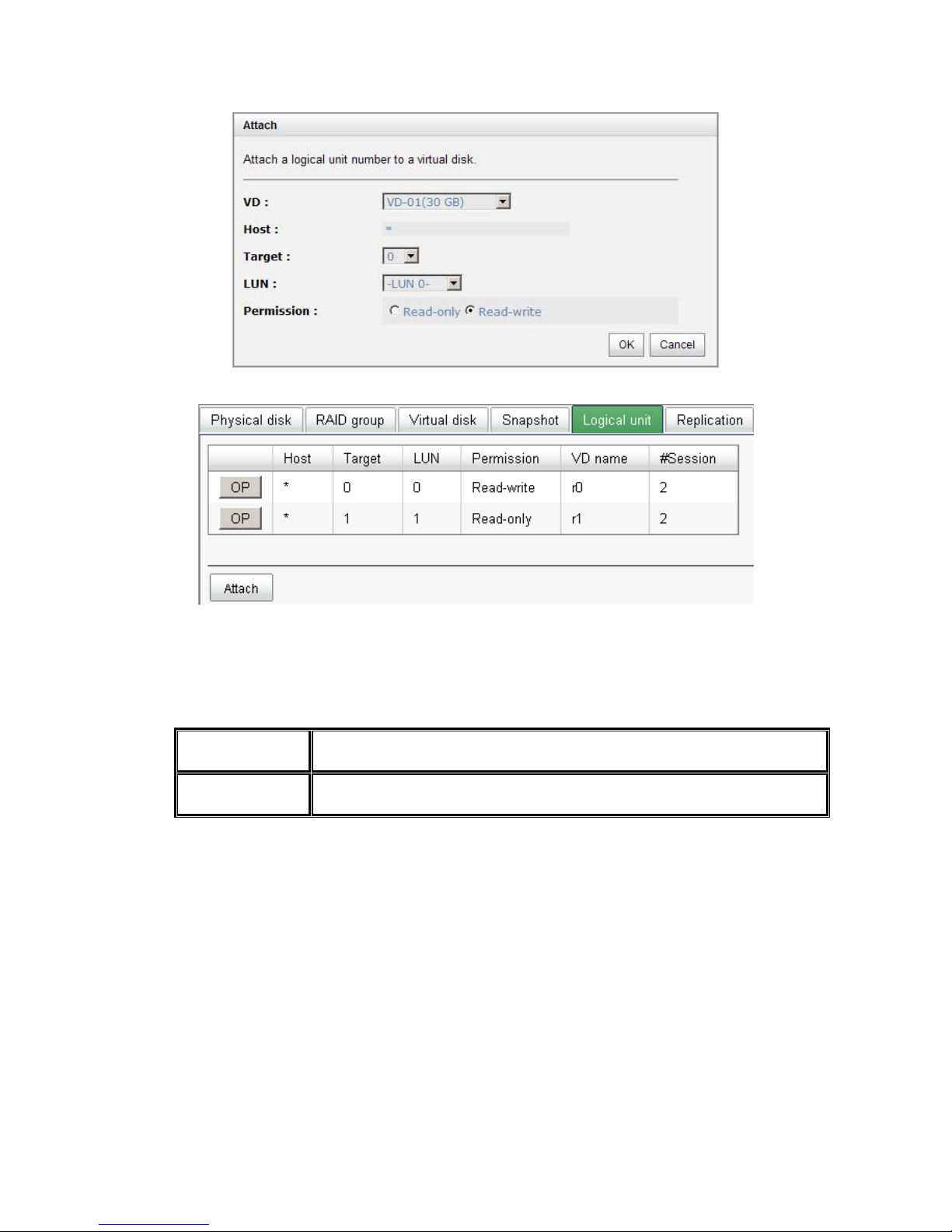

Figure 4.4.5.1

Figure 4.4.5.2

 LUN operation description:

Attach Attach a logical unit number to a virtual disk. Detach Detach a logical unit number from a virtual disk.

The matching rules of access control are followed from the LUN’ created time; the earlier created LUN is prior to the matching rules. For example: there are 2 LUN rules for the same VD, one is “*”, LUN 0; and the other is “iqn.host1”, LUN 1. The host “iqn.host2” can login successfully because it matches the rule 1.

Wildcard “*” and “?” are allowed in this field. “*” can replace any word. “?” can replace only one character. For example:

“iqn.host?”  “iqn.host1” and “iqn.host2” are accepted. “iqn.host*”  “iqn.host1” and “iqn.host12345” are accepted.

This field can not accept comma, so “iqn.host1, iqn.host2” stands a long string, not 2 iqns.

Page 65

4.4.6 Example

The following is an example to create volumes. This example is to create two VDs and set a global spare disk.

 Example

This example is to create two VDs in one RG, each VD shares the cache volume. The cache volume is created after system boots up automatically. Then set a global spare disk. Last, delete all of them.

Step 1: Create a RG (RAID group). To create a RAID group, please follow the procedures:

Figure 4.4.6.1

1. Select “/ Volume configuration / RAID group”.

2. Click “Create“.

3. Input a RG Name, choose a RAID level from the list, click “Select PD“ to choose the RAID physical disks, then click “OK“.

4. Check the setting. Click “OK“ if all setups are correct.

5. Done. A RG has been created.

Figure 4.4.6.2

(Figure 4.4.6.2: Creating a RAID 5 with 3 physical disks, named “RG-R5”.)

Page 66

Step 2: Create VD (Virtual Disk). To create a data user volume, please follow the procedures.

Figure 4.4.6.3

1. Select “/ Volume configuration / Virtual disk”.

2. Click “Create”.

3. Input a VD name, choose a RG Name and enter a size for this VD; decide the stripe height, block size, read / write mode, bg rate, and set priority, finally click “OK”.

4. Done. A VD has been created.

5. Follow the above steps to create another VD.

Figure 4.4.6.4

(Figure 4.4.6.4: Creating VDs named “VD-R5-1” and “VD-R5-2” from RAID group “RG-R5”, the size of “VD-R5-1” is 50GB, and the size of “VD-R5-2” is 64GB. There is no LUN attached.)

Step 3: Attach a LUN to a VD.

There are 2 methods to attach a LUN to a VD.

1. In “/ Volume config uration / Virtual disk”, check the gray button next to the VD number; click “Attach LUN”.

Page 67

2. In “/ Volume configuration / Logical unit”, click “Attach”.

The procedures are as follows:

Figure 4.4.6.5

1. Select a VD.

2. Input “Host” IQN, which is an iSCSI node name for access control, or fill-in wildcard “*”, which means every host can access to this volume. Choose LUN and permission, and then click “OK”.

3. Done.

Figure 4.4.6.6

Tips

he matching rules of access control are from the LUNs’ created time, the

earlier created LUN is prior to the matching rules.

Step 4: Set a global spare disk. To set a global spare disk, please follow the procedures.

1. Select “/ Volume configuration / Physical disk”.

2. Check the gray button next to the PD slot; click “Set global space”.

3. “Global spare” status is shown in “Usage” column.

Page 68

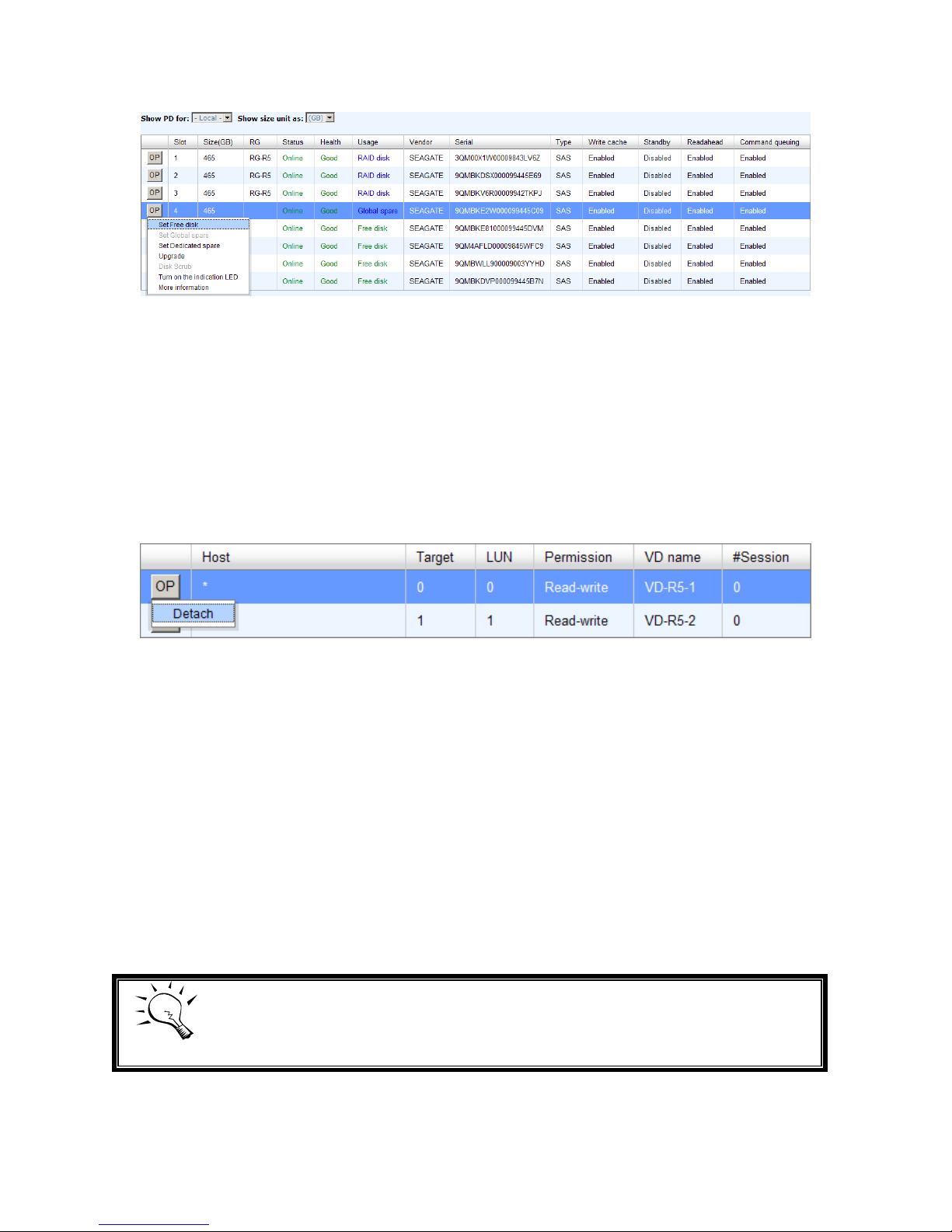

Figure 4.4.6.7

(Figure 4.4.6.7: Slot 4 is set as a global spare disk.)

Step 5: Done.

Delete VDs, RG, please follow the below steps. Step 6: Detach a LUN from the VD. In “/ Volume configuration / Logical unit”,

Figure 4.4.6.8

1. Check the gray button next to the LUN; click “Detach”. There will pop up a confirmation page.

2. Choose “OK”.

3. Done.

Step 7: Delete a VD (Virtual Disk). To delete the virtual disk, please follow the procedures:

1. Select “/ Volume configuration / Virtual disk”.

2. Check the gray button next to the VD number; click “Delete”. There will pop up a confirmation page, click “OK”.

3. Done. Then, the VD is deleted.

Tips When deletin

VD directly, the attached LUN(s) of to this VD will be

detached together.

Page 69

Step 8: Delete a RG (RAID group). To delete a RAID group, please follow the procedures:

1. Select “/ Volume configuration / RAID group”.

2. Select a RG which all its VD are deleted, otherwise the this RG cannot be deleted.

3. Check the gray button next to the RG number click “Delete”.

4. There will pop up a confirmation page, click “OK”.

5. Done. The RG has been deleted.

Tips

he action of deleting one RG will succeed only when all of the related

VD(s) are deleted in this RG. Otherwise, user cannot delete this RG.

Step 9: Free a global spare disk. To free a global spare disk, please follow the procedures.

1. Select “/ Volume configuration / Physical disk”.

2. Check the gray button next to the PD slot; click “Set Free disk”.

Step 10: Done, all volumes have been deleted.

4.5 Enclosure management

“Enclosure management” allows managing enclosure information including “Hardware monitor”, “UPS”, “SES”, and “S.M.A.R.T.”. For the enclosure

management, there are many sensors for different purposes, such as temperature sensors, voltage sensors, hard disk status, fan sensors, power sensors, and LED status. Due to the different hardware characteristics among these sensors, they have different polling intervals. Below are the details of the polling time intervals:

1. Temperature sensors: 1 minute.

2. Voltage sensors: 1 minute.

3. Hard disk sensors: 10 minutes.

4. Fan sensors: 10 seconds . When there are 3 errors consecutively, system sends ERROR event log.

5. Power sensors: 10 seconds, when there are 3 errors consecutively, system sends ERROR event log.

6. LED status: 10 seconds.

Figure 4.5.1

Page 70

4.5.1 Hardware monitor

“Hardware monitor” can view the information of current voltages and temperatures.

Page 71

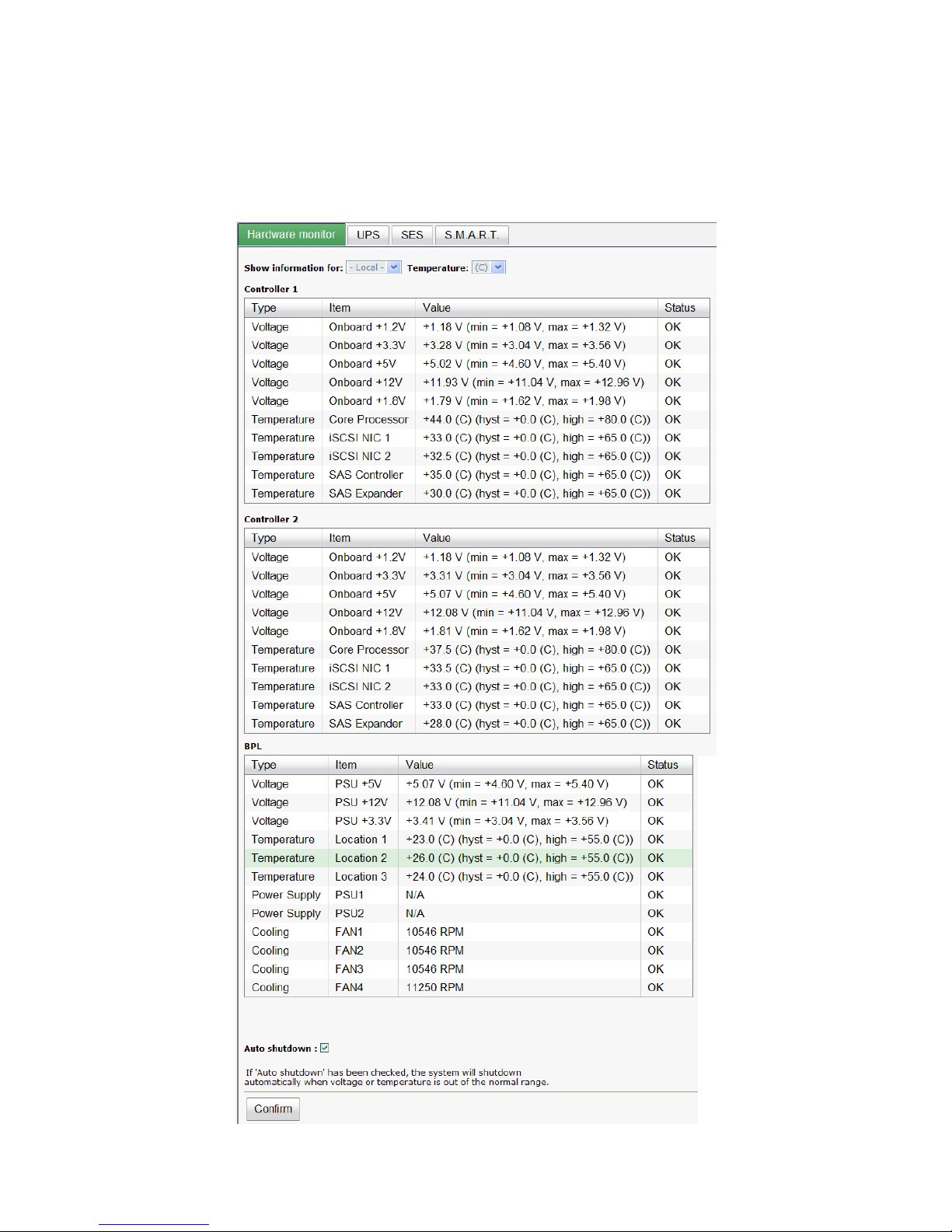

Figure 4.5.1.1

If “Auto shutdown” is checked, the system will shutdown automatically when voltage or temperature is out of the normal range. For better data protection, please check “Auto Shutdown”.

For better protection and avoiding single short period of high temperature triggering auto shutdown, the system use multiple condition judgments to trigger auto shutdown, below are the details of when the Auto shutdown will be triggered.

1. There are several sensors placed on systems for temperature checking. System will check each sensor for every 30 seconds. When one of these sensor is over high temperature threshold for continuous 3 minutes, auto shutdown will be triggered immediately.

2. The core processor temperature limit is 80 . The iSCSI NIC temperature limit is 65 . ℃℃ The SAS expandor and SAS controller temperature limit is 65 .℃

3. If the high temperature situation doesn’t last for 3 minutes, system will not trigger auto shutdown.

4.5.2 UPS

“UPS” can set up UPS (Uninterruptible Power Supply).

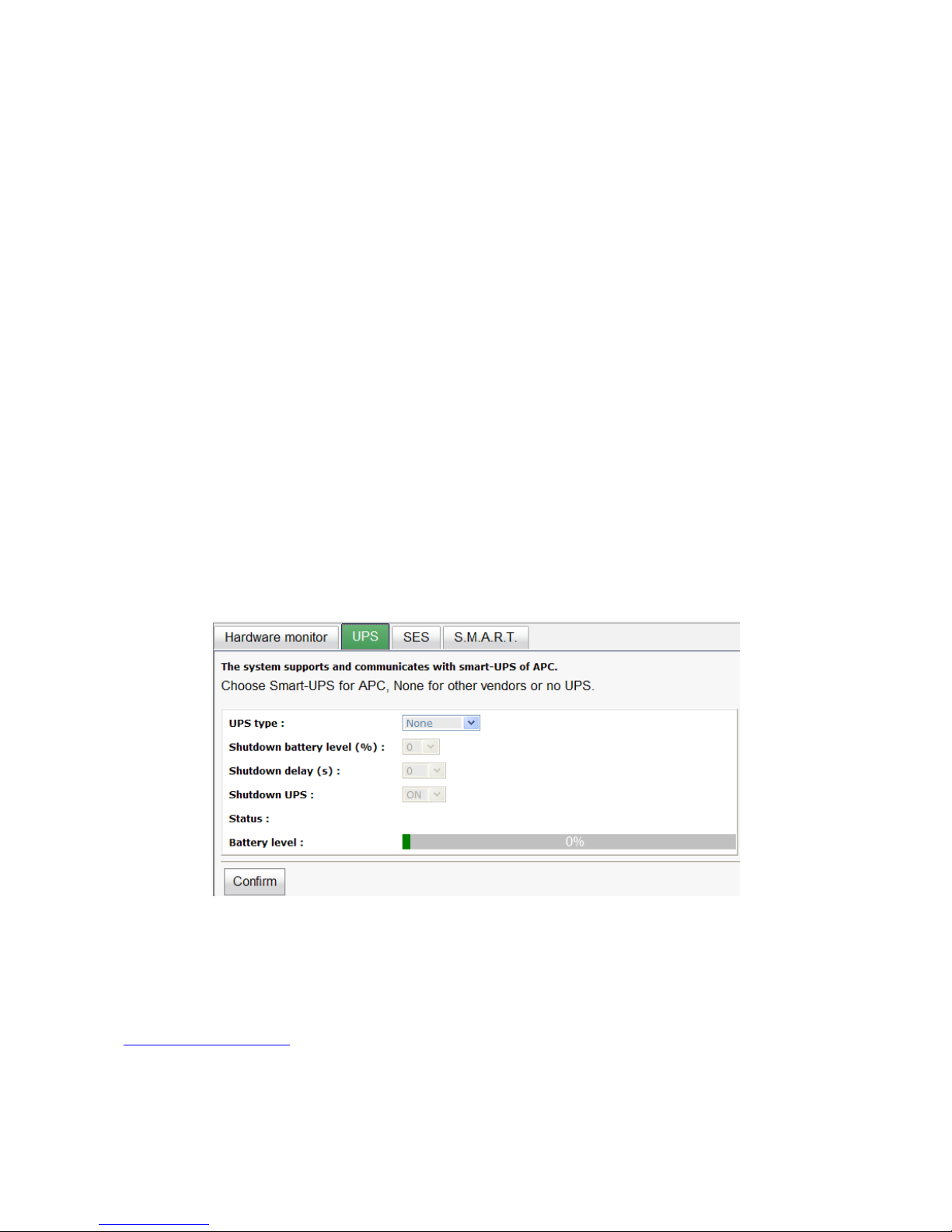

Figure 4.5.2.1

(Figure 4.5.2.1: Without UPS.)

Currently, the system only supports and communicates with smart-UPS of APC (American Power Conversion Corp.) UPS. Please review the details from the website:

http://www.apc.com/.

Page 72

First, connect the system and APC UPS via RS-232 for communication. Then set up the shutdown values (shutdown battery level %) when power is failed. UPS in other companies can work well, but they have no such communication feature with the system.

Figure 4.5.2.2

(Figure 4.5.2.2: With Smart-UPS.)

 UPS column description:

UPS Type

Select UPS Type. Choose Smart-UPS for APC, None for other vendors or no UPS.

Shutdown Battery Level (%)

When below the setting level, system will shutdown. Setting level to “0” will disable UPS.

Shutdown Delay (s)

If power failure occurs, and system power can not recover, the system will shutdown. Setting delay to “0” will disable the function.

Shutdown UPS

Select ON, when power is gone, UPS will shutdown by itself after the system shutdown successfully. After power comes back, UPS will start working and notify system to boot up. OFF will not.

Status The status of UPS:

 “Detecting…”  “Running”  “Unable to detect UPS”  “Communication lost”  “UPS reboot in progress”

Page 73

 “UPS shutdown in progress”  “Batteries failed. Please change them NOW!”

Battery Level (%)

Current power percentage of battery level.

4.5.3 SES

SES represents SCSI Enclosure Services, one of the enclosure management standards. “SES configuration” can enable or disable the management of SES.

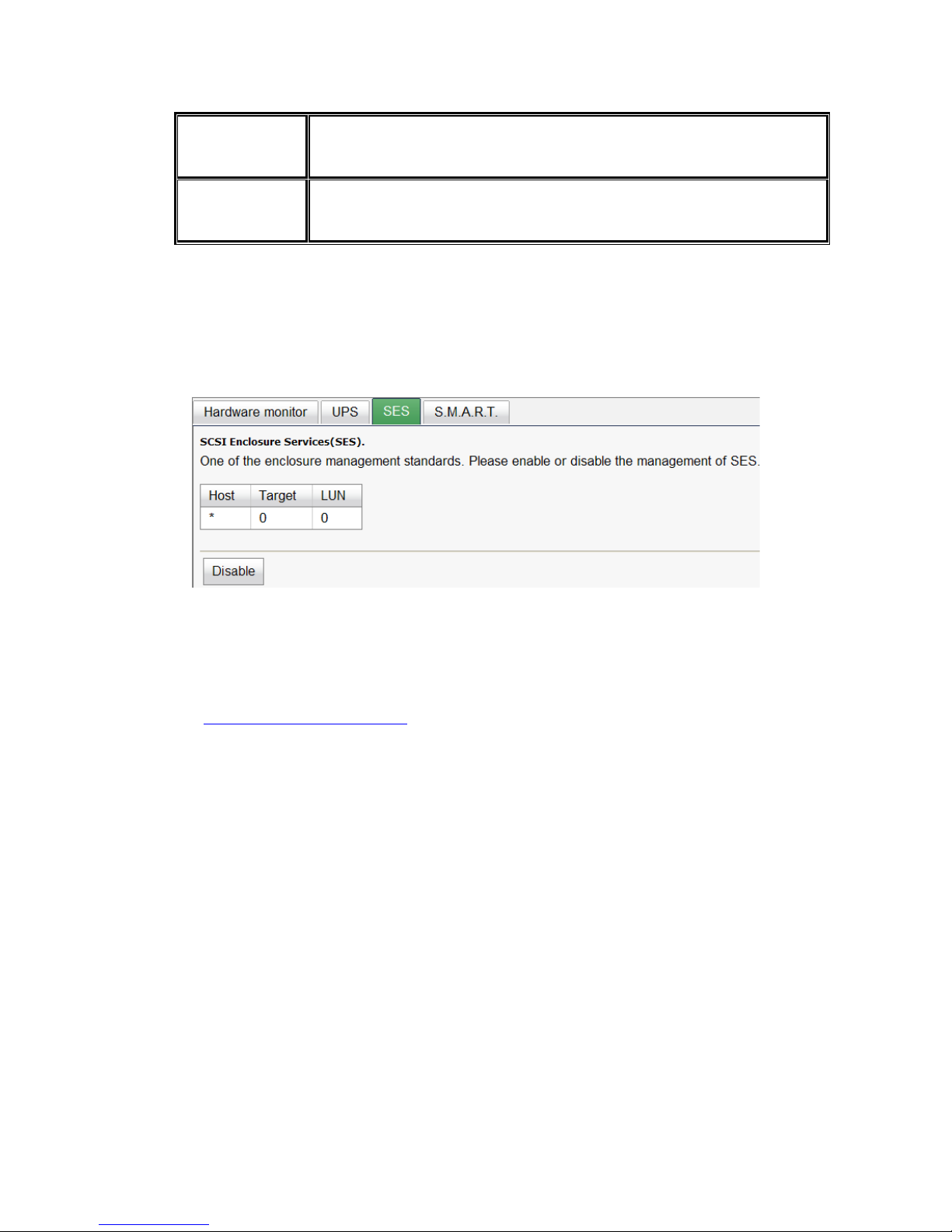

Figure 4.5.3.1

(Figure 4.5.1.1: Enable SES in LUN 0, and can be accessed from every host)

The SES client software is available at the following web site: SANtools: http://www.santools.com/

4.5.4 Hard drive S.M.A.R.T.

S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) is a diagnostic tool for

hard drives to deliver warning of drive failures in advance. S.M.A.R.T. provides users chances to take actions before possible drive failure.

S.M.A.R.T. measures many attributes of the hard drive all the time and inspects the properties of hard drives which are close to be out of tolerance. The advanced notice of possible hard drive failure can allow users to back up hard drive or replace the hard drive. This is much better than hard drive crash when it is writing data or rebuilding a failed hard drive.

“S.M.A.R.T.” can display S.M.A.R.T. information of hard drives. The number is the current value; the number in parenthesis is the threshold value. The threshold values from different hard drive vendors are different; please refer to hard drive vendors’ specification for details.

Page 74

S.M.A.R.T. only supports SATA drives. SAS drives do not have this function now. It will show N/A in the web page for SAS drives.

Figure 4.5.4.1 (SAS drives & SATA drives)

4.6 System maintenance

“Maintenance” allows the operations of system functions which include “System information” to show the system version and details, “Event log” to view system event logs to record critical events, “Upgrade” to the latest firmware, “Firmware synchronization” to synchronized firmware versions on both controllers, “Reset to factory default” to reset all controller configuration values to factory settings, “Import and export” to import and export all controller configuration to a file, and “Reboot and shutdown” to reboot or shutdown the system.

Figure 4.6.1

4.6.1 System information

“System information” can display system information, including CPU type, installed

system memory, firmware version, serial numbers of dual controllers, backplane ID, and system status.

Figure 4.6.1.1

Page 75

 Status description:

Normal Dual controllers are in normal stage. Degraded One controller fails or has been plugged out. Lockdown The firmware of two controllers is different or the size of

memory of two controllers is different.

Single Single controller mode.

4.6.2 Event log

“Event log” can view the event messages. Check the checkbox of INFO, WARNING, and

ERROR to choose the level of event log display. Click “Download” button to save the whole event log as a text file with file name “log-ModelName-SerialNumber-Date-Time.txt”. Click “Clear” button to clear all event logs. Click “Mute” button to stop alarm if system alerts.

Page 76

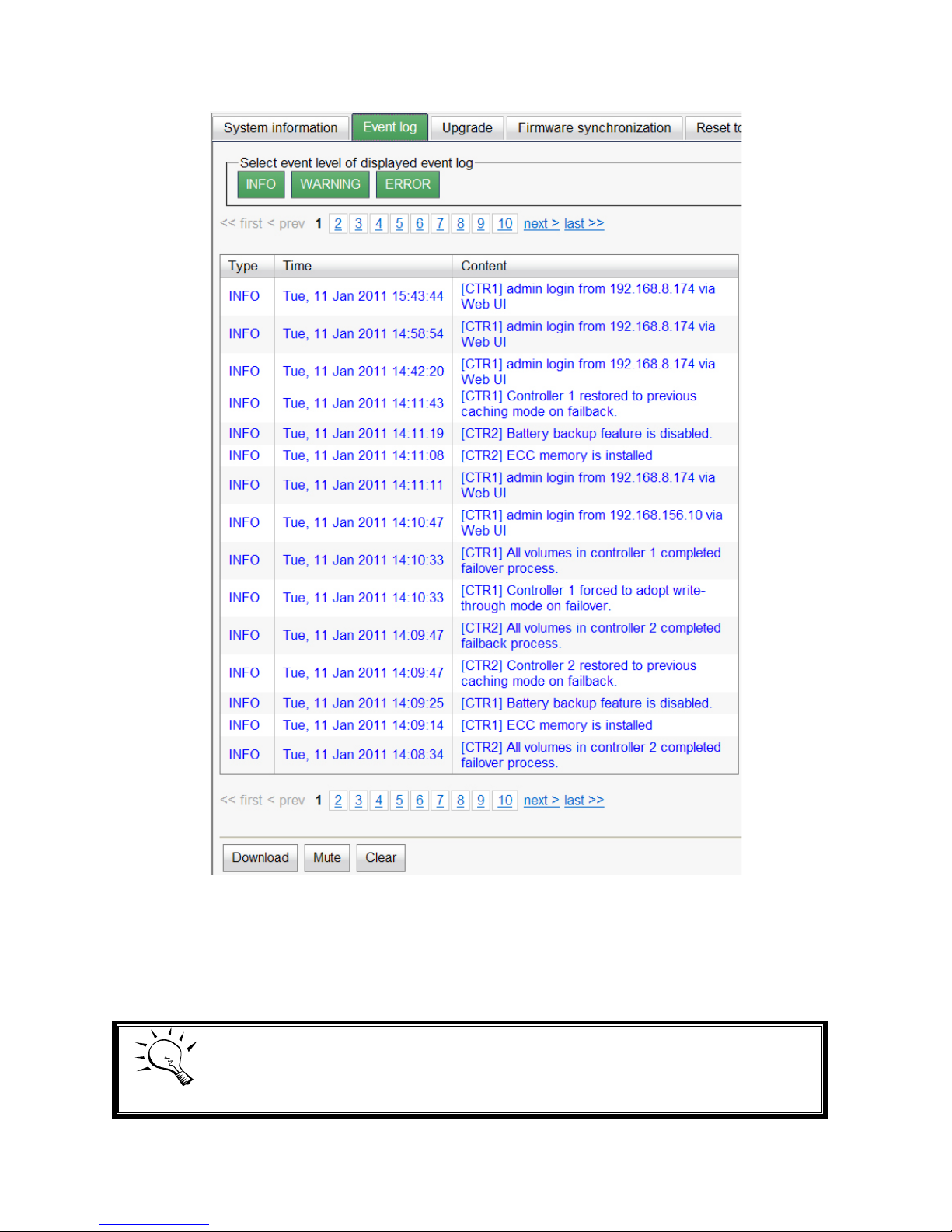

Figure 4.6.2.1

The event log is displayed in reverse order which means the latest event log is on the first / top page. The event logs are actually saved in the first four hard drives; each hard drive has one copy of event log. For one system, there are four copies of event logs to make sure users can check event log any time when there are failed disks.

Tips Please plug-in any of the first four hard drives, then event logs can be saved and displayed in next system boot up. Otherwise, the event logs cannot be saved and would be disappeared.

Page 77

4.6.3 Upgrade

“Upgrade” can upgrade firmware. Please prepare new firmware file named “xxxx.bin”

in local hard drive, then click “Browse” to select the file. Click “Confirm”, it will pop up a message “Upgrade system now? If you want to downgrade to the previous FW later (not recommend), please export your system configuration in advance”, click “Cancel” to export system configuration in advance, then click “OK” to start to upgrade firmware.

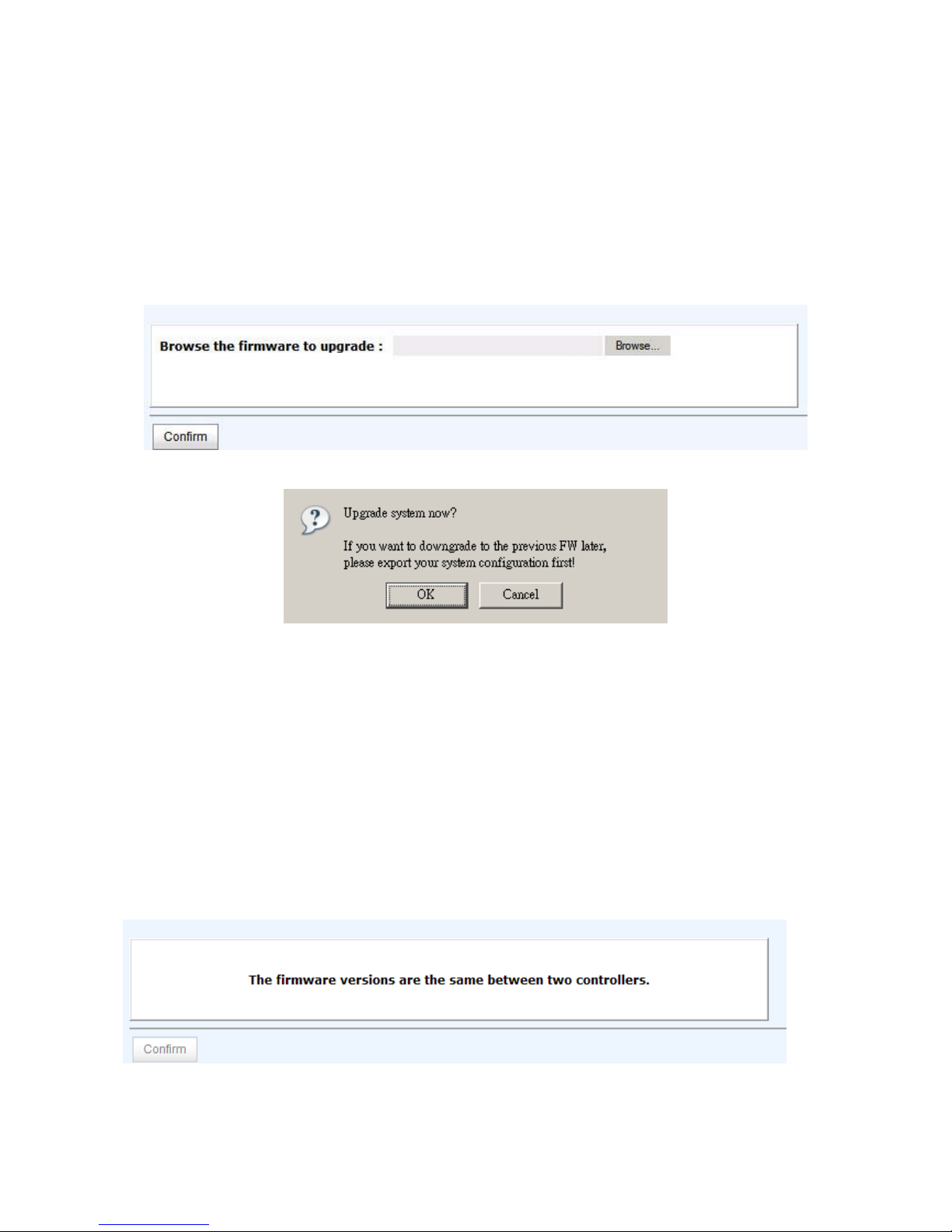

Figure 4.6.3.1

Figure 4.6.3.2

When upgrading, there is a progress bar running. After finished upgrading, the system must reboot manually to make the new firmware took effect.

4.6.4 Firmware synchronization

“Firmware synchronization” can synchronize the firmware version when controller 1

and controller 2’s firmware are different. It will upgrade the firmware of slave controller to master ones no matter what the firmware version of slave controller is newer or older than master. In normal status, the firmware versions in controller 1 and 2 are the same as below figure.

Figure 4.6.4.1

Page 78

4.6.5 Reset to factory default

“Reset to factory default” allows user to reset IP SAN storage to factory default setting.

Figure 4.6.5.1

Reset to default value, the password is: 1234, and IP address to default 192.168.0.32

4.6.6 Import and export

“Import and export” allows user to save system configuration values: export, and apply

all configuration: import. For the volume configuration setting, the values are available in export and not available in import which can avoid confliction / date-deleting between two IP SAN storages which mean if one system already has valuable volumes in the disks and user may forget and overwrite it. Use import could return to original configuration. If the volume setting was also imported, user’s current volumes will be overwritten with different configuration.

Figure 4.6.6.1

1. Import: Import all system configurations excluding volume configuration.

2. Export: Export all configurations to a file.

Caution “Import” will import all system configurations excluding volume

configuration; the current configurations will be replaced.

Page 79

4.6.7 Reboot and shutdown

“Reboot and shutdown” can “Reboot” and “Shutdown” the system. Before power

off, it’s better to execute “Shutdown” to flush the data from cache to physical disks. The step is necessary for data protection.

Figure 4.6.7.1

4.7 Home/Logout/Mute

In the right-upper corner of web UI, there are 3 individual icons, “Home”, “Logout”, and “Mute”.

Figure 4.7.1

4.7.1 Home

Click “Home” to return to home page.

4.7.2 Logout

For security reason, please use “Logout” to exit the web UI. To re-login the system, please enter username and password again.

4.7.3 Mute

Click “Mute” to stop the alarm when error occurs.

Page 80

Chapter 5 Advanced operations

5.1 Volume rebuild

If one physical disk of the RG which is set as protected RAID level (e.g.: RAID 3, RAID 5, or RAID 6) is FAILED or has been unplugged / removed, then the status of RG is changed to degraded mode, the system will search/detect spare disk to rebuild the degraded RG to a complete one. It will detect dedicated spare disk as rebuild disk first, then global spare disk.

D-LINK IP SAN storage supports Auto-Rebuild. Take RAID 6 for example:

1. When there is no global spare disk or dedicated spare disk in the system, The RG will be in degraded mode and wait until (1) there is one disk assigned as spare disk, or (2) the failed disk is removed and replaced with new clean disk, then the Auto-Rebuild starts. The new disk will be a spare disk to the original RG automatically. If the new added disk is not clean (with other RG information), it would be marked as RS (reserved) and the system will not start "auto-rebuild". If this disk is not belonging to any existing RG, it would be FR (Free) disk and the system will start Auto-Rebuild. If user only removes the failed disk and plugs the same failed disk in the same slot again, the auto-rebuild will start running. But rebuilding in the same failed disk may impact customer data if the status of disk is unstable. D-LINK suggests all customers not to rebuild in the failed disk for better data protection.

2. When there is enough global spare disk(s) or dedicated spare disk(s) for the degraded array, system starts Auto-Rebuild immediately. And in RAID 6, if there is another disk failure occurs during rebuilding, system will start the above Auto-Rebuild process as well. Auto-Rebuild feature only works at that the status of RG is "Online". It will not work at “Offline”. Thus, it will not conflict with the “Online roaming” feature.

3. In degraded mode, the status of RG is “Degraded”. When rebuilding, the status of RG / VD will be “Rebuild”, the column “R%” in VD will display the ratio in percentage. After complete rebuilding, the status will become “Online”. RG will become completely one.

Tips “Set dedicated spare” is not available if there is no RG or only RG of

RAID 0, JBOD, because user can not set dedicated spare disk to RAID 0 and JBOD.

Sometimes, rebuild is called recover; they are the same meaning. The following table is the relationship between RAID levels and rebuild.

Page 81

 Rebuild operation description:

RAID 0 Disk striping. No protection for data. RG fails if any hard drive

fails or unplugs.

RAID 1 Disk mirroring over 2 disks. RAID 1 allows one hard drive fails or

unplugging. Need one new hard drive to insert to the system and rebuild to be completed.

N-way mirror

Extension to RAID 1 level. It has N copies of the disk. N-way mirror allows N-1 hard drives failure or unplugging.

RAID 3 Striping with parity on the dedicated disk. RAID 3 allows one

hard drive failure or unplugging.

RAID 5 Striping with interspersed parity over the member disks. RAID 5

allows one hard drive failure or unplugging.

RAID 6 2-dimensional parity protection over the member disks. RAID 6

allows two hard drives failure or unplugging. If it needs to rebuild two hard drives at the same time, it will rebuild the first one, then the other in sequence.

RAID 0+1 Mirroring of RAID 0 volumes. RAID 0+1 allows two hard drive

failures or unplugging, but at the same array.

RAID 10 Striping over the member of RAID 1 volumes. RAID 10 allows

two hard drive failure or unplugging, but in different arrays.

RAID 30 Striping over the member of RAID 3 volumes. RAID 30 allows

two hard drive failure or unplugging, but in different arrays.

RAID 50 Striping over the member of RAID 5 volumes. RAID 50 allows

two hard drive failures or unplugging, but in different arrays.

RAID 60 Striping over the member of RAID 6 volumes. RAID 60 allows

four hard drive failures or unplugging, every two in different arrays.

JBOD The abbreviation of “Just a Bunch Of Disks”. No data

protection. RG fails if any hard drive failures or unplugs.

Page 82

5.2 RG migration

To migrate the RAID level, please follow below procedures.

1. Select “/ Volume configuration / RAID group”.

2. Check the gray button next to the RG number; click “Migrate”.

3. Change the RAID level by clicking the down arrow to “RAID 5”. There will be a pupup which indicates that HDD is not enough to support the new setting of RAID level, click “Select PD” to increase hard drives, then click “OK“ to go back to setup page. When doing migration to lower RAID level, such as the original RAID level is RAID 6 and user wants to migrate to RAID 0, system will evaluate whether this operation is safe or not, and appear a warning message of "Sure to migrate to a lower

protection array?”.

Figure 5.2.1

4. Double check the setting of RAID level and RAID PD slot. If there is no problem, click “OK“.

5. Finally a confirmation page shows the detail of RAID information. If there is no problem, click “OK” to start migration. System also pops up a message of “Warning: power lost during migration may cause damage of data!” to give user warning. When the power is abnormally off during the migration, the data is in high risk.

6. Migration starts and it can be seen from the “status” of a RG with “Migrating”. In “/ Volume configuration / Virtual disk”, it displays a “Migrating” in “Status” and complete percentage of migration in “R%”.

Figure 5.2.2

(Figure 5.2.2: A RAID 0 with 3 physical disks migrates to RAID 5 with 4 physical disks.)

Figure 5.2.3

Page 83

To do migration, the total size of RG must be larger or equal to the original RG. It does not allow expanding the same RAID level with the same hard disks of original RG. The below operations are not allowed when a RG is being migrated. System would reject these operations:

1. Add dedicated spare.

2. Remove a dedicated spare.

3. Create a new VD.

4. Delete a VD.

5. Extend a VD.

6. Scrub a VD.

7. Perform another migration operation.

8. Scrub entire RG.

9. Take a snapshot.

10. Delete a snapshot.

11. Expose a snapshot.

12. Rollback to a snapshot.

Caution RG Migration cannot be executed during rebuilding or VD extension.

5.3 VD extension

To extend VD size, please follow the procedures.

1. Select “/ Volume configuration / Virtual disk”.

2. Check the gray button next to the VD number; click “Extend”.

3. Change the size. The size must be larger than the original, and then click “OK” to start extension.

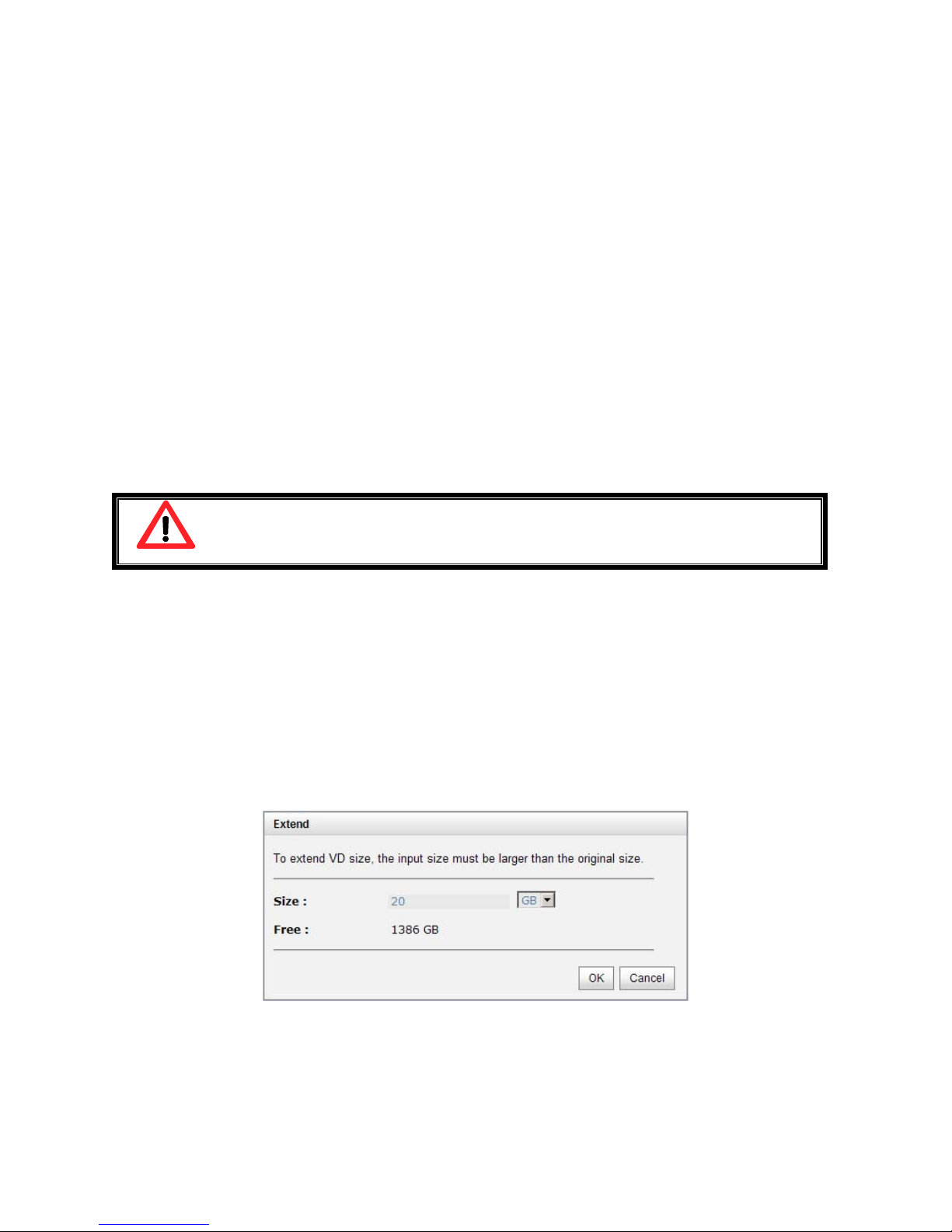

Figure 5.3.1

4. Extension starts. If VD needs initialization, it will display an “Initiating” in “Status” and complete percentage of initialization in “R%”.

Page 84

Figure 5.3.2

Tips

The size of VD extension must be larger than original.

Caution VD Extension cannot be executed during rebuilding or migration.

5.4 Snapshot

Snapshot-on-the-box captures the instant state of data in the target volume in a logical

sense. The underlying logic is Copy-on-Write -- moving out the data which would be written to certain location where a write action occurs since the time of data capture. The certain location, named as “Snap VD”, is essentially a new VD which can be attached to a LUN provisioned to a host as a disk like other ordinary VDs in the system. Rollback restores the data back to the state of any time which was previously captured in case for any unfortunate reason it might be (e.g. virus attack, data corruption, human errors and so on). Snap VD is allocated within the same RG in which the snapshot is taken, we suggest to reserve 20% of RG size or more for snapshot space. Please refer to the following figure for snapshot concept.

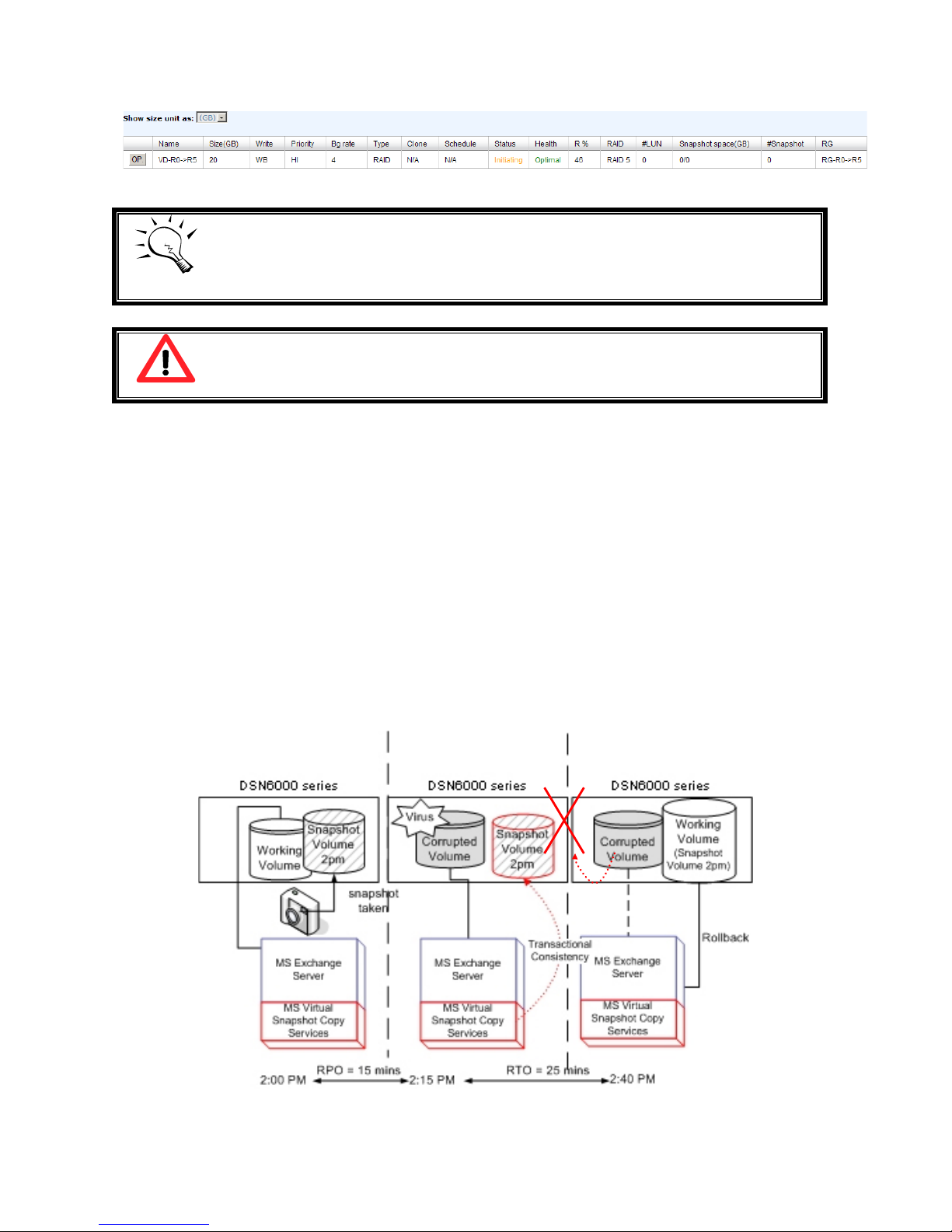

Figure 5.4.1

Page 85

5.4.1 Create snapshot volume

To take a snapshot of the data, please follow the procedures.

1. Select “/ Volume configuration / Virtual disk”.

2. Check the gray button next to the VD number; click “Set snapshot space”.

3. Set up the size for snapshot. The minimum size is suggested to be 20% of VD size, and then click “OK”. It will go back to the VD page and the size will show in snapshot column. It may not be the same as the number entered because some size is reserved for snapshot internal usage. There will be 2 numbers in “Snapshot” column. These numbers mean “Used snapshot space” and “Total snapshot space”.

4. There are two methods to take snapshot. In “/ Volume configuration / Virtual

disk”, check the gray button next to the VD number; click “Take snapshot”. Or in “/ Volume configuration / Snapshot”, click “Take snapshot”.

5. Enter a snapshot name, and then click “OK”. A snapshot VD is created.

6. Select “/ Volume configuration / Snapshot” to display all snapshot VDs taken from the VD.

Figure 5.4.1.1

7. Check the gray button next to the Snapshot VD number; click “Expose”. Enter a capacity for snapshot VD. If size is zero, the exposed snapshot VD is read only. Otherwise, the exposed snapshot VD can be read / written, and the size is the maximum capacity to read / write.

8. Attach a LUN to the snapshot VD. Please refer to the previous chapter for attaching a LUN.

9. Done. It can be used as a disk.

Figure 5.4.1.2

(Figure 5.4.1.2: This is the snapshot list of “VD-01”. There are two snapshots. Snapshot VD “SnapVD-01” is exposed as read-only, “SnapVD-02” is exposed as read-write.)

Page 86

1. There are two methods to clean all snapshots. In “/ Volume configuration / Virtual disk”, check the gray button next to the VD number; click “Cleanup snapshot”. Or in “/ Volume configuration / Snapshot”, click “Cleanup”.

2. “Cleanup snapshot” will delete all snapshots of the VD and release snapshot space.

5.4.2 Auto snapshot

The snapshot copies can be taken manually or by schedule such as hourly or daily. Please follow the procedures.

1. There are two methods to set auto snapshot. In “/ Volume configuration / Virtual disk”, check the gray button next to the VD number; click “Auto snapshot”. Or in “/ Volume configuration / Snapshot”, click “Auto snapshot”.

2. The auto snapshot can be set monthly, weekly, daily, or hourly.

3. Done. It will take snapshots automatically.

Figure 5.4.2.1

(Figure 5.4.2.1: It will take snapshots every month, and keep the last 32 snapshot copies.)

Tips

Daily snapshot will be taken at every 00:00. Weekly snapshot will be taken every Sunday 00:00. Monthly snapshot will be taken every first day of month 00:00.

Page 87

5.4.3 Rollback

The data in snapshot VD can rollback to original VD. Please follow the procedures.

1. Select “/ Volume configuration / Snapshot”.

2. Check the gray button next to the Snap VD number which user wants to rollback the data; click “Rollback”.

3. Done, the data in snapshot VD is rollback to original VD.

Caution Before executing rollback, it is better to dismount file system for flushing data from cache to disks in OS first. System sends pop-up message when user executes rollback function.

5.4.4 Snapshot constraint

D-LINK snapshot function applies Copy-on-Write technique on UDV/VD and provides a

quick and efficient backup methodology. When taking a snapshot, it does not copy any data at first time until a request of data modification comes in. The snapshot copies the original data to snapshot space and then overwrites the original data with new changes. With this technique, snapshot only copies the changed data instead of copying whole data. It will save a lot of disk space.

 Create a data-consistent snapshot

Before using snapshot, user has to know why sometimes the data corrupts after rollback of snapshot. Please refer to the following diagram.

When user modifies the data from host, the data will pass through file system and memory of the host (write caching). Then the host will flush the data from memory to physical disks, no matter the disk is local disk (IDE or SATA), DAS (SCSI or SAS), or SAN (fibre or iSCSI). From the viewpoint of storage device, it can not control the behavior of host side. This case maybe happens. If user takes a snapshot, some data is still in memory and not flush to disk. Then the snapshot may have an incomplete image of original data. The problem does not belong to the storage device. To avoid this data inconsistent issue between snapshot and original data, user has to make the operating system flush the data from memory of host (write caching) into disk before taking snapshot.

Page 88

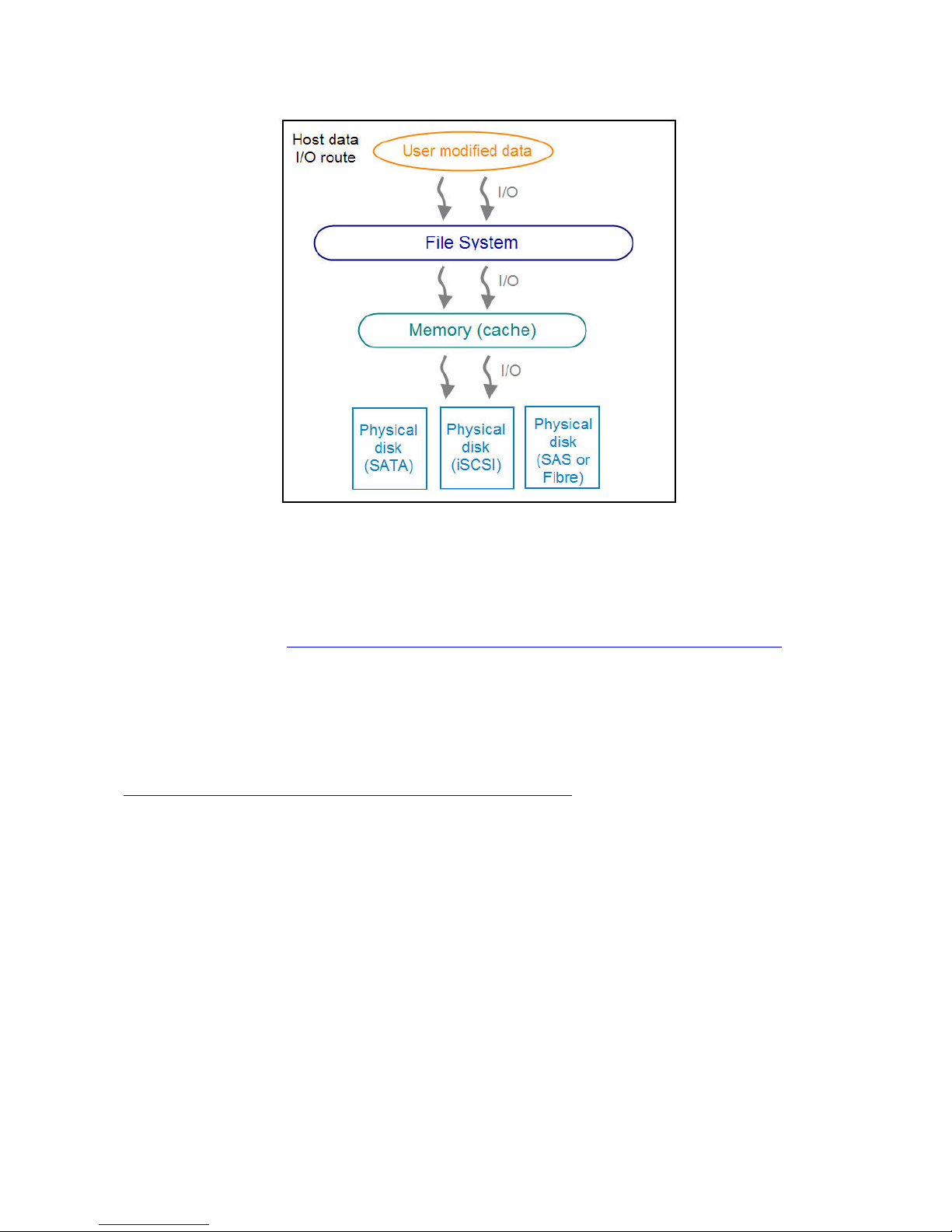

Figure 5.4.4.1

On Linux and UNIX platform, a command named sync can be used to make the operating system flush data from write caching into disk. For Windows platform, Microsoft also provides a tool – sync, which can do exactly the same thing as the sync command in Linux/UNIX. It will tell the OS to flush the data on demand. For more detail about sync tool, please refer to: http://technet.microsoft.com/en-us/sysinternals/bb897438.aspx

Besides the sync tool, Microsoft develops VSS (volume shadow copy service) to prevent this issue. VSS is a mechanism for creating consistent point-in-time copies of data known as shadow copies. It is a coordinator between backup software, application (SQL or Exchange…) and storages to make sure the snapshot without the problem of datainconsistent. For more detail about the VSS, please refer to

http://technet.microsoft.com/en-us/library/

cc785914.aspx. DSN-6110/6120 can support

Microsoft VSS.

 What if the snapshot space is over?

Before using snapshot, a snapshot space is needed from RG capacity. After a period of working snapshot, what if the snapshot size over the snapshot space of user defined? There are two different situations:

1. If there are two or more snapshots existed, the system will try to remove the oldest snapshots (to release more space for the latest snapshot) until enough space is released.

2. If there is only one snapshot existed, the snapshot will fail. Because the snapshot space is run out.

Page 89

For example, there are two or more snapshots existed on a VD and the latest snapshot keeps growing. When it comes to the moment that the snapshot space is run out, the system will try to remove the oldest snapshot to release more space for the latest snapshot usage. As the latest snapshot is growing, the system keeps removing the old snapshots. When it comes that the latest snapshot is the only one in system, there is no more snapshot space which can be released for incoming changes, then snapshot will fail.

 How many snapshots can be created on a VD

There are up to 32 snapshots can be created on a UDV/VD. What if the 33rd snapshot has been taken? There are two different situations:

1. If the snapshot is configured as auto snapshot, the latest one (the 33rd snapshot) will replace the oldest one (the first snapshot) and so on.

2. If the snapshot is taken manually, when taking the 33rd snapshot will fail and a warning message will be showed on Web UI.

 Rollback / Delete snapshot

When a snapshot has been rollbacked, the other snapshots which are earlier than it will also be removed. But the rest snapshots will be kept after rollback. If a snapshot has been deleted, the other snapshots which are earlier than it will also be deleted. The space occupied by these snapshots will be released after deleting.

5.5 Disk roaming

Physical disks can be re-sequenced in the same system or move all physical disks in the same RAID group from system-1 to system-2. This is called disk roaming. System can execute disk roaming online. Please follow the procedures.

1. Select “/ Volume configuration / RAID group”.

2. Check the gray button next to the RG number; click “Deactivate”.

3. Move all PDs of the RG to another system.

4. Check the gray button next to the RG number; click “Activate”.

5. Done.

Disk roaming has some constraints as described in the followings:

1. Check the firmware version of two systems first. It is better that either systems have the same firmware version or system-2 firmware version is newer.

2. All physical disks of the RG should be moved from system-1 to system-2 together. The configuration of both RG and VD will be kept but LUN configuration will be cleared in order to avoid conflict with system-2’s original setting.

Page 90

5.6 VD clone

The user can use VD clone function to backup data from source VD to target VD, set up backup schedule, and deploy the clone rules.

The procedures of VD clone are on the following:

1. Copy all data from source VD to target VD at the beginning (full copy).

2. Use Snapshot technology to perform the incremental copy afterwards. Please be fully

aware that the incremental copy needs to use snapshot to compare the data difference. Therefore, the enough snapshot space for VD clone is very important.

The following contents will take an example of a RAID 5 virtual disk (SourceVD_Raid5) clone to RAID 6 virtual disk (TargetVD_Raid6).

 Start VD clone

1. Create a RAID group (RG) in advance.

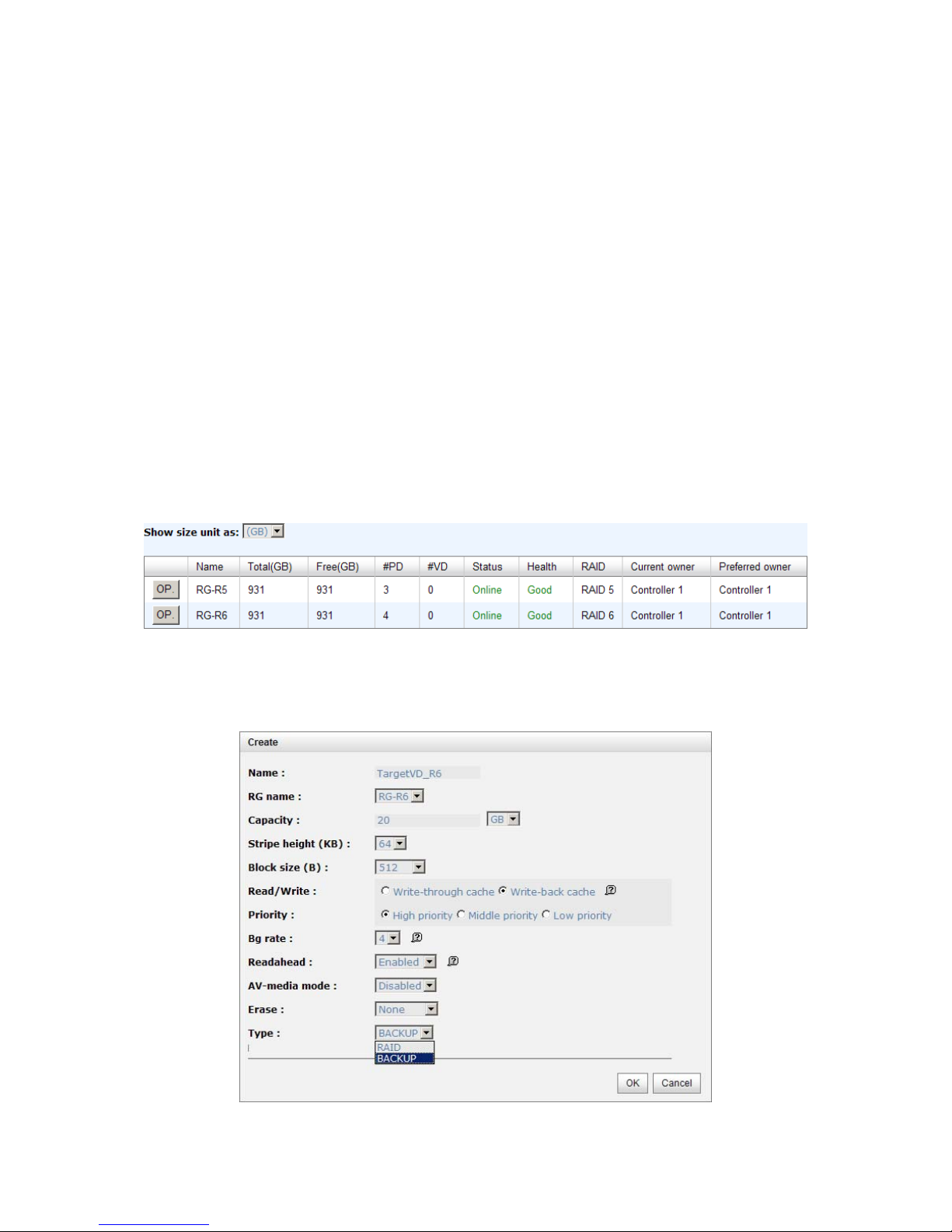

Figure 5.6.1

2. Create two virtual disks (VD) “SourceVD_R5” and “TargetVD_R6”. The raid type of backup target needs to be set as “BACKUP”.

Figure 5.6.2

Page 91

3. Here are the objects, a Source VD and a Target VD. Before starting clone process, it needs to deploy the VD Clone rule first. Click “Configuration”.

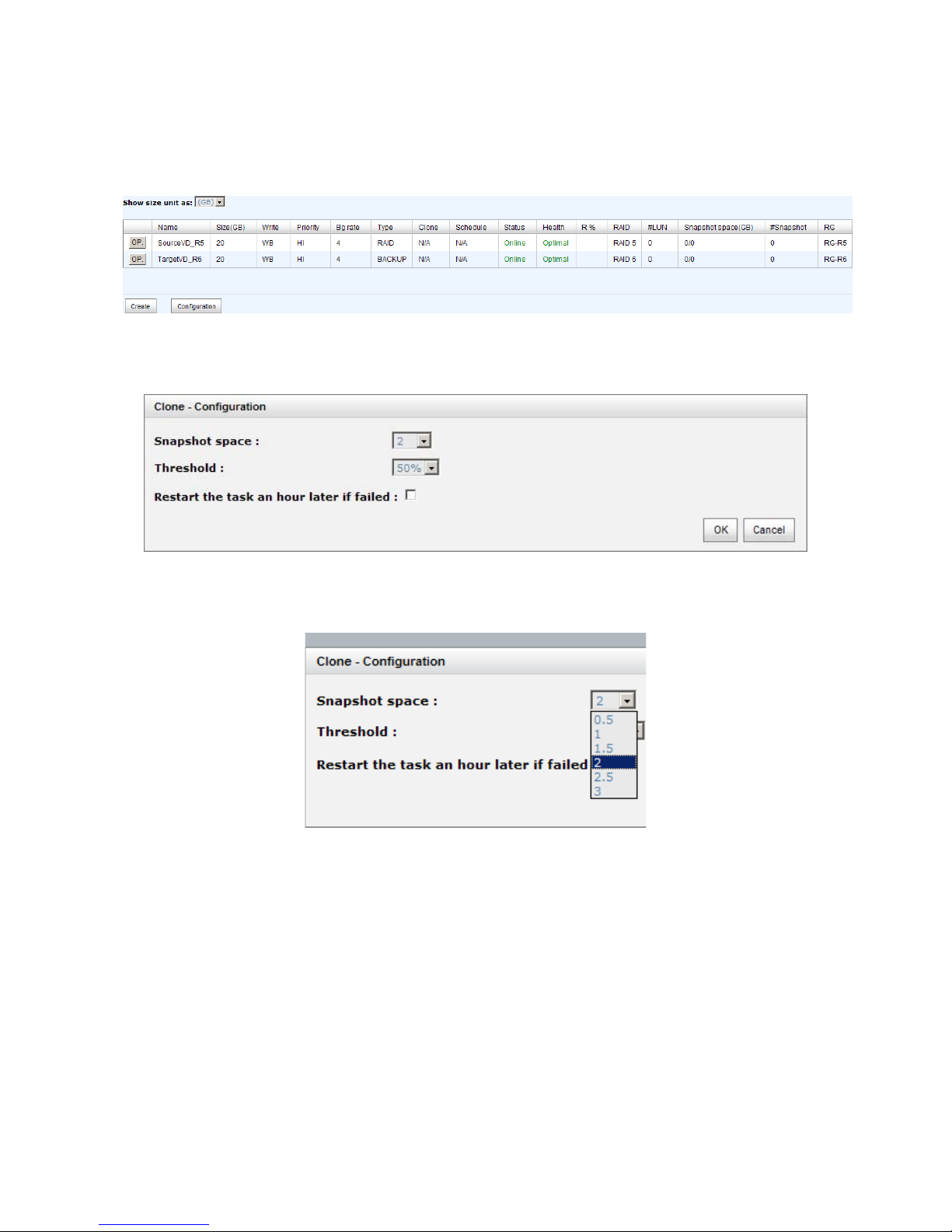

Figure 5.6.3

4. There are three clone configurations, describe on the following.

Figure 5.6.4

 Snapshot space:

Figure 5.6.4

This setting is the ratio of source VD and snapshot space. The default ratio is 2 to 1. It means when the clone process is starting, the system will automatically use the free RG space to create a snapshot space which capacity is double the source VD.

 Threshold: (The setting will be effective after enabling schedule clone)

Page 92

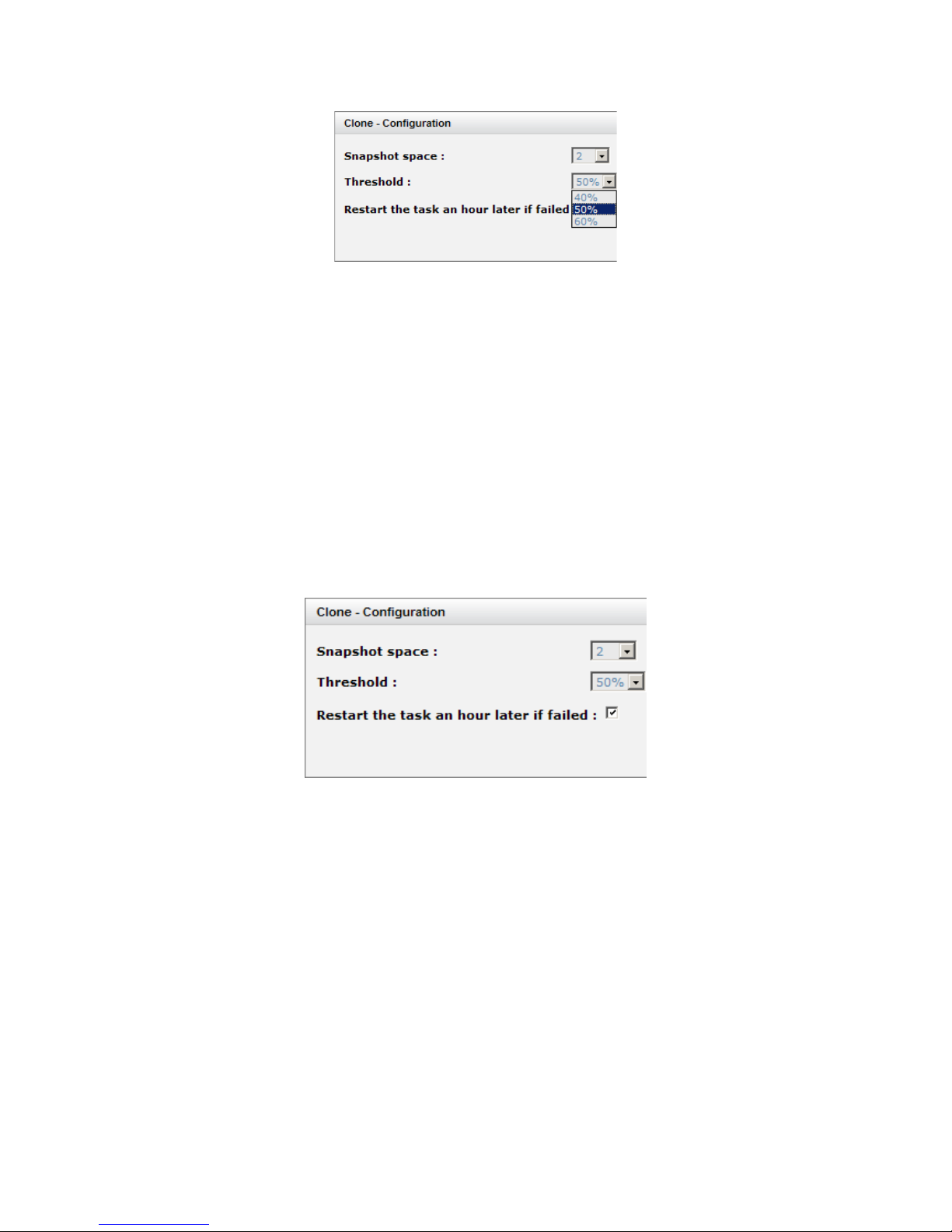

Figure 5.6.5

The threshold setting will monitor the usage amount of snapshot space. When the used snapshot space achieves its threshold, system will automatically take a clone snapshot and start VD clone process. The purpose of threshold could prevent the incremental copy fail immediately when running out of snapshot space.

For example, the default threshold is 50%. The system will check the snapshot space every hour. When the snapshot space is used over 50%, the system will synchronize the source VD and target VD automatically. Next time, when the rest snapshot space has been used 50%, in other words, the total snapshot space has been used 75%, the system will synchronize the source VD and target VD again.

 Restart the task an hour later if failed: (The setting will be effective after

enabling schedule clone)

Figure 5.6.6

When running out of snapshot space, the VD clone process will be stopped because there is no more available snapshot space. If this option has been checked, system will clear the snapshots of clone in order to release snapshot space automatically, and the VD clone will restart the task after an hour. This task will start a full copy.

5. After deploying the VD clone rule, the VD clone process can be started now. Firstly, Click “Set clone” to set the target VD at the VD name “SourceVD_R5”.

Page 93

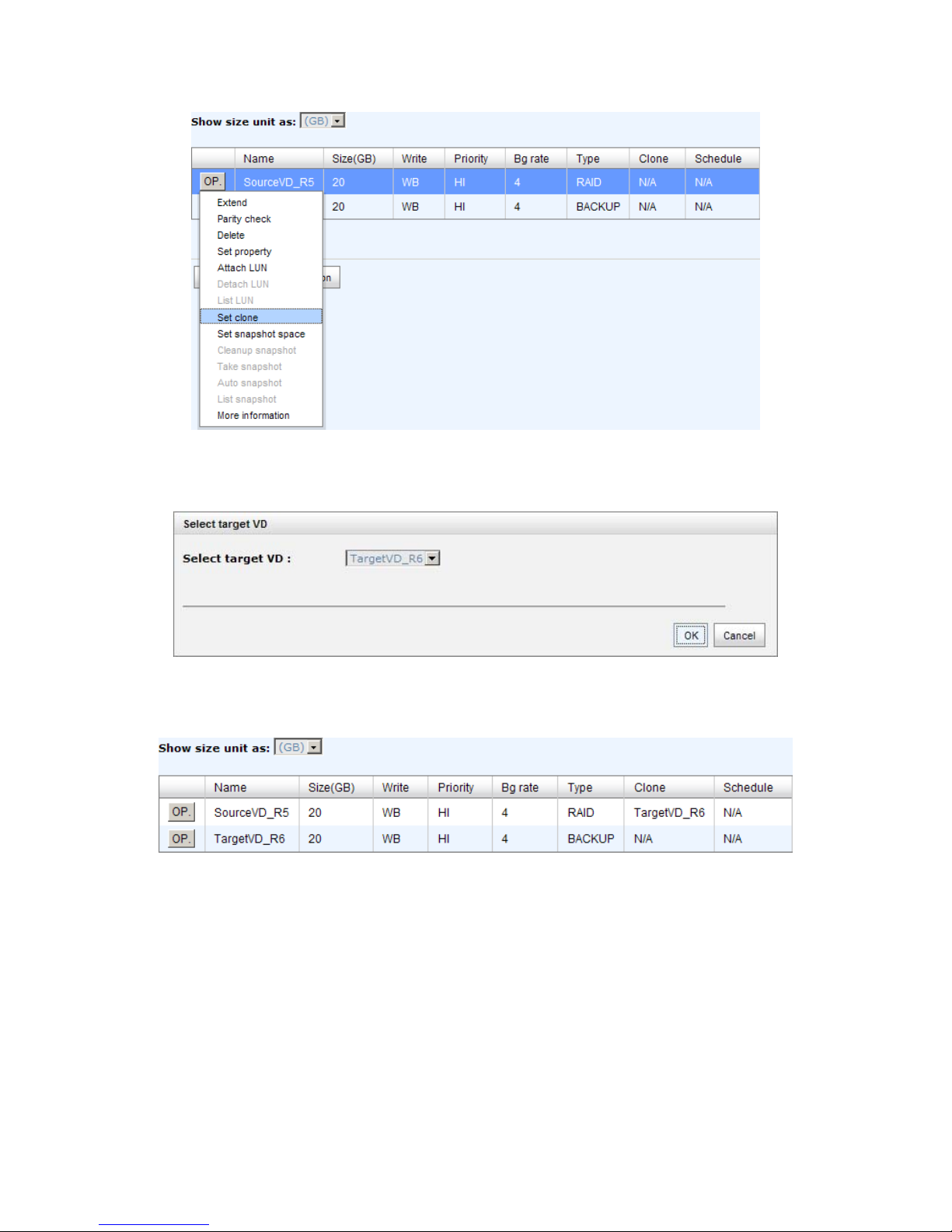

Figure 5.6.7

6. Select the target VD. Then click “Confirm”.

Figure 5.6.8

7. Now, the clone target “Tar getVD_R6” has been set.

Figure 5.6.9

8. Click “S ta rt clone”, the clone process will start.

Page 94

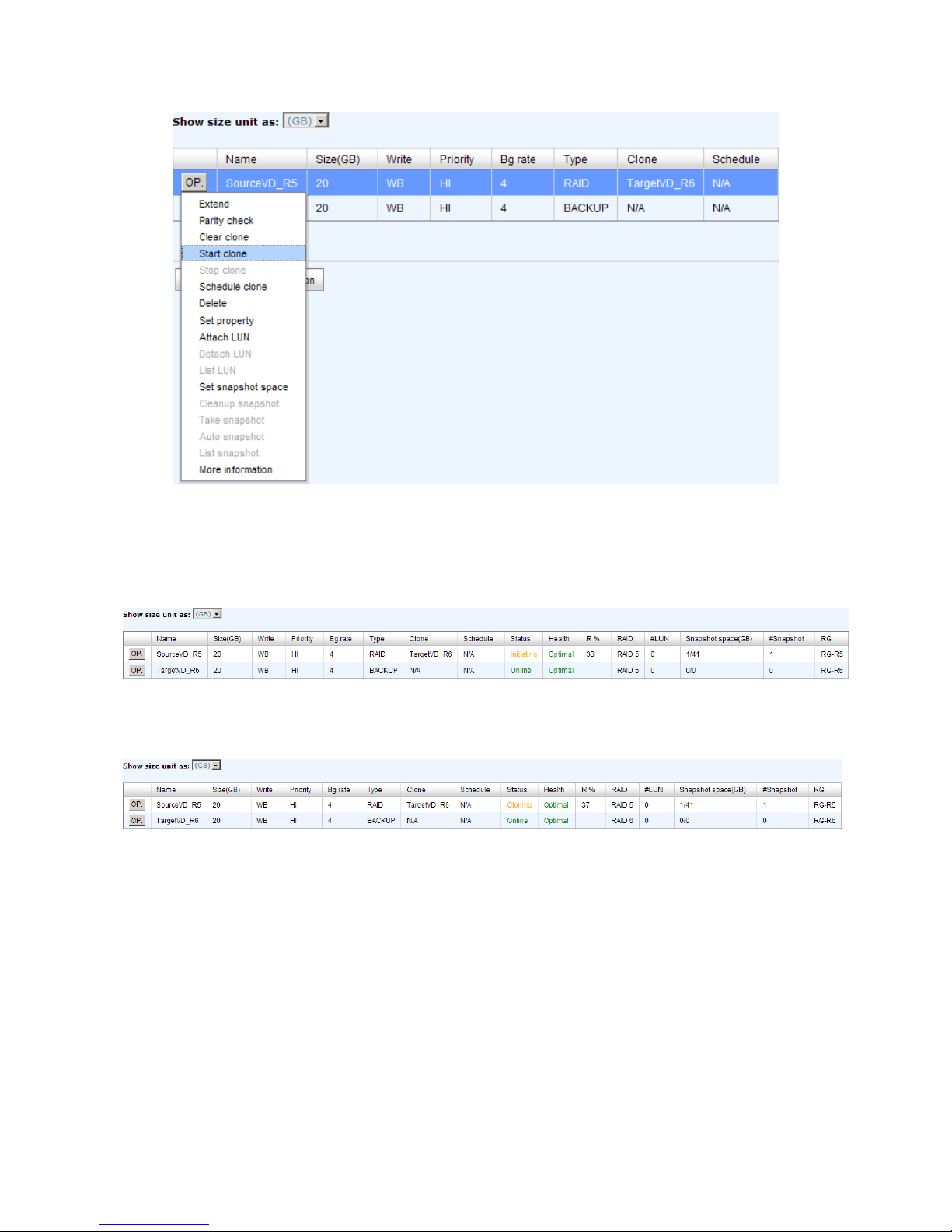

Figure 5.6.10

9. The default setting will create a snapshot space automatically which the capacity is double size of the VD space. Before starting clone, system will initiate the snapshot space.

Figure 5.6.11

10. After initiating the snapshot space, it will start cloning.

Figure 5.6.12

11. Click “Schedule clone” to set up the clone by schedule.

Page 95

Figure 5.6.13

12. There are “Set Clone schedule” and “Clear Clone schedule” in this page. Please remember that “Threshold” and “Restart the task an hour later if failed” options in VD configuration will take effect after clone schedule has been set.

Figure 5.6.14

 Run out of snapshot space while VD clone

While the clone is processing, the increment data of this VD is over the snapshot space. The clone will complete, but the clone snapshot will fail. Next time, when trying to start clone, it will get a warning message “This is not enough of snapshot space for the operation”. At this time, the user needs to clean up the snapshot space in order to operate

Page 96

the clone process. Each time the clone snapshot failed, it means that the system loses the reference value of incremental data. So it will start a full copy at next clone process.

When running out of snapshot space, the flow diagram of VD clone procedure will be like the following.

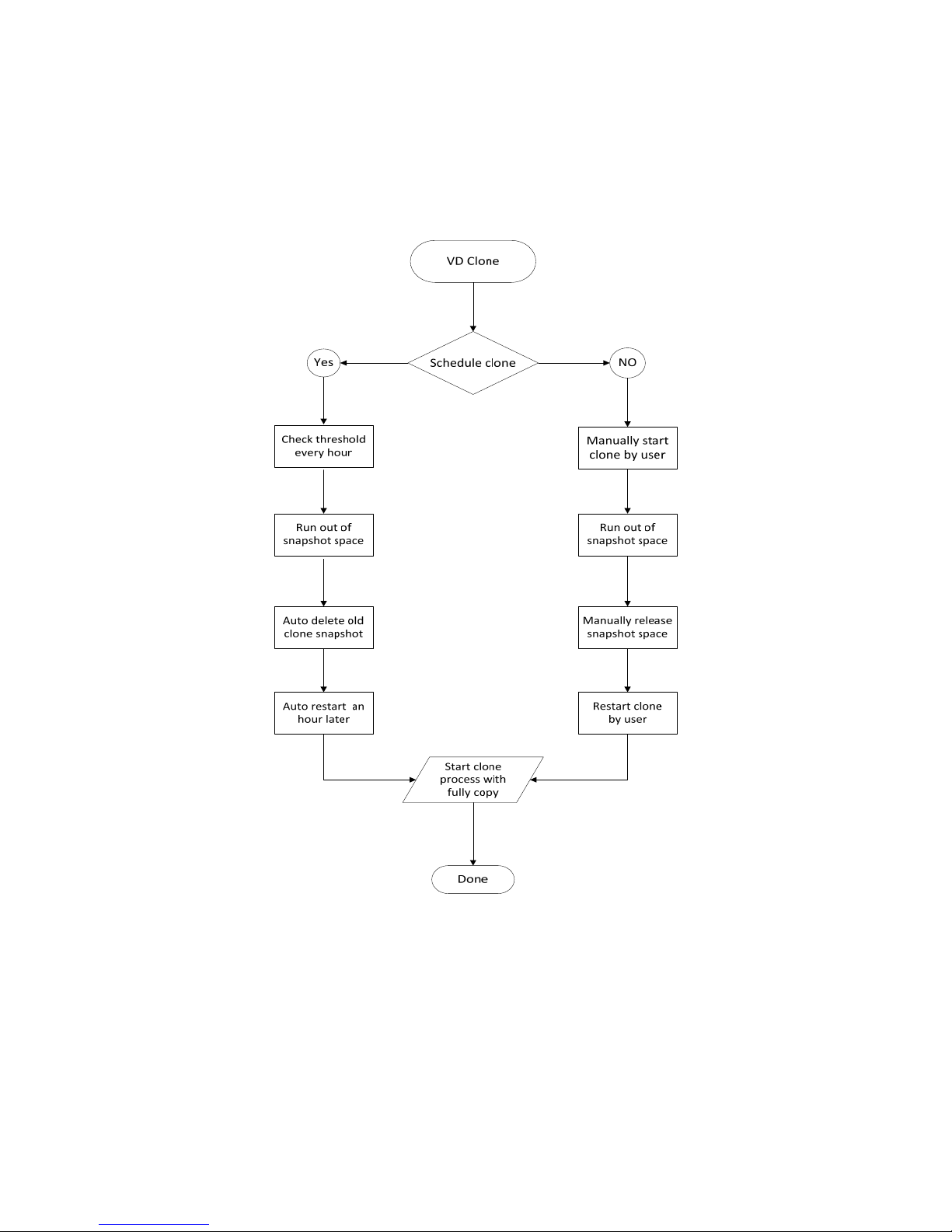

Figure 5.6.15

Page 97

5.7 SAS JBOD expansion

5.7.1 Connecting JBOD

D-LINK DSN-6000 series support up to 4 additional SAS/SATA JBODs for capacity

expansion. When connecting to a dual-controller JBOD, it will display in “Show PD for:” of “/ Volume configuration / Physical disk”. For example, Local, JBOD 1 (DSN-

6020), JBOD 2 (DSN-6020), …etc. Local means disks in local controller, and so on. The

hard drives in JBOD can be used as local disks. “/ Enclosure management / Hardware monitor” can display the hardware status of

SAS JBODs.

“/ Enclosure management / S.M.A.R.T.” can display S.M.A.R.T. information of all PDs, including Local and all SAS JBODs.

SAS JBOD expansion has some constraints as described in the followings: 1 User could create RAID group among multiple chassis, max number of disks in a

single RAID group is 32. 2 Global spare disk can support all RAID groups which located in the different chassis. 3 When support SATA drives for the redundant JBOD model, the SATA bridge board is

required. 4 The following table is the maximum JBOD numbers and maximum HDD numbers

with different chassises can be cascaded.

Dual controllers +

Dual JBOD

RAID Storage System

DSN-6120

DSN-6020 no. 4

Max HDD no. 60

5.7.2 Upgrade firmware of JBOD

To upgrade the firmware of JBOD, please follow the procedures. 1 There is a hidden web page for JBOD firmware upgrade. Please login Web UI as

username admin first, and then add this URL to the browser. (http://Management

IP/jbod_upg.php), for example:

http://192.168.10.50/jbod_upg.php

Page 98

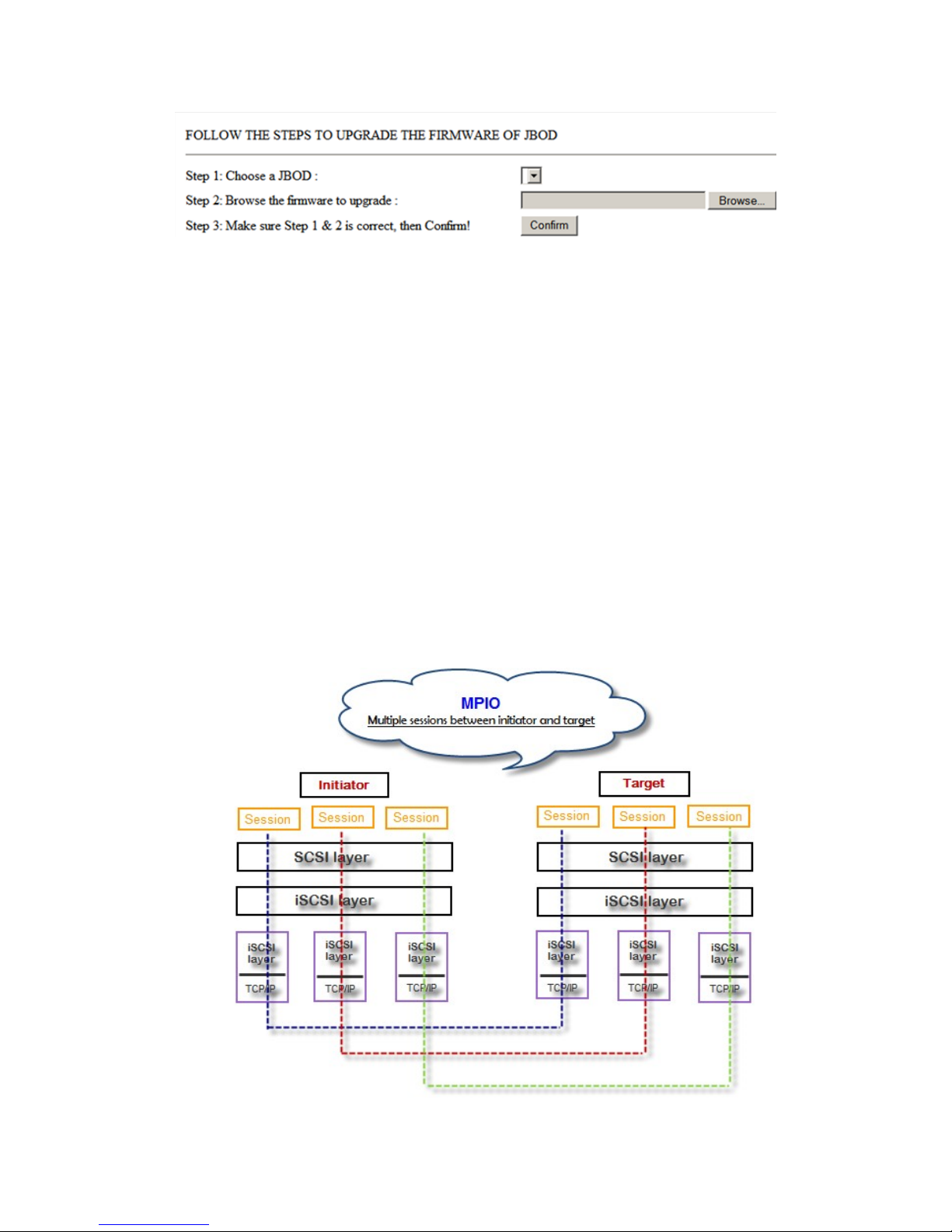

Figure 5.7.2.1

2 Choose a JBOD which wants to upgrade. 3 Please prepare new firmware file in local hard drive, then click “Browse” to select

the file. Click “Confirm”. 4 After finished upgrading, the system must reboot manually to make the new

firmware took effect.

5.8 MPIO and MC/S

These features come from iSCSI initiator. They can be setup from iSCSI initiator to establish redundant paths for sending I/O from the initiator to the target.

1. MPIO: In Microsoft Windows server base system, Microsoft MPIO driver allows

initiators to login multiple sessions to the same target and aggregate the duplicate devices into a single device. Each session to the target can be established using different NICs, network infrastructure and target ports. If one session fails, then another session can continue processing I/O without interruption to the application.

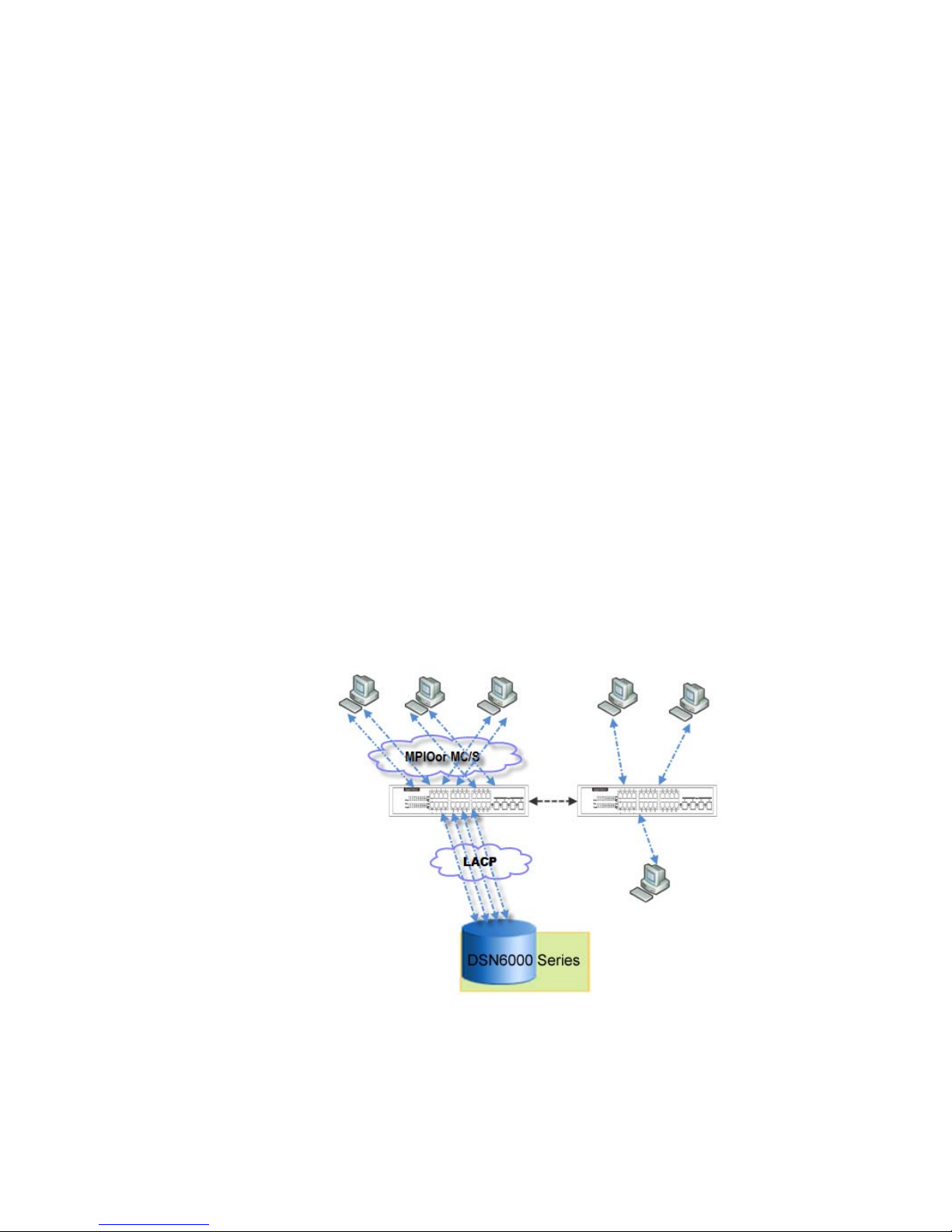

Figure 5.8.1

Page 99

2. MC/S: MC/S (Multiple Connections per Session) is a feature of iSCSI protocol, which

allows combining several connections inside a single session for performance and failover purposes. In this way, I/O can be sent on any TCP/IP connection to the target. If one connection fails, another connection can continue processing I/O without interruption to the application.

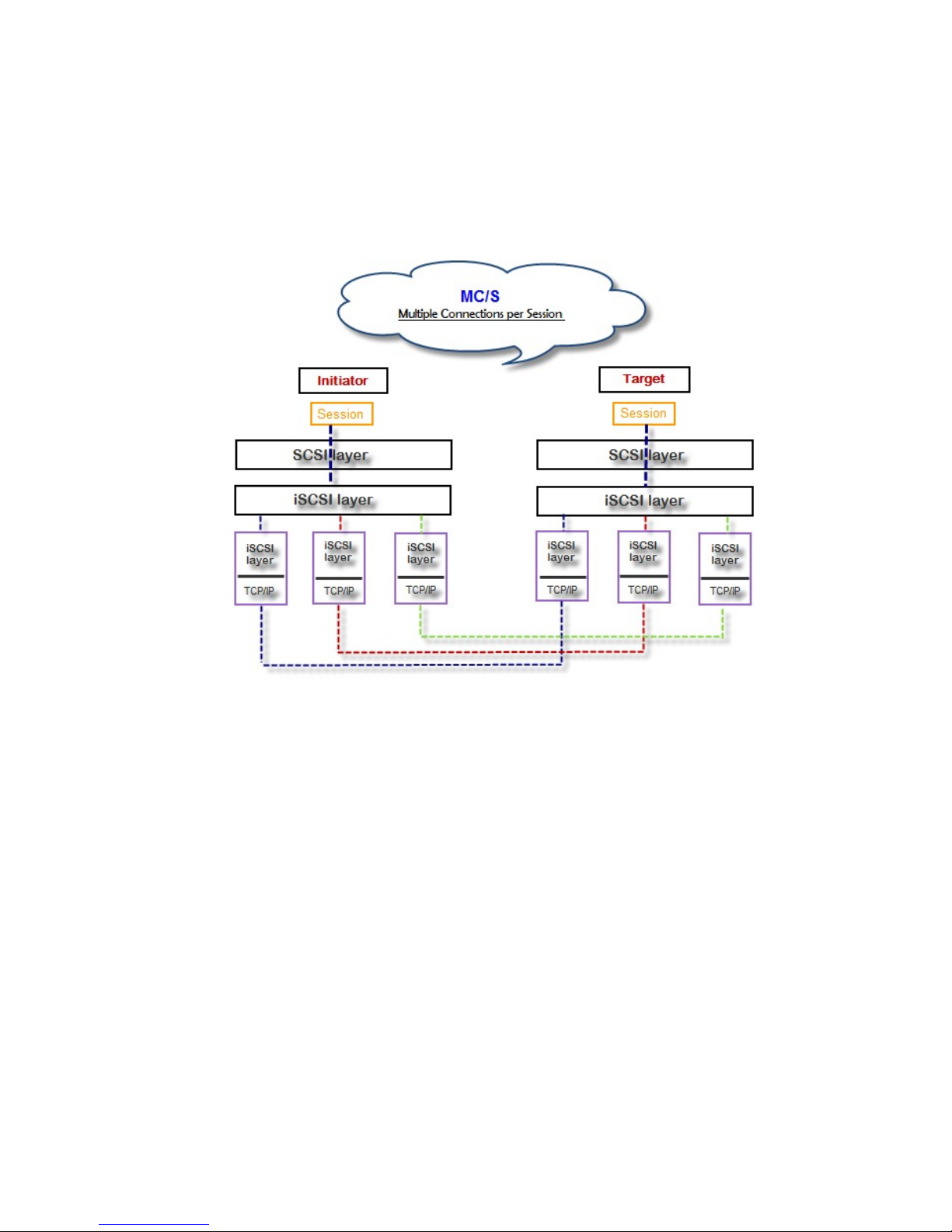

Figure 5.8.2

Difference:

MC/S is implemented on iSCSI level, while MPIO is implemented on the higher level. Hence, all MPIO infrastructures are shared among all SCSI transports, including Fiber Channel, SAS, etc. MPIO is the most common usage across all OS vendors. The primary difference between these two is which level the redundancy is maintained. MPIO creates multiple iSCSI sessions with the target storage. Load balance and failover occurs between the multiple sessions. MC/S creates multiple connections within a single iSCSI session to manage load balance and failover. Notice that iSCSI connections and sessions are different than TCP/IP connections and sessions. The above figures describe the difference between MPIO and MC/S.

There are some considerations when user chooses MC/S or MPIO for multipathing.

1. If user uses hardware iSCSI off-load HBA, then MPIO is the only one choice.

2. If user needs to specify different load balance policies for different LUNs, then MPIO

should be used.

Page 100

100

3. If user installs anyone of Windows XP, Windows Vista or Windows 7, MC/S is the only

option since Microsoft MPIO is supported Windows Server editions only.

4. MC/S can provide higher throughput than MPIO in Windows system, but it consumes

more CPU resources than MPIO.

5.9 Trunking and LACP

Link aggregation is the technique of taking several distinct Ethernet links to let them appear as a single link. It has a larger bandwidth and provides the fault tolerance ability. Beside the advantage of wide bandwidth, the I/O traffic remains operating until all physical links fail. If any link is restored, it will be added to the link group automatically. D-LINK implements link aggregation as LACP and Trunking.

1. LACP (IEEE 802.3ad): The Link Aggregation Control Protocol (LACP) is a part of

IEEE specification 802.3ad. It allows bundling several physical ports together to form a single logical channel. A network switch negotiates an automatic bundle by sending LACP packets to the peer. Theoretically, LACP port can be defined as active or passive. D-LINK IP SAN Storage implements it as active mode which means that LACP port sends LACP protocol packets automatically. Please notice that using the same configurations between D-LINK IP SAN Storage and gigabit switch.

The usage occasion of LACP: A. It’s necessary to use LACP in a network environment of multiple switches. When

adding new devices, LACP will separate the traffic to each path dynamically.

Figure 5.9.1

2. Trunking (Non-prot ocol): Defines the usage of multiple iSCSI data ports in parallel

to increase the link speed beyond the limits of any single port.

The usage occasion of Trunking:
