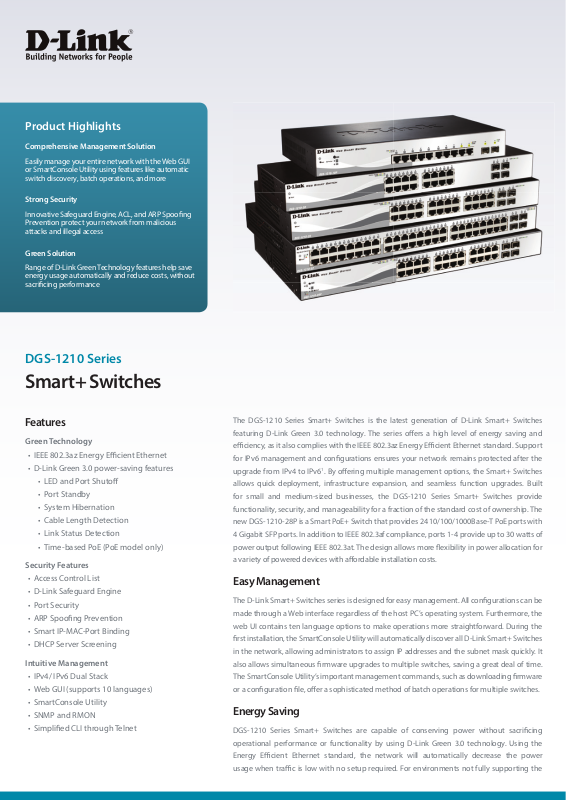

D-LINK DGS12128E Datasheet

Page 1

Product Highlights

Comprehensive Management Solution

Easily manage your entire network with the Web GUI or SmartConsole Utility using features like automatic switch discovery, batch operations, and more

Strong Security

Innovative Safeguard Engine, ACL, and ARP Spoo ng Prevention protect your network from malicious attacks and illegal access

Green Solution

Range of D-Link Green Technology features help save energy usage automatically and reduce costs, without sacri cing performance

DGS-1210 Series

Smart+ Switches

Features

Green Technology

• IEEE 802.3az Energy Eﬃ cient Ethernet

• D-Link Green 3.0 power-saving features

• LED and Port Shutoﬀ

• Port Standby

• System Hibernation

• Cable Length Detection

• Link Status Detection

• Time-based PoE (PoE model only)

Security Features

• Access Control List

• D-Link Safeguard Engine

• Port Security

• ARP Spoo ng Prevention

• Smart IP-MAC-Port Binding

• DHCP Server Screening

Intuitive Management

• IPv4/ IPv6 Dual Stack

• Web GUI (supports 10 languages)

• SmartConsole Utility

• SNMP and RMON

• Simpli ed CLI through Telnet

The DGS-1210 Series Smart+ Switches is the latest generation of D-Link Smart+ Switches

featuring D-Link Green 3.0 technology. The series oﬀ ers a high level of energy saving and

eﬃ ciency, as it also complies with the IEEE 802.3az Energy Eﬃ cient Ethernet standard. Support

for IPv6 management and con gurations ensures your network remains protected after the

upgrade from IPv4 to IPv6

allows quick deployment, infrastructure expansion, and seamless function upgrades. Built

for small and medium-sized businesses, the DGS-1210 Series Smart+ Switches provide

functionality, security, and manageability for a fraction of the standard cost of ownership. The

new DGS-1210-28P is a Smart PoE+ Switch that provides 24 10/100/1000Base-T PoE ports with

4 Gigabit SFP ports. In addition to IEEE 802.3af compliance, ports 1-4 provide up to 30 watts of

power output following IEEE 802.3at. The design allows more  exibility in power allocation for

a variety of powered devices with aﬀ ordable installation costs.

. By oﬀ ering multiple management options, the Smart+ Switches

Easy Management

The D-Link Smart+ Switches series is designed for easy management. All con gurations can be

made through a Web interface regardless of the host PC’s operating system. Furthermore, the

web UI contains ten language options to make operations more straightforward. During the

 rst installation, the SmartConsole Utility will automatically discover all D-Link Smart+ Switches

in the network, allowing administrators to assign IP addresses and the subnet mask quickly. It

also allows simultaneous  rmware upgrades to multiple switches, saving a great deal of time.

The SmartConsole Utility’s important management commands, such as downloading  rmware

or a con guration  le, oﬀ er a sophisticated method of batch operations for multiple switches.

Energy Saving

DGS-1210 Series Smart+ Switches are capable of conserving power without sacri cing

operational performance or functionality by using D-Link Green 3.0 technology. Using the

Energy Eﬃ cient Ethernet standard, the network will automatically decrease the power

usage when traﬃ c is low with no setup required. For environments not fully supporting the

Page 2

standard, DGS-1210 Series Smart+ Switches oﬀ er advanced power-saving

settings including port shutoﬀ and standby, LED shutoﬀ , and system hibernation

based on custom scheduling pro les. The pro les can also be applied to the PoE

switch so that there is no unnecessary power consumption during oﬀ hours.

The DGS-1210 Series switches can also detect the length of connected cables to

automatically reduce power usage on shorter cable connections.

DGS-1210 Series Smart+ Switches

Auto Surveillance VLAN and Voice VLAN

The process of setting up IP surveillance and VoIP on a network is automated with

the D-Link Smart+ Switches. Auto Surveillance VLAN (ASV) consolidates data and

surveillance video transmission through the network, sparing businesses the

expense of maintaining dedicated facilities. ASV also protects the quality of real-

time video by grouping IP surveillance devices on a single high priority VLAN. This

ensures that surveillance video streams will not be aﬀ ected when ordinary data

traﬃ c is at their highest levels. Similarly, the Auto Voice VLAN guarantees clear

audio quality and eﬃ cient transmission for all voice communication.

Exclusive Layer 2 Features

Equipped with a complete lineup of L2 features, the DGS-1210 Series switches

include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation

Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers

to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps

Full Duplex, the Gigabit ports provide high-speed data pipes to servers with

minimum data transfer loss. Network maintenance features include Loopback

Detection and Cable Diagnostics. Loopback Detection is used to detect loops

created by a speci c port and automatically shut down the aﬀ ected port. The

Cable Diagnostic feature is designed primarily for administrators and customer

service representatives, and can rapidly discover the type of error and determine

the cable quality.

Secure your Network

D-Link’s innovative Safeguard Engine protects the switches against traﬃ c

 ooding caused by virus attacks. The switches also support 802.1X port-based

authentication, allowing the network clients to be authenticated through external

RADIUS servers. In addition, the Access Control List (ACL) feature enhances

network security and protects the network by screening traﬃ c from illegal MAC

or IP addresses. ARP Spoo ng Prevention prevents malicious intruders from

sending massive fake ARP messages through a manipulated source. This protects

important data from being stolen by Man-in-the-Middle attacks, and prevents

wasting CPU cycles on these packets. For added security, the DHCP Server

Screening feature blocks rogue DHCP server packets from user ports to prevent

unauthorized IP assignment.

If the worst should happen to your network you need the very best support and fast. Downtime costs your business money. D-Link Assist maximises your uptime by solving technical problems quickly and eﬀ ectively. Our highly trained technicians are on standby around the clock, ensuring that award-winning support is only a phone call away.

With a choice of three aﬀ ordable service oﬀ erings covering all D-Link business products, you can select the package that suits you best:

D-Link Assist Gold - for comprehensive 24-hour support

D-Link Assist Gold is perfect for mission-critical environments where maximum uptime is a high priority. It guarantees four hour around-the-clock response. Cover applies 24/7 for every day of the year including holidays.

D-Link Assist Silver - for prompt same-day assistance

D-Link Assist Silver is designed for ‘high availability’ businesses that require rapid response within regular working hours. It provides a four hour response service Monday to Friday from 8am to 5pm, excluding holidays.

D-Link Assist Bronze - for guaranteed response on the

next business day

D-Link Assist Bronze is a highly cost-eﬀ ective support solution for less critical environments. Response is guaranteed within eight business hours Monday to Friday from 8am to 5pm, excluding holidays.

D-Link Assist can be purchased together with any D-Link business product. So whether you’re buying switching, wireless, storage, security or IP Surveillance equipment from D-Link, your peace of mind is guaranteed. D-Link Assist also oﬀ ers installation and con guration services to get your new hardware working quickly and correctly.

Page 3

DGS-1210 Series Smart+ Switches

Technical Specications

General DGS-1210-20 DGS-1210-28 DGS-1210-52

Port Standards & Functions

Number of Ports 16 10/100/1000 Mbps, 4 SFPs 24 10/100/1000 Mbps, 4 SFP 48 10/100/1000 Mbps, 4 SFP

Network Cables

Full/Half Duplex

Media Interface Exchange Auto or configurable MDI/MDIX

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T

Gigabit Ethernet, IEEE 802.3x Flow Control for Full-Duplex Mode, Auto-negotiation

UTP Cat. 5, Cat. 5e (100 m max.)

EIA/TIA-568 100-ohm STP (100 m max.)

Full/half duplex for 10/100 Mbps speeds

Full duplex for Gigabit speed

Performance

Switching Capacity 40 Gbps 56 Gbps 104 Gbps

Transmission Method Store-and-forward

MAC Address Table 16,000 entries per device

MAC Address Update

Maximum 64 bytes Packet Forwarding Rate

Packet Buffer Memory 1 MB per device

29.8 Mpps 41.7 Mpps 77.4 Mpps

Enable/disable auto-learning of MAC addresses

Up to 256 static MAC entries

Physical & Environment

AC Input 100 to 240 VAC 50/60 Hz internal universal power supply

Maximum Power Consumption 14.06 W 16.81 W 43.5 W

Standby Power Consumption 7.2 W 6.42 W 22.05 W

Fan Quantity 0 Two Smart Fans

Acoustics 0 dB(A) 47.1 dB(A)

Heat Dissipation 47.97 BTU/hr 57.36 BTU/hr 148.42 BTU/hr

Operation Temperature -5 to 50 ˚C (23 to 122 ˚F)

Storage Temperature -20 to 70˚C (-4 to 158 ˚F)

Operation Humidity 0% to 95% non-condensing

Storage Humidity 0% to 95% non-condensing

440 x 140 x 44 mm

Dimensions

Weight 2.2 kg (4.85 lbs) 2.9 kg (6.39 lbs) 4.1 kg (9.04 lbs)

Diagnostic LEDs

(17.32 x 5.51 x 1.73 inches)

19” standard rack mounting

width, 1U height

Power (per device), Link/Activity/Speed (per 10/100/1000

Mbps port), Link/Activity/Speed (per SFP port)

440 x 140 x 44 mm

(17.32 x 5.51 x 1.73 inches)

19” standard rack mounting

width, 1U height

440 x 250 x 44 mm

(17.32 x 9.84 x 1.73 inches)

19” standard rack mounting

width, 1U height

Power (per device),

Link/Activity/Speed (per

10/100/1000 Mbps port),

Link/Activity/Speed (per SFP port),

Fan (per device)

Certifications

Safety cUL, CE LVD

FCC Class A, CE Class A, ICES-003

VCCI Class A, C-Tick, BSMI

Page 4

DGS-1210 Series Smart PoE+ Switches

Technical Specications

General DGS-1210-10P DGS-1210-28P

Port Standards & Functions

Number of Ports 8 10/100/1000 Mbps PoE capable, 2 Combo Ports 24 10/100/1000 Mbps PoE capable, 4 SFP Ports

Network Cables UTP Cat. 5, Cat. 5e (100 m max.); EIA/TIA-568 100-ohm STP (100 m max.)

Full/Half Duplex Full/half duplex for 10/100 Mbps speeds; Full duplex for Gigabit speed

Media Interface Exchange Auto or configurable MDI/MDIX

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE

802.3x Flow Control for Full-Duplex Mode, IEEE 802.3af compliance, IEEE 802.3at compliance, Auto-negotiation

Performance

Switching Capacity 20 Gbps 56 Gbps

Transmission Method Store-and-forward

MAC Address Table 16,000 entries per device

MAC Address Update Up to 256 static MAC entries, Enable/disable auto-learning of MAC addresses

Maximum 64 bytes Packet Forwarding Rate

Packet Buffer Memory 1 MB per device

14.88 Mpps 41.7 Mpps

PoE

PoE Standard IEEE 802.3af and IEEE 802.3at

PoE Capable Ports Ports 1 to 8: Up to 30 W Ports 1 to 4: Up to 30 W, Ports 5 to 24: Up to 15.4

PoE Power Budget Max. 78 W Max. 185 W

Physical & Environment

AC Input 100 to 240 VAC 50/60 Hz internal universal power supply

Maximum Power Consumption 97.0 W (PoE on), 12.5 W (PoE off) 238.4 W (PoE on), 27.4 W (PoE off)

Standby Power Consumption 8.3 W/100 V, 8.0 W/240 V 16 W/110 V, 14 W/240 V

Fan Quantity 0 Three smart fans

Acoustics 0 dB(A) 52.2 dB(A)

Heat Dissipation 330.96 BTU/hr 813.42 BTU/hr

Operation Temperature 0 to 40 ˚C (32 to 104 ˚F) -5 to 50 ˚C (23 to 122 ˚F)

Storage Temperature -20 to 70˚C (-4 to 158 ˚F)

Operation Humidity 0% to 95% non-condensing

Storage Humidity 0% to 95% non-condensing

Dimensions

Weight 1.86 kg (4.10 lbs) 3.7 kg (8.15 lbs)

330 x 180 x 44 mm (13 x 7.08 x 1.73 inches)

Rack-mountable, 1U height

440 x 250 x 44 mm (17.32 x 9.84 x 1.73 inches),

19” standard rack mounting width, 1U height

Power (per device), PoE Max (per Device), Link/Activity/Speed

Diagnostic LEDs

Certifications and Safety FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI, cUL, CE LVD

(per 10/100/1000 Mbps port), Link/Activity/Speed

(per SFP port), Button to switch LED display

mode between PoE and Link/Activity

Power (per device), PoE Max (per Device), Link/Activity/Speed

(per 10/100/1000Base-T port), Link/Activity/Speed

(per SFP port), Fan (per device), Button to switch LED

display mode between PoE and Link/Activity

Page 5

Software Features

DGS-1210 Series Smart+ Switches

L2 Features • MAC Address Table: 16K

VLAN • 802.1Q Tagged VLAN

Quality of Service (QoS) • 802.1p Quality of Service

Access Control List (ACL) • ACL based on

• Flow Control

• 802.3x Flow Control

• HOL Blocking Prevention

• Jumbo Frame up to 10,000 Bytes

• IGMP Snooping

• IGMP v1/v2 Snooping

• Supports 256 IGMP groups

• Supports at least 64 static multicast addresses

• IGMP per VLAN

• Supports IGMP Snooping Querier

• MLD Snooping

• Supports MLD v1/v2 awareness

• Supports 256 groups

• Fast Leave

• Spanning Tree Protocol

• 802.1D STP

• 802.1w RSTP

• VLAN Group

• Max. 256 static VLAN groups

• Max. 4094 VIDs

• Management VLAN

• 4 queues per port

• Queue Handling

• Strict

• Weighted Round Robin (WRR)

• Bandwidth Control

• Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 64 Kb/s)

• MAC Address

• IPv4 Address (ICMP/IGMP/TCP/UDP)

• IPv6 Address (ICMP/TCP/UDP)

• 802.1p

• DSCP

• Ether type

• IPv6 traffic class

• Loopback Detection

• 802.3ad Link Aggregation

• DGS-1210-10P: Max. 5 groups per device/8 ports per group

• DGS-1210-20: Max. 10 groups per device/8 ports per group

• DGS-1210-28/28P: Max. 14 groups per device/8 ports per group

• DGS-1210-52: Max. 26 groups per device/8 ports per group

• Port Mirroring

• One-to-One, Many-to-One

• Supports Mirroring for Tx/Rx/Both

• Multicast Filtering

• Forwards all unregistered groups

• Filters all unregistered groups

• LLDP, LLDP-MED

• Asymmetric VLAN

• Auto Voice VLAN

• Max. 10 user-defined OUI

• Max. 8 default OUI

• Auto Surveillance VLAN

• CoS based on

• 802.1p Priority Queues

• DSCP

• ToS

• TCP/UDP port number

• IPv6 traffic class

• DGS-1210-10P/20/28/28P

• Max. 50 profiles

• Max. 200 rules shared by profiles

• Single or multiple ports (each rule)

• DGS-1210-52

• Max. 50 profiles

• Max. 450 rules shared by profiles

• ACL Actions

• Permit

• Deny

Security • Port Security

AAA • 802.1X Port-based Authentication

OAM • Cable Diagnostics • Factory Reset

MIB • 1213 MIB II

• Supports up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

• Static MAC

• D-Link Safeguard Engine

• DHCP Server Screening

• Trusted Host

• ARP Spoofing Prevention

• Max. 64 entries

• Supports RADIUS Server

• Supports EAP, OTP, TLS, TTLS, PEAP

• 1493 Bridge MIB

• 1907 SNMP v2 MIB

• 1215 Trap Convention MIB

• 2233 Interface Group MIB

• SSL

• Supports v1/v2/v3

• Supports IPv4/IPv6

• Traffic Segmentation

• Smart Binding

• Discover connected devices and click to bind

• ARP Packet Inspection: 512 entries

• IP Packet Inspection: 128 entries

• Supports DHCP Snooping

• D-Link Private MIB

• Power-Ethernet MIB

• LLDP MIB

• D-Link ZoneDefense MIB

Page 6

Software Features

DGS-1210 Series Smart+ Switches

RFC Standard Compliance • RFC 783 TFTP

Management • Multi-Language Web-based GUI

D-Link Green 3.0 Technology • Power Saving by:

• RFC 854 Telnet Server

• RFC 951 BootP/DHCP Client

• RFC 1157 SNMP v1, v2, v3

• RFC 1213 MIB II, IF MIB

• RFC 1215 MIB Traps Convention

• RFC 1350 TFTP

• RFC 1493 Bridge MIB

• RFC 1542 BootP/DHCP Client

• RFC 1769 SNTP

• RFC 1901 SNMP v1, v2, v3

• RFC 1907 SNMP v2 MIB

• RFC 1908 SNMP v1, v2, v3

• RFC 2068 FCS

• RFC 2131 BootP/DHCP Client

• RFC 2138 RADIUS Authentication

• English (default)

• Simplified Chinese

• Traditional Chinese

• French

• German

• Italian

• Japanese

• Portuguese

• Russian

• Spanish

• SmartConsole Utility

• Simplified CLI

• Telnet Server

• TFTP Client

• Link Status

• Cable Length detection

• LED or Port Shutoff

• RFC 2139 RADIUS Authentication

• RFC 2233 Interface Group MIB

• RFC 2246 SSL

• RFC 2475

• RFC 2570 SNMP v1, v2, v3

• RFC 2575 SNMP v1, v2, v3

• RFC 2598 CoS

• RFC 2616 FCS

• RFC 2618 RADIUS Authentication

• RFC 2819 RMON v1

• RFC 2865 RADIUS Authentication

• RFC 3164 System Log

• RFC 3195 System Log

• RFC 3411-17 SNMP

• RFC 3621 Power Ethernet MIB

• IPv6 Neighbor Discovery

• Configurable MDI/MDIX

• SNMP

• Supports v1, v2, v3

• SNMP Trap

• System Log

• Max. 500 log entries

• BootP/DHCP Client

• SNTP

• ICMPv6

• IPv4/v6 Dual Stack

• DHCP Auto Configuration

• RMON v1

• Port Standby mode

• System Hibernation mode

• Time-based PoE (PoE model only)

Optional SFP Transceivers - DGS-1210-10/20/28/28P/52

DEM-310GT 1000BASE-LX, single-mode, 10 km

DEM-311GT 1000BASE-SX, multi-mode, 550 m

DEM-312GT2 1000BASE-SX, multi-mode, 2 km

DEM-314GT 1000BASE-LHX, single-mode, 50 km

DEM-315GT 1000BASE-ZX, single-mode, 80 km

Optional SFP Transceivers - DGS-1210-10P/52

DEM-210 100BASE-FX, single-mode, 15 km

DEM-211 100BASE-FX, multi-mode, 2 km

Optional WDM SFP Transceivers

DEM-331T 1000BASE-LX, Wavelength Tx: 1550 nm, Rx: 1310 nm, single-mode, 40 km

DEM-331R 1000BASE-LX, Wavelength Tx: 1310 nm, Rx: 1550 nm, single-mode, 40 km

For more information: www.dlink.com

D-Link European Headquarters. D-Link (Europe) Ltd., D-Link House, Abbey Road, Park Royal, London, NW10 7BX.

Specications are subject to change without notice. D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries. All other trademarks belong to their respective owners. ©2013 D-Link Corporation. All rights reserved. E&OE.

Updated May 2013
