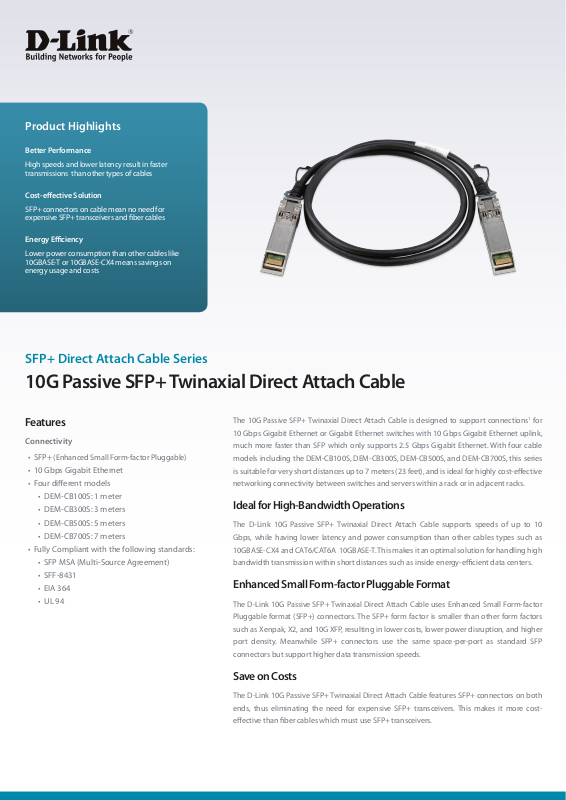

Page 1
Product Highlights
Better Performance
High speeds and lower latency result in faster
transmissions than other types of cables
Cost-eective Solution
SFP+ connectors on cable mean no need for
expensive SFP+ transceivers and ber cables
Energy Eciency
Lower power consumption than other cables like
10GBASE-T or 10GBASE-CX4 means savings on
energy usage and costs
SFP+ Direct Attach Cable Series
10G Passive SFP+ Twinaxial Direct Attach Cable
Features
Connectivity
• SFP+ (Enhanced Small Form-factor Pluggable)
• 10 Gbps Gigabit Ethernet
• Four dierent models
• DEM-CB100S: 1 meter
• DEM-CB300S: 3 meters
• DEM-CB500S: 5 meters
• DEM-CB700S: 7 meters
• Fully Compliant with the following standards:
• SFP MSA (Multi-Source Agreement)
• SFF-8431
• EIA 364
• UL 94
The 10G Passive SFP+ Twinaxial Direct Attach Cable is designed to support connections1 for
10 Gbps Gigabit Ethernet or Gigabit Ethernet switches with 10 Gbps Gigabit Ethernet uplink,
much more faster than SFP which only supports 2.5 Gbps Gigabit Ethernet. With four cable
models including the DEM-CB100S, DEM-CB300S, DEM-CB500S, and DEM-CB700S, this series
is suitable for very short distances up to 7 meters (23 feet), and is ideal for highly cost-eective
networking connectivity between switches and servers within a rack or in adjacent racks.
Ideal for High-Bandwidth Operations
The D-Link 10G Passive SFP+ Twinaxial Direct Attach Cable supports speeds of up to 10
Gbps, while having lower latency and power consumption than other cables types such as
10GBASE-CX4 and CAT6/CAT6A 10GBASE-T. This makes it an optimal solution for handling high
bandwidth transmission within short distances such as inside energy-ecient data centers.
Enhanced Small Form-factor Pluggable Format
The D-Link 10G Passive SFP+ Twinaxial Direct Attach Cable uses Enhanced Small Form-factor
Pluggable format (SFP+) connectors. The SFP+ form factor is smaller than other form factors
such as Xenpak, X2, and 10G XFP, resulting in lower costs, lower power disruption, and higher
port density. Meanwhile SFP+ connectors use the same space-per-port as standard SFP
connectors but support higher data transmission speeds.
Save on Costs
The D-Link 10G Passive SFP+ Twinaxial Direct Attach Cable features SFP+ connectors on both
ends, thus eliminating the need for expensive SFP+ transceivers. This makes it more cost-
eective than ber cables which must use SFP+ transceivers.
Page 2
SFP+ Direct Attach Cable Series
10G Passive SFP+ Twinaxial Direct Attach Cable
Technical Specications
General
Device Rate • 10 Gbps Gigabit Ethernet
Connector Type • SFP+ Cable Assembly
Wire AWG • DEM-CB100S, DEM-CB300S: 30 AWG • DEM-CB500S, DEM-CB700S: 24 AWG
VMA Loss to Crosstalk Ratio (VCR) • Min.: 32.5 dB
Physical
Minimum Cable Bend Radius • 23.5 mm (0.93 inches)
Cable Characteristic Impedance • 100 Ohms
Voltage • 30 V AC
Current • 0.5 A
Temperature • Operating: -40 to 85 °C (-40 to 185 °F)
Certifications • SFP MSA (Multi-Source Agreement)
• SFF-8431
Order Information
Model Number Description
DEM-CB100S 1 meter 10G 30AWG Passive SFP+ to SFP+ Direct Attach Cable
DEM-CB300S 3 meter 10G 30AWG Passive SFP+ to SFP+ Direct Attach Cable
DEM-CB500S 5 meter 10G 24AWG Passive SFP+ to SFP+ Direct Attach Cable
DEM-CB700S 7 meter 10G 24AWG Passive SFP+ to SFP+ Direct Attach Cable
1
It is recommended that you only use the 10G Passive SFP+ Twinaxial Direct Attach Cable with D-Link products.
Updated 2013/01/14
• EIA 364
• UL 94
Specications are subject to change without notice. D-Link is a registered trademark of D-Link
Corporation and its overseas subsidiaries. All other trademarks belong to their respective owners.
©2013 D-Link Corporation. All rights reserved. E&OE.
