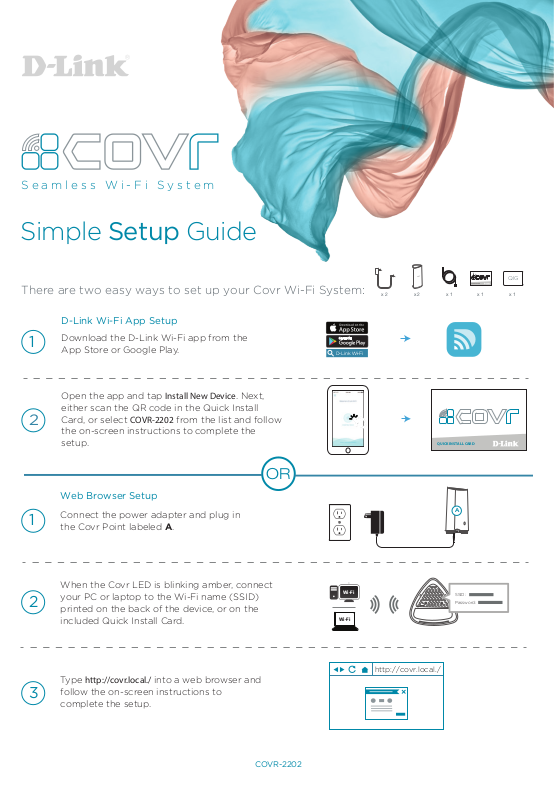

D-Link COVR-2202 Quick Guide

Seamless Wi-Fi System

11

Simple Setup Guide

There are two easy ways to set up your Covr Wi-Fi System:

D-Link Wi-Fi App Setup

Download the D-Link Wi-Fi app from the

1

App Store or Google Play.

Open the app and tap Install New Device. Next,
either scan the QR code in the Quick Install
Card, or select COVR-2202 from the list and follow

2

the on-screen instructions to complete the
setup.

Web Browser Setup

Connect the power adapter and plug in

1

the Covr Point labeled A.

OR

D-Link Wi-Fi

QIG

x 2

x 2 x 1 x 1 x 1

QUICK INSTALL CARD

A

When the Covr LED is blinking amber, connect
your PC or laptop to the Wi-Fi name (SSID)

2

printed on the back of the device, or on the
included Quick Install Card.

Type http://covr.local./ into a web browser and
follow the on-screen instructions to

3

complete the setup.

COVR-2202

Wi-Fi

Wi-Fi

http://covr.local./

SSID:

Password:

Adding extra Covr Points to expand your whole home Wi-Fi:

Connect and plug in the new Covr Point

1

close to any of your existing Covr Points and
wait for it to boot up.

When the Covr LED is blinking amber, use an
Ethernet cable to connect the new Covr Point to
the existing Covr Point. When the Covr LED on

2

the new Covr Point turns solid white, the new
Covr Point is paired and will reboot itself to
complete the setup process.

Disconnect the Ethernet cable and place the
new Covr Point anywhere in your home to

3

extend your whole home Wi-Fi.

Check the LED indicator on your Covr Points
to ensure proper connection.

Solid white: Strong signal.

Blinking white: Weak signal. Move
your Covr Point closer to Covr Point
A until the LED turns solid white.

Blinking orange: No signal. Move your
Covr Point closer to Covr Point A
until the LED turns solid white.

TECHNICAL SUPPORT

Having trouble installing your new product? D-Link’s website contains the latest user documentation and
software updates for D-Link products. Australian and New Zealand customers can contact D-Link Technical
Support through our website.

Australia:

Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.com.au
E-mail: [e-mail]

New Zealand:

Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.co.nz
E-mail: [e-mail]

Version 1.00(AU)_130x180 | 2019/01/22
