D Link AP2695A1 User Manual

Package Contents

• DAP-2695 Access Point

• Six Detachable Antennas

• Power Adapter

• Power Cord

• PoE Base Unit

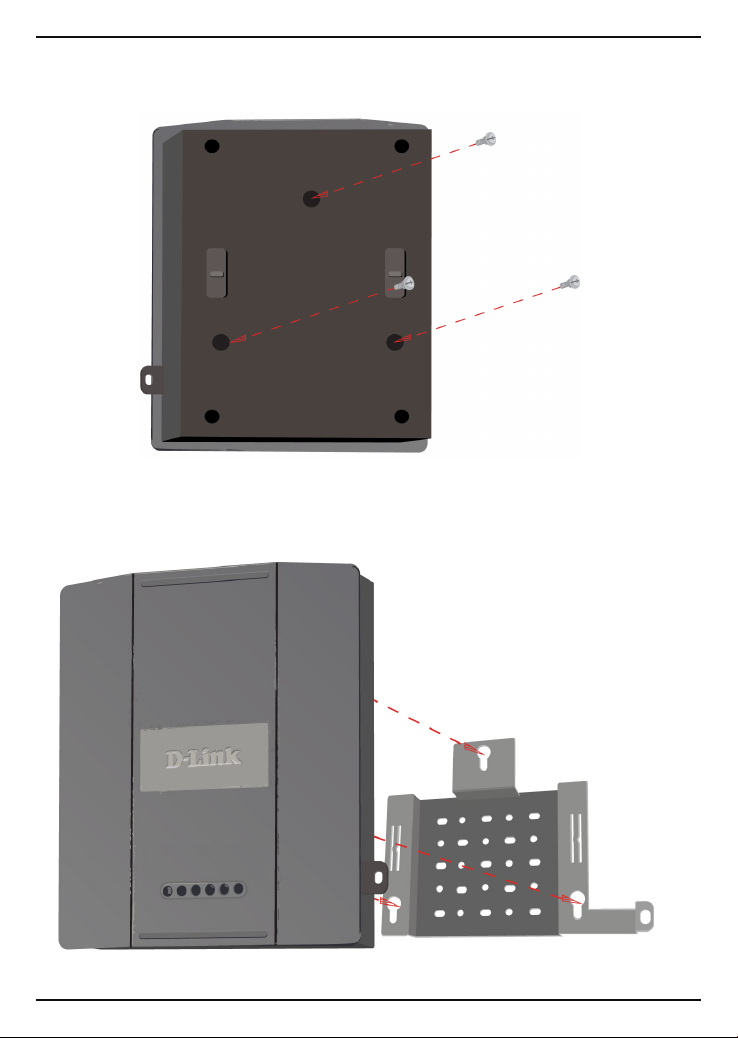

• Mounting Plate and Hardware

• Ethernet Cable

• Console Cable

• CD (with software and user manual)

Note: Using a power supply with a dierent voltage than the one included with the DAP-2695 will cause damage and
void the warranty for this product. If any of the above items are missing, please contact your reseller.

System Requirements

Minimum System Requirements:

• CD-ROM Drive

• Computers with Windows®, Macintosh®, or Linux-based
operating systems

• Installed Ethernet adapter or wireless adapter

• Internet Explorer 7, Chrome, Firefox, or Safari 4 or higher

* Maximum Wireless signal rate derived from IEEE 802.11ac (draft), 802.11n, 802.11a, and 802.11g specications. Actual data
throughput will vary. Network conditions and environmental factors, including volume of network trac, building materi­als and construction, and network overhead lower actual data throughput rate.

2 DAP-2695 Install Guide

Hardware Overview

LEDs

5 GHz - When lit, the access point is operating at 5GHz. This light will
blink when there is wireless trac.

2.4 GHz - When lit, the access point is operating at 2.4GHz. This light
will blink when there is wireless trac.

LAN1 (PoE) - Solid light when the Ethernet port is connected to a
power over Ethernet (PoE) port, such as a router or switch. The light will
blink when there is trac through LAN port.

LAN2 - Solid light when the Ethernet port is connected to a working
port, such as a router or switch. The light will blink when there is trac
through LAN port.

POWER - The light will blink during boot up. Once solid, the access
point is ready.

DAP-2695 Install Guide 3

Connections

1 2 3 4 5

1 Reset Button

2 Console Port

3 LAN2 Port Connect to your network with an Ethernet cable.

4 LAN1 (PoE) Port

5 Power Receptor Connect the supplied power adapter.

Press and hold for six seconds to reset the access
point to the factory default settings.

Connect the supplied console cable to congure
using a command line interface.

Connect to a Power over Ethernet (PoE) switch or
router.

4 DAP-2695 Install Guide

Installation

To power the access point, you can use one of the following 3 methods:

Method 1 - Use if you have a PoE switch or router.

Method 2 - Use if you do not have a PoE switch or router and do not

have a power outlet near the location of the access point.

Method 3 - Use if you do not have a PoE switch or router and have a

power outlet near the location of the access point.

Method 1

1. Connect one end of your Ethernet cable to the LAN1 (PoE) port on the access
point.

2. Connect the other end into one port on a PoE switch or router.

DAP-2695 Install Guide 5
