Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Revision Date Description
1.0 August 23, 2012 • Initial release for Revision A1
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2012 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
iD-Link DAP-1320 User Manual
Table of Contents
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 2
Wireless Installation Considerations ......................................3
Introduction ...................................................................................4
Features ............................................................................................5
LED ............................................................................................. 6
Installation .........................................................................7
Quick Setup Wizard ............................................................13
Setup ...............................................................................................16
Wi-Fi Setup ............................................................................16
Extended Wi-Fi Setup ........................................................18
Wireless Security .........................................................................19
Status ..............................................................................................26
Device Info ............................................................................26
Logs .........................................................................................27
Statistics .................................................................................28
IPv6 ..........................................................................................29
Connect a Wireless Client to your Router ......................30
WPS Button ...................................................................................30
Windows® 7 ...................................................................................32
WPA/WPA2 ............................................................................32
Note: You can nd the SSID and password on the
conguration card. ............................................................33
Windows Vista® ............................................................................35
WPA/WPA2 ............................................................................36
WPS/WCN 2.0 .......................................................................38
Windows® XP ................................................................................39
WPA/WPA2 ............................................................................40
What is WEP? ........................................................................19
Congure WEP .............................................................................20
Congure WPA/WPA2 Personal .............................................21
Maintenance ................................................................................22
Admin .....................................................................................22
System ....................................................................................23
Language Pack .....................................................................24
Firmware ................................................................................24
Time .........................................................................................25
Troubleshooting ..............................................................42
Wireless Basics .................................................................44
What is Wireless? .........................................................................45
Tips ...................................................................................................47
Networking Basics ...........................................................48
Statically Assign an IP address ...............................................49
iiD-Link DAP-1320 User Manual
Table of Contents
Technical Specications ..................................................50
Contacting Technical Support ........................................51
Warranty ........................................................................... 52
Registration .....................................................................59
iiiD-Link DAP-1320 User Manual
Section 1 - Product Overview
DAP-1320 Wireless Range Extender
Wi-Fi Conguration Card
Quick Install Guide
If any of the above items are missing, please contact your reseller.
Product Overview
Package Contents
1D-Link DAP-1320 User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
Web-based Conguration
Utility Requirements
• IEEE 802.11n or 802.11g wireless clients
• IEEE 802.11n or 802.11g wireless router or access point
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
Browser Requirements:
• Internet Explorer 6 or higher
• Safari 4 or higher
• Mozilla Firefox
• Google Chrome
Windows® Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
2D-Link DAP-1320 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless device lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link device and other network devices to a minimum each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not
in use.
3D-Link DAP-1320 User Manual
Section 1 - Product Overview
Introduction
The Wireless Range Extender (DAP-1320) enables you to extend your existing wireless network coverage by placing the
Wireless Range Extender in between your router and the wireless client devices. This is great for extending wireless coverage
to basements, home oces or bedrooms that might be distant from your wireless router. The DAP-1320 increases the range
of your wireless network by extending the wireless coverage of an existing wireless network.
Note: Place the DAP-1320 within equal distance of your existing network/router and wireless clients.
4D-Link DAP-1320 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DAP-1320 provides up to 300Mbps* wireless connection with other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video streaming,
online gaming, and real-time audio.
• Extend Internet access for wireless devices - Allows you to extend your internet access
throughout your home with devices such as laptops, Smartphones, tablets and more.
• IEEE 802.11n and 802.11g Compliant - The DAP-1320 is still fully compatible with the IEEE 802.11g standards,
so it can connect with existing 802.11g, USB, and Cardbus adapters.
• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DAP-1320 lets you control
what information is accessible to those on the wireless network, whether from the Internet or from your company’s
server. Congure your router to your specic settings within minutes.
Features
* Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.
5D-Link DAP-1320 User Manual
Section 1 - Product Overview
Hardware Overview
LED
1
LED Indicator Color Status Description
Solid Green The device is connected within the existing network/Router.
Green
Power/Status
Amber
Blinking Green The device is processing a connection
Light o The device is o
Solid Amber During Power ON & while the device is warming up
Light o The device is powered o
6D-Link DAP-1320 User Manual
Section 1 - Product Overview
Installation
Please congure the DAP-1320 with a computer wireless to the AP using the conguration card information connected. The
next few pages will further explain.
7D-Link DAP-1320 User Manual
Section 2 - Installation
90mm
DAP-1 320

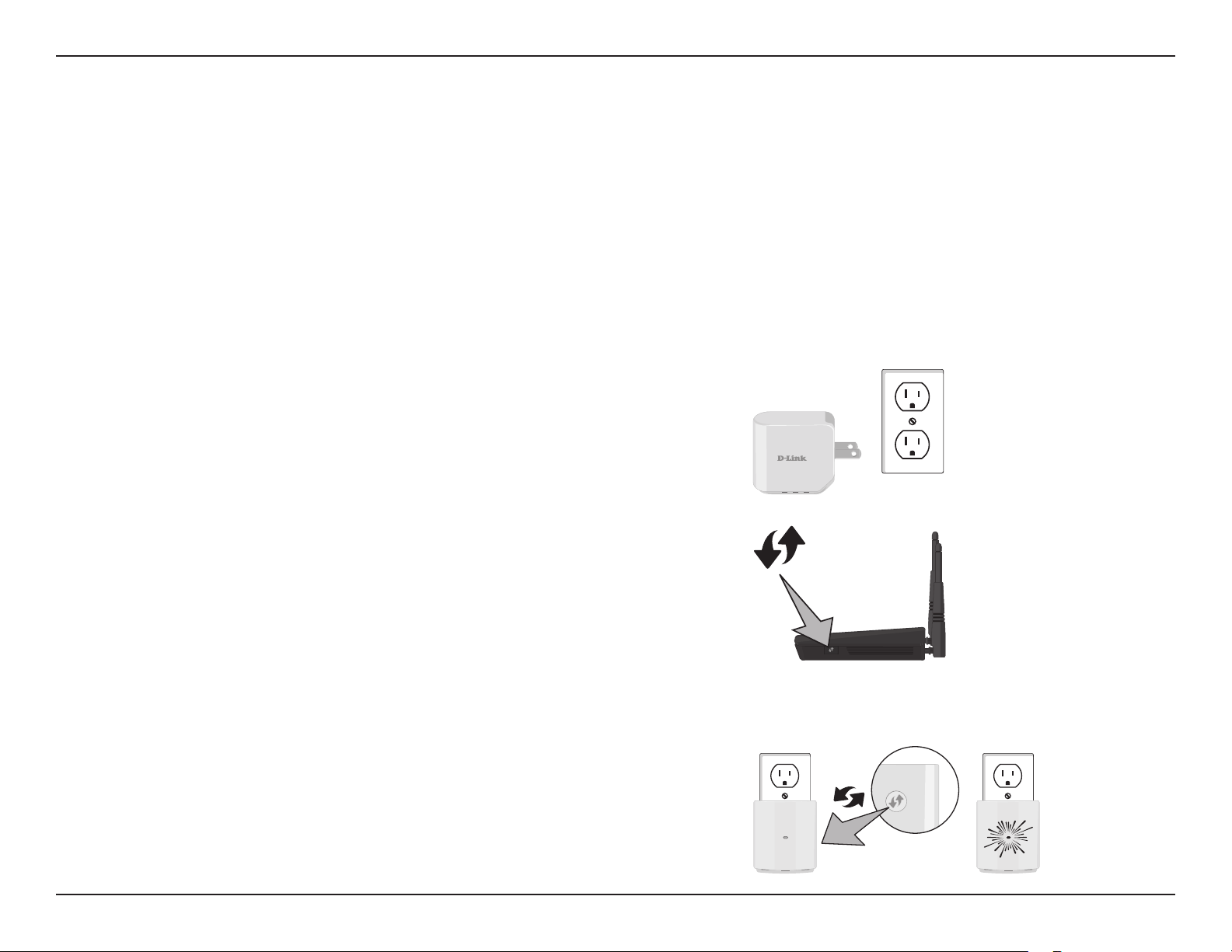

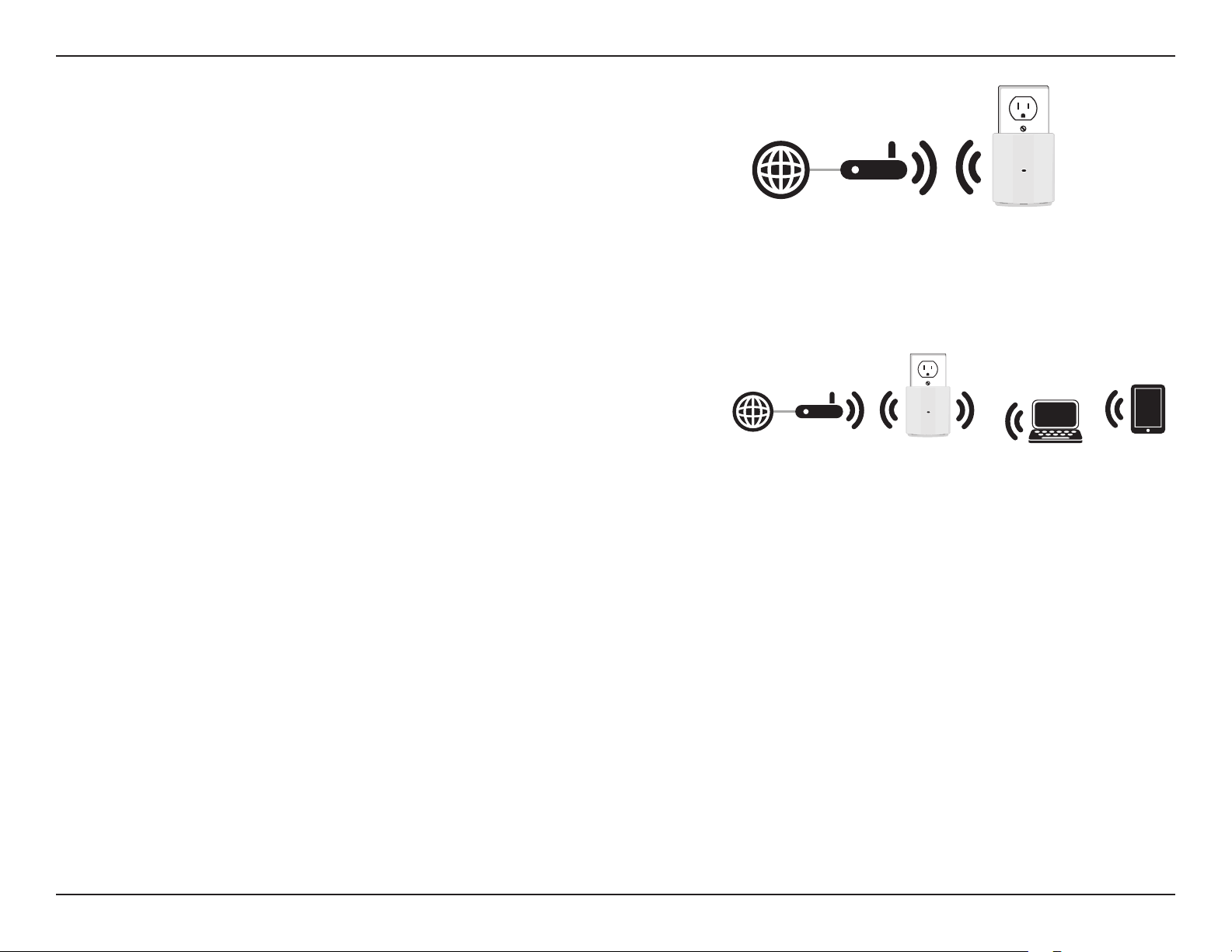

1. Plug the DAP-1320 into a wall outlet and verify that the power LED
has turned red to a blinking green.

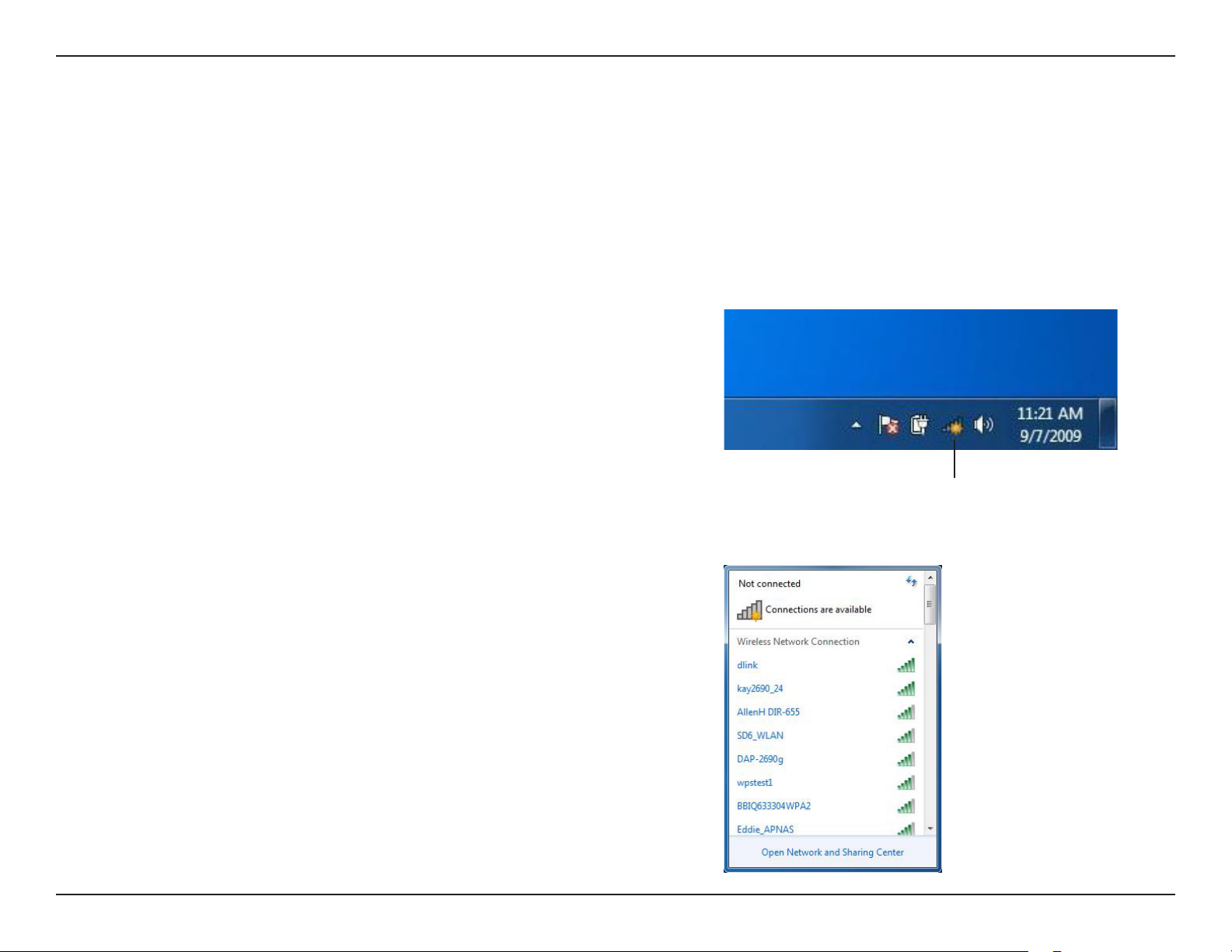

2. From your laptop or mobile device go to your Wireless Utility to
display the available wireless networks and select the network that
is displayed on your companion card (ex: dlink-a8fa). Then, enter
the Wi-Fi password included in your card (akbdj1936).
D-Link DIR-505 Mobile Companion Wi-Fi Conguration Note
Web browser link:
http://dlinkrouter or
http:// 192.168.0.1
Default conguration
Username: “Admin”
Password: ““ (leave the eld blank)
Wi- Fi Name (SSID) :
dlinka8fa
Wi-Fi Password :
akbdj19368
Web browser link:
http://dlinkrouter or
http:// 192.168.0.1
Your conguration
Username: Admin
Password:
Wi- Fi Name (SSID) :
Wi-Fi Password :
3. Open a web browse and type http://dlinkap.local. First time users
will automatically be directed to the pre-wizard. Please follow the
on-screen instructions to complete the manual setup.
If this is your second time type http://dlinkap in the address bar.
8D-Link DAP-1320 User Manual
Section 3 - Conguration
To start the Setup Wizard click Next.
Select WPS as the conguration method only if your wireless
device supports Wi-Fi Protected Setup (WPS). For Manual setup,
skip to page 10.
Click Next to continue.
Press down the Push Button on the Wireless device you are adding
to your wireless network.
9D-Link DAP-1320 User Manual
Section 3 - Conguration
Select Manual as the configuration method to set up your
network manually.
Click Next to continue.
Please wait while your device scans for available Wi-Fi networks.
10D-Link DAP-1320 User Manual
Section 3 - Conguration
Select the network you would like your device to connect to
and click Connect to continue.
Enter the existing Wi-Fi Password for the router you are using to
connect and click Next.
You can choose to change the SSID and the password for the
DAP-1320 or you can enter the information found in your
conguration card. Click Next to continue and nish the setup
process.
11D-Link DAP-1320 User Manual
Section 3 - Conguration
The setup is now complete. Please keep Save to nish.
Please wait while the system reboots.
12D-Link DAP-1320 User Manual
Section 3 - Conguration
Quick Setup Wizard
Click Launch Wireless Setup Wizard to begin the Setup
Wizard.
To start the Setup Wizard click Next.
Select WPS as the conguration method only if your wireless
device supports Wi-Fi Protected Setup (WPS).
Click Next to continue.
Press down the Push Button on the Wireless device you are
adding to your wireless network.
13D-Link DAP-1320 User Manual
Section 3 - Conguration
Select Manual as the conguration method to set up your
network manually.
Click Next to continue.
Select the network you would like your device to connect
to and click Connect to continue.
14D-Link DAP-1320 User Manual
Section 3 - Conguration
Enter the existing Wi-Fi Password for the router you are using to
connect and click Next.
You can choose to change the SSID and the password for the
DAP-1320 or you can enter the information found in your
conguration card. Click Next to continue and nish the setup
process.
The setup is now complete. Please keep Save to nish.
Please wait while the system reboots.
15D-Link DAP-1320 User Manual
Loading...
