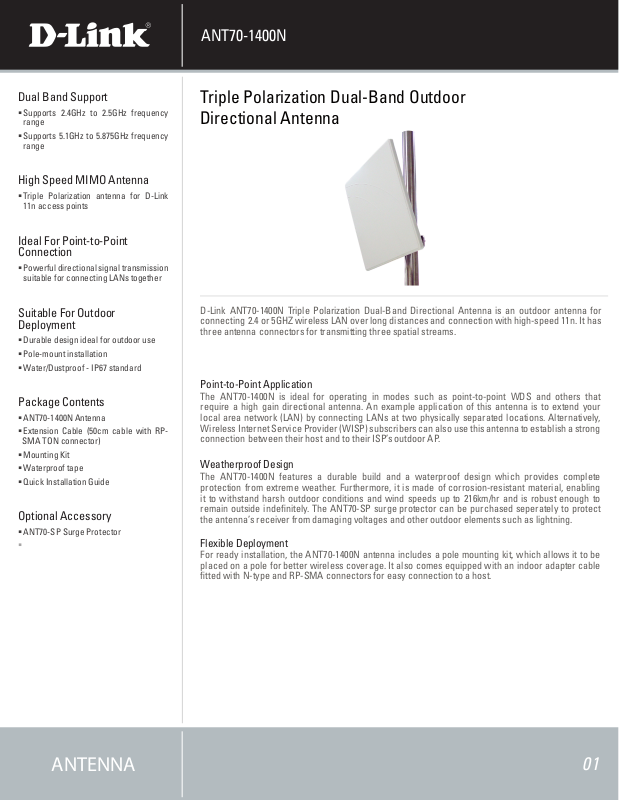

D-link ANT70-1400N BROCHURE
ANT70-1400N
Dual Band Support
Supports 2.4GHz to 2.5GHz frequency
range
Supports 5.1GHz to 5.875GHz frequency
range
High Speed MIMO Antenna
Triple Polarization antenna for D-Link
11n access points
Ideal For Point-to-Point
Connection
Powerful directional signal transmission
suitable for connecting LANs together
Suitable For Outdoor
Deployment
Durable design ideal for outdoor use
Pole-mount installation
Water/Dustproof - IP67 standard
Package Contents
ANT70-1400N Antenna
Extension Cable (50cm cable with RP-
SMA TON connector)
Mounting Kit
Waterproof tape
Quick Installation Guide
Optional Accessory
ANT70-SP Surge Protector
Triple Polarization Dual-Band Outdoor
Directional Antenna
D-Link ANT70-1400N Triple Polarization Dual-Band Directional Antenna is an outdoor antenna for
connecting 2.4 or 5GHZ wireless LAN over long distances and connection with high-speed 11n. It has
three antenna connectors for transmitting three spatial streams.
Point-to-Point Application
The ANT70-1400N is ideal for operating in modes such as point-to-point WDS and others that
require a high gain directional antenna. An example application of this antenna is to extend your
local area network (LAN) by connecting LANs at two physically separated locations. Alternatively,
Wireless Internet Service Provider (WISP) subscribers can also use this antenna to establish a strong
connection between their host and to their ISP’s outdoor AP.
Weatherproof Design
The ANT70-1400N features a durable build and a waterproof design which provides complete
protection from extreme weather. Furthermore, it is made of corrosion-resistant material, enabling
it to withstand harsh outdoor conditions and wind speeds up to 216km/hr and is robust enough to
remain outside indefinitely. The ANT70-SP surge protector can be purchased seperately to protect
the antenna’s receiver from damaging voltages and other outdoor elements such as lightning.
Flexible Deployment
For ready installation, the ANT70-1400N antenna includes a pole mounting kit, which allows it to be
placed on a pole for better wireless coverage. It also comes equipped with an indoor adapter cable
fitted with N-type and RP-SMA connectors for easy connection to a host.
ANTENNA
01
Radiation Patterns
-5
0
5
10
15
20
0
30
60
90
120
150
180
210
240
270
300
330
-5
0
5
10
15
20
Magnitude (dB)
51 00MHz
53 00MHz
55 00MHz
57 00MHz
59 00MHz
-5
0
5
10
15
20
0
30
60
90
120
150
180
210
240
270
300
330
-5
0
5
10
15
20
Magnitude (dB)
24 00MHz
24 50MHz
25 00MHz
-5
0
5
10
15
20
0
30
60
90
120
150
180
210
240
270
300
330
-5
0
5
10
15
20
Magnitude (dB)
24 00MHz
24 50MHz
25 00MHz
-5
0
5
10
15
20
0
30
60
90
120
150
180
210
240
270
300
330
-5
0
5
10
15
20
Magnitude (dB)
51 00MHz
53 00MHz
55 00MHz
57 00MHz
59 00MHz
-5
0
5
10
15
20
0
30
60
90
120
150
180
210
240
270
300
330
-5
0
5
10
15
20
Magnitude (dB)
51 00MHz
53 00MHz
55 00MHz
57 00MHz
59 00MHz
-5
0
5
10
15
20
0
30
60
90
120
150
180
210
240
270
300
330
-5
0
5
10
15
20
Magnitude (dB)
24 00MHz
24 50MHz
25 00MHz
Port 1 (H-Plane)
ANTENNA
Port 2 (H-Plane)
Port 3 (H-Plane)
02
