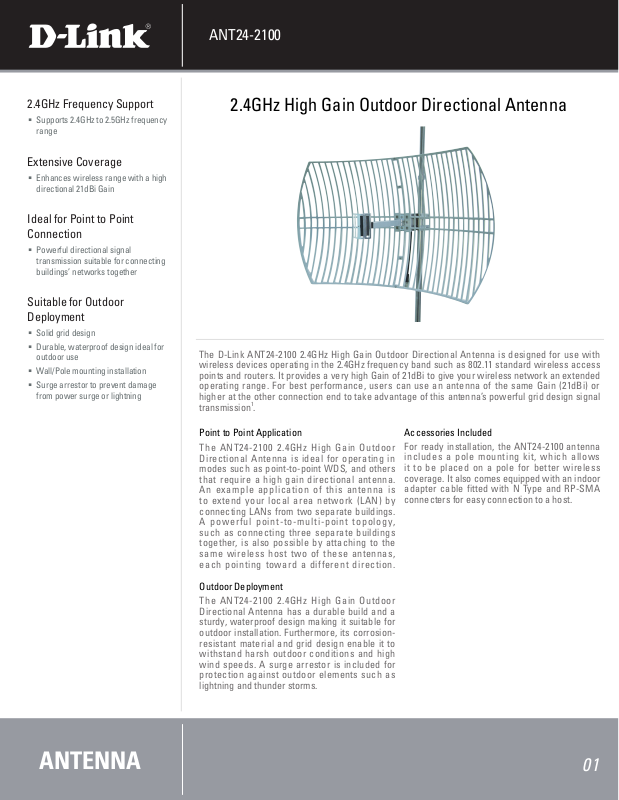

Page 1
ANT24-2100
2.4GHz Frequency Support
Supports 2.4GHz to 2.5GHz frequency
range
Extensive Coverage
Enhances wireless range with a high
directional 21dBi Gain
Ideal for Point to Point
Connection
Powerful directional signal
transmission suitable for connecting
buildings’ networks together
Suitable for Outdoor
Deployment
Solid grid design
Durable, waterproof design ideal for
outdoor use
Wall/Pole mounting installation
Surge arrestor to prevent damage
from power surge or lightning
2.4GHz High Gain Outdoor Directional Antenna
The D-Link ANT24-2100 2.4GHz High Gain Outdoor Directional Antenna is designed for use with
wireless devices operating in the 2.4GHz frequency band such as 802.11 standard wireless access
points and routers. It provides a very high Gain of 21dBi to give your wireless network an extended
operating range. For best performance, users can use an antenna of the same Gain (21dBi) or
higher at the other connection end to take advantage of this antenna’s powerful grid design signal
transmission1.
Point to Point Application
The ANT24-2100 2.4GHz High Gain Outdoor
Directional Antenna is ideal for operating in
modes such as point-to-point WDS, and others
that require a high gain directional antenna.
An exa mple application of this ant enna is
to extend your local area network (LAN) by
connecting LANs from two separate buildings.
A pow erf ul poi nt- to-mult i-p oint topo log y,
such as connecting three separate buildings
together, is also possible by attaching to the
same wireless host two of these antennas,
each pointing toward a different direction.
Outdoor Deployment
The ANT24-2100 2.4GHz High Gain Outdoor
Directional Antenna has a durable build and a
sturdy, waterproof design making it suitable for
outdoor installation. Furthermore, its corrosionresistant material and grid design enable it to
withstand harsh outdoor conditions and high
wind speeds. A surge arrestor is included for
protection against outdoor elements such as
lightning and thunder storms.
Accessories Included
For ready installation, the ANT24-2100 antenna
includes a pole mounting kit, which allows
it to be placed on a pole for better wireless
coverage. It also comes equipped with an indoor
adapter cable fitted with N Type and RP-SMA
connecters for easy connection to a host.
ANTENNA
01
Page 2
ANT24-2100
2.4GHz High Gain Outdoor Directional Antenna
Radiation Patterns
ANTENNA
02
Page 3
Technical Specifications
Electrical Properties
ANT24-2100
2.4GHz High Gain Outdoor Directional Antenna
Frequency Range
Impedence
VSWR
Peak Gain
Horizontal Half Power Beam Width
(HPBW / H-PLANE)
Vertical Half Power Beam Width
(HPBW / E-PLANE)
Polarization
Power Handling
Front to Back Ratio
Down Tilt
Connector
Extension Cable
Surge Arrestor
Mounting
Physical & Environmental
Survival Wind Speed
Operating Temperature
Operating Humidity
Color
Material
Weight
Dimensions
2400-2500MHz
50 +/- Ohms
1.7 max
21dBi
10º
12º
Vertical
1 watt
28dB
0º
N-female (built-in)
50 cm with RP-SMA and N-type connectors
Included
Pole
216 km/hr
-40 C to +70 C
95% @ 25ºC
Black
ABS, UV resistant
3.7 kg
1056 mm (L) x 600 mm (W)
1
Transmission and reception distances can vary according to the transmission speeds. To get maximum signal coverage, make sure there is no obstruction in the signal path between the transmission
and reception ends.
2
The transmission distance range depends on the two same spec antennas with default cable loss under free line of sight environment.
D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries.
ANTENNA
No. 289 Xinhu 3rd Road, Neihu, Taipei 114, Taiwan
Specifications are subject to change without notice.
All other trademarks belong to their respective owners.
©2009 D-Link Corporation. All rights reserved.
D-Link Corporation
Release 01 (April 2009)
