Overview
1 Tilt Motor
2 Micro USB Port
3 Pan Motor
4 Pan Axis Lock
5 Gimbal Lock
6 System Status LED
7 Power Switch
8 Record Button
9 Mobile Device Holder
Specifications
●
Handle
Dimensions 2.4×1.9×6.4 inches
(
61.8×48.2×161.5 mm
Weight (including battery) 201 g
●
Gimbal
Model Zenmuse X3
Weight 221 g
Output Power (with camera)
Static: 9 W; Dynamic: 11 W
Angular Vibration Range ±0.03°
Mount Detachable
Controllable Range Tilt: -35° to +135°
Pan: ±320°; Roll: ±30°
Mechanical Range Tilt: -90° to +150°
Pan: ±330°; Roll: -50° to +90°
Max. Controllable Speed 120°/s
●
Camera
Model X3/FC350H
Sensor Sony Exmor R CMOS; 1/2.3”
Effective pixels: 12.40 M
(
Total pixels: 12.76 M
)
Lens 94° FOV 20 mm
(
35 mm format equivalent
f/2.8
ISO Range 100-3200 (video); 100
Electronic Shutter Speed 8 s-1/8000 s
(
up to 30 s when camera is in M mode
Max. Image Size 4000×3000 pixels
Still Photography Modes Single Shot
Photo Burst Mode: 3/5/7 shots
Auto Exposure Bracketing
3/5 bracketed frames @ 0.7 EV bias
Interval
Timelapse
Auto Panorama
Selfie Panorama
Video Resolution UHD: 4K (4096×2160
4K (3840×2160
2.7K (2704×1520
FHD: 1920×1080 24/25/30/48/50/60/120p
HD: 1280×720 24/25/30/48/50/60p
Video Recording Modes Auto; Slow Motion
Max. Video Bitrate 60 Mbps
Supported File Systems FAT32 (≤ 32 GB) ; exFAT
Photo Formats JPEG, DNG (RAW)
Video Formats MP4/MOV (MPEG-4 AVC/H.264
The Osmo is a professional handheld gimbal that
combines
mobility and stability in one device. Its
camera shoots sharp 12MP still photos and stable
video at up to 4K. Your mobile device can be mounted
on the side of the handle and display a live feed
through the high-speed WiFi video link.
15 Air Vents
16 UV Filter
17 Micro SD Card Slot
18 Battery Cover
19 Lanyard Hole
20 Rosette Mount
21 Trigger
22 External Microphone Input
23 Built-in Microphone
10 Shutter Button
11 Joystick
12 Camera Status LED
13 Roll Motor
14 Camera
1
3
2
7
6
5
4
8
10
9
1 1
13
14
12
15
16
17
20
18
22
2 1
19
23
OSMO
V1.0
Quick Start Guide
Page 2
Overview
1 Tilt Motor
2 Micro USB Port
3 Pan Motor
4 Pan Axis Lock
5 Gimbal Lock
6 System Status LED
7 Power Switch
8 Record Button
9 Mobile Device Holder
Specifications
●
Handle
Dimensions 2.4×1.9×6.4 inches
(
61.8×48.2×161.5 mm
)
Weight (including battery) 201 g
●
Gimbal
Model Zenmuse X3
Weight 221 g
Output Power (with camera)
Static: 9 W; Dynamic: 11 W
Angular Vibration Range ±0.03°
Mount Detachable
Controllable Range Tilt: -35° to +135°
Pan: ±320°; Roll: ±30°
Mechanical Range Tilt: -90° to +150°
Pan: ±330°; Roll: -50° to +90°
Max. Controllable Speed 120°/s
●
Camera
Model X3/FC350H
Sensor Sony Exmor R CMOS; 1/2.3”
Effective pixels: 12.40 M
(
Total pixels: 12.76 M
)
Lens 94° FOV 20 mm
(
35 mm format equivalent)
f/2.8
ISO Range 100-3200 (video); 100-1600 (photo
)
Electronic Shutter Speed 8 s-1/8000 s
(
up to 30 s when camera is in M mode
)
Max. Image Size 4000×3000 pixels
Still Photography Modes Single Shot
Photo Burst Mode: 3/5/7 shots
Auto Exposure Bracketing (AEB):
3/5 bracketed frames @ 0.7 EV bias
Interval
Timelapse
Auto Panorama
Selfie Panorama
Video Resolution UHD: 4K (4096×2160) 24/25p
4K (3840×2160) 24/25/30p
2.7K (2704×1520) 24/25/30p
FHD: 1920×1080 24/25/30/48/50/60/120p
HD: 1280×720 24/25/30/48/50/60p
Video Recording Modes Auto; Slow Motion
Max. Video Bitrate 60 Mbps
Supported File Systems FAT32 (≤ 32 GB) ; exFAT (> 32 GB)
Photo Formats JPEG, DNG (RAW)
Video Formats MP4/MOV (MPEG-4 AVC/H.264)
Supported SD Cards Micro SD; Max. Capacity: 64 GB;
Class 10 or UHS-1
Operating Temperature 32° to 104° F (0° to 40° C
Audio Output Two channel; 48 KHz; AAC
●
WiFi Video Link
Operating Frequency 2.412-2.462 GHz; 5.180
Max. Transmission Distance
82 feet (25 m
)
Transmitter Power (EIRP) 2.4G: 8 dBm; 5G: 12 dBm
●
Intelligent Battery
Model HB01-522365
Type LiPo
Capacity 980 mAh
Energy 10.8 Wh
Voltage 11.1 V
Charging Temperature 59° to 104° F (15° to 40° C
Operating Temperature 14° to 122° F (-10° to 50° C
●
Battery Charger
Model SOY015A
-
1260120
Input 100-240 V; 50/60 Hz
Output 12.6 V; 1.2 A
Optional Accessories
Extension Rod
Tripod
Bike Mount
Vehicle Mount
The Osmo is a professional handheld gimbal that
combines
mobility and stability in one device. Its
camera shoots sharp 12MP still photos and stable
video at up to 4K. Your mobile device can be mounted
on the side of the handle and display a live feed
through the high-speed WiFi video link.
15 Air Vents
16 UV Filter
17 Micro SD Card Slot
18 Battery Cover
19 Lanyard Hole
20 Rosette Mount
21 Trigger
22 External Microphone Input
23 Built-in Microphone
10 Shutter Button
11 Joystick
12 Camera Status LED
13 Roll Motor
14 Camera
Visit the DJI Online Store for more information:
http://store.dji.com
1
3
2
7
6
5
4
8
10
9
1 1
13
14
12
15
16
17
20
18
22
2 1
19
23
Page 3
Specifications
●
Handle
Dimensions 2.4×1.9×6.4 inches
(
61.8×48.2×161.5 mm
)
Weight (including battery) 201 g
●
Gimbal
Model Zenmuse X3
Weight 221 g
Output Power (with camera)
Static: 9 W; Dynamic: 11 W
Angular Vibration Range ±0.03°
Mount Detachable
Controllable Range Tilt: -35° to +135°
Pan: ±320°; Roll: ±30°
Mechanical Range Tilt: -90° to +150°
Pan: ±330°; Roll: -50° to +90°
Max. Controllable Speed 120°/s
●
Camera
Model X3/FC350H
Sensor Sony Exmor R CMOS; 1/2.3”
Effective pixels: 12.40 M
(
Total pixels: 12.76 M
)
Lens 94° FOV 20 mm
(
35 mm format equivalent)
f/2.8
ISO Range 100-3200 (video); 100-1600 (photo
)
Electronic Shutter Speed 8 s-1/8000 s
(
up to 30 s when camera is in M mode
)
Max. Image Size 4000×3000 pixels
Still Photography Modes Single Shot
Photo Burst Mode: 3/5/7 shots
Auto Exposure Bracketing (AEB):
3/5 bracketed frames @ 0.7 EV bias
Interval
Timelapse
Auto Panorama
Selfie Panorama
Video Resolution UHD: 4K (4096×2160) 24/25p
4K (3840×2160) 24/25/30p
2.7K (2704×1520) 24/25/30p
FHD: 1920×1080 24/25/30/48/50/60/120p
HD: 1280×720 24/25/30/48/50/60p
Video Recording Modes Auto; Slow Motion
Max. Video Bitrate 60 Mbps
Supported File Systems FAT32 (≤ 32 GB) ; exFAT (> 32 GB)
Photo Formats JPEG, DNG (RAW)
Video Formats MP4/MOV (MPEG-4 AVC/H.264)
Supported SD Cards Micro SD; Max. Capacity: 64 GB;
Class 10 or UHS-1
Operating Temperature 32° to 104° F (0° to 40° C
)
Audio Output Two channel; 48 KHz; AAC
●
WiFi Video Link
Operating Frequency 2.412-2.462 GHz; 5.180-5.805 GHz
Max. Transmission Distance
82 feet (25 m
)
Transmitter Power (EIRP) 2.4G: 8 dBm; 5G: 12 dBm
●
Intelligent Battery
Model HB01-522365
Type LiPo
Capacity 980 mAh
Energy 10.8 Wh
Voltage 11.1 V
Charging Temperature 59° to 104° F (15° to 40° C
)
Operating Temperature 14° to 122° F (-10° to 50° C
)
●
Battery Charger
Model SOY015A
-
1260120
Input 100-240 V; 50/60 Hz
Output 12.6 V; 1.2 A
Optional Accessories
Extension Rod
Tripod
Bike Mount
Vehicle Mount
15 Air Vents
16 UV Filter
17 Micro SD Card Slot
18 Battery Cover
19 Lanyard Hole
20 Rosette Mount
21 Trigger
22 External Microphone Input
23 Built-in Microphone
Visit the DJI Online Store for more information:
http://store.dji.com
15
16
17
20
18
22
2 1
19
23
Page 4
Specifications
●
Handle
Dimensions 2.4×1.9×6.4 inches
(
61.8×48.2×161.5 mm
)
Weight (including battery) 201 g
●
Gimbal
Model Zenmuse X3
Weight 221 g
Output Power (with camera)
Static: 9 W; Dynamic: 11 W
Angular Vibration Range ±0.03°
Mount Detachable
Controllable Range Tilt: -35° to +135°
Pan: ±320°; Roll: ±30°
Mechanical Range Tilt: -90° to +150°
Pan: ±330°; Roll: -50° to +90°
Max. Controllable Speed 120°/s
●
Camera
Model X3/FC350H
Sensor Sony Exmor R CMOS; 1/2.3”
Effective pixels: 12.40 M
(
Total pixels: 12.76 M
)
Lens 94° FOV 20 mm
(
35 mm format equivalent)
f/2.8
ISO Range 100-3200 (video); 100-1600 (photo
)
Electronic Shutter Speed 8 s-1/8000 s
(
up to 30 s when camera is in M mode
)
Max. Image Size 4000×3000 pixels
Still Photography Modes Single Shot
Photo Burst Mode: 3/5/7 shots
Auto Exposure Bracketing (AEB):
3/5 bracketed frames @ 0.7 EV bias
Interval
Timelapse
Auto Panorama
Selfie Panorama
Video Resolution UHD: 4K (4096×2160) 24/25p
4K (3840×2160) 24/25/30p
2.7K (2704×1520) 24/25/30p
FHD: 1920×1080 24/25/30/48/50/60/120p
HD: 1280×720 24/25/30/48/50/60p
Video Recording Modes Auto; Slow Motion
Max. Video Bitrate 60 Mbps
Supported File Systems FAT32 (≤ 32 GB) ; exFAT (> 32 GB)
Photo Formats JPEG, DNG (RAW)
Video Formats MP4/MOV (MPEG-4 AVC/H.264)
Supported SD Cards Micro SD; Max. Capacity: 64 GB;
Class 10 or UHS-1
Operating Temperature 32° to 104° F (0° to 40° C
)
Audio Output Two channel; 48 KHz; AAC
●
WiFi Video Link
Operating Frequency 2.412-2.462 GHz; 5.180-5.805 GHz
Max. Transmission Distance
82 feet (25 m
)
Transmitter Power (EIRP) 2.4G: 8 dBm; 5G: 12 dBm
●
Intelligent Battery
Model HB01-522365
Type LiPo
Capacity 980 mAh
Energy 10.8 Wh
Voltage 11.1 V
Charging Temperature 59° to 104° F (15° to 40° C
)
Operating Temperature 14° to 122° F (-10° to 50° C
)
●
Battery Charger
Model SOY015A
-
1260120
Input 100-240 V; 50/60 Hz
Output 12.6 V; 1.2 A
Optional Accessories
Extension Rod
Tripod
Bike Mount
Vehicle Mount
Visit the DJI Online Store for more information:
http://store.dji.com
Page 5
Supported SD Cards Micro SD; Max. Capacity: 64 GB;
Class 10 or UHS-1
Operating Temperature 32° to 104° F (0° to 40° C
)
Audio Output Two channel; 48 KHz; AAC
●
WiFi Video Link
Operating Frequency 2.412-2.462 GHz; 5.180-5.805 GHz
Max. Transmission Distance
82 feet (25 m
)
Transmitter Power (EIRP) 2.4G: 8 dBm; 5G: 12 dBm
●
Intelligent Battery
Model HB01-522365
Type LiPo
Capacity 980 mAh
Energy 10.8 Wh
Voltage 11.1 V
Charging Temperature 59° to 104° F (15° to 40° C
)
Operating Temperature 14° to 122° F (-10° to 50° C
)
●
Battery Charger
Model SOY015A
-
1260120
Input 100-240 V; 50/60 Hz
Output 12.6 V; 1.2 A
Optional Accessories
Extension Rod
Tripod
Bike Mount
Vehicle Mount
Visit the DJI Online Store for more information:
http://store.dji.com
Page 6

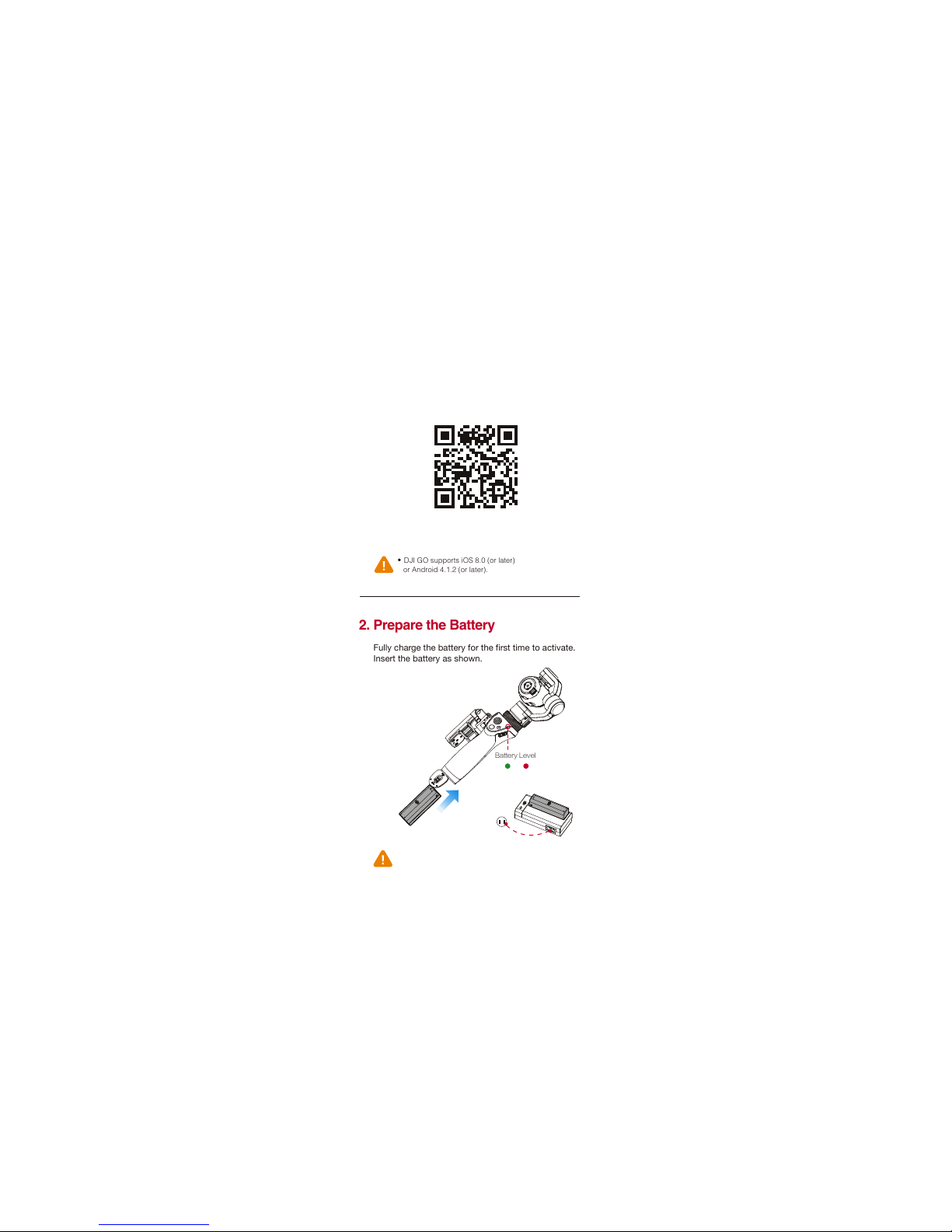

1. Install the DJI GO App
Search for ‘DJI GO’ on the App Store or Google
Play, and install the app on your mobile device.

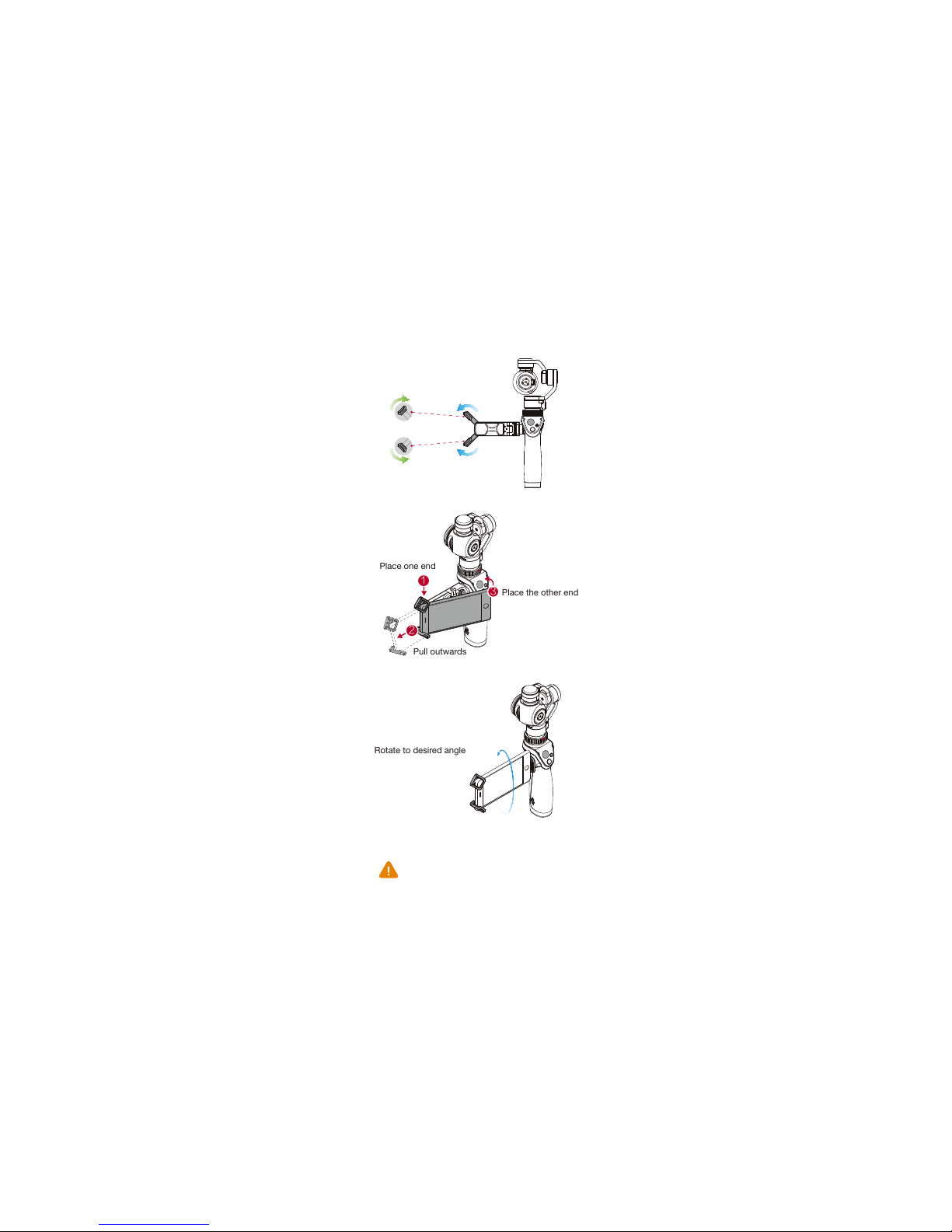

3. Mount your Mobile Device

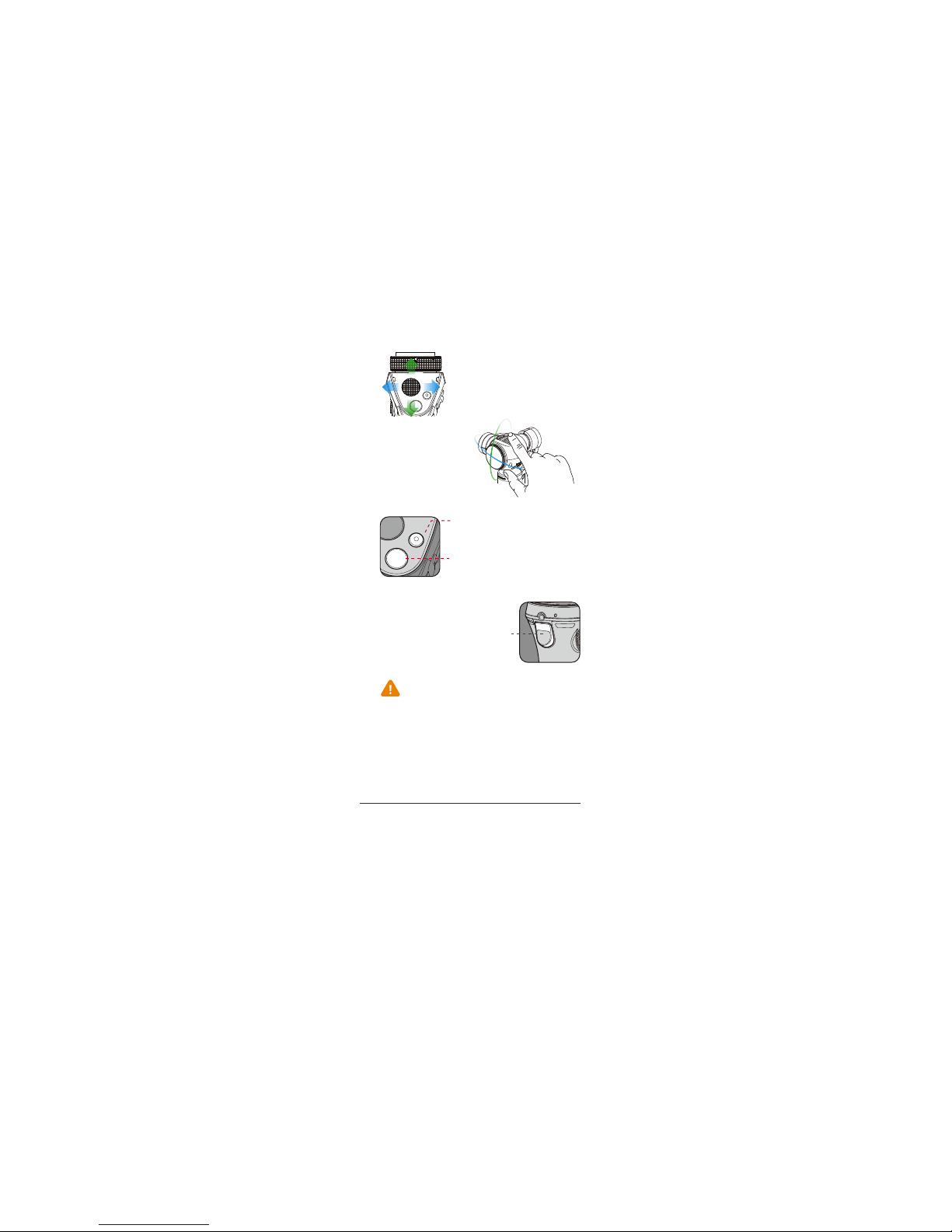

4. Unlock the Gimbal
1. Rotate the tilt motor
2. Rotate the roll motor
SmoothTrack Mode is enabled automatically
to smooth out jerky movements.
The Osmo will beep slowly if the gimbal is
locked after it is turned on. This means the
camera is working normally but the gimbal is
shut off.
If you need to unlock the gimbal after it is
turned on, you must rotate the pan motor after
unlocking the tilt motor and pan motor to
reactivate the gimbal.
5. Connect to the DJI GO App
For more information, read the User Manual:
www.dji.com/product/osmo
2. Prepare the Battery
Fully charge the battery for the first time to activate.
Insert the battery as shown.
6. Controls
Follow the order above to avoid damaging the camera.
Rotate the motors just enough to loosen them.
3. Slide the Pan Axis Lock up
※This Quick Start Guide is subject to
change without prior notice.
DJI GO supports iOS 8.0 (or later)
or Android 4.1.2 (or later).
Charge Time: ~1 hour.
The LED indicator will glow green when charging is
complete.
Ensure your mobile device is fully seated.
High
Low
Battery Level
Designed by DJI. Printed in China
©2015 DJI. All Rights Reserved.
Activate the Osmo if you are using it for the first time.
This requires an internet connection.
Internet
Unfold the arms
Adjust the pads
Launch the app and tap
Enter Camera View.
Turn on your mobile's WiFi and
connect to OSMO_XXXXXX
Default password: 12341234
OSMO_XXXXXX
To P o w er O n:
Pull down on the switch
Pull down again > Sleep
Pull down and hold for 1.5 s > Power Off
●
Position the camera
directly by hand.
●
Tri gg er
Hold down to enable Lock Mode.
Tap t w i c e t o c e n t er t h e c am e r a .
Tap t h r e e t i m e s to e n t e r S e l f i e
Mode.
●
Pan or tilt the camera with
the joystick.
Place one end
Place the other end
Pull outwards
●
Record Button
Press once to start recording,
and again to stop recording.
●
Shutter Button
Press once to take a photo.
Rotate to desired angle
Page 7
3. Mount your Mobile Device
4. Unlock the Gimbal
1. Rotate the tilt motor
2. Rotate the roll motor
SmoothTrack Mode is enabled automatically
to smooth out jerky movements.
The Osmo will beep slowly if the gimbal is
locked after it is turned on. This means the
camera is working normally but the gimbal is
shut off.
If you need to unlock the gimbal after it is
turned on, you must rotate the pan motor after
unlocking the tilt motor and pan motor to
reactivate the gimbal.
5. Connect to the DJI GO App
For more information, read the User Manual:
www.dji.com/product/osmo
6. Controls
Follow the order above to avoid damaging the camera.
Rotate the motors just enough to loosen them.
3. Slide the Pan Axis Lock up
※This Quick Start Guide is subject to
change without prior notice.
Ensure your mobile device is fully seated.
Designed by DJI. Printed in China
©2015 DJI. All Rights Reserved.
Activate the Osmo if you are using it for the first time.
This requires an internet connection.
Internet
Unfold the arms
Adjust the pads
Launch the app and tap
Enter Camera View.
Turn on your mobile's WiFi and
connect to OSMO_XXXXXX
Default password: 12341234
OSMO_XXXXXX
To P o w er O n:
Pull down on the switch
Pull down again > Sleep
Pull down and hold for 1.5 s > Power Off
●
Position the camera
directly by hand.
●
Tri gg er
Hold down to enable Lock Mode.
Tap t w i c e t o c e n t er t h e c am e r a .
Tap t h r e e t i m e s to e n t e r S e l f i e
Mode.
●
Pan or tilt the camera with
the joystick.
Place one end
Place the other end
Pull outwards
●
Record Button
Press once to start recording,
and again to stop recording.
●
Shutter Button
Press once to take a photo.
Rotate to desired angle
Page 8
4. Unlock the Gimbal
1. Rotate the tilt motor
2. Rotate the roll motor
SmoothTrack Mode is enabled automatically
to smooth out jerky movements.
The Osmo will beep slowly if the gimbal is
locked after it is turned on. This means the
camera is working normally but the gimbal is
shut off.
If you need to unlock the gimbal after it is
turned on, you must rotate the pan motor after
unlocking the tilt motor and pan motor to
reactivate the gimbal.
5. Connect to the DJI GO App
For more information, read the User Manual:
www.dji.com/product/osmo
6. Controls
Follow the order above to avoid damaging the camera.
Rotate the motors just enough to loosen them.
3. Slide the Pan Axis Lock up
※This Quick Start Guide is subject to
change without prior notice.
Designed by DJI. Printed in China
©2015 DJI. All Rights Reserved.
Activate the Osmo if you are using it for the first time.
This requires an internet connection.
Internet
Launch the app and tap
Enter Camera View.
Turn on your mobile's WiFi and
connect to OSMO_XXXXXX
Default password: 12341234
OSMO_XXXXXX
To P o w er O n:
Pull down on the switch
Pull down again > Sleep
Pull down and hold for 1.5 s > Power Off
●
Position the camera
directly by hand.
●
Tri gg er
Hold down to enable Lock Mode.
Tap t w i c e t o c e n t er t h e c am e r a .
Tap t h r e e t i m e s to e n t e r S e l f i e
Mode.
●
Pan or tilt the camera with
the joystick.
●
Record Button
Press once to start recording,
and again to stop recording.
●
Shutter Button
Press once to take a photo.
Page 9
SmoothTrack Mode is enabled automatically
to smooth out jerky movements.
The Osmo will beep slowly if the gimbal is
locked after it is turned on. This means the
camera is working normally but the gimbal is
shut off.
If you need to unlock the gimbal after it is
turned on, you must rotate the pan motor after
unlocking the tilt motor and pan motor to
reactivate the gimbal.
For more information, read the User Manual:
www.dji.com/product/osmo
6. Controls
※This Quick Start Guide is subject to
change without prior notice.
Designed by DJI. Printed in China
©2015 DJI. All Rights Reserved.
●
Position the camera
directly by hand.
●
Tri gg er
Hold down to enable Lock Mode.
Tap t w i c e t o c e n t er t h e c am e r a .
Tap t h r e e t i m e s to e n t e r S e l f i e
Mode.
●
Pan or tilt the camera with
the joystick.
●
Record Button
Press once to start recording,
and again to stop recording.
●
Shutter Button
Press once to take a photo.
Page 10
www.dji.com
OSMO
1. Install the DJI GO App
Search for ‘DJI GO’ on the App Store or Google
Play, and install the app on your mobile device.
3. Mount your Mobile Device
4. Unlock the Gimbal
1. Rotate the tilt motor
2. Rotate the roll motor
5. Connect to the DJI GO App
2. Prepare the Battery
Fully charge the battery for the first time to activate.
Insert the battery as shown.
Follow the order above to avoid damaging the camera.
Rotate the motors just enough to loosen them.
3. Slide the Pan Axis Lock up
DJI GO supports iOS 8.0 (or later)
or Android 4.1.2 (or later).
Charge Time: ~1 hour.
The LED indicator will glow green when charging is
complete.
Ensure your mobile device is fully seated.
High
Low
Battery Level
Activate the Osmo if you are using it for the first time.
This requires an internet connection.
Internet
Unfold the arms
Adjust the pads
Launch the app and tap
Enter Camera View.
Turn on your mobile's WiFi and
connect to OSMO_XXXXXX
Default password: 12341234
OSMO_XXXXXX
To P o w er O n:
Pull down on the switch
Pull down again > Sleep
Pull down and hold for 1.5 s > Power Off
Place one end
Place the other end
Pull outwards
Rotate to desired angle
Loading...
