Introduction
DJI RSC 2 is a professional single-handed 3-axis gimbal specifically designed for
DSLR and mirrorless cameras. It is compatible with a wide range of camera setups and
supports a tested payload of up to 3 kg. DJI RSC 2 boasts enhanced gimbal performance
thanks to its updated Titan Stabilization Algorithm.
With a foldable design, DJI RSC 2 can be used in Briefcase mode without the need for
other accessories and is easy to store. Locks on each axis arm enables faster and more
convenient balancing as well as more secure storage. Users can calibrate the gimbal
and set parameters on the screen and use the onboard buttons to control the gimbal and
switch proles and working modes. With the NATO ports, accessories such as the Twist
Grip Dual Handle can be used. When used with the provided camera control cables, DJI
RSC 2 can also control the camera focus, shutter, and recording. The grip has a built-in
battery with a capacity of 3400 mAh, providing a maximum runtime of up to 14 hours*.
After connecting to the Ronin app, it is easy to control gimbal movement and parameter
settings with intelligent functions such as Panorama, Timelapse, and Track. With the DJI
Ronin RavenEye Image Transmission System mounted, users can access the camera
view and shoot smooth footage while automatically tracking a subject with ActiveTrack 3.0.
* The runtime was tested with DJI RSC 2 well-balanced and without any accessories or camera control
cables attached. The maximum runtime is for reference only.
© 2020 DJI OSMO All Rights Reserved.
4
DJI RSC 2 Diagram
13
12
11
10
9
DJI RSC 2
1
2
24
23
22
21
3
4
5
6
7
8
20
19
User Manual
14
15
16
17
18
1. Tilt Motor
2. Tilt Lock
3. Screen
4. Side Dial
5. Camera Control Button
6. M Button
7. Joystick
8. Extended Grip/Tripod
9. Back Button
10. M4/NATO Port
11. Lock Knob
12. Lower Quick-Release Plate
13. Upper Quick-Release Plate
14. Image Transmission/Focus Motor Port
(USB-C)
15. Focus Motor Port (USB-C)
16. RSS Camera Control Port (USB-C)
17. Front Dial
18. Trigger
19. Power Button
20. Power Port (USB-C)
21. Pan Lock
22. Pan Motor
23. Roll Lock
24. Roll Motor
© 2020 DJI OSMO All Rights Reserved.
5
Getting Started
Unfolding the Gimbal
Loosen the lock knob to the unlocked position, unfold the gimbal as shown, and tighten
the lock knob to the locked position.
2
1
3
Attaching the Extended Grip/Tripod
© 2020 DJI OSMO All Rights Reserved.
6
1
2
3
DJI RSC 2
User Manual
Unlocking and Locking the Gimbal
To unlock the gimbal, toggle the tilt, roll, and pan lock levers to the unlocked position.
Adjust the gimbal position as shown and toggle the three locks to the locked position.
Tilt Lock
Pan Lock
Roll Lock
Mounting the Camera
Supported Cameras and Lenses
DJI RSC 2 has been rigorously tested to support a payload of 3 kg. Make sure the
combined weight of the camera, lens, and other accessories are within 3 kg. Refer to the
ofcial DJI website (https://www.dji.com/support/compatibility) for the most updated DJI
RSC 2 Camera Compatibility List.
Mounting a Camera
Make sure to prepare the camera before mounting it to DJI RSC 2. Remove the lens cap and
check that the battery and memory card are inserted in the camera. Make sure DJI RSC 2 is
powered o or in sleep mode before mounting the camera.
1. Attach the Upper Quick-Release Plate
The camera lens and the arrow on the bottom of the upper quick-release plate must face
the same direction. Attach the upper quick-release plate to the camera by tightening the
screw.
© 2020 DJI OSMO All Rights Reserved.
7
DJI RSC 2
User Manual
A camera riser is required when using a focus motor or a small camera with a
large lens, such as a Sony A6400 with the Sony FE 24-70 f2.8 GM lens.
2. Attach the Lower Quick-Release Plate and Lens Support
1
Toggle the lever on the lower quick-release plate to the unlocked position
camera
the lens support to the lower quick-release plate
2
, and toggle the lever to the locked position 3 after it is engaged. Attach
4
. It is recommended to use the lens
, insert the
support* when using a long or heavy lens.
To remove the camera from the lower quick-release plate, toggle the lever to the unlocked
position and remove the camera while pressing the safety lock beside the lever.
Safety Lock
2
1
* The Lens-Fastening Strap (not included) is required to use SuperSmooth mode.
3
5
4
3. Attach the Camera to the Gimbal
Toggle the lever on the camera mounting plate to the unlocked position
lower quick-release plate
roughly balanced
1
2
. Toggle the lever to the locked position once the camera is
3
.
2
3
The position of the camera mounting plate can be adjusted by toggling the lever
on the bottom.
1
and insert the
© 2020 DJI OSMO All Rights Reserved.
8
DJI RSC 2
User Manual
To remove the lower quick-release plate from the gimbal, toggle the lever on the camera
mounting plate to the unlocked position and remove the lower quick-release plate while
pressing the safety lock on the mounting plate.
Safety Lock
RSS Camera Control Port
Lever
4. Connect the Camera Control Cable
Choose the proper camera control cable according to the camera type. Plug one end of
the cable into the camera and plug the other end into the RSS camera control port of the
gimbal as shown above.
Balancing
To obtain the best performance from DJI RSC 2, proper balancing is essential. Proper
balance is critical for shots with DJI RSC 2 where fast motion or acceleration is required
and also offers longer battery runtimes. There are three axes that need to be properly
balanced before powering on DJI RSC 2 and setting up the software.
Before Balancing
1. The camera needs to be fully congured, with all accessories and cables connected,
before installing and balancing the camera on the gimbal. If the camera has a lens
cap, make sure to remove it before balancing.
2. Before balancing, make sure to power on the camera if using an optical zoom lens and
to select the focal length if using a varifocal lens. Make sure DJI RSC 2 is powered off
or in sleep mode before balancing.
Balancing Steps

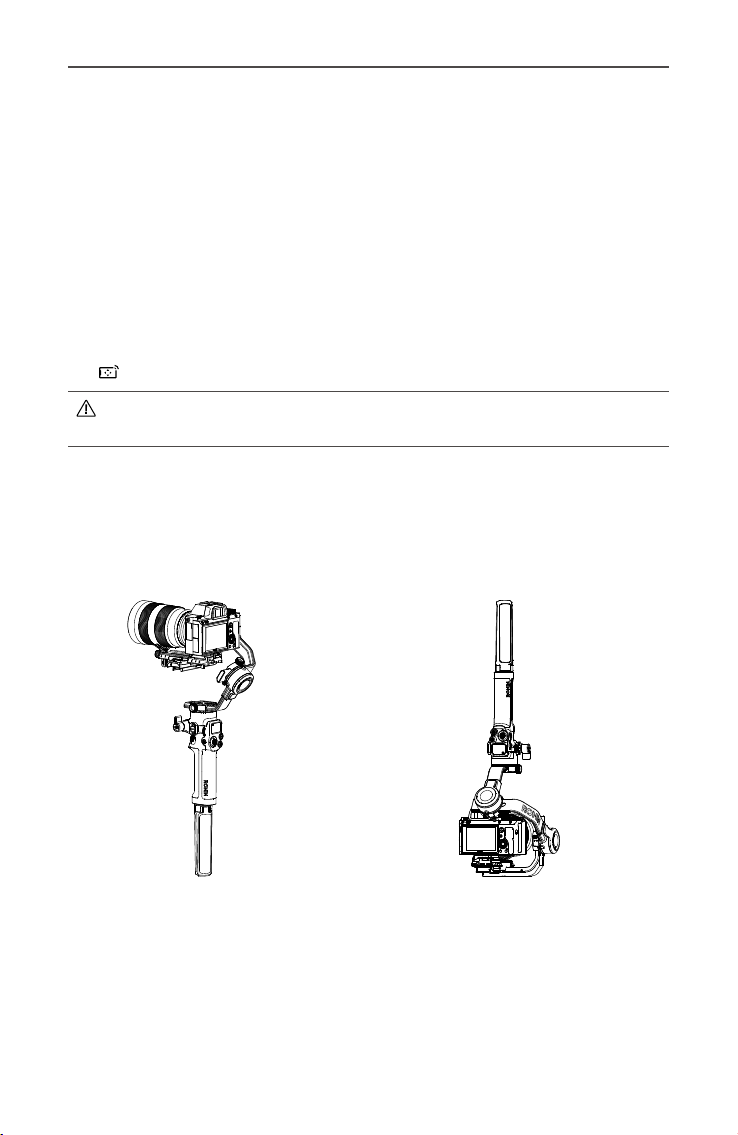

1. Balancing the Vertical Tilt
1
a. Unlock the tilt axis and loosen the mounting plate knob
.
b. Rotate the tilt axis so that the camera lens is pointing upward. Check to make sure
the camera is not top or bottom-heavy. If top-heavy, move the camera backward
If bottom-heavy, move the camera forward
2
.
2
c. Tighten the mounting plate knob while holding the camera upward. The vertical tilt
is balanced when the camera is steady while pointing upward.
© 2020 DJI OSMO All Rights Reserved.
.
9
DJI RSC 2
User Manual
1
2

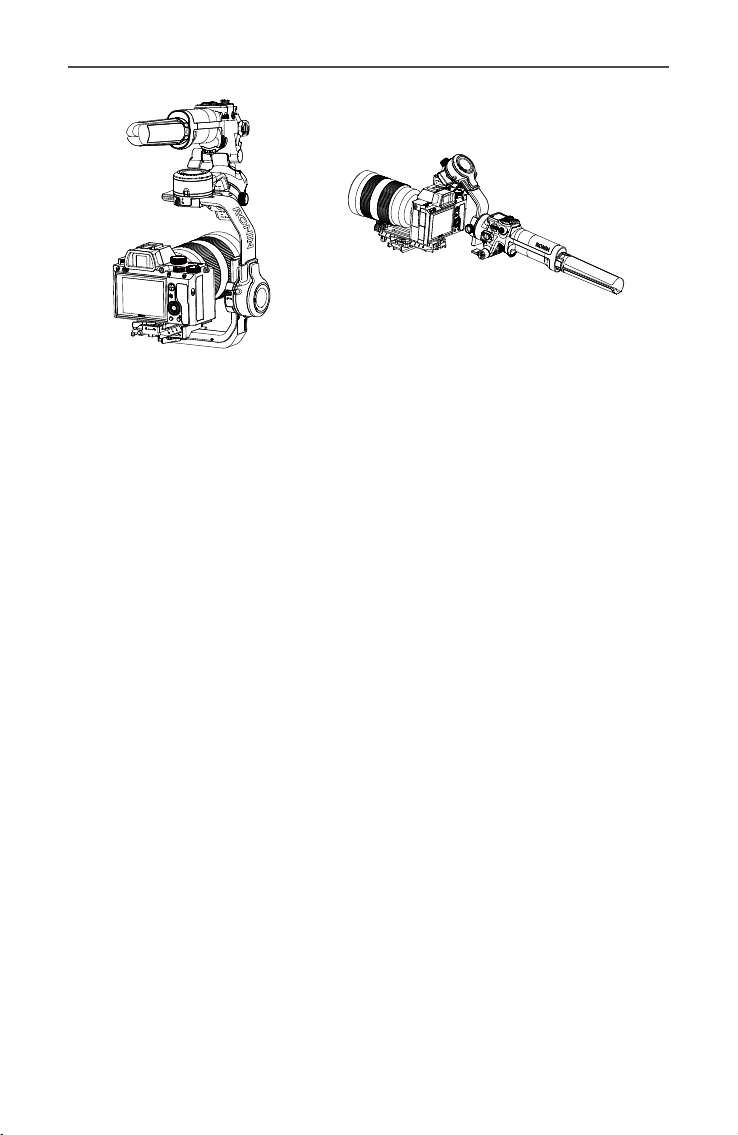

2. Balancing Depth for the Tilt Axis
a. Rotate the tilt axis so that the camera lens is pointing forward. Toggle the lever to
the unlocked position
1
.
b. Check to make sure the camera is not front or back-heavy. If front-heavy, move the
camera backward
2
. If back-heavy, move the camera forward 2.
c. Toggle the lever to the locked position. The tilt axis is balanced when the camera is
steady while tilted up or down by 45°.
d. Lock the tilt axis.
1
2
3. Balancing the Roll Axis
a. Unlock the roll axis. Loosen the knob on the roll arm
1
.
b. Check the direction in which the roll motor swings. If the camera rotates to the left,
move the camera to the right
to the left
2
.
2
. If the camera rotates to the right, move the camera
c. Tighten the knob. The roll axis is balanced when the camera is steady.
d. Lock the roll axis.
© 2020 DJI OSMO All Rights Reserved.
10
