DJI Osmo 4K User Manual

OSMO

User Manual

2016.03

V1.2

Searching for Keywords

Search for keywords such as “battery” and “install” to nd a topic. If you are using Adobe

Acrobat Reader to read this document, press Ctrl+F (Windows) or Command+F (Mac) to

begin a search.

Navigating to a Topic

View a complete list of topics in the table of contents. Click on a topic to navigate to that

section.

Using this Manual

Legend

Important Tips

Install the DJI GO App

Search for ‘DJI GO’ on the App Store or Google Play and install

the app on your mobile device.

DJI GO supports iOS 8.0 (or later) or Android 4.1.2 (or later).

2016 DJI. All Rights Reserved.

2

©

Contents

Using this Manual

 Legend 2

 InstalltheDJIGOApp 2

Introduction

Getting Started

 IntelligentBattery 5

 MountingyourMobileDevice 7

 RemovingtheMobileDeviceHolder 8

 ExternalMounts 8

 UnlockingtheGimbal 9

 LockingtheGimbal 10

Using the Osmo

 ControlsandOperations 10

 OperationModes 13

 CompatibilitywiththeZenmuseX3fortheInspire1 15

DJI GO App

 Download 15

 ConnectingtotheDJIGOApp 15

 KeyPages 16

10

15

2

4

5

Upgrading the Firmware

 UsingtheDJIGOApp 21

 UsingaMicroSDCard 22

Maintenance

Specifications

Troubleshooting

2016 DJI. All Rights Reserved.

©

21

22

23

25

3

Introduction

The Osmo is a 3-axis handheld gimbal and camera that can capture 12MP still photos and

4K video with onboard or external sound recording. Its light and ergonomic design with

buttons at your ngertips form a powerful and personal one-handed lming device. The DJI

GO app complements the Osmo with shooting modes such as timelapse, auto panorama,

long exposure and slow motion

Equipped with 3-axis stabilization and SmoothTrack technology, the gimbal compensates for

Introduction

natural arm movements and smooths out transitions. Finer operations can be done with the

joystick, while instant positioning of the camera can be made directly with your other hand.

The camera tilts across a 170 degree range and has a pan rotation of 640 degrees.

The DJI Rosette Mount on the side of the handle allows your mobile device to be mounted as

a live HD viewnder, and supports external devices including vehicle mounts and tripods for

specialized lming applications.

.

At a Glance:

[14]

[13]

[12]
[11]
[10]

[9]

[1] Tilt Motor

[2] Micro USB Port

[3] Pan Motor

[4] Pan Axis Lock

[5] Gimbal Securing Ring

[6] System Status Indicator

[7] Power Switch

[8] Record Button

[1]

[2]
[3]

[4]
[5]
[6]
[7]
[8]

[23]
[22]

[21]
[20]

[19]

[9] Mobile Device Holder

[10] Shutter Button

[11] Joystick

[12] Camera Status Indicator

[13] Roll Motor

[14] Camera

[15] Air Vents

[16] UV Filter

[15]

[16]

[17]

[18]

[17] Micro SD Card Slot

[18] Battery Cover

[19] Lanyard Hole

[20] DJI Rosette Mount

[21] Trigger

[22] External Microphone Input

[23] Built-in Microphone

2016 DJI. All Rights Reserved.

4

©

Getting Started

Intelligent Battery

The 980 mAh Intelligent Battery can power the Osmo for about 65 minutes.

Intelligent Battery Functions

Battery Balancing Balances the voltage of each cell during charging.

Overcurrent Protection Stops charging if the charging current is too large.

Overcharge Protection Stops charging if its voltage is too high.

Over-discharge Protection Stops discharging if its voltage is too low.

Short Circuit Protection Cuts the power supply if a short circuit is detected.

Temperature Control

Battery Level Display The battery level is displayed in the DJI GO app.

Battery Specications

Model HB01-522365

Type LiPo

Capacity 980 mAh

Energy 10.8 Wh

Voltage 11.1 V

Charging Temperature 59° to 104° F (15° to 40° C)

Operating Temperature 14° to 122° F (-10° to 50° C)

Stops charging if the core temperature falls below 59°F (15°C)

or exceeds 104°F (40°C).

Getting Started

Be sure to fully charge the Intelligent Battery for the rst time to activate it.

Read the user manual, Intelligent Battery Safety Guidelines before use. The user

takes full responsibility for all operations and usage.

Charging the Battery

Connect the battery charger to a power outlet using the provided cable. The LED indicator on

the battery charger will glow green.

Place the battery into the battery charger. The LED indicator will become red when charging.

It will take approximately an hour for the battery to be fully charged, at which point the LED

indicator will change from red to green.

2016 DJI. All Rights Reserved.

©

5

OSMO User Manual

Battery Charger Specications

Model SOY015A-1260120

Input 100-240 V, 50/60 Hz

Output 12.6 V, 1.2 A

Only charge the battery with the provided battery charger. DJI takes no responsibility

for accidents caused by the use of non-DJI battery chargers.

Getting Started

Remove the battery from the charger unless it is charging to prevent battery discharging.

Inserting the Battery

Slide the locking switch at the base of the Osmo to open the battery cover. Insert the battery

and lock the battery cover.

Removing the Battery

Slide the locking switch at the base of the Osmo to open the battery cover. Push the red

safety hook away from the battery to let it pop up, and then remove the battery.

2016 DJI. All Rights Reserved.

6

©

OSMO User Manual

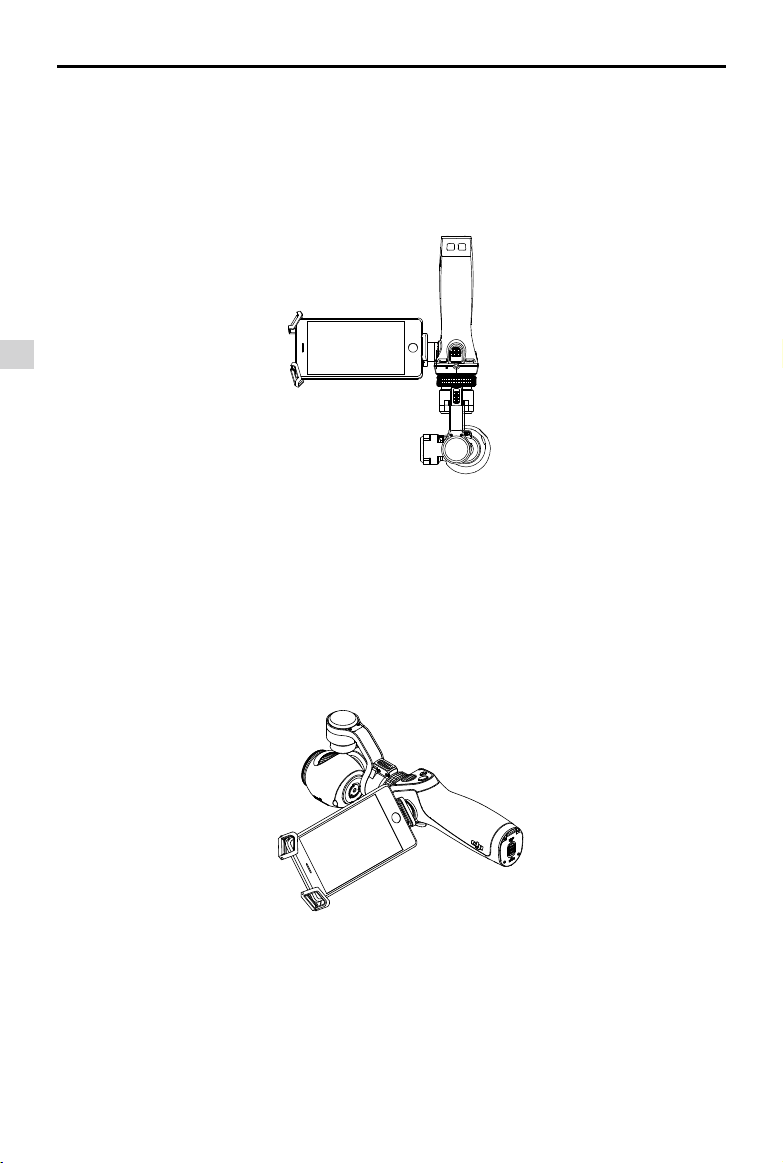

Mounting your Mobile Device

1. Unfold the two arms on the mobile device holder.

2. Adjust the pads to the desired position.

3. Place one end of your mobile device into the arms.

4. Extend the arms so that your entire mobile device is seated in the mobile device holder.

Getting Started

5. Rotate your mobile device to the desired position.

2016 DJI. All Rights Reserved.

©

7

OSMO User Manual

Removing the Mobile Device Holder

The mobile device holder can be removed by rotating the knob counterclockwise.

It is recommended to install the cap for the DJI Rosette Mount when it is not in use.

Getting Started

External Mounts

Different types of external mounts can be attached to the DJI Rosette Mount for unique

applications.

Universal Mount

Used to mount external devices such as a

microphone or ashlight.

Extension Rod

Good for taking group seles, overhead shots

or reaching into small spaces.

Tripod

For stationary shots that require steady

footage.

Bike Mount

Used to mount the Osmo on a bicycle.

2016 DJI. All Rights Reserved.

8

©

OSMO User Manual

Vehicle Mount

Triple suction cup mount makes it ideal for

mounting on top of or on the rear window of

moving vehicles.

Straight Extension Arm

Used to attach up to three other mounts at the

same time.

Visit the ofcial DJI Store (http://store.dji.com) to learn more.

Unlocking the Gimbal

To protect the gimbal, the three motor axes are locked in place. To unlock the gimbal:

1. Gently rotate the tilt motor until it can rotate freely. Similarly, rotate the roll motor.

Getting Started

Be sure to unlock the tilt motor before unlocking the roll motor to avoid damaging

the camera lens.

Rotate the motors just enough to allow free motion.

2. Slide the Pan Axis Lock upwards to unlock the pan axis.

PanAxisLock

2016 DJI. All Rights Reserved.

©

9
