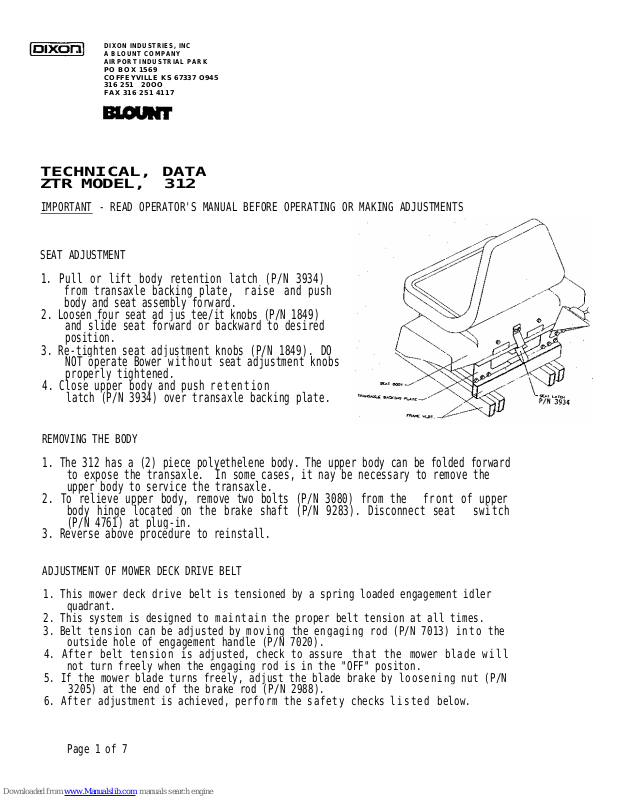

Dixon ZTR 312 Technical Data Manual

DIXON INDUSTRIES, INC

A BLOUNT COMPANY
AIRPORT INDUSTRIAL PARK

PO BOX 1569
COFFEYVILLE KS 67337 O945

316 251 20OO
FAX [phone]

TECHNICAL, DATA
ZTR MODEL, 312

IMPORTANT - READ OPERATOR'S MANUAL BEFORE OPERATING OR MAKING ADJUSTMENTS

SEAT ADJUSTMENT

1. Pull or lift body retention latch (P/N 3934)
from transaxle backing plate, raise and push
body and seat assembly forward.

2. Loosen four seat ad jus tee/it knobs (P/N 1849)
and slide seat forward or backward to desired
position.

3. Re-tighten seat adjustment knobs (P/N 1849). DO

NOT operate Bower without seat adjustment knobs
properly tightened.

4. Close upper body and push retention

latch (P/N 3934) over transaxle backing plate.

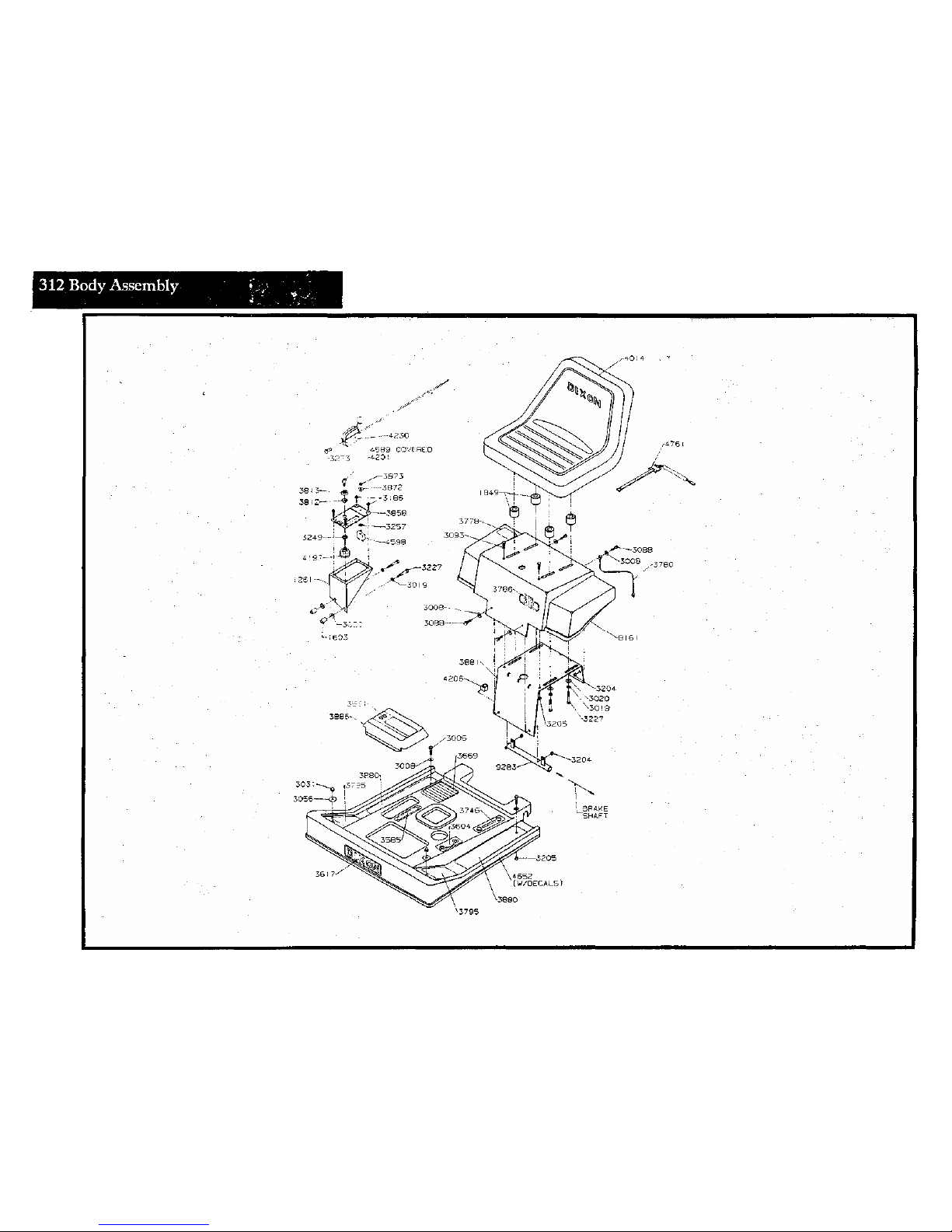

REMOVING THE BODY

1. The 312 has a (2) piece polyethelene body. The upper body can be folded forward
to expose the transaxle. In some cases, it nay be necessary to remove the
upper body to service the transaxle.

2. To relieve upper body, remove two bolts (P/N 3080) from the front of upper
body hinge located on the brake shaft (P/N 9283). Disconnect seat switch
(P/N 4761) at plug-in.

3. Reverse above procedure to reinstall.

ADJUSTMENT OF MOWER DECK DRIVE BELT

1. This mower deck drive belt is tensioned by a spring loaded engagement idler
quadrant.

2. This system is designed to maintain the proper belt tension at all times.

3. Belt tension can be adjusted by moving the engaging rod (P/N 7013) into the
outside hole of engagement handle (P/N 7020).

4. After belt tension is adjusted, check to assure that the mower blade will
not turn freely when the engaging rod is in the "OFF" positon.

5. If the mower blade turns freely, adjust the blade brake by loosening nut (P/N

3205) at the end of the brake rod (P/N 2988).

6. After adjustment is achieved, perform the safety checks listed below.

Page 1 of 7

REMOVING THE MOWER BLADE

Secure blade (P/N 2483) from turning. Remove blade bolt from center of

blade (P/N 3268), and blade washer (P/N 6260) then remove blade (P/N 2483). To

reinstall, reverse above procedure.

WARNING: Sharp edges on blade can cause Injury! Caution should be exercised when

service is required on blade.

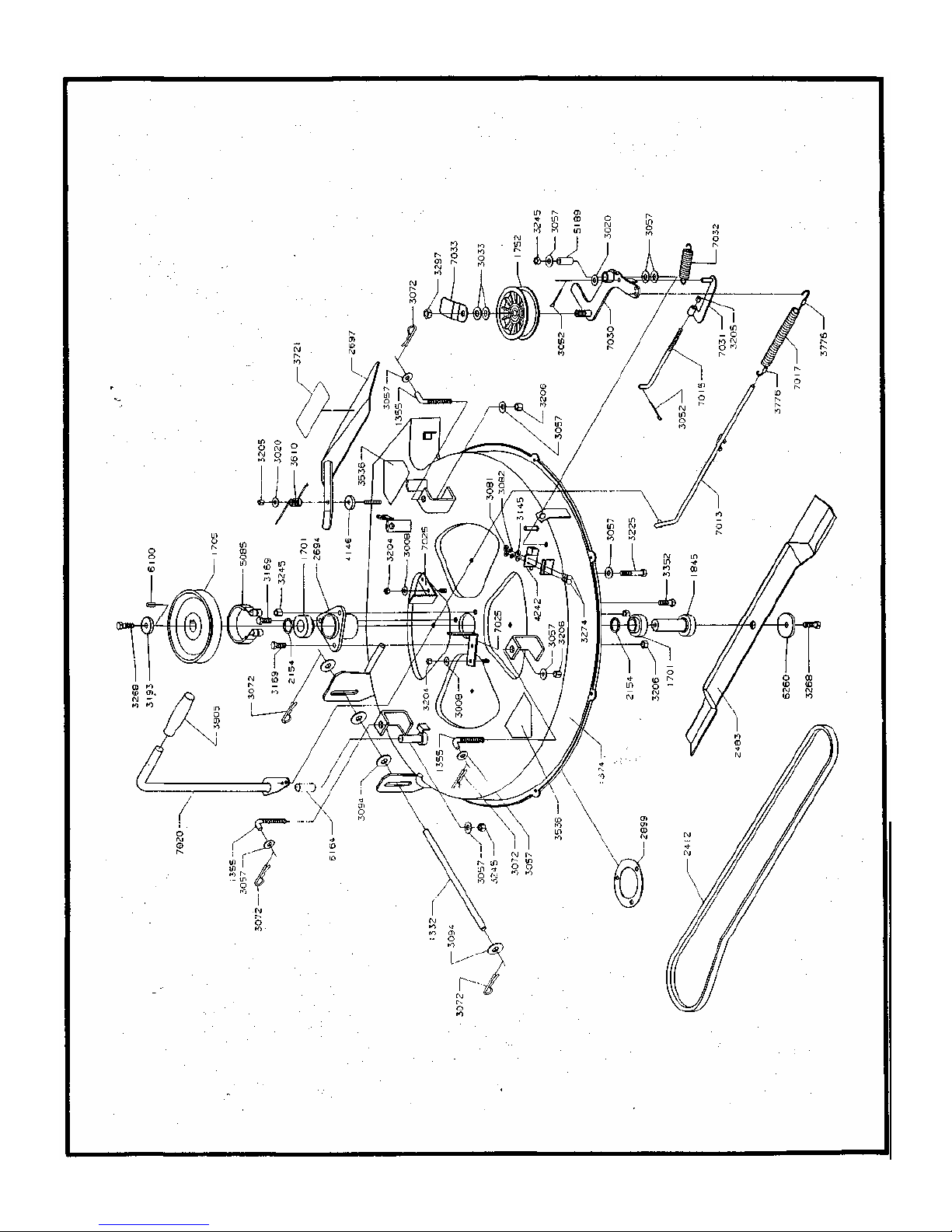

REMOVING THE MOWER DECK

1. Loosen belt keeper (P/N 7026 & 7027) located under the engine, by loosening two
rear engine mounting bolts, allowing the deck drive belt to come free of the rear
pulley.

2. Disconnect the wiring loom at the deck safety switch (P/N 4242).

3. Remove the two clevis pins (P/N 3072) from the two rear L-rods (P/N 1355) and
slide from slots.

4. Remove clevis pin (P/N 3072) from L-rod attached to lift handle and slide from
slot.

5. Remove clevis pin (P/N 3072) from front deck hanger shaft (P/N 1332), located at
front of mower deck on slide plates welded at battery box, and remove.

6. Lift front of mower chassis clear of deck. Roll chassis free of the deck.

7. To Install, reverse the above procedure.

MOWER BLADE OPERATION

To engage mower blades, turn engagement lever on floor slowly to the "ON"
position. To disengage mower blades, turn lever slowly to the "OFF" position.

"IMPORTANT" - PERFORM SAFETY CHECKS AFTER MAKING ANY REPAIRS OR ADJUSTMENTS

1. After reassembly, while seated on mower, attempt to start engine with mower deck
engaged. Engine should not start. If engine does start, return the mower to an
Authorized Dixon Dealer for adjustment or repair.

2. Disengage mower deck and start engine. With the operator in the normal seated
position, engage mower deck and remove weight from seat. The engine should stop.
If the engine doesn't stop when operator rises from the seat, return the mower to
an Authorized Dixon Dealer for adjustment or repair.

3. Engage, then disengage, mower blade in each cutting height. Insure that blade
disengages and comes to a stop within (5) seconds In each height position.
If blade does not disengage properly, contact your Authorized Dixon Dealer.

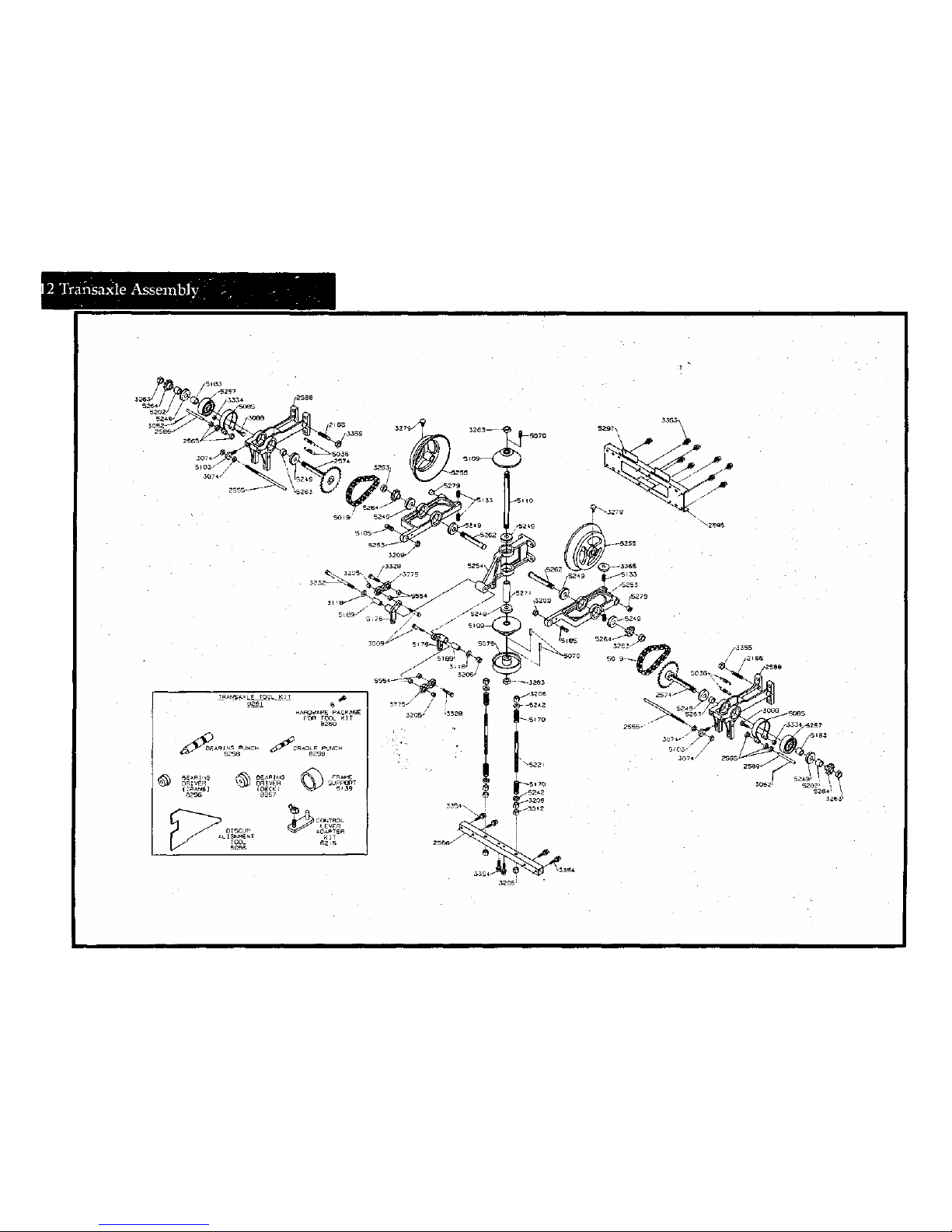

PARKING BRAKE ADJUSTMENT

Remove the body as described above. Tighten nut on brake rod (P/N 2533)
located in front of the transaxle on each side, just enough to prevent brake
from slipping when engaged.

CAUTION: Over tightening may cause premature wear on the brake band (P/N 5085).

Page 2 of 7
Revised 1/92
(P/N 8114)
