dixell PROG TOOL User Manual
PROG TOOL
User Manual
ver 2.7
1592010401 v2.7 17/10/2008
PROG TOOL KIT
2
BEWARE
Dixell S.p.A. reserve to itself the right to modify this
instruction manual without any warning. Last
available can be downloaded from the internet site.
Carefully read this manual before to install and operate the PROG
TOOL series and follow the instruction exactly. We recommend to
keep it handy for quick reference.
SAFETY PRECAUTIONS – READ BEFORE TO PROCEEDE IN THE USE OF
THIS MANUAL
Symbols
Installation and wiring
This symbol indicates a potentially hazardous operation/situation
that can result in injuries for the personnel and/or a damage for the
Inverter.
This symbol indicates high voltage and is used to call you attention
on operations that could be dangerous to you and other persons.
!
3
INDEX
SAFETY PRECAUTIONS – READ BEFORE TO PROCEEDE IN THE USE OF THIS
MANUAL ............................................................................................... 2
1 PACKAGE CONTENTS ............................................................4
2 UsE OF PROG TOOL ...............................................................5
2.1 WIRING DIAGRAMS................................................................................. 5
2.2 MEANING OF THE LEDS ......................................................................... 6
2.3 PROGRAMMING FROM HOT KEY TO HOT KEY...................................7
2.4 PROGRAMMING FROM PC TO HOT KEY .............................................. 8
2.5 PROGRAMMING FROM PC TO CONTROLLER.....................................9
2.5.1 WIRING OF A CONTROLLER EQUIPPED WITH RS485 SERIAL
COMMUNICATION PORT ............................................................... 10
2.5.2 WIRING OF A CONTROLLER without built- in RS485....................12
3 easy prog ................................................................................13
3.1 HOW TO INSTALL EASY PROG ........................................................... 13
3.2 HOW TO RUN EASY PROG...................................................................16
3.3 HOW TO USE EASY PROG ...................................................................17
3.3.1 HOW TO READ PARAMETERS FROM A CONTROLLER............. 18
3.3.2 HOW TO CREATE A NEW PARAMETER MAP..............................19

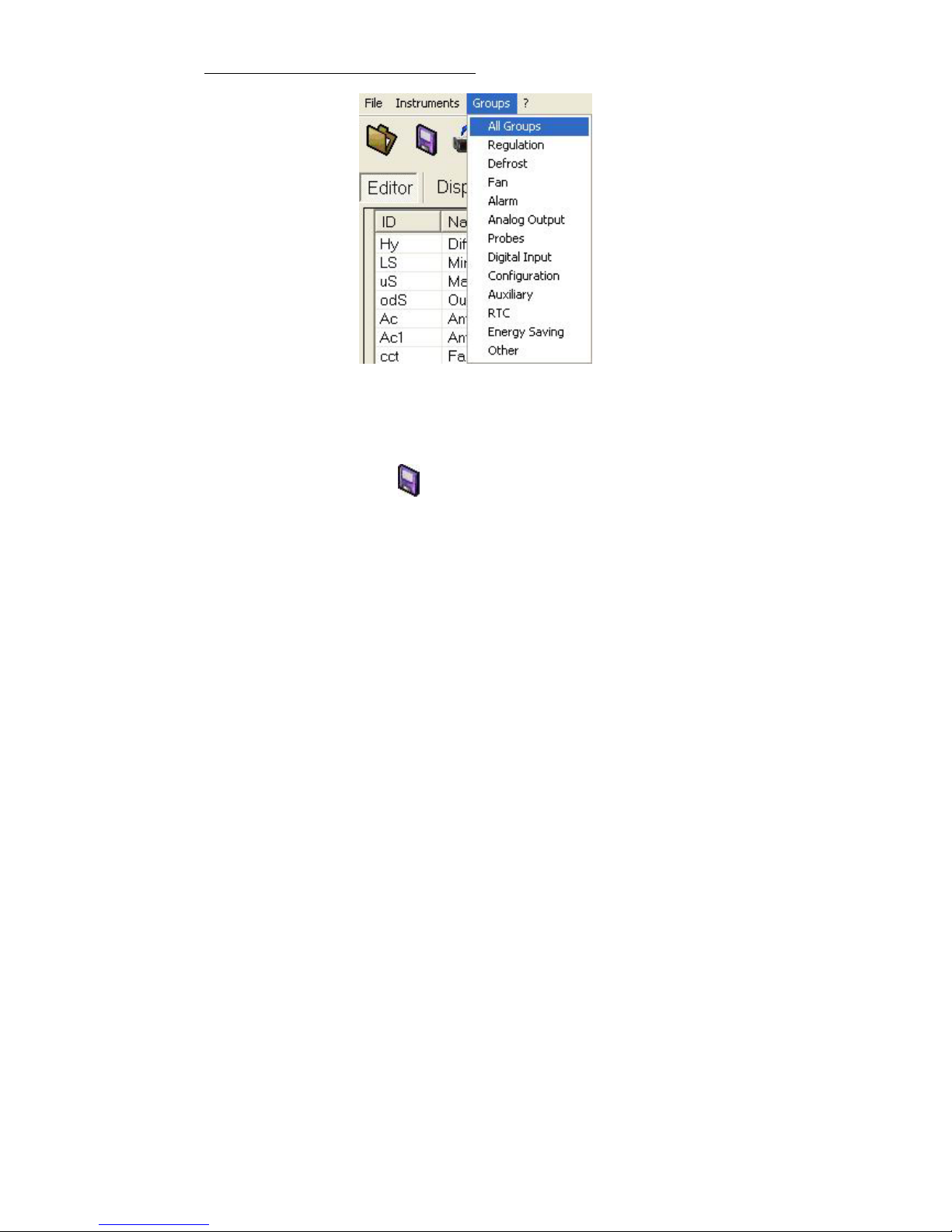

3.3.3 HOW TO MODIFY A PARAMETER MAP ........................................ 21
3.3.4 HOW TO CREATE AN HOT KEY .................................................... 23
3.3.5 HOW TO PROGRAM A CONTROLLER .......................................... 24
1592010401 v2.7 17/10/2008
PROG TOOL KIT
4
1 PACKAGE CONTENTS
In the PROG TOOL KIT are contained the following items:
A 1 PROG TOOL unit
B 1 CD-ROM with EASY PROG software and the instruction
manual
C 1 CAB/PTK2 cable (2 meters length)
D 1 CAB/PTK485 connect to output Rs485 (2 meters length)
E 1 CAB/SW 9-9 connect to the PC (1.8 meters length)
A
B
C
D
E
5
2 USE OF PROG TOOL
PROG TOOL unit can be used to program HOT KEYs and to
interface Dixell controllers to a PC in order to modify their parameter
map by means of the EASY PROG software.
2.1 WIRING DIAGRAMS
1592010401 v2.7 17/10/2008
PROG TOOL KIT
6
2.2 MEANING OF THE LEDS
PROG Tool is equipped with 3 LEDS used to signal its working
status.
TTL for HOT KEY to copy
RS232 for PC connection
Power Supply
RS485 for
controllers
with RS485 on
TTL for Power
Supply of
controllers with
RS485 on board
TTL for Power Supply and
communication of
controllers without RS485
7
2.3 PROGRAMMING FROM HOT KEY TO HOT
KEY
This function allows to create copies of any HOT KEY already
programmed.
Connect the power supply to terminals 13 and 14 e check that the
“Power” Led is on.
1. Insert the origin HOT KEY into the connector located on the side
of the PROG TOOL
2. Insert HOT KEY to be programmed into the connector “Hot-Key
Copy” on the front of the PROG TOOL
3. Push the “Copy” button to start the transfer of data from the
origin HOT KEY to the new one. During this operation Led
“Copy” is blinking
1592010401 v2.7 17/10/2008
PROG TOOL KIT
8
4. After few seconds Led “copy” stops blinking giving the result of
the operation:
Led “copy” RED = error during the programming of the HOT
KEY, repeat the operation and if needed replace the HOT KEY.
Led “copy” GREEN = operation successfully completed; the
Hot Key has been correctly programmed.
5. Remove the new Hot Key. Is possible to create more copies by
plugging other new Hot Key.
2.4 PROGRAMMING FROM PC TO HOT KEY
By using a PROG TOOL connected to a PC and the software EASY
PROG (included in the CD-Rom) is possible to create new Hot Key
to match our requirements.
