QUICK REFERENCE GUIDE
IC200D EVO
(rel. 1.0)
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 2/42
INDEX
1. GENERAL WARNING ...................................................................... 5
1.1 Please read before using this manual .............................................. 5
1.2 Safety Precautions............................................................................5
1.3 PRODUCT DISPOSAL (WEEE) .................................................................... 6
2. USING THE QUICK REFERENCE GUIDE ............................................. 6
3. IC200 D TABLE OF THE FEATURES ................................................... 7
4. USER INTERFACE............................................................................ 8
4.1 MEANING OF THE LEDS............................................................................8
4.2 DISPLAY AND ICONS .................................................................................8
5. DISPLAY LAYOUT ......................................................................... 10
6. OTHER DISPLAY INFORMATION.................................................... 10
6.1 READ THE SET POINT VALUE .................................................................. 10
6.2 MODIFY THE SET POINT ......................................................................... 11
7. KEY FUNCTION............................................................................. 11
7.1 KEY COMBINANTION.............................................................................. 12
8. FIRST INSTALLING ........................................................................ 12
8.1 ON BOARD CLOCK (OPTIONAL) .............................................................. 12
8.2 RTC Setup ...............................................................................................13
9. PARAMETERS PROGRAMMING WITH THE “HOT KEY 64” ............. 13
9.1 HOW TO PROGRAM AN INSTRUMENT WITH AN ALREADY
PROGRAMMED “HOT KEY” (DOWNLOAD)......................................................... 13
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 3/42
9.2 HOW TO COPY THE PARAMETER MAP INTO THE “HOT KEY” (UPLOAD)
13
10. PROGRAMMING USING THE KEYBOARD .................................... 14
10.1 ENTER THE PROGRAMMING LEVEL PR1.................................................14
10.2 ENTER THE PROGRAMMING LEVEL PR2.................................................14
10.3 ENTER THE PROGRAMMING LEVEL PR3.................................................14
11. MENU ( MENU KEY)................................................................... 15
11.1 ALARM LIST: READ AND RESET............................................................... 15
11.2 ALARM LOG LIST..................................................................................... 16
12. REMOTE KEYBOARD VI622 AND TI620 ....................................... 16
13. REMOTE KEYBOARD V2I820 ...................................................... 17

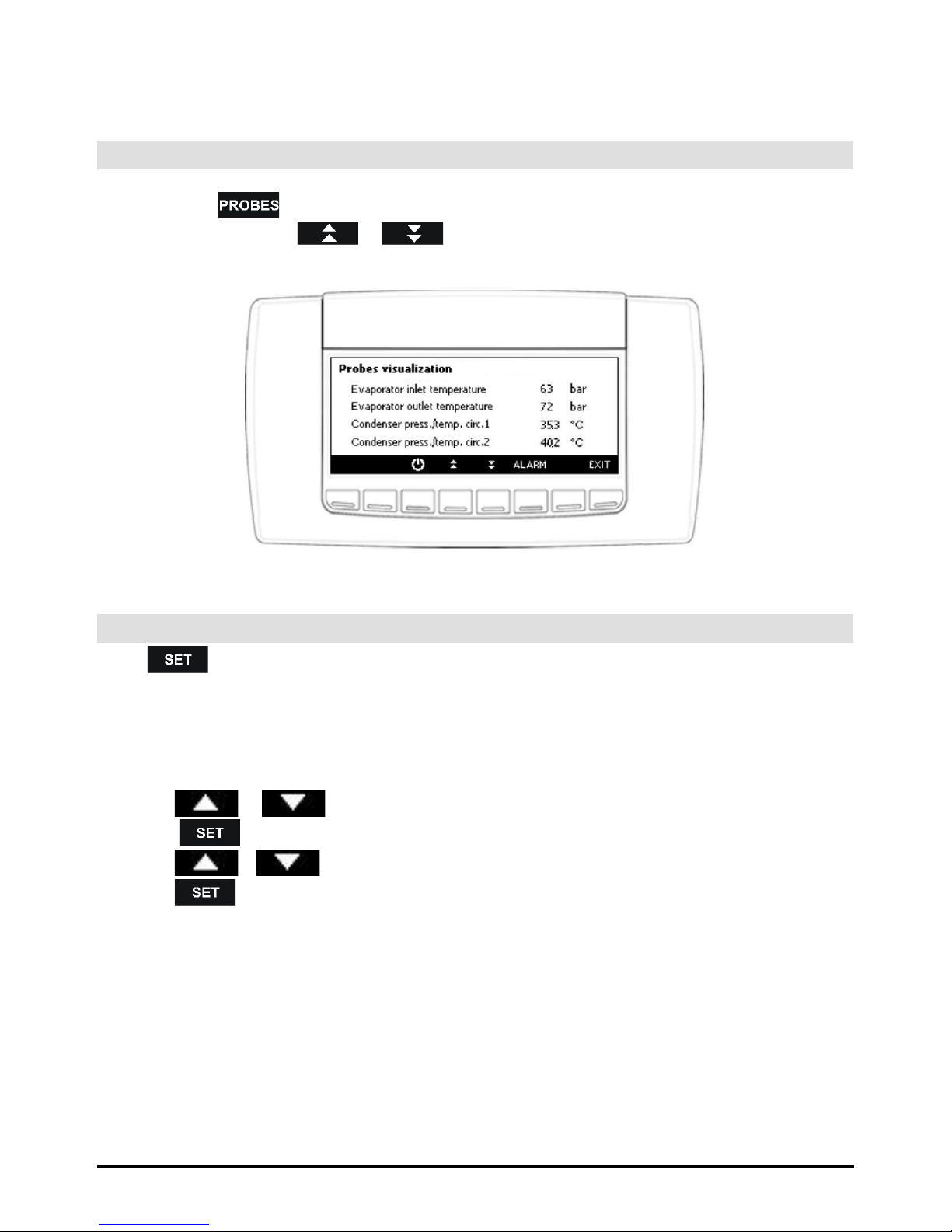

13.1 PROBES VISUALIZATION ......................................................................... 19
13.2 SET POINT VISUALIZATION / MODIFICATION......................................... 19
13.3 ALARM VISUALIZATION.......................................................................... 20
14. TABLE OF THE OUTPUT STATUS IN ALARM CONDITION .............. 21
14.1 ALARM: “A” TYPE AND STATUS OF THE LOADS IN CASE OF ALARM...... 21
14.2 ALARM: “B” TYPE AND STATUS OF THE LOADS IN CASE OF ALARM...... 24
14.3 ALARM: “C” TYPE AND STATUS OF THE LOADS IN CASE OF ALARM......25
14.4 WARNING ...............................................................................................25
15. BLACK-OUT ............................................................................... 25
16. WIRING CONNECTIONS ............................................................. 26
16.1 IC205D CONNECTIONS ........................................................................... 26
16.2 207D CONNECTIONS ..............................................................................27

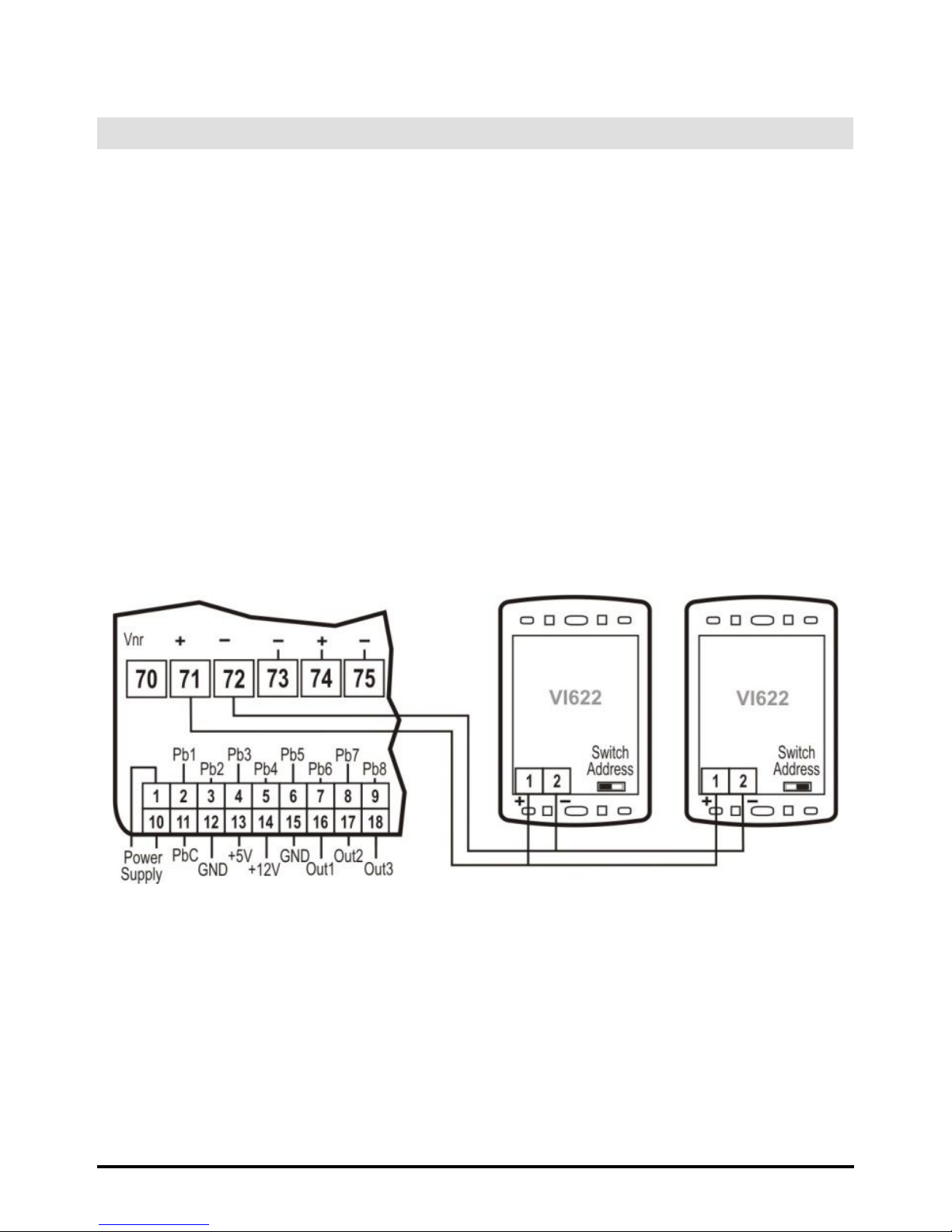

16.3 REMOTE KEYBOARD CONNECTION ........................................................28
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 4/42
16.4 Analog Inputs NTC – PTC Probes............................................................29
16.5 digital inputs...........................................................................................30
16.6 Analog Input for Pressure Transducer (4 ÷ 20mA signal).......................31
16.7 Analog Input for Pressure Ratiometric Transducer Ppr30 (0 ÷ 5V signal)
31
16.8 PWM Output for Condensing Fan Speed Control (only for OUT2 and
OUT3) 32
16.9 Proportional Output For Fan Condensing Control or FOr Compressor
Inverter Controlled or For Auxiliary Outputs.....................................................33
16.10 proportional output 0..10v to control dumper motors.......................34
16.11 Proportional outputs configured for aux relay control....................... 36
17. INSTALLING AND MOUNTING .................................................... 36
17.1 MECHANICAL DIMENSIONS....................................................................36
17.2 VI622 PANEL CUT-OUT ........................................................................... 38
17.3 TI620 PANEL CUT-OUT ...........................................................................39

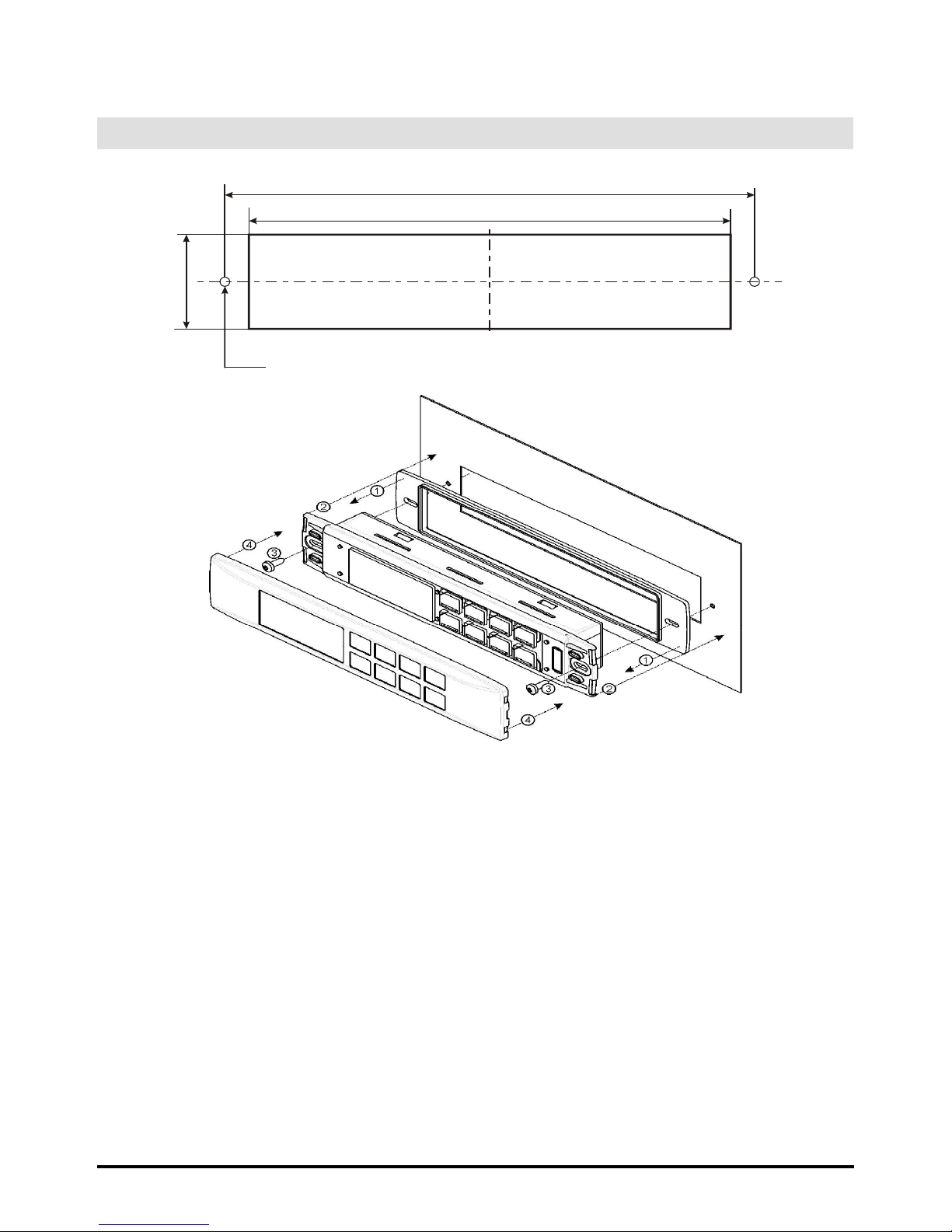

17.4 V2I820 PANEL CUT-OUT ......................................................................... 40
18. TECHNICAL SPECIFICATIONS ...................................................... 41
18.1 SUPPLY VOLTAGE ...................................................................................41
18.2 ANALOGUE INPUTS ................................................................................41
18.3 DIGITAL INPUT........................................................................................ 41
18.4 ANALOGUE OUTPUTS............................................................................. 41
18.5 DIGITAL OUTPUTS ..................................................................................42
18.6 operating and storage temperature ......................................................42
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 5/42
1. GENERAL WARNING
1.1 PLEASE READ BEFORE USING THIS MANUAL
This manual is part of the product and should be kept near the instrument for easy and
quick reference.
The instrument shall not be used for purposes different from those described
hereunder. It cannot be used as a safety device.
Check the application limits before proceeding.
Dixell Srl reserves the right to change the composition of its products, even without
notice, ensuring the same and unchanged functionality.
1.2 SAFETY PRECAUTIONS
Check the supply voltage is correct before connecting the instrument.
Do not expose to water or moisture: use the controller only within the operating limits
avoiding sudden temperature changes with high atmospheric humidity to prevent
formation of condensation
Warning: disconnect all electrical connections before any kind of maintenance.
The instrument must not be opened.
In case of failure or faulty operation send the instrument back to the distributor or to
“Dixell S.r.l.” (See address) with a detailed description of the fault.
Consider the maximum current which can be applied to each relay (see Technical
Data).
Separate the signal cables from the power cables in order to prevent malfunction due to
electromagnetic interference; do not use the same electrical conduit to install high
voltage cabling and low voltage cabling.
The ground connection of the secondary coil of the transformer that powers the device
can result in a bad performance; where possible, this connection should be avoided.
Fit the probe where it is not accessible by the end user.
In case of applications in industrial environments, the use of mains filters (our mod.
FT1) in parallel with inductive loads could be useful.
The symbol alerts the user of non-insulated “dangerous voltage” within the
product area that is sufficiently high to constitute a risk of electric shock to persons.
The symbol alerts the user of important operating and maintenance
(assistance) instructions found in the documentation attached to the device.
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 6/42
1.3 PRODUCT DISPOSAL (WEEE)
With reference to Directive 2002/96/EC of the European Parliament and of the Council
of 27 January 2003 and to the relative national legislation, please note that:
There lies the obligation not to dispose of electrical and electronic waste as
municipal waste but to separate the waste.
Public or private collection points must be used to dispose of the goods in
accordance with local laws. Furthermore, at the end of the product's life, it is
also possible to return this to the retailer when a new purchase is made.
This equipment may contain hazardous substances. Improper use or
incorrect disposal can have adverse effects on human health and the
environment.
The symbol shown on the product or the package indicates that the product
has been placed on the market after 13 August 2005 and must be disposed
of as separated waste.
Should the product be disposed of incorrectly, sanctions may be applied as
stipulated in applicable local regulations regarding waste disposal.
2. USING THE QUICK REFERENCE GUIDE
In this guide, there are some general guidelines regarding the product; more details are in
the full manual, to be requested from the Dixell Customer Service department.
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 7/42
3. IC200 D TABLE OF THE FEATURES
FEATURES
IC205D
IC207D
OUTPUT RELAYS
5
7
DIGITAL INPUTS
9 (free voltage)
configurable
configurable
PROBE INPUTS
4 (NTC/PTC)
configurable
configurable
3 (NTC/PTC/0..5V/4..20mA)
configurable
configurable
PROPORTIONAL OUTPUTS
2 0÷10V or PWM outputs
configurable
configurable
1 0÷10V
configurable
configurable
OTHER OUTPUTS
TTL
Output for remote keyboard
LAN
POWER SUPPLY
12 Vac/dc (+15%;-10%)
24 Vac/dc (± 10%)
opt
opt
OTHERS
Internal real time clock
opt
opt
Buzzer
opt
opt
Opt = optional
= default
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 8/42
4. USER INTERFACE
4.1 MEANING OF THE LEDS
4.2 DISPLAY AND ICONS
ICON
MEANING / FUNCTIONNING
°C
°F BAR
PSI
Lighted when the display shows a temperature or pressure
Lighted when the bottom display shows the clock
Lighted during the programming parameters if it is time based
Lighted in function menu when the display shows the defrost delay
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 9/42
Alarm: blinking in case of alarm
Lighted when domestic hot water function is active
Lighted after pressing menu button
Lighted if anti freeze heaters/ integration heating / boiler are activated
Flow switch alarm / supply fan overload (air / air unit)
Water pump: lighted if at least one pump is ON
Condenser fan: lighted if at least one fan is ON
Lighted when a compressor is ON
Blinking = when the delay of activation is running
AUX
Lighted when auxiliary function is active
Lighted when the controller is ON in cooling or heating
FC
Lighted when the Free cooling is active
Lighted when the defrost is activated
Blinking when the delay to activate the defrost is active
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 10/42
5. DISPLAY LAYOUT
Pressing Up or Down button the display shows the temperature or pressure of the main
probes configured in the instrument.
The lower display shows the label of the selected probe while the upper display shows its
value.
If the machine is configured with two gas circuits, when on the display is visualized the
condenser pressure/temperature or evaporation pressure of circuit 1, pressing SET button
the display shows condenser pressure/temperature or evaporation pressure of circuit 2.
Fig.1 Fig.2
6. OTHER DISPLAY INFORMATION
6.1 READ THE SET POINT VALUE
Press and release the SET key:
If the unit is on standby:
lower display shows SEtC (set chiller);
press SET key again, lower display shows SEtH (set heat pump, if it is enabled);
press SET key again, lower display shows SEtr (set real of operation, in the case
where the Energy Saving and / or function dynamic set point are active);
press SET key again, lower display shows SEtS (set domestic water circuit, in
case it is enabled)
If the instrument is in chiller operation:
lower display shows SEtC (set chiller);
press SET key again, lower display shows SEtr (set real of operation, in the case
where the Energy Saving and / or function dynamic set point are active);
press SET key again, lower display shows SEtS (set domestic water circuit, in
case it is enabled)
If the instrument is in chiller operation:
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 11/42
lower display shows SetH (set heat pump);
press SET key again, lower display shows SEtr (set real of operation, in the case
where the Energy Saving and / or function dynamic set point are active);
press SET key again, lower display shows SEtS (set domestic water circuit, in
case it is enabled)
6.2 MODIFY THE SET POINT
push SET key for at least 3 seconds
use the UP or DOWN key to modify the setpoint. In chiller mode it is possible to modify the
chiller set point, in heat pump it is possible to modify the heat pump set point, in std-by it is
possible to modify both the set point.
push SET to confirm or wait the timeout (15seconds).
7. KEY FUNCTION
KEY
ACTION
FUNCTION
Push and release
Show chiller set point SetC, heat pump set point
SetH, sanitay water set point SetS
Push once again
In chiller or heat pump if the Energy saving or the
Dynamic setpoint are enabled it shows the real
setpoint Setr.
Push for 3 seconds
Set point modification
During the programming: push
once
To enter parameter modification or confirm a
value
Push when an alarm is showed
in menù ALrM
To reset the alarm
Push once with probe label
showed on the bottom display
(press up or down starting from
default visualization)
To read probes values of circuit 1 or circuit 2
Push once
To read probes value
Pushing once during the
programming
To change the group of parameters, to change
the parameter, to change the value of the
parameter
Push for 1 second during the
programming when the display
visualize Pr1 or Pr2 or Pr3
1 time shows the Pr2 programming level
2 times shows the Pr3 programming level
Push once
To read probes value
Pushing once during the
programming
To change the group of parameters, to change
the parameter, to change the value of the
parameter
Push once
To turn ON or turn OFF the controller (in chiller or
heat pump depending from CF58 parameter)
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 12/42
Push once
To turn ON or turn OFF the controller (in chiller or
heat pump depending from CF58 parameter)
Push once
To enter the function Menu
Push for 3 seconds
To set the clock (controller with clock on board)
Pushing once during the
programming
To exit from a group of parameter
7.1 KEY COMBINANTION
KEY
ACTION
FUNCTION
+
Push for 3 seconds together
Enter the programming parameters
Only in Pr3 level: push SET and
DOWN key
Select the parameter level visibility Pr1 / Pr2 /
Pr3
+
Push once together
Exit the programming parameters
Push 5 seconds in heat pump
mode
Manual defrost
+
Only in Pr3 programming level:
push SET and then the MENU
key
In Pr3 defines if the parameter can be
modified or not in the other levels.
8. FIRST INSTALLING
8.1 ON BOARD CLOCK (OPTIONAL)
If giving power supply the bottom display shows “rtC” alternated to a temperature or pressure value, It
is necessary to set the RTC (Real time clock).
The internal clock is an option of the instrument and it is not possible to update it.
It is necessary to order the instrument already complete of this features.
If the instrument is disconnected to the power supply for more than 3 days, it is necessary to setup the
clock.
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 13/42
8.2 RTC SETUP
1. Push Menu key continuously for 3 seconds until the bottom display shows “Hour” and the top
display shows its value.
2. Push SET one time: the value is blinking.
3. Use the Up and Down keys to adjust it. Push SET one time to confirm.
4. Push up or down keys and repeat the operations 2. 3. and 4. for all the RTC parameters:
- Min: minutes (0÷60)
- UdAy: day of the week (Sun = Sunday, Mon =Monday, tuE =Tuesday, UEd = Wednesday, tHu
= Thursday, Fri =Friday, SAt =Saturday)
- dAy: day of the month (0÷31)
- MntH: month (1÷12)
- yEAr: year (00÷99)
9. PARAMETERS PROGRAMMING WITH THE “HOT KEY 64”
9.1 HOW TO PROGRAM AN INSTRUMENT WITH AN ALREADY
PROGRAMMED “HOT KEY” (DOWNLOAD)
1. Power off the instrument
2. Insert the hot key already programmed (by software Wizmate or other instrument)
3. Power on the instrument
4. Automatically the parameters are downloaded
During the download the regulation is locked and the top display shows the “doL” blinking label. At the
end of the download will appear:
“End” if the programming procedure is completely OK, after 30seconds the regulation starts
automatically.
“Err” if the programming procedure has found an error and the parameter have not been transferred.
In this case turn off and then on the instrument supply to repeat the operation or remove the hot key,
with power supply off, to restart the regulation.
9.2 HOW TO COPY THE PARAMETER MAP INTO THE “HOT
KEY” (UPLOAD)
1. Power on the instrument
2. Insert the hot key
3. Enter the function Menu
4. Select the UPL function (on the bottom display)
5. Push SET key and immediately the instrument starts transfer the parameters into the Hot key.
During the upload the regulation is locked and the top display shows the “UPL” blinking label. At the
end of the UPLOAD will appear:
“End” if the programming procedure is completely OK, after 30seconds the regulation starts
automatically.
“Err” if the programming procedure has found an error and the parameter have not been transferred.
Repeat the procedure.
To exit the UPL function push the MENU key or wait the time-out (15 sec).
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 14/42
10. PROGRAMMING USING THE KEYBOARD
Though the keyboard it is possible to modify the values of the parameters and set for each
one of them the visibility and editability; each parameter can be made visible at different
levels of users:
Pr1 User level (default Password = 1)
Pr2 Maintenance level (default Password = 2)
Pr3 OEM level (default Password = 3)
10.1 ENTER THE PROGRAMMING LEVEL PR1
Enter the Pr1 “User level”:
1. Push SET + DOWN keys together for 3 seconds. The top display shows “PAS” and the bottom
display shows “Pr1”.
2. Push SET key and the top display shows “0” blinking
3. Push UP or DOWN to select Pr1 password
4. Push SET and, if the value is correct, the top display shows the first family of parameters “ALL”
5. Push UP or DOWN to select the parameter family
6. Push SET to enter; the bottom display shows the first available parameter while the top display
shows its value.
7. Push UP or DOWN to modify its value
8. Push SET to confirm the new value
9. If necessary modify others parameter
10. Push SET + UP keys together to exit parameters programming
10.2 ENTER THE PROGRAMMING LEVEL PR2
Enter the Pr2 “service level”:
1. Push SET + DOWN keys together for 3 seconds. The top display shows “PAS” and the bottom
display shows “Pr1”
2. Push UP key for 2 seconds and the top display will show Pr2
3. Push SET key and the top display shows “0” blinking
4. Push UP or DOWN to select Pr2 password
5. Push SET and, if the value is correct, the top display shows the first family of parameters “ALL”
6. Push UP or DOWN to select the parameter family
7. Push SET to enter, the bottom display shows the first available parameter label while the top
display shows its value
8. Push UP or DOWN to modify its value
9. Push SET to confirm the new value
10. If necessary, modify others parameter
11. Push SET + UP keys together to exit parameters programming
10.3 ENTER THE PROGRAMMING LEVEL PR3
Enter Pr3 “OEM level”:
1. Push SET + DOWN keys together for 3 seconds. The top display shows PAS and the bottom
display shows Pr1
2. Push UP key for 2 seconds and the top display shows Pr2
3. Push UP key again for 2 seconds and the top display will show Pr3
4. Push SET key and the top display shows “0” blinking
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 15/42
5. Push UP or DOWN to select Pr3 password
6. Push SET and, if the value is correct, the top display shows the first family of parameters “ALL”
7. Push UP or DOWN to select the parameter family
8. Push SET to enter; the bottom display shows the first available parameter label while the top
display shows its value
9. Push UP or DOWN to modify its value
10. Push SET to confirm the new value
11. If necessary, modify others parameter
12. Push SET + UP keys together to exit parameters programming
11. MENU ( MENU KEY)
Enter the menu:
• press the menu button;
• press the UP or DOWN button to select the submenu;
• press the SET to enter the submenu.
Exit menu functions:
• Press the menu button or wait the time-out.
Entering the menu, it is possbile to:
1. Read and reset the alarms (ALrM)
2. Read and reset the alarm log (ALOG)
3. Upload the parameter into the Hot Key (UPL)
4. Enable – disable a gas circuit (CrEn)
5. Enable – disable a compressors (COEn)
6. Read and reset the number of compressor running hour (Hour)
7. Read and reset the number of compressor starts-up (COSn)
8. Read dynamic set point probe value (PbdS)
9. Read compressor discharge temperature (COdt)
10. Read condensing fan speed percentage of the proportional output (Cond)
11. Read the percentage of the proportional output 0 ÷ 10 Vdc Pout
12. Enable – disable one of the pumps POEn
13. Read the delay time between two defrost cycles (dF)
14. Read auxiliary output probe value (uS)
15. Read the temperature measured by internal sensor of the remote keyboards (trEM)
16. Read the temperature, the set point and the output status of the Free cooling (FC)
17. Read the temperature, the set point and the output status of the Solar panel (SoL)
18. Read temperature, pressure and status of the electronic expansion valve 1 (Et1)
19. Read temperature, pressure and status of the electronic expansion valve 2 (Et2)
11.1 ALARM LIST: READ AND RESET
ALrM FUNCTION
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 16/42
1. Push MENU key
2. The display shows AlrM label
3. Push SET key (Nothing happens if there are not alarms)
4. The bottom display shows the alarm code and the top display shows the label rSt, if it is possible
to reset the alarm, or NO if it is not possible to reset the alarm
5. Push UP or DOWN to scroll the alarm list (if more than one alarm is active)
6. Repeat the reset procedure for each alarm
7. To exit the ALrM reset, push MENU or wait the timeout.
11.2 ALARM LOG LIST
ALOG FUNCTION
1. Push MENU key
2. Push UP or DOWN to select ALOG
3. Push SET key
4. The bottom display shows the alarm label, the top display shows a number in the range 00 to 99.
5. Use the UP or DOWN keys to scroll the list.
6. To exit the ALOG function push MENU or wait the timeout.
Erase the Alarm log list
1. Push MENU key
2. Push UP or DOWN to select ALOG
3. Push the SET key
4. Push UP or DOWN keys and search the ArSt label on the bottom display; the top display shows
PAS.
5. Push SET; the bottom display shows PAS and the top display shows “0” blinking
6. Push UP or DOWN to set the password
7. If the password is OK the label ArST blinks for 5 seconds then the display returns to normal
condition read-out
8. If the password is not correct the display shows PAS again
9. To exit, push the MENU key or wait the timeout.
The standard password to reset the alarm log is “4”.
12. REMOTE KEYBOARD VI622 AND TI620
The display visualization and the button functions are the same of the Ichill, then refer to previous
chapters of the quick reference guide.
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 17/42
13. REMOTE KEYBOARD V2I820
La schermata principale visualizza le temperature/pressioni misurate dalle principali sonde
della macchina;
sono presenti delle icone che segnalano l’attivazione dei carichi principali (compressori,
pompe dell’acqua, ventole, resistenze), di stati macchina (produzione di acqua calda
sanitaria, sbrinamento, unloading, energy saving ed allarme):
stato unità: indicazione dello stato ON o OFF della macchina e della modalità
di funzionamento (raffrescamento, riscaldamento,…)
ora e data, disponibili se l’Ichill 200D è provvisto di orologio a bordo
il valore di 4 sonde configurabili a piacere, tra quelle presenti nel controllore,
tramite l’opportuna programmazione dei parametri dP06…dP09
lo stato dei carichi e delle funzioni come da tabella sotto:
The main window shows the temperature / pressure measured by the main probe of the
machine.
Some icons indicate the activation of the main loads (compressors, water pumps, fans,
heaters), the status of the machine (production of hot water, defrost, unloading, energy
saving and alarm):
• unit status: ON/OFF status and operating mode (cooling, heating, .......)
• time and date, if the iCHILL 200D is equipped with on-board clock
• the value of 4 sensors can be configured as desired through the parameters
dP06..dP09
• the load status
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 18/42
Compressor/s
(blinking during the start up
delay)
Economy function
/
Water pump / Supply fan
Unloading function
Condenser fan
Economy or ON/OFF by
timetable
Electric heater
Defrost
Domestic hot water
Alarm
Recovery enabled
Meaning of the keys:
Allows to read the value of the
probes configured in the Ichill
Allows to read/modify the set point
Allows to switch on the Ichill in
heating or cooling mode (see
parameter CF78)
Allows to read the alarms
Allows to switch on the Ichill in
heating or cooling mode (see
parameter CF78)
Allows to enter the SERVICE
menù
Allows to put the Ichill in STD-BY
Allows to read the main
information of the circuits
(compressor status, water pump
status, pressure probe value,…)
Note:
in case of alarm, press any key to silence the buzzer.
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 19/42
13.1 PROBES VISUALIZATION
Press key to visualize the value of the probes configured in the Ichill and I/O
expansion (press or to visualize all the probes).
13.2 SET POINT VISUALIZATION / MODIFICATION
Press key to read the value of the set point (cooling set point if the Ichill is in cooling mode,
heating set point if the Ichill is in heating mode, cooling and hating set point if the Ichill is in STD_BY or
remote OFF, Domestic hot water when enabled).
It is also possible to read the status of the Energy saving, the status of the Dynamic set point and the
real value of the set point if the Energy saving or Dinamic set point are active.
To modify the set point (Cooling, Heating or Domestic hot water):
press or to select the value of the set point
press
press o to modify the value
press to confirm the operation
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 20/42
13.3 ALARM VISUALIZATION
Press key to read the alarm status; the alarm status can be:
o Active: the alarm is still active and it is not possible to reset it
o Reset: the alarm is not active and it is possible to reset it
Manual reset procedure:
o press or to select the alarm;
o press to reset the alarm
In case of compressor overload alarm when the password is requested, follow this step:
o press o to select the compressor overload alarm
o press
o press
o press or to insert the password value (parameter AL46)
o press to confirm the operation
Note:
in caso of alarm, first key pressure silence internal buzzer (if enabled).
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 21/42
14. TABLE OF THE OUTPUT STATUS IN ALARM CONDITION
14.1 ALARM: “A” TYPE AND STATUS OF THE LOADS IN CASE
OF ALARM
Alarm
Code
Alarm
description
Compressor
Anti
freeze
heaters
Boiler
Suppor
t
heaters
Evap.
Pump.
Supply
fan
Condense
r Pump
Ventilaz
cond.
Cir1
Cir2
Aux
iliar
y
rela
y
ACF1
..
AC14
Configuration
alarm
OFF
OFF
OFF
OFF
OFF
OFF
OF
F
ACFL
Condenser
flow alarm
OFF
OFF (3)
OFF
AEE
Eeprom
alarm
OFF
OFF
OFF
OFF
OFF
OFF
OF
F
AEFL
Evaporator
flow alarm
OFF
OFF
(boiler)
OFF
(3)
OFF
AEht
High water
temperature
inlat
evaporator
OFF
AELt
Low
temperature
of the
evaporator
inlet in Heat
Pump mode
OFF
AHFL
Domestic hot
water pump
flow alarm
OFF (6)
/////
/
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 22/42
ALc1
Generic
alarm n°1
OFF
OFF
OFF
OFF
OF
F
ALc2
Generic
alarm n°2
and AL56=0
ALSF
Phase
sequence
alarm
OFF
OFF
OFF
OFF
OFF
OFF
OF
F
ALti
Low air
temperature
of the
evaporator
inlet (air / air
unit) Alarm
Ap1 ..
Ap6
Probe failure
(7)
Yes (6)
(7)
(7)
(7)
(7)
Spe
nto
(2)
APE1
...
APE8
I/O
expansion
probes
(7)
(7)
(7)
(7)
(7)
(7)
(7)
APFL
Solar panel
water pump
flow alarm
/////
/
/
APt1
APt2
Remote
terminals
probe
(7)
(7)
(7)
(7)
(7)
(7)
(7)
APU1
...
APU4
IEV
Electronic
expansion
valve probes
(8)
(8)
(8)
(8)
(8)
(8)
(8)
ASLA
Serial
communicati
on failure
with I/O
expansion
OFF
OFF
OFF
OFF
OFF
OFF
OF
F
ASun
Solar panel
water pump
maintenance
/////
/
/
AtAS
Domestic hot
water pump
overload
OFF (6)
/////
/
AtC1
Condenser
water pump 1
overload
alarm
OFF (4)
OFF
OFF
AtC2
Condenser
water pump 2
overload
alarm
OFF (4)
OFF
OFF
AtE1
Evaporator
water pump 1
OFF (4)
OFF
(boiler)
OFF
OFF
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 23/42
overload
alarm
(5)
AtE2
Evaporator
water pump 2
overload
alarm
OFF (4)
OFF
(boiler)
(5)
OFF
OFF
AtHS
Domestic hot
heater
overload
/////
/
/
AtSF
Supply fan
overload
alarm
OFF
OFF
OFF
OFF
AUAL
Serial
communicati
on failure
with
expansion
valve driver
OFF
OFF
OFF
OFF
OFF
OFF
OF
F
Err
Contemporar
y activation of
cooling and
heating
request on
condensing
unit
OFF
OFF
OFF
OFF
OFF
OFF
OF
F
(1) = if probe configured as anti-freeze / boiler control and Ar10 = 0
(2) = if probe configured to control the auxiliary output
(3) = if the alarm is manual reset
(4) = compressors off if only 1 water pump configured or if 2 water pumps and both in alarm
(5) = boiler heaters off if only 1 water pump configured or if 2 water pumps and both in alarm (in this
case boiler heaters are used only for anti-freeze)
(6) = if enabled the only domestic hot water function, or if the chiller and heat pump set point are
reached
(7) = load switching off depends on the probe on error; regulation probe alarm switch off main loads,
external probe alarm disable only dynamic set point function
(8) = in case of electronic expansion valve probe alarm, all the loads of gas circuits where the valve
is mounted are switched off
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 24/42
14.2 ALARM: “B” TYPE AND STATUS OF THE LOADS IN CASE
OF ALARM
Alarm
Code
Alarm description
Compressors
of the circuit
(n)
Compressors
of the other
circuit
Fan
condensing
of the
circuit (n)
Fan
condensing
of the other
circuit
b(n)AC
Anti-freeze in chiller circuit (n)
OFF
OFF
b(n)Ac
Anti-freeze circuit (n) warning
in chiller
b(n)AH
Anti-freeze in heat pump
circuit (n)
OFF
OFF
b(n)Ah
Anti-freeze circuit (n) warning
in heat pump
b(n)dF
End defrost warning circuit
(n)
b(n)ds
Circuit (n) disabled from
keyboard
OFF
OFF
b(n)Eu
Unloading from evaporator
low temp/press of the circuit
(n)
OFF
OFF
b(n)HP
High pressure switch circuit
(n)
OFF
OFF after
60 seconds
b(n)hP
High condensing pressure of
the circuit (n)
OFF
OFF after
60 seconds
b(n)hP
High condensing temperature
from NTC of the circuit (n)
OFF
OFF after
60 seconds
b(n)LP
Low pressure switch circuit (n)
OFF
OFF
b(n)LP
Low condensing pressure (evaporating with low
pressure transducer) with
transducer of the circuit of the
(n)
OFF
OFF
b(n)lP
Low condensing temperature
NTC circuit (n)
OFF
OFF
b(n)PH
Pump down alarm in stop
regulation of the circuit (n)
OFF
OFF
b(n)PL
Pump down in regulation
start-up of the circuit (n)
OFF
OFF
b(n)rC
Recovery function disabled in
circuit (n)
b(n)tF
Fan overload circuit (n)
OFF
OFF
b(n)UA
IEV electronic expansion
valve driver alarm circuit (n)
OFF
/
OFF
/
(n) identifies the circuit 1 or 2
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 25/42
14.3 ALARM: “C” TYPE AND STATUS OF THE LOADS IN CASE
OF ALARM
Alarm
Code
Alarm description
Compressor
(n)
Compressors not
involved
C(n)dS
Compressor (n) disabled from keyboard
OFF
C(n)dt
Compressor high discharge temperature
OFF
C(n)HP
Compressor(n) high pressure switch
OFF
C(n)Mn
Compressor(n) maintenance
C(n)oP
Compressor(n) oil pressure switch / Oil
level switch
OFF
C(n)tr
Compressor(n) overload
OFF
(n) identifies the compressor 1, 2 , 3 , 4
14.4 WARNING
Alarm
Code
Alarm description
ACP1
Condenser water pump 1 maintenance
ACP2
Condenser water pump 2 maintenance
AEP1
Evaporator water pump 1 maintenance
AEP2
Evaporator water pump 2 maintenance
AEUn
Unloading caused by evaporator high temp.
ArtC
Clock setting
ArtF
Clock failure
ASAn
Domestic hot water pump maintenance
Atr1
Remote terminal n° 1 configured but not connected
Atr2
Remote terminal n° 2 configured but not connected
b(n)Cu
Unloading caused by condenser high temp/press circuit (n)
b(n)Eu
Unloading from evaporator low temp/press of the circuit (n)
noL
Communication problem with Ichill and remote keyboard
15. BLACK-OUT
After the black-out, when the power supply is restored:
1. the instrument restores the same operating mode lost after the supply failure.
2. if active at the power off, the defrost is aborted
3. All the timers are reloaded
4. The alarm, if actives in manual mode at the power down, is not reset
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 26/42
16. WIRING CONNECTIONS
16.1 IC205D CONNECTIONS
5 x digital outputs (relays)
Max current on the relay contacts relè 5(2)A 250V
Max current on common line 10A 250V
9 x digital inputs (free of voltage)
8 x analogue inputs:
5 x NTC preobe / PTC probe / digital input
3 x NTC preobe / PTC probe / digital input / pressure transducer 4÷20 mA / pressure
transducer ratio-metric 0÷ 5.0 Volt
4 modulating outputs:
1 x 0 ÷ 10 Volt
2 x 0 ÷ 10.0 Volt or PWM (for modulating condenser fan)
1 x output to connect a remote keyboard (max 2 remote keyboards)
1 x LAN to connect an I/O expansion module (ICX207D)
1 x TTL output for “HotKey 64” (for parameters programming) or for XJ485CX (interface
module for monitoring system)
1 x RS485 output to connect the instrument to a RS485 network (monitoring system) or
XWEB system.
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 27/42
16.2 207D CONNECTIONS
7 x digital outputs (relays)
Max current on the relay contacts relè 5(2)A 250V
Max current on common line 10A 250V
9 x digital inputs (free of voltage)
8 analogue inputs:
5 x NTC preobe / PTC probe / digital input
3 x NTC preobe / PTC probe / digital input / pressure transducer 4÷20 mA / pressure
transducer ratio-metric 0÷ 5.0 Volt
4 x modulating outputs:
1 x 0 ÷ 10 Volt
2 x 0 ÷ 10.0 Volt or PWM (for modulating condenser fan)
1 x output to connect a remote keyboard (max 2 remote keyboards)
1 x LAN to connect an I/O expansion module (ICX207D)
1 x TTL output for “HotKey 64” (for parameters programming) or for XJ485CX (interface
module for monitoring system)
1 x RS485 output to connect the instrument to a RS485 network (monitoring system) or
XWEB system.
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 28/42
16.3 REMOTE KEYBOARD CONNECTION
It is possible to connect to the instrument up to two remote terminals VI622, available with / without
temperature probe on board, or two TI620 available without temperature probe on board, or an LCD
keyboard Visograph 2.0 (V2I820 without probes on board).; the use of keyboards VI622 or TI620
excludes the possibility of use of the keyboard Visograph and vice versa.
If the remote terminal VI622 is provided with temperature sensor on board, the temperature
adjustment can be performed with the probe at the edge of the terminal.
To enable the remote keyboard is necessary to configure the following parameters (in the Ichill
parameter map):
• CF54 Enable remote terminal 1 (VI622 EVO, TI620)
• CF55 Enable remote terminal 2 (VI622 EVO, TI620)
• CF84 Enable remote terminal Visograph (V2I820)
The connection of the remote terminals must be performed using a shielded / twisted (such as
Belden 8772, wires 1 mm2minimum); the maximum cable length to connect the keyboard VI 622 is
100 mt (maximum length of the connection, both if using one or two keyboards), and the maximum
cable length to connect the keyboard Visograph is 60 mt..
In case of lack of communication between the device and the keyboard (wrong connection, wrong
configuration parameters), the display shows the message "noL" (no link).
When using two keyboards VI622 you must configure the dip switches on the rear of the same,
giving to the first keyboard address 1 and to the second keyboard address 2.
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 29/42
16.4 ANALOG INPUTS NTC – PTC PROBES
PbC = common terminal
Pb1…Pb6 = probe inputs
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 30/42
16.5 DIGITAL INPUTS
GND = common terminal
ID1…ID11 = digital inputs
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 31/42
16.6 ANALOG INPUT FOR PRESSURE TRANSDUCER (4 ÷ 20MA SIGNAL)
12V = power supply for pressure transducers
Pb3 and Pb4 = pressure transducer inputs
16.7 ANALOG INPUT FOR PRESSURE RATIOMETRIC TRANSDUCER PPR30
(0 ÷ 5V SIGNAL)
+5V = power supply for pressure transducers
GND = ground for pressure transducers
Pb3 and Pb4 = pressure transducer inputs
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 32/42
16.8 PWM OUTPUT FOR CONDENSING FAN SPEED CONTROL (ONLY FOR
OUT2 AND OUT3)
The compatible modules are the following:
XV05PK mono-phase 500 Watt (2A)
XV10PK mono-phase 1000 Watt (4A)
XV22PK mono-phase 2200 Watt (9A)
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 33/42
16.9 PROPORTIONAL OUTPUT FOR FAN CONDENSING CONTROL OR
FOR COMPRESSOR INVERTER CONTROLLED OR FOR AUXILIARY
OUTPUTS
OUT1…OUT4 = signals for the modulation of the condenser fan
GND = ground for pressure transducers
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 34/42
16.10 PROPORTIONAL OUTPUT 0..10V TO CONTROL DUMPER MOTORS
OUT1…OUT4 = signals for the modulation of the dumper motor
GND = ground
GND = comune
OUT1..OUT3 = analog output
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 35/42
If the dumper motor has a common line between a pole of the power supply and the “–“ pole of the
0..10V signal, it is necessary to use two transformers for the power supply of the controller Ichill and
the power supply of the dumper motor.
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 36/42
16.11 PROPORTIONAL OUTPUTS CONFIGURED FOR AUX RELAY CONTROL
OUT1…OUT4 = signals for relays
GND = ground
Max. current to drive the relay coil: 40mA.
Power supply of the relay: 12Vcc.
17. INSTALLING AND MOUNTING
17.1 MECHANICAL DIMENSIONS
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 37/42
Mount:
DIN rail (EN 50022, DIN 43880)
Material:
PC-ABS Thermoplastic
Self-extinguishing:
V0 (UL94)
Comparative Tracking Index (CTI):
300V
Colour:
Black
IP protection:
IP10
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 38/42
17.2 VI622 PANEL CUT-OUT
The keyboard must be mounted on vertical panel with cut-out 72x56 mm, and screwed with two
screws.
The IP65 can be reached with the gasket RGW-V (optional).
WALL MOUNTING: use the vertical V-KIT (black, white and grey) as described in the following
scheme:
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 39/42
17.3 TI620 PANEL CUT-OUT
165
150
3
1
Ø3 x 2
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 40/42
17.4 V2I820 PANEL CUT-OUT
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 41/42
18. TECHNICAL SPECIFICATIONS
18.1 SUPPLY VOLTAGE
Power Supply:
12Vac/dc -10% ÷ 15%, 50/60Hz, or
24Vac/dc -10% ÷ 10%, 50/60Hz
Consumption:
Max. 10VA
Connectors:
Molex connectors for power supply, probes
connection, digital inputs, analog outputs)
STELVIO screw connectors for LAN connection
STELVIO screw connectors for relay
18.2 ANALOGUE INPUTS
Number of inputs:
5 (NTC, PTC, D.I.)
3 (NTC, PTC 4..20mA, 0..5V, D.I.)
Type of analogue input:
(configurable via software parameter)
NTC (-50T110 °C; 10KΩ±1% a 25°C)
PTC (-50T150 °C; 990Ω±1% a 25°C)
Rathiometric: 0.5..4.5V
Current: 4..20mA
Digital input (free contact)
Operation range:
-50°C ÷ 110°C (-58 °F ÷ 230°F) NTC probe
-50°C ÷ 150°C (-58 °F ÷ 302°F) PTC probe
0 bar ÷ 50 bar (0 psi ÷ 302 psi) pressure probe
Resolution:
0.1 °C
1 °F
0.1 bar
1 psi
18.3 DIGITAL INPUT
Type:
(configurable via software parameter)
Free contact not opto-insulated
Number of inputs:
9
Notes:
Don’t supply voltage to the digital inputs in order to
not cause damage to the instrument
18.4 ANALOGUE OUTPUTS
Type:
Non opto-insulated, internal power
Number of outputs:
3
1592015620 Quick reference guide iCHILL 200D EVO FW 4.5 rel. 1.0.doc 42/42
Type of analogue output:
(configurable via software parameter)
3 configurable outputs:
- OUT1: 0-10Vdc
- OUT2 and OUT 3:
0-10Vdc
4-20mA
PWM (to use with Dixell XV serie)
Maximum load:
40mA (Out1..Out4) when connected to an external
relay
Accuracy:
Out1..Out3: ±2% full scale
Note:
The electrical devices controlled by these analogue
outputs must be powered separately with another
transformer (do not use the same secondary of the
controller's power) in order to prevent the outputs
from malfunctioning or being damaged.
18.5 DIGITAL OUTPUTS
Type:
Relays with NO contacts
Number of outputs:
5: IC205D model
7: IC207D model
Maximum load:
5A(250Vac) SPST 5(2)A
Note:
Verify maximum current of the loads and maximum
current of the common line of the relay (10A max).
There is double insulation between the digital outputs
and the low voltage of the rest of the circuit.
Do not use different voltages for the various groups
of relays nor within each group.
18.6 OPERATING AND STORAGE TEMPERATURE
Operating temperature:
-10°C ÷ 55°C
Storege temperature:
-30°C ÷ 85°C
Operating humidity:
20% ÷ 85% (not condensing)
Loading...
