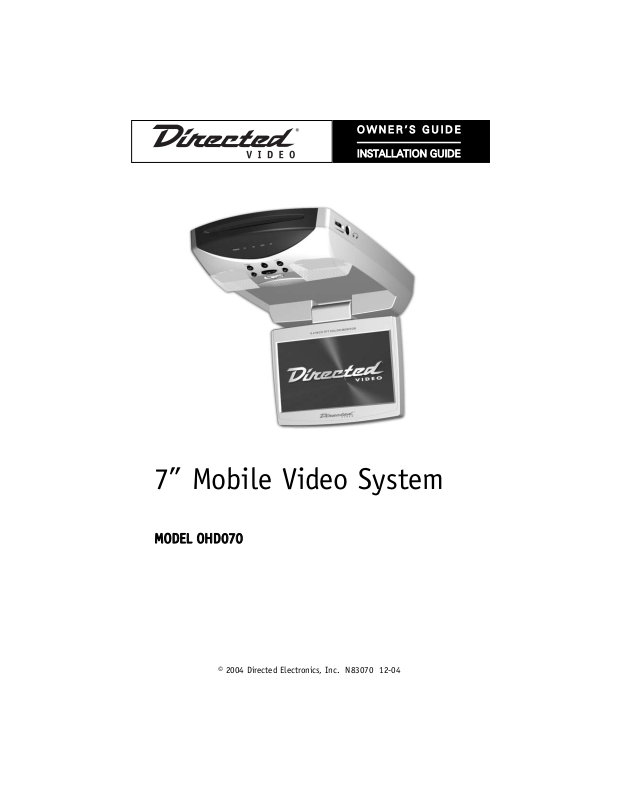

Directed Video OHD070 User Manual

7” Mobile Video System

MMOODDEELL OOHHDD

007700

OO WW NN EE RR ’’ SS GG UU II DD EE

IINNSSTTAALLLLAATTIIOONN GGUUIIDDEE

NNOONN--TTRRAANNSSFFEERRAABBLLEE LLIIMMIITTEEDD OONNEE YYEEAARR CCOONNSSUUMMEERR WWAARRRRAANNTTYY

Directed Electronics, Inc. (Directed) promises to the original purchaser that the new automotive video monitor and/or source unit(s) (the Product), excluding accessories, that is purchased and installed from a Directed authorized dealer more than ninety (90) days after the purchase of a new vehicle is warranted for a period of one (1) year from date of purchase of the Product.

Directed promises to the original purchaser that all video accessories will be free from defects in materials and workmanship under normal use and condition for a period of ninety (90) days after the date of purchase. A sales receipt and/or warranty registration card is required to provide proof of date of purchase of the Product or accessories.

Should the Product prove to be defective during the applicable warranty period, the Product will be repaired or replaced with a new or comparable reconditioned part(s), at Directed's election. To obtain warranty service, the Product must be returned to a Directed authorized dealer along with proof of purchase and proof of installation by an Authorized Directed Dealer.

Note: This warranty does not cover labor costs for the removal and/or reinstallation of the Product. IN ORDER FOR THIS WARRANTY TO BE VALID, YOUR PRODUCT MUST BE SHIPPED WITH PROOF OF PURCHASE AND INSTALLATION BY AN AUTHORIZED DIRECTED DEALER. ALL PRODUCTS RECEIVED BY DIRECTED FOR WARRANTY REPAIR WITHOUT PROOF OF DIRECTED DEALER INSTALLATION WILL BE DENIED.

This warranty is non-transferable and does not apply to any Product that has been modified or used in a manner contrary to its intended purpose, and does not cover damage to the Product caused by installation or removal of the Product. This warranty is VOID if the product has not been purchased from an authorized Directed dealer or has been damaged by accident or unreasonable use, negligence, acts of God, neglect, improper service or other causes not arising out of defect in materials or construction. This warranty does not cover the elimination of externally generated static or noise, or the correction of antenna problems or weak television reception, damage to tapes, video games, software, camcorders, discs, speakers, accessories or vehicle electrical systems, cosmetic damage or damage due to negligence, misuse, abuse, failure to follow operating instructions, accidental spills or customer applied cleaners, damage due to environmental causes such as floods, airborne fallout, chemicals, salt, hail, windstorms, lightning or extreme temperatures, damage due to accidents, road hazards, fire, theft, loss or vandalism, damage due to improper connection to equipment of another manufacturer, modification of existing equipment, use of a faulty tape cartridge or cleaning of the VCR head, or Product which has been opened or tampered with for any reason or which has been damaged due to alteration or service performed by anyone other than Directed Electronics, Inc.

ALL WARRANTIES INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY ARE EXPRESSLY EXCLUDED TO THE MAXIMUM EXTENT ALLOWED BY LAW, AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT ANY LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT. DIRECTED HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS LICENSED DEALERS OR INSTALLERS. IN NO EVENT WILL DIRECTED ELECTRONICS, INC. BE LIABLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES (INCLUDING LOSS OF PROFITS), BY PURCHASING THIS PRODUCT, THE CONSUMER AGREES AND CONSENTS THAT ALL DISPUTES BETWEEN THE CONSUMER AND DIRECTED SHALL BE RESOLVED IN ACCORDANCE WITH CALIFORNIA LAWS IN SAN DIEGO COUNTY, CALIFORNIA.

Some states do not allow limitation on how long an implied warranty lasts. In such states, the limitations or exclusions of this Limited Warranty may not apply. Some states do not allow the exclusion or limitation of incidental or consequential damages. In such states, the exclusion or limitation of this Limited Warranty may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights which vary from state to state.

920-0001 Directed Video, 1 year Warranty Rev 11-04 Directed Video 1 year RSE warranty 11-17-04.doc

TTaabbllee ooff CCoonntteennttss

Non-Transferable Limited Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . .2

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Important Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

What is Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Supported Disc Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Preliminary Preparations .........................................................................8

Mounting Video System ..........................................................................8

Electrical Connections...........................................................................10

Video System Controls and Description . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Functions............................................................................................13

Battery Replacement ............................................................................15

Using the Remote Control......................................................................15

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

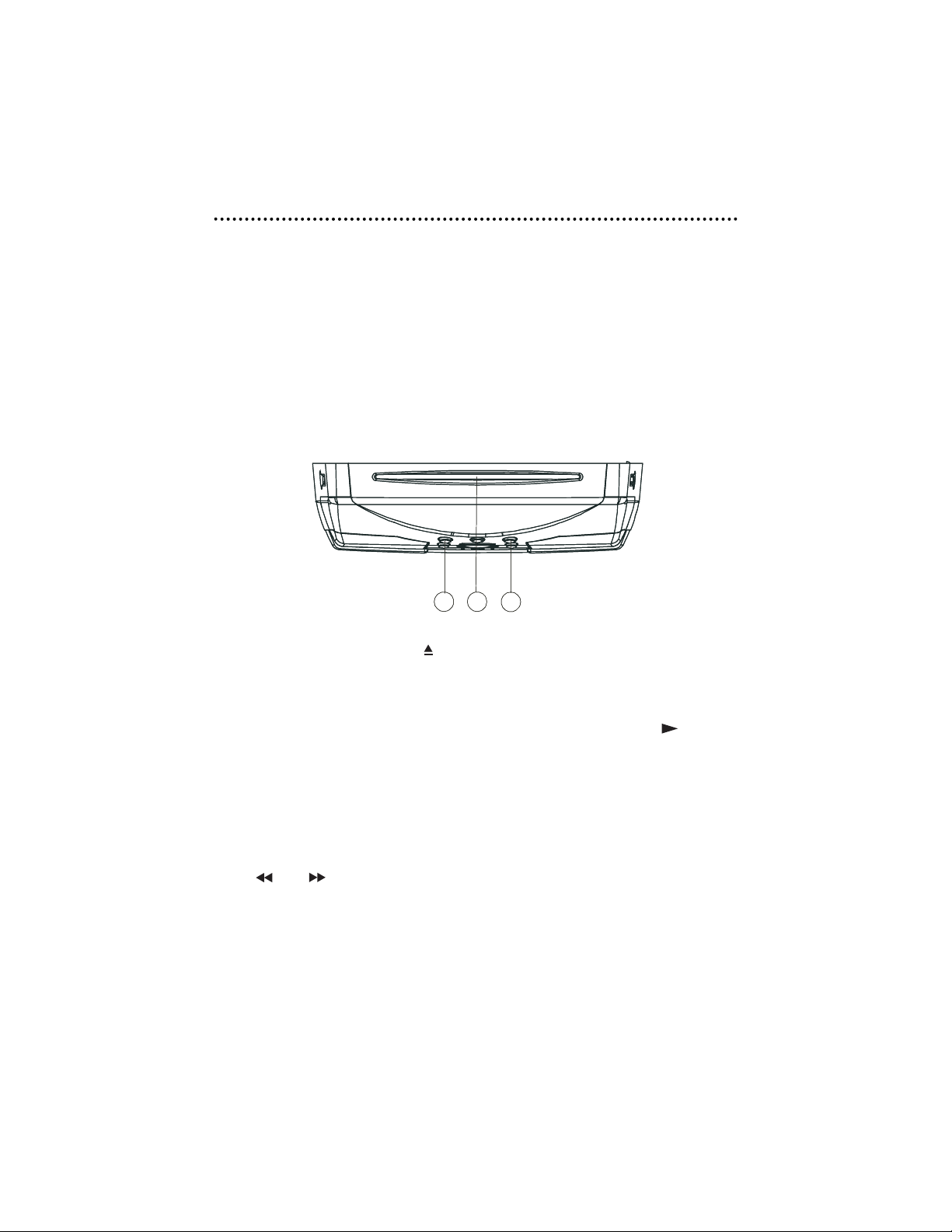

Loading/Ejecting a Disc ........................................................................16

Stopping Play......................................................................................16

Rapid Forward/Reverse..........................................................................16

Skipping Track .....................................................................................17

Slow Motion Play .................................................................................17

Pause.................................................................................................17

Mute ..................................................................................................17

Repeat ...............................................................................................18

A-B....................................................................................................18

Disc Search (GOTO)...............................................................................18

Zoom .................................................................................................19

Random..............................................................................................19

Program..............................................................................................19

Mode Selection....................................................................................19

Volume Level Adjustment ......................................................................19

Light Switch........................................................................................20

Jack for Earphone ................................................................................20

Earphone Volume Adjustment.................................................................20

Remote Sensor (IR)..............................................................................20

Turning the Unit ON/OFF .......................................................................20

Monitor Release ..................................................................................20

Infrared Transmitting Window ................................................................20

LCD Menu Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Menu..................................................................................................21

Transmit .............................................................................................21

Screen................................................................................................21

Search................................................................................................21

On Screen Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Display ...............................................................................................22

Multi-Audio Language Function ..............................................................25

Title Menu Function..............................................................................26

Multi-Subtitle Language Function ...........................................................26

Multi--Angle Function ...........................................................................26

MP3 Disc Play......................................................................................27

TV Operation .......................................................................................27

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Initial Setup .......................................................................................28

General Setup......................................................................................29

Speaker Setup .....................................................................................32

Audio Setup ........................................................................................33

Preferences Setup (including parental)....................................................35

Factory Default Setting .........................................................................41

Appendix A – Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Cleaning the LCD Screen .......................................................................42

Cleaning the Enclosure..........................................................................42

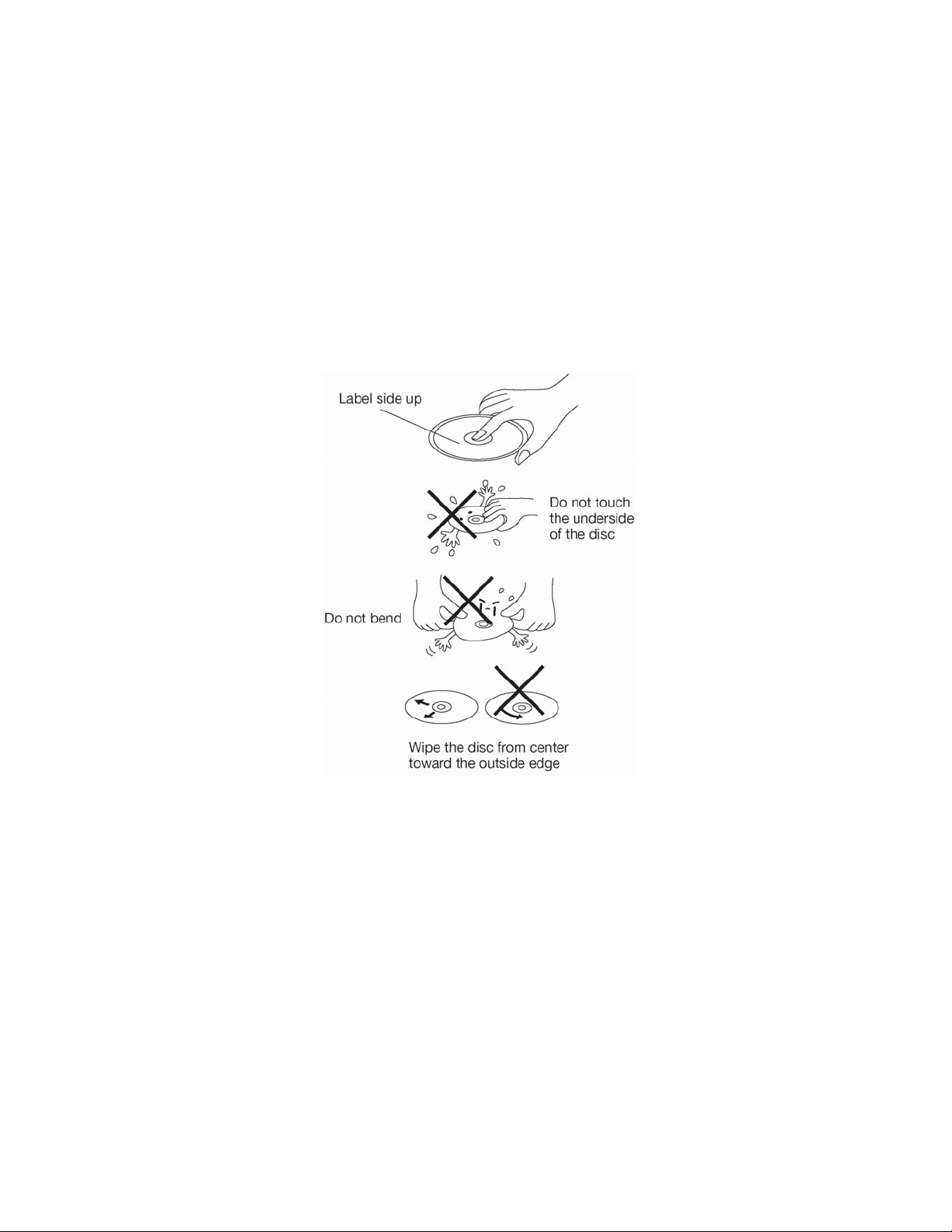

Cleaning and Handling Discs..................................................................42

Appendix B – Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Appendix C – Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

SSaaffeettyy IInnffoorrmmaattiioonn

To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.

The mobile DVD player is a Class I laser product. This mobile DVD player uses a laser beam which could cause vision damage. Do not open the covers to this unit, there are no owner serviceable parts inside.

IImmppoorrttaanntt NNootteess

NNOOTTEE::

The parental level control is discussed in the Preferences Setup section of this

manual.

1. Before operating your LCD Monitor system, please read these instructions carefully.

2. Retain this manual for future reference.

3. Do not remove any WARNING stickers on the unit.

4. When the power to the unit is shut off, the next time the unit is turned on the speakers will

nnoott

operate. The Transmit feature must be reset to OFF (IR head-

phones off) in the setup features.

5. Do not use any chemical solvent, cleaning agent or corrosive detergent to clean away dirt on the surface of the screen. Doing so may cause irreversible damage to the surface of the LCD screen. To clean off dirt or fingerprints, it is recommended that a soft-damp lens cleaning cloth be used.

6. Using spare parts from another manufacturer may cause permanent damage to the unit.

7. If using the surface mount pedestal, ensure that the pedestal mount is placed on a flat, hard, and stable surface.

8. Avoid installing the monitor screen in a position that is under direct sunlight and away from hot air vents.

9. Install the unit in a dry location, avoid condensation.

10. Ensure the plugs are properly plugged in before operating the unit.

11. Should the LCD panel break, avoid contact with the broken glass or fluid leaking out from the enclosure. If you come into contact, flush and clean the affected areas with plenty of water. Seek medical attention immediately.

12. When operating the display unit, avoid touching or pressing on the LCD screen. Excessive force will damage the LCD screen.

13. When installing this unit in a vehicle, ensure that the installation and use of this unit is in compliance with local vehicle rules and regulations.

14. Do not attempt to disassemble or adjust this product. Contact your factory authorized dealer for service assistance.

15. Avoid inserting any foreign objects into the slot of this player. Failure to observe this caution may cause the unit to malfunction.

16. This product is designed to operate with a 12 volt DC, negative ground battery system.

17. While Driving, keep the volume level low enough to be aware of road and traffic conditions.

18. The unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30 degrees.

WWhhaatt iiss IInncclluuddeedd

 7” Overhead Monitor/DVD Player  Mounting hardware

 Metal mounting plate  Mounting bracket

 Remote Control Unit/w battery  Rubber plate

IInnttrroodduuccttiioonn

Congratulations on your purchase of the world’s finest video entertainment system. At Directed we are committed to bringing you the most technologically advanced products available. We are pleased that you chose a Directed Video product. Through years of critical testing and hand craftsmanship, we have created a wide range of video entertainment products for your viewing pleasure.

This system incorporates the use of on screen display menu controls that allow you to configure the system to suit your own personal preferences.

To view other great products from Directed Electronics, please visit the Directed Video page at www.directed.com.

YYoouurr WWaarrrraannttyy

Your warranty registration must be completely filled out and returned within 10 days of purchase. Your product warranty will not be validated if your warranty registration is not returned. Make sure you receive the warranty registration from your dealer. It is also necessary to keep your proof of purchase, which reflects that the product was installed by an authorized dealer.

SSuuppppoorrtteedd DDiisscc FFoorrmmaattss

The following disc formats are supported by this player.

DDVVDD 12 cm disc (Single-sided disc only)

VViiddeeoo CCDD 12 cm disc

CCDD

12 cm disc

MMPP33

12 cm disc

The following disc formats are

NNOOTT

supported by this player.

DVD-ROM CDV

DVD-R/DVD-RAM CD-G

IInnssttaallllaattiioonn

PPRREELLIIMMIINNAARRYY PPRREEPPAARRAATTIIOONNSS

NNOOTTEE::

The unit should be installed by a qualified service technician. This unit is

designed to operate with a 12 VDC, negative ground battery system.

NNOOTTEE::

Use only proper sized fasteners and cables during installation. Use of improper fasteners or cables can lead to mechanical failure of the unit or create a fire hazard.

1. Disconnect the ground wire from the battery terminal prior to connecting the unit to the electrical system.

NNOOTTEE::

Some vehicle radios have an anti-theft code system that will disable the radio if the battery is disconnected. If this vehicle has such a radio, ensure you have the access code to restore the radio to normal operation.

2. Pick a location to install the monitor where it will not obstruct the rear view mirror or the air conditioning vents.

3. Do not install this unit at an angle exceeding 30 degrees.

MMOOUUNNTTIINNGG VVIIDDEEOO SSYYSSTTEEMM

1. Determine the mounting location and drill four mounting holes (see the figure above).

2. Attach the mounting bracket to the holes with the self-tapping screws (ø4x10).

3. Let the two levers aim at the slots on the DVD bracket to fix the display unit.

4. Open the monitor to display the five screw holes.

5. Attach the unit to the bracket with the mounting bolts (M 3.5x10).

6. Insert five rubber caps into the screw holes.

7. When the installation has completed, you can turn the display upward or downward, left or right to adjust the viewing angle. (See the arrowhead symbol in the figure above).

Mounting Bracket

Levers

Self-tapping Screws (

DVD Bracket

Mounting Bolts (M3.5x10)

ø4x10)

Slots

Rubber Caps

EELLEECCTTRRIICCAALL CCOONNNNEECCTTIIOONNSS

PPOOWWEERR AANNDD VVIIDDEEOO WWIIRRIINNGG

Connect the power and dome light wires as follows:

OOPPTTIIOONNAALL DDIIGGIITTAALL WWIIRRIINNGG

CCoolloorr CCoonnnneeccttiioonn

Red Accessory

Yellow Battery +12V

White Interior Light System (Dome -)

Orange Interior Light System (Dome +)

Black Ground

Power and Dome Lamp

1100

Wiring

Video Wiring

AUDIO R OUT

AUDIO L OUT

VIDEO OUT

AUDIO R IN

AUDIO L IN

RED

WHITE

YELLOW

IDEO IN

RED

WHITE

YELLOW

DIGITAL AUDIO (OPTIONAL)

VViiddeeoo SSyysstteemm CCoonnttrroollss aanndd DDeessccrriippttiioonn

1111

41835

279

1. POWER Button 11. Indicator Light for AV

2. EJECT Button 12. Disc Slot

3. MENU Button 13. 6.4 inch TFT Color Monitor

4. MOD Button 14. Earphone Volume Controls

5. Car Dome Lamps 15. Jacks for Earphone

6. Light Switch 16. IR Transmitting Window

7. VOLUME+ 17. OPEN Button: Press the button to

8. VOLUME- deploy the screen display from the

9. IR Receiver unit’s base.

10. Indicator Light for DVD 18. Speakers (qty-2)

19. Speaker On/Off button

NNOOTTEE::

The TRANSMIT feature must be Off on the Setup Menu for the speakers to operate.

The auxiliary audio output and conventional headphone jacks are active at all times.

1122

RReemmoottee CCoonnttrrooll

FFUUNNCCTTIIOONNSS

1. POWER Press to turn the unit ON or OFF.

2. EJECT Press to eject the disc.

3. MUTE Press to mute the sound.

4. SUBTITLE Changing of the SUBTITLE language on multi-subtitle langauge DVD disc.

1133

MUTE

MODE

POWER

SUBTITLE

SETUP

EJECT

ANGLE

PAL/NTSC

DISPLAY

AUDIO

25 26

29 30

TITLE

ENTER

SLOW

CH - CH +

231

564

897

CLEAR

RESUMEZOOM GOTO PBC

PROGRAMRANDOM REPEAT A-B

VOLUME

10+0

- / - -

28 27

32 31

5. ANGLE Changing of the view angle on multi-angle DVD disc.

6. DISPLAY Display statistical disc information during playback.

7. MODE Changing between DVD mode, TV mode and AV mode.

8. SETUP Display the SETUP menu.

9. PAL/NTSC Switch between PAL mode and NTSC mode.

10. AUDIO Changing of the AUDIO soundtrack on multi-audio soundtrack DVD disc, or changing of the sound mode of the VCD/CD discs.

11. TITLE Display the TITLE menu that is stored in DVD disc.

12. MENU Display the adjustment items, such as Bright, Contrast, Color, Tint, Transmit, Screen, Search and etc.

13. W/X/S/T In case of SETUP Menu mode, the left/right/up/down W/X/S/T buttons served as cursor buttons to select item left/right, ahead/back.

14. ENTER Confirm the Track/Chapter selected with the numeric buttons or selected with the cursor buttons on TV screen.

15.||X/W

Change the slow forward/reverse playback motion.

16. Press to play the disc.

17. / Press to search forward rapidly and to search

reverse rapidly.

18. (CH+)/ Press to skip to the next track & press to skip

(CH-) back one track.

19.  Press  to stop playback.

20.

||||

Press

||||

to pause playback.

21. 0-9 Numeric buttons

22. 10+(-/--) Digital selection button, used with numeric buttons.

23. CLEAR Press this button to clear an erroneous numeric entry.

24. VOLUME +/- Press VOLUME +/- button to increase or decrease volume level.

Adjust the following items when MENU has been selected.

25. ZOOM Allows the picture to be increased in size.

1144

26. RESUME When in stop mode, press the button, the play can be resumed from the stop point.

27. GOTO Disc search button, used with numeric buttons.

28. PBC Changing between PBC ON and PBC OFF on the VCD disc.

29. RANDOM Allows the track played in random order.

30. PROGRAM Allows the track played in the order you programmed.

31. REPEAT Switch the Repeat mode of discs.

32. A-B A-B repeat allows a passage to be repeated continuously.

BBAATTTTEERRYY RREEPPLLAACCEEMMEENNTT

Use the following procedure to inserting/replacing the batteries

1. Open the battery compartment cover.

2. Remove the old batteries and insert the new batteries (two AAA size). Make sure that the positive and negative terminals of the batteries are oriented as indicated.

3. Close the cover.

UUSSIINNGG TTHHEE RREEMMOOTTEE CCOONNTTRROOLL

Point the remote control towards the player front face IR mark (remote control signal receiver).

Operation angle: The remote will function in about up to a ±30 degree angle from the front of the IR receiver.

1155

+ 32 hidden pages
