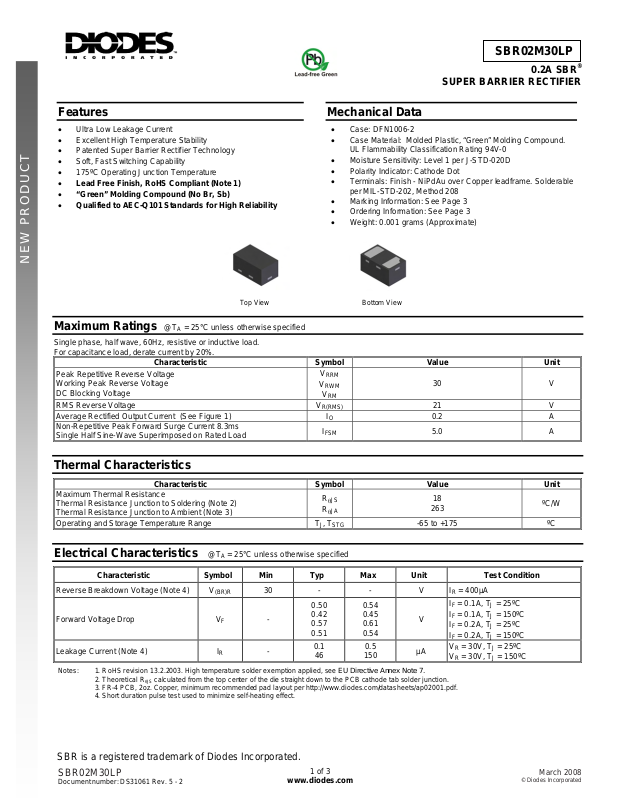

Page 1
Features
• Ultra Low Leakage Current
• Excellent High Temperature Stability
• Patented Super Barrier Rectifier Technology
• Soft, Fast Switching Capability
• 175ºC Operating Junction Temperature
• Lead Free Finish, RoHS Compliant (Note 1)
• “Green” Molding Compound (No Br, Sb)
• Qualified to AEC-Q101 Standards for High Reliability
NEW PRODUCT
Maximum Ratings @T
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current (See Figure 1)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
= 25°C unless otherwise specified
A
Characteristic Symbol Value Unit
Mechanical Data
• Case: DFN1006-2
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020D
• Polarity Indicator: Cathode Dot
• Terminals: Finish - NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
• Marking Information: See Page 3
• Ordering Information: See Page 3
• Weight: 0.001 grams (Approximate)
Top View Bottom View
V
RRM
V
RWM
V
RM
V
R(RMS)
I
O
I
FSM
SBR02M30LP
0.2A SBR
®
SUPER BARRIER RECTIFIER
30 V
21 V
0.2 A
5.0 A
Thermal Characteristics
Maximum Thermal Resistance
Thermal Resistance Junction to Soldering (Note 2)
Thermal Resistance Junction to Ambient (Note 3)
Operating and Storage Temperature Range
Electrical Characteristics @T
Characteristic Symbol Min Typ Max Unit Test Condition
Reverse Breakdown Voltage (Note 4)
Forward Voltage Drop
Leakage Current (Note 4)
Notes: 1. RoHS revision 13.2.2003. High temperature solder exemption applied, see EU Directive Annex Note 7.
2. Theoretical R
3. FR-4 PCB, 2oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf.
4. Short duration pulse test used to minimize self-heating effect.
SBR is a registered trademark of Diodes Incorporated.
SBR02M30LP
Document number: DS31061 Rev. 5 - 2
Characteristic Symbol Value Unit
R
JS
θ
R
JA
θ
T
, T
J
STG
= 25°C unless otherwise specified
A
V
(BR)R
V
F
I
R
calculated from the top center of the die straight down to the PCB cathode tab solder junction.
θJS
30 - - V
0.50
-
0.42
0.57
0.51
-
0.1
46
0.54
0.45
0.61
0.54
0.5
150
18
263
-65 to +175 ºC
V
µA
1 of 3
www.diodes.com
I
= 400µA
R
= 0.1A, TJ = 25ºC
I
F
I
= 0.1A, TJ = 150ºC
F
= 0.2A, TJ = 25ºC
I
F
I
= 0.2A, TJ = 150ºC
F
= 30V, TJ = 25ºC
V
R
= 30V, TJ = 150ºC
V
R
ºC/W
March 2008
© Diodes Incorporated
Page 2
P, P
OWER
PATIO
0.4
0.3
N (W)
0.2
DISSI
0.1
D
NEW PRODUCT
0
T =150°C
J
0 0.1 0.2 0.3 0.4 0.5
I , AVERAGE FORWARD CURRENT (A)
F(AV)
Fig. 1 Forward Power Dissipation
SBR02M30LP
100
f=1.0MHz
0.25
0.2
0.15
0.1
0.05
Note 3
10
T
C , TOTAL CAPACITANCE (pF)
1
0 5 10 15 20 25 30
V , DC REVERSE VOL TAGE (V)
R
Fig. 4 Total Capacitance vs. Reverse Voltage
F(AV)
I , A VERAGE FORWARD CURRENT(A)
0
0 25 50 75 100 125 150
T , AMBIENT TEMPERATURE (°C)
A
Fig. 5 Forward Current Derating Curve
BR is a registered trademark of Diodes Incorporated.
S
SBR02M30LP
Document number: DS31061 Rev. 5 - 2
175 200
www.diodes.com
2 of 3
March 2008
© Diodes Incorporated
Page 3
Ordering Information (Note 5)
Part Number Case Packaging
SBR02M30LP-7
Notes: 5 . For packaging detail s, go to our website at http://www.d iodes.com/datasheets/ap02007.pdf.
Marking Information
Package Outline Dimensions
NEW PRODUCT
SBR02M30LP
DFN1006-2
23
G
H
A
B
R
D
N
23 = Product Type Marking Code
Dot Denotes Cathode Side
DFN1006-2
Dim Min Max Typ
A 0.95 1.075 1.00
B 0.55 0.675 0.60
C 0.45 0.55 0.50
D 0.20 0.30 0.25
C
G 0.47 0.53 0.50
H 0 0.05 0.03
N
⎯ ⎯
R 0.05 0.15 0.10
All Dimensions in mm
0.40
3000/Tape & Reel
Suggested Pad Layout
X
Y
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
SBR is a registered trademark of Diodes Incorporated.
SBR02M30LP
Document number: DS31061 Rev. 5 - 2
C
Dimensions Value (in mm)
Z 1.1
G 0.3
X 0.7
Y 0.4
G
Z
IMPORTANT NOTICE
LIFE SUPPORT
3 of 3
www.diodes.com
C 0.7
March 2008
© Diodes Incorporated
