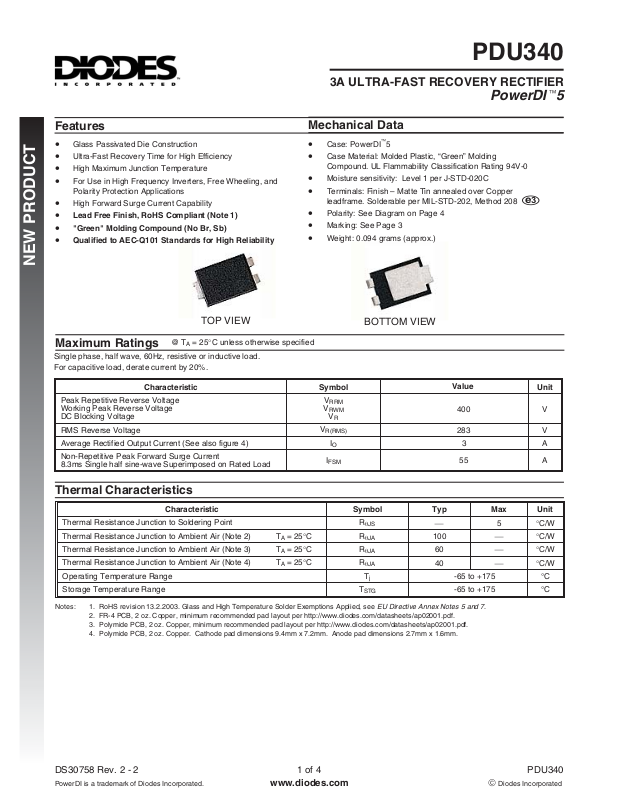

PDU340
3A ULTRA-FAST RECOVERY RECTIFIER
PowerDIä5
Features
Glass Passivated Die Construction
·
Ultra-Fast Recovery Time for High Efficiency
·
High Maximum Junction Temperature
·
For Use in High Frequency Inverters, Free Wheeling, and
·
Polarity Protection Applications
High Forward Surge Current Capability
·
Lead Free Finish, RoHS Compliant (Note 1)
·
"Green" Molding Compound (No Br, Sb)
·
Qualified to AEC-Q101 Standards for High Reliability
·
NEW PRODUCT
TOP VIEW
Maximum Ratings
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current (See also figure 4)
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave Superimposed on Rated Load
@ TA= 25°C unless otherwise specified
Characteristic Symbol
Mechanical Data
Case: PowerDIä5
·
Case Material: Molded Plastic, “Green” Molding
·
Compound. UL Flammability Classification Rating 94V-0
Moisture sensitivity: Level 1 per J-STD-020C
·
Terminals: Finish – Matte Tin annealed over Copper
·
leadframe. Solderable per MIL-STD-202, Method 208
Polarity: See Diagram on Page 4
·
Marking: See Page 3
·
Weight: 0.094 grams (approx.)
·
BOTTOM VIEW
Value
V
RRM
V
V
R(RMS)
I
RWM
V
R
I
O
FSM
400 V
283 V
3A
55 A
e
3
Unit
Thermal Characteristics
Characteristic Symbol Typ Max Unit
Thermal Resistance Junction to Soldering Point
Thermal Resistance Junction to Ambient Air (Note 2) T
Thermal Resistance Junction to Ambient Air (Note 3) T
Thermal Resistance Junction to Ambient Air (Note 4) T
Operating Temperature Range
Storage Temperature Range
Notes: 1. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see
2. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf.
3. Polymide PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf.
4. Polymide PCB, 2 oz. Copper. Cathode pad dimensions 9.4mm x 7.2mm. Anode pad dimensions 2.7mm x 1.6mm.
= 25°C
A
= 25°C
A
= 25°C
A
DS30758 Rev. 2 - 2 1 of 4 PDU340
PowerDI is a trademark of Diodes Incorporated. www.diodes.com ã Diodes Incorporated
R
qJS
R
qJA
R
qJA
R
qJA
T
j
T
STG
EU Directive Annex Notes 5 and 7
¾ 5 °C/W
100 ¾°C/W
60 ¾°C/W
40 ¾°C/W
-65 to +175 °C
-65 to +175 °C
.
O
O
2
g
90
O
Electrical Characteristics
@ TA= 25°C unless otherwise specified
Characteristic Symbol
Minimum Reverse Breakdown Voltage (Note 5)
Maximum Forward Voltage
Maximum Reverse Leakage Current (Note 5)
Maximum Reverse Recovery Time
Notes: 5. Short duration test pulse used to minimize self-heating effect.
NEW PROUDCT
100
10
100m
1
T=+150°C
j
T = 175°C
j
T = 125°C
j
RWARD CURRENT (A)
T = 85°C
10m
US F
1m
j
T = 25°C
j
V
(BR)R
V
FM
I
RM
t
rr
Value Unit
400 V
1.25
1.05
1.28
1.08
10
250
50 ns
100
T = 175°C
j
10
1
0.1
V
mA
T = +150°C
j
T=25°C
Test Condition
= 10mA
I
R
= 3A, TS= 25°C
I
F
= 3A, TS= 150°C
I
F
= 4A, TS= 25°C
I
F
= 4A, TS= 150°C
I
F
= 25°C, VR= 400V
T
S
= 150°C, VR= 400V
T
S
I
= 0.5A, IR= 1.0A
F
= 0.25A (See figure 7)
I
RR
T = 125°C
j
T=85°C
j
j
F
I , INSTANTANE
T = -65°C
j
0.2
0
V , INSTANTANEOUS FORWARD VOLTAGE (V)
F
0.4
0.6
0.8
1
1.2
1.4 1.6
Fig. 1 Typical Forward Characteristics
1.8
0.01
0.001
50 100
0
V , INSTANTANEOUS REVERSE VOLTAGE (V)
R
150 200
Fig. 2 Typical Reverse Characteristics
T = -65°C
j
250
300
350
400
5
f=1MHz
4
80
70
60
RWARD CURRENT (A)
F
I,DCF
3
Note 3
2
1
Note 2
0
0
30
60
T , AMBIENT TEMPERATURE (°C)
A
90
120
150
180
Fig. 4 DC Forward Current Derating
50
40
30
T
C , TOTAL CAPACITANCE (pF)
20
10
0
0
.3 Typical Total Capacitance vs. Reverse Voltage
Fi
DS30758 Rev. 2 - 2 2 of 4 PDU340
PowerDI is a trademark of Diodes Incorporated. www.diodes.com
10
515
V , REVERSE VOLTAGE (V)
R
20
25
