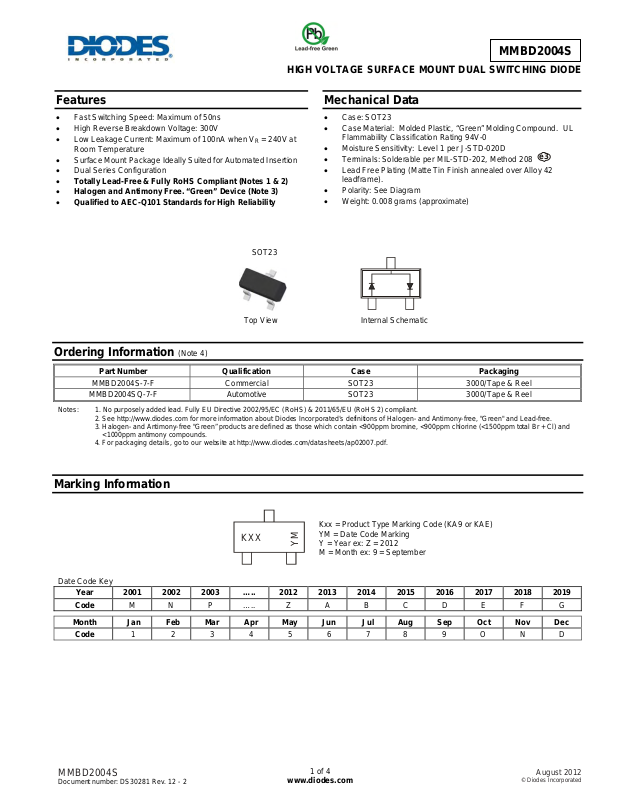

Page 1
p
Features
• Fast Switching Speed: Maximum of 50ns
• High Reverse Breakdown Voltage: 300V
• Low Leakage Current: Maximum of 100nA when V
Room Temperature
• Surface Mount Package Ideally Suited for Automated Insertion
• Dual Series Configuration
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
= 240V at
R
SOT23
To
View
MMBD2004S
HIGH VOLTAGE SURFACE MOUNT DUAL SWITCHING DIODE
Mechanical Data
• Case: SOT23
• Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020D
• Terminals: Solderable per MIL-STD-202, Method 208
• Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
• Polarity: See Diagram
• Weight: 0.008 grams (approximate)
Internal Schematic
e3
Ordering Information (Note 4)
Part Number Qualification Case Packaging
MMBD2004S-7-F Commercial SOT23 3000/Tape & Reel
MMBD2004SQ-7-F Automotive SOT23 3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Date Code Key
Year 2001 2002 2003 ….. 2012 2013 2014 2015 2016 2017 2018 2019
Code M N P ….. Z A B C D E F G
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
MMBD2004S
Document number: DS30281 Rev. 12 - 2
KXX
www.diodes.com
Kxx = Product Type Marking Code (KA9 or KAE)
YM = Date Code Marking
Y = Year ex: Z = 2012
YM
M = Month ex: 9 = September
1 of 4
August 2012
© Diodes Incorporated
Page 2
)
θ
(BR)
P, P
O
R
PATIO
NST
N
T
N
O
US F
O
RWARD C
URR
N
T
MMBD2004S
Maximum Ratings (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Value Unit
Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 5)
Peak Repetitive Forward Current (Note 5)
Non-Repetitive Peak Forward Surge Current @ t = 1.0µs
@ t = 1.0s
V
V
V
R(RMS
I
RRM
RWM
VR
IFM
FRM
I
FSM
300 V
240 V
170 V
225 mA
625 mA
4.0
1.0
A
Thermal Characteristics
Characteristic Symbol Value Unit
Power Dissipation (Note 5)
Thermal Resistance Junction to Ambient Air (Note 5)
Operating and Storage Temperature Range
PD
R
TJ , T
JA
STG
Electrical Characteristics (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Min Max Unit Test Condition
Reverse Breakdown Voltage (Note 6)
Forward Voltage
Reverse Current (Note 6)
Total Capacitance
Reverse Recovery Time
Notes: 5. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/da tasheets/ap02001.pdf.
6. Short duration pulse test used to minimize self-heating effect.
V
VF
IR
CT
trr
500
400
300
R
⎯
⎯
⎯
⎯
⎯
0.87
1.0
100
5.0 pF
50 ns
1,000
m
(A)
E
100
N (mW)
350 mW
357
-65 to +150
V
IR = 100µA
IF = 20mA
V
IF = 100mA
VR = 240V
nA
µA
VR = 240V, TJ = +150°C
VR = 0, f = 1.0MHz
IF = IR = 30mA,
I
= 3.0mA, RL = 100Ω
rr
°C/W
°C
300
10
DISSI
200
WE
D
100
0
0
T , AMBIENT TEMPERATURE (ºC)
A
8040
120
160
200
Figure 1 Power Derating Curve, Total Package
MMBD2004S
Document number: DS30281 Rev. 12 - 2
2 of 4
www.diodes.com
1.0
E
A
0.1
A
F
0.01
I, I
0
400 800 1,200
V , INSTANTA NEOUS FORWARD V OLTAGE (mV)
F
1,600 2,000
Figure 2 Typical For w ard Characteri s t ics, Per El ement
August 2012
© Diodes Incorporated
Page 3
C, TOT
CAPAC
T
C
F
1,000
100
10
1.0
0.1
0.01
0.001
0
V , INSTANTANEOUS REVERSE VOLTAGE (V)
R
Figure 3 Typical Reverse Characteristics, Per Element
50
100 150
200 250
Package Outline Dimensions
A
K
J
H
F
G
B
K1
D
Suggested Pad Layout
Y
Z
X
MMBD2004S
1.1
)
1.0
E (p
AN
I
0.9
AL
T
0.8
300 350
C
M
L
C
E
0.7
0.01
Figure 4 Total Capacitance vs. Reverse Voltage
Dim Min Max Typ
A 0.37 0.51 0.40
B 1.20 1.40 1.30
C 2.30 2.50 2.40
D 0.89 1.03 0.915
F 0.45 0.60 0.535
G 1.78 2.05 1.83
H 2.80 3.00 2.90
J 0.013 0.10 0.05
K 0.903 1.10 1.00
K1 - - 0.400
L 0.45 0.61 0.55
M 0.085 0.18 0.11
α
All Dimensions in mm
Dimensions Value (in mm)
0.1
V , DC REVERSE VOLTAGE (V)
R
SOT23
0° 8° -
Z 2.9
X 0.8
Y 0.9
C
E
1.0
Per Element
2.0
1.35
10
100
MMBD2004S
Document number: DS30281 Rev. 12 - 2
3 of 4
www.diodes.com
August 2012
© Diodes Incorporated
