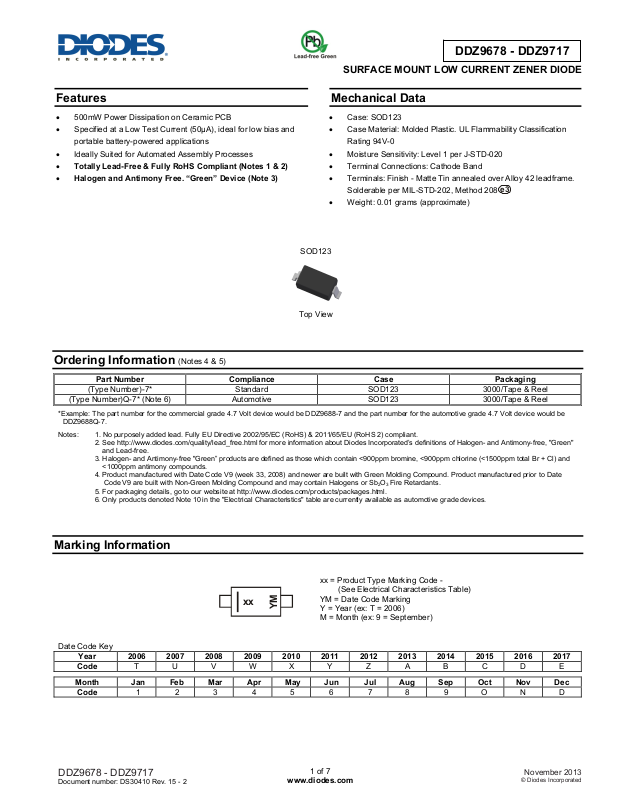

Diodes DDZ9678, DDZ9717 User Manual

Features
500mW Power Dissipation on Ceramic PCB
Specified at a Low Test Current (50µA), ideal for low bias and
portable battery-powered applications
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
DDZ9678 - DDZ9717
SURFACE MOUNT LOW CURRENT ZENER DIODE
Mechanical Data
Case: SOD123
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band
Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.01 grams (approximate)
SOD123
Top View
e3
Ordering Information (Notes 4 & 5)
Part Number Compliance Case Packaging
(Type Number)-7* Standard SOD123 3000/Tape & Reel
(Type Number)Q-7* (Note 6) Automotive SOD123 3000/Tape & Reel
*Example: The part number for the commercial grade 4.7 Volt device would be DDZ9688-7 and the part number for the automotive grade 4.7 Volt device would be
DDZ9688Q-7.
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.
4. Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
6. Only products denoted Note 10 in the "Electrical Characteristics" table are currently available as automotive grade devices.
Marking Information
Date Code Key
Year 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
Code T U V W X Y Z A B C D E
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
DDZ9678 - DDZ9717
Document number: DS30410 Rev. 15 - 2
xx
YM
www.diodes.com
xx = Product Type Marking Code - (See Electrical Characteristics Table) YM = Date Code Marking Y = Year (ex: T = 2006) M = Month (ex: 9 = September)
1 of 7
November 2013
© Diodes Incorporated
DDZ9678 - DDZ9717
Maximum Ratings (@T
= +25°C, unless otherwise specified.)
A
Characteristic Symbol Value Unit
Forward Voltage @ IF = 10mA VF
0.9 V
Thermal Characteristics
Characteristic Symbol Value Unit
Power Dissipation (Note 7)
Thermal Resistance, Junction to Ambient Air (Note 7)
Operating and Storage Temperature Range
P
R
T
J, TSTG
θJA
D
500 mW
305 °C/W
-65 to +150 °C
Electrical Characteristics (@T
Type
Number
Type Code
= +25°C, unless otherwise specified.)
A
Zener Voltage Range (Note 8)
VZ @ IZT I
Maximum Reverse
Leakage Current (Note 9)
I
ZT
@ VR
R
Nom (V) Min (V) Max (V) µA µA V
DDZ9678 D1 1.8 1.71 1.89 50 7.5 1 DDZ9681 (Note 10) H9 2.4 2.28 2.52 50 2 1 DDZ9682 (Note 10) HA 2.7 2.565 2.835 50 1 1
DDZ9683 HB 3.0 2.85 3.15 50 0.8 1 DDZ9684 (Note 10) HC 3.3 3.13 3.47 50 7.5 1.5 DDZ9685 (Note 10) HD 3.6 3.42 3.78 50 7.5 2 DDZ9686 (Note 10) HE 3.9 3.70 4.10 50 5 2 DDZ9687 (Note 10) HF 4.3 4.09 4.52 50 4 2 DDZ9688 (Note 10) HG 4.7 4.47 4.94 50 5 3 DDZ9689 (Note 10) HH 5.1 4.85 5.36 50 5 3 DDZ9690 (Note 10) HJ 5.6 5.32 5.88 50 2 4
DDZ9691 HK 6.2 5.89 6.51 50 1 5
DDZ9692 HL 6.8 6.46 7.14 50 0.1 5.1 DDZ9693 (Note 10) HM 7.5 7.13 7.88 50 0.1 5.7 DDZ9694 (Note 10) HN 8.2 7.79 8.61 50 0.1 6.2 DDZ9696 (Note 10) HP 9.1 8.65 9.56 50 0.1 6.9 DDZ9697 (Note 10) HQ 10 9.50 10.50 50 0.1 7.6
DDZ9698 HR 11 10.45 11.55 50 0.05 8.4 DDZ9699 (Note 10) HS 12 11.40 12.60 50 0.05 9.1 DDZ9700 (Note 10) HT 13 12.35 13.65 50 0.05 9.8 DDZ9701 (Note 10) HU 14 13.30 14.70 50 0.05 10.6
DDZ9702 HV 15 14.25 15.75 50 0.05 11.4
DDZ9703 HW 16 15.20 16.80 50 0.05 12.1 DDZ9704 (Note 10) H8 17 16.15 17.85 50 0.05 12.9
DDZ9705 HY 18 17.10 18.90 50 0.05 13.6
DDZ9707 MD 20 19.00 21.00 50 0.05 15.2
DDZ9708 ME 22 20.90 23.10 50 0.05 16.7
DDZ9709 MF 24 22.80 25.20 50 0.05 18.2
DDZ9711 MH 27 25.65 28.35 50 0.05 20.4
DDZ9712 MJ 28 26.60 29.40 50 0.05 21.2
DDZ9713 MK 30 28.50 31.50 50 0.05 22.8
DDZ9714 ML 33 31.35 34.65 50 0.05 25.0
DDZ9715 MM 36 34.20 37.80 50 0.05 27.3
DDZ9716 MN 39 37.05 40.95 50 0.05 29.6
DDZ9717 MO 43 40.85 45.15 50 0.05 32.6
Notes: 7. Device mounted on ceramic PCB = 7.6mm x 9.4mm x 0.87mm with pad areas 25mm2 at TA = +25°C or mounted on FR-5 = 3.5x1.5 inches with recommended pad layout, which can be found on our website at http://www.diodes.com, at T
8. Nominal Zener voltage is measured with the device junction in thermal equilibrium at T
9. Short duration pulse test used to minimize self-heating effect.
10. Qualified to AEC-Q101 Standards for High Reliability. Please contact the Diodes, Inc. sales department for assistance in ordering any products expected to meet automotive requirements.
DDZ9678 - DDZ9717
Document number: DS30410 Rev. 15 - 2
2 of 7
www.diodes.com
= +75°C.
L
= +30°C ±1°C.
T
November 2013
© Diodes Incorporated
P, P
OWER
PATIO
O
U
O
RWARD C
URR
R CUR
RENT
R C
U
R
RENT
N
R C
URR
N
T
DDZ9678 - DDZ9717
1.0
0.9
0.8
N (W)
0.7
ENT (mA)
0.6
0.5
DISSI
0.4
S F
0.3
D
0.2
0.1
0
2505075100125
T , AMBIENT TEMPERATURE ( C)
A
Fig. 1 Power Derating Curve
150
°
F
I , INSTANTANE
0
V , INSTANTANEOUS FORWARD VOLTAGE (V)
F
Fig. 2 Typical Forward C haracteristics
100m
9681
9688
9692
9693
9694
9696
9697
9698
9699
9700
9701
9702
9703
9705
9707
9708
9709
9711
9714
9715
9716
9717
10m
100m
10m
(A)
1m
1m
(A)
Z
I, ZENE
100n
10n
05
10 15
20
V , ZENER VOLTAGE (V)
Z
25 30 35
Fig. 3 Typical Zener Breakdown Characteristics
100m
10m
(A)
1m
E
E
40
45
Z
I, ZENE
100n
2.0 3.0 4.0 5.0 6.0
1.0 V , ZENER VOLTAGE (V)
Z
7.0 8.0
Fig. 4 Typical Zener Breakdown Characteristics,
DDZ9678 - DDZ9694
9.0
Z
I, ZE
100n
10.0
8.0 11.0 13.0 15.0 V , ZENER VOLTAGE (V)
Z
12.0 14.0
Fig. 5 Typical Zener Breakdown Characteristics,
DDZ9696 - DDZ9701
DDZ9678 - DDZ9717
Document number: DS30410 Rev. 15 - 2
3 of 7
www.diodes.com
November 2013
© Diodes Incorporated
