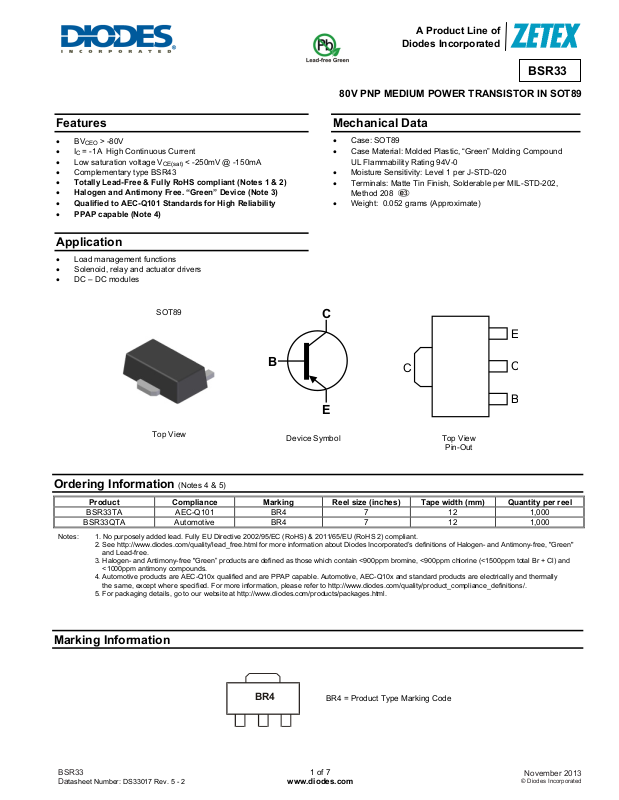

Diodes BSR33 User Manual

A

f

ECB

Product Line o

Diodes Incorporated

80V PNP MEDIUM POWER TRANSISTOR IN SOT89

Features

 BV
 I
 Low saturation voltage V
 Complementary type BSR43
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
 PPAP capable (Note 4)

> -80V

CEO

= -1A High Continuous Current

C

CE(sat)

< -250mV @ -150mA

Mechanical Data

 Case: SOT89
 Case Material: Molded Plastic, “Green” Molding Compound

UL Flammability Rating 94V-0

 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Matte Tin Finish, Solderable per MIL-STD-202,

Method 208

 Weight: 0.052 grams (Approximate)

Application

 Load management functions
 Solenoid, relay and actuator drivers
 DC – DC modules

SOT89

Top View

C

B

Device Symbol Top View

E

C

Pin-Out

BSR33

Ordering Information (Notes 4 & 5)

Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel

BSR33TA AEC-Q101 BR4 7 12 1,000

BSR33QTA Automotive BR4 7 12 1,000

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.

4. Automotive products are AEC-Q10x qualified and are PPAP capable. Automotive, AEC-Q10x and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

BSR33
Da

tasheet Number: DS33017 Rev. 5 - 2

BR4

www.diodes.com

BR4 = Product Type Marking Code

1 of 7

November 2013

© Diodes Incorporated

A

f

Product Line o

Diodes Incorporated

BSR33

Absolute Maximum Ratings (@T

= +25°C, unless otherwise specified.)

A

Characteristic Symbol Value Unit

Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Current
Peak Base Current

Thermal Characteristics (@T

= +25°C, unless otherwise specified.)

A

Characteristic Symbol Value Unit

(Note 6)

Power Dissipation

(Note 7) 1.5

(Note 8) 2.1

(Note 6)

Thermal Resistance, Junction to Ambient Air

(Note 7) 83

(Note 8) 60

Thermal Resistance, Junction to Lead (Note 9)

Operating and Storage Temperature Range

ESD Ratings (Note 10)

V

CBO

V

CEO

V

EBO

I

C

I

CM

I

BM

-90 V

-80 V

-5 V

-1 A

-2 A

-200 mA

1

P

D

W

125

R

R

T

J, TSTG

Θ

JA

Θ

JL

13 °C/W

-65 to +150 °C

°C/W

Characteristic Symbol Value Unit JEDEC Class

Electrostatic Discharge - Human Body Model ESD HBM 4,000 V 3A

Electrostatic Discharge - Machine Model ESD MM 400 V C

Notes: 6. For a device mounted with the exposed collector pad on 15mm x 15mm 1oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured
under still air conditions whilst operating in a steady-state.

7. Same as note (6), except the device is mounted on 25mm x 25mm 1oz copper.

8. Same as note (6), except the device is mounted on 50mm x 50mm 1oz copper.

9. Thermal resistance from junction to solder-point (on the exposed collector pad).

10. Refer to JEDEC specification JESD22-A114 and JESD22-A115.

BSR33
Da

tasheet Number: DS33017 Rev. 5 - 2

2 of 7

www.diodes.com

November 2013

© Diodes Incorporated

A

f

Thermal Characteristics and Derating Information

Product Line o

Diodes Incorporated

BSR33

1.0

0.8

0.6

0.4

0.2

0.0
0 25 50 75 100 125 150

Max Power Dissipation (W)

Temperature (°C)

Derating Curve

100

Single Pulse. T

10

amb

=25°C

120

100

80

D=0.5

60

40

D=0.2

20

0

100µ 1m 10m 100m 1 10 100 1k

Thermal Resistance (°C/W)

Pulse Width (s)

Single Pulse

D=0.05

D=0.1

Transient Thermal Impedance

1

100µ 1m 10m 100m 1 10 100 1k

Max Power Dissipation (W)

Pulse Width (s)

Pulse Power Dissipation

140.0

120.0

100.0

80.0

60.0

40.0

Thermal Resistance (°C/W)

0 500 1000 1500 2000 2500

2oz copper

Copper Area (sqmm)

T

=25°C

amb

1oz copper

3

2oz copper

2

1oz copper

1

Maximum Power (W)

T

=25°C

amb

0

0 500 1000 1500 2000 2500

Copper Area (sqmm)
