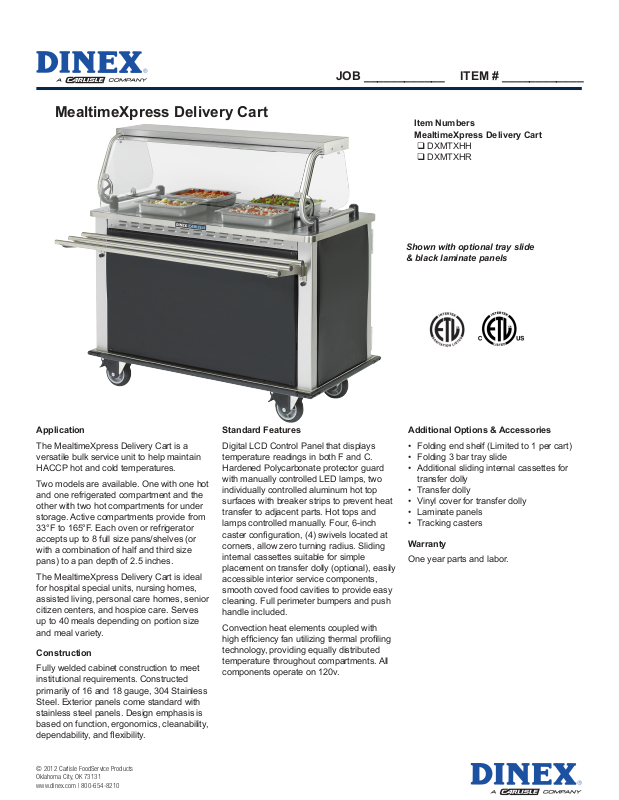

Dinex MTXHR User Manual
JOB ____________
ITEM # ____________
MealtimeXpress Delivery Cart
Item Numbers
MealtimeXpress Delivery Cart
q DXMTXHH
q DXMTXHR
Shown with optional tray slide
& black laminate panels
Application
The MealtimeXpress Delivery Cart is a
versatile bulk service unit to help maintain
HACCP hot and cold temperatures.
Two models are available. One with one hot
and one refrigerated compartment and the
other with two hot compartments for under
storage. Active compartments provide from
33°F to 165°F. Each oven or refrigerator
accepts up to 8 full size pans/shelves (or
with a combination of half and third size
pans) to a pan depth of 2.5 inches.
The MealtimeXpress Delivery Cart is ideal
for hospital special units, nursing homes,
assisted living, personal care homes, senior
citizen centers, and hospice care. Serves
up to 40 meals depending on portion size
and meal variety.
Construction
Fully welded cabinet construction to meet
institutional requirements. Constructed
primarily of 16 and 18 gauge, 304 Stainless
Steel. Exterior panels come standard with
stainless steel panels. Design emphasis is
based on function, ergonomics, cleanability,
dependability, and exibility.
Standard Features
Digital LCD Control Panel that displays
temperature readings in both F and C.
Hardened Polycarbonate protector guard
with manually controlled LED lamps, two
individually controlled aluminum hot top
surfaces with breaker strips to prevent heat
transfer to adjacent parts. Hot tops and
lamps controlled manually. Four, 6-inch
caster conguration, (4) swivels located at
corners, allow zero turning radius. Sliding
internal cassettes suitable for simple
placement on transfer dolly (optional), easily
accessible interior service components,
smooth coved food cavities to provide easy
cleaning. Full perimeter bumpers and push
handle included.
Convection heat elements coupled with
high efciency fan utilizing thermal proling
technology, providing equally distributed
temperature throughout compartments. All
components operate on 120v.
Additional Options & Accessories
• Folding end shelf (Limited to 1 per cart)
• Folding 3 bar tray slide
• Additional sliding internal cassettes for
transfer dolly
• Transfer dolly
• Vinyl cover for transfer dolly
• Laminate panels
• Tracking casters
Warranty
One year parts and labor.
© 2012 Carlisle FoodService Products
Oklahoma City, OK 73131
www.dinex.com | 800-654-8210
MealtimeXpress Delivery Cart
33.86
39.36
54.52
37.81
52.40
28.74
67.486
(Top View) (Side View)(Back View)
D
C
B
6
5
4
3
2
1
E
F
(Top View) (Side View)(Back View)
28.74
52.40
67.486
Specications
ITEM
NUMBER
DXMTXHR MTXHR
DXMTXHH MTXHH Two (8 full size or 16 half size pans) Hot Compartments 19.0
Options
ITEM
NUMBER
DXMTXFLP MTXFLP Laminate Panels
MODEL
NUMBER
One (8 full size or 16 half size pans) Hot Compartment and
One (8 full size or 16 half size pans) Refrigerated Compartment
MODEL NUMBER DESCRIPTION
FEATURES AMPS
PLUG CONFIGURATIONS
54.52
15.5
37.81
WEIGHT
(272 kg)
(272 kg)
NEMA 5-20P
120v, 20 AMP
SHIP
600 lb.
600 lb.
33.86
39.36
SHIP
CUBE
105.56
105.56
DXMTXTS MTXTS 3 Bar Fold Down Tray Slide
DXMTXDDES MTXDDES Drop down end shelf for tray prep
DXDLCA62 DLCA62 Directional Tracking Casters (set of 2)
optional cassettes
Accessories
ITEM
NUMBER
DXMTXTD MTXTD Standard Transfer Dolly
DXMTX8C MTX8C Additional Cassettes
DXMTXTDVC33U MTXTDVC33U Vinyl Cover
WARNING: Products identified on this page with the following symbol contain chemicals, including one or more
phthalates, known to the State of California to cause cancer and birth defects and other reproductive harm.
Note: Pan references are for full size steam pans, 12" X 20" X 2.5" - Half size pans recommended for menu exibility
• 8 full size pan capacity cassettes are standard on all units.
Please conrm that you have the most current specication sheet by visiting www.dinex.com.
Dinex reserves the right to change specications and product design without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased equipment.
Printed in USA
© 2013 Carlisle FoodService Products
Oklahoma City, OK 73131
www.dinex.com | 800-654-8210
MODEL NUMBER DESCRIPTION
Transfer Dolly
shown with
Shown with
optional end shelf
and tray slide
