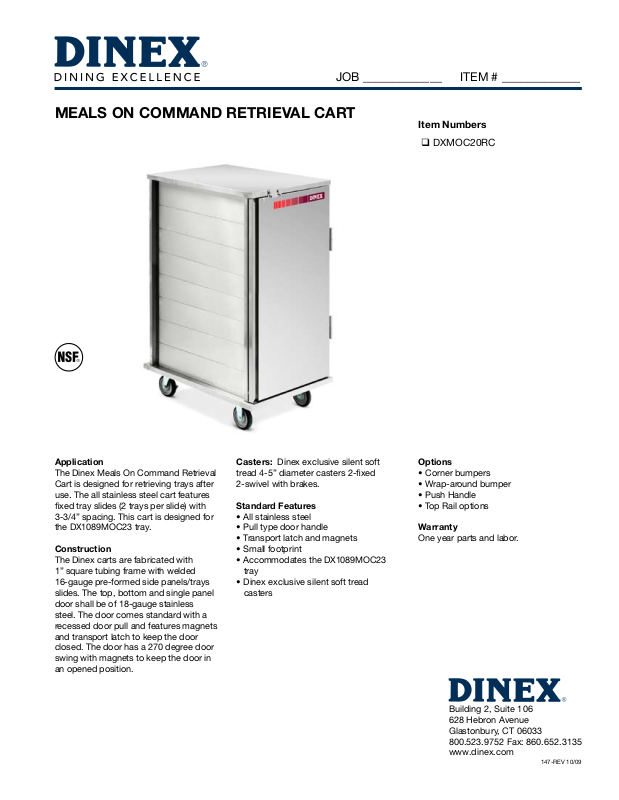

Dinex MOC20RC User Manual
JOB _____________
ITEM # _____________
MEALS ON COMMAND RETRIEVAL CART
Item Numbers
q DXMOC20RC
Application
The Dinex Meals On Command Retrieval
Cart is designed for retrieving trays after
use. The all stainless steel cart features
fixed tray slides (2 trays per slide) with
3-3/4” spacing. This cart is designed for
the DX1089MOC23 tray.
Construction
The Dinex carts are fabricated with
1” square tubing frame with welded
16-gauge pre-formed side panels/trays
slides. The top, bottom and single panel
door shall be of 18-gauge stainless
steel. The door comes standard with a
recessed door pull and features magnets
and transport latch to keep the door
closed. The door has a 270 degree door
swing with magnets to keep the door in
an opened position.
Casters: Dinex exclusive silent soft
tread 4-5” diameter casters 2-fixed
2-swivel with brakes.
Standard Features
• All stainless steel
• Pull type door handle
• Transport latch and magnets
• Small footprint
• Accommodates the DX1089MOC23
tray
• Dinex exclusive silent soft tread
casters
Options
• Corner bumpers
• Wrap-around bumper
• Push Handle
• Top Rail options
Warranty
One year parts and labor.
Building 2, Suite 106
628 Hebron Avenue
Glastonbury, CT 06033
800.523.9752 Fax: 860.652.3135
www.dinex.com
147-REV 10/09
MEALS ON COMMAND RETRIEVAL CART
3.8” (9.5cm)
23.5” (59.2cm)
IM of Slides
47.6”
(121cm)
25.4” (64.5cm)
OM of Posts
19.97”
(50.7cm)
Top View
28.4”
(72.2cm)
42”
(106.7cm)
Items and Dimensions
ITEM
NUMBER
DXMOC20RC MOC20RC
NUMBER
MODEL
26.5”
(67.3cm)
LENGTH DEPTH HEIGHT
26.5”
(67.3cm)
31”
(78.7cm)
(78.7cm)
Side ViewFront View
47.625”
(121cm)
31”
SHIP
WEIGHT
269 lb.
(134kg)
SHIP
CUBE
38.5
Please confirm that you have the most current specification sheet by visiting www.dinex.com.
Dinex® reserves the right to change specifications and product design without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased equipment.
Printed in USA
Building 2, Suite 106
628 Hebron Avenue
Glastonbury, CT 06033
800.523.9752 Fax: 860.652.3135
www.dinex.com
147-REV 10/09
