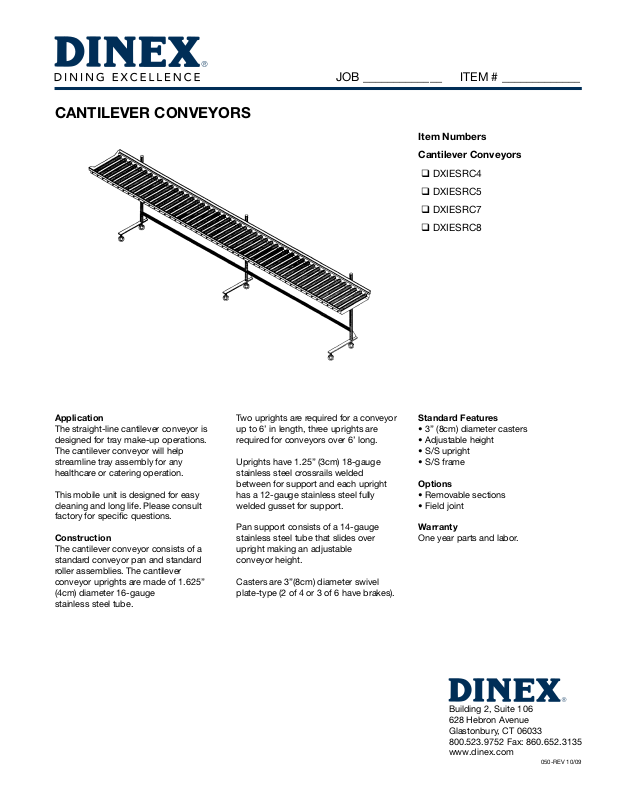

CANTILEVER CONVEYORS
JOB _____________
Item Numbers
Cantilever Conveyors
q DXIESRC4
q DXIESRC5
q DXIESRC7
q DXIESRC8
ITEM # _____________
Application
The straight-line cantilever conveyor is
designed for tray make-up operations.
The cantilever conveyor will help
streamline tray assembly for any
healthcare or catering operation.
This mobile unit is designed for easy
cleaning and long life. Please consult
factory for specific questions.
Construction
The cantilever conveyor consists of a
standard conveyor pan and standard
roller assemblies. The cantilever
conveyor uprights are made of 1.625”
(4cm) diameter 16-gauge
stainless steel tube.
Two uprights are required for a conveyor
up to 6’ in length, three uprights are
required for conveyors over 6’ long.
Uprights have 1.25” (3cm) 18-gauge
stainless steel crossrails welded
between for support and each upright
has a 12-gauge stainless steel fully
welded gusset for support.
Pan support consists of a 14-gauge
stainless steel tube that slides over
upright making an adjustable
conveyor height.
Casters are 3”(8cm) diameter swivel
plate-type (2 of 4 or 3 of 6 have brakes).
Standard Features
• 3” (8cm) diameter casters
• Adjustable height
• S/S upright
• S/S frame
Options
• Removable sections
• Field joint
Warranty
One year parts and labor.
Building 2, Suite 106
628 Hebron Avenue
Glastonbury, CT 06033
800.523.9752 Fax: 860.652.3135
www.dinex.com
050-REV 10/09
CANTILEVER CONVEYORS
Tray Size + 1/4”
96” (244cm)
42” (107cm)
42” (107cm)
36” (91cm)
Tray Size + 1/4”
Items and Dimensions
ITEM NUMBER MODEL NUMBER SIZE SHIP WEIGHT
DXISERC4 ISERC4 4 ft. (1.2 meter) section 90 lb. (41kg)
DXISERC5 ISERC5 5 ft. (1.5 meter) section 110 lb. (50kg)
DXISERC6 ISERC6 6 ft. (1.8 meter) section 130 lb. (59kg)
DXISERC7 ISERC7 7 ft. (2.1 meter) section 150 lb. (68kg)
DXISERC8 ISERC8 8 ft. (2.4 meter) section 170 lb. (77kg)
Please confirm that you have the most current specification sheet by visiting www.dinex.com.
Dinex® reserves the right to change specifications and product design without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased equipment.
Printed in USA
